GPS NAVIGATION SYSTEM
EN
GPS-4V506-IUS
INSTRUCTION MANUAL
InVion
Model: GPS-4V506-IUS
Language : US
Page : 1 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Congratulations on choosing your new Invion product. We have
every expectation that you will be completely satised with your new
purchase.
To always guarantee optimal function and performance of your product, we
would ask the following:
•
Before using the product for the rst time, carefully read the operating
instructions and adhere to the safety precautions!
•
All activities at and with this product may only be carried out as described
in these operating instructions.
•
Please be sure to include the operating instructions in case you pass
along this product to someone else.
Packaging:
This product is delivered in protective packaging to prevent transportation
damage. Packaging materials are raw materials and can therefore be
recycled. Please recycle these materials.
Note:
If your original SD card is missing or broken, recovering map datas from
backup DVD.
Use empty 1G SD card(available size should more than 960M)
Insert the supplied DVD disk into your computer, software will
automatically loaded
Copy DestinatorAPPS from DVD disk onto SD card
Then insert the new SD card into your navigation unit
Power up your unit
ENGLISH
InVion
Model: GPS-4V506-IUS
2
Language : US
Page : 2 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Contents
Brief introduction of hardware . . . . . . . . . . . . . . . . . . . . . . . . .5
Navigation Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1. Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Main Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Map Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Route Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Cancel Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2. Select Location and Generate Route . . . . . . . . . . . . . . . . . 11
Go to an Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Point of Interest (POI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
QuickNav . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Recent Place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Address Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
3. Additional Invion GPS Features . . . . . . . . . . . . . . . . . . . . .24
Driving Directions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Avoid Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Detour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Map Browsing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Walking Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Map Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
4. Invion GPS Congurations . . . . . . . . . . . . . . . . . . . . . . . .32
Settings Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Prompts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Language Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Look & Feel Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
GPS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
InVion
Model: GPS-4V506-IUS
3
Language : US
Page : 3 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Units of Measure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Time Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Map Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
About. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Top Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Entertainment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
1. Notices, Disclaimers, and Terms of Use. . . . . . . . . . . . . . .44
2. Copyright Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
3. Safety advice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
4. Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
5. FCC compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Claims & Warranties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
ENGLISH
InVion
Model: GPS-4V506-IUS
4
Language : US
Page : 4 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Brief introduction of hardware
Standard Package
Before getting started with your GPS, check to see that your INVION GPS4V5 package includes the following items (if you are missing any parts,
please contact your INVION dealer immediately):
● GPS unit ● Car power adapter
● Instruction manual ● USB cable
●
Suction mount
Quick Start Guide
● Mounting bracket
SD card
7
6
5
4
3
2
1
(1) USB port
(2) A/V(optional)
(3) Earphone jack
(4) Volumn wheel
(5) Antenna jack
(6) Power button
(7) Menu
(8) Touch screen
(9) Card slot: slot for SD or MMC memory cards
(10) Lock
(11) Power jack
5
8
9
10
11
InVion
Model: GPS-4V506-IUS
Language : US
Page : 5 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
ABOUT THE TOUCH SCREEN
Do not touch the TOUCH SCREEN until the unit starts up completely.
•
Otherwise, the touch screen may not function correctly.
The navigation device is mainly operated by touching the buttons on the
•
touch screen.
If nothing happens when you touch the buttons on the touch screen,
•
remove your hand from the screen and touch the button again.
Do not touch any buttons that are grayed out.
•
When cleaning the touch screen, use a soft cloth.
•
* SD CARD SLOT: Insert a SD/MMC card containing maps to load them on
to the GPS device.
For loading MP3 and Movies to the SD card, we recommend using a
•
separate SD card reader / writer.
Connection
Connect to Car Power
ENGLISH
Connect the USB plug of the car power adapter to the USB port on the
1.
side of the GPS Unit.
Connect the car cigarette lighter plug of the car power adapter into the
2.
car cigarette lighter socket.
Chipset Sirf star III
Operates behind athermic windshield
InVion
Model: GPS-4V506-IUS
6
Language : US
Page : 6 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Navigation manual
1. Getting Started
Welcome to the world of mobile navigation! Simple operation, clear maps in
2D or 3D mode as well as numerous innovative features and functions have
made the Invion GPS the essential guide for every traveler – whether in the
car, on foot or by bike.
You can congure these system settings by going to these system options
from the Settings menu.
Language Settings – Set text and voice language preferences.
•
End User License Agreement (EULA) – Please review the license
•
information and tap the I Agree button. The EULA screen appears each
time you use a new map.
Time Zone –You can select the Daylight Saving checkbox to automatically
•
adjust for daylight saving.
Units of Measure – Specify the system measurement units.
•
Prompts – Congure the general navigation prompts and notications.
•
QuickNav Settings – Specify an Address or Point of Interest (POI) that
•
the Invion GPS navigates to when you tap the QuickNav button on the
Main Map screen.
Driver Warning – When you start the Invion GPS, the Driver Warning
•
screen appears. Please take a moment to review the information provided
before tapping the OK button. Select the “Do not display this warning
again” checkbox to skip this message in the future.
InVion
Model: GPS-4V506-IUS
Figure 1 – Map Warning Screen
7
Language : US
Page : 7 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Main Map
You can use the icons displayed on this screen to plan and view your
route.
1
2
6
7
8
ENGLISH
3
4
5
Figure 2 – Map Screen
9
10
Main Map Icons
1, 6 Zoom in or out of the map to view a larger less de-
tailed area or a smaller area in greater detail.
2 Tap the compass to change the map view display as
follows:
2D map view with the forward direction at the top.
3D map view with the forward direction at the top.
2D map view with North at the top.
3 Tap this icon to adjust or mute the volume.
4 When you have calculated
a route, the Directions bar
displays information about
your next turn. Tap this bar
for a complete list of turnby-turn directions.
InVion
Model: GPS-4V506-IUS
8
Language : US
Page : 8 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
5 The GPS bar is a toggle
button that displays the remaining travel distance and
travel time, estimated time
of arrival, street name and
address number, speed
and altitude.
7 The red GPS receiver means that a reliable GPS
signal is not yet located.
The green GPS receiver means that a reliable GPS
signal is located and that you are ready to navigate.
8 These icons display your power source. The battery
appears as green, yellow, or red depending on the
strength of the battery charge.
9 Tap this icon to set your QuickNav location. When
set, you can tap this button to automatically calculate
a route to this location.
10
Location Icons
Tap this icon to display the Go To menu.
Current location in Vehicle Mode or Walking Mode.
Last known location when GPS signal is unreliable.
Generated route.
InVion
Model: GPS-4V506-IUS
9
Language : US
Page : 9 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Location Point on Main Map
You can drag the map to a specic point and tap the desired location directly
on the Main Map screen in both 2D and 3D map view. This feature is useful
when you want to navigate to a specic point on the map, rather than by the
street address. When you tap on the map, the pop-up menu appears with
the following options:
Go There – Navigate to the selected point on the map.
Add to my Favorites– Save a
point on the map as a favorite
destination for future use.
Set as Starting Point – Designate
the selected point as the starting
Figure 3 – Point on the Map Options
point instead of your current location.
Map Views
You can choose to see a two-dimensional or three-dimensional map
adjusted specically for daylight or nighttime conditions.
From the Options & Setting menu, tap the Day/Night View toggle button
to view the map for day or night driving and the 2D/3D View toggle button
to display the map view in 2-dimensional or 3-dimensional views for day or
night driving.
ENGLISH
Route Summary
An overview of your complete route, the total driving
distance to your destination, the estimated travel time,
and the complete destination address, are displayed
on the screen.
InVion
Model: GPS-4V506-IUS
• From the Manage Route menu, tap the Route
Summary button.
10
Language : US
Page : 10 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Cancel Route
• From the Manage Route menu, tap the Cancel
Route button.
The current navigation stops and the Invion GPS
clears the route. You can only cancel a route after a
destination has been set.
2 Select Location and Generate Route
Go to an Address
From the Navigation menu, tap the New
Address button. The Address Search Mode
screen appears, allowing you to choose how you
want to enter address information. For example, if
you select City rst, the rst address screen lets
you select from a list of states, the second screen
a list of cities, the third screen is a list of streets,
and the fourth screen lets you enter an address
number.
Select from the following address entry options:
• City rst – State > City > Street > Address
Number
• Street rst – Street > City > Address Number
– You enter a street name without having to
rst select a city. This is useful when searching
for an address in a metropolitan area where
there are many cities and towns.
• Intersection – State > City> Street > Street 2
Note: When a United States map is selected, the
rst address screen is always Select State.
InVion
Model: GPS-4V506-IUS
11
Language : US
Page : 11 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Tap from one of the Address Search Mode options to display the rst
address screen.
Figure 4 – Selecting an Address
When entering an address, you can use the keyboard to enter the
characters. The characters appear in the Address eld. The Invion
GPS automatically searches the Address list for the rst occurrence of
the entered characters. After you have selected a city, the Invion GPS
displays the next address eld, such as street and address number.
Instead of specifying a street, you have the option of selecting the
City Center. If you don’t know the address number, you can select the
Street Midpoint.
Tap the OK button to move through the sequence of address screens.
Go to Another Country
From the Address Search Mode screen, you can tap Other country map
to select another country that you can travel to by vehicle.
This feature is available only when you have the following maps installed:
Map of the country where you are currently located.
•
Map of the country where you want to travel.
•
The map of the major roads for that continent that connects one map
•
to another
ENGLISH
InVion
Model: GPS-4V506-IUS
12
Language : US
Page : 12 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Invion GPS Screen Buttons
The following buttons appear on many of the navigation screens.
When you tap this button for a selected address,
group, or place, the Invion GPS automatically
opens the next screen in the sequence.
When you tap this button, the Invion GPS returns
you to the previous screen.
This button provides a list of command options
available for the selected address or place.
Keyboard Command Keys
The following buttons are available to enhance your search process.
1
2
1 Lets you remove a character that you have entered.
2 Lets you scroll up or down the list of states, city, or street names.
3 Tap the Keyboard button to collapse the keyboard. Tap the Search
button to expand the keyboard.
InVion
Model: GPS-4V506-IUS
Figure 5 – Search and Keyboard Buttons
3
13
Language : US
Page : 13 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Navigate to an Address
You can select from the following route
types:
Quickest – This option selects the
route that takes the least amount of
time. Quickest is the default setting.
Shortest – This option selects the route
that is shorter in distance. Note: The
shorter route may not always be the
Figure 6 – Show on Map
quickest.
Go – When you tap the Go button, the
Invion GPS calculates the route to your
selected destination.
Demo – Tap the icon to start navi-
gating a simulated route.
Note: Route generation excludes
any detours, stops or delays
along the route.
Actions
Tap the Actions button to:
Set an Address as the point of origin – Tap the As Starting Point
•
button to designate the selected address as the route origin.
To Show on map – Tap to see the selected address on the map.
•
Save Favourites – Tap “As saved address” to add this address to
•
your list of favorite locations. For more information about favorites,
see Address Book on page 21.
Information – Tap to display additional address information and
•
phone number (where available).
ENGLISH
InVion
Model: GPS-4V506-IUS
14
Language : US
Page : 14 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Point of Interest (POI)
The Point of Interest (POI) list is a collection of
hundreds of interesting or useful places organized
by easy-to-nd categories. For example, you can
use the Invion GPS to guide you to a shopping
center, hotel, restaurant, or gas station.
Many categories have subcategories to provide for
an even greater list of choices. For example, gas
stations, may have many subcategories each representing a particular brand name. The same is also
true for hotels. Restaurants have subcategories that
represent different types of food, such as Indian,
Italian, and French.
Search for a Location Near You
You can determine the area where you want to search for a specic
place, such as a gas station, hotel, or restaurant. My Current Location is
automatically selected.
Tap to search near your current location.
Tap to search near your specied destination. If a destination has not been selected and a route generated (by tapping
the Go button), this button is disabled.
Tap to search for a POI in another location. This button opens the Address
Search Mode screen, which is described
on page 11-12.
InVion
Model: GPS-4V506-IUS
15
Language : US
Page : 15 (of 50 Pages)
Version : 1.0
Date : 2007.10.13

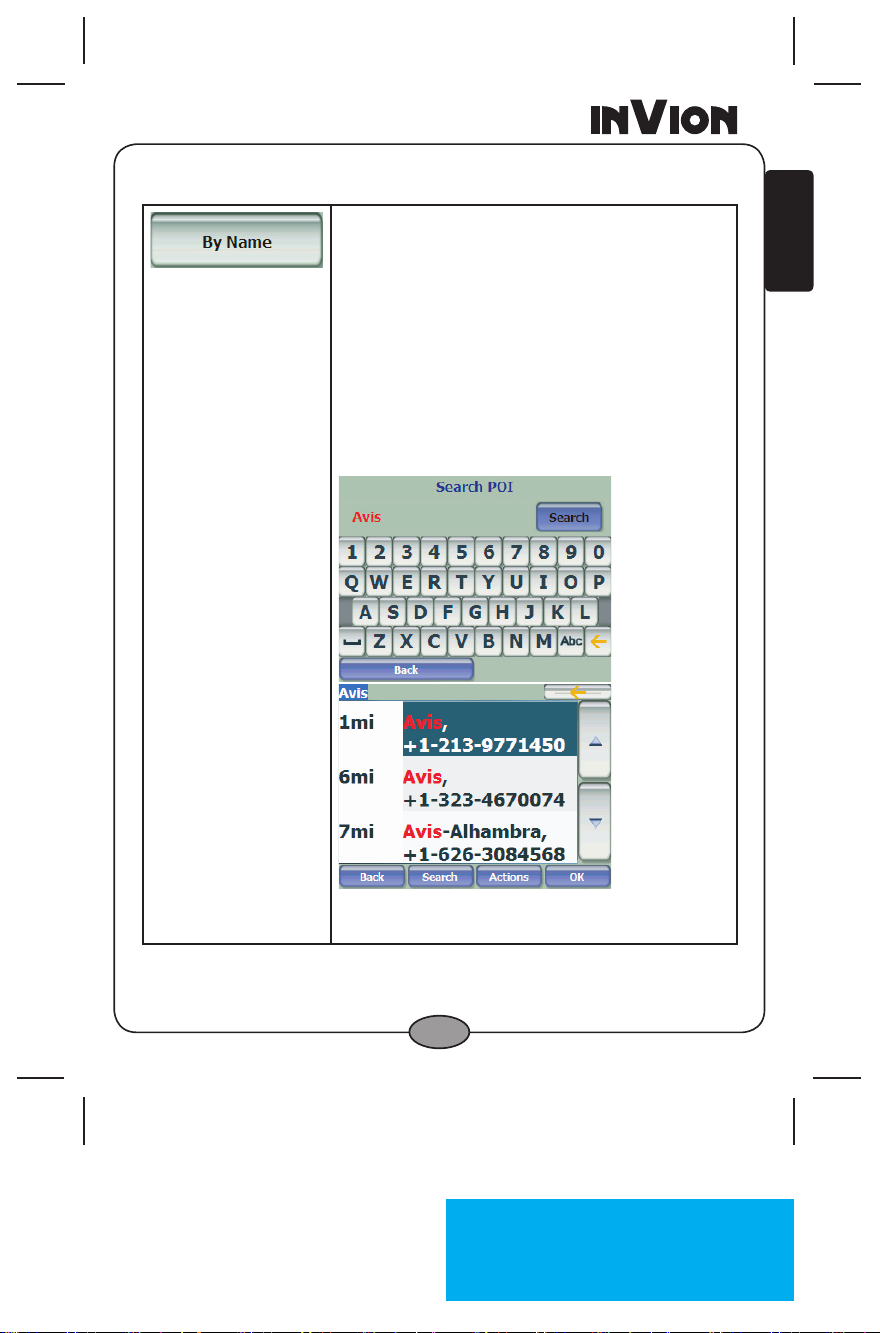

Search for a POI Name
Tap this button to display the Search POI keyboard screen, where you can search by entering
text in the POI Name eld. The Smart Search
System automatically displays the POI names
that match the characters entered. The Invion
GPS automatically displays the POI entries and
the distance each entry is from your current location.
For example, if I enter “Avis” and tap the Search
button. The Invion GPS displays all Avis entries
in my selected location, as shown in the gure
below.
ENGLISH
InVion
Model: GPS-4V506-IUS
Figure 7 – Search by POI Name
16
Language : US
Page : 16 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Search for a POI Category
Tap this button to display the most common
POI categories.
Figure 8 – Most Common POI Categories
Tap More to display the Point of Interest
screen, where you can search through the
entire list of POI categories.
Show or Hide Symbol on Map
You can select or clear the checkmarks next to a POI entry to show or hide
the POI symbol on the Main Map screen.
17
InVion
Model: GPS-4V506-IUS
Language : US
Page : 17 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Figure 9 – Showing a POI Symbol on the Map
After Selecting a Category Actions
Tap the Actions button to:
Set an Address as the point of origin – Tap As Starting Point
•
button to designate the selected address as the route origin.
Show on map – Tap to see the selected address on the map.
•
Save Favourites – Tap “As saved address” to add this address to
•
your list of favorite locations. For more information about favorites,
see Address Book on page 21.
Sort by ABC - Tap the Sort by ABC button to display the category
•
entries in alphabetical order.
To see information – Tap to display additional address information
•
and phone number (where available).
ENGLISH
InVion
Model: GPS-4V506-IUS
18
Language : US
Page : 18 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
QuickNav
You can set a QuickNav destination so that every
time you tap the icon on the Main Map screen,
the Invion GPS automatically calculates the route to
this destination for you. When you tap the QuickNav
button for the rst time, you must select a predened
address or a POI category.
Figure 10 – Setting the QuickNav Location
You can change the QuickNav settings by tapping
the QuickNav button located on the Settings Setup 1
menu.
InVion
Model: GPS-4V506-IUS
19
Language : US
Page : 19 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Recent Place
From the Navigation menu, tap this button to select an existing destination from a list of destinations that you have previously traveled to.
Figure 11 – Traveling to a Recent Location
The Invion GPS automatically stores the last
64 destinations in memory. After 64 destinations
have been saved, the older destination entries
are erased.
Select a Recent Location Actions
Tap the Actions button to:
Set an Address as the point of origin – Tap the As Starting Point
•
button to designate the selected address as the route origin.
Save Favourites – Tap “As saved address” to add this address to
•
your list of favorite locations. For more information about favorites,
see Address Book on page 21.
Delete item – Tap the Actions button. Tap the Delete Item button to
•
delete an entry on the Recent Locations screen.
Clear the recent location list – Tap the Clear List button to clear all
•
locations in the Recent Locations screen.
To see information – Tap to display additional address information.
•
ENGLISH
InVion
Model: GPS-4V506-IUS
20
Language : US
Page : 20 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Address Book
A Favorite is a destination that you have stored for easy retrieval. Save
favorite destinations to your favorites groups and later you can easily
travel to these destinations.
Note: You can also add a favorite destination from the Address, POI, and
Recent Place screens.
Save a Favorite Location
From the Actions screen, tap this
button. Select the group to which you
want to add your favorite destination.
Figure 12 – Adding a Destination to Your
Favorites
The My Favorites folder is the default
folder where all favorites are stored if
not assigned to a group. This folder
cannot be deleted.
Going to a Favorite Location
InVion
Model: GPS-4V506-IUS
From the Navigation menu, tap this button to display the screen containing your favorite groups.
Select a group, for example
Restaurants. The Invion GPS automatically
displays a list of stored locations for the selected
group.
21
Language : US
Page : 21 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Figure 13 – Going to a Favorite Destination
You can check or clear the checkmarks next to a favorite entry to show or
hide the Favorites symbol on the Main Map screen.
Creating a Favorite Group
From the Favorites screen, tap Actions to add,
edit, or delete groups. Enter a group name and
select a group icon.
Figure 14 – Adding a Favorites Group
To add favorite destinations to your favorite
groups, see Save a Favorite Location on page 21.
ENGLISH
InVion
Model: GPS-4V506-IUS
22
Language : US
Page : 22 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Setting an Alert for a Favorites Group
Alerts let you know that you are within a certain
distance of an item in a Favorites group.
Figure 15 – Setting Your Favorite Alerts
Figure 15 – Setting Your Favorite Alerts
Use the right and left scroll arrows to set the distances for the 1st and 2nd Alerts.
In the Set Alert Distances screen, you can disable an alert by setting the 1st Alert to Off or by
clearing the checkbox next to the selected group.
Notes:
Favorite Alert settings affect all Favorites
•
groups.
The 2nd Alert must be set to sound at a
•
closer distance than the 1st Alert.
Alerts can be set for a group but not for
•
individual locations. Of course, you can
always create a group that has just one
location.
My Favorite Actions
Tap the Actions button to:
Set an address as the point of origin – Tap the As Starting Point
•
button to designate the selected address as the route origin.
To preview on map – Tap to see the selected address on the map.
•
InVion
Model: GPS-4V506-IUS
23
Language : US
Page : 23 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Edit a Fav. location - Tap the Edit Fav. Location button to change
•
the name, comment, or group location for the selected location.
Delete a favorite location - Tap the Delete Fav. Location button to
•
remove the selected location.
To see information – Tap to display additional address information.
•
3. Manage Route
Driving Directions
From the Manage Route menu, tap this button to
display a complete turn-by-turn list of directions from
your current location to the selected destination. The
Invion GPS continuously updates the Turn-by-Turn
screen to display the most current instructions as you
navigate the route.
Figure 16 – Turn-by-Turn Display
Note: The rst turn is at the top of the list and the nal
turn is at the bottom, identied by a checkered
ag.
ENGLISH
InVion
Model: GPS-4V506-IUS
24
Language : US
Page : 24 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
The following options are available:
Route Tap to display your entire route on the Main Map screen, plus
the travel distance and the Estimated Travel Time Remaining
(ETR).
Turn Tap to display the next turn on the Main Map screen, including
the street name, the distance to the turn, and the turn direction.
Avoid Tap to avoid the selected turn in the Turn-by-Turn list.
The Invion GPS recalculates the route automatically. Note
that when you exclude a turn, the recalculated route may take
longer.
Avoid Roads
You can specify that certain roads be permanently excluded from your route calculations. Use this feature
when you want to avoid congested roads, toll roads, or
unsafe streets.
From the Manage Route menu, tap the Avoid Roads
button. The Avoid Roads screen appears, displaying
predened road groups.
InVion
Model: GPS-4V506-IUS
25
Language : US
Page : 25 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Figure 17 – Predened Road Groups
The Invion GPS provides the following predened road groups:
Ferries – The default value is to avoid.
•
Gated Communities – The default value is to allow.
•
Motorways – Roads that allow for high volume, maximum speed
•
trafc movement between and through major metropolitan areas. The
default value is to allow.
My Roads to Avoid – This is a default folder that lets you store roads
•
to avoid. You can display the items in this folder and allow or avoid
specic roads.
Toll Roads – The default value is to avoid.
•
To allow or avoid a predened road group:
Select a predened group and tap the Allow/Avoid toggle button. The
•
next time you calculate a route, the Invion GPS calculates a route
based on your avoid or allow selections.
Note: Predened road groups are allowed or avoided as an entire
group. You cannot allow or avoid individual toll roads, highways,
or ferries.
ENGLISH
InVion
Model: GPS-4V506-IUS
26
Language : US
Page : 26 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Creating a Group within Avoid Roads
Tap this button and select Add Group. From the Add
Group screen, enter the group name and tap OK.
Figure 18 – Add a Road Group
The Actions screen also lets you edit or delete a selected group.
Adding a Road to Avoid
When you tap My Roads to Avoid or a road group, the Invion GPS
displays the group screen, which lets you designate roads to avoid. From
this screen, you can use the Allow or Avoid buttons to include or exclude
individual roads when calculating a route.
Figure 19 – Storing Road Locations
Tap Actions and then the Add Road button. Select the state, city and
street. The road is displayed on the Show on Map screen. Tap the Avoid
button.
27
InVion
Model: GPS-4V506-IUS
Language : US
Page : 27 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
ENGLISH
Figure 20 – Adding a Road to Avoid
Avoid Road Actions
Tap the Actions button to:
Edit Road – Tap to rename the road and/or select a different group.
•
When you have made your changes, tap OK.
Delete Item – Select a road and tap this button to remove the road
•
from your group. The Invion GPS no longer avoids the removed
road.
To Show on Map – Tap to show the map with the displayed
•
destination for you to review before creating a route.
To see information – Tap to display the location’s address
•
information.
Detour
From the Manage Route menu, tap the Detour button. The Detour screen lets you instruct the Invion
GPS to create a detour to avoid a road event, such as
an accident.
InVion
Model: GPS-4V506-IUS
28
Language : US
Page : 28 (of 50 Pages)
Version : 1.0
Date : 2007.10.13

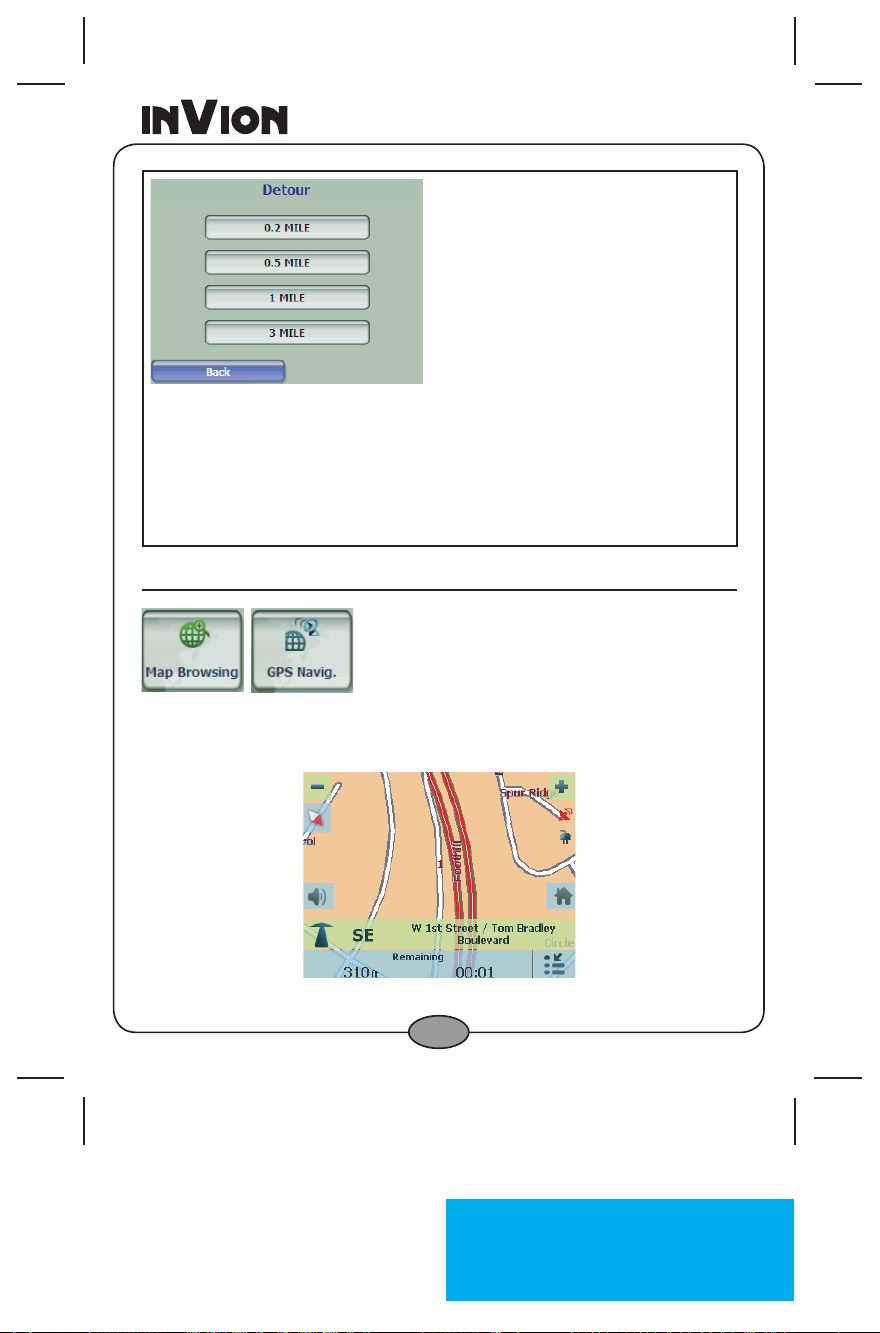

Figure 21 – Avoiding a Road Event by Performing a Detour
Select the Detour option that you want to generate a detour for the
distance specied. For example, if you are traveling on a major highway
and you are alerted by the news that there is trafc for the next 2 miles,
you can have the Invion GPS calculate a detour that takes you off the
highway and then returns you back to the highway after a distance of 2
miles.
Map Browsing
You can browse the map without a GPS signal. From the Options &
Settings menu, tap Map Browsing button to disconnect from the GPS
receiver.
InVion
Model: GPS-4V506-IUS
Figure 22 – Explore the Map
29
Language : US
Page : 29 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
The icon identies your current position. You can use the arrow
cursor to move the map. When you have located the street destination,
you can tap that point on the map. A popup menu appears. Tap Go There
to navigate to the selected point.
You can reconnect to GPS, by going to the Options & Settings menu and
tapping the GPS Navigation button.
Walking Mode
Walking Mode lets you travel as a Pedestrian, generating a route up to
6.2 miles, which is not limited by vehicle constraints, such as one way
streets. When creating a Walking route, the Invion GPS avoids highways
or other roads where Pedestrians would not travel. Voice prompts are
deactivated in this mode.
From the Options & Settings menu, tap the Walking Mode button. You
can switch back to Vehicle Mode by tapping the Vehicle Mode button.
Note: When Walking Mode is selected, Driving Directions, Route
Summary, Avoid Roads, and Detour features are disabled.
Map Selection
ENGLISH
From the Options Setup 1 menu, tap the Select Map button to change
the selected map to another map saved on your Invion GPS or SD/MMC
memory card.
30
InVion
Model: GPS-4V506-IUS
Language : US
Page : 30 (of 50 Pages)
Version : 1.0
Date : 2007.10.13

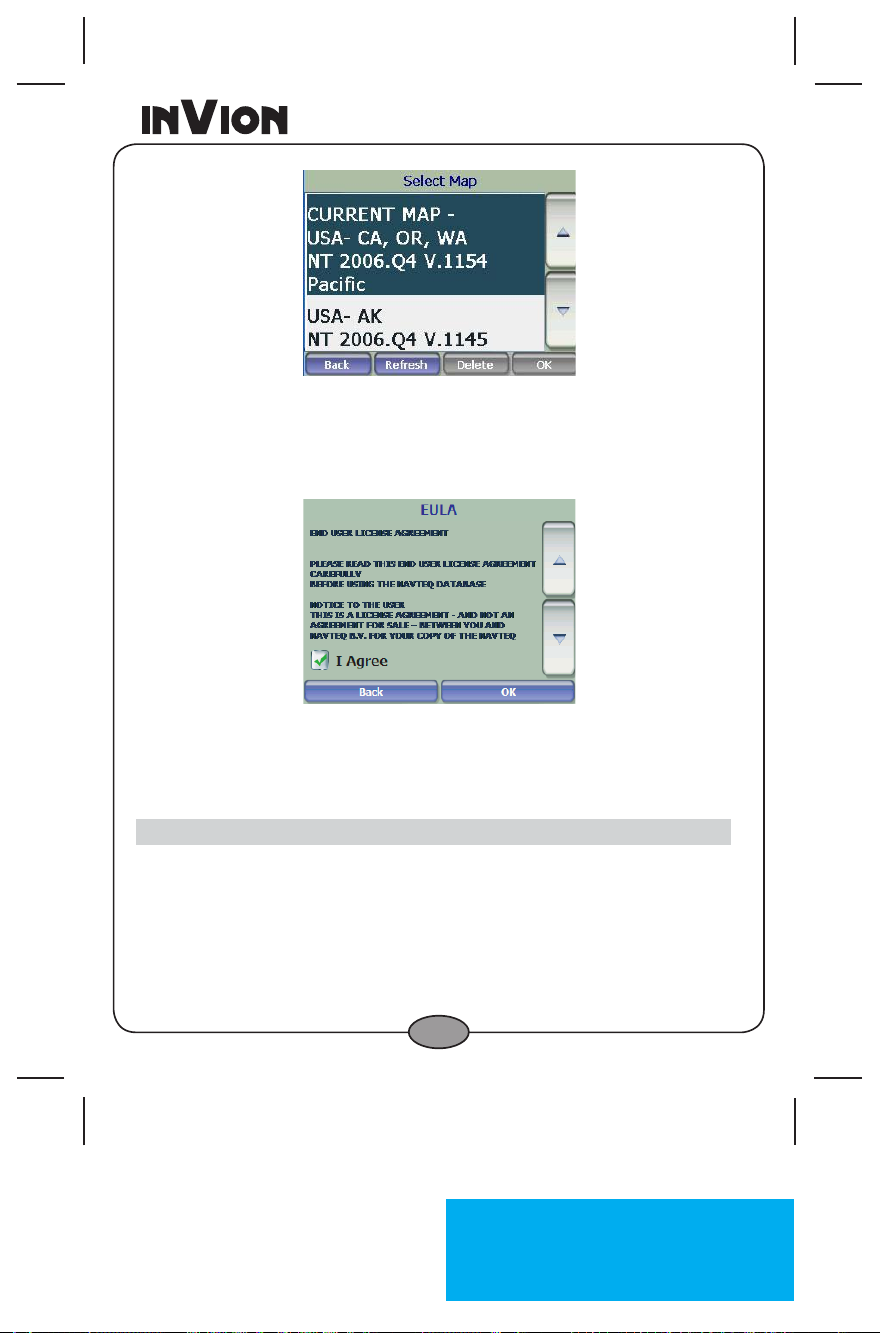

Figure 23 – Select a Map
The Invion GPS immediately implements the selected map for all
navigation features. If it is the rst time that you are using a map, an
End-User Agreement License (EULA) screen appears. Read it and then
select the Agree checkbox to continue working with the Invion GPS.
Figure 24 – Map’s End-User License Agreement
You can also choose from the following Select Map commands:
Refresh – Tap to refresh the screen when a new memory card is
•
inserted into the device.
Delete – Tap to permanently remove a selected map.
•
Note: You cannot delete the map you are currently using.
InVion
Model: GPS-4V506-IUS
31
Language : US
Page : 31 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
4. Invion GPS Congurations
Settings Menus
From the Main menu, tap the Settings button to let you
congure the Invion GPS system settings and utilize
travel playback and demonstration features.
Prompts
From the Options&Settings menu, tap the Prompts
button to select the types of voice and road name and
number notications that you would like to use while
navigating.
Voice Prompts
Speed Warning Warns you when your car exceeds the
speed limit.
Route Recalculation Noties you when the Invion GPS recal-
culates your route. For example, when you
miss a turn.
Unreliable GPS Signal Warns that the GPS signal is too low and
unreliable for navigation.
GPS Not Found Alerts you if the GPS signal is lost, or if the
power source has been removed from the
GPS receiver.
Drive Carefully Reminder at the start of each journey.
ENGLISH
Say Road Prompts
Both The Invion GPS tells you the street number and name.
Numbers Street numbers only.
Name Street name only.
InVion
Model: GPS-4V506-IUS
32
Language : US
Page : 32 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Language Settings
From the Options Setup 1 menu, tap the Language
button to display the Language Settings screen.
Figure 25 – Language Settings
You can select from:
Language Text – Address and map information,
•
and screen and menu labels
Voice Guidance – Voice instructions while you
•
are navigating
Say Road Name – Audio pronunciation of road
•
name
The language and voice options installed on your device are determined by the software that is preloaded
into the Invion GPS.
InVion
Model: GPS-4V506-IUS
33
Language : US
Page : 33 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Look & Feel Settings
From the Options Setup 1 menu, tap the Look & Feel
button to see the preinstalled skin. A skin determines
the visual effects such as colors and icons displayed.
GPS Settings
From the Options Setup 2 menu, tap the GPS Signal
button to display GPS information.
The Invion GPS receives data from a built-in GPS
receiver to pinpoint your location. Your vehicle’s location and position are constantly updated unless you
are working in the Browsing Map mode or you tap the
Quit button. The GPS receiver may take a few min-
utes to nd its initial location. For best results, ensure
that the GPS receiver has a clear view of the sky.
Prefer QWERTY Keyboard – When this option
•
is selected, the navigation keyboard is displayed
as a computer keyboard (QWERTY style) on
the screens.
Auto Day-Night Adjustment – When this
•
option is selected, the Invion GPS automatically
switches between day and night view according
to the GPS time and date information provided.
If this option is selected, but you manually switch
the day /night view, it will remain in that mode
you selected until the next time the Invion GPS
automatically switches the day /night view.
ENGLISH
InVion
Model: GPS-4V506-IUS
34
Language : US
Page : 34 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
The GPS Signal screen displays the following information:
Longitude
•
Latitude
•
Speed
•
Altitude
•
Number of Satelites
•
If you are working in the Browsing Map mode, the Invion GPS
automatically disconnects from the GPS receiver.
GPS Troubleshooting
Signal too low
When you rst start the Invion GPS you may hear the “Signal too low”
message. This message means that your navigation device hasn’t yet
located a reliable GPS signal. Check that your device is connected to a
power source, such as the cigarette lighter, and has a clear view of the
sky.
GPS Not Found
For devices with an external antenna, the “GPS not found” message
means that your device is not connected to a GPS antenna or that the
antenna is not properly installed. For more information about GPS, see
GPS Settings on page 36-37.
Please check that:
The GPS antenna is extended or ipped up (for an external antenna
•
only).
The GPS antenna has a clear view of the sky for uninterrupted GPS
•
reception. The Invion GPS cannot calculate the route if there is no
GPS reception (for example, in a tunnel).
The navigation device is charged or connected to a power source,
•
such as the cigarette lighter.
InVion
Model: GPS-4V506-IUS
35
Language : US
Page : 35 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Units of Measure
Time Settings
From the Options Setup 1 menu, tap this button to
specify the measurement system you would like to
use.
You can select:
Miles, Yards
•
Miles, 10th of a Mile
•
Kilometers, Meters
•
From the Options Setup 1 menu, tap this button to
display time settings.
Figure 26 – Time Zone
You can select the Daylight Savings checkbox to
automatically adjust for daylight savings.
ENGLISH
Map Settings
From the Options&Settings menu, tap the Map Display button to select from the map interface options
listed below.
InVion
Model: GPS-4V506-IUS
36
Language : US
Page : 36 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
You can choose the following options for the main map:
Forward up Orients the map so that the direction you are
traveling is always at the top of the screen.
Use Larger Labels Increases the size of street names to make the
map easier to read.
Popup Menu Displays the navigation popup menu when tap-
ping on a map location.
Use Automatic
Zoom
Maneuver Diagram Displays a large image that indicates your next
Next Street Bar Displays the next street name.
Zoom buttons Displays zoom in and zoom out buttons.
Compass Displays the compass, which lets you change
QuickNav Button Displays the QuickNav button, which you tap to
Volume Control Displays the Volume Control bar.
GPS Indicator Displays whether a reliable GPS signal has been
Power Indicator Displays if your device is plugged in or running
Information Bar Displays estimated time of arrival.
Menu Button Displays the Menu button, which opens the Main
When selected, the zoom is speed dependent.
The map zooms out at higher speeds, displaying a larger map area, and zooms in at slower
speeds, displaying a smaller map area.
maneuver, such as left turn or right exit.
the map view display:
2D map view with the forward direction at
•
the top
3D map view with the forward direction at
•
the top
2D map view with North at the top
•
navigate to a pre-selected location.
located.
on battery power.
menu.
InVion
Model: GPS-4V506-IUS
37
Language : US
Page : 37 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
About
Help
From the Options Setup 2 menu, tap this button to
displays version and copyright information.
ENGLISH
From the Options Setup 2 menu, tap this button to
displays technical support information.
InVion
Model: GPS-4V506-IUS
38
Language : US
Page : 38 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Programs
Press the power button to turn on the GPS unit.
The Programs screen will be displayed.. The interface as the following:
Tap Navigation, you will come to navigation screen, you have the navigation
guide in the formal part.
Note:During navigation or other operations, quickly pressing the MENU
button, “Programes” screen will be displayed.
Music
Tap the “Music” icon to enter the Musi c function as the following interf ace:
Movie
Tap the “Movie” icon to enter the Movie function interface as the following:
E-book
bo
“E-
39
ter “E-
ok”
ok” f unction interfac
e,you
Tap the “E-book” icon,click to en bo
can
find "“E-book”
" as below interface to read your desired E-book.
InVion
Model: GPS-4V506-IUS
Language : US
Page : 39 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
ISH
Tap the “Photo” icon,click to enter Photo function
find photos as below interface to v iew your desired photos:
X-button anytime to return to the Main Menu screen.N ot e: Tap the
Settings
Tap the “Settings” icon, now you are in the Settings menu:
You can press to choose more icons(“System” and “ Skin ”).
Due to some problems, maybe SD card broken, software upgrading,
when you tap " “Navigation”, below interface will come to you:
interface,you can
ENGL
InVion
Model: GPS-4V506-IUS
40
Language : US
Page : 40 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Please make sure the correct map datas in the SD card, then you can
setup the correct path to find the application of navigation by click "
“Setting” on the Programs, click “Nav.setup”, Click to choose the
correct path to Device/ NA ND F lash/ and choose the .ex e file:
Destinator.ex e. the interface would be below:
Then click to back the grogram interface, click navigation, navigation
function will be processed again.
Note:
When the device ship out from the factory, it is defaulted to run
navigation. It is very important to do the upgrading, if not technical
the
person,
please do not use this item.
Select “Emend Taccurately to your stylus taps. Please tap the cross five times till click “OK”,
the interface as the following:
Scr”, to calibrate the touch screen if it is not corresponding
InVion
Model: GPS-4V506-IUS
41
Language : US
Page : 41 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
You can setup “Languages”, “Volume”, “Time”, “B acklight”, “Power”, and
“Skin” as below interfaces:
To view System information, please click "System" as below:
LISH
ENG
Tap “GPS Status”, we can monitor the signal receiving status after some
T
minutes in the open air place. If
signal is ok, the interface as the following:
InVion
Model: GPS-4V506-IUS
thre
e or blue poles means the
above
42
Language : US
Page : 42 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Specications
4.3” GPS Navigation system with MP3/MP4 Player
4.3” 16:9 TFT LCD Touch Screen, 480*272 pixels
OS: Windows CE.Net 4.2
128 MB nand flash
CPU : SAMSUNG S3C2440A-40 400MHz (ARM9)
GPS: Sirf star III
Built-in Antenna
Plays MP4/MP3 le via SD/MMC card (sold separately)
Built-In Lithium-on Battery last 2.5 hours
Dimension: 125L X 80W X 23H mm
Weight: 238g
Hard Key and Connection Ports:
Power on/off,
Menu,
Headphone jack
USB port,
Power input
Hold
Reset
SD/MMC card slot
Antenna
Lock
Volumn wheel
Accessories:
12V Car Power Adapter
USB cable
Suction mount
Mounting bracket
DVD Disk
SD card
Manual
Quick Start Guide
InVion
Model: GPS-4V506-IUS
43
Language : US
Page : 43 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Legal
1. Notices, Disclaimers, and Terms of Use
1. Limited Product Warranty Destinator Technologies, warrants to the Client that the Products shall substantially conform
to Destinator Technologies’ specication for a period of one (1) year from the date of the original purchase by the end
user (the “Warranty Period”). As Destinator Technologies’ sole obligation and Client’s exclusive remedy for any breach
of warranty, Destinator Technologies agrees, at its sole option, to (i) use reasonable efforts to repair the Product with
new or refurbished replacement parts; (ii) replace the Product with a new or refurbished unit; or (iii) refund the purchase
price, provided Client returns the defective Products to Destinator Technologies with proof of purchase and Destinator
Technologies’ authorization.
Destinator Technologies’ warranty hereunder does not apply in case of any damage caused by accident, abuse, misuse,
misapplication, or alteration of any kind performed by anyone other than Destinator Technologies. The Products are not
designed or licensed for use in mission-critical applications, or in hazardous environments, requiring fail-safe controls,
including without limitation operation of nuclear facilities, aircraft navigation or communication systems, air trafc control,
or life support or weapons systems. Without limiting the generality of the foregoing, Destinator Technologies specically
disclaims any express or implied warranty or condition of tness for such purposes. Destinator Technologies’ warranty
does not, in any event, apply to physical damage to the surface of the Product or replacement. Destinator Technologies
shall have no obligation with respect to any data stored in the Product.
Except as expressly stated in this section, Destinator Technologies makes no warranties or includes any conditions
with respect to the products, express or implied, including, but not limited to, the implied warranties or conditions of
merchantability, tness for a particular purpose and no infringement.
2. Liability Limitation. In no event shall Destinator Technologies, be liable to Client, (and Client hereby waives any indirect,
special, incidental, or consequential damages in connection with) the transactions contemplated by this agreement,
whether or not such damages were foreseen, or their likelihood disclosed. Destinator Technologies shall not be liable to
Client or any third party claiming through Client, for any damages of any kind in excess of the amounts paid by Client
under the terms of this agreement with respect to the products giving rise to such damages. Some jurisdictions do not
allow the exclusion of or limitation on implied conditions, warranties or damages, thus some of the foregoing may not
apply to Client.
3. Intellectual Property Rights. Hardware and Software are proprietary to Destinator Technologies or its suppliers and are
subject to copyright and other intellectual property laws. Client’s only rights with respect to any Destinator Technologies
software included with the Products shall be provided, under the terms of Destinator Technologies’ software license.
The title to all Destinator Technologies Software remains with Destinator Technologies. Client agrees that Destinator
Technologies retains ownership of all rights, title and interest in all intellectual property, works of authorship, trade
secrets and like’s in all aspects of the Product(s). Client and its afliates and subcontractors agree not to reverse
engineer any aspect of the Software and/or Products supplied under this agreement and further agree to pay assessed
damages should such action take place.
4. Copyright and Copies. The Software (including any copy thereof) is owned by Destinator Technologies or its suppliers
and is protected by United States, Canada, European, Brazilian and Australian copyright and patent laws and
international treaty provisions. The Software copy is licensed to you the client, not sold to you, and you (the client) are
not an owner of any copy thereof. You may make one copy of the software for backup or archival purposes. You may
not otherwise copy the software, except as authorized by applicable law, nor the written materials accompanying the
Software. Destinator Technologies hereby reserves all rights not explicitly granted in this license agreement.
Copyright © 2007, Destinator Technologies
ENGLISH
InVion
Model: GPS-4V506-IUS
44
Language : US
Page : 44 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
2. Copyright Notice
All rights reserved, except as expressly provided herein. No part of this
manual may be reproduced, copied, transmitted, disseminated, downloaded
or stored in any storage medium for any purpose without the express written
consent of SupportPlus. SupportPlus hereby grants permission to print one
copy of this manual and any revision hereto, provided that such printed
copy of this manual must contain the complete text of this copyright notice
and provided further that any unauthorized commercial distribution of this
manual or any revision hereto is strictly prohibited.
Information in this document is subject to change without notice. SupportPlus
reserves the right to change or improve its product and to make changes in
the content without obligation to notify any person or organization of such
changes or improvements.
SupporPlus and Invion are registered trademarks and may not be used
without express permission.
SiRF, SiRFstar and the SiRF logo are registered trademarks of SiRF
Technology, Inc. SiRFstarIII and SiRF Powered are trademarks of SiRF
Technology, Inc.
Windows® is a registered trademark of the Microsoft Corporation in the
United States and/or other countries.
InVion
Model: GPS-4V506-IUS
45
Language : US
Page : 45 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
3. Safety advice
Failure to avoid the following potentially hazardous situations could result in
an accident or collision resulting in death or serious injury.
When installing the unit in a vehicle, place the unit securely so that it does
not interfere with vehicle operating controls or obstruct the driver’s view of
the road.
Do not mount where the driver’s eld of vision is blocked.
•
Do not place unsecured on the vehicle dash.
•
Do not mount in front of an airbag eld of deployment.
•
When navigating, carefully compare information displayed on the unit to
all available navigation sources, including information from street signs,
visual sightings, and maps. For safety, always resolve any discrepancies or
questions before continuing navigation.
Always operate the vehicle in a safe manner. Do not become focused on
the unit while driving, and always be fully aware of all driving conditions.
Minimize the amount of time spent viewing the screen of the unit while driving
and use the voice commands when possible. Do not input destinations,
change settings, or access any functions that require prolonged use of the
unit’s controls while driving. Pull over and come to a complete stop before
attempting any such operations.
Do not expose the unit to excessive heat or throw the device into re.
•
Old appliances do not belong in the household waste. Dispose of old
•
appliances correctly. Your local administration can give you information
about collection locations and opening times.
ENGLISH
Packaging materials are raw materials and can be used again. Separate
the packaging, and in the interest of the environment dispose of it properly.
Further information is available from your local administration.
46
InVion
Model: GPS-4V506-IUS
Language : US
Page : 46 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
4. Caution
Failure to avoid the following potentially hazardous situations may result in
injury or damages.
This unit is designed to provide you with route suggestions. It does not reect
road closures or road conditions, trafc conditions, weather conditions, or
other factors that may affect safety or timing while driving.
Use the unit only as a navigational aid. Do not attempt to use the unit for any
purpose requiring precise measurement of direction, distance, location or
topography. This product should not be used to determine ground proximity
for aircraft navigation.
The Global Positioning System (GPS) is operated by the United States
government, which is solely responsible for its accuracy and maintenance.
The government’s system is subject to changes which could affect the
accuracy and performance of the unit. Although the unit is a precision
navigation device, any navigation device can be misused or misinterpreted
and therefore, become unsafe.
Important Information
Map Data Information: Virtually all data sources contain inaccurate or
incomplete data to some degree. This is particularly true outside the United
States, where complete and accurate digital data is either not available or
prohibitively expensive.
Notice to drivers in California and Minnesota: State law prohibits drivers
in California and Minnesota from using suction mounts on their windshields
while operating motor vehicles. SupportPlus takes no responsibilities for any
nes, penalties or damages that may be incurred as a result of disregarding
this notice. (See California Vehicle Code Section 26708(a); Minnesota
Statues 2005, Section 169.71.)
InVion
Model: GPS-4V506-IUS
47
Language : US
Page : 47 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
5. FCC compliance
The unit complies with Part 15 of the FCC interference limits for Class
B digital devices for HOME OR OFFICE USE. The limits are designated
to provide more reasonable protection against harmful interference in a
residential installation and are more stringent than “outdoor” requirements.
Operation of this device is subject to the following conditions:
This device may not cause harmful interference.
1.
This device must accept any interference received, including interference
2.
that may cause undesired operation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with these instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
you are encouraged to try to correct the interference by one of the following
measures:
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment into an outlet on a circuit different from that to
•
which the receiver is connected.
Consult an experienced radio/TV technician for help.
•
Notice: This device has no user-serviceable parts. Repairs should only be
made by an authorized service center.
Unauthorized repairs or modications could result in permanent damage
to the equipment and void your warranty and your authority to operate this
device.
Do not attempt to open the casing to change or modify the unit in any way.
ENGLISH
InVion
Model: GPS-4V506-IUS
48
Language : US
Page : 48 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Claims & Warranties
In case of possible product defects, please contact our Service team by our
Website or E-mail. For this reason we recommend you save your purchase
receipt. To register your product, go to the SupportPlusUSA website and
click on “Registration”.
Service:
For technical questions, information about our products, spare part orders,
and additional maps, our Service team is available as follows:
Website: www.supportplususa.com
E-mail: info@supportplususa.com
Important note: Please do not send your device to our address without
having been requested to do so by our Service team. The costs and the
risk of loss for unsolicited mailings will be borne by the sender. We reserve
the right to refuse the acceptance of unsolicited mailings or to return the
corresponding merchandise to the sender carriage forward, that is, at the
sender’s expense.
Warranty: If for any reason the registered product does not function as it
should due to factory defects, it can be serviced within 1 year from the date
of purchase.
This warranty does not cover failures due to abuse, misuse, accident, or
unauthorized alterations or repairs.
In no event will SupportPlus be liable for any incidental, special, indirect, or
consequential damages resulting from the use, misuse, or inability to use
this product.
Note: Warranty is only valid if unit is registered within 30 days of purchase.
49
InVion
Model: GPS-4V506-IUS
Language : US
Page : 49 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
VRS 1.0
InVion
Model: GPS-4V506-IUS
Language : US
Page : 50 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
WARRANTY
InVion
1.0
S
VR
Address of dealer
WWW.supportplususa.com
Warranty: If for any reason the registered product does not function as it should due to factory defects,
it can be serviced within 1 year from the date of purchase.
This warranty does not cover failures due to abuse , misuse , accident , or unauthorized alterations or
repairs.
In no event will SupportPlus be liable for any incidental , special , indirect , or consequential damages
resulting from the use, misuse, or inability to use this product.
Model: GPS-4V506-IUS
GPS-4V506-IUS
Serial no.:
Model:
Date of purchase
Note: Warranty is only valid if unit is registered within 30 days of purchase.
Language : US
Page : 43 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Loading...
