Congratulations on choosing your new Invion product. We have
every expectation that you will be completely satisfied with your new
purchase.
To always guarantee optimal function and performance of your product, we
would ask the following:
•
Before using the product for the first time, carefully read the operating
instructions and adhere to the safety precautions!
•
All activities at and with this product may only be carried out as described
in these operating instructions.
•
Please be sure to include the operating instructions in case you pass
along this product to someone else.
Packaging:
This product is delivered in protective packaging to prevent transportation
damage. Packaging materials are raw materials and can therefore be
recycled. Please recycle these materials.
GLISH
EN
InVion
Model: GPS-3V506-IUS
2
Language : US
Page : 2 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Contents
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Brief introduction of hardware . . . . . . . . . . . . . . . . . . . . . . . . .7
Navigation Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
1. Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Configuration Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Main Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Map Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Route Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Cancel Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2. Select Location and Generate Route . . . . . . . . . . . . . . . . . 13
Go to an Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Point of Interest (POI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
QuickNav . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Recent Place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Address Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
3. Additional Invion GPS Features . . . . . . . . . . . . . . . . . . . . .26
Driving Directions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Multistop Planner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Avoid Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Detour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Map Browsing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Walking Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Map Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
27
4. Invion GPS Configurations . . . . . . . . . . . . . . . . . . . . . . . .36
Settings Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Prompts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Language Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Look & Feel Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
GPS Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
InVion
Model: GPS-3V506-IUS
3
Language : US
Page : 3 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Units of Measure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Time Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Map Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
About. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Entertainment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
1. Notices, Disclaimers, and Terms of Use. . . . . . . . . . . . . . .48
2. Copyright Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
3. Safety advice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
4. Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
5. FCC compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Claims & Warranties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
ISH
L
G
EN
InVion
Model: GPS-3V506-IUS
4
Language : US
Page : 4 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Index
A
C Cancel Route • 13
D Demo • 9
G
H Help • 42
I Introduction • 9
About • 42
Adding Stops • 27
Additional Destinator Features • 26
Address Book • 16, 20, 22, 23
Avoid Roads • 30
Configuration Wizard • 9
Destinator Configurations • 36
Detour • 32
Driving Directions • 26
Go to an Address • 13
GPS Signal • 38
L Language settings • 37
Look & Feel Settings • 38
InVion
Model: GPS-3V506-IUS
5
Language : US
Page : 3 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
M Main Map • 10
Map Browsing • 33
Map Selection • 34
Map Settings • 40
Map Views • 12
Multistop Planner • 27
O Organising Your Itinerary • 29
P Point of Interest (POI) • 17
Prompts • 36
Q QuickNav • 21
ISH
L
G
EN
R
U
W
Recent Place • 22
Route Summary • 12
S
T
Select Location and Generate Route • 13
Time Settings • 40
Units of Measure • 40
Walking Mode • 34
6
InVion
Model: GPS-3V506-IUS
Language : US
Page : 4 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
(For service use only)
Menu
(Tapping this button will put the device into sleep mode)
7
506-IUS
ABOUT THE TOUCH SCREEN
Do not touch the TOUCH SCREEN until the unit starts up completely.
•
Otherwise, the touch screen may not function correctly.
The navigation device is mainly operated by touching the buttons on the
•
touch screen.
If nothing happens when you touch the buttons on the touch screen,
•
remove your hand from the screen and touch the button again.
Do not touch any buttons that are grayed out.
•
When cleaning the touch screen, use a soft cloth.
•
* SD CARD SLOT: Insert a SD/MMC card containing maps to load them on
to the GPS device.
For loading MP3 and Movies to the SD card, we recommend using a
•
separate SD card reader / writer.
Connection
Connect to Car Power
ISH
ENGL
Connect the plug of the car power adapter to the DC port on the
1.
of the GPS Unit.
Connect the car cigarette lighter plug of the car power adapter into the
2.
car cigarette lighter socket.
Chipset Centrality Atlas III
Operates behind athermic windshield
InVion
Model: GPS-3V506-IUS
side
8
Language : US
Page : 6 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
9
1. Getting Started
Welcome to the world of mobile navigation! Simple operation, clear maps in
2D or 3D mode as well as numerous innovative features and functions have
made the Invion GPS the essential guide for every traveler – whether in the
car, on foot or by bike.
Language Settings – Set text and voice language preferences.
End User License Agreement (EULA) – Please review the license
information and tap the I Agree button.The EULA screen appears each
time you use a new map.
Time Zone –Youcanselect the Adjust to Daylight Saving checkboxto
automatically
adjust for daylight savings.
Units of Measure – Specify the system measurement units.
Prompts – Configure the general navigation prompts and notifications.
Driver Warning – When you start the Invion GPS, the Driver Warning
screen appears. Please take a moment to review the information provided
before tapping the OK button. Select the “Do not display this warning
again” checkbox to skip this message in the future.
•
•
•
•
•
•
Figure 1 – Map Warning Screen
Navigation manual
Configuration Wizard
This wizard, which automatically starts the first time you use the
Invion GPS , lets you easily configure the
providing a step-by-step setup proc
these system settings by
Settings
menu.
going to these system options from the
ess. You can also configure
system settings by
InVion
Model: GPS-3V506-IUS
Language : US
Page : 7 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Demo
The Start Demo button lets the Invion GPS display a simulated
route. Many of
when the demo is running. You can end the demo by tapping the
Stop Demo button
the Invion GPS navigation features are disabled
from the Setup 2 menu.
InVion
Model: GPS-3V506-IUS
Language : US
Page : 8 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
5 The GPS bar is a toggle
button that displays the remaining travel distance and
travel time, estimated time
of arrival, street name and
address number, speed
and altitude.
7 The red GPS receiver means that a reliable GPS
signal is not yet located.
The green GPS receiver means that a reliable GPS
signal is located and that you are ready to navigate.
8 These icons display your power source. The battery
appears as green, yellow, or red depending on the
strength of the battery charge.
9 Tap this icon to set your QuickNav location. When
set, you can tap this button to automatically calculate
a route to this location.
10
Location Icons
Tap this icon to display the main menu.
Current location in Vehicle Mode or Walking Mode.
Last known location when GPS signal is unreliable.
Generated route.
InVion
Model: GPS-3V506-IUS
11
Language : US
Page : 9 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Location Point on Main Map
You can drag the map to a specific point and tap the desired location directly
on the Main Map screen in both 2D and 3D map view. This feature is useful
when you want to navigate to a specific point on the map, rather than by the
street address. When you tap on the map, the pop-up menu appears with
the following options:
Go There – Navigate to the selected point on the map.
Add to my Favorites– Save a
point on the map as a favorite
destination for future use.
Set as Starting Point – Designate
the selected point as the starting
Figure 3 – Point on the Map Options
point instead of your current location.
Map Views
You can choose to see a two-dimensional or three-dimensional map
adjusted specifically for daylight or nighttime conditions.
ISH
ENGL
From the O
to view the
to display the map view in 2-dimensional or 3-dimensional views for day or
night driving.
ptions & Settings
map for day or
nighttime
menu, tap the Day/Night View toggle button
driving and the
2D/3D View toggle button
Route Overview
• From the Manage Route menu, tap the Route
Overview button.
An overview of your complete route, the total driving
distance to your destination, the estimated travel time,
and the complete destination address, are displayed
on the screen.
12
InVion
Model: GPS-3V506-IUS
Language : US
Page : 10 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Cancel Route
• From the Manage Route menu, tap the Cancel
Route button.
The current navigation stops and the Invion GPS
clears the route. You can only cancel a route after a
destination has been set.
2 Select Location and Generate Route
Go to an Address
From the Navigation menu, tap the New
Address button. The Address Search Mode
screen appears, allowing you to choose how you
want to enter address information. For example, if
you select City first, the first address screen lets
you select from a list of cities, the second screen
a list of streets,
an address
Select from the following address entry options:
• City first – City > Street > Address
• Street first – Street > City > Address Number
– You enter a street name without having to
first select a city. This is useful when searching
for an address in a metropolitan area where
there are many cities and towns.
• Intersection – City> Street > Street 2
Note: When a United States map is selected, the
first address screen is always Enter State .
and the third screen lets you enter
number.
Figure 4 – Address Search Mode
Number
InVion
Model: GPS-3V506-IUS
13
Language : US
Page : 11 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Tap from one of the Address Search Mode options to display the first
address screen.
Figure 5 – Selecting an Address
When entering an address, you can use the keyboard to enter the
characters. The characters appear in the Address field. The Invion
GPS automatically searches the Address list for the first occurrence of
the entered characters. After you have selected a city, the Invion GPS
displays the next address field, such as street and address number.
Instead of specifying a street, you have the option of selecting the
City Center. If you don’t know the address number, you can select the
Street Midpoint.
Tap the OK button to move through the sequence of address screens.
Go to Another Country
From the Address Search Mode screen, you can tap In Other countries
to select another country that you can travel to by vehicle.
This feature is available only when you have the following maps installed:
Map of the country where you are currently located.
•
Map of the country where you want to travel.
•
The map of the major roads for that continent that connects one map
•
to another
•
For example, if you are in Toronto and you want to travel to
Los Angeles in California, select the map of USA Pacific and
designate Los Angeles as your destination.
automatically displays the
displays the map of Canada when
Canada, and the map of USA Pacific when traveling on local
roads of California.
map of Canada when automatically
traveling on local roads of
The Invion GPS
ENGLISH
InVion
Model: GPS-3V506-IUS
14
Language : US
Page : 12 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Invion GPS Screen Buttons
The following buttons appear on many of the navigation screens.
When you tap this button for a selected address,
group, or place, the Invion GPS automatically
opens the next screen in the sequence.
When you tap this button, the Invion GPS returns
you to the previous screen.
This button provides a list of command options
available for the selected address or place.
Keyboard Command Keys
The following buttons are available to enhance your search process.
1
2
3
Figure 6 – Search and Keyboard Buttons
1 Lets you remove a character that you have entered.
2 Lets you scroll up or down the list of city or street names.
3 Lets you extend the address list by hiding the keyboard.
Tap the Keyboard button to display the keyboard. Tap the See List
4
button to expand the address list
showing more address entries.
InVion
Model: GPS-3V506-IUS
15
Language : US
Page : 13 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Navigate to an Address
You can select from the following route
types:
Quickest – This option selects the
route that takes the least amount of
time. Quickest is the default setting.
Shortest – This option selects the route
that is shorter in distance. Note: The
shorter route may not always be the
Figure 7 – Show on Map
quickest.
Go – When you tap the Go button, the
Invion GPS calculates the route to your
selected destination.
Demo – Tap the icon to start navi-
gating a simulated route.
Note: Route generation excludes
any detours, stops or delays
along the route.
Actions
Tap the Actions button to:
Set an Address as the point of origin – Tap the As Starting Point
•
button to designate the selected address as the route origin.
To Show on map – Tap to see the selected address on the map.
•
As saved address
•
favorite locations.
Address Book on page 23.
To see information –Tap to display additional address information
•
phone number (where available).
and
– Tap to add an address to your list of
For more information about favorites,
ISH
ENGL
see
InVion
Model: GPS-3V506-IUS
16
Language : US
Page : 14 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Point of Interest (POI)
The Point of Interest (POI) list is a collection of
hundreds of interesting or useful places organized
by easy-to-find categories. For example, you can
use the Invion GPS to guide you to a shopping
center, hotel, restaurant, or gas station.
Many categories have subcategories to provide for
an even greater list of choices. For example, gas
stations, may have many subcategories each representing a particular brand name. The same is also
true for hotels. Restaurants have subcategories that
represent different types of food, such as Indian,
Italian, and French.
Search for a Location Near You
You can determine the area where you want to search for a specific
place, such as a gas station, hotel, or restaurant. My Current Location is
automatically selected.
Tap to search near your current location.
Tap to search near your specified desti-
nation. If a destination has not been selected and a route generated (by tapping
the Go button), this button is disabled.
Tap to search for a POI in another location. This button opens the Address
Search Mode screen, which is described
on page 13 .
InVion
Model: GPS-3V506-IUS3V506-IUS
17
Language : US
Page : 15 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Search for a POI Name
Tap this button to display the Search POI keyboard screen, where you can search by entering
text in the POI Name field. The Smart Search
System automatically displays the POI names
that match the characters entered. The Invion
GPS automatically displays the POI entries and
the distance each entry is from your current location.
For example, if I enter “Avis” and tap the Search
button. The Invion GPS displays all Avis entries
in my selected location, as shown in the figure
below.
ISH
ENGL
InVion
Model: GPS-3V506-IUS
Figure 8 – Search by POI Name
18
Language : US
Page : 16 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Search for a POI Category
Tap this button to display the most common
POI categories.
Figure 9 – Most Common POI Categories
Tap More to display the Point of Interest
screen, where you can search through the
entire list of POI categories.
Show or Hide Symbol on Map
You can select or clear the checkmarks next to a POI entry to show or hide
the POI symbol on the Main Map screen.
19
InVion
Model: GPS-3V506-IUS
Language : US
Page : 17 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Figure 10 – Showing a POI Symbol on the Map
Actions
Tap the Actions button to:
Set an Address as the point of origin – Tap As Starting Point
•
button to designate the selected address as the route origin.
To Show on map – Tap to see the selected address on the map.
•
As save address
•
favorite locations.
Address Book on page 23.
Sort by ABC/DIstance - Tap the Actions button. Tap the Sort by
•
ABC button to display
To see information – Tap to display additional address information
•
and phone number (where available).
– Tap to add an address to your list of
For more information about favorites,
entries in alphabetical order.
ISH
ENGL
see
InVion
Model: GPS-3V506-IUS
20
Language : US
Page : 18 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
QuickNav
You can set a QuickNav destination so that every
time you tap the icon on the Main Map screen,
the Invion GPS automatically calculates the route to
this destination for you. When you tap the QuickNav
button for the first time, you must select a predefined
address or a POI category.
Figure 11 – Setting the QuickNav Location
You can change the QuickNav settings by tapping
the QuickNav button located on the Setup 1
menu.
InVion
Model: GPS-3V506-IUS
21
Language : US
Page : 19 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Recent Place
From the Navigation menu, tap this button to select an existing destination from a list of destinations that you have previously traveled to.
Figure 12 – Traveling to a Recent Location
The Invion GPS automatically stores the last
64 destinations in memory. After 64 destinations
have been saved, the older destination entries
are erased.
Actions
Tap the Actions button to:
Set an Address as the point of origin – Tap the As Starting Point
•
button to designate the selected address as the route origin.
As save addr es s
•
favorite locations.
Address Book on page 23.
Delete an item – Tap the Actions button. Tap the Delete Item button
•
to
delete an entry on the Recent Locations screen.
Clear the recent location list –
•
List button to clear all
To see information – Tap to display additional address information
•
and phone number.
– Tap to add an address to your list of
For more information about favorites,
Tap the Actions button.
locations in the Recent Locations screen.
ISH
ENGL
see
Tap the Clear
InVion
Model: GPS-3V506-IUS
22
Language : US
Page : 20 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
InVion
Model: GPS-3V506-IUS
Language : US
Page : 21 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Figure 14 – Going to a Favorite Destination
You can check or clear the checkmarks next to a favorite entry to show or
hide the Favorites symbol on the Main Map screen.
Creating a Favorite Group
From the Favorites screen, tap this button to add,
edit, or delete groups. Enter a group name and
select a group icon.
ISH
ENGL
InVion
Model: GPS-3V506-IUS
Figure 15 – Adding a Favorites Group
To add favorite destinations to your favorite
groups, see Save a Favorite Location on page 23.
24
Language : US
Page : 22 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Setting an Alert for a Favorites Group
Alerts let you know that you are within a certain
distance of an item in a Favorites group.
Figure 16 – Setting Your Favorite Alerts
Use the right and left scroll arrows to set the distances for the 1st and 2nd Alerts.
In the Set Alert Distances screen, you can disable an alert by setting the 1st Alert to Off or by
clearing the checkbox next to the selected group.
Notes:
Favorite Alert settings affect all Favorites
•
groups.
The 2nd Alert must be set to sound at a
•
closer distance than the 1st Alert.
Alerts can be set for a group but not for
•
individual locations. Of course, you can
always create a group that has just one
location.
Actions
Tap the Actions button to:
Set an address as the point of origin – Tap the As Starting Point
•
button to designate the selected address as the route origin.
To preview on map – Tap to see the selected address on the map.
•
InVion
Model: GPS-3V506-IUS
25
Language : US
Page : 23 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Edit a favorite location - Tap the Actions button.
•
Location button to change
for the selected location.
Delete a favorite location - Tap the Delete Fav. Location button to
•
remove the selected location.
To see information – Tap to display additional address information.
•
the name,
comment, or group location
Tap the Edit Fav.
3. Additional the Invion GPS Features
Driving Directions
From the Manage Route menu, tap this button to
display a complete turn-by-turn list of directions from
your current location to the selected destination. The
Invion GPS continuously updates the Turn-by-Turn
screen to display the most current instructions as you
navigate the route.
Figure 17 – Turn-by-Turn Display
Note: The first turn is at the top of the list and the final
turn is at the bottom, identified by a checkered
flag.
ENGLISH
InVion
Model: GPS-3V506-IUS
26
Language : US
Page : 24 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
The following options are available:
Route Tap to display your entire route on the Main Map screen, plus
the travel distance and the Estimated Travel Time Remaining
(ETR).
Turn Tap to display the next turn on the Main Map screen, including
the street name, the distance to the turn, and the turn direction.
Avoid Tap to avoid the selected turn in the Turn-by-Turn list.
The Invion GPS recalculates the route automatically. Note
that when you exclude a turn, the recalculated route may take
longer.
Multistop Planner
From the Extras menu, tap this button to create a
trip with multiple (up to 12) stops.

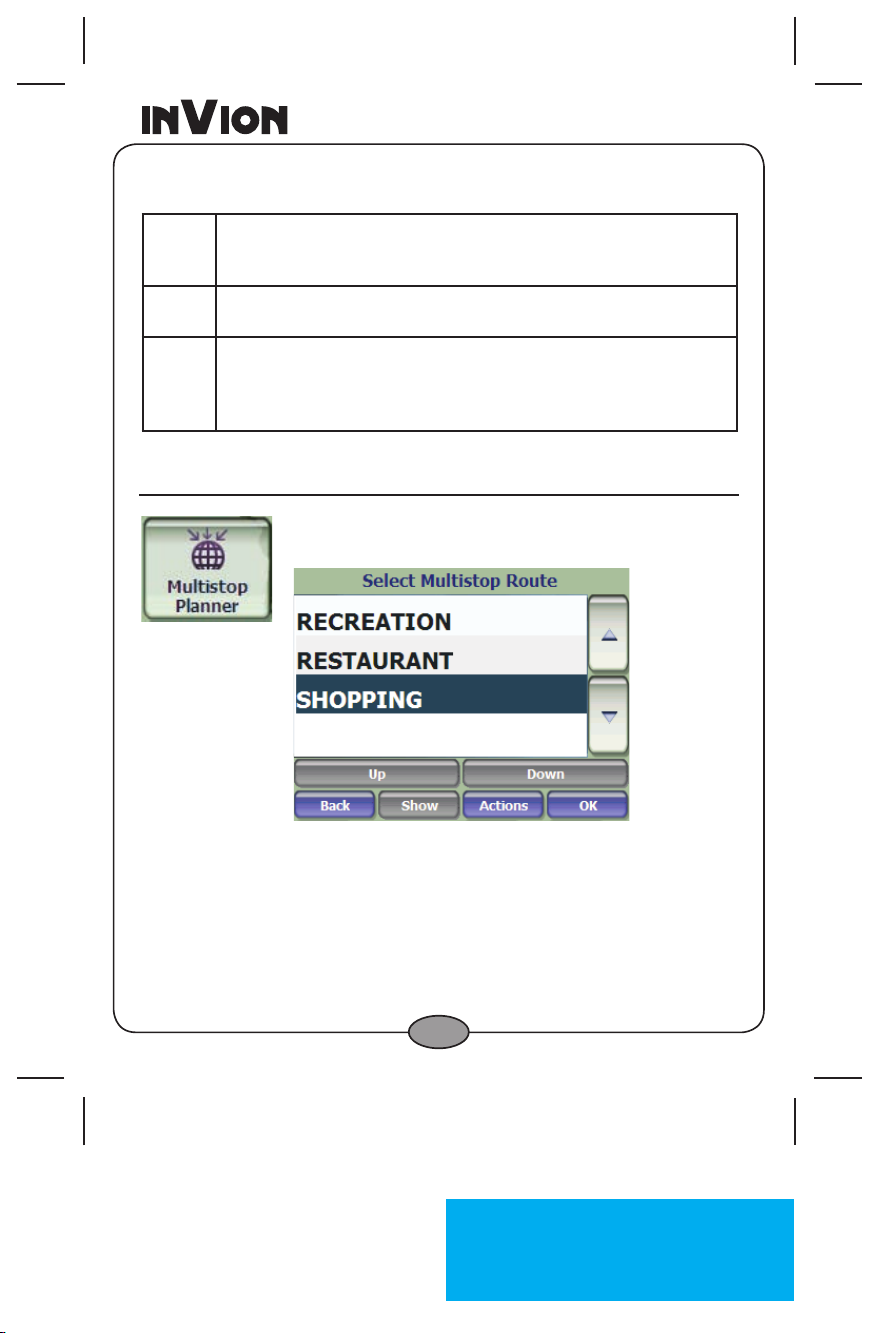

Figure 18 - Travelling to Multiple Stops in a Single Trip
When you tap the
the departure point to the first stop. When you reach the first stop,
the route recalculates to the second stop and so on.If you select a
stop in the middle of your list,
route to that stop
and so on.
InVion
Model: GPS-3V506-IUS
Go button, the route is calculated in stages, from
The Invion GPS
and will recalculate to the next stop on the list
27
Language : US
Page : 25 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
will calculate your
Creating a Group
Tap the Actions button and select Add Group. From the
Add Group screen, enter the group name and tap
The Actions screen also lets you edit or delete a selected group.
Save.
Adding Stops
Select a group and tap Next to add locations. Tap Actions to add an
Address, POI, Favourites or Recent Locations
appears on the
or down on the stops list, change the location name, enter a
comment or designate a different group.
Multistop
screen. You can move the location up
. The location
ENGLISH
Figure 19 - Specifying a Stop
InVion
Model: GPS-3V506-IUS
28
Language : US
Page : 24 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
InVion
Model: GPS-3V506-IUS
Language : US
Page : 23 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Creating a Group
Tap this button and select Add Group. From the Add
Group screen, enter the group name and tap OK.
Figure 21 – Add a Road Group
The Actions screen also lets you edit or delete a selected group.
Adding a Road to Avoid
When you tap My Roads to Avoid or a road group, the Invion GPS
displays the group screen, which lets you designate roads to avoid. From
this screen, you can use the Allow or Avoid buttons to include or exclude
individual roads when calculating a route.
Figure 22 – Storing Road Locations
Tap Actions and then the Add Road button. Select the city and street.
The road is displayed on the Show on Map screen. Tap the Avoid
31
InVion
Model: GPS-3V506-IUS
Language : US
Page : 27 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
button.
InVion
Model: GPS-3V506-IUS
Language : US
Page : 28 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Figure 24 – Avoiding a Road Event by Performing a Detour
Select the Detour option that you want to generate a detour for the
distance specified. For example, if you are traveling on a major highway
and you are alerted by the news that there is traffic for the next 2 miles,
you can have the Invion GPS calculate a detour that takes you off the
highway and then returns you back to the highway after a distance of 2
miles.
Map Browsing
You can browse the map without a GPS signal. From the Options &
Settings menu, tap Map Browsing button to disconnect from the GPS
receiver.
InVion
Model: GPS-3V506-IUS
Figure 25 – Explore the Map
33
Language : US
Page : 29 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
The icon identifies your current position. You can use the arrow
cursor to move the map. When you have located the street destination,
you can tap that point on the map. A popup menu appears. Tap Go There
to navigate to the selected point.
You can reconnect to GPS, by going to the Options & Settings menu and
tapping the GPS Navigation button.
Walking Mode
Walking Mode lets you travel as a Walking, generating a route up to
ten kilometers, which is not limited by vehicle constraints, such as one way
streets. When creating a Walking route, the Invion GPS avoids highways
or other roads where Walkings would not travel. Voice prompts are
deactivated in this mode.
From the Options & Settings menu, tap the Walking Mode button. You
can switch back to Vehicle Mode by tapping the Vehicle Mode button.
Note: When Walking Mode is selected, Turn by Turn, Route
Overview, Avoid Roads, and Detour features are disabled.
Map Selection
ENGLISH
From the Setup 1 menu, tap the Select Map button to change
map to another map saved on your SD
InVion
Model: GPS-3V506-IUS
memory card.
34
Language : US
Page : 30 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
the selected
Figure 26 – Select a Map
The Invion GPS immediately implements the selected map for all
navigation features. If it is the first time that you are using a map, an
End-User Agreement License (EULA) screen appears. Read it and then
select the Agree checkbox to continue working with the Invion GPS.
Figure 27 – Map’s End-User License Agreement
You can also choose from the following Select Map commands:
Refresh – Tap to refresh the screen when a new memory card is
•
inserted into the device.
Delete – Tap to permanently remove a selected map.
•
Note: You cannot delete the map you are currently using.
InVion
Model: GPS-3V506-IUS
35
Language : US
Page : 31 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
4. Invion GPS Configurations
Settings Menus

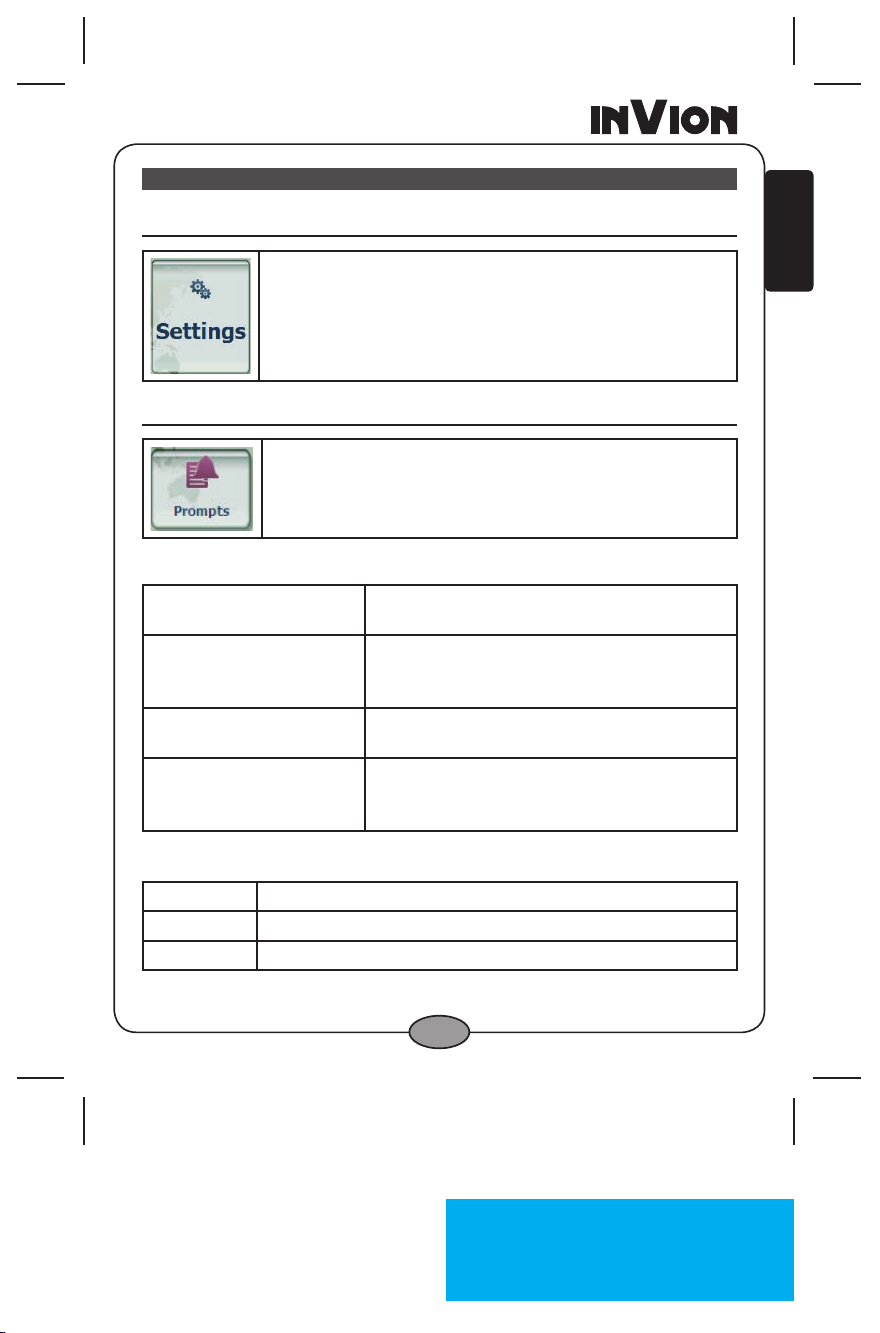

From the Main menu, tap the Settings button to let you
configure the Invion GPS system settings and utilize
travel playback and demonstration features.
Prompts
From the Options&Settings menu, tap the Prompts
button to select the types of voice and road name and
number notifications that you would like to use while
navigating.
Voice Prompts
Speed Warning Warns you when your car exceeds the
speed limit.
Route Recalculation Notifies you when the Invion GPS recal-
culates your route. For example, when you
miss a turn.
Unreliable GPS Signal Warns that the GPS signal is too low and
unreliable for navigation.
GPS Not Found Alerts you if the GPS signal is lost, or if the
power source has been removed from the
GPS receiver.
ISH
ENGL
Road Prompts
Both The Invion GPS tells you the street number and name.
Numbers Street numbers only.
Name Street name only.
InVion
Model: GPS-3V506-IUS
36
Language : US
Page : 32 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Language Settings
From the Setup 1 menu, tap the Language
to display the Language Settings screen.
Figure 28 – Language Settings
You can select from:
Language Text – Address and map information,
•
and screen and menu labels
Voice Guidance
•
button
InVion
Model: GPS-3V506-IUS
37
Language : US
Page : 33 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
InVion
Model: GPS-3V506-IUS
Language : US
Page : 34 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
The GPS Signal screen displays the following information:
Longitude
•
Latitude
•
Speed
•
Altitude
•
Number of Satelites
•
If you are working in the Map Browsing mode, the Invion GPS
automatically disconnects from the GPS receiver.
GPS Troubleshooting
Signal too low
When you first start the Invion GPS you may hear the “Signal too low”
message. This message means that your navigation device hasn’t yet
located a reliable GPS signal. Check that your device is connected to a
power source, such as the cigarette lighter, and has a clear view of the
sky.
GPS Not Found
For devices with an external antenna, the “GPS not found” message
means that your device is not connected to a GPS antenna or that the
antenna is not properly installed. Please check that:
The GPS antenna is extended or flipped up (for an external antenna
•
only).
The GPS antenna has a clear view of the sky for uninterrupted GPS
•
reception. The Invion GPS cannot calculate the route if there is no
GPS reception (for example, in a tunnel).
The navigation device is charged or connected to a power source,
•
such as the cigarette lighter.
InVion
Model: GPS-3V506-IUS
39
Language : US
Page : 35 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Units of Measure
Time Settings
Map Settings
From the Setup 1 menu, tap this button to
measurement system you would like to
You can select:
Miles, Yards
•
Miles, 10th of a Mile
•
Kilometers, Meters
•
From the Setup 1 menu, tap this button to
settings.
Figure 29 – Time Zone
You can select the Daylight Savings checkbox to
automatically adjust for daylight savings.
specify the
use.
display time
ISH
ENGL
From the Options&Settings menu, tap the Map Display button to select from the map interface options
listed below.
InVion
Model: GPS-3V506-IUS
40
Language : US
Page : 36 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
You can choose the following options for the main map:
Forward up Orients the map so that the direction you are
traveling is always at the top of the screen.
Use Larger Labels Increases the size of street names to make the
map easier to read.
Popup Menu Displays the navigation popup menu when tap-
ping on a map location.
Use Automatic
Zoom
Maneuver Diagram Displays a large image that indicates your next
Next Street Bar Displays the next street name.
Zoom buttons Displays zoom in and zoom out buttons.
Compass Displays the compass, which lets you change
QuickNav Button Displays the QuickNav button, which you tap to
Volume Control Displays the Volume Control bar.
GPS Indicator Displays whether a reliable GPS signal has been
Power Indicator Displays if your device is plugged in or running
Information Bar Displays estimated time of arrival.
Menu Button Displays the Menu button, which opens the Main
When selected, the zoom is speed dependent.
The map zooms out at higher speeds, displaying a larger map area, and zooms in at slower
speeds, displaying a smaller map area.
maneuver, such as left turn or right exit.
the map view display:
2D map view with the forward direction at
•
the top
3D map view with the forward direction at
•
the top
2D map view with North at the top
•
navigate to a pre-selected location.
located.
on battery power.
menu.
InVion
Model: GPS-3V506-IUS
41
Language : US
Page : 37 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
About
Help
From the Setup 2 menu, tap this button to
version and copyright information.
From the Setup 2 menu, tap this button to
technical support information.
displays
ENGLISH
displays
InVion
Model: GPS-3V506-IUS
42
Language : US
Page : 38 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Main Menu
Press the POWER button to turn on the GPS unit.
1. The Main Menu screen will be displayed as below :
2. Double tap Navigation to start program.
Note: During navigation or other operations, quickly pressing the MENU
button,"Main Menu" screen will be displayed.
Note: As always to ensure prompt customer service, please register
your unit with Invion at www.invionusa.com
Music

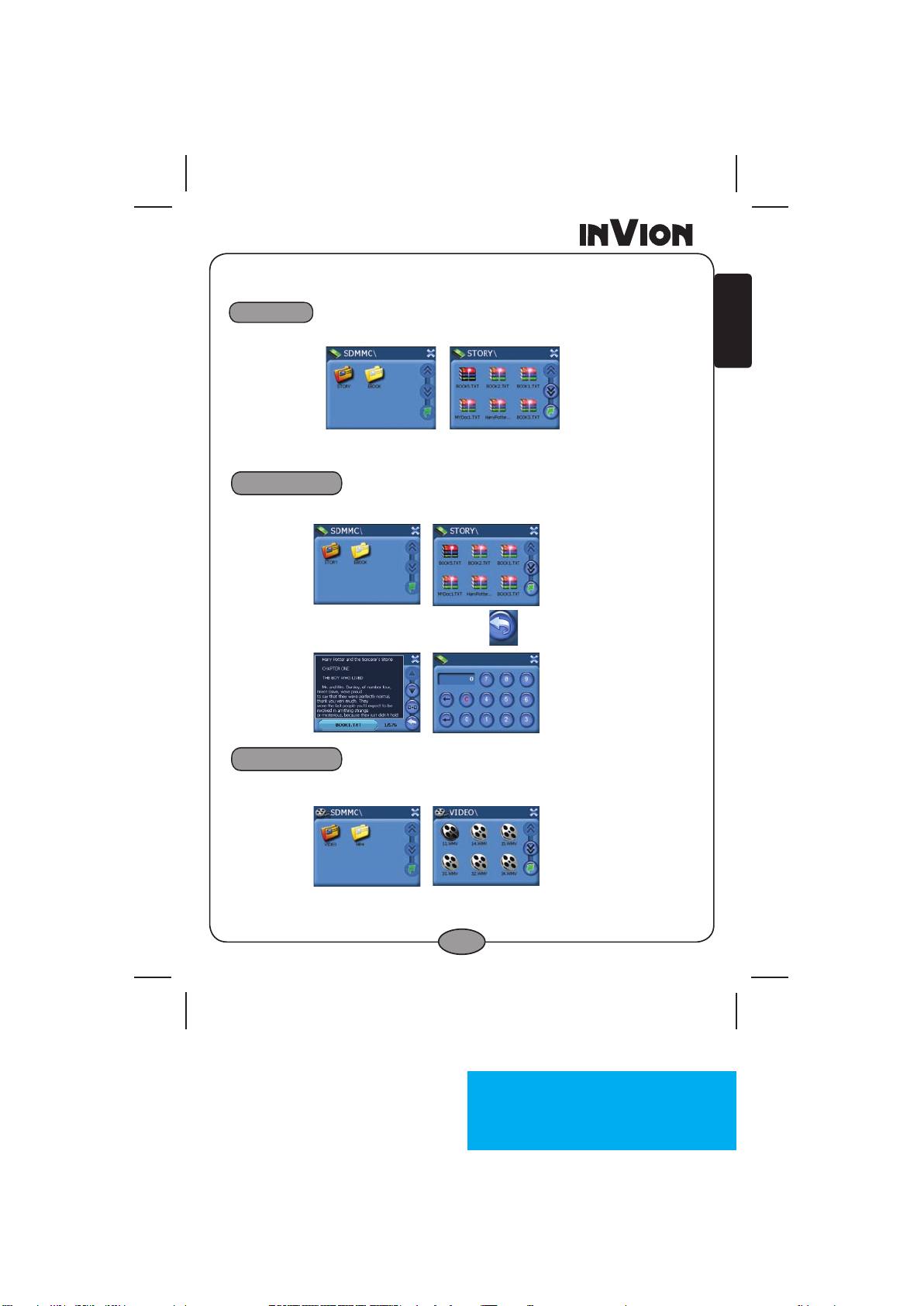

Double tap the "Music" icon to enter the music function:
InVion
Model: GPS-3V506-IUS
43
Language : US
Page : 39 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Double tap the music folder and double tap the desired music/file to enjoy
any of music chosen.
Tap the “Photo” icon to enter the photo function:
Double tap the photo folder and double tap the desired photo/file to enjoy
any of photo chosen.
Ebook
Double tap the “E-book” icon to enter E-book function:
Double tap any files to view the story, click choose the desired page
to read it. The display will be as follows:
ISH
ENGL
Video
Double tap the “Video” icon to enter the video function:
Double tap the video folder and double tap the desired video/file to enjoy
any of video chosen.
44
InVion
Model: GPS-3V506-IUS
Language : US
Page : 40 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
System
Tap the “system” icon, now you are in the main system menu.
You can setup “volume”, Backlight”, “Date Time” and “Language” as
below :
Tap “power” to check the power status:
Note: when it is under recharged and battery is not full, the Battery Level
is processing.
To check the system information, tap “Sys Info”, you can set the USB
option and calibrate the touch screen as below:
45
InVion
Model: GPS-3V506-IUS
Language : US
Page : 41 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Select “USB”, the interface as the below:
Note: Tap the on the top right anytime or press menu button to
return to the Main Menu screen.
Tap button to return to previous grade menu.
LISH
ENG
InVion
Model: GPS-3V506-IUS
46
Language : US
Page : 42 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
Specifications
3.5” GPS Navigation system with MP3/MP4 Player
3.5” 4:3 LCD Screen, 320*240 RGB
OS: Windows CE.Net 5.0
64 MB SDRAM
CPU:AT642, Dual core, Processor 372MHz
GPS: Centrality Atlas
Built-in Antenna
Plays images (Detailed as described in page 43) via SD/MMC
card (sold separately)
Built-In Lithium-on Battery last 2.5 hours
Dimension: 90L X 80W X 20H mm
Weight: 164g
Hard Key and Connection Ports:
Power on/off
Headphone jack
USB port(For service use only)
Menu
Reset
SD/MMC card slot
Lock
Volumn wheel
Accessories:
5V Car Power Adapter
USB cable
Suction mount
Mounting bracket
SD card
Manual
Quick Start Guide
III
InVion
Model: GPS-3V506-IUS
47
Language : US
Page : 43 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Legal
1. Notices, Disclaimers, and Terms of Use
1. Limited Product Warranty Destinator Technologies, warrants to the Client that the Products shall substantially conform
to Destinator Technologies’ specification for a period of one (1) year from the date of the original purchase by the end
user (the “Warranty Period”). As Destinator Technologies’ sole obligation and Client’s exclusive remedy for any breach
of warranty, Destinator Technologies agrees, at its sole option, to (i) use reasonable efforts to repair the Product with
new or refurbished replacement parts; (ii) replace the Product with a new or refurbished unit; or (iii) refund the purchase
price, provided Client returns the defective Products to Destinator Technologies with proof of purchase and Destinator
Technologies’ authorization.
Destinator Technologies’ warranty hereunder does not apply in case of any damage caused by accident, abuse, misuse,
misapplication, or alteration of any kind performed by anyone other than DestinatorTechnologies. TheProducts are not
designed or licensed for use in mission-critical applications, or in hazardous environments, requiring fail-safe controls,
including without limitation operation of nuclear facilities, aircraft navigation or communication systems, air traffic control,
or life support or weapons systems. Without limiting the generality of the foregoing, Destinator Technologies specifically
disclaims any express or implied warranty or condition of fitness for such purposes. Destinator Technologies’ warranty
does not, in any event, apply to physical damage tothe surface of the Product or replacement. Destinator Technologies
shall have no obligation with respect to any data stored in the Product.
Except as expressly stated in this section, Destinator Technologies makes no warranties or includes any conditions
with respect to the products, express or implied, including, but not limited to, the implied warranties or conditions of
merchantability, fitness for a particular purpose and no infringement.
2. Liability Limitation. In no event shallDestinator Technologies, beliable to Client, (and Client herebywaives any indirect,
special, incidental, or consequential damages in connection with) the transactions contemplated by this agreement,
whether or not such damages were foreseen, or their likelihood disclosed. DestinatorTechnologies shall not be liable to
Client or any third party claiming through Client, for any damages of any kind in excess of the amounts paid by Client
under the terms of this agreement with respect to the products giving rise to such damages. Some jurisdictions do not
allow the exclusion of or limitation on implied conditions, warranties or damages, thus some of the foregoing may not
apply to Client.
3. Intellectual Property Rights. Hardware and Software are proprietary to Destinator Technologies or its suppliers and are
subject to copyright and other intellectual property laws. Client’s only rights with respect to any Destinator Technologies
software included with the Products shall be provided, under the terms of Destinator Technologies’ software license.
The title to all Destinator Technologies Software remains with Destinator Technologies. Client agrees that Destinator
Technologies retains ownership of all rights, title and interest in all intellectual property, works of authorship, trade
secrets and like’s in all aspects of the Product(s). Client and its affiliates and subcontractors agree not to reverse
engineer any aspect of the Software and/or Products supplied under this agreement and further agree to pay assessed
damages should such action take place.
4. Copyright and Copies. The Software (including any copy thereof) is owned by Destinator Technologies or its suppliers
and is protected by United States, Canada, European, Brazilian and Australian copyright and patent laws and
international treaty provisions. The Software copy is licensed to you the client, not sold to you, and you (the client) are
not an owner of any copy thereof. You may make one copy of the software for backup or archival purposes. You may
not otherwise copy the software, except as authorized by applicable law, nor the written materials accompanying the
Software. Destinator Technologies hereby reserves all rights not explicitly granted in this license agreement.
Copyright © 2007, Destinator Technologies
ISH
ENGL
InVion
Model: GPS-3V506-IUS
48
Language : US
Page : 44 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
2. Copyright Notice
All rights reserved, except as expressly provided herein. No part of this
manual may be reproduced, copied, transmitted, disseminated, downloaded
or stored in any storage medium for any purpose without the express written
consent of SupportPlus. SupportPlus hereby grants permission to print one
copy of this manual and any revision hereto, provided that such printed
copy of this manual must contain the complete text of this copyright notice
and provided further that any unauthorized commercial distribution of this
manual or any revision hereto is strictly prohibited.
Information in this document is subject to change without notice. SupportPlus
reserves the right to change or improve its product and to make changes in
the content without obligation to notify any person or organization of such
changes or improvements.
SupporPlus and Invion are registered trademarks and may not be used
without express permission.
Windows® is a registered trademark of the Microsoft Corporation in the
United States and/or other countries.
InVion
Model: GPS-3V506-IUS
49
Language : US
Page : 45 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
3. Safety advice
Failure to avoid the following potentially hazardous situations could result in
an accident or collision resulting in death or serious injury.
When installing the unit in a vehicle, place the unit securely so that it does
not interfere with vehicle operating controls or obstruct the driver’s view of
the road.
Do not mount where the driver’s field of vision is blocked.
•
Do not place unsecured on the vehicle dash.
•
Do not mount in front of an airbag field of deployment.
•
When navigating, carefully compare information displayed on the unit to
all available navigation sources, including information from street signs,
visual sightings, and maps. For safety, always resolve any discrepancies or
questions before continuing navigation.
Always operate the vehicle in a safe manner. Do not become focused on
the unit while driving, and always be fully aware of all driving conditions.
Minimize the amount of time spent viewing the screen of the unit while driving
and use the voice commands when possible. Do not input destinations,
change settings, or access any functions that require prolonged use of the
unit’s controls while driving. Pull over and come to a complete stop before
attempting any such operations.
Do not expose the unit to excessive heat or throw the device into fire.
•
Old appliances do not belong in the household waste. Dispose of old
•
appliances correctly. Your local administration can give you information
about collection locations and opening times.
ISH
ENGL
Packaging materials are raw materials and can be used again. Separate
the packaging, and in the interest of the environment dispose of it properly.
Further information is available from your local administration.
50
InVion
Model: GPS-3V506-IUS
Language : US
Page : 46 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
4. Caution
Failure to avoid the following potentially hazardous situations may result in
injury or damages.
This unit is designed to provide you with route suggestions. It does not reflect
road closures or road conditions, traffic conditions, weather conditions, or
other factors that may affect safety or timing while driving.
Use the unit only as a navigational aid. Do not attempt to use the unit for any
purpose requiring precise measurement of direction, distance, location or
topography. This product should not be used to determine ground proximity
for aircraft navigation.
The Global Positioning System (GPS) is operated by the United States
government, which is solely responsible for its accuracy and maintenance.
The government’s system is subject to changes which could affect the
accuracy and performance of the unit. Although the unit is a precision
navigation device, any navigation device can be misused or misinterpreted
and therefore, become unsafe.
Important Information
Map Data Information: Virtually all data sources contain inaccurate or
incomplete data to some degree. This is particularly true outside the United
States, where complete and accurate digital data is either not available or
prohibitively expensive.
Notice to drivers in California and Minnesota: State law prohibits drivers
in California and Minnesota from using suction mounts on their windshields
while operating motor vehicles. SupportPlus takes no responsibilities for any
fines, penalties or damages that may be incurred as a result of disregarding
this notice. (See California Vehicle Code Section 26708(a); Minnesota
Statues 2005, Section 169.71.)
51
InVion
Model: GPS-3V506-IUS
Language : US
Page : 47 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
5. FCC compliance
The unit complies with Part 15 of the FCC interference limits for Class
B digital devices for HOME OR OFFICE USE. The limits are designated
to provide more reasonable protection against harmful interference in a
residential installation and are more stringent than “outdoor” requirements.
Operation of this device is subject to the following conditions:
This device may not cause harmful interference.
1.
This device must accept any interference received, including interference
2.
that may cause undesired operation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with these instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
you are encouraged to try to correct the interference by one of the following
measures:
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment into an outlet on a circuit different from that to
•
which the receiver is connected.
Consult an experienced radio/TV technician for help.
•
Notice: This device has no user-serviceable parts. Repairs should only be
made by an authorized service center.
Unauthorized repairs or modifications could result in permanent damage
to the equipment and void your warranty and your authority to operate this
device.
Do not attempt to open the casing to change or modify the unit in any way.
ENGLISH
InVion
Model: GPS-3V506-IUS
52
Language : US
Page : 48 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Claims & Warranties
In case of possible product defects, please contact our Service team by our
Website or E-mail. For this reason we recommend you save your purchase
receipt. To register your product, go to the SupportPlusUSA website and
click on “Registration”.
Service:
For technical questions, information about our products, spare part orders,
and additional maps, our Service team is available as follows:
Website: WWW.Invionusa.com
E-mail: info@supportplususa.com
Important note: Please do not send your device to our address without
having been requested to do so by our Service team. The costs and the
risk of loss for unsolicited mailings will be borne by the sender. We reserve
the right to refuse the acceptance of unsolicited mailings or to return the
corresponding merchandise to the sender carriage forward, that is, at the
sender’s expense.
Warranty: If for any reason the registered product does not function as it
should due to factory defects, it can be serviced within 1 year from the date
of purchase.
This warranty does not cover failures due to abuse, misuse, accident, or
unauthorized alterations or repairs.
In no event will SupportPlus be liable for any incidental, special, indirect, or
consequential damages resulting from the use, misuse, or inability to use
this product.
InVion
Model: GPS-3V506-IUS
VRS 1.0
53
Language : US
Page : 49 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
InVion
Model: GPS-3V506-IUS
Language : US
Page : 50 (of 50 Pages)
Version : 1.0
Date : 2007.10.13
InVion
s
r
e
o
ects,
ns
def
o
amag
d
erati
ial
t
t
l
n
a
e
u
q
e
authori zed
n
u
r
t , o
n
use , acci de
s
i
m
,
o abuse
t
e
du
s
e
ur
l
ai
f
r
e
cov
t
no
s
e
do
y
t
n
a
r
r
a
w
s
i
h
T
s
con
r
, o
ct
re
i
nd
i
,
al
i
ec
p
s
al ,
t
n
e
d
i
c
n
y i
n
or a
f
able
li
be
s
u
l
tP
r
uppo
S
l
l
wi
.
vent
rs
o e
ai
n
ep
n
r
I
due to factory
d
shoul
t
as i
n
functio
t
oduct does no
r
ate of purchase.
d
ed p
er
he
t
t
s
m
gi
o
e
r
r
f
e
ar
th
ye
1
ason
n
e
r
hi
t
y
n
wi
a
d
r
e
o
c
f
f
I
rvi
e
y:
t
e s
b
an
n
ca
it
War r
1.0
S
VR
.
duct
ro
s p
i
www.InvionUSA.com
abil i ty to use th
n
i
or
e,
s
u
s
i
m
e,
s
u
e
th
om
r
f
ng
ti
l
resu
WA RRANTY
er
l
a
de
dress of
d
A
S
U
6-I
0
5
e
V
s
3
a
ch
:
.
no
al
eri
S
r
u
p
GPS -
f
:
o
l
e
t
Mode
Da
Model: GPS-3V506-IUS
Language : US
Page : 50 (of 50 Pages)
Version : 1.0
Date : 2007.10 .13
Loading...
