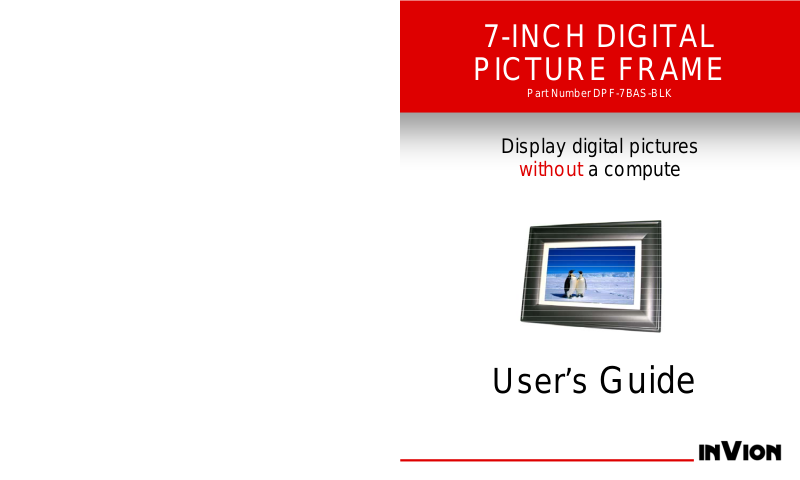

7-INCH DIGITAL
PICTURE FRAME
Part Number DPF-7BAS-BLK
Display digital pictures
without a compute
User’s
Guide
CONTENTS
INTRODUCTION....................................................................................1
FEATURES .......................................................................................1
GETTING STARTED..............................................................................2
PACKAGE CONTENTS.....................................................................2
UNPACKING, ASSEMBLY AND POSITIONING...............................2
OPERATION..........................................................................................3
OPERATING CONTROLS.................................................................3
Installing the Memory Card...........................................................5
Viewing Photos.............................................................................5
Selecting the Display Source ....................................................... 6
Selecting the Display Language ..................................................6
CUSTOMIZING THE DISPLAY..............................................................6
Adjusting the Image Display ........................................................6
Setting the Slideshow Interval.......................................................7
Changing the Transition Effect .....................................................8
CARE AND MAINTENANCE.................................................................9
TECHNICAL SUPPORT ......................................................................10
FREQUENTLY ASKED QUESTIONS .............................................10
TROUBLESHOOTING.....................................................................11
CLAIMS & WARRANTIES...................................................................12
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
i 7-Inch Digital Picture Frame User’s Guide
CLAIMS & WARRANTIES INTRODUCTION
In case of possible product defects , please contact our customer support center. We
recommend saving your purchase receipt.
Service: For technical questions, information about ou r products, and sp are part orders
please contact us via e-mail, phone, or visit our website:
Website: www.invionusa.com
E-Mail: info@invionusa.com
Phone: 800-817-3858
Address: SP by Design Inc.
9710 Research Dr.
Irvine, CA92618
USA
Important Note: Please do not send your device to our address without having been
requested to do so by our service team. The costs a nd the risk of loss for unsolicited
mailings will be borne by the sender. We res erve the right to refuse the acc eptance of
unsolicited mailings or return the corresponding merchandise to the sender carriage
forward, that is, at the sender’s expense.
Warranty: If for any reason the registered product does not functi on as it should du e to
factory defects, it can be serviced within 90 days from the date of purchase. This
warranty does not cover failures due to abuse, misuse, accident, or unauthorized
alterations or repairs. In no event will SP by Design Inc. be li able for any incidental,
special, indirect, or consequential damages res ultin g from the use, misuse, or inability to
use this product.
Made in China
Congratulations on purchasing the 7-Inch Digital Picture
Frame. This unit lets you view digital pictures directly
from your camera's memory cards. No computer,
digital camera or Internet connectio n is needed. You
can display a single, selected picture, or create a
slideshow of all the pictures on a memory card, using
multiple transition effects.
Before operating the unit, please read this manual
thoroughly, and keep it for future reference. This
manual will help you use many of t he exciting and useful features that will make your
Digital Picture Frame viewing more enjoyable.
This Digital Picture Frame is compatible with the following popular memory card
formats: Memory S tick® (MS) and Memory Stick Pro, SD™ and MultiMediaCard™
(MMC) Picture Cards.
FEATURES
• Displays digital pictures saved in Joint Photographic Experts Group (JPEG) format
without a computer. Simply insert a compatible mem ory card (not include d) into the
Digital Picture Frame to display photos.
• Compatible with most digital cameras’ stored JPEG images files.
• Supports image sizes of up to 10 Megapixels.
• Bright 7-inch thin film transistor (TFT) active matrix liquid crystal display (LCD)
screen.
• Automatic slide show feature with multiple transition effects.
• Pushbutton controls let you easily access all features and functions.
12 7-Inch Digital Picture Frame User’s Guide
7-Inch Digital Picture Frame User’s Guide 1
GETTING STARTED
PACKAGE CONTENTS
Your Digital Picture Frame includes the following items:
Digital Picture Frame
with Support Bracket
User’s Guide
UNPACKING, ASSEMBLY AND POSITIONING
Your Digital Picture Frame is easy to assemble, easy to install
and easy to use!
• Remove the Digital Picture Frame, supp ort brack et and AC
adapter from the carton.
• Install the support bracket on the back of the frame. S imply
align the arrow on the bracket with the mating arrow on the
back of the frame, then press into place.
You can position the frame for horizo nta l or ve rtical display.
Horizontal display is recommended if you plan to use the
“Slideshow” feature.
• Plug the AC adapter into the POWER connector in the side
of the frame, then plug the adapter into a wall outlet.
AC Adapter USB Cable
Horizontal Display
Vertical Display
TROUBLESHOOTING
Trouble Probable Cause Suggested Remedy
The Digital Picture Frame
doesn’t power on.
The screen is blank The memory card is not
No photos on the
memory card
One or more photos
won’t display
The AC adapter connector is
not inserted fully into the
frame.
installed correctly.
The memory card is not
installed correctly.
The photos are saved in an
incompatible file format.
When you connect the AC
adapter to the frame and power
up the unit, the “Slideshow”
should display. Even without a
memory card installed, the
pictures installed on the internal
memory should display. If the
screen remains blank
• Make sure the AC adapter
• If you plug the AC adapter
Make sure the memory card is
properly installed (with the label
facing the front of the frame).
Make sure you are using a
supported memory card.
Make sure the memory card is
properly installed (with the label
facing the front of the frame).
Make sure you are using a
supported memory card.
Make sure there is at least one
supported (JPEG) photo file on
the memory card.
connector is fully inserted into
the frame.
into a “switched” wall outlet,
make sure the switch is
turned on.
2 7-Inch Digital Picture Frame User’s Guide
7-Inch Digital Picture Frame User’s Guide 11
TECHNICAL SUPPORT OPERATION
FREQUENTLY ASKED QUESTIONS OPERATING CONTROLS
Q: Does the Digital Picture Frame use “touch-enabled technology?”
A: No, the LCD sc reen is not “touch-enabled.”. Use the buttons located on
the top edge of the frame to control the Digital Picture Frame.
Q: If I keep showing the same photo for a long time, will it damage the LCD
screen?
A: No. Th e Digital Picture Frame can display the same photo co ntinuously
for extended periods. However, it is recommended that you change
photos once a month.
Q: Does the Digital Picture Frame have built-in memory?
A: No,The Digital Picture Frame doesn’t include internal memory .
Q: What is the maximum picture size?
A: The Digital Picture Frame is able to display pictures up to 10 Megapixels.
Q: What is the best picture resolution displayed on the screen?
A: The frame’s best resolution is 800 x 480.
Q: Why won’t some of my photos display on the Digital Picture Frame?
A: The Digital Picture Frame is designed to show photos following Joint
Photographic Experts Group (JPEG) format. This is the same camera
industry standards format as digital cameras. Images, such as web images,
scanned images, or photos in RAW format are not stored according to
camera industry standards and cannot be displayed correctly on the Digital
Picture Frame. Most graphics software applications will let you convert
images stored in incompatible formats to the JPEG format. Refer to the
documentation provided with your software application for details.
10 7-Inch Digital Picture Frame User’s Guide
① PLAY/PAUSE ON/OFF
② LEFT
③ RIGHT
④ EXIT
⑤ SETUP
PLAY/PAUSE ON/OFF: Press this button to pause a pictu re. Pre ss this button ag ain t o
resume the slideshow. Hold this button for 3 sec, the unit will be turned off, then press and
hold this button for 2 sec., th e u nit wi ll b e tu rned on aga in.
LEFT: Press this button to see the previous picture.
RIGHT: Press this button to see the next pi ctu re.
EXIT: Press this button to return to a t humb nail scre en to en able ea sy select ion o f i mage s.
SETUP: Press this button to choose function mode. Press “setup” button to choose
function as following: Press “play/pause” button to confirm.
Slide show time:Press this button to choose slide show speed as 3s,5 s,15s,1m in and
15min.
Transition effect:Random/off.
Display Ratio:Crop to Fill/Fit to Screen/Full Screen.
Language:English/Dutch/French.
7-Inch Digital Picture Frame User’s Guide 3
Default: Three languages are optional by cha nge th e de fault : Eng li sh/ Dut ch/Fren ch
1. USB-A connector
• Connector slot for inserting a USB 2. 0-com pat ible me mory sti ck.
2. Compact Memory Card slots
• Card slot for insert ing a MM C/SD /MS memo ry card.
3. USB Mini-B connector
• Connector for inserting a USB cable to transfer files from a PC to the Digital
Picture Frame.
4. DC jack
• Plug in the AC adaptor into power outlet. Plug the other end into the unit.
5. Support Bracket
• Supports the Digital Picture Frame for tabl etop d i splay.
CARE AND MAINTENANCE
Use the following guidelines to keep your Digital Picture Frame in good operating
condition, and to avoid possible damage to the unit.
• The Digital Picture Frame is for indoor use only. DO NOT use the unit outdoors, or
place the unit where it may be affect ed by harsh envir onmental conditio ns (such as
near an open window, or on a “screened” patio).
• To reduce the risk of fire or electric shock; DO NOT expose the unit to rain or
moisture.
• DO NOT block the ventilation holes on the back of the Digital Pictur e Frame at any
time. These holes allow the heat generate d by the unit when it is powered to be
released. Blocking the ventilation holes may res ult in overheating and damage to
the unit.
• DO NOT use liquid cleaners or abrasives on the D igital Picture Frame. Clean dust
from the frame and LCD display by wiping with a clean, dry cloth.
• Keep your Digital Picture Frames out of sunli ght. Direc t sunli ght may cau se dam age
to the unit.
• DO NOT open the case of the Digital Picture Frame. Th ere is a ris k of electric shock,
and there are no user serviceable parts insi de. Opening the case will void your
warranty.
• Do not use the Digital Picture Frame if conditions could allow condensation to occur,
or damage may result.
• Your Digital Picture Frame is a complicat ed electronic device and cannot withstand
excessive shock. TAKE CARE when moving the unit to avoid dropping or otherwise
jarring the unit.
4 7-Inch Digital Picture Frame User’s Guide
7-Inch Digital Picture Frame User’s Guide 9
• 5s: Each photo displays for approximately fiv e seconds before transitioning to the
next photo.
• 15s: Each photo displays for approximately fifte en seconds before transitioning to
the next photo.
• 1min: Each photo displays for approximately 1minute before transitioning to the
next photo.
• 15min: Each photo displays for approximat
next photo.
a
Ch nging the transition effect
1. Press the EXIT button twice until back the main menu: Ca
2. Press SETUP twice to choose “Transition effect”.
3. Press PLAY/PAUSE to choose “Random” or “Off “effect.
4
. “Random”: Automatic slide show with multiple transition effects.
5. “Off ” : Close the multiple transition effect and only single effect display.
ely 15 minutes before transitioning to the
rd /USB/Setup.
Installing the Memory Card
1. Remove t he memory car d from your digit al camera. R efer to
the User’s Guide for your digital camera for instruction to
safely remove the memory card from the camera.
2. Insert the memory card into the Memory Card slot in the
side of the frame. BE SURE the lab el on the memory c ard
faces the front of the frame. The memory card should slide
easily into the slot. DO NOT force the memory card into the
slot, Forcing the card may damage the Digital Picture
Frame or the memory card.
If the memory card does not slide easily into the slot, BE
SURE you are using a supported memory card, and that
the card is oriented properly.
Viewing Photos
When your memory card is properly installed in the Digital Picture Frame, the screen
shows a “Slideshow” of all photos contained on the card.
• Press the PLAY/PAUSE button to enter the “Single Photo” display mode. The
“Pause”
displayed .
• Use the LEFT and RIGHT buttons to scroll backward and forward through the
available photos.
• Press the PLAY/PAUSE button to enter the “Slideshow” display mode. The “Pause”
icon disappear on the screen, followed by a “slideshow” of all available photos on the
memory card.
icon shows briefly on the screen, and the currently selected photo is
8 7-Inch Digital Picture Frame User’s Guide
7-Inch Digital Picture Frame User’s Guide 5
Selecting the Display Source
Press Exit button twice until main menu display :Card /USB/Setup
1. Use LEFT or RIGHT button to scroll through until Card is highlighted, press
PLAY/PAUSE twice to view photos in SD/MMC/MS card.
2. Use LEFT or RIGHT button to scroll through until USB is highlighted, press
PLAY/PAUSE twice to view photos in USB device.
Selecting the Display Language
The language option allows you to change the display language to English, Dutch and
French.
1. Press the EXIT button twice until back the main menu: Card /USB/Setup.
2. Press the SETUP button ,use the SETUP button to scroll through until Language
is highlighted .Press PLAY/PAUSE button to confirm your choice :Eng li sh, D ut ch
and French.
3. Press the EXIT button to back the main menu.
CUSTOMIZING THE DISPLAY
The Display Ratio and SLIDE SPEED let you:
• Set the image display (Stretch and Crop) options.
• Set the slideshow timing interval.
Adjusting the Image Display
Depending on the original size of your photos, the photos may not completely fill the
screen. The Display Ratio feature lets you digitally “stretch” or “crop” your photos to fill the
full reen. The Display Ratio options only affect the way the photos are dis play e
sc d on the
Dig l Picture Frame. The photos on your memory card are not changed.
ita
1. Press the EXIT button twice until back the main menu: Card /USB/Setup.
2. Press the SETUP button until “Display Ratio” is highlighted.
3. Press the PLAY/PAUSE button to display the choic
Screen” or “Full Screen”.
4. Press the SETUP button to scroll through the options.
5. Once desired option is highlighted press the PLAY/PAUS
choice.
6. Press the EXIT button twice to leave the SETUP menu :
• better fit the screen, and “crops”
The Crop to Fill opti on “enlarges” your photos to
parts of the photo from the sides, or from the top and bottom, depe
orientation of the frame and the size of the photo.
• The Fit to Screen option displays your photos at in their original sizes.
• The Full Screen opti on “stretches” your photos to fill the screen. Yo ur photos may
appear slightly distorted when using the
S ng
etti the Slideshow Interval
1. Press the EXIT button twice until back the main menu: Card /USB/Setup.
2. Press the SETUP button then Slide show time is highl igh ted .
3. Press the PLAY/PAUSE button to display the choices, “3s”, “5s” or “15s”
“1min” “15min”.
4. Press the SETUP button to scroll through the options.
highlighted, press the PLAY/PAUSE button to con fir m yo ur cho ice .
4. Press the EXIT button twice to leave the SETUP menu.
Full option.
• 3s: Each photo displays for approximately three seconds be fore transitioni ng to the
next photo.
es, “Crop to Fill”, “Fit to
E button to confirm your
nding on the
Once desired option is
6 7-Inch Digital Picture Frame User’s Guide
7-Inch Digital Picture Frame User’s Guide 7
Loading...
