Invacare R51TM LX, R51TM LXP, R51TM, R32TM LX, R32TM User Manual

...

Download

Parts Catalog

Issued: May 24, 2008

Nutron®

R32™ R32™ LX R50™ LX

R51™

R51™ LX

R51™ LXP

RWD

Powered Wheelchairs

Yes, you can. ™

Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the bottom of the page or below specified charts.

Parts Catalog Usage Guide

To order call toll free 1-800-333-6900, or www.invacare.com

The information contained in this document is subject to change without notice. This catalog contains service parts for Form No. 01-220. If you have any questions regarding this catalog, please contact one of our Customer Service Representatives.

For Customer Service Support Call:

1-800-333-6900

For Faxed In Orders Call:

1-800-678-4682 or

1-440-366-0709

For Technical Service Call:

1-800-832-4707

Literature Can Be Found at:

www.invacare.com or

1-800-828-6272

SYMBOL DEFINITION

Examples:

A,B,C etc. NOTE: NLA

= Special Comments = General information pertaining to that specific page = No Longer Available

HARDWARE MEASUREMENTS

The measurements for the hardware will be listed as follows:

Screws, Bolts Washers Spacers

For your convenience, we have supplied an area for you to list your Invacare Representatives.

Diameter X Thread Count/Pitch X Length Inside Diameter X Outside Diameter X Thickness Inside Diameter X Outside Diameter X Length

Name Phone Numbers

and NX are trademarks of Invacare Corporation.

Form No.

01-220

TABLE of CONTENTS

Page

Number

To order call toll free 1-800-333-6900, or www.invacare.com

Form No.

01-220

Description

Accessories - Miscellaneous .................................................................................................... 85

Accessories - Oxygen Holder Assembly .................................................................................. 86

Accessories - Power Wheelchair Tool Kit ................................................................................ 88

Accessories - Solid Seat Inserts ............................................................................................... 81

Accessories - Wheel Locks (After 2/14/03) .............................................................................. 83

Accessories - Wheel Locks (Before 2/15/03) ........................................................................... 82

Arms, Adjustable Height .......................................................................................................... 25

Arms, Fixed Height .................................................................................................................. 23

Back Canes and Hardware - Adjustable Height and Adjustable Angle Back ........................... 13

Back Canes and Hardware - Fold Down Adj. Height Angle Back ............................................ 15

Battery Boxes and Trays ......................................................................................................... 34

Battery Chargers ...................................................................................................................... 36

Caster and Forks ...................................................................................................................... 27

Crossbraces and Seat Extensions ........................................................................................... 11

Electronics - MK5 Controllers, Programmer and Hardware (After 2/14/03) ............................. 79

Electronics - MK5 SPJ Joystick and Mounting Hardware (After 2/14/03) ................................ 64

Electronics - MK5 SPJ+ Joystick and Mounting Hardware (Introduced 8/16/05) ..................... 66

Electronics - MKIV Controllers, Harness , Programmer and Hardware (Before 2/15/03) ........ 77

Electronics - MKIV Joystick Switch Options ............................................................................. 75

Electronics - MKIV Joysticks and Mounting Hardware (Before 2/15/03) .................................. 62

Electronics - MKIV Joysticks, PSF and PSR (Before 2/15/03) ................................................. 68

TABLE of CONTENTS

Page

Number

To order call toll free 1-800-333-6900, or www.invacare.com

Form No.

01-220

Description

Electronics - MKIV Mid-Line Swing Bracket Assembly .......................................................... 70

Electronics - Quad Link Assembly (Before 4/07/06) ................................................................. 71

Electronics - Quad Link Assembly (QL) (After 4/06/06) ........................................................... 73

Frame Finishes, Touch-Up Paint and Upholstery Options ....................................................... 5

Frames, Frame Hardware, and Anti-Tips ................................................................................. 8

Front Rigging - Adjustable Angle Footplate Assemblies - AT5543 .......................................... 57

Front Rigging - Footrest and Legrest Accessories ................................................................... 58

Front Rigging - Footrest Supports - P93M ............................................................................... 44

Front Rigging - Footrest Supports - PW93 ............................................................................... 41

Front Rigging - Footrest Supports - PW93E ............................................................................. 42

Front Rigging - Footrest Supports - PW93ST .......................................................................... 43

Front Rigging - Front Rigging Hanger ...................................................................................... 61

Front Rigging - Legrest Supports - P904A ............................................................................... 45

Front Rigging - Legrest, Articulating PAS4A/PAL4A ................................................................ 48

Front Rigging - Pivot/Slide Tube and Footplate - P904, PAL4A, and PAS4A .......................... 55

Front Rigging - Pivot/Slide Tube and Footplate - P93M, PW93, and PW93E .......................... 51

Front Rigging - Pivot/Slide Tube and Footplate - PW93ST ...................................................... 53

Front Rigging - Reference Chart .............................................................................................. 38

Motors, (2-Pole), Gearbox and Drive Wheel ............................................................................ 29

Motors, (4-Pole) and Gearbox - Model R51LXP only ............................................................... 32

Packaging, Literature and Decals ............................................................................................ 6

TABLE of CONTENTS

Page

Number

To order call toll free 1-800-333-6900, or www.invacare.com

Form No.

01-220

Description

Upholstery, Back ...................................................................................................................... 20

Upholstery, Seat ....................................................................................................................... 17

Frame Finishes and Touch-Up Paint

Color Number Part Number Bottle Size Color

Wet Black.6 oz103145024P

Red.6 oz103145533P

Electric Red.6 oz104632161P

Electric Blue.6 oz104632062P

Silver VeinN/AN/A71P

Jeweled Green.6 oz1101325101P

Upholstery Options

Lightweight Vinyl Nylon

U240 BlackU05 Black

Frame Finishes, Touch-Up Paint and Upholstery Options

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Packaging, Literature and Decals

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Packaging, Literature and Decals

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1023167 Carton, Battery Boxes 1 11

40131X148 Carton, Hardware 1 12

1108625 Insert 1 13 1074355 Carton 1 14

40131X011 Carton, Front Riggings 1 15 B

1023607 Carton 1 16 1023165 Insert 1 17 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 18

1035900 Decal, Transportation 1 19 1107645-NLA Decal Model - R32 1 210 1107646-NLA Decal Model - R32LX 1 210

1107647 Decal Model - R50LX 1 210

1107648 Decal Model - R51 1 210

1107649 Decal Model - R51LX 1 210

1107650 Decal Model - R51LXP 1 210

1107653 Decal 350 Watts (2 Pole Motors) 1 211

1107654 Decal 650 Watts (4 Pole Motors) 1 211

1104797 Decal, Shroud Drive/Push 1 212

1095489 Decal, Invacare 3-D Logo (2-1/2" L) 1 213

1107651 Decal, Front Battery Cover 1 114

1107652 Decal, Rear Battery Cover 1 115

1095272 Manual, Instruction MKIV RII 1 1A 1095273-NLA Manual, Instruction MKIV RII LP 1 1A

1106644 Owner's Manual - R32 and R32LX 1 1A

1106645 Owner's Manual - R50LX R51 R51LX and R51LXP 1 1A

1110532 Manual, Instruction, MK5 NX/NX-LP 1 1A

A - Not Shown.

B - Required only with Hemi Models.

Note

: When adjusting or replacing parts, please refer to your Owner's Manual.

NOTE:

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

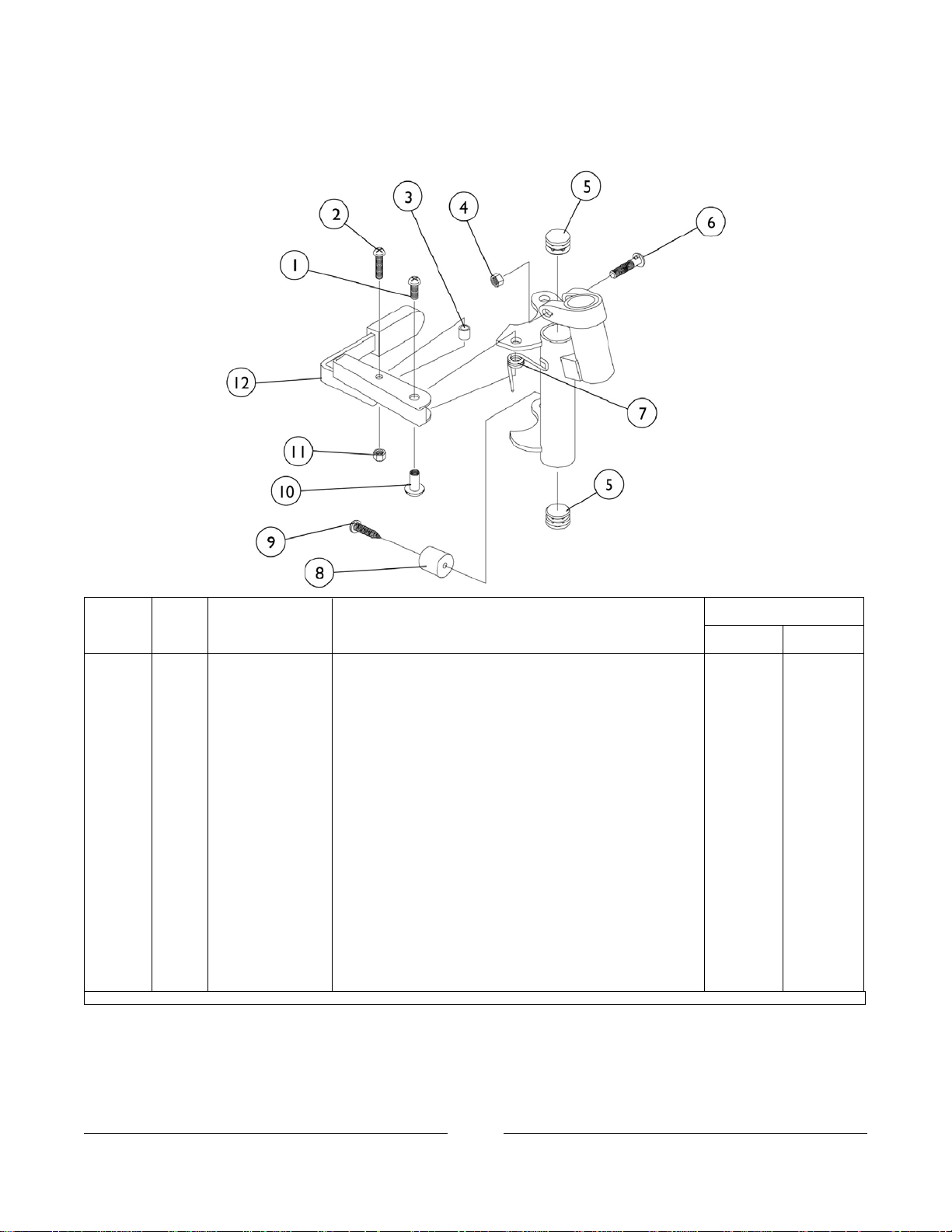

Frames, Frame Hardware, and Anti-Tips

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Frames, Frame Hardware, and Anti-Tips

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1055298 Screw, Hex Head (1/4-28 x 1-5/8") 1 21

1085134 Screw, Socket Flat Head C'Sunk (#10-32 x 1-5/8") 1 22

1007541 Seat Guide 1 23

1036485 Arm Socket 1 24

1025765 Locknut (1/4-28) 1 25

1106315 Brace, Arm Socket 1 26

1119977 Screw, Socket Head Cap (1/4-20 x 2-1/4") 1 27

1058520 Fastener, Panel Snap-In 1 28

1022597 Screw, Phillips Pan Head Tap (#10-32 x 3/8") 1 29

1025731 Locknut (#10-32) 1 210

1071505 Screw, Socket Head Cap with Patch (M6 x 20MM) 1 311

1080712 Screw, Socket Head (M6 x 1 x 30MM) 1 312

1106283 Plug, Anti-tip 1 213

1026907 Washer (1/4 x 1/2 x 1/16") 1 414

1056406 Cup, Socket Pivot 1 215

1106320 Side Frame Hardware, 17-3/4"-19-3/4" Seat to Floor

(1 Pair)

2 1B,D

40117X006 Bearing (5/8") 1 216

1124839 Screw, Socket Head Cap (M6 x 1 x 40MM) 1 617

1124840 Screw, Socket Head Cap (M6 x 1 x 55MM) 1 618

1124829 Spacer, Motor 1 219

1124842 Pin, Roll (4MM x 16MM) 1 420

1124833 Extension, Motor Lock 1 221

1124828 Side Frame Hardware, 21" Seat to Floor (1 Pair) 2 1A,D

1025763 Spring, Torsion with Double Button 1 222

1106298 Anti-Tip, Rear 1 123 F

1124838 Anti-Tip, Rear 1 123 G

See Chart #24 Side Frames 1 124

1025736 Locknut (1/4-20) 1 1E

1018739 Washer (1/4 x 5/8 x 3/32") 1 1E

1037610 Screw, Hex Head (1/4-20 x 1-5/8") 1 1E

A - Includes items 1-10, 13-15, & 17-21

B - Includes items 1-11, 13-15

D - Not Shown.

E - Wheel Lock hardware for replacement side frame built before 2/15/03.

F - 17-3/4"-19-3/4" Seat to Floor configuration

G - 21" Seat to Floor configuration

NOTE:

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Frames, Frame Hardware, and Anti-Tips

#24 Side Frames

Frame Style R51LXPR32 R32LX R50LX R5I R51LX

8881107663

8881107659

Adult - Right

See Note(s) C See Note(s) C, A See Note(s) C, A See Note(s) C, A See Note(s) C, A See Note(s) C, A See Note(s) C, A

8881107664

8881107660

Adult - Left

Before 4/7/03

See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A

8881119136

8881119134

Adult - Left

After 4/6/03

See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A

8881107661

8881107657

Hemi - Right

See Note(s) C See Note(s) C, A See Note(s) C, A See Note(s) C, A See Note(s) C, A See Note(s) C, A See Note(s) C, A

8881107662

8881107658

Hemi - Left

Before 4/7/03

See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A

8881119135

8881119133

Hemi - Left

After 4/6/03

See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A A - Specify frame finish when ordering, see page titled "Frame Finishes". B - Threaded inserts removed from left side frame that mounted the MKIV controller. MK5 controller mounts differently and the threaded inserts are no longer used C - Right Side Frames were Not affected by the MK5 change. Right Frame part nos. shown are applicable regardless of when chair was built.

NOTE:

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Crossbraces and Seat Extensions

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Crossbraces and Seat Extensions

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1064409 X-Brace Assembly 1 21 C 1064410 X-Brace Assembly 1 21 D 1064411 X-Brace Assembly 1 21 E 1064412 X-Brace Assembly 1 21 F 1028835 Cap, Hub (Black) 1 42

60264X001 Locknut (5/16-24) 1 23

1028491 Washer, Caplugs (11/32" I.D. x 1" O.D.) 1 44 1056708 Plug, Pivot Tube 1 45 1038179 Screw, Hex Head (5/16-24 x 4-1/4") 1 26 1057830 Hardware, Crossbrace Pivot Tube 1 1A,B 1055348 Screw, Hex Head (1/4-28 x 1-3/4") 1 27 1029501 Plug Button, Black (1") 1 48 1065362 Locknut (1/4-28) 1 49 1057828 Strap, Pivot Link 1 210 1057384 Pivot Link, 14-15" Wide - Adult 1 211 C 1057385 Pivot Link, 16-18" Wide - Adult 1 211 G 1057386 Pivot Link, 19- 20" Wide - Adult 1 211 F 1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 212 7930333 Locknut (1/4-20) 25 213 1098625 Screw, Hex Head (5/16-24 x 3-1/2") 1 114

16308X000 Washer, Flat (5/16 x 11/16 x 1/16") 1 215

1037913 Bushing (5/16 x 7/16 x 9/32") 1 116 1016263 Spacer, Coved (3/4 x 1 x 1/2") 1 417 7930313 Washer, Nylon (5/16 x 7/8 x 1/8") 25 118 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 119 7930330 Locknut (5/16-24) 25 120 1057832 Hardware, Crossbrace 1 121 1058616 Seat Extension Kit - 1" (Pair) 2 122 1058617 Seat Extension Kit - 2" (Pair) 2 122 1076284 Screw w/ washer (#10 x 7/8") 1 223 1026298 Screws with Washers (#10 x 7/8") 2 123

A - Not Shown.

B - Includes items 2-6.

C - 14" Wide

D - 16" Wide

E - 18" Wide

F - 20" Wide

G - 16-18" Wide

NOTE:

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Back Canes and Hardware

Adjustable Height and Adjustable Angle

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Back Canes and Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1057248 Grip, Foam (4-3/4") 1 11 1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 12 1056551 Insert 1 13 7930307 Locknut (1/4-20") 25 34 1107655 Back Cane with Grip and Hardware 1 15 A 1006229 Grip, Foam (8") 1 16 1028372 Back Cane Assembly - 10 Degree Bend 1 17 7930323 Package, Locknut (1/4-20) 25 48 1026907 Washer (1/4 x 1/2 x 1/16") 1 49 1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 210 1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 211 1108621 Bracket w/ Adjustable Back Tube, Black 1 112 1107668 Adjustable Angle Back Hardware (1 pair) 2 113 B

A - 16-18" Back Height

B - Includes Items 8-12.

NOTE:

Adjustable Height and Adjustable Angle

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Back Canes and Hardware

Fold Down Adjustable Height Angle Back

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Back Canes and Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1006229 Grip, Foam (8") 1 11 1027848 Back Cane with Grip and Attaching Hardware 1 12 7930323 Package, Locknut (1/4-20) 25 13 1058832 Tube, Backrest 1 14

40157X020 Spacer, Coved (1/4 x 1 x 9/16") 1 45

7930334 Locknut (1/4-28) 25 56 1026907 Washer (1/4 x 1/2 x 1/16") 1 47 1108626 Bracket, Pivot, Black 1 28 7930313 Washer, Nylon (5/16 x 7/8 x 1/8") 25 29 1055349 Screw, Hex Head (1/4-28 x 2") 1 310 1059127 Pin, Locking 1 111 1058232 Plug, Latch 1 112 1011511 Spring, Compression (1") 1 113 1058545 Lever, Actuator 1 114 1059271 Tip, Plastic, Black 1 115 1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 116 1107667 Fold Down Back Hardware 2 1A,B

A - Includes Items 3-16

B - Not Shown

NOTE:

Fold Down Adjustable Height Angle Back

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Seat Upholstery

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Seat Upholstery

Lightweight Vinyl Seat Upholstery

R32 and R51 (Before 11/15/02)

Chair Width 16" Depth 17" Depth 18" Depth

88810523018881052296888101820014" 88810233608881020690888101692016" 88810233598881020691888101691818" 88810523078881052300888101957720"

Note: When ordering, please specify U05 Black for Lightweight/Vinyl and U240 Black for Nylon Upholstery.

Nylon Seat Upholstery

R32 and R51 (After 11/14/02)

Chair Width 16" Depth 17" Depth 18" Depth

88810572138881057206888105719914" 88810572158881057208888105724116" 88810572178881057210888105724218" 88810572188881057211888105720420"

Note: When ordering, please specify U05 Black for Lightweight/Vinyl and U240 Black for Nylon Upholstery.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Seat Upholstery

Nylon Seat Upholstery

R32LX/R50LX/R51LX/R51LXP

Chair Width 16" Depth 17" Depth 18" Depth

10163171016316101631514" 10163231016322101632116" 10163291016328101632718" 10176491017646101764320"

Note: When ordering, please specify U05 Black for Lightweight/Vinyl and U240 Black for Nylon Upholstery.

Hardware for Seat Upholstery

Part Number Description

16" Depth

Quantity Required

17"-18" Depth

Quantity Required

108

Single Pack Screw with

Washer (#10 x 7/8")

1076284

N/A1 Pkg of 8

Multi Pack Screws with

Washers (#10 x 7/8"")

1057950

1 Pkg of 10N/A

Multi Pack Screws with

Washers (#10 x 7/8")

1050393-NLA

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Back Upholstery

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Back Upholstery

Lightweight Vinyl Back Upholstery (Wrap Around)

R51 (Before 11/15/02)

Back Height 14" Chair Width 16" Chair Width 18" Chair Width 20" Chair Width

888101957488810172168881017217888101819916"-19"

When ordering, please specify U05 Black for Lightweight Vinyl and U240 Black for Nylon Upholstery.

Back Upholstery, Black Nylon (Wrap Around)

R51 (After 11/14/02)

Back Height 14" Chair Width 16" Chair Width 18" Chair Width 20" Chair Width

105214410317741031772103177016"-20"

Lightweight Vinyl Back Upholstery (Screw-On)

R32 (Before 11/15/02)

Back Height 14" Chair Width 16" Chair Width 18" Chair Width 20" Chair Width

888110769388810165828881017856888101822216"-19"

When ordering, please specify U05 Black for Lightweight vinyl and U240 Black for Nylon Upholstery.

Nylon Back Upholstery (Screw-On)

R32 (After 11/14/02)

Back Height 14" Chair Width 16" Chair Width 18" Chair Width 20" Chair Width

111677488810572578881057252111677316"-19"

When ordering, please specify U05 Black for Lightweight vinyl and U240 Black for Nylon Upholstery.

Back Upholstery, Black Nylon (Wrap Around)

R32LX/R50LX/R51LX/R51LXP

Back Height 14" Chair Width 16" Chair Width 18" Chair Width 20" Chair Width

106061410606131060612106061116"-20"

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Back Upholstery

Hardware for Back Upholstery

Part Number Description

All Models, Except R32

Quantity Required

R32

N/A1 Pkg of 2

Screws with Washers

and Cable Ties

(#10 x 7/8")

1029850

1 Pkg of 8N/A

Screws with Washers

(#10 x 7/8")

1057950

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Fixed Height Arms

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Fixed Height Arms

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

8881053578 Arm Pads, Vinyl, Desk Length with Screws (9" L x

2" W)

2 11 B,C

8881053577 Arm Pads, Vinyl, Full Length with Screws (14" L x 2"

2 11 B,C

1110817 Arm Pads, Desk Length, Urethane Waterfall with

Screws, Black (9" L x 2-5/8" W) (Pair)

2 11 D

1110818 Arm Pads, Full Length, Urethane Waterfall

with Screws, Black (13" L x 2-5/8" W) (Pair)

2 11 D

8881011811 Arm Pad, Vinyl, Desk Length (9" L x 2" W) 1 11 B,C 8881015932 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Right 1 11 B,C 8881015933 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Left 1 11 B,C

1117327 Arm Pad, Desk Length, Urethane Waterfall with

Screws, Black (9" L x 2-5/8" W)

1 11 A,D,G

1117328 Arm Pad, Full Length, Urethane Waterfall with

Screws, Black (13" L x 2-5/8" W)

1 11 A,D,G

1034083 Package, Screws Phillips Round Head (#10-32 x

1-1/8")

2 12

1094270 Screw, Phillips Pan Head (#10-32 x 1-1/4") (Pair) 2 12 E 1015450 Handle, Quad Release 1 23 1018225 Spring, Torsion with Button Lock 1 24 1036484 Plug Button, Arm Tube, Black (3/4") 1 25 1116900 Screw, Self Tapping (#6-20 x 1/2") 1 46 F 1064132 Clothing Guard, Desk Length - Right/ Left 1 17 1064131 Clothing Guard, Full Length - Right/ Left 1 17 1027097 Plug Button, Black (3/4") 1 18 1108604 Arm Assembly, Desk Length Conventional - Right 1 19 1108605 Arm Assembly, Desk Length Conventional - Left 1 19 1108606 Full Length Arm w/o Arm Pad Right 1 110 1108607 Full Length Arm w/o Arm Pad Left 1 110

A - As 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs with screws

for chairs manufactured before 1/3/02.

B - When ordering, please specify color U67 Black.

C - R32/R51 Models

D - LX/LXP Models

E - For Black Urethane Waterfall Arm Pads Only.

F - Desk Length takes quantity of 6

G - After 7/9/07 Invacare recommends ordering armpads in pairs to assure uniform appearance on chair

NOTE:

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Adjustable Height Arms

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Adjustable Height Arms

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

8881053578 Arm Pads, Vinyl, Desk Length with Screws (9" L x

2" W)

2 11 B,C

8881053577 Arm Pads, Vinyl, Full Length with Screws (14" L x 2"

2 11 B,C

1110817 Arm Pads, Desk Length, Urethane Waterfall with

Screws, Black (9" L x 2-5/8" W) (Pair)

2 11 D

1110818 Arm Pads, Full Length, Urethane Waterfall

with Screws, Black (13" L x 2-5/8" W) (Pair)

2 11 D

1117327 Arm Pad, Desk Length, Urethane Waterfall with

Screws, Black (9" L x 2-5/8" W)

1 11 A,D

1117328 Arm Pad, Full Length, Urethane Waterfall with

Screws, Black (13" L x 2-5/8" W)

1 11 A,D

1027095 Plug Button, Black (7/8") 1 22 1111714 Package, Screws Phillips Pan Head (#10-32 x

1-1/8")

2 13

1094270 Screw, Phillips Pan Head (#10-32 x 1-1/4") (Pair) 2 13 E 1038470 Arm Tube Assembly w/o Pad w/ Plug Buttons,

Conventional - Desk Length (Right/Left) (Black)

1 14

1038472 Arm Tube w/o Pad w/Plug Buttons, Full Length

Right/Left (Black)

1 14

1035614 Plug Button, Black (5/8") 1 25

1090768 Kit, Lock Handle w/Rivets (both LT & RT side) 2 16 47471X074 Spring, Arm Lock 1 17 47471X068 Locking Pin 1 18

1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 29

1015450 Handle, Quad Release 1 210

1018225 Spring, Torsion with Button Lock 1 211

1036484 Plug Button, Arm Tube, Black (3/4") 1 212

1028645 Rivet 1 613

1064129 Clothing Guard 1 114

1036150 Anti-Rattle 1 215

1057992 Arm Base Assembly, Removable - Right 1 116

1057993 Arm Base Assembly, Removable - Left 1 116

A - As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs with

screws for chairs manufactured before 1/3/02.

B - When ordering please specify color U67 Black.

C - R32/R51 Models

D - LX/LXP Models

E - For Black Urethane waterfall Arm Pads Only

NOTE:

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Casters, Forks and Hardware

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Casters, Forks and Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1056739 Cap, Head Tube 1 11

1028550 Locknut (5/8-18) 1 12

1041444 Washer (5/8 x 1-5/16 x 1/8") 1 13

1057949 Fork Stem Hardware 1 14 A

8881071460 Fork and Stem - 6" Casters 2 15 E

1058556 Fork and Stem -8" Casters 1 25 E

1124830 Fork and Stem -8" Casters 1 25 F

1025726 Screw, Hex Head (7/16-20 x 3-1/4") 1 16

1025724 Washer (15/32 x 5/8 x 3/64") 1 27

1025734 Locknut (7/16-20) 1 18

1042489 Caster Axle Hardware (1 Pair) 2 19 B

1072014-NLA Wheel with Bearings - Semi Pneumatic (6" x 2") 1 110 C

1115179 Wheel with Bearings, 6 x 2" Urethane Deep Profile 1 110 D

1122066 Wheels with Bearings, 6 x 2" Urethane Deep Profile 2 110 D

1070811 Wheel/Caster, Semi-Pneumatic with Bearings

(8 x 1-3/4")

1 110

1002002 Wheel with Bearings - Pneumatic (8 x 2") 1 110

1006049 Bearing (7/16") 1 211

1020592 Spacer, Bearing (7/16 x 5/8 x 1-3/4") 1 112 40176X034 Tire, Pneumatic (8" x 2") 1 113

1034942 Tube, Pneumatic Inner (8" x 2") 1 114

A - Includes items 1-3

B - Includes items 6-8 (pair)

C - Service part No Longer Available 8/15/03. Due to product improvement, order (pair) part number 1122066 dated after

8/14/03 so each side matches. The deep profile caster has 2 tread grooves w/ round corners instead of 4 tread grooves w/

square corners.

D - For chairs made after 8/14/03

E - 17-3/4" - 19-3/4" Seat to Floor chairs

F - 21" Seat to Floor chairs

NOTE:

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Drive Wheel, 2-Pole Motor and Gearbox

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Drive Wheel, 2-Pole Motor and Gearbox

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1107665 Motor and Gearbox -Right 1 11 A,B

1107666 Motor and Gearbox -Left 1 11 A,B

1111707 Motor and Gearbox - Right 1 11 A,C,M

1111708 Motor and Gearbox - Left 1 11 A,C,M

1141282 Motor and Gearbox - Right 1 11 A,L

1141283 Motor and Gearbox - Left 1 11 A,L

1038361 Kit, Motor/Brake Covers with Screws 2 12 A

1055872 Brake, Spring Set with Screws 1 13

1123528 Kit, Motor Brush - Internal (Large) 2 14 I

1137265 Kit, Motor Brush w/ Cap - External 2 14 J

1122164 Instruction Sheet, Motor Brush Kit 1 1K

1107653 Decal 350 Watts (2 Pole Motors) 1 15

1023260 Screw (M8 x 1-1/4 x 20MM) 1 16

1064179 Kit, Locking Tab Washers with Instruction Sheet 2 17

1023262 Washer (11/32 x 13/16 x 1/8") 1 18

1064178 Wheel, Drive 5 Spoke, Pneumatic (12-1/2" x 2-1/4")

Includes: Locking Tab Washer with Instruction Sheet

1 19 F

1064177 Wheel, Drive 5 Spoke with Foam Fill Insert (12-1/2"

x 2-1/4") Includes: Locking Tab Washer with Instruction Sheet

1 19 F

1011524 Tire (12-1/2" x 2-1/4") 1 110

1011525 Tube (12-1/2" x 2-1/4") 1 111

1023264 Key (6 MM x 6MM x 40 MM) 1 112

1122835 Cap, Hub 1 113 H

1123137 Drive Wheel Hardware, Hub and 2-Piece Rim

(12-1/2 x 2-1/4") Consists of: 4 ea. Screw, Socket Head Cap (5/16-24 x 1") 4 ea. Locknut (5/16-24) 7 ea. Screw, Socket Head Cap (1/4-20 x 1")

1 114

1123138 Rim Assembly, Inner/ Outer 12-1/2" x 2-1/4" 1 115

1122196 Hub, Wheel 1 116

1011525 Tube (12-1/2" x 2-1/4") 1 117

1011524 Tire (12-1/2" x 2-1/4") 1 118

1122837 Tire with Foam Fill Insert (12-1/2 x 2-1/4") 1 119

1122836 Drive Wheel, Pneumatic (12-1/2 x 2-1/4") 1 120 D,G

1122838 Drive Wheel with Foam Fill Insert (12-1/2 x 2-1/4") 1 120 E,G

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Drive Wheel, 2-Pole Motor and Gearbox

A - Item 5 not included

B - Before 2/15/03 for MKIV controller only.

C - Chairs built from 2/14/03 thru 2/23/06 for MK5 controller only. Contains internal motor brushes.

D - Includes items 14-18

E - Includes items 14-16, & 19

F - These wheels are standard production on the Nutron

G - The split rim wheel is offered as an Off Chair option only, it is not offered On Chair. When split rim wheel is ordered, item

13 Hub Cap must be ordered as well.

H - Hub cap must be ordered when item 20 wheel is ordered.

I - For motors with internal brushes. Includes 2 ea. brushes and 1 ea. instruction sheet.

J - For motors with external brushes. Includes 2 ea. brushes, 2 ea. brush caps, and 1 ea. instruction sheet.

K - Not Shown

L - Chairs built After 2/23/06 for MK5 controller only. Due to alternate suppliers, replacement motors may contain either

internal or external motor brushes.

M - Due to alternate suppliers, replacement motors may contain either a (black longer cap w/ internal brushes) or (silver metal

cap w/ external brushes). Motors are interchangeable.

NOTE:

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

4-Pole Motor and Gearbox

Model R51LXP only

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

4-Pole Motor and Gearbox

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1109167 Motor and Gearbox RWD=R;MWD=L 1 11 A,B

1109168 Motor and Gearbox RWD=L;MWD=R 1 11 A,B

1124268 Motor and Gearbox RWD=R;MWD=L 1 11 A,C,D,

1124269 Motor and Gearbox RWD=L;MWD=R 1 11 A,C,D,

1086221 Gearbox RWD=R;MWD=L 1 12 F

1086222 Gearbox RWD=L;MWD=R 1 12 F

1109228 Motor Assembly RWD=R;MWD=L 1 13 A,B

1109229 Motor Assembly RWD=L;MWD=R 1 13 A,B

1114905 Motor Assembly RWD=R;MWD=L 1 13 A,C

1114906 Motor Assembly RWD=L;MWD=R 1 13 A,C

1070294 Brake Repair Kit, RWD=R;MWD=L 1 14

1070295 Brake Repair Kit, RWD=L;MWD=R 1 14

1104402-NLA Brake Cover, Black with Screws

per Phil Cunnigham (parts marketing) May 2008) NLA

1 15

1070296 Brushes with Caps, 4 Pole (Set of 4) 4 16

See Note See Footnote 1 47 E

50000X007 Coupling w/ Cup (1-5/16" Diameter) 1 18

1043594 Screw, Socket Head (1/4-20 x 1-1/8") 1 29 F

1108978 Screw, Socket Head Cap (M6 x 1 x 20MM) 1 29 F

1101725 Cap, Brake 1 110

1082985 Plate, Slotted 1 111

1071505 Screw, Socket Head Cap with Patch (M6 x 20MM) 1 212

1071504 Screw, Socket Head Cap with Patch (M6 x 35MM) 1 313

1107654 Decal 650 Watts (4 Pole Motors) 1 114

1104797 Decal, Shroud Drive/Push 1 115

A - Items 14 and 15 not included

B - Before 2/15/03 for MKIV controller only

C - After 2/14/03 for MK5 controller only

D - Always verify with the Customer what model electronics are present. A special quote to have MKIV electronics ordered

could be possible. See pictorial to help identify the motor connector plugs that are present.

E - Refer to item 5

F - When a new gearbox or mounting screws are ordered, (2 ea.) metric and (2 ea.) non-metric screws (item 9) must be

ordered. Invacare Corp. utilizes alternate suppliers for this part number.

G - As of May 2008, the Metal Motor End Cap will be replaced with a Composite Motor End Cap. The change does not affect

form, fit, function or aesthetics.

NOTE:

Model R51LXP only

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Battery Boxes and Trays

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Battery Boxes and Trays

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1107689 Battery Box Assembly Front (UI) 1 11 H

1115916 Battery Box Assembly Front (U1) 1 11 I

1107692 Battery Box Assembly Rear (UI) 1 12

1107690 Battery Box Assembly Front (22NF) 1 13 H

1115917 Battery Box Assembly, Front (22NF) 1 13 I

1097007 Battery Box Assembly, Rear (22NF) 1 14

1107684 Battery Box Top Front (UI) 1 15 H

1115466 Battery Box Top, Front (U1) 1 15 I

1107687 Battery Box Top Rear (UI) 1 16

1107680 Battery Box Top Front (22NF) 1 17 H

1115248 Battery Box Top, Front (22NF) 1 17 I

1097003 Battery Box Top, Rear (22NF) 1 18 G

1089385 Fuse, 80 Amp, MIDI (Non-G/B & G/B) 1 1C

1009268 Battery Box Bottom Assembly 1 29 D

1013319 Battery Strap 1 1C

1003177 Rivet 1 4C 16348X005 Washer (5/32 x 3/8 x 1/32") 1 4C

1057944 Battery Box Bottom with Strap 1 210 E

1057954 Battery Strap 1 1C

1041433 Pin, Handle 1 2C

1060318 Hardware, Battery Terminal, UI Batteries (Pair) 2 1A,C,F

1058618 Hardware, Battery Terminal, 22NF Batteries (1 Pair) 2 1B,C,G

1107671 Buckle with Strap 1 111

1074642 Screw, Hex Head (1/4-20 x 1-3/8") 1 312

1107153 Cover, Hanger 1 213

1106305 Hanger Battery Tray Hemi 1 114

1106306 Hanger Battery Tray Adult 1 114

7930323 Package, Locknut (1/4-20) 25 315

1108616 Hanger Bracket Battery Tray 1 216 F

1106293 Hanger Bracket Battery Tray 1 216 G

1106310 Tray Battery (UI Batteries) 1 117 F

1106309 Tray Battery (22NF Batteries) 1 117 G

1107673 Battery Tray Assembly Hemi 1 118 F

1107674 Battery Tray Assembly Adult 1 118 F

1107675 Battery Tray Assembly Hemi 1 118 G

1107676 Battery Tray Assembly Adult 1 118 G

A - Hardware includes small battery terminal caps (gray and orange) 1/4-20 x 7/8" hex flange screws, 1/4-20 hex flange nuts,

cable ties, locking tab washers and instruction sheet for two batteries.

B - Hardware includes battery clamps, battery clamp caps (red and black), small battery terminal caps (red and black), 1/4-20

x 7/8" hex flange screws, 1/4-20 hex flange nuts, cable ties and locking tab washers two batteries.

C - Not Shown.

D - Includes: Battery Strap (1013319); Pop Rivet (5/32) (1003177); Washer (5/32 x 3/8 x 1/32) (16348X005)

E - Includes: Battery Strap (1057954); Handle Pin (1041433)

F - 14" Wide

G - 16-20" Wide

H - Before 2/15/03 for MKIV controller only

I - After 2/14/03 for MK5 controller only

NOTE:

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Battery Chargers

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Battery Chargers

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1061411-NLA Battery Charger, 4 Amp. 115vac (Off Board)

Dual Mode Round Plug, Lester

1 11 C

1053161 Battery Charger, 8 Amp. 115vac (Off Board)

Dual Mode Round Plug, Lester

1 11 D

1123249 Battery Charger, 8 Amp. 115vac (Off Board)

Single Mode Round Plug w/ AC Power Line Cord, CTE Corp.

1 11 E

1089627 Cord, AC Power Line 115vac (2-prong off-board

11'6"L)

1 12

1083929 Cable, Charger Extension (24" Long Round Plug) 1 13

1098892 Fuse, 15 Amp. (Buss ATC-15) 1 14 A

1090117 Fuse, 15 Amp. (Buss Mini ATM-15) 1 24 B

A - Before 4/1/03

B - After 3/31/03

C - CTE 8 Amp. charger replaced the obsoleted Lester 4 Amp. charger as of 4/1/04 .

D - Lester 8 Amp. charger was standard on R32LX / R50LX / R51LX /R51LXP models before 4/1/04 and optional after

3/31/04, when the CTE charger became standard.

E - CTE charger introduced and standard on-chair 4/1/04 for all models. Used on Gel Cell or AGM (Absorbed Glass Mat)

batteries. Serial number starts with 04A00000001. For wet cell batteries refer to the Lester 8 Amp. charger.

NOTE:

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Support Assemblies

Rigging Type Black Right Black Left Chrome Right Chrome Left

N/AN/A11086391108638PW93 N/AN/A11086351108634PW93ST N/AN/A11086311108630PW93E N/AN/A10376961037695P93M

10584831058482N/AN/A

PAS4A/PAL4A

(14"-20"W)

N/AN/A11086451108644

P904A

(14"-20"W)

Calf Pads and Attaching Hardware not included with Legrest. See Legrest Components.

Pivot/Slide Tubes with Footplates

PW93/PW93E

Footplate Type Side 14" Wide 16" Wide 18" Wide 20" Wide

1074149107414910741491041542RightAluminum (1650) 1074150107415010741501041543Left

107415110741511074151N/ARight

Deluxe Alum.

(1450)

107415210741521074152N/ALeft 1026395102639510263951086790Right

Extra Large

(1350)

1026396102639610263961086791Left 1062756106275610627561060444Right

Adjustable Angle

(AT5543)

1062757106275710627571060445Left

Note: Pivot/Slide tube mounting hardware not included.

Front Riggings Reference Chart

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Front Riggings Reference Chart

PW93ST

Footplate Type Side 14" Wide 16" Wide 18" Wide 20" Wide

105787910578691057859N/ARightComposite (1651) 105788010578701057860N/ALeft

Note: Pivot/Slide tube mounting hardware not included.

P93M

Footplate Type Side 14" Wide 16" Wide 18" Wide 20" Wide

1057969105796910579691058573RightAluminum (1650) 1057970105797010579701058574Left

102889210288921028892N/ARight

Deluxe Alum.

(1450)

102889310288931028893N/ALeft 1031924103192410319241031928Right

Extra Large

(1350)

1031925103192510319251031929Left

Note: Pivot/Slide tube mounting hardware not included.

PAS4A (14")

Footplate Type Side 14" Wide 16" Wide 18" Wide 20" Wide

N/AN/AN/A1023905RightAluminum (1650) N/AN/AN/A1023906Left

N/AN/AN/A1035454Right

Extra Large

(1350)

N/AN/AN/A1035455Left

Note: Pivot/Slide tube mounting hardware not included.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Front Riggings Reference Chart

PAL4A (16-20")

Footplate Type Side 14" Wide 16" Wide 18" Wide 20" Wide

102390710239071023907N/ARightAluminum (1650) 102390810239081023908N/ALeft

103545610354561035456N/ARight

Extra Large

(1350)

103545710354571035457N/ALeft

Note: Pivot/Slide tube mounting hardware not included.

P904A (14")

Footplate Type Side 14" Wide 16" Wide 18" Wide 20" Wide

N/AN/AN/A1058612RightAluminum (1650) N/AN/AN/A1058613Left

N/AN/AN/A1058828Right

Extra Large

(1350)

N/AN/AN/A1058829Left

Note: Pivot/Slide tube mounting hardware not included.

P904A (16 - 20")

Footplate Type Side 14" Wide 16" Wide 18" Wide 20" Wide

105860410586041058604N/ARightAluminum (1650) 105860510586051058605N/ALeft

102872310287231028723N/ARight

Deluxe Alum.

(1450)

102872410287241028724N/ALeft 105883010588301058830N/ARight

Extra Large

(1350)

105883110588311058831N/ALeft

Note: Pivot/Slide tube mounting hardware not included.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1020719 Anti-Rattle, Black 1 11 47565X057 Bushing (7/32 x 3/8 x 11/32") 1 12

7930328 Screw, Phillips Pan Head (#10-32 x 11/16") 25 13

7930335 Screw, Phillips Pan Head (#10-32 x 1/2") 25 14

1035539 Handle, Release (Black) - Right 1 15

1035540 Handle, Release (Black) - Left 1 15

7930332 Locknut, High Profile (#10-32) 25 16

1028846 Rivnut (#10-32) 1 17

1028707 Spring, Release - Right 1 18

1028708 Spring, Release - Left 1 18 15680X012 Collar, Anti-Rattle (7/8") 1 19

1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 110

1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 211

7930338 Nut, Acorn (1/4-20) 25 112

1020534 Insert, Threaded 1 113

1074143 Kit, Slide Tube Mounting Hardware 1 114

1108638 Footrest Support Assembly, Adult, Black - Right 1 1A

1108639 Footrest Support Assembly, Adult, Black - Left 1 1A

A - Not Shown

NOTE:

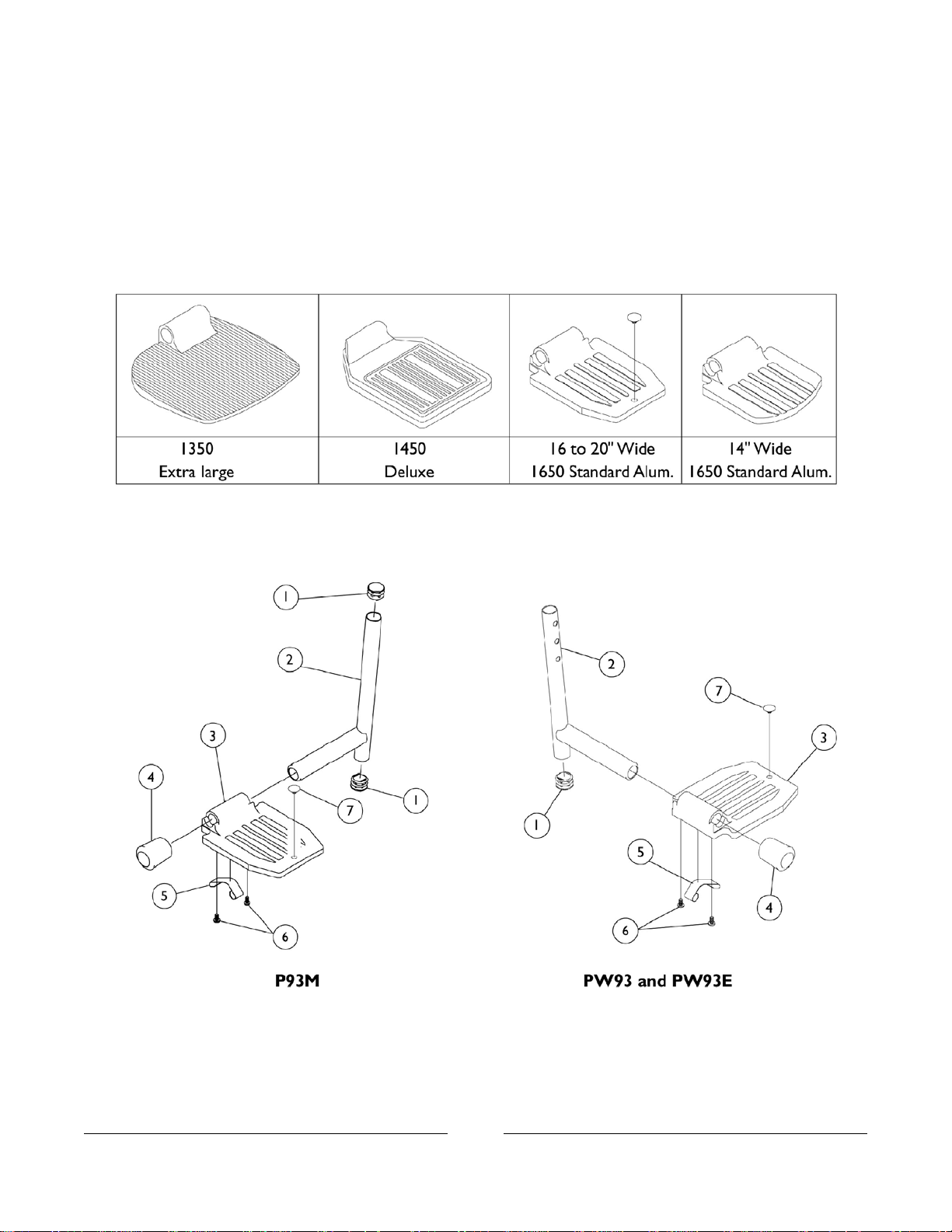

PW93 Footrest Supports

Black

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

15680X012 Collar, Anti-Rattle (7/8") 1 21

1027095 Plug Button, Black (7/8") 1 22

1022874 Bumper 1 13

1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 14

1035539 Handle, Release (Black) - Right 1 15

1035540 Handle, Release (Black) - Left 1 15

7930328 Screw, Phillips Pan Head (#10-32 x 11/16") 25 16 47565X057 Bushing (7/32 x 3/8 x 11/32") 1 17

7930335 Screw, Phillips Pan Head (#10-32 x 1/2") 25 18

1028707 Spring, Release - Right 1 19

1028708 Spring, Release - Left 1 19

1028846 Rivnut (#10-32) 1 110

7930332 Locknut, High Profile (#10-32) 25 111

1020534 Insert, Threaded 1 112

1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 113

1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 214

7930338 Nut, Acorn (1/4-20) 25 115

1074143 Kit, Slide Tube Mounting Hardware 1 116

1108630 Footrest Support Assembly, Adult, Black - Right 1 1A

1108631 Footrest Support Assembly, Adult, Black - Left 1 1A

A - Not Shown

NOTE:

PW93E Footrest Supports

Black

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

7930328 Screw, Phillips Pan Head (#10-32 x 11/16") 25 11

7930335 Screw, Phillips Pan Head (#10-32 x 1/2") 25 12

1035539 Handle, Release (Black) - Right 1 13

1035540 Handle, Release (Black) - Left 1 13

7930332 Locknut, High Profile (#10-32) 25 14

1028846 Rivnut (#10-32) 1 15

1030434 Cushion, Tubular Foam 1 16

1030435 Cover, Foam Cushion 1 17

1028707 Spring, Release - Right 1 18

1028708 Spring, Release - Left 1 18 47565X057 Bushing (7/32 x 3/8 x 11/32") 1 19 15680X012 Collar, Anti-Rattle (7/8") 1 110

1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 111

1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 212

1044214 Nut, Hex with Nylon Cap (1/4-20) 1 113

1020534 Insert, Threaded 1 114

1074143 Kit, Slide Tube Mounting Hardware 1 115

1108634 Footrest Support Assembly, Adult, Black - Right 1 1A

1108635 Footrest Support Assembly, Adult, Black - Left 1 1A

A - Not Shown

NOTE:

PW93ST Footrest Supports

Black

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

7930359 Screw, Phillips Pan Head (#10-32 x 1/2") 25 11

7930360 Screw, Phillips Pan Head (#10-32 x 11/16") 25 12 47565X057 Bushing (7/32 x 3/8 x 11/32") 1 13

1107321 Nut, Low Cap (5/16"-24) 1 14

1027095 Plug Button, Black (7/8") 1 25 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 16

1008935 Spring, Release - Right 1 17

1008936 Spring, Release - Left 1 17

1022874 Bumper 1 18

1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 19 67005X000 Rivnut (#10-32) 1 110

7930365 Locknut (#10-32) 25 111

1035539 Handle, Release (Black) - Right 1 112

1035540 Handle, Release (Black) - Left 1 112

1037695 Footrest Support Assembly, Adult, Black - Right 1 1A

1037696 Footrest Support Assembly, Adult, Black - Left 1 1A

A - Not Shown

NOTE:

P93M Footrest Supports

Black

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

P904A Legrest Supports

Black 14-20" Wide

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

P904A Legrest Supports

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

7930328 Screw, Phillips Pan Head (#10-32 x 11/16") 25 21

7930335 Screw, Phillips Pan Head (#10-32 x 1/2") 25 12

1035539 Handle, Release (Black) - Right 1 13

1035540 Handle, Release (Black) - Left 1 13 47565X057 Bushing (7/32 x 3/8 x 11/32") 1 14

1028707 Spring, Release - Right 1 15

1028708 Spring, Release - Left 1 15

7930332 Locknut, High Profile (#10-32) 25 16

1028846 Rivnut (#10-32) 1 17

1027095 Plug Button, Black (7/8") 1 18 11919X000 Screw, Truss Head (3/8-16 x 1-1/2") 1 19

1058636 Washer, Nylon (25/64 x 7/8 x 1/32") 1 210 40363X000 Hex Nut (3/8"-16) 1 111

8881091764 Pad, Legrest Vinyl - Right/Left 1 112 A,B 88804529X003 Pad, Legrest Vinyl - Right 1 112 A,C 88804529X004 Pad, Legrest Vinyl - Left 1 112 A,C

7930330 Locknut (5/16-24) 25 313 1026030 Screw, Lug (5/16-24 x 1-3/8") 1 114 1094268 Tube, Elevating Support (Black) Right 1 115 1094269 Tube, Elevating Support (Black) Left 1 115 1027097 Plug Button, Black (3/4") 1 116 1108642 Legrest Support Tube (Black) Right 1 117 1108643 Legrest Support Tube (Black) Left 1 117

42326X004 Bar, Ratchet - Right/Left 1 118

7930336 Nut, Acorn (5/16-24) 25 119 1022874 Bumper 1 120 1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 121 1040060 Tip, Black Plastic 1 122

04528X002 Bracket, Release (Chrome) 1 123

1037125 Cam, Legrest 1 124 1037485 Spring, Release 1 125 1037126 Handle, Release 1 126 7930310 Washer, Nylon (5/16 x 11/16 x 1/16") 25 127 1040831 Snap Ring 1 128 1032266 Bracket, Legrest Pad Mounting 1 129

04526X019 Plate, Legrest Pad 1 130

7930330 Locknut (5/16-24) 25 131 1025133 Spacer, Legrest Pad 1 132 1032267 Spacer, Legrest Pad Mounting 1 133 1037110 Screw, Hex Head (5/16-24 x 3-1/2") 1 134 1028514 Screw, Hex Head (5/16-24 x 1-1/2") 1 135 1066591 Screws, Phillips Head (#10-32 x 11/16") 2 136 1108644 Legrest Support Assembly, Adult, Black - Right 1 1D

Black 14-20" Wide

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

P904A Legrest Supports

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1108645 Legrest Support Assembly, Adult, Black - Left 1 1D

A - Specify upholstery color U67 Black when ordering.

B - 16-20" Chairs

C - 14" Chairs

D - Not Shown

NOTE:

Black 14-20" Wide

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

PAS4A/PAL4A Articulating Legrest

Chrome 14-20" Wide

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

PAS4A/PAL4A Articulating Legrest

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

7930328 Screw, Phillips Pan Head (#10-32 x 11/16") 25 11 7930335 Screw, Phillips Pan Head (#10-32 x 1/2") 25 12 1035539 Handle, Release (Black) - Right 1 13 1035540 Handle, Release (Black) - Left 1 13

47565X057 Bushing (7/32 x 3/8 x 11/32") 1 14

1028707 Spring, Release - Right 1 15 1028708 Spring, Release - Left 1 15 7930332 Locknut, High Profile (#10-32) 25 16 1028846 Rivnut (#10-32) 1 17 1058478 Tube, Legrest Support, Right 1 18 1058479 Tube, Legrest Support, Left 1 18 1027097 Plug Button, Black (3/4") 1 19

40363X000 Hex Nut (3/8"-16) 1 110

1022854 Screw, Slotted Head Shoulder (1/2 x 1-1/8") 1 111 1022877 Tube Support and Drive Link - Right 1 112 1022878 Tube Support and Drive Link - Left 1 112

8881091764 Pad, Legrest Vinyl - Right/Left 1 113 A,B

1041806 Pad, Legrest, Two Piece Plastic 1 113 88804529X003 Pad, Legrest Vinyl - Right 1 113 A,C 88804529X004 Pad, Legrest Vinyl - Left 1 113 A,C

1022848 Slide Tube, Articulating (Chrome) - Right 1 114

1022849 Slide Tube, Articulating (Chrome) - Left 1 114

1027377 Washer (#20) 25 115

7930363 Package, Locknut (5/16"-24) 1 116

11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 117

1022866 Screw, Socket Button Head (3/8-16 x 3/4") 1 218

1049527 Washer, Nylon (3/8 x 3/4 x 1/16") 1 219

1025104 Bracket, Legrest (Chrome) 1 120

7930363 Package, Locknut (5/16"-24) 25 221

1022846 Bar, Link, Chrome 1 122

1023811 Bar, Ratchet - Right 1 123

1023812 Bar, Ratchet - Left 1 123

7930336 Nut, Acorn (5/16-24) 25 124

1040060 Tip, Black Plastic 1 125

04528X002 Bracket, Release (Chrome) 1 126

1037125 Cam, Legrest 1 127

1037485 Spring, Release 1 128

1037126 Handle, Release 1 129

7930310 Washer, Nylon (5/16 x 11/16 x 1/16") 25 130

1040831 Snap Ring 1 131

48823X008 Spring, Leaf 1 132

1025133 Spacer, Legrest Pad 1 133

04526X019 Plate, Legrest Pad 1 134

Chrome 14-20" Wide

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

PAS4A/PAL4A Articulating Legrest

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1014807 Screw, Hex Head (5/16-24 x 3-1/4") 1 135

1066591 Screws, Phillips Head (#10-32 x 11/16") 2 136

47328X003 Bushing, Pivot (5/16 x 7/16 x 7/8") 1 237

1058482 Legrest Support, Articulating (Chrome) - Right 1 1D

1058483 Legrest Support, Articulating (Chrome) - Left 1 1D

A - Specify upholstery color U67 Black when ordering.

B - 16-20" Wide Chairs

C - 14" Wide Chairs

D - Not Shown

NOTE:

Chrome 14-20" Wide

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/Slide Tube and Footplate

For the Following Footrests:

P93M, PW93, and PW93E

Note: Heel Loops are not included. See footrest and legrest accessories.

Note: For complete pivot/slide tube and footplate assemblies, see front riggings reference charts.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/Slide Tube and Footplate

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1027097 Plug Button, Black (3/4") 1 21

1041527 Pivot/Slide Tube with Plug Button (Black) 1 12 A

1048834 Pivot/Slide Tube with Plug Button 1 12 B

1041525 Pivot/Slide Tube with Plug Button - Deluxe

Aluminum

1 12 C

1070762 Pivot/Slide Tube with Plug Button, Deluxe Aluminum 1 12 D

44200X059 Footplate, Aluminum - Small (6-3/4" W x 6" L) 1 13 E 44200X027 Footplate, Aluminum - Medium (7-3/4" W x 6" L) 1 13 F

1043659 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -

Right

1 13

1043660 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -

Left

1 13

1002343 Footplate, Aluminum - Extra Large (7" W x 8-1/2" L)

- Right

1 13 E

1002344 Footplate, Aluminum - Extra Large (7" W x 8-1/2" L)

- Left

1 13 E

44200X025 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)

- Right

1 13 F

44200X026 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)

- Left

1 13 F

1016346 Cap, Tube End (7/8") 1 14 G

1027095 Plug Button, Black (7/8") 1 14 H

1006981 Spring, Leaf 1 25

1036120 Spring 1 25

1036123 Spring, Leaf 1 15

7930354 Package, Phillips Head Screw (#8-32 x 3/8") 25 26

1070168 Push Plug, Footplate 1 17

A - Standard Aluminum (1650) and Extra Large Aluminum (1350) footplates for P93M

B - Standard Aluminum (1650) and Extra Large Aluminum (1350) footplates for PW93 and PW93E

C - Deluxe Aluminum (1450) footplate for P93M

D - Deluxe Aluminum (1450) footplate for PW93 and PW93E

E - 14" Wide

F - 16-20" Wide

G - Standard Aluminum Footplate

H - Extra Large Aluminum Footplate

NOTE:

For the Following Footrests:

P93M, PW93, and PW93E

Note: Heel Loops are not included. See footrest and legrest accessories.

Note: For complete pivot/slide tube and footplate assemblies, see front riggings reference charts.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/Slide Tube and Footplate

For the Following Footrest:

PW93ST

Note: Heel loops are not included. See footrest and legrest accessories.

Note: For complete pivot/slide tube and footplate assemblies, see front riggings reference charts.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/Slide Tube and Footplate

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1057852 Pivot/Slide Tube, Curved End (9-7/8") (Steel) 1 11

1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 22

1027097 Plug Button, Black (3/4") 1 13

7930323 Package, Locknut (1/4-20) 25 14

7930366 Screw, Socket Head Cap (1/4-20 x 2-1/4") 25 15

1026879 Footplate, Composite - Small (6" W x 6" L) 1 16 A

1026880 Footplate, Composite - Medium (7" W x 6" L) 1 16 B

1026881 Footplate, Composite - Large (8" W x 6" L) 1 16 C

A - 16" Wide

B - 18" Wide

C - 20" Wide

NOTE:

For the Following Footrest:

PW93ST

Note: Heel loops are not included. See footrest and legrest accessories.

Note: For complete pivot/slide tube and footplate assemblies, see front riggings reference charts.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/Slide Tube and Footplate

For the Following Legrests:

P904, PAL4A, and PAS4A

Note: Heel Loops are not included. See footrest and legrest accessories.

Note: For complete pivot/slide tube and footplate assemblies, see front riggings reference charts.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/Slide Tube and Footplate

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1027097 Plug Button, Black (3/4") 1 21

1100568 Pivot/Slide Tube with Plug Button (Black) 1 12 A

1041526 Pivot/Slide Tube with Plug Button (Steel) 1 12 B

1100571 Pivot/Slide Tube with Plug Button - Deluxe 1 12 C

44200X059 Footplate, Aluminum - Small (6-3/4" W x 6" L) 1 13 D 44200X027 Footplate, Aluminum - Medium (7-3/4" W x 6" L) 1 13 E

1043659 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -

Right

1 13

1043660 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -

Left

1 13

1002343 Footplate, Aluminum - Extra Large (7" W x 8-1/2" L)

- Right

1 13 D

1002344 Footplate, Aluminum - Extra Large (7" W x 8-1/2" L)

- Left

1 13 D

44200X025 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)

- Right

1 13 E

44200X026 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)

- Left

1 13 E

1016346 Cap, Tube End (7/8") 1 14 F

1027095 Plug Button, Black (7/8") 1 14 G

1006981 Spring, Leaf 1 15

1036120 Spring 1 15

1036123 Spring, Leaf 1 15

7930354 Package, Phillips Head Screw (#8-32 x 3/8") 25 26 H

1070168 Push Plug, Footplate 1 17

A - Standard Aluminum (1650) and Extra Large Aluminum (1350) footplates for P904

B - Standard Aluminum (1650) and Extra Large Aluminum (1350) footplates for PAL4/PAS4A

C - Deluxe Aluminum (1450) footplate for P904

D - 14" Wide

E - 16-20" Wide

F - Standard Aluminum Footplate

G - Extra Large Aluminum Footplate

H - Deluxe Takes 1

NOTE:

For the Following Legrests:

P904, PAL4A, and PAS4A

Note: Heel Loops are not included. See footrest and legrest accessories.

Note: For complete pivot/slide tube and footplate assemblies, see front riggings reference charts.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1060427 Footplate, Adjustable Angle - Large

(5-1/4" W x 8" L)

1 11 A

1062569 Footplate, Adjustable Angle - X-Large

(6-1/4" W x 8" L)

1 11 B

1029545 Screw, Socket Head Cap (1/4-20 x 3/4") 1 22

1058517 Clamp, Footplate 1 13

1082686 Nut, Hex Head (1/4-20 x 11/16") 1 24

7930333 Locknut (1/4-20) 25 15

1026907 Washer (1/4 x 1/2 x 1/16") 1 16

1048816 Screw, Nylon Adjustment (1/2-13 x 7/8") 1 17

1052102 Hinge, Footplate - Right 1 18

1052103 Hinge, Footplate - Left 1 18

7930321 Screw, Socket Button Head (1/4-20 x 1-7/8") 25 19

1026900 Washer (1/4 x 23/32 x 1/16") 1 110

1057855 Pivot/Slide Tube, Straight (9-7/8" Long - Steel) 1 111

7930313 Washer, Nylon (5/16 x 7/8 x 1/8") 25 112

1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 113

A - 14" Wide

B - 16-20" Wide

NOTE:

AT5543 Adjustable Angle Footplate Assemblies

For the Following Footrests:

PW93, PW93E

Note: Heel Loops are not included. See footrest and legrest accessories.

Note: For complete pivot/slide tube and footplate assemblies, see front riggings reference charts.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

1651 Composite Footplate

Footplate

Type

Attaching

Hardware

Pair #

Heel Loop

Single #

Heel Loop

Pair #

Heel Loop

w/Ankle Strap

Single # - Right

Heel Loop w/Ankle Strap Single # - Left

Heel Loop

w/Ankle Strap

Pair #

10359311035906103590910359081035912102841216"W Tapered 10359311035918103592010359191035917101762118"W Tapered 10359311035930103593310359321035917101762120" W Tapered

1650 Standard Aluminum Footplate

Footplate

Type

Attaching

Hardware

Pair #

Heel Loop

Single #

Heel Loop

Pair #

Heel Loop

w/Ankle Strap

Single # - Right

Heel Loop w/Ankle Strap Single # - Left

Heel Loop

w/Ankle Strap

Pair #

10359071035906103590910359081035905102523414"W 10359071035918103592010359191035917101762116"-20"W

1450 Deluxe Aluminum Footplate

Footplate

Type

Attaching

Hardware

Pair #

Heel Loop

Single #

Heel Loop

Pair #

Heel Loop

w/Ankle Strap

Single # - Right

Heel Loop w/Ankle Strap Single # - Left

Heel Loop

w/Ankle Strap

Pair #

10861121035918103592010359191035917101762116"-20"W

1350 X-Large Aluminum Footplate

Footplate

Type

Attaching

Hardware

Pair #

Heel Loop

Single #

Heel Loop

Pair #

Heel Loop

w/Ankle Strap

Single # - Right

Heel Loop w/Ankle Strap Single # - Left

Heel Loop

w/Ankle Strap

Pair #

10552411035906103590910359081035905102523414"W 10552411035918103592010359191035917101762116"-20"W

Footrest and Legrest Accessories

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Footrest and Legrest Accessories

Attaching Hardware Part Numbers

Footplate Type Part Number Contents

2 ea. - Spacer (1/4 x 11/32 x 1-3/4")

2 ea. - Screw (1/4-20 x 2-1/4")

2 ea. - Locknut (1/4-20)

1035931Composite (1651)

2 ea. - Spacer (1/4 x 11/32 x 1-3/4")

2 ea. - Screw (1/4-20 x 2-1/2")

2 ea. - Locknut (1/4-20)

1035907Standard Aluminum (1650)

2 ea. - Spacer (1/4 x 11/32 x 1-3/4")

2 ea. - Screw (1/4-20 x 2-1/2")

2 ea. - Locknut (1/4-20)

1086112Deluxe Aluminum (1450)

2 ea. - Spacer (1/4 x 11/32 x 1-3/4")

2 ea. - Screw (1/4-20 x 2-1/4")

2 ea. - Locknut (1/4-20)

1055241X-Large Aluminum (1350)

Heel Loops and Heel Loops with Ankle Straps (AT5543)

Heel Loops & Hardware

AT5543 Adjustable Angle

Heel Loops w/Ankle Strap & Hardware

AT5543 Adjustable Angle

10382461038245

2 ea.- Heel Loops

4 ea - Screw Skt. Cap (10-32 x 1-1/2")

4 ea - Spacer (1/4 x 5/16 x 1-3/32") 4 ea - Washer (3/16 x 7/16 x 1/16")

2 ea.- Heel Loops

4 ea - Screw Skt. Cap (10-32 x 1-1/2")

4 ea - Spacer (1/4 x 5/16 x 1-3/32") 4 ea - Washer (3/16 x 7/16 x 1/16")

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Footrest and Legrest Accessories

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1035902 Calf Strap w/ Hook and Loop (31" Long) 1 1A 1032003 "H" Heel Strap 1 1B,C 1032002 "H" Heel Strap 1 1B,D

1026987 Impact Guard, 8" Long 1 2 See Chart 1350 X-Large Aluminum Footplate 1 1E See Chart 1450 Deluxe Aluminum Footplate 1 1E See Chart 1650 Standard Aluminum Footplate 1 1E See Chart Attaching Hardware Part Numbers 1 1E See Chart Composite 1651 Footplate 1 1E See Chart Heel Loops and Heel Loops with Ankle Straps

(AT5543)

1 1E

A - 1337

B - 9342

C - 14" Wide

D - 16-20" Wide

E - Not Shown

NOTE:

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1106315 Brace, Arm Socket 1 11

1025736 Locknut (1/4-20) 1 22

1025195 Locknut (1/4-20) 1 13

1027097 Plug Button, Black (3/4") 1 14

1106313 Hanger, Footrest Support -Right 1 15

1106314 Hanger, Footrest Support -Left 1 15

1003545 Screw, Socket Head (1/4-20 x 1-1/4") 1 26

60285X006 Screw, Socket Head Cap (1/4-20 x 2-1/4") 1 17

Front Rigging Hanger

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MKIV Joysticks and Mounting Hardware

RII, A and A+ Before 2/15/03

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MKIV Joysticks and Mounting Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1040217 Knob, Joystick 1 11

1040218 Skirt, Joystick 1 12

1036764 Inductive, Joystick 1 13 E,F

1104397 Inductive, Joystick 1 13 G

50000X364 Joystick, Boot 1 14

1010042 Switch, Toggle SPDT 1 15 E

1040225 Potentiometer, Speed 1 16 H

1115518 Potentiometer, Speed 1 16 G

1025516 Knob, Speed Control 1 17

1040190 Overlay, Joystick Decal A Joystick 1 18

1036776 Overlay Joystick Decal A+ Joystick 1 18

1036750 Cable Assembly 1 19 E,I

1104205 Cable Assembly 1 19 G

1040185 Switch On/ Off Momentary 1 110 E,I

1115523 Switch, On/ Off Momentary 1 110 G

1040186 Switch, Program 1 111 E

1093069 Kit, 1/2" Offset Joystick Tube with Hardware 1 112 B,C

1027095 Plug Button, Black (7/8") 1 113

1095502 Package, Cable Ties (11-1/2" Long) 10 214

1093063 Spacer, Joystick Tube 1 115

7930327 Screw, Phillips Pan Head (#10-32 x 1-1/8") 25 216

1093071 Clamp, Fixed Height Joystick Tube 1 117 C

1061983 Spacer, Plastic Snap Clamp (3/4" I.D. x 2-1/2" Long) 1 118 J

1139422 Clamp, Height Adjustable Joystick Tube (ARM250) 1 119 K

1006270 Joystick Extension - "T" Style (1560)

(4" Wide x 5-1/2" Long)

1 1A

1006271 Joystick Extension - Straight Style (1561)

(1/2" Wide x 5" Long)

1 1A

1092610 Joystick, RII 1 1D

1065944 Joystick, "A" 1 1D

1038608 Joystick "A+" 1 1D

A - Not Shown

B - Includes items 13-16

C - MKIV RII, A, A+, and PSF/PSR

D - See pictorial for reference.

E - Item requires soldering

F - For RII, A+ and (A joystick before 10/01/02)

G - For A joystick after 9/30/02 and has a non-solder connector

H - For RII and (A joystick before 10/01/02)

I - For A+ and (A joystick before 10/01/02)

J - Spacer allows the half clamps to grip securely around the 3/4" arm tube

K - Available as an option (ARM250) and can be used to replace a Fixed Height Joystick Clamp.

NOTE:

RII, A and A+ Before 2/15/03

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MK5 SPJ Joystick and Mounting Hardware

After 2/14/03

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MK5 SPJ Joystick and Mounting Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1040217 Knob, Joystick 1 11

1040218 Skirt, Joystick 1 12

1025516 Knob, Speed Control 1 13

1093071 Clamp, Fixed Height Joystick Tube 1 14

1093069 Kit, 1/2" Offset Joystick Tube with Hardware 1 15 A

1027095 Plug Button, Black (7/8") 1 16

1095502 Package, Cable Ties (11-1/2" Long) 10 27

1093063 Spacer, Joystick Tube 1 18

7930327 Screw, Phillips Pan Head (#10-32 x 1-1/8") 25 29

1006270 Joystick Extension - "T" Style (1560)

(4" Wide x 5-1/2" Long)

1 1B

1006271 Joystick Extension - Straight Style (1561)

(1/2" Wide x 5" Long)

1 1B

1109532 Joystick, MK5 SPJ 1 1C,D

1061983 Spacer, Plastic Snap Clamp (3/4" I.D. x 2-1/2" Long) 1 110 E

1139422 Clamp, Height Adjustable Joystick Tube (ARM250) 1 111 F

A - Includes items 6-9

B - Not Shown

C - See pictorial for reference.

D - Items 1-3 are the only serviceable components for the MK5 SPJ joystick

E - Spacer allows the half clamps to grip securely around the 3/4" arm tube

F - Introduced as an option (ARM250) and can be used to replace a Fixed Height Joystick Clamp.

NOTE:

After 2/14/03

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MK5 SPJ+ Joystick and Mounting Hardware

Introduced 8/16/05

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MK5 SPJ+ Joystick and Mounting Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1127291 Joystick, SPJ+ 1 11 A

1040217 Knob, Joystick 1 12

1040218 Skirt, Joystick 1 13

1151384 Overlay, SPJ+ Joystick 1 14

1061983 Spacer, Plastic Snap Clamp (3/4" I.D. x 2-1/2" Long) 1 15

1093071 Clamp, Fixed Height Joystick Tube 1 16

1093069 Kit, 1/2" Offset Joystick Tube with Hardware 1 17 B

1027095 Plug Button, Black (7/8") 1 18

1095502 Package, Cable Ties (11-1/2" Long) 10 19

1025714 Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 210

1093063 Spacer, Joystick Tube 1 111 C

1139422 Clamp, Height Adjustable Joystick Tube (ARM250) 1 112 D

1133165 Cable, Joystick Extension MK5 1 113

1006270 Joystick Extension - "T" Style (1560)

(4" Wide x 5-1/2" Long)

1 1E

1006271 Joystick Extension - Straight Style (1561)

(1/2" Wide x 5" Long)

1 1E

A - Includes Joystick and items 2 - 4

B - Includes items 8-11

C - Spacer allows the half clamps to grip securely around the 3/4" arm tube

D - Introduced as an option (ARM250) and can be used to replace a Fixed Height Joystick Clamp.

E - Not Shown

NOTE:

Introduced 8/16/05

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MKIV Joysticks

PSF and PSR Before 2/15/03

NOTE: PSR STANDARD joystick configuration below show the on/off switch on the left side for part #

1075196. When the on/off switch is required on the right side, refer to part number 8881075196 and order as a configurated part.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MKIV Joysticks

Item Number Description PSF PSR

1075196N/A

Joystick

Assembly

See Pictorial

88810751968881075195

Joystick

Assembly

See Pictorial

1070542N/A

Joystick

Assembly

See Pictorial

1070543N/A

Joystick

Assembly

See Pictorial

1070544N/A

Joystick

Assembly

See Pictorial

10402171040217Knob, Joystick1 10402181040218Skirt, Joystick2 10367641036764Inductive, Joystick3

50000X36450000X364Boot, Joystick4

10799251075034Overlay, Joystick Decal5 10367501036750Cable Assembly6 10402251040225Potentiometer, Speed7 10255161025516Knob, Potentiometer8 10401851040185Switch, On/Off Momentary9

10100471010047

Switch, Push Button SPST

Momentary

1010048N/ASwitch, Push Button SPST11 10100491010049Boot, Switch12 10584641058464Boot, Switch13

PSF and PSR Before 2/15/03

NOTE: PSR STANDARD joystick configuration below show the on/off switch on the left side for part #

1075196. When the on/off switch is required on the right side, refer to part number 8881075196 and order as a configurated part.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1035528 Adjustment Tube, (Inside) Mid-Line 1 11 1016778 Spring, Extension 1 12 1035860 Adjustment Tube, (Outside) Mid-Line 1 13 1027274 Lock, Adjustment (Black) 1 14 1035852 Swing Bracket Assembly, Mid-Line 1 15 A 7930349 Screw, Hex Head (1/4-20 x 1-1/8") 25 36 1027274 Lock, Adjustment (Black) 1 17 1049582 Bracket, Joystick Mounting 1 18 1027266 Half Clamp, Non-Threaded Holes 1 19 1027267 Half Clamp, Threaded Holes 1 110 1049591 Hardware, Joystick Tube Mounting 1 111 B

A - Includes items 1-4

B - Includes items 6-10

NOTE:

MKIV Mid-Line Swing Bracket Assembly

For MKIV Electronics Only

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Quad Link Assembly

Before 4/07/06

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Quad Link Assembly

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1052402 Kit, Quad Link Assembly - Right 1 11 A

Ball Plunger with Lock Washer Assembly 2 12 Locknut (#10-32) 1 23 Screw, Socket Head (#10-32 x 1/2") 1 44 Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45 Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 46 Spacer, Joystick Tube 1 17 Stud Plate, Quad Link 1 18 Screw, Hex Head (1/4-20 x 1-1/2") 1 39 Spacer (1/4 x 3/8 x 3/16") 1 310 Half Clamp, Non-Threaded Holes 1 111 Half Clamp, Threaded Holes 1 112

1115372 Kit, Quad Link Assembly - Left 1 11 A

1061983 Spacer, Plastic Snap Clamp (3/4" I.D. x 2-1/2" Long) 1 113 B

A - Includes the Quad Link, items 2-12 and used with MKIV RII, RX, A, A+, PSF/PSR joysticks

B - Spacer allows the half clamps to grip securely around the 3/4" arm tube

NOTE:

Before 4/07/06

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

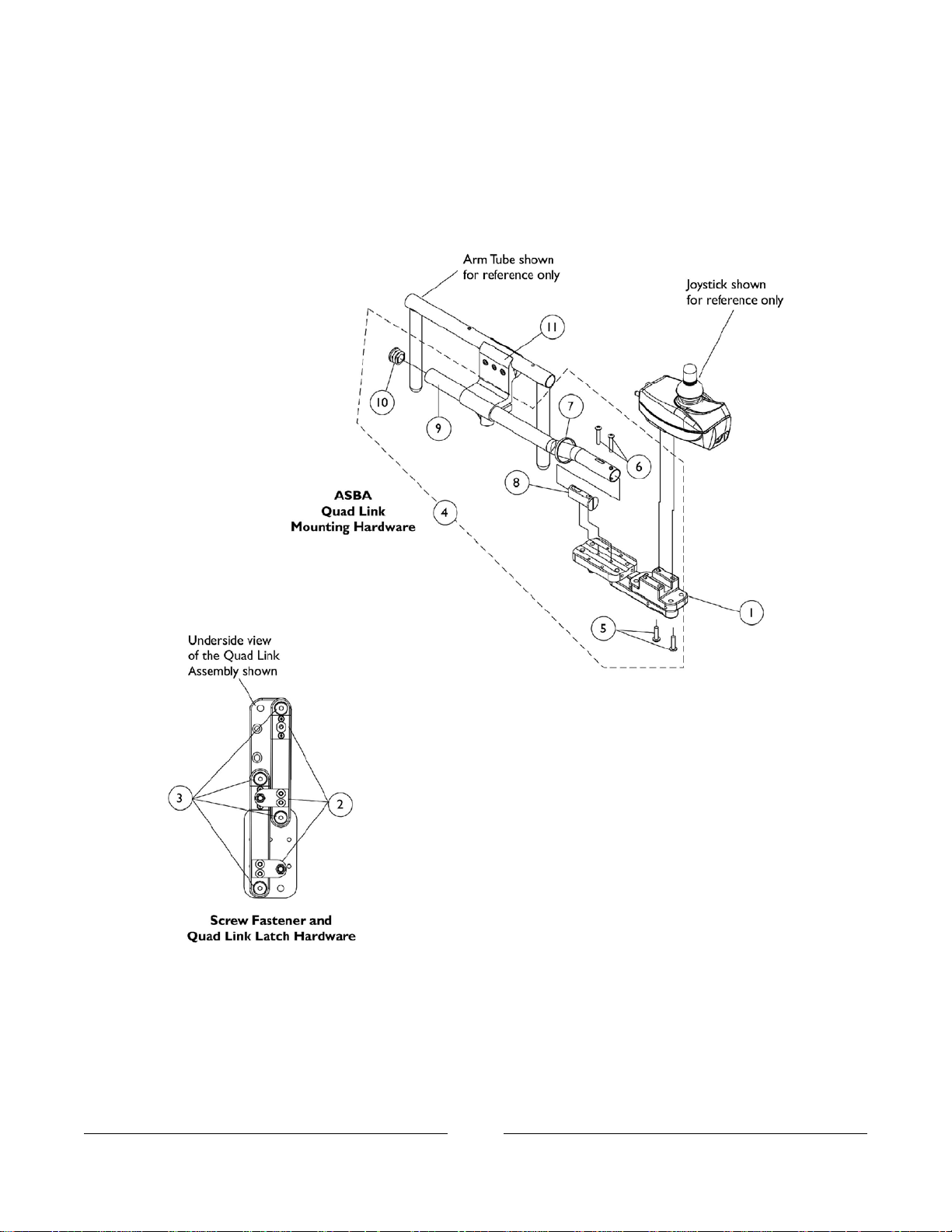

Quad Link (QLA)

After 4/06/06

When converting an old style Quad Link that attaches to a mounting plate is currently on the chair then

order the following for ASBA Seat; Quad Link Mtg. Hdwr. (item 4), Quad Link (item 1) & Ht. Adj. Joystick

Tube Clamp (item 11)

NOTE: Substitute (item 4) with 2 ea. of the PPH Screws (item 5) when an offset joystick tube is currently

on the chair.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Quad Link (QLA)

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1140898 Quad Link (QL) and Instruction Sheet - Right 1 11 1140899 Quad Link (QL) and Instruction Sheet - Left 1 11 1140425 Kit, Quad Link Latch Hardware 1 12 A 1140424 Kit, Quad Link Screw Fastener Hardware 1 13 B 1142937 Kit, ASBA/ADJASBA Quad Link Mounting Hardware 1 14 C

Screw, Phillips Pan Head w/ Patch (10-32 x 3/4") 1 25 Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 26 Cable Tie (11-1/2" Long) 1 17 Spacer, Joystick Tube 1 18 Tube, Joystick 2" Offest 1 19

Plug Button, Black (7/8") 1 110 1105414 Screw, Phillips Pan Head w/ Patch (10-32 x 3/4") 1 25 1093071 Clamp, Fixed Height Joystick Tube 1 111 1134844 Instruction Sheet, Quad Link 1 1D

A - Latch Kit includes 4 ea. Button Head Cap Screws (10-32 x 3/8"), 2 ea. Latch Spring Assembly, 4 ea. Phillips Flat C'Sunk

Head Screws, 2 ea. Spring Catch Plates, 2 ea. Socket Head Set Screws (10-32 x 3/8")

B - Screw Fastener Kit includes 4 ea. Socket Head Shoulder Screws (3/8 x 3/8"), 2 ea. Socket Head Cap Screws (1/4-20 x

3/8"), 2 ea. Socket Head Set Screws (1/4-20 x 1/2"), 4 ea. Socket Head Set Screws (10-32 x 1/8")

C - Includes items 5-10. The Quad Link Mounting Hardware accommodates MK5, MKIV RII, A, and A+ joysticks.

D - Not Shown

NOTE:

After 4/06/06

When converting an old style Quad Link that attaches to a mounting plate is currently on the chair then

order the following for ASBA Seat; Quad Link Mtg. Hdwr. (item 4), Quad Link (item 1) & Ht. Adj. Joystick

Tube Clamp (item 11)

NOTE: Substitute (item 4) with 2 ea. of the PPH Screws (item 5) when an offset joystick tube is currently

on the chair.

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

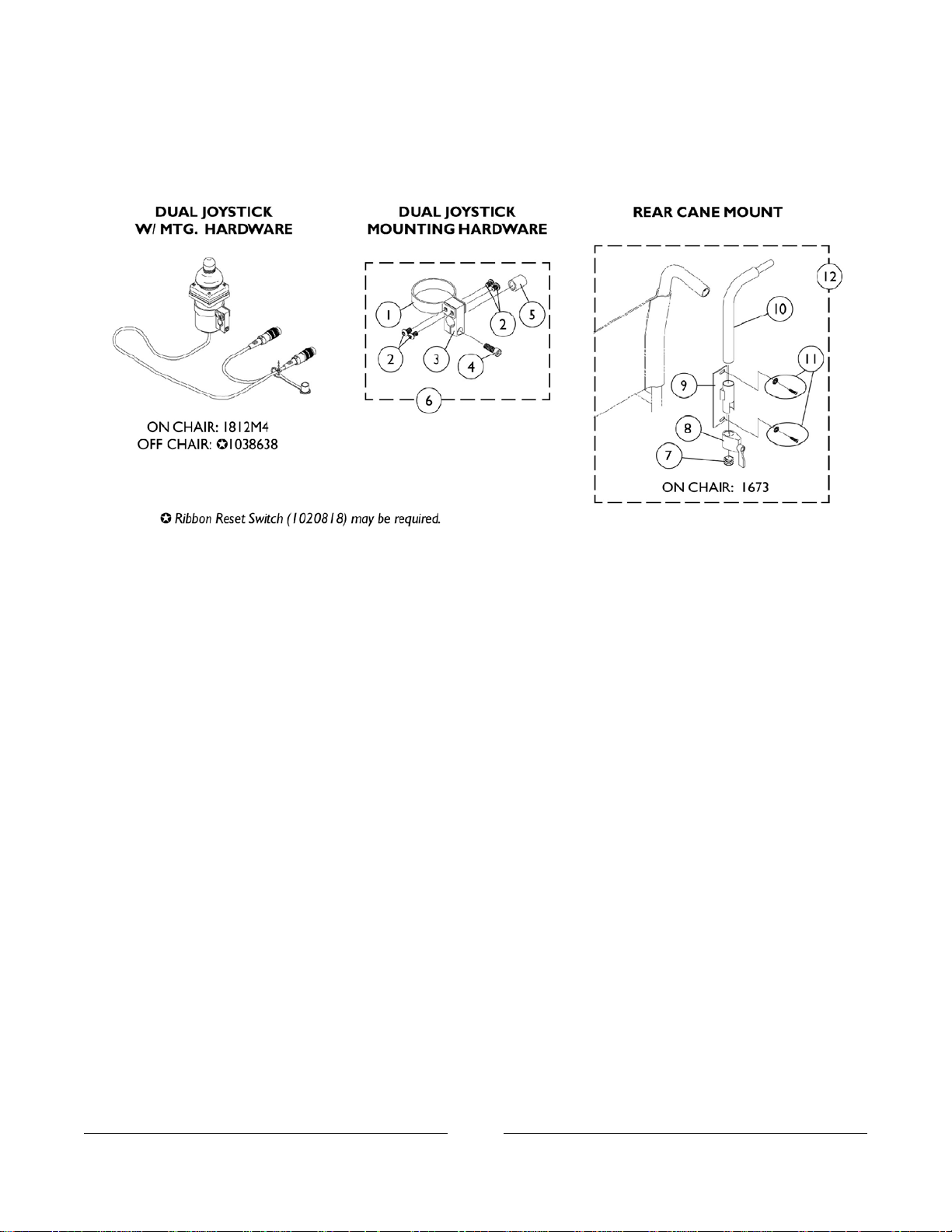

MKIV Joystick Switch Options

For MKIV Electronics Only

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MKIV Joystick Switch Options

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1025048 Clamp 1 11 1021460 Screw, Socket Button Head (#10-32 x 5/16") 1 42 1025045 Clamp, Mounting 1 13 1027089 Screw, Socket Head Cap (#10-24 x 1/2") 1 14 1026273 Spacer, Split (3/8" I.D.) 1 15 1108012 Hardware, Dual/Compact Joystick Clamp Mounting 1 16 A 1027095 Plug Button, Black (7/8") 1 17 1027274 Lock, Adjustment (Black) 1 18 1025245 Bracket, Upright -Right 1 19 1044918 Joystick Tube 1 110 1026298 Screws with Washers (#10 x 7/8") 2 111 1076284 Screw w/ washer (#10 x 7/8") 1 211 1044917 Hardware, Rear Cane Mount (1673/RCM) 1 112 B,D 1038638 Joystick, MKIV Dual/Compact 1 1C 1020818 Switch, Red Flex Ribbon (Tape) Reset 1 1E,F 1123276 Kit, Switch, Black Egg Reset, with Hook/Loop

Adhesive Back Fastener & Attaching Screws

(EGSBLK)

1 1F,G

A - Includes items 1-5

B - Includes items 7-11

C - See pictorial for reference

D - 1673 Rear Cane Mount

E - Not Shown

F - Before 5/24/04

G - Not Shown. After 5/23/04 the Egg Reset Switch replaced the Red Flex Ribbon (Tape) Reset Switch

NOTE:

For MKIV Electronics Only

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MKIV Controllers, Harness, Programmer and Hardware

Before 2/15/03

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MKIV Controllers, Harness, Programmer and Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1095261 Controller 1 11 D 1092603 Controller MKIV RII 1 11 E 1105707 Controller, MKIV Quad Pulse 1 11 F 1108623 Wiring Harness Controller 1 12 A

98007X005 Cable Tie (11-1/2" Long) 1 23

7930318 Screw, Phillips Pan Head (#4-40 x 1/2") 25 24 1053837 Bracket, Charger Connector 1 15

P0870X000 Nut, Hex Keps (#4-40) 1 26

1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 17 7930326 Screw, Hex Head (1/4-20 x 3/4") 25 38 1107670 Bracket, Controller Mounting, Black - Adult 1 19 1107669 Bracket, Controller Mounting, Black - Hemi 1 19 1026108 Lockwasher (1/4 x 15/32 x 1/64") 1 210 7930333 Locknut (1/4-20) 25 211 1106322 Controller Mounting Hardware Adult 1 1B,C 1106321 Controller Mounting Hardware Hemi 1 1B,C 1020818 Switch, Red Flex Ribbon (Tape) Reset 1 112 G 1123276 Kit, Switch, Black Egg Reset, with Hook/Loop

Adhesive Back Fastener & Attaching Screws

(EGSBLK)

1 112 H

1109091 Programmer, Remote 1 113

1058491-NLA Connector Boot, Wire 1 1C

1095204 Cable, Virtual Service Charger/Modem 1 1C

A - Includes items 2-6

B - Includes items 7-11

C - Not Shown.

D - MKIV RII LP (R32, R32LX, and R50LX)

E - MKIV RII (R51, R51LX, and R51LXP)

F - MKIV Quad Pulse (R51LXP)(Optional)

G - Before 5/24/04

H - Not Shown. After 5/23/04 the Egg Reset Switch replaced the Red Flex Ribbon (Tape) Reset Switch

NOTE:

Before 2/15/03

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MK5 Controllers, Programmer and Hardware

After 2/14/03

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

MK5 Controllers, Programmer and Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1109530 Controller, MK5 NX 1 11 A 1109531 Controller, MK5 NX-LP 1 11 B

1115360-NLA MK5 Controller Mounting Hardware, Sectional Back 1 12 C,F

1115361 MK5 Controller Mounting Hardware,

Adj. Angle Fold Down Back

1 12 D

1113439 Screw, Phillips Pan Head Tap (#10-32 x 1") 1 23 1026154 Screw, Hex Head (1/4-20 x 2-1/4") 1 14 1112992 Spacer (5/8 x 1/4 x 1/2") 1 15 1112989 Bracket, MK5 Controller Mounting 1 16 1025736 Locknut (1/4-20) 1 17 E 1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 18 1095502 Package, Cable Ties (11-1/2" Long) 10 39 1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 110 1025731 Locknut (#10-32) 1 111 1026034 Washer, Nylon (3/16 x 7/16 x 1/8") 1 112

50000X403 Clamp, (Black) Plastic 1 113

1109091 Programmer, Remote 1 114

A - For R51, R51LX and R51LXP models

B - For R32, R32LX, R50LX models

C - Includes items 3-7

D - Includes items 3-8

E - Adj. angle/fold down back takes 2 in quantity

F - This part is no longer available. Please use part number 1115361 as a direct replacement.

NOTE:

After 2/14/03

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Chair

Width x Depth

Upholstery Type

Nylon

See Note(s) A

Upholstery Type

Vinyl

See Note(s) A

8881052536888105255714" x 16" 8881052537888105255814" x 17" 8881052538888105255914" x 18" 8881052542888105256316" x 16" 8881052543888105256416" x 17" 8881052544888105256516" x 18" 8881052548888105256918" x 16" 8881052549888105257018" x 17" 8881052550888105257118" x 18" 8881052554888105257520" x 16" 8881052555888105257620" x 17" 8881052556888105257720" x 18"

A - When ordering, please specify U240 for Nylon and U05 Black for Lightweight Vinyl Upholstery. NOTE:

Accessories

Solid Seat Inserts

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1021406 Screw, Hex Head (1/4-20 x 1-1/4") 1 11

47376X024 Tip, Rubber Wheel Lock Handle, Black 1 12

1018733 Link 1 13 1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 84 1106326 Spacer Nylon (17/64 x 1/2 x 7/16") 1 15 7930333 Locknut (1/4-20) 25 46 1057912 Bracket, Black 1 17 1106325 Spacer Nylon (17/64 x 1/2 x 3/4") 1 18 1021405 Shoe, Wheel Lock 1 19 1028414 Handle, Wheel Lock (Right/ Left) 1 110 7930326 Screw, Hex Head (1/4-20 x 3/4") 25 211 1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 112 1106300 Wheel Lock Assembly without Attaching Hardware

Right

1 113

1106301 Wheel Lock Assembly without Attaching Hardware

Left

1 113

7930326 Screw, Hex Head (1/4-20 x 3/4") 25 114 1018739 Washer (1/4 x 5/8 x 3/32") 1 115

1108624-NLA Wheel Locks with Attaching Hardware (pair) 2 1A

A - Not Shown.

NOTE:

Accessories

Wheel Locks Before 2/15/03

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Accessories

Wheel Locks After 2/14/03

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Accessories

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1021406 Screw, Hex Head (1/4-20 x 1-1/4") 1 11

47376X024 Tip, Rubber Wheel Lock Handle, Black 1 12

Right

1 113 A

1106301 Wheel Lock Assembly without Attaching Hardware

Left

1 113 A

1025736 Locknut (1/4-20) 1 114 C 1018739 Washer (1/4 x 5/8 x 3/32") 1 215 1037610 Screw, Hex Head (1/4-20 x 1-5/8") 1 116 C 1115552 Wheel Lock with Attaching Hardware, Adult 2 117 B 1115553 Wheel Lock with Attaching Hardware, Hemi 2 118 B,C 1116397 Wheel Lock Attaching Hardware 2 1D,E

A - Includes items 1-12

B - Includes items 13-16

C - Hemi frame mounting hardware includes quantity of 2 each for items 14 and 16

D - Not Shown

E - Includes 2 each of items 14, 15 and 16

NOTE:

Wheel Locks After 2/14/03

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Part

Number

Description

Quantity

per Package

Quantity

per Assembly

Positioning Strap,

Seat/Chest w/ Auto Style

Push Button Buckle

(Eyelet to Eyelet Length

45")

1004310

See Note(s) A

Positioning Strap,

Seat/Chest w/ Auto Style

Push Button Buckle

(Eyelet to Eyelet Length

61")

1034625

See Note(s) B

Positioning Strap,

Seat/Chest w/ Airline Style

Buckle

(Eyelet to Eyelet Length

45")

1034625.

See Note(s) A

Positioning Strap,

Seat/Chest w/ Airline Style

Buckle

(Eyelet to Eyelet Length

62")

1034752

See Note(s) B

Positioning Strap,

Seat/Chest w/ Hook & Loop

Style Buckle

(Eyelet to Eyelet Length

45")

1034744

See Note(s) A

Positioning Strap,

Seat/Chest w/ Hook & Loop

Style Buckle

(Eyelet to Eyelet Length

61")

1034745

See Note(s) B

11Tire Pump40176X010

A - 14-18" Wide B - 20" Wide

NOTE:

Accessories

Miscellaneous

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Accessories

Oxygen Holder Assembly

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Accessories

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1024796 Screw, Hex Head (1/4-20 x 2") 1 21 A 1026154 Screw, Hex Head (1/4-20 x 2-1/4") 1 11 B 1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 22 1026907 Washer (1/4 x 1/2 x 1/16") 1 83 1026900 Washer (1/4 x 23/32 x 1/16") 1 24 A 1018739 Washer (1/4 x 5/8 x 3/32") 1 14 B 1025736 Locknut (1/4-20) 1 35 1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 26 1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 27 1026900 Washer (1/4 x 23/32 x 1/16") 1 28 1025736 Locknut (1/4-20) 1 29 1018133 Plug Button, Black (5/8") 1 110 1027684 Knob, Clamping (Black) 1 411 1072002 Pad, Non Skid 1 112 1080866 Decal, Oxygen Warning - English 1 113 1110557 Instruction Sheet Oxygen Holder Assembly 1 114 1021148 Bag, Poly Zip-Lip (6" Wide x 8-3/4" Long) 1 115 1021866 Bag, Poly (15" Wide x 26" Long) 1 116 1097276 Carton, Shipper 1 117 1110404 Oxygen Holder Assembly Kit with Instruction Sheet 1 118 C

A - Fold down back uses 1

B - Fold down back only

C - Includes items 1-17

NOTE:

Oxygen Holder Assembly

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Power Wheelchair Tool Kit

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Power Wheelchair Tool Kit

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1125222 Kit, Power Wheelchair Tool

Includes:

1 ea. Multimeter with Leads

1 ea. Locator, Protractor/Angle Magnetic Base

1 ea. Instructions, MKIV Programmer

1 ea. Wire, Grounding with Hand Strap and Clip

1 ea. Leads, 1" Test

1 ea. Light, Pen with Invacare Logo

1 ea. Tape Measure, Compact with Invacare Logo

1 ea. Screwdriver, Pen-Size Phillips/Flat Head

1 ea. Cable, Virtual Service Charger/Modem

1 11

Form No.

01-220

To order call toll free 1-800-333-6900, or www.invacare.com

Invacare Corporation

01-220

©2008 Invacare Corporation. Elyria, Ohio. All rights reserved. Trademarks are identified be the symbols ™ and ®. All trademarks are owned by or licensed to Invacare Corporation unless otherwise noted. (Revised 05/21/08)

www.invacare.com

Yes, you can. ™

One Invacare Way Elyria, Oh USA 44036-2125 800-333-6900

Technical Support 800-832-4707 Customer Service 800-333-6900

Customer Service 800-333-6900

Form No.

Invacare R51TM LX, R51TM LXP, R51TM, R32TM LX, R32TM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
