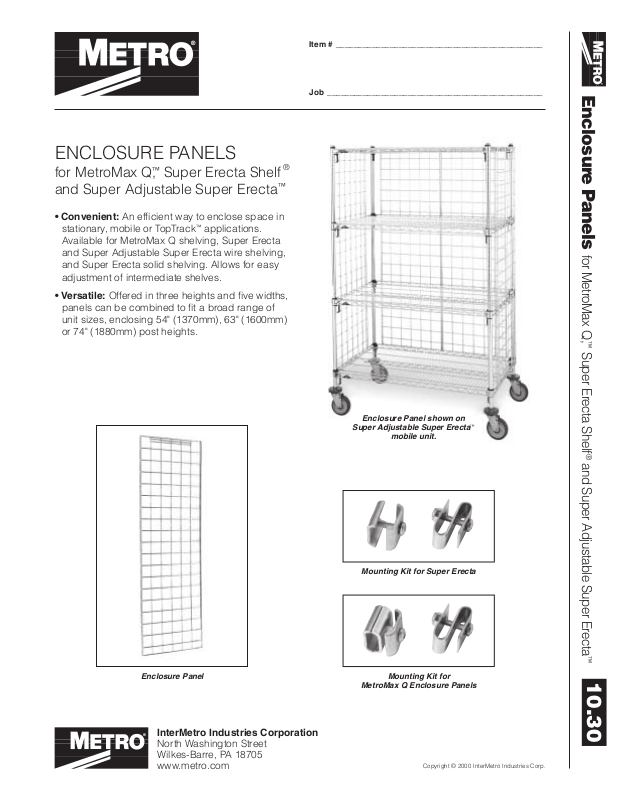

ENCLOSURE PANELS

for MetroMax Q,™ Super Erecta Shelf
and Super Adjustable Super Erecta

• Convenient: An efficient way to enclose space in
stationary, mobile or TopTrack
Available for MetroMax Q shelving, Super Erecta
and Super Adjustable Super Erecta wire shelving,
and Super Erecta solid shelving. Allows for easy
adjustment of intermediate shelves.

• Versatile: Offered in three heights and five widths,
panels can be combined to fit a broad range of
unit sizes, enclosing 54" (1370mm), 63" (1600mm)
or 74" (1880mm) post heights.

™

applications.

™

Job ________________________________________________

®

Enclosure Panels

for MetroMax Q,

™

Super Erecta Shelf

Enclosure Panel

Enclosure Panel shown on

Super Adjustable Super Erecta

mobile unit.

Mounting Kit for Super Erecta

Mounting Kit for

MetroMax Q Enclosure Panels

™

®

and Super Adjustable Super Erecta

™

10.30

InterMetro Industries Corporation

®

North Washington Street
Wilkes-Barre, PA 18705
www.metro.com

Copyright © 2000 InterMetro Industries Corp.

Job ________________________________________________

®

ENCLOSURE PANELS

for MetroMax Q,™ Super Erecta Shelf

10.30

and Super Adjustable Super Erecta

®

®

™

™

Enclosure Panels for Super Erecta Wire and Solid, Super Adjustable
and MetroMax Q Shelving Units

Panels Required for Super Erecta Wire and Solid and Super Adjustable Shelving Units

Ends — Panels required for each end, as follows:

and Super Adjustable Super Erecta

®

Backs — Require multiple panels as follows:

WIRE SHELVES

SOLID SHELVES

Super Erecta Shelf

™

Panels Required for MetroMax Q

Ends — Panels required for each end, as follows:

for MetroMax Q,

Cat. No. Cat. No. Cat. No. Width/Height Post Height Grid Opening Weight
Chrome Stainless Max Q Epoxy (in.) (mm) (in.) (mm) (in.) (mm) (lbs.) (kg)

EP35C EP35S QEP35E 123/8 x 503/4 313 x 1289 54 1370 27/8 x 35/8 73 x 92 3 1.4
EP36C EP36S QEP36E 123/8 x 593/4 313 x 1518 63 1600 27/8 x 35/8 73 x 92 4 1.8
EP37C — QEP37E 123/8 x 701/2 313 x 1791 74 1880 27/8 x 35/8 73 x 92 6 2.7
EP55C EP55S QEP55E 183/8 x 503/4 464 x 1289 54 1370 33/8 x 35/8 86 x 92 5 2.3
EP56C EP56S QEP56E 183/8 x 593/4 464 x 1518 63 1600 33/8 x 35/8 86 x 92 6 2.7
EP57C — QEP57E 183/8 x 701/2 464 x 1791 74 1880 33/8 x 35/8 86 x 92 7 3.2

All panels are 7/8" (22mm) thick.

Nominal 18" (455mm) 21" (530mm) 24" (610mm) 30" (760mm) 36" (910mm)

Post Height Nominal Nominal Nominal Nominal Nominal

(in.) (mm) Shelf Width Shelf Width Shelf Width Shelf Width Shelf Width

54 1370 EP35 EP35 EP55 (2) EP35 (1) EP35, (1) EP55
63 1600 EP36 EP36 EP56 (2) EP36 (1) EP36, (1) EP56
74 1880 EP37 EP37 EP57 (2) EP37 (1) EP37, (1) EP57

Nominal 30" (760mm) 36" (910mm) 42" (1060mm) 48" (1220mm) 54" (1370mm) 60" (1525mm) 72" (1825mm)

Post Height Nominal Nominal Nominal Nominal Nominal Nominal Nominal

(in.) (mm) Shelf Length Shelf Length Shelf Length Shelf Length Shelf Length Shelf Length Shelf Length

54 1370 (2) EP35 (1) EP35, (1) EP55 (2) EP55 (2) EP35, (1) EP55 (1) EP35, (2) EP55 (3) EP55 (1) EP35, (3) EP55
63 1600 (2) EP36 (1) EP36, (1) EP56 (2) EP56 (2) EP36, (1) EP56 (1) EP36, (2) EP56 (3) EP56 (1) EP36, (3) EP56
74 1880 (2) EP37 (1) EP37, (1) EP57 (2) EP57 (2) EP37, (1) EP57 (1) EP37, (2) EP57 (3) EP57 (1) EP37, (3) EP57

Nominal 30" (760mm) 36" (910mm) 42" (1060mm) 48" (1220mm) 54" (1370mm) 60" (1525mm) 72" (1825mm)

Post Height Nominal Nominal Nominal Nominal Nominal Nominal Nominal

(in.) (mm) Shelf Length Shelf Length Shelf Length Shelf Length Shelf Length Shelf Length Shelf Length

54 1370 (1) EP55 (2) EP35 (1) EP35, (1) EP55 (2) EP55 — (1) EP35, (2) EP55 —
63 1600 (1) EP56 (2) EP36 (1) EP36, (1) EP56 (2) EP56 — (1) EP36, (2) EP56 —
74 1880 (1) EP57 (2) EP37 (1) EP37, (1) EP57 (2) EP57 — (1) EP37, (2) EP57 —

Note: Units with a solid shelf in the top position require the use of a three-sided snake frame directly below it.

Refer to spec sheet 10.04 for more information on three-sided snake frames.

. . For Nominal

Nominal 18" (455mm) 21" (530mm) 24" (610mm)

Post Height Nominal Nominal Nominal

(in.) (mm) Shelf Width Shelf Width Shelf Width

54 1370 QEP35E QEP35E QEP55E
63 1600 QEP36E QEP36E QEP56E
74 1880 QEP37E QEP37E QEP57E

Backs — Require multiple panels as follows:

Nominal 30" (760mm) 36" (910mm) 42" (1060mm) 48" (1220mm) 54" (1370mm) 60" (1525mm) 72" (1825mm)

Post Height Nominal Nominal Nominal Nominal Nominal Nominal Nominal

(in.) (mm) Shelf Length Shelf Length Shelf Length Shelf Length Shelf Length Shelf Length Shelf Length

54 1370 (2) QEP35E (1) QEP35E (2) QEP55E (2) QEP35E (1) QEP35E (3) QEP55E (1) QEP35E

63 1600 (2) QEP36E (1) QEP36E (2) QEP56E (2) QEP36E (1) QEP36E (3) QEP56E (1) QEP36E

74 1880 (2) QEP37E (1) QEP37E (2) QEP57E (2) QEP37E (1) QEP37E (3) QEP57E (1) QEP37E

Enclosure Panels

Manufactured by:

®

(1) QEP55E (1) QEP55E (2) QEP55E (3) QEP55E

(1) QEP56E (1) QEP56E (2) QEP56E (3) QEP56E

(1) QEP57E (1) QEP57E (2) QEP57E (3) QEP57E

InterMetro Industries Corporation

North Washington Street, Wilkes-Barre, PA 18705
Phone: [phone] • Fax: [phone]

For Product Information Call: 1-800-433-2232
Visit Our Web Site: www.metro.com

Information and specifications are subject to change

without notice. Please confirm at time of order.
