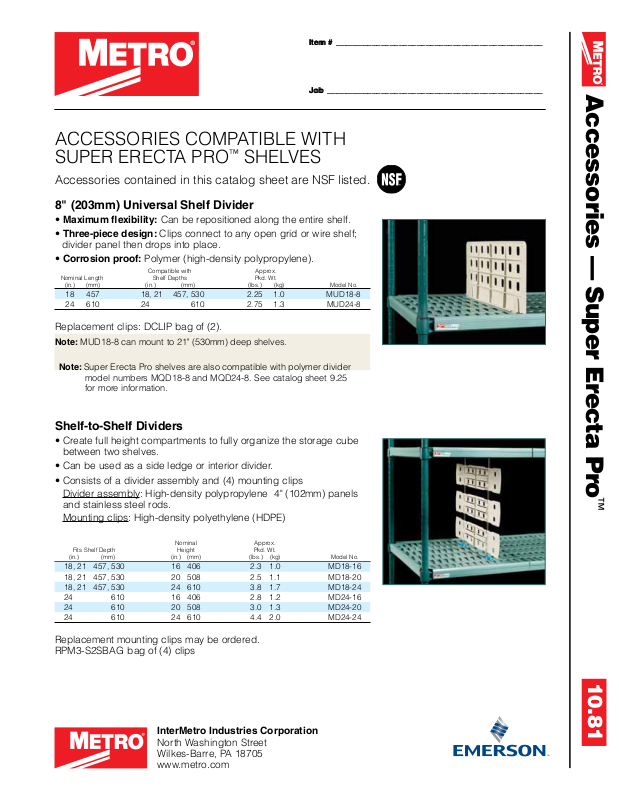

ACCESSORIES COMPATIBLE WITH SUPER ERECTA PRO™ SHELVES

Accessories contained in this catalog sheet are NSF listed.

8" (203mm) Universal Shelf Divider

• Maximum ﬂexibility: Can be repositioned along the entire shelf.

• Three-piece design: Clips connect to any open grid or wire shelf; divider panel then drops into place.

• Corrosion proof: Polymer (high-density polypropylene).

Compatible with Approx. Nominal Length Shelf Depths Pkd. Wt. (in.) (mm) (in.) (mm) (lbs.) (kg) Model No.

18 457 18, 21 457, 530 2.25 1.0 MUD18-8 24 610 24 610 2.75 1.3 MUD24-8

Replacement clips: DCLIP bag of (2).

Note: MUD18-8 can mount to 21" (530mm) deep shelves.

Accessories — Super Erecta Pro

Note: Super Erecta Pro shelves are also compatible with polymer divider

model numbers MQD18-8 and MQD24-8. See catalog sheet 9.25 for more information.

Shelf-to-Shelf Dividers

• Create full height compartments to fully organize the storage cube

between two shelves.

• Can be used as a side ledge or interior divider.

• Consists of a divider assembly and (4) mounting clips

Divider assembly: High-density polypropylene 4" (102mm) panels and stainless steel rods.

Mounting clips: High-density polyethylene (HDPE)

Nominal Approx. Fits Shelf Depth Height Pkd. Wt. (in.) (mm) (in.) (mm) (lbs.) (kg) Model No.

18, 21 457, 530 16 406 2.3 1.0 MD18-16 18, 21 457, 530 20 508 2.5 1.1 MD18-20 18, 21 457, 530 24 610 3.8 1.7 MD18-24 24 610 16 406 2.8 1.2 MD24-16 24 610 20 508 3.0 1.3 MD24-20 24 610 24 610 4.4 2.0 MD24-24

Replacement mounting clips may be ordered. RPM3-S2SBAG bag of (4) clips

™

InterMetro Industries Corporation

North Washington Street Wilkes-Barre, PA 18705 www.metro.com

10.81

Page 2

ACCESSORIES — SUPER ERECTA PRO™

Label Holders

• Plastic holder snaps onto shelf edge to accommodate a 1" (25mm) adhesive label. Label not included.

• Optional label holder covers exist. Cover snaps onto the label holder to hold a non-adhesive label in place or to protect any label from dirt and moisture.

Fits Approx. Label Holder Shelf Length Actual Length Pkd. Wt. Label Holder Cover (in.) (mm) (in.) (mm) (lbs.) (kg) Model No. Model No.

All 4 102 0.03 0.01 Q04LH Q04LHC 24 610 175/8 448 0.14 0.06 Q24LH Q24LHC 30 760 235/8 600 0.24 0.10 Q30LH Q30LHC 36 914 295/8 752 0.30 0.13 Q36LH Q36LHC 42 1066 355/8 905 0.35 0.15 Q42LH Q42LHC 48 1219 415/8 1057 0.40 0.18 Q48LH Q48LHC 54 1370 475/8 1210 0.45 0.20 Q54LH Q54LHC 60 1524 535/8 1362 0.50 0.22 Q60LH Q60LHC 72 1825 59

Color Shelf Markers

• Attach easily to shelf for content identiﬁcation.

• Available in seven standard colors

Approx. Length Pkd. Wt. Color (in.) (mm) (lbs.) (kg) Model No.

Blue 6 152 0.05 0.02 CSM6-BQ Green 6 152 0.05 0.02 CSM6-GQ Red 6 152 0.05 0.02 CSM6-RQ Tan 6 152 0.05 0.02 CSM6-TQ White 6 152 0.05 0.02 CSM6-WQ Yellow 6 152 0.05 0.02 CSM6-YQ Gray 6 152 0.05 0.02 CSM6-GRQ

/8 1514 0.60 0.27 Q72LH —

Enclosure Panel Options

• Compatible with Super Erecta enclosures. Standard ﬁnishes are chrome and stainless steel. See spec sheet 10.04 for details. For enclosures with Metroseal 3 ﬁnish, please consult your Metro representative.

Note: Order one adapter hardware bag per enclosure to attach to a Super Erecta Pro shelf (Model No. Q9970).

• Compatible with MetroMax i/ MetroMax Q taupe epoxy enclosure panels. The polymer mounting clamps for MetroMax Q secure the enclosure to a Super Erecta Pro unit. See spec sheet 9.25 for part numbers.

Note: To use the MetroMax i/MetroMax Q enclosures the bottom shelf on the

unit must be a Super Erecta Pro shelf.

Super Erecta Enclosure +

Q9970 hardware bag

(hardware ordered separately)

MetroMax Q enclosure

and hardware (included)

Page 3

ACCESSORIES — SUPER ERECTA PRO™

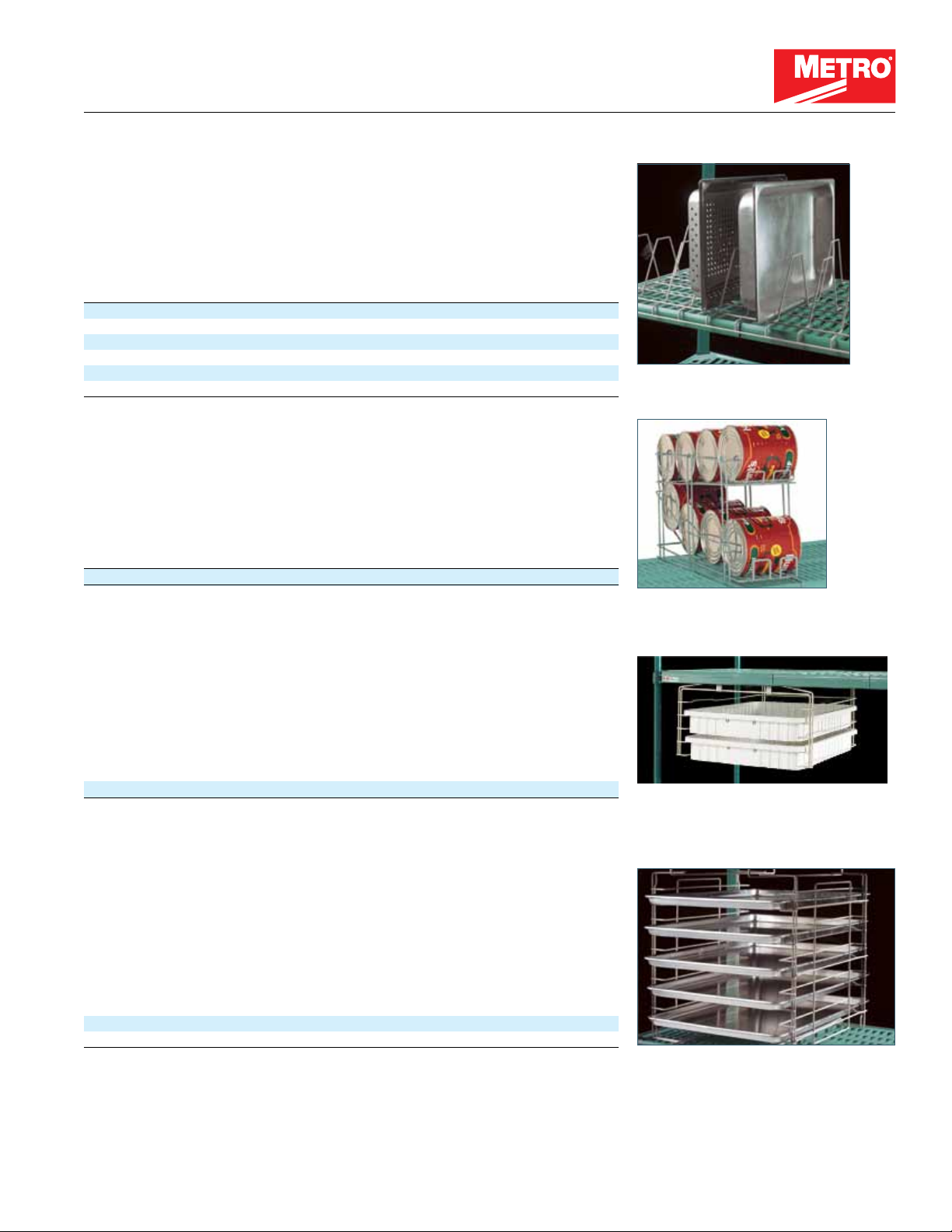

Cutting Board and Tray Drying Rack System

• Rack is mounted on top of the Super Erecta Pro shelf.

• Promotes safe air drying of cutting boards and trays.

• 11/8" (28mm) and 3" (76mm) slide spacing available.

• Tough, corrosion-resistant taupe epoxy ﬁnish.

Upright Upright Approx. Fits Shelf Spacing Height Tray Pkd. Wt. (in.) (mm) (in.) (mm) (in.) (mm) Capacity (lbs.) (kg) Model No.

24x36 457x914 11/8 28 6 150 24 13.5 6.1 MTR2436XE 24x48 457x1219 11/8 28 6 150 34 18.0 8.2 MTR2448XE 24x60 457x1524 11/8 28 6 150 42 22.5 10.2 MTR2460XE 24x36 457x914 3 76 6 150 10 9.8 4.4 MTR2436XEA 24x48 457x1219 3 76 6 150 14 13 5.9 MTR2448XEA 24x60 457x1524 3 76 6 150 17 16.3 7.4 MTR2460XEA

Can Rack System

• Front loading, front dispensing can rack holds eight #10 cans or twelve #5 cans.

• Tough, corrosion-resistant taupe epoxy ﬁnish.

Overall Approx. Width/Length/Height Pkd. Wt. Model No. (in.) (mm) (lbs.) (kg)

CR24E 77/8 x 255/16 x 15 200 x 643 x 381 10 4.5

Super Slide

• Easily attaches to the shelf frame (under the mats) and is sized to hold 3",

5", 6", and 8" (76, 127, 152, 203mm) tall tote boxes.

• Corrosion-resistant taupe epoxy ﬁnish.

• Totes sold separately.

Approx. Width Length Height Pkd. Wt. (in.) (mm) (in.) (mm) (in.) (mm) (lbs.) (kg) Model No.

203/8 520 215/8 550 101/4 260 51/4 2 MQSS2E

Adjustable Slides

• Slides can be adjusted left to right to accommodate a variety of pan, tray, and container sizes.

• Corrosion-resistant taupe epoxy ﬁnish.

• Shelves must be spaced 20" (508mm) apart.

• Can be used in conjunction with 20" (508mm) tall shelf to shelf dividers.

Approx. Fits Shelf Width Pkd. Wt. (in.) (mm) Length (lbs.) (kg) Model No.

18 457 Adjustable 103/4 5 MQ18SE 24 610 Adjustable 123/4 6 MQ24SE

Page 4

10.81

Job ________________________________________________Job ________________________________________________

ACCESSORIES — SUPER ERECTA PRO™

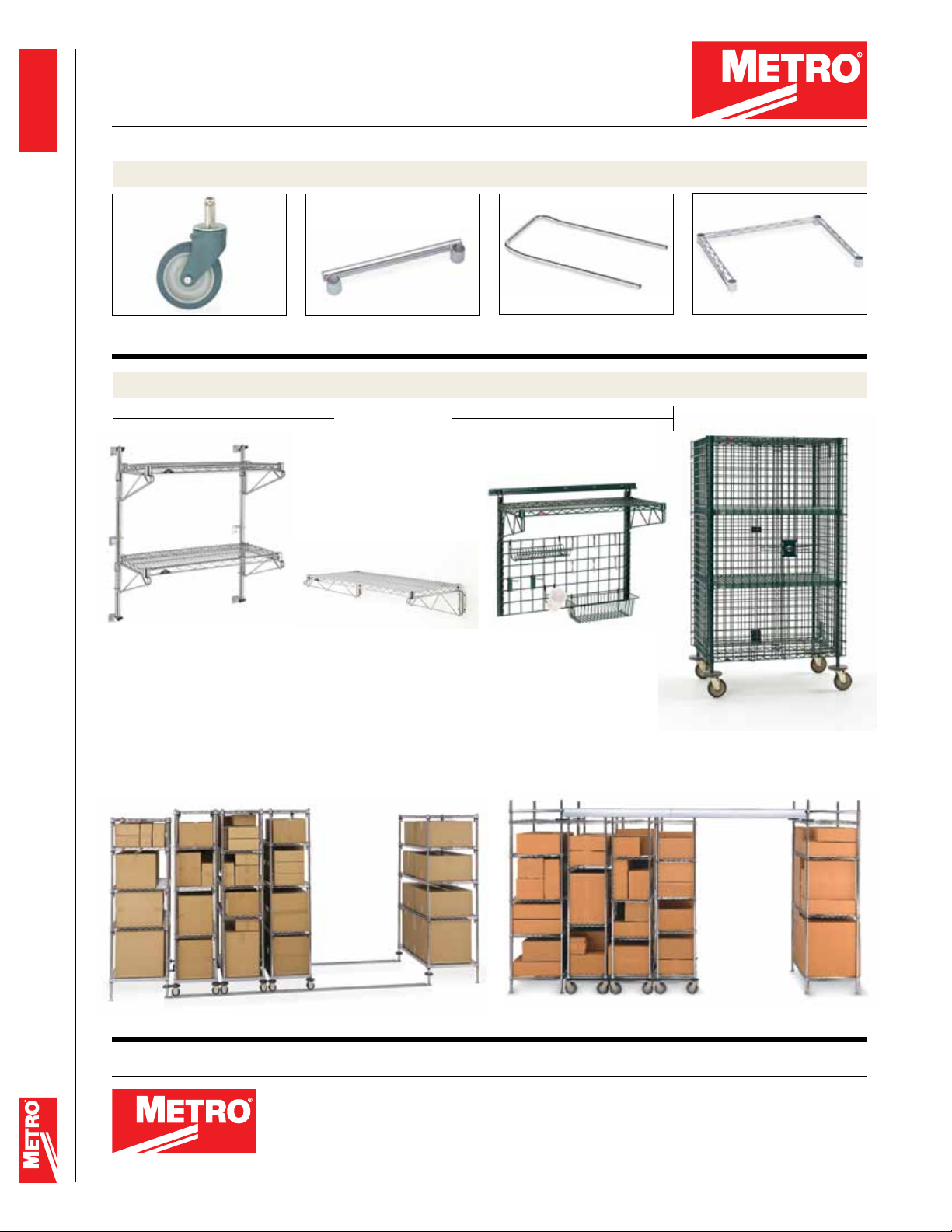

Super Erecta Pro shelves are also compatible with the following accessories:

™

Stem Casters (Cat. Sheet #11.20)

Super Erecta handles for carts (Cat. Sheet #11.40)

One-Piece utility cart handles (Cat. Sheet #12.20)

Three-sided double snake frames (Cat. Sheet #10.04)

Super Erecta Pro shelves are compatible with the following products:

Wall Mounts Security Units

Post-Type Wall Mounts (Cat. Sheet #10.40)

Direct Wall Mounts (Cat. Sheet #10.40)

SmartWall G3 (Cat. Sheet #10.42)

Super Erecta Security Units (Cat. Sheet #14.01)

• Super Erecta Pro shelves can be used as intermediate shelves

High-Density Systems

Accessories — Super Erecta Pro

qwikTRAK (Cat. Sheet #11.15)
