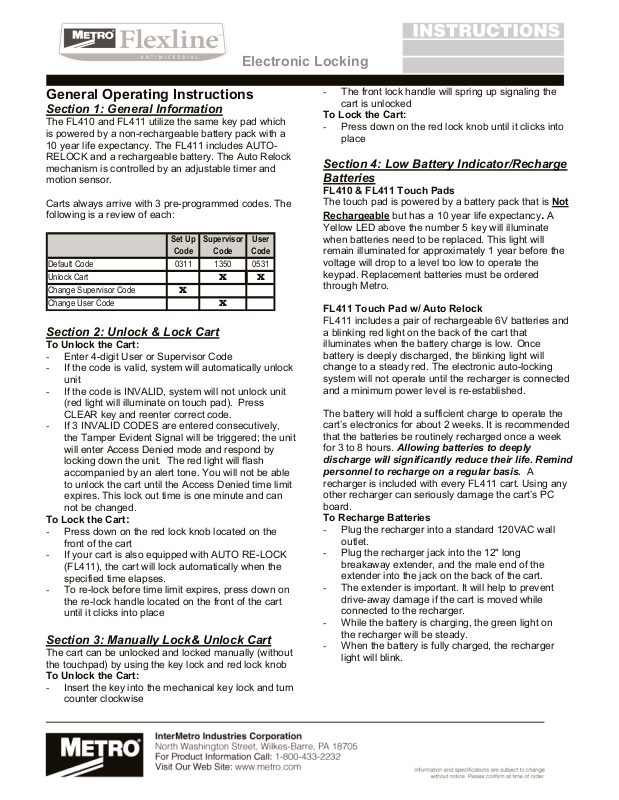

Electronic Locking
General Operating Instructions
Section 1: General Information
The FL410 and FL411 utilize the same key pad which
is powered by a non-rechargeable battery pack with a
10 year life expectancy. The FL411 includes AUTORELOCK and a rechargeable battery. The Auto Relock
mechanism is controlled by an adjustable timer and
motion sensor.
Carts always arrive with 3 pre-programmed codes. The
following is a review of each:
Set Up
Default Code 0311 1350 0531
Unlock Cart X X
Change Supervisor Code X
Change User Code X
Section 2: Unlock & Lock Cart
To Unlock the Cart:
- Enter 4-digit User or Supervisor Code
- If the code is valid, system will automatically unlock
unit
- If the code is INVALID, system will not unlock unit
(red light will illuminate on touch pad). Press
CLEAR key and reenter correct code.
- If 3 INVALID CODES are entered consecutively,
the Tamper Evident Signal will be triggered; the unit
will enter Access Denied mode and respond by
locking down the unit. The red light will flash
accompanied by an alert tone. You will not be able
to unlock the cart until the Access Denied time limit
expires. This lock out time is one minute and can
not be changed.
To Lock the Cart:
- Press down on the red lock knob located on the
front of the cart
- If your cart is also equipped with AUTO RE-LOCK
(FL411), the cart will lock automatically when the
specified time elapses.
- To re-lock before time limit expires, press down on
the re-lock handle located on the front of the cart
until it clicks into place
Section 3: Manually Lock& Unlock Cart
The cart can be unlocked and locked manually (without
the touchpad) by using the key lock and red lock knob
To Unlock the Cart:
- Insert the key into the mechanical key lock and turn
counter clockwise
Code
Supervisor
Code
User
Code
- The front lock handle will spring up signaling the
cart is unlocked
To Lock the Cart:
- Press down on the red lock knob until it clicks into
place
Section 4: Low Battery Indicator/Recharge
Batteries
FL410 & FL411 Touch Pads
The touch pad is powered by a battery pack that is Not
Rechargeable but has a 10 year life expectancy. A
Yellow LED above the number 5 key will illuminate
when batteries need to be replaced. This light will
remain illuminated for approximately 1 year before the
voltage will drop to a level too low to operate the
keypad. Replacement batteries must be ordered
through Metro.
FL411 Touch Pad w/ Auto Relock
FL411 includes a pair of rechargeable 6V batteries and
a blinking red light on the back of the cart that
illuminates when the battery charge is low. Once
battery is deeply discharged, the blinking light will
change to a steady red. The electronic auto-locking
system will not operate until the recharger is connected
and a minimum power level is re-established.
The battery will hold a sufficient charge to operate the
cart’s electronics for about 2 weeks. It is recommended
that the batteries be routinely recharged once a week
for 3 to 8 hours. Allowing batteries to deeply
discharge will significantly reduce their life. Remind
personnel to recharge on a regular basis. A
recharger is included with every FL411 cart. Using any
other recharger can seriously damage the cart’s PC
board.
To Recharge Batteries
- Plug the recharger into a standard 120VAC wall
outlet.
- Plug the recharger jack into the 12" long
breakaway extender, and the male end of the
extender into the jack on the back of the cart.
- The extender is important. It will help to prevent
drive-away damage if the cart is moved while
connected to the recharger.
- While the battery is charging, the green light on
the recharger will be steady.
- When the battery is fully charged, the recharger
light will blink.
Page 2
Programming Instructions
Section 5: Changing the Supervisor and
User Codes
Change Supervisor Code
Note:The supervisor code must never be set as 0-0-0-0
- Press the PROGRAM key once
- Enter the 4-digit SET UP CODE.
- Enter the new 4-digit supervisor code
- Re-enter the new 4-digit supervisor code
- If the new code has been entered correctly, the cart
will unlock. If the cart does not unlock, repeat
steps.
Change User Code
Note: The user code must never be set as 0-0-0-0.
- Press the PROGRAM key twice
- Enter the current 4-digit SUPERVISOR code.
- Enter the new 4-digit new user code
- Re-enter the new 4-digit new user code
- If the new code has been entered correctly, the cart
will unlock. If the cart does not unlock, repeat steps.
To Disable User Code (Supervisor Only)
Note: If carts are not in use, following the steps
described below will disable the user code. This code
will not unlock the cart.
- Press the PROGRAM key twice
- Enter the current 4-digit SUPERVISOR code.
- Enter 0-0-0-0 (must be done within 5 seconds).
- Re-enter 0-0-0-0 (must be done within 5 seconds).
– Note: Before using the switch, ensure that the yellow
Section 7: Reset Switch
The Reset Switch allows for quick electrical recovery
when the touch pad is not responding. The reset switch
is located on the back of the cart.
“Change Battery” light is not lit. (If lit, the touch pad
battery pack may need to be replaced)
To Use Reset Switch:
– Press and hold any touch pad key
– Simultaneously press the reset switch.
– Release the key and switch
– Power should be restored.
– If power is not restored, try again.
– If the touch pad still does not respond, refer to the
troubleshooting guide for possible causes for loss
of touch pad power
Section 6: Auto Lock Timer
To Change Auto-Relock Time –default is 5 minutes
- The time delay switch is located on the PC board
below the bottom drawer.
- The rotary time delay switch is located in the front
right corner of the PC board.
- The switch must be adjusted by using a small flat
screwdriver.
- Turn the center of the time switch to the desired
number or alpha character
- Settings are as follows:
- 0 = 3 sec - 8 = 8 min
- 1 = 15 sec - 9 = 10 min
- 2 = 30 sec - A = 15 min
- 3 = 45 sec - B = 20 min
- 4 = 1 min - C = 30 min
- 5 = 2 min - D = 40 min
- 6 = 3 min - E = 50 min
- 7 = 5 min - F = 60 min
