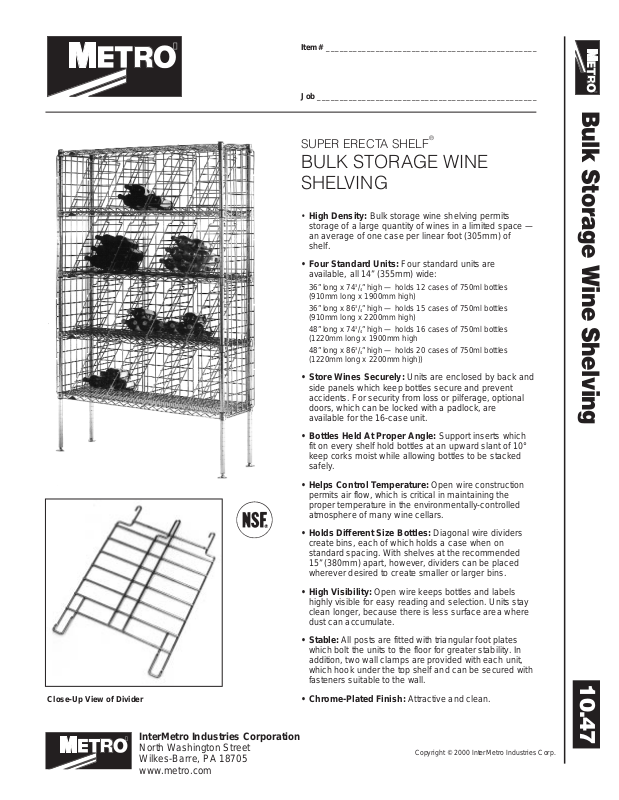

SUPER ERECTA SHELF
®
BULK STORAGE WINE
SHELVING
• High Density: Bulk storage wine shelving permits
storage of a large quantity of wines in a limited space —
an average of one case per linear foot (305mm) of
shelf.
• Four Standard Units: Four standard units are
available, all 14” (355mm) wide:
36” long x 743/4” high — holds 12 cases of 750ml bottles
(910mm long x 1900mm high)
36” long x 863/4” high — holds 15 cases of 750ml bottles
(910mm long x 2200mm high)
48” long x 743/4” high — holds 16 cases of 750ml bottles
(1220mm long x 1900mm high
48” long x 863/4” high — holds 20 cases of 750ml bottles
(1220mm long x 2200mm high))
• Store Wines Securely: Units are enclosed by back and
side panels which keep bottles secure and prevent
accidents. For security from loss or pilferage, optional
doors, which can be locked with a padlock, are
available for the 16-case unit.
• Bottles Held At Proper Angle: Support inserts which
fit on every shelf hold bottles at an upward slant of 10°
keep corks moist while allowing bottles to be stacked
safely.
• Helps Control Temperature: Open wire construction
permits air flow, which is critical in maintaining the
proper temperature in the environmentally-controlled
atmosphere of many wine cellars.
• Holds Different Size Bottles: Diagonal wire dividers
create bins, each of which holds a case when on
standard spacing. With shelves at the recommended
15” (380mm) apart, however, dividers can be placed
wherever desired to create smaller or larger bins.
• High Visibility: Open wire keeps bottles and labels
highly visible for easy reading and selection. Units stay
clean longer, because there is less surface area where
dust can accumulate.
• Stable: All posts are fitted with triangular foot plates
which bolt the units to the floor for greater stability. In
addition, two wall clamps are provided with each unit,
which hook under the top shelf and can be secured with
fasteners suitable to the wall.
• Chrome-Plated Finish: Attractive and clean.
Copyright © 2000 InterMetro Industries Corp.
Close-Up View of Divider
Job____________________________________________
SUPER ERECTA SHELF
®
BULK STORAGE WINE SHELVING*
DIMENSIONS:
Overall Approx.
Width Length Height Pkd. Wt. Capacity
Cat. No. (in.) (mm) (in.) (mm) (in.) (mm) (lbs.) (kg) (Cases of 750ml bottles)
WB237C 14 355 36 910 743/
4
1899 138 63 12
WB238C 14 355 36 910 863/
4
2203 168 76 15
WB257C 14 355 48 1220 743/
4
1899 168 76 16
WB258C 14 355 48 1220 863/
4
2203 204 93 20
Bulk Storage Wine Shelving
10.47
SPECIFICATIONS:
• Model WB237C: Consists of five
14” x 36” (355 x 910mm)
chrome-plated Super Erecta
Shelf
®
wire shelves (1436NC);
four 74
3
/4” (1900mm) posts with
foot plates (74FPC); 12 diagonal
dividers (BD15C); four bottle
support inserts (BS3C); two end
panels (EP27C); two back
panels (BP27C); and two wall
clamps (9984C).
• Model WB238C: Consists of six
14” x 36” (355 x 910mm)
chrome-plated Super Erecta
Shelf
®
wire shelves (1436NC);
four 86
3
/4” (2200mm) posts with
foot plates (86FPC); 15 diagonal
dividers (BD15C); five bottle
support inserts (BS3C); two end
panels (EP28C); two back
panels (BP28C); and two wall
clamps (9984C).
• Model WB257C:Consists of five
14” x 48” (355 x 1220mm)
chrome-plated Super Erecta
Shelf
®
wire shelves (1448NC);
four 74
3
/4(1900mm) posts with
foot plates (74FPC); 16 diagonal
dividers (BD15C); four bottle
support inserts (BS5C); two end
panels (EP27C); three back
panels (BP27C); and two wall
clamps (9984C).
•
Model WB258C: Consists of six
14” x 48” (355 x 1220mm)
chrome-plated Super Erecta
Shelf
®
wire shelves (1448NC);
four 86
3
/4” (2200mm) posts with
foot plates (86FPC); 20 diagonal
dividers (BD15C); five bottle
support inserts (BS5C); two end
panels (EP28C); three back
panels (BP28C); and two wall
clamps (9984C).
Model WB257C with Door Accessory
ACCESSORIES:
Door Set — 1 set per carton.
Approx.
Width Height Pkd. Wt.
Cat. No. (in.) (mm) (in.) (mm) (lbs.) (kg) Fits Unit
ED57C 51 1295 60 1524 42 19 WB257C
Joining Hook — To be used when units are placed back-to-back or
end-to-end.
Width Depth Height.
Cat. No. (in.) (mm) (in.) (mm) (ins.) (mm)
JH2C
21
/
32
17 15/
8
41 21/
4
57
