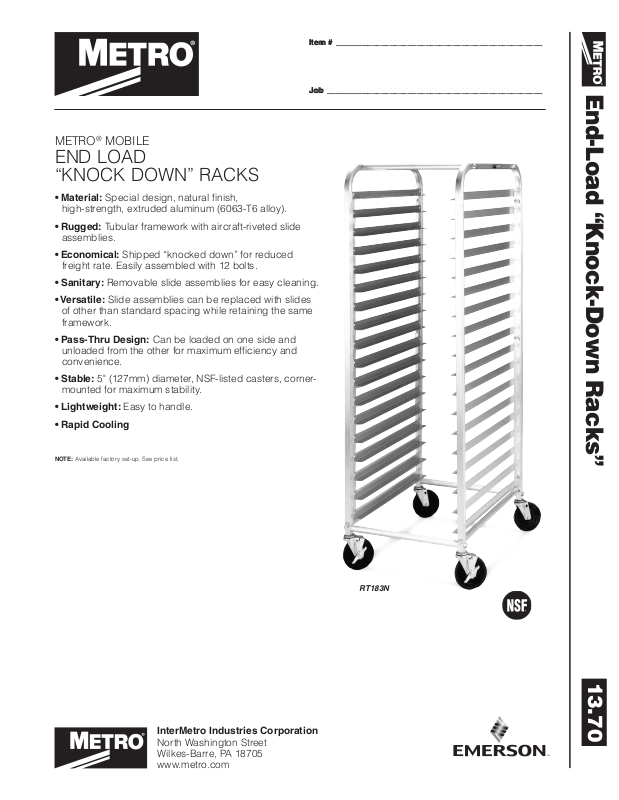

METRO® MOBILE
END LOAD
“KNOCK DOWN” RACKS
• Material: Special design, natural finish,
high-strength, extruded aluminum (6063-T6 alloy).
• Rugged: Tubular framework with aircraft-riveted slide
assemblies.
• Economical: Shipped “knocked down” for reduced
freight rate. Easily assembled with 12 bolts.
• Sanitary: Removable slide assemblies for easy cleaning.
• Versatile: Slide assemblies can be replaced with slides
of other than standard spacing while retaining the same
framework.
• Pass-Thru Design: Can be loaded on one side and
unloaded from the other for maximum efficiency and
convenience.
• Stable: 5" (127mm) diameter, NSF-listed casters, cornermounted for maximum stability.
• Lightweight: Easy to handle.
• Rapid Cooling
End-Load “Knock-Down Racks”
NOTE: Available factory set-up. See price list.
InterMetro Industries Corporation
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
RT183N
13.70
9.01
Job ________________________________________________Job ________________________________________________
13.70
END LOAD “KNOCK DOWN” RACKS
Specifications
• Material: Special design, natural finish, high strength,
extruded aluminum (6063-T6 alloy).
• Construction: Pass-thru design, aircraft-riveted
construction on slide assemblies, tensilok fasteners for
frame assembly.
• End Frames: 1" square x .093" (25x2.4mm) wall
extruded aluminum tubing.
• Tie Bars: Left to right and front to back tie bars of
1" (25mm) diameter aluminum bar stock, drilled
and tapped at each end.
• Slides, 3" & 5" (75 & 127mm) Spacing:
.060"x11/4"x11/2" (1.5x32x38mm) profile,
bulb-tipped extruded angle-riveted to .060"x1"x1"
(1.5x25x25mm) angle uprights.
• Slides, 11/2" (38mm) Spacing: .060"x1/2"x11/2"
(1.5x12.7x38mm) bulb-tipped, extruded
channel-riveted to .060"x1"x1" (1.5x25x25mm) angle
uprights.
• Casters: Two HS5M on back — 5" (127mm) diameter
ball bearing swivel stem casters with self-lubricating
axle. Two HS5MB on front — same as above with
wheel brake. NSF listed.
• Load Rating: 20 lbs. (9kg) per level. Not to exceed
300 lbs. (159kg) per unit.
End-Load “Knock-Down Racks”
Dimensions
(a) (b) (c) (d) Slide Shipping
Height/Width/Depth Inside Height Spacing Pan Capacity Weight
Cat. No. (in.) (mm) (in.) (mm) (in.) (mm) No. Size (in.) (lbs.) (kg)
RT183N 641/8x203/8x28 1630x520x710 557/8 1420 3 76 18 18x26 53 24
RT115N 641/8x203/8x28 1630x520x710 557/8 1420 5 127 11 18x26 50 23
RT1334N 641/8x203/8x28 1630x520x710 557/8 1420 11/2 38 34 18x26 55 25
or
36 14x18
or
22 14x18
Accessories
Model No. Description
SU Factory Set-Up
A38 Gray Rubber Corner Bumpers
All Metro Catalog Sheets are available on our Web Site: www.metro.com
InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA 18705
Phone: 570-825-2741
Fax: 570-825-2852
For Product Information:
U.S. and Canada: 1.800.992.1776
Latin America: 1.561.333.3824
Europe: +31.76.587.7550
Printed in U.S.A. Rev. 6/10
Information and specifications are subject to change
without notice. Please confirm at time of order.
Copyright © 2010 InterMetro Industries Corp.
Asia/Pacific: +65.6567.8003
Middle East/Africa: +971.4.811.8286
L02-081
