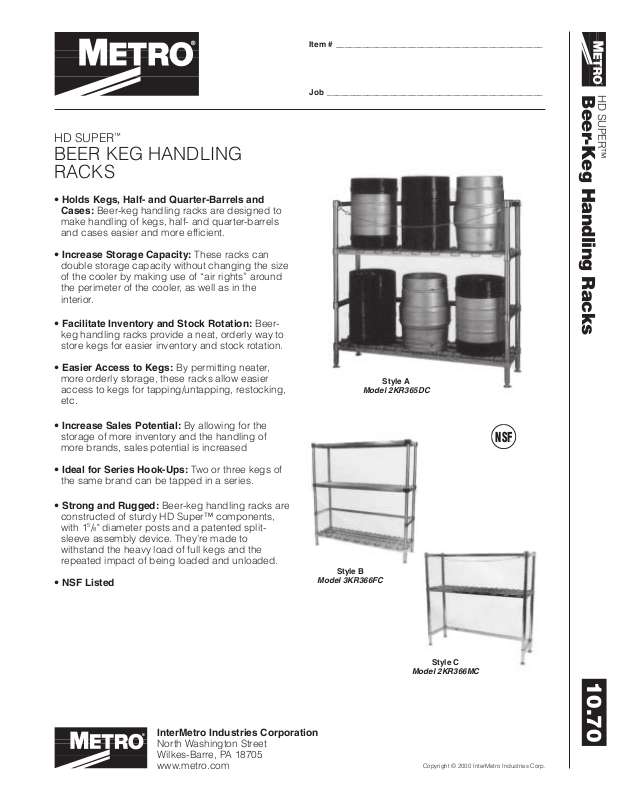

Intermetro 2KR345DC General Manual

®

®

Item # ______________________________________________

HD SUPER

™

BEER KEG HANDLING
RACKS

• Holds Kegs, Half- and Quarter-Barrels and
Cases: Beer-keg handling racks are designed to
make handling of kegs, half- and quarter-barrels
and cases easier and more efficient.

• Increase Storage Capacity: These racks can
double storage capacity without changing the size
of the cooler by making use of “air rights” around
the perimeter of the cooler, as well as in the
interior.

• Facilitate Inventory and Stock Rotation: Beer-
keg handling racks provide a neat, orderly way to
store kegs for easier inventory and stock rotation.

• Easier Access to Kegs: By permitting neater,
more orderly storage, these racks allow easier
access to kegs for tapping/untapping, restocking,
etc.

Job ________________________________________________

Style A

Model 2KR365DC

HD SUPER™

Beer-Keg Handling Racks

• Increase Sales Potential: By allowing for the
storage of more inventory and the handling of
more brands, sales potential is increased

• Ideal for Series Hook-Ups: Two or three kegs of
the same brand can be tapped in a series.

• Strong and Rugged: Beer-keg handling racks are
constructed of sturdy HD Super™ components,
with 15/8" diameter posts and a patented split­sleeve assembly device. They’re made to
withstand the heavy load of full kegs and the
repeated impact of being loaded and unloaded.

• NSF Listed

Style B

Model 3KR366FC

Style C

Model 2KR366MC

NSF

®

10.70

InterMetro Industries Corporation

®

North Washington Street
Wilkes-Barre, PA 18705
www.metro.com

Copyright © 2000 InterMetro Industries Corp.

Job ________________________________________________

®

HD SUPER™

®

10.70

BEER-KEG HANDLING RACKS

Additional Features

• Style A: Provides storage for kegs/barrels on two
levels, utilizing either two dunnage shelves or the
floor and one dunnage shelf.

• Style B: Provides storage for kegs/barrels and
case beer on three levels, one dunnage and two
solid shelves.

• Style C: Provides storage for kegs/barrels and
case beer on three levels, utilizing the floor and
one dunnage shelf for kegs/barrels and one solid
shelf for cases.

Dimensions

*D= dunnage shelf; S= solid shelf; all shelves are 18” (455mm) wide.

All models which have upper level storage of kegs/
barrels are provided with a retaining cable for
safety.

All models are provided with 25/16" diameter foot
plates for stability and easy leveling. Optional 3
diameter stainless steel foot plates are available as
accessories.

Kegs/1/2-Barrel Approximate

Shelf Length Height Storage Packaged Weight

Model Style (in.) (mm) (in.) (mm) Shelves* Capacity (lbs.) (kg)

2KR345DC A 42 1060 561/81425 2-D 4 118 54
2KR365DC A 60 1525 561/81425 2-D 6 147 64

KR345DC A 42 1060 561/81425 1-D 4 87 39

KR365DC A 60 1525 561/81425 1-D 6 104 47
3KR346FC B 42 1060 641/81630 1-D, 2-S 2 121 55
3KR366FC B 60 1525 641/81630 1-D, 2-S 3 151 68

2KR346MC C 42 1060 641/81630 1-D, 1-S 4 112 51
2KR366MC C 60 1525 641/81630 1-D, 1-S 6 137 62

1

/2"

HD SUPER™

Beer-Keg Handling Racks

Accessories

Units with standard foot plate
adjacent to a wall should be secured
with Wall Mounting Brackets which
engage either the frame of a
dunnage shelf or three-sided frame
in any unit (as shown in photo).

Cat. No. 9984HZ

Manufactured by:

®

InterMetro Industries Corporation

North Washington Street, Wilkes-Barre, PA 18705
Phone: [phone] • Fax: [phone]

For Product Information Call: 1-800-433-2232
Visit Our Web Site: www.metro.com

Units with standard foot plate
adjacent to each other should be
buttressed end-to-end or back-to­back by using Post Clamps to join
paired posts.

Cat. No. 9994HZ

Freestanding units
(not adjacent to
a wall or to another
unit) should be
stabilized with
accessory

1

/2" Foot Plates,

3

which provide a
broader base for
each post and are
drilled for securing
to the floor.

Cat. No. 9993HS

L02-033

Rev. 2/00

Printed in U.S.A.

Information and specifications are subject to change

without notice. Please confirm at time of order.
