Item # ______________________________________________

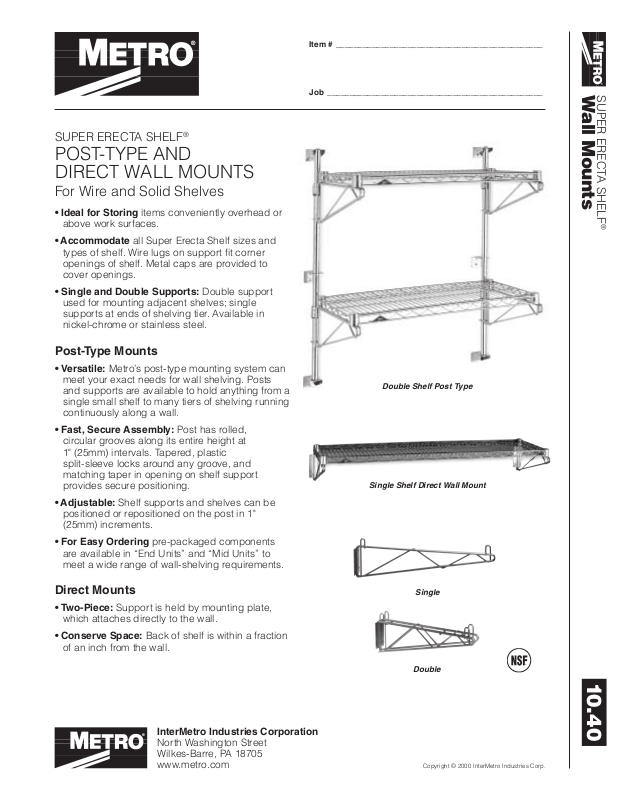

SUPER ERECTA SHELF
®
POST-TYPE AND
DIRECT WALL MOUNTS
For Wire and Solid Shelves
• Ideal for Storing items conveniently overhead or
above work surfaces.
• Accommodate all Super Erecta Shelf sizes and
types of shelf. Wire lugs on support fit corner
openings of shelf. Metal caps are provided to
cover openings.
• Single and Double Supports: Double support
used for mounting adjacent shelves; single
supports at ends of shelving tier. Available in
nickel-chrome or stainless steel.
Post-Type Mounts
• Versatile: Metro’s post-type mounting system can
meet your exact needs for wall shelving. Posts
and supports are available to hold anything from a
single small shelf to many tiers of shelving running
continuously along a wall.
Job ________________________________________________
Double Shelf Post Type
SUPER ERECTA SHELF
Wall Mounts
®
• Fast, Secure Assembly: Post has rolled,
circular grooves along its entire height at
1" (25mm) intervals. Tapered, plastic
split-sleeve locks around any groove, and
matching taper in opening on shelf support
provides secure positioning.
• Adjustable: Shelf supports and shelves can be
positioned or repositioned on the post in 1"
(25mm) increments.
• For Easy Ordering pre-packaged components
are available in “End Units” and “Mid Units” to
meet a wide range of wall-shelving requirements.
Direct Mounts
• Two-Piece: Support is held by mounting plate,
which attaches directly to the wall.
• Conserve Space: Back of shelf is within a fraction
of an inch from the wall.
Single Shelf Direct Wall Mount
Single
Double
®
10.40
InterMetro Industries Corporation
®
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
Copyright © 2000 InterMetro Industries Corp.
10.40
®
Job ________________________________________________
SUPER ERECTA SHELF
®
POST-TYPE AND
DIRECT WALL MOUNTS
®
Dimensions
“End Unit”
Post-Type Wall Mounts – Standard Units
Post-type wall mounts are available in pre-packaged “End Units” and “Mid Units,”
complete with all needed components except wall bolts or screws, which must be
selected according to type of wall*. Shelf supports are chrome-plated.
“End Unit” consists of two posts with brackets, and two single supports for each shelf.
“Mid Unit” consists of one post with brackets and double support for each tier.
If shelving is to be the length of one shelf,
order End Unit Only.
If two shelf lengths, order one End Unit and one Mid Unit; three lengths, one End and
two Mid Units; four lengths, one End and three Mid Units; etc.
Number Post 14" (460mm) Shelf Width 18" (455mm) Shelf Width 21" (530mm) Shelf Width 24" (610mm) Shelf Width
of Tiers Number End Unit Mid Unit End Unit Mid Unit End Unit Mid Unit End Unit Mid Unit
1 Shelf 13PDF SW21C AW21C SW31C AW31C SW41C AW41C SW51C AW51C
2 Shelf 33PDF SW23C AW23C SW33C AW33C SW43C AW43C SW53C AW53C
3 Shelf 54PDF SW25C AW25C SW35C AW35C SW45C AW45C SW55C AW55C
4 Shelf 63PDF SW26C AW26C SW36C AW36C SW46C AW46C SW56C AW56C
Order shelves from sheets #10.01, 10.10 or 10.20 or from price list.
Cat. No. Cat. No. Cat. No. Cat. No.
“Mid Unit”
To Order By Components
Posts & Brackets
Post Approx.
Height Cat. No. Cat. No. Pkd. Wt.
(in.) (mm) Description Plated Stainless (lbs.) (kg)
137/8 350 Post for 1 tier 13PDF 13PDFS 1.25 0.6
335/8 854 Post for 2 tiers 33PDF 33PDFS 2.75 1.2
54 1370 Post for 3 or more tiers 54PDF 54PDFS 5.0 2.3
62 1573 Post for 4 or more tiers 63PDF 63PDFS 6.0 2.7
End Bracket BES SBES 0.5 0.2
Intermediate Bracket BCS SBCS 0.5 0.2
Posts & Brackets – Two end brackets (BES),
are supplied with each of these double-footed
posts. One intermediate bracket (BCS) is
supplied with 33PDF posts and two are
supplied with 54PDF and 63PDF posts.
Posts and brackets can be used to mount
12" (305mm) cantilever shelves (sheet #10.06)
rather than shelf supports.
BCS brackets can also be used to attach
freestanding shelving to wall.
BES
BCS
BES
®
SUPER ERECTA SHELF
Shelf Supports – Post Mounting
Shelf Width Cat. No. Cat. No. Cat. No. Cat. No.
(in.) (mm) Chrome Stainless Chrome Stainless
14 360 1WS14C 1WS14S 2WS14C 2WS14S
18 455 1WS18C 1WS18S 2WS18C 2WS18S
21 530 1WS21C 1WS21S 2WS21C 2WS21S
24 610 1WS24C 1WS24S 2WS24C 2WS24S
Order Shelves from sheets #10.01, 10.10 or 10.20 or from price list.
Load Rating: 250 lbs. (113.3 kg) per system.
Direct Wall Mounts – Each consists of
one shelf support and mounting plate,
with two caps. Use single support at shelf
ends; double support for adjoining
shelves. Select wall bolts or screws
according to type of wall.*
*User should determine that wall material and method
of mounting are suitable to support the shelves and
their contents.
Wall Mounts
Manufactured by:
SINGLE DOUBLE
Direct Wall Mounts
Shelf Width Cat. No. Cat. No. Cat. No. Cat. No.
(in.) (mm) Chrome Stainless Chrome Stainless
14 360 1WD14C 1WD14S 2WD14C 2WD14S
18 455 1WD18C 1WD18S 2WD18C 2WD18S
21 530 1WD21C 1WD21S 2WD21C 2WD21S
24 610 1WD24C 1WD24S 2WD24C 2WD24S
Load Rating: 200 lbs. (91 kg) per system.
InterMetro Industries Corporation
®
North Washington Street, Wilkes-Barre, PA 18705
Phone: 570-825-2741 • Fax: 570-825-2852
For Product Information Call: 1-800-433-2232
Visit Our Web Site: www.metro.com
SINGLE DOUBLE
Printed in U.S.A.
Information and specifications are subject to change
without notice. Please confirm at time of order.
L02-021
Rev. 11/00
