Intermec MobileLAN User Manual

User’s Guide

P/N 071873-001

MobileLAN

™

voice System

Intermec Technologies Corporation
6001 36th Avenue West
P.O. Box 4280
Everett, WA 98203-9280

U.S. service and technical support: 1-800-755-5505
U.S. media supplies ordering information: 1-800-227-9947

Canadian service and technical support: 1-800-668-7043
Canadian media supplies ordering information: 1-800-268-6936

Outside U.S.A. and Canada: Contact your local Intermec service supplier.

The information contained herein is proprietary and is provided solely for the purpose of allowing customers
to operate and/or service Intermec manufactured equipment and is not to be released, reproduced, or used for
any other purpose without written permission of Intermec.

Information and specifications in this manual are subject to change without notice.

2001 by Intermec Technologies Corporation



All Rights Reserved

The word Intermec, the Intermec logo, INCA (under license), MobileLAN, Data Collection PC, Trakker
Antares, JANUS, IRL, Universal Access Point, UAP, EZBuilder, TE 2000, Data Collection Browser,
dcBrowser, and CrossBar are either trademarks or registered trademarks of Intermec.

Throughout this manual, trademarked names may be used. Rather than put a trademark ( or ) symbol in
every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion, and
to the benefit of the trademark owner, with no intention of infringement.

Contents

1233

Before You Begin vii

Warranty Information vii
Safety Summary vii
Cautions and Notes viii
About This Manual viii
Other Intermec Manuals ix

Contents

Learning About the MobileLAN voice System

1

2

About the MobileLAN voice System 1-3

System Architecture 1-3
System Components 1-5

MobileLAN voice Telephony Gateways 1-5
MobileLAN voice 2 Wireless Telephones 1-5
Access Points 1-5
Switching Hub 1-6
Router 1-6

About the MobileLAN voice Telephony Gateway (4-Port) 1-7

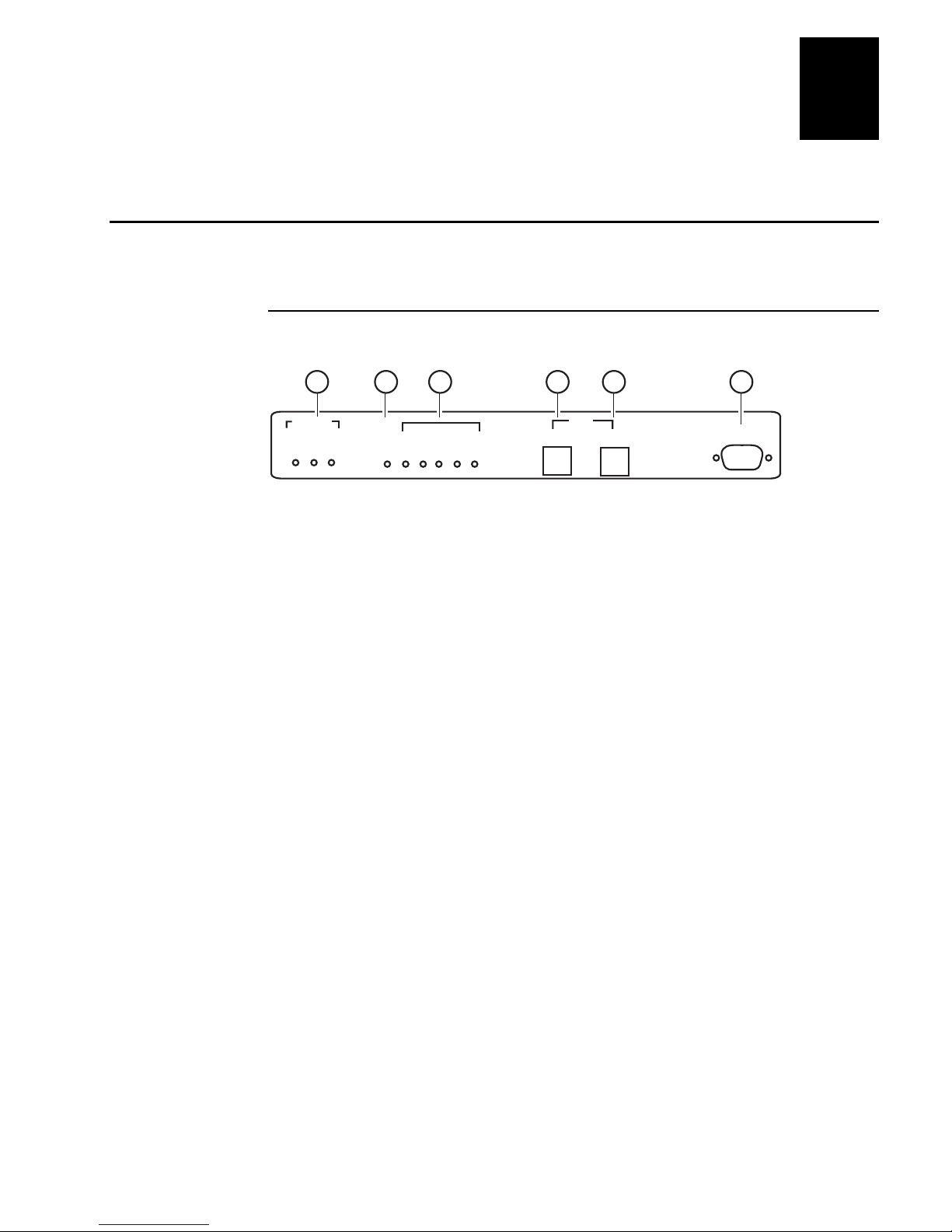

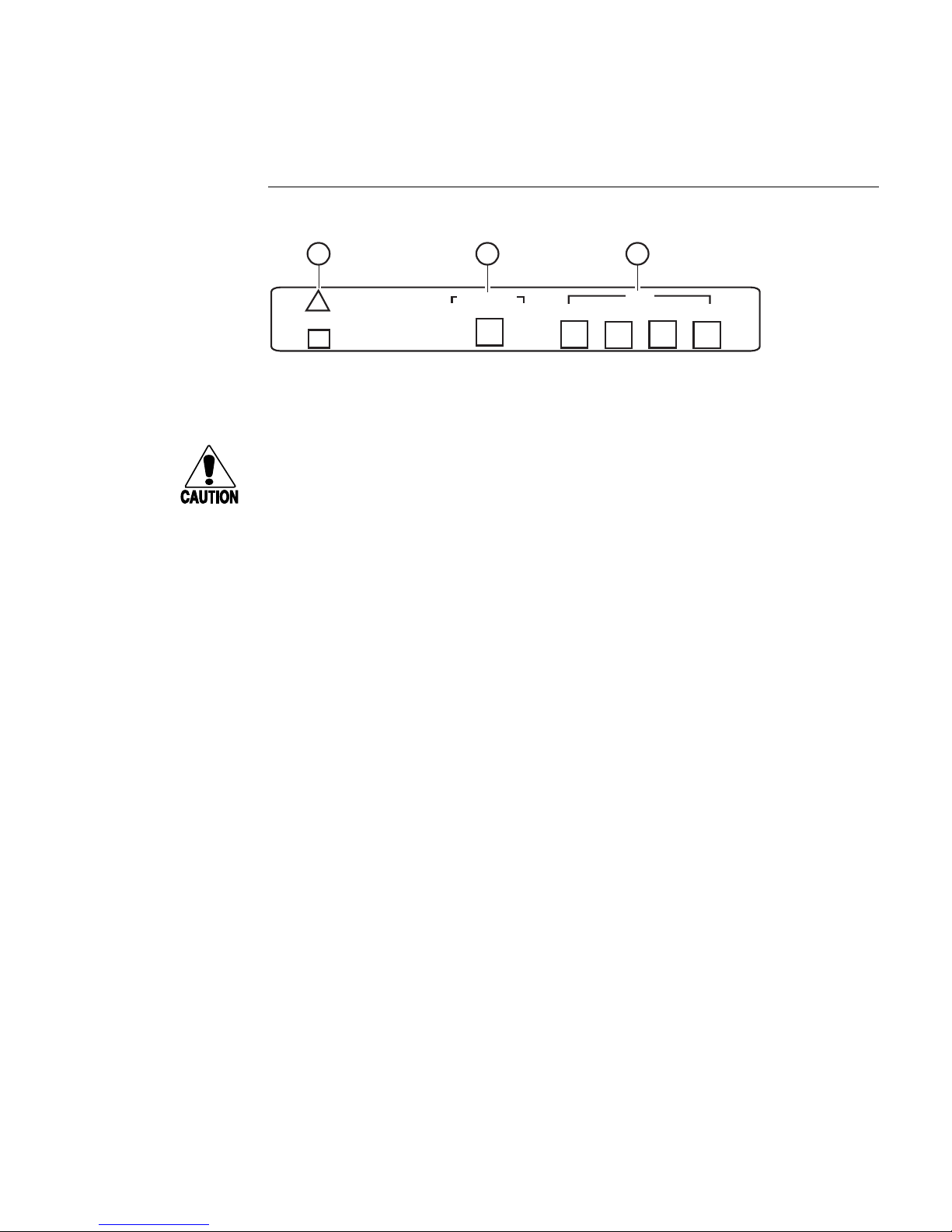

Front Panel 1-7
Back Panel 1-8

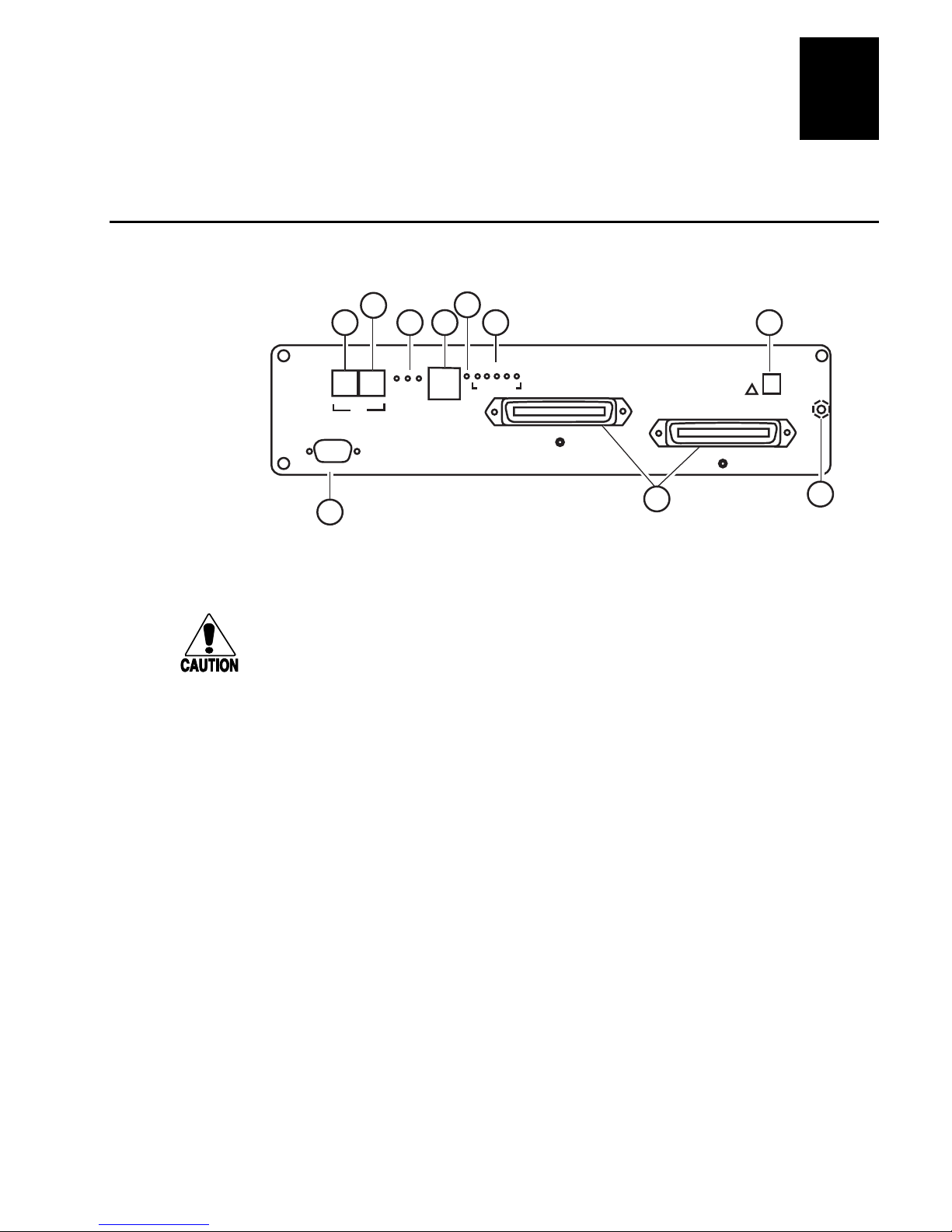

About the MobileLAN voice Telephony Gateway (16-Port) 1-9

Installing the MobileLAN voice System

Installation Overview 2-3

Site Preparation 2-4

Equipment Requirements 2-4
Telephony Gateway Location Requirements 2-5
LAN Requirements 2-5

Network Infrastructure 2-5
IP Addressing 2-5

System Installation 2-6

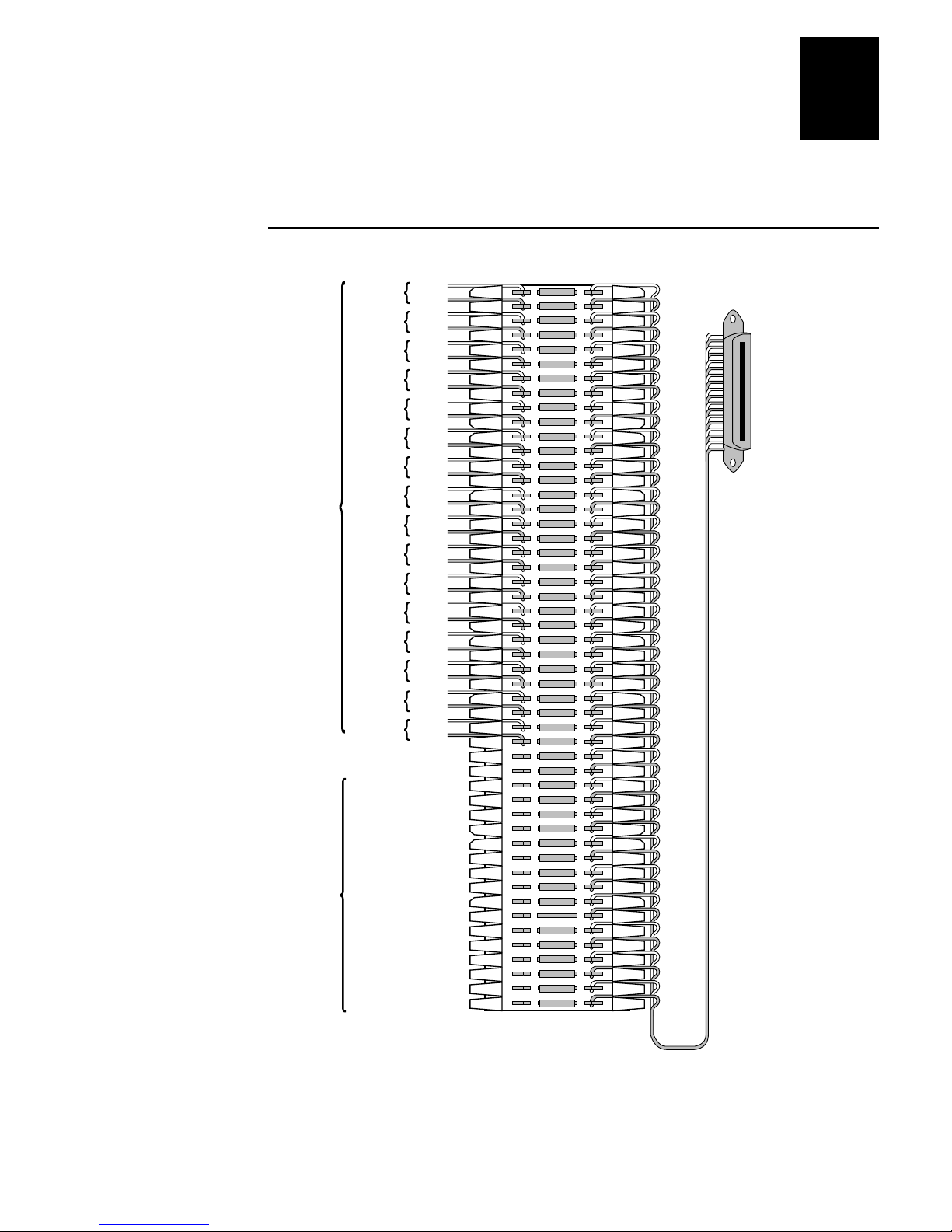

Preparing Demarcation Blocks 2-6

Installing Telephone Demarcation Blocks or Connections 2-7
Assigning and Programming Telephone Ports 2-8
Connecting Telephone Lines to Demarc Blocks 2-8

External Modem 2-7

iii

MobileLAN voice System User’s Guide

Telephony Gateway Installation 2-10

Verify Pre-Installation Requirements 2-10
Check Equipment 2-10
Mounting the Telephony Gateway (16-Port) 2-11
Connecting the Telephony Gateway 2-12

Connecting the Telephony Gateway to Demarcation Blocks 2-12

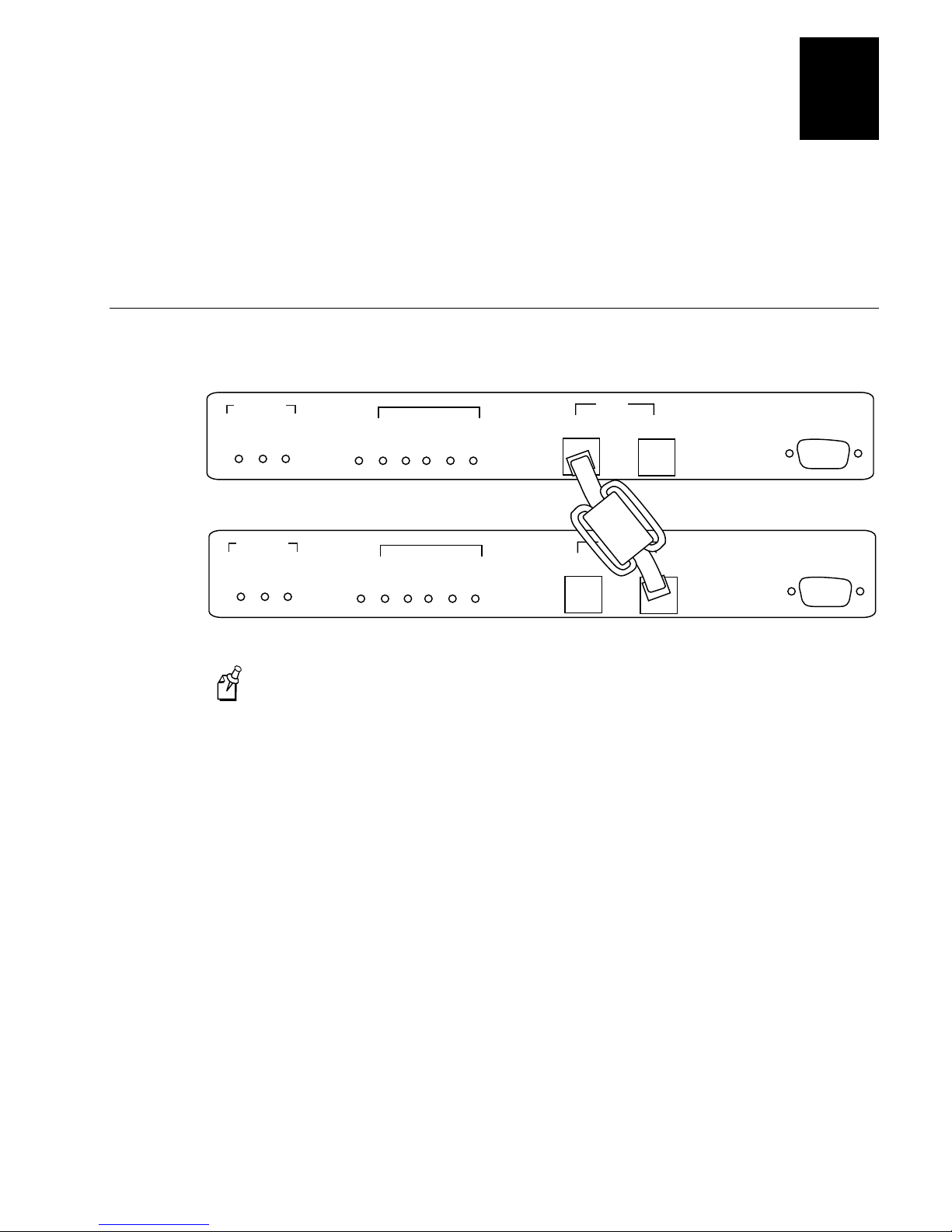

Connecting Multiple Telephony Gateways 2-13
Connecting the Telephony Gateway to the LAN 2-15
Connecting Power 2-15

Configuring the MobileLAN voice System

3

System Configuration Overview 3-3

Using the Administration Console 3-4

Navigating Through the Screens 3-4

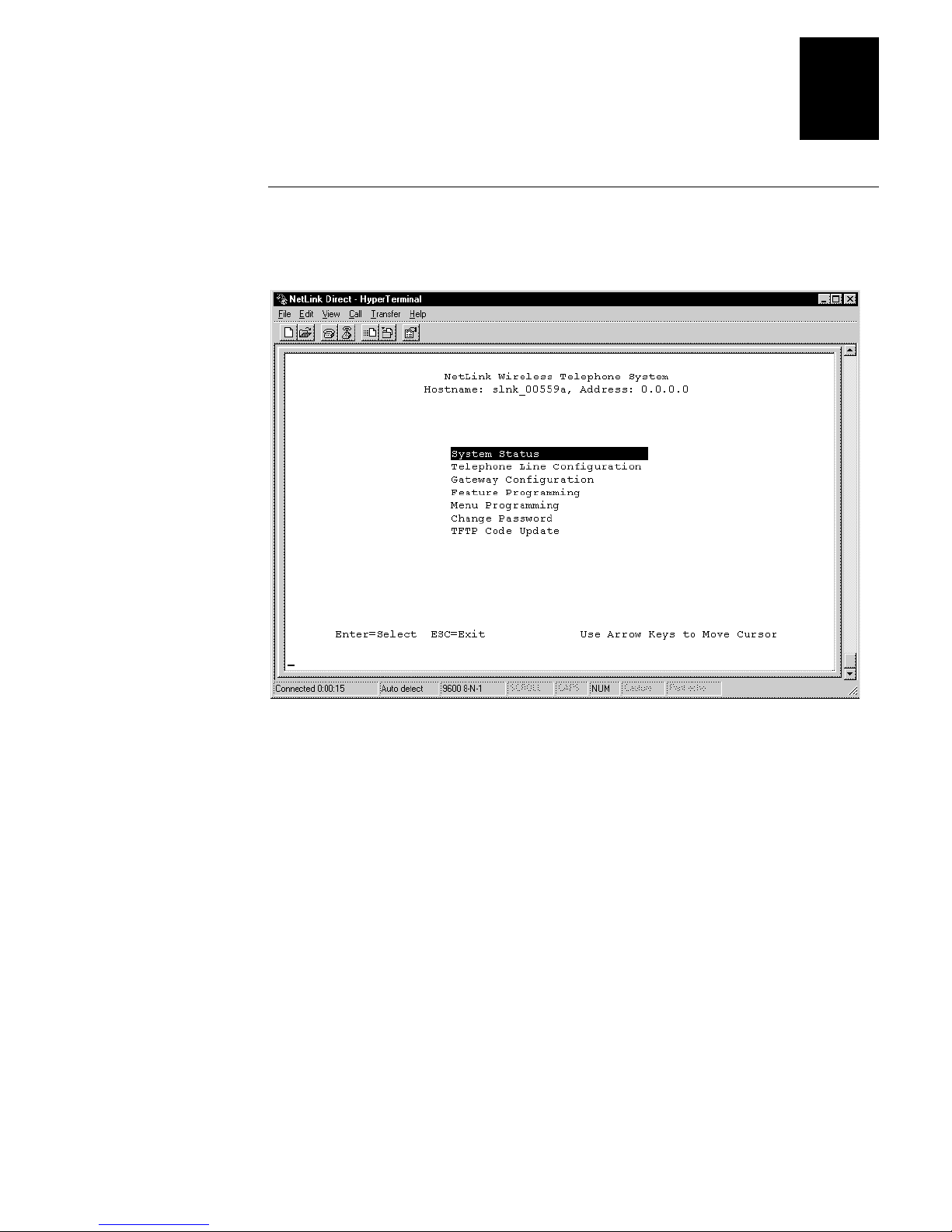

About the Main Menu 3-5

Configuring the Telephony Gateway (First Time) 3-6

Connecting to the Telephony Gateway Via the Serial Port 3-6
Selecting the Telephony Gateway 3-7
Configuring the Telephony Gateway 3-7
Resetting the Telephony Gateway 3-8
Resetting All Telephony Gateways 3-8

Configuring the Telephony Gateway 3-9

Connecting to a Telephony Gateway 3-9

Connecting Via Telnet 3-9

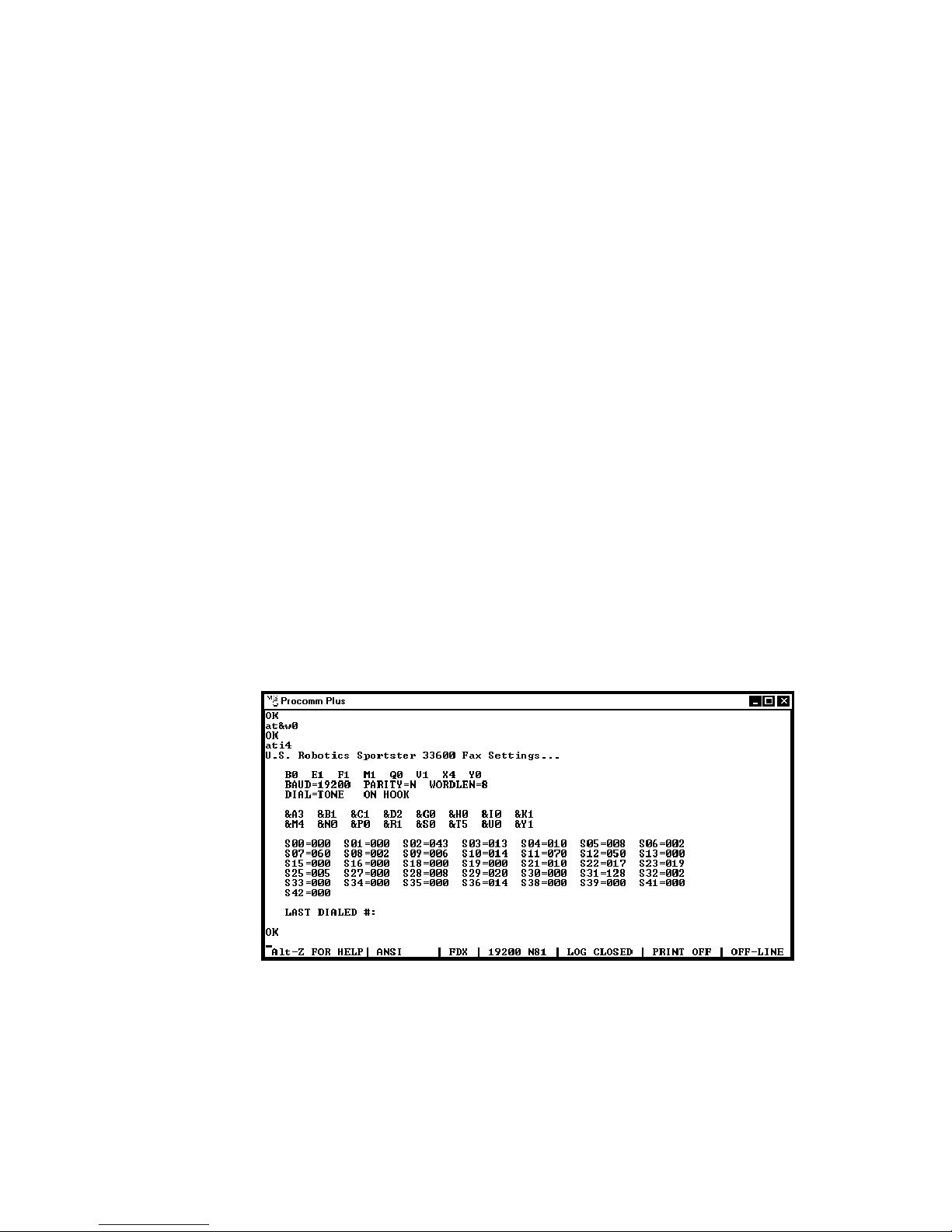

Connecting Via External Modem 3-9

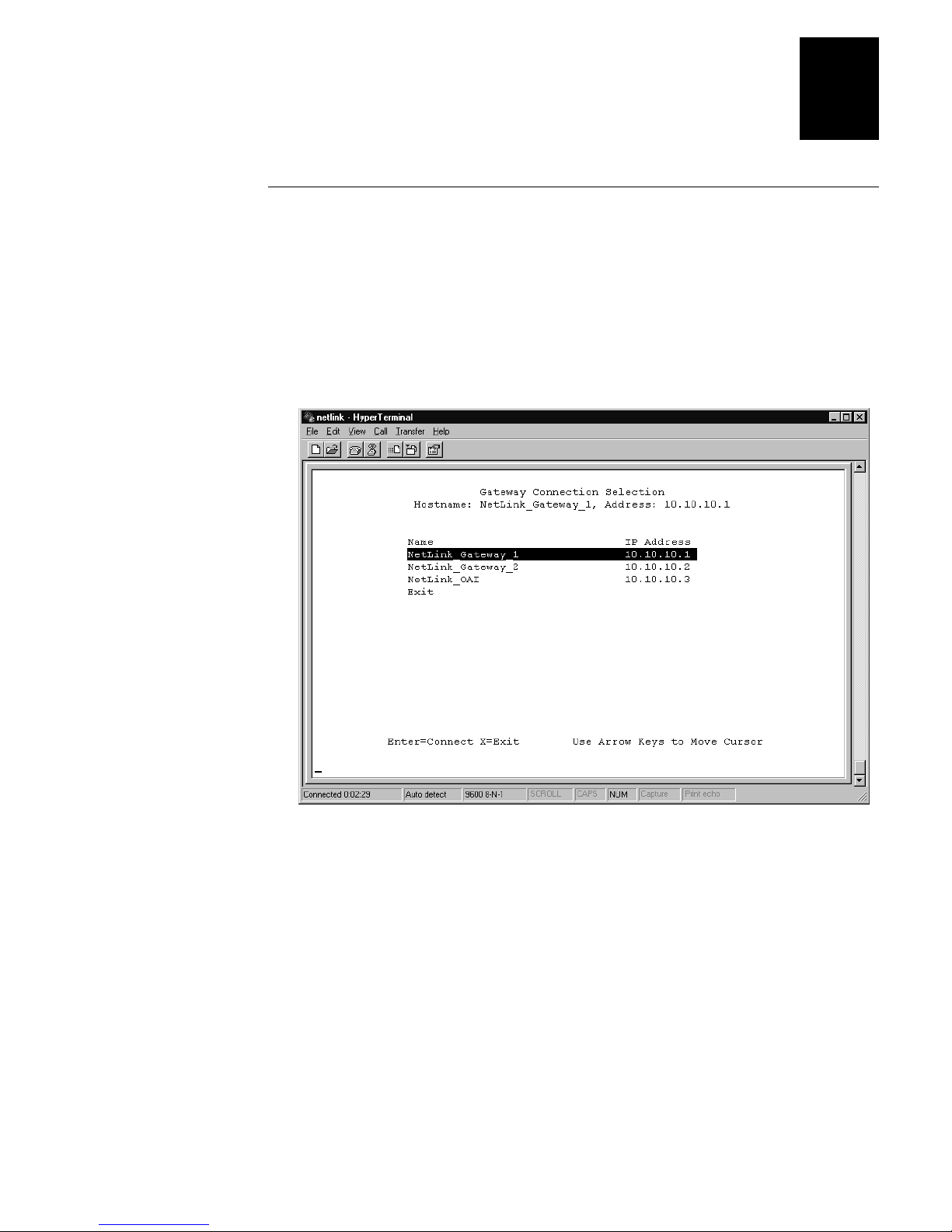

Gateway Connection Selection Screen 3-11

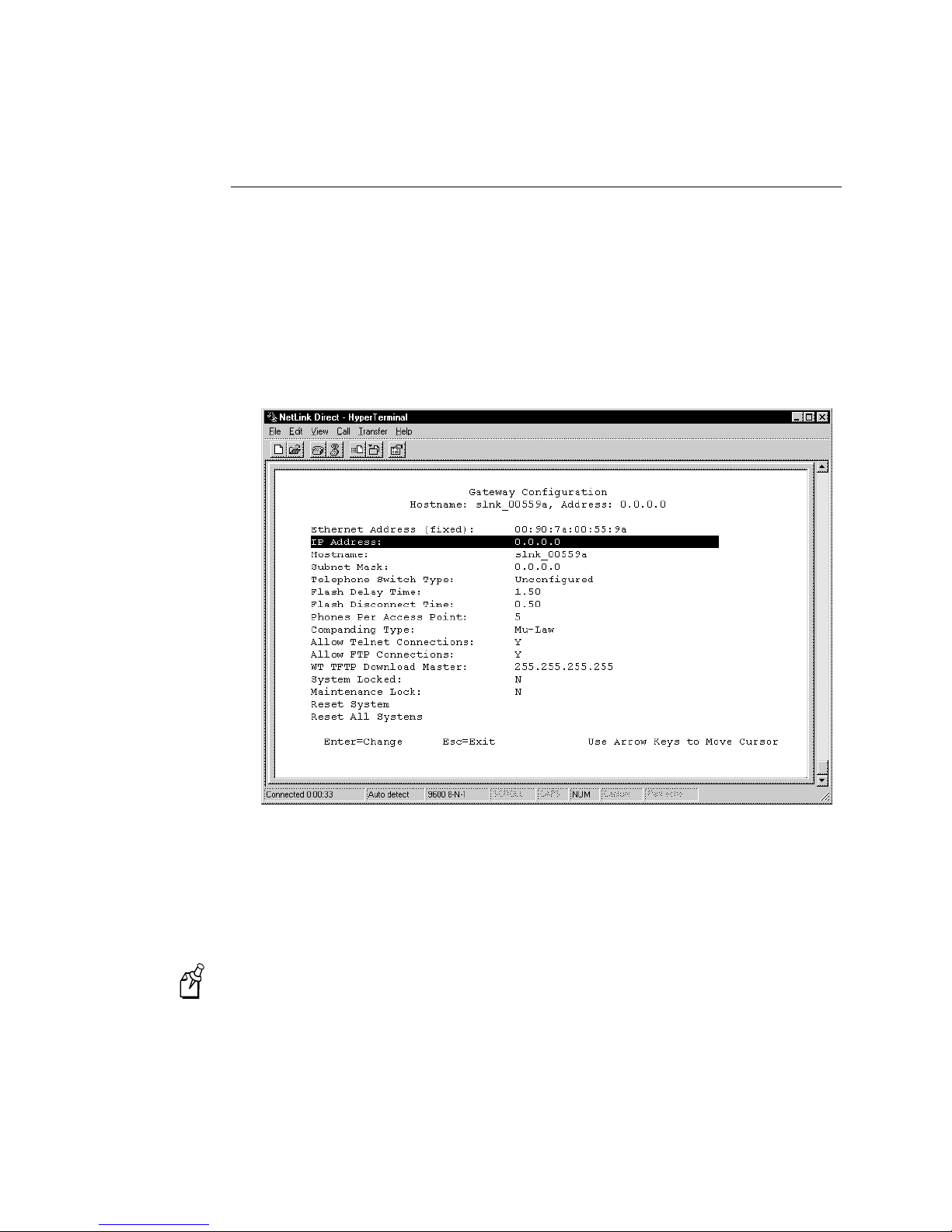

Gateway Configuration Screen 3-12

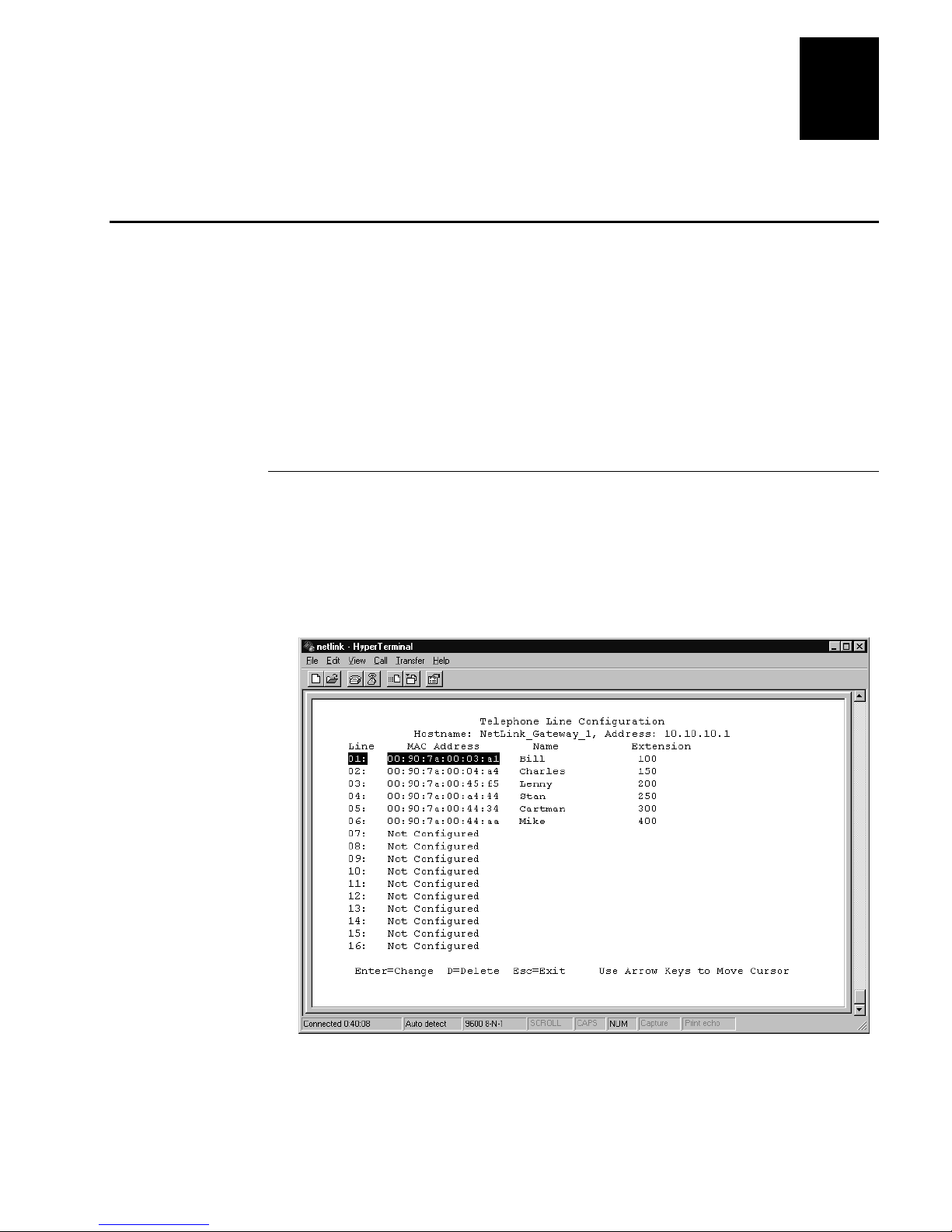

Associating the Wireless Telephone Lines 3-15

Adding or Changing a Wireless Telephone 3-15
Deleting a Wireless Telephone 3-16

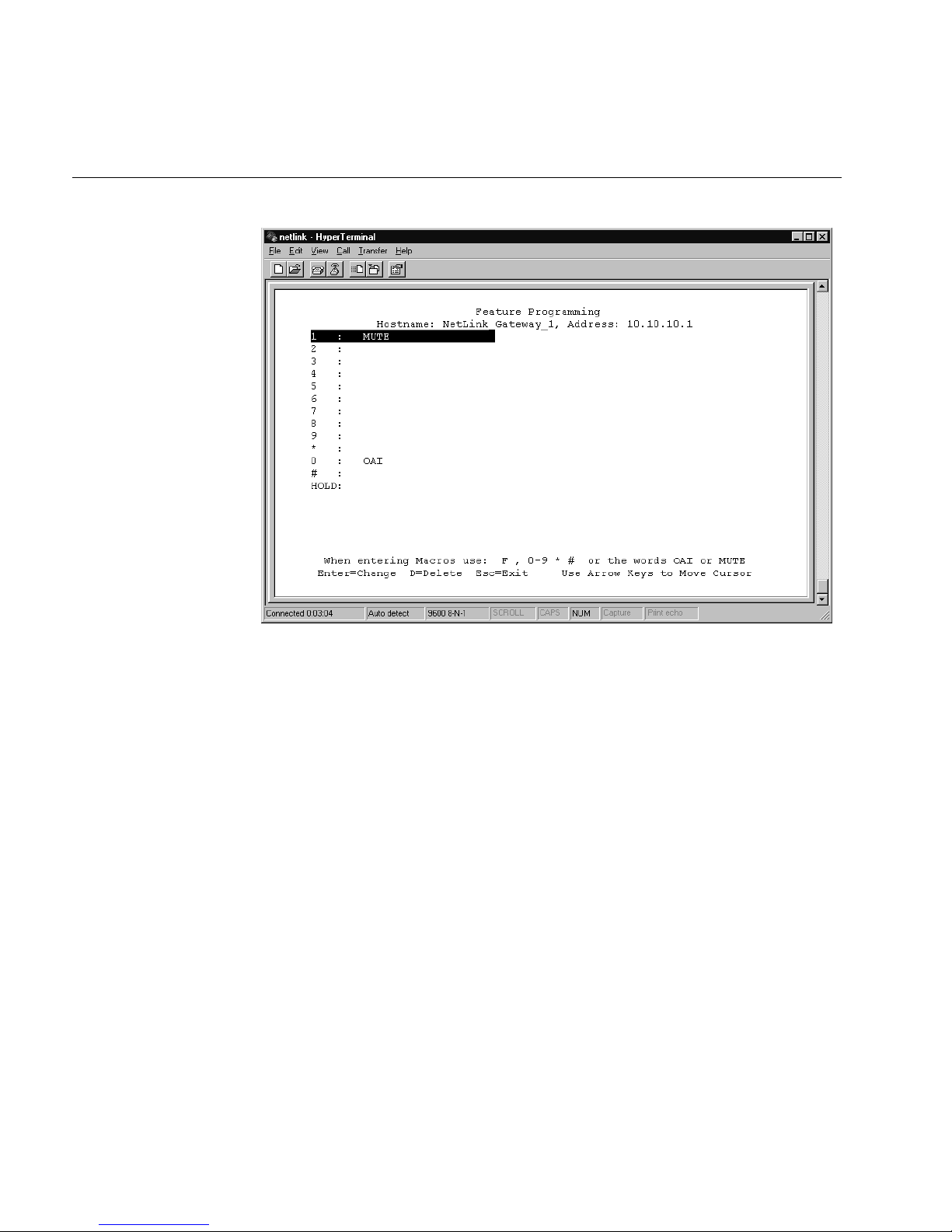

Programming Wireless Telephone Features 3-17

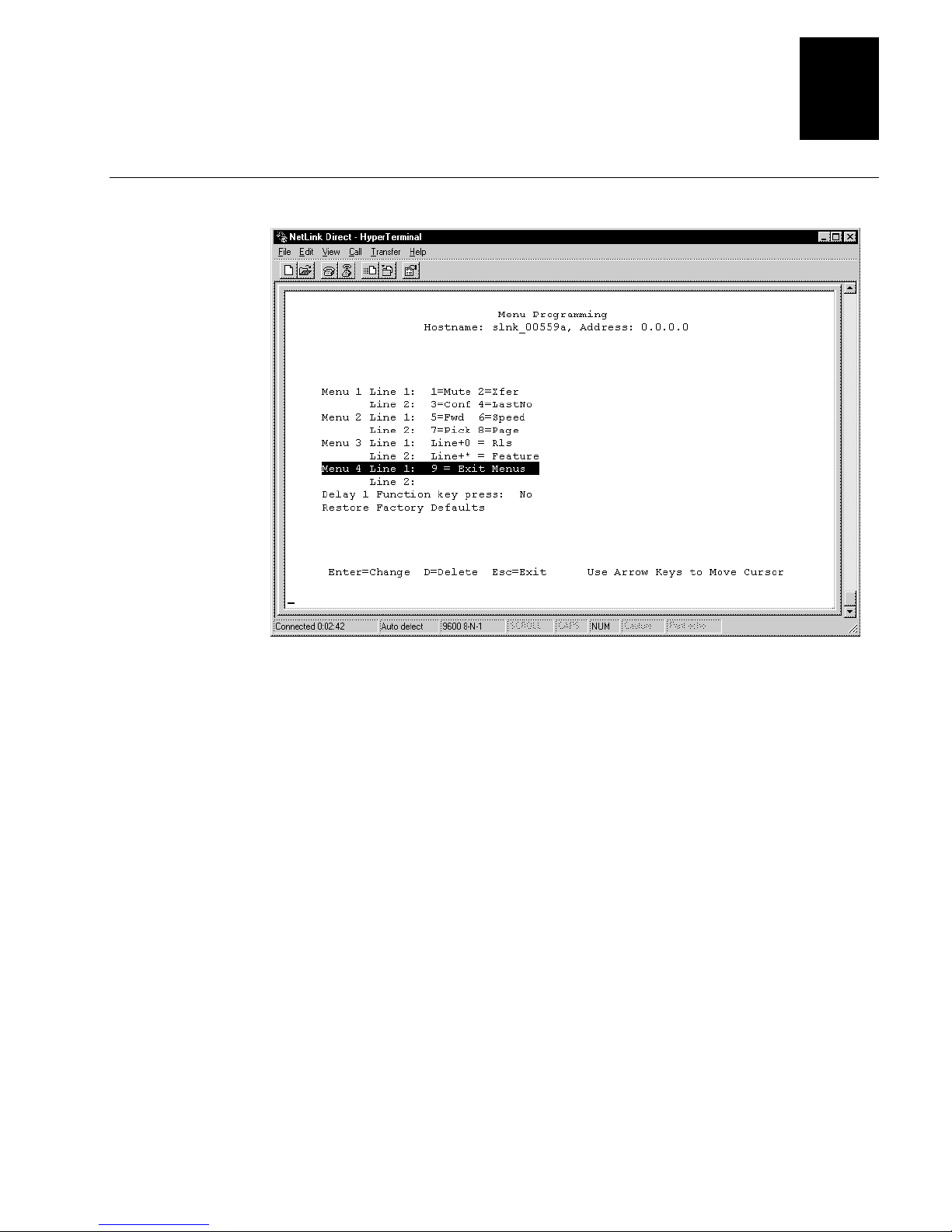

Programming the Wireless Telephone Menu 3-20

Configuring the Wireless Telephone 3-22

Configuring the Network Parameters 3-22

IP Address 3-23

ESSID 3-23

Restore Defaults 3-24

iv

1233

Site Survey Mode 3-24

Encryption 3-25
Testing a Wireless Telephone 3-25
Setting User Preferences 3-26

Using Site Survey Mode 3-27

Detect dBm Coverage 3-27
Detect Overlap or Conflicts 3-28
Solving Coverage Issues 3-28

Maintaining and Troubleshooting the

Contents

4

MobileLAN voice System

Maintaining the MobileLAN voice System 4-3

Upgrading the MobileLAN voice Software 4-3

Upgrading the Telephony Gateways Using FTP 4-4

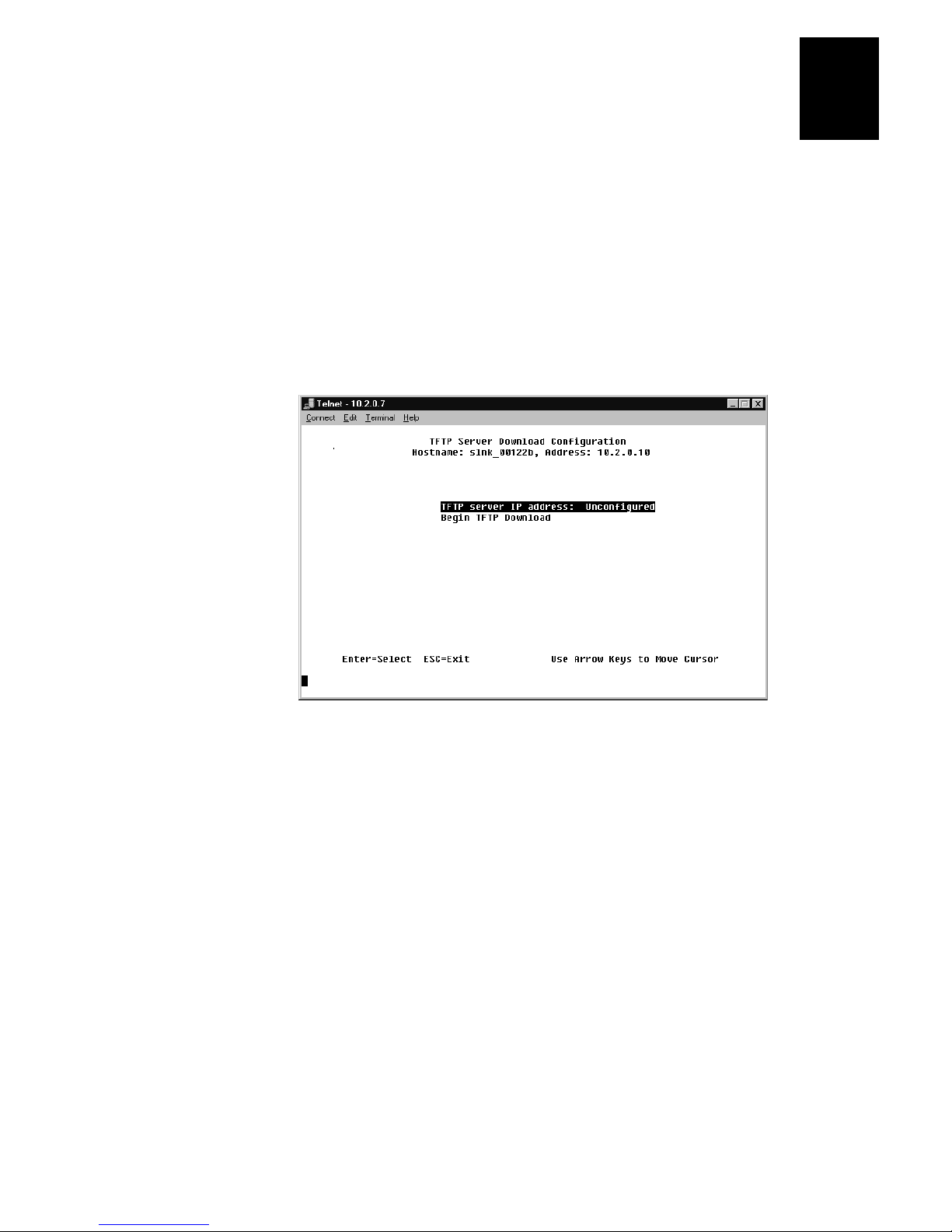

Upgrading the Telephony Gateways Using TFTP 4-5

Upgrading the Wireless Telephones 4-6
Backing Up and Restoring the Telephony Gateway Configuration 4-8

About Troubleshooting 4-9

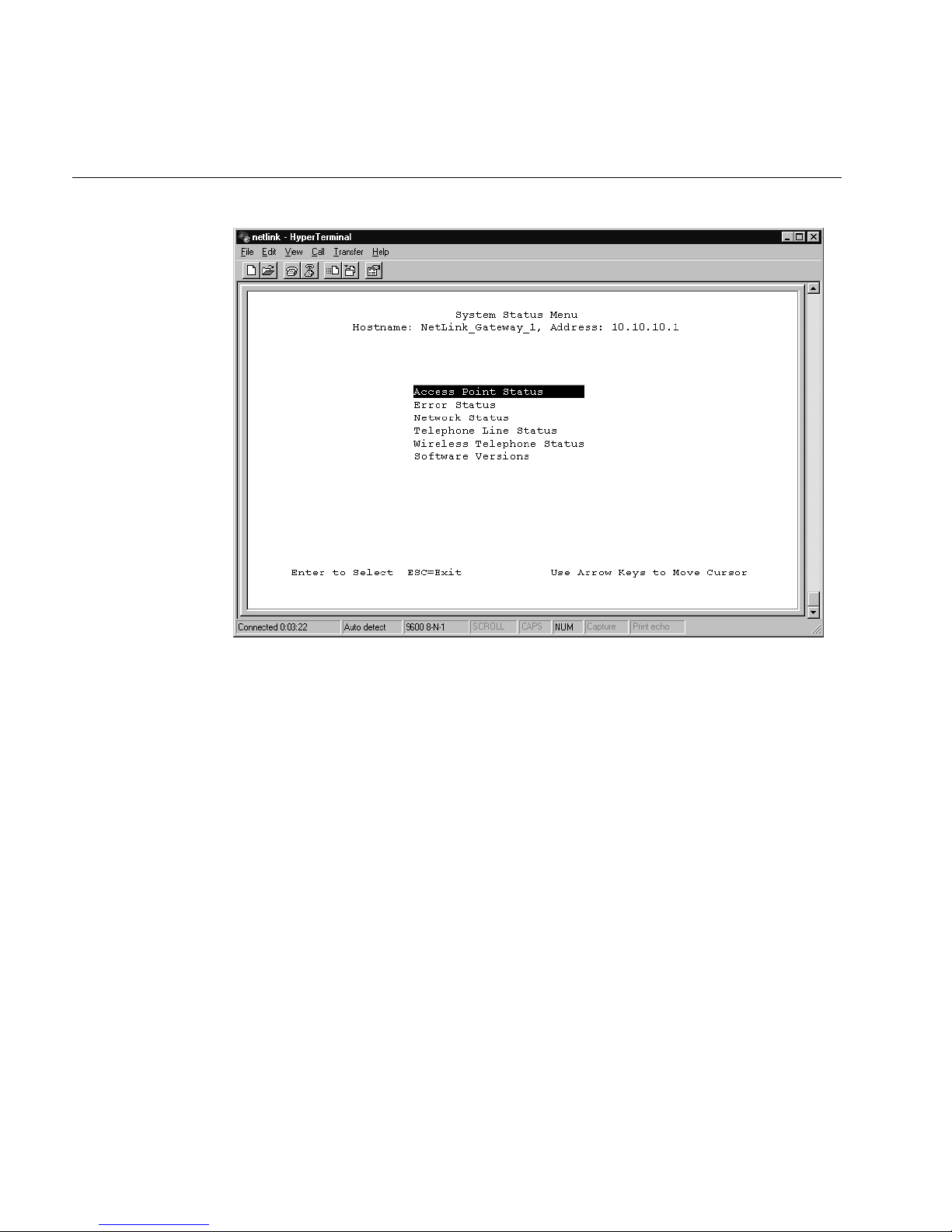

About the System Status Menu 4-9

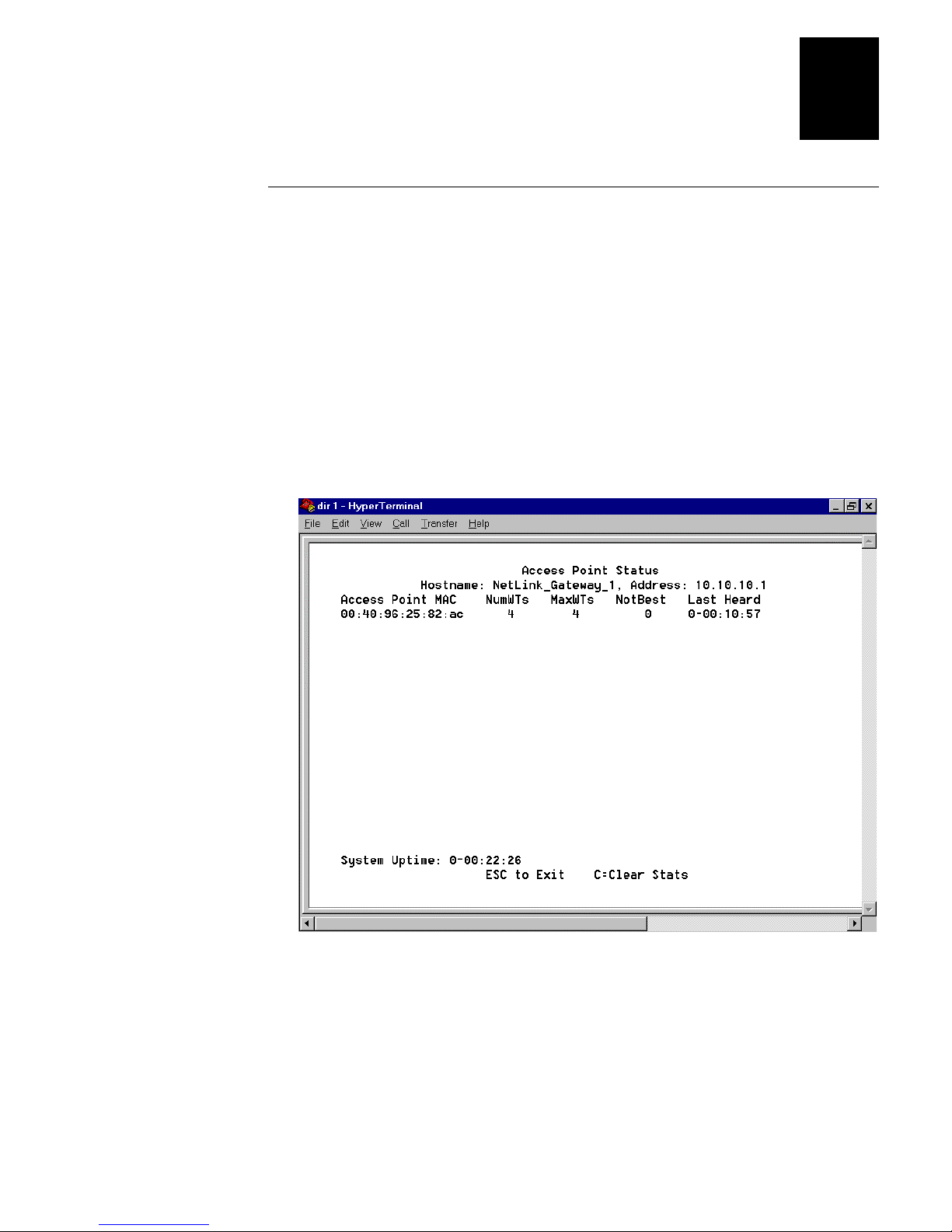

Understanding the Access Point Status Screen 4-11

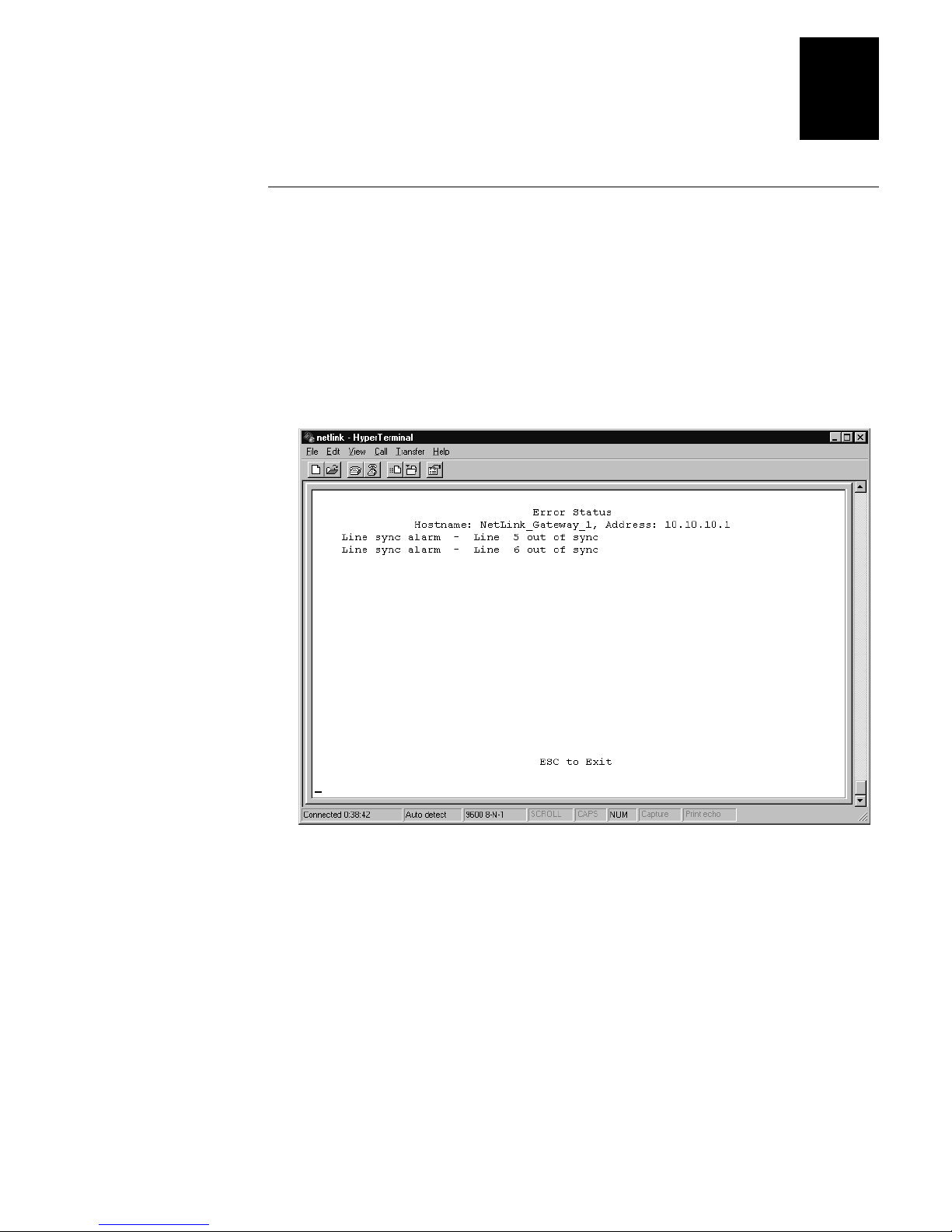

Understanding the Error Status Screen 4-13

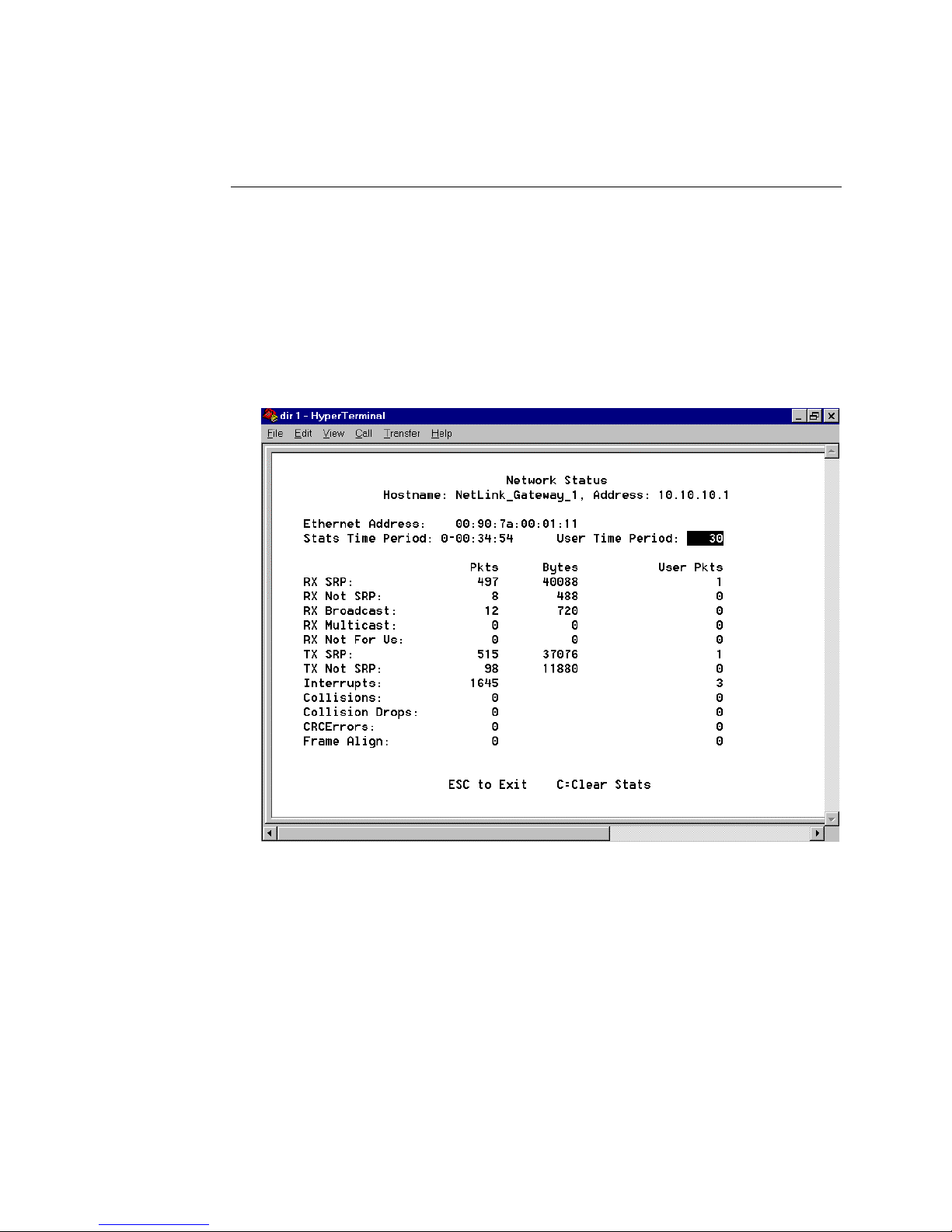

Understanding the Network Status Screen 4-18

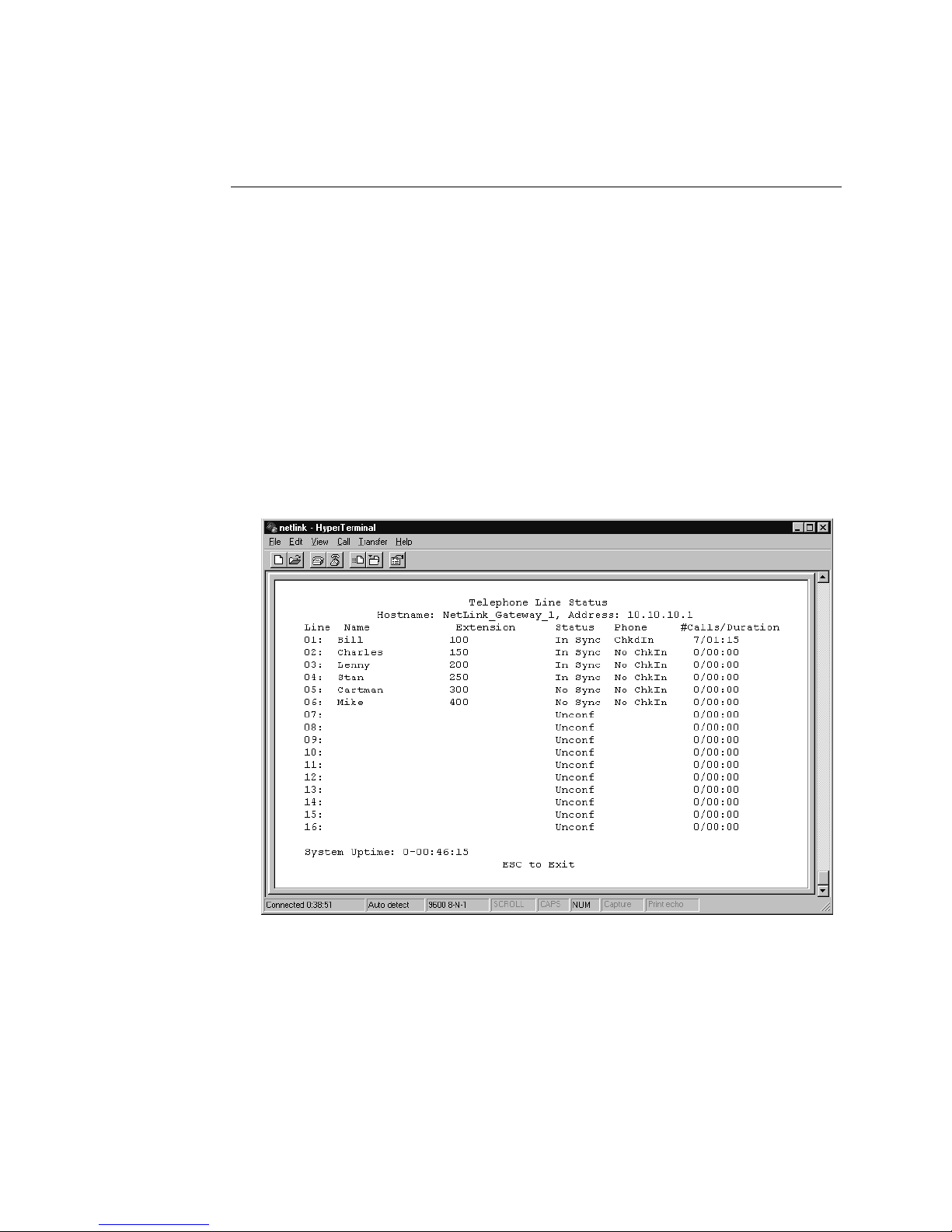

Understanding the Telephone Line Status Screen 4-20

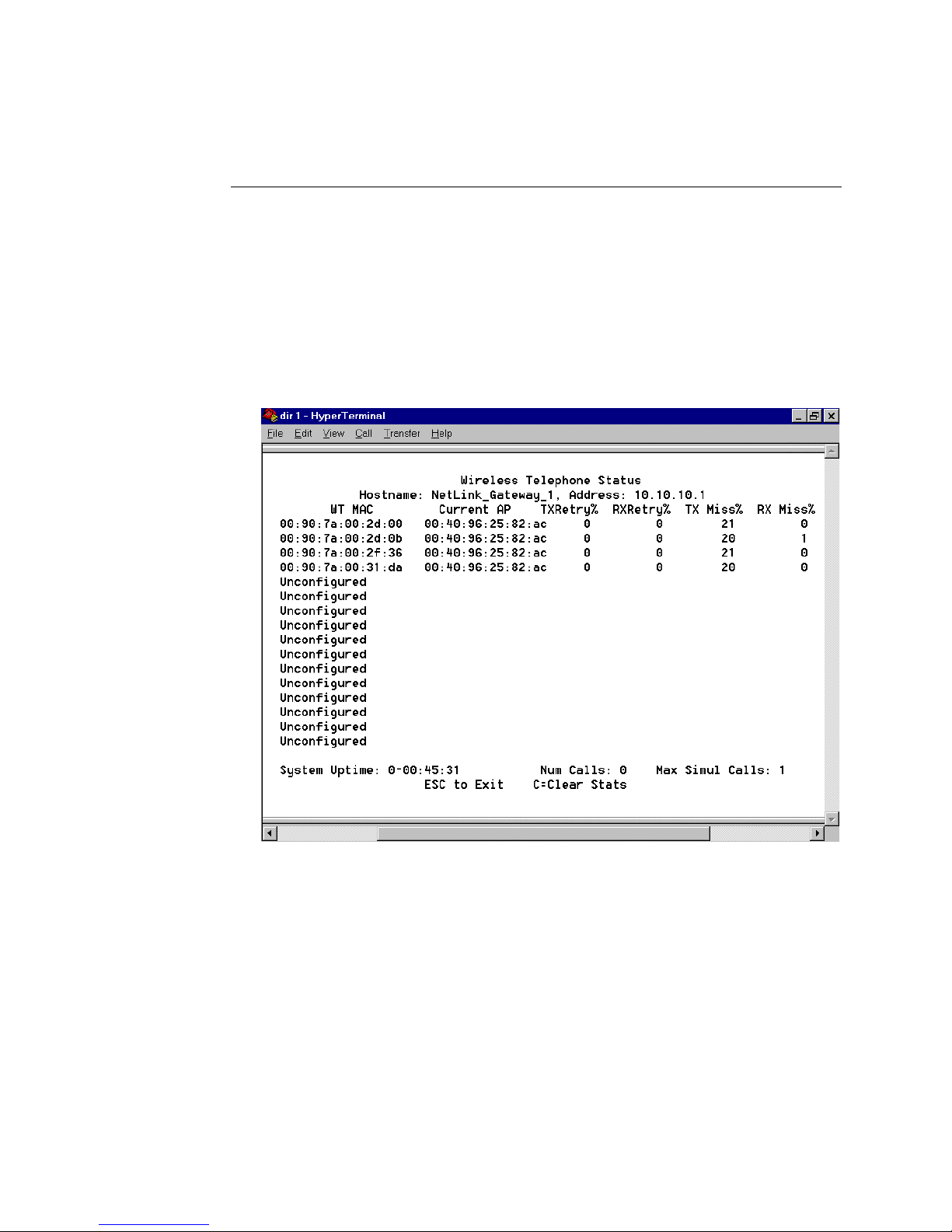

Understanding the Wireless Telephone Status Screen 4-22

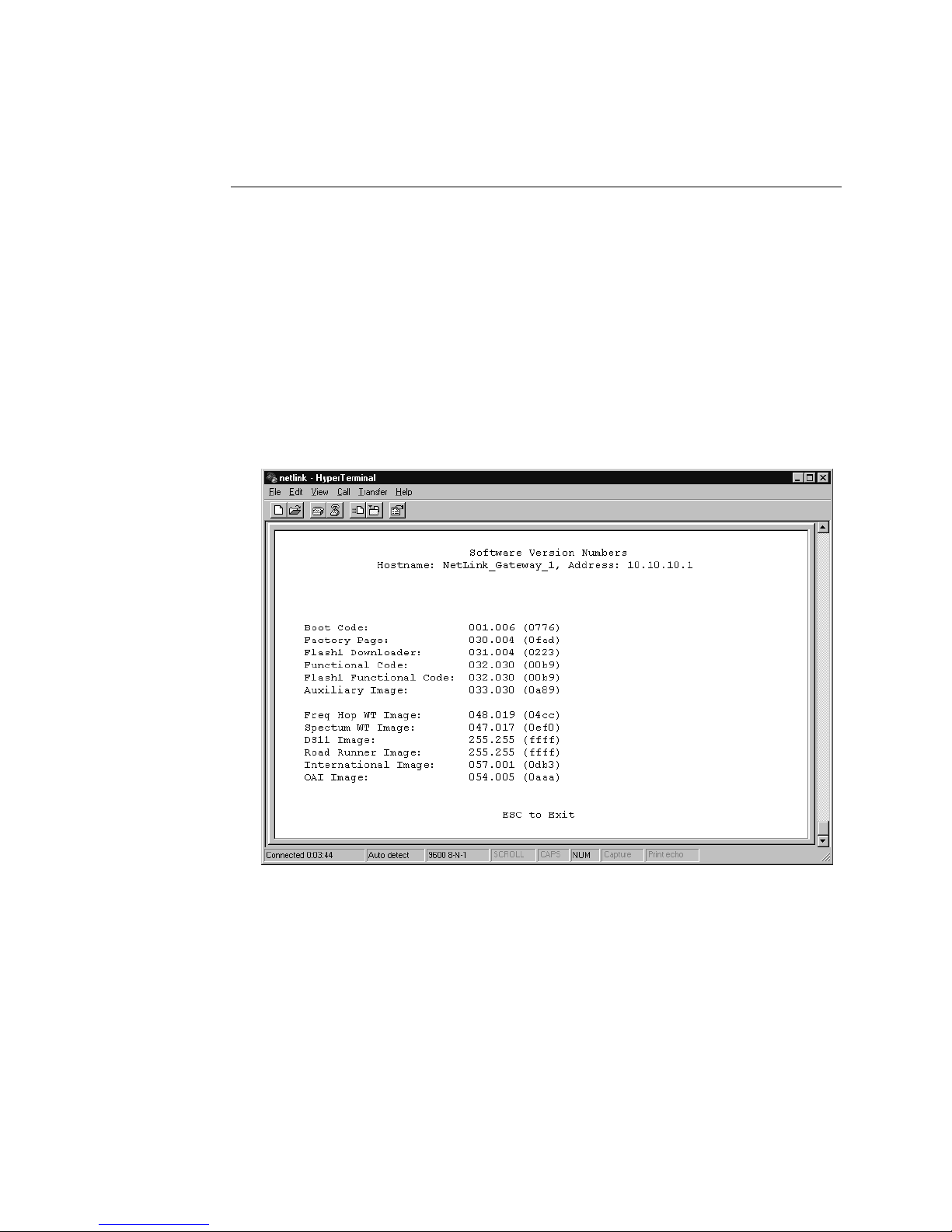

Understanding the Software Version Numbers Screen 4-24

Wireless Telephone Problems 4-25

Access Point Problems 4-25

In Range/Out of Range 4-25

Capacity 4-25

Transmission Obstructions 4-25
Configuration Problems 4-26
Infrastructure Problems 4-26
Dial Tone Problems 4-26
Wireless Telephone Status Messages 4-27

v

MobileLAN voice System User’s Guide

Specifications and Worksheets

A

Specifications A-3

Wireless Device Planning Worksheet A-5

Wireless Device Planning Worksheet A-7

vi

Before You Begin

This section introduces you to standard warranty provisions, safety precautions,
warnings and cautions, document formatting conventions, and sources of additional
product information. A documentation roadmap is also provided to guide you in finding
the appropriate information.

Warranty Information

To receive a copy of the standard warranty provision for this product, contact your local
Intermec support services organization. In the U.S.A. call 1-800-755-5505, and in
Canada call 1-800-668-7043. If you live outside the U.S.A or Canada, you can find your
local Intermec support services organization on the Intermec Web site at
www.intermec.com.

Safety Summary

Your safety is extremely important. Read and follow all warnings and cautions in this
book before handling and operating Intermec equipment. You can be seriously injured,
and equipment and data can be damaged if you do not follow the safety warnings and
cautions.

Before You Begin

Do not repair or adjust alone Do not repair or adjust energized equipment alone
under any circumstances. Someone capable of providing first aid must always be
present for your safety.

First aid Always obtain first aid or medical attention immediately after an injury.
Never neglect an injury, no matter how slight it seems.

Resuscitation Begin resuscitation immediately if someone is injured and stops
breathing. Any delay could result in death. To work on or near high voltage, you should
be familiar with approved industrial first aid methods.

Energized equipment Never work on energized equipment unless authorized by a
responsible authority. Energized electrical equipment is dangerous. Electrical shock
from energized equipment can cause death. If you must perform authorized emergency
work on energized equipment, be sure that you comply strictly with approved safety
regulations.

vii

MobileLAN voice System User’s Guide

Cautions and Notes

The cautions, and notes in this manual use the following format.

Caution

A caution alerts you to an operating procedure, practice, condition, or statement that
must be strictly observed to prevent equipment damage or destruction, or corruption
or loss of data.

Conseil

Une précaution vous avertit d’une procédure de fonctionnement, d’une méthode,
d’un état ou d’un rapport qui doit être strictement respecté pour empêcher
l’endommagement ou la destruction de l’équipement, ou l’altération ou la perte de
données.

Notes are statements that either provide extra information about a topic or

Note:

contain special instructions for handling a particular condition or set of circumstances.

About This Manual

This manual contains all of the information necessary to install, configure, and
troubleshoot the MobileLANvoice system.

This manual was written for installers and users who operate, program, and connect the
MobileLAN voice system to a network or system. A basic understanding of standard
Windows operations and data communications is necessary.

Terms

You should be aware of how these terms are being used in this manual:

Term Description

telephony gateway Any MobileLAN voice telephony gateway.

wireless telephone Any MobileLAN voice wireless telephone.

viii

Before You Begin

Format Conventions for Input From a Keyboard

This table describes the formatting conventions for input from PC or host computer
keyboards and reader keypads:

Convention Description

Special

Italic

Bold

text Shows the command as you should enter it into the device.

text Indicates that you must replace the parameter with a value.

text

Indicates the keys you must press on a PC or host computer
keyboard. For example, “press
labeled “Enter” on the PC or host computer keyboard.

” means you press the key

Enter

Other Intermec Manuals

You may need additional information when working with the MobileLANvoice system
in a data collection system. Please visit our Web site at www.intermec.com to
download many of our current manuals in PDF format. To order printed versions of the
Intermec manuals, contact your local Intermec representative or distributor.

ix

Model 70 Pocket PC User’s Guide

x

1

Learning About the MobileLAN voice System

MobileLANvoice WTS User’s Manual

Learning About the MobileLAN voice System

This chapter explains the MobileLANvoice system, its components, and the
telephony gateways.

About the MobileLAN voice System

The MobileLAN voice system is the industry’s most advanced Voice-Over-IP wireless
LAN product. By integrating your network with a new or existing wireless LAN, your
on-site mobile users are provided with high-quality mobile voice communications
throughout the workplace.

Read this chapter to learn about the features and operation of the MobileLAN voice
wireless telephone system.

System Architecture

The MobileLAN voice system is Intermec’s wireless LAN-based telephony product.
This system operates in the 2.400-2.483 GHz unlicensed band using direct sequence
(DS) spread spectrum technology, which is compatible with the IEEE 802.11b standard.

The MobileLAN voice system includes MobileLAN voice 2 wireless telephones and
MobileLAN voice telephony gateways. The wireless telephones operate as clients on
the wireless LAN (WLAN) alongside other mobile 802.11b devices. WLAN fixed
radios, called access points, receive IP voice packets from wireless telephones and
forward them to the telephony gateways over the Ethernet LAN. The telephony gateway
connects to the host telephone switch using digital or analog line interfaces.

1

Wireless telephones are able to emulate proprietary digital telephone sets, making
advanced switch features such as multiple line appearances and display features
available to mobile users.

1-3

MobileLAN voice System User’s Guide

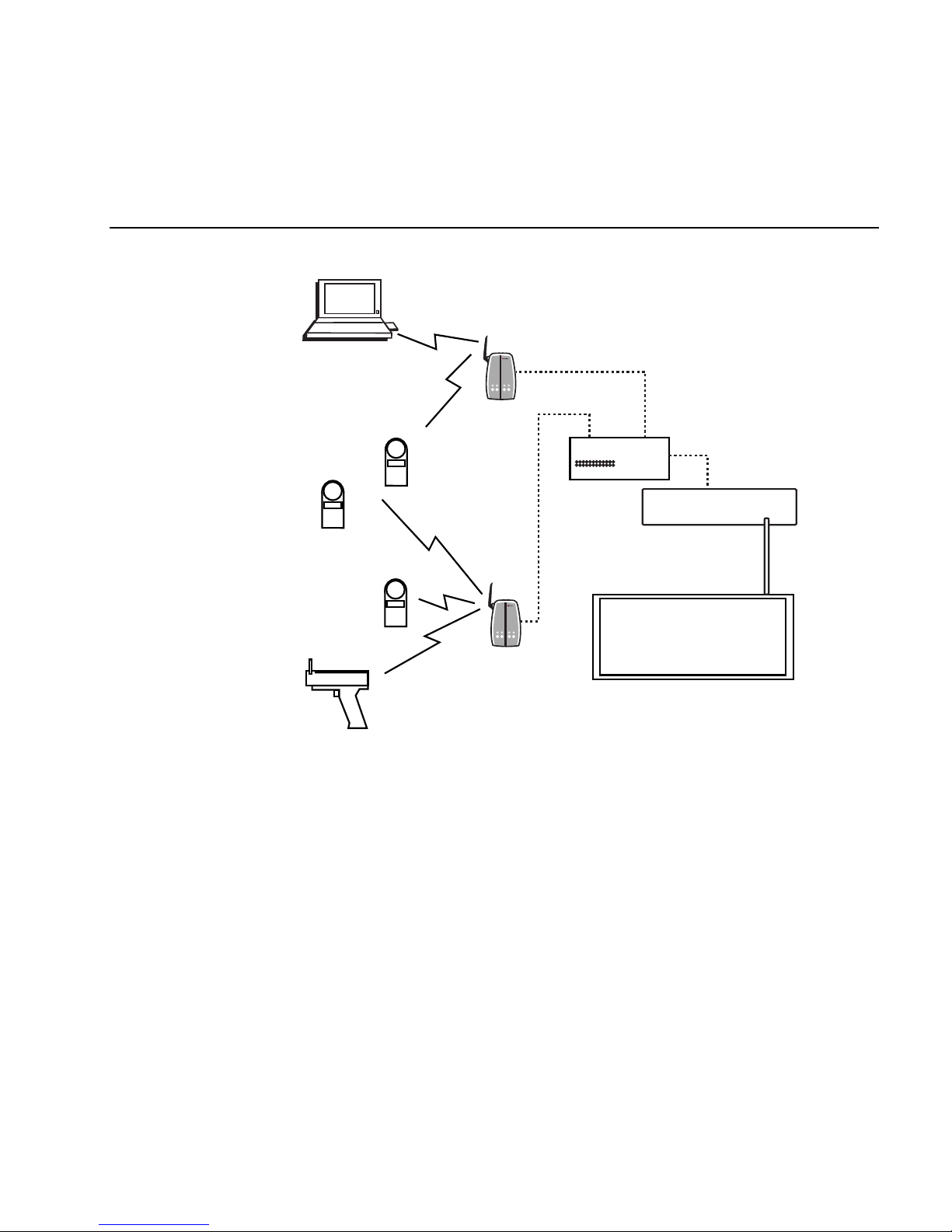

The following system diagram shows the MobileLAN voice system and its position in a
typical voice/data network.

MobileLAN voice System

Notebook with
MobileLAN card 11

2102

Switching

Hub

MobileLAN voice 2

Wireless Telephones

Wireless Device

2102

802.3 Ethernet

MobileLAN voice

Telephony Gateway

Digital
Lines

PBX or Key System

MLGTQ001.eps

1-4

Learning About the MobileLAN voice System

1

System Components

Your complete system network has several components: telephony gateways, wireless
telephones, access points, switching hubs, and routers.

MobileLAN voice Telephony Gateways

This telephony gateway serves as the connecting point, or gateway, between the LAN
and the existing telephone system. One or more telephony gateways are typically
installed in the telephone equipment room.

Each MobileLAN voice telephony gateway (4-port) supports up to four wireless
telephones. Up to four of these telephony gateways can be connected together to support
a maximum of 16 wireless telephones.

Each MobileLAN voice telephony gateway (16-port) supports up to 16 wireless
telephones. Up to four of these telephony gateways can be connected together to support
a maximum of 64 wireless telephones.

Intermec offers digital telephony gateways that work with the digital ports on most
common brands of telephone systems (PBX or key systems). Intermec also offers
analog telephony gateways that work with analog (loop start) ports on telephone
systems (CO, PBX or key systems).

MobileLAN voice 2 Wireless Telephones

Employees can carry wireless telephones to make and receive calls as they move
throughout the site. The wireless telephones are to be used on the premises; they are not
cellular or satellite phones. They are connected to the facility’s existing telephone
system and to the telephony gateway, and, just like wired telephones, they can receive
calls directly, receive transferred calls, transfer calls to other extensions, and make
outside and long distance calls (subject to the restrictions applied in your facility).

Access Points

Access points provide the connection between the wired Ethernet LAN and the IEEE

802.11b HR LAN. They must be positioned in all areas where wireless telephones will
be used. The number and placement of access points will affect the coverage area and
capacity of the wireless system. Typically, the requirements for use of MobileLAN
voice 2 wireless telephones are similar to those of wireless data devices. You can have
up to seven Intermec 21XX universal access points communicating with each telephony
gateway. Each access point can handle up to seven phone calls.

For specific information about your facility’s needs, contact your local Intermec
representative.

1-5

MobileLAN voice System User’s Guide

Switching Hub

A switching hub is a component in the wired Ethernet LAN infrastructure. Hubs
connect multiple network devices including MobileLAN voice telephony gateways and
access points. Switching hubs are required to provide the higher performance network
connections needed to handle combined voice and data traffic. All telephony gateways
in a single MobileLAN voice system must be connected to the same switching hub.

Router

A router is an optional component in the wired Ethernet LAN infrastructure that
separates a wired LAN into segments so that network traffic is restricted to those
segments that are directly involved in the communication. Installation of a network
router is recommended in larger networks where there may be significant network
traffic not related to the wireless LAN. A router will isolate the wireless LAN from the
associated wired LAN so that they are not impacted by each other’s traffic. The
telephony gateways, the access points, and their associated switching hub must all be on
the same “side” of the router.

1-6

Learning About the MobileLAN voice System

RS-232

IN

OUT

E 1 2 3 4 5L A C

NET

IPC

2

3

1

5

4

6

MLGTQ003.eps

About the MobileLAN voice Telephony Gateway (4-Port)

This section describes the MobileLAN voice telephony gateway’s (4-port) front panel
and back panel.

Front Panel

1

Number Description Explanation

1Network Link LEDs

2 Error LED This LED is lit when the system detects an error.

3 Status LEDs

4 IPC IN Connects one telephony gateway to another. One IPC

5 IPC OUT Connects one telephony gateway to another. One IPC

6 RS-232 Port This male DB-9 connector (DTE) is used for RS-232

L

This LED is lit when there is a network connection,

i.e., LINK OK.

A

This LED is lit if there is system activity.

C

This LED is lit if there are network collisions.

1

This LED is the heartbeat and indicates that the

telephony gateway is running.

2

This LED is lit if line(s) is in use.

3, 4

Currently unused.

5

This LED is lit if this telephony gateway is the master

gateway.

cable ships with each gateway.

cable ships with each gateway.

connection to a terminal, terminal emulator, or modem for
system administration.

1-7

MobileLAN voice System User’s Guide

NETWORK

LINES

1 2 3 4

PWR

!!

!

1

2

3

MLGTQ002.eps

Back Panel

Caution

Make sure you use the appropriate Intermec power supply for your country. If you
need to order an Intermec power supply, contact your local Intermec representative.

Conseil

Assurez-vous d’utiliser la source d’alimentation Intermec adéquate pour votre pays.
Si vous devez commander une source d’alimentation Intermec, veuillez contacter
votre représentant local Intermec.

Number Description Explanation

1 Power Jack Connects the telephony gateway to the AC adapter that is

supplying power to the system.

2 Network Connects the telephony gateway to the wired (Ethernet)

LAN using a 10BaseT cable with an RJ-45 connector.

3 Lines 1-4 Connect the telephony gateway to the telephone

demarcation block using RJ-11 connectors.

1-8

Learning About the MobileLAN voice System

PWR

CONN B

CONN A

E
R
R
O
R

1

2345

STATUS

!

RS-232

L
N
K
O
K

A
C
T

C
O

L

IPC

NETWORK

OUT

IN

9

10

8

7

6

5

4

3

2

1

MLGTQ004.eps

About the MobileLAN voice Telephony Gateway (16-Port)

This section describes the MobileLAN voice telephony gateway’s (16-port) front panel.

1

Caution

Make sure you use the appropriate Intermec power supply for your country. If you
need to order an Intermec power supply, contact your local Intermec representative.

Conseil

Assurez-vous d’utiliser la source d’alimentation Intermec adéquate pour votre pays.
Si vous devez commander une source d’alimentation Intermec, veuillez contacter
votre représentant local Intermec.

Number Description Explanation

1 RS-232 Port This male DB-9 connector (DTE) is used for RS-232

connection to a terminal, terminal emulator, or modem for
system administration.

2 IPC OUT Connects one telephony gateway to another. One IPC

cable ships with each gateway.

3 IPC IN Connects one telephony gateway to another. One IPC

4 Link LEDs

cable ships with each gateway.

LNKOK

This LED is lit when there is a network

connection.

ACT

This LED is lit if there is system activity.

COL

This LED is lit if there are network collisions.

1-9

MobileLAN voice System User’s Guide

MobileLAN voice Telephony Gateway (16-port) Front Panel Description (continued)

Number Description Explanation

5 Network This port uses a 10BaseT cable with an RJ-45 connector

and connects the telephony gateway to the wired
(Ethernet) LAN.

6 Error LED This LED is lit when the system detects an error.

7 Status LEDs

8 Connector A or

Connector B

9 Power Jack This jack connects the telephony gateway to the AC

10 Grounding Terminal

(on back panel)

1

This LED is the heartbeat and indicates that the

telephony gateway is running.

2

This LED is lit if line(s) is in use.

3, 4

Currently unused.

5

This LED is lit if this telephony gateway is the master

gateway.

These connectors use an RJ-21 connector and connect the
telephony gateway to the telephone cross-connect
demarcation block. Use Connector A only.

adapter that is supplying power to the system.

This terminal is used for grounding when installing the
telephony gateway.

1-10

2

Installing the MobileLAN voice System

MobileLANvoice WTS User’s Manual

This chapter explains how to prepare your site and install the MobileLANvoice
system, including the MobileLAN voice telephony gateways.

Installation Overview

Installation has two phases. In some cases, a separate person is responsible for each
phase. It is important that you coordinate the activities among the persons involved.

1. Site Preparation

2. System Installation

This table lists the installation tasks that this chapter describes.

Installing the MobileLAN voice System

2

9

9

Site Preparation

System Installation

Task Description

Perform a site survey to ensure access point coverage.

Determine connection of the MobileLAN voice telephony gateway to the
LAN and telephone switch.

Prepare and install LAN access.

Procure required materials. For help, see “Equipment Requirements” later
in this chapter.

Determine physical location of MobileLAN voice telephony gateway. For
help, see “Telephony Gateway Location Requirements” later in this
chapter.

Prepare and install telephone demarc blocks or connections.

Assign and program telephone switch ports.

Connect cables to telephone demarc blocks.

Install and connect MobileLAN voice telephony gateway(s) to telephone
demarcation blocks and LAN access device.

For help with the system installation, see “System Installation” later in this chapter.

2-3

MobileLAN voice System User’s Guide

Site Preparation

As shown in the MobileLAN voice system diagram on page 1-4, the MobileLAN voice
telephony gateway is connected to both the switching hub and the wired telephone
system. The specifications covered here allow for great flexibility in physical placement
of the components within stated guidelines.

Equipment Requirements

You need to provide this equipment that is required to install all telephony gateways:

Power outlet–must accept Intermec AC adapter.

•

10BaseT cables–connect the telephony gateway to the switching Ethernet hub.

•

You need to provide this equipment that is required to install specific telephony
gateways:

4-Port (Analog and Digital) 16-Port (Analog and Digital)

Power supply

appropriate power supply for your country.

North America QPS100A
Continental Europe QPS100B
U.K. QPS100C
Switzerland QPS100D

Demarcation block or modular
connectors

telephony gateway.

RJ-11 phone line cord

telephone lines to each telephony gateway.
Up to four cords may be needed.

–Make sure you use the

–Connects the PBX ports to the

–Connects the

Power supply

appropriate power supply for your country.

North America TPS100A
Continental Europe TPS100B
U.K. TPS100C
Switzerland TPS100D

Cross-connect block

ports to the telephony gateway.

25-pair cables

gateway to the cross-connect block. Must
have an RJ-21 male connector at one end.

Backboard space

wall-mounted (vertically or horizontally) to
3/4" plywood that is screwed to a wall.

Screws

screws (or equivalent) to attach the telephony
gateway to the plywood.

–Make sure you use the

–Connects the PBX

–Connect the telephony

–This telephony gateway is

–Use four #8x3/4" panhead wood

2-4

Installing the MobileLAN voice System

2

Telephony Gateway Location Requirements

Locate the telephony gateway (4-port) on a shelf or table, away from external heat
sources. Locate the other telephony gateway (16-port) on a wall with sufficient
backboard mounting space.

Both telephony gateways must be located in a space with

proximity to the LAN access device (switching Ethernet hub), telephone switch, and

•

power source.

easy access to the front and back panels that are used for cabling.

•

a maximum distance of 76.2 m (250 ft) from the host telephone switch for a digital

•

interface and 106.4 m (349 ft) from the switching Ethernet hub.

LAN Requirements

Make sure that you have the necessary network infrastructure and that the system
administrator has provided you with the necessary TCP/IP information.

Network Infrastructure

The telephony gateway connects to your local area network (LAN). To provide
adequate bandwidth and limit collisions, a switching Ethernet hub is required. The
traffic between the telephony gateway and access points should be isolated as much as
possible to avoid additional latency. The telephony gateway and access points must be
on the same logic IP subnet. Intersubnet roaming is not permitted for wireless devices.

Each telephony gateway to be installed requires a 10 Mbps switching Ethernet
connection.

The MobileLAN voice system relies on access points to transmit and receive packets
from wireless telephones. To configure an access point to support MobileLAN voice
system, see the your access point documentation.

IP Addressing

The telephony gateway, along with each of the wireless devices associated with it,
requires an IP address. The system administrator must determine what IP addresses are
to be used by the telephony gateway. Wireless telephones can be set for DHCP or Static
IP addressing. Record IP address assignments on the Wireless Device Planning
Worksheets—one for each telephony gateway. The worksheets are started when the
system is installed and the information recorded on them is used in the setup and
maintenance of the system.

For more information on how to assign IP addresses to the telephony gateways and
wireless telephones, see Chapter 3, “Configuring the MobileLAN voice System.”

2-5

MobileLAN voice System User’s Guide

System Installation

You or your wire contractor is responsible for adhering to all local codes for

Note:

wiring.

This section explains how to prepare your telephone system by performing these steps:

1. Prepare and install demarcation blocks.

2. Assign and program telephone ports.

3. Connect telephone lines to demarcation blocks.

Preparing Demarcation Blocks

Caution

If the wiring between the MobileLAN voice system and the telephone system leaves
the building, consult your telephone system manual for instructions on providing
adequate lightning and other overcurrent protection.

All telephony gateways, except the 16-port analog gateway, are intended only for
connection to the isolated side of an on-premise PBX or key system.

The interfaces are intended to connect to digital PBX ports that provide signals of
5Vp-p (max) AC components. Some PBXs provide a 48 VDC offset.

Conseil

Si le câblage qui relie le système vocal MobileLAN au système téléphonique doit aller
à l'extérieur du bâtiment, consultez le manuel fourni avec le système téléphonique
pour obtenir des instructions sur la façon d’assurer une protection adéquate contre la
foudre et les surintensités.

Toutes les passerelles de téléphonie, à l’exception de la passerelle analogique de 16
ports, sont destinées à être connectées seulement à la paroi isolée d’un
autocommutateur privé (PBX) en place sur les lieux ou à un système d’appareils à
clés.

Les interfaces sont destinées à connecter les ports d’autocommutateurs privés (PBX)
numériques qui fournissent les signaux pour les composants C.A. 5V crête à crête
(max.). Certains ports PBX entraînent un décalage de 48 Vcc.

2-6

Installing the MobileLAN voice System

4-port The telephony gateway is connected to the existing telephone system using

standard RJ-11, 2- or 4-conductor phone line cord. Up to four cords (one for each
wireless telephone) will be needed to connect telephone lines to each telephony
gateway.

16-port The telephony gateway is connected to the existing telephone system using
RJ-21 connections. A telephony gateway is designed to operate with a specific interface
to the telephone system: 2-wire analog or 2-wire digital. The number of demarcation
blocks required for the system depends on the type of telephony gateway to be installed.

Interface Type Intermec Part No. Wire Pairs Number of Blocks

16-port analog 071504 1 1

16-port digital (2-wire) 071505 1 1

Based on the number and type of interfaces in the system, determine the number of
25-pair cables required to connect telephone line ports to the demarcation blocks.

2

External Modem

The MobileLAN voice system can also be accessed remotely using an external modem
connected to the RS-232 administration port. The telephone connection to such a
modem is independent of the MobileLAN voice system, but if your site will use an
external modem, this connection should be accounted for while installing the related
wiring.

For more information on modem settings, see Chapter 3, “Configuring the MobileLAN
voice System.”

Installing Telephone Demarcation Blocks or Connections

4-port Install the demarcation blocks or modular connectors used to connect the
telephone system to the telephony gateway.

16-port Install the demarcation blocks used to connect the telephone system to the
telephony gateway 3/4" telephone facility backboard. Although this manual uses 66­blocks as examples, any standard cross-connect blocks are acceptable.

2-7

MobileLAN voice System User’s Guide

Assigning and Programming Telephone Ports

Copy the Wireless Device Planning Worksheets that are in Appendix A—one for each
telephony gateway being installed. The wire contractor or installer should inform the
system administrator which telephone port numbers have been designated for the
wireless devices and the remote diagnostics modem line. As the wire contractor or
installer punches down each telephone connection, record the information on the
worksheet to identify the user and extension assigned. Use the worksheets to track
which switch port ID is assigned to which port on the telephony gateway. Post these
worksheets near the demarcation block.

The system administrator must assign extension numbers associated with the wireless
devices and plan the functions (trunk access, toll restrictions, system features, ringing
options, etc.) to be programmed. This programming will be done after the wireless
devices are assigned to the telephony gateway, but will be faster if planned in advance
by verifying the parameters and features on the current telephone system and wired
phones.

Connecting Telephone Lines to Demarc Blocks

Copy the Wireless Device Planning Worksheets that are in Appendix A—one for each
telephony gateway being installed. Use the worksheets to track the telephone port
assignments connected to each telephony gateway. As the wire contractor or installer
punches down each telephone connection, record the information on the worksheet to
identify the user and extension assigned. Post these worksheets near the demarcation
block.

2-8

Installing the MobileLAN voice System

2

Telephone cables are punched down onto the cross-connect blocks as shown in the
following demarc block diagrams.

2-Wire Analog or Digital Demarc Block

Telephone
Ports

LINE1

LINE 2

LINE 3

LINE 4

LINE 5

LINE 6

LINE 7

LINE 8

LINE 9

LINE 10

LINE 11

LINE 12

LINE 13

LINE 14

LINE 15

LINE 16

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

tip

ring

25 PAIR MALE
CONNECTOR
CABLE TO
GATEWAY
CONNECTOR A

UNUSED

PAIRS

DO NOT

USE

2-9

MobileLAN voice System User’s Guide

Telephony Gateway Installation

Before you install the MobileLAN voice telephony gateways, verify the pre-installation
requirements and check the equipment at the installation site.

Verify Pre-Installation Requirements

Check the site to be sure pre-installation work has been completed correctly. This work
includes:

Location chosen for the telephony gateway is adequate and power is available.

•

Site survey completed to ensure that access point coverage is adequate.

•

Telephone lines for the wireless devices are installed and properly terminated.

•

Dedicated line is available for remote access to diagnostic modem.

•

Telephone system administrator is on-site to program the existing telephone system.

•

(16-port analog only) For each telephony gateway, grounding terminal in the back

•

panel has been electrically connected to earth ground. Consult the NEC and local
codes for instructions on making the connection to the ground.

Check Equipment

These items must be at the installation site:

MobileLAN voice telephony gateways

•

AC adapters–one for each telephony gateway

•

Power outlet–accepts the AC adapters

•

IPC cables–one for each telephony gateway (shipped with the gateway)

•

10BaseT cables

•

MobileLAN

•

System User’s Guide

For the telephony gateway (4-port), these items must also be at the installation site:

Demarcation block or modular connectors

•

RJ-11 phone cord

•

voice Telephony Gateway Quick Start Guide and MobileLANvoice



2-10

Installing the MobileLAN voice System

For the telephony gateway (16-port), these items must also be at the installation site:

Cross-connect block

•

Screws

•

Star washers–two per telephony gateway for static protection

•

ESD bonding straps–one per telephony gateway for static protection

•

25-pair cables

•

2

Mounting the Telephony Gateway (16-Port)

The telephony gateway can be mounted either horizontally or vertically.

To Mount the
Gateway… Connector A is…

Horizontally To the right side of

the telephony
gateway, with
labels in correct
position.

Vertically At the top of the

telephony gateway.

To mount the telephony gateway

1. Using a 1/8-inch drill bit, drill four pilot holes, on 1.84 x12.1 inch centers
(approximately equivalent to 1-13/16 inch x 12-1/8 inch).

Mount the
Gateways…. Clearance Between Gateways

On top of one
another

Side by side Adjacent telephony gateways

Leave a little more than 0.64 cm
(0.25 in) between adjacent
telephony gateways, allowing
easy removal of the gateways via
the keyhole openings on the back
panel.

Do not leave more than 1.28 cm
(0.5 in) spacing or the ESD
bonding strap will not fit
correctly.

To set the desired telephony
gateway spacing, leave (2.3 cm
(0.9 in) + desired gap) between
adjacent mounting holes.

should be physically touching.

2. If installing only one telephony gateway, insert the #8x3/4" screws in the pilot holes
and tighten, leaving a 0.33 to 0.64 cm (1/8 to 1/4 in) gap from the wall.

If installing more than one telephony gateway, install the ESD bonding strap(s)
between adjacent gateways:

a. Remove the screws from the bottom (vertical mount) or left (horizontal mount)

of adjacent telephony gateways.

2-11

MobileLAN voice System User’s Guide

b. Place the ESD strap over the pilot holes that span two telephony gateways and

hold it against the plywood backboard.

c. Place the star washer on top of the ESD strap.

d. Insert the #8x3/4" screw and tighten to leave 0.33 to 0.64 cm (1/8 to 1/4 in) gap

from the wall.

e. Repeat for all ESD straps.

3. Position the telephony gateway with Connector A to the right (horizontal) or bottom
(vertical). Slide the telephony gateway over the screws until the gateway drops into
place in the keyhole opening.

4. Tighten the screws.

5. (Analog only) For each telephony gateway, the grounding terminal in the back
panel must be electrically connected to earth ground. Consult the NEC and local
codes for instructions on making the connection to the ground.

Connecting the Telephony Gateway

This section explains how to connect the telephony gateway by performing these steps:

1. Connect the telephony gateway to demarcation blocks.

2. If necessary, connect multiple telephony gateways together.

3. Connect the telephony gateway to the LAN.

4. Connect the telephony gateway to power.

Connecting the Telephony Gateway to Demarcation Blocks

4-port Connect the RJ-11 connector from the demarcation block to the designated line
port (1-4) on each telephony gateway. The following table shows the pinout for the
modular RJ-11 connector.

Pin Function - 4-Wire Function - 2-Wire

1 Transmit to Switch Not Used

2 Receive from Switch Transmit/Receive

3 Receive from Switch Transmit/Receive

4 Transmit to Switch Not Used

16-port Connect the male RJ-21 connector from the appropriate demarcation block to
the designated RJ-21 connector (A or B) on each telephony gateway. Secure the cables
using the keeper.

2-12

Connecting Multiple Telephony Gateways

You can connect up to four telephony gateways together to increase system capacity. To
connect multiple telephony gateways, connect the IPC cable from the IPC OUT port of
the first unit to the IPC IN port of the adjacent unit. Repeat until all telephony gateways
are connected.

Connecting Telephony Gateways (4-Port)

Installing the MobileLAN voice System

Gateway # 2

2

IN

IN

IPC

OUT

Gateway #1

IPC

OUT

NET

E 1 2 3 4 5L A C

NET

E 1 2 3 4 5L A C

No IPC cable is connected to the IN port of the first unit or to the OUT port of the

Note:

last unit. You must use the IPC cable that shipped with your telephony gateway.

RS-232

RS-232

2-13

MobileLAN voice System User’s Guide

Connecting Telephony Gateways (16-Port)

L

A

C

N

C

OUT

IN

IPC

O

K

T

L

O

NETWORK

K

E
R
R
O
R

1

2345

STATUS

CONN

PWR

CONN

!

A

B

RS-232

RS-232

RS-232

RS-232

OUT

OUT

OUT

Maximum 
spacing
between units

1

2345

L

A

C

N

C

IN

IPC

IN

IPC

IN

IPC

O

K

T

L

NETWORK

O

K

L

A

C

N

C

O

K

T

L

O

NETWORK

K

L

A

C

N

C

O

K

T

L

O

NETWORK

K

E
R
R
O
R

E
R
R
O
R

E
R
R
O
R

STATUS

1

2345

STATUS

1

2345

STATUS

CONN

CONN

CONN

B

B

B

CONN

CONN

CONN

PWR

!

A

PWR

!

A

PWR

!

A

1/2 inch

No IPC cable is connected to the IN port of the first unit or to the OUT port of the

Note:

last unit. You must use the IPC cable that shipped with your telephony gateway.

2-14

Installing the MobileLAN voice System

2

Connecting the Telephony Gateway to the LAN

Using an RJ-45 cable, connect the NET (NETWORK) port on each telephony gateway
to the connecting port on the same switching Ethernet hub. Each telephony gateway
requires a separate Ethernet connection on the same switching hub.

Connecting Power

Caution

Make sure you use the appropriate Intermec power supply for your country. If you
need to order an Intermec power supply, contact your local Intermec representative.

Conseil

Assurez-vous d’utiliser la source d’alimentation Intermec adéquate pour votre pays.
Si vous devez commander une source d’alimentation Intermec, veuillez contacter
votre représentant local Intermec.

For proper operation, all telephony gateways must be turned on and off at the

Note:

same time. If your MobileLAN voice system contains more than one telephony
gateway, use an outlet strip with a built-in power switch.

To connect power

1. Connect the power plug from the AC adapter to the PWR jack on the back panel of
the telephony gateway.

2. Plug the AC adapter into a proper AC power source or into an outlet strip.

The telephony gateways will cycle through diagnostic testing and the LEDs will blink
for about one minute. When the system is ready for use:

The E LED should be off on each telephony gateway.

•

LED 1 (Status 1) should be blinking on each telephony gateway.

•

LED 5 (Status 5) should be lit on one and only one telephony gateway. If LED 5 is

•

lit on more than one telephony gateway, the gateways are not correctly connected to
one another. Check the IPC and network connections.

After the telephony gateways are installed, you must configure the gateway and wireless
telephones. For help, see Chapter 3, “Configuring the MobileLAN voice System.”

2-15

MobileLAN voice System User’s Guide

2-16

3

Configuring the MobileLAN voice System

MobileLANvoice WTS User’s Manual

Configuring the MobileLAN voice System

This chapter explains how to configure MobileLANvoice telephony gateways and the
MobileLAN voice 2 wireless telephones.

System Configuration Overview

This section covers the steps that must be taken to set up the MobileLAN voice system
for operation. The usual course of setup procedures will follow these general steps in
the following order:

1. Install and connect the telephony gateway(s). For help, see Chapter 2, “Installing
the MobileLAN voice System.”

2. Configure the telephony gateway. For help, see “Configuring the Telephony
Gateway (First Time).”

3. Assign wireless telephones to telephone lines. For help, see “Associating the
Wireless Telephone Lines.”

4. Configure Feature programming. For help, see “Programming Wireless Telephone
Features.”

5. Edit the wireless telephone menu. For help, see “Programming the Wireless
Telephone Menu.”

3

6. Configure, test, and set user preferences for each wireless telephone. For help, see
“Configuring the Wireless Telephone.”

7. Use the wireless telephones to perform access point coverage tests. For help, see
“Using Site Survey Mode.”

3-3

MobileLAN voice System User’s Guide

Using the Administration Console

The MobileLAN voice telephony gateways and MobileLAN voice 2 wireless telephones
are configured and maintained through the Administration Console. The Administration
Console is a series of screens that contain menus and options. You can view the
Administration Console on a terminal that is connected to a telephony gateway through
the serial port, through a Telnet session on the LAN, or through an external modem.

Using the Administration Console, you can:

Review system status to check usage and diagnose system problems.

•

Configure the telephony gateway’s network parameters and its interface to the host

•

telephone system.

Configure the telephony gateway’s wireless telephones, including adding and

•

deleting the wireless telephones.

Program the wireless telephone’s menu and features associated with the FCN key.

•

Update the system software.

•

Access points are not configured from the Administration Console. For help

Note:

configuring your access point, see your access point documentation.

Navigating Through the Screens

Use these keys to move around the Administration Console screens.

To Perform This Function Press

Select function from menu Arrow keys to highlight selection and then press Enter.

Display menu associated with
the highlighted field

Exit screen Esc. The Esc key will take you to the previous screen.

Move one line up

Move one line down

Move one field to the left

Move one field to the right

The top line of each administration screen displays the hostname and IP address of the
telephony gateway to which you are connected.

Enter. The Enter key will either display the options
associated with an item or let you type an entry into the field.

Corresponding arrow key.

3-4

Configuring the MobileLAN voice System

About the Main Menu

The main menu provides a list of options that help you configure and maintain the
telephony gateway and the wireless telephones it supports.

3

Menu Option Function

System Status Provides status of the telephony gateway and its communications

links. Use to view the system operation and troubleshoot problems.

Telephone Line
Configuration

Gateway
Configuration

Feature
Programming

Menu Programming Enables customization of the wireless telephone menus so that they

Change Password Use to change the administration password.

TFTP Code Update
(4-port only)

Use to add, delete, and maintain wireless telephones.

Use to enter and maintain configuration information for the
telephony gateway.

Associates telephone system features with the FCN keys on the
wireless telephone.

conform to the feature programming.

Use to update the telephony gateway with new software.

3-5

MobileLAN voice System User’s Guide

Configuring the Telephony Gateway (First Time)

For the initial configuration of each MobileLAN voice telephony gateway, you should
have the Wireless Device Planning Worksheet(s) that was filled out during installation.
There should be one worksheet for each telephony gateway. You need to know these
parameters before proceeding with the setup:

Hostname (usually the default name is replaced with a locally-designated identifier)

•

IP address (established by the system administrator)

•

PBX (Private Branch Exchange) type

•

Number of phones per access point

•

The initial setup of each telephony gateway requires establishing its IP address on the
LAN. You need to perform this task using a serial connection. Intermec recommends
that you also configure other basic setup parameters at this time. Perform these steps on
each telephony gateway.

1. Connect to the telephony gateway via the serial port.

2. Select the telephony gateway.

3. Configure the telephony gateway.

4. Reset the telephony gateway.

Connecting to the Telephony Gateway Via the Serial Port

1. Connect the telephony gateway to the serial port of a PC or terminal using a DB-9
female, null-modem cable (Part No. MCI100).

2. On your PC, run a terminal emulation program (such as HyperTerminal) or use a
VT100 terminal with this configuration:

Baud rate 9600

Data bits 8

Parity None

Stop bits 1

Flow control None

3. Press

4. Type the default login: admin and the default password: admin. These fields are
case sensitive.

to display the login screen.

Enter

The Gateway Connection Selection screen appears and lists the telephony gateway and
its factory default name.

3-6

Configuring the MobileLAN voice System

3

Selecting the Telephony Gateway

After the initial configuration, the Gateway Connection Selection screen will list all the
telephony gateways in your MobileLAN voice system. This time, however, it only lists
the telephony gateway that is connected via the serial cable.

To select the telephony gateway

Press

•

to select the highlighted telephony gateway. The main menu appears.

Enter

Configuring the Telephony Gateway

The basic setup recommended here is essential to the telephony gateway functioning.
After the MobileLAN voice system is running, you may want to configure additional
parameters to adjust the system for your usage situation. For help, see “Configuring the
Telephony Gateway” later in this chapter.

To configure the telephony gateway

1. From the main menu, select Gateway Configuration. The Gateway Configuration
screen appears.

2. Use the worksheet for the telephony gateway to enter these parameters:

Option Description

IP address Enter the IP address for the telephony gateway, including

numbers and periods. This address is assigned by your
system administrator.

Hostname (Optional) Enter the hostname for the telephony gateway, if

you want to change the default name. You cannot enter
spaces. This name is used for identification purposes only.

Subnet mask Enter the subnet mask for the telephony gateway, including

Telephone switch type Press

Phones per access point Enter the maximum number of active wireless telephones

numbers and periods. This subnet mask is assigned by your
system administrator. This field is null in the MobileLAN
voice system.

to change this field. From the submenu of PBX

Enter

types, select the telephone switch type you are using.

calls per access point. Intermec’s 21XX universal access
points can handle up to seven calls.

3-7

MobileLAN voice System User’s Guide

Configuring the Telephony Gateway (continued)

Option Description

Companding type Press Enter to change this field. From the submenu of signal

Resetting the Telephony Gateway

When you are done configuring the basic setup parameters for the telephony gateway,
you need to reset it.

compression type, select the companding type you are using.

Mu-law is the standard format in most host telephone
systems in North America.

A-law is typically used in Mexico and Europe.

Note: If the companding type of the telephony gateway does
not match that of the PBX, the wireless telephones will have
distorted dial tone and unintelligible voice quality.

To reset the telephony gateway

1. Press

Esc

to exit the Gateway Configuration screen. You are asked if you want to

reset the telephony gateway.

2. Press Y to reset the telephony gateway.

Resetting All Telephony Gateways

When you are done configuring all the telephony gateways, do not unplug the serial
cable. You now need to reset all the telephony gateways.

To reset all telephony gateways

1. Log in again and navigate to the Gateway Configuration screen.

2. Use the arrow keys to select Reset All Systems and press
you want to reset all the telephony gateways.

3. Press Y to reset all the telephony gateways.

The telephony gateways are now ready to operate. The next step is to configure the
Wireless Telephones. For help, see “Configuring the Wireless Telephone” later in this
chapter.

Enter

. You are asked if

3-8

Configuring the MobileLAN voice System

Configuring the Telephony Gateway

Each MobileLAN voice telephony gateway is administered separately. That is, you need
to enter configuration information separately for each telephony gateway.

Connecting to a Telephony Gateway

In addition to the serial connection described earlier in this chapter, you can connect to
the telephony gateway via a Telnet session on the LAN or via an external modem. Once
the IP addresses are configured, every telephony gateway is accessible through a
connection to any telephony gateway.

Connecting Via Telnet

You use the Telnet method of connection for routine maintenance of the MobileLAN
voice system for both local and remote administration, depending on your network.

You can only connect to a telephony gateway using Telnet after the telephony

Note:

gateway’s IP address is configured.

3

To connect via Telnet

1. Run a Telnet session to the IP address of any telephony gateway.

2. Log into the session. The Gateway Connection Selection screen appears.

3. Select the Telephony Gateway you wish to administer and press
menu appears.

Note that the top line of each screen displays the hostname and IP address of the
telephony gateway that you are currently maintaining.

Enter

. The main

Connecting Via External Modem

You use the external modem method of connection for routine maintenance of the
MobileLAN voice system when system administration is remotely done, and the
network itself is not remotely accessible.

Generally speaking, you should be able to use the modem’s default settings, except you
must disable Hardware Flow Control.

You need a standard analog phone line for the modem. (A digital line from a

Note:

digital PBX will not work.) Consult with your telephone system vendor or the telephone
company for more information about dialing into a modem.

3-9

MobileLAN voice System User’s Guide

These settings are for the US Robotics Sportster modem. Other modem models may be
used, but those models’ settings will need to be adapted to conform to those listed in
this table.

To configure and connect the modem

1. Connect the modem to a PC using a standard modem cable. Plug the 9-pin
connector into the RS-232 port on the PC, and plug the 25-pin connector into the
modem’s port.

2. Use a standard communications package such as ProComm Plus or HyperTerminal

bring up the modem and type these commands.

to

Press

after typing each command.

Enter

Command Description

AT&F1 Loads factory default settings

AT&H0 Sets Transmit Data Flow control to disabled

AT&R1 Sets modem to ignore Request to Send (RTS)

AT&W0 Saves the configuration

3. Turn off the modem and then turn it back on.

4. Type ATI4 and press

. The settings should match those shown in this screen,

Enter

which was taken from ProComm Plus.

,

5. Unplug the modem from the PC’s serial port and plug it into the telephony gateway.

3-10

Configuring the MobileLAN voice System

3

Gateway Connection Selection Screen

After logging into the telephony gateway, the first Administrative Console screen that
appears is the Gateway Connection Selection screen. This screen lets you select the
telephony gateway that you want to maintain.

To navigate in the Gateway Selection screen

Once you are logged into the system, the Gateway Connection Selection screen

1.

appears.

2. Use the arrow keys to select the telephony gateway that you want to configure and
press

Note that the top line of each administration screen displays the hostname and IP
address of the telephony gateway being administered.

For help understanding the main menu, see “About the Main Menu” earlier in this
chapter.

. The main menu appears.

Enter

3-11

MobileLAN voice System User’s Guide

Gateway Configuration Screen

The Gateway Configuration screen lets you configure and maintain the telephony
gateway. Do not change any settings until you understand the parameters and are
familiar with the consequences any changes will produce.

To go to the Gateway Configuration screen

From the main menu, select Gateway Configuration and press

•

Configuration screen appears.

. The Gateway

Enter

To exit the Gateway Configuration screen

Press

•

Note:

Resetting all the telephony gateways keeps them synchronized, which is important for
proper system functioning.

Esc

telephony gateway.

If you reset one telephony gateway, you should then choose Reset All Systems.

3-12

. If Maintenance Lock is set to Y, the system will prompt you to reset this

Gateway Configuration Screen

Option Description

Ethernet Address This address is the MAC address for the telephony gateway. It is set at

IP Address* Enter the IP address for the telephony gateway, including numbers and

Hostname* (Optional) Enter the hostname for the telephony gateway, if you want

Subnet Mask* Enter the subnet mask for the telephony gateway, including numbers

Configuring the MobileLAN voice System

the factory and is not user configurable.

periods. This address is assigned by your system administrator.

to change the default name. You cannot enter spaces. This name is used
for identification purposes only.

and periods. This subnet mask is assigned by your system
administrator. This field is null in the MobileLAN voice system.

3

Telephone Switch
Type*

Flash Delay Time (Analog only) Enter the length of time the system should wait after the

Flash Disconnect
Time

Phones Per Access
Point*

Companding Type* Press Enter to change this field. From the submenu of signal

Press Enter to change this field. From the submenu of PBX types,
select the telephone switch type you are using.

“on-hook” flash signal ends before allowing other keys to be
transmitted to the host telephone system. The range is from 0.01 to 2
seconds. This value depends on the requirements of the host telephone
system.

(Analog only) Enter the length of time the system should be “on-hook”
when the user presses Start during a call or uses a macro that includes
a Flash code. The range is from 0.01 to 2 seconds. This value depends
on the requirements of the host telephone system.

Enter the maximum number of active wireless telephone calls per
access point.

compression type, select the companding type you are using.

Mu-law

America.

A-law

Note: If the companding type of the telephony gateway does not match
that of the PBX, the wireless telephones will have distorted dial tone
and unintelligible voice quality.

The standard format in most host telephone systems in North

The format typically used in Mexico and Europe.

Allow Telnet
Connections

Allow FTP
Connections

Enter Y (yes) to allow connection to the telephony gateway via Telnet;
enter N (no) if you do not want to allow Telnet connections.

Enter Y (yes) to allow the telephony gateway to communicate via FTP;
enter N (no) if you do not want to allow the telephony gateway to
communicate via FTP. You use FTP for software updates as well as to
back up and restore software configuration.

3-13

MobileLAN voice System User’s Guide

Gateway Configuration Screen (continued)

Option Description

WT TFTP
Download Master

System Locked Use this option when you want to take the system down for

Maintenance Lock This option prevents any new calls from starting. You cannot change

This option indicates the source of software updates for the wireless
telephones that are associated with this telephony gateway. When you
receive a software update, you must place it in this location.

When the wireless telephone is turned on, it checks this source for
confirmation that it is running the correct software version. If there is
any discrepancy, the wireless telephone downloads the software that
resides in this source location.

255.255.255.255

indicates that the wireless telephones will get software from this
telephony gateway.

0.0.0.0

the ability for wireless telephones to download new software from this
telephony gateway.

IP Address

to transfer software updates to the wireless telephones.

maintenance. The default is N (no). Change this option to Y (yes) to
prevent any new calls from starting.

Return this option to N to restore normal operation.

this option. The telephony gateway automatically sets this option to Y
(yes) when certain maintenance activities require a reset. These
activities are indicated in this table with an asterisk (*). When you reset
the telephony gateway, the Maintenance Lock is cleared.

(Telephony Gateway (4-port) default) This address disables

(Telephony gateway (16-port) default) This address

The IP address of a network TFTP server that will be used

3-14

Reset System This option resets this telephony gateway.

Reset All Systems This option resets all telephony gateways.

*When these settings are changed, the telephony gateway automatically goes into Maintenance
Lock and prevents any new calls from starting. You will be prompted to reset the system upon
exit. Resetting terminates any active calls and clears the Maintenance Lock.

Note:

The Allow Telnet Connections and the Allow FTP Connections options are
security points. If you disable both of these options, the only way you can access the
telephony gateway is via serial connection.

Configuring the MobileLAN voice System

Associating the Wireless Telephone Lines

After the installation is complete and the MobileLAN voice telephony gateways are
configured, you need to associate each wireless telephone with a telephone port on the
telephony gateway.

After you complete these steps, you can configure each wireless telephone. For help, see
“Configuring the Wireless Telephone” later in this chapter.

To configure the wireless telephone lines, you should have the wireless telephones that
need to be configured and the Wireless Device Planning Worksheet(s). There should be
one worksheet per telephony gateway that lists the port assignment, extension, and user
name for each wireless telephone.

Adding or Changing a Wireless Telephone

1. From the Gateway Connection Selection screen, select the telephony gateway that
serves the ports that you want to configure. The main menu appears.

3

2. Select Telephone Line Configuration. A screen similar to the following screen
appears.

3-15

MobileLAN voice System User’s Guide

3. Use the arrow keys to select a line and press

. For each wireless telephone,

Enter

enter this information:

Option Description

MAC Address Enter the address including digits and colons. This 12-character

address is printed on the sticker underneath the battery on the
wireless telephone. It can also be displayed on the wireless
telephone by turning off the telephone and then pressing and
holding

Name Enter the user name assigned to the wireless telephone. This field

is for record keeping only. That is, the user name is not sent to the
PBX or to the wireless telephone.

Extension Enter the extension assigned to the wireless telephone. This field is

for record keeping only. That is, the extension is not sent to the
PBX or to the wireless telephone.

. The address appears on the first line of the display.

Pwr

4. Write the MAC address on the Wireless Planning Device Worksheet for this
telephony gateway.

5. Repeat Steps 3, 4, and 5 for each wireless telephone to be added or changed.

A wireless telephone may be associated with one and only one telephone line.

Note:

The same MAC address may not be assigned to two or more telephone lines.

Deleting a Wireless Telephone

1. From the Gateway Connection Selection screen, select the telephony gateway that
serves the port for the line being used by the wireless telephone. The main menu
appears.

2. Select Telephone Line Configuration.

3. Use the arrow keys to select the line that you want to delete.

4. Press D to delete the wireless telephone information.

5. Press Y to accept changes.

6. Update the Wireless Planning Device Worksheet for this telephony gateway to
remove the wireless telephone that you deleted.

3-16

Configuring the MobileLAN voice System

Programming Wireless Telephone Features

Two basic types of wired telephone systems exist—analog and digital. Both types offer
special features such as hold, transfer, conference, camp on, and speed dial. In both
types of systems, these features are activated in a telephone by pressing a series of keys
or a single programmed button on the wired telephone.

For both analog and digital systems, you must use the Feature Programming screen on
the MobileLAN voice telephony gateway to program mute to
OAI (Open Application Interface).

Analog You use the Feature Programming screen to program special features. You
access these special features by pressing the Fcn key on the wireless telephone followed
by another key. This shortcut is called a “function key macro.” You can define function
key macros for the digits 1 through 9, *, 0, and #.

Digital You do feature programming in the PBX. These features are also programmed
into the wireless telephones. You only use the Feature Programming screen to program
mute and OAI.

FCN 1

3

and the optional

You should use the same Feature Programming settings for every telephony gateway
sharing the same PBX so that all wireless telephones have access to the same special
features.

To go to the Feature Programming screen

1. From the Gateway Connection Selection screen, select the telephony gateway that
you want to configure. The main menu appears.

2. Select Feature Programming. A screen similar to the following screen appears.

3-17

MobileLAN voice System User’s Guide

Feature Programming Screen

The numbers and symbols on the left side of the screen indicate which key the user
presses after pressing the FCN key to activate the feature.

3. Use the arrow keys to select 1, press

, and type MUTE as shown in the

Enter

previous screen.

4. (OAI only) Use the arrow keys to navigate to the key to which you want the OAI
function assigned, press

, and type OAI as shown for 0 in the above screen.

Enter

3-18

Configuring the MobileLAN voice System

These steps apply to analog systems only

5. The table below displays the default menu options that are programmed into the
wireless telephones for an analog system. You may want to set these same functions
here or change them. If you change them, be sure to enter the corresponding
changes in the Menu Programming screen in the next section.

Function Key Feature Key Sequence

FCN+1 Mute MUTE

FCN+2 Xfer

FCN+3 Conn

FCN+4 Conf

FCN+5 Fwd

FCN+6 Redial

FCN+7 Pick

FCN+8 Camp

3

FCN+9 Exit Menus

FCN+0

FCN+*

FCN+#

Consult your wired telephone system documents for the key sequence that matches
the feature in the above table. Blank cells are provided for your data.

Note that the zero (0), star (*), and pound (#) keys are not assigned by default, but
may be programmed here and in the default menus on the wireless telephones.

6. Use the arrow keys to navigate to the function key, press
key sequence that corresponds to the feature you want to activate for that function.

Press

Press F to assign the FLASH function.

Example: If the Transfer feature key sequence is Flash Star 7 and you wish to keep
the default at FCN+2, navigate to key 2, press

7. Repeat Step 6 for each feature you wish to program to a function key macro.

Remember to note the features and macros so that they can be edited in the Wireless
Telephone menu, if necessary, and programmed into any other telephony gateways on
the same PBX.

after each entry.

Enter

(Leave Blank)

Enter

, and then type the

Enter

, type F*7, and press

Enter

.

When you have finished programming the macros, press
menu.

to return to the main

Esc

3-19

MobileLAN voice System User’s Guide

Programming the Wireless Telephone Menu

The MobileLAN voice 2 wireless telephone can display a menu of functions that are
activated when you press the Fcn key. The menu should match the feature programming
established in the Feature Programming screen for analog systems or in the PBX for
digital systems. For help, see “Programming Wireless Telephone Features” in the
previous section.

The wireless telephone displays four menus as you repeatedly press the FCN key. Each
menu has four programmable options that are programmed in the Menu Programming
screen, which displays all four menus at once. The default factory settings are for
features most commonly accessed by users of the type of PBX installed with the
wireless telephone system.

All the settings can be customized to conform to the feature programming established at
your site. You should program each telephony gateway with identical menus.

Analog The features defined for the custom menus should match the features
programmed in the Feature Programming screen. For example, if you have defined

FCN 2

Programming as Xfer.

on Feature Programming as Xfer, then you should also define

FCN 2

on Menu

Digital The features defined for the custom menus should match the programming
assigned through the PBX. For example, if you have assigned Xfer to the key that
corresponds to
telephone, then you should also define
some key assignments cannot be customized on certain types of telephone systems.

To go to the Menu Programming screen

1. From the Gateway Connection Selection screen, select the telephony gateway that
you want to configure. The main menu appears.

2. Select Menu Programming. The Menu programming screen displays the defaults for
your wireless telephone system. A screen similar to the following screen appears.

FCN 2

on the digital telephone that is being emulated by the wireless

FCN 2

on Menu Programming as Xfer. Note that

3-20

Menu Programming Screen

Configuring the MobileLAN voice System

3

Each of the four menus displays two lines. The numbers followed by the equal sign
indicate which key to press on the Wireless Telephone to activate the feature, such as
2=Xfer. These lines will display on the wireless telephone exactly as programmed here.
You should program all telephony gateways identically.

If any of the factory defaults have been changed by using the Feature Programming, you
should change the menu items here so that they correspond to what has been
programmed elsewhere.

The Delay function is used when the PBX uses softkeys. With the Delay function, when
the FCN key is pressed, the wireless telephone displays the features that are associated
with the softkeys so that one of these features can be selected first. If the Delay function
is programmed, pressing

twice will bring up the programmed menus immediately.

FCN

3-21

MobileLAN voice System User’s Guide

To change the menu settings

1. Use the arrow keys to navigate to the menu display screen number (1-4) that you
want to edit and press

2. Type the information that you want to display on each line of the menu.

Enter

.

3. Press

4. Repeat Steps 1, 2, and 3 for each menu as needed.

To restore factory defaults

Use the arrow keys to navigate to Restore Factory Defaults and press

•

to save the entries.

Enter

Configuring the Wireless Telephone

Before you can configure a MobileLAN voice 2 wireless telephone, you must associate
it with one and only one line on a telephony gateway. For help, see “Associating the
Wireless Telephone Lines” earlier in this chapter.

These instructions assume that the wireless telephone has been properly associated with
a line on a telephony gateway. While wireless telephones are being associated, the
wireless telephone system will continue normal operation.

Use the Wireless Device Planning Worksheets to make sure that you are correctly
assigning telephone parameters.

Configuring the Network Parameters

You need to use the Admin menu to assign the IP address and ESSID for the wireless
telephone so that it can communicate with the LAN and with the access points. You
may also need to set WEP encryption.

Enter

.

However, the Admin menu also lets you restore the factory defaults of the wireless
telephone and use the wireless telephone to check signal strength.

To configure the network parameters

1. With the wireless telephone turned off, press and hold the PWR key and then press
the END key.

2. Release the PWR key, then release the END key. The first option on the Admin
menu appears.

3-22

Configuring the MobileLAN voice System

3. Press the left or right arrow keys (# and *) on the wireless telephone to scroll
through the menu options.

Press 0 (zero) to change the selected option.

3

Press

Press

The Admin menu parameters are explained in the next sections. An asterisk (*) next to
an option indicates that it is selected.

to return to the previous menu level.

FCN

to exit the menus.

END

IP Address

Select the option that you want the wireless telephone to use to obtain its IP address
configuration:

Use DHCP (Default) The wireless telephone uses Dynamic Host Configuration
Protocol (DHCP) to assign an IP address each time it is turned on.

Static IP This option lets you manually set an IP address for the wireless telephone. If
you choose this option, you will be prompted to enter the IP address for this wireless
telephone. Enter the digits only, including leading zeroes. You do not need to enter
periods.

ESSID

Select the option that will enable the wireless telephone to communicate with access
points with the correct ESSID (Extended Service Set ID, aka SSID, aka Network Name)
each time it is turned on.

Learn Once This option lets the wireless telephone scan all ESSs for its telephony
gateway. Once it finds its telephony gateway, it retains the ESSID from whichever
access point it associates with at that point. When overlapping wireless systems exist,
the Learn Once feature lets the wireless telephone turn on in any ESSID area and use
only the ESSID established at first learn. This ESSID is retained by the wireless
telephone until the ESSID option is reselected.

Learn Always This option lets the wireless telephone automatically learn the ESSID
each time it is turned on. This option may be useful if the wireless telephone will be
used at more than one site.

Overlapping wireless systems can complicate the use of the Learn Once and

Note:

Learn Always options. A wireless telephone in an overlapping area could receive
conflicting signals. If this is the situation at your site, use Static Entry or Learn Once in
an area without overlapping ESSIDs.

You must enable broadcast ESSID in the access points for ESSID learning to function.

3-23

MobileLAN voice System User’s Guide

Static Entry If your access points do not broadcast the ESSID or if there are

overlapping wireless systems in use at the site, you may want to enter the correct ESSID
manually:

To enter the ESSID

1. On the keypad, enter the first character of the ESSID. To enter the character, you
may need to press the appropriate key repeatedly to scroll through the letters
associated with that key.

For example, if you press 2 repeatedly, you will see 2, A, B, and C, a, b, and c.

This table shows you how to enter non-numeric characters or other characters not
represented on the keypad.

To Enter Press

. - _ ! # $ % & ‘ ( ) , : ; / \ = @ ~ 1

Space 0

Q7

Z9

2. When the correct character appears, press the right arrow to move on to the next
character.

3. Repeat Steps 1 and 2 for each character of the ESSID.

4. Press

Press

to save the entry and return to the menu.

END

to abort and return to the menu without saving any changes.

FCN

Restore Defaults

The Restore Defaults option sets all user and administrative parameters to their factory
defaults. During configuration, press the right arrow to skip this mode.

Site Survey Mode

You can use the Site Survey mode to check the signal strength from access points.
When you select Site Survey Mode, the wireless telephone remains in this mode until it
is turned off. During configuration, press the right arrow to skip this mode. For help, see
“Using Site Survey Mode” later in this chapter.

3-24

Configuring the MobileLAN voice System

3

Encryption

WEP (Wired Equivalent Privacy) is a wireless encryption protocol that scrambles
wireless signals allowing for greater security in the wireless network. By default, WEP
options are off.

If your access points use WEP encryption, you must configure each wireless telephone
to correspond exactly with the encryption protocol set up in the access point.

Authentication Select either Open System or Shared Key.

WEP Select either WEP Off or WEP On.

Key Information Press the right arrow key to scroll through the options:

Default Key Enter the key number specified for use by the wireless telephones. This

key will be 1 through 4.

Key Length Select either 40-bit or 128-bit depending on the key length specified for
use at this location.

Key 1-4 Scroll to the key option that corresponds to the Default Key that was entered.
Press 0 and enter the encryption key as a sequence of hexadecimal characters. (Use the
2 and 3 keys to access hexadecimal digits A-F; use the left arrow key to backspace.)

For 40-bit keys you will need to enter 10 digits; for 128-bit keys you will need to enter
26 digits. The display will scroll as needed.

Encryption codes appear as you enter them. However for security reasons, codes

Note:

will not display when you return to the Admin menu, Encryption options.

WEP may be set at “optional” at the access point if there are wireless devices in use that
do not have WEP capability. All wireless devices must be upgraded to WEP capability
for a fully secured WEP environment.

Testing a Wireless Telephone

You can verify proper registration and operation of each wireless telephone by
performing these tests on each wireless telephone in your MobileLAN voice system.

To test a wireless telephone

1. Press
displayed on the screen as the wireless telephone acquires the system. The wireless
telephone should display the user extension or dashes if no extension is
programmed. The NO SVC icon should disappear.

2. Press

to turn on the wireless telephone. You will see a series of messages

PWR

START

. The extension number should clear and you should hear a dial tone.

On some digital systems, depending on how the telephone system is programmed,
you may have to select a line to get a dial tone. Place a call and listen to the audio
quality. Press

to end the call.

END

3-25

MobileLAN voice System User’s Guide

3. Place a call to the wireless telephone and verify that it rings, answers, and clearly
transmits/receives audio.

4. Use the

5. Press

If any of these steps fails to operate as described, see Chapter 4, “Maintaining and
Troubleshooting the MobileLAN voice System” for corrective action.

END

should return.

key to verify all programmed features on the wireless telephone.

FCN

. Any line indicators should turn off and the extension number display

Setting User Preferences

These user-defined preferences are also covered in the MobileLANvoice 2 Wireless
Telephone Quick Start Guide (Part No. 071875). The system administrator can refer to

this list for more information about customizing wireless telephone settings.

To configure these options, the wireless telephone must acquire the system (the NO
SVC icon must be off) and be at the extension display. Press and hold the FCN key
briefly to access these options:

Volume Level This option lets you set the base audio volume level of this wireless
telephone. Select a level from 1 (softest) to 8 (loudest). Level 5 is the default.

Telephone Ring This option lets you change the standard ring used for normal
operation. From the Telephone Ring menu, select either Normal Ring (an audible alert)
or Vibrator Ring. The Auxiliary Ring modes are reserved for future use. Vibrator ring
works only if your wireless telephone has the optional vibrating ringer. The ring type
currently in use appears with an asterisk (*).

3-26

High Noise Mode This option lets you select the noise level in your environment. This

option adjusts the wireless telephone to account for background noise. Intermec does
not recommend that you use the non-Normal Noise modes unless you are in a loud
environment, or you may find it difficult to hear on your wireless telephone.

Current IP Address

wireless telephone. You cannot change the IP address here.

Extension This option lets you enter the extension for this wireless telephone. Note
this number is for labeling purposes only; entering it does not assign the extension.

Language This option lets you select a language for the display if a different language
is supported on your system.

This option displays the IP address currently assigned to this

Using Site Survey Mode

You can use the MobileLAN voice 2 wireless telephones to conduct a preliminary Site
Survey Mode test. Site surveys test signal strength in the covered area. Note any areas
where coverage is conflicting or inadequate. Note any system difficulties. For help, see
“Solving Coverage Issues” later in this section and Chapter 4, “Maintaining and
Troubleshooting the MobileLAN voice System.”

Put a wireless telephone in Site Survey mode. For help, see “Configuring the Wireless
Telephone” earlier in this chapter. Walk the entire coverage area while viewing the
display. The Hold key toggles between the two coverage modes described below. The
wireless telephone will remain in Site Survey mode until it is turned off. When testing is
complete, press

When you use the MobileLAN voice 2 wireless telephone to conduct a site

Note:

survey, you are surveying for a transmit rate of 2 Mbps. Your data clients generally
support a transmit rate of 11 Mbps. Depending on the needs of your network, you may
still need to perform another site survey to support your data clients. Slower
transmission rates usually provide better range and faster transmission rates usually
provide increased throughput.

PWR

Configuring the MobileLAN voice System

to turn off the wireless telephone.

3

Detect dBm Coverage

As you walk the perimeter, the two-line display will show the top four access points that
the wireless telephone can contact in a code as illustrated below.

XXX1 YY XXX2 YY

XXX3 YY XXX4 YY

F1

XXX1 through XXX4 are the last four digits of each access point’s MAC address.

•

The primary access point (the access point that had the strongest signal to this
wireless telephone) appears first, followed by the three access points with the next
strongest signals.

YY is the power level in dBm at which this wireless telephone heard the associated

•

access point. Although shown as a positive number, YY represents negative dBm
and lower numbers represent stronger signals.

For example, a displayed value of 40 indicates -40 dBm, and is therefore a stronger
signal then a display of 50 (which indicates -50 dBm).

At least one access point’s reading should be lower than 70 dBm in all areas. Note
any areas that have inadequate dBm readings.

3-27

MobileLAN voice System User’s Guide

Detect Overlap or Conflicts

Press the HOLD key to toggle to the Site Survey function that shows the channel
number of the access points. Use this information to detect overlaps or conflicts in
access point signaling.

XXX1 ZZ XXX2 ZZ

XXX3 ZZ XXX4 ZZ

F2

XXX1 through XXX4 are the last four digits of each access point’s MAC address.

•

ZZ is the channel number that the access point is using.

•

It is preferable that no overlaps exist anywhere in your facility. If that is not possible
(especially likely in DS (Direct Sequence) systems), then any location that shares two
access points with the same channel pattern should also show at least two access points
with stronger signals that do not conflict.

Solving Coverage Issues

You can best resolve coverage issues by adding and/or relocating access points.

You can resolve conflict and overlap issues by reassigning channel patterns to the
access points or by relocating the access points.

3-28

4

Maintaining and Troubleshooting the

MobileLAN voice System

MobileLANvoice WTS User’s Manual

Maintaining and Troubleshooting the MobileLAN voice System

This chapter explains how to maintain the MobileLANvoice system. It also explains
how to diagnose and correct problems with the MobileLAN voice system.

Maintaining the MobileLAN voice System

This section explains how to upgrade the software on your MobileLAN voice telephony
gateways and on your MobileLAN voice 2 wireless telephones. It also explains how to
back up and restore the configuration files on your telephony gateways.

Upgrading the MobileLAN voice Software

The MobileLAN voice telephony gateways and the MobileLAN voice 2 wireless
telephones use proprietary software programs. The software versions that are running on
the system components can be displayed via the System Status menu. For help obtaining
information about software upgrades, contact your local Intermec representative.

After software upgrades are obtained from Intermec, they must be transferred to the
appropriate location in the LAN to update the code used by the MobileLAN voice
system components.

4

You can upgrade the software on your MobileLAN voice devices using one of these
three methods: automatic, FTP (File Transfer Protocol), or TFTP (Trivial File Transfer
Protocol). This table shows which method is used by which component of the system:

MobileLAN voice Device Upgrade Method

Telephony Gateway (16-port) FTP to telephony gateway.

Telephony Gateway (4-port) TFTP from TFTP server to telephony gateway via TFTP

menu option.

Wireless Telephones* Automatic from telephony gateway (usual for telephony

gateway (16-port)).

Automatic from TFTP server (required for telephony
gateway (4-port)).

* as set in the Gateway Configuration screen, WT TFTP Download Master, IP address.

Navigate to the Gateway Configuration screen and place the system in System

Note:

Lock before proceeding with the FTP or TFTP procedure to prevent new calls from
starting. All calls in progress are terminated when the system is reset.

4-3

MobileLAN voice System User’s Guide

Upgrading the Telephony Gateways Using FTP

When using FTP, you use a host system to connect to a remote system. In this example,
the host is the server and the remote is the telephony gateway. The “put” command
means to copy the files from the host to the remote system. The “get” command means
to copy the files from the remote system to the host.

FTP commands vary with the program being used. Use these steps as a general

Note:

guide, but note that your FTP program may use different terms.

To transfer the software using FTP:

1. Connect to the TFTP server or the telephony gateway by typing FTP
FTP

IPaddress

2. Log in using the administrator login (admin) and password (default is admin). A
login confirmation message appears, followed by the FTP> prompt.

3. At the FTP prompt, type binary. A confirmation message appears.

4. At the FTP prompt, use the put command to transfer the required files to the client
server or the telephony gateway.

5. After files are transferred, use the Quit command to quit FTP.

6. Navigate to the main menu for the telephony gateway and select System Status. The
System Status menu appears.

7. Select Software Versions and verify that software versions for the telephony
gateway are correct.

8. Reset the system via the Gateway Configuration screen.

.

hostname

or

4-4

Maintaining and Troubleshooting the MobileLAN voice System

4

Upgrading the Telephony Gateways Using TFTP

Obtain and load TFTP on the specified server. Consult your server vendor’s
documentation for information about TFTP. Load the updated software in a location
that is accessible by the TFTP program.

To transfer the update via TFTP

1. Navigate to the main menu for the telephony gateway or OAI telephony gateway
and select TFTP Code Update. The following screen appears.

2. In the TFTP Server IP Address field, type the IP address of the TFTP server.

3. Select Begin TFTP Download. The system prompts you with the following
message:

“Are you sure (Reset and Download New Code?)”

4. Press Y (yes) to begin the download. The screen goes blank and the download will
begin.

You should see the status lights on the telephony gateway cycle to indicate that the
download is in progress. When the download is complete the telephony gateway
resets.

5. Navigate to the main menu for the telephony gateway and select System Status. The
System Status menu appears.

6. Select Software Versions and verify that software versions for the telephony
gateway are correct.

7. Reset the system via the Gateway Configuration screen.

4-5

MobileLAN voice System User’s Guide

Upgrading the Wireless Telephones

You can perform over-the-air transfer of software updates from the telephony gateway
or designated TFTP server to the wireless telephones. The downloader function in the
wireless telephone checks its software version every time the wireless telephone is
turned on. If there is any discrepancy–as there would be when the WT TFTP Download
Master is updated–the wireless telephone immediately begins to download the update.

Normal Download Messages

When the wireless telephone is turned on, it displays a series of messages indicating that
it is searching for new software, checking the versions, and downloading. The normal
message progression is:

Message Description

Checking Code Wireless telephone is contacting the Download Master to determine if

Erasing Memory Wireless telephone has determined that a download should occur and is

it has a newer version of software that should be downloaded.

erasing the current software from memory. This message also displays
a progress bar. When the progress bar fills the display line the erase
operation is complete.

Updating Code Wireless telephone is downloading new software into memory. The

number icons at the bottom of the display indicate which file number is
currently being downloaded. This message also displays a progress bar.
When the progress bar fills the display line the update operation is
complete on that file.

While the wireless telephone is updating, the NO SVC message displays.

When the update is complete, the wireless telephone displays the extension number and
is ready for use.

4-6

Maintaining and Troubleshooting the MobileLAN voice System

Download Failure or Recovery Messages

These display messages indicate a failure or recovery situation during the download
process.

Message Description

Server Busy Wireless telephone is attempting to download from a Download Master

that is busy downloading other phones and refusing additional
downloads. The wireless telephone will automatically retry the
download every few seconds.

TFTP ERROR(x):yy A failure has occurred during the TFTP download of one of the files.

(x) is the file number that was being downloaded; yy is an error code
describing the particular failure. Possible error codes are:

01 = TFTP server did not find the requested file.

02 = Access violation (reported from TFTP server).

07 = TFTP server reported “No such user” error. Check the TFTP
server configuration.

81 = File put into memory did not CRC. The wireless telephone will
attempt to download the file again.

4

FF = Timeout error. TFTP server did not respond within a specified
period of time.

Erase Failed Download process failed to erase the memory in the wireless telephone.

This operation will try again.

Waiting Wireless telephone has attempted some operation several times and has

failed, and is now waiting for a period of time before attempting that
operation again.

4-7

MobileLAN voice System User’s Guide

Backing Up and Restoring the Telephony Gateway
Configuration

When you are done configuring the telephony gateway, you should back up its
configuration files (config.bin). If necessary, you can then use FTP to restore the files.

FTP commands vary with the program being used. Use these steps as a general

Note:

guide, but note that your FTP program may use different terms.

To copy the configuration from/to the telephony gateway

1. Connect to the telephony gateway.

To back up the configuration, type FTP
To restore the configuration, type FTP

2. Log in using the administrator login and password. A login confirm message
appears, followed by the FTP> prompt.

3. At the FTP prompt, type binary. A confirm message appears.

4. Use the get command to back up the files or use the put command to restore files.

To back up the configuration, at the FTP prompt use the get command to transfer
the required files from the telephony gateway to the server. For example, type get
config.bin.

To restore the configuration, at the FTP prompt use the put command to transfer the
required files from the server to the telephony gateway. For example, type put
config.bin.

5. After files are transferred, use the Quit command to quit FTP.

6. Navigate to the main menu for the telephony gateway and select System Status. The
System Status menu appears.

7. Select Software Versions and verify that software versions for the telephony
gateway are correct.

The get and put commands copy files. Be careful not to overwrite your config.bin

Note:

files. To avoid overwriting your files, you can

hostname

IPaddress

.

.

change directories before you connect and copy each telephony gateway’s

•

config.bin file to its own directory.

use the local file name form of the get or put command to rename the file when it is

•

copied. For example, type get config.bin gateway1.bin to copy
config.bin as gateway1.bin to the host.

Remember to copy the correct files when restoring configuration files. For example,
type put gateway1.bin config.bin to copy gateway1.bin as config.bin to the
telephony gateway.

4-8

Maintaining and Troubleshooting the MobileLAN voice System

About Troubleshooting

Troubleshooting your MobileLAN voice system requires full information about the
components not only of the system, but also of the larger system, which includes both
the host telephone system and the LAN. The MobileLAN voice telephony gateways
provide a “window” into the functioning of the various wireless components via the
System Status menu.

Normally, troubleshooting sequences proceed from the simple to the complex. To
perform these procedures, you should have a thorough understanding of the
configuration of the system.

You should also have additional information about your system that can be provided by
a map, blueprint, or diagram of the facility that clearly shows hardware components
including access point positions and wireless telephone assignments. Also, you should
have the Wireless Telephone Assignment Worksheets.

The MobileLAN voice system provides diagnostic information in three ways.

Administration Console - Use the console to provide information about telephone

•

line status, system alarms, and network status displays on the System Status screen.
For help accessing the console, see “Using the Administration Console” in
Chapter 3.

4

Wireless Telephone Status Messages - These status messages provide information

•

about the wireless telephone’s communication with the access point, telephony
gateway, and host telephone system.

Telephony gateway status indicators.

•

About the System Status Menu

You can use the System Status Menu to get information about telephone line status,
system alarms, and network status.

To go to the System Status Menu

From the main menu, select System Status Menu and press

•

Enter

.

4-9

MobileLAN voice System User’s Guide

System Status Menu Screen

Option Description

Access Point Status This screen shows information about the access points that have been

used by the wireless telephones.

Error Status This screen displays alarm and error message information.

Network Status This screen displays information about the Ethernet network to which

the telephony gateway is connected.

Telephone Line
Status

Wireless Telephone
Status

Software Versions This screen lists the software version for each component in the

This screen displays information about the PBX lines to which the
telephony gateway is attached and the wireless telephones associated
with these lines.

This screen contains network communications statistics for each
wireless telephone.

MobileLAN voice system.

These System Status Menu screens provide a window into the real-time operation of the
components of the MobileLAN voice system. Use this data to determine system
function and to troubleshoot areas that may be experiencing trouble.

The System Status Menu screens are explained in more detail in the next sections.

4-10

Maintaining and Troubleshooting the MobileLAN voice System

4

Understanding the Access Point Status Screen

During a call, wireless telephones send information about their access points to the
telephony gateway. The telephony gateway maintains information on the last 16 access
points on which it has received reports and displays this information on the Access
Point Status screen. You can use the data on this screen to troubleshoot access point
problems.

If the list is full and a different access point is used by a wireless telephone, the access
point that has not been heard from for the longest time is replaced.

To go to the Access Point Status screen

From the System Status Menu, select Access Point Status and press

•

similar to the one below appears.

Enter

. A screen

4-11

MobileLAN voice System User’s Guide

Access Point Status Screen Options

Option Description

Access Point MAC The MAC address of a access point.

NumWTs The number of wireless telephones that are currently communicating

MaxWTs The maximum number of wireless telephones that have simultaneously

NotBest The number of times a wireless telephone has indicated that it is not

Last Heard The time a report from a wireless telephone was received that included

System Uptime The time elapsed since the telephony gateway was last reset or was

with this access point.

used this access point since last reset.

using the best access point.

information about this access point. If there is a significant difference
between Last Heard and System Uptime, it may indicate that the access
point has not been used recently, which might indicate that there has
been a break in communications.

power cycled. This indicator allows you to check access point activity
against telephony gateway functionality.

If the telephony gateway should be hearing from an access point due to
an active wireless telephone that should be using it but isn’t, there will
be a significant variation in the access point’s Last Heard time and the
System Uptime.

Clear Status This option sets NumWTs, MaxWTs, and NotBest to zero. It does not

remove any access points from the screen. This option lets you start
over and view access point activity from that point in time.

Note:

Unless noted otherwise, times are displayed using the format: D - HH : MM : SS,

where D is day, HH is hours, MM is minutes, and SS is seconds.

4-12

Maintaining and Troubleshooting the MobileLAN voice System

Understanding the Error Status Screen

The Error Status screen displays any active alarms that indicate some system
malfunction. Some of these alarms are easily remedied and others require a call to
Intermec Technical Support.

To go to the Error Status screen

4

From the System Status Menu, select Error Status and press

•

to the one below appears. This example displays two Line Sync alarms and their
messages.

. A screen similar

Enter

4-13

MobileLAN voice System User’s Guide

These tables display the list of alarm types, display messages, and description of the
error.

Alarm Message Error Description Action

Config GW software version

difference

Config No IP address No IP address set in

Config No Ethernet address Bad software or bad flash

Config No Flash1 data Bad software or bad flash

DAA PBX table unavailable Bad software load on

DAA PBX type unavailable Bad software load on

DAA DAA type Mismatch Installed PBX interface

DAA Spoonfeed

unavailable

DAA Bootload unavailable Bad software load on

Conflicting software
versions on two telephony
gateways

configuration

memory

memory

telephony gateway

telephony gateway

cannot be used to attach to
the specified PBX.

Bad software load on
telephony gateway

telephony gateway

Upgrade the downrev.

Set IP Address for
telephony gateway.

Call Intermec
Technical Support.

Call Intermec
Technical Support.

Call Intermec
Technical Support.

Call Intermec
Technical Support.

Change the specified
PBX or replace the
telephony gateway
with a model that
supports the desired
PBX.

Call Intermec
Technical Support.

Call Intermec
Technical Support.

4-14

DAA DSP code unavailable Bad software load on

telephony gateway

DAA DSP 1 keepalive Hardware problem on

telephony gateway

DAA DSP 2 keepalive Hardware problem on

telephony gateway

DAA DSP 1 download Hardware problem on

telephony gateway

Call Intermec
Technical Support.

Reset the telephony
gateway. If problem
persists, call Intermec
Technical Support.

Reset the telephony
gateway. If problem
persists, call Intermec
Technical Support.

Reset the telephony
gateway. If problem
persists, call Intermec
Technical Support.

Maintaining and Troubleshooting the MobileLAN voice System

Error Status Screen Alarm Types (continued)

Alarm Message Error Description Action

4

DAA DSP 2 download Hardware problem on

telephony gateway

DAA AUX DAA Unknown Hardware problem on

telephony gateway.
Auxiliary DAA was
detected but type is
unknown.

DAA FPGA Download Bad software load on

telephony gateway

DAA FPGA Code

Unavailable

Line
Sync

CT Bootload unavailable Bad software load on

CT DSP code unavailable Bad software load on

Line [XX] out of sync
(where XX is 1-16)

Bad software load on
telephony gateway

The line from the host
telephone system is not
communicating with the
telephony gateway.

telephony gateway

telephony gateway

Reset the telephony
gateway. If problem
persists, call Intermec
Technical Support.

Call Intermec
Technical Support.

Call Intermec
Technical Support.

Call Intermec
Technical Support.

Check cabling from
telephone system to
telephony gateway.
Check PBX type to be
sure it is correctly
configured.

Call Intermec
Technical Support.

Call Intermec
Technical Support.

CT DSP 1 keepalive Hardware problem on

telephony gateway

CT DSP 2 keepalive Hardware problem on

telephony gateway

CT DSP 1 download Hardware problem on

telephony gateway

CT DSP 2 download Hardware problem on

telephony gateway.

Reset the telephony
gateway. If problem
persists, call Intermec
Technical Support.

Reset the telephony
gateway. If problem
persists, call Intermec
Technical Support.

Reset the telephony
gateway. If problem
persists, call Intermec
Technical Support.

Reset the telephony
gateway. If problem
persists, call Intermec
Technical Support.

4-15

MobileLAN voice System User’s Guide

Error Status Screen Alarm Types (continued)

Alarm Message Error Description

Module Init data failed Internal software error,

usually seen in conjunction
with other errors.

Module Verify telephony

gateway failed

Module Config hardware data

failed

Module Start hardware failed Internal software error,

Module Init data failed Internal software error,

Note:

Module alarms should only occur with CT/DAA alarms. Correct the CT/DAA

Internal software error,
usually seen in conjunction
with other errors.

Internal software error,
usually seen in conjunction
with other errors.

usually seen in conjunction
with other errors.

usually seen in conjunction
with other errors.

alarms first and if the Module alarm persists, contact Intermec Technical Support.

Alarm Message Error Description Action

Radio Invalid Free Level Internal software error Call Intermec

Technical Support.

Radio No IP Address Internal software error Call Intermec

Technical Support.

Radio No IP Packet Internal software error Call Intermec

Radio IP Packet Error An IP packet with

Radio SRP Packet Error Incompatible software

4-16

insufficient IP header length

between wireless telephone
and telephony gateway

Technical Support.

Possible network
problem, contact
network vendor.

Call Intermec
Technical Support.
Provide software
version information.

Maintaining and Troubleshooting the MobileLAN voice System

Error Status Screen Alarm Types (continued)

Alarm Message Error Description Action

4

Radio SRP Invalid AID Incompatible software

between wireless telephone
and telephony gateway.

Possible network error.

Radio SRP Invalid Hook

State

Radio Key Buffer Full Key presses are too fast to

Radio SRP Opcode Error Incompatible software

Radio Unknown Timeout

State

Radio Unknown line event Internal software error Call Intermec

Radio Unknown SRP event Internal software error Call Intermec

Incompatible software
between wireless telephone
and telephony gateway

process.

between wireless telephone
and telephony gateway

Internal software error Call Intermec

Call Intermec
Technical Support.
Provide software
version information.
If versions are
compatible, contact
network
administrator.

Call Intermec
Technical Support
and provide software
version information.

Slower key presses

Call Intermec
Technical Support
and provide software
version information.

Technical Support.

Technical Support.

Technical Support.

Radio SRP event alloc failed Too many network events

queued for wireless
telephone. Possible network
problem or interference.

Radio Audio TX queue not

empty

Note:

Radio alarms usually indicate internal software errors. Usually there will be no

Unable to process all
transmissions within 10 ms.
Indicates high traffic on
network

Contact system
administrator.

Contact Intermec
Technical Support to
help you diagnose
traffic problem.

external indication of a problem.

4-17

MobileLAN voice System User’s Guide

Understanding the Network Status Screen

The telephony gateway is connected to the Ethernet network, which is also called the
Local Area Network (LAN). The Network Status screen displays information about the
Ethernet network. This information can help troubleshoot network problems.

To go to the Network Status screen

From the System Status Menu, select Network Status and press

•

similar to the one below appears.

Enter

. A screen

Option Description

Ethernet Address The MAC address of the telephony gateway.

Stats Time Period The length of time the statistics have been accumulating in the Pkts

User Time Period The length of time (in seconds) statistics will accumulate in the

4-18

and Bytes columns. This time is either the system uptime or the
time since a user pressed C=Clear Stats while viewing this display.

User Pkts column before resetting to zero. When troubleshooting a
problem, use this setting to isolate statistics for a given time period
(for example, one hour). This field is the only one in this screen
that you can change.

Maintaining and Troubleshooting the MobileLAN voice System

The rest of the Network Status screen are Ethernet statistics. The Pkts and User Pkts
columns list the count of Ethernet packets received or transmitted. The Bytes column is
the count of bytes received or transmitted during the amount of time indicated by the
Stats Time Period.

Option Description

RX SRP The number of SRP packets and bytes received. (RX=received)

RX Not SRP The number of packets and bytes received addressed to the telephony

gateway that are not SRP packets.

RX Broadcast The number of broadcast packets and bytes received.

RX Multicast The number of packets and bytes received with the MobileLAN voice

multicast address. (A “multicast” message is sent to more than one
destination on the network.)

RX Not For Us The number of multicast packets and bytes received that were not for

the telephony gateway.

TX SRP The number of SRP packets and bytes transmitted. (TX=transmitted)

TX Not SRP The total number of packets and bytes transmitted that are not SRP

packets.

4

Interrupts The number of times the Ethernet controller has signaled the

microprocessor that it has received or sent a packet.

Collsions The number of times the Ethernet controller has attempted to send a

packet, but another device on the network transmitted at the same time,
corrupting the transmission.

Collision Drops The number of packets the Ethernet controller has discarded because

there were over 16 collisions. After 16 collisions the Ethernet controller
hardware discards the current packet and attempts to send the next
packet in its buffer.

CRC Errors The number of packets discarded by the Ethernet controller because of

a CRC (Cyclic Redundancy Check) error.

Frame Align The number of packets the Ethernet controller discarded because of an

error in their frame alignment.

4-19

MobileLAN voice System User’s Guide

Understanding the Telephone Line Status Screen

Each telephony gateway associates wireless telephones with lines from the host
telephone system (PBX) as configured in the system setup. The Telephone Line Status
screen provides operational information about each wireless telephone connection. This
information corresponds with the configuration information set up from the Telephone
Line Configuration option on the main menu.

When the telephony gateway needs to be maintained, current call activity can be
checked on this screen to determine the level of service interruption a shutdown will
involve.

To go to the Telephone Line Status screen

From the System Status Menu, select Telephone Line Status and press

•

screen similar to the one below appears.

Enter

. A

4-20

Maintaining and Troubleshooting the MobileLAN voice System

Telephone Line Status Screen Options

Option Description

Line The telephone line number (1-16).

Name The person or name associated with this line for identification

Extension The extension number associated with this line for identification

Status The status of the lines from the host telephone system (PBX) to the

4

purposes.

purposes.

telephony gateway.

In Sync

gateway and the PBX.

No Sync

telephony gateway and the PBX. Check to see if PBX ports are
correctly configured. Check connections between the PBX and the
telephony gateway.

Unconf

Phone The status or activity of the wireless telephone.

ChkdIn

communication with a access point.

No ChkIn

with a access point. It may be out of range or turned off.

In Call

# Calls/Duration The total number of calls made on this line since the system was

brought up, and the total duration of the calls.

System Uptime The time elapsed since the telephony gateway was last reset or was

power cycled.

This indicates there is communication between the telephony

This indicates there is no communication between the

This indicates the line is not configured.

This indicates the wireless telephone has checked in and is in

This indicates the wireless telephone has not checked in

This indicates the wireless telephone is in use.

4-21

MobileLAN voice System User’s Guide

Understanding the Wireless Telephone Status Screen

Each telephony gateway tracks its wireless telephones’ activity and provides this
information through the Wireless Telephone Status screen. These statistics can help you
determine the source of audio quality problems.

To go to the Wireless Telephone Status screen

From the System Status Menu, select Wireless Telephone Status and press

•

screen similar to the one below appears.

Enter

. A

4-22

Wireless Telephone Status Options

Option Description

WT MAC The MAC address of the wireless telephone.

Current AP The MAC address of the access point the wireless telephone is using or

TX Retry The rate at which packets the wireless telephone sent to the access

RX Retry The rate at which packets the wireless telephone sent to the access

TX Miss The rate at which audio packets were successfully transmitted by the

RX Miss The rate at which audio packets were never received by the wireless

Maintaining and Troubleshooting the MobileLAN voice System

last used. If the wireless telephone is not checked in, the telephony
gateway will display ‘none’.

point had to be retried. See below for an extended explanation of TX
and RX Retry.

point had to be retried.

wireless telephone. There is usually a burst of missed packets at the
start of a call; the number should quickly drop to less than 100.

telephone.

4

System Uptime The time elapsed since the telephony gateway was last reset or was

power cycled.

Num Calls The number of currently active calls on the telephony gateway.

Max Simul Calls The maximum number of simultaneous active calls on the telephony

gateway.

Clear Status This option sets the statistics to zero so you can view wireless

telephone activity from that point in time.

Note:

The wireless telephone computes the “rate” for the TX and RX statistics by
calculating the number to increase quickly when retries begin. As retries lessen to zero
and the transmissions become more reliable, the number peaks and decreases slowly.

Viewing speed of increase/decrease as well as total count reached will give you an
accurate picture of the Retry and Missed characteristics.

4-23

MobileLAN voice System User’s Guide

Understanding the Software Version Numbers Screen

Each telephony gateway and wireless telephone runs software that is controlled and
maintained through versioning. The Software Version Numbers screen provides
information about the version currently running on the components. This information
helps you determine if you are running the most recent version and will assist Intermec
Technical Support in troubleshooting software problems.

To go to the Software Version Numbers screen

From the System Status Menu, select Software Version and press

•

similar to the one below appears. Note that the telephony gateway (4-port) has
significantly fewer components than the telephony gateway (16-port).

Enter

. A screen

4-24

Maintaining and Troubleshooting the MobileLAN voice System

Wireless Telephone Problems

MobileLAN voice 2 wireless telephones can exhibit transmission problems in several
ways. They can cease functioning properly, display error messages, or display incorrect
data. When using and troubleshooting wireless telephones, consider the following
problem sources to determine the best method of approaching any specific situation.

Access Point Problems

Most, but not all, wireless telephone audio problems have to do with access point range,
positioning and capacity. Using the wireless telephone to help you perform a site survey
as described in “Using Site Survey Mode” in Chapter 3 can isolate the access point
causing these types of problems. If you suspect the wireless telephone has the problem,
conduct a parallel site survey with a wireless telephone that is known to be properly
functioning.

In Range/Out of Range

Service will be disrupted if you move outside the area covered by the access points.
Service is restored if you move back within range. If a call drops because you move out
of range, the wireless telephone will recover the call if you move back into range within
a few seconds.

4

Capacity

In areas of heavy use, the call capacity of a particular access point may be filled. If this
happens, you will hear three chirps from the wireless telephone. You can wait until
another user terminates a call, or you can move within range of another access point and
try the call again. If you are on a call and move into an area where capacity is full, the
system attempts to find another access point. Due to range limitations, this may be the
same as moving out of range.

Transmission Obstructions

Prior to system installation, the best location for access points for optimum transmission
coverage was determined. However, small pockets of obstruction may still be present,
or obstructions may be introduced into the facility after system installation. This loss of
service can be restored by moving out of the obstructed area, or by adding access points.

4-25

MobileLAN voice System User’s Guide

Configuration Problems

Certain problems are associated with improper configuration of either the telephony
gateway or the wireless telephone.

For instance, no extension displayed or wrong extension displayed on the wireless
telephone has no effect on its operation, but serves to easily identify it. Other
configuration problems, like having incorrect menu items or inability to connect or
access telephone system features, affect the wireless telephone’s functioning.

Configuration problems are generally corrected by changing the configuration at the
telephony gateway or on the wireless telephone. For help, see Chapter 3, “Configuring
the MobileLAN voice System.” There may also be incorrect programming of the PBX
or access point. For help, see the documentation for your product.

Infrastructure Problems

Calls ringing on the wrong wireless telephone or multiple wireless telephones not
working are likely to be caused by faulty installation. The wires that connect the
demarcation block to the telephony gateway could be installed incorrectly.

Contact your wireless LAN and/or PBX vendor for more information about
troubleshooting infrastructure problems.

Dial Tone Problems

A dial tone problem exists if the wireless telephone has no dial tone, or if you are unable
to hear the other party’s voice, hear echo, or hear dead air.

To troubleshoot dial tone problems

1. Turn on the wireless telephone in an active service area. If the wireless telephone
does not get a dial tone in an active area, continue with the steps below.

If the no dial tone problem is limited to a certain area, see the “Access Point
Problems” earlier in this chapter.

2. Verify that the No Svc message turns off a few seconds after the wireless telephone
is turned on.

3. Swap the battery with a battery from a functional wireless telephone, turn the
wireless telephone back on, and check for dial tone. If this corrects the problem,
charge the battery pack that was removed.

4. Turn the wireless telephone off then on again, and then test again for dial tone. If
OK, place a call and determine voice quality.

5. While maintaining an active call, walk through several access point coverage areas.
If fluctuation occurs, see “Access Point Problems” earlier in this chapter.

4-26

Maintaining and Troubleshooting the MobileLAN voice System

6. Check for alarms on the gateway (System Status). If there are alarms, see
“Understanding the Error Status Screen” earlier in this chapter.

7. Make sure the wireless telephone’s gateway port is connected to a working phone
line. Check the line at the demarcation block. You may need to contact your vendor
to perform this check.

8. Check the cabling between the telephony gateway and the demarcation block, and
between the demarcation block and the telephone system ports.

9. Move the wireless telephone to a different port location and test again.

Wireless Telephone Status Messages

Wireless telephone status messages provide information about the MobileLAN system
communication with the access point and host telephone system. The following table
summarizes the status messages, in alphabetical order.

Message Description Action

4

Three chirps Wireless telephone is not able to

communicate with the best access point,
probably because that access point has no
bandwidth available.

BATT, Low Battery,
and beep

Checking Code Wireless telephone is contacting the

DHCP Error (1-4) DHCP Error 1 The wireless telephone cannot locate a DHCP

Low battery In call: BATT displays when you are on the

Download Master to determine if it has a
newer version of software that should be
downloaded.

None. This is only a warning, the call will be
handed off to the best access point once it
becomes available.

wireless telephone and the battery charge is
low. You have two minutes to complete call.
You can change the battery while the call is
still in progress. Do not press
remove the discharged battery and replace it
with a charged battery, turn on the wireless
telephone, and press
in progress.

Not in call: Low Battery and Beep indicate
low battery charge when you are not on the
wireless telephone. The wireless telephone
will not work until battery is replaced.

None. This message should only last for
approximately one second. If the message
remains on the screen, turn off the wireless
telephone and contact Intermec Technical
Support.

server. It will try every four seconds until a
server is located.

to resume the call

Start

End

. Quickly

DHCP Error 2 The wireless telephone has not received a

response from the DHCP server for a request
of an IP address. It will retry until a server is
found.

4-27

MobileLAN voice System User’s Guide

Wireless Telephone Status Messages (continued)

Message Description Action

DHCP error (1-4)
(continued)

Erase Failed Download process failed to erase the memory

Erasing Memory Wireless telephone has determined that a

Internal Err. # # The wireless telephone has detected a fault

Multiple GW regs The wireless telephone has discovered more

DHCP Error 3 The DHCP server refuses to lease the wireless

DHCP Error 4 The DHCP server offered the wireless

in the wireless telephone.

download should occur and is erasing the
current software from memory.

from which it cannot recover.

than one telephony gateway that is configured
with the wireless telephone’s MAC address.

telephone an IP address. It will keep trying.

telephone a lease that is too short. The
minimum acceptable lease is 24 hours. The
wireless telephone will stop trying.
Reconfigure the server and power cycle the
wireless telephone.

Operation will retry but may eventually report
the error “int. error: 0F” Power cycle the
wireless telephone.

None. When the progress bar fills the display
line the erase operation is complete.

Record the error code so it can be reported.
Turn the wireless telephone off then on again.

If the error persists, try registering a different
wireless telephone to this telephone port.

If the error still persists, contact Intermec
Technical Support.

Check each telephony gateway for the
wireless telephone’s MAC address on the
Telephone Line Configuration screen. Delete
any duplicate entries leaving only one entry
on the correct telephone gateway and port for
this wireless telephone.

Network Busy All access points are full or busy Try the call again later.

No Gateway Found

No IP Address Invalid IP Check the IP address of the wireless

No Net Access Cannot authenticate/associate with access

Phone not registered on telephony gateway Verify that telephony gateway is properly

Telephony gateway is not working Verify that telephony gateway is turned on. If

No LAN connection at the access point or
telephony gateway

point

4-28

configured.

so, follow standard telephony gateway
troubleshooting procedures.

Verify telephony gateway connection to LAN
and all access points.

telephone and reconfigure if required.

Verify the access point configuration.

Maintaining and Troubleshooting the MobileLAN voice System

Wireless Telephone Status Messages (continued)

Message Description Action

4

No Net Found

No Reg Domain Regulatory Domain not set Call Intermec Technical Support.

No PBX No communication with host telephone

No SVC Wireless telephone is not communicating with

This indicates any of the following:

No radio link Verify that the access point is turned on.

No ESSID – Autolearn not supported (or)

Incorrect ESSID

Access point does not support 1 Mbps Call Intermec Technical Support.

Out of range Try getting closer to the access point. Check

Incorrect WEP settings Verify that all the WEP settings in the

system.

the access point or the telephony gateway.

Verify the ESSID of the WLAN and enter or
Autolearn it again if required.

to see if other wireless telephones are working
within the same range of the access point. If
so, check the ESSID of this wireless
telephone.

wireless telephone match those in the access
points.

Displays before the system has synchronized
ports with the host telephone system. Should
disappear when the ports are correctly wired
and programmed.

This message may display with another
diagnostic message. Follow diagnostic actions
for the second message (such as No Net
Found).

Server Busy Wireless telephone is attempting to download

from a Download Master that is busy
downloading other phones and refusing
additional downloads.

System Locked
(with Busy Tone)

System Busy
(with Busy Tone)

System is locked Try the call again. The system has been

System is busy or out of resources All call paths are in use. Try the call again in

If other devices are working from the access
point, this wireless telephone may not be
properly registered on the system. From the
Administration software, check to see that the
MAC address is properly assigned.

None. The wireless telephone will
automatically retry the download every few
seconds.

locked for maintenance.

a few minutes.

4-29

MobileLAN voice System User’s Guide

Wireless Telephone Status Messages (continued)

Message Description Action

TFTP ERROR(x):yy A failure has occurred during a TFTP

software download. (x) = The file number
which was being downloaded; yy is an error
code describing the particular failure. Possible
error codes are:

01 = TFTP server did not find the requested
file.

02 = Access violation (reported from TFTP
server).

07 = TFTP server reported “No such user”
error.

81 = File put into memory did not CRC.

FF = Timeout error. TFTP server did not
respond within a specified period of time.

Updating Code Wireless telephone is downloading new

software into memory. The number icons at
the bottom of the display indicate which file
number is currently being downloaded.

Waiting Wireless telephone has attempted some

operation several times and failed

Error code 01, 02 or 07 - check the TFTP
server configuration.

Error code 81 - the wireless telephone will
attempt to download the file again.

For other messages, turn off the wireless
telephone, then turn it on again to retry the
download. If the error repeats, note it and
contact Intermec Technical Support.

None. When the progress bar fills the display
line the update operation is complete on that
file.

None. The wireless telephone is waiting for a
specified period of time before attempting
that operation again.

4-30

A

Specifications and Worksheets

MobileLANvoice WTS User’s Manual

Specifications

Physical Specifications

Width: 13.7 cm (5.4 in) 33 cm (13.0 in)

Length: 22.3 cm (8.8 in) 17.8 cm (7.0 in)

Height: 3.8 cm (1.5 in) 7.6 cm (3.0 in)

Weight: 0.68 kg (1.5 lbs) 2.2 kg (4.75 lbs)

Electrical Rating

Electrical Rating: 120-240 VAC; 50-60 Hz

Temperature and Environmental Specifications

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Specifications and Worksheets

4-Port 16-Port

A

Storage Temperature: -20°C to 70°C (-4°F to 158°F)

Relative Humidity: 0 to 80% non-condensing

Other Specifications

4-Port 16-Port

System Capacity: 16 wireless telephones 64 wireless telephones

16 simultaneous calls 32 simultaneous calls

Telephone Switch: RJ-11, 6 position connector RJ-21, 25 pair connector
Connections

LAN Connections: RJ-45, 10Base-T Ethernet

Administration: Serial port, Telnet, external modem

Network Configuration: Static IP addressing

Client Protocol Support: H.323 and SpectraLink proprietary

A-3

MobileLAN voice System User’s Guide

This page is left intentionally blank.

A-4

A

Specifications and Worksheets

_____________________

__________________________

A-5

________________________

IP Address:

__________________________

______________________________________

Subnet Mask:

Telnet Port ID:

__________

_______________________________

MAC Address Switch Port ID IP Address User Name

Wireless Device Planning Worksheet

Copy and complete this worksheet to track parameters for each MobileLAN voice telephony gateway (4-port).

MobileLAN voice Telephony Gateway Hostname:

MAC Address:

Dialing

Extension

Host Switch Type:

Phones Per Access Point:

Gateway

Port

1

2

3

4

This page is left intentionally blank.

MobileLANvoice WTS User’s Guide

A-6
