Intermec 3440 User Manual

User’s

Manual

3440 Bar Code Label Printer

P/N 063579-001

Intermec Corporation
6001 36th Avenue West
P.O. Box 4280
Everett, WA 98203-9280

U.S. technical and service support: 1-800-755-5505
U.S. media supplies ordering information: 1-800-227-9947

Canadian technical and service support: 1-800-688-7043
Canadian media supplies ordering information: 1-800-268-6936

Outside U.S. and Canada: Contact your local Intermec service supplier.

The information contained herein is proprietary and is provided solely for the purpose of
allowing customers to operate and/or service Intermec manufactured equipment and is not to
be released, reproduced, or used for any other purpose without written permission of Intermec.

Information and specifications in this manual are subject to change without notice.
 1996 by Intermec Corporation

All Rights Reserved

The word Intermec, the Intermec logo, and PrintSet are trademarks of Intermec Corporation.
Novell is a registered trademark of Novell, Inc.
Kimdura is a registered trademark of Kimberly Clark.
Kapton is a registered trademark of Dupont.
Speedo, Dutch, and Swiss are registered trademarks of Bitstream Inc.
The name Windows is a registered trademark of Microsoft Corporation.
The name Centronics is wholly owned by GENICOM Corporation.
IBM is a registered trademark of International Business Machines Corporation.
Throughout this manual, trademarked names may be used. Rather than put a trademark ()

symbol in every occurrence of a trademarked name, we state that we are using the names only
in an editorial fashion, and to the benefit of the trademark owner, with no intention of
infringement.

Contents

*1233*

Before You Begin xv

Warranty Information xv
Safety Summary xv
Warnings and Cautions xvi
About This Manual xvii

Getting Started

FranklinGothic

Contents

1

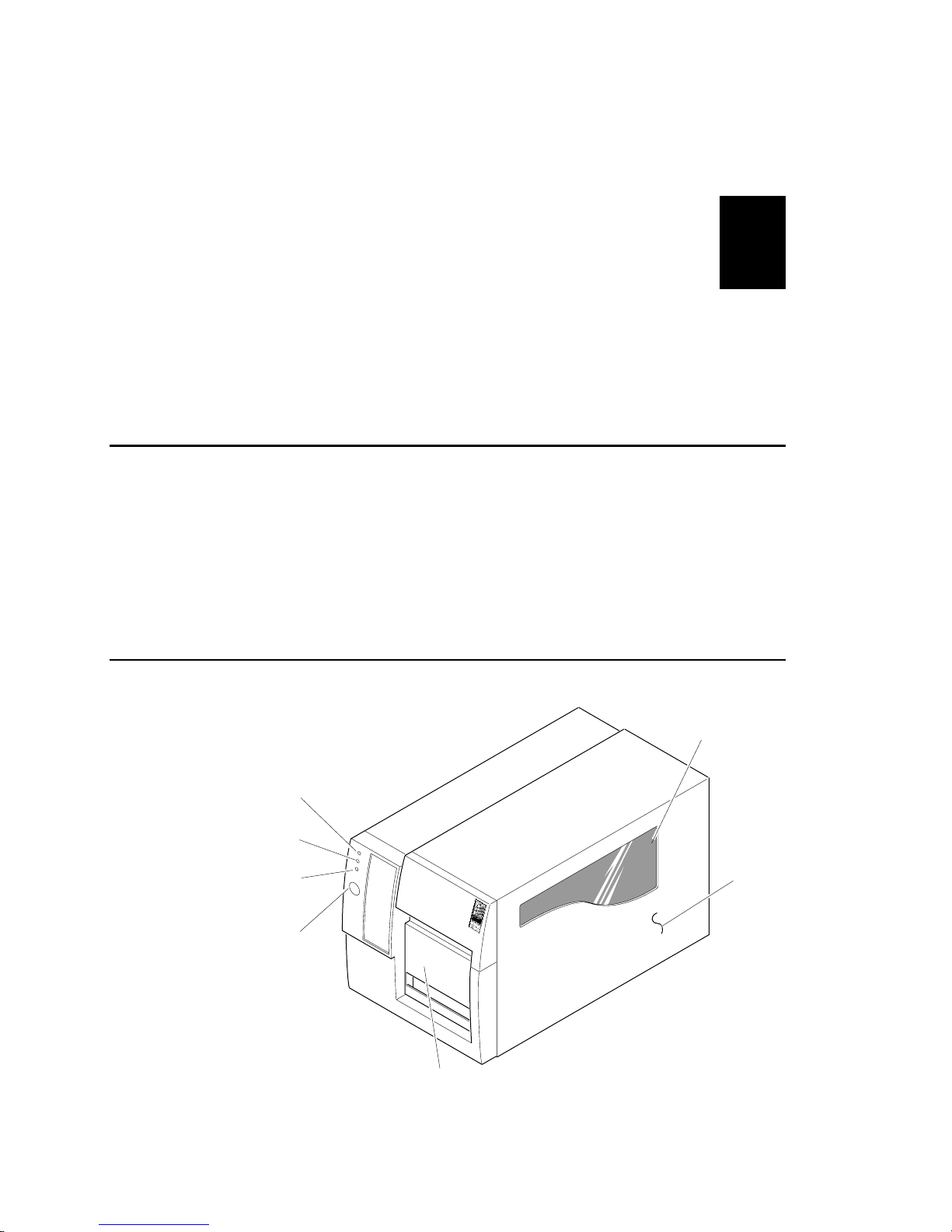

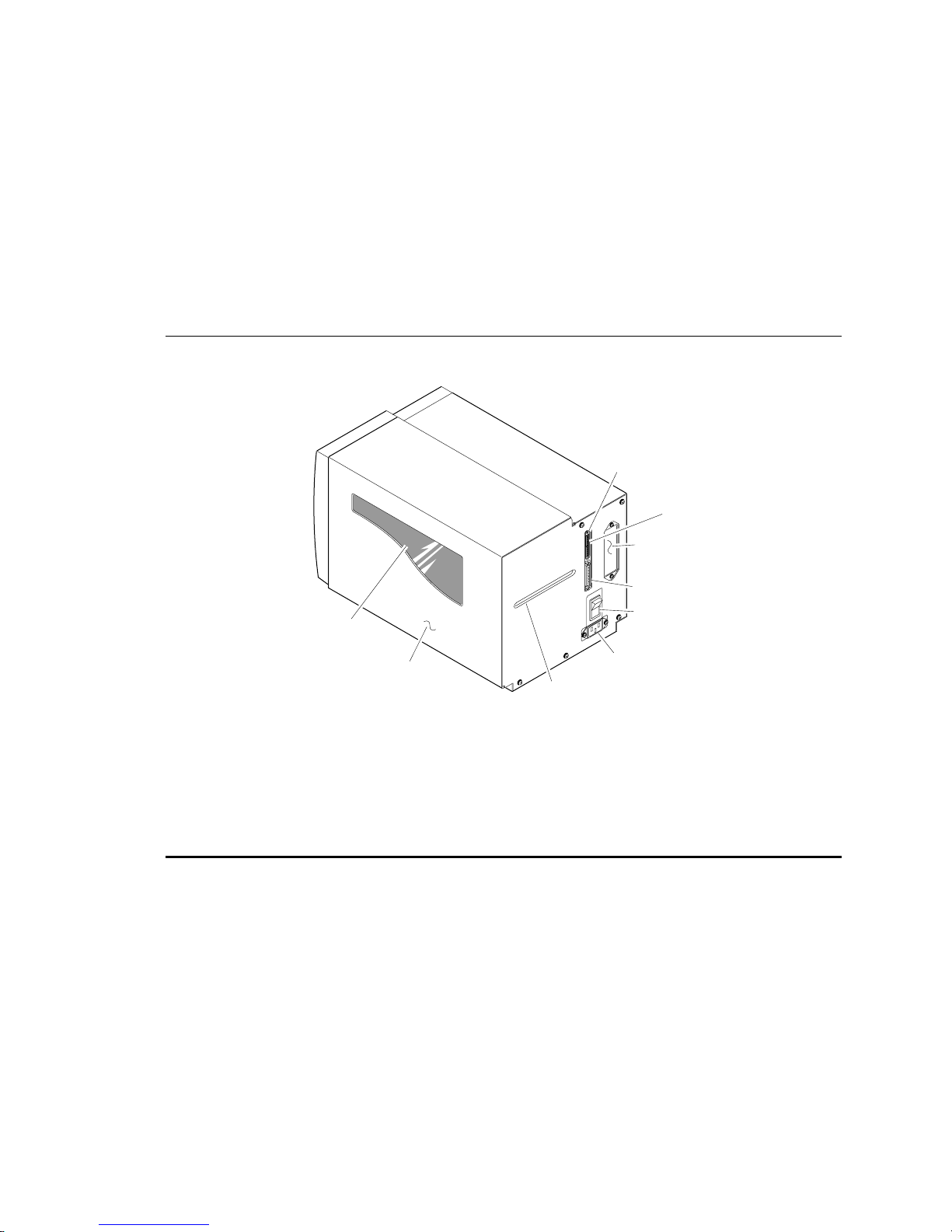

Getting to Know Your 3440 Printer 1-3
Preparing the Printer for Installation 1-4

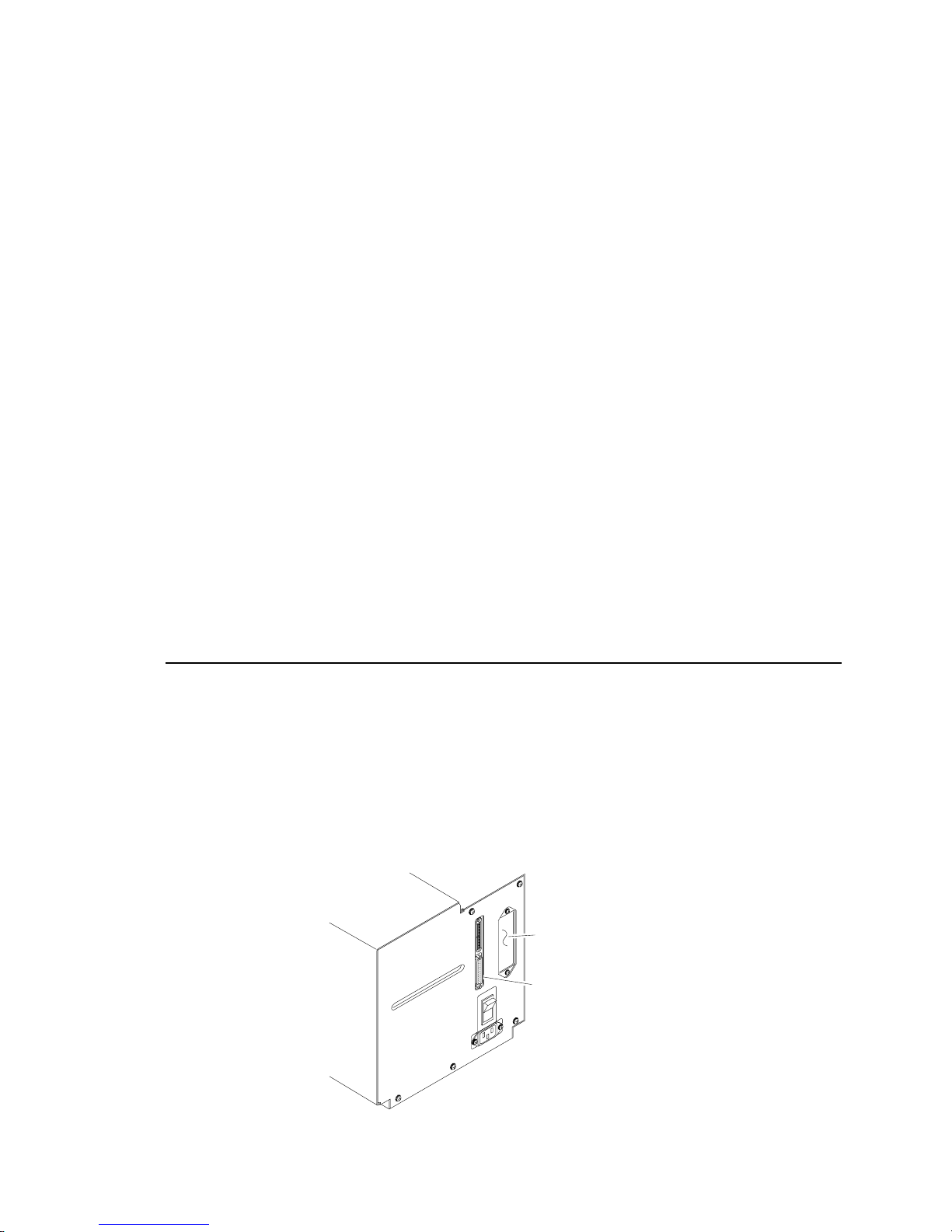

Plugging in the Printer 1-5

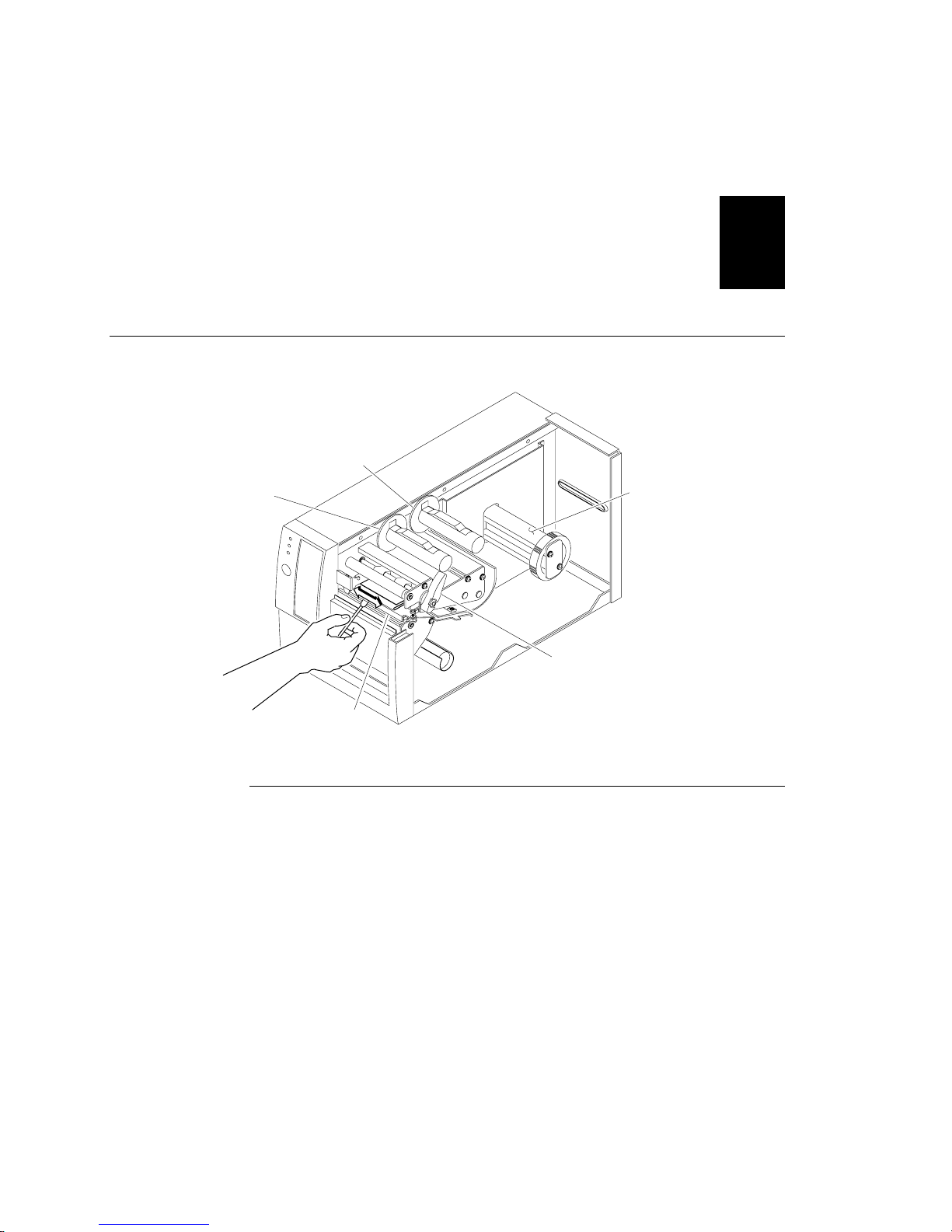

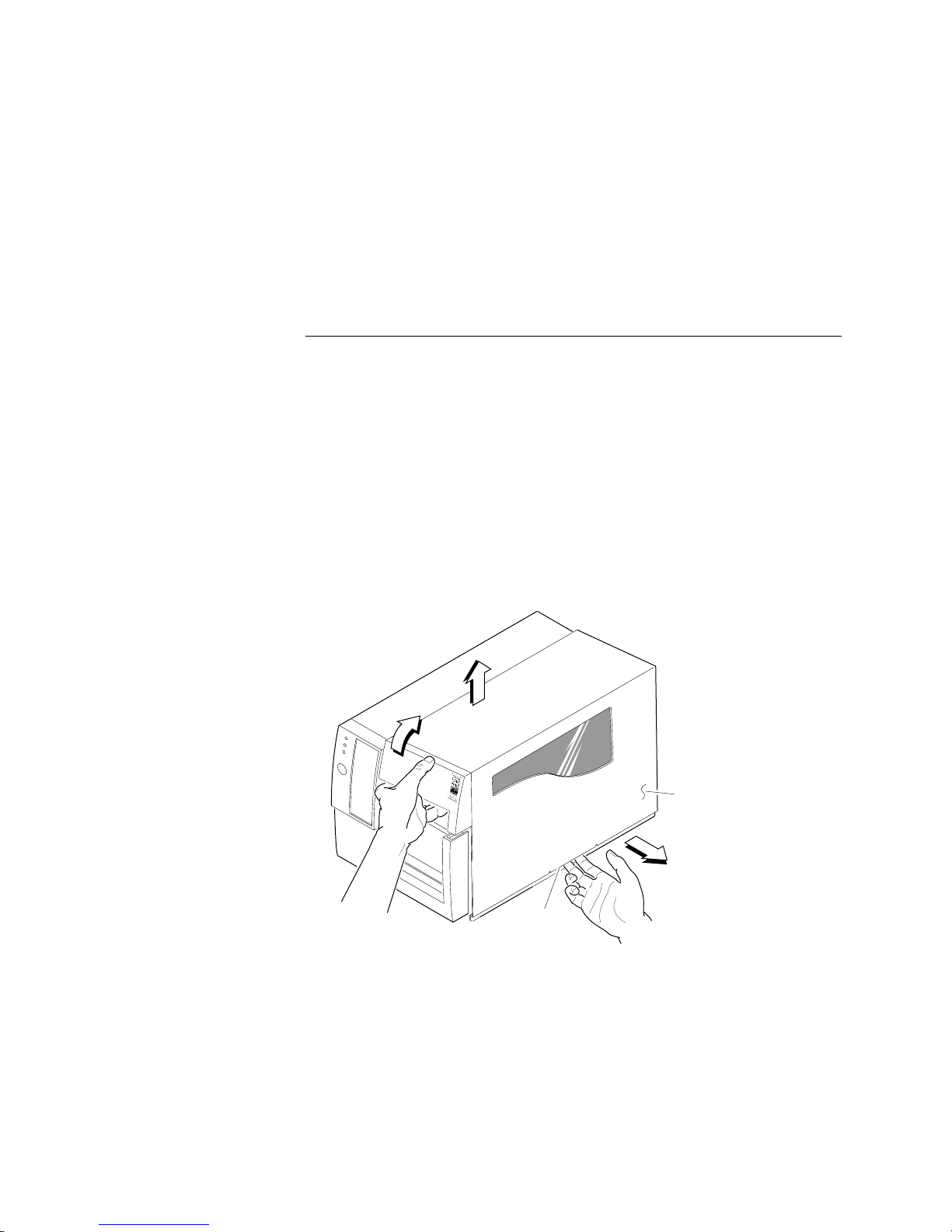

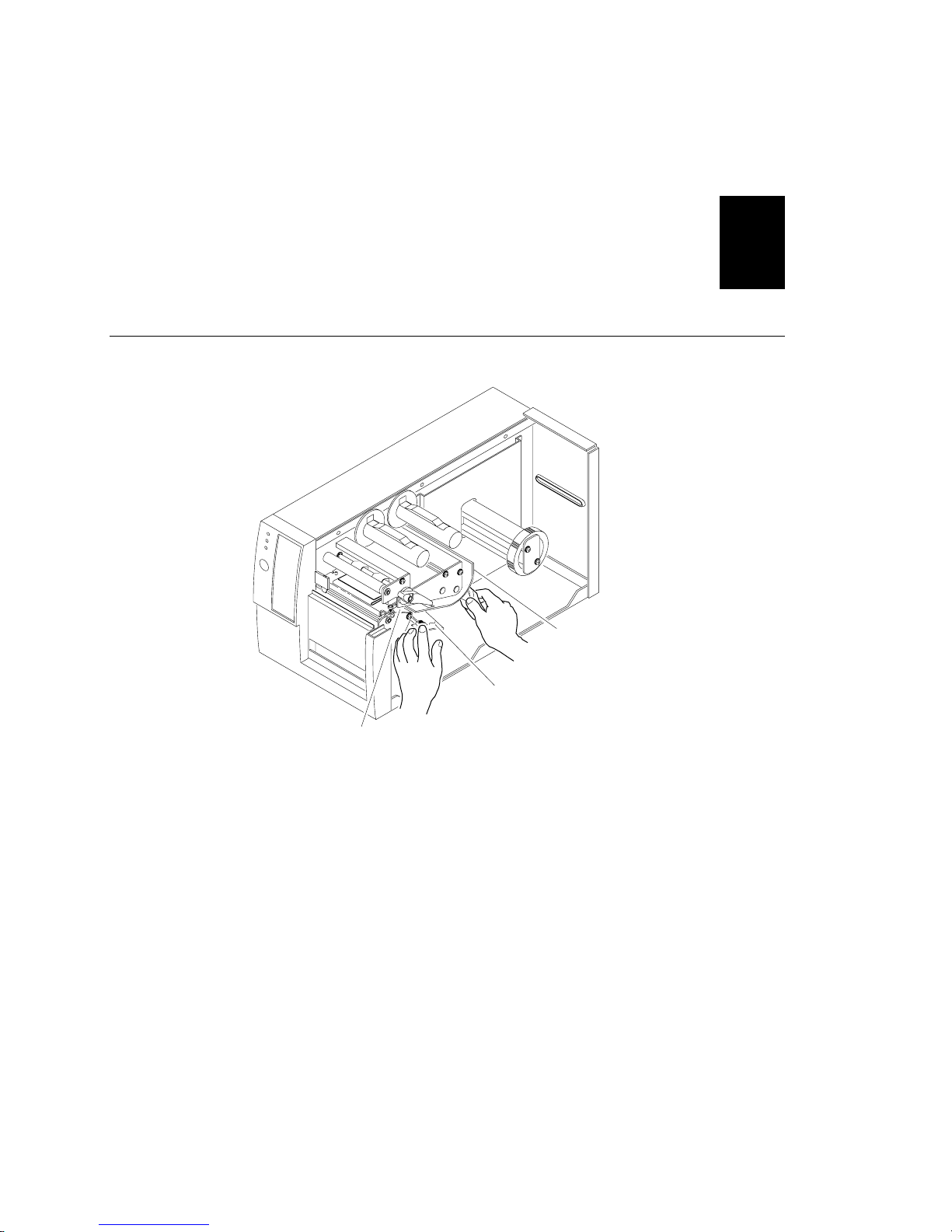

Opening the Printer 1-6

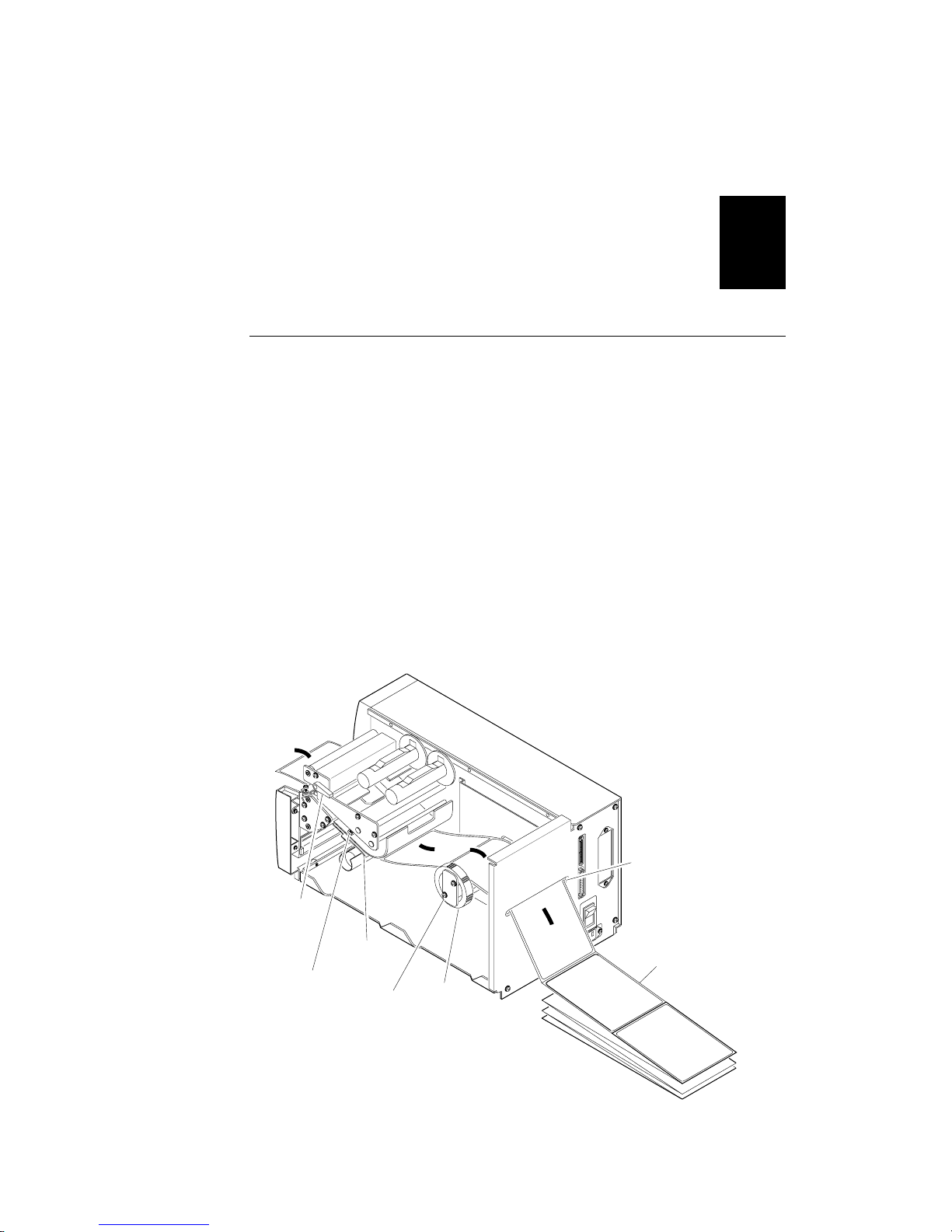

Loading Media for Fanfold Printing 1-7
Printing the Hardware Configuration Test Label 1-9

What the Hardware Configuration Test Label Tells You 1-10
If a Hardware Configuration Test Label Does Not Print 1-10

Connecting the Printer to Your System 1-10

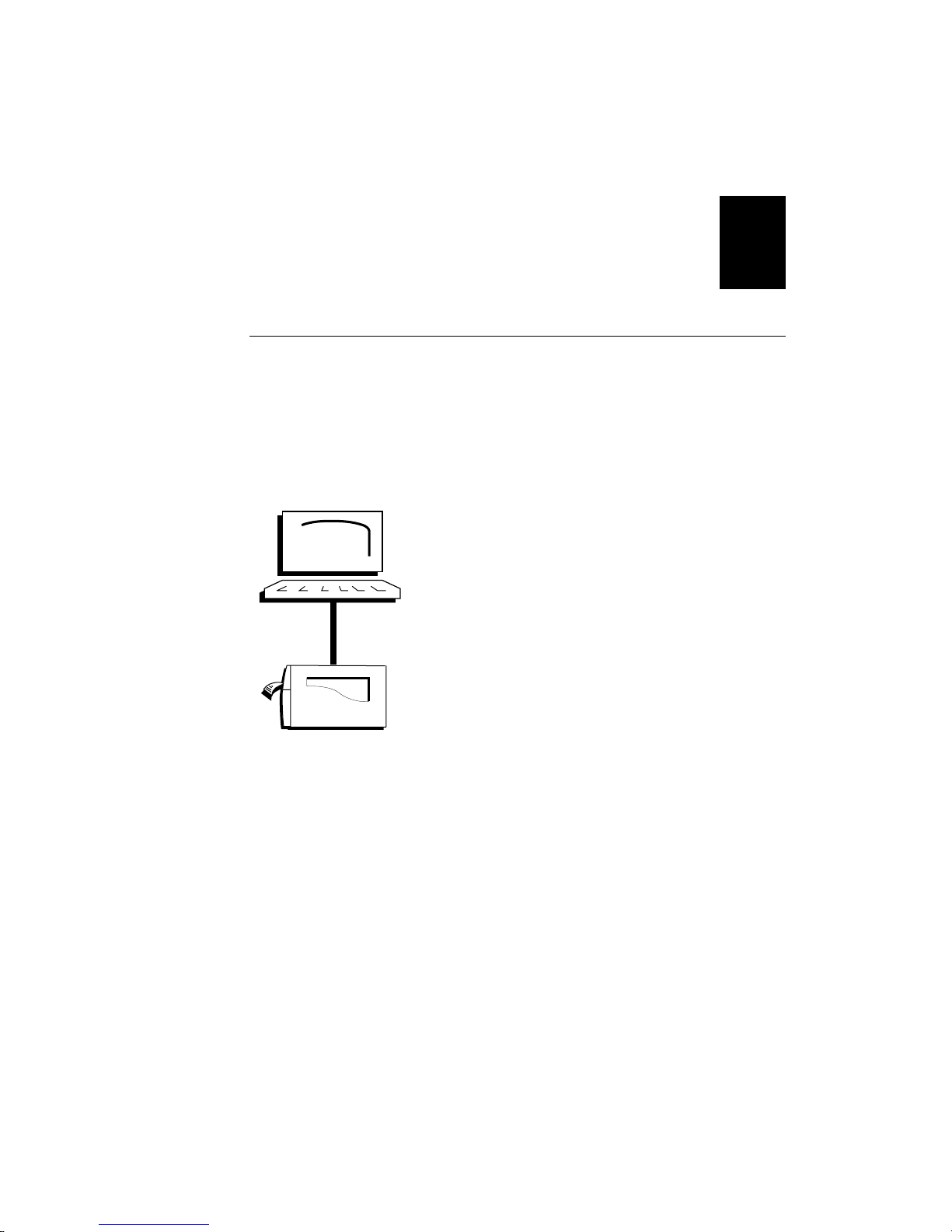

Connecting the 3440 to a PC 1-11

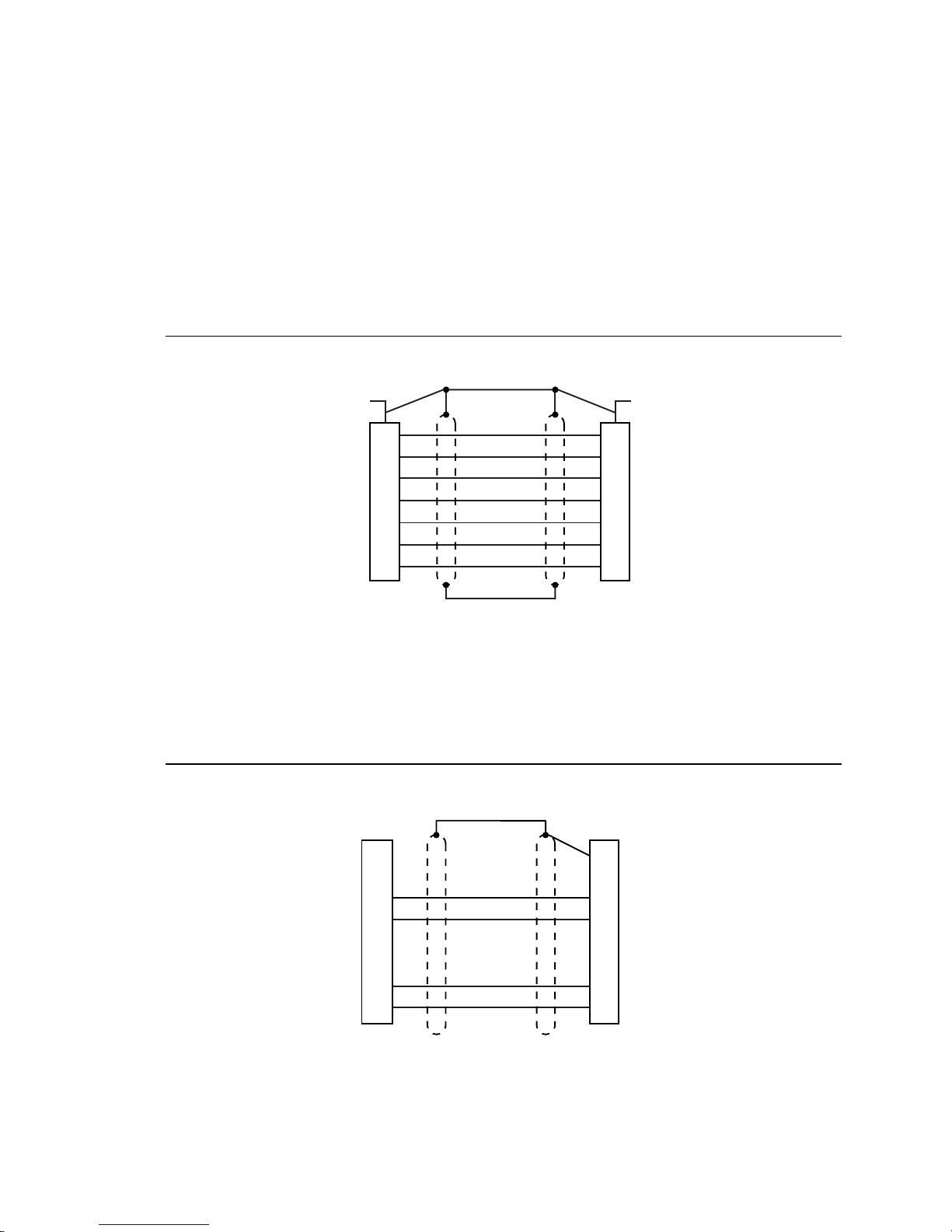

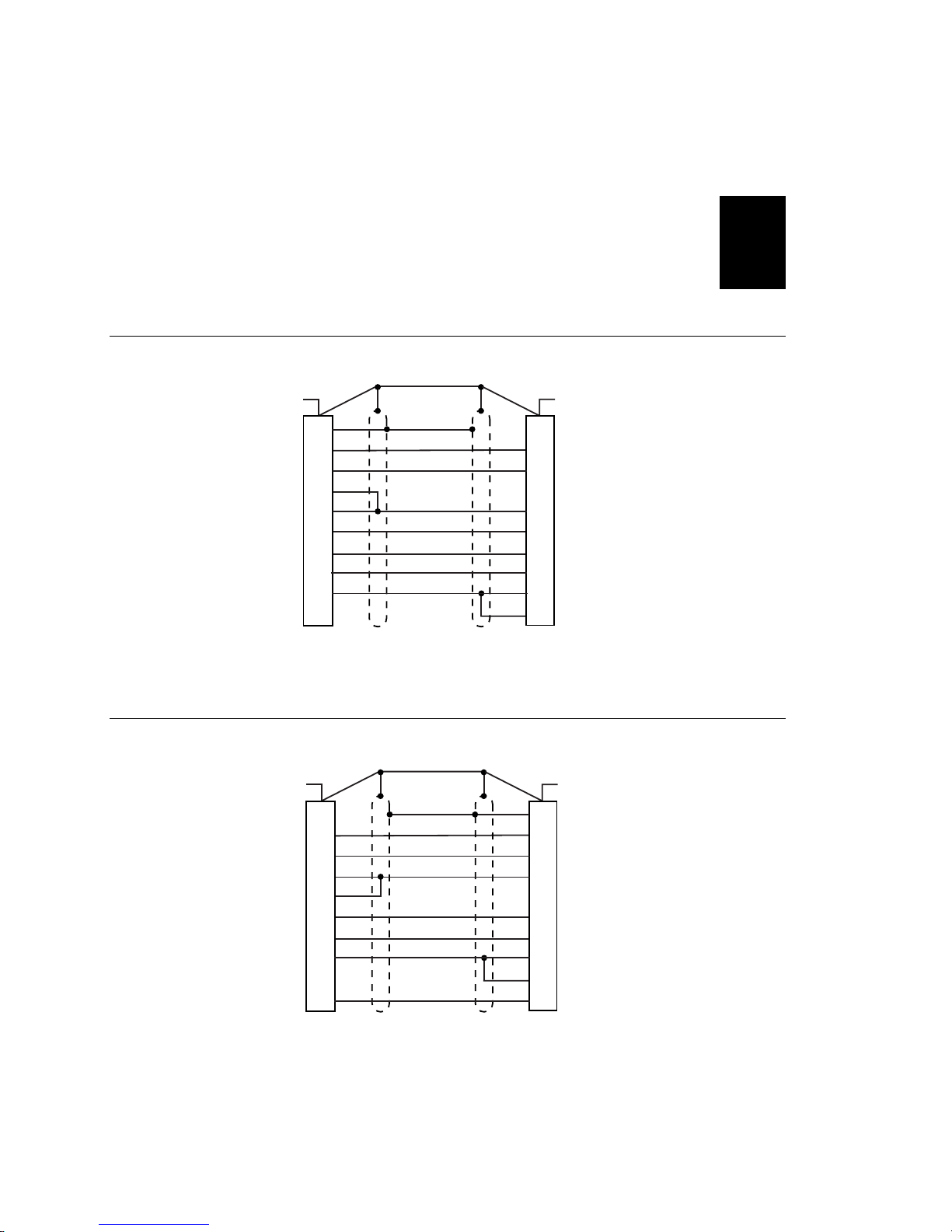

Connecting the Printer to a PC Serial Port 1-11
Connecting the Printer to a PC Parallel Port 1-12

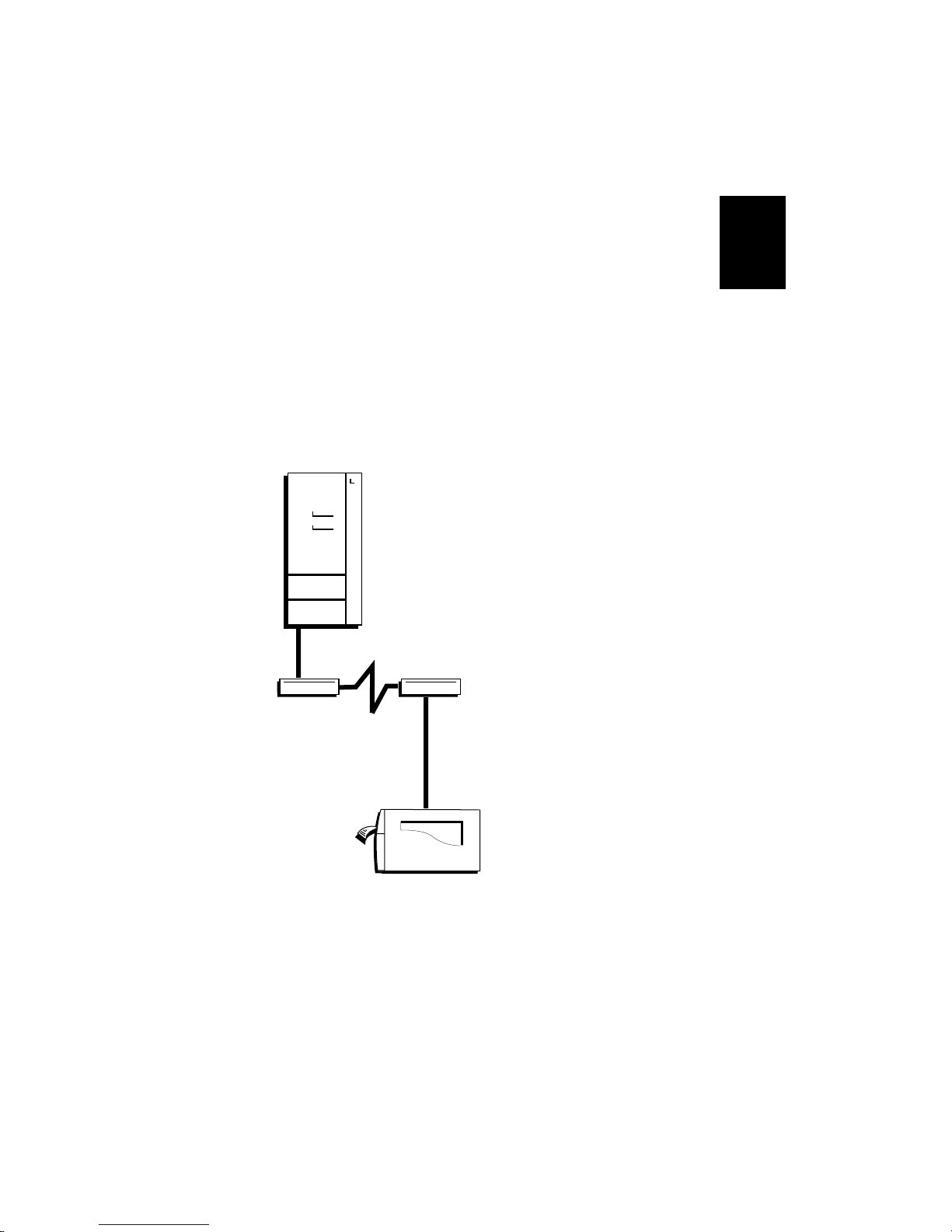

Connecting the 3440 to a PC With a Modem 1-15

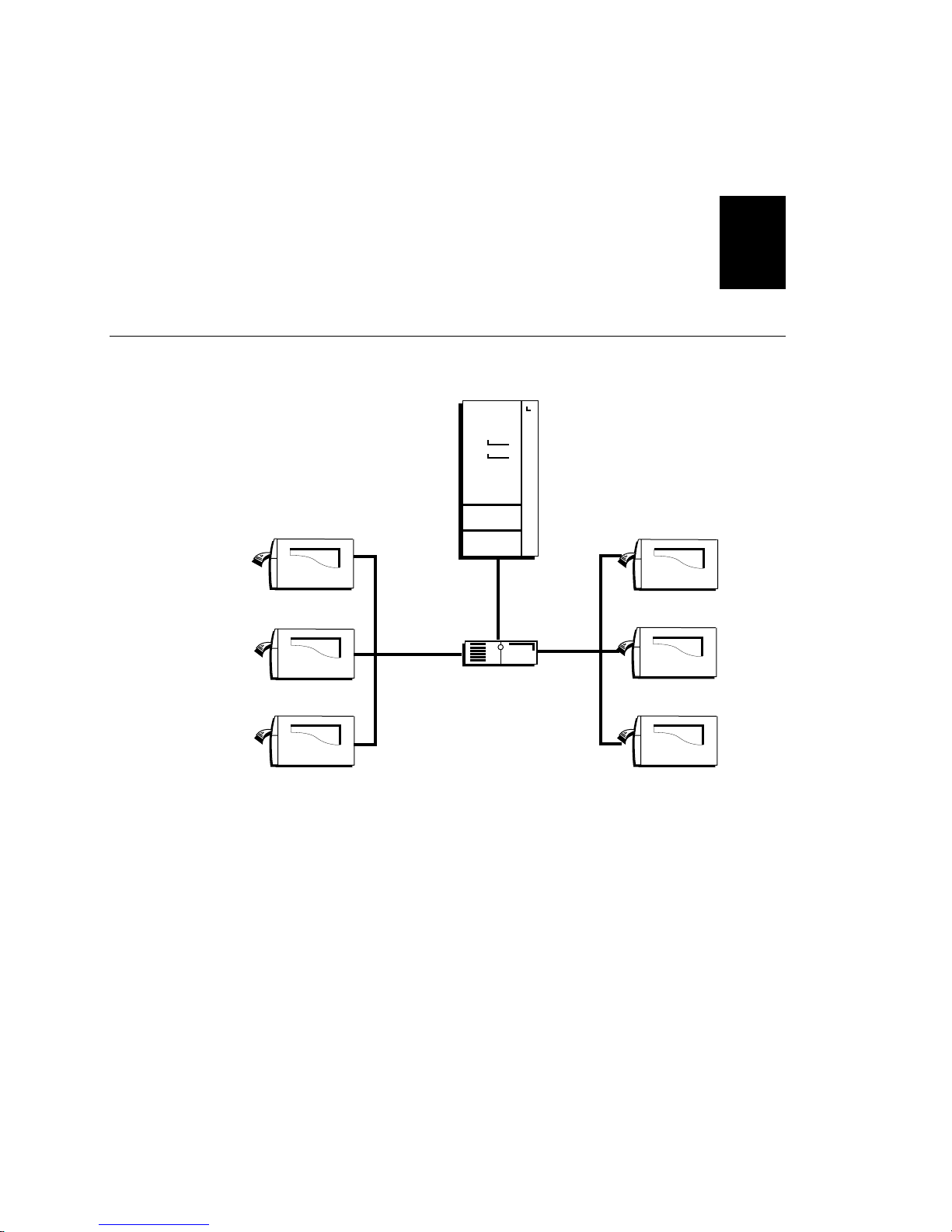

Connecting the 3440 to a Network 1-16
Connecting the 3440 to an AS400 1-18
Connecting the 3440 to a Mainframe 1-19
Cabling in Noisy Electrical Environments 1-19

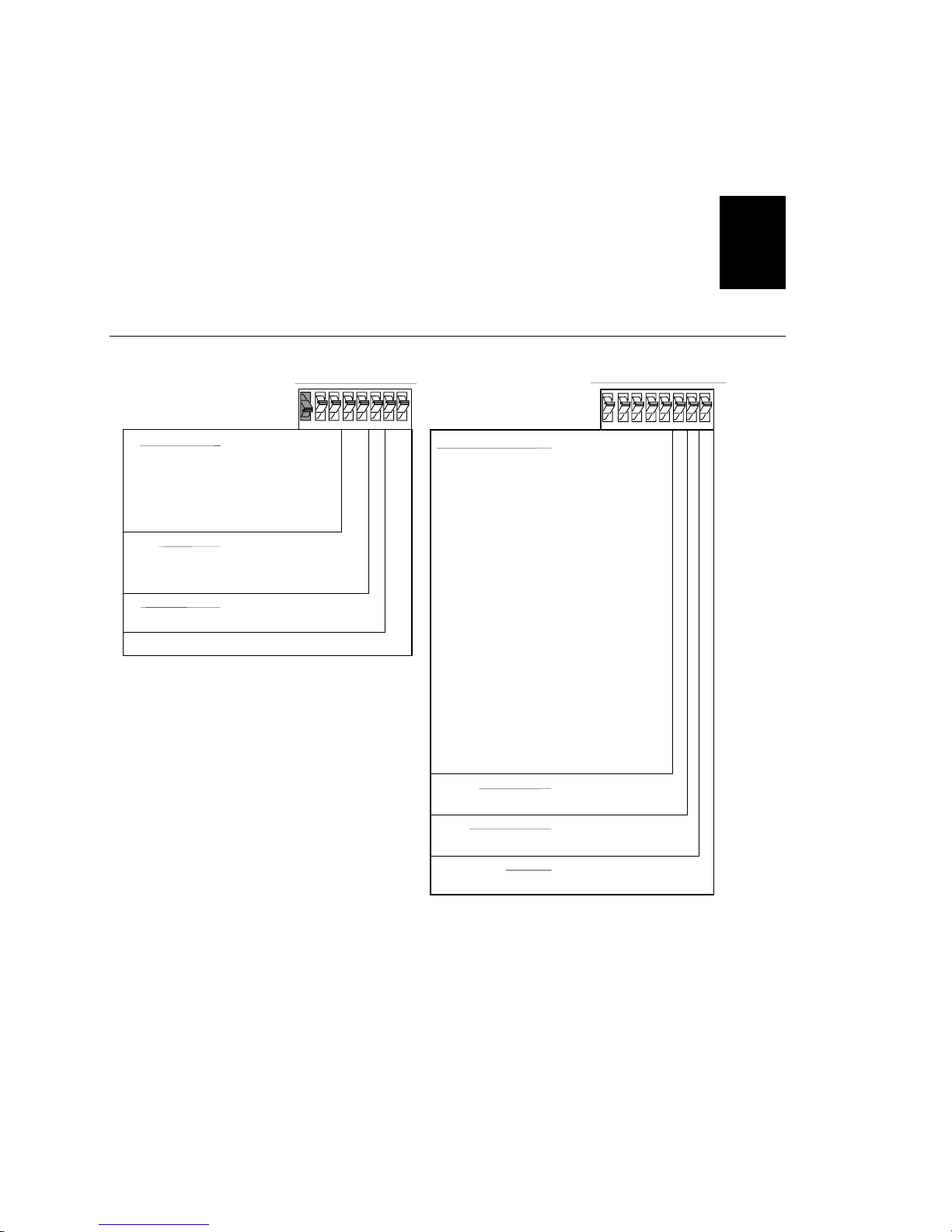

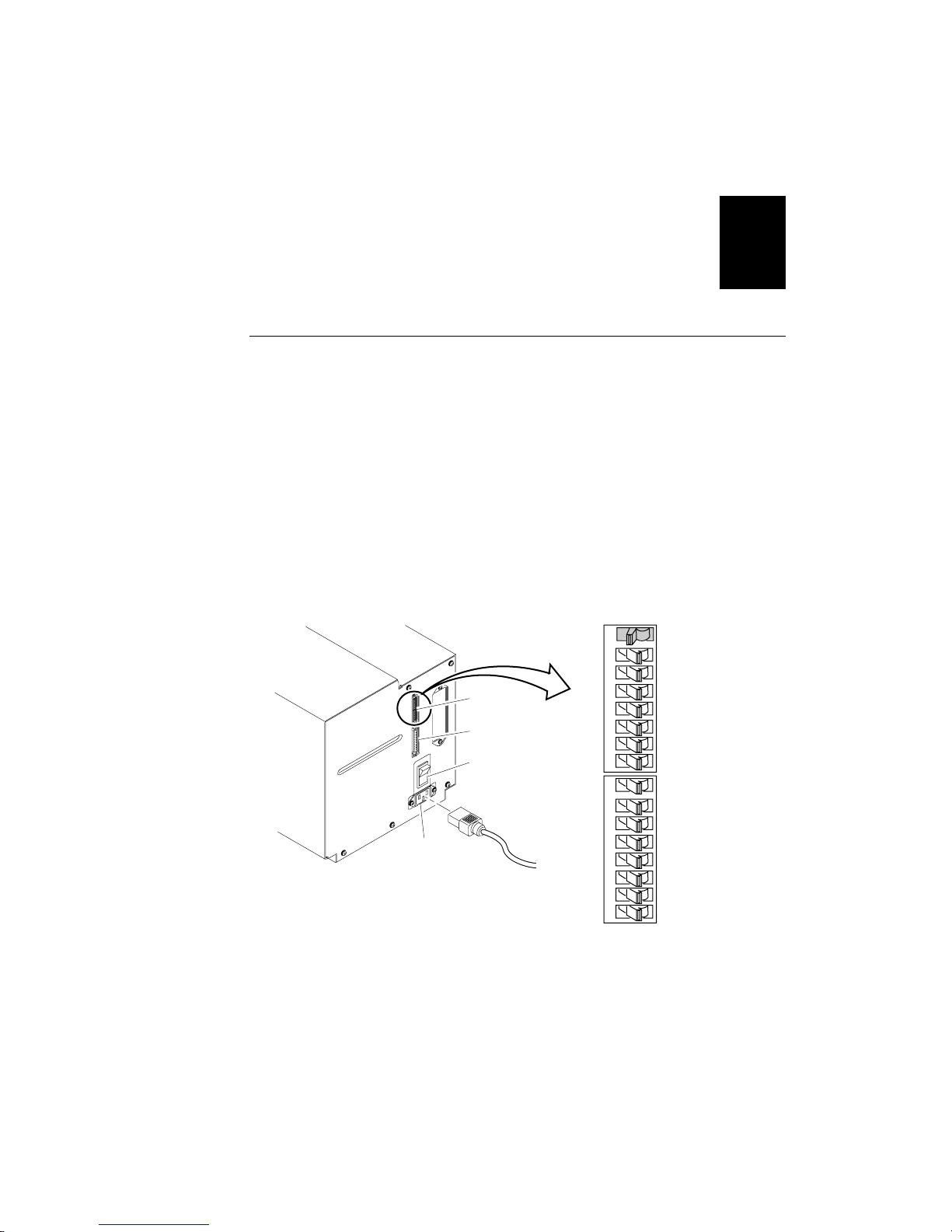

Configuring the Serial Port for Communications 1-20
Verifying Printer Communications With Your System 1-22

iii

3440 Bar Code Label Printer User’s Manual

Operating the Printer

*1233*

FranklinGothic

2

Learning How to Operate the Printer 2-3

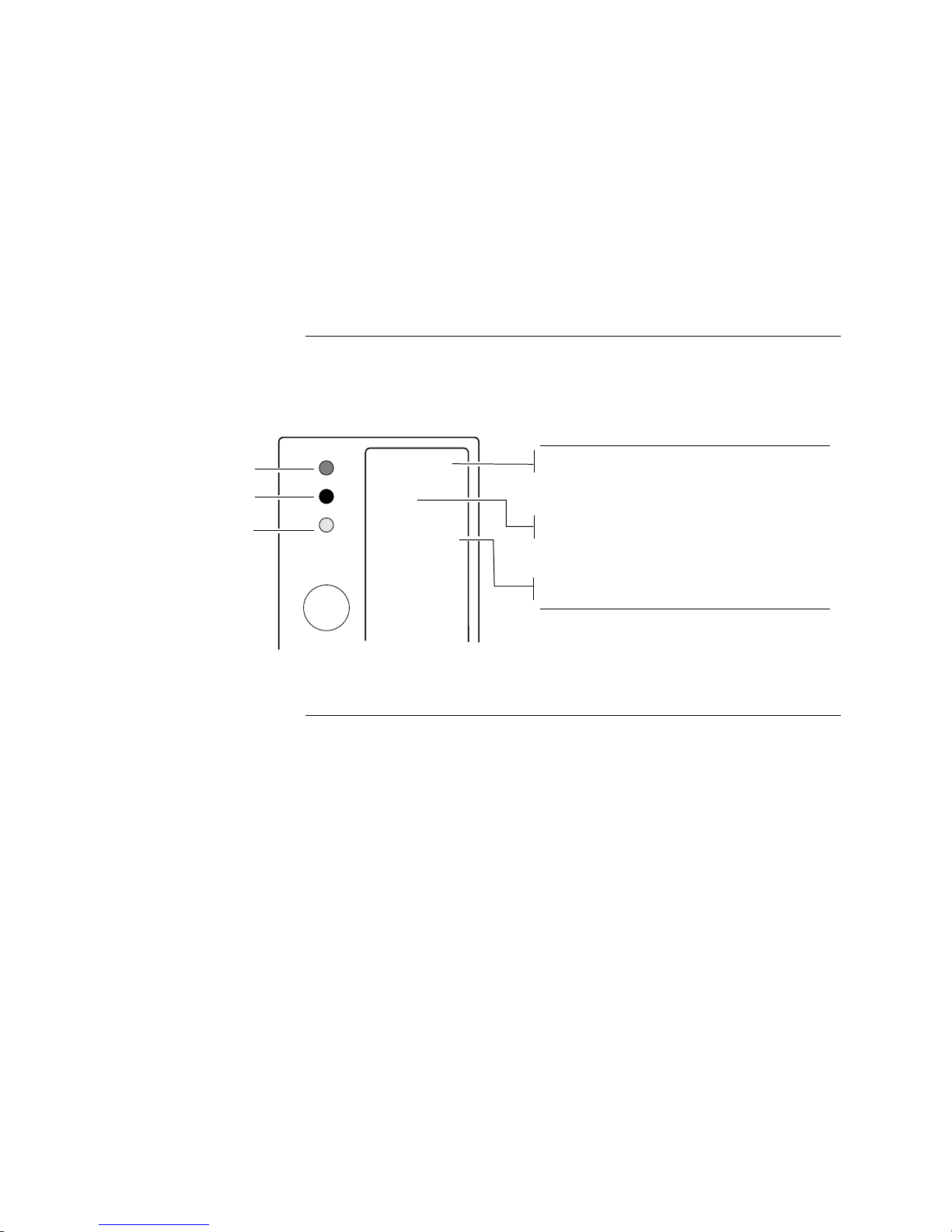

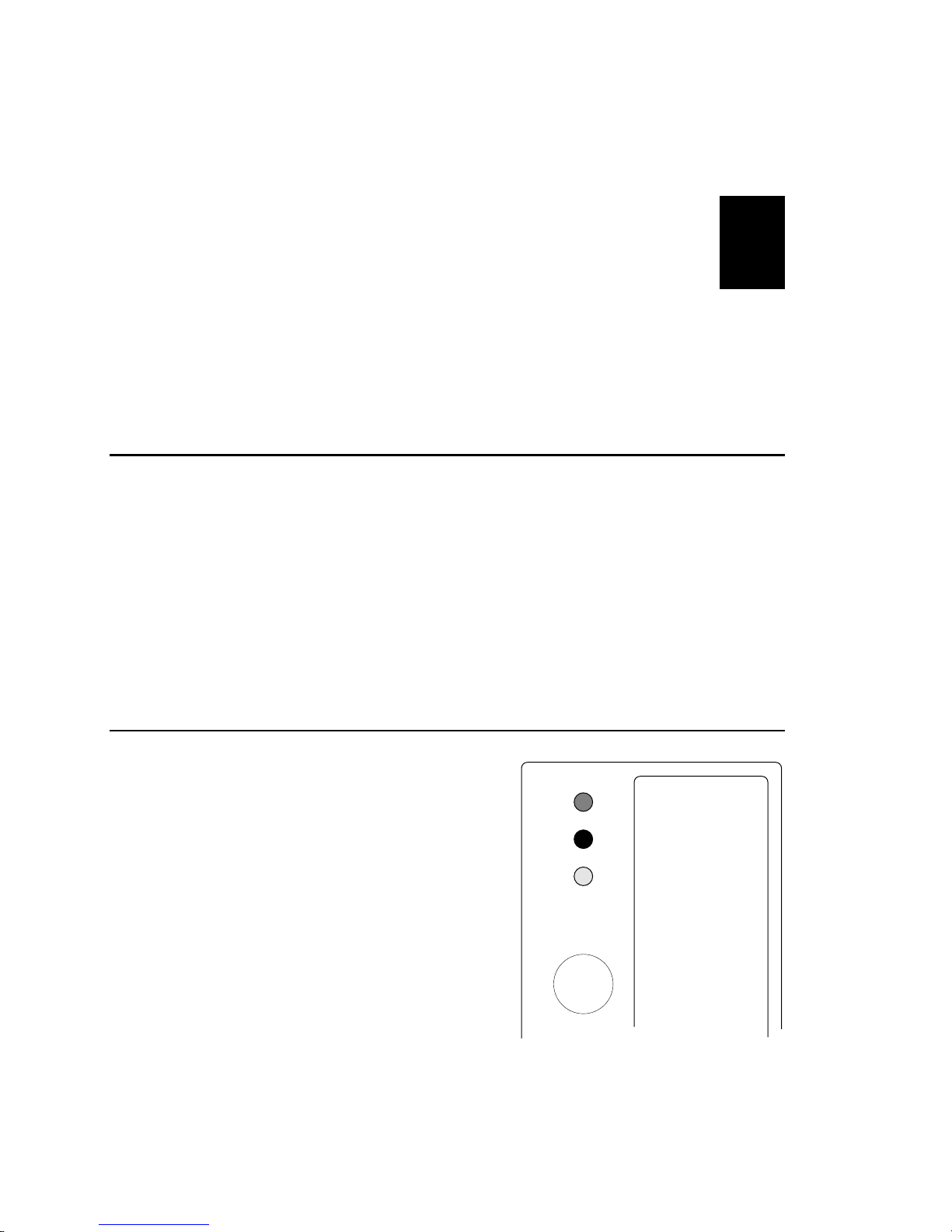

Understanding the Front Panel 2-3

Using the Front Panel LEDs 2-4
Using the Front Panel LEDs for Troubleshooting 2-4
Using the Feed/Pause Button 2-5

Loading Media Into the Printer 2-6

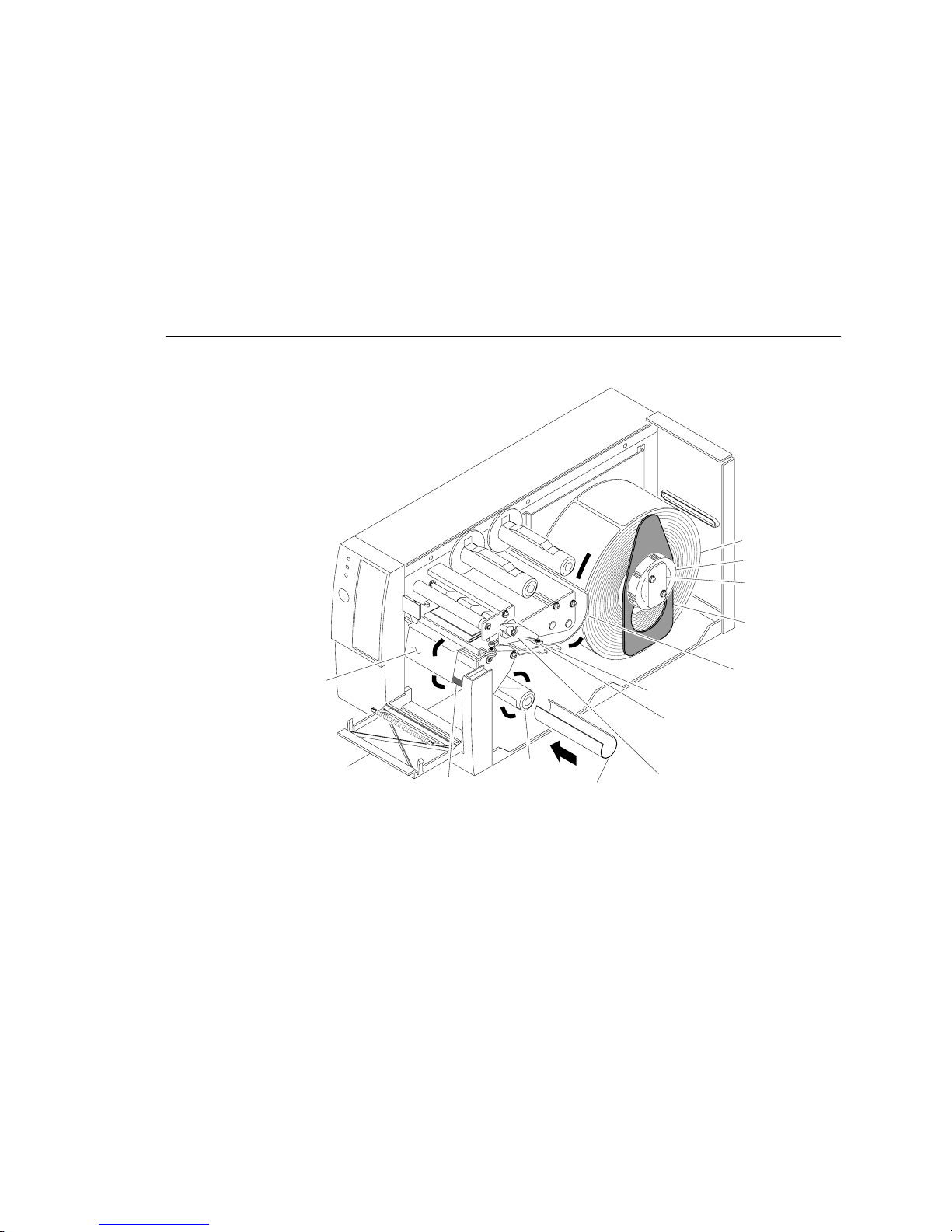

Loading Roll Media for Straight-Through Printing 2-6
Loading Media for Self-Strip Printing 2-9

Loading Thermal Transfer Ribbon 2-12

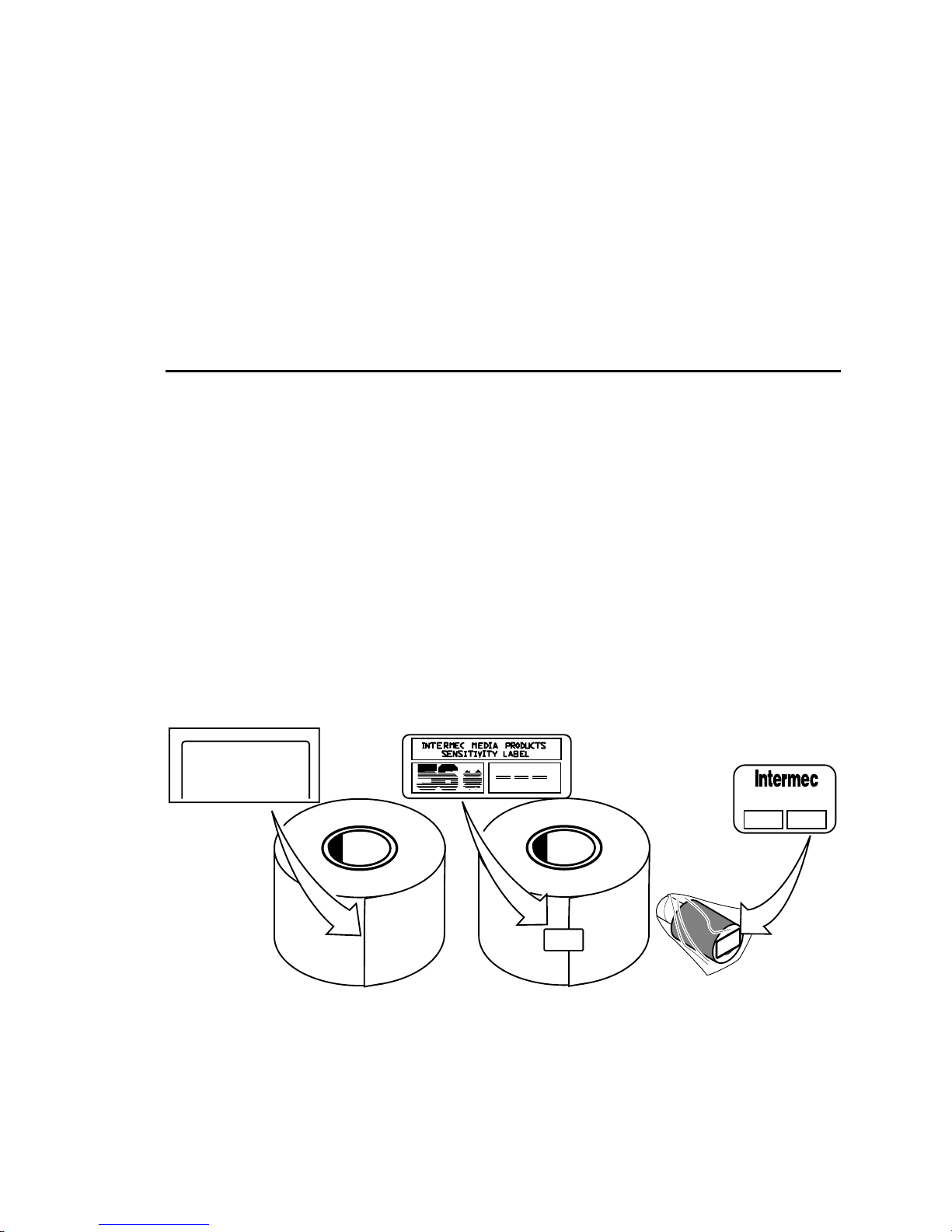

Setting the Media Sensitivity Number 2-14

Setting the Media Sensitivity Number for Intermec Media and Ribbon 2-

15

Setting the Media Sensitivity Number for Other Media and Ribbon 2-16

Communicating With the Printer 2-19

Using the PrintSet Software 2-19
Using Third-Party Software 2-19
Using Intermec Printer Language (IPL) Commands 2-20

Downloading Printer Commands Using DOS 2-20
Using ASCII Control Characters or Hexadecimal Equivalents 2-21
Using Readable Protocol/Command Characters 2-21

Downloading Printer Commands Using a Command String 2-21
Switching Between Print Mode and Program Mode 2-22
Printing a Test Label 2-23
Using a Different Platform Than a PC 2-24

iv

*1233*

Maintaining the Printer

FranklinGothic

Contents

3

4

Inspecting the Printer 3-3
Tools for Cleaning the Printer 3-3
Maintenance Schedule 3-4

Cleaning the Printhead 3-6
Cleaning the Printer Covers 3-7
Cleaning the Rollers and the Tear Bar 3-8
Cleaning the Media Guides and Media Path 3-10

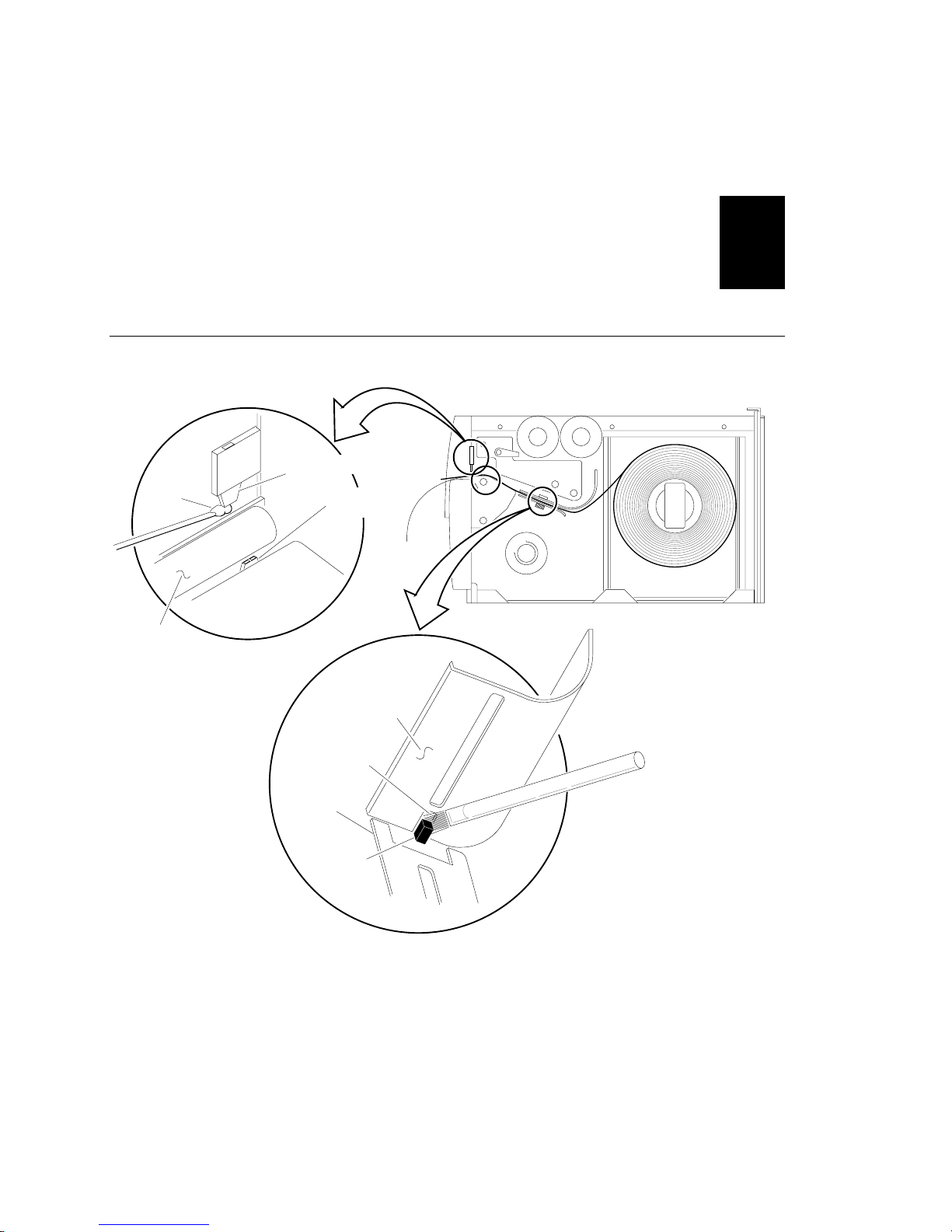

Cleaning the Label Sensors 3-12

Troubleshooting

Troubleshooting Checklist 4-3
Printer Operation Problems 4-4
Print Quality Problems 4-6
Communications Problems 4-8
Preventing Data Loss 4-9
Error Handling 4-10

Syntax Errors 4-10
Parameter Errors 4-10
Image Overrun Errors 4-10
Invalid Numeric Character Errors 4-11
Insufficient Storage RAM Errors 4-11
Error Codes 4-11

Replacing an 86XX or 3400 Printer 4-14

Differences Between 86XX Printers and Emulation Mode 4-14

No BEL Status Response 4-14

v

3440 Bar Code Label Printer User’s Manual

Prints Erroneous Labels 4-15

Limited User-Defined Protocol 4-15

Added Auto-Transmit 3 and SI Configuration Commands 4-16

Increased Storage Capacity 4-17

Features Not Implemented 4-17
Differences Between the 3400 Printer and the 3440 Printer 4-18

Printhead Size 4-18

Fonts 4-18

DPI Emulation Modes 4-19

Storage and Image Memory 4-19

TrueType Support 4-19

Increased Storage Capacity 4-19

Designing Labels and Using IPL Commands

*1233*

FranklinGothic

5

Using Label Formats 5-3
Storing Label Formats 5-3
Designing and Creating a Label Format 5-4
Defining Label Design Fields 5-9

Bar Code Fields 5-10
Human-Readable Fields 5-10

User-Defined Fonts 5-13

Downloading User-Defined Fonts 5-14

Downloading Bitmap Fonts 5-14

Downloading Outline Fonts 5-15
Lines and Boxes 5-16
Graphics 5-18

Editing Label Formats and Working With Fields 5-19

Editing Existing Fields 5-21
Deleting Fields 5-22
Positioning Fields 5-23
Rotating Fields 5-24
Scaling Fields 5-25

vi

*1233*

Magnifying Fonts and Character Fields 5-25
Magnifying Bar Code Fields 5-26

Designing Pages 5-27

Creating User-Defined Graphics 5-28

Creating One Bit Per Byte User-Defined Graphics 5-28
Creating Six Bits Per Byte User-Defined Graphics 5-32

Creating User-Defined Fonts 5-35

Creating One Bit Per Byte User-Defined Fonts 5-35
Creating Six Bits Per Byte User-Defined Fonts 5-36

Label Format Example 5-40

FranklinGothic

IPL Commands

Contents

6

Command Set Summary 6-3
Listing Printer Commands According to Function 6-10

Immediate Commands 6-10
Program Mode Commands 6-10
Print Mode Commands 6-14

Immediate Commands 6-17

Abort Print Job 6-17
Error Code, Request 6-17
Label and Gap Length, Transmit 6-18
Remaining Quantity and Batch Count, Transmit 6-18
Reset 6-18
Status Dump 6-19
Status Enquiry 6-19

Print Mode Commands 6-20

Advanced Mode, Select 6-21
Alphanumeric Field Separator 6-21
Batch Count, Set 6-22
Clear All Data 6-22

vii

3440 Bar Code Label Printer User’s Manual

Clear Data From Current Field 6-22
Command Terminator 1 6-23
Command Terminator 2 6-23
Configuration Parameters, Transmit 6-23
Cut 6-23
Data Shift – International Characters 6-24
Emulation Mode, Enter 6-24
Field, Select 6-25
Field Decrement, Set 6-25
Field Increment, Set 6-26
First Data Entry Field, Select 6-26
Font, Transmit 6-27
Form Feed 6-27
Format, Select 6-28
Format, Transmit 6-29
Increment and Decrement, Disable 6-29
Memory Usage, Transmit 6-30
Next Data Entry Field, Select 6-30
Numeric Field Separator 6-31
Options Selected, Transmit 6-31
Page, Select 6-32
Page, Transmit 6-32
Print 6-33
Printhead Parameters, Transmit 6-33
Program Mode, Enter 6-33
Program Number, Transmit 6-33
Quantity Count, Set 6-34
Start and Stop Codes (Code 39), Print 6-34
Test and Service Mode, Enter 6-34
User-Defined Characters, Transmit 6-35
User-Defined Tables, Transmit 6-35
Warm Boot 6-36

*1233*

FranklinGothic

viii

*1233*

Configuration Commands 6-37

86XX or Advanced Mode on Power-Up 6-38
Amount of Storage, Define 6-38
Audible Alarm, Enable or Disable 6-38
Auto-Transmit 1, Enable 6-39
Auto-Transmit 2, Enable 6-39
Auto-Transmit 3, Enable 6-40
Auto-Transmit 1, 2, and 3, Disable 6-40
Control Panel Access Permission, Set 6-40
Cutter, Enable or Disable 6-40
Dark Adjust, Set 6-41
End-of-Print Skip Distance, Set 6-41
IBM Language Translation, Enable or Disable 6-42
Intercharacter Delay, Set 6-42
Interlabel Ribbon Save, Enable or Disable 6-42
Label Rest Point, Adjust 6-43
Label Retract, Enable or Disable 6-43
Label Retract Distance, Set 6-44
Label Stock Type, Select 6-44
Label Width, Set 6-44
Maximum Label Length, Set 6-45
Media Sensitivity, Select 6-45
Message Delay, Set 6-46
Number of Image Bands, Set 6-46
Online or Offline on Power-Up 6-46
Postamble, Set 6-47
Preamble, Set 6-47
Print Speed, Set 6-47
Printer Language, Select 6-48
Printhead Pressure, Set 6-48
Printhead Test Parameters, Set 6-48
Ribbon Save Zones, Set 6-49
Self-Strip, Enable or Disable 6-49
Top of Form, Set 6-49

FranklinGothic

Contents

ix

3440 Bar Code Label Printer User’s Manual

Program Mode Commands 6-50

Bar Code, Select Type 6-51

Code 39 6-52

Code 93 6-52

Interleaved 2 of 5 6-52

Code 2 of 5 6-53

Codabar 6-53

Code 11 6-53

Code 128 6-54

UPC/EAN 6-54

HIBC Code 39 6-56

Code 16K 6-56

Code 49 6-57

POSTNET 6-57

PDF417 6-57

Code One 6-60

Maxicode 6-64

JIS-ITF 6-65

HIBC Code 128 6-66

Bar Code Field, Create or Edit 6-67
Bitmap Cell Height for Graphic or UDF, Define 6-67
Bitmap Cell Width for Graphic or UDF, Define 6-68
Bitmap User-Defined Font, Clear or Define 6-68
Border Around Human-Readable Text, Define 6-68
Box Field, Create or Edit 6-69
Character Bitmap Origin Offset, Define 6-69
Character Rotation or Bar Code Ratio, Define 6-70
Code 39 Prefix Character, Define 6-70
Command Tables, Load 6-71
Current Edit Session, Save 6-71
Data Source for Format in a Page, Define 6-72
Field, Delete 6-72
Field Data, Define Source 6-73
Field Direction, Define 6-73
Field Origin, Define 6-74
Font Character Width, Define 6-74
Font Type, Select 6-75

*1233*

FranklinGothic

x

*1233*

FranklinGothic

Contents

Format, Create or Edit 6-76
Format Direction in a Page, Define 6-76
Format, Erase 6-76
Format Offset Within a Page, Define 6-77
Format Position in a Page, Assign 6-77
Format Position From Page, Delete 6-77
Graphic Type, Select 6-78
Graphic or UDC, Define 6-78
Height Magnification of Bar, Box, or UDC, Define 6-78
Human-Readable Field, Create or Edit 6-79
Intercharacter Space for UDF, Define 6-80
Interpretive Field, Edit 6-80
Interpretive Field, Enable or Disable 6-80
Length of Line or Box Field, Define 6-81
Line Field, Create or Edit 6-81
Outline Font, Download 6-82
Outline Font, Clear or Create 6-82
Page, Create or Edit 6-83
Page, Delete 6-83
Pitch Size, Set 6-83
Point Size, Set 6-84
Print Line Dot Count Limit, Set 6-84
Program Mode, Exit 6-84
User-Defined Character, Clear or Create 6-84
User-Defined Character Field, Create or Edit 6-85
User-Defined Font Character, Create 6-85
Width of Line, Box, Bar, or Character, Define 6-86

Test and Service Mode Command Descriptions 6-87
User-Defined Interface Tables 6-89

Print Commands (t = 0) 6-89
Escape Print Commands (t = 1) 6-90
Shift Print Commands (t = 2) 6-91
Status Responses and Auto-Transmit Commands (t = 3) 6-92

xi

3440 Bar Code Label Printer User’s Manual

Protocol Commands (t = 4) 6-93
Communications Protocol Characters 6-94

Optimizing Printer Performance

*1233*

FranklinGothic

7

Optimizing and Maintaining Print Quality 7-3

Selecting the Correct Media 7-4
Setting the Print Speed 7-4
Selecting the Correct Media Sensitivity Number 7-5
Selecting the Correct Bar Code Orientation 7-6
Correcting Uneven Print Quality 7-6
Adjusting the Print Darkness 7-8

Using the Printer Memory Efficiently 7-9

How Is the 3440 RAM Used? 7-9
Making the Most of Your RAM 7-10

Maximizing Throughput 7-11

What Is an Image Band? 7-11
How the Image Bands Command Works 7-12
Optimizing Print Speed and Image Band Setting 7-12
Reimaging Modified Fields 7-13
Optimizing Image Bands for Batch Printing 7-14

Using Test and Service Mode

8

xii

Using Test and Service Mode Procedures 8-3

Printing Test Labels 8-5
Using Data Line Print 8-5
Performing Cloning 8-6
Performing Selective Transfer 8-7
Using Memory Reset 8-8

*1233*

Changing Configuration Commands in Test and Service Mode 8-9

Setting the Number of Dot Increments 8-10
Adjusting the Label Rest Point 8-11
Setting Emulation Mode 8-13
Using Forms Adjust 8-15

X Forms Adjust 8-16
Y Forms Adjust 8-17

FranklinGothic

Contents

Printer Reference

A

3440 Printer Specifications A-3
Factory Default Settings A-6
Printer Commands Cross-Reference A-7
Communications Protocol Characters A-9
Configuration Parameters Upload A-10
Printer Functional Boundaries A-11
Printer Options A-13

Memory Expansion A-13
Twinax Interface A-13
Coax Interface A-13
Batch Takeup A-13
Kanji/Katakana A-13
Centronics Parallel Interface A-14

Bar Code Symbologies A-15
International Character Sets A-18

Advanced Character Table A-18
86XX Character Table A-19
BM Translation Character Table A-19
Code Page 850 Character Table A-20

xiii

3440 Bar Code Label Printer User’s Manual

Extended Character Sets A-21
DIP Switch Settings A-25
Full ASCII Chart A-27

Communications Reference

*1233*

FranklinGothic

B

G

Communications Protocols B-3

Intermec Standard Protocol B-3
XON/XOFF Protocol (Software and Hardware Flow Control) B-4
XON/XOFF, No Status Protocol B-5
Polling Mode D B-6
Multi-Drop Protocol B-6
User-Defined Protocol B-6
Host Requirements B-8
Communications Boundaries B-8

Communications Interfaces B-9

RS-232 Serial Interface B-9
RS-422 Serial Interface B-9
RS-485 Serial Interface B-9

Printer Serial Port B-11

Glossary

Index

I

xiv

Before You Begin

This section introduces you to standard warranty provisions, safety
precautions, warnings and cautions, document formatting conventions, and
sources of additional product information. A documentation roadmap is
also provided to guide you in finding information in this manual.

Warranty Information

To receive a copy of the standard warranty provision for this product,
contact your local Intermec sales organization. In the U.S. call
1-800-755-5505, and in Canada call 1-800-688-7043. Otherwise, refer to the
Worldwide Sales & Service list that was shipped with this manual for the
address and telephone number of your Intermec sales organization.

Safety Summary

Your safety is extremely important. Read and follow all warnings and
cautions in this book before handling and operating Intermec equipment.
You can be seriously injured, and equipment and data can be damaged if
you do not follow the safety warnings and cautions.

*1233*

FranklinGothic

Before You Begin

Do Not Repair or Adjust Alone Do not repair or adjust energized equipment

alone under any circumstances. Someone capable of providing first aid must
always be present for your safety.

First Aid Always obtain first aid or medical attention immediately after an
injury. Never neglect an injury, no matter how slight it seems.

Resuscitation Begin resuscitation immediately if someone is injured and
stops breathing. Any delay could result in death. To work on or near high
voltage, you should be familiar with approved industrial first aid methods.

Energized Equipment Never work on energized equipment unless
authorized by a responsible authority. Energized electrical equipment is
dangerous. Electrical shock from energized equipment can cause death. If
you must perform authorized emergency work on energized equipment, be
sure that you comply strictly with approved safety regulations.

xv

3440 Bar Code Label Printer User’s Manual

g

y

p

p

pp

g

Warnings and Cautions

The warnings and cautions in this manual use the following format.

Warnin

A warning alerts you of an operating procedure, practice, condition, or
statement that must be strictl

ersons working on the equipment.

the

Avertissement

Un avertissement vous avertit d’une
méthode, d’un état ou d’un ra
éviter l’occurrence de mort ou de blessures
l’équipement.

Caution

A caution alerts you to an operating procedure, practice, condition, or
statement that must be strictly observed to prevent equipment damage or
destruction, or corruption or loss of data.

observed to avoid death or serious injury to

rocédure de fonctionnement, d’une

ort qui doit être strictement respecté pour

raves aux personnes manupulant

Conseil

Une précaution vous avertit d’une procédure de fonctionnement, d’une
méthode, d’un état ou d’un rapport qui doit être strictement respecté pour
empêcher l’endommagement ou la destruction de l’équipement, ou l’altération
ou la perte de données.

xvi

*1233*

FranklinGothic

Before You Begin

About This Manual

Analysts and programmers should use this manual to learn how to operate,
program, and connect the printer to a network or system. The first part of
this manual tells you how to install, operate, maintain, and troubleshoot
your printer. The last part of the manual covers label design, programming,
and advanced features of the 3440 printer. A basic understanding of DOS,
programming, and data communications is necessary.

What You Will Find in This Manual

This table summarizes the information in each chapter of this manual:

For Information On Refer To

Installing the printer Chapter 1, “Getting Started.” Tells you how to plug in

the printer, load fanfold media, configure the serial port,
and print a configuration test label.

Operating the printer Chapter 2, “Operating the Printer.” Explains the printer

front panel, tells you how to load roll media, load
ribbon, test for communications, and download fonts.

Routine maintenance Chapter 3, “Maintaining the Printer.” Shows how to

maintain the printer.

Troubleshooting Chapter 4, “Troubleshooting.” Instructs how to clear

error messages and troubleshoot programming or
configuration problems.

Designing labels Chapter 5, “Designing Labels and Using IPL

Commands.” Tells you how to use the Intermec Printer
Language (IPL) command set to design labels.

Printer commands Chapter 6, “IPL Commands.” Provides a complete

reference to the IPL command set.

Improving printer
performance

Test and Service features Chapter 8, “Using Test and Service Mode.” Provides

Reference information Appendix A, “Printer Reference.” Contains operating

Communications Appendix B, “Communications Reference.” Provides

Chapter 7, “Optimizing Printer Performance.” Tells you
how to fine-tune the printer to increase processing time.

information on using Test and Service mode to print test
labels, perform procedures and configure settings.

specifications, extended character sets, and reference
tables.

information on communication protocols for your
system and serial port pin assignments.

xvii

3440 Bar Code Label Printer User’s Manual

Terms and Conventions

The following special terms and conventions occur throughout the manual.
Refer to the glossary for a complete list of terms.

Terms

“Printer” or “3440” refer to the 3440 bar code label printer.
“Media” is the label stock on which the printer prints labels.
“Host” refers to a personal computer or other computer that communicates

with the printer.

Conventions

The following conventions are used throughout this manual for operating
procedures and descriptions of the printer.

• Feed/Pause refers to the Feed/Pause button on the printer front panel.

• Downloaded commands appear in the order that you enter them into the

printer with the following conventions:

xviii

Convention Description

< > Angle brackets < > enclose mnemonic representations of ASCII

control characters. For example, <ETX> represents the ASCII
“End of Text” control character.

data Italic text represents variable data, which you must replace with a

real value. For example, n signifies a variable for which you must
designate a constant value.

[data] Italic text within brackets represents optional data.

Ctrl Bold text represents a key on your keypad. For example, Tab

represents the Tab key and M represents the letter M key.

Ctrl-Z When two keys are joined with a dash, press them

simultaneously. For example, if you see the command Ctrl-C,
press the two keys at the same time.

E3;F3 Type all characters that appear in the Courier font by pressing an

individual key on the keypad.

*1233*

FranklinGothic

Before You Begin

Other Intermec Manuals

The following manuals provide additional information about printing labels
with your bar code printer.

Manual Intermec Part Number

9154 Multi-Drop Line Controller System Manual 048517
9161B Installation Manual 049572
9180 Network Controller User’s Manual 054292
Data Communications Reference Manual 044737
Model 200 Controller System Manual 063439
RF System User’s Manual 053574
The Bar Code Book 051241

xix

1

Getting Started

1233*

Helv Condensed Getting Started

FranklinGothic

This chapter introduces the 3440 printer and explains how to get your new printer
running for the first time.

Getting to Know Your 3440 Printer

Features of the 3440 printer include:

• support for direct thermal and thermal transfer printing applications.

Chapters 1 and 2 tell you how to load both types of media.

• an internal self-strip with integral liner takeup. See Chapter 2,

“Operating the Printer,” for more information.

• support for TrueType fonts.

• 406 dpi printhead.

Front View

1

Media
window

Power/Data
LED

Alert LED

Empty/Pause
button

Feed/Pause
button

Power/Data

Alert

Empty/Pause

Feed/Pause

Intermec

3440

Media access
door

Media
cover

3440U.002

1-3

3440 Bar Code Label Printer User’s Manual

Back View

Media
window

Media
cover

1233*

Fanfold media
access slot

FranklinGothic

Darkness adjust
control

DIP switches

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

Optional I/O
board port

Serial communications
port

I

O

On/Off
switch

AC power cord
receptacle

Helv Condensed

3440U.003

Several options are available for use with the 3440 printer. See Appendix A,
“Printer Reference,” for a complete description of each option.

Preparing the Printer for Installation

Before connecting your 3440 to your data collection system, you need to:

• plug in your printer.

• open the printer and load media.

• print a configuration test label.

These steps are described in the next sections.

1-4

1233*

Helv Condensed Getting Started

1

FranklinGothic

Plugging in the Printer

The back of the 3440 printer contains the AC power cord receptacle, the
serial communications port, the On/Off (|/O) switch, and two banks of DIP
switches.

To plug in the printer

1. Turn the On/Off switch to the off (O) position.

2. Make sure the DIP switches are set to their factory default settings.

Top Bank Set switch 1 on. Set switches 2 through 8 off.
Bottom Bank Set switches 1 through 8 off.

Default Settings

1 2 3 4 5 6 7 8

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

I

O

AC power cord
receptacle

DIP
switches

Serial
communications port

On/Off
switch

ON

ON

OFF

1 2 3 4 5 6 7 8

OFF

3440U.004

3. Plug the AC power cord into the receptacle at the rear of the printer.

4. Plug the other end of the power cord into a grounded wall outlet or
surge protector.

5. Turn the On/Off switch to the on (|) position. When you power on the
printer, the green light emitting diodes (LED) lights, the yellow LED
flashes, and the platen roller advances. The yellow LED then stays on
until you load media.

1-5

3440 Bar Code Label Printer User’s Manual

Opening the Printer

You need to open the printer every time you load media or perform
maintenance procedures.

To open the printer

1. Place the fingers of your right hand between the two notches on the
lower edge of the media cover (the media cover release) and pull the
bottom of the media cover away from the base of the printer.

2. Grasp the front of the media cover with your left hand and lift the front
of the media cover upward to release it from the printer frame.

3. Lift the media cover away from the top of the printer.

1233*

3

FranklinGothic

Helv Condensed

1-6

Power/Data

Alert

Empty/Pause

Feed/Pause

IntermecIntermec

3440

2

Media
cover

1

Media cover
release
(between the two
notches)

3440U.005

1233*

Helv Condensed Getting Started

1

FranklinGothic

Loading Media for Fanfold Printing

Use the sample of fanfold media provided in the Media Envelope to
complete the following procedures. In fanfold printing, you place a stack of
fanfold media at the rear of the printer and feed it into the printer through a
slot in the rear cover.

If you want to load rolls of media (instead of fanfold), see “Loading Media

Note:

into the Printer” in Chapter 2.

To load media for fanfold printing

1. Open the printer.

2. Rotate the head lift lever clockwise to release the printhead.

3. Turn the supply roll retainer counterclockwise and slide it to the outer
end of the supply roll post. Turn it clockwise to lock it in place.

➤

Head lift
lever

Edge
guide

Lower
media guide

Supply
roll
post

➤

Supply
roll
retainer

➤

➤

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

Media access
slot

➤

I

O

Fanfold
media

3440U.006

1-7

3440 Bar Code Label Printer User’s Manual

4. Place the fanfold media slightly lower than the slot in the printer back
cover. Align the fanfold media with the label path through the printer.
Insert media through the slot at the rear of the printer and thread it over
the supply roll post.

5. Unscrew the edge guide and slide it to the outer edge of the lower media
guide. Screw it in place.

6. Pull down on the lower media guide to allow easy access to the media
path.

7. Insert the fanfold media through the printer mechanism as shown in the
illustration. The fanfold media passes over the supply roll post and out
the front opening of the printer.

8. Release the lower media guide and adjust the edge guide to position the
media firmly against the inside wall of the printer.

9. Slide the supply roll retainer up to the edge of the fanfold media and
turn the supply roll retainer clockwise until it locks firmly in place. This
action secures the media against the inside wall of the printer.

10. Rotate the head lift lever counterclockwise until it locks to engage the
printhead.

1233*

FranklinGothic

Helv Condensed

1-8

11. Replace the media cover.

12. Press the Feed/Pause button to advance one label through the printer.
The printer is now ready to print the configuration test label. The yellow
Empty/Pause LED goes out.

If the yellow Empty/Pause LED does not go out, reload the media and try

Note:

again.

For your convenience, refer to the label with directions for loading media

Note:

located on the inside of the media cover the next time you load media.

1233*

Helv Condensed Getting Started

1

FranklinGothic

Printing the Hardware Configuration Test Label

You can print the hardware configuration test label to test the printer and
make sure it is operating correctly. The hardware configuration test label
lists your printer’s configuration. Use this label for reference when
connecting the 3440 printer to your system.

To print the hardware configuration test label

1. Turn the On/Off switch to the off position.

2. Press and hold the Feed/Pause button while you turn the On/Off switch
to the on position. The Alert and Empty/Pause LEDs blink during the
printer self-test.

3. Release the Feed/Pause button when the media starts moving. The
printer feeds out one or two blank labels and then prints the hardware
configuration test label.

4. Turn the printer power off and then on.

3440 Hardware Configuration

Memory Installed

Storage RAM

Image RAM

Flash RAM

Mileage

Inches Processed

Inches Burned
Labels Cut
Printhead

Width

Dot Size
Burn Pot Setting
Hardware Options

I/O Option

Internal Option

External Option
Firmware Checksum
ROM0 (U21)
ROM1 (U9)
Program
Version

This is only an example of a hardware configuration label. Your label may

Note:

: 256 kilobytes
: 583 kilobytes
: none

: 0
: 0
: 0

: 1792 dots
: 2.5 mil
: 156

: none
: none
: none

: 95D0
: 7331
: 062933
: 0.a

not be exactly the same.

3440U.007

1-9

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

What the Hardware Configuration Test Label Tells You

The hardware test label provides these statistics:

• Amount of installed memory

• Amount of media printed

• Printhead configuration

• Firmware information

• Printhead alignment (the vertical lines)

If a Hardware Configuration Test Label Does Not Print

If you are unable to print a hardware configuration test label, see “Printer
Operation Problems” in Chapter 4.

Connecting the Printer to Your System

You can connect your 3440 printer to a PC, a local area network, an AS400
(or other midrange), or a mainframe. This section tells you how to connect
your printer to any of these systems.

Helv Condensed

1-10

This illustration shows you where to connect your system to the printer.
You can use either of these two ports on the rear of the printer:

• Serial communications port

• Optional I/O board port (if you have an adapter card installed)

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

I

O

Optional I/O
board port

Serial
communications
port

3440U.008

1233*

Helv Condensed Getting Started

1

FranklinGothic

Connecting the 3440 to a PC

You can connect the 3440 to either a serial port or parallel port (if you have
the option installed) on your PC. You must provide the correct cables for
connecting the printer. See the following sections for cable information.
Contact your Intermec representative for ordering assistance if you do not
have the appropriate cables.

PC

Printer

3440U.045

Connecting the Printer to a PC Serial Port

To connect the 3440 to your PC serial port, you need a shielded EIA RS-232,
RS-422, or RS-485 electrical interface with a 25-pin D-style subminiature
connector. It must have pins on the printer end and an appropriate serial
port connector on the other end.

Use the following table to determine the correct Intermec cable for your
application. You cannot order an Intermec cable for the RS-422 interface, but
there is a schematic on page 1-14 that you can use to purchase or make your
own cable. See Appendix B for the RS-232, RS-422, and RS-485 serial port
assignments.

For Connecting To Use Intermec Cable Part Number

IBM PC XT 048668 (25-pin printer to 25-pin serial port null modem)
IBM PC AT 048693 (25-pin printer to 9-pin serial port null modem)

1-11

3440 Bar Code Label Printer User’s Manual

To connect your printer to a PC serial port

1. Turn the On/Off switch to the off position.

2. Plug the 25-pin connector into the serial communications port on the rear
of the 3440 printer.

3. Plug the other end of the cable into a serial (COM) port on the PC.

4. If necessary, change the PC serial port configuration to match your
printer. See “Configuring the Serial Port for Communications” later in
this chapter for more information.

Connecting the Printer to a PC Parallel Port

If you are using a parallel port to communicate with your printer, you need:

• a Centronics parallel interface adapter installed in the printer.

• a parallel cable to run between the printer and the PC.

If you did not have the parallel interface installed at the factory, you can
install the field installable option (Intermec Part No. 056830) in the optional
I/O board port of your printer. You can purchase a parallel cable from
Intermec (Part No. 051211) or from your local computer store. See
“Centronics Parallel Interface” in Appendix A for pin descriptions of the
parallel cable connector.

1233*

FranklinGothic

Helv Condensed

To connect your printer to a PC parallel port

1. Turn the On/Off switch to the off position.

2. Plug the parallel interface connector into the parallel communications

3. Plug the other end of the cable into a parallel port on the PC.

1-12

port on the rear of the 3440 printer.

1233*

Helv Condensed Getting Started

FranklinGothic

RS-232 Null Modem Cable for PC/XT (Intermec Part Number 048668)

1

25-PIN (SOCKET) D-SUB

METAL BACKSHELL

CHASSIS GROUND

TRANSMITTED DATA

RECEIVED DATA

REQUEST TO SEND

CLEAR TO SEND

DATA SET READY

GROUND

DATA TERMINAL READY

CARRIER DETECT

1
2
3
4
5
6
7

20

8

PC

NOTE: The metal backshell is connected directly
to the shield to achieve electrostatic discharge
(ESD) immunity.

SHIELD

1
3
2

8

20

7
6
4
5

PRINTER

RS-232 Null Modem Cable for PC/AT (Intermec Part Number 048693)

9-PIN (SOCKET) D-SUB

METAL BACKSHELL

RECEIVED DATA

TRANSMITTED DATA

CLEAR TO SEND

REQUEST TO SEND

DATA TERMINAL READY

DATA SET READY

CARRIER DETECT

GROUND

2
3
8
7
4
6
1

5

AT

NOTE: The metal backshell is connected directly
to the shield to achieve electrostatic discharge
(ESD) immunity.

SHIELD

1
2
3
8

6

20

5
4
7

PRINTER

25-PIN (PLUG) D-SUB
METAL BACKSHELL

CHASSIS GROUND
RECEIVED DATA
TRANSMITTED DATA

CARRIER DETECT
DATA TERMINAL READY
GROUND
DATA SET READY

CLEAR TO SEND

3440U.065

25-PIN (PLUG) D-SUB
METAL BACKSHELL

CHASSIS GROUND
TRANSMITTED DATA
RECEIVED DATA
CARRIER DETECT

DATA SET READY
DATA TERMINAL READY
CLEAR TO SEND
REQUEST TO SEND
GROUND

3440U.066

1-13

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Helv Condensed

Straight Through DTE to DCE Cable for Use with a Modem (Intermec Part Number 043237S)

25-PIN (PLUG) D-SUB

METAL BACKSHELL

CHASSIS GROUND

TRANSMITTED DATA

RECEIVED DATA

REQUEST TO SEND

CLEAR TO SEND

DATA TERMINAL READY

SIGNAL GROUND

If you find that you are losing data, you may need to isolate the chassis ground from one of the two

Note:

1
2
3
4
5

20

7

PRINTER

NOTE: The metal backshell is connected directly
to the shield to achieve electrostatic discharge
(ESD) immunity.

SHIELD

➤
➤
➤
➤
➤

25-PIN (PLUG) D-SUB
METAL BACKSHELL

CHASSIS GROUND

1

TRANSMITTED DATA

2

RECEIVED DATA

3

REQUEST TO SEND

4

CLEAR TO SEND

5

DATA TERMINAL READY

20

SIGNAL GROUND

7

MODEM

3440U.071

devices by connecting it to the shield.

RS-422 Intermec Pin Assignments

SHIELD

Input RxDB
Input RxDA

Output TxDA
Output TxDB

The host in this case includes Intermec products that support RS-422. Non-Intermec controllers

Note:

may have different pin assignments.

1-14

1

+

13

-

16

-

14

+

19

PRINTER HOST

➤
➤

➤
➤

1

19
14

16
13

NOTE: Connect pin 1 to shield
at one end only.

3440U.070

1233*

Helv Condensed Getting Started

1

FranklinGothic

Connecting the 3440 to a PC With a Modem

Use a modem to communicate with your host from a remote location not
accessible with remote cabling. You must use an asynchronous, dedicated
(non-switched or manually switched), full-duplex modem. Refer to your
modem documentation for communications requirements.

Host computer

Modem

Printer

Modem

3440U.048

1-15

3440 Bar Code Label Printer User’s Manual

To connect your printer to a PC with a modem

1. Connect the printer serial port to a modem using a 25-pin to 25-pin
RS-232 modem cable assembly (Intermec Part No. 043237S).

2. Connect a second modem to the host computer using an appropriate
cable assembly for the host and modem.

3. Connect the two modems together using an acoustic coupler or a direct
connection to telephone communications lines.

4. If necessary, change the printer’s serial port configuration by following
the instructions in “Configuring the Serial Port for Communications”
later in this chapter.

Connecting the 3440 to a Network

You can connect the 3440 printer to Novell NetWare networks, Token Ring
networks, or other TCP/IP networks. To connect the 3440 printer to a
network, you must have:

• a Centronics parallel interface installed in your printer.

1233*

FranklinGothic

Helv Condensed

1-16

• a network interface adapter (for example, Ethernet).

If you did not have the parallel interface installed at the factory, you can
install the field installable option (Intermec Part No. 056830) in the optional
I/O board port of your printer.

1233*

Connecting Your 3440 Printer to a Network

Host computer

FranklinGothic

Controller

Helv Condensed Getting Started

1

Printers (end devices)

The network interface adapter (for example, Ethernet) connects to the
parallel port of the printer. Your network must be able to use XON/XOFF
(hardware handshake) protocol. If you are installing your printer in a
network environment, you may need to change the serial port settings to
match the requirements of your network. You can determine the
communications requirements for your network by referring to the
controlling device documentation.

Printers (end devices)

3440U.046

1-17

3440 Bar Code Label Printer User’s Manual

If the controlling device is an Intermec product, refer to the following
manuals for instructions and information on the necessary cabling and
connections.

9154 Multi-Drop Line Controller System Manual

•

9161B Installation Manual

•

9180 Network Controller User's Manual

•

Data Communications Reference Manual

•

Model 200 Controller System Manual

•

RF System User's Manual

•

If you need to change the printer’s communications parameters, follow the
procedures in “Configuring the Serial Port for Communications” later in
this chapter.

Connecting the 3440 to an AS400

To connect a 3440 printer directly to an AS400 or midrange computer, you
need:

FranklinGothic

1233*

(Intermec Part No. 049572)

(Intermec Part No. 053574)

(Intermec Part No. 063439)

Helv Condensed

(Intermec Part No. 048517)

(Intermec Part No. 054292)

(Intermec Part No. 044737)

1-18

• a twinax adapter card.

• a twinaxial cable equivalent to IBM part number 7362267 or 7362062. The

maximum cable length for the twinax interface is 5,000 feet (1,525
meters).

If you did not have the twinax card installed at the factory, you can install
the field installable option (Intermec Part No. 056835) in the optional I/O
board port of your printer.

For help on cabling and communications, see the manual that comes with
the twinax adapter card.

If you are using a midrange computer other than the AS400, refer to your

Note:

system documentation for information on cabling and setting up communications.

1233*

Helv Condensed Getting Started

1

FranklinGothic

Connecting the 3440 to a Mainframe

To connect a 3440 printer directly to an IBM mainframe, you need:

• a coax adapter card.

• a coaxial cable equivalent to IBM part number 2577672 or 1833108.

The maximum cable length allowed is 4,920 feet (1,500 meters). See the IBM
specification
number GA27-2805-4, for further information.

If you did not have the coax card installed at the factory, you can install the
field installable option (Intermec Part No. 056836) in the optional I/O board
port of your printer.

For help on cabling and communications, see the manual that comes with
your coax adapter card.

Installation and Assembly of Coaxial Cable and Accessories

, part

Cabling in Noisy Electrical Environments

The items listed below create noisy electrical environments that can disrupt
data communications between your host computer and the 3440 printer:

• Large power transformers

• Large electrical motors

• Arc welders

• Motor controllers

• Switch gears

If any of these items are near your printer, you may want to try any of the
following suggestions to reduce the effects of electrical noise. If you need
help eliminating noise, ask your Intermec representative for assistance.

• Always use shielded cable. Connect the cable and shield to the metal

backshells on the cable connectors and fasten the connectors to the serial
ports using screws.

• Install ferrite cable clamps.

• Connect the printer chassis ground to the building ground. You will find

the chassis ground on the ground pin of the printer power cord.

1-19

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Helv Condensed

Configuring the Serial Port for Communications

You need to configure the serial port of the 3440 printer to match the
configuration of your PC or network controlling device. If the printer’s
default settings do not match, use the DIP switch settings table to configure
the serial port.

To configure the printer serial port

1. Use the following DIP Switch Settings descriptions and table to locate
the DIP switches you need to change to configure the serial port.

2. Use a small straight-slot screwdriver to set the appropriate DIP switches.
For example, if you want to change the media type to thermal transfer,

set DIP switch 8 on the bottom bank of switches to the on position.

3. Turn the printer power off and then on for the configuration changes to
take effect.

Ignore Multi-Drop switches if you are not using a Multi-Drop network.

Note:

1-20

DIP Switch Settings Descriptions

Parameter Description

Baud rate The rate, in bits per second, at which the host exchanges

data with the printer.

Parity Adds one bit (1 or 0) to the character to make the sum of

bits always odd or even.
Data bits The number of bits that represent the ASCII characters.
Stop bits Timing units between characters that synchronize

character transmission.
Multi-Drop

address

Protocol The transmission standards for communication between

Media type Enables the printer to work with either direct thermal or

Unique address for each device connected with Multi-

Drop protocol.

the printer and each connecting device.

thermal transfer media.

1233*

DIP Switch Settings Table

FranklinGothic

Helv Condensed Getting Started

1

O = OFF
1 = ON

Baud Rate Selection

Number of Data Bits

19,200

9,600

4,800
2,400

1,200
38,400
57,600

reserved

Parity Selection

Even

Odd
None
None

7 Bit
8 Bit

Reserved

*

*

Default settings are noted with an

Top Bank Switch Number

OFF

ON

1 2 3 4 5 6 7 8

O

O

O

1

O

O

O

1

O

1

1

O

O

O

1

1

O

1

O

1

1

1

1

1

*

Bottom Bank Switch Number

OFF

O = OFF
1 = ON

Multi-Drop Address Selection

O

O

1

O

O

1

1

1

O

1

OO

Protocol Selection

XON/XOFF

Intermec Protocols

XON/XOFF Selection

No Status Response

With Status Response

Media Type

Direct Thermal

Thermal Transfer

Default settings are noted with an

ON

1 2 3 4 5 6 7 8

O

O

O

O

A

*

B
C
D
E
F
G
H

I
J
K
L

M
N
O

P

Q
R

S
T

U

V

W

X
Y
Z
0
1
2
3
4
5

*

*

*

O
1
O
1
O
1
O
1
O
1
O
1
O
1
O
1
O
1
O
1
O
1
O
1
O
1
O
1
O
1
O
1

*

O

O

O

O

O

O

O

1

O

O

O

1

O

O

1

O

O

O

1

O

O

O

1

1

O

O

1

1

O

1

O

O

O

1

O

O

O

1

O

1

O

1

O

1

O

1

1

O

O

1

1

O

O

1

1

1

O

1

1

1

1

O

O

O

1

O

O

O

1

O

O

1

1

O

O

1

1

O

1

O

1

O

1

O

1

O

1

1

1

O

1

1

1

1

O

O

1

1

O

O

1

1

O

1

1

1

O

1

1

1

1

O

1

1

1

O

1

1

1

1

1

1

1

1

O
1

O
1

O
1

3440U.009

1-21

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Helv Condensed

Verifying Printer Communications With Your System

After connecting the printer to your system, you need to test the
communications. The easiest way to test communications is to set the
printer to Data Line Print mode, which is part of Test and Service mode,
and send a character string down from your system.

If you have just printed a configuration test label, you are already in Data
Line Print mode. Start the following procedure with Step 4.

To verify communications with your system

1. Turn the On/Off switch to the off position.

2. Press and hold the Feed/Pause button while you turn the On/Off switch
to the on position. The printer prints the hardware configuration test
label.

3. Release the Feed/Pause button. You are now in Data Line Print mode.

4. Transmit at least four characters from your system.

1-22

At this point the printer does not attempt to interpret any printer
commands, but simply prints each character with its hexadecimal
equivalent underneath.

An example of using DOS to verify printer communications follows this

Note:

procedure.

5. To enter normal Print mode, turn the printer power off and then on
again.

If this procedure does not work, make sure that the DIP switches match the
serial port configuration of the system. Also, make sure you have the printer
cable securely plugged into the correct port of your system.

If you receive a write fault error, your cabling may not be correct. See
“Connecting the Printer to Your System” earlier in this chapter for more
information.

FranklinGothic

1233*

Example of Using DOS to Verify Printer Communications

1. At the DOS prompt, type this command and press Enter:

MODE COM1 96,E,7,1,N

The command configures the serial port.

2. Type these command lines and press Enter:

COPY CON COM1
ABCDEF^Z

where:
COPY CON COM1 tells the PC to copy the following information to the

COM1 port.

ABCDEF are random characters entered at the host.
^Z (Ctrl-Z) Enter sends the information to the printer.

The printer prints these characters:

Helv Condensed Getting Started

1

If you are using a different platform to communicate with your printer,

Note:

please refer to your host computer user's manual and Chapter 6, “IPL Commands,”
for help downloading commands.

3440U.010

1-23

2

Operating the Printer

1233*

Use this chapter to understand how to use the printer front panel, load fanfold
media and media for self-strip printing, set the media sensitivity number, and
communicate with the printer.

FranklinGothic

Helv Condensed Operating the Printer

Learning How to Operate the Printer

To operate the printer, you need to understand:
Front Panel LEDs help you monitor the printer’s status. The Feed/Pause

button performs various tasks.
Loading Media and Ribbon Explains how to load a roll of media, thermal

transfer ribbon, and the procedure for using the self-strip option.

Media Sensitivity Numbers Optimizes print quality and print speed.
Communications With the Printer Explains different methods for transferring

information from the host to the printer and from the printer to the host.

Understanding the Front Panel

2

On the front panel of the 3440
printer, you will find one button
and three light emitting diodes
(LEDs).

Power/Data

Alert

Empty/Pause

Feed/Pause

3440U.011

2-3

3440 Bar Code Label Printer User’s Manual

Using the Front Panel LEDs

You use the front panel LEDs to monitor the status of the printer:

Green LED

Orange LED

Yellow LED

Power/Data

Alert

Empty/Pause

1233*

LED State Indication

Power/Data

Alert

FranklinGothic

Off
On
Flashing

Off
Flashing
On

Helv Condensed

FG 8pt Italic

Power off
Power on
Receiving data

Printing or idle
Over-temperature
System fault

Feed/Pause

3440U.012

Empty/Pause

Off
Flashing
On

Printing or idle
Paused
Media fault

Using the Front Panel LEDs for Troubleshooting

Over-Temperature If the printer overheats, the Alert flashes and the printer
stops. Do not try to troubleshoot or adjust the printer—just allow it enough
time to cool down and it will resume operation on its own.

Media or System Faults If the Empty/Pause or the Alert LED remains on,
your printer is experiencing a media or system fault. See Chapter 4,
“Troubleshooting,” for help on correcting the problem.

2-4

1233*

FranklinGothic

Helv Condensed Operating the Printer

Using the Feed/Pause Button

The Feed/Pause button, located on the front panel of the 3440 printer,
performs several functions depending on the mode of the printer.

Printer Mode You Want To What to Do

2

Idle Feed out one label or a

minimum specified
amount of media.

Continuously feed media. Press and hold the Feed/Pause

Take the printer offline. Press the Feed/Pause button

Printing Pause the printer. Press and release the

Cancel the current print
job.

Powered on for
the first time

Print the hardware
configuration label.

Press and release the
Feed/Pause button.

button. When you release the
button, the media stops feeding.

twice. Press the button again to
bring the printer online.

Feed/Pause button. Press and
release the button again to
resume printing.

Press and hold the Feed/Pause
button until the printer stops
printing.

Press and hold the Feed/Pause
button. See “Printing the
Hardware Configuration Test
Label” in Chapter 1 for more
information.

2-5

3440 Bar Code Label Printer User’s Manual

1233*

Loading Media Into the Printer

You can load media into the 3440 printer in three different ways:

• fanfold media printing (covered in Chapter 1)

• roll media for straight-through printing

• roll media for self-strip printing

You can load media with the printer power turned on or off. The following
procedures for loading media assume that you have set the On/Off switch
to the on position.

Loading Roll Media for Straight-Through Printing

In straight-through printing, you load a roll of media on the supply roll post
and feed it straight through the printer mechanism and out the front of the
printer. As the 3440 prints individual labels, you can remove them from the
roll by pulling them down across the tear bar.

FranklinGothic

Helv Condensed

FG 8pt Italic

2-6

Note: This procedure covers how to load media for straight-through print mode
using a roll of direct thermal or thermal transfer label media. The default setting for
the printer is direct thermal mode.

Note: You should find a small label with a three-digit sensitivity number printed
on it attached to your roll of media or a 15 digit number stamped on the side of the
media roll. Save this information. You will need it to set the correct media
sensitivity number. See “Setting the Media Sensitivity Number” later in this
chapter for help.

To load the media

1. Raise the printhead by rotating the head lift lever clockwise until the
printhead disengages.

2. Turn the supply roll retainer counterclockwise to release it and then slide
it to the outer end of the supply roll post. Turn it clockwise to lock it in
place.

Note: If you are replacing the empty media roll with a new roll of the same
width, you do not need to adjust the edge guide or the supply roll retainer.

1233*

3. Place the media roll on the supply roll post and position it firmly against
the printer.

Note: If you are using a narrow roll of media (less than 3 inches), insert the
media support between the roll of media and the supply roll retainer before
securing it.

4. Turn the supply roll retainer counterclockwise and slide it up to the edge
of the media roll. Turn the supply roll retainer clockwise to secure.

5. Unscrew the edge guide and slide it all the way to the outer edge of the
lower media guide. Screw it in place.

6. Pull down on the lower media guide to allow easy access to the media
path.

7. Unroll several inches of media and insert it between the media guide
plates as shown above. Make sure the label passes between the upper
and lower media guides and out the front of the printer.

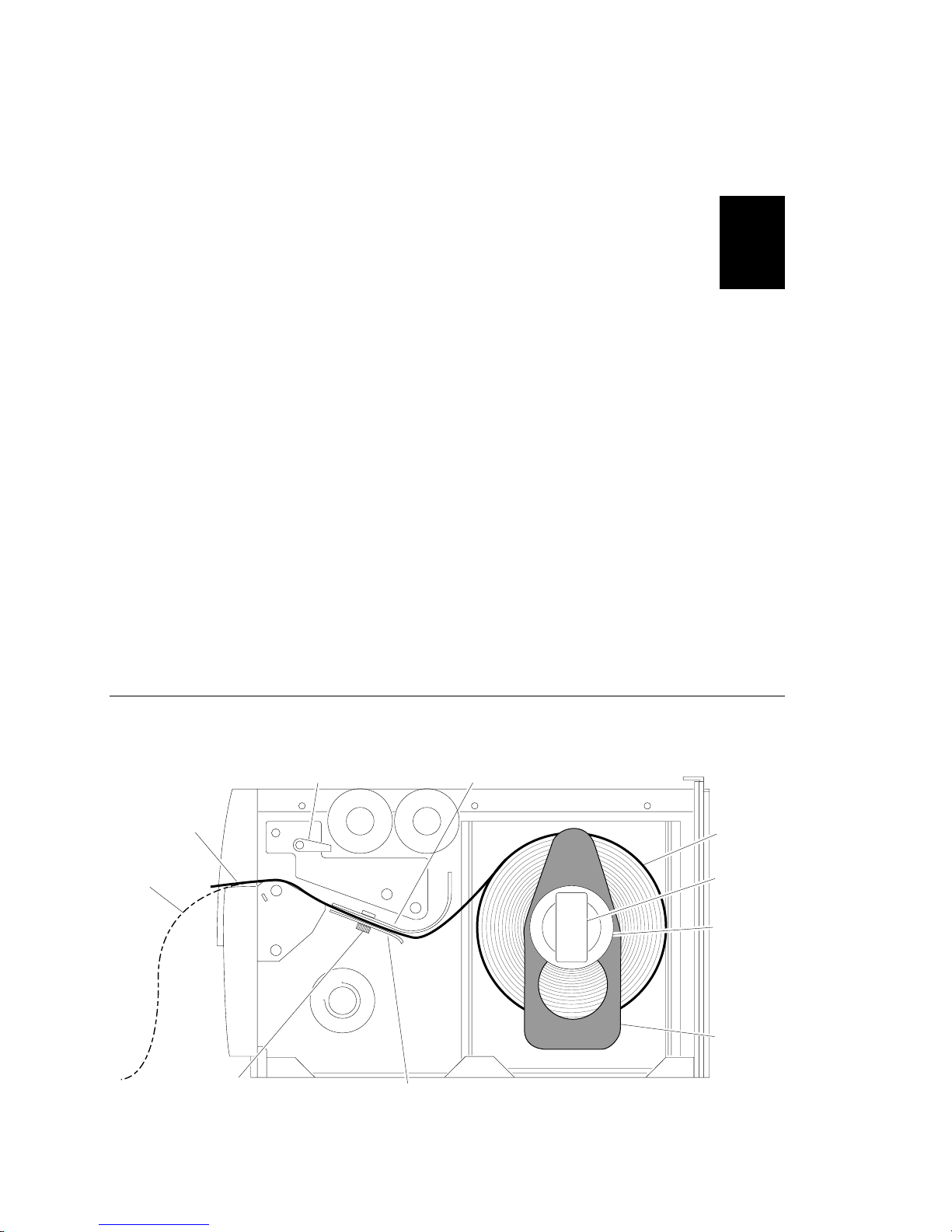

Loading Roll Media for Straight-Through Printing

FranklinGothic

Helv Condensed Operating the Printer

2

Media
backing

Media

Edge
guide

Head lift
lever

Lower
media guide

Upper
media guide

Media roll

Supply roll
post

Supply roll
retainer

Media
support

3440U.013

2-7

3440 Bar Code Label Printer User’s Manual

8. Release the lower media guide and adjust the edge guide (by unscrewing
it and sliding it) to position the media firmly against the inside wall of
the printer.

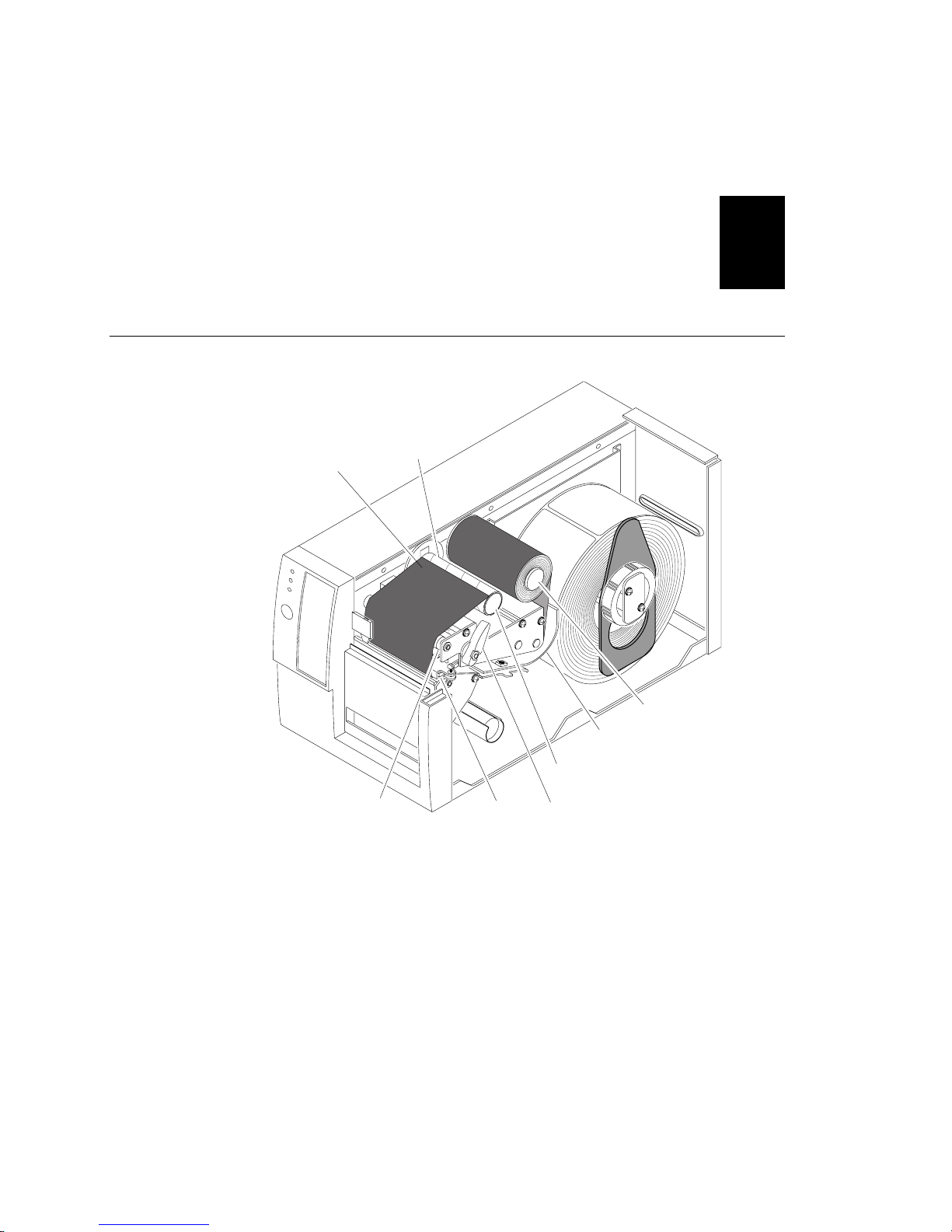

9. If you are using thermal transfer media, you need to load ribbon. Follow
the instructions for “Loading Thermal Transfer Ribbon” later in this
chapter before you finish performing this procedure.

10. Lower the printhead by rotating the head lift lever counterclockwise
until it locks.

11. If you are loading continuous media or mark label stock, use your third­party software or the printer command set to tell the printer what kind
of media you are using.

An example of using the printer command set and DOS to configure
your printer follows this procedure.

12. Press Feed/Pause to advance several inches of media through the printer
and out the label opening in the front cover. Your printer is now ready to
print labels.

Note: Refer to the label located on the inside of the media cover for directions on
loading media. For your convenience, you may want to refer to it when loading
media in the future.

1233*

FranklinGothic

Helv Condensed

FG 8pt Italic

Example of Selecting Continuous Label Stock Using DOS

1. At the DOS prompt, type the following command and press Enter:

2. Type the following command lines and press Enter:

3. Turn the printer power on and then off for the command to take effect.

2-8

MODE COM1 96,E,7,1,N

This command configures the serial port.

COPY CON COM1
<STX><SI>T0<ETX>^Z

where:

COPY CON COM1 copies the information to COM1.
<SI>T0 sets the label stock type to continuous media.
^Z (Ctrl-Z) Enter sends the command to the printer.

1233*

FranklinGothic

Helv Condensed Operating the Printer

Loading Media for Self-Strip Printing

Use self-strip printing in applications where you want to apply labels to a
surface immediately. After printing a label, the printer prints out the label
with the backing removed. The rewinder hub collects the backing after it
passes over the self-strip assist roller. The rewinder hub can hold the
backing from an entire roll of media.

Note: You should find a small label with a three-digit sensitivity number printed
on it attached to your roll of media or a 15 digit number stamped on the side of the
media roll. Save this information. You will need it to set the correct media
sensitivity number. See “Setting the Media Sensitivity Number” later in this
chapter for help.

To load self-strip media

1. Open the printer.

2. Raise the printhead by rotating the head lift lever clockwise until the

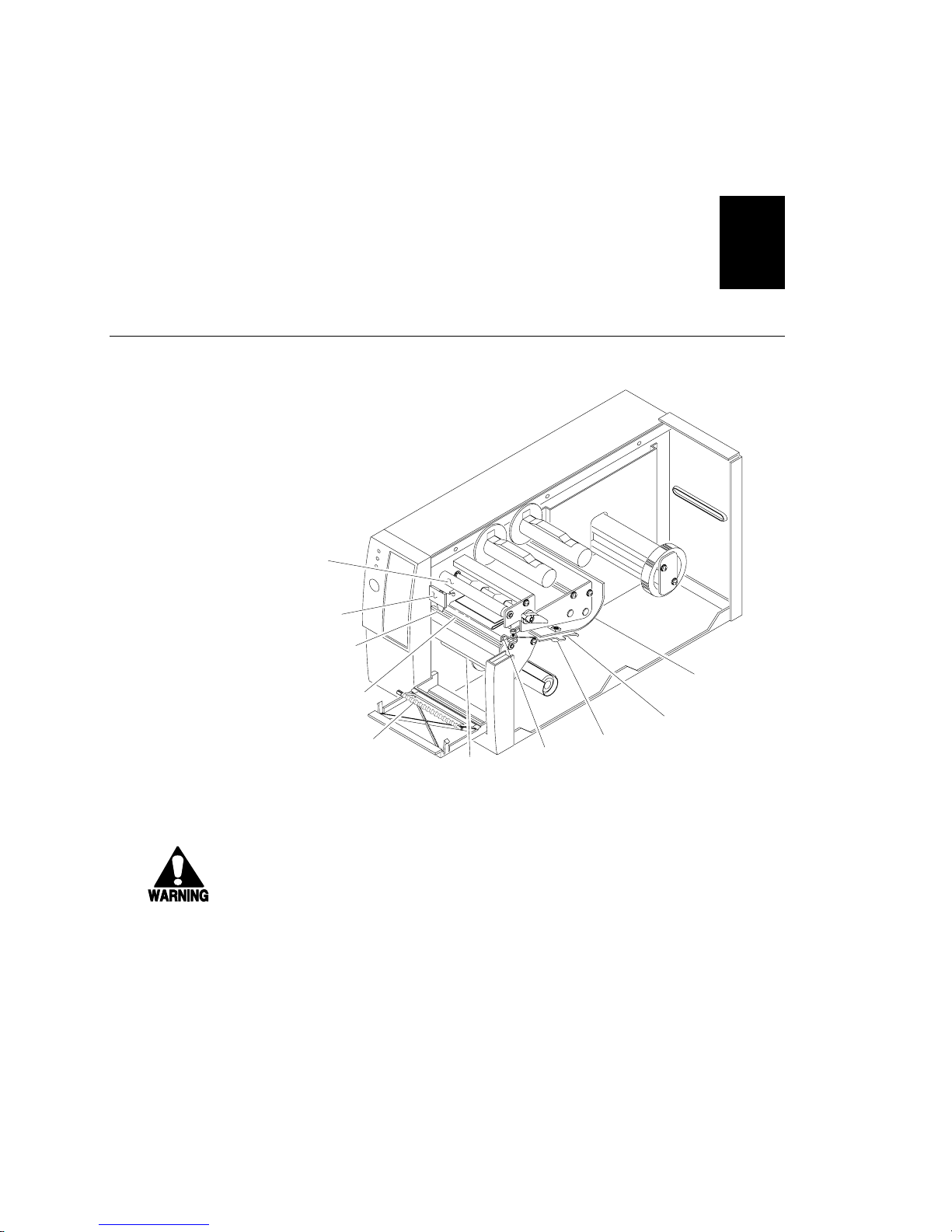

printhead releases. See the illustration on the next page for help
identifying the parts of the printer.

2

3. Turn the supply roll retainer counterclockwise to release it and slide it to
the outer end of the supply roll post. Turn it clockwise to lock it in place.

4. Place the media roll on the supply roll post and position it firmly against
the inside wall of the printer.

Note: If you are using a narrow roll of media (less than 3 inches), insert the
media support between the roll of media and the supply roll retainer before
securing it.

5. Turn the supply roll retainer counterclockwise and slide it up to the edge
of the media roll. Turn the supply roll retainer clockwise to secure.

6. Unscrew the edge guide and slide it to the outer edge of the lower media
guide. Screw it in place.

7. Pull down on the lower media guide to allow easy access to the media
path.

Note: If you are replacing the empty media roll with a new roll of the same
width, you do not need to adjust the edge guide.

2-9

3440 Bar Code Label Printer User’s Manual

Loading Media for Self-Strip Printing

Power/Data

Alert

Empty/Pause

Feed/Pause

Intermec

3440

Media
liner

➤

➤

1233*

➤

➤

FranklinGothic

➤

➤

Lower media
guide

Edge
guide

Helv Condensed

FG 8pt Italic

Media roll
Supply roll

retainer
Supply roll

post

Media
support

Upper
media
guide

8. Unroll several inches of media, insert it between the upper media guide

9. Release the lower media guide and adjust the edge guide to position the

10. Pull out 8 to 10 inches of media and remove the exposed labels from the

11. Open the media access door and thread the media liner under the self-

12. Remove the clasp from the rewinder hub and wind approximately 1 inch

2-10

Media
access door

Self-strip
assist roller

Rewinder
hub

Rewinder
clasp

Head lift
lever

3440U.014

and the lower media guide, and out the front of the printer.

media firmly against the inside wall of the printer.

media liner.

strip assist roller and over the rewinder hub in a clockwise direction.

of media liner over the rewinder hub.

1233*

13. Secure the media by snapping the rewinder clasp onto the rewinder hub.
Turn the rewinder hub clockwise to remove all slack from the media
liner between the tear bar and the rewinder hub.

14. Rotate the head lift lever counterclockwise until it locks to lower the
printhead.

15. Close the media access door.

16. Use your third-party software or the printer command set to enable self­strip and the label taken sensor. Following this procedure is an example
of using the printer command set and DOS to configure your printer.

17. Press Feed/Pause to advance a label through the printer. Grasp the
leading edge of the label where it has separated from the backing and
pull it away from the printer.

18. Replace the printer cover. The printer is now ready for printing.

Example of Enabling Self-Strip and the Label Taken Sensor Using DOS

1. At the DOS prompt, type the following command and press Enter:

FranklinGothic

Helv Condensed Operating the Printer

2

MODE COM1 96,E,7,1,N (if not already set)

This command configures the serial port.

2. Type the following command lines and press Enter:

COPY CON COM1
<STX><SI>t1<ETX>^Z

Where:

COPY CON COM1 copies the information to COM1.
<SI>t1 enables the self-strip option and the label taken sensor.
^Z (Ctrl-Z) Enter sends the command to the printer.

3. Turn the printer power on and then off for the command to take effect.

2-11

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Loading Thermal Transfer Ribbon

If you plan to print in thermal transfer mode, you must install a thermal
transfer ribbon (TTR) on the ribbon supply hub after you install the thermal
transfer media.

Note: Save the packaging that your ribbon came in. Attached to the ribbon
packaging is a small label with a three-digit sensitivity number printed on it. You
need this information to set the correct media sensitivity number. Refer to the next
section “Setting the Media Sensitivity Number,” for more information.

To load thermal transfer ribbon

1. Make sure you have raised the printhead. If not, turn the head lift lever
clockwise until it releases the printhead.

2. Place the empty ribbon core that came with the printer onto the ribbon
rewind hub.

3. Detach the leader from the new thermal transfer ribbon roll and unwind
the end of the ribbon approximately 8 inches. The edge of the ribbon has
a leader (with an adhesive strip on the leader edge) for guiding the
ribbon through the printhead mechanism.

Helv Condensed

FG 8pt Italic

4. Slide the roll of thermal transfer ribbon onto the ribbon supply hub with

5. Route the ribbon leader through the printer mechanism as shown in the

6. Attach the leader from the new thermal transfer ribbon roll to the empty

7. Wind the ribbon rewind hub clockwise until the ribbon runs smoothly

2-12

the ribbon roll winding clockwise.

following illustration.

ribbon core using the adhesive strip on the leader edge.

Note: Make sure the ribbon runs above the upper media guide. The shiny side of
the ribbon must come in contact with the printhead.

through the printhead mechanism and the leader moves past the
printhead.

1233*

Loading Thermal Transfer Ribbon

FranklinGothic

Helv Condensed Operating the Printer

2

Thermal transfer

Power/Data

Alert

Empty/Pause

Feed/Pause

Intermec

3440

ribbon

Empty ribbon
hub

TTR assist
roller

Printhead

Upper media
guide

Ribbon rewind
hub

Head
lift lever

Ribbon supply
hub

3440U.015

8. Engage the printhead by rotating the head lift lever counterclockwise
until it locks.

9. Enable thermal transfer printing by setting DIP switch 8 on the bottom
bank of switches to the on position. Refer to “Configuring the Serial Port
for Communications” in Chapter 1 for DIP switch settings.

10. Press the Feed/Pause button to advance the ribbon through the printer.
The printer is now ready to print.

Note: When replacing the thermal transfer ribbon roll in the future, use the empty
ribbon supply core as the new rewinder core.

2-13

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Setting the Media Sensitivity Number

Media sensitivity is important because you use it to optimize print quality
and print speed. The three-digit sensitivity number specifies the amount of
heat required by the printhead to image a label. The amount of heat that
each roll of media or ribbon requires is unique due to different chemistries
and manufacturing processes.

Intermec has developed heating schedules (the amount of heat required to
image a label) to produce the highest possible print quality for Intermec
media and ribbon combinations on Intermec printers. Look for the three
digit media sensitivity number on:

• the side of the media roll. Use the last three digits (140 in the example) of

the 15 digit number stamped on the roll for the media sensitivity
number.

• a small label attached to the roll of media.

• a small label attached to the plastic bag of your ribbon roll.

Helv Condensed

FG 8pt Italic

120066102605140

2-14

120066102605140

SENSITIVITY NUMBER

5✩7

3440U.016

1233*

Use this three-digit number to optimize print quality and print speed on the
3440 printer. You can achieve the best print quality on the 3440 printer by
using only Intermec ribbon and media products. The default sensitivity
setting for thermal transfer media is 567. For direct thermal media, the
default sensitivity setting is 420. Use the packaging that you saved, when
loading media and ribbon, to determine the correct sensitivity number.

Use the PrintSet software, your third-party software, or the Intermec Printer
Language (IPL) command set to change the media sensitivity number. For
help setting the media sensitivity number using IPL commands, see the DOS
example in the next section. If you want to see the current sensitivity setting
of your 3440, print out a software configuration label.

To print a software configuration label

1. Turn the On/Off switch to the off position.

2. Press and hold the Feed/Pause button while turning the printer on. The
printer prints out a hardware configuration label.

3. Set the DIP switches to print out the software test label.

FranklinGothic

Helv Condensed Operating the Printer

2

Top Bank Set switches 1 through 6 and 8 off. Set switch 7 on.
Bottom Bank Set switches 1 through 8 off.

4. Hold the Feed/Pause button down for 1 second. The printer prints out
the software configuration label.

5. Turn the printer power off and then on.

6. Return the DIP switches to their original settings.

2-15

3440 Bar Code Label Printer User’s Manual

Setting the Media Sensitivity Number for Intermec
Media and Ribbon

The sensitivity number on each roll of thermal transfer media or ribbon has
an asterisk (*) in place of one of the digits. To optimize the sensitivity
number for thermal transfer media, you combine the digits as in this
example.

Media or Ribbon Sensitivity Rating Description

Thermal transfer media 56* The asterisk reserves the third

Thermal transfer ribbon 5*7 The asterisk reserves the

To set the sensitivity rating for direct thermal media, use the three-digit
sensitivity rating located on the roll of media or listed in the Direct Thermal
Media Sensitivity Settings table on the next page.

1233*

567 Optimum sensitivity rating

FranklinGothic

digit to identify the ribbon’s
sensitivity number.

second digit to identify the
media’s sensitivity number.

Helv Condensed

FG 8pt Italic

Example of Setting the Media Sensitivity Number Using a PC Running DOS

1. At the DOS prompt, type the following command and press Enter:

2. Type the following command lines and press Enter:

2-16

MODE COM1 96,E,7,1,N

COPY CON COM1
<STX><SI>g0,567<ETX>^Z

where:
<SI>g0,567 sets the media sensitivity number to 567.

1233*

FranklinGothic

Setting the Media Sensitivity Number for Other
Media and Ribbon

If you are not using Intermec media and ribbon, or you misplaced your
packaging with the three-digit sensitivity number label on it, you can set the
approximate sensitivity rating. The first column of the Direct Thermal and
Thermal Transfer Media Sensitivity Settings tables list the approximate
sensitivity settings. To achieve acceptable print quality, enter the three-digit
media sensitivity number (for example, 800).

If you are unsure of how to set the media sensitivity rating, start with the
highest setting, which provides the lowest energy (800 for thermal transfer
and 700 for direct thermal), and work your way down until you achieve the
best print quality.

Direct Thermal Media Sensitivity Settings

Sensitivity

Approximate Sensitivity Ratings

700 Series High Sensitivity

Setting Direct Thermal Media

720 Duratherm Lightning Plus 2

Helv Condensed Operating the Printer

2

400 Series Medium Sensitivity

100 Series Low Sensitivity

470 Duratherm Lightning-1
460 European IR
450 Duratherm IR Lightning-1
440 European Thermal
420 Duratherm Lightning-2

190 Duratherm Buff Tag
180 Duratherm II-1
170 European Tag
160 Duratherm II Tag
140 European Top
130 Duratherm II-2

2-17

3440 Bar Code Label Printer User’s Manual

1233*

Thermal Transfer Media and Ribbon Sensitivity Settings

FranklinGothic

Helv Condensed

FG 8pt Italic

Approximate Sensitivity Ratings

800 Series High Sensitivity (Paper)

600 Series Medium Sensitivity (Plastic)

500 Series Medium Sensitivity (Paper)

300 Series Low Sensitivity (Plastic)

200 Series Low Sensitivity (Kapton)

Sensitivity
Setting

864 European Uncoated/Standard-1
854 Duratran TTR Paper Labels/Standard-1
834 Duratran TTR Paper Tags/Standard-1

687 Duratran TTR Poly. or Valeron/Prem.-3
677 Duratran Syntran/Premium-3/6
637 European Polyethelene/Premium-3/6
627 Duratran Kimdura/Premium-3/6

567 Duratran II-1/Premium-3/6
537 European Tag/Premium-3/6
527 Duratran II Tag-7 mil/Premium-3/6
517 European Coated/Premium-3/6

369 Super Prem. Poly./Super Prem.-3
366 Super Prem. Poly./Super Prem.-7

238 Gloss Polyimide (Kapton)/Gloss Super

236 Gloss Polyimide (Kapton)/Super Prem.-7
226 Matte Polyimide (Kapton)/Super Prem.-7
222 Matte Polyimide (Kapton)/Matte Super

Thermal Transfer Media
(Media/Ribbon Stock)

Prem.

Prem.

2-18

1233*

FranklinGothic

Helv Condensed Operating the Printer

Communicating With the Printer

You are now ready to print labels by downloading data from the host to the
3440 printer. Downloading is the universal term used to describe the transfer
of information from the host to any connected peripheral device, such as the
3440 printer. When you transfer data from your printer to the host, you are
performing a process called uploading.

You can use several methods to download information in your data
collection system. The next sections describe different ways to communicate
with the printer.

Using the PrintSet Software

Use the PrintSet application software to easily configure your printer from
your PC. You can upload the current configuration settings, modify them,
and then download them to the 3440 printer. PrintSet also lets you:

• download graphics and fonts (including TrueType).

• print test labels.

2

• allocate memory.

• download configuration files.

For help using PrintSet, refer to the online help portion of the application
software.

Using Third-Party Software

You can use third-party software to set many of the printer parameters. You
can configure the parameters that your software does not set by using the
printer command set or the configuration DIP switches.

Use your third-party software to create label formats and convert graphics
into a user-defined character (UDC) format that the 3440 printer can
interpret. Refer to your third-party documentation and Chapter 5,
“Designing Labels and Using IPL Commands,” for more information.

2-19

3440 Bar Code Label Printer User’s Manual

Using Intermec Printer Language (IPL) Commands

You can create labels by downloading formats (designs) and data with IPL
commands. You can use the printer to perform any function or activate any
feature of the 3440 printer except for those features or functions that you set
with the DIP switches. Use the following methods to download commands
to the printer.

Note: For help using IPL commands, see Chapter 6, “IPL Commands.”

Downloading Printer Commands Using DOS

Use the DOS Copy command to download printer parameter command
strings or to print files stored on the PC. If necessary, you can modify and
download them several times. For example, if your first attempt at a label
format does not work, you can return to the text editor, change the incorrect
commands, and then download the format again. By using this method, you
eliminate the need to retype command strings that do not change.

To download commands using DOS

1233*

FranklinGothic

Helv Condensed

FG 8pt Italic

2-20

1. Connect the printer to the serial port on your PC using the correct cable
(see “Connecting the Printer to Your System” in Chapter 1).

2. Configure the serial port using the DOS Mode command.
From the DOS prompt, type the following command and press Enter:

C:\MODE COM1 96,E,7,1,N [Enter]

3. Configure the printer for hardware flow control (XON/XOFF)
communications protocol (which is the factory default configuration).
For help, see “DIP Switch Settings” in Appendix A.

4. Enter the commands into a text file using a text editor or a word
processor and save the file as an ASCII text file. See your DOS user’s
manual for more information.

5. Type the following DOS command and press Enter:

filename

COPY

where:
The

filename

The COPY command copies the file to serial port 1 (COM1) of your PC.

COM1

is the name of your text file.

1233*

FranklinGothic

Helv Condensed Operating the Printer

2

Using ASCII Control Characters or Hexadecimal Equivalents

With many communications or terminal emulation software, you create the
commands by using the equivalent ASCII control characters. For example,
you enter <ETX> as Ctrl-C.

When you enter ASCII decimal equivalents in a word processor, they
display on the screen as special characters. For hexadecimal equivalent
(<ETX> = 03), consult the pull-out ASCII chart in Appendix A, “Printer
Reference.”

Using Readable Protocol/Command Characters

If it is difficult for you to edit or transmit command files containing control
characters, you may want to use the readable protocol/command characters
feature. To use the readable characters feature, type the ASCII characters in
as a string. Use angle brackets around ASCII strings to represent the ASCII
characters. For example, if you want to enter the ASCII mnemonic for “start
of text,” type the control character out as a readable character string: <STX>.

The printer automatically detects whether you are using control characters
or readable protocol/command characters by the start of text (<STX>)
character. Refer to the pull-out ASCII chart in Appendix A, “Printer
Reference,” for a complete listing of the control characters and their
readable protocol/command character equivalents.

All characters in a message must be in the same form as the start of text
(<STX>) character. For example, if you include control characters in a
message that begins with the readable protocol/command character <STX>,
the printer throws them away. Using readable characters may consume
more space and time, but it has the distinct advantage of displaying
everything on the screen in readable characters.

Downloading Printer Commands Using a Command String

Another way to download commands to your printer is through a PC
communications program, a terminal emulation program, or a host
terminal. If you make an error while entering commands, you must retype
the command string instead of just editing it. If you keep your command
strings short, it is easier to retype a command. Design your formats as
combinations of several short command strings rather than one very long
string.

2-21

3440 Bar Code Label Printer User’s Manual

Switching Between Print Mode and Program Mode

Print mode and Program mode are two different operating modes of the
3440 printer. Before you download information to the printer, make sure
that you are in the correct mode.

• Use Program mode to define formats, pages, fonts, and characters.

• Use Print mode to download data and print labels.

To enter Program mode

• Type this command:

<STX><ESC>P<ETX>

It is a good practice to send this command every time that you download
formats, even if you think the printer is already in Program mode. If the
printer is in Program mode, it ignores this command.

To enter Print mode

• Type this command:

<STX>R<ETX>

1233*

FranklinGothic

Helv Condensed

FG 8pt Italic

2-22

Enter this command before each set of data or as your last format
command. If the printer is already in Print mode, it ignores this
command.

Note: Use Print mode to download data and configuration commands to the
printer. For a complete table of all printer commands, refer to Chapter 6, “IPL
Commands.”

1233*

FranklinGothic

Helv Condensed Operating the Printer

2

Printing a Test Label

If you would like to test your communications by downloading a label,
follow the example below. Use the DOS editor or your system application to
create the following label format and save it under the filename TEST.

Note: Remember to save the file as ASCII text if you are not using DOS.

Command String Description

<STX><ESC>C1<ETX> Selects 2.5 mil Advanced mode
<STX><ESC>P<ETX> Enters Programming mode
<STX>E4;F4;<ETX> Creates format 4
<STX>H1;o200,100;f0;c25;h20;w20;d0,20;<ETX> Creates human-readable field 1
<STX>B2;o200,200;c13,0;h5;d0,30;<ETX> Creates bar code (Code One) field 2
<STX>R;<ETX> Saves format and exit to Print mode
<STX><ESC>E4<ETX> Selects format 4
<STX><CAN><ETX> Clears all data in format 4
<STX>TEST LABEL<CR><ETX> Data for human-readable field 1
<STX>TEST<ETX> Data for bar code field 2
<STX><ETB><ETX> Prints the format

To print the test label

1. At the DOS prompt, type the following command and press Enter:

MODE COM1 96,E,7,1,N

2. Type the following command line and press Enter:

COPY TEST COM1

2-23

3440 Bar Code Label Printer User’s Manual

The 3440 printer prints out a label similar to the test label below:

TEST LABEL

1233*

FranklinGothic

Helv Condensed

FG 8pt Italic

3440U.017

2-24

You are now ready to learn how to design and print your own labels. See
Chapter 5, “Designing Labels and Using IPL Commands,” if you are
planning to use the IPL command set to design your labels.

Using a Different Platform Than a PC

If you are operating your 3440 printer from a platform not discussed in this
manual, it is important to keep several things in mind:

• The 3440 is an ASCII printer.

• You must configure the 3440 printer to match the settings of your

platform to ensure proper communications.

• You must download data correctly structured for the commands. Refer
to Chapter 6, “IPL Commands,” for a complete listing of 3440 printer
commands.

• Ensure that the cable you are using to communicate with the printer has
the correct pin-outs. See “Connecting the Printer to Your System” in
Chapter 1 for cable schematics.

FG 9pt Italic

*1233*

3

Maintaining the Printer

FG 9pt Italic

*1233*

1233*

FranklinGothic

Helv Condensed Maintaining the Printer

3

This chapter contains cleaning procedures and a schedule detailing how often to
perform maintenance procedures. Even though the 3440 printer can withstand
harsh environments, you must clean it on a regular basis to maximize its
performance. It is very important to perform the maintenance procedures if you
expose the printer to dirt or debris. For help replacing media or ribbon, see
Chapter 1, “Getting Started,” and Chapter 2, “Operating the Printer.”

Inspecting the Printer

Inspect the printer and the rest of your data collection system equipment on
a regular basis. Your inspection should include these tasks:

• Make sure you have properly grounded the printer.

• Inspect the work environment. Large electric motors, welders, and

switching equipment can affect printer performance. See Appendix B,
“Communications Reference,” for guidelines on appropriate
environments.

• Keep the printer away from liquids.

• Check the data collection network regularly for loose wires or poorly

installed connections. Be sure to replace corroded wires.

FG 9pt Italic

*1233*

Tools for Cleaning the Printer

To clean the printer safely and effectively, use these items:

• Isopropyl alcohol

• Cotton swabs

• Clean lint-free cloth

• Vacuum cleaner

• Soapy water or mild detergent

The following procedures explain how to access the printer parts and clean
them without causing any harm to the printer or yourself.

3-3

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Helv Condensed

Maintenance Schedule

Clean your printer regularly to maintain the quality of your labels and
extend the life of your printer. This table contains suggestions for cleaning
the printer. Use the illustration to locate the parts you need to clean.

Printer Component Maintenance Period

Printhead Inspect after every roll of media. Clean after

Printer Cover Clean as necessary.

Drive roller and tear bar
Media path (not shown)
Edge guide
Upper media guide
Lower media guide

FG 9pt Italic

every roll (or 6,000 inches) of media or more
often if necessary.

Clean after every five rolls of media. If you are
using hi-tack adhesive, you must clean after
every roll of media. If you are using tag stock
or continuous media, you may want to clean
after every five rolls of media or as necessary.
Clean more often in environments that are
harsh or dusty.

*1233*

Thermal transfer ribbon (TTR)
assist roller

Self-strip roller
Label gap sensor (not shown)
Label mark sensor (not shown)
Label taken sensor
Pinch roller

3-4

1233*

g

y

p

FranklinGothic

Helv Condensed Maintaining the Printer

3

Locating the Printer Parts You Need to Maintain

TTR assist
roller

Label taken
sensor

Tear bar

Drive
roller

Pinch
roller

Power/Data

Alert

Empty/Pause

Feed/Pause

IntermecIntermec

3440

FG 9pt Italic

Self-strip
roller

Thermal
printhead

*1233*

Upper media
guide

Lower media
guide

Edge
guide

3440U.018

Warnin

Switch off the printer power and remove the power cord before cleaning an
part of the printer.

Avertissement

Mettez l’im
de nettoyer une parte de l’imprimante.

rimante hors tension et débranchez le câble d’alimentation avant

3-5

3440 Bar Code Label Printer User’s Manual

p

p

y

p

p

p

1233*

FranklinGothic

Helv Condensed

FG 9pt Italic

*1233*

Cleaning the Printhead

In order for the printhead to provide good print quality, it must maintain
close contact with the media. Therefore, cleaning media debris from the
printhead is very important. You should clean the printhead after every roll
(or 6,000 inches) of media or more often if necessary.

Caution

Do not use shar

rinthead clean. Cleaning with sharp objects will damage the printhead.
Clean with onl
isopropyl alcohol.

Conseil

N’utilisez
la tête d’im

rimante. Nettoyez-la seulement avec de la ouate ou avec un linge propre

d’im
et libre de peluches, humecté avec de l’alcool d’isopropyl.

To clean the printhead

1. Turn the On/Off switch to the off position and remove the power cord.

objects such as knives or screwdrivers to scrape the

a cotton swab, or a clean, lint-free cloth or tissue damp with

as d’objets pointus tels que couteaux ou tournevis pour nettoyer

rimante. Nettoyer avec des objets pointus endommagera la tête

2. Remove the media cover.

3. Disengage the printhead by rotating the head lift lever clockwise until

4. Remove the media and ribbon if necessary.

5. Use a cotton swab moistened with alcohol to remove any dirt, adhesive,

6. Wait 5 to 10 seconds for the print surface to dry. Replace the media and

7. Engage the printhead by rotating the head lift lever counterclockwise

8. If you are finished cleaning, replace the media cover.

3-6

the printhead releases. This raises the printhead so that you can clean it.

or debris from the print surface on the bottom of the printhead.

ribbon.

until it locks in place.

1233*

FranklinGothic

Helv Condensed Maintaining the Printer

3

Cleaning the Printhead

Ribbon
rewind
hub

Power/Data

Alert

Empty/Pause

Feed/Pause

IntermecIntermec

3440

Printhead

Ribbon
supply
hub

FG 9pt Italic

Head
lift
lever

*1233*

Supply
roll
post

3440U.019

Cleaning the Printer Covers

Clean the 3440 printer covers with a general purpose cleaner (soapy water
or mild detergent). Do not use abrasive cleansers or solvents. Be sure to
clean the transparent panel on the media cover so that the media supply
inside the printer is visible when you close the cover.

3-7

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Helv Condensed

FG 9pt Italic

*1233*

Cleaning the Rollers and the Tear Bar

Cleaning the rollers and the tear bar preserves print quality by ensuring
close contact between the media and the printhead.

To clean the rollers and tear bar

1. Turn the On/Off switch to the off position and remove the power cord.

2. Remove the media cover.

3. Rotate the head lift lever clockwise to release the printhead.

4. Remove media and ribbon (if necessary).

5. Clean the rollers by using a cloth moistened with isopropyl alcohol.

Move the cloth over the rollers in a side-to-side motion as shown. Make
sure to rotate the rollers so that you can clean all areas.

Note: Rotate the TTR assist roller toward you to clean the entire drive roller
surface.

6. Clean both sides of the tear bar with a cloth dampened with isopropyl

alcohol. Remove all traces of dust, paper, and adhesive.

3-8

7. Replace the media and ribbon.

8. Engage the printhead by turning the head lift lever counterclockwise

until the printhead locks.

9. If you are finished cleaning, replace the media cover.

1233*

FranklinGothic

Helv Condensed Maintaining the Printer

3

Cleaning the Rollers and Tear Bar

TTR assist
roller

Power/Data

Alert

Empty/Pause

Feed/Pause

Intermec

A Litton Company

3400

Tear
bar

Drive
roller

FG 9pt Italic

Head lift
lever

*1233*

3440U.020

3-9

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Helv Condensed

FG 9pt Italic

*1233*

Cleaning the Media Guides and Media Path

You should clean the media guides and media path regularly to keep debris
off the media surface and printhead where irregularities can spoil print
quality or damage the printhead. Cleaning the guides also prevents the
media from skewing or improperly tracking as it travels through the media
path, which can result in smeared images and print off the side of the label.
Always clean the media guides immediately after a label jam in the printer.

To clean the media guides and media path

1. Turn the On/Off switch to the off position and remove the power cord.

2. Remove the media cover.

3. Remove the media and ribbon (if necessary).

4. Pull down on the lower media guide to open up the media path.

5. Clean the lower media guide by using a lint-free cloth moistened with

isopropyl alcohol as shown in the following figure.

Note: The lower media guide is spring loaded. You must hold it open to clean.

6. Use the cloth moistened with isopropyl alcohol to clean the upper media

guide. Be sure to remove all traces of debris.

7. Remove all traces of dust, paper, and adhesive from the media path with

8. Clean the flat surfaces of the media path (including the edge guide) with

9. Release the lower media guide.

10. Replace the media cover.

3-10

a soft bristle brush or vacuum.

a lint-free cloth and isopropyl alcohol.

1233*

FranklinGothic

Helv Condensed Maintaining the Printer

3

Cleaning the Media Path and Media Guides

Power/Data

Alert

Empty/Pause

Feed/Pause

IntermecIntermec

3440

Media
path

FG 9pt Italic

Upper media
guide

Lower
media
guide

*1233*

3440U.021

3-11

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Helv Condensed

FG 9pt Italic

*1233*

Cleaning the Label Sensors

Three label sensors on the 3440 printer require regular cleaning:

• Label taken

• Label mark

• Label gap

To clean the label sensors

1. Turn the On/Off switch to the off position and remove the power cord.

2. Remove the media cover.

3. Disengage the printhead by rotating the head lift lever clockwise until

the printhead releases.

4. Remove the media and ribbon (if necessary).

5. Clean the label taken sensor and the label mark sensor with a cotton

swab moistened with isopropyl alcohol. Refer to the previous
illustration.

6. Pull down on the lower media guide to expose the label gap sensor.

Using a cleaning brush or vacuum, remove all debris and dust from the
label gap sensor.

7. Clean the label gap sensor with a cotton swab and alcohol.

8. Replace the media and ribbon.

9. Engage the printhead by rotating the head lift lever counterclockwise

10. Replace the media cover.

3-12

until it locks in place.

1233*

FranklinGothic

Helv Condensed Maintaining the Printer

3

Cleaning the Label Sensors

Cotton
swab

Drive
roller

Label taken
sensor

Label mark
sensor

Upper media
guide

(underside)

Cleaning
brush

FG 9pt Italic

*1233*

Lower
media guide

Label gap
sensor

3440U.022

3-13

FG 9pt Italic

*1233*

4

Troubleshooting

1233*

This chapter provides some hints for troubleshooting error messages that the
printer sends to the host and problems you may experience with the printer.

FranklinGothic

Troubleshooting Checklist

Even though Intermec designed the 3440 printer to operate under harsh
conditions, you may still encounter error messages at some time. You can
easily fix most of the errors you encounter and consequently not delay
operation of the printer for very long.

If you receive an error message or encounter a functional problem with the
printer, try the following:

1. Send a <BEL> command to the printer and see if the printer sends an
error message to the host in response.

2. If there is an error message, find it in the table under “Error Codes” in
this chapter. Follow the instructions after the error message to correct the
problem.

Helv Condensed Troubleshooting

4

or

If the printer does not send an error message to the host, try to locate the
symptom in the tables under “Printer Operation Problems” or “Print
Quality Problems” in this chapter. Follow the instructions after the
symptom to correct the problem.

3. Clean the printer components and check all connections. See Chapter 3,
“Maintaining the Printer,” for details.

If the problem persists, contact your Intermec customer service
representative. In the U.S. call 1-800-755-5505, and in Canada
call 1-800-688-7043.

If you are an international customer, contact your local Intermec
representative.

4-3

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Helv Condensed

Printer Operation Problems

If your printer is not operating correctly, try locating the problem in the table below:

Symptom Possible Causes Solution

No power or loss of
power.

You have damaged or
disconnected the AC power
cable.

Printer circuit breaker tripped. Turn the printer off and then back on

Make sure you have plugged the power
cable into both the printer and an outlet or
power strip. Replace the cable if damaged.

again.

Labels stop feeding
through the printer.

Printer slows down. Image bands or print speed are

Printer is out of media. Load new media. For help, see “Loading

You have incorrectly loaded the
media.

Media is sticking to the paper
path.

You have set the printer for
continuous label stock.

incorrectly set.

Roll Media for Straight-Through Printing”
in Chapter 2.

Check the media path. For help, see
“Loading Roll Media for Straight-Through
Printing” in Chapter 2.

Clean any extraneous material from the
paper path and clean it thoroughly. For
help, see “Cleaning the Media Guides and
Media Path” in Chapter 3.

Use the Configuration Parameters,
Transmit <ESC>p command to check the
configuration setting. Select the correct
setting with PrintSet or the Select Label
Stock Type <SI>T command. See Chapter
6, “IPL Commands.”

Change the image bands or print speed
settings. Use PrintSet or Chapter 6, “IPL
Commands,” to change the settings. For
help on optimizing both settings, see
“Maximizing Throughput” in Chapter 7.

4-4

1233*

FranklinGothic

Helv Condensed Troubleshooting

4

Printer Operation Problems (continued)

Symptom Possible Causes Solution

Printer slows down.
(continued)

Media fault. The printhead is up. Make sure the printhead is down. The

Printer has aborted and reset the
print speed and number of
image bands.

Sensor type set incorrectly. Configure the printer for the correct

Change the image bands or print speed
settings. Use PrintSet or Chapters 6, “IPL
Commands,” to change the settings. For
help on optimizing both settings, see
“Maximizing Throughput” in Chapter 7.

head lift lever should be straight up and
down. Press the Feed/Pause button to
resume printing.

sensor. Use PrintSet or Chapter 6, “IPL
Commands,” to change the settings.

Labels stick to media
access door or fail to
strip.

Hardware configuration
test label does not print.

You have incorrectly loaded the
media.

The self-strip roller is dirty or
the pinch roller is not contacting
the strip roller.

You have incorrectly loaded the
media.

Media fault. Remove media from under the label taken

You have configured the printer
for self-strip media.

Try reloading media. For help, see
“Loading Roll Media for Straight-Through
Printing” in Chapter 2.

Clean the self-strip roller. For help, see
“Cleaning the Rollers and the Tear Bar” in
Chapter 3.

Try reloading the media. For help, see
“Loading Roll Media for Straight-Through
Printing” in Chapter 2.

sensor.
Set the printer to the default configuration

using the DIP switches. For help, see
“Plugging in the Printer” in Chapter 1.

4-5

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Helv Condensed

Print Quality Problems

If your labels are not being printed properly, check the following table to locate the symptom
and correct the problem.

Symptom Possible Causes Solution

Blotches on labels. Dirty printhead. Clean the printhead. For help, see

“Cleaning the Printhead” in Chapter 3.

Dirty media path or rollers. Clean the media path. For help, see

“Cleaning the Media Guides and the
Media Path” in Chapter 3.

Printing is too light or
too dark.

Poor quality label or ribbon
stock.

You have incorrectly set the
sensitivity command.

You have incorrectly set the
darkness adjust control.

Dirty printhead. Clean the printhead. For help, see

Print speed exceeds the
capability of the media.

Poor quality label or ribbon
stock.

Use only Intermec label and ribbon stock
to ensure superior print quality and
product performance.

Change sensitivity setting to match the
type of media you are using (see “Setting
the Media Sensitivity Number” in
Chapter 2 and “Optimizing and
Maintaining Print Quality” in Chapter 7).
You can use PrintSet or the IPL command
set to change the setting. If you set the
sensitivity number correctly, try changing
the dark adjust command.

Adjust the darkness adjust control to
achieve the best print quality. See
“Adjusting the Print Darkness” in
Chapter 7.

“Cleaning the Printhead” in Chapter 3.
Lower your print speed or use Intermec

recommended media.
Use only Intermec label and ribbon stock

to ensure superior print quality and
product performance.

4-6

1233*

FranklinGothic

Helv Condensed Troubleshooting

Print Quality Problems (continued)

Symptom Possible Causes Solution

Printing not aligned on
label.

Printer is misfeeding media. Make sure you have correctly installed the

media. For help, see “Loading Roll Media
for Straight-Through Printing” in Chapter

2.

4

Labels are not stopping
at the right point for
removal.

Print quality is poor. Incorrect media sensitivity

You have incorrectly set the
label rest point command.

You have set the printer for
continuous label stock.

setting.

The darkness of label print is too
light or too dark.

Print speed exceeds the
capability of the media.

Printhead, platen roller, or label
path is dirty.

Uneven print contrast (density). Adjust the bias adjust screw. See

Adjust the label rest point. Use PrintSet or
see Chapter 6, “IPL Commands,” for more
information.

Set the printer to thermal transfer or direct
thermal label stock. For help, see “Loading
Roll Media for Straight-Through Printing”
in Chapter 2.

Change sensitivity setting to match the
type of media you are using. If you set the
sensitivity correctly, try changing the dark
adjust command. Use PrintSet or Chapter
6, “IPL Commands,” to change the
settings.

Adjust the darkness adjust control. See
“Adjusting the Print Darkness” in
Chapter 7.

Lower your print speed or use Intermec
media recommended for your print speed.

Clean printhead, platen roller, and label
path as described in Chapter 3,
“Maintaining the Printer.”

“Correcting Uneven Print Quality” in
Chapter 7.

You are using incorrect label or
ribbon stock to print labels.

Ribbon wrinkling. Set the bias adjust screw. See “Correcting

Use only Intermec label and ribbon stock
to ensure superior print quality and
product performance.

Uneven Print Quality” in Chapter 7.

4-7

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Print Quality Problems (continued)

Symptom Possible Causes Solution

Print quality is poor.
(continued)

Ribbon wrinkling. Check to make sure that you have

installed the ribbon correctly. For help, see
“Loading Thermal Transfer Ribbon” in
Chapter 2.

Helv Condensed

The ribbon was installed upside
down.

The direct thermal/thermal
transfer switch was set in the
wrong position.

You have severely worn the
printhead or platen roller.

Media may be slipping against
the platen roller, causing the
printing to compress.

The label format extends beyond
the label length.

Install ribbon with shiny side facing the
printhead. See “Loading Thermal Transfer
Ribbon” in Chapter 2.

Set the switch for the type of media you
are using. See “Configuring the Serial Port
for Communications” in Chapter 1.

Replace the platen roller or printhead.

Switch to approved media or clean the
printhead and platen roller as described in
Chapter 3, “Maintaining the Printer.”

Edit the format to ensure that the text fits
on the label. See “Editing Label Formats
and Working With Fields” in Chapter 5 for
more information.

Communications Problems

If your printer is not receiving downloaded data, try the solutions in the next table.

Symptom Possible Causes Solution

Printer does not
communicate with the
host.

You have incorrectly configured
the serial port.

Make sure the printer’s serial port settings
match those of the host. Print a software
configuration label to check settings. See
“Setting the Media Sensitivity Number” in
Chapter 2 for the procedure.

4-8

Damaged or incorrect I/O cable. Check the connections at both ends or

replace the cable. See “Connecting the
Printer to Your System” in Chapter 1 for
cable information.

1233*

Preventing Data Loss

Several problems can cause data loss or communications problems on the
3440 printer. Data loss can result in printing errors or missing field data.

The 3440 printer is a serial ASCII device. It communicates with the host
through an ASCII serial communications I/O port. Hardware handshaking
involves the use of a hardware wire. Software handshaking involves a
two-way datalink between the devices. The two devices communicate with
each other without losing data through the use of handshaking. The printer
sends both forms of handshaking simultaneously when the printer’s input
buffer is full. Any loss of data can cause printing errors or missing data.

Hardware handshaking uses pins 11 or 20 of the RS-232 interface to control
data flow. When the printer is using Intermec Standard protocol, it holds
pins 11 and 20 high when it is ready to receive data. The printer holds the
pins low when it is in one of the following conditions:

• Buffer full

• Ribbon fault

FranklinGothic

Helv Condensed Troubleshooting

4

• No label stock

• Label at strip pin

The 3440 printer uses XON/XOFF protocol for software handshaking. When
the input buffer is full, the printer transmits an XOFF character. This
character alerts the host to the fact that the printer buffer is full and cannot
receive any more data. When the printer is ready to receive more data, it
sends the XON character.

To check for communications problems

1. Check the cabling from the printer to the host system.

2. Check the communications interfacing of the devices connected to the
printer.

3. Check the printer for proper electrical operation of the I/O port.

4. Ensure the host system is not overrunning the printer input buffers.

5. Ensure the data string being sent to the printer contains the correct
information.

4-9

3440 Bar Code Label Printer User’s Manual

Error Handling

This section describes how the 3440 printer handles certain error conditions
it may encounter in printer or programming commands.

Syntax Errors

The 3440 printer responds to syntax errors in the messages it receives from
the host by attempting to execute the commands. It does not ignore a
command with a syntax error. Instead, the printer produces output, even if
it is erroneous, which gives you an indication of what went wrong and what
you should do to correct the problem.

Parameter Errors

Certain commands require parameters. If you do not supply these
parameters, the printer substitutes default values. If a parameter is above its
maximum range limit, the printer uses the maximum value. If it falls below
the minimum range, the printer uses the minimum value. Refer to Chapter
6, “IPL Commands,” for the range and default value for each command.

1233*

FranklinGothic

Helv Condensed

Image Overrun Errors

Image overrun occurs when a label is too complex to image for a given print
speed. An overrun will cause the printer to abort the label being printed.
This error is most common on labels over 5 inches long.

The printer automatically attempts to correct for this error condition by
resetting to the lowest print speed and to the highest number of image
bands, and then repeats printing the label. The printer remains at this
setting until you reset it. If an image overrun still occurs, printing for that
batch of labels stops and the printer executes any following commands.

Installing one of the optional single in-line memory modules (SIMM) of 4 or
8 MB decreases image overrun errors.

4-10

1233*

FranklinGothic

Helv Condensed Troubleshooting

4

Invalid Numeric Character Errors

If you include non-numeric characters within a numeric data string of a
command, the printer disregards them and continues to process the rest of
the valid numeric characters. However, if a non-numeric character begins
the numeric data string, the printer uses a default value for the affected
command.

Here are two examples of valid numeric character strings and one example
of an invalid string:

12a valid
1a2 valid
a12 invalid

Insufficient Storage RAM Errors

Before storing new formats, graphics, or user-defined fonts in the static
RAM, the printer checks to see if it has sufficient memory to store them. If
there is insufficient memory, the printer disregards the last editing session.
The printer design preserves the integrity of the existing data in the static
random access memory (RAM).

Error Codes

Most of the problems you may encounter cause the 3440 printer to send an
error code to the host. When this happens, find the error code in the
following table and complete the instructions to correct the problem.

4-11

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Helv Condensed

Error Codes Sent to the Host

Code Problem Solution

00 No error.
01 Invalid bar code check character. Verify the bar code check character modifier

used in the bar code program command.

02 Invalid number of bar code characters (Code

UPC/EAN).

04 Bar code check character within numeric

field marks.

05 Supplemental delimiter within numeric field

marks (Code UPC/EAN).

06 Invalid supplemental character count

(UPC/EAN).

07 More than one supplemental delimiter

(Code UPC/EAN).

08 Invalid start/stop characters (Codabar). Verify start and stop characters in the label

11 Invalid bar code data. Verify data in the label format.
12 Data count exceeded. Data count must not exceed the specification

13 Entering data in non-data entry field. Check the field for accuracy.
21 Quantity or batch count out of range. Quantity of labels or number of batches

22 Field increment/decrement out of range. Quantity must be between 1 and 9999.
23 Intercharacter/message delay out of range. Delay must be between 0 and 9999.
24 Missing preamble/postamble data. Delete the setup for preamble or postamble

25 Invalid format transmission syntax. Check the format transmission syntax. The

26 Invalid page transmission syntax. Check the page transmission syntax. The

27 Invalid font transmission syntax. Check the font transmission syntax. The

Verify the number of bar code characters
used in the bar code program command.

Check the bar code program command for
accuracy.

Check the bar code program command for
accuracy.

Check the bar code program command for
accuracy.

Check the bar code program command for
accuracy.

format.

for the field.

must be between 1 and 9999.

data, or include the data.

correct syntax is <ESC>xn with n ranging
from 0 to 99.

correct syntax is <ESC>yn with n ranging
from 1 to 9.

correct syntax is <ESC>vn with n ranging
from 0 to 62.

4-12

1233*

FranklinGothic

Helv Condensed Troubleshooting

4

Error Codes Sent to the Host (continued)

Code Problem Solution

28 Invalid UDC transmission syntax. Check the UDC transmission syntax. The

correct syntax is <ESC>un with n ranging
from 0 to 99.

32 Non-immediate command or data received

after buffer full.

33 Invalid field delimiters. Check for all pairs of field delimiters and

34 Invalid escape command. Correct the escape command syntax.
35 Invalid data shift command. Correct the shift command syntax.
36 Invalid or undefined format number. Verify that the format numbers are between

37 Insufficient room in RAM to print format. Reduce the number of data fields in the

38 Invalid or undefined field number. Verify the field number in the label format.
41 Syntax error for program commands. Check the program command for proper

42 Insufficient room in RAM to store format. Empty the buffer contents. If the format still

43 Too many fields in label format. You can use up to 200 fields in a format and

46 Undefined statement. Check the statement syntax.
52 Invalid UDC/UDF bitmap cell

height/width or intercharacter space.

53 Insufficient room in RAM to store UDC or

UDF.

54 Invalid UDC command syntax. Correct the UDC command syntax.

Allow the printer to empty the buffer
contents before sending commands or data.

make sure both are numeric, or both are
alphanumeric.

0 and 99.

format.

syntax.

does not fit, delete some fields or other data
from the format. You may have to remove
or reduce the UDCs, formats, or fonts if
necessary.

each field can use up to 3000 characters.
Reduce field size or delete some fields.

Verify that cell heights are between 1 and
1999, cell widths are between 1 and 800, and
the intercharacter space is between 0 and

399.
Remove or reduce formats, fonts, or UDCs.

4-13

3440 Bar Code Label Printer User’s Manual

1233*

FranklinGothic

Replacing an 86XX or 3400 Printer

The 3440 printer provides compatibility with the 3400 printer and the earlier
8636 and 8646 bar code printers. The 3440 printer operates in Advanced
mode or 86XX Emulation mode. The two modes have three operational
subset modes: Print mode (contains configuration commands), Program
mode, and Test and Service mode.

Both Advanced mode and 86XX Emulation mode operate on the same basic
command set for print, configuration, program, and test and service
commands. On initial power up, the 3440 printer is in Advanced mode.
Advanced mode provides new features that make the 3440 compatible with
the 3400 printer. When you select 86XX Emulation mode, the 3440 printer is
compatible with the 8636 and 8646 printers. In 86XX Emulation mode, some
of the Advanced mode features are not available.

Differences Between 86XX Printers and Emulation
Mode

While the 3440 printer can emulate most functions of the 86XX series
printers, there are some features that are different or not implemented. This
section identifies those differences.

Helv Condensed

No BEL Status Response

The 86XX printer checks all incoming messages for errors before storing
them in the data buffer for later execution. When it receives an erroneous
message, it sends a BEL character back to the host as the printer status
response and discards the whole message. It continues to process the next
message without explaining to the host why it discards the previous
message.

The 3440 printer software does not ignore messages that have errors in any
of the commands. Instead, it executes all the commands as best as it can,
ignoring invalid commands and using printer defaults for erroneous
parameters. As a result, the printer treats mandatory data fields like
optional data fields. Attempting to execute all commands, in spite of errors,
gives the user clues about what went wrong and what they can do to
remedy the problem.

4-14

1233*

Even though the 3440 printer does not send the BEL status response back to
the host, it still generates the internal error code like the 86XX printer. The
user can use the same command to ask the printer to transmit its latest error
code to the host. The 86XX Emulation mode or Advanced mode setting does
not affect this feature of the 3440 printer.

FranklinGothic

Helv Condensed Troubleshooting

4

Prints Erroneous Labels

An 86XX printer does not print a label if the printed image does not fit
within the boundaries of the label stock. The 3440 printer prints the label,
even if the label is incomplete or the image overruns the next label. If the
printer overruns the next label, the printer form feeds to the following label
before the next print.

Limited User-Defined Protocol

The 3440 printer provides the capability to change protocol characters.
However, unlike the 86XX printer, you cannot define your own protocol.
You can substitute characters to use as protocol characters, but the rules for
the protocol chosen do not change. The printer does not use any protocol
character that you replace by the NUL character. One table of protocol
characters exists. You can redefine these characters and all protocols will
use them.

For example, you can redefine protocol characters by replacing control
characters with printable characters. Use caution since you cannot replace a
control character with more than one printable character.

4-15

3440 Bar Code Label Printer User’s Manual

The following table lists the protocol characters that you may redefine and
which protocols they affect.

Character Protocols Affected

SELECT IN POL Mode D, Multi-Drop
POLL IN POL Mode D, Multi-Drop
RES IN POL Mode D, Multi-Drop
REQ IN POL Mode D, Multi-Drop
SOM IN STD, POL Mode D, Multi-Drop, XON/XOFF
EOM IN STD, POL Mode D, Multi-Drop, XON/XOFF
AFF IN POL Mode D, Multi-Drop
NEG IN POL Mode D, Multi-Drop
DLE IN STD, POL Mode D, Multi-Drop, XON/XOFF
XON IN XON/XOFF
XOFF IN XON/XOFF
SELECT OUT Multi-Drop
POLL OUT Multi-Drop
RES OUT POL Mode D, Multi-Drop
REQ OUT POL Mode D, Multi-Drop
SOM OUT POL Mode D, Multi-Drop
EOM OUT POL Mode D, Multi-Drop
AFF OUT POL Mode D, Multi-Drop
NEG OUT STD, POL Mode D, Multi-Drop
DLE OUT STD, POL Mode D, Multi-Drop, XON/XOFF
XON OUT XON/XOFF
XOFF OUT POL Mode D, Multi-Drop, XON/XOFF
PROTO-CMD 1 STD XON/XOFF
PROTO-CMD 2 STD XON/XOFF
TIMEOUT ON EOM POL Mode D, Multi-Drop

1233*

FranklinGothic

Helv Condensed

Added Auto-Transmit 3 and SI Configuration Commands

When you enable the Auto-Transmit 3 status response, the printer will
automatically transmit image overrun, print job complete, buffer empty,
and insufficient RAM status when they occur. An entire set of configuration
commands beginning with the SI (0x0F) character is available.

4-16

1233*

FranklinGothic

Helv Condensed Troubleshooting

4

Increased Storage Capacity

86XX printers provide a maximum of less than 5.5K of memory for format
storage. 3440 printers provide up to 120K for configuration, formats, fonts,
and UDCs (without memory expansion option). The maximum number of
formats increases from 10 to 99. Fields per format have increased from 100
to 200. The maximum data buffer size for a field increases from 50 to 200.
The number of UDCs increases from 10 to 100. The number of user-defined
fonts increases from 7 to 16.

Features Not Implemented

The 3440 printer does not implement some features of the 86XX printers.
These features include:

• Breach printing (eliminated on “speeded up 86XX printer”). You can
achieve the same functionality by defining the format, rotated 180
degrees, in a page.

• Printhead size command.

• 8100 protocol and command set.

• Mandatory data fields. The 3440 printer prints a label even if data is

missing from mandatory data fields.

• Prompting mode.

4-17

3440 Bar Code Label Printer User’s Manual

Differences Between the 3400 Printer and the 3440
Printer

Intermec derived the 3440 printer firmware from the 3400 printer firmware.
It uses the same commands and can receive command files and print
identical labels to the 3400 printer. While most features are similar, we had
to change or delete some features due to differences in the printer
electronics and mechanism.

Printhead Size

The 3400 printhead has 832 elements (dots) for a total of 4.16 inches. The
3440 printhead has 1792 elements for a total of 4.4 inches. The 3400 printers
have printhead elements (dots) that are 0.125 mm in size, for a total of 203
dots per inch (dpi). The 3440 printer has printhead elements 0.0625 mm in
size, for a total of 406 dpi.

When emulating a 3400 printer in 203 dpi mode, the 3440 printer doubles
the X and Y dimensions of bar codes, lines, boxes, and graphics to emulate
the larger dot size. The 3440 does not double the dimensions of human­readable characters. The resident fonts are the same size in both the 3440
and the 3400 printers. The only difference is that the characters print much
more clearly on the 3440 printer.

1233*

FranklinGothic

Helv Condensed

In the 3440 printer, all configuration measurements are in 5 mil units. All
label measurements, such as origin, are 2.5, 5, or 10 mil depending on the
dpi resolution in use.

Fonts

The 3400 printer comes with one outline font. Three Speedo outline fonts are
resident in the 3440 printer: two mono-spaced fonts and one proportional
font. All resident bitmap fonts are identical to the 3400 printer except that
characters are smoother on the 3440 printer due to the greater printhead
resolution. The software generates the characters for fonts 22 and 35
through 41 from the resident outline fonts, but the printer treats them as
bitmap fonts. The fonts now include Code Page 850 and you can access it as
a separate international language.

4-18
