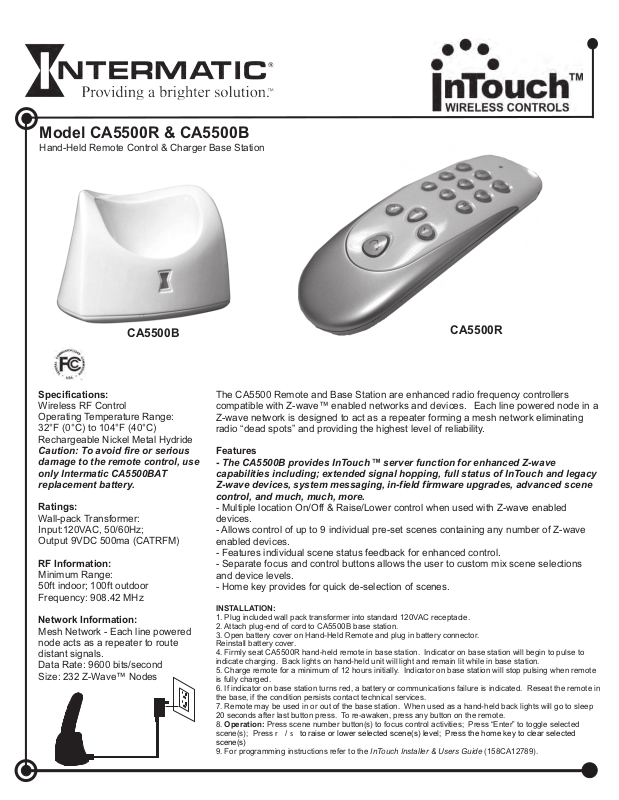

Intermatic InTouch CA5500R User Manual

Model CA5500R & CA5500B

Hand-Held Remote Control & Charger Base Station

Specifications:

Ratings:

RF Information:

Network Information:

Wireless RF Control

Wall-pack Transformer:
Input:120VAC, 50/60Hz;
Output 9VDC 500ma (CATRFM)

Minimum Range:
50ft indoor; 100ft outdoor
Frequency: 908.42 MHz

Mesh Network - Each line powered
node acts as a repeater to route
distant signals.
Data Rate: 9600 bits/second
Size: 232 Z-Wave™ Nodes

Operating Temperature Range:
32°F (0°C) to 104°F (40°C)
Rechargeable Nickel Metal Hydride

Caution: To avoid fire or serious
damage to the remote control, use
only Intermatic CA5500BAT
replacement battery.

INSTALLATION:

1. Plug included wall pack transformer into standard 120VAC receptacle.

2. Attach plug-end of cord to CA5500B base station.

4. Firmly seat CA5500R hand-held remote in base station. Indicator on base station will begin to pulse to
indicate charging. Back lights on hand-held unit will light and remain lit while in base station.

5. Charge remote for a minimum of 12 hours initially. Indicator on base station will stop pulsing when remote
is fully charged.

6. If indicator on base station turns red, a battery or communications failure is indicated. Reseat the remote in
the base, if the condition persists contact technical services.

7. Remote may be used in or out of the base station. When used as a hand-held back lights will go to sleep
20 seconds after last button press. To re-awaken, press any button on the remote.

8.

9. For programming instructions refer to the

Operation: Press scene number button(s) to focus control activities; Press “Enter” to toggle selected

scene(s); Press

(158CA12789).InTouch Installer & Users Guide

r s / to raise or lower selected scene(s) level; Press the home key to clear selected

scene(s)

The CA5500 Remote and Base Station are

Each line powered node in a
Z-wave network is designed to act as a repeater forming a mesh network eliminating
radio “dead spots” and providing the highest level of reliability.

- Multiple location On/Off & Raise/Lower control when used with Z-wave enabled
devices.

- Allows control of up to 9 individual pre-set scenes containing any number of Z-wave
enabled devices.

- Features individual scene status feedback for enhanced control.

- Separate focus and control buttons allows the user to custom mix scene selections
and device levels.

- Home key provides for quick de-selection of scenes.

enhanced radio frequency controllers

compatible with Z-wave™ enabled networks and devices.

Features

- The CA5500B provides InTouch server function for enhanced Z-wave
capabilities including; extended signal hopping, full status of InTouch and legacy
Z-wave devices, system messaging, in-field firmware upgrades, advanced scene
control, and much, much, more.

™

CA5500B

CA5500R

3. Open battery cover on Hand-Held Remote and plug in battery connector.
Reinstall battery cover.

FCC STATEMENT OF COMPLIANCE

WARNING! Changes or modifications not
expressly approved by Intermatic Inc. could void
the user’s authority to operate the equipment.

This device complies with part 15 of the FCC rules.
Operation of this device is subject to the following two
conditions:

(1) This device may not cause harmful
interference, and
(2) This device must accept any interference,
including interference that may cause

undesired operation.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna

or device.

-- Increase the separation between the

equipment and receiver.

-- Connect the equipment into an outlet on a

circuit different from that to which the receiver

is connected.

-- Consult the dealer or an experienced

radio/TV technician for help.

Scene Buttons

Home Button

Enter Button

Raise & Lower
Buttons

Base Station
Indicator LED

Indicator LED

If within ten (10) years from date of purchase, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace, at
its sole option. This warranty applies only to the original purchaser and is not transferable. This warranty excludes and this is disclaimed liability for labor for
removal of this product or reinstallation. The warranty does not apply to: (a) damage caused by accident, abuse , mishandling, dropping, acts of God, or any
negligent use; (b) units which have been subject to unauthorized repair, opened taken apart, or otherwise modified; (c) units not used in accordance with
directions; (d) damages exceeding the cost of the procudt. Some states do not allow a limitation of damages, so the foregoing limitation may not app;y to you.
This warranty gives you specific legal rights and you may have other rights that vary from state to state. INTERMATIC INCORPORATED WILL NOT BE

LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES.
ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION
AS THE WARRANTY PERIOD STATED ABOVE.

This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased, or (b) mailing the product, along with
proof of purchase, postage prepaid to the authorized service center listed below. This warranty is made by: Intermatic Incorporated/AfterSales Service 7777
Winn Rd., Spring Grove, Illinois 60081-9698/815-675-7100 http://www.intermatic.com Please be sure to wrap the product securely to avoid shipping damage.

LIMITED TEN YEAR WARRANTY

158CA12478
