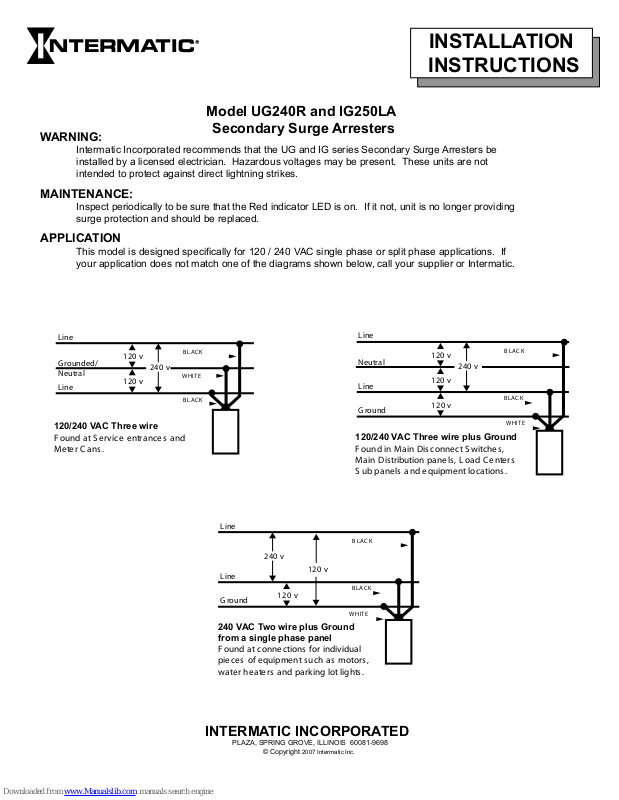

Intermatic IG250LA, UG240R Installation Instructions Manual

Model UG240R and IG250LA

INSTALLATION
INSTRUCTIONS

WARNING:

Secondary Surge Arresters

 Intermatic Incorporated recommends that the UG and IG series Secondary Surge Arresters be
 installed by a licensed electrician. Hazardous voltages may be present. These units are not
 intended to protect against direct lightning strikes.

MAINTENANCE:

 Inspect periodically to be sure that the Red indicator LED is on. If it not, unit is no longer providing
 surge protection and should be replaced.

APPLICATION

 This model is designed specifically for 120 / 240 VAC single phase or split phase applications. If
 your application does not match one of the diagrams shown below, call your supplier or Intermatic.

Line

G rounded/
Ne utral

Line

120 v

240 v

120 v

120/240 VAC Three wire

F ound a t S ervice entrances and
Meter C ans.

B LAC K

WH IT E

B LAC K

Line

B LAC K

B LAC K

WH IT E

Ne utral

Line

G round

120 v

240 v

120 v

120 v

120/240 VAC Three wire plus Ground

F ound in Main Disconnect S witches ,
Main Distribution panels , Loa d C enters
S ub panels a nd equipment locations.

INTERMATIC INCORPORATED

Line

B LAC K

240 v

120 v

120 v

B LAC K

WH IT E

Line

G round

240 VAC Two wire plus Ground
from a single phase panel

F ound a t connections for individual
pieces of equipment s uch a s motors ,
water hea ters a nd pa rking lot lights.

PLAZA, SPRING GROVE, ILLINOIS 60081-9698

© Copyright

2007 Intermatic Inc.
