Can control and distribute Various functions :
Audio, Video, Internet, IP phone etc…
Connectivity and installation via CAT6 network structure,
keeps wiring simple and installation costs to a minimum.
Network based Full-duplex
Distribution System!
Multimedia IP Broadcasting System!

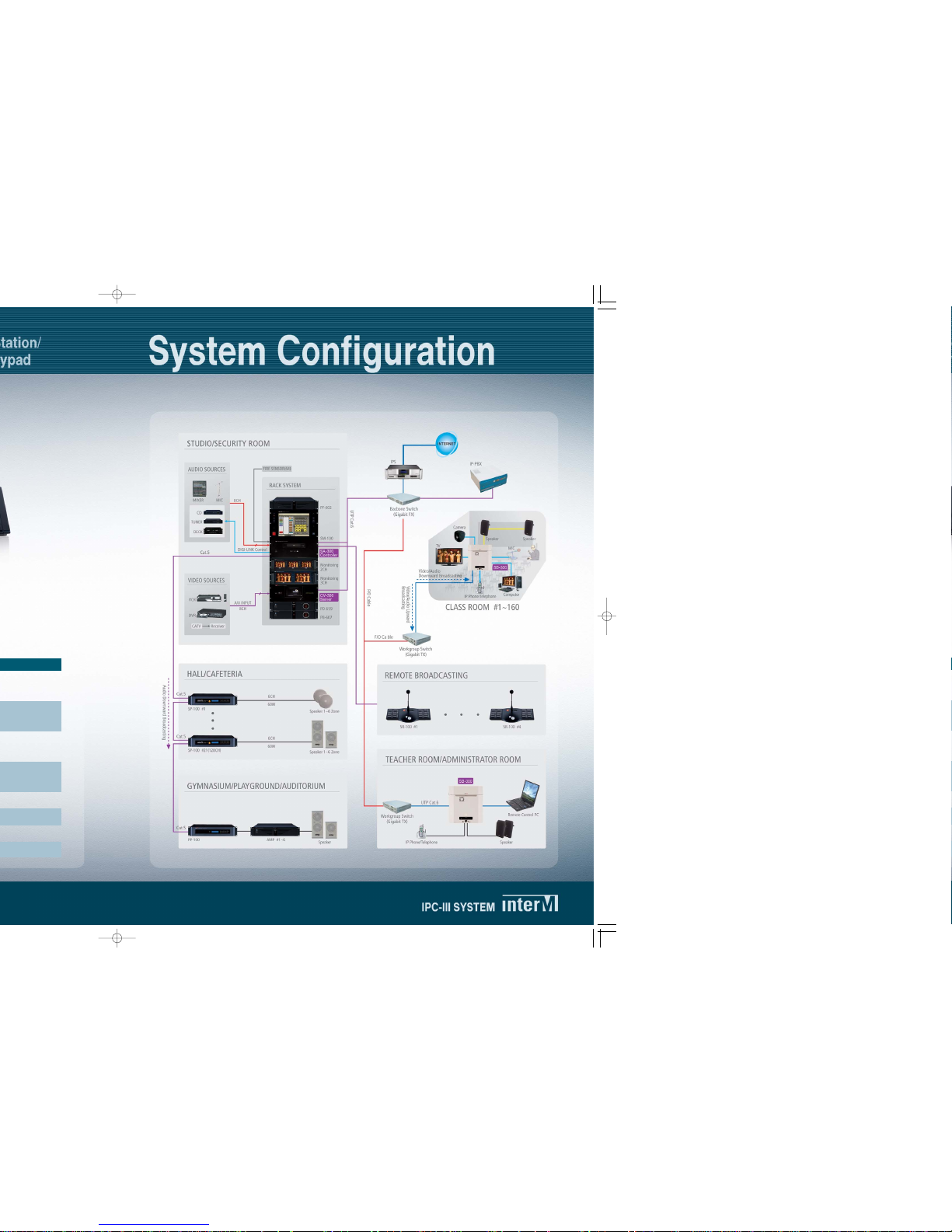

IPC-III SYSTEM
SD video streaming
�8CH SD video transmission
Emergency Interface
�Automatic broadcasting activated by fire alarm sen-
sors(64 contacts)and manual paging microphone
�Interface of intruder alarm and activation of emer-
gency bell/tone using sensor inputs
User Control Panel
�15″LCD touch screen with simple graphic icon
menu interface
Time signal and Preset broadcasts
�Built-in time signal sound sources (various options)
�100 activations/day, 700 activations/week available
Time
Simplified installation
�Using the CAT6 network the transmission of multiple
data; audio, video, telecommunication, internet, IP
phone, telephone is easily achieved
BGM Options
�BGM can be broadcast using CD/deck/tuner/built-in
CD-ROM/built-in MP3
Multi bus broadcasting
�Audio 6bus + Video 8bus broadcasting
Remote Control
�Using a simple remote control program the system
can be accessed via Ethernet/Network connection
Text broadcasting
�Text(as page unit) broadcasting
ABC...
High quality Video/Audio broadcasting
�General broadcasting/Announcement/Emergency
broadcasting/Video-using lesson/Language learning
class etc
Full duplex broadcasting
�Upward broadcasting and monitoring up to 4CH of
each local broadcasting
Switching to Analog on emergency
�
Signals are normally broadcast via the CAT6 however
in the event of an emergency(loss of network/network
error) the system can revert to analog broadcasts
CPU Core 2DUO 2.4GHz FSB 1066MHz
RAM DDR2 2GB
A/V INPUT SD Full D1 X 8CH with Stereo Audio
AUDIO INPUT 6CH Balanced Audio from SA-300
SD VIDEO ENCODING MPEG4 ASP@L2
SD AUDIO ENCODING G.723 16kHz
6CH AUDIO CODEC HD Audio Codec
POWER SOURCE
100~120VAC or 220~240VAC ; 50/60Hz
(Supplied AC Mains Transformer Depends on Country Requirements)
WEIGHT 9.1kg / 20lb
DIMENSIONS (W X H X D) 482 X 176 X 441mm / 19 X 6.9 X 17.3in
FEATURES
�Embedded XP based A/V server system
�
8CH SD video real-time streaming by UDP transmission method
�6CH audio real-time streaming by UDP transmission method
�
Output: encoded A/V and Audio data transmission through network
�Transmission status indicating LED
�Upward transmission of video which has provided from
SB-300, by UDP transmission method
�Controlled by SA-300 through RS-232 communication
�Built-in 1 Gigabit LAN
�7” LCD monitor display
FEATURES
�15 LCD monitor panel and Touch Screen for convenience of
users
�Emergency MIC front volume for emergency broadcasting
�Speaker volume for monitoring input source and output zone
�Arrange the button for moving the screen by the front UI
function
SCREEN SIZE 15" Diagonal
DISPLAY AREA 304.1x228.1mm
RESOLUTION 1024(H)X768(V)
SCREEN REFRESH RATE 60Hz(MAX: 75Hz)
BRIGHTNESS 250cd/
㎡
CONTRAST RATIO 450 : 1
POWER SOURCE DC 12V, 3.5A
WEIGHT 6.5kg/14.3Ib
DIMENSIONS (W X H X D) 482 X 310.5 X 60mm / 19 X 12.2 X 2.4in
NETWORK INTERFACE
Control RS-422
Connectors RJ-45 Jack
Cable Type UTP CAT.5
Cable Length 100m Less than
Output Level 0dBV
AUDIO INPUT Input Sensitivity(at 0dBV Output) 0dBV
DIGITAL INPUT(RJ-45 INPUT)
S/N (20kHz LPF,A-weight filter) 85dB Better than
T.H.D (at 0dBV output,20kHz LPF) 0.1% Less than
LOCAL INPUT(XLR INPUT)
Input Sensitivity(at 0dBV output) -60dBV
S/N (20kHz LPF,A-weight filter) 60dB Better than
T.H.D (at 0dBV output,20kHz LPF) 0.1% Less than
Frequency Respones 100Hz ~ 20kHz (±3dB)
LOCAL INPUT(PHONE INPUT)
Input Sensitivity(at 0dBV output) 0dBV
S/N (20kHz LPF,A-weight filter) 75dB Better than
T.H.D (at 0dBV output,20kHz LPF) 0.1% Less than
Frequency Response 100Hz ~ 20kHz (±3dB)
POWER SOURCE AC: 100-240V, 50/60Hz , DC 24V
WEIGHT 6.5kg / 14.33Ib
DIMENSIONS
(W X H X D)
440X88X388mm / 17.3X3.46X15.27in
FEATURES
�IPC system Interlocking
- It interlocks with SI-100 and is available to connect analog/digital amplifier in the output terminal according to a purpose
�6CH pre-amplifier
- It is possible to conduct six broadcastings with the single CAT.5 line
�Make available to be interfaced with other devices using an out-
put interface
�Remote control using work
- Available to automatically allocate an amplifier ID and
recognize
�Make available to control each of the output volumes for
6 channels
�Self broadcasting function using a local input
SPECIFICATIONS
