Interlogix POC252 series User Manual
POC252 Series
User's Manual
P/N 1073047 • REV A • ISS 27AUG15
Copyright
©
2015 United Technolog i es Corpor ati on
Interlogix is part of UTC Building & Industrial Systems,
Inc. a unit of United
Technologies Corporation.
All rights reserved.
Trademarks and
patents
Th
e POC252 name and logo are trademarks of United Tec hnologies.
Other trade names used in this document may be trademarks or registered
trademarks of the manufacturers or vendors of the respective products.
Manufacturer
Interlogix
3211 Progress Drive, Lincolnton, NC 28092 USA
Authorized
EU manufacturing representative:
UTC Climate Controls & Security B.V.,
Kelvinstraat 7, 6003 DH Weert, Netherlands
Intended use
Use this product onl y for the purpose it was designed for; re f er to the data sheet
and user doc
umentation for details. For the latest product information, contact
your local supplier or visit us online at www.interlogix.com.
Certification
N4131
FCC compliance
This equipment has been tested and found to comply with the limits for a Class
A di
gital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable pr otection against harmful inter fer en c e when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio fr
equency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
You are cautioned t ha t any changes or modi fi c ati ons not expressly appr ov ed by
the party responsible for compli a
nce could void the user's authority to operate
the equipment.
ACMA compliance
Notice! This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
Canada
This Class A digital apparatus complies with Canadian ICES
-003.
Cet appareil numérique de la classe A est conforme á la norme NMB
-003du
Canada.
European Union
directives
2004/108/EC (EMC Dir ectiv e):
Hereby,
UTC Building & Industrial Systems , Inc.
de
clares that this device is in compliance with the essential requirements and
other relevant provisions of Directive 2004/108/EC.
Contact Information
For contact information, see
www.interlogix.com or
www.utcfssecurityproducts.eu
.
2
TABLE OF CONTENTS
1. INTRODUCTION .................................................................................................................................................. 4
1.1. PACKAGE CONTENTS......................................................................................................................................... 4
1.2. INTRODUCING LONG REACH POWER OVER ETHERNET ..................................................................................... 5
1.3. PRODUCT FEATURES ......................................................................................................................................... 6
1.4. PRODUCT SPECIFICATIONS ................................................................................................................................ 7
1.4.1. POC252-1CXP-1T Specifications ............................................................................................................ 7
1.4.2. POC252-1CX-1P Specifications .............................................................................................................. 9
2. HARDWARE DESCRIPTION ........................................................................................................................... 11
2.1. POC252-1CXP ............................................................................................................................................... 11
2.1.1. POC252-1CXP Physical Dimensions ..................................................................................................... 11
2.1.2. POC252-1CXP-1T Front Panel / Rear Panel ........................................................................................ 11
2.1.3. POC252-1CXP LED Indicators ............................................................................................................. 12
2.2. POC252-1CX ................................................................................................................................................. 13

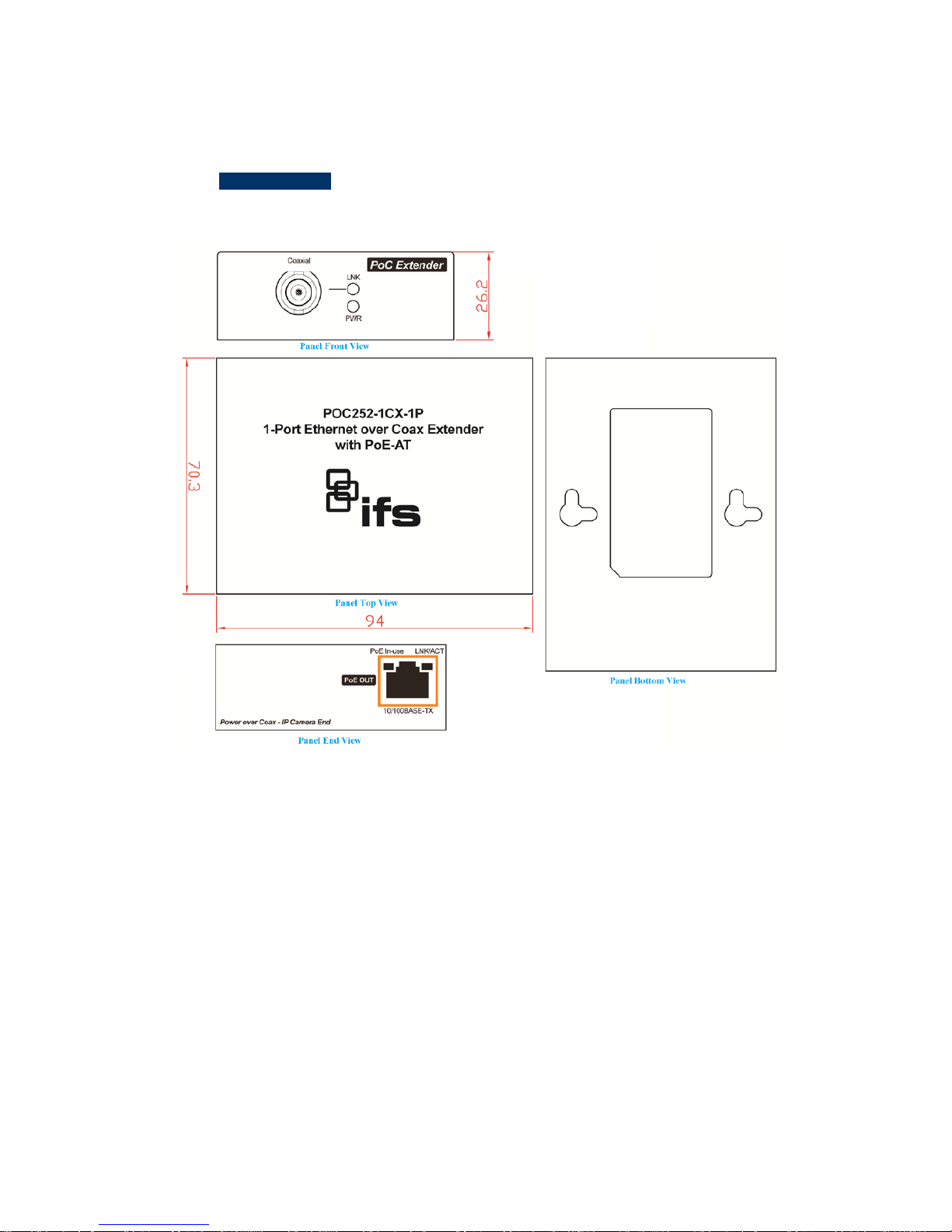

2.2.1. POC252-1CX-1P Physical Dimensions ................................................................................................. 13
2.2.2. POC252-1CX Front Panel / Rear Panel ................................................................................................ 14
2.2.3. POC252-1CX LED Indicators ................................................................................................................ 14
3. INSTALLATION ................................................................................................................................................. 15
3.1. INSTALLATION PRECAUTIONS ......................................................................................................................... 15
3.2. POWER OPTIONS: ............................................................................................................................................. 16
3.3. APPLICATIONS OF POC252-KIT WITH COAXIAL CABLE .................................................................................. 17

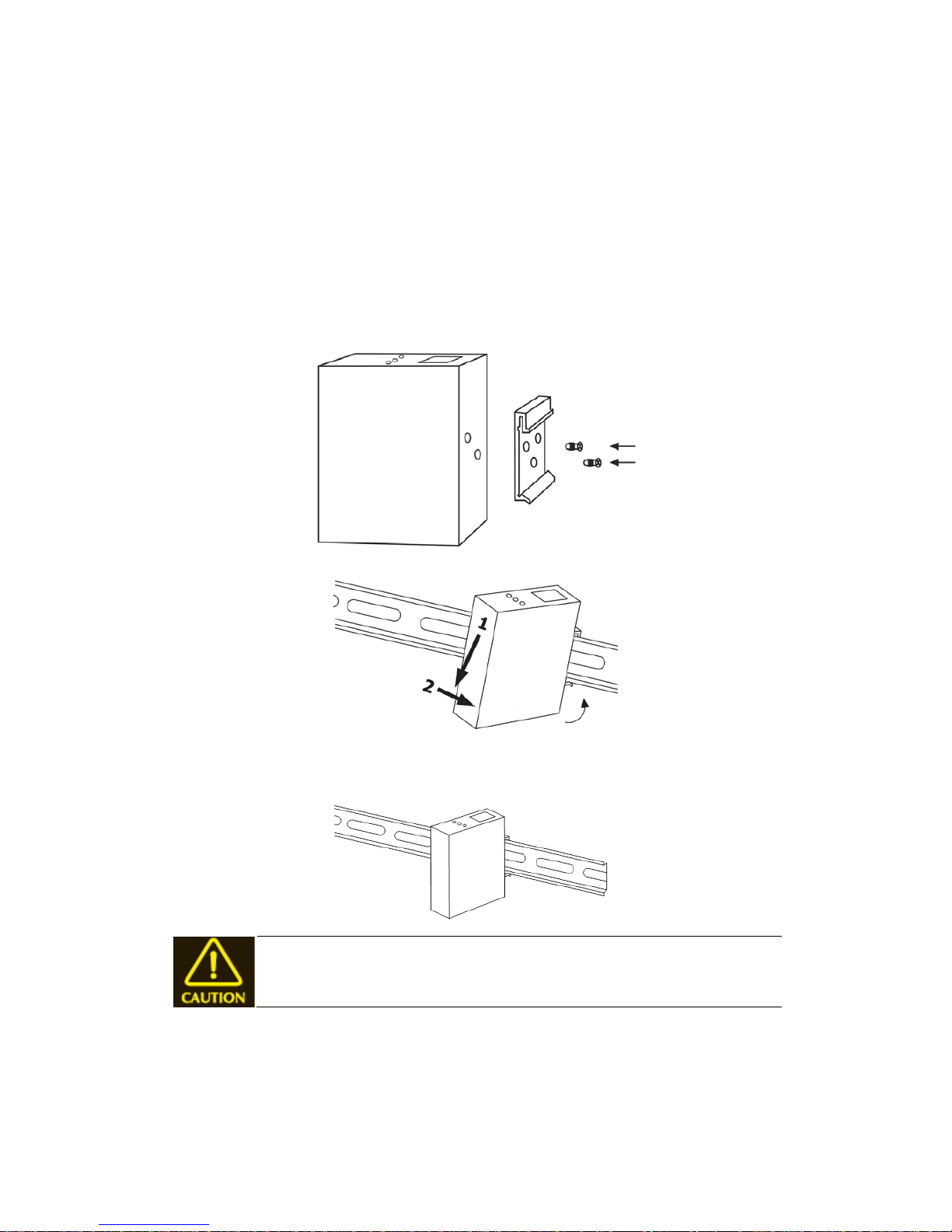

3.4. OPTIONAL - DIN-RAIL MOUNTING ................................................................................................................. 20
4. TROUBLESHOOTING ....................................................................................................................................... 21
APPENDIX A: NETWORKING CONNECTION .................................................................................................... 22
A.1 SWITCH’S RJ45 PIN ASSIGNMENTS ...................................................................................................................... 22
A.2 RJ45 CABLE PIN ASSIGNMENTS ........................................................................................................................... 22
3
1. INTRODUCTION
Thank you for purchasing IFS PoE over Coaxial the POC252-1CXP and POC252-1CX, consisting of the
POC252-1CXP and POC252-1CX. The descriptions of the two models are as follows:
POC252 Power over Coax
POC252-1CXP-1T
1-Port 10/100TX PoE PD + 1-Port Coax Long Reach PoE Injector
POC252-1CX-1P
1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender (Camera End)
“POC252-1CXP/POC252-1CX” mentioned in this Manual represents the above two models.
1.1. Package Contents
Open the box of the POC252-1CXP/POC252-1CX and carefully unpack it. The box should contain the following items:
For POC252-1CXP-1T/POC252-1CX-1P
1-Port 10/100TX PoE PD + 1-Port
Coax Long Reach PoE Injector –
POC252-1CXP x1
1-Port 10/100TX PoE PSE + 1-Port
Coax Long Reach PoE Extender –
POC252-1CX x1
User's Manual x 1 Warning Sticker x 1
If any of these ar e missi ng or dam aged, ple ase c ontac t y our de aler i mmedi atel y;
if possible, retain the carton includ
ing the original packing material, and use
them again to repack the product in case there is a need to return it to us for
repair.
4
1.2. Introducing Long Reach Power over Ethernet
IFS POC252 series PoE over Coaxial Extender is designed to extend IP Ethernet transmission and inject
power over an existing coaxial cable or for distance up to 1000m (3280ft) to PoE IP camera, PoE
Wireless AP and any 802.3at device that complies with powered device (PD). It is perfect solution for
sending IP Video links and power to remote PoE IP camera installation that are beyond the 100 meters
distance limit of Ethernet.
Power over Coaxial Cable Application
The Long Reach PoE solution allows Ethernet Data and PoE or PoE+ to transmitted using coaxial, UTP
or twisted-pair cable. Based on IEEE 802.3at Power over Ethernet Plus and up to 25 watts of power
output, IFS PoE extender solution eliminates the need for additional remote site power while allowing a
single PoE source, such as a PoE network switch, to provide power to both POC Extenders and the
camera at long range. This feature eliminates the need for local and remote site power supplies.
Stable Operating Performance under Difficult Environments
The POC252-1CXP and POC252-1CX extender is the perfect solution for extended distance data and
power transmission for warehouses, parking lots, campuses, casinos, and many more. They can operate
stably under temperature range from -10 to 60 degrees C which enables the users to conveniently apply
the device in almost any location of the network.
5
1.3. Product Features
Physical Port
1 coaxial interface for output power and 1 10/100BASE-TX port supports IEEE 802.3at PoE
PD (POC252-1CXP)
1 power jack supports 56V DC Power input (POC252-1CXP)
1 coaxial interface for input and 110/100BASE-TX port supports IEEE 802.3at PoE PSE
(POC252-1CX)
Power over Ethernet
Eliminates Power cabling with PoE over Coaxial
Supports Power over Ethernet PSE, PoE Injector
Power and Ethernet data transmission over coaxial up to 1km
Complies with IEEE 802.3at Power over Ethernet PD on RJ45 port
Supports Long Reach PoE power up to 30.8 watts (Vary on Power Source and Coaxial
Distance)
Supports PoE Power up to 25 watts (Vary on Power Source and Coaxial Distance)
Auto detect remote powered device (PD)
Plug and Play, no PC required
Industrial Case / Installation
Supports extensive LED indicators for network diagnostics
Metal case protection
Compact size, DIN-rail and wall mount designed
Power Input: External 56VDC input or 802.3at PoE power input from RJ45 port
(POC252-1CXP)
Power Input: PoC (Power over Coaxial) power input (POC252-1CX)
Supports EFT protection 2000 VDC for power line
Supports 2000 VDC Ethernet ESD protection
-10 to 60 degrees C operating temperature
6
1.4. Product Specifications
1.4.1. POC252-1CXP-1T Specifications
Model
POC252-1CXP-1T / Long Reach PoE Injector
Hardware Specification s
Ethernet
Interface
Copper
1 x 10/100BASE-TX RJ45
Auto-negotiation/ Auto-MDI/MDI-X
Power over
Ethernet
IEEE 802.3at PoE PD (Powered Device)
Input Range: 56V DC
Supports both Mid-Span and End-Span PSE
Data Rate
100/100Mbps
Cabling
Cat5e or above
Maximum
Distance
100m
Maximum Frame
sizes
1522bytes
Long Reach
PoE
Interface
Connectivity
1 x BNC female connector
Long Reach PoE over coaxial PSE (Power Source
Equipment)
BNC center pole : DC+ / Hi
BNC shield : DC - / Lo
Power Output
41~56V DC
(Depend on what is the DC/PoE Power Input and the
length of coaxial cable)
Cabling
Coaxial cable: 75 ohm
RG-6/U cable, less than 12Ω/10 00 f t
RG-59/U cable, less than 30Ω/1000 ft.
Maximum
distance
Max. 1000M with PoE output (3,280ft.)
Max. 1200M without PoE output (3,937ft.)
Long Reach
Ethernet Standard
IEEE 1901
Modulation Type
Wavelet-OFDM
Security
128-bit AES encryption
Frequency Band
2 ~ 28 MHz
Performance
RG6 Cable
Distance
Data Rate
(Upload /
Download)
POC252-1CX 802.3at
PoE Output
Capability
POC252-1CXP
W/56V DC IN
POC252-1CX
P W/30W
PoE+ IN
200m
93 / 93 Mbps 29.9W 16.9W
400m
92 / 93 Mbps 22.6W 14.3W
600m
88 / 92 Mbps 13.6W 10.2W
800m
75 / 83 Mbps 10.6W 8.3W
1000m
55 / 74 Mbps 8.6W 7.1W
Multiple nodes
Supports up to 3 POC extenders within 1km
(Depend on what is the DC/PoE Power Input and the
length of coaxial cable)
POC
Compatibility
POC252-1CXP-1T with POC Extender
7
