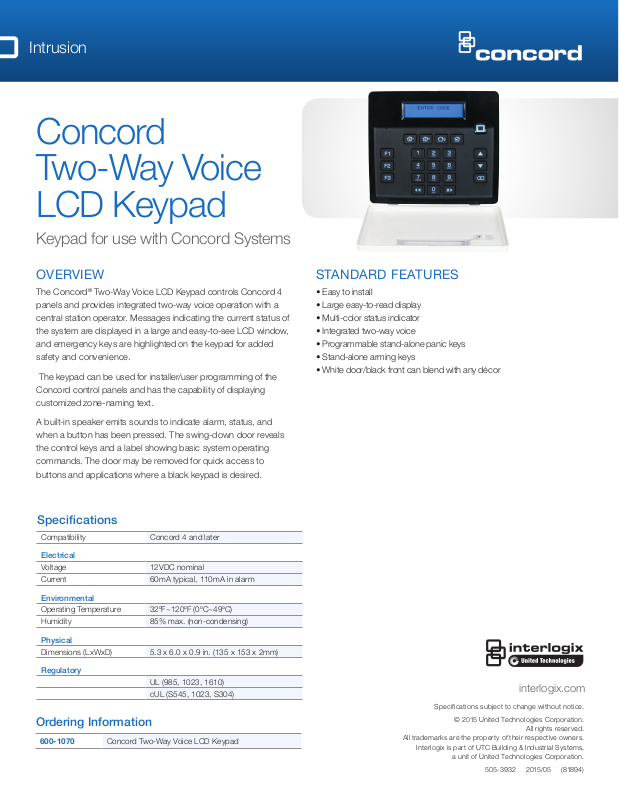

Interlogix 600-1070 Specsheet

Intrusion

Concord
Two-Way Voice
LCD Keypad

Keypad for use with Concord Systems

OVERVIEW

The Concord® Two-Way Voice LCD Keypad controls Concord 4
panels and provides integrated two-way voice operation with a
central station operator. Messages indicating the current status of
the system are displayed in a large and easy-to-see LCD window,
and emergency keys are highlighted on the keypad for added
safety and convenience.

The keypad can be used for installer/user programming of the
Concord control panels and has the capability of displaying
customized zone-naming text.

A built-in speaker emits sounds to indicate alarm, status, and
when a button has been pressed. The swing-down door reveals
the control keys and a label showing basic system operating
commands. The door may be removed for quick access to
buttons and applications where a black keypad is desired.

Specifi cations

Compatibility Concord 4 and later

Electrical

Voltage 12VDC nominal

Current 60mA typical, 110mA in alarm

STANDARD FEATURES

• Easy to install

• Large easy-to-read display

• Multi-color status indicator

• Integrated two-way voice

• Programmable stand-alone panic keys

• Stand-alone arming keys

• White door/black front can blend with any décor

Environmental

Operating Temperature 32ºF~120ºF (0ºC~49ºC)

Humidity 85% max. (non-condensing)

Physical

Dimensions (LxWxD) 5.3 x 6.0 x 0.9 in. (135 x 153 x 2mm)

Regulatory

UL (985, 1023, 1610)

cUL (S545, 1023, S304)

Ordering Information

600-1070 Concord Two-Way Voice LCD Keypad

interlogix.com

Specifi cations subject to change without notice.

© 2015 United Technologies Corporation.

All rights reserved.

All trademarks are the propert y of their respective owners.

Interlogix is part of UTC Building & Industrial Systems,

a unit of United Technologies Corporation.

505-3932 2015/05 (81894)
