Revision
Description
Date
1.0
VLMTX58G – Module
Change in ID and Multiple
Listing for USA and Canada
2017-03-17

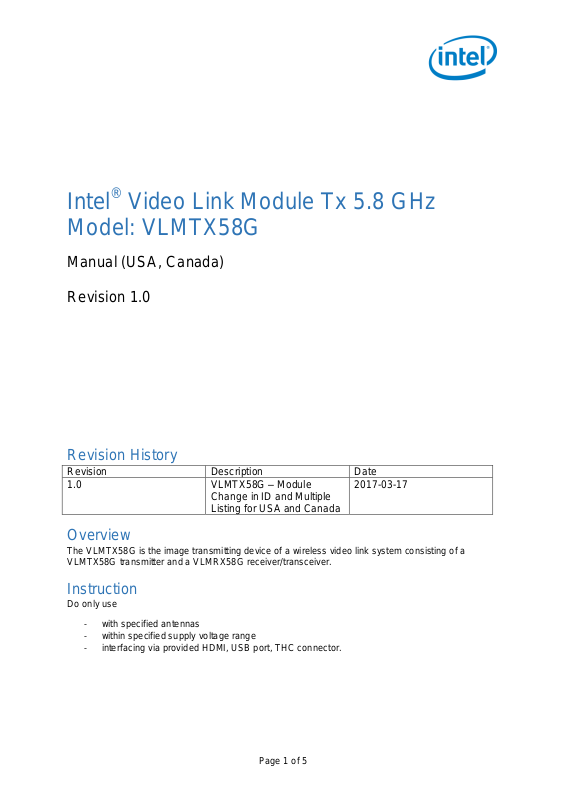

Intel® Video Link Module Tx 5.8 GHz
Model: VLMTX58G
Manual (USA, Canada)
Revision 1.0
Revision History
Overview
The VLMTX58G is the image transmitting device of a wireless video link system consisting of a
VLMTX58G transmitter and a VLMRX58G receiver/transceiver.
Instruction
Do only use
- with specified antennas
- within specified supply voltage range
- interfacing via provided HDMI, USB port, THC connector.
Page 1 of 5
Module output
(frequencies)
5.15 GHz – 5.25 GHz
5.25 GHz – 5.35 GHz (DFS)
5.470 GHz – 5.725 GHz (DFS)
5.725 GHz – 5.85 GHz
DFS Operation
Client (without radar detection)
Modulation
OFDM 16QAM (similar to 802.11a/n) on a proprietary protocol
Bandwidth
10 MHz, 20 MHz 40 MHz
Data Rates
10 MHz mode: 18.11 Mbps
20 MHz mode: 36.23 Mbps
40 MHz mode: 72.46 Mbps
Supply Input range
5 VDCV ± 10% / 1A
Antenna connection
RP-SMA male
Connector type: 50 Ohm nominal
Permissive antenna
type/gain
Manufacturer: STEREN
Model: WIFI Internal Antenna 3070-09-350
P/N: 3070-09-350
Peak Gain: 2.0 dBi
Antenna configuration
uncorrelated MIMO with 2 antennas multiplexed to 2x transmitting RF
ports and 1 x receiving RF antenna port
Module Input
HDMI
Band
USA
output power
Canada
output power
Band 1
5.15 GHz – 5.25 GHz
24 dBm
(conducted)
23 dBm
(EIRP)
Band 2
5.25 GHz - 5.35 GHz
24 dBm
(conducted)
23 dBm
(EIRP)
Band 3
5.470 GHz - 5.725 GHz
24 dBm
(conducted)
24 dBm
(conducted)
Band 4
5.725 GHz – 5.85 GHz
24 dBm
(conducted)
24 dBm
(conducted)
Specification
Transmitter Output Power
Page 2 of 5
Connection
Figure 1 VLMTX58G Top View
Figure 2 VLMTX58G Bottom View
Pin
Signal
Designation
Pin
Signal
Designation
2
VCC_5V
+5V 1 VCC_5V
+5V
4
VCC_5V
+5V 3 VCC_5V
+5V 6 VCC_5V
+5V 5 VCC_5V
+5V 8 GND8
GND 7 GND5
GND
10 NC 9 GND4
GND
12
LED1
+3.3V (Video Indication)
11
Spare2
+3.3V PC5. Pull down using 4.7KOhm
14
LED2
+3.3V (Network Indication)
13
Spare1
+3.3V PC2. Pull down using 4.7KOhm
16
Link/ Boot Mode
GPIO
Active low (start registration in low). Keep
high or NC when not in use
15
Reset
Active Low
18 NC
17 NC
20 NC
19 NC
22 NC
21 NC
24 NC
23
Reserved
3.3V Pull down using 4.7KOhm
26 NC
25
Reserved
NC
28 NC
27
Reserved
3.3V Pull down using 4.7KOhm
30
GND7
GND
29
GND3
GND
32
Reserved
Pull Down using 4.7KOhm
31
GND2
GND
34 NC
33
Reserved
NC
36 NC
35
Reserved
NC
38
Reserved
NC
37
UART4_RX
+3.3V MAVLink
40
Reserved
NC
39
UART4_TX
+3.3V MAVLink
42
Reserved
NC
41
Reserved
Keep NC
44
Reserved
NC
43
Reserved
Keep NC
46
Reserved
NC
45
Reserved
Keep NC
48
Reserved
NC
47
Reserved
Keep NC
50
GND6
GND
49
GND1
GND
Table 1:Transmitter Host Connector
Antenna 1
N/C
Antenna 2
HDMI in
USB
1
50
THC
Page 3 of 5
This digital apparatus does not exceed the Class
B limits for radio noise emissions from digital
apparatus set out in the interference-causing
equipment standard entitled “Digital Apparatus,”
ICES-003 of the Canadian Department of
Communications.
Cet appareil numérique respecte les limites
bruits radioélectriques applicables aux appareils
numériques de Classe B prescrites dans la
norme relatives aux interferences causée par du
matériel: “Appareils Numériques”, NMB-003
édictée par le Ministre Canadian des
Communications.
i. the device for operation in the band 5150-5250
MHz is only for indoor use to reduce the
potential for harmful interference to co-channel
mobile satellite systems;
i. Le dispositifs fonctionnant dans la bande
5150-5250 MHz sont réservés uniquement pour
une utilisation à l’intérieur afin de réduire les
risques d’interférence préjudiciable aux
systèmes de téléphonie satellitaire utilisant les
mêmes canaux;
ii. high-power radars are allocated as primary
users (i.e. priority users) of the bands 5250-5350
MHz and 5650-5850 MHz and that these radars
could cause interference and/or damage to LELAN devices.
ii. De plus, les utilisateurs devraient aussi être
avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux
(c.-à-d., qu’ils ont la priorité) pour les bandes
5250-5350 MHz et 5650-5850 MHz et que ces
radars pourraient causer des interférenceset/ou
des dommages aux dispositifs LAN-EL.
FCC and ISED Statement
This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS
standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Cet appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence.
L'autorisation d’exploitation est soumise aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de d’interférences radioélectriques, et
(2) l'appareil doit accepter toute interference radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le bon fonctionnement.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help.
ICES-003 Statement (Canada)
Page 4 of 5
iii. for devices with detachable antenna(s), the
maximum antenna gain permitted for devices in
the bands 5250-5350 MHz and 5470-5725 MHz
shall be such that the equipment still complies
with the e.i.r.p. limit;
iii. Pour les dispositifs dotés d'antenne (s)
amovible (s), le gain d'antenne maximal autorisé
pour les dispositifs dans les bandes 5250-5350
MHz et 5470-5725 MHz doit être tel que
l'équipement soit toujours conforme aux normes
e.i.r.p. limite;
iv. for devices with detachable antenna(s), the
maximum antenna gain permitted for devices in
the band 5725- 5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits
specified for point- to-point and non-point-topoint operation as appropriate
iv. Pour les dispositifs dotés d'antenne (s)
amovible (s), le gain d'antenne maximal autorisé
pour les dispositifs de la bande 5725- 5850 MHz
doit être tel que l'équipement soit toujours
conforme aux normes e.i.r.p. Limites spécifiées
pour les opérations point à point et non point-àpoint selon le cas
Important Note
Changes or modifications made to this equipment not expressly approved by Intel Corporation may
void the FCC and ISED authorization to operate this equipment.
The product is provided with an approved antenna. Use only supplied or approved antenna by Intel
Corporation. Any changes or modifications to the Antenna may void the FCC and ISED regulatory
approvals obtained for the product.
Les modifications ou modifications apportées à cet équipement qui ne sont pas expressément
approuvées par Intel Corporation peuvent annuler l'autorisation de la FCC et de l'ISED pour utiliser cet
équipement.
Le produit est fourni avec une antenne approuvée. Utilisez uniquement une antenne fournie ou
approuvée par Intel Corporation. Toute modification ou modification de l'antenne peut annuler les
certifications réglementaires FCC et ISED obtenues pour le produit.
End-users and installers must be provided with antenna installation instructions and transmitter
operating conditions for satisfying RF exposure compliance.
Operations in the 5150 - 5250 MHz band are restricted to indoor usage only. This device is not
allowed to operate in the 5600-5650 MHz band as required by Canada regulation (ISED).
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least
20 cm from all persons. RF exposure compliance must be ensured by integrator.
Contact
Intel Corporation
2200 Mission College Boulevard
Santa Clara, CA 95054
Page 5 of 5
