Intel® Integrated RAID Controller
RS25NB008 Hardware User’s Guide
Intel Order Number: G22856-003
DISCLAIMER
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL®
PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY
INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS
PROVIDED IN INTEL
ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY, RELATING TO SALE AND/OR USE OF INTEL
®’
S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL®
®
PRODUCTS INCLUDING LIABILITY
OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER
INTELLECTUAL PROPERTY RIGHT. Intel
life sustaining applications. Intel
®
may make changes to specifications and product descriptions at
®
products are not intended for use in medical, life saving,
any time, without notice.
Intel is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United
States and other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2012 by Intel Corporation. Portions Copyright © 2012 by LSI* Corporation. All rights
reserved.
ii Intel® RAID Controller RS25NB008 Hardware User’s Guide
Preface
This is the primary hardware guide for the Intel® RAID Controller RS25NB008, which
can be used to manage SAS and SATA disk drives. It contains installation instructions
and specifications.
For details on configuring the storage adapters, and for an overview of the software
drivers, see the Intel
Audience
This document assumes that you have some familiarity with RAID controllers/modules
and related support devices. The people who benefit from this book are:
• Engineers who are planning to use an Intel
of their RAID system.
• Anyone installing an Intel
Organization
This document includes the following chapters and appendices:
• Chapter 1 provides a general overview of the Intel
• Chapter 2 describes the procedures for installing and configuring the
RAID controller.
• Chapter 3 provides the characteristics and technical specifications for the Intel
RAID Controller RS25NB008.
®
RAID Software User’s Guide on the Resource CD.
®
RAID Controller RS25NB008 as a part
®
RAID Controller RS25NB008 in their RAID system.
®
RAID Controller RS25NB008.
®
• Appendix A explains drive roaming and drive migration.
• Appendix B provides safety instructions to be observed during installation
and assembly.
• Appendix C provides regulatory and certification information.
Related Publication
The Intel® RAID Software User’s Guide is included on the Resource CD that shipped with
the RAID controller.
Intel® RAID Controller RS25NB008 Hardware User’s Guide iii
iv Intel® RAID Controller RS25NB008 Hardware User’s Guide
Table of Contents
Preface ........................................................................................................................iii
Audience ............................................................................................................................... iii
Organization ......................................................................................................................... iii
Related Publication ............................................................................................................... iii
Chapter 1: Overview ................................................................................................... 1
Benefits of SAS and SATA ....................................................................................................1
®
Intel
RAID Controller RS25NB008 .......................................................................................2
Protocol Support ............................................................................................................2
Operating System Support ............................................................................................2
Usability .........................................................................................................................3
Redundancy and Error Handling ...................................................................................3
SAS/SATA Features ......................................................................................................5
Online Capacity Expansion and RAID Level Migration Rules .......................................5
Beep Codes ...................................................................................................................5
Chapter 2: Intel® RAID Controller RS25NB008 Hardware Installation ................... 7
Requirements ........................................................................................................................7
Installing the RAID Controller ................................................................................................7
Configuring the RAID Controller ............................................................................................9
Replacing a Controller ...........................................................................................................9
Resolving a Config Mismatch ................................................................................................9
Chapter 3: Intel® RAID Controller RS25NB008 Characteristics ........................... 11
Major Components ..............................................................................................................14
LSI* SAS2208 ROC .....................................................................................................14
Flash ROM ..................................................................................................................14
Boot Strap ROM (SEEPROM) .....................................................................................14
NVSRAM .....................................................................................................................14
SDRAM (Cache) ..........................................................................................................14
Diagnostic Components ..............................................................................................15
SAS/SATA Connectors ................................................................................................16
BBU Connector Pin-out ...............................................................................................18
PCI Interface ................................................................................................................19
LED Headers ...............................................................................................................19
Serial UART Header ....................................................................................................20
Technical Specifications ......................................................................................................21
Array Performance Features ...............................................................................................21
Fault Tolerance ............................................................................................................23
Electrical Characteristics .............................................................................................23
Intel® RAID Controller RS25NB008 Hardware User’s Guide v
Thermal and Atmospheric Characteristics .................................................................. 24
Safety Characteristics ................................................................................................. 24
Operating Certifications ............................................................................................... 24
Supported Device Technology ............................................................................................ 24
Support for Hard Disk Drive Devices .......................................................................... 25
SAS Expander Support ............................................................................................... 25
Support for Non-Hard Disk Drive Devices ................................................................... 25
Enclosure Management Support ................................................................................. 25
RAID Functionality and Features ........................................................................................ 25
Hierarchy ..................................................................................................................... 25
SAS Bus and ID Mapping ........................................................................................... 27
Appendix A: Drive Roaming and Drive Migration Install ......................................29
Drive Roaming ..................................................................................................................... 29
Drive Migration .................................................................................................................... 30
Appendix B: Installation/Assembly Safety Instructions .......................................31
English ................................................................................................................................. 33
Deutsch ............................................................................................................................... 34
Français ............................................................................................................................... 35
Español ............................................................................................................................... 37
Italiano ................................................................................................................................. 38
Appendix C: Regulatory and Certification Information .........................................41
Product Safety and EMC Compliance ................................................................................. 41
vi Intel® RAID Controller RS25NB008 Hardware User’s Guide
List of Figures
Figure 1. Changing the Bracket................................................................................................. 8
Figure 2. Installing the Intel
Figure 3. Card Layout.............................................................................................................. 11
Figure 4. Cache Memory Board .............................................................................................. 11
Figure 5. Hardware Block Diagram ......................................................................................... 13
Figure 6. Intel
Figure 7. Intel
Figure 8. Intel

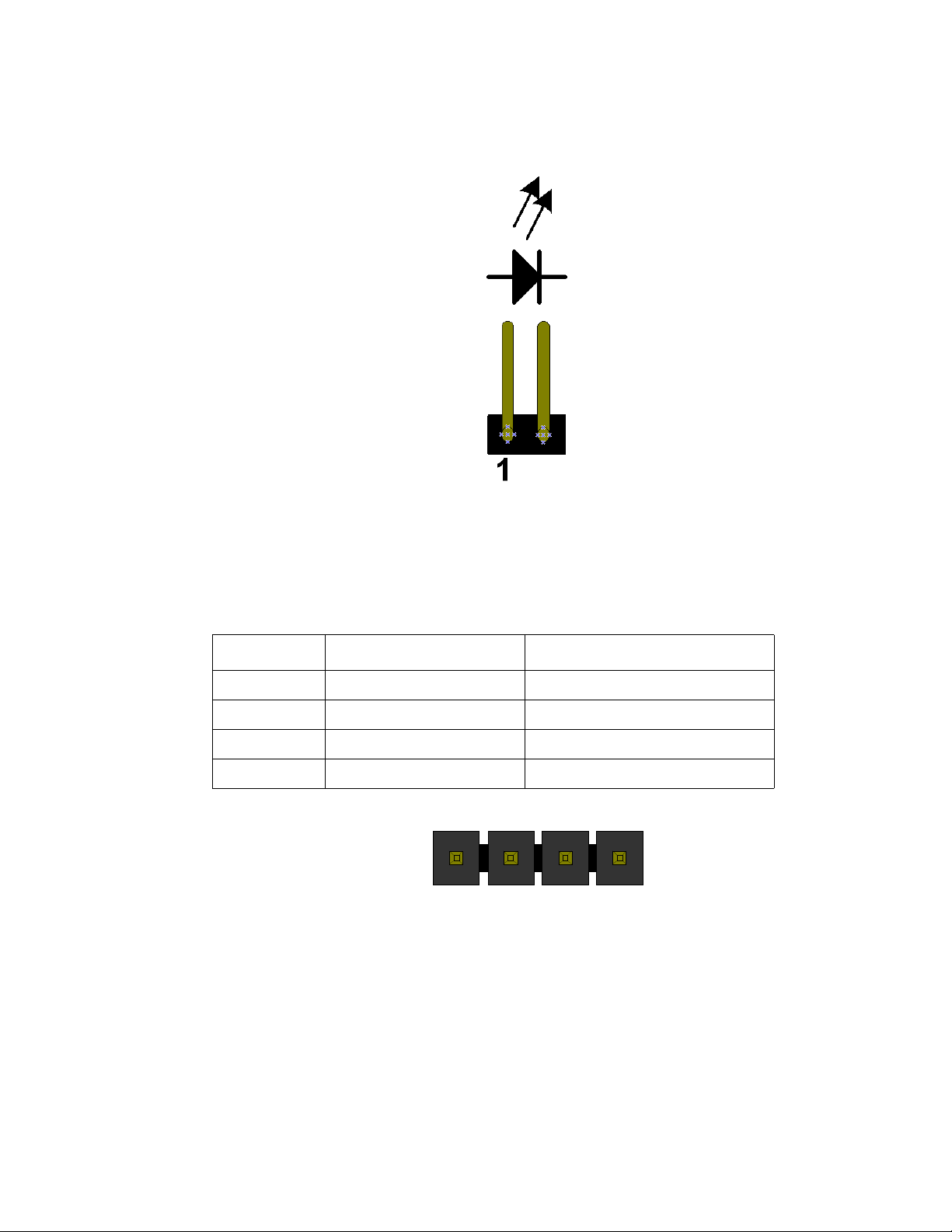

Figure 9. LED Header ............................................................................................................. 20
Figure 10. UART Connector.................................................................................................... 20
®
RAID Smart Battery AXXRSBBU9 ................................................................. 15
®
RAID Controller RS25NB008 SAS/SATA Connectors................................... 16
®
SAS/SATA Connector.................................................................................... 18
®
RAID Controller RS25NB008...................................................... 8
Intel® RAID Controller RS25NB008 Hardware User’s Guide vii
viii Intel® RAID Controller RS25NB008 Hardware User’s Guide
List of Tables
Table 1. Jumper Description ...................................................................................................12

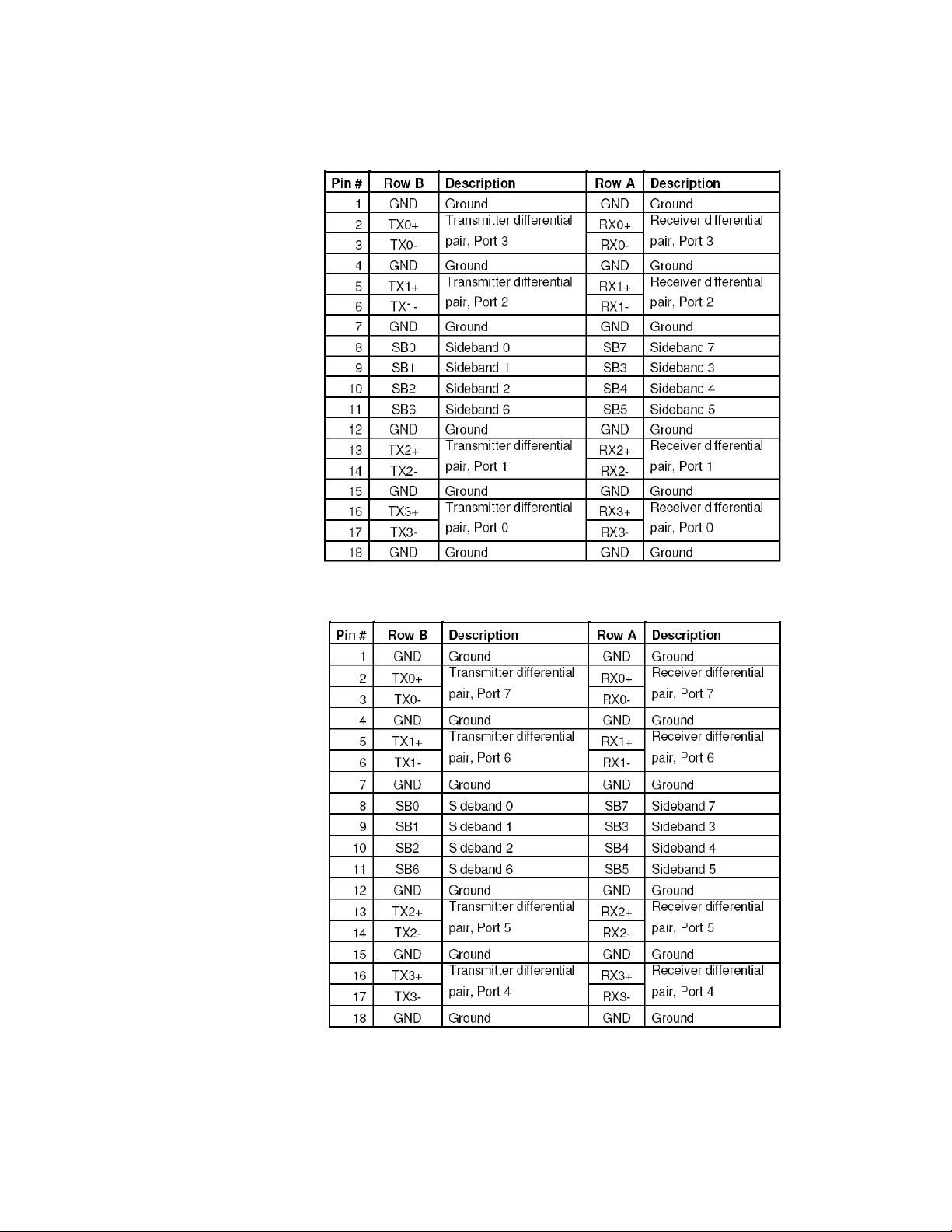

Table 2. SFF-8088 Connector J1A3 Pin List ...........................................................................17
Table 3. SFF-8088 Connector J1B1 Pin List ...........................................................................17
Table 4. BBU Connector Pin-out .............................................................................................18
Table 5. LED Headers Pin-out ................................................................................................ 19
Table 6. UART Connector Pin-out ...........................................................................................20
Table 7. Technical Specifications ............................................................................................21
Table 8. Array Performance Features .....................................................................................21
Table 9. Fault Tolerance Features ..........................................................................................23
Table 10. Actual Power Consumption Table ...........................................................................24
Table 11. RAID Physical Drive Status .....................................................................................26
Table 12. RAID Virtual Drive Status ........................................................................................26
Intel® RAID Controller RS25NB008 Hardware User’s Guide ix
x Intel® RAID Controller RS25NB008 Hardware User’s Guide
1 Overview
The Intel® RAID Controller RS25NB008 is a high-performance intelligent PCI Express*
2.0 compliant SAS/SATA RAID controller that offers reliability, high performance, and
fault-tolerant disk subsystem management. This is a RAID solution that meets the external
storage needs of workgroup, department, or enterprise systems to use with cost-effective
SATA or high performance SAS media.
As a second generation PCI Express* storage controller, the Intel
RS25NB008 addresses the growing demand for increased data throughput and scalability
requirements across entry level, midrange, and enterprise server platforms.
The controller controls 8 external 6-Gb/s SAS/SATA ports through two SFF-8088 Mini
SAS x4 connectors and allows the use of expanders to connect up to 240 devices. For
more information about the use of expanders, see the ANSI SAS Standard, Version 2.0
Specification.
SATA and SAS are serial, point-to-point, device interfaces that use simplified cabling,
smaller connectors, lower pin counts, and lower power requirements than parallel SCSI.
®
The optional Intel
for the RAID controller, even during system failures.
RAID Smart Battery AXXRSBBU9 provides cached data protection
®
RAID Controller
Benefits of SAS and SATA
SAS is a serial, enterprise-level device interface that leverages the proven SCSI protocol
set. SAS is a convergence of the advantages of SATA, SCSI, and FC, and is the future
mainstay of the enterprise and high-end workstation storage markets. SAS offers a higher
bandwidth per pin than parallel SCSI and improves signal and data integrity.
The SAS interface uses the proven SCSI command set to ensure reliable data transfers,
while providing the connectivity and flexibility of point-to-point serial data transfers. The
serial transmission of SCSI commands eliminates clock skew challenges. The SAS
interface provides improved performance, simplified cabling, smaller connectors, lower
pin count, and lower power requirements than parallel SCSI.
SAS controllers leverage a common electrical and physical connection interface that is
compatible with Serial ATA technology. The SAS and SATA protocols use a thin, 7-wire
connector instead of the 68-wire SCSI cable or 40-wire ATA cable. The SAS/SATA
connector and cable are easier to manipulate, connect to smaller devices, and do not
inhibit airflow. The point-to-point SATA architecture eliminates difficulties created by the
legacy ATA master-slave architecture, while maintaining compatibility with existing
ATA firmware.
Intel® RAID Controller RS25NB008 Hardware User’s Guide 1
Intel® RAID Controller RS25NB008
The Intel® RAID Controller RS25NB008 is an intelligent, low-profile RAID adapter with
an integrated LSI SAS2208 dual-core RAID-On-Chip chipset, providing both a SAS
controller and RAID engine. With 1GB RAM built onto a memory board which is
connected to the RAID baseboard by default, and eight independent ports supporting
6Gb/s and 3Gb/s SAS data transfers using two SFF-8088 mini multi-lane connectors, this
controller supports up to 240 enterprise-class SAS or SATA devices. The PCI Express*
connector fits into an x8 or x16 PCI Express* slot capable of performance up to 5 Gb/s
per lane.
The RAID Controller is designed to fit various Intel
most up-to-date support list, see the Compatibility section under the link for this Intel
RAID Controller at http://www.intel.com/p/en_US/support/server
Protocol Support
Each port on the SAS controllers supports SAS devices, SATA II devices, or both using
SSP, SMP, STP, and SATA II as follows:
• Serial SCSI Protocol (SSP) to enable communication with other SAS devices.
• SATA II Protocol to enable communication with other SATA II devices.
®
Server Boards and systems. For the
.
®
• Serial Management Protocol (SMP) to share topology management information
with expanders.
• Serial Tunneling Protocol (STP) support for SATA II through expander interfaces.
Operating System Support
• Windows Server 2008 R2*, Windows 7*, Windows Server 2003*, Windows Vista*,
and Windows XP*
• Red Hat* Enterprise Linux 4.0, 5.0, and 6.0
• SuSE* Linux Enterprise Server 9, 10, and 11
• VMWare* ESX 4.0
• Solaris* 10
The operating systems supported may not be supported by your server board. See the
Tested operating system list for your server board at http://www.intel.com
To make sure the RAID controller supports your operating system, see also the Tested
Hardware and Operating System List for the Intel
.
®
RAID Controller RS25NB008.
2 Intel® RAID Controller RS25NB008 Hardware User’s Guide
Usability
• The card ships with both a standard and a low-profile bracket.
• The card ships with a 1GB memory board which is already installed onto the RAID
controller baseboard as the RAID cache.
• Small, thin cabling with serial point-to-point 6.0 Gbps data transfer rates.
• Support for non-disk devices and mixed capacity drives.
• Support for intelligent XOR RAID levels 0, 1, 5, 6, 10, 50, and 60.
• Dedicated or global hot spare with auto rebuild if an array drive fails.
• User defined stripe size per drive: 8, 16, 32, 64, 128, 256, 512, or 1024 KB.
• Advanced array configuration and management utilities provide:
— Online Capacity Expansion (OCE) adds space to existing drive or new drive.
Appendix A: Drive Roaming and Drive Migration Install for limitations on
See
OCE and RAID migration.
— Online RAID level migration (upgrade of RAID mode may require OCE)
— Drive migration
— Drive roaming
— No reboot necessary after expansion
— Load Balancing
• Upgradeable Flash ROM interface.
• Allows for staggered spin-up, hot-plug, and lower power consumption.
• User specified rebuild rate (percent of system resources to use from 0-100%).
Caution: Exceeding 50% rate may cause operating system errors due to waiting for
controller access.
• Background operating mode can be set for Rebuilds, Consistency Checks,
Initialization (auto restarting Consistency Check on redundant volumes), Migration,
OCE, and Patrol Read.
Redundancy and Error Handling
• In-band SES2.
• Enclosure management support.
• Drive coercion (auto-resizing to match existing disks).
• Auto-detection of failed drives with transparent rebuild. There must be disk activity
(I/O to the drive) for a missing drive to be marked as failed.
• Auto-resume of initialization or rebuild on reboot (the Auto Rebuild feature must be
enabled before virtual disk creation).
Intel® RAID Controller RS25NB008 Hardware User’s Guide 3
• Smart initialization automatically checks consistency of virtual disks if there are five
or more disks in a RAID 5 array, which optimizes performance by enabling readmodify-write mode. RAID 5 arrays of only three or four drives use Peer Read mode.
• Smart Technology predicts failures of drives and electronic components.
• Patrol Read checks drives and maps bad sectors.
• Commands are retried at least four times.
• Firmware provides best effort to recognize an error and recover if possible.
• Failures are logged from controller and drive firmware, and SMART monitor.
• Failures are logged in NVRAM, viewable from OS Event Log, Intel
Console 2, CIM, and LEDs.
®
RAID Web
• Multiple cache options allow configuration-specific performance optimization:
— Write-back: Faster because it does not wait for the disk but data will be lost if
power is lost.
— Write-through: Usually slower but ensures data is on the disk.
— Read Ahead: Predicts next read will be sequential and buffers this data into
the cache.
— Non Read Ahead: Always reads from the drive after determining exact location
of each read.
— Adaptive Read Ahead: Reads ahead and caches data only if doing
sequential reads.
— I/O setting. Determines whether read operations check the cache before reading
from disks.
✧ Cache I/O: Checks cache first, only reads disk if data is not in the cache.
✧ Direct I/O: Reads data directly from disk. (not cache)
• Redundancy through:
— Configuration stored in non-volatile RAM and on the drives (COD).
— Hot-swap support.
— Optional battery backup for cache memory.
4 Intel® RAID Controller RS25NB008 Hardware User’s Guide
SAS/SATA Features
• Provides eight independent phys, each supporting 6Gb/s and 3Gb/s SAS data
transfers per PHY.
• Scalable interface that supports up to 240 physical devices through expanders.
• Supports SSP to enable communication with other SAS devices.
• Supports SMP to communicate topology management information.
• Supports single PHY or wide ports consisting of 2, 3, or 4 PHYs within a single
quad port.
• Allows addressing of multiple SATA targets through an expander if using SATA 2.0-
compliant hard disk drives.
• Single controller multi-pathing (fail-over).
Online Capacity Expansion and RAID Level Migration Rules
• Migration must occur to the same or larger capacity configuration.
• Migration cannot occur if there is more than one virtual disk in a logical array.
• Migration and OCE cannot be done on Spanned Arrays (RAID 10, 50, and 60).
• Migrations supported are RAID 1 to RAID 0, RAID 5 to RAID 0, RAID 6
to RAID 0.
• With OCE, migrations supported are RAID 0 to RAID 1, RAID 0 to RAID 5, RAID
Beep Codes
• Short beep (1 second on, 1 second off): Array has degraded but no data has
• Long beep (3 seconds on, 1 second off): Array has failed and data has been lost.
• Short beep (1 second on, 3 seconds off): Using hot spare in rebuild; alarm will
To disable the alarm, choose Disable Alarm. To enable the alarm, choose Enable Alarm.
To disable the alarm only until the next event or until next power cycle, choose
Silence Alarm.
0 to RAID 6, RAID 1 to RAID 5, RAID 1 to RAID 6, RAID 5 to RAID 6.
been lost.
continue during rebuild with a different sound at completion.
Intel® RAID Controller RS25NB008 Hardware User’s Guide 5
6 Intel® RAID Controller RS25NB008 Hardware User’s Guide
2 Intel
®
Hardware Installation
Requirements
RAID Controller RS25NB008
• Intel
• A host system with an available x8 or x16 PCI-Express* slot
• Resource CD, which contains drivers and documentation
• SAS or SATA hard drives up to 6Gb/s speed
• Compatible SAS/SATA cables (for cable requirements, see step 4 in “Installing the
Note: Intel Corporation strongly recommends using an uninterruptible power supply (UPS).
®
RAID Controller RS25NB008 (SAS/SATA cables need to be
prepared separately)
RAID Controller”)
Installing the RAID Controller
To install the RAID Controller, follow these steps:
1. Turn off the power to the system, all drives, enclosures, and system components.
Remove the power cord(s).
2. Remove the server cover. For instructions, see your server system documentation.
3. If necessary, change the bracket on the RAID controller to fit the height of the
server system (see
Figure 1).
Intel® RAID Controller RS25NB008 Hardware User’s Guide 7
Low-profile
PCI Express* Slot (3.3 V)
AF004150
Bracket
AF004149
Figure 1. Changing the Bracket
4. Install the RAID controller into an available server system x8 or x16 PCI-Express*
slot (see
Figure 2). To locate an appropriate slot and for instructions on installing an
add-in card, see your server system documentation.
Figure 2. Installing the Intel® RAID Controller RS25NB008
5. Configure and install the SAS/SATA Devices in the target external storage case.
Refer to the documentation of the devices for any pre-installation
configuration requirements.
6. Use SAS cables to connect the RAID controller to the target external storage case.
8 Intel® RAID Controller RS25NB008 Hardware User’s Guide
7. Install the server system cover and connect the power cords. See your server system
documentation for instructions.
Configuring the RAID Controller
To configure the RAID Controller, follow these steps:
1. Turn on the system power and check to make sure that the SAS/SATA devices
power up before or at the same time as the system.
2. During the boot, the following BIOS message appears to state the keys that you
need to press to enter the Intel
Press <CTRL><G> to run BIOS Console 2.
This message times out after several seconds. If you miss it, you need to restart
the system.
After you press the keys to enter the Intel® RAID BIOS Console 2 software, the
firmware takes several seconds to initialize and then display the Intel
Controller RS25NB008 number and firmware version. The numbering of the RAID
controller follows the PCI slot scanning order used by the server board.
3. See the Quick Start User’s Guide and the Software User’s Guide for instructions to
configure the RAID controller and to install the operating system drivers.
®
RAID BIOS Console 2, such as:
Replacing a Controller
To replace the RAID controller, see your server system documentation for instructions to
remove and then install an add-in adapter.
Resolving a Config Mismatch
®
RAID
If the newly installed RAID controller was previously configured, a message displays
during POST, stating that there is a configuration mismatch because the configuration data
in the NVRAM differs from that in the hard drives. Use these steps to resolve
the mismatch:
1. Press <Ctrl> + <G> when prompted during boot up to access the BIOS
Configuration Utility.
2. Select Configure > View/Add Configuration to see the NVRAM and
drive configurations.
3. If the drives contain the correct configuration, use configuration from the disks.
4. Press <Esc> and select YES to update the NVRAM.
5. Exit and reboot.
Intel® RAID Controller RS25NB008 Hardware User’s Guide 9
10 Intel® RAID Controller RS25NB008 Hardware User’s Guide
3 Intel
AF004152
J5B1
J2B1
J1A1
J1A2
J2A1J2A3J2A2 J4A1 J4A2 J5A2 J6A1
J1B1
J1A3
Characteristics
®
RAID Controller RS25NB008
The Cache Memory Board component is a printed circuit board with RAID controller
cache memory chips on it that mounts directly to the base controller through the Memory
Board Connector J2 and is secured by one screw. It provides a 20-pin connector for
remote battery backup module installation support.
Figure 3. Card Layout
Figure 4. Cache Memory Board
Intel® RAID Controller RS25NB008 Hardware User’s Guide 11
s
Table 1. Jumper Description
Jumper/
Connector
Type Description
J1A2 Global Drive Fault LED header 2-pin connector Connects to an LED that
indicates whether a drive is in a fault
condition.
J1A1 Write-pending LED header 2-pin connector Connects to an LED that
indicates when the data in the cache has
yet to be written to the storage devices.
Used when the write-back feature is
enabled.
J4A2 Factory Test header 2-pin connector Reserved for factory use.
J2A1 Activity LED header 2-pin connector Connects to an LED that
indicates activity on the drives connected to
the controller.
J2A2 Factory test header 2-pin connector reserved for factory use.
J4A1 Serial EEPROM 2-pin connector
Provides controller information, such as the
serial number, revision, and manufacturing
date. The default is no shunt installed.
J1A3 x4 SAS Ports 0-3 external
connector
SFF-8088 mini SAS 4e external connector
Connects the controller by cable to SAS
drives or SATA 2 drives.
J1B1 x4 SAS Ports 4-7 external
connector
SFF-8088 mini SAS 4e external connector
Connects the controller by cable to SAS
drives or SATA 2 drives.
J2A3 Advanced Software Hardware
Key Header
3-pin header Enables support for selected
advanced features, such as recovery,
Supersized cache, FastPath, and full disk
encryption.
J2B1 Standard edge card connector The RAID controller interfaces with the host
system though a standard edge card. This
interface provides power to the board and
an I2C interface connected to the I2C bus
for IPMI.
J5A2 UART connector for the
4-pin connector Reserved for factory use.
expander
J5B1 Board-to-board Connector for
the memory board
Provides an interface to the memory board
that contains 1GB 1333 MHz DDR3
memory.
The memory board can be connected to an
optional Intel
®
RAID Smart Battery
AXXRSBBU9.
J6A1 UART connector for the
4-pin connector Reserved for factory use.
expander
12 Intel® RAID Controller RS25NB008 Hardware User’s Guide
Figure 5. Hardware Block Diagram
Intel® RAID Controller RS25NB008 Hardware User’s Guide 13
Major Components
LSI* SAS2208 ROC
The LSI* SAS2208 dual-core RAID-On-Chip (ROC) is an integrated SAS and I/O
controller operating at 800 MHz. For more information, see http://www.lsi.com/
LSI* SAS2208 dual-core ROC provides the following functions:
• x8 PCI Express* bus operating at 6.0 Gbps serial transfer rate
• Spread Spectrum Clocking (SSC)
• SAS/SMP/STP/SATA support
• Supports SAS and SATA devices
• Initiator and Target mode (SSP)
• Wide port support
• T10 End-to-End Data Protection (EEDP)
• Local 72-bit DDR3 SDRAM interface with ECC checking
• Fusion MPT message unit
• PCI Express* interface supports x8, x4, and x1 lane configurations
. The
Flash ROM
An 16-MB CFI-compliant flash ROM is used to accommodate RAID firmware and RAID
BIOS Console 2 OpROM.
Boot Strap ROM (SEEPROM)
The serial bootstrap ROM is used to configure the LSI* SAS2208 ROC before the server
board configures the PCI Express* registers. The bootstrap ROM sets the Phase Lock
Loop (PLL) dividers, bootstrap configuration, and so on.
NVSRAM
A 128-KB NVSRAM is used to store disk and drive setup information.
SDRAM (Cache)
The Intel® RAID Controller RS25NB008 has a 1GB memory board connected to it at
factory, which integrated DDR3 1333 MHz ECC SDRAM memory. This DIMM is
connected directly to the memory controller interface bus of the ROC and serves as
storage for the executable code transferred from the flash. It also serves as cache during
14 Intel® RAID Controller RS25NB008 Hardware User’s Guide
RAID transactions. Cache mode selection takes immediate effect while the server is
online and is available on a per virtual drive basis. The ROC memory controller provides
single-bit ECC error correction with multi-bit detection support.
®
The Intel
AXXRSBBU9.
The optional Intel
for data cached in the memory. It is connected remotely to the RAID controller through a
supplied cable. See below figure for reference only. Actual shape of the product may vary
from the figure.
RAID Controller RS25NB008 supports Intel® RAID Smart Battery
®
RAID Smart Battery AXXRSBBU9 provides a battery backup option
Figure 6. Intel® RAID Smart Battery AXXRSBBU9
Note: Intel Corporation strongly recommends using an uninterruptible power supply (UPS).
Diagnostic Components
Audible Alarm
The audible alarm beeps when a drive fails and also during a rebuild. The drive failure
alarm beeps are:
• Degraded array: Short tone, one second on, one second off.
• Failed array: Long tone, three seconds on, one second off.
• Hot spare commissioned: Short tone, one second on, three seconds off.
The drive failure tones repeat until the problem is corrected, or until the alarm is silenced
or disabled. The alarm can be silenced or disabled on the controller’s properties page in
the BIOS Console or by using the failed drive options pane in the Intel
Console 2.
Silencing the alarm is temporary. If the cause of failure still exists or if an additional
failure is detected, then the alarm sounds again when the system is rebooted. Disabling the
alarm is persistent across errors and reboots. When the alarm is disabled, a failure does not
cause it to sound until it is re-enabled.
®
RAID Web
Intel® RAID Controller RS25NB008 Hardware User’s Guide 15
The rebuild alarm tone functions differently. It remains ON during the rebuild. After the
rebuild completes, an alarm with a different tone sounds to signal that the rebuild is
complete. This is a one-time, non-repeating tone.
LED Placement and Function
The Intel® RAID Controller RS25NB008 contains the following LEDs:
• One surface-mounted heartbeat LED (Green Color) to indicate SAS2208 activity.
• Another surface-mounted system error LED (Amber Color) to indicate a
board error.
SAS/SATA Connectors
The Intel® Integrated RAID controller RS25NB008 provides two external SFF-8088
SAS/SATA signal connectors. Each SFF-8088 connector provides support for four
SAS/SATA ports. The sideband signals are configured to adhere to the SFF-8485
Specifications for SGPIO support.
Figure 7. Intel® RAID Controller RS25NB008 SAS/SATA Connectors
SAS/SATA Connector Pin-out
Signal names are with respect to the host; the device connected to the host reverses the
signal names. Transmit pins connect to receive pins on the other device. The SAS/SATA
connector is keyed at pin 1. These pin-outs for the serial ATA connector are not
compatible with the legacy PATA connector.
16 Intel® RAID Controller RS25NB008 Hardware User’s Guide
Table 2. SFF-8088 Connector J1A3 Pin List
Table 3. SFF-8088 Connector J1B1 Pin List
Intel® RAID Controller RS25NB008 Hardware User’s Guide 17
Note: The RAID controller in this document doesn’t ship with SAS/SATA cables.
BBU Connector Pin-out
Pin # Name Description
1 P12V 12V Power
2 GND Ground
3 BATT_PRSNT Battery Present
4 GND Ground
5 P1V8 1.8V Power
6 GND Ground
7 P3V3 3.3V Power
8 GND Ground
9 VBB_DDR_MEM DDR/DDRII Power
Figure 8. Intel® SAS/SATA Connector
Table 4. BBU Connector Pin-out
10 GND Ground
11 P3V3_STBY 3.3V auxiliary power
12 GND Ground
13 SCL I2C Clock
14 GND Ground
15 SDA I2C Data
18 Intel® RAID Controller RS25NB008 Hardware User’s Guide
PCI Interface
The Intel® RAID Controller RS25NB008 must be installed into a standard x8 or larger
PCI Express* slot that complies with the PCI Express Specification, Revision 2.0. The
controller is PCI Express* 1.0 compatible and is backward-compatible with x8 or larger
slots that are wired with x1, x2, and x4 PCI Express* lanes.
LED Headers
There are 3 2-pin right angled headers present on the board and these headers are used for
connection to external LED which indicate activity on any of the connected HDDs,
indicate fault on any of the connected HDDs and to indicate a pending write command.
Pin # Name Description
16 PFAIL_L Power Fail
17 GND Ground
18 BBE Battery Backup Enabled
19 BBSTROBE Battery Backup Strobe
20 BBSTATUS Battery Backup Status
Table 5. LED Headers Pin-out
HDD Activity Header (J2A1) HDD Fault Header (J1A2) Write Pending Header (J1A1)
Pin # Name Description Name Description Name Description
1 D_ACTIVE_PU 330? to
P3V3_DUAL
2 D_ACTIVE_N Connected to
Drain of
onboard MFT
GFAULT_PU 330? to
P3V3_DUAL
GFAULT Connected to Drain
of onboard MFT
DIRTY_PU 330? to
P3V3_DUAL
DIRTY Connected to
Drain of onboard
MFT
Intel® RAID Controller RS25NB008 Hardware User’s Guide 19
Serial UART Header
1
Pin # Name Description
1 UART0_TX UART TX SIGNAL (3.3V Signaling)
2 GND Ground
3 UART0_RX UART RX SIGNAL (3.3V Signaling)
4 P3V3_DUAL +3.3Vdc Power
Figure 9. LED Header
Table 6. UART Connector Pin-out
Figure 10. UART Connector
20 Intel® RAID Controller RS25NB008 Hardware User’s Guide
Technical Specifications
Table 7. Technical Specifications
Specification Intel® RAID Controller RS25NB008
RAID-on-Chip (ROC ) LSISAS2208 Integrated ROC, 800 MHz
Operating voltage +3.3 V, +12 V
Card size 2.713 inch x 6.600 inch (Low-profile)
Array interface to host PCI Express* Revision 2.0, x8 lane width 5.0
SAS/SATA bus speed Up to 6 Gbps per port, point-to-point
SAS/SATA ports 2x4 external port
Physical and virtual drive support 240 physical drives, 64 virtual drives, and 128
Cache 1 GB DDR3 1333 MHz SDRAM, optional
Firmware 16 MB in reflashable flash ROM
Compatible devices • 2.5-inch and 3.5-inch SAS 2.0 or
Gbps
RAID arrays per controller
battery backup
SATA III
• Non disk devices including expanders
• Can support drives of mixed capacity
Cabling • Small, thin cables that do not restrict
Redundant configuration 128 KB NVRAM and config-on-disk (COD)
Enclosure management In-band SES
Enclosure support Assumes one SEP per enclosure
Array Performance Features
Table 8. Array Performance Features
Specification Intel® RAID Controller RS25NB008
Host data transfer rate Upto 5.0 Gigabit/sec per PCI Express* lane
Drive data transfer rate Upto 6.0 Gigabit/sec per PHY
Maximum scatter/gather 80 elements
airflow
• Shared connectors for multiple drives
Intel® RAID Controller RS25NB008 Hardware User’s Guide 21
Specification Intel® RAID Controller RS25NB008
Maximum size of I/O requests 6.4 Mbytes in 64 Kbyte stripes
Maximum queue tags per
drive
Stripe sizes 8, 16, 32, 64, 128, 256, 512, or 1024 KB
Maximum concurrent
commands
Support for multiple initiators Ye s
Performance Native command queuing
Flexibility • Drive migration
As many as the drive can accept
255
• RAID level migration
• Drive Roaming
• Online Capacity Expansion - without reboot
Background services • Rebuild
• Consistency Check
• Migration
• OCE
• Patrol Read
Cache options • Write-back or Write-through
• Read Ahead
• Adaptive Read Ahead
• Non Read Ahead
• Cache I/O or Direct I/O
• Disk Cache
22 Intel® RAID Controller RS25NB008 Hardware User’s Guide
Fault Tolerance
Table 9 . Fault Tolerance Features
Specification Intel® RAID Controller RS25NB008
Self Monitoring Analysis and
Reporting Technology (SMART)
support
Optional Battery Backup • Intel® RAID Smart Battery AXXRSBBU9 cache backup
Drive Replacement • Auto detection of failure
Drive Rebuild Using Hot Spares • Automatic at fail
Error Checking and Indication • Parity generation and checking, automatic
Electrical Characteristics
• Detects up to 70% of predictable disk drive failures
• Monitors the internal performance of all motors, heads,
and drive electronics.
• Up to 48 hours of data retention, ‘Gas Gauge’
• Hot-plug
• Hot-swap
• Dedicated per Array
• Global for any array
• Auto-resume of initialization or rebuild on reboot
consistency checking
• Patrol reads
• Activity and fault LEDs
• Multiple retries
• Logs in NVRAM, event log, CIM, Smart, Intel
Web Console 2
®
RAID
All power is supplied to the adapter via the PCI Express 3.3V and 12V rail. Necessary
Voltages are provided by onboard switching regulator circuitry operating off of 12V and
3.3V rails.
The following states determine the typical current consumption of the board:
• State 1. During a hard reset
• State 2. During a disk stress test
• State 3. While sitting idle at the DOS prompt.
— Supply voltage = 12V +/- 8% (from PCI edge connector only)
— Supply voltage = 3.3V +/- 9% (from PCI edge connector only)
— Actual power consumption.
Intel® RAID Controller RS25NB008 Hardware User’s Guide 23
Table 10. Actual Power Consumption Table
PCI Edge connector State1 State 2 State 3
3.3V supply 330mA 330mA 330mA
+12V supply 1.00A 1.81A 1.53A
3.3V AUX. supply (BBU Applications only) 30mA 30mA 30mA
Note: +12V is used in the charging circuitry for the battery pack on the optional BBU Remote
card. If the BBU remote card is cable connected the following power consumption
figures apply:
1. During trickle charging of the battery pack: N/A (no trickle charge for Li-ION
2. During fast charging of the battery pack: 250mA rise in +12V current
Thermal and Atmospheric Characteristics
The maximum board temperature is limited by the LSI SAS2208 ROC Processor since it
uses the most power and will be the hottest component on the board.
• SAS2208 maximum junction temperature: 115
• Ambient temperature: maximum 60
• Maximum 45
o
C (with optional BBU)
o
C (without optional BBU)
o
C
• Airflow over SAS2208: 200 ft/min
• Environmental humidity: 20% to 80% non-condensing
• MTBF: greater than 300,000 hours
Safety Characteristics
The bare PC board shall meet or exceed the requirements of UL flammability rating V0.
The bare PC board shall also be marked with the supplier's name or trademark, type, and
UL flammability rating. The maximum electrical potential on the board will be 12.96V
potential difference, referenced from ground to +12V.
Operating Certifications
The RAID controller in this document is qualified to get Microsoft Windows* Winqual
certification (WHQL) at product launch.
Supported Device Technology
The various device technologies supported by the Intel® RAID Controller RS25NB008 is
described in the subsections that follow.
24 Intel® RAID Controller RS25NB008 Hardware User’s Guide
Support for Hard Disk Drive Devices
The Intel® RAID Controller RS25NB008 integrates eight external high-performance
SAS/SATA III ports that support SAS and enterprise-class SATA hard drives. Each port
supports both SAS and SATA devices using the SAS Serial SCSI Protocol(SSP), Serial
Management Protocol (SMP), and Serial Tunneling Protocol (STP). The SSP protocol
enables communication with other SAS devices. STP allows the SAS RAID controller to
communicate with SATA devices using the SATA commands.
SAS Expander Support
The Intel® RAID Controller RS25NB008 supports LSI* expanders, Vitesse SAS
expanders, and PMC expanders that are used as a component in Intel and 3rd party
enclosures. Other expanders may be supported post launch, based on market conditions
and customer requirements.
Support for Non-Hard Disk Drive Devices
Selected non-hard drive devices are supported for use with this controller. For information
on support for non-hard drive devices, see this RAID controller’s Tested Hardware and
Operating System List.
Enclosure Management Support
The Intel® RAID Controller RS25NB008 supports SES2 enclosure management in-band
to expander-based backplanes.
RAID Functionality and Features
Hierarchy
The fundamental purpose of a RAID system is to present a usable data storage medium
(virtual drive) with some level of redundancy to a host operating system. The Intel
RAID firmware is based on the concept of associating physical drives in arrays and then
creating a virtual drive from that array that includes a functional RAID level. To create a
virtual drive and present it to the host operating system, the RAID firmware typically
follows these steps:
1. One or more physical drives are selected and associated as an array.
2. One or more arrays are associated and given a RAID level. This process creates a
virtual drive and provides an option to initialize the virtual drive.
3. The RAID firmware presents the virtual drive to the operating system.
®
Intel® RAID Controller RS25NB008 Hardware User’s Guide 25
RAID Physical Drive Status
Drive State Code Description
Unconfigured Good Unconfigured Good The drive is functioning normally, but is not part of a
Table 11. RAID Physical Drive Status
configured virtual drive and is not a hot spare.
Online ONLN The drive is online, is part of a configured
virtual drive, and is functioning normally.
Hot Spare HOTSP A physical drive that is configured as a hot spare.
Failed FAILED A physical drive that was originally configured as
Online or Hot Spare, but on which the firmware
detects an unrecoverable error.
Rebuilding REBUILD A physical drive to which data is being written to
restore full redundancy for a virtual drive.
Unconfigured Bad Unconfigured Bad A physical drive on which the firmware detects an
unrecoverable error; the physical drive was Uncon
figured Good or the physical drive could not be
initialized.
Missing Missing A physical drive that was online, but which has been
removed from its location.
Offline Offline A physical drive that is part of a virtual drive but
which has invalid data as far as the RAID configura
tion is concerned.
None None A physical drive with an unsupported flag set. An
Unconfigured Good or Offline physical drive that has
completed the 'prepare for removal' operation.
-
-
RAID Virtual Drive Status
Table 12. RAID Virtual Drive Status
Drive State Code Description
Optimal Optimal The drive operating system is good. All config-
ured drives are online.
Degraded Degraded The drive operating condition is not optimal
because one of the configured drives has failed
or is offline.
Offline Offline The drive is not available to the operating system
26 Intel® RAID Controller RS25NB008 Hardware User’s Guide
and is unusable.
RAID Controller Drive Limitations
Only drives that comply with the SAS and SATA specification extensions are supported.
SAS Bus and ID Mapping
Devices on the SAS bus are persistently mapped based on a SAS address.
Intel® RAID Controller RS25NB008 Hardware User’s Guide 27
28 Intel® RAID Controller RS25NB008 Hardware User’s Guide
Appendix A: Drive Roaming and Drive
Migration Install
Drive Roaming
Drive roaming occurs when the hard drives are changed to different ports on the same
controller. When the drives are placed on different ports, the controller detects the RAID
configuration from the configuration data on the drives.
Note: If you move a drive that is currently being rebuilt, the rebuild operation will restart, not
resume.
To use drive roaming, follow these steps:
1. Turn off the power to the system, all drives, enclosures, and system components.
Remove the power cord(s).
2. Remove the server cover. For instructions, see your server system documentation.
3. Move the drives to different positions on the backplane to change the targets. See
your server documentation for instructions to install and remove drives.
4. Determine the target requirements.
5. Make sure the drives are inserted properly.
6. Install the server cover. For instructions, see your server system documentation.
7. Plug in and power on the system.
The controller detects the RAID configuration from the configuration data on the
drives (COD).
Intel® RAID Controller RS25NB008 Hardware User’s Guide 29
Drive Migration
Drive migration moves a configured set of hard drives from one controller to another. The
drives must remain on the same port and be reinstalled in the same order as in the original
configuration. The controller to which you migrate the drives cannot have an existing
configuration.
Note: Only complete configurations can be migrated; individual virtual disks cannot be
migrated. Drive roaming and drive migration cannot be supported at the same time.
To migrate drives, follow these steps:
1. Clear the configuration on the system to which you migrate the drives.
This prevents a configuration data mismatch between the hard drives and the
NVRAM.
2. Turn off the power to the system, all drives, enclosures, and system components.
Remove the power cord(s).
3. Remove the server cover. For instructions, see your server system documentation.
4. Disconnect the cables from the drives to be migrated.
5. Remove the hard drives from the first system and install them into the second
system. For instructions to install and remove drives, see your server
documentation.
6. Connect the data cables to the hard drives in the second system in the same order as
they were connected in the first system. Make sure all the cables meet
specifications.
7. Determine the drive target requirements.
8. Make sure all cables are properly attached and the RAID controller is properly
installed.
9. Install the server cover. For instructions, see your server system documentation.
10. Plug in and power on the system.
When you start the system, the controller detects the RAID configuration from the
configuration data on the drives.
30 Intel® RAID Controller RS25NB008 Hardware User’s Guide
Appendix B: Installation/Assembly
Safety Instructions

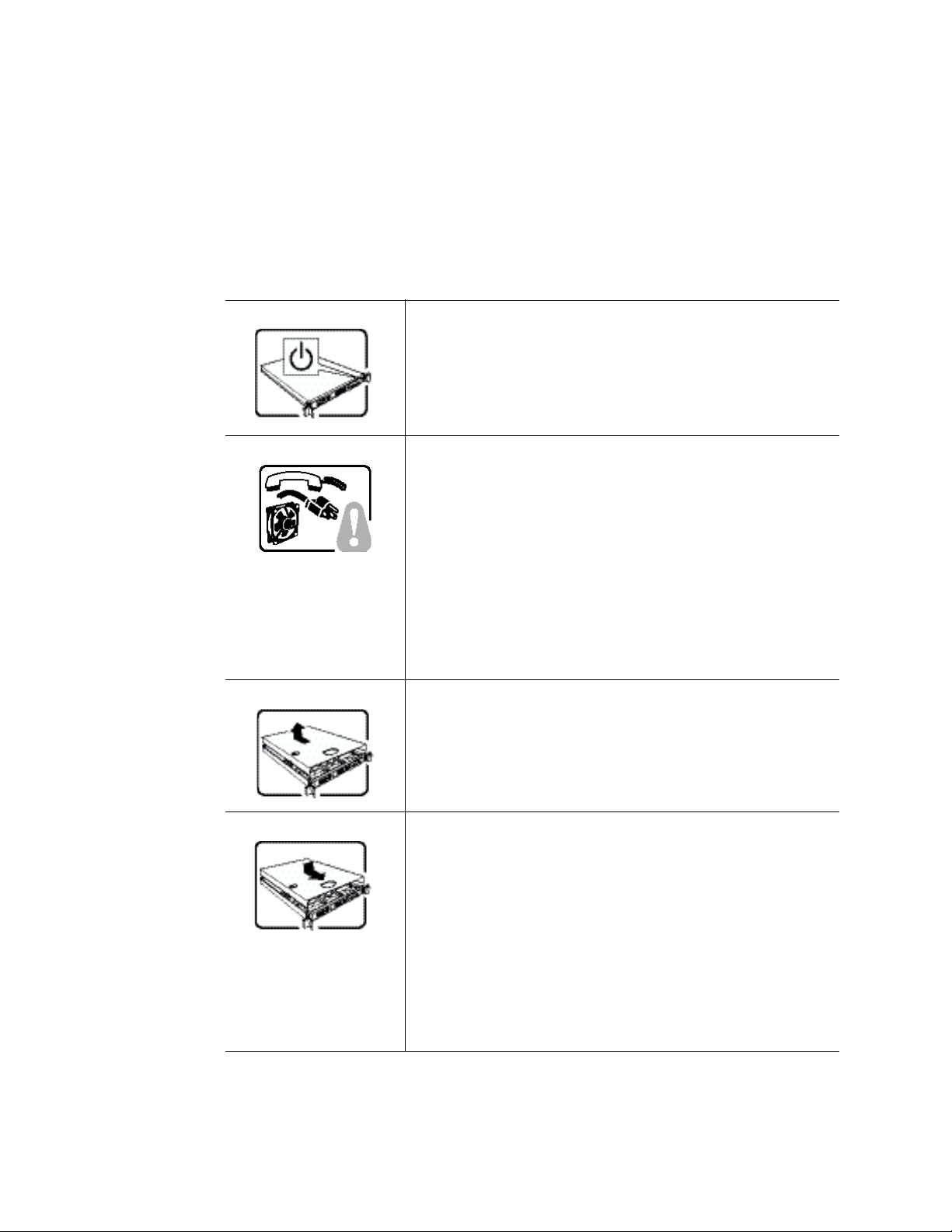

As you use your computer system, observe these safety guidelines:
• Do not operate your computer system with any cover(s) (such as computer covers,
bezels, filler brackets, and front-panel inserts) removed.
• To help avoid damaging your computer, be sure the voltage selection switch on the
power supply is set to match the alternating current (AC) power available at your
location.
• To help avoid possible damage to the server board, wait five seconds after turning
off the system before removing a component from the server board or disconnecting
a peripheral device from the computer.
• To help prevent electric shock, plug the computer and peripheral power cables into
properly grounded power sources. These cables are equipped with 3-prong plugs to
ensure proper grounding. Do not use adapter plugs or remove the grounding prong
from a cable. If you must use an extension cable, use a 3-wire cable with properly
grounded plugs.
• To help protect your computer system from sudden, transient increases and
decreases in electrical power, use a surge suppressor, line conditioner, or
uninterruptible power supply.
• Be sure nothing rests on your computer system's cables and that the cables are not
located where they can be stepped on or tripped over.
• Do not spill food or liquids on your computer. If the computer gets wet, consult the
documentation that came with it.
• Do not push any objects into the openings of your computer. Doing so can cause fire
or electric shock by shorting out interior components.
• Keep your computer away from radiators and heat sources. Also, do not block
cooling vents. Avoid placing loose papers underneath your computer; do not place
your computer in a closed-in wall unit or on a rug.
When working inside your computer:
• Do not attempt to service the computer system yourself, except as explained in this
guide and elsewhere in Intel documentation. Always follow installation and service
instructions closely.
• Turn off your computer and any peripherals.
• Disconnect your computer and peripherals from their power sources. Also
disconnect any telephone or telecommunications lines from the computer.
Doing so reduces the potential for personal injury or shock.
Intel® RAID Controller RS25NB008 Hardware User’s Guide 31
Additional safety guidelines:
• When you disconnect a cable, pull on its connector or on its strain-relief loop, not on
the cable itself. Some cables have a connector with locking tabs; if you are
disconnecting this type of cable, press in on the locking tabs before disconnect the
cable. As you pull connectors apart, keep them evenly aligned to avoid bending any
connector pins. Also, before you connect a cable, make sure both connectors are
correctly oriented and aligned.
• Handle components and cards with care. Do not touch the components or contacts
on a card. Hold a card by its edges or by its metal mounting bracket. Hold a
component such as a microprocessor chip by its edges, not by its pins.
Protecting against electrostatic discharge
• Static electricity can harm delicate components inside your computer. To prevent
static damage, discharge static electricity from your body before you touch any of
your computer's electronic components, such as the microprocessor. You can do so
by touching an unpainted metal surface, such as the metal around the card-slot
openings at the back of the computer.
• As you continue to work inside the computer, periodically touch an unpainted metal
surface to remove any static charge your body may have accumulated. In addition to
the preceding precautions, you can also take the following steps to prevent damage
from electrostatic discharge (ESD).
• When unpacking a static-sensitive component from its shipping carton, do not
remove the component from the antistatic packing material until you are ready to
install the component in your computer. Just before unwrapping the antistatic
packaging, be sure to discharge static electricity from your body.
• When transporting a sensitive component, first place it in an antistatic container
or packaging.
• Handle all sensitive components in a static-safe area. If possible, use antistatic floor
pads and workbench pads.
32 Intel® RAID Controller RS25NB008 Hardware User’s Guide
English
Read all caution and safety statements in this document before performing any of the
instructions. See also Intel
®
Server Boards and Server Chassis Safety Information on the
Resource CD and/or at
http://www.intel.com/support/motherboards/server/sb/cs-010770.htm.
The power button on the system does not turn off system AC power.
To remove AC power from the system, you must unplug each AC
power cord from the wall outlet or power supply.
The power cord(s) is considered the disconnect device to the main
(AC) power. The socket outlet that the system plugs into shall be
installed near the equipment and shall be easily accessible.
SAFETY STEPS: Whenever you remove the chassis covers to
access the inside of the system, follow these steps:
1. Turn off all peripheral devices connected to the system.
2. Turn off the system by pressing the power button.
3. Unplug all AC power cords from the system or from wall
outlets.
4. Label and disconnect all cables connected to I/O connectors
or ports on the back of the system.
5. Provide some electrostatic discharge (ESD) protection by
wearing an antistatic wrist strap attached to chassis ground of
the system-any unpainted metal surface-when handling
components.
6. Do not operate the system with the chassis covers removed.
After you have completed the six SAFETY steps above, you can
remove the system covers. To do this:
1. Unlock and remove the padlock from the back of the system if
a padlock has been installed.
2. Remove and save all screws from the covers.
3. Remove the cover(s).
For proper cooling and airflow, always reinstall the chassis covers
before turning on the system. Operating the system without the
covers in place can damage system parts. To install the covers:
1. Check first to make sure you have not left loose tools or parts
inside the system.
2. Check that cables, add-in cards, and other components are
properly installed.
3. Attach the covers to the chassis with the screws removed
earlier, and tighten them firmly.
4. Insert and lock the padlock to the system to prevent
unauthorized access inside the system.
5. Connect all external cables and the AC power cord(s) to the
system.
Intel® RAID Controller RS25NB008 Hardware User’s Guide 33
Deutsch
Lesen Sie zunächst sämtliche Warn- und Sicherheitshinweise in diesem Dokument, bevor
Sie eine der Anweisungen ausführen. Beachten Sie hierzu auch die Sicherheitshinweise zu
Intel-Serverplatinen und -Servergehäusen auf der Ressourcen-CD oder unter
http://www.intel.com/support/motherboards/server/sb/cs-010770.htm.
A microprocessor and heat sink may be hot if the system has been
running. Also, there may be sharp pins and edges on some board
and chassis parts. Contact should be made with care. Consider
wearing protective gloves.
Der Wechselstrom des Systems wird durch den Ein-/Aus-Schalter
für Gleichstrom nicht ausgeschaltet. Ziehen Sie jedes
Wechselstrom-Netzkabel aus der Steckdose bzw. dem Netzgerät,
um den Stromanschluß des Systems zu unterbrechen.
Die Stromkabel sind das "Unterbrechungsgerät" zur
Hauptstromquelle. Die Steckdose, in die das System gesteckt wird,
sollte sich in der Nähe des Gerätes befinden und leicht zugänglich
sein.
SICHERHEITSMASSNAHMEN: Immer wenn Sie die
Gehäuseabdeckung abnehmen um an das Systeminnere zu
gelangen, sollten Sie folgende Schritte beachten:
1. Schalten Sie alle an Ihr System angeschlossenen
Peripheriegeräte aus.
2. Schalten Sie das System mit dem Hauptschalter aus.
3. Ziehen Sie den Stromanschlußstecker Ihres Systems aus der
Steckdose.
4. Auf der Rückseite des Systems beschriften und ziehen Sie
alle Anschlußkabel von den I/O Anschlüssen oder Ports ab.
5. Tragen Sie ein geerdetes Antistatik Gelenkband, um
elektrostatische Ladungen (ESD) über blanke Metallstellen
bei der Handhabung der Komponenten zu vermeiden.
6. Schalten Sie das System niemals ohne ordnungsgemäß
montiertes Gehäuse ein.
34 Intel® RAID Controller RS25NB008 Hardware User’s Guide
SICHERHEITSMASSNAHMEN: Immer wenn Sie die
Gehäuseabdeckung abnehmen um an das Systeminnere zu
gelangen, sollten Sie folgende Schritte beachten:
1. Schalten Sie alle an Ihr System angeschlossenen
Peripheriegeräte aus.
2. Schalten Sie das System mit dem Hauptschalter aus.
3. Ziehen Sie den Stromanschlußstecker Ihres Systems aus der
Steckdose.
4. Auf der Rückseite des Systems beschriften und ziehen Sie
alle Anschlußkabel von den I/O Anschlüssen oder Ports ab.
5. Tragen Sie ein geerdetes Antistatik Gelenkband, um
elektrostatische Ladungen (ESD) über blanke Metallstellen
bei der Handhabung der Komponenten zu vermeiden.
6. Schalten Sie das System niemals ohne ordnungsgemäß
montiertes Gehäuse ein.
Zur ordnungsgemäßen Kühlung und Lüftung muß die
Gehäuseabdeckung immer wieder vor dem Einschalten installiert
werden. Ein Betrieb des Systems ohne angebrachte Abdeckung
kann Ihrem System oder Teile darin beschädigen. Um die
Abdeckung wieder anzubringen:
1. Vergewissern Sie sich, daß Sie keine Werkzeuge oder Teile
im Innern des Systems zurückgelassen haben.
2. Überprüfen Sie alle Kabel, Zusatzkarten und andere
Komponenten auf ordnungsgemäßen Sitz und Installation.
3. Bringen Sie die Abdeckungen wieder am Gehäuse an, indem
Sie die zuvor gelösten Schrauben wieder anbringen. Ziehen
Sie diese gut an.
4. Bringen Sie die Verschlußeinrichtung (Padlock) wieder an und
schließen Sie diese, um ein unerlaubtes Öffnen des Systems
zu verhindern.
5. Schließen Sie alle externen Kabel und den AC
Stromanschlußstecker Ihres Systems wieder an.
Der Mikroprozessor und der Kühler sind möglicherweise erhitzt,
wenn das System in Betrieb ist. Außerdem können einige Platinen
und Gehäuseteile scharfe Spitzen und Kanten aufweisen. Arbeiten
an Platinen und Gehäuse sollten vorsichtig ausgeführt werden. Sie
sollten Schutzhandschuhe tragen.
Français
Lisez attention toutes les consignes de sécurité et les mises en garde indiquées dans ce
document avant de suivre toute instruction. Consultez Intel
Chassis Safety Information sur le CD Resource CD ou bien rendez-vous sur le site
http://www.intel.com/support/motherboards/server/sb/cs-010770.htm
Intel® RAID Controller RS25NB008 Hardware User’s Guide 35
®
Server Boards and Server
Notez que le commutateur CC de mise sous tension /hors tension
du panneau avant n'éteint pas l'alimentation CA du système. Pour
mettre le système hors tension, vous devez débrancher chaque
câble d'alimentation de sa prise.
C'est le câble d'alimentation qui est considéré comme le moyen de
se déconnecter du CA. La prise à laquelle le système est branché
doit se situer à proximité de l'équipement et être facilement
accessible.
CONSIGNES DE SÉCURITÉ -Lorsque vous ouvrez le boîtier pour
accéder à l'intérieur du système, suivez les consignes suivantes:
1. Mettez hors tension tous les périphériques connectés au
système.
2. Mettez le système hors tension en mettant l'interrupteur
général en position OFF (bouton-poussoir).
3. Débranchez tous les cordons d'alimentation c.a. du système
et des prises murales.
4. Identifiez et débranchez tous les câbles reliés aux
connecteurs d'E-S ou aux accès derrière le système.
5. Pour prévenir les décharges électrostatiques lorsque vous
touchez aux composants, portez une bande antistatique pour
poignet et reliez-la à la masse du système (toute surface
métallique non peinte du boîtier).
6. Ne faites pas fonctionner le système tandis que le boîtier est
ouvert.
Une fois TOUTES les étapes précédentes accomplies, vous pouvez
retirer les panneaux du système. Procédez comme suit:
1. Si un cadenas a été installé sur à l'arrière du système,
déverrouillez-le et retirez-le.
2. Retirez toutes les vis des panneaux et mettez-les dans un
endroit sûr.
3. Retirez les panneaux.
Afin de permettre le refroidissement et l'aération du système,
réinstallez toujours les panneaux du boîtier avant de mettre le
système sous tension. Le fonctionnement du système en l'absence
des panneaux risque d'endommager ses pièces. Pour installer les
panneaux, procédez comme suit:
1. Assurez-vous de ne pas avoir oublié d'outils ou de pièces
démontées dans le système.
2. Assurez-vous que les câbles, les cartes d'extension et les
autres composants sont bien installés.
3. Revissez solidement les panneaux du boîtier avec les vis
retirées plus tôt.
4. Remettez le cadenas en place et verrouillez-le afin de
prévenir tout accès non autorisé à l'intérieur du système.
5. Rebranchez tous les cordons d'alimentation c. a. et câbles
externes au système.
36 Intel® RAID Controller RS25NB008 Hardware User’s Guide
Español
Le microprocesseur et le dissipateur de chaleur peuvent être chauds
si le système a été sous tension. Faites également attention aux
broches aiguës des cartes et aux bords tranchants du capot. Nous
vous recommandons l'usage de gants de protection.
Lea todas las declaraciones de seguridad y precaucion de este documento antes de realizar
cualquiera de las instrucciones. Vea Intel
®
Server Boards and Server Chassis Safety
Information en el CD Resource y/o en
http://www.intel.com/support/motherboards/server/sb/cs-010770.htm
Nótese que el interruptor activado/desactivado en el panel frontal no
desconecta la corriente alterna del sistema. Para desconectarla,
deberá desenchufar todos los cables de corriente alterna de la
pared o desconectar la fuente de alimentación.
Estos cables actúan como dispositivo de desconexión. La toma de
corriente deberá estar situada cerca del equipo y ser de fácil
acceso.
INSTRUCCIONES DE SEGURIDAD: Cuando extraiga la tapa del
chasis para acceder al interior del sistema, siga las siguientes
instrucciones:
1. Apague todos los dispositivos periféricos conectados al
sistema.
2. Apague el sistema presionando el interruptor
encendido/apagado.
3. Desconecte todos los cables de alimentación CA del sistema
o de las tomas de corriente alterna.
4. Identifique y desconecte todos los cables enchufados a los
conectores E/S o a los puertos situados en la parte posterior
del sistema.
5. Cuando manipule los componentes, es importante protegerse
contra la descarga electrostática (ESD). Puede hacerlo si
utiliza una muñequera antiestática sujetada a la toma de tierra
del chasis - o a cualquier tipo de superficie de metal sin pintar.
6. No ponga en marcha el sistema si se han extraído las tapas
del chasis.
Después de completar las seis instrucciones de SEGURIDAD
mencionadas, ya puede extraer las tapas del sistema. Para ello:
1. Desbloquee y extraiga el bloqueo de seguridad de la parte
posterior del sistema, si se ha instalado uno.
2. Extraiga y guarde todos los tornillos de las tapas.Extraiga las
tapas.
Intel® RAID Controller RS25NB008 Hardware User’s Guide 37
Para obtener un enfriamiento y un flujo de aire adecuados, reinstale
siempre las tapas del chasis antes de poner en marcha el sistema.
Si pone en funcionamiento el sistema sin las tapas bien colocadas
puede dañar los componentes del sistema. Para instalar las tapas:
1. Asegúrese primero de no haber dejado herramientas o
componentes sueltos dentro del sistema.
2. Compruebe que los cables, las placas adicionales y otros
componentes se hayan instalado correctamente.
3. Incorpore las tapas al chasis mediante los tornillos extraídos
anteriormente, tensándolos firmemente.
4. Inserte el bloqueo de seguridad en el sistema y bloquéelo
para impedir que pueda accederse al mismo sin autorización.
5. Conecte todos los cables externos y los cables de
alimentación CA al sistema.
Si el sistema ha estado en funcionamiento, el microprocesador y el
disipador de calor pueden estar aún calientes. También conviene
tener en cuenta que en el chasis o en el tablero puede haber piezas
cortantes o punzantes. Por ello, se recomienda precaución y el uso
de guantes protectores.
Italiano
L'interruttore attivato/disattivato nel pannello anteriore non
interrompe l'alimentazione in c.a. del sistema. Per interromperla, è
necessario scollegare tutti i cavi di alimentazione in c.a. dalle prese
a muro o dall'alimentazione di corrente.
Il cavo è considerato il dispositivo d'interruzione dell'alimentazione
principale (in c.a.). La presa alla quale si collega il sistema deve
essere installata vicino all'unità e deve essere facilmente
accessibile.
38 Intel® RAID Controller RS25NB008 Hardware User’s Guide
PASSI DI SICUREZZA: Qualora si rimuovano le coperture del telaio
per accedere all'interno del sistema, seguire i seguenti passi:
1. Spegnere tutti i dispositivi periferici collegati al sistema.
2. Spegnere il sistema, usando il pulsante spento/acceso
dell'interruttore del sistema.
3. Togliere tutte le spine dei cavi del sistema dalle prese
elettriche.
4. Identificare e sconnettere tutti i cavi attaccati ai collegamenti
I/O od alle prese installate sul retro del sistema.
5. Qualora si tocchino i componenti, proteggersi dallo scarico
elettrostatico (SES), portando un cinghia anti-statica da polso
che è attaccata alla presa a terra del telaio del sistema qualsiasi superficie non dipinta - .
6. Non far operare il sistema quando il telaio è senza le
coperture.
Dopo aver seguito i sei passi di SICUREZZA sopracitati, togliere le
coperture del telaio del sistema come seque:
1. Aprire e rimuovere il lucchetto dal retro del sistema qualora ve
ne fosse uno installato.
2. Togliere e mettere in un posto sicuro tutte le viti delle
coperture.
3. Togliere le coperture.
Per il giusto flusso dell'aria e raffreddamento del sistema, rimettere
sempre le coperture del telaio prima di riaccendere il sistema.
Operare il sistema senza le coperture al loro proprio posto potrebbe
danneggiare i componenti del sistema. Per rimettere le coperture del
telaio:
1. Controllare prima che non si siano lasciati degli attrezzi o dei
componenti dentro il sistema.
2. Controllare che i cavi, dei supporti aggiuntivi ed altri
componenti siano stati installati appropriatamente.
3. Attaccare le coperture al telaio con le viti tolte in precedenza e
avvitarle strettamente.
4. Inserire e chiudere a chiave il lucchetto sul retro del sistema
per impedire l'accesso non autorizzato al sistema.
5. Ricollegare tutti i cavi esterni e le prolunghe AC del sistema.
Se il sistema è stato a lungo in funzione, il microprocessore e il
dissipatore di calore potrebbero essere surriscaldati. Fare
attenzione alla presenza di piedini appuntiti e parti taglienti sulle
schede e sul telaio. È consigliabile l'uso di guanti di protezione.
Intel® RAID Controller RS25NB008 Hardware User’s Guide 39
40 Intel® RAID Controller RS25NB008 Hardware User’s Guide
Appendix C: Regulatory and Certification
Information
Product Safety and EMC Compliance
This Intel® RAID Controller has been evaluated for regulatory compliance as an
Intel end system, and is included as part of the end system certification. For
information on end system certification, refer to the product regulatory certification
for the end system level product.
Intel® RAID Controller RS25NB008 Hardware User’s Guide 41
42 Intel® RAID Controller RS25NB008 Hardware User’s Guide
Loading...
