Intel® Server System R1000EP Family Quick Installation User's Guide
Thank you for buying an Intel® Server System. The following information will help you assemble your Intel® Server System and install components.
If you are not familiar with ESD [Electrostatic Discharge] procedures used during system integration, see the complete ESD procedures described in your Service Guide.
This guide and other supporting documents are located on the web at:
http://www.intel.com/support.
3.5" hard drive bay system as shown
*
(This page is intentionally left blank.)
Table of Contents
System Overview .............................................................................................................................. 1
General Installation Process ........................................................................................................ 2
Preparing the System ...................................................................................................... 2
Remove the Top Cover .................................................................................................... 2
Remove the Air Duct ........................................................................................................ 2
Remove Processor Heatsink(s) ................................................................................... 2
Install the Processor(s) .................................................................................................. 3
Install Processor Heatsink(s) ....................................................................................... 4
Install Memory Modules .................................................................................................. 4
Install Hard Drives .............................................................................................................. 5
Install Optical Drive ............................................................................................................ 7
Install the Air Duct ............................................................................................................. 7
Remove Add-in Card Riser Assembly ...................................................................... 7
Install Add-in Card(s) ......................................................................................................... 7
Install Add-in Card Riser Assembly ........................................................................... 8
Install Rack Handles .......................................................................................................... 8
Install Intel® I/O Expansion Module (optional) ..................................................... 8
Install Intel® RAID C600 Upgrade Key (optional) ............................................... 8
Install Intel® RAID Smart Battery (optional) ......................................................... 8
Replace Power Supply Module (optional) .............................................................. 9
Install Bezel (optional) ...................................................................................................... 9
Install the Top Cover ........................................................................................................... 9
Finishing Up ............................................................................................................................. 9
Software ............................................................................................................................... 10
Reference ............................................................................................................................................ 11
i
Warning
Warning
Caution
Tools Required
Read all caution and safety
statements in this document before performing any of the instructions. Also see the Intel®
Server Board and Server Chassis Safety Information document at:
http://www.intel.com/support/ motherboards/server/sb/cs-010770 .htm for complete safety information.
Intel is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as the property of others. Copyright © 2012, Intel Corporation. All rights reserved.
Installation and service of this product to be performed only by qualified service personnel to avoid risk of injury from electrical shock or energy hazard.
Observe normal ESD [Electrostatic Discharge] procedures during system integration to avoid possible damage to server board and/or other components.
Phillips* screwdriver
Anti-static wrist strap
Thermal Operation and Configuration Requirements
To keep the system operating within supported maximum thermal limits, the system must meet the following operating and configuration guidelines:
• Ambient in-let temperature cannot exceed 35º C and should not remain at this maximum level for long periods of
time. Doing so may affect long term reliability of the system.
• The CPU-1 processor + CPU heatsink must be installed first. The CPU-2 heatsink must be installed at all times,
with or without a processor installed.
• Memory Slot population requirements:
NOTE: Specified memory slots either can be populated with a DIMM or supplied DIMM Blank. Memory population rules apply when installing DIMMs. ▪ DIMM Population Rules on CPU-1
Install DIMMs in order; Channels A, B, and C. Start with 1
▪ DIMM Population Rules on CPU-2 Install DIMMs in order; Channels D, E, and F. Start with 1st DIMM slot (blue) on each channel, then slot 2.
• All hard drive bays must be populated. Hard drive carriers either can be populated with a hard drive or supplied
drive blank.
• The air duct must be installed at all times.
• The system top-cover must be installed at all times.
st
DIMM slot (blue) on each channel, then slot 2.
ii
System Overview
Intel® Server System R1000EP Family
System Features and Components
Server Board
System Fans
Hot Swap Hard Drive Bays
Front Control Panel
* 3.5" Hard Drive Bay system as shown
CPU2 Memory Slots
CPU2
PCI Riser
Power Supply
CPU1 Memory Slots
CPU1
Air Duct
Useful Information:
• The SCU1 (4-7) port requires an Intel® RAID C600 Upgrade Key installed to be functional.
1
General Installation Process
The installation instructions in this section are for common components of Intel® Server System R1000EP family.
Minimum Hardware Requirements
To avoid integration difficulties and possible board damage, your system must meet the following minimum requirements:
• Processor:
Intel® Xeon® processor E5-2400 product family.
• Memory Type:
Minimum of one 512MB DDR3 800/1066/1333 MHz UDIMM or one 1GB DDR3 800/1066/1333 MHz RDIMM.
• Hard Disk Drives: SATA
For a complete list of compatible processors, heatsinks, and memory, see
http://www.intel.com/support.
2
Remove the Top Cover
Remove the four screws.
A
Slide cover back and lift upward.
B
3
1
Preparing the System
Observe normal ESD (Electrostatic Discharge) procedures.
Place your Intel® Server System on a flat anti-static surface to perform the following integration procedures. Observe ESD procedures before reaching inside to make server board connections or install components.
Remove the Air Duct
Remove the air duct by lifting straight up.
B
IMPORTANT!
Before proceeding further, check your
®
Intel
Server System for disconnected or loose cables and components that may have occurred during shipping.
A
B
4
Remove Processor Heatsink(s)
CAUTION: The heatsink has thermal interface material (TIM) on the bottom side of it. Use caution so that you do not damage the thermal interface material. Use gloves to avoid sharp edges.
The heatsink is attached to the server board/processor socket with captive fasteners. Using a #2 Phillips* screwdriver, loosen the four screws located on the
heatsink corners in a diagonal manner using the following procedure:
Using a #2 Phillips* screwdriver, start with screw 1 and loosen it by
A
giving it two rotations and stop. (IMPORTANT: Do not fully loosen.) Proceed to screw 2 and loosen it by giving it two rotations and stop.
B
Similarly, loosen screws 3 and 4. Repeat steps A and B by giving each screw two rotations each time
until all screws are loosened. Lift the heatsink straight up.
C
C
3
A
2
1
B
4
TIM
Chassis Front
2
General Installation Process
5
Install the Processor(s)
Cautions:
1. When opening a socket, DO NOT TOUCH the golden socket wires.
2. When unpacking a processor, hold only by the edges to avoid touching the golden contact wires.
A. Open the Socket Lever
Push the lever handle
A
down and away from the socket to release it.
Rotate the lever open
B
all the way.
B
B. Open the Load Plate
Push the rear tab with your
A
finger tip to bring the front end of the load plate up slightly.
C.
Remove the Processor
Protective Cover
Take the processor
A
out of the box and remove the protective shipping cover.
A
A
A
Open the load plate
B
as shown.
B
Install the Processor(s) ... continued
D. Install the Processor
Orient the processor with the
A
CAUTION: The bottom
side of the processor has
components that may damage
the socket wires if installed
improperly.
Components
Processor must align
correctly with the socket
opening before installation.
DO NOT DROP processor
into the socket!
socket so that the orientation notches onthe processor align with the two orientation posts on the socket.
Install the processor as shown.
Orientation Notches
A
Orientation Posts
E. Close Load Plate and Socket Lever
A
Close the load plate all the way as shown.
A
With your finger, push down on the
B
load plate as shown.
Close the socket lever and ensure that
C
the load plate tab engages under the socket lever when fully closed.
B
C
3
General Installation Process
6
Install Processor Heatsink(s)
CAUTION: The heatsink has thermal interface material (TIM) on the bottom side of it. Use caution so that you do not damage the thermal interface material.
Use gloves to avoid sharp edges.
Remove the protective film on the TIM if present.
A
Align heatsink fins to the front and back of
B
the chassis for correct airflow. Airflow goes from front-to-back of chassis.
Each heatsink has four captive fasteners and should be tightened in a diagonal manner using the following procedure:
Using a #2 Phillips* screwdriver,
C
start with screw 1 and engage screw threads by giving it two rotations and stop. (Do not fully tighten.)
Proceed to screw 2 and engage screw
D
threads by giving it two rotations and stop. Similarly, engage screws 3 and 4.
Repeat steps C and D by giving each
E
screw two rotations each time until each screw is lightly tightened up to a maximum of 8 inch-lbs torque.
B
AIRFLOW
D
2
TIM
A
Chassis Front
NOTE: Heatsink styles may vary.
CAUTION: Do not over-tighten fasteners.
3
E
4
7
Install Memory Modules
DDR3 DIMM Memory Identification:
CAUTION: Observe normal ESD (ElectroStatic Discharge) procedures to avoid possible damage to system components.
DIMM notch and socket bump must align as shown below.
C
1
DDR3
Other
Memory
Install Memory Modules ... Continued
Memory Configurations and Population Order:
Intel® Server Board S2400EP
CPU 2 Socket
DIMM_F1
DIMM_F2
DIMM_E1
DIMM_D1
DIMM_C2
CPU 1 Socket
For best performance, a minimum of four DIMMs per CPU is recommended, populated in the blue slot of each memory channel.
In a single-processor configuration, always populate A1 DIMM first.
In a dual-processor configuration, always populate A1 DIMM first for CPU 1 and D1 DIMM first for CPU2.
®
NOTE: For additional memory configurations, see the Service Guide on the Intel Server System, or go to http://www.intel.com/support.
Memory sizing and configuration is supported only for qualified DIMMs approved by Intel. For a list of supported memory, go to
http://serverconfigurator.intel.com.
Server Deployment & Management DVD that accompanied your Intel®
DIMM_B1
DIMM_A1
DIMM_C1
4
General Installation Process
2.5" HDD
Install Memory Modules ... Continued
To Install DIMMs:
Open both DIMM socket levers.
A
Note location of alignment notch.
B
Insert DIMM making sure the connector edge of the DIMM aligns correctly with the slot.
C
Push down firmly on the DIMM until it snaps into place and both levers close.
D
IMPORTANT! Visually check that each latch is fully closed and correctly engaged with
E
each DIMM edge slot.
CAUTION: Avoid touching contacts when handling or installing DIMMs.
E
D
A
C
B
8
Install
Hard Drives
2.5" Hard Drive Carrier (For system with 2.5" hard drive bay only)
Remove the drive carrier by pressing the
A
to unlock.
B
Pull out the black lever and slide the carrier out.
green
A
B
Remove the four screws securing the plastic drive blank
C
from the 2.5" HDD carrier. Disengage the plastic drive blank from the HDD carrier.
D
Remove the plastic drive blank from the 2.5" HDD carrier.
D
latch
Install the hard disk drive using the four screws as shown. Make Sure
E
the connector end of the drive matches the backplane connector.
E
With the lever open, insert the hard disk drive assembly into the chassis,
F
then push in the lever to lock it into place.
CAUTION: If you don't install all drives, empty drive bays must be occupied by carriers with plastic drive blank provided to maintain proper system cooling.
F
Drive 0 Primary
C
Hard Drive Numbering Diagram
1
0
3
2
5
4
5
6
7
8 x 2.5" hard drive bay as shown
General Installation Process
2.5" HDD
TOP
BREAK OFF TAB
BEFORE MOUTING
2.5´´ HARD DRIVE
Install
Hard Drives ... Continued
3.5" Hard Drive Carrier (For system with 3.5" hard drive bay only)
Remove the drive carrier by pressing the green button and opening
A
the lever.
B
Slide the carrier out.
B
A
Install the hard disk drive using the same four screws as shown. Make
D
sure the connector end of the drive matches the backplane connector.
D
3.5´´ HDD
Remove the four screws securing the HDD interface bracket and remove
C
the HDD interface bracket.
BREAK OFF TAB
BEFORE MOUTING
2.5´´ HARD DRIVE
TOP
C
With the lever open, insert the hard disk drive assembly into the chassis.
E F
Push in the lever to lock it into place.
CAUTION: If you don't install all drives, empty drive bays must be occupied by carriers with plastic drive blank provided to maintain proper system cooling.
E
F
Install 2.5" Hard Drive as option:
d1
Break off the tab on the HDD interface bracket.
d2
d1
Bottom
View
0 1 2 3
Drive 0 Primary
Install the HDD interface bracket from top. Secure the bracket with three screws as shown.
BREAK OFF TAB
BEFORE MOUTING
2.5´´ HARD DRIVE
TOP
d2
Hard Drive Numbering Diagram
Slide the 2.5" HDD into the
d3
bracket to align the screw holes with the right and left rail.
2.5" HDD
d3
Secure the hard disk drive using
d4
the four screws for 2.5" HDD.
d4
4 x 3.5’’ hard drive bay as shown
6
General Installation Process
9
A
Install Optical Drive
Install the plastic guide onto the back of the drive and attach with two screws as shown.
10
Install the Air Duct
Align the two holes on the air duct with the alignment pins on the chassis and install the air duct into place.
Use care to avoid pinching system cables.
Rear View
of Optical
Drive
Insert the optical drive into chassis opening
B
and push all the way until it stops. Connect the cables as shown.
C
A
Optical
Device
Assembly
B
11
Optical
Drive
C
Data
Power
Remove Add-in Card Riser Assembly
Grasp the riser assembly with both hands and pull up to remove from system.
IMPORTANT NOTE: If you do not install a device at this location, install the optical device bay filler panel shown below. This is required to maintain proper system cooling.
CAUTION:
Place the riser assembly upsidedown to avoid damage to the riser card connector.
12
Install Add-in Card(s)
• Full-height PCIe Card Shown
NOTE: Add-in card install sequence for low-profile add-in cards is the same.
Remove the filler panel from the add-in card slot and
A
remove the screw as shown.
Insert add-in card until it seats in the riser connector.
B
Secure add-in card with screw as shown.
C
NOTE: Make sure that all empty add-in card slots have filler panels installed.
CAUTION:
Observe normal ESD precautions when installing add-in cards.
C
Add-in Card
Riser Connector
A
REMOVE Filler Panel
B
Riser Card Connector
7
General Installation Process
Add-in Card
13
Install Add-in Card Riser Assembly
Position the riser card edge connector over the server board riser socket and align the two hooks of the riser with the slots at the back of the chassis, then press straight down into riser socket.
NOTE: Riser Slot 2 is not functional without having two processors installed.
15a
A
B
C
D
NOTE: If included, remember to install the EMI shield.
Install Intel® I/O Expansion Module (optional)
Squeeze the sides of the filler panel to disengage it from the server system back panel and remove it.
Position the module over the server board, fit the front of the module into the back panel slot.
Attach the module to the server board connector.
Secure the module with the three screws as shown.
D
C
I/O Connector
I/O Module
B
14
Install Rack Handles
Hooks (2)
Slots (2)
15b
Install Intel® RMM4 NIC Module (optional)
Push out and remove
A
the metal cover on the chassis where the NIC RJ-45 receptacle will align.
A
Insert and fit the metal
B
adapter into the position shown below. Secure the adapter with two screws as shown.
Position the module over
C
the server board, fit the front of the module into the back panel slot, then attach the module to the server board connector Secure the module with the two screws as shown.
NOTE: Rack handles are required to install the bezel. For detailed instructions, see the Service Guide.
CAUTION: Intel® I/O Expansion module and RMM4 module are exclusive on Intel®
C
R1000EP system.
B
B
RMM 4 NIC
Connector
A
16
Install Intel® RAID C600 Upgrade Key (optional)
Locate the white 4-pin key header next to Riser Slot 1. Carefully pickup the Intel the Key and connector orientation and press down to install.
®
RAID C600 Upgrade Key. Match
STOR_UPG_KEY
17
A
B
Install Intel® RAID Smart Battery (optional)
Locate the BBU bracket inside the chassis. Align the tabs on the plastic battery holder with mounting holes on the BBU bracket.
Slide the plastic battery holder toward the rear of the system until the tabs engage with the mounting holes in the BBU bracket.
8
A
B
General Installation Process
18
19

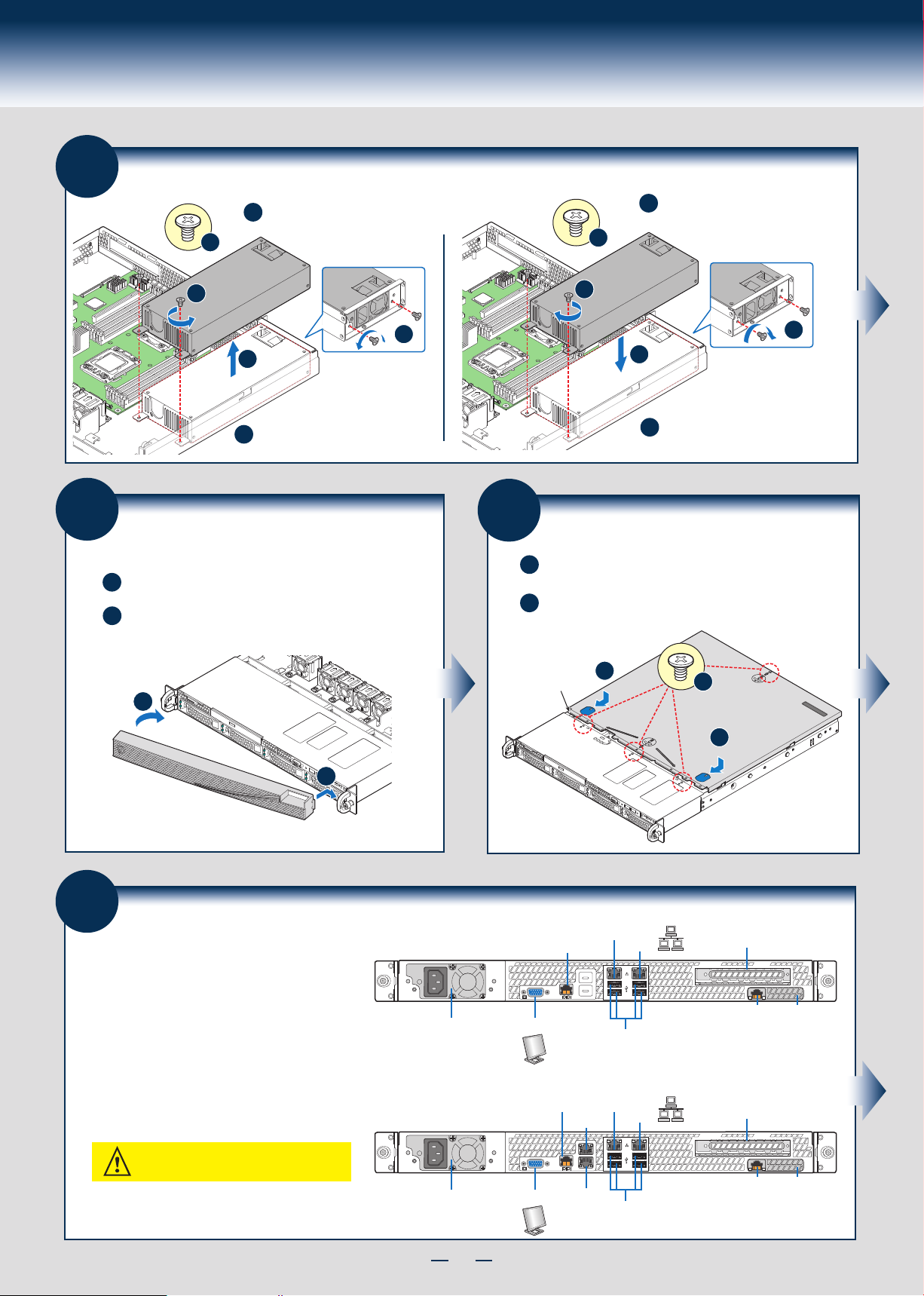

Replace Power Supply Module (optional)
Unsecure the four screws from the
A
module as shown.
A
A
A
B
Remove the power supply module.
B
Install Bezel (optional)
NOTE: Before installing the bezel, you must install the rack handles.
Lock the right end of the front bezel to the rack handle.
A
Rotate the front bezel clockwise till the left end clicks into place.
B
Lock the bezel if needed.
20
A
B
Insert the power supply module into
A
the chassis
B
B
B
A
Secure the module with the four screws
B
as shown.
Install the Top Cover
Place the top cover on system and slide towards the front of the chassis until the recessed front edge is fully engaged.
Install the three screws at the front and torque to 7-9in-lbs. Then install the screw at the back and torque to 7-9in-lbs.
B
21
Finishing Up
Before installing your operating system, you must finish your system installation, make I/O connections, and plug in power cord(s).
1. Verify the system top cover is installed.
2. Install the server into the rack using the instructions provided with the rack mounting kit.
3.
Connect your USB keyboard/mouse, video and other
I/O cables/devices as shown.
Then connect the power cord(s).
Recessed Edge
A
B
A
A
Network
NIC 1
NIC 1
NIC 3
NIC 2
USB
Ports
NIC 4
Network
Add-in Card Slots
Intel ® RMM4
NIC Port
(optional)
Add-in Card Slots
or
Intel ® I/O
Module
(optional)
For system BIK with S2400EP2
Power
Supply
Module
For system BIK with S2400EP4
Video
Serial
Port A
Serial Port A
CAUTION: This system must be operated with the TOP COVER installed to ensure proper cooling.
Power
Supply
Module
Video
9
NIC 2
USB
Ports
Intel ® RMM4
NIC Port
(optional)
or
Intel ® I/O
Module
(optional)
General Installation Process
22
Software
Update the System Software:
A.
1. Boot from the Intel
2. Use the Wizard to access the latest versions on the Internet and update the BIOS, firmware, FRUSDRs, and Intel® RMM4.
NOTE: You may also download files on a USB key. The FRUSDR utility must be run for full platform management functionality.
B. Configure your RAID Controller:
If using a RAID card, use the instructions provided with the RAID controller. If using on-board RAID, you must activate RAID in the BIOS setup. See the Intel
C. Install your Operating System:
Use the instructions provided with the RAID controller and with the operating system.
D. Install Operating System Drivers:
With the operating system running, insert the Intel autorun and allow you to select the appropriate drivers to install. On other operating systems, browse the DVD folders to locate and install the driver files.
E. Install Intel® System Management Software (optional):
Download the latest version of the Intel install the software.
* Other brands and names may be claimed as the property of others..
®
• BIOS, Drivers, and Operating System Installation
®
Server Deployment & Management DVD.
Server System R1000EP Service Guide for more information.
®
Server Deployment & Management DVD. If using a Microsoft Windows* operating system, the Express Installer will
®
System Management Software from http://www.intel.com/go/servermanagement and use the instructions provided at that link to
10
Reference
Front Panel Controls and Indicators
Your system may include one of two front control panel types.The features of each are as follows:
A. ID Button with integrated LED B. NMI Button C. LAN-1 Activity LED D. LAN-3 Activity LED E. System Cold Reset Button
F. System Status LED G. Power Button with integrated LED H. HDD Activity LED I. LAN-4 Activity LED J. LAN-2 Activity LED
Intel® Server Board S2400EP Component Layout
Status LED
RMM4 NIC
ID LED
Diagnostic LED
NIC4 (NIC2) USB3 USB2
Standard Control Panel
A B C D E F G
NIC3 (NIC1) USB1 USB0
NIC1 NIC2
Serial A
PMBus
CPU 2 Power
VGA
Main Power
HIJ
Front Panel
SATA 0
NIC PORT SCHEME
S2400EP2 S2400EP4
NIC1NIC2
RMM4 LITE
SATA 1
USB 4/5
SCU 0
SCU 1
IPMB
HSBP_I2C
IO Module
NIC3NIC4
Sas Module Connector
Storage Upgrade Key
HDD LED
SYS FAN_1
NIC1 NIC2
TPM
LCP
USB 6
Slot 6 (PCIe x16 )
Battery
Chassis Intrusion
DIMM_D1
DIMM_F1
DIMM_E1
SYS FAN_2
DIMM_F2
CPU 1 Fan
CPU 2 Socket
CPU 1 Socket
CPU 1 Power
SYS FAN_3 SYS FAN_4 SYS FAN_5
CPU 2 Fan
DIMM_B1
DIMM_C2
DIMM_A1
DIMM_C1
* - For server systems integrated with Intel® Server Board S2400EP only.
See your Intel® Server System R1000EP Service Guide for expanded component and connection information.
11
Reference
System Fan Connection
CPU2 Socket
CPU1 Socket
FAN 1 FAN 2 FAN 3 FAN 4 FAN 5
Air F l ow
1
2
3
4
5
A complete list of accessories and spares can be found at http://www.intel.com/support.
12
Reference
Optical Drive
System Cabling Diagram For system with 8 x 2.5” hard drive bay:
NOTE: To activate the port SCU1 (4-7) on the server board, a proper Intel® RAID C600 Upgrade Key must be installed. For instructions, see Intel® RAID C600 Upgrade Key Installation Guide.
Intel® Integrated RAID Module
Front Panel
Front Panel USB
I2C
HSBP_I2C
CPU 2 Socket
Power Supply
CPU 1 Socket
FAN 1 FAN 2BBU FAN 3 FAN 4 FAN 5
8 x 2.5" HSBP
13
Reference
Optical Drive
System Cabling Diagram For system with 4 x 3.5” hard drive bay:
NOTE: To activate the port SCU1 (4-7) on the server board, a proper Intel® RAID C600 Upgrade Key must be installed. For instructions, see Intel® RAID C600 Upgrade Key Installation Guide.
Intel® Integrated RAID Module
Front Panel
Front Panel USB
I2C
HSBP_I2C
BBU
HDD O
CPU 2 Socket
CPU 1 Socket
FAN 1 FAN 2 FAN 3 FAN 4 FAN 5
SATA SGPIO
4 x 3.5" HSBP
HDD 1 HDD 2
HDD 3
Power
Power Supply
Supply
14
( This page is intentionally left blank. )
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
