Intel DH61SKCH Product Manual

1

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with instructions
contained in this manual, may cause harmful interference to radio and television communications.
However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- REORIENT OR RELOCATE THE RECEIVING ANTENNA

- INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND THE RECEIVER

- CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM
THAT OF THE RECEIVER

- CONSULT THE DEALER OR AN EXPERIENCED AUDIO/TELEVISION TECHNICIAN

NOTE:

Connecting this device to peripheral devices that do not comply with Class B requirements, or
using an unshielded peripheral data cable, could also result in harmful interference to radio or
television reception.

The user is cautioned that any changes or modications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this equipment.

To ensure that the use of this product does not contribute to interference, it is necessary to use
shielded I/O cables.

Copyright

This manual is copyrighted with all rights reserved. No portion of this manual may be copied or
reproduced by any means.

While every precaution has been taken in the preparation of this manual, no responsibility for
errors or omissions is assumed. Neither is any liability assumed for damages resulting from the
use of the information contained herein.

Trademarks

All brand names, logos and registered trademarks mentioned are property of their respective
owners.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled

where possible. Disposal of used batteries must be in accordance with local environmental
regulations.

Electronic Emission Notices

WARNING!

2

Intel H61-ITX series Motherboard

Table of Contents

Motherboard Specications ---------------------------------------------------------------------------------4
Motherboard Layout--------------------------------------------------------------------------------------------6
Hardware Installation ------------------------------------------------------------------------------------------9

Safety Instructions-------------------------------------------------------------------------------------------9
Preparing the Motherboard -------------------------------------------------------------------------------10

Installing the CPU -------------------------------------------------------------------------------------- 10
Installing the CPU Fan -------------------------------------------------------------------------------- 11
Installing Memory Modules --------------------------------------------------------------------------11

Installing the Motherboard --------------------------------------------------------------------------------12

Installing the I/O Shield -------------------------------------------------------------------------------12
Securing the Motherboard into the Chassis -----------------------------------------------------12

Connecting Cables and Setting Switches -------------------------------------------------------------13

24-pin ATX Power Connector-PW1 ----------------------------------------------------------------14
4-pin ATX_12V power connector-PW2 -----------------------------------------------------------14
SPDIF-Out Header-CN5------------------------------------------------------------------------------15
COM Header-CN4 (Optional) -----------------------------------------------------------------------15
Front panel header-FP1 ------------------------------------------------------------------------------15
USB Headers-FP_U1/2/FP_USB3_1 -------------------------------------------------------------16
Front Pannel Audio Header-FP_S1 ---------------------------------------------------------------16
Speaker Header-SPK1 -------------------------------------------------------------------------------17
Serial-ATA (SATA) Connectors (SATA1/2/5) -----------------------------------------------------17
Fan Connectors-----------------------------------------------------------------------------------------17
Expansion Slots ----------------------------------------------------------------------------------------18
Jumper Settings ----------------------------------------------------------------------------------------18

Conguring the BIOS ------------------------------------------------------------------------------------------19

Enter BIOS Setup -------------------------------------------------------------------------------------------19
Main Menu ----------------------------------------------------------------------------------------------------19
Advanced Menu----------------------------------------------------------------------------------------------20

X-Setting --------------------------------------------------------------------------------------------------20
H/W Monitor ---------------------------------------------------------------------------------------------20

Storage Conguration --------------------------------------------------------------------------------- 21
CPU Conguration ------------------------------------------------------------------------------------- 21
USB Conguration -------------------------------------------------------------------------------------21
Super IO Conguration -------------------------------------------------------------------------------22

ACPI Settings -------------------------------------------------------------------------------------------22

Chipset Menu ------------------------------------------------------------------------------------------------- 22

Display Conguration ---------------------------------------------------------------------------------22
OnBoard Device Cong ------------------------------------------------------------------------------23

Boot Menu ----------------------------------------------------------------------------------------------------- 23

3

Table of Contents

Boot Settings Conguration -------------------------------------------------------------------------23

Security Menu ------------------------------------------------------------------------------------------------24

Administrator Password ------------------------------------------------------------------------------24
User Password ------------------------------------------------------------------------------------------24

Exit Menu ------------------------------------------------------------------------------------------------------ 25

Save Changes and Exit-------------------------------------------------------------------------------25
Discard Changes and Exit ---------------------------------------------------------------------------25

Save Changes and Reset ---------------------------------------------------------------------------- 25
Discard Changes and Reset ------------------------------------------------------------------------25
Save Changes ------------------------------------------------------------------------------------------25
Discard Changes --------------------------------------------------------------------------------------- 26
Restore Defaults----------------------------------------------------------------------------------------26
Save as User Defaults --------------------------------------------------------------------------------26
Restore User Defaults --------------------------------------------------------------------------------26
Launch EFI Shell from lesystem device --------------------------------------------------------26

Flash Update Procedure ---------------------------------------------------------------------------------- 26

Installing Drivers and Software ----------------------------------------------------------------------------27

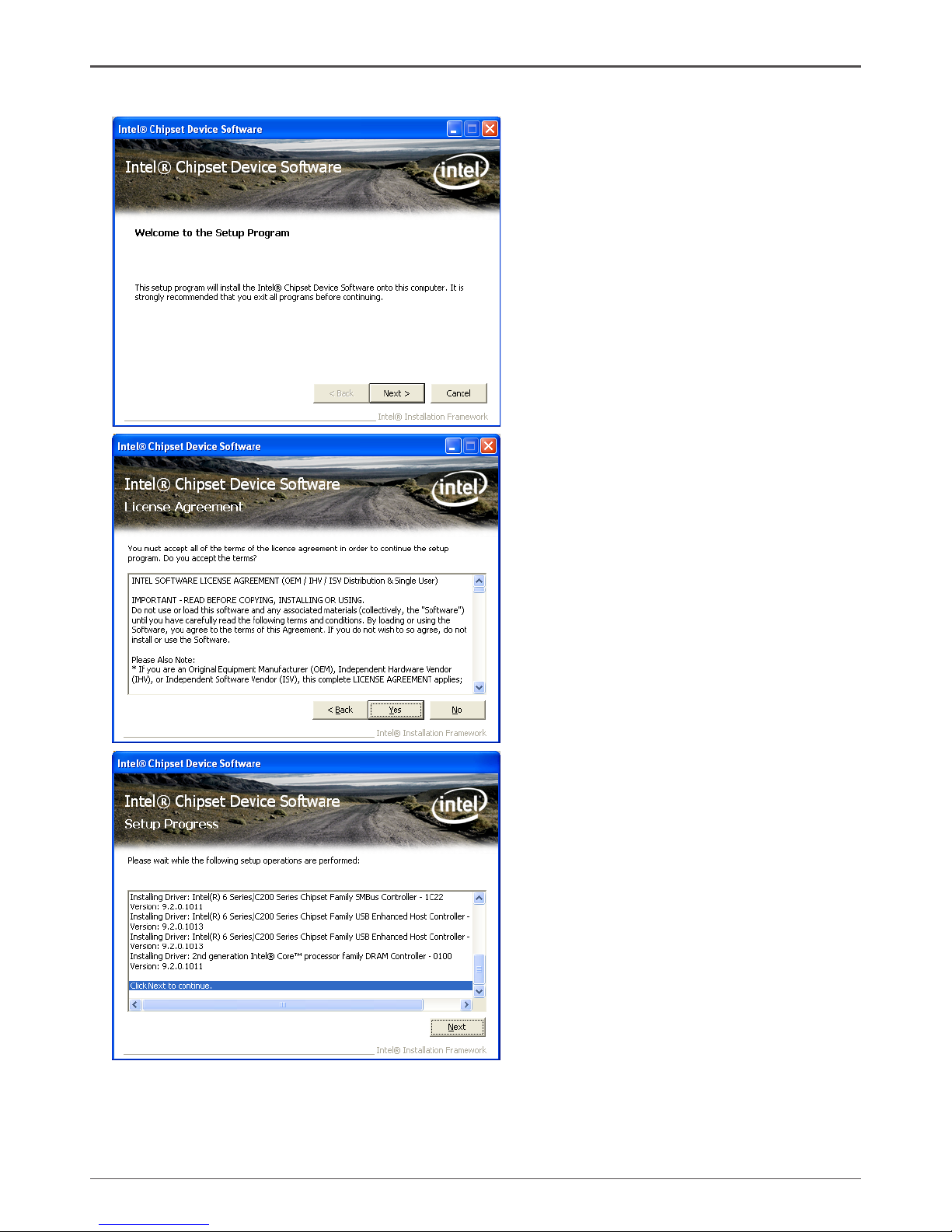

Drivers Installation ------------------------------------------------------------------------------------------27
Realtek HD Audio Driver Setup -------------------------------------------------------------------------37
Getting Started ------------------------------------------------------------------------------------------37
Sound Effect ---------------------------------------------------------------------------------------------37

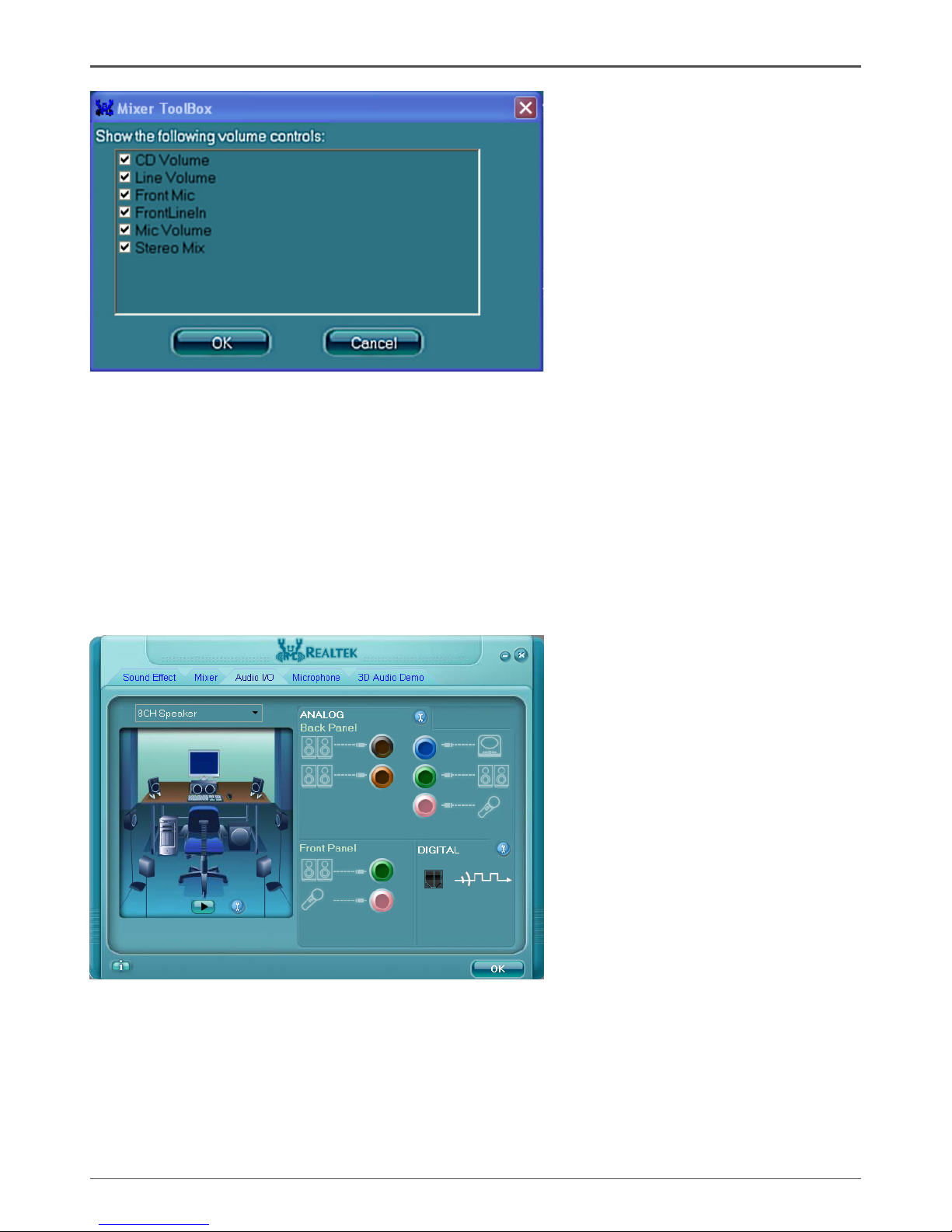

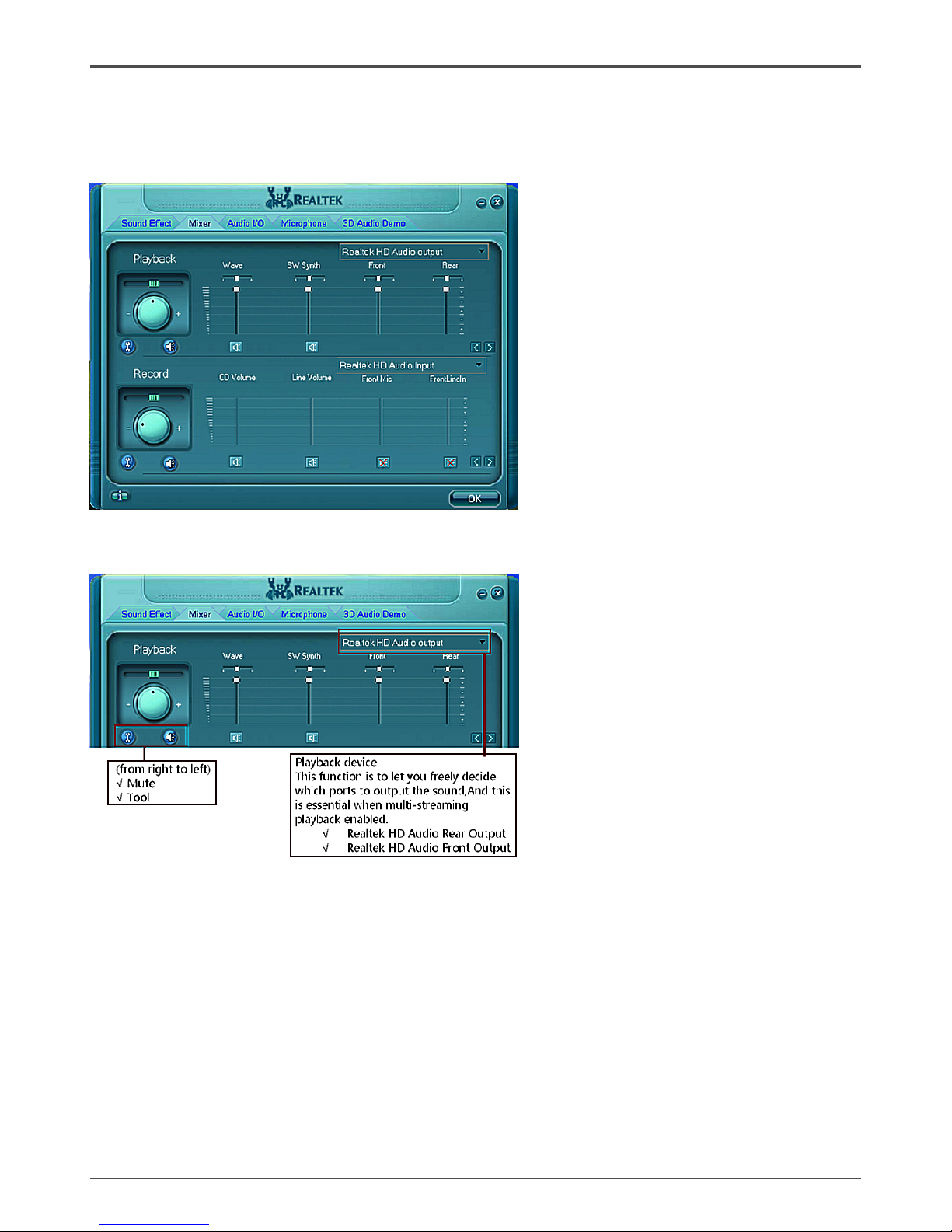

Mixer ------------------------------------------------------------------------------------------------------- 39

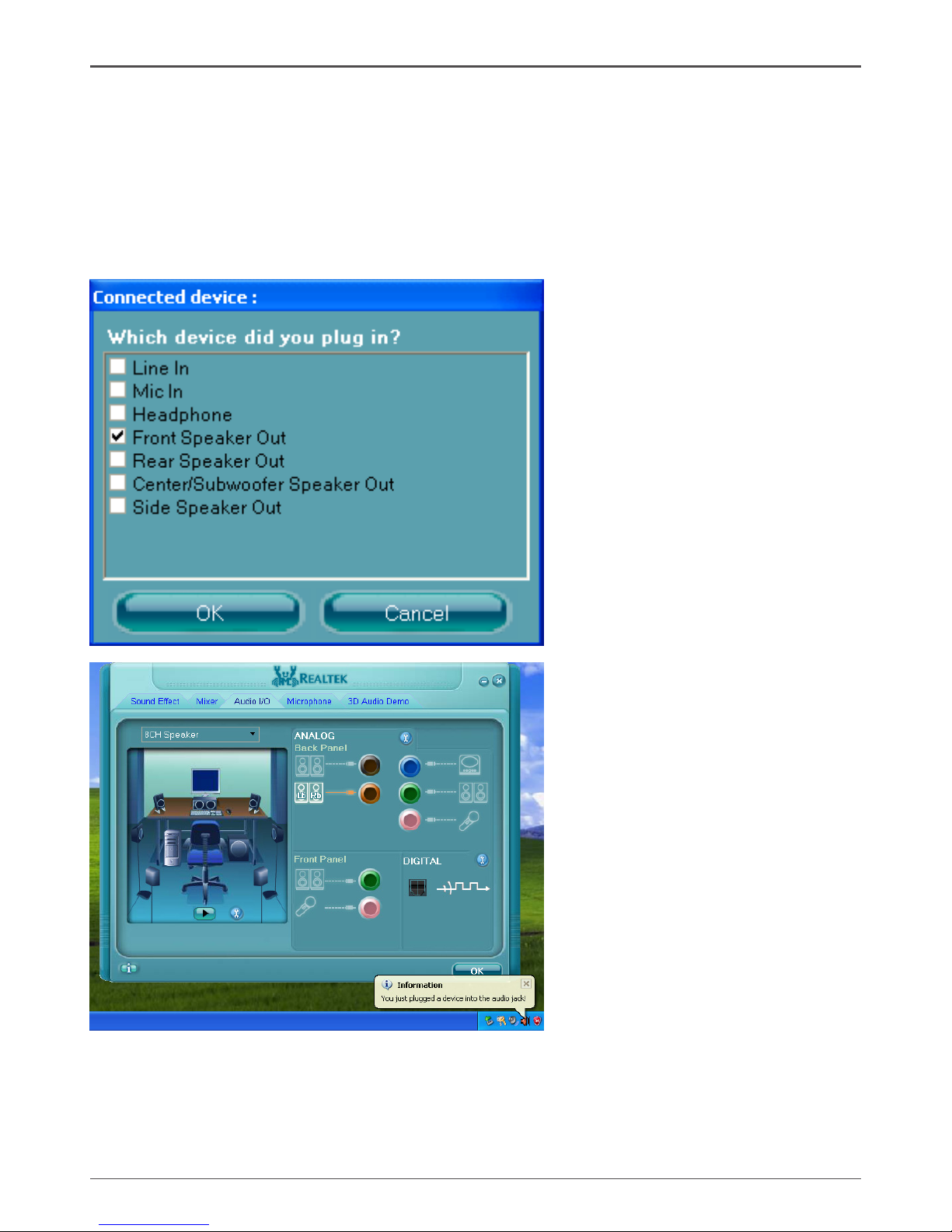

Audio I/O -------------------------------------------------------------------------------------------------- 41
Microphone -----------------------------------------------------------------------------------------------45

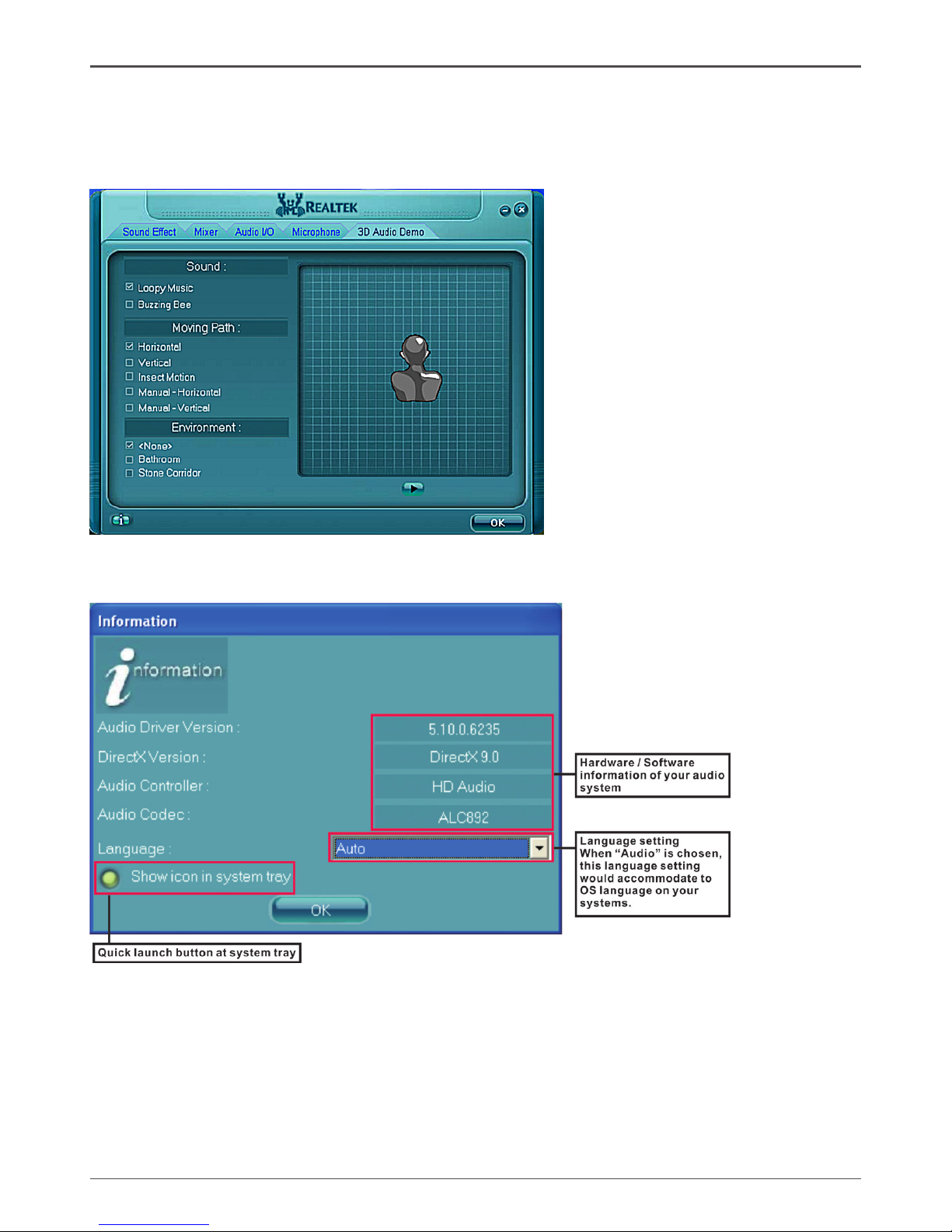

3D Audio Demo -----------------------------------------------------------------------------------------46
Information ----------------------------------------------------------------------------------------------- 46

4

Intel H61-ITX series Motherboard

Motherboard Specications

q Chipset

v Intel® H61 Chipset

q Size

v Mini ITX form factor of 6.7 X 6.7 inch

q Microprocessor support

v Supports LGA 1155 Socket for 2nd Generation Intel® Core i3/i5/i7 and Pentium processors

q Operating systems

v Supports Windows XP 32bit/64bit, Windows Vista 32bit/64bit and Windows 7 32bit/64bit

q System Memory

v Supports 1 GB, 2 GB, 4 GB and 8 GB DDR3 DRAM devices

v Supports Dual Channel DDR3 1066 and 1333 MT/s

v Maximum memory size: 16 GB

q USB 2.0 ports

v Supports hot plug and play

v Eight USB 2.0 ports (four ports on the back panel, four via the USB brackets connected

to the internal USB headers)

v Supports USB 2.0 protocol up to 480 Mbps transmission rate

q USB 3.0 ports

v Supports hot plug and play

v Four USB 3.0 ports (two on the back panel, two via the USB bracket connected to the

internal USB header)

v Fully backward compatible with USB 2.0 and 1.1 specications

q Onboard Serial ATA ports

v Independent DMA operation on three ports

v Three SATAII ports (3.0 Gb/s)

q eSATA Port

v One eSATA port on backpanel

v Supports hot plug and play

v Provide a link for 3.0 Gb/s data speed

q Onboard LAN

v Support Full Duplex ow control (IEEE802.3x)

v 10/100/1000 BASE-T IEEE 802.3 compliant

5

Motherboard Specications

v Wake On LAN (WOL) power management support

q WiFi support

v Compliant with IEEE802.11n Draft 2.0 Standard

v High speed wireless connection and enhanced wireless security

v Max transfer rate up to 150 Mbps

q Audio

v 8 channel High Denition Audio (including one optical SPDIF output port)

v All DACs support 192k/96k/48k/44.1kHz sample rate

v One SPDIF-out header on board

q Green Function

v Support SMM, APM, ACPI

v Suspend to DRAM supported (STR)

v AC power failure recovery

q Onboard Graphics Features

v Integrated GPU contains a refresh of the sixth generation graphics core

v DX10.1 and OpenGL 3.0 are supported

v 3D Graphics Rendering Enhancements

v HDMI/DP/DVI ports output support (DVI-VGA adaptor bundled in some model)

v Support resolution up to 1920x1200 @ 60Hz for HDMI/DVI and 2560x1600 @ 60Hz for DP

q PCI Express Interface

v Supports PCI Express 2.0

v Wake up function is supported

v Clock spread spectrum capability

q Expansion slots

v One PCI Express x16 slot

v One Mini PCI Express slot (full-height)

6

Intel H61-ITX series Motherboard

120

240

121

120

240

121

1.5V

1.5V

115XLM

REMOVE

+

1

5

CPUFAN 3

PCIE1

7

SATA2
SATA1

8

9

10

PW2

11

14

15

Chipset

16

17

19 20

DDRIII1

DDRIII2

MINI_PCIE1

2

51

52

K/B USB3.0

DVI

USB/e_SATA

LAN/USB

SD1

CN4

PW1

FP1

SPK1

CN5

FP_S1

DP/HDMI

SW1

FP_U1

FP_U2

SATA5

2

3

4

13

1

12

FP_USB3_1

18

6

JP1

1

SYSFAN3

Motherboard Layout

Figure 1 shows the motherboard and Figure 2 shows the back panel connectors.

Figure 1. Board Layout

1. COM Header-CN4 (Optional)

2. 24-pin ATX Power Connector-PW1

3. CPU Fan Connector-CPUFAN3

4. Front Panel Header-FP1

5. Speaker Header-SPK1

6. PCI Express x16 Slot-PCIE1

7. CPU Socket

8. 4-pin ATX_12V power connector-PW2

9. SPDIF-Out Header-CN5

10. Front Pannel Audio Header-FP_S1

11. Backpanel Connectors

12. Clear CMOS Button-SW1

13. USB 3.0 Header-FP_USB3_1

14. USB 2.0 Headers (FP_U1~FP_U2)

15. Serial-ATA (SATA) Connectors (SATA1/2/5)

16.

Chipset

17. SYS Fan Connector-SYSFAN3

18. Clear CMOS Jumper-JP1

19. Mini PCI Express Slot-MINI_PCIE1

20. DDRIII DIMM Sockets-DDRIII1~2

Figure 1

7

Rear panel

1. USB 3.0 Ports

3. DVI Port

2. HDMI Port

4. eSATA Port

1

2

3

8

4

6

9

7

5

10

Figure 2. Backpanel connectors

9. DisplayPort

10. PS2 Keyboard/Mouse Port

11

5. USB 2.0 Ports 6. Optical SPDIF Output

Activity LED

Status Descritption

Off No link

Orange Linked

Blinking Data activity

8. LAN port LED indicators
Speed LED

Status Description

Off Speed: 10 Mbps

Green Speed: 100 Mbps

Orange Speed: 1000 Mbps

Speed LED Activity LED

7. Port 2-Channel 4-Channel 6-Channel 8-Channel

Blue Line-In Line-In Line-In Side Speaker Out

Green Line-Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink Mic In Mic In Mic In Mic In

Black -- -- Center/Subwoofer Center/Subwoofer

Orange -- Rear Speaker Out Rear Speaker Out Rear Speaker Out

8

Intel H61-ITX series Motherboard

11. WiFi antenna connectors (Optional)

This motherboard can support two WiFi antenna modules. Refer to the following to install

the WiFi antenna modules.

Step 1. Remove the red caps from the WiFi antenna connectors.

Step 2. Install the WiFi antennas to the WiFi antenna connectors, and make sure the screws

are rotated in clockwise direction.







Note: 1. Users please note that the appearance of your WiFi antenna modules may

not be exactly the same as those shown in this manual.

2. Users can install one or two WiFi antennas to the motherboard.

3. Users can bend or rotate the WiFi antennas to the best receiving direction

according to the picture below.

120

240

121

120

240

121

1.5V

1.5V

115XLM

REMOVE

+







9

Hardware Installation

This section will guide you through the installation of the motherboard. The topics covered in this

section are:

q Preparing the motherboard

v Installing the CPU

v Installing the CPU fan

v Installing Memory DIMMs

q Installing the motherboard

q Connecting cables and setting switches

Safety Instructions

To reduce the risk of re, electric shock, and injury, always follow basic safety precautions.

Remember to remove power from your computer by disconnecting the AC main source before

removing or installing any equipment from/to the computer chassis.

Hardware Installation

10

Intel H61-ITX series Motherboard

Preparing the Motherboard

The motherboard shipped in the box does not contain a CPU or memory DIMM. You need to

purchase them to complete this installation.

Installing the CPU

Be very careful when handling the CPU. Make sure not to bend or break any pins on the back.

Hold the processor only by the edges and do not touch the bottom of the processor.

The following illustration shows CPU installtaion components

1. Unhook the socket lever by pushing down

and away from the socket.

2. Lift the socket lever and the load plate to

fully open position.

3. Use your thumb and forenger to lift the cap

up vertically.

● Be careful not to touch the socket contacts.

4. Hold the processor with your thumb and

forenger. Insert the processor into the socket

vertically.

● Align the CPU pin 1 mark with the pin 1

corner of the CPU socket.

5. Make sure the CPU is fully seated, and then

replace the load plate.

● Be sure that the front end of the load

plate is under the shoulder screw.

6. Secure the load lever to its locked location.

11

Installing the CPU Fan

There are many different fan types that can be used with this motherboard. Follow the instruction

that came with your fan assembly. Be sure that the fan orientation is correct for your chassis type

and your fan assembly.

Installing Memory Modules

Your new motherboard has two 1.5V 240-pin slots for DDR3 memory. These slots support 1

GB/2 GB/4 GB/8 GB DDR3 devices. There must be at least one memory bank populated to

ensure normal operation. Refer to the following recommendations to install memory modules.

Note that a memory module has a notch, so it can only t in one direction. Refer to the following

procedure to install memory modules into the slots on the motherboard.

1. Unlock a DIMM slot by pressing the module clips outward.

2. Align the memory module to the DIMM slot, and insert the module vertically into the DIMM

slot. The plastic clips at both sides of the DIMM slot automatically lock the DIMM into the
connector.

120

240

121

120

240

121

1.5V

1.5V

115XLM

REMOVE

+

DDRIII1

DDRIII2

Hardware Installation

12

Intel H61-ITX series Motherboard

Installing the Motherboard

The sequence of installing the motherboard into the chassis depends on the chassis you are

using and if you are replacing an existing motherboard or working with an empty chassis. Deter-

mine if it would be easier to make all the connections prior to this step or to secure the mother-

board and then make all the connections. It is normally easier to secure the motherboard rst.

Use the following procedure to install the I/O shield and secure the motherboard into the chassis.

Note: Be sure that the CPU fan assembly has enough clearance for the chassis covers

to lock into place and for the expansion cards. Also make sure the CPU Fan assem

-bly is aligned with the vents on the covers.

Installing the I/O Shield

The motherboard kit comes with an I/O shield that is used to block radio frequency transmis-

sions, protects internal components from dust and foreign objects, and promotes correct airow

within the chassis.

Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the

I/O shield into place and make sure it ts securely. If the I/O shield does not t into the chassis,

you would need to obtain the proper size from the chassis supplier.

Securing the Motherboard into the Chassis

Most computer chassis have a base with mounting studs or spacers to allow the motherboard

to be secured to the chassis and help to prevent short circuits. If there are studs that do not

align with a mounting hole on the motherboard, it is recommended that you remove that stud

to prevent the possibility of a short circuit. In most cases, it is recommended to secure the

motherboard with spacers.

1. Carefully place the motherboard onto the studs/spacers located inside the chassis.

2. Align the mounting holes with the studs/spacers.

3. Align the connectors to the I/O shield.

4. Ensure that the fan assembly is aligned with the chassis vents according to the fan assembly

instruction.

5. Secure the motherboard with screws.

13

Hardware Installation

Connecting Cables and Setting Switches

This section takes you through all the connectors and switch settings necessary on the mother-

board. This will include:
q Power Connectors
v 24-pin ATX Power Connector-PW1

v 4-pin ATX_12V Power Connector-PW2
q Internal Headers/Connectors
v SPDIF-Out Header-CN5
v COM Header-CN4 (Optional)
v Front Panel Header-FP1
v USB Headers (FP_U1/2/FP_USB3-1)
v Front Pannel Audio Header-FP_S1
v Speaker Header-SPK1
q Serial-ATA (SATA) Connectors (SATA1/2/5)
q Fan Connectors
q Expansion Slots
q CMOS Jumper Settings

See Figure 1 to locate the connectors and jumpers referenced in the following procedure.

14

Intel H61-ITX series Motherboard

24-pin ATX Power Connector-PW1

PW1 is the main power supply connector. Make sure that the power supply cable and pins are

properly aligned with the connector on the motherboard. Firmly plug the power supply cable into

the connector and make sure it is secure.

PW1-Pin Denition

Pin Signal Pin Signal

1 +3.3V 13 +3.3V

2 +3.3V 14 -12V

3 GND 15 GND

4 +5V 16 PS_ON

5 GND 17 GND

6 +5V 18 GND

7 GND 19 GND

8 PWROK 20 -5V

9 +5V_AUX 21 +5V

10 +12V 22 +5V

11 +12V 23 +5V

12 +3.3V 24 GND

4-pin ATX_12V power connector-PW2

PW2, the 4-pin ATX 12V power connector, is used to provide power to the CPU. Align the pins to

the connector and press rmly until seated.

PW2-Pin Denition

Pin Signal

1 GND

2 GND

3 +12V

4 +12V

120

240

121

120

240

121

1.5V

1.5V

115XLM

REMOVE

+

1

PW2

PW1

1

12

13

24

15

Hardware Installation

SPDIF-Out Header-CN5

This header provides a SPDIF (Sony/Philips Digital Interface) output to digital multimedia

device through coaxial connector.

CN5 - Pin Denition

Pin Signal

1 GND

2 SPDIF-out

3 VCC

q PWRLED

Attach the front panel power LED cable to these two pins of the connector. The Power LED

indicates the system’s status.

q PWR SW

Attach the power button cable from the case to these two pins. Pressing the power button

on the front panel turns the system on and off rather than using the power supply button.

q HDD LED

Attach the hard disk drive indicator LED cable to these two pins. The HDD indicator LED

indicates the activity status of the hard disks.

q RST SW

Attach the Reset switch cable from the front panel of the case to these two pins. The system

restarts when the RESET switch is pressed.

Note: Some chassis do not have all four cables. Be sure to match the name on the

connectors to the corresponding pins.

Front panel header-FP1

The front panel header on this motherboard is

one connector used to connect the following four

cables :

CN5

1

120

240

121

120

240

121

1.5V

1.5V

115XLM

REMOVE

+

FP1

CN4

1

COM Header-CN4 (Optional)

CN4 - Pin Denition

Pin Signal Pin Signal

1 DCD 2 RXD

3 TXD 4 DTR

5 GND 6 DSR

7 RTS 8 CTS

9 RI 10 NC

FP1-Pin Denition

Pin Signal Pin Signal

1 HDD_LED+ 2 PW_LED+

3 HDD_LED- 4 PW_LED-

5 GND 6 PWR_SW

7 RESET 8 GND

9 NC 10 KEY

16

Intel H61-ITX series Motherboard

USB Headers-FP_U1/2/FP_USB3_1

This motherboard contains four USB 2.0 and two USB 3.0 ports that are exposed on the rear

panel of the chassis. The motherboard also contains two 10-pin internal USB 2.0 headers and

one 20-pin USB 3.0 connector onboard.

Front Panel Audio Header-FP_S1

The audio connector supports HD audio standard

and provides two kinds of audio output choices: the

Front Audio, the Rear Audio. The front Audio supports

retasking function.

Note:

In order to utilize the front audio

header, your chassis must have front

audio connector. Also please make

sure the pin assignment on the cable

is the same as the pin assignment

on the mainboard header. To nd

out if the chassis you are buying

supports a front audio connector,

please contact your dealer.

FP_U1~FP_U2-Pin Denition

PIN Assignment PIN Assignment

1 VCC 2 VCC

3 USBP0- 4 USBP1-

5 USBP0+ 6 USBP1+

7 GND 8 GND

9 KEY 10 NC

FP_S1-Pin Denition

PIN Assignment PIN Assignment

1 MIC2(L) 2 GND

3 MIC(R) 4 -ACZ-DET

5 Front Audio(R) 6 Reserved

7 FAVDIO-JD 8 Key(No pin)

9 Front Audio(L) 10 Reserved

120

240

121

120

240

121

1.5V

1.5V

115XLM

REMOVE

+

1

FP_S1

1

FP_U1

1

FP_U2

FP_USB3_1

1

FP_USB3_1-Pin Denition

Pin Signal Pin Signal

1 NC 2 BD+

3 AD+ 4 BD-

5 AD- 6 GND2

7 GND1 8 BSSTX+

9 ASSTX+ 10 BSSTX-

11 ASSTX- 12 GND3

13 GND 14 BSSRX+

15 ASSRX+ 16 BSSRX-

17 ASSRX- 18 BVBUS

19 AVBUS 20 KEY

Note: Secure the bracket to

either the front or rear panel

of your chassis (not all chas-

sis are equipped with the front

panel option).

17

Hardware Installation

Speaker Header-SPK1

Serial-ATA (SATA) Connectors (SATA1/2/5)

The Serial ATA connector is used to connect the Serial ATA

device to the motherboard. These connectors support the thin

Serial ATA cables for primary storage devices. The motherboard

incorporates three SATA II ports with maximum transfer rate up

to 3.0 Gb/s each.

SPK1-Pin Denition

PIN Assignment

1 VCC

2 NC

3 NC

4 SPK-

SATA-Pin Denition

Pin Signal

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

Fan Connectors

There are two fan connectors on the motherboard,

including system fan connector-SYSFAN3 and CPU fan

connector-CPUFAN3.

SPK1

1

120

240

121

120

240

121

1.5V

1.5V

115XLM

REMOVE

+

CPUFAN3

GND

+12V

Sense

Control

SATA1

SATA2

SATA5

GND

+12V

Sense

Control

SYSFAN3

18

Intel H61-ITX series Motherboard

Mini PCI Express Slot-MINI_PCIE1

There is one Mini PCIe slot, reserved for the WiFi Module.

PCI Express x16 Slot-PCIE1

There is one PCIe x16 slot reserved for graphics card. It is fully compliant with PCIE 2.0

specication.

Jumper Settings

This section explains how to congure the motherboard’s hardware. Before using your
computer, make sure all jumpers and DRAM modules are set correctly. Refer to this section

whenever in doubt.

CMOS Clear Jumper-JP1

Close Open * = Default setting.

If you want to clear the system conguration, use the JP1 (Clear CMOS Jumper) or SW1 (Clear CMOS Button) to

clear data.

Notice:

1. Be sure to save the CMOS setting when exit the CMOS.

2. If the CPU is frequency multiplier locked, no CPU speed change will be seen even if the
frequency multiplier setting in CMOS setup is changed.

JP1 Selection

1-2* Normal*

2-3 CMOS Clear

1

1

120

240

121

120

240

121

1.5V

1.5V

115XLM

REMOVE

+

151

252

MINI_PCIE1

PCIE_X16

Expansion Slots

The motherboard contains two expansion slots, one Mini PCIe slot and one PCIe x16 slot.

19

Conguring the BIOS

Conguring the BIOS

This section discusses how to change the system settings through the BIOS Setup
menus. Detailed descriptions of the BIOS parameters are also provided.

Enter BIOS Setup

The BIOS is the communication bridge between hardware and software. Correctly
setting the BIOS parameters is critical to maintain optimal system performance.

Refer to the following procedure to verify/change BIOS settings.

1. Power on the computer.

2. Press the Del key when the following message briey displays at the bottom of

the screen during the Power On Self Test (POST).

Pressing Del takes you to the BIOS Setup Utility.

Note: 1. We reserve the right to update the BIOS version presented in the manual. The
BIOS pictures shown in this section are for reference only.

2. It is strongly recommended that you do not change the default BIOS settings.

Changing some settings could damage your system.

Main Menu

Note: Users please note that the data in gray is non-changeable, and the others are for selection.

This menu gives you an overview of the general system specications. The BIOS

automatically detects the items in this menu.

q BIOS Information

Displays the auto-detected BIOS information.

q Memory Information

Displays the auto-detected memory information.

q System Language

Choose the system default language.

q System Date/Time

Allows you to set the system date/time.

20

Intel H61-ITX series Motherboard

Advanced Menu

The Advanced menu items allow you to change the setting for the CPU and other

system devices. Press <enter> to display the conguration options:

X-Setting

The X-Setting menu items show the settings of CPU, memory and so on.

q CPU Performance

Use this item to adjust CPU performance.

q GPU Boost

Use this item to adjust graphics conguration.

q Memory Timing Conguration

Use this item to adjust memory timing conguration.

q Adjust Memory Voltage

Use this item to adjust memory voltage.

q Adjust PCH Voltage

Use this item to adjust PCH voltage.

H/W Monitor

The items in this menu allow you to monitor the hardware status. Press <enter>to

display the conguration options:

q CPU FAN Control Mode

Use this item to select CPU FAN Control mode.

q Start Temperature

Use this item to select the start temperature.

q Start Fan Duty

Use this item to select the start fan duty.

q Highest Fan Duty

Use this item to select the highest fan duty.

21

Conguring the BIOS

Storage Conguration

The items in this menu allow you to set or change the storage congurations. Press
<enter>to display the conguration options:

q SATA Mode

Allows you to choose SATA mode, including [Disabled], [IDE Mode], and [AHCI
Mode].

q Serial-ATA Controller 0/1

Allows you to congure SATA controller.

CPU Conguration

The items in this menu show the CPU-related information that the BIOS automatically

detects. Press <enter>to display the conguration options:

q Hyper-threading

This item allows you to enable or disable Intel® Hyper-Threading technology
support.

q Active Processor Cores

This item allows you to choose the number of the active processor cores. The
default value is [All].

q Limit CPUID Maximum

Allows you to determine whether to limit CPUID maximum value. Set this item

to [Disable] Windows XP operating system; set this item to [Enable] for legacy
operating system such as Windows NT4.0..

q Execute Disable Bit

When disabled forces the XD feature ag to always return 0, defaults choose

[Enable].

q Hardware Prefetcher

Use this item to enable or disable hardware prefetcher (hardware prefetch
mechanism).

q Adjacent Cache Line Prefetch

Use this item to enable or disable the adjacent cache line prefetch mode. If you

disable this item, only one 64-bit line will be prefetched from the 128-bit section
(including the required data). If you enable this item, two lines will be prefetched
whether there is required data or not.

q Intel Virtualization Technology

Hardware Virtualization Technology enables processor feature for running multiple
simultaneous virtual machines allowing specialized software applications to run in

full isolation of each other.

q Power Technology

Use this option to set Power Technology.

USB Conguration

The items in this menu allow you to change the USB-related features. Press <enter>

To display the conguration options:

q Legacy USB Support

Allows you to enable or disable support for USB devices on legacy operating
systems.

22

Intel H61-ITX series Motherboard

q EHCI Hand-Off

Allows you to enable support for operating systems without an EHCI hand-off
feature.

q USB transfer time-out

Allows you to set USB transfer time-out.

q Device reset time-out

Allows you to set device reset time-out.

q Device power-up delay

Allows you to set device power-up delay.

Super IO Conguration

The items in this menu allow you to congure NCT5577D Super IO Chipset.

q Serial Port 0 Conguration

Allows you to set parameters of Serial Port 0 (C0MA).

ACPI Settings

The items in this menu allow you to set ACPI Conguration.

q ACPI Sleep State

Select the highest ACPI sleep state, the system will enter when the SUSPEND
button is pressed.

q Restore on AC Power Loss

This item allows you to congure how the system board responds to a power

failure.

q Deep Sleep

When enabled, wake up from S4/S5 can only be done by power button.

Chipset Menu

The chipset menu items allow you to change the advanced chipset settings. Press
<enter> to display the sub-menu:

Display Conguration

The item allows you to congure north bridge features, including Memory, Graphics,

and so on.

23

Conguring the BIOS

Boot Menu

The Boot menu items allow you to change the system boot options. Press <enter> to

display the conguration options:

Boot Settings Conguration

The items allow you to congure Boot settings. Press <enter> To display the
conguration options:

q Setup Prompt Timeout

Use this item to set number of seconds to wait for setup activation key.

q Bootup NumLock State

Use this item to select the keyboard NumLock state: [On] or [Off].

q Quiet Boot

When set to [Disabled], displays normal POST message. When set to [Enabled],

displays OEM Logo instead of POST messages.

q Fast Boot

Enable or disable boot with initialization of a minimal set of devices required to

launch active boot option.

q GateA20 Active

When set to [Upon Request], GA20 can be disabled using BIOS services. When
set to [Always], GA20 can not be disabled; this option is useful when any RT code

is executed above 1MB.

q Option ROM Messages

Use this item to set display mode for Option.

OnBoard Device Cong

The item allows you to congure onboard device features, including HDA, HDMI, and

so on.

24

Intel H61-ITX series Motherboard

Security Menu

The security menu items allow you to change the system security settings. Press

<enter> to display the conguration options:

Administrator Password

Select this item to set Setup Administrator Password.

User Password

Select this item to set the user password.

To set an Administrator/User Password:

1. Select the item [Administrator/User Password] and press <Enter>.

2. From the password box, type a password composed of at least six letters and/or

numbers, then press <Enter>.

3. Conrm the password when prompted:

The message “Password Installed” appears after you successfully set your
password.
To change the administrator/user password, follow the same steps as setting a use
password.
To clear the administrator/user password, select the item [Administrator/User
password], then press <enter>. The message “Password Uninstalled” appears.

q Interrupt 19 Capture

When set to [Enabled], this function allows the option ROMS to trap interrupt 19.

25

Conguring the BIOS

Exit Menu

The exit menu items allow you to load the option or failsafe default values for the BIOS

items, and save or discard your changes to the BIOS items. Press <enter> to display
the sub-menu:

Save Changes and Exit

Select this item and press <Enter> to save the changes that you have made in the

BIOS Setup and exit the BIOS Setup. When the diolog box [Save conguration and
exit?] appears, select [Yes] to save and exit, or select [No] to return to the main menu.

Discard Changes and Exit

Select this option only if you do not want to save the changes that you have made

to the setup program. If you made changes to elds other than system date, system
time, and password, the BIOS asks for a conrmation before exiting.

Save Changes and Reset

Select this item and press <Enter> to reset the system after saving the changes.

When the diolog box [Save conguration and reset?] appears, select [Yes] to save

and reset, or select [No] to return to the main menu.

Discard Changes and Reset

Select this item and press <Enter> to reset system setup without saving any changes.

When the diolog box [Reset without saving?] appears, select [Yes] to discard and

reset, or select [No] to return to the main menu.

Save Changes

Select this item and press <Enter> to save the changes that you have made in the

BIOS Setup and exit the BIOS Setup. When the diolog box [Save conguration?]

appears, select [Yes] to save changes, or select [No] to return to the main menu.

26

Intel H61-ITX series Motherboard

FLASH Update Procedure

The program EFUDOS.exe is included in the driver disk (X:\Utility\EFUDOS.exe). Please follow
the recommended procedure to update the ash BIOS, as listed below.

(X: your driver disk letter).

1. Create a DOS-bootable oppy diskette. Copy the new BIOS le (just obtained or downloaded)

and the utility program EFUDOS.exe to the diskette.

2. Allow the PC system to boot from the DOS diskette.

3. At the DOS prompt, type

EFUDOS XX.ROM /P /B /N <ENTER>

Note: XX (the BIOS le name) can be dened by users.

4. Wait until the ash-update is complete.

5. Restart the PC.

Warning: - Do not turn off or RESET the computer during the ash process.

- If you are not sure how to upgrade the BIOS, please take your computer to an

Authorized Service Center and have a trained technician do the work for you.

Discard Changes

This option allows you to discard the selections you have made and restore the previ-

ously saved values. When the dialog box [Load Previous Values?] appears, select

[Yes] to discard any change and load the previously saved values.

Restore Defaults

Use this item to restore/load default values for all the setup options.

Save as User Defaults

Use this item to save the changes as User Defaults.

Restore User Defaults

Use this item to restore the User Defaults to all the setup options.

Launch EFI Shell from lesystem device

Use this item to launch EFI Shell application (Shellx64.e) from one of the available
lesystem devices.

27

Installing Drivers and Software

Note: It is important to remember that before installing the driver disk that is shipped in
the kit, you need to load your operating system. The motherboard supports
Windows XP 32 bit/64 bit, Windows Vista 32 bit/64 bit and Windows 7 32bit/64bit.

The kit comes with a driver disk that contains utility drivers and additional software.

The driver disk that has been shipped with your motherboard contains the following software
and drivers:

q Intel Chipset Driver

q HDA Sound Driver

q Intel Graphics Driver

q Ethernet PCI-E Driver

q USB 3.0 Controller Driver

q Atheros Wireless Driver

q Intel Management Engine

Note. We reserve the right to update the driver version presented in the manual. The driver
installation pictures shown in this section are for reference only.

Drivers Installation

1. Insert the driver disk into the drive after loading your operating system, and then you can see

the interface below.

Installing Drivers And Software

28

Intel H61-ITX series Motherboard

2. Left-click Intel Chipset Driver, begin loading

29

Installing Drivers And Software

3. Left-click HDA Sound Driver, begin loading

30

Intel H61-ITX series Motherboard

4. Left-click Intel Graphics Driver, begin loading

31

5. Left-click Ethernet PCI-E Driver, begin loading

Installing Drivers And Software

32

Intel H61-ITX series Motherboard

6. Left-click USB 3.0 Controller Driver, begin loading

33

Installing Drivers And Software

Note: USB 3.0 port would not work in POST,
CMOS setup and DOS mode.

34

Intel H61-ITX series Motherboard

8. Left-click Intel Management Engine, begin loading

7. Left-click Atheros Wireless driver, begin loading

35

Installing Drivers And Software

36

Intel H61-ITX series Motherboard

At last, you can enter Computer Management that provides information about the hardware
devices on this motherboard to check if the driver installation is complete.

37

Realtek HD Audio Driver Setup

Getting Started

After Realtek HD Audio Driver being installed (insert the driver disk and follow the on-screen
instructions), “Realtek HD Audio Manager” icon will show in System tray as below. Double click
the icon and the control panel will appear:

Sound Effect

After clicking on the “Sound Effect” tab, 3 sections “Environment”, “Equalizer” and “Karaoke”

are available for selection.

Environment Simulation

You will be able to enjoy different sound experience by pulling down the arrow, totally 23 kinds
of sound effect will be shown for selection. Realtek HD Audio Sound Manager also provides ve

popular settings “Stone Corridor”, “Bathroom”, “Sewer pipe”, “Arena” and “Audio Corridor” for

quick enjoyment.

Installing Drivers And Software

38

Intel H61-ITX series Motherboard

Equalizer Selection

The Equalizer section allows you to create your own preferred settings by utilizing this tool.

In standard 10 bands of equalizer, ranging from 100Hz to 16KHz are available:

Frequently Used Equalizer Setting

Realtek recognizes the needs that you might have. By leveraging our long experience at audio
eld, Realtek HD Audio Sound Manager provides you certain optimized equalizer settings that
are frequently used for your quick enjoyment.

How to Use

Other than the buttons “Pop” “Live” “Club” & “Rock” shown on the page, to pull down the arrow

in “Others” , you will nd more optimized settings available to you.

Karaoke Mode

Karaoke mode brings Karaoke fun back home by simply using the music you usually play, Karaoke

mode can help you eliminate the vocal of the song or adjust the key to accommodate your range.

Vocal Cancellation: Single click on “Voice Cancellation”, the vocals of the songs will be erased,
while the background music is still playing which lets you take over the vocal part.

Key Adjustment: Using “Up/Down Arrow” to nd a key which better ts your vocal range.

39

Installing Drivers And Software

Mixer

Realtek HD Audio Sound Manager integrates Microsoft’s “Volume Control” functions into the Mixer

page. This gives you the advantage to you to create your favorite sound effect in one single tool.

Playback control

Mute

You may choose to mute single or multiple volume controls or to completely mute sound output.

Tool
√ Show the following volume control

This is to let you freely decide which volume control items to be displayed, total 13 items to

be chosen.

√ Advanced controls

√ Enable playback multi-streaming

40

Intel H61-ITX series Motherboard

With this function, you will be able to have an audio chat with your friends via headphone
(stream 1 from front panel) while still have music (stream 2 from back panel) playing.

At any given period, you can have maximum 2 streams operating simultaneously.

Recording control

Mute

You may choose to mute single or multiple volume controls or to completely mute sound input.

Tool
√ Show the following volume controls

This is to let you freely decide which volume control items to be displayed.

√ Advanced controls.

Advanced control is a “Microphone Boost” icon.

Once this item is checked, you will nd “advanced” icon beside “Front Pink In” &

“Mic Volume”. With this, the input signal into “Front Pink In” & “Mic Volume” will be strengthen.

√ Enable recording multi-streaming

At any given period, you can have maximum 2 streams operating simultaneously.

41

Installing Drivers And Software

Audio I/O

Realtek HD Audio Manager frees you from default speaker settings. Different from before, for

each jack, they are not limited to perform certain functions. Instead, now each jack is able to be

chosen to perform either output (i.e. playback) function or input (i.e. Recording) function, we call
this “Retasking”.

Audio I/O aims to help you setting jacks as you wish. Moreover, other than blue to blue, pink to
pink, the way that you used to do, Audio I/O would guide you to other right jacks that can also

serve as microphone / speaker / headphone.

42

Intel H61-ITX series Motherboard

Speaker Conguration

Step 1: Plug in the device in any available jack.
Step 2: Dialogue “Connected device” will pop up for your selection. Please select the device you

are trying to plug in.

* If the device is being plugged into the correct jack, you will be able to nd the icon beside the
jack changed to the one that is same as your device.

43

Installing Drivers And Software

Connector Settings

Click to access connector settings

√ Mute rear panel when front headphone plugged in

Once this option is checked, when front headphone is plugged, the music that is playing from
the back panel, will be stopped.

√ Disable front panel jack detection (option)

Did not nd any function on front panel jacks?
Please check if front jacks on your system are so-called AC’97 jacks. If so, please check this
item to disable front panel jack detection.

√ Enable auto popup dialogue, when device has been plugged in.

Once this item checked, the dialog “Connected device” would automatically pop up when
device plugged in.

S/PDIF

Short for Sony/Philips Digital Interface, a standard audio le transfer format. S/PDIF allows the
transfer of digital audio signals from one device to another without having to be converted rst

to an analog format. Maintaining the viability of a digital signal prevents the quality of the signal
from degrading when it is converted to analog.

44

Intel H61-ITX series Motherboard

√ Output Sampling Rate

- 44.1KHz: This is recommended while playing CD

- 48KHz: This is recommended while playing DVD or Dolby

- 96KHz: This is recommended while playing DVD-Audio

- 192KHz: This is recommended while playing HD Audio

√ Output Source

- Output digital audio source: The digital audio format (such as .wav, .mp3, .midi etc) will

come out through S/PDIF-Out.

Speaker Calibration

After you have successfully plugged in speakers and assigned to the right jacks, you are only
one more step to go to enjoy the intended sound. We provide “Speaker Calibration” to help you

check if the speakers are located in the correct position.

45

Installing Drivers And Software

Microphone

This page is designed to provide you better microphone/recording quality.

Below picture indicates both “Noise Suppression” & “Acoustic Echo Cancellation” are both enabled.

Noise Suppression

If you feel that the background noise, especially the sound generated from the fan inside PC, is

too loud? Try “Noise Suppression”, which allows you to cut off and suppress disturbing noise.

Beam Forming

Also known as “directional recording”, this option lets you do the following: Once beam forming
is enabled; only the sound from certain direction will be recorded. You will get the best quality if
you chose 90° position, which we recommend you to use, this effectively means that you speak
right into the microphone.

Note: A Stereo Microphone is required when using Beam Forming function.

Acoustic Echo Cancellation

This function prevents playback sound from being recorded by microphone together with your

sound. For example, you might have chance to use VOIP function through Internet with your

friends. The voice of your friend will come out from speakers (playback). However, the voice of your
friend might also be recorded into your microphone then go back to your friend through Internet.
In that case, your friend will hear his/her own voice again. With AEC (Acoustic Echo Cancellation)

enabled at your side, your friend can enjoy the benet with less echo.

46

Intel H61-ITX series Motherboard

Audio Demo

The section “3D Audio Demo” grants you another possibility to enjoy your sound. The Audio Demo
allows you to listen to sound in an extraordinary way.

Information

This section provides information about your current system audio device.

47

48

Intel H61-ITX series Motherboard

291-MA171-01
