Intel BX80633I74930K, BX80633I74820K User Manual

Download

Intel® Core™ i7 Processor Family for LGA2011 Socket

Datasheet – Volume 1 of 2

Supporting Desktop Intel® Core™ i7-4960X Extreme Edition Processor Series for the LGA2011 Socket

Supporting Desktop Intel® Core™ i7-49xx and i7-48xx Processor Series for the LGA2011 Socket

September 2013

329366-001

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH Intel® PRODUCTS. NO LICENSE, Express* OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY Express* OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.UNLESS OTHERWISE AGREED IN WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY APPLICATION IN WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR DEATH MAY OCCUR.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

A "Mission Critical Application" is any application in which failure of the Intel Product could result, directly or indirectly, in personal injury or death. SHOULD YOU PURCHASE OR USE INTEL'S PRODUCTS FOR ANY SUCH MISSION CRITICAL APPLICATION, YOU SHALL INDEMNIFY AND HOLD INTEL AND ITS SUBSIDIARIES, SUBCONTRACTORS AND AFFILIATES, AND THE DIRECTORS, OFFICERS, AND EMPLOYEES OF EACH, HARMLESS AGAINST ALL CLAIMS COSTS, DAMAGES, AND EXPENSES AND REASONABLE ATTORNEYS' FEES ARISING OUT OF, DIRECTLY OR INDIRECTLY, ANY CLAIM OF PRODUCT LIABILITY, PERSONAL INJURY, OR DEATH ARISING IN ANY WAY OUT OF SUCH MISSION CRITICAL APPLICATION, WHETHER OR NOT INTEL OR ITS SUBCONTRACTOR WAS NEGLIGENT IN THE DESIGN, MANUFACTURE, OR WARNING OF THE INTEL PRODUCT OR ANY OF ITS PARTS.

Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or "undefined." Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The information here is subject to change without notice. Do not finalize a design with this information.

The products described in this document may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.

Copies of documents which have an order number and are referenced in this document, or other Intel literature, may be obtained by calling 1-800-548-4725, or go to: http://www.intel.com/#/en_US_01

The code names presented in this document are only for use by Intel to identify a product, technology, or service in development, that has not been made commercially available to the public, i.e., announced, launched or shipped. It is not a "commercial" name for products or services and is not intended to function as a trademark.

No computer system can provide absolute security under all conditions. Intel a computer system with Intel

Virtualization Technology, an Intel TXT-enabled processor, chipset, BIOS, Authenticated Code

Trusted Execution Technology (Intel® TXT) requires

Modules and an Intel TXT-compatible measured launched environment (MLE). The MLE could consist of a virtual machine monitor, an OS or an application. In addition, Intel TXT requires the system to contain a TPM v1.2, as defined by the Trusted Computing Group and specific software for some uses. For more information, see http://www.intel.com/technology/security/

Hyper-Threading Technology requires a computer system with a processor supporting HT Technology and an HT Technology enabled chipset, BIOS and operating system. Performance will vary depending on the specific hardware and software you use. For more information including details on which processors support HT Technology, see

http://www.intel.com/products/ht/hyperthreading_more.htm.

Enabling Execute Disable Bit functionality requires a PC with a processor with Execute Disable Bit capability and a supporting operating system. Check with your PC manufacturer on whether your system delivers Execute Disable Bit functionality.

Virtualization Technology requires a computer system with an enabled Intel® processor, BIOS, virtual machine monitor

Intel (VMM) and, for some uses, certain computer system software enabled for it. Functionality, performance or other benefits will vary depending on hardware and software configurations and may require a BIOS update. Software applications may not be compatible with all operating systems. Please check with your application vendor.

Turbo Boost Technology requires a PC with a processor with Intel Turbo Boost Technology capability. Intel Turbo Boost

Intel Technology performance varies depending on hardware, software and overall system configuration. Check with your PC manufacturer on whether your system delivers Intel Turbo Boost Technology. For more information, see

http://www.intel.com/technology/turboboost/.

64-bit computing on Intel architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel configurations. Consult with your system vendor for more information.

64 architecture. Performance will vary depending on your hardware and software

 Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor

family, not across different processor families. See http://www.intel.com/products/processor%5Fnumber/ for details.

C is a two-wire communications bus/protocol developed by Philips. SMBus is a subset of the I2C bus/protocol and was developed

I by Intel. Implementations of the I North American Philips Corporation.

Intel, Intel, Enhanced Intel

VT-d, Intel® Turbo Boost Technology, Intel® Hyper-Threading Technology (Intel® HT Technology), Intel® Streaming SIMD

Intel Extensions (Intel

SSE) Intel Core, and the Intel logo are trademarks of Intel Corporation in the U. S. and/or other countries.

*Other names and brands may be claimed as the property of others.

C bus/protocol may require licenses from various entities, including Philips Electronics N.V. and

SpeedStep® Technology, Intel® 64 Technology, Intel® Virtualization Technology (Intel® VT),

2 Datasheet

Table of Contents

1 Introduction ..............................................................................................................8

1.1 Processor Feature Details .....................................................................................9

1.2 Supported Technologies ..................................................................................... 10

1.3 Interfaces ........................................................................................................ 10

1.3.1 System Memory Support ......................................................................... 10

1.3.2 PCI Express* ......................................................................................... 11

1.3.3 Direct Media Interface Gen 2 (DMI2)......................................................... 12

1.3.4 Platform Environment Control Interface (PECI) ........................................... 13

1.4 Power Management Support ...............................................................................13

1.4.1 Processor Package and Core States........................................................... 13

1.4.2 System States Support ...........................................................................13

1.4.3 Memory Controller.................................................................................. 13

1.4.4 PCI Express* ......................................................................................... 13

1.5 Thermal Management Support ............................................................................13

1.6 Package Summary............................................................................................. 14

1.7 Terminology .....................................................................................................14

1.8 Related Documents............................................................................................ 16

2 Interfaces................................................................................................................ 18

2.1 System Memory Interface................................................................................... 18

2.1.1 System Memory Technology Support ........................................................ 18

2.1.2 System Memory Timing Support............................................................... 18

2.2 PCI Express* Interface....................................................................................... 19

2.2.1 PCI Express* Architecture ....................................................................... 19

2.2.2 PCI Express* Configuration Mechanism .....................................................20

2.3 Direct Media Interface 2 (DMI2) / PCI Express* Interface .......................................21

2.3.1 DMI2 Error Flow .....................................................................................21

2.3.2 Processor / PCH Compatibility Assumptions................................................ 21

2.3.3 DMI2 Link Down..................................................................................... 21

2.4 Platform Environment Control Interface (PECI) ...................................................... 21

3 Technologies ...........................................................................................................22

3.1 Intel

3.2 Security Technologies ........................................................................................ 25

3.3 Intel

3.4 Intel

3.5 Enhanced Intel

3.6 Intel

4 Power Management ................................................................................................. 29

4.1 Advanced Configuration and Power Interface (ACPI) States Supported...................... 29

Virtualization Technology (Intel® VT).......................................................... 22

3.1.1 Intel

3.1.2 Intel

3.1.3 Intel

3.1.4 Intel

3.2.1 Intel

3.2.2 Execute Disable Bit................................................................................. 25

® ®

3.4.1 Intel

VT-x Objectives ............................................................................ 22

VT-x Features............................................................................... 23

VT-d Objectives ............................................................................ 23

Virtualization Technology Processor Extensions ................................. 24

Advanced Encryption Standard New Instructions

(Intel

AES-NI) Instructions .................................................................... 25

Hyper-Threading Technology (Intel® HT Technology).................................... 25

Turbo Boost Technology............................................................................ 26

Turbo Boost Operating Frequency ...................................................26

SpeedStep® Technology............................................................. 26

Advanced Vector Extensions (Intel® AVX) ................................................... 27

4.1.1 System States .......................................................................................29

4.1.2 Processor Package and Core States........................................................... 29

4.1.3 Integrated Memory Controller (IMC) States................................................ 31

4.1.4 Direct Media Interface Gen 2 (DMI2) / PCI Express* Link States ................... 31

4.1.5 G, S, and C State Combinations ...............................................................32

Datasheet 3

4.2 Processor Core / Package Power Management ...................................................... 32

4.2.1 Enhanced Intel

SpeedStep® Technology ................................................. 32

4.2.2 Low-Power Idle States............................................................................ 33

4.2.3 Requesting Low-Power Idle States ........................................................... 34

4.2.4 Core C-states ........................................................................................ 35

4.2.5 Package C-States................................................................................... 36

4.2.6 Package C-State Power Specifications....................................................... 39

4.3 System Memory Power Management ................................................................... 39

4.3.1 CKE Power-Down ................................................................................... 40

4.3.2 Self-Refresh .......................................................................................... 40

4.3.3 DRAM I/O Power Management ................................................................. 41

4.4 Direct Media Interface 2 (DMI2) / PCI Express* Power Management ........................ 41

5 Thermal Management Specifications ....................................................................... 42

6 Signal Descriptions ................................................................................................. 43

6.1 System Memory Interface Signals ....................................................................... 43

6.2 PCI Express* Based Interface Signals .................................................................. 44

6.3 Direct Media Interface Gen 2 (DMI2) / PCI Express* Port 0 Signals.......................... 46

6.4 Platform Environment Control Interface (PECI) Signal ............................................ 46

6.5 System Reference Clock Signals.......................................................................... 46

6.6 Joint Test Action Group (JTAG) and Test Access Point (TAP) Signals......................... 46

6.7 Serial Voltage Identification (SVID) Signals .......................................................... 47

6.8 Processor Asynchronous Sideband and Miscellaneous Signals.................................. 47

6.9 Processor Power and Ground Supplies ................................................................. 50

7 Electrical Specifications .......................................................................................... 51

7.1 Processor Signaling ........................................................................................... 51

7.1.1 System Memory Interface Signal Groups................................................... 51

7.1.2 PCI Express* Signals.............................................................................. 51

7.1.3 Direct Media Interface Gen 2 (DMI2) / PCI Express* Signals ........................ 51

7.1.4 Platform Environmental Control Interface (PECI) ........................................ 52

7.1.5 System Reference Clocks (BCLK{0/1}_DP, BCLK{0/1}_DN) ........................ 52

7.1.6 Joint Test Action Group (JTAG) and Test Access

Port (TAP) Signals.................................................................................. 53

7.1.7 Processor Sideband Signals ..................................................................... 53

7.1.8 Power, Ground and Sense Signals ............................................................ 53

7.1.9 Reserved or Unused Signals .................................................................... 58

7.2 Signal Group Summary...................................................................................... 58

7.3 Power-On Configuration (POC) Options ................................................................ 61

7.4 Absolute Maximum and Minimum Ratings............................................................. 62

7.4.1 Storage Conditions Specifications............................................................. 62

7.5 DC Specifications .............................................................................................. 63

7.5.1 Voltage and Current Specifications ........................................................... 63

7.5.2 Die Voltage Validation ............................................................................ 66

7.5.3 Signal DC Specifications ......................................................................... 67

8 Processor Land Listing ............................................................................................ 73

9 Package Mechanical Specifications.........................................................................116

10 Boxed Processor Specifications..............................................................................117

10.1 Introduction .................................................................................................... 117

10.2 Boxed Processor Contents.................................................................................117

4 Datasheet

Figures

1-1 Processor Platform Block Diagram Example.............................................................9

1-2 PCI Express* Lane Partitioning and Direct Media Interface Gen 2 (DMI2) ..................12

2-1 PCI Express* Layering Diagram........................................................................... 19

2-2 Packet Flow through the Layers........................................................................... 19

4-1 Idle Power Management Breakdown of the Processor Cores..................................... 33

4-2 Thread and Core C-State Entry and Exit ...............................................................33

4-3 Package C-State Entry and Exit ........................................................................... 37

7-1 Input Device Hysteresis...................................................................................... 52

7-2 Voltage Regulator (VR) Power-State Transitions .................................................... 56

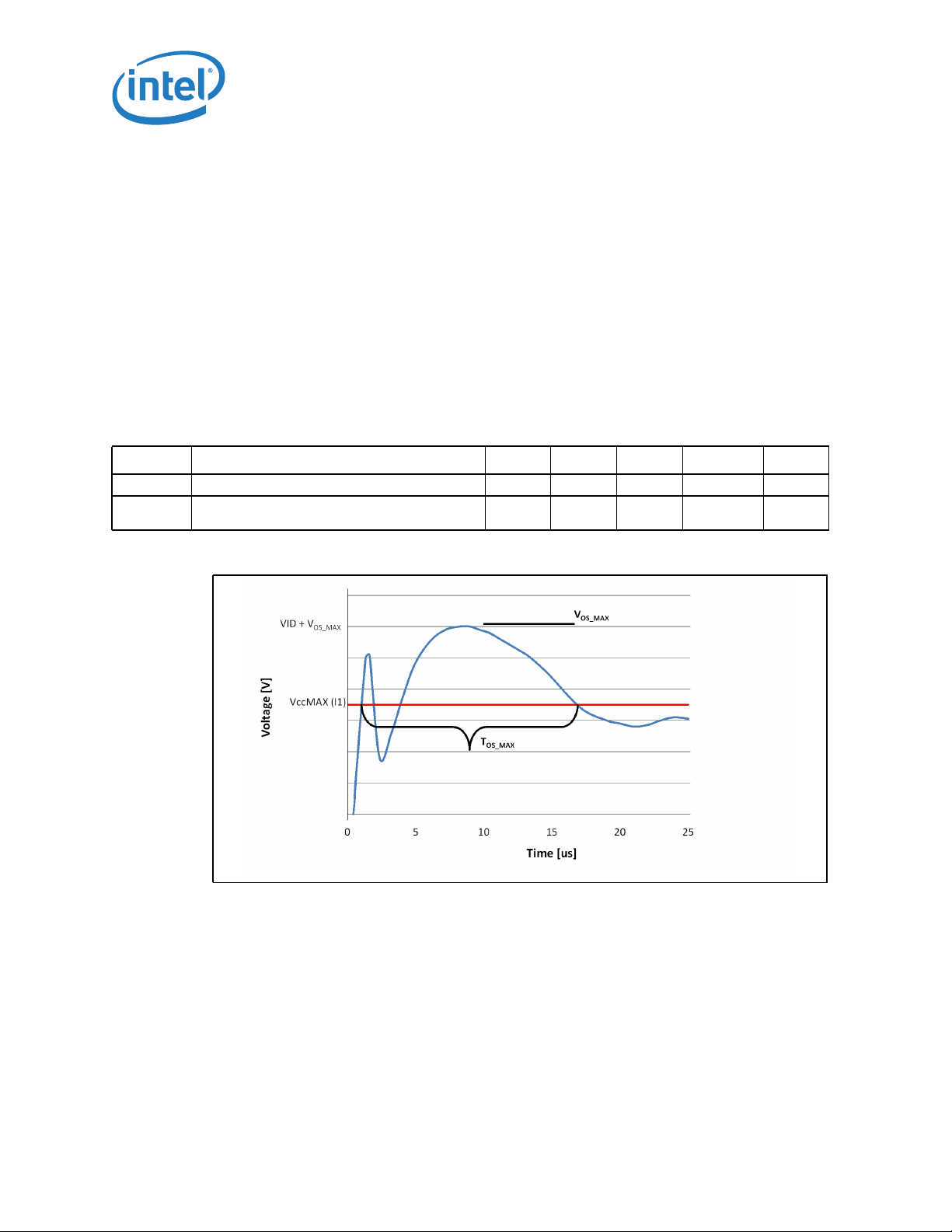

7-3 V

Overshoot Example Waveform ...................................................................... 66

Tables

1-1 Terminology .....................................................................................................14

1-2 Processor Documents......................................................................................... 16

1-3 Public Specifications .......................................................................................... 17

4-1 System States ..................................................................................................29

4-2 Package C-State Support.................................................................................... 30

4-3 Core C-State Support......................................................................................... 30

4-4 System Memory Power States ............................................................................. 31

4-5 DMI2 / PCI Express* Link States .........................................................................31

4-6 G, S and C State Combinations ...........................................................................32

4-7 Coordination of Thread Power States at the Core Level ...........................................34

4-8 P_LVLx to MWAIT Conversion.............................................................................. 34

4-9 Coordination of Core Power States at the Package Level ......................................... 37

4-10 Package C-State Power Specifications ..................................................................39

6-1 Memory Channel DDR0, DDR1, DDR2, DDR3......................................................... 43

6-2 Memory Channel Miscellaneous ........................................................................... 44

6-3 PCI Express* Port 1 Signals ................................................................................ 44

6-4 PCI Express* Port 2 Signals ................................................................................ 44

6-5 PCI Express* Port 3 Signals ................................................................................ 45

6-6 PCI Express* Miscellaneous Signals .....................................................................45

6-7 DMI2 and PCI Express Port 0 Signals ................................................................... 46

6-8 Platform Environment Control Interface (PECI) Signals ........................................... 46

6-9 System Reference Clock (BCLK{0/1}) Signals ....................................................... 46

6-10 Joint Test Action Group (JTAG) and Test Access Port (TAP) Signals........................... 46

6-11 Serial Voltage Identification (SVID) Signals........................................................... 47

6-12 Processor Asynchronous Sideband Signals ............................................................ 47

6-13 Miscellaneous Signals......................................................................................... 49

6-14 Power and Ground Signals .................................................................................. 50

7-1 Power and Ground Lands.................................................................................... 54

7-2 Serial Voltage Identification (SVID) Address Usage ................................................ 57

7-3 VR12.0 Reference Code Voltage Identification (VID) Table ...................................... 57

7-4 Signal Description Buffer Types ........................................................................... 58

7-5 Signal Groups ................................................................................................... 59

7-6 Signals with On-Die Termination.......................................................................... 61

7-7 Power-On Configuration Option Lands .................................................................. 61

7-8 Processor Absolute Minimum and Maximum Ratings ............................................... 62

7-9 Storage Condition Ratings ..................................................................................62

Datasheet 5

7-10 Voltage Specifications........................................................................................ 63

7-11 Current Specifications........................................................................................ 65

7-12 V

Overshoot Specifications .............................................................................. 66

7-13 DDR3 and DDR3L Signal DC Specifications ........................................................... 67

7-14 PECI DC Specifications ...................................................................................... 68

7-15 System Reference Clock (BCLK{0/1}) DC Specifications......................................... 69

7-16 SMBus DC Specifications.................................................................................... 69

7-17 Joint Test Action Group (JTAG) and Test Access Point (TAP) Signals DC Specifications 70

7-18 Serial VID Interface (SVID) DC Specifications ....................................................... 70

7-19 Processor Asynchronous Sideband DC Specifications.............................................. 71

7-20 Miscellaneous Signals DC Specifications ............................................................... 71

8-1 Land List by Land Name..................................................................................... 74

8-2 Land List by Land Number.................................................................................. 95

6 Datasheet

Revision History

Revision

Number

001 • Initial release September 2013

Description Date

Datasheet 7

1 Introduction

The Intel® Core™ i7 processor family for LGA2011 socket are the next generation of 64-bit, multi-core desktop processors built on 22-nanometer process technology. Based on the low-power/high-performance Intel processor is designed for a two-chip platform instead of to the traditional three-chip platforms (processor, Memory Controller Hub, and Platform Controller Hub). The twochip platform consists of a processor and the Platform Controller Hub (PCH) enabling higher performance, easier validation, and improved x-y footprint. Refer to Figure 1-1 for a platform block diagram.

The processor features per socket, up to 40 lanes of PCI Express* 3.0 links capable of

8.0 GT/s, and 4 lanes of DMI2/PCI Express* 2.0 interface with a peak transfer rate of

5.0 GT/s. The processor supports up to 46 bits of physical address space and a 48-bit virtual address space.

Included in this family of processors is an integrated memory controller (IMC) and integrated I/O (IIO) (such as PCI Express* and DMI2) on a single silicon die. This single die solution is known as a monolithic processor.

Introduction

Core™ i7 processor micro-architecture, the

The Datasheet - Volume 1 covers DC electrical specifications, land and signal definitions, differential signaling specifications, interface functional descriptions, power management descriptions, and additional feature information pertinent to the implementation and operation of the processor on its platform. Volume 2 provides register information. Refer to the Related Documents section for access to Volume 2.

Note: Throughout this document, the Intel® Core™ i7 processor family for LGA2011 socket

Note: Throughout this document, the Intel® Core™ i7-49xx processor series for the LGA2011

Note: Throughout this document, the Intel® Core™ i7-48xx processor series for the LGA2011

Note: Throughout this document, the Intel® X79 Chipset Platform Controller Hub may be

Note: Some processor features are not available on all platforms. Refer to the processor

may be referred to as “processor”.

socket refers t the Intel

socket refers to the Intel

referred to as “PCH”.

specification update for details.

Core™ i7-4930K processor.

Core™ i7-4820K processor.

8 Datasheet

Introduction

Figure 1-1. Processor Platform Block Diagram Example

1.1 Processor Feature Details

• Up to 6 execution cores

• Each core supports two threads (Intel® Hyper-Threading Technology), up to 12

threads per socket

• 32KB instruction and 32-KB data first-level cache (L1) for each core

• 256KB shared instruction/data mid-level (L2) cache for each core

• Up to 15MB last level cache (LLC): up to 2.5MB per core instruction/data last level cache (LLC), shared among all cores

Datasheet 9

1.2 Supported Technologies

• Intel® Virtualization Technology (Intel® VT)

• Intel® Virtualization Technology (Intel® VT) for Directed I/O (Intel® VT-d)

• Intel® Virtualization Technology (Intel® VT) Processor Extensions

• Intel® 64 Architecture

• Intel® Streaming SIMD Extensions 4.1 (Intel® SSE4.1)

• Intel® Streaming SIMD Extensions 4.2 (Intel® SSE4.2)

• Intel® Advanced Vector Extensions (Intel® AVX)

• Intel® AVX Floating Point Bit Depth Conversion (Float 16)

• Intel® Hyper-Threading Technology

• Execute Disable Bit

• Intel® Turbo Boost Technology

• Enhanced Intel® SpeedStep® Technology

1.3 Interfaces

Introduction

1.3.1 System Memory Support

• Supports four DDR3 channels

• Unbuffered DDR3 DIMMs supported

• Independent channel mode or lockstep mode

• Data burst length of eight cycles for all memory organization modes

• Memory DDR3 data transfer rates of 1066 MT/s, 1333 MT/s, 1600 MT/s, and 1866

MT/s

• 64-bit wide channels

• DDR3 standard I/O Voltage of 1.5 V

• 1-Gb, 2-Gb, 4-Gb, and 8-Gb DDR3 DRAM technologies supported for these devices:

— UDIMMs x8, x16

• Up to 4 ranks supported per memory channel, 1, 2, or 4 ranks per DIMM

• Open with adaptive idle page close timer or closed page policy

• Per channel memory test and initialization engine can initialize DRAM to all logical zeros or a predefined test pattern

• Minimum memory configuration: independent channel support with 1 DIMM populated

• Command launch modes of 1n/2n

• Improved Thermal Throttling

• Memory thermal monitoring support for DIMM temperature using two memory signals, MEM_HOT_C{01/23}_N

10 Datasheet

Introduction

1.3.2 PCI Express*

• The PCI Express* port(s) are fully-compliant with the PCI Express* Base Specification, Revision 3.0 (PCIe 3.0)

• Support for PCI Express* 3.0 (8.0 GT/s), 2.0 (5.0 GT/s), and 1.0 (2.5 GT/s)

• Up to 40 lanes of PCI Express* interconnect for general purpose PCI Express* devices at PCIe* 3.0 speeds that are configurable for up to 10 independent ports

• 4 lanes of PCI Express* at PCIe* 2.0 speeds when not using DMI2 port (Port 0), also can be downgraded to x2 or x1

• Negotiating down to narrower widths is supported, see Figure 1-2:

— x16 port (Port 2 and Port 3) may negotiate down to x8, x4, x2, or x1

— x8 port (Port 1) may negotiate down to x4, x2, or x1

— x4 port (Port 0) may negotiate down to x2, or x1

— When negotiating down to narrower widths, there are caveats as to how lane

reversal is supported

• Address Translation Services (ATS) 1.0 support

• Hierarchical PCI-compliant configuration mechanism for downstream devices

• Traditional PCI style traffic (asynchronous snooped, PCI ordering)

• PCI Express* extended configuration space. The first 256 bytes of configuration space aliases directly to the PCI compatibility configuration space. The remaining portion of the fixed 4-KB block of memory-mapped space above that (starting at 100h) is known as extended configuration space.

• PCI Express* Enhanced Access Mechanism – accessing the device configuration space in a flat memory mapped fashion

• Automatic discovery, negotiation, and training of link out of reset

• Supports receiving and decoding 64 bits of address from PCI Express*:

— Memory transactions received from PCI Express* that go above the top of

physical address space (when Intel VT-d is enabled, the check would be against the translated Host Physical Address (HPA)) are reported as errors by the processor.

— Outbound access to PCI Express* will always have address bits 63:46 cleared

• Re-issues Configuration cycles that have been previously completed with the Configuration Retry status

• Power Management Event (PME) functions

• Message Signaled Interrupt (MSI and MSI-X) messages

• Degraded Mode support and Lane Reversal support

• Static lane numbering reversal and polarity inversion support

• Support for PCIe* 3.0 atomic operation, PCIe 3.0 optional extension on atomic read-modify-write mechanism

Datasheet 11

Introduction

Figure 1-2. PCI Express* Lane Partitioning and Direct Media Interface Gen 2 (DMI2)

1.3.3 Direct Media Interface Gen 2 (DMI2)

• Serves as the chip-to-chip interface to the PCH

• The DMI2 port supports x4 link width and only operates in a x4 mode when in DMI2

• Operates at PCI Express* 1.0 or 2.0 speeds

• Transparent to software

• Processor and peer-to-peer writes and reads with 64-bit address support

• APIC and Message Signaled Interrupt (MSI) support. Will send Intel-defined “End of Interrupt” broadcast message when initiated by the processor.

• System Management Interrupt (SMI), SCI, and SERR error indication

• Static lane numbering reversal support

• Supports DMI2 virtual channels VC0, VC1, VCm, and VCp

12 Datasheet

Introduction

1.3.4 Platform Environment Control Interface (PECI)

The PECI is a one-wire interface that provides a communication channel between a PECI client (the processor) and a PECI master (the PCH). Refer to the Processor Thermal Mechanical Specifications and Design Guide for additional details on PECI services available in the processor (Refer to the Related Documents section).

• Supports operation at up to 2 Mbps data transfers

• Link layer improvements to support additional services and higher efficiency over PECI 2.0 generation

• Services include processor thermal and estimated power information, control functions for power limiting, P-state and T-state control, and access for Machine Check Architecture registers and PCI configuration space (both within the processor package and downstream devices)

• Single domain (Domain 0) is supported

1.4 Power Management Support

1.4.1 Processor Package and Core States

• Advance Configuration and Power Interface (ACPI) C-states as implemented by the following processor C-states:

— Package: PC0, PC1/PC1E, PC2, PC3, PC6 (Package C7 is not supported)

— Core: CC0, CC1, CC1E, CC3, CC6, CC7

• Enhanced Intel SpeedStep Technology

1.4.2 System States Support

• S0, S1, S3, S4, S5

1.4.3 Memory Controller

• Multiple CKE power-down modes

• Multiple self-refresh modes

• Memory thermal monitoring using MEM_HOT_C01_N and MEM_HOT_C23_N signals

1.4.4 PCI Express*

• L1 ASPM power management capability; L0s is not supported

1.5 Thermal Management Support

• Digital Thermal Sensor with multiple on-die temperature zones

• Adaptive Thermal Monitor

• THERMTRIP_N and PROCHOT_N signal support

• On-Demand mode clock modulation

• Fan speed control with DTS

• Two integrated SMBus masters for accessing thermal data from DIMMs

• New Memory Thermal Throttling features using MEM_HOT_C{01/23}_N signals

Datasheet 13

1.6 Package Summary

The processor socket type is noted as LGA2011. The processor package is a

52.5 x 45 mm FC-LGA package (LGA2011). Refer to the Processor Thermal Mechanical Specification and Design Guide (see Related Documents section) for the package mechanical specifications.

1.7 Terminology

Table 1-1. Terminology (Sheet 1 of 3)

Term Description

ACPI Advanced Configuration and Power Interface

ASPM Active State Power Management

CCM Continuous Conduction Mode

DCM Discontinuous Conduction Mode

DDR3

DMA Direct Memory Access

DMI Direct Media Interface

DMI2 Direct Media Interface Gen 2

DTS Digital Thermal Sensor

Enhanced Intel SpeedStep Technology (EIST)

EPT Extended Page Tables

ESD Electro-Static Discharge

Execute Disable Bit

Functional Operation

IHS

IIO

IMC

Intel

Intel Technology

Intel Technology (Intel

64 Technology

ME Intel® Management Engine (Intel® ME)

Turbo Boost

Virtualization

Third generation Double Data Rate SDRAM memory technology that is the successor to DDR2 SDRAM

Allows the operating system to reduce power consumption when performance is not needed.

The Execute Disable bit allows memory to be marked as executable or nonexecutable when combined with a supporting operating system. If code attempts to run in non-executable memory, the processor raises an error to the operating system. This feature can prevent some classes of viruses or worms that exploit buffer overrun vulnerabilities and can thus help improve the overall security of the system. See the Intel detailed information.

Refers to the normal operating conditions in which all processor specifications, including DC, AC, system bus, signal quality, mechanical, and thermal are satisfied.

Integrated Heat Spreader. A component of the processor package used to enhance the thermal performance of the package. Component thermal solutions interface with the processor at the IHS surface.

The Integrated I/O Controller. An I/O controller that is integrated in the processor die.

The Integrated Memory Controller. A Memory Controller that is integrated in the processor die.

64-bit memory extensions to the IA-32 architecture. Further details on Intel 64 architecture and programming model can be found at

http://developer.intel.com/technology/intel64/.

Turbo Boost Technology is a way to automatically run the processor core faster

Intel than the marked frequency if the part is operating under power, temperature, and current specifications limits of the Thermal Design Power (TDP). This results in increased performance of both single and multi-threaded applications.

Processor virtualization, which when used in conjunction with Virtual Machine Monitor software, enables multiple robust independent software environments inside a single

VT)

platform.

Introduction

64 and IA-32 Architectures Software Developer's Manuals for more

14 Datasheet

Introduction

Table 1-1. Terminology (Sheet 2 of 3)

Term Description

Virtualization Technology (Intel® VT) for Directed I/O. Intel VT-d is a hardware

Intel

VT-d

Intel

IOV I/O Virtualization

Jitter Any timing variation of a transition edge or edges from the defined Unit Interval (UI).

JTAG Joint Test Action Group

LGA2011-0 Socket

LLC Last Level Cache

MCH Memory Controller Hub

NCTF

NEBS

PCH

PCI Express* PCI Express* Generation 2.0/3.0

PCI Express* 2 PCI Express* Generation 2.0

PCI Express* 3 PCI Express* Generation 3.0

PCU Power Control Unit

PECI Platform Environment Control Interface

PLE Pause Loop Exiting

Processor The 64-bit, single-core or multi-core component (package)

Processor Core

QoS Quality of Service

Rank

SCI

SMBus

SSE Intel

STD Suspend-to-Disk

STR Suspend-to-RAM

SVID Serial Voltage Identification

TAC Thermal Averaging Constant

TAP Test Access Port

TCC Thermal Control Circuit

TDP Thermal Design Power

TLP Transaction Layer Packet

assist, under system software (Virtual Machine Manager or operating system) control, for enabling I/O device virtualization. Intel VT-d also brings robust security by providing protection from errant DMAs by using DMA remapping, a key feature of Intel VT-d.

The LGA2011-0 land FCLGA package mates with the system board through this surface mount, LGA2011-0 contact socket.

Non-Critical to Function: NCTF locations are typically redundant ground or noncritical reserved; thus, the loss of the solder joint continuity at end of life conditions will not affect the overall product functionality.

Network Equipment Building System. NEBS is the most common set of environmental design guidelines applied to telecommunications equipment in the United States.

Platform Controller Hub. The next generation chipset with centralized platform capabilities including the main I/O interfaces along with display connectivity, audio features, power management, manageability, security, and storage features.

The term “processor core” refers to silicon die itself that can contain multiple execution cores. Each execution core has an instruction cache, data cache, and 256-KB L2 cache. All execution cores share the L3 cache. All DC and AC timing and signal integrity specifications are measured at the processor die (pads), unless otherwise noted.

A unit of DRAM corresponding four to eight devices in parallel. These devices are usually, but not always, mounted on a single side of a DDR3 DIMM.

System Control Interrupt. Used in Advanced Configuration and Power Interface (ACPI) protocol.

System Management Bus. A two-wire interface through which simple system and power management related devices can communicate with the rest of the system. It is based on the principals of the operation of the I Philips* Semiconductor.

Streaming SIMD Extensions (Intel® SSE)

C* two-wire serial bus from

Datasheet 15

Table 1-1. Terminology (Sheet 3 of 3)

Term Description

TSOD Thermal Sensor on DIMM

UDIMM Unbuffered Dual In-line Module

Uncore The portion of the processor comprising the shared cache, IMC, HA, PCU, and UBox.

Signaling convention that is binary and unidirectional. In this binary signaling, one bit is sent for every edge of the forwarded clock, whether it be a rising edge or a falling

Unit Interval

, V

CCD_01

CCD_23

VID Voltage Identification

VM Virtual Machine

VMM Virtual Machine Monitor

VPID Virtual Processor ID

VR Voltage Regulator

VRD Voltage Regulator Down

VRM Voltage Regulator Module

x1 Refers to a Link or Port with one Physical Lane

x16 Refers to a Link or Port with sixteen Physical Lanes

x4 Refers to a Link or Port with four Physical Lanes

x8 Refers to a Link or Port with eight Physical Lanes

edge. If a number of edges are collected at instances t instance “n” is defined as:

= t n – t n – 1

Processor core power supply

Variable power supply for the processor system memory interface. V generic term for V

Processor ground

CCD_01

, V

CCD_23

Introduction

, t2, tn,...., t

then the UI at

is the

CCD

1.8 Related Documents

Refer to the following documents for additional information.

Table 1-2. Processor Documents

Document

Core™ i7 Processor Family for LGA2011 Socket Datasheet – Volume 2 of

Intel 2

Core™ i7 Processor Families for the LGA2011-0 Socket Thermal

Intel Mechanical Specifications and Design Guide

Core™ i7 Processor Family for LGA2011 Socket Specification Update 326199

Intel

Document Number /

Location

329367

329368

16 Datasheet

Introduction

Table 1-3. Public Specifications

Document Document Number / Location

Advanced Configuration and Power Interface Specification 3.0 http://www.acpi.info

PCI Local Bus Specification 3.0 http://www.pcisig.com/specifications

PCI Express Base Specification - Revision 2.1 and 1.1 PCI Express Base Specification - Revision 3.0

System Management Bus (SMBus) Specification, Revision 2.0 http://smbus.org/

DDR3 SDRAM Specification http://www.jedec.org

Low (JESD22-A119) and High (JESD-A103) Temperature Storage Life Specifications

64 and IA-32 Architectures Software Developer’s Manuals

Intel

• Volume 1: Basic Architecture

• Volume 2A: Instruction Set Reference, A-M

• Volume 2B: Instruction Set Reference, N-Z

• Volume 3A: System Programming Guide

• Volume 3B: System Programming Guide

64 and IA-32 Architectures Optimization Reference Manual

Intel

Virtualization Technology Specification for Directed I/O

Intel Architecture Specification

National Institute of Standards and Technology NIST SP800-90 http://csrc.nist.gov/publications/Pubs

http://www.pcisig.com

http://www.jedec.org

http://www.intel.com/products/proce ssor/manuals/index.htm

http://download.intel.com/technolog y/computing/vptech/Intel(r)_VT_for_ Direct_IO.pdf

SPs.html

Datasheet 17

2 Interfaces

This chapter describes the functional behaviors supported by the processor. Topics covered include:

• System Memory Interface

• PCI Express* Interface

• Direct Media Interface 2 (DMI2) / PCI Express* Interface

• Platform Environment Control Interface (PECI)

2.1 System Memory Interface

2.1.1 System Memory Technology Support

The Integrated Memory Controller (IMC) supports DDR3 protocols with four independent 64-bit memory channels and supports 1 unbuffered DIMM per channel.

Interfaces

2.1.2 System Memory Timing Support

The IMC supports the following DDR3 Speed Bin, CAS Write Latency (CWL), and command signal mode timings on the main memory interface:

• tCL = CAS Latency

• tRCD = Activate Command to READ or WRITE Command delay

• tRP = PRECHARGE Command Period

• CWL = CAS Write Latency

• Command Signal modes = 1n indicates a new command may be issued every clock and 2n indicates a new command may be issued every 2 clocks. Command launch mode programming depends on the transfer rate and memory configuration.

18 Datasheet

Interfaces

2.2 PCI Express* Interface

This section describes the PCI Express* 3.0 interface capabilities of the processor. See the PCI Express* Base Specification for details of PCI Express*

2.2.1 PCI Express* Architecture

Compatibility with the PCI addressing model is maintained to ensure that all existing applications and drivers operate unchanged. The PCI Express* configuration uses standard mechanisms as defined in the PCI Plug-and-Play specification.

The PCI Express* architecture is specified in three layers – Transaction Layer, Data Link Layer, and Physical Layer. The partitioning in the component is not necessarily along these same boundaries. Refer to the following figure for the PCI Express* Layering Diagram.

Figure 2-1. PCI Express* Layering Diagram

3.0.

PCI Express* uses packets to communicate information between components. Packets are formed in the Transaction and Data Link Layers to carry the information from the transmitting component to the receiving component. As the transmitted packets flow through the other layers, the packets are extended with additional information necessary to handle packets at those layers. At the receiving side, the reverse process occurs and packets get transformed from their Physical Layer representation to the Data Link Layer representation and finally (for Transaction Layer Packets) to the form that can be processed by the Transaction Layer of the receiving device.

Figure 2-2. Packet Flow through the Layers

Datasheet 19

2.2.1.1 Transaction Layer

The upper layer of the PCI Express* architecture is the Transaction Layer. The Transaction Layer's primary responsibility is the assembly and disassembly of Transaction Layer Packets (TLPs). TLPs are used to communicate transactions, such as read and write, as well as certain types of events. The Transaction Layer also manages flow control of TLPs.

2.2.1.2 Data Link Layer

The middle layer in the PCI Express* stack, the Data Link Layer, serves as an intermediate stage between the Transaction Layer and the Physical Layer. Responsibilities of Data Link Layer include link management, error detection, and error correction.

The transmission side of the Data Link Layer accepts TLPs assembled by the Transaction Layer, calculates and applies data protection code and TLP sequence number, and submits them to Physical Layer for transmission across the Link. The receiving Data Link Layer is responsible for checking the integrity of received TLPs and for submitting them to the Transaction Layer for further processing. On detection of TLP error(s), this layer is responsible for requesting retransmission of TLPs until information is correctly received, or the Link is determined to have failed. The Data Link Layer also generates and consumes packets that are used for Link management functions.

Interfaces

2.2.1.3 Physical Layer

The Physical Layer includes all circuitry for interface operation, including driver and input buffers, parallel-to-serial and serial-to-parallel conversion, PLL(s), and impedance matching circuitry. It also includes logical functions related to interface initialization and maintenance. The Physical Layer exchanges data with the Data Link Layer in an implementation-specific format, and is responsible for converting this to an appropriate serialized format and transmitting it across the PCI Express* Link at a frequency and width compatible with the remote device.

2.2.2 PCI Express* Configuration Mechanism

The PCI Express* link is mapped through a PCI-to-PCI bridge structure.

PCI Express* extends the configuration space to 4096 bytes per-device/function, as compared to 256 bytes allowed by the Conventional PCI Specification. PCI Express* configuration space is divided into a PCI-compatible region (which consists of the first 256 bytes of a logical device's configuration space) and an extended PCI Express* region (which consists of the remaining configuration space). The PCI-compatible region can be accessed using either the mechanisms defined in the PCI specification or using the enhanced PCI Express* configuration access mechanism described in the PCI Express* Enhanced Configuration Mechanism section.

The PCI Express* Host Bridge is required to translate the memory-mapped PCI Express* configuration space accesses from the host processor to PCI Express* configuration cycles. To maintain compatibility with PCI configuration addressing mechanisms, it is recommended that system software access the enhanced configuration space using 32-bit operations (32-bit aligned) only.

See the PCI Express* Base Specification for details of both the PCI-compatible and PCI Express* Enhanced configuration mechanisms and transaction rules.

20 Datasheet

Interfaces

2.3 Direct Media Interface 2 (DMI2) / PCI Express* Interface

Direct Media Interface 2 (DMI2) connects the processor to the Platform Controller Hub (PCH). DMI2 is similar to a four-lane PCI Express* supporting a speed of 5 GT/s per lane. Refer to Section 6.3 for additional details.

Note: Only DMI2 x4 configuration is supported.

2.3.1 DMI2 Error Flow

DMI2 can only generate SERR in response to errors, never SCI, SMI, MSI, PCI INT, or GPE. Any DMI2 related SERR activity is associated with Device 0.

2.3.2 Processor / PCH Compatibility Assumptions

The processor is compatible with the PCH and is not compatible with any previous Intel Memory Controller Hub (MCH) and Integrated Controller Hub (ICH) products.

2.3.3 DMI2 Link Down

The DMI2 link going down is a fatal, unrecoverable error. If the DMI2 data link goes to data link down, after the link was up, then the DMI2 link hangs the system by not allowing the link to retrain to prevent data corruption. This is controlled by the PCH.

Downstream transactions that had been successfully transmitted across the link prior to the link going down may be processed as normal. No completions from downstream, non-posted transactions are returned upstream over the DMI2 link after a link down event.

2.4 Platform Environment Control Interface (PECI)

The Platform Environment Control Interface (PECI) uses a single wire for self-clocking and data transfer. The bus requires no additional control lines. The physical layer is a self-clocked one-wire bus that begins each bit with a driven, rising edge from an idle level near zero volts. The duration of the signal driven high depends on whether the bit value is a logic ‘0’ or logic ‘1’. PECI also includes variable data transfer rate established with every message. In this way, it is highly flexible even though underlying logic is simple.

The interface design was optimized for interfacing to Intel processor and chipset components in both single processor and multiple processor environments. The single wire interface provides low board routing overhead for the multiple load connections in the congested routing area near the processor and chipset components. Bus speed, error checking, and low protocol overhead provides adequate link bandwidth and reliability to transfer critical device operating conditions and configuration information.

Datasheet 21

3 Technologies

This chapter covers the following technologies:

• Intel® Virtualization Technology (Intel® VT)

• Security Technologies

• Intel® Hyper-Threading Technology (Intel® HT Technology)

• Intel® Turbo Boost Technology

• Enhanced Intel® SpeedStep® Technology

• Intel® Advanced Vector Extensions (Intel® AVX)

3.1 Intel® Virtualization Technology (Intel® VT)

Intel® Virtualization Technology (Intel® VT) makes a single system appear as multiple independent systems to software. This allows multiple, independent operating systems to run simultaneously on a single system. Intel VT comprises technology components to support virtualization of platforms based on Intel architecture microprocessors and chipsets.

• Intel® Virtualization Technology (Intel® VT) for Intel® 64 and IA-32 Intel®

Architecture (Intel

the virtualization performance and robustness. Intel VT-x specifications and functional descriptions are included in the Intel Software Developer’s Manual, Volume 3B and is available at http://www.intel.com/products/processor/manuals/index.htm

• Intel® Virtualization Technology (Intel® VT) for Directed I/O

(Intel

improve I/O virtualization performance and robustness. The Intel VT-d specification and other Intel VT documents can be referenced at

http://www.intel.com/technology/virtualization/index.htm

VT-d) adds processor and uncore implementations to support and

VT-x) adds hardware support in the processor to improve

64 and IA-32 Architectures

Technologies

3.1.1 Intel® VT-x Objectives

Intel VT-x provides hardware acceleration for virtualization of IA platforms. Virtual Machine Monitor (VMM) can use Intel VT-x features to provide improved reliable virtualized platforms. By using Intel VT-x, a VMM is:

• Robust: VMMs no longer need to use para-virtualization or binary translation. This means that off-the-shelf operating systems and applications can be run without any special steps.

• Enhanced: Intel VT enables VMMs to run 64-bit guest operating systems on IA x86 processors.

• More reliable: Due to the hardware support, VMMs can now be smaller, less complex, and more efficient. This improves reliability and availability and reduces the potential for software conflicts.

• More secure: The use of hardware transitions in the VMM strengthens the isolation of VMs and further prevents corruption of one VM from affecting others on the same system.

22 Datasheet

Technologies

3.1.2 Intel® VT-x Features

The processor core supports the following Intel VT-x features:

• Extended Page Tables (EPT)

— hardware assisted page table virtualization.

— eliminates VM exits from guest operating system to the VMM for shadow page-

table maintenance.

• Virtual Processor IDs (VPID)

— Ability to assign a VM ID to tag processor core hardware structures (such as,

TLBs).

— This avoids flushes on VM transitions to give a lower-cost VM transition time

and an overall reduction in virtualization overhead.

• Guest Preemption Timer

— Mechanism for a VMM to preempt the execution of a guest operating system

after an amount of time specified by the VMM. The VMM sets a timer value before entering a guest.

— The feature aids VMM developers in flexibility and Quality of Service (QoS)

guarantees.

• Descriptor-Table Exiting

— Descriptor-table exiting allows a VMM to protect a guest operating system from

internal (malicious software based) attack by preventing relocation of key system data structures like IDT (interrupt descriptor table), GDT (global descriptor table), LDT (local descriptor table), and TSS (task segment selector).

— A VMM using this feature can intercept (by a VM exit) attempts to relocate

these data structures and prevent them from being tampered by malicious software.

• Pause Loop Exiting (PLE)

— PLE aims to improve virtualization performance and enhance the scaling of

virtual machines with multiple virtual processors

— PLE attempts to detect lock-holder preemption in a VM and helps the VMM to

make better scheduling decisions

3.1.3 Intel® VT-d Objectives

The key Intel VT-d objectives are domain-based isolation and hardware-based virtualization. A domain can be abstractly defined as an isolated environment in a platform to which a subset of host physical memory is allocated. Virtualization allows for the creation of one or more partitions on a single system. This could be multiple partitions in the same operating system, or there can be multiple operating system instances running on the same system – offering benefits such as system consolidation, legacy migration, activity partitioning, or security.

Datasheet 23

3.1.3.1 Intel® VT-d Features Supported

The processor supports the following Intel VT-d features:

• Root entry, context entry, and default context

• Support for 4-K page sizes only

• Support for register-based fault recording only (for single entry only) and support for MSI interrupts for faults

— Support for fault collapsing based on Requester ID

• Support for both leaf and non-leaf caching

• Support for boot protection of default page table

— Support for non-caching of invalid page table entries

• Support for hardware based flushing of translated but pending writes and pending reads upon IOTLB invalidation

• Support for page-selective IOTLB invalidation

• Support for ARI (Alternative Requester ID – a PCI SIG ECR for increasing the function number count in a PCIe* device) to support I/O Virtualization (IOV) devices

• Improved invalidation architecture

• End point caching support (ATS)

• Interrupt remapping

Technologies

3.1.4 Intel® Virtualization Technology Processor Extensions

The processor supports the following Intel VT processor extension features:

• Large Intel VT-d Pages

— Adds 2MB and 1GB page sizes to Intel VT-d implementations

— Matches current support for Extended Page Tables (EPT)

— Ability to share processor EPT page-table (with super-pages) with Intel VT-d

— Benefits:

• Less memory foot-print for I/O page-tables when using super-pages

• Potential for improved performance – due to shorter page-walks, allows hardware optimization for IOTLB

• Transition latency reductions expected to improve virtualization performance without the need for VMM enabling. This reduces the VMM overheads further and increase virtualization performance.

24 Datasheet

Technologies

3.2 Security Technologies

3.2.1 Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) Instructions

These instructions enable fast and secure data encryption and decryption, using the Advanced Encryption Standard (Intel AES-NI) which is defined by FIPS Publication number 197. Since Intel AES-NI is the dominant block cipher, and it is deployed in various protocols, the new instructions will be valuable for a wide range of applications.

The architecture consists of six instructions that offer full hardware support for Intel AES-NI. Four instructions support the Intel AES-NI encryption and decryption, and the other two instructions support the Intel AES-NI key expansion. Together, they offer a significant increase in performance compared to pure software implementations.

The Intel AES-NI instructions have the flexibility to support all three standard Intel AES-NI key lengths, all standard modes of operation, and even some nonstandard or future variants.

Beyond improving performance, the Intel AES-NI instructions provide important security benefits. Since the instructions run in data-independent time and do not use lookup tables, the instructions help in eliminating the major timing and cache-based attacks that threaten table-based software implementations of Intel AES-NI. In addition, these instructions make AES simple to implement, with reduced code size. This helps reducing the risk of inadvertent introduction of security flaws, such as difficult-to-detect side channel leaks.

3.2.2 Execute Disable Bit

The Intel Execute Disable Bit functionality can help prevent certain classes of malicious buffer overflow attacks when combined with a supporting operating system.

• Allows the processor to classify areas in memory by where application code can execute and where it cannot.

• When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage and worm propagation.

3.3 Intel® Hyper-Threading Technology (Intel® HT Technology)

The processor supports Intel® Hyper-Threading Technology (Intel® HT Technology) that allows an execution core to function as two logical processors. While some execution resources such as caches, execution units, and buses are shared, each logical processor has its own architectural state with its own set of general-purpose registers and control registers. This feature must be enabled using the BIOS and requires operating system support.

For more information on Intel Hyper-Threading Technology, see http://www.intel.com/products/ht/hyperthreading_more.htm.

Datasheet 25

3.4 Intel® Turbo Boost Technology

Intel Turbo Boost Technology is a feature that allows the processor to opportunistically and automatically run faster than its rated operating frequency if it is operating below power, temperature, and current limits. The result is increased performance in multithreaded and single threaded workloads. It should be enabled in the BIOS for the processor to operate with maximum performance.

3.4.1 Intel® Turbo Boost Operating Frequency

The processor’s rated frequency assumes that all execution cores are running an application at the thermal design power (TDP). However, under typical operation, not all cores are active. Therefore, most applications are consuming less than the TDP at the rated frequency. To take advantage of the available TDP headroom, the active cores can increase their operating frequency.

To determine the highest performance frequency amongst active cores, the processor takes the following into consideration:

• number of cores operating in the C0 state

• estimated current consumption

• estimated power consumption

• die temperature

Technologies

Any of these factors can affect the maximum frequency for a given workload. If the power, current, or thermal limit is reached, the processor will automatically reduce the frequency to stay with its TDP limit.

Note: Intel Turbo Boost Technology is only active if the operating system is requesting the P0

state. For more information on P-states and C-states, refer to

Chapter 4.

3.5 Enhanced Intel® SpeedStep® Technology

The processor supports Enhanced Intel SpeedStep® Technology as an advanced means of enabling very high performance while also meeting the power-conservation needs of the platform.

Enhanced Intel SpeedStep Technology builds upon that architecture using design strategies that include the following:

• Separation between Voltage and Frequency Changes. By stepping voltage up and down in small increments separately from frequency changes, the processor is able to reduce periods of system unavailability that occur during frequency change. Thus, the system is able to transition between voltage and frequency states more often, providing improved power/performance balance.

• Clock Partitioning and Recovery. The bus clock continues running during state transition, even when the core clock and Phase-Locked Loop are stopped, which allows logic to remain active. The core clock can also restart more quickly under Enhanced Intel SpeedStep Technology.

For additional information on Enhanced Intel SpeedStep® Technology, refer to

Section 4.2.1.

26 Datasheet

Technologies

3.6 Intel® Advanced Vector Extensions (Intel® AVX)

Intel Advanced Vector Extensions (Intel AVX) is a new 256-bit vector SIMD extension of Intel Architecture. The introduction of Intel AVX started with the 2nd Generation Intel

Core™ processor family. Intel AVX accelerates the trend of parallel computation in general purpose applications like image, video and audio processing, engineering applications (such as 3D modeling and analysis), scientific simulation, and financial analysts.

Intel AVX is a comprehensive ISA extension of the Intel 64 Architecture. The main elements of Intel AVX are:

• Support for wider vector data (up to 256-bit) for floating-point computation

• Efficient instruction encoding scheme that supports 3 operand syntax and headroom for future extensions

• Flexibility in programming environment, ranging from branch handling to relaxed memory alignment requirements

• New data manipulation and arithmetic compute primitives, including broadcast, permute, fused-multiply-add, and so on

• Floating point bit depth conversion (Float 16)

• A group of 4 instructions that accelerate data conversion between 16-bit floating point format to 32-bit and vice versa.

• This benefits image processing and graphical applications allowing compression of data so less memory and bandwidth is required.

The key advantages of Intel AVX are:

• Performance – Intel AVX can accelerate application performance using data parallelism and scalable hardware infrastructure across existing and new application domains:

— 256-bit vector data sets can be processed up to twice the throughput of 128-bit

data sets

— Application performance can scale up with the number of hardware threads and

number of cores

— Application domain can scale out with advanced platform interconnect fabrics

• Power Efficiency – Intel AVX is extremely power efficient. Incremental power is insignificant when the instructions are unused or scarcely used. Combined with the high performance that it can deliver, applications that lend themselves heavily to using Intel AVX can be much more energy efficient and realize a higher performance-per-watt.

• Extensibility – Intel AVX has built-in extensibility for the future vector extensions:

— Operating System context management for vector-widths beyond 256 bits is

streamlined

— Efficient instruction encoding allows unlimited functional enhancements:

• Vector width support beyond 256 bits

• 256-bit Vector Integer processing

• Additional computational and/or data manipulation primitives

Datasheet 27

Technologies

• Compatibility – Intel AVX is backward compatible with previous ISA extensions including Intel SSE4:

— Existing Intel SSE applications/library can:

• Run unmodified and benefit from processor enhancements

• Recompile existing Intel

SSE intrinsic using compilers that generate

Intel AVX code

• Inter-operate with library ported to Intel AVX

— Applications compiled with Intel AVX can inter-operate with existing Intel SSE

libraries.

28 Datasheet

Power Management

4 Power Management

This chapter provides information on the following power management topics:

• Advanced Configuration and Power Interface (ACPI) States Supported

• Processor Core / Package Power Management

• System Memory Power Management

• Direct Media Interface 2 (DMI2) / PCI Express* Power Management

4.1 Advanced Configuration and Power Interface (ACPI) States Supported

The ACPI states supported by the processor are described in this section.

4.1.1 System States

Table 4-1. System States

State Description

G0/S0 Full On

G1/S3-Cold Suspend-to-RAM (STR). Context saved to memory.

G1/S4 Suspend-to-Disk (STD). All power lost (except wakeup on PCH).

G2/S5 Soft off. All power lost (except wakeup on PCH). Total reboot.

G3 Mechanical off. All power removed from system.

4.1.2 Processor Package and Core States

The following table lists the package C-state support as: 1) the shallowest core C-state that allows entry into the package C-state, 2) the additional factors that will restrict the state from going any deeper, and 3) the actions taken with respect to the Ring Vcc, PLL state, and LLC.

Table 4-3 lists the processor core C-states support.

Datasheet 29

Table 4-2. Package C-State Support

Power Management

Package C-

State

PC0 – Active CC0 N/A No No 2

PC2 – Snoopable Idle

PC3 – Light Retention

PC6 Deeper Retention

Notes:

1. Package C7 is not supported.

2. All package states are defined to be "E" states – such that the states always exit back into the LFM point upon execution resume

3. The mapping of actions for PC3, and PC6 are suggestions – microcode will dynamically determine which actions should be taken based on the desired exit latency parameters.

4. CC3/CC6 will all use a voltage below the VccMin operational point. The exact voltage selected will be a function of the snoop and interrupt response time requirements made by the devices (PCIe* and DMI) and the operating system.

Core

States

CC3–CC7

at least

one Core

in C3

CC6–CC7

Limiting Factors

• PCIe/PCH and Remote Socket Snoops

• PCIe/PCH and Remote Socket Accesses

• Interrupt response time requirement

• DMI Sidebands

• Configuration Constraints

• Core C-State

• Snoop Response Time

• Interrupt Response Time

• Non Snoop Response Time

• LLC ways open

• Snoop Response Time

• Non Snoop Response Time

• Interrupt Response Time

Retention and

PLL-Off

VccMin

Freq = MinFreq

PLL = ON

Vcc = retention

PLL = OFF

Vcc = retention

PLL = OFF

LLC

Fully

Flushed

No 2

No 2, 3, 4

Notes

Table 4-3. Core C-State Support

Core C-State Global Clock PLL L1/L2 Cache Core VCC Context

CC0 Running On Coherent Active Maintained

CC1 Stopped On Coherent Active Maintained

CC1E Stopped On Coherent Request LFM Maintained

CC3 Stopped On Flushed to LLC Request Retention Maintained

CC6 Stopped Off Flushed to LLC Power Gate Flushed to LLC

CC7 Stopped Off Flushed to LLC Power Gate Flushed to LLC

30 Datasheet

Power Management

4.1.3 Integrated Memory Controller (IMC) States

Table 4-4. System Memory Power States

State Description

Power Up/Normal Operation CKE asserted. Active Mode, highest power consumption.

Opportunistic, per rank control after idle time:

• Active Power Down (APD) (default mode) — CKE de-asserted. Power savings in this mode, relative to active idle

state is about 55% of the memory power. Exiting this mode takes 3 – 5 DCLK cycles.

— CKE de-asserted. DLL-On. Also known as Fast CKE. Power savings in

this mode, relative to active idle state is about 60% of the memory power. Exiting this mode takes 3 – 5 DCLK cycles.

— CKE de-asserted. DLL-Off. Also known as Slow CKE. Power savings in

this mode, relative to active idle state is about 87% of the memory power. Exiting this mode takes 3 – 5 DCLK cycles until the first command is allowed and 16 cycles until first data is allowed.

— IBT-ON mode: Both CKEs are de-asserted, the Input Buffer

Terminators (IBTs) are left “on”.

— IBT-OFF mode: Both CKEs are de-asserted, the Input Buffer

Terminators (IBTs) are turned “off”.

occurs.

CKE Power Down

Self-Refresh

• Pre-charge Power Down Fast Exit (PPDF)

• Pre-charge Power Down Slow Exit (PPDS)

• Register CKE Power Down:

CKE de-asserted. In this mode, no transactions are executed and the system memory consumes the minimum possible power. Self-refresh modes apply to all memory channels for the processor.

• IO-MDLL Off: Option that sets the IO master DLL off when self-refresh

• PLL Off: Option that sets the PLL off when self-refresh occurs.

4.1.4 Direct Media Interface Gen 2 (DMI2) / PCI Express* Link States

Table 4-5. DMI2 / PCI Express* Link States

State Description

L0 Full on – Active transfer state.

L1 Lowest Active State Power Management (ASPM) – Longer exit latency.

Note: L1 is only supported when the DMI2/PCI Express* port is operating as a PCI Express* port.

Datasheet 31

4.1.5 G, S, and C State Combinations

Table 4-6. G, S and C State Combinations

Power Management

Global (G)

State

G0 S0 C0 Full On On Full On

G0 S0 C1/C1E Auto-Halt On Auto-Halt

G0 S0 C3 Deep Sleep On Deep Sleep

G0 S0 C6/C7

G1 S3 Power off — Off, except RTC Suspend to RAM

G1 S4 Power off — Off, except RTC Suspend to Disk

G2 S5 Power off — Off, except RTC Soft Off

G3 N/A Power off — Power off Hard off

Sleep

(S) State

Processor

Core

Processor

State

Deep Power

Down

System

Clocks

Description

Deep Power Down

4.2 Processor Core / Package Power Management

While executing code, Enhanced Intel SpeedStep® Technology optimizes the processor frequency and core voltage based on workload. Each frequency and voltage operating point is defined by ACPI as a P-State. When the processor is not executing code, it is idle. A low-power idle state is defined by ACPI as a C-state. In general, lower power CStates have longer entry and exit latencies.

4.2.1 Enhanced Intel® SpeedStep® Technology

The following are the key features of Enhanced Intel SpeedStep® Technology:

• Multiple frequency and voltage points for optimal performance and power efficiency. These operating points are known as P-States.

• Frequency selection is software controlled by writing to processor MSRs. The voltage is optimized based on temperature, leakage, power delivery loadline, and dynamic capacitance.

— If the target frequency is higher than the current frequency, VCC is ramped up

to an optimized voltage. This voltage is signaled by the SVID Bus to the voltage regulator. Once the voltage is established, the PLL locks on to the target frequency.

— If the target frequency is lower than the current frequency, the PLL locks to the

target frequency, then transitions to a lower voltage by signaling the target voltage on the SVID Bus.

— All active processor cores share the same frequency and voltage. In a multi-

core processor, the highest frequency P-state requested amongst all active cores is selected.

— Software-requested transitions are accepted at any time. The processor has a

new capability from the previous processor generation; it can preempt the previous transition and complete the new request without waiting for this request to complete.

• The processor controls voltage ramp rates internally to ensure glitch-free transitions.

• Because there is low transition latency between P-states, a significant number of transitions per second are possible.

32 Datasheet

Power Management

4.2.2 Low-Power Idle States

When the processor is idle, low-power idle states (C-states) are used to save power. More power savings actions are taken for numerically higher C-States. However, higher C-states have longer exit and entry latencies. Resolution of C-states occurs at the thread, processor core, and processor package level. Thread level C-states are available if Intel Hyper-Threading Technology is enabled. Entry and exit of the C-states at the thread and core level are shown in Figure 4-2.

Figure 4-1. Idle Power Management Breakdown of the Processor Cores

Figure 4-2. Thread and Core C-State Entry and Exit

While individual threads can request low-power C-states, power saving actions only take place once the core C-state is resolved. Core C-states are automatically resolved by the processor. For thread and core C-states, a transition to and from C0 is required before entering any other C-state.

Datasheet 33

Table 4-7. Coordination of Thread Power States at the Core Level

Power Management

Processor Core

C-State

Thread 0

Note:

1. If enabled, the core C-state will be C1E if all actives cores have also resolved a core C1 state or higher.

C0 C1 C3 C6 C7

C0 C0 C0 C0 C0

C0 C1

4.2.3 Requesting Low-Power Idle States

The core C-state will be C1E if all actives cores have also resolved a core C1 state or higher.

The primary software interfaces for requesting low-power idle states are through the MWAIT instruction with sub-state hints and the HLT instruction (for C1 and C1E). However, software may make C-state requests using the legacy method of I/O reads from the ACPI-defined processor clock control registers, referred to as P_LVLx. This method of requesting C-states provides legacy support for operating systems that initiate C-state transitions using I/O reads.

For legacy operating systems, P_LVLx I/O reads are converted within the processor to the equivalent MWAIT C-state request. Therefore, P_LVLx reads do not directly result in I/O reads to the system. The feature, known as I/O MWAIT redirection, must be enabled in the BIOS.

Thread 1

C3 C3 C3

C3 C6 C6

C3 C6 C7

Note: The P_LVLx I/O Monitor address needs to be set up before using the P_LVLx I/O read

interface. Each P-LVLx is mapped to the supported MWAIT(Cx) instruction as shown in the following table.

Table 4-8. P_LVLx to MWAIT Conversion

P_LVLx MWAIT(Cx) Notes

P_LVL2 MWAIT(C3)

P_LVL3 MWAIT(C6) C6. No sub-states allowed.

P_LVL4 MWAIT(C7) C7. No sub-states allowed.

The BIOS can write to the C-state range field of the PMG_IO_CAPTURE Model Specific Register (MSR) to restrict the range of I/O addresses that are trapped and emulate MWAIT like functionality. Any P_LVLx reads outside of this range do not cause an I/O redirection to MWAIT(Cx) like request. The reads fall through like a normal I/O instruction.

Note: When P_LVLx I/O instructions are used, MWAIT substates cannot be defined. The

MWAIT substate is always zero if I/O MWAIT redirection is used. By default, P_LVLx I/O redirections enable the MWAIT 'break on EFLAGS.IF’ feature which triggers a wakeup on an interrupt even if interrupts are masked by EFLAGS.IF.

34 Datasheet

Power Management

4.2.4 Core C-states

The following are general rules for all core C-states, unless specified otherwise:

• A core C-state is determined by the lowest numerical thread state (such as, Thread 0 requests C1E while Thread 1 requests C3, resulting in a core C1E state). See

Table 4-6.

• A core transitions to C0 state when:

— an interrupt occurs.

— there is an access to the monitored address if the state was entered using an

MWAIT instruction.

• For core C1/C1E, and core C3, an interrupt directed toward a single thread wakes only that thread. However, since both threads are no longer at the same core C-state, the core resolves to C0.

• An interrupt only wakes the target thread for both C3 and C6 states. Any interrupt coming into the processor package may wake any core.

4.2.4.1 Core C0 State

The normal operating state of a core where code is being executed.

4.2.4.2 Core C1/C1E State

C1/C1E is a low-power state entered when all threads within a core execute a HLT or MWAIT(C1/C1E) instruction.

A System Management Interrupt (SMI) handler returns execution to either Normal state or the C1/C1E state. See the Intel Developer’s Manual, Volume 3A/3B: System Programmer’s Guide for more information.

While a core is in C1/C1E state, it processes bus snoops and snoops from other threads. For more information on C1E, see Section 4.2.5.2.

4.2.4.3 Core C3 State

Individual threads of a core can enter the C3 state by initiating a P_LVL2 I/O read to the P_BLK or an MWAIT(C3) instruction. A core in C3 state flushes the contents of its L1 instruction cache, L1 data cache, and L2 cache to the shared L3 cache, while maintaining its architectural state. All core clocks are stopped at this point. Because the core caches are flushed, the processor does not wake any core that is in the C3 state when either a snoop is detected or when another core accesses cacheable memory.

4.2.4.4 Core C6 State

Individual threads of a core can enter the C6 state by initiating a P_LVL3 I/O read or an MWAIT(C6) instruction. Before entering core C6, the core saves its architectural state to a dedicated SRAM. Once complete, a core will have its voltage reduced to zero volts. In addition to flushing core caches, the core architecture state is saved to the uncore. Once the core state save is completed, core voltage is reduced to zero. During exit, the core is powered on and its architectural state is restored.

64 and IA-32 Architecture Software

4.2.4.5 Core C7 State

Individual threads of a core can enter the C7 state by initiating a P_LVL4 I/O read to the P_BLK or by an MWAIT(C7) instruction. Core C7 and core C7 substate are the same as Core C6. The processor does not support LLC flush under any condition.

Datasheet 35

4.2.4.6 Delayed Deep C-States

The Delayed Deep C-states (DDCst) feature on this processor replaces the “C-state auto-demotion” scheme used in the previous processor generation. Deep C-states are defined as CC3 through CC7 (refer to Table 4-3 for supported deep C-states).

The Delayed Deep C-states are intended to allow a staged entry into deeper C-states whereby the processor enters a lighter, short exit-latency C-state (core C1) for a period of time before committing to a long exit-latency deep C-state (core C3 and core C6). This is intended to allow the processor to get past the cluster of short-duration idles, providing each of those with a very fast wake-up time, but to still get the power benefit of the deep C-states on the longer idles.

4.2.5 Package C-States

The processor supports C0, C1/C1E, C2, C3, and C6 power states. The following is a summary of the general rules for package C-state entry. These apply to all package C-states unless specified otherwise:

• A package C-state request is determined by the lowest numerical core C-state amongst all cores.

• A package C-state is automatically resolved by the processor depending on the core idle power states and the status of the platform components.

— Each core can be at a lower idle power state than the package if the platform

does not grant the processor permission to enter a requested package C-state.

— The platform may allow additional power savings to be realized in the

processor.

• For package C-states, the processor is not required to enter C0 before entering any other C-state.

Power Management

The processor exits a package C-state when a break event is detected. Depending on the type of break event, the processor does the following:

• If a core break event is received, the target core is activated and the break event message is forwarded to the target core.

— If the break event is not masked, the target core enters the core C0 state and

the processor enters package C0.

— If the break event is masked, the processor attempts to re-enter its previous

package state.

• If the break event was due to a memory access or snoop request.

— But the platform did not request to keep the processor in a higher package

C-state, the package returns to its previous C-state.

— And the platform requests a higher power C-state, the memory access or snoop

request is serviced and the package remains in the higher power C-state.

The package C-states fall into two categories: independent and coordinated. C0/C1/C1E are independent, while C2/C3/C6 are coordinated.

Starting with the 2nd Generation Intel

Core™ processor family, package C-states are based on exit latency requirements that are accumulated from the PCIe* devices, PCH, and software sources. The level of power savings that can be achieved is a function of the exit latency requirement from the platform. As a result, there is no fixed relationship between the coordinated C-state of a package, and the power savings that will be obtained from the state. Coordinated package C-states offer a range of power savings that is a function of the guaranteed exit latency requirement from the platform.

36 Datasheet

Power Management

There is also a concept of Execution Allowed (EA). When EA status is 0, the cores in a socket are in C3 or a deeper state; a socket initiates a request to enter a coordinated package C-state. The coordination is across all sockets and the PCH.

Table 4-9 shows an example of a dual-core processor package C-state resolution. Figure 4-3 summarizes package C-state transitions with package C2 as the interim

between PC0 and PC1 prior to PC3 and PC6.

Table 4-9. Coordination of Core Power States at the Package Level

Package C-State

Core 0

Note:

1. The package C-state will be C1E if all actives cores have resolved a core C1 state or higher.

C0 C1 C3 C6

C0 C0 C0 C0

C0 C1

Figure 4-3. Package C-State Entry and Exit

Core 1

C3 C3

C3 C6

4.2.5.1 Package C0 State

The normal operating state for the processor. The processor remains in the normal state when at least one of its cores is in the C0 or C1 state or when the platform has not granted permission to the processor to go into a low-power state. Individual cores may be in lower power idle states while the package is in C0 state.

Datasheet 37

4.2.5.2 Package C1/C1E State

No additional power reduction actions are taken in the package C1 state. However, if the C1E substate is enabled, the processor automatically transitions to the lowest supported core clock frequency, followed by a reduction in voltage. Autonomous power reduction actions that are based on idle timers, can trigger depending on the activity in the system.

The package enters the C1 low-power state when:

• At least one core is in the C1 state.

• The other cores are in a C1 or lower power state.

The package enters the C1E state when:

• All cores have directly requested C1E using MWAIT(C1) with a C1E sub-state hint.

• All cores are in a power state lower that C1/C1E but the package low-power state is limited to C1/C1E using the PMG_CST_CONFIG_CONTROL MSR.

• All cores have requested C1 using HLT or MWAIT(C1) and C1E auto-promotion is enabled in POWER_CTL.

No notification to the system occurs upon entry to C1/C1E.

Power Management

4.2.5.3 Package C2 State

Package C2 state is an intermediate state which represents the point at which the system level coordination is in progress. The package cannot reach this state unless all cores are in at least C3.

The package will remain in C2 when:

• it is awaiting for a coordinated response

• the coordinated exit latency requirements are too stringent for the package to take any power saving actions

If the exit latency requirements are high enough the package will transition to C3 or C6 state depending on the state of the cores.

4.2.5.4 Package C3 State

A processor enters the package C3 low-power state when:

• At least one core is in the C3 state.

• The other cores are in a C3 or lower power state, and the processor has been granted permission by the platform.

• L3 shared cache retains context and becomes inaccessible in this state.

• Additional power savings actions, as allowed by the exit latency requirements, include putting PCIe* links in L1, the uncore is not available, further voltage reduction can be taken.

In package C3 state, the ring will be off and as a result no accesses to the LLC are possible. The content of the LLC is preserved.

38 Datasheet

Power Management

4.2.5.5 Package C6 State

A processor enters the package C6 low-power state when:

• At least one core is in the C6 state.

• The other cores are in a C6 or lower power state, and the processor has been granted permission by the platform.

• L3 shared cache retains context and becomes inaccessible in this state.

• Additional power savings actions, as allowed by the exit latency requirements, include putting PCIe* links in L1, the uncore is not available, further voltage reduction can be taken.

In package C6 state, all cores have saved their architectural state and have had their core voltages reduced to zero volts. The LLC retains context, but no accesses can be made to the LLC in this state; the cores must break out to the internal state package C2 for snoops to occur.

4.2.6 Package C-State Power Specifications

The following table lists the processor package C-state power specifications for various processor SKUs.

The C-state power specification is based on post-silicon validation results. The processor case temperature is assumed at 50 °C for all C-states. Most of the idle power is attributed to the significant increase in higher speed I/O interfaces for the processor (PCIe*, DDR3).

Table 4-10. Package C-State Power Specifications

TDP SKUs

6-Core

130W (6-core) 53 28 13

4-Core

130W (4-core) 53 28 13

Notes:

1. SKUs are subject to change. Contact your Intel Field Representative to obtain the latest SKU information.

2. Package C1E power specified at T

3. Package C3/C6 power specified at T

C1E (W)

CASE

= 60 oC

= 50 oC

CASE

C3 (W)

4.3 System Memory Power Management

The DDR3 power states can be summarized as the following:

• Normal operation (highest power consumption).

• CKE Power-Down: Opportunistic, per rank control after idle time. There may be different levels.

— Active Power-Down.

— Pre-charge Power-Down with Fast Exit.

— Pre-charge power Down with Slow Exit.

• Self-Refresh: In this mode no transaction is executed. The DDR consumes the minimum possible power.

C6 (W)

Datasheet 39

4.3.1 CKE Power-Down

The CKE input land is used to enter and exit different power-down modes. The memory controller has a configurable activity timeout for each rank. When no reads are present to a given rank for the configured interval, the memory controller will transition the rank to power-down mode.

The memory controller transitions the DRAM to power-down by de-asserting CKE and driving a NOP command. The memory controller will tri-state all DDR interface lands except CKE (de-asserted) and ODT while in power-down. The memory controller will transition the DRAM out of power-down state by synchronously asserting CKE and driving a NOP command.

When CKE is off, the internal DDR clock is disabled and the DDR power is significantly reduced.

The DDR defines three levels of power-down:

• Active power-down: This mode is entered if there are open pages when CKE is deasserted. In this mode the open pages are retained. Existing this mode is 3 – 5 DCLK cycles.

• Pre-charge power-down fast exit: This mode is entered if all banks in DDR are precharged when de-asserting CKE. Existing this mode is 3 – 5 DCLK cycles. Difference from the active power-down mode is that when waking up all page-buffers are empty.

• Pre-charge power-down slow exit: In this mode the data-in DLLs on DDR are off. Existing this mode is 3 – 5 DCLK cycles until the first command is allowed, but about 16 cycles until first data is allowed.

Power Management

4.3.2 Self-Refresh

The Power Control Unit (PCU) may request the memory controller to place the DRAMs in self-refresh state. Self-refresh per channel is supported. The BIOS can put the channel in self-refresh if software remaps memory to use a subset of all channels. Also, processor channels can enter self-refresh autonomously without a PCU instruction when the package is in a package C0 state.

4.3.2.1 Self-Refresh Entry

Self-refresh entrance can be either disabled or triggered by an idle counter. Idle counter always clears with any access to the memory controller and remains clear as long as the memory controller is not drained. As soon as the memory controller is drained, the counter starts counting. When it reaches the idle-count, the memory controller will place the DRAMs in self-refresh state.

Power may be removed from the memory controller core at this point. But V (1.5V or 1.35V) to the DDR I/O must be maintained.

CCD

supply

40 Datasheet

Power Management

4.3.2.2 Self-Refresh Exit

Self-refresh exit can be either a message from an external unit (PCU in most cases, but also possibly from any message-channel master) or as reaction for an incoming transaction.

Here are the proper actions on self-refresh exit:

• CK is enabled, and four CK cycles driven.

• When proper skew between Address/Command and CK are established, assert CKE.

• Issue NOPs for tXSRD cycles.

• Issue ZQCL to each rank.

• The global scheduler will be enabled to issue commands.

4.3.2.3 DLL and PLL Shutdown

Self-refresh, according to configuration, may be a trigger for master DLL shut-down and PLL shut-down. The master DLL shut-down is issued by the memory controller after the DRAMs have entered self-refresh.

The PLL shut-down and wake-up is issued by the PCU. The memory controller gets a signal from the PLL indicating that the memory controller can start working again.

4.3.3 DRAM I/O Power Management

Unused signals are tri-stated to save power. This includes all signals associated with an unused memory channel.

The I/O buffer for an unused signal should be tri-stated (output driver disabled); the input receiver (differential sense-amp) should be disabled. The input path must be gated to prevent spurious results due to noise on the unused signals (typically handled automatically when input receiver is disabled).

4.4 Direct Media Interface 2 (DMI2) / PCI Express* Power Management

Active State Power Management (ASPM) support using L1 state; L0s is not supported.

Datasheet 41

Thermal Management Specifications

5 Thermal Management

Specifications

The processor requires a thermal solution to maintain temperatures within operating limits. Any attempt to operate the processor outside these limits may result in permanent damage to the processor and potentially other components within the system. Maintaining the proper thermal environment is key to reliable, long-term system operation.

A complete solution includes both component and system-level thermal management features. Component-level thermal solutions can include active or passive heatsinks attached to the processor Integrated Heat Spreader (IHS). Typical system-level thermal solutions may consist of system fans combined with ducting and venting.

This section provides data necessary for developing a complete thermal solution. For more information on designing a component-level thermal solution, refer to the Processor Thermal Mechanical Specifications and Design Guidelines (see Related Documents section).

§ §

42 Datasheet

Signal Descriptions

6 Signal Descriptions

This chapter describes the processor signals. The signals are arranged in functional groups according to their associated interface or category.

6.1 System Memory Interface Signals

Table 6-1. Memory Channel DDR0, DDR1, DDR2, DDR3

Signal Name Description

DDR{0/1/2/3}_BA[2:0]

DDR{0/1/2/3}_CAS_N Column Address Strobe

DDR{0/1/2/3}_CKE[5:0] Clock Enable

DDR{0/1/2/3}_CLK_DN[3:0] DDR{0/1/2/3}_CLK_DP[3:0]

DDR{0/1/2/3}_CS_N[9:0]

DDR{0/1/2/3}_DQ[63:00] Data Bus: DDR3 Data bits.

DDR{0/1/2/3}_DQS_DP[17:00] DDR{0/1/2/3}_DQS_DN[17:00]

DDR{0/1/2/3}_MA[15:00]

DDR{0/1/2/3}_ODT[5:0]

DDR{0/1/2/3}_RAS_N Row Address Strobe

DDR{0/1/2/3}_WE_N Write Enable

Bank Address: These signals define the bank which is the destination for the current Activate, Read, Write, or PRECHARGE command.

Differential Clocks to the DIMM: All command and control signals are valid on the rising edge of clock.

Chip Select: Each signal selects one rank as the target of the command and address.

Data strobe: This is a differential pair Data Strobe. Differential strobes latch data for each DRAM. Different numbers of strobes are used depending on whether the connected DRAMs are x4,x8. Driven with edges in center of data, receive edges are aligned with data edges.

Memory Address: Selects the Row address for Reads and writes, and the column address for activates. Also used to set values for DRAM configuration registers.

On-Die Termination: Enables DRAM on die termination during Data Write or Data Read transactions.

Datasheet 43

Table 6-2. Memory Channel Miscellaneous

Signal Name Description

DDR_RESET_C01_N DDR_RESET_C23_N

DDR_SCL_C01 DDR_SCL_C23

DDR_SDA_C01 DDR_SDA_C23

DDR_VREFDQRX_C01 DDR_VREFDQRX_C23

DDR_VREFDQTX_C01 DDR_VREFDQTX_C23

DDR{01/23}_RCOMP[2:0]

DRAM_PWR_OK_C01 DRAM_PWR_OK_C23

System Memory Reset: Reset signal from processor to DRAM devices on the DIMMs. DDR_RESET_C01_N is used for memory channels 0 and 1 while DDR_RESET_C23_N is used for memory channels 2 and 3.

SMBus clock for the dedicated interface to the serial presence detect (SPD) and thermal sensors (TSoD) on the DIMMs. DDR_SCL_C01 is used for memory channels 0 and 1 while DDR_SCL_C23 is used for memory channels 2 and 3.

SMBus data for the dedicated interface to the serial presence detect (SPD) and thermal sensors (TSoD) on the DIMMs. DDR_SDA_C1 is used for memory channels 0 and 1 while DDR_SDA_C23 is used for memory channels 2 and 3.

Voltage reference for system memory reads: DDR_VREFDQRX_C01 is used for memory channels 0 and 1 while DDR_VREFDQRX_C23 is used for memory channels 2 and 3.

Voltage reference for system memory writes: DDR_VREFDQTX_C01 is used for memory channels 0 and 1 while DDR_VREFDQTX_C23 is used for memory channels 2 and 3. These signals are not connected and there is no functionality provided on these two signals. The signals are unused by the processor.

System memory impedance compensation: Impedance compensation must be terminated on the system board using a precision resistor.

Power good input signal used to indicate that the V memory channels 0 and 1, and channels 2 and 3.

Signal Descriptions

power supply is stable for

CCD

6.2 PCI Express* Based Interface Signals

Note: PCI Express* Ports 1, 2, and 3 signals are receive and transmit differential pairs.

Table 6-3. PCI Express* Port 1 Signals

Signal Name Description

PE1A_RX_DN[3:0] PE1A_RX_DP[3:0]

PE1B_RX_DN[7:4] PE1B_RX_DP[7:4]

PE1A_TX_DN[3:0] PE1A_TX_DP[3:0]

PE1B_TX_DN[7:4] PE1B_TX_DP[7:4]

Table 6-4. PCI Express* Port 2 Signals (Sheet 1 of 2)

Signal Name Description

PE2A_RX_DN[3:0] PE2A_RX_DP[3:0]

PE2B_RX_DN[7:4] PE2B_RX_DP[7:4]

PE2C_RX_DN[11:8] PE2C_RX_DP[11:8]

PE2D_RX_DN[15:12] PE2D_RX_DP[15:12]

PE2A_TX_DN[3:0] PE2A_TX_DP[3:0]

PCIe* Receive Data Input

PCIe Receive Data Input

PCIe Transmit Data Output

PCIe Receive Data Input

PCIe* Receive Data Input

PCIe Transmit Data Output

44 Datasheet

Signal Descriptions

Table 6-4. PCI Express* Port 2 Signals (Sheet 2 of 2)

Signal Name Description

PE2B_TX_DN[7:4] PE2B_TX_DP[7:4]

PE2C_TX_DN[11:8] PE2C_TX_DP[11:8]

PE2D_TX_DN[15:12] PE2D_TX_DP[15:12]

PCIe Transmit Data Output

Table 6-5. PCI Express* Port 3 Signals

Signal Name Description

PE3A_RX_DN[3:0] PE3A_RX_DP[3:0]

PE3B_RX_DN[7:4] PE3B_RX_DP[7:4]

PE3C_RX_DN[11:8] PE3C_RX_DP[11:8]

PE3D_RX_DN[15:12] PE3D_RX_DP[15:12]

PE3A_TX_DN[3:0] PE3A_TX_DP[3:0]

PE3B_TX_DN[7:4] PE3B_TX_DP[7:4]

PE3C_TX_DN[11:8] PE3C_TX_DP[11:8]

PE3D_TX_DN[15:12] PE3D_TX_DP[15:12]

PCIe Receive Data Input

PCIe Transmit Data Output

Table 6-6. PCI Express* Miscellaneous Signals

Signal Name Description

PCI RBIAS: This input is used to control PCI Express* bias currents. A 50 ohm

PE_RBIAS

PE_RBIAS_SENSE

PE_VREF_CAP

Datasheet 45

1% tolerance resistor must be connected from this land to V PE_RBIAS is required to be connected as if the link is being used even when PCIe* is not used.

PCI RBIAS Sense: This signal provides dedicated bias resistor sensing to minimize the voltage drop caused by packaging and platform effects. PE_RBIAS_SENSE is required to be connected as if the link is being used even when PCIe* is not used.

PCI Express* Voltage Reference: PE_VREF_CAP is used to measure the actual output voltage and comparing it to the assumed voltage. A 0.01 uF capacitor must be connected from this land to V

by the platform.

Signal Descriptions

6.3 Direct Media Interface Gen 2 (DMI2) / PCI Express* Port 0 Signals

Table 6-7. DMI2 and PCI Express Port 0 Signals

Signal Name Description

DMI_RX_DN[3:0] DMI_RX_DP[3:0]

DMI_TX_DP[3:0] DMI_TX_DN[3:0]

DMI2 Receive Data Input

DMI2 Transmit Data Output

6.4 Platform Environment Control Interface (PECI) Signal

Table 6-8. Platform Environment Control Interface (PECI) Signals

Signal Name Description

PECI

Platform Environment Control Interface: This signal is the serial sideband interface to the processor and is used primarily for thermal, power and error management.

6.5 System Reference Clock Signals

Table 6-9. System Reference Clock (BCLK{0/1}) Signals

Signal Name Description

BCLK{0/1}_D[N/P]

Reference Clock Differential input: These signals provide the PLL reference clock differential input into the processor. 100 MHz typical BCLK0 is the system clock and BCLK1 is the PCI Express* reference clock.

6.6 Joint Test Action Group (JTAG) and Test Access Point (TAP) Signals

Table 6-10. Joint Test Action Group (JTAG) and Test Access Port (TAP) Signals (Sheet 1 of

Signal Name Description

BPM_N[7:0]

EAR_N

PRDY_N

PREQ_N

TCK

TDI

Breakpoint and Performance Monitor Signals: I/O signals from the processor that indicate the status of breakpoints and programmable counters used for monitoring processor performance. These are 100 MHz signals.

External Alignment of Reset: This signal is used to bring the processor up into a deterministic state. This signal is pulled up on the die; refer to Table 7-6 for details.

Probe Mode Ready: This signal is a processor output used by debug tools to determine processor debug readiness.

Probe Mode Request: This signal is used by debug tools to request debug operation of the processor.

Test Clock: This signal provides the clock input for the processor Test Bus (also known as the Test Access Port).

Test Data In: This signal transfers serial test data into the processor. TDI provides the serial input needed for JTAG specification support.

46 Datasheet

Signal Descriptions

Table 6-10. Joint Test Action Group (JTAG) and Test Access Port (TAP) Signals (Sheet 2 of

Signal Name Description

TDO

TMS

TRST_N

Test Data Out: This signal transfers serial test data out of the processor. TDO provides the serial output needed for JTAG specification support.

Test Mode Select: This signal is a JTAG specification support signal used by debug tools.

Test Reset: This signal resets the Test Access Port (TAP) logic. TRST_N must be driven low during power on Reset.

6.7 Serial Voltage Identification (SVID) Signals

Table 6-11. Serial Voltage Identification (SVID) Signals

Signal Name Description

SVIDALERT_N Serial VID alert

SVIDCLK Serial VID clock

SVIDDATA Serial VID data out

6.8 Processor Asynchronous Sideband and Miscellaneous Signals

Table 6-12. Processor Asynchronous Sideband Signals (Sheet 1 of 3)

Signal Name Description

BIST_ENABLE

CAT_ERR_N

CPU_ONLY_RESET CPU Only Reset: Reserved, not used

ERROR_N[2:0]

MEM_HOT_C01_N MEM_HOT_C23_N

PMSYNC

BIST Enable Strap: This input allows the platform to enable or disable built-in self test (BIST) on the processor. This signal is pulled up on the die (refer to

Table 7-6 for details).

Catastrophic Error: This signal indicates that the system has experienced a fatal or catastrophic error and cannot continue to operate. The processor will assert CAT_ERR_N for nonrecoverable machine check errors and other internal unrecoverable errors. It is expected that every processor in the system will wireOR CAT_ERR_N for all processors. Since this is an I/O signal, external agents are allowed to assert this signal, which will cause the processor to take a machine check exception. This signal is sampled after PWRGOOD assertion.

On the processor, CAT_ERR_N is used for signaling the following types of errors:

• Legacy MCERRs, CAT_ERR_N is asserted for 16 BCLKs.

• Legacy IERRs, CAT_ERR_N remains asserted until warm or cold reset.

Error: These are error status signals for integrated I/O (IIO) unit:

• Error_N0 – Hardware correctable error (no operating system or firmware action necessary)

• Error_N1 – Non-fatal error (operating system or firmware action required to contain and recover)

• Error_N2 – Fatal error (system reset likely required to recover)

Memory Throttle Control: MEM_HOT_C01_N and MEM_HOT_C23_N signals have two modes of operation – input and output mode.

Input mode is externally asserted and is used to detect external events (such as VR_HOT# from the memory voltage regulator) and causes the processor to throttle the appropriate memory channels.

Output mode is asserted by the processor known as level mode. In level mode, the output indicates that a particular branch of memory subsystem is hot.

MEM_HOT_C01_N is used for memory channels 0 and 1 while MEM_HOT_C23_N is used for memory channels 2 and 3.

Power Management Sync: A sideband signal to communicate power management status from the Platform Controller Hub (PCH) to the processor.

Datasheet 47

Table 6-12. Processor Asynchronous Sideband Signals (Sheet 2 of 3)

Signal Name Description

Processor Hot: PROCHOT_N will go active when the processor temperature

monitoring sensor detects that the processor has reached its maximum safe operating temperature. This indicates that the processor Thermal Control Circuit

PROCHOT_N

PWRGOOD

RESET_N

SAFE_MODE_BOOT

TEST[4:0]

THERMTRIP_N

has been activated, if enabled. This signal can also be driven to the processor to activate the Thermal Control Circuit. This signal is sampled after PWRGOOD assertion.

If PROCHOT_N is asserted at the de-assertion of RESET_N, the processor will tristate its outputs.

Power Good: This is a processor input. The processor requires this signal to be a clean indication that BCLK, V supplies are stable and within their specifications.

“Clean” implies that the signal will remain low (capable of sinking leakage current), without glitches, from the time that the power supplies are turned on until the supplies come within specification. The signal must then transition monotonically to a high state.

TTA/VTTD

, VSA, V

CCPLL

, and V

PWRGOOD can be driven inactive at any time, but clocks and power must again be stable before a subsequent rising edge of PWRGOOD. PWRGOOD transitions from inactive to active when all supplies except V of zero volts and is not included in PWRGOOD indication in this phase. However, for the active to inactive transition, if any processor power supply (V

, V

CCD

negated.

, or V

) is about to fail or is out of regulation, the PWRGOOD is to be

CCPLL

The signal must be supplied to the processor. It is used to protect internal circuits against voltage sequencing issues. It should be driven high throughout boundary scan operation.

Note: V

has a VBOOT setting of 0.0V and is not included in the PWRGOOD

indication and VSA has a Vboot setting of 0.9V.

Reset: Asserting the RESET_N signal resets the processor to a known state and invalidates its internal caches without writing back any of their contents. Some PLL and error states are not effected by reset and only PWRGOOD forces them to a known state.

Safe Mode Boot: Strap signal. SAFE_MODE_BOOT allows the processor to wake up safely by disabling all clock gating. This allows BIOS to load registers or patches if required. This signal is sampled after PWRGOOD assertion. The signal is pulled down on the die (refer to Table 7-6 for details).

Test: Test[4:0] must be individually connected to an appropriate power source or ground through a resistor for proper processor operation.

Thermal Trip: Assertion of THERMTRIP_N indicates one of two possible critical over-temperature conditions:

• The processor junction temperature has reached a level beyond which permanent silicon damage may occur and

• The system memory interface has exceeded a critical temperature limit set by BIOS.

Measurement of the processor junction temperature is accomplished through multiple internal thermal sensors that are monitored by the Digital Thermal Sensor (DTS). Simultaneously, the Power Control Unit (PCU) monitors external memory temperatures using the dedicated SMBus interface to the DIMMs. If any of the DIMMs exceed the BIOS defined limits, the PCU will signal THERMTRIP_N to prevent damage to the DIMMs. Once activated, the processor will stop all execution and shut down all PLLs.

To further protect the processor, its core voltage (V

supplies must be removed following the assertion of THERMTRIP_N. Once

CCD

activated, THERMTRIP_N remains latched until RESET_N is asserted. While the assertion of the RESET_N signal may de-assert THERMTRIP_N, if the processor's junction temperature remains at or above the trip level, THERMTRIP_N will again be asserted after RESET_N is de-asserted. This signal can also be asserted if the system memory interface has exceeded a critical temperature limit set by BIOS. This signal is sampled after PWRGOOD assertion.

Signal Descriptions

CCD_01

, and V

CCD_23

are stable. VCC has a VBOOT

, V

TTA/VTTD

), V

, V

TTA

TTD

, VSA, V

CCPLL

48 Datasheet

Signal Descriptions

Table 6-12. Processor Asynchronous Sideband Signals (Sheet 3 of 3)

Signal Name Description

Trusted Execution Technology (Intel® TXT) Agent: This is a strap

Intel

TXT_AGENT

signal: 0 = Default. The socket is not the Intel 1 = The socket is the Intel

TXT Agent.

In non-Scalable dual-processor (DP) platforms, the legacy socket (identified by

TXT Agent.

SOCKET_ID[1:0] = 00b) with Intel TXT Agent should always set the TXT_AGENT to 1b.

On Scalable DP platforms the TXT AGENT is at the Node Controller. This signal is pulled down on the die (refer to Table 7-6 for details).

Trusted Execution Technology (Intel® TXT) Platform Enable: This is

Intel

TXT_PLTEN

a strap signal: 0 = The platform is not Intel

Scalable DP (sDP) platforms should choose this setting if the Node Controller does not support Intel TXT.

1 = Default. The platform is Intel TXT enabled. All sockets should be set to one.

TXT enabled. All sockets should be set to zero.

In a non-Scalable DP platform this is the default. When this is set, Intel TXT functionality requires the user to explicitly enable Intel TXT using BIOS setup.

This signal is pulled up on the die (refer to Table 7-6 for details).

Table 6-13. Miscellaneous Signals

Signal Name Description

BCLK Select: These configuration straps are used to inform the processor that a

non-standard value for BCLK will be applied at reset. A "11" encoding on these inputs informs the processor to run at DEFAULT BCLK = 100 MHz. These signals have internal pull-up to V

The encoding is as follows:

BCLK_SELECT[1:0]

BCLK_SELECT1 BCLK_SELECT0 BCLK Selected

X X 100 MHz (default) 1 1 100 MHz 1 0 125 MHz 0 1 Reserved 0 0 Reserved

CORE_VREF_CAP A capacitor must be connected from this land.

CORE_RBIAS This input is used to control bias currents.

CORE_RBIAS_SENSE

PROC_SEL_N

RSVD

This signal provides dedicated bias resistor sensing to minimize the voltage drop caused by packaging and platform effects.

Processor Selected: This output can be used by the platform to determine if the installed processor is an Intel future processor. There is no connection to the processor silicon for this signal. This signal is also used by the V support future processors.

Core™ i7 processor family for LGA2011 socket or a

and VTT rails to switch their output voltage to

CCPLL

RESERVED: All signals that are RSVD must be left unconnected on the board. Refer to Section 7.1.9 for details.

Socket Occupied: SKTOCC_N is used to indicate that a processor is present. This

SKTOCC_N

is pulled to ground on the processor package; there is no connection to the processor silicon for this signal.

TESTHI_BH48 TESTHI_BF48

Test High: TESTHI_XX signal must be pulled up on the board.

TESTHI_AT50

Datasheet 49

6.9 Processor Power and Ground Supplies

Table 6-14. Power and Ground Signals

Signal Name Description

Variable power supply for the processor cores, lowest level caches (LLC), ring interface, and home agent. It is provided by a VRM/EVRD 12.0 compliant regulator

VCC

VCC_SENSE VSS_VCC_SENSE

VSA_SENSE VSS_VSA_SENSE

VTTD_SENSE VSS_VTTD_SENSE

VCCD_01 and VCCD_23

for each processor socket. The output voltage of this supply is selected by the processor, using the serial voltage ID (SVID) bus.

Note: V

VCC_SENSE and VSS_VCC_SENSE provide an isolated, low impedance connection to the processor core power and ground. These signals must be connected to the voltage regulator feedback circuit that insures the output voltage (that is, processor voltage) remains within specification.

VSA_SENSE and VSS_VSA_SENSE provide an isolated, low impedance connection to the processor system agent (VSA) power plane. These signals must be connected to the voltage regulator feedback circuit that insures the output voltage (that is, processor voltage) remains within specification.

VTTD_SENSE and VSS_VTTD_SENSE provide an isolated, low impedance connection to the processor I/O power plane. These signals must be connected to the voltage regulator feedback circuit that insures the output voltage (that is, processor voltage) remains within specification.

Variable power supply for the processor system memory interface. These signals are provided by two VRM/EVRD 12.0 compliant regulators per processor socket. VCCD_01 and VCCD_23 are used for memory channels 0, 1, 2, and 3 respectively. The valid voltage of this supply (1.50V or 1.35V) is configured by BIOS after determining the operating voltages of the installed memory. VCCD_01 and VCCD_23 will also be referred to as VCCD.

has a Vboot setting of 0.0 V and is not included in the PWRGOOD

indication.

Signal Descriptions

Note: The processor must be provided VCCD_01 and VCCD_23 for proper

operation, even in configurations where no memory is populated. A VRM/EVRD 12.0 controller is recommended, but not required.

VCCPLL Fixed power supply (1.7V) for the processor phased lock loop (PLL).

Variable power supply for the processor system agent units. These include logic (non-I/O) for the integrated I/O controller, the integrated memory controller

VSA

VSS Processor ground node.

VTTA VTTD

(IMC), and the Power Control Unit (PCU). The output voltage of this supply is selected by the processor, using the serial voltage ID (SVID) bus.

Note: VSA has a Vboot setting of 0.9V.

Combined fixed analog and digital power supply for I/O sections of the processor, Direct Media Interface Gen 2 (DMI2) interface, and PCI Express* interface. These signals will also be referred to as VTT.

§ §

50 Datasheet

Electrical Specifications

7 Electrical Specifications

This chapter covers the following topics:

• Processor Signaling

• Signal Group Summary

• Power-On Configuration (POC) Options

• Absolute Maximum and Minimum Ratings

• DC Specifications

7.1 Processor Signaling

The processor includes 2011 lands that use various signaling technologies. Signals are grouped by electrical characteristics and buffer type into various signal groups. These include DDR3 (Reference Clock, Command, Control, and Data), PCI Express*, DMI2, Platform Environmental Control Interface (PECI), System Reference Clock, SMBus, JTAG and Test Access Port (TAP), SVID Interface, Processor Asynchronous Sideband, Miscellaneous, and Power/Other signals. Refer to Table 7-5 for details.

7.1.1 System Memory Interface Signal Groups

The system memory interface uses DDR3 technology that consists of numerous signal groups. These include Reference Clocks, Command Signals, Control Signals, and Data Signals. Each group consists of numerous signals that may use various signaling technologies. Refer to Table 7-5 for further details. Throughout this chapter the system memory interface may be referred to as DDR3.

7.1.2 PCI Express* Signals

The PCI Express Signal Group consists of PCI Express* ports 1, 2, and 3, and PCI Express miscellaneous signals. Refer to Table 7-5 for further details.

7.1.3 Direct Media Interface Gen 2 (DMI2) / PCI Express* Signals

The Direct Media Interface Gen 2 (DMI2) sends and receives packets and/or commands to the PCH. The DMI2 is an extension of the standard PCI Express Specification. The DMI2/PCI Express Signals consist of DMI2 receive and transmit input/output signals and a control signal to select DMI2 or PCIe* 2.0 operation for port 0. Refer to Table 7-5 for further details.

Datasheet 51

Electrical Specifications

7.1.4 Platform Environmental Control Interface (PECI)

PECI is an Intel proprietary interface that provides a communication channel between Intel processors and chipset components to external system management logic and thermal monitoring devices. The processor contains a Digital Thermal Sensor (DTS) that reports a relative die temperature as an offset from Thermal Control Circuit (TCC) activation temperature. Temperature sensors located throughout the die are implemented as analog-to-digital converters calibrated at the factory. PECI provides an interface for external devices to read processor temperature, perform processor manageability functions, and manage processor interface tuning and diagnostics. Refer to the Processor Thermal Mechanical Specifications and Design Guidelines (see Related Documents section) for processor specific implementation details for PECI.

The PECI interface operates at a nominal voltage set by V specifications shown in Table 7-14 is used with devices normally operating from a V interface supply.

7.1.4.1 Input Device Hysteresis

The PECI client and host input buffers must use a Schmitt-triggered input design for improved noise immunity. Refer to Figure 7-1 and Table 7-14.

Figure 7-1. Input Device Hysteresis

. The set of DC electrical

TTD

7.1.5 System Reference Clocks (BCLK{0/1}_DP, BCLK{0/1}_DN)

The processor core, processor uncore, PCI Express* and DDR3 memory interface frequencies) are generated from BCLK{0/1}_DP and BCLK{0/1}_DN signals. The processor maximum core frequency and DDR memory frequency are set during manufacturing. It is possible to override the processor core frequency setting using software. This permits operation at lower core frequencies than the factory set maximum core frequency.

The processor core frequency is configured during reset by using values stored within the device during manufacturing. The stored value sets the lowest core multiplier at which the particular processor can operate. If higher speeds are desired, the appropriate ratio can be configured using the IA32_PERF_CTL MSR (MSR 199h); Bits [15:0].

52 Datasheet

Electrical Specifications

Clock multiplying within the processor is provided by the internal phase locked loop (PLL) that requires a constant frequency BCLK{0/1}_DP, BCLK{0/1}_DN input, with exceptions for spread spectrum clocking. DC specifications for the BCLK{0/1}_DP, BCLK{0/1}_DN inputs are provided in Table 7-15.

7.1.5.1 PLL Power Supply

An on-die PLL filter solution is implemented on the processor. Refer to Table 7-10 for DC specifications.

7.1.6 Joint Test Action Group (JTAG) and Test Access Port (TAP) Signals

Due to the voltage levels supported by other components in the JTAG and Test Access Port (TAP) logic, Intel recommends the processor be first in the TAP chain, followed by any other components within the system. A translation buffer should be used to connect to the rest of the chain, unless one of the other components is capable of accepting an input of the appropriate voltage. Two copies of each signal may be required with each driving a different voltage level.

7.1.7 Processor Sideband Signals

The processor includes asynchronous sideband signals that provide asynchronous input, output or I/O signals between the processor and the platform or PHC.Details are in Table 7-5.

All processor asynchronous sideband input signals are required to be asserted/deasserted for a defined number of BCLKs for the processor to recognize the proper signal state.

7.1.8 Power, Ground and Sense Signals

Processors also include various other signals including power/ground and sense points. Details are in Table 7-5.

7.1.8.1 Power and Ground Lands

All VCC, VCCPLL, VSA, VCCD, VTTA, and VTTD lands must be connected to their respective processor power planes, while all VSS lands must be connected to the system ground plane.

For clean on-chip power distribution, processors include lands for all required voltage supplies. The lands are listed in Table 7-1.

Datasheet 53

Table 7-1. Power and Ground Lands

Electrical Specifications

Power and

Ground Lands

CCPLL

CCD_01

CCD_23

TTA

TTD

Number of

Lands

208

14 VTTA lands must be supplied by a fixed 1.0V supply.

19 V

548 Ground

7.1.8.2 Decoupling Guidelines

Due to its large number of transistors and high internal clock speeds, the processor is capable of generating large current swings between low and full power states. This may cause voltages on power planes to sag below their minimum values if bulk decoupling is not adequate. Large electrolytic bulk capacitors (C voltage during current transients; such as transients when coming out of an idle condition. Care must be used in the baseboard design to ensure that the voltages provided to the processor remain within the specifications listed in Table 7-10. Failure to do so can result in timing violations or reduced lifetime of the processor.

Comments

Each VCC land must be supplied with the voltage determined by the SVID Bus signals. Table 7-3 defines the voltage level associated with each core SVID pattern. V

Each VCCPLL land is connected to a 1.70 V supply to power the Phase Lock Loop (PLL) clock generation circuitry. An on-die PLL filter solution is implemented within the processor.

Each VCCD land is connected to a switchable 1.50V and 1.35V supply to provide power to the processor DDR3 interface. These supplies also power the DDR3 memory subsystem. V the SVID Bus. VCCD is the generic term for VCCD_01, VCCD_23.

lands must be supplied by a fixed 1.0V supply.

TTD

Each VSA land must be supplied with the voltage determined by the SVID Bus signals, typically set at 0.940V. VSA has a VBOOT setting of

0.9V.

has a VBOOT setting of 0.0V.

is also controlled by

CCD

) help maintain the output

BULK

7.1.8.3 Voltage Identification (VID)

The reference voltage or the VID setting is set using the SVID communication bus between the processor and the voltage regulator controller chip. The VID settings are the nominal voltages to be delivered to the processor VCC, VSA, VCCD lands. Table 7-3 specifies the reference voltage level corresponding to the VID value transmitted over serial VID. The VID codes will change due to temperature and/or current load changes to minimize the power and to maximize the performance of the part. The specifications are set so that a voltage regulator can operate with all supported frequencies.

Individual processor VID values may be calibrated during manufacturing such that two processor units with the same core frequency may have different default VID settings.

The processor uses voltage identification signals to support automatic selection of V VSA, and V

power supply voltages. If the processor socket is empty (SKTOCC_N

CCD

high), or a “not supported” response is received from the SVID bus, the voltage regulation circuit cannot supply the voltage that is requested; the voltage regulator must disable itself or not power on. The Vout MAX register (30h) is programmed by the processor to set the maximum supported VID code and if the programmed VID code is higher than the VID supported by the VR, the VR will respond with a “not supported” acknowledgement.

54 Datasheet

CC,

Electrical Specifications

7.1.8.3.1 Serial Voltage Identification (SVID) Commands

The processor provides the ability to operate while transitioning to a new VID setting and its associated processor voltage rails (V

CC, VSA

, and V DC shift. It should be noted that a low-to-high or high-to-low voltage state change may result in as many VID transitions as necessary to reach the target voltage. Transitions above the maximum specified VID are not supported. The processor supports the following VR commands:

• SetVID_fast (20mV/μs for VCC, 10mV/μs for VSA/V

• SetVID_slow (5mV/μs for VCC, 2.5mV/μs for VSA/V

• Slew Rate Decay (downward voltage only and it is a function of the output capacitance time constant) commands.

Table 7-3 includes SVID step sizes and DC

shift ranges. Minimum and maximum voltages must be maintained as shown in

Table 7-10.

The VRM or EVRD used must be capable of regulating its output to the value defined by the new VID.

Power source characteristics must be ensured to be stable when the supply to the voltage regulator is stable.

7.1.8.3.2 SetVID Fast Command

). This is represented by a

CCD

), and

CCD

The SetVID-fast command contains the target VID in the payload byte. The range of voltage is defined in the VID table. The VR should ramp to the new VID setting with a fast slew rate as defined in the slew rate data register; typically, 10 to 20 mV/μs depending on platform, voltage rail, and the amount of decoupling capacitance.

The SetVID-fast command is preemptive; the VR interrupts its current processes and moves to the new VID. The SetVID-fast command operates on one VR address at a time. This command is used in the processor for package C6 fast exit and entry.

7.1.8.3.3 SetVID Slow Command

The SetVID-slow command contains the target VID in the payload byte. The range of voltage is defined in the VID table. The VR should ramp to the new VID setting with a “slow” slew rate as defined in the slow slew rate data register. The SetVID_Slow is 1/4 slower than the SetVID_fast slew rate.

The SetVID-slow command is preemptive; that is, the VR interrupts its current processes and moves to the new VID. This is the instruction used for normal P-state voltage change. This command is used in the processor for the Intel Enhanced SpeedStep Technology transitions.

7.1.8.3.4 SetVID Decay Command

The SetVID-Decay command is the slowest of the DVID transitions. It is only used for VID down transitions. The VR does not control the slew rate; the output voltage declines with the output load current only.

The SetVID-Decay command is preemptive; that is, the VR interrupts its current processes and moves to the new VID.

Datasheet 55

7.1.8.3.5 SVID Power State Functions – SetPS

The processor has three power state functions and these states will be set seamlessly with the SVID bus using the SetPS command. Based on the power state command, the SetPS commands send information to the VR controller to configure the VR to improve efficiency, especially at light loads. For example, typical power states are:

• PS(00h): Represents full power or active mode

• PS(01h): Represents a light load 5A to 20A

• PS(02h): Represents a very light load <5A

The VR may change its configuration to meet the processor power needs with greater efficiency. For example, it may reduce the number of active phases, transition from CCM (Continuous Conduction Mode) to DCM (Discontinuous Conduction Mode) mode, reduce the switching frequency or pulse skip, or change to asynchronous regulation. For example, typical power states are 00h = run in normal mode; a command of 01h= shed phases mode, and an 02h=pulse skip.

The VR may reduce the number of active phases from PS(00h) to PS(01h) or PS(00h) to PS(02h) for example. There are multiple VR design schemes that can be used to maintain a greater efficiency in these different power states; work with your VR controller suppliers for optimizations.

Electrical Specifications

The SetPS command sends a byte that is encoded as to what power state the VR should transition to.

If a power state is not supported by the controller, the slave should acknowledge with command rejected (11b).

If the VR is in a low-power state and receives a SetVID command moving the VID up, the VR exits the low-power state to normal mode (PS0) to move the voltage up as fast as possible. The processor must re-issue the low-power state (PS1 or PS2) command if it is in a low-current condition at the new higher voltage. See Figure 7-2 for VR power state transitions.

Figure 7-2. Voltage Regulator (VR) Power-State Transitions

56 Datasheet

Electrical Specifications

7.1.8.3.6 SVID Voltage Rail Addressing

The processor addresses four different voltage rail control segments within VR12 (VCC, V

CCD_01

, V

, and VSA). The SVID data packet contains a 4-bit addressing code.

CCD_23

Table 7-2. Serial Voltage Identification (SVID) Address Usage

PWM Address (Hex) Processor

00 V

01 V

02 V

03 +1 not used

04 V

05 +1 not used

Notes:

1. Check with VR vendors for determining the physical address assignment method for their controllers.

2. VR addressing is assigned on a per voltage rail basis.

3. Dual VR controllers will have two addresses with the lowest order address, always being the higher phase count.

4. For future platform flexibility, the VR controller should include an address offset, as shown with +1 not used.

CCD_01

CCD_23

Table 7-3. VR12.0 Reference Code Voltage Identification (VID) Table (Sheet 1 of 2)

Hex

CC, VSA

CCD

Hex

00 0.00000 55 0.67000 78 0.84500 9B 1.02000 BE 1.19500 E1 1.37000

33 0.50000 56 0.67500 79 0.85000 9C 1.02500 BF 1.20000 E2 1.37500

34 0.50500 57 0.68000 7A 0.85500 9D 1.03000 C0 1.20500 E3 1.38000

35 0.51000 58 0.68500 7B 0.86000 9E 1.03500 C1 1.21000 E4 1.38500

36 0.51500 59 0.69000 7C 0.86500 9F 1.04000 C2 1.21500 E5 1.39000

37 0.52000 5A 0.69500 7D 0.87000 A0 1.04500 C3 1.22000 E6 1.39500

38 0.52500 5B 0.70000 7E 0.87500 A1 1.05000 C4 1.22500 E7 1.40000

39 0.53000 5C 0.70500 7F 0.88000 A2 1.05500 C5 1.23000 E8 1.40500

3A 0.53500 5D 0.71000 80 0.88500 A3 1.06000 C6 1.23500 E9 1.41000

3B 0.54000 5E 0.71500 81 0.89000 A4 1.06500 C7 1.24000 EA 1.41500

3C 0.54500 5F 0.72000 82 0.89500 A5 1.07000 C8 1.24500 EB 1.42000

3D 0.55000 60 0.72500 83 0.90000 A6 1.07500 C9 1.25000 EC 1.42500

3E 0.55500 61 0.73000 84 0.90500 A7 1.08000 CA 1.25500 ED 1.43000

3F 0.56000 62 0.73500 85 0.91000 A8 1.08500 CB 1.26000 EE 1.43500

40 0.56500 63 0.74000 86 0.91500 A9 1.09000 CC 1.26500 EF 1.44000

41 0.57000 64 0.74500 87 0.92000 AA 1.09500 CD 1.27000 F0 1.44500

42 0.57500 65 0.75000 88 0.92500 AB 1.10000 CE 1.27500 F1 1.45000

43 0.58000 66 0.75500 89 0.93000 AC 1.10500 CF 1.28000 F2 1.45500

44 0.58500 67 0.76000 8A 0.93500 AD 1.11000 D0 1.28500 F3 1.46000

45 0.59000 68 0.76500 8B 0.94000 AE 1.11500 D1 1.29000 F4 1.46500

46 0.59500 69 0.77000 8C 0.94500 AF 1.12000 D2 1.29500 F5 1.47000

47 0.60000 6A 0.77500 8D 0.95000 B0 1.12500 D3 1.30000 F6 1.47500

48 0.60500 6B 0.78000 8E 0.95500 B1 1.13000 D4 1.30500 F7 1.48000

49 0.61000 6C 0.78500 8F 0.96000 B2 1.13500 D5 1.31000 F8 1.48500

4A 0.61500 6D 0.79000 90 0.96500 B3 1.14000 D6 1.31500 F9 1.49000

4B 0.62000 6E 0.79500 91 0.97000 B4 1.14500 D7 1.32000 FA 1.49500

4C 0.62500 6F 0.80000 92 0.97500 B5 1.15000 D8 1.32500 FB 1.50000

CC, VSA

CCD

Hex

CC, VSA

CCD

Hex

CC, VSA

CCD

Hex

CC, VSA

CCD

Hex

CC, VSA

CCD

Datasheet 57

Electrical Specifications

Table 7-3. VR12.0 Reference Code Voltage Identification (VID) Table (Sheet 2 of 2)

Hex

4D 0.63000 70 0.80500 93 0.98000 B6 1.15500 D9 1.33000 FC 1.50500

4E 0.63500 71 0.81000 94 0.98500 B7 1.16000 DA 1.33500 FD 1.51000

4F 0.64000 72 0.81500 95 0.99000 B8 1.16500 DB 1.34000 FE 1.51500

50 0.64500 73 0.82000 96 0.99500 B9 1.17000 DC 1.34500 FF 1.52000

51 0.65000 74 0.82500 97 1.00000 BA 1.17500 DD 1.35000

52 0.65500 75 0.83000 98 1.00500 BB 1.18000 DE 1.35500

53 0.66000 76 0.83500 99 1.01000 BC 1.18500 DF 1.36000

54 0.66500 77 0.84000 9A 1.01500 BD 1.19000 E0 1.36500

Notes:

1. 00h = Off State

2. VID Range HEX 01-32 are not used by the processor.

3. For VID Ranges supported, see Table 7-10.

4. V

CCD

CC, VSA

CCD

is a fixed voltage of 1.35V or 1.5V.

Hex

CC, VSA

CCD

Hex

CC, VSA

CCD

Hex

CC, VSA

CCD

Hex

CC, VSA

CCD

Hex

CC, VSA

7.1.9 Reserved or Unused Signals

All Reserved (RSVD) signals must not be connected. Connection of these signals to VCC, V

, V

TTD

, V

CCD, VCCPLL

TTA

component malfunction or incompatibility with future processors. See Chapter 8 for a land listing of the processor and the location of all Reserved (RSVD) signals.

, VSS, or to any other signal (including each other) can result in

CCD

For reliable operation, always connect unused inputs or bi-directional signals to an appropriate signal level. Unused active high inputs should be connected through a resistor to ground (V

). Unused outputs may be left unconnected; however, this may

interfere with some Test Access Port (TAP) functions, complicate debug probing, and prevent boundary scan testing. A resistor must be used when tying bi-directional signals to power or ground. When tying any signal to power or ground, a resistor will also allow for system testability.

7.2 Signal Group Summary

Signals are grouped by buffer type and similar characteristics as listed in Table 7-5. The buffer type indicates which signaling technology and specifications apply to the signals.

Table 7-4. Signal Description Buffer Types

Signal Description

Analog Analog reference or output. May be used as a threshold voltage or for buffer

Asynchronous Signal has no timing relationship with any system reference clock.

CMOS CMOS buffers: 1.0V or 1.5V tolerant

DDR3 DDR3 buffers: 1.5V and 1.35V tolerant

DMI2 Direct Media Interface Gen 2 signals. These signals are compatible with PCI Express*

Open Drain CMOS Open Drain CMOS (ODCMOS) buffers: 1.0V tolerant

PCI Express* PCI Express* interface signals. These signals are compatible with PCI Express 3.0

Reference Voltage reference signal.

SSTL Source Series Terminated Logic (JEDEC SSTL_15)

compensation

2.0 and 1.0 Signaling Environment AC Specifications.

Signalling Environment AC Specifications and are AC coupled. The buffers are not

3.3-V tolerant. Refer to the PCI Express specification.

Note:

1. Qualifier for a buffer type.

58 Datasheet

Electrical Specifications

Table 7-5. Signal Groups (Sheet 1 of 3)

Differential / Single Ended

DDR3 Reference Clocks

Buffer Type Signals

Differential SSTL Output DDR{0/1/2/3}_CLK_D[N/P][3:0]

DDR3 Command Signals

DDR{0/1/2/3}_BA[2:0] DDR{0/1/2/3}_CAS_N DDR{0/1/2/3}_MA[15:00] DDR{0/1/2/3}_MA_PAR

Single ended

SSTL Output

DDR{0/1/2/3}_RAS_N DDR{0/1/2/3}_WE_N

CMOS1.5v Output DDR_RESET_C{01/23}_N

DDR3 Control Signals

DDR{0/1/2/3}_CS_N[9:0]

CMOS1.5v Output

DDR{0/1/2/3}_ODT[5:0] DDR{0/1/2/3}_CKE[5:0]

Single ended

DDR3 Data Signals

Reference Output DDR_VREFDQTX_C{01/23}

Reference Input

DDR_VREFDQRX_C{01/23} DDR{01/23}_RCOMP[2:0]

Differential SSTL Input/Output DDR{0/1/2/3}_DQS_D[N/P][17:00]

Single ended

DDR3 Miscellaneous Signals

SSTL Input/Output DDR{0/1/2/3}_DQ[63:00]

SSTL Input DDR{0/1/2/3}_PAR_ERR_N

Single ended CMOS1.5v Input DRAM_PWR_OK_C{01/23}

PCI Express* Port 1, 2, and 3 Signals

PE1A_RX_D[N/P][3:0] PE1B_RX_D[N/P][7:4] PE2A_RX_D[N/P][3:0] PE2B_RX_D[N/P][7:4]

Differential PCI Express* Input

PE2C_RX_D[N/P][11:8] PE2D_RX_D[N/P][15:12] PE3A_RX_D[N/P][3:0] PE3B_RX_D[N/P][7:4] PE3C_RX_D[N/P][11:8] PE3D_RX_D[N/P][15:12]

PE1A_TX_D[N/P][3:0] PE1B_TX_D[N/P][7:4] PE2A_TX_D[N/P][3:0] PE2B_TX_D[N/P][7:4]

Differential PCI Express* Output

PE2C_TX_D[N/P][11:8] PE2D_TX_D[N/P][15:12] PE3A_TX_D[N/P][3:0] PE3B_TX_D[N/P][7:4] PE3C_TX_D[N/P][11:8] PE3D_TX_D[N/P][15:12]

Datasheet 59

Table 7-5. Signal Groups (Sheet 2 of 3)

Electrical Specifications

Differential / Single Ended

PCI Express* Miscellaneous Signals

Single ended

DMI2/PCI Express* Signals

Differential

Platform Environmental Control Interface (PECI)

Single ended PECI PECI

System Reference Clock (BCLK{0/1})

Differential CMOS1.0v Input BCLK{0/1}_D[N/P]

SMBus

Single ended

JTAG and TAP Signals

Single ended

Serial VID Interface (SVID) Signals

Single ended

Processor Asynchronous Sideband Signals

Single ended

Miscellaneous Signals

N/A Output

Buffer Type Signals

Analog Input PE_RBIAS_SENSE

Reference Input/Output

DMI2 Input DMI_RX_D[N/P][3:0]

DMI2 Output DMI_TX_D[N/P][3:0]

Open Drain CMOS Input/Output

CMOS1.0v Input TCK, TDI, TMS, TRST_N

CMOS1.0v Input/Output PREQ_N

CMOS1.0v Output PRDY_N

Open Drain CMOS Input/Output

Open Drain CMOS Output TDO

CMOS1.0v Input SVIDALERT_N

Open Drain CMOS Input/Output

Open Drain CMOS Output SVIDCLK

CMOS1.0v Input

Open Drain CMOS Input/Output

Open Drain CMOS Output

PE_RBIAS PE_VREF_CAP

DDR_SCL_C{01/23} DDR_SDA_C{01/23} PEHPSCL PEHPSDA

BPM_N[7:0] EAR_N

SVIDDATA

BIST_ENABLE PWRGOOD PMSYNC RESET_N SAFE_MODE_BOOT TXT_AGENT TXT_PLTEN

CAT_ERR_N MEM_HOT_C{01/23}_N PROCHOT_N

ERROR_N[2:0] THERMTRIP_N

IVT_ID_N SKTOCC_N

60 Datasheet

Electrical Specifications

Table 7-5. Signal Groups (Sheet 3 of 3)

Table 7-6. Signals with On-Die Termination

Differential / Single Ended

Power/Other Signals

Notes:

1. Refer to Chapter 6 for signal description details.

2. DDR{0/1/2/3} refers to DDR3 Channel 0, DDR3 Channel 1, DDR3 Channel 2 and DDR3 Channel 3.

Signal Name

DDR{0/1}_PAR_ERR_N Pull-Up VCCD_01 65 

DDR{2/3}_PAR_ERR_N Pul-Up VCCD_23 65 

TXT_AGENT Pull-Down VSS 2K 

SAFE_MODE_BOOT Pull-Down VSS 2K 

BIST_ENABLE Pul-Up VTT 2K 

TXT_PLTEN Pul-Up VTT 2K 

EAR_N Pull-Up VTT 2K  1

Buffer Type Signals

Power / Ground V

Sense Points

Pull-Up /

Pull-Down

, V

TTA, VTTD, VCCD_01, VCCD_23,VCCPLL, VSA and VSS

VCC_SENSE VSS_VCC_SENSE VSS_VTTD_SENSE VTTD_SENSE VSA_SENSE VSS_VSA_SENSE

Rail Value Units Notes

Notes:

1. Refer to Table 7-17 for details on the R

(Buffer on Resistance) value for this signal.

7.3 Power-On Configuration (POC) Options

Several configuration options can be configured by hardware. The processor samples its hardware configuration at reset, on the active-to-inactive transition of RESET_N, or upon assertion of PWRGOOD (inactive-to-active transition). For specifics on these options, refer to Table 7-7.

The sampled information configures the processor for subsequent operation. These configuration options cannot be changed, except by another reset transition of the latching signal (RESET_N or PWRGOOD).

Table 7-7. Power-On Configuration Option Lands

Configuration Option Land Name Notes

Output tri state PROCHOT_N 1

Execute BIST (Built-In Self Test) BIST_ENABLE 2

Enable Intel

Power-up Sequence Halt for ITP configuration EAR_N 3

Enable Intel Trusted Execution Technology (Intel TXT) Agent TXT_AGENT 3

Enable Safe Mode Boot SAFE_MODE_BOOT 3

Notes:

1. Output tri-state option enables Fault Resilient Booting (FRB). The RESET_N signal is used to latch

2. BIST_ENABLE is sampled at RESET_N de-assertion (on the falling edge).

3. This signal is sampled after PWRGOOD assertion.

Trusted Execution Technology (Intel® TXT) Platform TXT_PLTEN 3

PROCHOT_N for enabling FRB mode.

Datasheet 61

Electrical Specifications

7.4 Absolute Maximum and Minimum Ratings

Table 7-8 specifies absolute maximum and minimum ratings. At conditions outside

functional operation condition limits, but within absolute maximum and minimum ratings, neither functionality nor long-term reliability can be expected. If a device is returned to conditions within functional operation limits after having been subjected to conditions outside these limits, but within the absolute maximum and minimum ratings, the device may be functional; however, with its lifetime degraded depending on exposure to conditions exceeding the functional operation condition limits.

Although the processor contains protective circuitry to resist damage from ElectroStatic Discharge (ESD), precautions should always be taken to avoid high static voltages or electric fields.

Table 7-8. Processor Absolute Minimum and Maximum Ratings

Symbol Parameter Min Max Unit Notes

V V

CCPLL

CCD

TTA

TTD

Processor core voltage with respect to V

Processor PLL voltage with respect to V

Processor I/O supply voltage for DDR3 (standard voltage) with respect to V

Processor I/O supply voltage for DDR3L (low Voltage) with respect to V

Processor SA voltage with respect to V

Processor analog I/O voltage with respect to V

-0.3 1.4 V

-0.3 2.0 V

-0.3 1.85 V

-0.3 1.7 V

-0.3 1.4 V

1,2

Notes:

1. For functional operation, all processor electrical, signal quality, mechanical, and thermal specifications must be satisfied.

2. Excessive overshoot or undershoot on any signal will likely result in permanent damage to the processor.

7.4.1 Storage Conditions Specifications

Environmental storage condition limits define the temperature and relative humidity limits to which the device is exposed to while being stored in a Moisture Barrier Bag. The specified storage conditions are for component level prior to board attach (see notes in Table 7-9 for post board attach limits).

Table 7-9 specifies absolute maximum and minimum storage temperature limits that

represent the maximum or minimum device condition beyond which damage, latent or otherwise, may occur. The table also specifies sustained storage temperature, relative humidity, and time-duration limits. These limits specify the maximum or minimum device storage conditions for a sustained period of time. At conditions outside sustained limits, but within absolute maximum and minimum ratings, quality and reliability may be affected.

Table 7-9. Storage Condition Ratings (Sheet 1 of 2)

Symbol Parameter Min Max Unit

absolute storage

sustained storage

The minimum/maximum device storage temperature beyond which damage (latent or otherwise) may occur when subjected to for any length of time.

The minimum/maximum device storage temperature for a sustained period of time.

-25 125 °C

-5 40 °C

62 Datasheet

Electrical Specifications

Table 7-9. Storage Condition Ratings (Sheet 2 of 2)

Symbol Parameter Min Max Unit

short term storage

sustained storage

Time

sustained storage

Time

short term storage

Notes:

1. Storage conditions are applicable to storage environments only. In this scenario, the processor must not receive a clock, and no lands can be connected to a voltage bias. Storage within these limits will not affect the long-term reliability of the device. For functional operation, refer to the processor case temperature specifications in the appropriate processor Thermal Mechanical Specifications and Design Guide (see Related Documents section).

2. These ratings apply to the Intel component and do not include the tray or packaging.

3. Failure to adhere to this specification can affect the long-term reliability of the processor.

4. Non-operating storage limits post board attach: Storage condition limits for the component once attached to the application board are not specified. Intel does not conduct component level certification assessments post board attach given the multitude of attach methods, socket types and board types used by customers. Provided as general guidance only, Intel board products are specified and certified to meet the following temperature and humidity limits (Non-Operating Temperature Limit: -40 °C to 70 °C and Humidity: 50% to 90%, non condensing with a maximum wet bulb of 28 °C).

5. Device storage temperature qualification methods follow JEDEC* High and Low Temperature Storage Life Standards: JESD22-A119 (low temperature) and JESD22-A103 (high temperature).

The ambient storage temperature (in shipping media) for a short period of time.

The maximum device storage relative humidity for a sustained period of time.

A prolonged or extended period of time; typically associated with sustained storage conditions Unopened bag, includes 6 months storage time by customer.

A short period of time (in shipping media).

-20 85 °C

60% @ 24 °C

0 30 months

0 72 hours

7.5 DC Specifications

DC specifications are defined at the processor pads, unless otherwise noted.

DC specifications are only valid while meeting specifications for case temperature, clock frequency, and input voltages. Care should be taken to read all notes associated with each specification. For case temperature specifications, refer to the appropriate processor Thermal Mechanical Specifications and Design Guide (see Related Documents section).

7.5.1 Voltage and Current Specifications

Table 7-10. Voltage Specifications (Sheet 1 of 2)

Symbol Parameter

VID Range

VCC VID

Retention

VID

VCCTOB

VCCRipple

VID_STEP

(Vcc, Vsa, Vccd)

CCPLL

Retention Voltage VID in package C3 and C6 states

Loadline Slope

Tolerance Band

Ripple

VID step size during a transition

PLL Voltage

Voltage

Plane

— 0.6 — 1.35 V 2, 3

— — 0.65 — V 2, 3

Vcc 5 mV

— — 5.0 — mV 10

CCPLL

Min Typ Max Unit Notes

0.8 m

15 mV

0.955*V

CCPLL_TYP

1.7 1.045*V

CCPLL_TYP

3, 4, 7, 8,

11, 13, 18

3, 4, 7, 8,

11, 13, 18

3, 4, 7, 8,

11, 13, 18

11, 12, 13,

Datasheet 63

Table 7-10. Voltage Specifications (Sheet 2 of 2)

Electrical Specifications

Symbol Parameter

CCD

CCD_01,

(

CCD_23)

TT (VTTA,

VTTD)

SA_VID

I/O Voltage for DDR3 (Standard Voltage)

Uncore Voltage

Vsa VID Range

System Agent Voltage

Voltage

Plane

CCD

Min Typ Max Unit Notes

0.95*V

0.957*V

1.5 1.05*V

CCD_TYP

TT_TYP

1.00 1.043*V

CCD_TYP

TT_TYP

0.6 0.940 1.25 V 2, 3, 14, 15

- 0.057 V

SA_VID

+ 0.057 V

11, 13, 14,

16, 17

3, 5, 9, 12,

3, 6, 12,

14, 19

Notes:

1. Unless otherwise noted, all specifications in this table apply to all processors. These specifications are based on pre-silicon characterization.

2. Individual processor VID values may be calibrated during manufacturing such that two devices at the same speed may have different settings.

3. These voltages are targets only. A variable voltage source should exist on systems in the event that a different voltage is required.

4. The V

voltage specification requirements are measured across the remote sense pin pairs (VCC_SENSE and

VSS_VCC_SENSE) on the processor package. Voltage measurement should be taken with a DC to 100 MHz bandwidth oscilloscope limit (or DC to 20 MHz for older model oscilloscopes), using a 1.5 pF maximum probe capacitance, and 1 M minimum impedance. The maximum length of the ground wire on the probe should be less than 5 mm to ensure external noise from the system is not coupled in the scope probe.

5. The V VSS_VTTD_SENSE) on the processor package. Voltage measurement should be taken with a DC to 100 MHz bandwidth

TTA,

and V

voltage specification requirements are measured across the remote sense pin pairs (VTTD_SENSE and

TTD

oscilloscope limit (or DC to 20MHz for older model oscilloscopes), using a 1.5 pF maximum probe capacitance, and 1 M minimum impedance. The maximum length of the ground wire on the probe should be less than 5 mm to ensure external noise from the system is not coupled in the scope probe.

6. The V VSS_VSA_SENSE) on the processor package. Voltage measurement should be taken with a DC to 100 MHz bandwidth

voltage specification requirements are measured across the remote sense pin pairs (VSA_SENSE and

oscilloscope limit (or DC to 20 MHz for older model oscilloscopes), using a 1.5 pF maximum probe capacitance, and 1 M minimum impedance. The maximum length of the ground wire on the probe should be less than 5 mm to ensure external noise from the system is not coupled in the scope probe.

7. The processor should not be subjected to any static V Failure to adhere to this specification can shorten processor lifetime.

8. Minimum V relative V

9. The processor should not be subjected to any static V current. Failure to adhere to this specification can shorten processor lifetime.

10. This specification represents the V

11. Baseboard bandwidth is limited to 20 MHz.

and maximum ICC are specified at the maximum processor case temperature (T

point on the VCC load line. The processor is capable of drawing I

CC_MAX

reduction or VCC increase due to each VID transition, see Section 7.1.8.3.

level that exceeds the V

TTA, VTTD

associated with any particular current.

CC_MAX

CASE

for up to 5 seconds.

CC_MAX

TT_MAX

). I

associated with any particular

is specified at the

CC_MAX

12. N/A

13. DC + AC + Ripple = Total Tolerance

14. For Power State Functions see Section 7.1.8.3.5.

15. V

16. V

17. The V

does not have a loadline, the output voltage is expected to be the VID value.

SA_VID

tolerance at processor pins. Tolerance for VR at remote sense is ±3.3%*V

CCD

CCD01

for older model oscilloscopes), using 1.5 pF maximum probe capacitance, and 1M  minimum impedance. The maximum

CCPLL

, or V

, V

CCD01

vias close to the socket and measure with a DC to 100MHz bandwidth oscilloscope limit (or DC to 20 MHz

CCD23

voltage specification requirements are measured across vias on the platform. Choose V

CCD23

CCD

CCPLL

length of the ground wire on the probe should be less than 5 mm to ensure external noise from the system is not coupled in the scope probe.

18. V

19. V

has a Vboot setting of 0.0V and is not included in the PWRGOOD indication.

has a Vboot setting of 0.9V.

64 Datasheet

Electrical Specifications

Table 7-11. Current Specifications

Parameter Symbol and Definition

Core Supply, Processor Current on V

I/O Termination Supply, Processor Current on V

TTA/VTTD

System Agent Supply, Processor Current on V

CCD_01

DDR3 Supply, Processor Current V

CCD_23

DDR3 Supply, Processor Current V

CCPLL

PLL Supply, Processor Current on V

CCD_01_23, ICCD_23_23

on V

CCD_01/VCCD_23

State

DDR3 Supply, Current

in System S3 Standby

CCD_01

CCD_23

CCPLL

Processor TDP / Core

Count

TDC (A) Max (A) Notes

130W 6-core, 4-core 135 165 4, 5

130W 6-core, 4-core 20 24 4, 5

130W 6-core, 4-core 3 4 4, 5

130W 6-core, 4-core 2 2 4, 5

130W 6-core, 4-core — 0.5 4

Notes:

1. Unless otherwise noted, all specifications in this table apply to all processors. These specifications are based on final silicon characterization.

2. I

3. Specification is at T

4. I

5. Minimum V

(Thermal Design Current) is the sustained (DC equivalent) current that the processor is capable of drawing

CC_TDC

indefinitely and should be used for the voltage regulator thermal assessment. The voltage regulator is responsible for monitoring its temperature and asserting the necessary signal to inform the processor of a thermal excursion.

CCD_01_MAX

the memory devices. Memory Standby Current is characterized by design and not tested.

relative V

Figure 7-3 for further details on the average processor current draw over various time durations.

and I

and maximum ICC are specified at the maximum processor case temperature (T

CC_MAX

= 50 C. Characterized by design (not tested).

CASE

CCD_23_MAX

refers only to the processor current draw and does not account for the current consumption by

point on the VCC load line. The processor is capable of drawing I

). I

CASE

for up to 5 seconds. Refer to

CC_MAX

is specified at the

Datasheet 65

Electrical Specifications

7.5.2 Die Voltage Validation

Core voltage (VCC) overshoot events at the processor must meet the specifications in

Table 7-12 when measured across the VCC_SENSE and VSS_VCC_SENSE lands.

Overshoot events that are < 10 ns in duration may be ignored. These measurements of processor die level overshoot should be taken with a 100 MHz bandwidth limited oscilloscope.

7.5.2.1 VCC Overshoot Specifications

The processor can tolerate short transient overshoot events where VCC exceeds the VID voltage when transitioning from a high-to-low current load condition. This overshoot cannot exceed VID + V

OS_MAX

VID). These specifications apply to the processor die voltage as measured across the VCC_SENSE and VSS_VCC_SENSE lands.

Table 7-12. VCC Overshoot Specifications

Symbol Parameter Min Max Units Figure Notes

OS_MAX

Magnitude of VCC overshoot above VID — 65 mV 7-3 —

Time duration of VCC overshoot above VccMAX value at the new lighter load

OS_MAX

is the maximum allowable overshoot above

—25ms 7-3 —

Figure 7-3. VCC Overshoot Example Waveform

Notes:

1. V

2. T

3. Istep: Load Release Current Step, for example, I2 to I1, where I2 > I1.

4. VccMAX(I1) = VID - I1*RLL + 15mV

is the measured overshoot voltage.

OS_MAX

is the measured time duration above VccMAX(I1).

OS_MAX

66 Datasheet

Electrical Specifications

7.5.3 Signal DC Specifications

DC specifications are defined at the processor pads, unless otherwise noted.

DC specifications are only valid while meeting specifications for case temperature, clock frequency, and input voltages. Care should be taken to read all notes associated with each specification.

Table 7-13. DDR3 and DDR3L Signal DC Specifications (Sheet 1 of 2)

Symbol Parameter Min Typ Max Units Notes

Data Signals

Data ODT

PAR_ERR_N ODT

Reference Clock Signals, Command, and Data Signals

Reference Clock Signal

Command Signals

OL_CMOS1.5v

OH_CMOS1.5v

IL_CMOS1.5v

Control Signals

DDR01_RCOMP[0] COMP Resistance 128.7 130 131.3  9, 12

DDR01_RCOMP[1] COMP Resistance 25.839 26.1 26.361  9, 12

DDR01_RCOMP[2] COMP Resistance 198 200 202  9, 12

DDR23_RCOMP[0] COMP Resistance 128.7 130 131.3  9, 12

DDR23_RCOMP[1] COMP Resistance 25.839 26.1 26.361  9, 12

DDR23_RCOMP[2] COMP Resistance 198 200 202  9, 12

Input Leakage Current -1.4 — +1.4 mA 10

Input Low Voltage — — 0.43*V

Input High Voltage 0.57*V

DDR3 Data Buffer On Resistance

On-Die Termination for Data Signals

On-Die Termination for Parity Error Signals

Output Low Voltage

Output High Voltage

DDR3 Clock Buffer On Resistance

DDR3 Command Buffer On Resistance

DDR3 Reset Buffer On Resistance

Output Low Voltage, Signals DDR_RESET_ C{01/23}_N

21 — 31  6

45 90

59 — 72 

—

21 — 31  6

16 — 24  6

25 — 75  6

— — 0.2*V

CCD

(RON/(RON+R

— — V 2, 4, 5

110

— V 2, 7

— V 2, 5, 7

CCD

/(RON+R

CCD –

—

/ 2)* (R

VTT_TERM

((V

CCD

VTT_TERM

))

/ 2)*

))

CCD

V 2, 3

 8

V 1, 2

Output High Voltage, Signals

DDR_RESET_ C{01/23}_N

0.9*V

CCD

— — V 1, 2

Input Leakage Current -100 — +100 A 1, 2

DDR3 Control Buffer On Resistance

21 — 31  6

Datasheet 67

Electrical Specifications

Table 7-13. DDR3 and DDR3L Signal DC Specifications (Sheet 2 of 2)

Symbol Parameter Min Typ Max Units Notes

DDR3 Miscellaneous Signals

Notes:

1. Unless otherwise noted, all specifications in this table apply to all processor frequencies.

2. The voltage rail V processor.

is the maximum voltage level at a receiving agent that will be interpreted as a logical low value.

3. V

is the minimum voltage level at a receiving agent that will be interpreted as a logical high value.

4. V

and VOH may experience excursions above V

5. V

specifications.

6. This is the pull down driver resistance. Reset drive does not have a termination.

7. R

VTT_TERM

8. The minimum and maximum values for these signals are programmable by BIOS to one of the pairs.

9. COMP resistance must be provided on the system board with 1% resistors. DDR01_RCOMP[2:0] and DDR23_RCOMP[2:0] resistors are terminated to V

10. Input leakage current is specified for all DDR3 signals.

Input Low Voltage DRAM_PWR_OK_C{01/23}

Input High Voltage DRAM_PWR_OK_C{01/23}

which will be set to 1.50V or 1.35V nominal depending on the voltage of all DIMMs connected to the

CCD

is the termination on the DIMM and not controlled by the processor. Refer to the applicable DIMM datasheet.

——

0.55*V

CCD

+ 0.3

CCD

——V

. However, input signal drivers must comply with the signal quality

0.55*V

11. DRAM_PWR_OK_C{01/23} must have a maximum of 30 ns rise or fall time over VCCD * 0.55 +300mV and -200mV and the edge must be monotonic.

12. The DDR01/23_RCOMP error tolerance is ±15% from the compensated value.

13. DRAM_PWR_OK_C{01/23}: Data Scrambling must be enabled for production environments. Disabling Data scrambling can be used for debug and testing purposes only. Running systems with Data Scrambling off will make the configuration out of specification. For details, refer to the processor Datasheet, Volume 2 of 2; see Related Documents section.

0.2

CCD

2, 3,

11, 13

2, 4, 5,

11, 13

Table 7-14. PECI DC Specifications

Symbol Definition and Conditions Min Max Units Figure Notes

Hysteresis

SOURCE

Leak+

Bus

Noise

Notes:

1. V

2. It is expected that the PECI driver will take into account the variance in the receiver input thresholds and be able to drive its output within safe limits (-0.150V to 0.275*V

3. The leakage specification applies to powered devices on the PECI bus.

Input Voltage Range -0.150 V

Hysteresis 0.100 * V

Negative-edge threshold voltage 0.275 * V

Positive-edge threshold voltage 0.550 * V

High level output source

= 0.75 * V

High impedance state leakage to V

)

leak

TTD

0.500 * V

0.725 * V

-6.0 — mA — —

50 200 μA— 3

—V——

V— —

V 7-1 2

Buffer On Resistance 20 36  —

Bus capacitance per node N/A 10 pF — 4, 5

Signal noise immunity above 300 MHz 0.100 * V

Output Edge Rate (50 ohm to VSS, between VIL

)

and V

supplies the PECI interface. PECI behavior does not affect V

TTD

for the low level and 0.725*V

TTD

1.5 4 V/ns — —

minimum/maximum specification

TTD

to V

N/A V

+0.150V for the high level).

TTD

p-p

——

4. One node is counted for each client and one node for the system host. Extended trace lengths might appear as additional nodes.

5. Excessive capacitive loading on the PECI line may slow down the signal rise/fall times and consequently limit the maximum bit rate at which the interface can operate.

68 Datasheet

Electrical Specifications

Table 7-15. System Reference Clock (BCLK{0/1}) DC Specifications

Symbol Parameter Signal Min Max

BCLK_diff_ih

BCLK_diff_il

cross

(rel)

cross

V

cross

pad

Differential Input High Voltage Differential 0.150 N/A V —

Differential Input Low Voltage Differential — -0.150 V —

(abs) Absolute Crossing Point Single Ended 0.250 0.550 V 2, 4, 7

Relative Crossing Point

Single Ended

0.250 +

0.5*(VH

0.700)

avg

–

0.550 +

0.5*(VH

0.700)

avg

Range of Crossing Points Single Ended N/A 0.140 V 6

Threshold Voltage Single Ended Vcross - 0.1 Vcross + 0.1 V — —

Input Leakage Current N/A — 1.50 A— 8

Pad Capacitance N/A 0.9 1.2 pF — —

Notes:

1. Unless otherwise noted, all specifications in this table apply to all processor frequencies. These specifications are specified at the processor pad.

2. Crossing Voltage is defined as the instantaneous voltage value when the rising edge of BCLK{0/1}_DN is equal to the falling edge of BCLK{0/1}_DP.

3. V

4. The crossing point must meet the absolute and relative crossing point specifications simultaneously.

5. V

6. V

7. The rising edge of BCLK{0/1}_DN is equal to the falling edge of BCLK{0/1}_DP.

8. For Vin between 0 and V

is the statistical average of the VH measured by the oscilloscope.

Havg

can be measured directly using “Vtop” on Agilent* and “High” on Tektronix oscilloscopes.

Havg

is defined as the total variation of all crossing voltages as defined in Note 3.

CROSS

Unit Figure Notes

–

V 3, 4, 5

Table 7-16. SMBus DC Specifications

Symbol Parameter Min Max Units Notes

Hysteresis

Input Low Voltage — 0.3*V

Input High Voltage 0.7*VTT — V

Hysteresis 0.1*VTT — V

Output Low Voltage — 0.2*V

Buffer On Resistance 4 14 

Leakage Current 50 200 A

Output Edge Rate (50 ohm to VTT, between VIL and VIH) 0.05 0.6 V/ns

Datasheet 69

Electrical Specifications

Table 7-17. Joint Test Action Group (JTAG) and Test Access Point (TAP) Signals DC

Specifications

Symbol Parameter Min Max Units Notes

Hysteresis

Input Low Voltage — 0.3*V

Input High Voltage 0.7*V

Input Low Voltage: PREQ_N — 0.4*V

Input High Voltage: PREQ_N 0.8*V

Output Low Voltage — 0.2*V

Hysteresis 0.1*V

Buffer On Resistance BPM_N[7:0], PRDY_N, TDO

414

—V

Input Leakage Current 50 200 A

Input Edge Rate Signals: BPM_N[7:0], EAR_N, PREQ_N, TCK, TDI,

0.05 — V/ns 1, 2

TMS, TRST_N

Output Edge Rate (50 ohm to V Signal: BPM_N[7:0], PRDY_N, TDO

Note:

1. These signals are measured between V

2. The signal edge rate must be met or the signal must transition monotonically to the asserted state.

)

and VIH.

0.2 1.5 V/ns 1

Table 7-18. Serial VID Interface (SVID) DC Specifications

Symbol Parameter Min Typ Max Units Notes

Hysteresis

Notes:

1. V

2. Measured at 0.31*V

3. Vin between 0V and V

4. These are measured between VIL and VIH.

5. The signal edge rate must be met or the signal must transition monotonically to the asserted state.

Processor I/O Voltage VTT – 3% 1.0 VTT + 3% V

Input Low Voltage Signals SVIDDATA, SVIDALERT_N

Input High Voltage Signals SVIDDATA, SVIDALERT_N

Output Low Voltage Signals SVIDCLK, SVIDDATA

— — 0.4*V

0.7*V

— — 0.3*V

Hysteresis 0.05*V

Buffer On Resistance Signals SVIDCLK, SVIDDATA

4—14W2

——V1

Input Leakage Current ±50 — ±200 A3

Input Edge Rate Signal: SVIDALERT_N

Output Edge Rate (50 ohm to V

refers to instantaneous VTT.

) 0.20 — 1.5 V/ns 4

0.05 — — V/ns 4, 5

70 Datasheet

Electrical Specifications

Table 7-19. Processor Asynchronous Sideband DC Specifications

Symbol Parameter Min Max Units Notes

CMOS1.0v Signals

IL_CMOS1.0v

IH_CMOS1.0v

Hysteresis

IL_CMOS1.0v

Open Drain CMOS (ODCMOS) Signals

IL_ODCMOS

IH_ODCMOS

OL_ODCMOS

Hysteresis

Leak

Input Low Voltage — 0.3*V

Input High Voltage 0.7*V

Hysteresis 0.1*V

— V 1, 2

Input Leakage Current 50 200 A 1, 2

Input Low Voltage Signals: MEM_HOT_C01/23_N, PROCHOT_N

Input Low Voltage Signals: CAT_ERR_N

Input High Voltage 0.7*V

Output Low Voltage — 0.2*V

Hysteresis Signals: MEM_HOT_C01/23_N, PROCHOT_N

Hysteresis Signal: CAT_ERR_N

— 0.3*V

— 0.4*V

— 0.1*V

0.05*V

— V 1, 2

Input Leakage Current 50 200 A

Buffer On Resistance 4 14 W 1, 2

Output Edge Rate Signal:MEM_HOT_C{01/23}_N, ERROR_N[2:0],

0.05 0.60 V/ns 3

THERMTRIP, PROCHOT_N

Output Edge Rate Signal: CAT_ERR_N

0.2 1.5 V/ns 3

V 1, 2

V 1,2

V 1, 2

Notes:

1. This table applies to the processor sideband and miscellaneous signals specified in Table 7-5.

2. Unless otherwise noted, all specifications in this table apply to all processor frequencies.

3. These signals are measured between V

and VIH.

Table 7-20. Miscellaneous Signals DC Specifications

Symbol Parameter Min Typical Max Units Notes

IVT_ID_N Signal

O_ABS_MAX

SKTOCC_N Signal

O_ABS_MAX

OMAX

Notes:

1. IVT_ID_N land is a no connect on the die.

Output Absolute Maximum Voltage — 1.10 1.80 V

Output Current — — 0 A1

Output Absolute Maximum Voltage — 3.30 3.50 V

Output Maximum Current — — 1 mA

Datasheet 71

7.5.3.1 PCI Express* DC Specifications

The processor DC specifications for the PCI Express* are available in the PCI Express Base Specification, Revision 3.0. This document will provide only the processor exceptions to the PCI Express Base Specification, Revision 3.0.

7.5.3.2 DMI2/PCI Express* DC Specifications

The processor DC specifications for the DMI2/PCI Express* are available in the PCI Express Base Specification, Revisions 2.0 and 1.0. This document will provide only the processor exceptions to the PCI Express Base Specification, Revisions 2.0 and 1.0.

7.5.3.3 Reset and Miscellaneous Signal DC Specifications

For a power-on Reset, RESET_N must stay active for at least 3.5 millisecond after VCC and BCLK{0/1} have reached their proper specifications. RESET_N must not be kept asserted for more than 100 ms while PWRGOOD is asserted. RESET_N must be held asserted for at least 3.5 millisecond before it is de-asserted again. RESET_N must be held asserted before PWRGOOD is asserted. This signal does not have on-die termination and must be terminated on the system board.

Electrical Specifications

§ §

72 Datasheet

Processor Land Listing

8 Processor Land Listing

This chapter provides the processor land lists. Table 8-1 is a listing of all processor lands ordered alphabetically by land name. Table 8-2 is a listing of all processor lands ordered by land number.

Datasheet 73

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 1 of 42)

Land Name

BCLK0_DN CM44 CMOS I

BCLK0_DP CN43 CMOS I

BCLK1_DN BA45 CMOS I

BCLK1_DP AW45 CMOS I

BIST_ENABLE AT48 CMOS I

BPM_N[0] AR43 ODCMOS I/O

BPM_N[1] AT44 ODCMOS I/O

BPM_N[2] AU43 ODCMOS I/O

BPM_N[3] AV44 ODCMOS I/O

BPM_N[4] BB44 ODCMOS I/O

BPM_N[5] AW43 ODCMOS I/O

BPM_N[6] BA43 ODCMOS I/O

BPM_N[7] AY44 ODCMOS I/O

CAT_ERR_N CC51 ODCMOS I/O

CPU_ONLY_RESET AN43 ODCMOS I/O

DDR_RESET_C01_N CB18 CMOS1.5

DDR_RESET_C23_N AE27 CMOS1.5

DDR_SCL_C01 CY42 ODCMOS I/O

DDR_SCL_C23 U43 ODCMOS I/O

DDR_SDA_C01 CW41 ODCMOS I/O

DDR_SDA_C23 R43 ODCMOS I/O

DDR_VREFDQRX_C01BY16 DC I

DDR_VREFDQRX_C 23

DDR_VREFDQTX_C01CN41 DC O

DDR_VREFDQTX_C23P42 DC O

DDR0_BA[0] CM28 SSTL O

DDR0_BA[1] CN27 SSTL O

DDR0_BA[2] CM20 SSTL O

DDR0_CAS_N CL29 SSTL O

DDR0_CKE[0] CL19 SSTL O

DDR0_CKE[1] CM18 SSTL O

DDR0_CKE[2] CH20 SSTL O

DDR0_CKE[3] CP18 SSTL O

DDR0_CKE[4] CF20 SSTL O

DDR0_CKE[5] CE19 SSTL O

DDR0_CLK_DN[0] CF24 SSTL O

DDR0_CLK_DN[1] CE23 SSTL O

DDR0_CLK_DN[2] CE21 SSTL O

DDR0_CLK_DN[3] CF22 SSTL O

DDR0_CLK_DP[0] CH24 SSTL O

Land

No.

J1 DC I

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 2 of 42)

Land Name

DDR0_CLK_DP[1] CG23 SSTL O

DDR0_CLK_DP[2] CG21 SSTL O

DDR0_CLK_DP[3] CH22 SSTL O

DDR0_CS_N[0] CN25 SSTL O

DDR0_CS_N[1] CH26 SSTL O

DDR0_CS_N[2] CC23 SSTL O

DDR0_CS_N[3] CB28 SSTL O

DDR0_CS_N[4] CG27 SSTL O

DDR0_CS_N[5] CF26 SSTL O

DDR0_CS_N[6] CB26 SSTL O

DDR0_CS_N[7] CC25 SSTL O

DDR0_CS_N[8] CL27 SSTL O

DDR0_CS_N[9] CK28 SSTL O

DDR0_DQ[00] CC7 SSTL I/O

DDR0_DQ[01] CD8 SSTL I/O

DDR0_DQ[02] CK8 SSTL I/O

DDR0_DQ[03] CL9 SSTL I/O

DDR0_DQ[04] BY6 SSTL I/O

DDR0_DQ[05] CA7 SSTL I/O

DDR0_DQ[06] CJ7 SSTL I/O

DDR0_DQ[07] CL7 SSTL I/O

DDR0_DQ[08] CB2 SSTL I/O

DDR0_DQ[09] CB4 SSTL I/O

DDR0_DQ[10] CH4 SSTL I/O

DDR0_DQ[11] CJ5 SSTL I/O

DDR0_DQ[12] CA1 SSTL I/O

DDR0_DQ[13] CA3 SSTL I/O

DDR0_DQ[14] CG3 SSTL I/O

DDR0_DQ[15] CG5 SSTL I/O

DDR0_DQ[16] CK12 SSTL I/O

DDR0_DQ[17] CM12 SSTL I/O

DDR0_DQ[18] CK16 SSTL I/O

DDR0_DQ[19] CM16 SSTL I/O

DDR0_DQ[20] CG13 SSTL I/O

DDR0_DQ[21] CL11 SSTL I/O

DDR0_DQ[22] CJ15 SSTL I/O

DDR0_DQ[23] CL15 SSTL I/O

DDR0_DQ[24] BY10 SSTL I/O

DDR0_DQ[25] BY12 SSTL I/O

DDR0_DQ[26] CB12 SSTL I/O

DDR0_DQ[27] CD12 SSTL I/O

DDR0_DQ[28] BW9 SSTL I/O

DDR0_DQ[29] CA9 SSTL I/O

DDR0_DQ[30] CH10 SSTL I/O

Land

No.

Buffer

Type

Direction

74 Datasheet

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 3 of 42)

Land Name

DDR0_DQ[31] CF10 SSTL I/O

DDR0_DQ[32] CE31 SSTL I/O

DDR0_DQ[33] CC31 SSTL I/O

DDR0_DQ[34] CE35 SSTL I/O

DDR0_DQ[35] CC35 SSTL I/O

DDR0_DQ[36] CD30 SSTL I/O

DDR0_DQ[37] CB30 SSTL I/O

DDR0_DQ[38] CD34 SSTL I/O

DDR0_DQ[39] CB34 SSTL I/O

DDR0_DQ[40] CL31 SSTL I/O

DDR0_DQ[41] CJ31 SSTL I/O

DDR0_DQ[42] CL35 SSTL I/O

DDR0_DQ[43] CJ35 SSTL I/O

DDR0_DQ[44] CK30 SSTL I/O

DDR0_DQ[45] CH30 SSTL I/O

DDR0_DQ[46] CK34 SSTL I/O

DDR0_DQ[47] CH34 SSTL I/O

DDR0_DQ[48] CB38 SSTL I/O

DDR0_DQ[49] CD38 SSTL I/O

DDR0_DQ[50] CE41 SSTL I/O

DDR0_DQ[51] CD42 SSTL I/O

DDR0_DQ[52] CC37 SSTL I/O

DDR0_DQ[53] CE37 SSTL I/O

DDR0_DQ[54] CC41 SSTL I/O

DDR0_DQ[55] CB42 SSTL I/O

DDR0_DQ[56] CH38 SSTL I/O

DDR0_DQ[57] CK38 SSTL I/O

DDR0_DQ[58] CH42 SSTL I/O

DDR0_DQ[59] CK42 SSTL I/O

DDR0_DQ[60] CJ37 SSTL I/O

DDR0_DQ[61] CL37 SSTL I/O

DDR0_DQ[62] CJ41 SSTL I/O

DDR0_DQ[63] CL41 SSTL I/O

DDR0_DQS_DN[00] CG7 SSTL I/O

DDR0_DQS_DN[01] CE3 SSTL I/O

DDR0_DQS_DN[02] CH14 SSTL I/O

DDR0_DQS_DN[03] CD10 SSTL I/O

DDR0_DQS_DN[04] CE33 SSTL I/O

DDR0_DQS_DN[05] CL33 SSTL I/O

DDR0_DQS_DN[06] CB40 SSTL I/O

DDR0_DQS_DN[07] CH40 SSTL I/O

DDR0_DQS_DN[08] CE17 SSTL I/O

DDR0_DQS_DN[09] CF8 SSTL I/O

DDR0_DQS_DN[10] CD4 SSTL I/O

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 4 of 42)

Land Name

DDR0_DQS_DN[11] CL13 SSTL I/O

DDR0_DQS_DN[12] CC11 SSTL I/O

DDR0_DQS_DN[13] CB32 SSTL I/O

DDR0_DQS_DN[14] CH32 SSTL I/O

DDR0_DQS_DN[15] CE39 SSTL I/O

DDR0_DQS_DN[16] CL39 SSTL I/O

DDR0_DQS_DN[17] CF16 SSTL I/O

DDR0_DQS_DP[00] CH8 SSTL I/O

DDR0_DQS_DP[01] CF4 SSTL I/O

DDR0_DQS_DP[02] CK14 SSTL I/O

DDR0_DQS_DP[03] CE11 SSTL I/O

DDR0_DQS_DP[04] CC33 SSTL I/O

DDR0_DQS_DP[05] CJ33 SSTL I/O

DDR0_DQS_DP[06] CD40 SSTL I/O

DDR0_DQS_DP[07] CK40 SSTL I/O

DDR0_DQS_DP[08] CC17 SSTL I/O

DDR0_DQS_DP[09] CE7 SSTL I/O

DDR0_DQS_DP[10] CC5 SSTL I/O

DDR0_DQS_DP[11] CJ13 SSTL I/O

DDR0_DQS_DP[12] CB10 SSTL I/O

DDR0_DQS_DP[13] CD32 SSTL I/O

DDR0_DQS_DP[14] CK32 SSTL I/O

DDR0_DQS_DP[15] CC39 SSTL I/O

DDR0_DQS_DP[16] CJ39 SSTL I/O

DDR0_DQS_DP[17] CD16 SSTL I/O

DDR0_MA_PAR CM26 SSTL O

DDR0_MA[00] CL25 SSTL O

DDR0_MA[01] CR25 SSTL O

DDR0_MA[02] CG25 SSTL O

DDR0_MA[03] CK24 SSTL O

DDR0_MA[04] CM24 SSTL O

DDR0_MA[05] CL23 SSTL O

DDR0_MA[06] CN23 SSTL O

DDR0_MA[07] CM22 SSTL O

DDR0_MA[08] CK22 SSTL O

DDR0_MA[09] CN21 SSTL O

DDR0_MA[10] CK26 SSTL O

DDR0_MA[11] CL21 SSTL O

DDR0_MA[12] CK20 SSTL O

DDR0_MA[13] CG29 SSTL O

DDR0_MA[14] CG19 SSTL O

DDR0_MA[15] CN19 SSTL O

DDR0_ODT[0] CE25 SSTL O

DDR0_ODT[1] CE27 SSTL O

Land

No.

Buffer

Type

Direction

Datasheet 75

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 5 of 42)

Land Name

DDR0_ODT[2] CH28 SSTL O

DDR0_ODT[3] CF28 SSTL O

DDR0_ODT[4] CB24 SSTL O

DDR0_ODT[5] CC27 SSTL O

DDR0_PAR_ERR_N CC21 SSTL I

DDR0_RAS_N CE29 SSTL O

DDR0_WE_N CN29 SSTL O

DDR01_RCOMP[0] CA17 Analog I

DDR01_RCOMP[1] CC19 Analog I

DDR01_RCOMP[2] CB20 Analog I

DDR1_BA[0] DB26 SSTL O

DDR1_BA[1] DC25 SSTL O

DDR1_BA[2] DF18 SSTL O

DDR1_CAS_N CY30 SSTL O

DDR1_CKE[0] CT20 SSTL O

DDR1_CKE[1] CU19 SSTL O

DDR1_CKE[2] CY18 SSTL O

DDR1_CKE[3] DA17 SSTL O

DDR1_CKE[4] CR19 SSTL O

DDR1_CKE[5] CT18 SSTL O

DDR1_CLK_DN[0] CV20 SSTL O

DDR1_CLK_DN[1] CV22 SSTL O

DDR1_CLK_DN[2] CY24 SSTL O

DDR1_CLK_DN[3] DA21 SSTL O

DDR1_CLK_DP[0] CY20 SSTL O

DDR1_CLK_DP[1] CY22 SSTL O

DDR1_CLK_DP[2] CV24 SSTL O

DDR1_CLK_DP[3] DC21 SSTL O

DDR1_CS_N[0] DB24 SSTL O

DDR1_CS_N[1] CU23 SSTL O

DDR1_CS_N[2] CR23 SSTL O

DDR1_CS_N[3] CR27 SSTL O

DDR1_CS_N[4] CU25 SSTL O

DDR1_CS_N[5] CT24 SSTL O

DDR1_CS_N[6] DA29 SSTL O

DDR1_CS_N[7] CT26 SSTL O

DDR1_CS_N[8] CR21 SSTL O

DDR1_CS_N[9] DA27 SSTL O

DDR1_DQ[00] CP4 SSTL I/O

DDR1_DQ[01] CP2 SSTL I/O

DDR1_DQ[02] CV4 SSTL I/O

DDR1_DQ[03] CY4 SSTL I/O

DDR1_DQ[04] CM4 SSTL I/O

DDR1_DQ[05] CL3 SSTL I/O

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 6 of 42)

Land Name

DDR1_DQ[06] CV2 SSTL I/O

DDR1_DQ[07] CW3 SSTL I/O

DDR1_DQ[08] DA7 SSTL I/O

DDR1_DQ[09] DC7 SSTL I/O

DDR1_DQ[10] DC11 SSTL I/O

DDR1_DQ[11] DE11 SSTL I/O

DDR1_DQ[12] CY6 SSTL I/O

DDR1_DQ[13] DB6 SSTL I/O

DDR1_DQ[14] DB10 SSTL I/O

DDR1_DQ[15] DF10 SSTL I/O

DDR1_DQ[16] CR7 SSTL I/O

DDR1_DQ[17] CU7 SSTL I/O

DDR1_DQ[18] CT10 SSTL I/O

DDR1_DQ[19] CP10 SSTL I/O

DDR1_DQ[20] CP6 SSTL I/O

DDR1_DQ[21] CT6 SSTL I/O

DDR1_DQ[22] CW9 SSTL I/O

DDR1_DQ[23] CV10 SSTL I/O

DDR1_DQ[24] CR13 SSTL I/O

DDR1_DQ[25] CU13 SSTL I/O

DDR1_DQ[26] CR17 SSTL I/O

DDR1_DQ[27] CU17 SSTL I/O

DDR1_DQ[28] CT12 SSTL I/O

DDR1_DQ[29] CV12 SSTL I/O

DDR1_DQ[30] CT16 SSTL I/O

DDR1_DQ[31] CV16 SSTL I/O

DDR1_DQ[32] CT30 SSTL I/O

DDR1_DQ[33] CP30 SSTL I/O

DDR1_DQ[34] CT34 SSTL I/O

DDR1_DQ[35] CP34 SSTL I/O

DDR1_DQ[36] CU29 SSTL I/O

DDR1_DQ[37] CR29 SSTL I/O

DDR1_DQ[38] CU33 SSTL I/O

DDR1_DQ[39] CR33 SSTL I/O

DDR1_DQ[40] DA33 SSTL I/O

DDR1_DQ[41] DD32 SSTL I/O

DDR1_DQ[42] DC35 SSTL I/O

DDR1_DQ[43] DA35 SSTL I/O

DDR1_DQ[44] DA31 SSTL I/O

DDR1_DQ[45] CY32 SSTL I/O

DDR1_DQ[46] DF34 SSTL I/O

DDR1_DQ[47] DE35 SSTL I/O

DDR1_DQ[48] CR37 SSTL I/O

DDR1_DQ[49] CU37 SSTL I/O

Land

No.

Buffer

Type

Direction

76 Datasheet

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 7 of 42)

Land Name

DDR1_DQ[50] CR41 SSTL I/O

DDR1_DQ[51] CU41 SSTL I/O

DDR1_DQ[52] CT36 SSTL I/O

DDR1_DQ[53] CV36 SSTL I/O

DDR1_DQ[54] CT40 SSTL I/O

DDR1_DQ[55] CV40 SSTL I/O

DDR1_DQ[56] DE37 SSTL I/O

DDR1_DQ[57] DF38 SSTL I/O

DDR1_DQ[58] DD40 SSTL I/O

DDR1_DQ[59] DB40 SSTL I/O

DDR1_DQ[60] DA37 SSTL I/O

DDR1_DQ[61] DC37 SSTL I/O

DDR1_DQ[62] DA39 SSTL I/O

DDR1_DQ[63] DF40 SSTL I/O

DDR1_DQS_DN[00] CT4 SSTL I/O

DDR1_DQS_DN[01] DC9 SSTL I/O

DDR1_DQS_DN[02] CV8 SSTL I/O

DDR1_DQS_DN[03] CR15 SSTL I/O

DDR1_DQS_DN[04] CT32 SSTL I/O

DDR1_DQS_DN[05] CY34 SSTL I/O

DDR1_DQS_DN[06] CR39 SSTL I/O

DDR1_DQS_DN[07] DE39 SSTL I/O

DDR1_DQS_DN[08] DE15 SSTL I/O

DDR1_DQS_DN[09] CR1 SSTL I/O

DDR1_DQS_DN[10] DB8 SSTL I/O

DDR1_DQS_DN[11] CT8 SSTL I/O

DDR1_DQS_DN[12] CP14 SSTL I/O

DDR1_DQS_DN[13] CR31 SSTL I/O

DDR1_DQS_DN[14] DE33 SSTL I/O

DDR1_DQS_DN[15] CT38 SSTL I/O

DDR1_DQS_DN[16] CY38 SSTL I/O

DDR1_DQS_DN[17] DB14 SSTL I/O

DDR1_DQS_DP[00] CR3 SSTL I/O

DDR1_DQS_DP[01] DE9 SSTL I/O

DDR1_DQS_DP[02] CU9 SSTL I/O

DDR1_DQS_DP[03] CU15 SSTL I/O

DDR1_DQS_DP[04] CP32 SSTL I/O

DDR1_DQS_DP[05] DB34 SSTL I/O

DDR1_DQS_DP[06] CU39 SSTL I/O

DDR1_DQS_DP[07] DC39 SSTL I/O

DDR1_DQS_DP[08] DC15 SSTL I/O

DDR1_DQS_DP[09] CT2 SSTL I/O

DDR1_DQS_DP[10] DD8 SSTL I/O

DDR1_DQS_DP[11] CP8 SSTL I/O

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 8 of 42)

Land Name

DDR1_DQS_DP[12] CT14 SSTL I/O

DDR1_DQS_DP[13] CU31 SSTL I/O

DDR1_DQS_DP[14] DC33 SSTL I/O

DDR1_DQS_DP[15] CP38 SSTL I/O

DDR1_DQS_DP[16] DB38 SSTL I/O

DDR1_DQS_DP[17] CY14 SSTL I/O

DDR1_MA_PAR DE25 SSTL O

DDR1_MA[00] DC23 SSTL O

DDR1_MA[01] DE23 SSTL O

DDR1_MA[02] DF24 SSTL O

DDR1_MA[03] DA23 SSTL O

DDR1_MA[04] DB22 SSTL O

DDR1_MA[05] DF22 SSTL O

DDR1_MA[06] DE21 SSTL O

DDR1_MA[07] DF20 SSTL O

DDR1_MA[08] DB20 SSTL O

DDR1_MA[09] DA19 SSTL O

DDR1_MA[10] DF26 SSTL O

DDR1_MA[11] DE19 SSTL O

DDR1_MA[12] DC19 SSTL O

DDR1_MA[13] DB30 SSTL O

DDR1_MA[14] DB18 SSTL O

DDR1_MA[15] DC17 SSTL O

DDR1_ODT[0] CT22 SSTL O

DDR1_ODT[1] DA25 SSTL O

DDR1_ODT[2] CY26 SSTL O

DDR1_ODT[3] CV26 SSTL O

DDR1_ODT[4] CU27 SSTL O

DDR1_ODT[5] CY28 SSTL O

DDR1_PAR_ERR_N CU21 SSTL I

DDR1_RAS_N DB28 SSTL O

DDR1_WE_N CV28 SSTL O

DDR2_BA[0] R17 SSTL O

DDR2_BA[1] L17 SSTL O

DDR2_BA[2] P24 SSTL O

DDR2_CAS_N T16 SSTL O

DDR2_CKE[0] AA25 SSTL O

DDR2_CKE[1] T26 SSTL O

DDR2_CKE[2] U27 SSTL O

DDR2_CKE[3] AD24 SSTL O

DDR2_CKE[4] AE25 SSTL O

DDR2_CKE[5] AE23 SSTL O

DDR2_CLK_DN[0] Y24 SSTL O

DDR2_CLK_DN[1] Y22 SSTL O

Land

No.

Buffer

Type

Direction

Datasheet 77

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 9 of 42)

Land Name

DDR2_CLK_DN[2] W21 SSTL O

DDR2_CLK_DN[3] W23 SSTL O

DDR2_CLK_DP[0] AB24 SSTL O

DDR2_CLK_DP[1] AB22 SSTL O

DDR2_CLK_DP[2] AA21 SSTL O

DDR2_CLK_DP[3] AA23 SSTL O

DDR2_CS_N[0] AB20 SSTL O

DDR2_CS_N[1] AE19 SSTL O

DDR2_CS_N[2] AD16 SSTL O

DDR2_CS_N[3] AA15 SSTL O

DDR2_CS_N[4] AA19 SSTL O

DDR2_CS_N[5] P18 SSTL O

DDR2_CS_N[6] AB16 SSTL O

DDR2_CS_N[7] Y16 SSTL O

DDR2_CS_N[8] W17 SSTL O

DDR2_CS_N[9] AA17 SSTL O

DDR2_DQ[00] T40 SSTL I/O

DDR2_DQ[01] V40 SSTL I/O

DDR2_DQ[02] P36 SSTL I/O

DDR2_DQ[03] T36 SSTL I/O

DDR2_DQ[04] R41 SSTL I/O

DDR2_DQ[05] U41 SSTL I/O

DDR2_DQ[06] R37 SSTL I/O

DDR2_DQ[07] U37 SSTL I/O

DDR2_DQ[08] AE41 SSTL I/O

DDR2_DQ[09] AD40 SSTL I/O

DDR2_DQ[10] AA37 SSTL I/O

DDR2_DQ[11] AC37 SSTL I/O

DDR2_DQ[12] AC41 SSTL I/O

DDR2_DQ[13] AA41 SSTL I/O

DDR2_DQ[14] AF38 SSTL I/O

DDR2_DQ[15] AE37 SSTL I/O

DDR2_DQ[16] U33 SSTL I/O

DDR2_DQ[17] R33 SSTL I/O

DDR2_DQ[18] W29 SSTL I/O

DDR2_DQ[19] U29 SSTL I/O

DDR2_DQ[20] T34 SSTL I/O

DDR2_DQ[21] P34 SSTL I/O

DDR2_DQ[22] V30 SSTL I/O

DDR2_DQ[23] T30 SSTL I/O

DDR2_DQ[24] AC35 SSTL I/O

DDR2_DQ[25] AE35 SSTL I/O

DDR2_DQ[26] AE33 SSTL I/O

DDR2_DQ[27] AF32 SSTL I/O

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 10 of 42)

Land Name

DDR2_DQ[28] AA35 SSTL I/O

DDR2_DQ[29] W35 SSTL I/O

DDR2_DQ[30] AB32 SSTL I/O

DDR2_DQ[31] AD32 SSTL I/O

DDR2_DQ[32] AC13 SSTL I/O

DDR2_DQ[33] AE13 SSTL I/O

DDR2_DQ[34] AG11 SSTL I/O

DDR2_DQ[35] AF10 SSTL I/O

DDR2_DQ[36] AD14 SSTL I/O

DDR2_DQ[37] AA13 SSTL I/O

DDR2_DQ[38] AB10 SSTL I/O

DDR2_DQ[39] AD10 SSTL I/O

DDR2_DQ[40] V6 SSTL I/O

DDR2_DQ[41] Y6 SSTL I/O

DDR2_DQ[42] AF8 SSTL I/O

DDR2_DQ[43] AG7 SSTL I/O

DDR2_DQ[44] U7 SSTL I/O

DDR2_DQ[45] W7 SSTL I/O

DDR2_DQ[46] AD8 SSTL I/O

DDR2_DQ[47] AE7 SSTL I/O

DDR2_DQ[48] R13 SSTL I/O

DDR2_DQ[49] U13 SSTL I/O

DDR2_DQ[50] T10 SSTL I/O

DDR2_DQ[51] V10 SSTL I/O

DDR2_DQ[52] T14 SSTL I/O

DDR2_DQ[53] V14 SSTL I/O

DDR2_DQ[54] R9 SSTL I/O

DDR2_DQ[55] U9 SSTL I/O

DDR2_DQ[56] W3 SSTL I/O

DDR2_DQ[57] Y4 SSTL I/O

DDR2_DQ[58] AF4 SSTL I/O

DDR2_DQ[59] AE5 SSTL I/O

DDR2_DQ[60] U3 SSTL I/O

DDR2_DQ[61] V4 SSTL I/O

DDR2_DQ[62] AF2 SSTL I/O

DDR2_DQ[63] AE3 SSTL I/O

DDR2_DQS_DN[00] T38 SSTL I/O

DDR2_DQS_DN[01] AD38 SSTL I/O

DDR2_DQS_DN[02] W31 SSTL I/O

DDR2_DQS_DN[03] AA33 SSTL I/O

DDR2_DQS_DN[04] AC11 SSTL I/O

DDR2_DQS_DN[05] AB8 SSTL I/O

DDR2_DQS_DN[06] U11 SSTL I/O

DDR2_DQS_DN[07] AC3 SSTL I/O

Land

No.

Buffer

Type

Direction

78 Datasheet

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 11 of 42)

Land Name

DDR2_DQS_DN[08] AB28 SSTL I/O

DDR2_DQS_DN[09] W39 SSTL I/O

DDR2_DQS_DN[10] AC39 SSTL I/O

DDR2_DQS_DN[11] T32 SSTL I/O

DDR2_DQS_DN[12] AB34 SSTL I/O

DDR2_DQS_DN[13] AD12 SSTL I/O

DDR2_DQS_DN[14] AA7 SSTL I/O

DDR2_DQS_DN[15] V12 SSTL I/O

DDR2_DQS_DN[16] AD4 SSTL I/O

DDR2_DQS_DN[17] AD28 SSTL I/O

DDR2_DQS_DP[00] V38 SSTL I/O

DDR2_DQS_DP[01] AB38 SSTL I/O

DDR2_DQS_DP[02] U31 SSTL I/O

DDR2_DQS_DP[03] AC33 SSTL I/O

DDR2_DQS_DP[04] AE11 SSTL I/O

DDR2_DQS_DP[05] AC7 SSTL I/O

DDR2_DQS_DP[06] W11 SSTL I/O

DDR2_DQS_DP[07] AB4 SSTL I/O

DDR2_DQS_DP[08] AC27 SSTL I/O

DDR2_DQS_DP[09] U39 SSTL I/O

DDR2_DQS_DP[10] AB40 SSTL I/O

DDR2_DQS_DP[11] V32 SSTL I/O

DDR2_DQS_DP[12] Y34 SSTL I/O

DDR2_DQS_DP[13] AB12 SSTL I/O

DDR2_DQS_DP[14] Y8 SSTL I/O

DDR2_DQS_DP[15] T12 SSTL I/O

DDR2_DQS_DP[16] AC5 SSTL I/O

DDR2_DQS_DP[17] AC29 SSTL I/O

DDR2_MA_PAR M18 SSTL O

DDR2_MA[00] AB18 SSTL O

DDR2_MA[01] R19 SSTL O

DDR2_MA[02] U19 SSTL O

DDR2_MA[03] T20 SSTL O

DDR2_MA[04] P20 SSTL O

DDR2_MA[05] U21 SSTL O

DDR2_MA[06] R21 SSTL O

DDR2_MA[07] P22 SSTL O

DDR2_MA[08] T22 SSTL O

DDR2_MA[09] R23 SSTL O

DDR2_MA[10] T18 SSTL O

DDR2_MA[11] U23 SSTL O

DDR2_MA[12] T24 SSTL O

DDR2_MA[13] R15 SSTL O

DDR2_MA[14] W25 SSTL O

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 12 of 42)

Land Name

DDR2_MA[15] U25 SSTL O

DDR2_ODT[0] Y20 SSTL O

DDR2_ODT[1] W19 SSTL O

DDR2_ODT[2] AD18 SSTL O

DDR2_ODT[3] Y18 SSTL O

DDR2_ODT[4] AD22 SSTL O

DDR2_ODT[5] AE21 SSTL O

DDR2_PAR_ERR_N AD20 SSTL I

DDR2_RAS_N U17 SSTL O

DDR2_WE_N P16 SSTL O

DDR23_RCOMP[0] U15 Analog I

DDR23_RCOMP[1] AC15 Analog I

DDR23_RCOMP[2] Y14 Analog I

DDR3_BA[0] A17 SSTL O

DDR3_BA[1] E19 SSTL O

DDR3_BA[2] B24 SSTL O

DDR3_CAS_N B14 SSTL O

DDR3_CKE[0] K24 SSTL O

DDR3_CKE[1] M24 SSTL O

DDR3_CKE[2] J25 SSTL O

DDR3_CKE[3] N25 SSTL O

DDR3_CKE[4] R25 SSTL O

DDR3_CKE[5] R27 SSTL O

DDR3_CLK_DN[0] J23 SSTL O

DDR3_CLK_DN[1] J21 SSTL O

DDR3_CLK_DN[2] M20 SSTL O

DDR3_CLK_DN[3] K22 SSTL O

DDR3_CLK_DP[0] L23 SSTL O

DDR3_CLK_DP[1] L21 SSTL O

DDR3_CLK_DP[2] K20 SSTL O

DDR3_CLK_DP[3] M22 SSTL O

DDR3_CS_N[0] G19 SSTL O

DDR3_CS_N[1] J19 SSTL O

DDR3_CS_N[2] F14 SSTL O

DDR3_CS_N[3] G15 SSTL O

DDR3_CS_N[4] K18 SSTL O

DDR3_CS_N[5] G17 SSTL O

DDR3_CS_N[6] F16 SSTL O

DDR3_CS_N[7] E15 SSTL O

DDR3_CS_N[8] D16 SSTL O

DDR3_CS_N[9] K16 SSTL O

DDR3_DQ[00] B40 SSTL I/O

DDR3_DQ[01] A39 SSTL I/O

DDR3_DQ[02] C37 SSTL I/O

Land

No.

Buffer

Type

Direction

Datasheet 79

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 13 of 42)

Land Name

DDR3_DQ[03] E37 SSTL I/O

DDR3_DQ[04] F40 SSTL I/O

DDR3_DQ[05] D40 SSTL I/O

DDR3_DQ[06] F38 SSTL I/O

DDR3_DQ[07] A37 SSTL I/O

DDR3_DQ[08] N39 SSTL I/O

DDR3_DQ[09] L39 SSTL I/O

DDR3_DQ[10] L35 SSTL I/O

DDR3_DQ[11] J35 SSTL I/O

DDR3_DQ[12] M40 SSTL I/O

DDR3_DQ[13] K40 SSTL I/O

DDR3_DQ[14] K36 SSTL I/O

DDR3_DQ[15] H36 SSTL I/O

DDR3_DQ[16] A35 SSTL I/O

DDR3_DQ[17] F34 SSTL I/O

DDR3_DQ[18] D32 SSTL I/O

DDR3_DQ[19] F32 SSTL I/O

DDR3_DQ[20] E35 SSTL I/O

DDR3_DQ[21] C35 SSTL I/O

DDR3_DQ[22] A33 SSTL I/O

DDR3_DQ[23] B32 SSTL I/O

DDR3_DQ[24] M32 SSTL I/O

DDR3_DQ[25] L31 SSTL I/O

DDR3_DQ[26] M28 SSTL I/O

DDR3_DQ[27] L27 SSTL I/O

DDR3_DQ[28] L33 SSTL I/O

DDR3_DQ[29] K32 SSTL I/O

DDR3_DQ[30] N27 SSTL I/O

DDR3_DQ[31] M26 SSTL I/O

DDR3_DQ[32] D12 SSTL I/O

DDR3_DQ[33] A11 SSTL I/O

DDR3_DQ[34] C9 SSTL I/O

DDR3_DQ[35] E9 SSTL I/O

DDR3_DQ[36] F12 SSTL I/O

DDR3_DQ[37] B12 SSTL I/O

DDR3_DQ[38] F10 SSTL I/O

DDR3_DQ[39] A9 SSTL I/O

DDR3_DQ[40] J13 SSTL I/O

DDR3_DQ[41] L13 SSTL I/O

DDR3_DQ[42] J9 SSTL I/O

DDR3_DQ[43] L9 SSTL I/O

DDR3_DQ[44] K14 SSTL I/O

DDR3_DQ[45] M14 SSTL I/O

DDR3_DQ[46] K10 SSTL I/O

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 14 of 42)

Land Name

DDR3_DQ[47] M10 SSTL I/O

DDR3_DQ[48] E7 SSTL I/O

DDR3_DQ[49] F6 SSTL I/O

DDR3_DQ[50] N7 SSTL I/O

DDR3_DQ[51] P6 SSTL I/O

DDR3_DQ[52] C7 SSTL I/O

DDR3_DQ[53] D6 SSTL I/O

DDR3_DQ[54] L7 SSTL I/O

DDR3_DQ[55] M6 SSTL I/O

DDR3_DQ[56] G3 SSTL I/O

DDR3_DQ[57] H2 SSTL I/O

DDR3_DQ[58] N3 SSTL I/O

DDR3_DQ[59] P4 SSTL I/O

DDR3_DQ[60] F4 SSTL I/O

DDR3_DQ[61] H4 SSTL I/O

DDR3_DQ[62] L1 SSTL I/O

DDR3_DQ[63] M2 SSTL I/O

DDR3_DQS_DN[00] B38 SSTL I/O

DDR3_DQS_DN[01] L37 SSTL I/O

DDR3_DQS_DN[02] G33 SSTL I/O

DDR3_DQS_DN[03] P28 SSTL I/O

DDR3_DQS_DN[04] B10 SSTL I/O

DDR3_DQS_DN[05] L11 SSTL I/O

DDR3_DQS_DN[06] J7 SSTL I/O

DDR3_DQS_DN[07] L3 SSTL I/O

DDR3_DQS_DN[08] G27 SSTL I/O

DDR3_DQS_DN[09] G39 SSTL I/O

DDR3_DQS_DN[10] K38 SSTL I/O

DDR3_DQS_DN[11] B34 SSTL I/O

DDR3_DQS_DN[12] M30 SSTL I/O

DDR3_DQS_DN[13] G11 SSTL I/O

DDR3_DQS_DN[14] M12 SSTL I/O

DDR3_DQS_DN[15] H6 SSTL I/O

DDR3_DQS_DN[16] K4 SSTL I/O

DDR3_DQS_DN[17] H28 SSTL I/O

DDR3_DQS_DP[00] D38 SSTL I/O

DDR3_DQS_DP[01] J37 SSTL I/O

DDR3_DQS_DP[02] E33 SSTL I/O

DDR3_DQS_DP[03] N29 SSTL I/O

DDR3_DQS_DP[04] D10 SSTL I/O

DDR3_DQS_DP[05] N11 SSTL I/O

DDR3_DQS_DP[06] K6 SSTL I/O

DDR3_DQS_DP[07] M4 SSTL I/O

DDR3_DQS_DP[08] E27 SSTL I/O

Land

No.

Buffer

Type

Direction

80 Datasheet

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 15 of 42)

Land Name

DDR3_DQS_DP[09] E39 SSTL I/O

DDR3_DQS_DP[10] M38 SSTL I/O

DDR3_DQS_DP[11] D34 SSTL I/O

DDR3_DQS_DP[12] N31 SSTL I/O

DDR3_DQS_DP[13] E11 SSTL I/O

DDR3_DQS_DP[14] K12 SSTL I/O

DDR3_DQS_DP[15] G7 SSTL I/O

DDR3_DQS_DP[16] J3 SSTL I/O

DDR3_DQS_DP[17] F28 SSTL I/O

DDR3_MA_PAR B18 SSTL O

DDR3_MA[00] A19 SSTL O

DDR3_MA[01] E21 SSTL O

DDR3_MA[02] F20 SSTL O

DDR3_MA[03] B20 SSTL O

DDR3_MA[04] D20 SSTL O

DDR3_MA[05] A21 SSTL O

DDR3_MA[06] F22 SSTL O

DDR3_MA[07] B22 SSTL O

DDR3_MA[08] D22 SSTL O

DDR3_MA[09] G23 SSTL O

DDR3_MA[10] D18 SSTL O

DDR3_MA[11] A23 SSTL O

DDR3_MA[12] E23 SSTL O

DDR3_MA[13] A13 SSTL O

DDR3_MA[14] D24 SSTL O

DDR3_MA[15] F24 SSTL O

DDR3_ODT[0] L19 SSTL O

DDR3_ODT[1] F18 SSTL O

DDR3_ODT[2] E17 SSTL O

DDR3_ODT[3] J17 SSTL O

DDR3_ODT[4] D14 SSTL O

DDR3_ODT[5] M16 SSTL O

DDR3_PAR_ERR_N G21 SSTL I

DDR3_RAS_N B16 SSTL O

DDR3_WE_N A15 SSTL O

DMI_RX_DN[0] E47 PCIEX I

DMI_RX_DN[1] D48 PCIEX I

DMI_RX_DN[2] E49 PCIEX I

DMI_RX_DN[3] D50 PCIEX I

DMI_RX_DP[0] C47 PCIEX I

DMI_RX_DP[1] B48 PCIEX I

DMI_RX_DP[2] C49 PCIEX I

DMI_RX_DP[3] B50 PCIEX I

DMI_TX_DN[0] D42 PCIEX O

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 16 of 42)

Land Name

DMI_TX_DN[1] E43 PCIEX O

DMI_TX_DN[2] D44 PCIEX O

DMI_TX_DN[3] E45 PCIEX O

DMI_TX_DP[0] B42 PCIEX O

DMI_TX_DP[1] C43 PCIEX O

DMI_TX_DP[2] B44 PCIEX O

DMI_TX_DP[3] C45 PCIEX O

TXT_PLTEN V52 CMOS I

DRAM_PWR_OK_C01CW17 CMOS1.5

DRAM_PWR_OK_C23L15 CMOS1.5

EAR_N CH56 ODCMOS I/O

ERROR_N[0] BD50 ODCMOS O

ERROR_N[1] CB54 ODCMOS O

ERROR_N[2] BC51 ODCMOS O

IVT_ID_N AH42 O

TXT_AGENT AK52 CMOS I

MEM_HOT_C01_N CB22 ODCMOS I/O

MEM_HOT_C23_N E13 ODCMOS I/O

PE_RBIAS AH52 PCIEX3 I/O

PE_RBIAS_SENSE AF52 PCIEX3 I

PE_VREF_CAP AJ43 PCIEX3 I/O

PE1A_RX_DN[0] E51 PCIEX3 I

PE1A_RX_DN[1] F52 PCIEX3 I

PE1A_RX_DN[2] F54 PCIEX3 I

PE1A_RX_DN[3] G55 PCIEX3 I

PE1A_RX_DP[0] C51 PCIEX3 I

PE1A_RX_DP[1] D52 PCIEX3 I

PE1A_RX_DP[2] D54 PCIEX3 I

PE1A_RX_DP[3] E55 PCIEX3 I

PE1A_TX_DN[0] K42 PCIEX3 O

PE1A_TX_DN[1] L43 PCIEX3 O

PE1A_TX_DN[2] K44 PCIEX3 O

PE1A_TX_DN[3] L45 PCIEX3 O

PE1A_TX_DP[0] H42 PCIEX3 O

PE1A_TX_DP[1] J43 PCIEX3 O

PE1A_TX_DP[2] H44 PCIEX3 O

PE1A_TX_DP[3] J45 PCIEX3 O

PE1B_RX_DN[4] L53 PCIEX3 I

PE1B_RX_DN[5] M54 PCIEX3 I

PE1B_RX_DN[6] L57 PCIEX3 I

PE1B_RX_DN[7] M56 PCIEX3 I

PE1B_RX_DP[4] J53 PCIEX3 I

Land

No.

Buffer

Type

Direction

Datasheet 81

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 17 of 42)

Land Name

PE1B_RX_DP[5] K54 PCIEX3 I

PE1B_RX_DP[6] J57 PCIEX3 I

PE1B_RX_DP[7] K56 PCIEX3 I

PE1B_TX_DN[4] K46 PCIEX3 O

PE1B_TX_DN[5] L47 PCIEX3 O

PE1B_TX_DN[6] K48 PCIEX3 O

PE1B_TX_DN[7] L49 PCIEX3 O

PE1B_TX_DP[4] H46 PCIEX3 O

PE1B_TX_DP[5] J47 PCIEX3 O

PE1B_TX_DP[6] H48 PCIEX3 O

PE1B_TX_DP[7] J49 PCIEX3 O

PE2A_RX_DN[0] N55 PCIEX3 I

PE2A_RX_DN[1] V54 PCIEX3 I

PE2A_RX_DN[2] V56 PCIEX3 I

PE2A_RX_DN[3] W55 PCIEX3 I

PE2A_RX_DP[0] L55 PCIEX3 I

PE2A_RX_DP[1] T54 PCIEX3 I

PE2A_RX_DP[2] T56 PCIEX3 I

PE2A_RX_DP[3] U55 PCIEX3 I

PE2A_TX_DN[0] AR49 PCIEX3 O

PE2A_TX_DN[1] AP50 PCIEX3 O

PE2A_TX_DN[2] AR51 PCIEX3 O

PE2A_TX_DN[3] AP52 PCIEX3 O

PE2A_TX_DP[0] AN49 PCIEX3 O

PE2A_TX_DP[1] AM50 PCIEX3 O

PE2A_TX_DP[2] AN51 PCIEX3 O

PE2A_TX_DP[3] AM52 PCIEX3 O

PE2B_RX_DN[4] AD54 PCIEX3 I

PE2B_RX_DN[5] AD56 PCIEX3 I

PE2B_RX_DN[6] AE55 PCIEX3 I

PE2B_RX_DN[7] AF58 PCIEX3 I

PE2B_RX_DP[4] AB54 PCIEX3 I

PE2B_RX_DP[5] AB56 PCIEX3 I

PE2B_RX_DP[6] AC55 PCIEX3 I

PE2B_RX_DP[7] AE57 PCIEX3 I

PE2B_TX_DN[4] AJ53 PCIEX3 O

PE2B_TX_DN[5] AK54 PCIEX3 O

PE2B_TX_DN[6] AR53 PCIEX3 O

PE2B_TX_DN[7] AT54 PCIEX3 O

PE2B_TX_DP[4] AG53 PCIEX3 O

PE2B_TX_DP[5] AH54 PCIEX3 O

PE2B_TX_DP[6] AN53 PCIEX3 O

PE2B_TX_DP[7] AP54 PCIEX3 O

PE2C_RX_DN[10] AL57 PCIEX3 I

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 18 of 42)

Land Name

PE2C_RX_DN[11] AU57 PCIEX3 I

PE2C_RX_DN[8] AK56 PCIEX3 I

PE2C_RX_DN[9] AM58 PCIEX3 I

PE2C_RX_DP[10] AJ57 PCIEX3 I

PE2C_RX_DP[11] AR57 PCIEX3 I

PE2C_RX_DP[8] AH56 PCIEX3 I

PE2C_RX_DP[9] AK58 PCIEX3 I

PE2C_TX_DN[10] BB54 PCIEX3 O

PE2C_TX_DN[11] BA51 PCIEX3 O

PE2C_TX_DN[8] AY52 PCIEX3 O

PE2C_TX_DN[9] BA53 PCIEX3 O

PE2C_TX_DP[10] AY54 PCIEX3 O

PE2C_TX_DP[11] AW51 PCIEX3 O

PE2C_TX_DP[8] AV52 PCIEX3 O

PE2C_TX_DP[9] AW53 PCIEX3 O

PE2D_RX_DN[12] AV58 PCIEX3 I

PE2D_RX_DN[13] AT56 PCIEX3 I

PE2D_RX_DN[14] BA57 PCIEX3 I

PE2D_RX_DN[15] BB56 PCIEX3 I

PE2D_RX_DP[12] AT58 PCIEX3 I

PE2D_RX_DP[13] AP56 PCIEX3 I

PE2D_RX_DP[14] AY58 PCIEX3 I

PE2D_RX_DP[15] AY56 PCIEX3 I

PE2D_TX_DN[12] AY50 PCIEX3 O

PE2D_TX_DN[13] BA49 PCIEX3 O

PE2D_TX_DN[14] AY48 PCIEX3 O

PE2D_TX_DN[15] BA47 PCIEX3 O

PE2D_TX_DP[12] AV50 PCIEX3 O

PE2D_TX_DP[13] AW49 PCIEX3 O

PE2D_TX_DP[14] AV48 PCIEX3 O

PE2D_TX_DP[15] AW47 PCIEX3 O

PE3A_RX_DN[0] AH44 PCIEX3 I

PE3A_RX_DN[1] AJ45 PCIEX3 I

PE3A_RX_DN[2] AH46 PCIEX3 I

PE3A_RX_DN[3] AC49 PCIEX3 I

PE3A_RX_DP[0] AF44 PCIEX3 I

PE3A_RX_DP[1] AG45 PCIEX3 I

PE3A_RX_DP[2] AF46 PCIEX3 I

PE3A_RX_DP[3] AA49 PCIEX3 I

PE3A_TX_DN[0] K50 PCIEX3 O

PE3A_TX_DN[1] L51 PCIEX3 O

PE3A_TX_DN[2] U47 PCIEX3 O

PE3A_TX_DN[3] T48 PCIEX3 O

PE3A_TX_DP[0] H50 PCIEX3 O

Land

No.

Buffer

Type

Direction

82 Datasheet

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 19 of 42)

Land Name

PE3A_TX_DP[1] J51 PCIEX3 O

PE3A_TX_DP[2] R47 PCIEX3 O

PE3A_TX_DP[3] P48 PCIEX3 O

PE3B_RX_DN[4] AB50 PCIEX3 I

PE3B_RX_DN[5] AB52 PCIEX3 I

PE3B_RX_DN[6] AC53 PCIEX3 I

PE3B_RX_DN[7] AC51 PCIEX3 I

PE3B_RX_DP[4] Y50 PCIEX3 I

PE3B_RX_DP[5] Y52 PCIEX3 I

PE3B_RX_DP[6] AA53 PCIEX3 I

PE3B_RX_DP[7] AA51 PCIEX3 I

PE3B_TX_DN[4] T52 PCIEX3 O

PE3B_TX_DN[5] U51 PCIEX3 O

PE3B_TX_DN[6] T50 PCIEX3 O

PE3B_TX_DN[7] U49 PCIEX3 O

PE3B_TX_DP[4] P52 PCIEX3 O

PE3B_TX_DP[5] R51 PCIEX3 O

PE3B_TX_DP[6] P50 PCIEX3 O

PE3B_TX_DP[7] R49 PCIEX3 O

PE3C_RX_DN[10] AH50 PCIEX3 I

PE3C_RX_DN[11] AJ49 PCIEX3 I

PE3C_RX_DN[8] AH48 PCIEX3 I

PE3C_RX_DN[9] AJ51 PCIEX3 I

PE3C_RX_DP[10] AF50 PCIEX3 I

PE3C_RX_DP[11] AG49 PCIEX3 I

PE3C_RX_DP[8] AF48 PCIEX3 I

PE3C_RX_DP[9] AG51 PCIEX3 I

PE3C_TX_DN[10] U45 PCIEX3 O

PE3C_TX_DN[11] AB46 PCIEX3 O

PE3C_TX_DN[8] T46 PCIEX3 O

PE3C_TX_DN[9] AC47 PCIEX3 O

PE3C_TX_DP[10] R45 PCIEX3 O

PE3C_TX_DP[11] Y46 PCIEX3 O

PE3C_TX_DP[8] P46 PCIEX3 O

PE3C_TX_DP[9] AA47 PCIEX3 O

PE3D_RX_DN[12] AJ47 PCIEX3 I

PE3D_RX_DN[13] AR47 PCIEX3 I

PE3D_RX_DN[14] AP46 PCIEX3 I

PE3D_RX_DN[15] AR45 PCIEX3 I

PE3D_RX_DP[12] AG47 PCIEX3 I

PE3D_RX_DP[13] AN47 PCIEX3 I

PE3D_RX_DP[14] AM46 PCIEX3 I

PE3D_RX_DP[15] AN45 PCIEX3 I

PE3D_TX_DN[12] AC45 PCIEX3 O

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 20 of 42)

Land Name

PE3D_TX_DN[13] AB44 PCIEX3 O

PE3D_TX_DN[14] AA43 PCIEX3 O

PE3D_TX_DN[15] P44 PCIEX3 O

PE3D_TX_DP[12] AA45 PCIEX3 O

PE3D_TX_DP[13] Y44 PCIEX3 O

PE3D_TX_DP[14] AC43 PCIEX3 O

PE3D_TX_DP[15] T44 PCIEX3 O

PECI BJ47 PECI I/O

PEHPSCL BH48 ODCMOS I/O

PEHPSDA BF48 ODCMOS I/O

PMSYNC K52 CMOS I

PRDY_N R53 CMOS O

PREQ_N U53 CMOS I/O

PROCHOT_N BD52 ODCMOS I/O

PWRGOOD BJ53 CMOS I

RESET_N CK44 CMOS I

RSVD A53

RSVD AB48

RSVD AJ55

RSVD AL55

RSVD AM44

RSVD AP48

RSVD AR55

RSVD AU55

RSVD AV46

RSVD AY46

RSVD B46

RSVD BC47

RSVD BD44

RSVD BD46

RSVD BD48

RSVD BE43

RSVD BE45

RSVD BE47

RSVD BF46

RSVD BG43

RSVD BG45

RSVD BH44

RSVD BH46

RSVD BJ43

RSVD BJ45

RSVD BK44

RSVD BL43

RSVD BL45

Land

No.

Buffer

Type

Direction

Datasheet 83

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 21 of 42)

Land Name

RSVD BM44

RSVD BM46

RSVD BN47

RSVD BP44

RSVD BP46

RSVD BR43

RSVD BR47

RSVD BT44

RSVD BU43

RSVD BY46

RSVD C53

RSVD CA45

RSVD CD44

RSVD CE43

RSVD CF44

RSVD CG11

RSVD CP54

RSVD CY46

RSVD CY48

RSVD CY56

RSVD CY58

RSVD D46

RSVD D56

RSVD DA57

RSVD DB56

RSVD DC55

RSVD DD54

RSVD DE55

RSVD E53

RSVD E57

RSVD F46

RSVD F56

RSVD F58

RSVD H56

RSVD H58

RSVD J15

RSVD K58

RSVD M48

RSVD W15

RSVD Y48

SAFE_MODE_BOOT DA55 CMOS I

SKTOCC_N BU49 O

SVIDALERT_N CR43 CMOS I

SVIDCLK CB44 ODCMOS O

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 22 of 42)

Land Name

SVIDDATA BR45 ODCMOS I/O

TCK BY44 CMOS I

TDI BW43 CMOS I

TDO CA43 ODCMOS O

TEST0 DB4 O

TEST1 CW1 O

TEST2 F2 O

TEST3 D4 O

TEST4 BA55 I

THERMTRIP_N BL47 ODCMOS O

TMS BV44 CMOS I

TRST_N CT54 CMOS I

VCC AG19 PWR

VCC AG25 PWR

VCC AG27 PWR

VCC AG29 PWR

VCC AG31 PWR

VCC AG33 PWR

VCC AG35 PWR

VCC AG37 PWR

VCC AG39 PWR

VCC AG41 PWR

VCC AL1 PWR

VCC AL11 PWR

VCC AL13 PWR

VCC AL15 PWR

VCC AL17 PWR

VCC AL3 PWR

VCC AL5 PWR

VCC AL7 PWR

VCC AL9 PWR

VCC AM10 PWR

VCC AM12 PWR

VCC AM14 PWR

VCC AM16 PWR

VCC AM2 PWR

VCC AM4 PWR

VCC AM6 PWR

VCC AM8 PWR

VCC AN1 PWR

VCC AN11 PWR

VCC AN13 PWR

VCC AN15 PWR

VCC AN17 PWR

Land

No.

Buffer

Type

Direction

84 Datasheet

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 23 of 42)

Land Name

VCC AN3 PWR

VCC AN5 PWR

VCC AN7 PWR

VCC AN9 PWR

VCC AP10 PWR

VCC AP12 PWR

VCC AP14 PWR

VCC AP16 PWR

VCC AP2 PWR

VCC AP4 PWR

VCC AP6 PWR

VCC AP8 PWR

VCC AU1 PWR

VCC AU11 PWR

VCC AU13 PWR

VCC AU15 PWR

VCC AU17 PWR

VCC AU3 PWR

VCC AU5 PWR

VCC AU7 PWR

VCC AU9 PWR

VCC AV10 PWR

VCC AV12 PWR

VCC AV14 PWR

VCC AV16 PWR

VCC AV2 PWR

VCC AV4 PWR

VCC AV6 PWR

VCC AV8 PWR

VCC AW1 PWR

VCC AW11 PWR

VCC AW13 PWR

VCC AW15 PWR

VCC AW17 PWR

VCC AW3 PWR

VCC AW5 PWR

VCC AW7 PWR

VCC AW9 PWR

VCC AY10 PWR

VCC AY12 PWR

VCC AY14 PWR

VCC AY16 PWR

VCC AY2 PWR

VCC AY4 PWR

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 24 of 42)

Land Name

VCC AY6 PWR

VCC AY8 PWR

VCC BA1 PWR

VCC BA11 PWR

VCC BA13 PWR

VCC BA15 PWR

VCC BA17 PWR

VCC BA3 PWR

VCC BA5 PWR

VCC BA7 PWR

VCC BA9 PWR

VCC BB10 PWR

VCC BB12 PWR

VCC BB14 PWR

VCC BB16 PWR

VCC BB2 PWR

VCC BB4 PWR

VCC BB6 PWR

VCC BB8 PWR

VCC BE1 PWR

VCC BE11 PWR

VCC BE13 PWR

VCC BE15 PWR

VCC BE17 PWR

VCC BE3 PWR

VCC BE5 PWR

VCC BE7 PWR

VCC BE9 PWR

VCC BF10 PWR

VCC BF12 PWR

VCC BF14 PWR

VCC BF16 PWR

VCC BF2 PWR

VCC BF4 PWR

VCC BF6 PWR

VCC BF8 PWR

VCC BG1 PWR

VCC BG11 PWR

VCC BG13 PWR

VCC BG15 PWR

VCC BG17 PWR

VCC BG3 PWR

VCC BG5 PWR

VCC BG7 PWR

Land

No.

Buffer

Type

Direction

Datasheet 85

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 25 of 42)

Land Name

VCC BG9 PWR

VCC BH10 PWR

VCC BH12 PWR

VCC BH14 PWR

VCC BH16 PWR

VCC BH2 PWR

VCC BH4 PWR

VCC BH6 PWR

VCC BH8 PWR

VCC BJ1 PWR

VCC BJ11 PWR

VCC BJ13 PWR

VCC BJ15 PWR

VCC BJ17 PWR

VCC BJ3 PWR

VCC BJ5 PWR

VCC BJ7 PWR

VCC BJ9 PWR

VCC BK10 PWR

VCC BK12 PWR

VCC BK14 PWR

VCC BK16 PWR

VCC BK2 PWR

VCC BK4 PWR

VCC BK6 PWR

VCC BK8 PWR

VCC BN1 PWR

VCC BN11 PWR

VCC BN13 PWR

VCC BN15 PWR

VCC BN17 PWR

VCC BN3 PWR

VCC BN5 PWR

VCC BN7 PWR

VCC BN9 PWR

VCC BP10 PWR

VCC BP12 PWR

VCC BP14 PWR

VCC BP16 PWR

VCC BP2 PWR

VCC BP4 PWR

VCC BP6 PWR

VCC BP8 PWR

VCC BR1 PWR

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 26 of 42)

Land Name

VCC BR11 PWR

VCC BR13 PWR

VCC BR15 PWR

VCC BR17 PWR

VCC BR3 PWR

VCC BR5 PWR

VCC BR7 PWR

VCC BR9 PWR

VCC BT10 PWR

VCC BT12 PWR

VCC BT14 PWR

VCC BT16 PWR

VCC BT2 PWR

VCC BT4 PWR

VCC BT6 PWR

VCC BT8 PWR

VCC BU1 PWR

VCC BU11 PWR

VCC BU13 PWR

VCC BU15 PWR

VCC BU17 PWR

VCC BU3 PWR

VCC BU5 PWR

VCC BU7 PWR

VCC BU9 PWR

VCC BV10 PWR

VCC BV12 PWR

VCC BV14 PWR

VCC BV16 PWR

VCC BV2 PWR

VCC BV4 PWR

VCC BV6 PWR

VCC BV8 PWR

VCC BY18 PWR

VCC BY26 PWR

VCC BY28 PWR

VCC BY30 PWR

VCC BY32 PWR

VCC BY34 PWR

VCC BY36 PWR

VCC BY38 PWR

VCC BY40 PWR

VCC CA25 PWR

VCC CA29 PWR

Land

No.

Buffer

Type

Direction

86 Datasheet

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 27 of 42)

Land Name

VCC_SENSE BW3 O

VCCD_01 CD20 PWR

VCCD_01 CD22 PWR

VCCD_01 CD24 PWR

VCCD_01 CD26 PWR

VCCD_01 CD28 PWR

VCCD_01 CJ19 PWR

VCCD_01 CJ21 PWR

VCCD_01 CJ23 PWR

VCCD_01 CJ25 PWR

VCCD_01 CJ27 PWR

VCCD_01 CP20 PWR

VCCD_01 CP22 PWR

VCCD_01 CP24 PWR

VCCD_01 CP26 PWR

VCCD_01 CP28 PWR

VCCD_01 CW19 PWR

VCCD_01 CW21 PWR

VCCD_01 CW23 PWR

VCCD_01 CW25 PWR

VCCD_01 CW27 PWR

VCCD_01 DD18 PWR

VCCD_01 DD20 PWR

VCCD_01 DD22 PWR

VCCD_01 DD24 PWR

VCCD_01 DD26 PWR

VCCD_23 AC17 PWR

VCCD_23 AC19 PWR

VCCD_23 AC21 PWR

VCCD_23 AC23 PWR

VCCD_23 AC25 PWR

VCCD_23 C15 PWR

VCCD_23 C17 PWR

VCCD_23 C19 PWR

VCCD_23 C21 PWR

VCCD_23 C23 PWR

VCCD_23 G13 PWR

VCCD_23 H16 PWR

VCCD_23 H18 PWR

VCCD_23 H20 PWR

VCCD_23 H22 PWR

VCCD_23 H24 PWR

VCCD_23 N15 PWR

VCCD_23 N17 PWR

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 28 of 42)

Land Name

VCCD_23 N19 PWR

VCCD_23 N21 PWR

VCCD_23 N23 PWR

VCCD_23 V16 PWR

VCCD_23 V18 PWR

VCCD_23 V20 PWR

VCCD_23 V22 PWR

VCCD_23 V24 PWR

VCCPLL BY14 PWR

VCCPLL CA13 PWR

VCCPLL CA15 PWR

VSA AE15 PWR

VSA AE17 PWR

VSA AF18 PWR

VSA AG15 PWR

VSA AG17 PWR

VSA AH10 PWR

VSA AH12 PWR

VSA AH14 PWR

VSA AH16 PWR

VSA AH2 PWR

VSA AH4 PWR

VSA AH6 PWR

VSA AH8 PWR

VSA AJ1 PWR

VSA AJ11 PWR

VSA AJ13 PWR

VSA AJ3 PWR

VSA AJ5 PWR

VSA AJ7 PWR

VSA AJ9 PWR

VSA B54 PWR

VSA G43 PWR

VSA G49 PWR

VSA N45 PWR

VSA N51 PWR

VSA_SENSE AG13 O

VSS A41 GND

VSS A43 GND

VSS A45 GND

VSS A47 GND

VSS A49 GND

VSS A5 GND

VSS A51 GND

Land

No.

Buffer

Type

Direction

Datasheet 87

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 29 of 42)

Land Name

VSS A7 GND

VSS AA11 GND

VSS AA29 GND

VSS AA3 GND

VSS AA31 GND

VSS AA39 GND

VSS AA5 GND

VSS AA55 GND

VSS AA9 GND

VSS AB14 GND

VSS AB36 GND

VSS AB42 GND

VSS AB6 GND

VSS AC31 GND

VSS AC9 GND

VSS AD26 GND

VSS AD34 GND

VSS AD36 GND

VSS AD42 GND

VSS AD44 GND

VSS AD46 GND

VSS AD48 GND

VSS AD50 GND

VSS AD52 GND

VSS AD6 GND

VSS AE29 GND

VSS AE31 GND

VSS AE39 GND

VSS AE43 GND

VSS AE47 GND

VSS AE49 GND

VSS AE51 GND

VSS AE9 GND

VSS AF12 GND

VSS AF16 GND

VSS AF20 GND

VSS AF26 GND

VSS AF34 GND

VSS AF36 GND

VSS AF40 GND

VSS AF42 GND

VSS AF54 GND

VSS AF56 GND

VSS AF6 GND

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 30 of 42)

Land Name

VSS AG1 GND

VSS AG3 GND

VSS AG43 GND

VSS AG5 GND

VSS AG55 GND

VSS AG57 GND

VSS AG9 GND

VSS AH58 GND

VSS AJ15 GND

VSS AJ17 GND

VSS AK10 GND

VSS AK12 GND

VSS AK14 GND

VSS AK16 GND

VSS AK2 GND

VSS AK4 GND

VSS AK42 GND

VSS AK44 GND

VSS AK46 GND

VSS AK48 GND

VSS AK50 GND

VSS AK6 GND

VSS AK8 GND

VSS AL43 GND

VSS AL45 GND

VSS AL49 GND

VSS AL51 GND

VSS AL53 GND

VSS AM56 GND

VSS AN55 GND

VSS AN57 GND

VSS AP42 GND

VSS AP44 GND

VSS AP58 GND

VSS AR1 GND

VSS AR11 GND

VSS AR13 GND

VSS AR15 GND

VSS AR17 GND

VSS AR3 GND

VSS AR5 GND

VSS AR7 GND

VSS AR9 GND

VSS AT10 GND

Land

No.

Buffer

Type

Direction

88 Datasheet

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 31 of 42)

Land Name

VSS AT12 GND

VSS AT14 GND

VSS AT16 GND

VSS AT2 GND

VSS AT4 GND

VSS AT46 GND

VSS AT52 GND

VSS AT6 GND

VSS AT8 GND

VSS AU45 GND

VSS AU47 GND

VSS AU49 GND

VSS AU51 GND

VSS AV42 GND

VSS AV54 GND

VSS AV56 GND

VSS AW55 GND

VSS AW57 GND

VSS B36 GND

VSS B52 GND

VSS B6 GND

VSS B8 GND

VSS BB42 GND

VSS BB46 GND

VSS BB48 GND

VSS BB50 GND

VSS BB52 GND

VSS BB58 GND

VSS BC1 GND

VSS BC11 GND

VSS BC13 GND

VSS BC15 GND

VSS BC17 GND

VSS BC3 GND

VSS BC43 GND

VSS BC45 GND

VSS BC5 GND

VSS BC53 GND

VSS BC55 GND

VSS BC57 GND

VSS BC7 GND

VSS BC9 GND

VSS BD10 GND

VSS BD12 GND

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 32 of 42)

Land Name

VSS BD14 GND

VSS BD16 GND

VSS BD2 GND

VSS BD4 GND

VSS BD54 GND

VSS BD56 GND

VSS BD6 GND

VSS BD8 GND

VSS BE49 GND

VSS BE51 GND

VSS BF42 GND

VSS BF44 GND

VSS BG47 GND

VSS BH58 GND

VSS BJ55 GND

VSS BJ57 GND

VSS BK42 GND

VSS BK46 GND

VSS BK48 GND

VSS BK50 GND

VSS BK52 GND

VSS BK54 GND

VSS BL1 GND

VSS BL11 GND

VSS BL13 GND

VSS BL15 GND

VSS BL17 GND

VSS BL3 GND

VSS BL49 GND

VSS BL5 GND

VSS BL7 GND

VSS BL9 GND

VSS BM10 GND

VSS BM12 GND

VSS BM14 GND

VSS BM16 GND

VSS BM2 GND

VSS BM4 GND

VSS BM6 GND

VSS BM8 GND

VSS BN43 GND

VSS BN45 GND

VSS BP58 GND

VSS BR53 GND

Land

No.

Buffer

Type

Direction

Datasheet 89

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 33 of 42)

Land Name

VSS BR57 GND

VSS BT46 GND

VSS BT48 GND

VSS BT50 GND

VSS BT52 GND

VSS BT54 GND

VSS BT56 GND

VSS BU45 GND

VSS BU51 GND

VSS BW1 GND

VSS BW11 GND

VSS BW13 GND

VSS BW15 GND

VSS BW17 GND

VSS BW5 GND

VSS BW7 GND

VSS BY24 GND

VSS BY4 GND

VSS BY42 GND

VSS BY58 GND

VSS BY8 GND

VSS C11 GND

VSS C13 GND

VSS C3 GND

VSS C33 GND

VSS C39 GND

VSS C41 GND

VSS C5 GND

VSS C55 GND

VSS CA11 GND

VSS CA19 GND

VSS CA27 GND

VSS CA31 GND

VSS CA33 GND

VSS CA35 GND

VSS CA37 GND

VSS CA39 GND

VSS CA41 GND

VSS CA5 GND

VSS CA55 GND

VSS CA57 GND

VSS CB16 GND

VSS CB36 GND

VSS CB46 GND

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 34 of 42)

Land Name

VSS CB48 GND

VSS CB50 GND

VSS CB52 GND

VSS CB56 GND

VSS CB6 GND

VSS CB8 GND

VSS CC13 GND

VSS CC29 GND

VSS CC3 GND

VSS CC43 GND

VSS CC47 GND

VSS CC49 GND

VSS CC9 GND

VSS CD18 GND

VSS CD36 GND

VSS CD6 GND

VSS CE13 GND

VSS CE5 GND

VSS CE9 GND

VSS CF12 GND

VSS CF14 GND

VSS CF30 GND

VSS CF32 GND

VSS CF34 GND

VSS CF36 GND

VSS CF38 GND

VSS CF40 GND

VSS CF42 GND

VSS CF6 GND

VSS CG15 GND

VSS CG31 GND

VSS CG33 GND

VSS CG35 GND

VSS CG37 GND

VSS CG39 GND

VSS CG41 GND

VSS CG43 GND

VSS CG53 GND

VSS CG9 GND

VSS CH12 GND

VSS CH16 GND

VSS CH36 GND

VSS CH44 GND

VSS CH46 GND

Land

No.

Buffer

Type

Direction

90 Datasheet

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 35 of 42)

Land Name

VSS CH48 GND

VSS CH50 GND

VSS CH52 GND

VSS CH54 GND

VSS CH6 GND

VSS CJ11 GND

VSS CJ17 GND

VSS CJ29 GND

VSS CJ3 GND

VSS CJ43 GND

VSS CJ45 GND

VSS CJ47 GND

VSS CJ51 GND

VSS CJ9 GND

VSS CK10 GND

VSS CK36 GND

VSS CK4 GND

VSS CK6 GND

VSS CL17 GND

VSS CL43 GND

VSS CL5 GND

VSS CM10 GND

VSS CM14 GND

VSS CM30 GND

VSS CM32 GND

VSS CM34 GND

VSS CM36 GND

VSS CM38 GND

VSS CM40 GND

VSS CM42 GND

VSS CM6 GND

VSS CM8 GND

VSS CN11 GND

VSS CN13 GND

VSS CN15 GND

VSS CN17 GND

VSS CN3 GND

VSS CN31 GND

VSS CN33 GND

VSS CN35 GND

VSS CN37 GND

VSS CN39 GND

VSS CN5 GND

VSS CN53 GND

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 36 of 42)

Land Name

VSS CN55 GND

VSS CN57 GND

VSS CN7 GND

VSS CN9 GND

VSS CP12 GND

VSS CP16 GND

VSS CP36 GND

VSS CP40 GND

VSS CP42 GND

VSS CP44 GND

VSS CP46 GND

VSS CP48 GND

VSS CP50 GND

VSS CP52 GND

VSS CP56 GND

VSS CR11 GND

VSS CR35 GND

VSS CR47 GND

VSS CR49 GND

VSS CR5 GND

VSS CR9 GND

VSS CT28 GND

VSS CT42 GND

VSS CU1 GND

VSS CU11 GND

VSS CU3 GND

VSS CU35 GND

VSS CU5 GND

VSS CV14 GND

VSS CV18 GND

VSS CV30 GND

VSS CV32 GND

VSS CV34 GND

VSS CV38 GND

VSS CV42 GND

VSS CV54 GND

VSS CV58 GND

VSS CV6 GND

VSS CW11 GND

VSS CW13 GND

VSS CW15 GND

VSS CW29 GND

VSS CW31 GND

VSS CW33 GND

Land

No.

Buffer

Type

Direction

Datasheet 91

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 37 of 42)

Land Name

VSS CW35 GND

VSS CW37 GND

VSS CW39 GND

VSS CW5 GND

VSS CW51 GND

VSS CW53 GND

VSS CW55 GND

VSS CW57 GND

VSS CW7 GND

VSS CY10 GND

VSS CY12 GND

VSS CY16 GND

VSS CY2 GND

VSS CY36 GND

VSS CY40 GND

VSS CY44 GND

VSS CY50 GND

VSS CY8 GND

VSS D2 GND

VSS D26 GND

VSS D36 GND

VSS D8 GND

VSS DA11 GND

VSS DA3 GND

VSS DA41 GND

VSS DA43 GND

VSS DA45 GND

VSS DA47 GND

VSS DA5 GND

VSS DA51 GND

VSS DA9 GND

VSS DB12 GND

VSS DB2 GND

VSS DB32 GND

VSS DB36 GND

VSS DB58 GND

VSS DC3 GND

VSS DC41 GND

VSS DC5 GND

VSS DD10 GND

VSS DD12 GND

VSS DD14 GND

VSS DD34 GND

VSS DD36 GND

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 38 of 42)

Land Name

VSS DD38 GND

VSS DD6 GND

VSS DE17 GND

VSS DE41 GND

VSS DE53 GND

VSS DE7 GND

VSS DF12 GND

VSS DF36 GND

VSS DF42 GND

VSS DF44 GND

VSS DF46 GND

VSS DF48 GND

VSS DF50 GND

VSS DF52 GND

VSS DF8 GND

VSS E1 GND

VSS E29 GND

VSS E3 GND

VSS E31 GND

VSS E41 GND

VSS E5 GND

VSS F36 GND

VSS F42 GND

VSS F44 GND

VSS F48 GND

VSS F50 GND

VSS F8 GND

VSS G1 GND

VSS G25 GND

VSS G31 GND

VSS G35 GND

VSS G37 GND

VSS G41 GND

VSS G45 GND

VSS G47 GND

VSS G5 GND

VSS G51 GND

VSS G53 GND

VSS G57 GND

VSS G9 GND

VSS H10 GND

VSS H12 GND

VSS H14 GND

VSS H32 GND

Land

No.

Buffer

Type

Direction

92 Datasheet

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 39 of 42)

Land Name

VSS H34 GND

VSS H38 GND

VSS H40 GND

VSS H52 GND

VSS H54 GND

VSS H8 GND

VSS J11 GND

VSS J27 GND

VSS J31 GND

VSS J33 GND

VSS J39 GND

VSS J41 GND

VSS J5 GND

VSS J55 GND

VSS K2 GND

VSS K26 GND

VSS K28 GND

VSS K30 GND

VSS K34 GND

VSS K8 GND

VSS L25 GND

VSS L29 GND

VSS L41 GND

VSS L5 GND

VSS M34 GND

VSS M36 GND

VSS M42 GND

VSS M44 GND

VSS M46 GND

VSS M50 GND

VSS M52 GND

VSS M8 GND

VSS N13 GND

VSS N33 GND

VSS N35 GND

VSS N37 GND

VSS N41 GND

VSS N43 GND

VSS N47 GND

VSS N49 GND

VSS N5 GND

VSS N53 GND

VSS N9 GND

VSS P10 GND

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 40 of 42)

Land Name

VSS P12 GND

VSS P14 GND

VSS P26 GND

VSS P30 GND

VSS P32 GND

VSS P38 GND

VSS P40 GND

VSS P54 GND

VSS P56 GND

VSS P8 GND

VSS R11 GND

VSS R29 GND

VSS R3 GND

VSS R31 GND

VSS R35 GND

VSS R39 GND

VSS R5 GND

VSS R55 GND

VSS R7 GND

VSS T28 GND

VSS T4 GND

VSS T42 GND

VSS T6 GND

VSS T8 GND

VSS U35 GND

VSS U5 GND

VSS V26 GND

VSS V28 GND

VSS V34 GND

VSS V36 GND

VSS V42 GND

VSS V44 GND

VSS V46 GND

VSS V48 GND

VSS V50 GND

VSS V8 GND

VSS W13 GND

VSS W33 GND

VSS W37 GND

VSS W41 GND

VSS W43 GND

VSS W45 GND

VSS W47 GND

VSS W5 GND

Land

No.

Buffer

Type

Direction

Datasheet 93

Processor Land Listing

Table 8-1. Land List by Land Name

(Sheet 41 of 42)

Land Name

VSS W51 GND

VSS W53 GND

VSS W9 GND

VSS Y10 GND

VSS Y12 GND

VSS Y28 GND

VSS Y30 GND

VSS Y32 GND

VSS Y36 GND

VSS Y38 GND

VSS Y40 GND

VSS Y42 GND

VSS Y56 GND

VSS_VCC_SENSE BY2 O

VSS_VSA_SENSE AF14 O

VSS_VTTD_SENSE BT42 O

VTTA AE45 PWR

VTTA AE53 PWR

VTTA AM48 PWR

VTTA AM54 PWR

VTTA AU53 PWR

VTTA CA53 PWR

VTTA CC45 PWR

VTTA CG55 PWR

VTTA CJ49 PWR

VTTA CR45 PWR

VTTA CR51 PWR

VTTA DA49 PWR

VTTA W49 PWR

VTTA Y54 PWR

VTTD AF22 PWR

VTTD AF24 PWR

VTTD AG21 PWR

VTTD AG23 PWR

VTTD AM42 PWR

VTTD AT42 PWR

VTTD AY42 PWR

VTTD BD42 PWR

VTTD BH42 PWR

VTTD BK56 PWR

VTTD BL51 PWR

VTTD BM42 PWR

VTTD BR55 PWR

VTTD BU47 PWR

Land

No.

Buffer

Type

Direction

Table 8-1. Land List by Land Name

(Sheet 42 of 42)

Land Name

VTTD BV42 PWR

VTTD BY20 PWR

VTTD BY22 PWR

VTTD CA21 PWR

VTTD CA23 PWR

VTTD_SENSE BP42 O

Land

No.

Buffer

Type

Direction

94 Datasheet

Processor Land Listing

Table 8-2. Land List by Land

Number (Sheet 1 of 42)

Land

No.

A11 DDR3_DQ[33] SSTL I/O

A13 DDR3_MA[13] SSTL O

A15 DDR3_WE_N SSTL O

A17 DDR3_BA[0] SSTL O

A19 DDR3_MA[00] SSTL O

A21 DDR3_MA[05] SSTL O

A23 DDR3_MA[11] SSTL O

A33 DDR3_DQ[22] SSTL I/O

A35 DDR3_DQ[16] SSTL I/O

A37 DDR3_DQ[07] SSTL I/O

A39 DDR3_DQ[01] SSTL I/O

A41 VSS GND

A43 VSS GND

A45 VSS GND

A47 VSS GND

A49 VSS GND

A5 VSS GND

A51 VSS GND

A53 RSVD

A7 VSS GND

A9 DDR3_DQ[39] SSTL I/O

AA11 VSS GND

AA13 DDR2_DQ[37] SSTL I/O

AA15 DDR2_CS_N[3] SSTL O

AA17 DDR2_CS_N[9] SSTL O

AA19 DDR2_CS_N[4] SSTL O

AA21 DDR2_CLK_DP[2] SSTL O

AA23 DDR2_CLK_DP[3] SSTL O

AA25 DDR2_CKE[0] SSTL O

AA29 VSS GND

AA3 VSS GND

AA31 VSS GND

AA33 DDR2_DQS_DN[03] SSTL I/O

AA35 DDR2_DQ[28] SSTL I/O

AA37 DDR2_DQ[10] SSTL I/O

AA39 VSS GND

AA41 DDR2_DQ[13] SSTL I/O

AA43 PE3D_TX_DN[14] PCIEX3 O

AA45 PE3D_TX_DP[12] PCIEX3 O

AA47 PE3C_TX_DP[9] PCIEX3 O

AA49 PE3A_RX_DP[3] PCIEX3 I

AA5 VSS GND

AA51 PE3B_RX_DP[7] PCIEX3 I

AA53 PE3B_RX_DP[6] PCIEX3 I

Land Name

Buffer

Type

Direction

Table 8-2. Land List by Land

Number (Sheet 2 of 42)

Land

No.

AA55 VSS GND

AA7 DDR2_DQS_DN[14] SSTL I/O

AA9 VSS GND

AB10 DDR2_DQ[38] SSTL I/O

AB12 DDR2_DQS_DP[13] SSTL I/O

AB14 VSS GND

AB16 DDR2_CS_N[6] SSTL O

AB18 DDR2_MA[00] SSTL O

AB20 DDR2_CS_N[0] SSTL O

AB22 DDR2_CLK_DP[1] SSTL O

AB24 DDR2_CLK_DP[0] SSTL O

AB28 DDR2_DQS_DN[08] SSTL I/O

AB32 DDR2_DQ[30] SSTL I/O

AB34 DDR2_DQS_DN[12] SSTL I/O

AB36 VSS GND

AB38 DDR2_DQS_DP[01] SSTL I/O

AB4 DDR2_DQS_DP[07] SSTL I/O

AB40 DDR2_DQS_DP[10] SSTL I/O

AB42 VSS GND

AB44 PE3D_TX_DN[13] PCIEX3 O

AB46 PE3C_TX_DN[11] PCIEX3 O

AB48 RSVD

AB50 PE3B_RX_DN[4] PCIEX3 I

AB52 PE3B_RX_DN[5] PCIEX3 I

AB54 PE2B_RX_DP[4] PCIEX3 I

AB56 PE2B_RX_DP[5] PCIEX3 I

AB6 VSS GND

AB8 DDR2_DQS_DN[05] SSTL I/O

AC11 DDR2_DQS_DN[04] SSTL I/O

AC13 DDR2_DQ[32] SSTL I/O

AC15 DDR23_RCOMP[1] Analog I

AC17 VCCD_23 PWR

AC19 VCCD_23 PWR

AC21 VCCD_23 PWR

AC23 VCCD_23 PWR

AC25 VCCD_23 PWR

AC27 DDR2_DQS_DP[08] SSTL I/O

AC29 DDR2_DQS_DP[17] SSTL I/O

AC3 DDR2_DQS_DN[07] SSTL I/O

AC31 VSS GND

AC33 DDR2_DQS_DP[03] SSTL I/O

AC35 DDR2_DQ[24] SSTL I/O

AC37 DDR2_DQ[11] SSTL I/O

AC39 DDR2_DQS_DN[10] SSTL I/O

Land Name

Buffer

Type

Direction

Datasheet 95

Processor Land Listing

Table 8-2. Land List by Land

Number (Sheet 3 of 42)

Land

No.

AC41 DDR2_DQ[12] SSTL I/O

AC43 PE3D_TX_DP[14] PCIEX3 O

AC45 PE3D_TX_DN[12] PCIEX3 O

AC47 PE3C_TX_DN[9] PCIEX3 O

AC49 PE3A_RX_DN[3] PCIEX3 I

AC5 DDR2_DQS_DP[16] SSTL I/O

AC51 PE3B_RX_DN[7] PCIEX3 I

AC53 PE3B_RX_DN[6] PCIEX3 I

AC55 PE2B_RX_DP[6] PCIEX3 I

AC7 DDR2_DQS_DP[05] SSTL I/O

AC9 VSS GND

AD10 DDR2_DQ[39] SSTL I/O

AD12 DDR2_DQS_DN[13] SSTL I/O

AD14 DDR2_DQ[36] SSTL I/O

AD16 DDR2_CS_N[2] SSTL O

AD18 DDR2_ODT[2] SSTL O

AD20 DDR2_PAR_ERR_N SSTL I

AD22 DDR2_ODT[4] SSTL O

AD24 DDR2_CKE[3] SSTL O

AD26 VSS GND

AD28 DDR2_DQS_DN[17] SSTL I/O

AD32 DDR2_DQ[31] SSTL I/O

AD34 VSS GND

AD36 VSS GND

AD38 DDR2_DQS_DN[01] SSTL I/O

AD4 DDR2_DQS_DN[16] SSTL I/O

AD40 DDR2_DQ[09] SSTL I/O

AD42 VSS GND

AD44 VSS GND

AD46 VSS GND

AD48 VSS GND

AD50 VSS GND

AD52 VSS GND

AD54 PE2B_RX_DN[4] PCIEX3 I

AD56 PE2B_RX_DN[5] PCIEX3 I

AD6 VSS GND

AD8 DDR2_DQ[46] SSTL I/O

AE11 DDR2_DQS_DP[04] SSTL I/O

AE13 DDR2_DQ[33] SSTL I/O

AE15 VSA PWR

AE17 VSA PWR

AE19 DDR2_CS_N[1] SSTL O

AE21 DDR2_ODT[5] SSTL O

AE23 DDR2_CKE[5] SSTL O

Land Name

Buffer

Type

Direction

Table 8-2. Land List by Land

Number (Sheet 4 of 42)

Land

No.

AE25 DDR2_CKE[4] SSTL O

AE27 DDR_RESET_C23_N CMOS1.5

AE29 VSS GND

AE3 DDR2_DQ[63] SSTL I/O

AE31 VSS GND

AE33 DDR2_DQ[26] SSTL I/O

AE35 DDR2_DQ[25] SSTL I/O

AE37 DDR2_DQ[15] SSTL I/O

AE39 VSS GND

AE41 DDR2_DQ[08] SSTL I/O

AE43 VSS GND

AE45 VTTA PWR

AE47 VSS GND

AE49 VSS GND

AE5 DDR2_DQ[59] SSTL I/O

AE51 VSS GND

AE53 VTTA PWR

AE55 PE2B_RX_DN[6] PCIEX3 I

AE57 PE2B_RX_DP[7] PCIEX3 I

AE7 DDR2_DQ[47] SSTL I/O

AE9 VSS GND

AF10 DDR2_DQ[35] SSTL I/O

AF12 VSS GND

AF14 VSS_VSA_SENSE O

AF16 VSS GND

AF18 VSA PWR

AF2 DDR2_DQ[62] SSTL I/O

AF20 VSS GND

AF22 VTTD PWR

AF24 VTTD PWR

AF26 VSS GND

AF32 DDR2_DQ[27] SSTL I/O

AF34 VSS GND

AF36 VSS GND

AF38 DDR2_DQ[14] SSTL I/O

AF4 DDR2_DQ[58] SSTL I/O

AF40 VSS GND

AF42 VSS GND

AF44 PE3A_RX_DP[0] PCIEX3 I

AF46 PE3A_RX_DP[2] PCIEX3 I

AF48 PE3C_RX_DP[8] PCIEX3 I

AF50 PE3C_RX_DP[10] PCIEX3 I

AF52 PE_RBIAS_SENSE PCIEX3 I

Land Name

Buffer

Type

Direction

96 Datasheet

Processor Land Listing

Table 8-2. Land List by Land

Number (Sheet 5 of 42)

Land

No.

AF54 VSS GND

AF56 VSS GND

AF58 PE2B_RX_DN[7] PCIEX3 I

AF6 VSS GND

AF8 DDR2_DQ[42] SSTL I/O

AG1 VSS GND

AG11 DDR2_DQ[34] SSTL I/O

AG13 VSA_SENSE O

AG15 VSA PWR

AG17 VSA PWR

AG19 VCC PWR

AG21 VTTD PWR

AG23 VTTD PWR

AG25 VCC PWR

AG27 VCC PWR

AG29 VCC PWR

AG3 VSS GND

AG31 VCC PWR

AG33 VCC PWR

AG35 VCC PWR

AG37 VCC PWR

AG39 VCC PWR

AG41 VCC PWR

AG43 VSS GND

AG45 PE3A_RX_DP[1] PCIEX3 I

AG47 PE3D_RX_DP[12] PCIEX3 I

AG49 PE3C_RX_DP[11] PCIEX3 I

AG5 VSS GND

AG51 PE3C_RX_DP[9] PCIEX3 I

AG53 PE2B_TX_DP[4] PCIEX3 O

AG55 VSS GND

AG57 VSS GND

AG7 DDR2_DQ[43] SSTL I/O

AG9 VSS GND

AH10 VSA PWR

AH12 VSA PWR

AH14 VSA PWR

AH16 VSA PWR

AH2 VSA PWR

AH4 VSA PWR

AH42 IVT_ID_N O

AH44 PE3A_RX_DN[0] PCIEX3 I

AH46 PE3A_RX_DN[2] PCIEX3 I

AH48 PE3C_RX_DN[8] PCIEX3 I

Land Name

Buffer

Type

Direction

Table 8-2. Land List by Land

Number (Sheet 6 of 42)

Land

No.

AH50 PE3C_RX_DN[10] PCIEX3 I

AH52 PE_RBIAS PCIEX3 I/O

AH54 PE2B_TX_DP[5] PCIEX3 O

AH56 PE2C_RX_DP[8] PCIEX3 I

AH58 VSS GND

AH6 VSA PWR

AH8 VSA PWR

AJ1 VSA PWR

AJ11 VSA PWR

AJ13 VSA PWR

AJ15 VSS GND

AJ17 VSS GND

AJ3 VSA PWR

AJ43 PE_VREF_CAP PCIEX3 I/O

AJ45 PE3A_RX_DN[1] PCIEX3 I

AJ47 PE3D_RX_DN[12] PCIEX3 I

AJ49 PE3C_RX_DN[11] PCIEX3 I

AJ5 VSA PWR

AJ51 PE3C_RX_DN[9] PCIEX3 I

AJ53 PE2B_TX_DN[4] PCIEX3 O

AJ55 RSVD

AJ57 PE2C_RX_DP[10] PCIEX3 I

AJ7 VSA PWR

AJ9 VSA PWR

AK10 VSS GND

AK12 VSS GND

AK14 VSS GND

AK16 VSS GND

AK2 VSS GND

AK4 VSS GND

AK42 VSS GND

AK44 VSS GND

AK46 VSS GND

AK48 VSS GND

AK50 VSS GND

AK52 TXT_AGENT CMOS I

AK54 PE2B_TX_DN[5] PCIEX3 O

AK56 PE2C_RX_DN[8] PCIEX3 I

AK58 PE2C_RX_DP[9] PCIEX3 I

AK6 VSS GND

AK8 VSS GND

AL1 VCC PWR

AL11 VCC PWR

AL13 VCC PWR

Land Name

Buffer

Type

Direction

Datasheet 97

Processor Land Listing

Table 8-2. Land List by Land

Number (Sheet 7 of 42)

Land

No.

AL15 VCC PWR

AL17 VCC PWR

AL3 VCC PWR

AL43 VSS GND

AL45 VSS GND

AL49 VSS GND

AL5 VCC PWR

AL51 VSS GND

AL53 VSS GND

AL55 RSVD

AL57 PE2C_RX_DN[10] PCIEX3 I

AL7 VCC PWR

AL9 VCC PWR

AM10 VCC PWR

AM12 VCC PWR

AM14 VCC PWR

AM16 VCC PWR

AM2 VCC PWR

AM4 VCC PWR

AM42 VTTD PWR

AM44 RSVD

AM46 PE3D_RX_DP[14] PCIEX3 I

AM48 VTTA PWR

AM50 PE2A_TX_DP[1] PCIEX3 O

AM52 PE2A_TX_DP[3] PCIEX3 O

AM54 VTTA PWR

AM56 VSS GND

AM58 PE2C_RX_DN[9] PCIEX3 I

AM6 VCC PWR

AM8 VCC PWR

AN1 VCC PWR

AN11 VCC PWR

AN13 VCC PWR

AN15 VCC PWR

AN17 VCC PWR

AN3 VCC PWR

AN43 CPU_ONLY_RESET ODCMOS I/O

AN45 PE3D_RX_DP[15] PCIEX3 I

AN47 PE3D_RX_DP[13] PCIEX3 I

AN49 PE2A_TX_DP[0] PCIEX3 O

AN5 VCC PWR

AN51 PE2A_TX_DP[2] PCIEX3 O

AN53 PE2B_TX_DP[6] PCIEX3 O

AN55 VSS GND

Land Name

Buffer

Type

Direction

Table 8-2. Land List by Land

Number (Sheet 8 of 42)

Land

No.

AN57 VSS GND

AN7 VCC PWR

AN9 VCC PWR

AP10 VCC PWR

AP12 VCC PWR

AP14 VCC PWR

AP16 VCC PWR

AP2 VCC PWR

AP4 VCC PWR

AP42 VSS GND

AP44 VSS GND

AP46 PE3D_RX_DN[14] PCIEX3 I

AP48 RSVD

AP50 PE2A_TX_DN[1] PCIEX3 O

AP52 PE2A_TX_DN[3] PCIEX3 O

AP54 PE2B_TX_DP[7] PCIEX3 O

AP56 PE2D_RX_DP[13] PCIEX3 I

AP58 VSS GND

AP6 VCC PWR

AP8 VCC PWR

AR1 VSS GND

AR11 VSS GND

AR13 VSS GND

AR15 VSS GND

AR17 VSS GND

AR3 VSS GND

AR43 BPM_N[0] ODCMOS I/O

AR45 PE3D_RX_DN[15] PCIEX3 I

AR47 PE3D_RX_DN[13] PCIEX3 I

AR49 PE2A_TX_DN[0] PCIEX3 O

AR5 VSS GND

AR51 PE2A_TX_DN[2] PCIEX3 O

AR53 PE2B_TX_DN[6] PCIEX3 O

AR55 RSVD

AR57 PE2C_RX_DP[11] PCIEX3 I

AR7 VSS GND

AR9 VSS GND

AT10 VSS GND

AT12 VSS GND

AT14 VSS GND

AT16 VSS GND

AT2 VSS GND

AT4 VSS GND

AT42 VTTD PWR

Land Name

Buffer

Type

Direction

98 Datasheet

Processor Land Listing

Table 8-2. Land List by Land

Number (Sheet 9 of 42)

Land

No.

AT44 BPM_N[1] ODCMOS I/O

AT46 VSS GND

AT48 BIST_ENABLE CMOS I

AT52 VSS GND

AT54 PE2B_TX_DN[7] PCIEX3 O

AT56 PE2D_RX_DN[13] PCIEX3 I

AT58 PE2D_RX_DP[12] PCIEX3 I

AT6 VSS GND

AT8 VSS GND

AU1 VCC PWR

AU11 VCC PWR

AU13 VCC PWR

AU15 VCC PWR

AU17 VCC PWR

AU3 VCC PWR

AU43 BPM_N[2] ODCMOS I/O

AU45 VSS GND

AU47 VSS GND

AU49 VSS GND

AU5 VCC PWR

AU51 VSS GND

AU53 VTTA PWR

AU55 RSVD

AU57 PE2C_RX_DN[11] PCIEX3 I

AU7 VCC PWR

AU9 VCC PWR

AV10 VCC PWR

AV12 VCC PWR

AV14 VCC PWR

AV16 VCC PWR

AV2 VCC PWR

AV4 VCC PWR

AV42 VSS GND

AV44 BPM_N[3] ODCMOS I/O

AV46 RSVD

AV48 PE2D_TX_DP[14] PCIEX3 O

AV50 PE2D_TX_DP[12] PCIEX3 O

AV52 PE2C_TX_DP[8] PCIEX3 O

AV54 VSS GND

AV56 VSS GND

AV58 PE2D_RX_DN[12] PCIEX3 I

AV6 VCC PWR

AV8 VCC PWR

AW1 VCC PWR

Land Name

Buffer

Type

Direction

Table 8-2. Land List by Land

Number (Sheet 10 of

Land

No.

AW11 VCC PWR

AW13 VCC PWR

AW15 VCC PWR

AW17 VCC PWR

AW3 VCC PWR

AW43 BPM_N[5] ODCMOS I/O

AW45 BCLK1_DP CMOS I

AW47 PE2D_TX_DP[15] PCIEX3 O

AW49 PE2D_TX_DP[13] PCIEX3 O

AW5 VCC PWR

AW51 PE2C_TX_DP[11] PCIEX3 O

AW53 PE2C_TX_DP[9] PCIEX3 O

AW55 VSS GND

AW57 VSS GND

AW7 VCC PWR

AW9 VCC PWR

AY10 VCC PWR

AY12 VCC PWR

AY14 VCC PWR

AY16 VCC PWR

AY2 VCC PWR

AY4 VCC PWR

AY42 VTTD PWR

AY44 BPM_N[7] ODCMOS I/O

AY46 RSVD

AY48 PE2D_TX_DN[14] PCIEX3 O

AY50 PE2D_TX_DN[12] PCIEX3 O

AY52 PE2C_TX_DN[8] PCIEX3 O

AY54 PE2C_TX_DP[10] PCIEX3 O

AY56 PE2D_RX_DP[15] PCIEX3 I

AY58 PE2D_RX_DP[14] PCIEX3 I

AY6 VCC PWR

AY8 VCC PWR

B10 DDR3_DQS_DN[04] SSTL I/O

B12 DDR3_DQ[37] SSTL I/O

B14 DDR3_CAS_N SSTL O

B16 DDR3_RAS_N SSTL O

B18 DDR3_MA_PAR SSTL O

B20 DDR3_MA[03] SSTL O

B22 DDR3_MA[07] SSTL O

B24 DDR3_BA[2] SSTL O

B32 DDR3_DQ[23] SSTL I/O

B34 DDR3_DQS_DN[11] SSTL I/O

B36 VSS GND

Land Name

Buffer

Type

Direction

Datasheet 99

Processor Land Listing

Table 8-2. Land List by Land

Number (Sheet 11 of

Land

No.

B38 DDR3_DQS_DN[00] SSTL I/O

B40 DDR3_DQ[00] SSTL I/O

B42 DMI_TX_DP[0] PCIEX O

B44 DMI_TX_DP[2] PCIEX O

B46 RSVD

B48 DMI_RX_DP[1] PCIEX I

B50 DMI_RX_DP[3] PCIEX I

B52 VSS GND

B54 VSA PWR

B6 VSS GND

B8 VSS GND

BA1 VCC PWR

BA11 VCC PWR

BA13 VCC PWR

BA15 VCC PWR

BA17 VCC PWR

BA3 VCC PWR

BA43 BPM_N[6] ODCMOS I/O

BA45 BCLK1_DN CMOS I

BA47 PE2D_TX_DN[15] PCIEX3 O

BA49 PE2D_TX_DN[13] PCIEX3 O

BA5 VCC PWR

BA51 PE2C_TX_DN[11] PCIEX3 O

BA53 PE2C_TX_DN[9] PCIEX3 O

BA55 TEST4 I

BA57 PE2D_RX_DN[14] PCIEX3 I

BA7 VCC PWR

BA9 VCC PWR

BB10 VCC PWR

BB12 VCC PWR

BB14 VCC PWR

BB16 VCC PWR

BB2 VCC PWR

BB4 VCC PWR

BB42 VSS GND

BB44 BPM_N[4] ODCMOS I/O

BB46 VSS GND

BB48 VSS GND

BB50 VSS GND

BB52 VSS GND

BB54 PE2C_TX_DN[10] PCIEX3 O

BB56 PE2D_RX_DN[15] PCIEX3 I

BB58 VSS GND

BB6 VCC PWR

Land Name

Buffer

Type

Direction

Table 8-2. Land List by Land

Number (Sheet 12 of

Land

No.

BB8 VCC PWR

BC1 VSS GND

BC11 VSS GND

BC13 VSS GND

BC15 VSS GND

BC17 VSS GND

BC3 VSS GND

BC43 VSS GND

BC45 VSS GND

BC47 RSVD

BC5 VSS GND

BC51 ERROR_N[2] ODCMOS O

BC53 VSS GND

BC55 VSS GND

BC57 VSS GND

BC7 VSS GND

BC9 VSS GND

BD10 VSS GND

BD12 VSS GND

BD14 VSS GND

BD16 VSS GND

BD2 VSS GND

BD4 VSS GND

BD42 VTTD PWR

BD44 RSVD

BD46 RSVD

BD48 RSVD

BD50 ERROR_N[0] ODCMOS O

BD52 PROCHOT_N ODCMOS I/O

BD54 VSS GND

BD56 VSS GND

BD6 VSS GND

BD8 VSS GND

BE1 VCC PWR

BE11 VCC PWR

BE13 VCC PWR

BE15 VCC PWR

BE17 VCC PWR

BE3 VCC PWR

BE43 RSVD

BE45 RSVD

BE47 RSVD

BE49 VSS GND

BE5 VCC PWR

Land Name

Buffer

Type

Direction

100 Datasheet

Intel BX80633I74930K, BX80633I74820K User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Introduction

1.1 Processor Feature Details

1.2 Supported Technologies

1.3 Interfaces

1.3.1 System Memory Support

1.3.2 PCI Express*

1.3.3 Direct Media Interface Gen 2 (DMI2)

1.3.4 Platform Environment Control Interface (PECI)

1.4 Power Management Support

1.4.1 Processor Package and Core States

1.4.2 System States Support

1.4.3 Memory Controller

1.4.4 PCI Express*

1.5 Thermal Management Support

1.6 Package Summary

1.7 Terminology

1.8 Related Documents

2 Interfaces

2.1 System Memory Interface
