Product Brief: Intel® NUC Mini PCs
INtEl® NUC 8 homE
NUC8i7BEKQA & NUC8i5BEKPA
The Shape that Fits the Future.
INTEL® NUC:
REady To Go
oUT-of-ThE-Box
Get ready for spectacularly responsive performance from Intel® NUC Mini PCs with
8th gen Intel® Core™ processors and Windows® 10. Edit photos, stream media, or set
up a second PC, whatever the task, whatever the use, the Intel® NUC8i7BEKQA and
NUC8i5BEKPA Mini PCs deliver powerful features—in a size that ts easily into any
lifestyle and any room in the house.
The first Intel NUC Mini PCs with quad-core 8th generation
Intel® Core™ processors
The NUC8i7BEKQA and NUC8i5BEKPA Mini PCs with true quad-core 8th gen Intel Core
processors deliver a big jump in performance compared to previous generations.
Whether creating content, looking at photos with 4K UHD graphics, or playing games,
these tiny, complete Mini PCs have great visual immersion with Iris® Plus Graphics 655
and the unprecedented performance of Intel Core processors. And both Mini PCs come
with dual-channel DDR4-RAM preinstalled: 16 GB on the NUC8i7BEKQA and 8 GB on
the NUC8i5BEKPA.
Solid State Drives equal solid reliability
The NUC8i7BEKQA has an 8th gen Intel® Core™ i7 processor and Iris Plus graphics, and
512 GB Intel® SSD drive to punch out your next big gaming win. The NUC8i5BEKPA
comes with an 8th gen Intel® Core™ i5 processor and Iris Plus graphics, and a 256 GB
Intel SSD drive, perfect for serving les screamingly fast. And because the drives have
no moving parts the failure rate is lower and there is less chance of data loss.
With Thunderbolt™ 3 plus USB 3.1 for fast data transfer
The Intel NUC Mini PC chassis are connectivity powerhouses. Both come with
Thunderbolt™ 3 which supports up to 40 Gbps of data transfer, and four USB 3.1
ports to bolster productivity for moving big media les around and providing room
for peripherals. There’s an HDMI* 2.0a port for 4K displays, and DisplayPort* 1.2 via
USB-C. With the ability to have triple displays all in 4K Ultra HD, photos, videos, and
streaming media are picture perfect.
Think you know what small can do? Think again.
In a footprint that’s almost zero— especially when compared with a tower—these Mini
PCs have the performance and features of a desktop PC in a device that ts in the palm
of your hand. The small size means they can be positioned almost anywhere—from
behind a display to tucked discretely in an entertainment center. And with improved
cooling, fan noise is minimal—which means a quieter experience no matter where the
Intel NUC is located.
The Intel® NUC: who says small isn’t powerful?
PowEr, CAPABIlItIEs, ANd PErformANCE
IN A NEAr-zEro footPrINt
NUC8i7BEKQA & NUC8i5BEKPA
Highlighted Features
• Windows® 10 Home
• Iris® Plus graphics 655
• Intel® Dual Band Wireless-AC 9560 and Bluetooth* 5.0
• Back panel DC power connector (12–19V)
• HDMI* 2.0a display port supporting 8 channel audio
(7.1 surround sound)
• Intel® Gigabit LAN
• Two USB 3.1 ports on the back panel
• Thunderbolt™ 3 USB Type-C port providing
DisplayPort* 1.2 or USB 3.1 Gen 2
• Kensington lock support
• Support for user-replaceable third-party lids
• Micro SD card slot
• Consumer infrared sensor
• Two USB 3.1 ports (including one charging port)
on the front panel
• Front panel headphone/microphone jack
• Front panel power button
• Dual-array front microphones
NUC8i5BEKPA Unique Features
• 8th gen Intel® Core™ i5-8259U processor
• 8 GB DDR4 dual-channel SO-DIMM
• 256 GB NVMe SSD
NUC8i7BEKQA Unique Features
• 8th gen Intel® Core™ i7-8559U processor
• 16 GB DDR4 dual-channel SO-DIMM
• 512 GB NVMe SSD
INtEl® NUC KIt NUC8¡7BEKQA & NUC8¡5BEKPA
Technical Specications
Processor
NUC8i7BEKQA
• Intel® Core™ i7-8559U processor
(2.7-4.5 GHz, quad core, 8 MB cache, 28W TDP)
NUC8i5BEKPA
• Intel® Core™ i5-8259U processor
(2.3-3.8 GHz, quad core, 6 MB cache, 28W TDP)
Operating System
• Windows® 10 Home
Graphics
• Iris® Plus Graphics 655
• HDMI* 2.0a port with 4K at 60 Hz
• USB Type-C port with DisplayPort* 1.2
System Memory
NUC8i7BEKQA
• 16 GB DDR4-2400 dual-channel SO-DIMM
(expandable to 32 GB), 1.2V
NUC8i5BEKPA
• 8 GB DDR4-2400 dual-channel SO-DIMM
(expandable to 32 GB), 1.2V
Storage Capabilities
• Micro SDXC slot with UHS-I suppor t on the side
NUC8i7BEKQA
• 512 GB NVMe SSD
NUC8i5BEKPA
• 256 GB NVMe SSD
Peripheral Connectivity
• Intel® Gigabit LAN port
• Thunderbolt™ 3 port
• Four USB 3.1 ports (two back panel ports and
two front ports including one charging por t)
• Intel® Dual Band Wireless-AC 9560 (802.11ac),
2x2, up to 1.73 Gbps
• Dual Mode Bluetooth* 5.0
System Bios
• 64 Mb Flash EEPROM with Intel® Platform
Innovation Framework for EFI Plug and Play
• Advanced configuration and power interface
V3.0b, SMBIOS2.5
• Intel® Visual BIOS
Hardware Management Features
• Processor fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• ACPI-compliant power management control
Expansion Capabilities
• Two Internal USB 2.0 ports via two 1x4 headers
(for replaceable lid support)
• One Consumer Electronics Control header
Audio
• Up to 7.1 surround audio via HDMI*
• Headphone/microphone jack on the
front panel
• Dual-array microphones on the front panel
Front Panel Header
• Reset, HDD LED, power LEDs, power on/off
Mechanical Chassis Size
• 4.60" x 4.40" x 1.41"
• 117 mm x 112 mm x 36 mm
Baseboard Power Requirements
• 19V, 90W power brick
Environment Operating Temperature
• 0° C to +35° C
Storage Temperature
• -20° C to +40° C
Safety Regulations and Standards
• IEC/EN/UL 60950 -1
• IEC/EN/UL 62368-1
EMC/RF Regulations and Standards
• FCC Part 15 B/ 15C/15E
• CISPR/EN 55032/55024
• ICES-003
• VCCI 32
• BSMI CNS 13438
• KN 32/35
• AS/NZS CISPR 32
• EN 300 328
• EN 301 893
• EN 300 440
• EN 301 489-1/3/17
• EN 62311
• AS/NZS 4268
• AS/NZS 2772.2
• ARPANSA
Environmental Regulations
• EU RoHS
• China RoHS
• Taiwan BSMI RoHS
• REACH
Look for Intel® NUC with Intel Inside® at
www.intel.com/NUC
Intel products are not intended for use in medical, life-saving, or life-sustaining
applic ations. Intel may make changes to spec ications and product desc riptions
at any time, w ithout notic e.
Al l produc ts, dates, and gures sp ecied are prelim inary based on curr ent
expect ations, and are subject to change wit hout notice. Availa bility in differ ent
channels may vary.
®

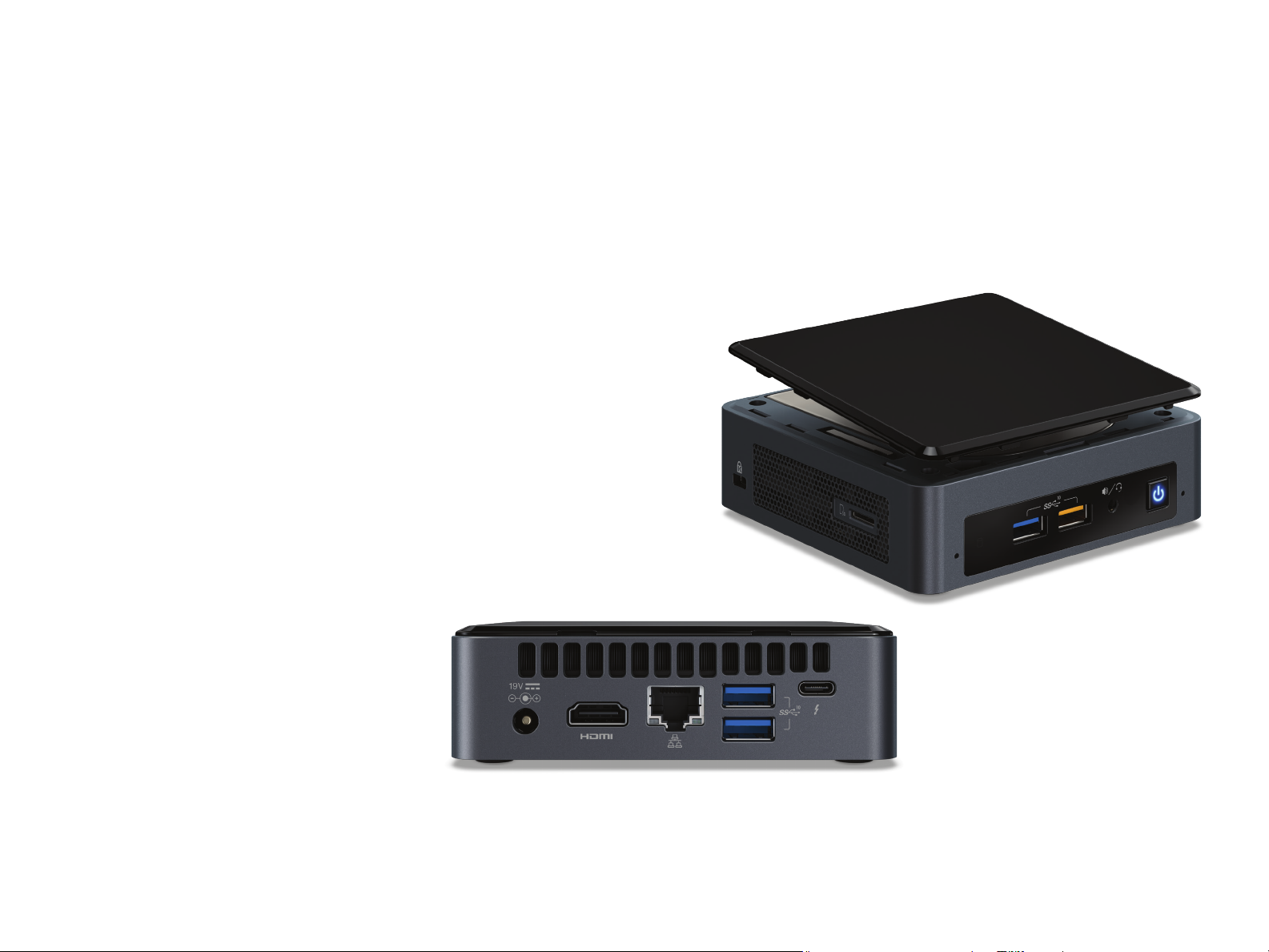

Actual Intel
