Intel® Desktop Board
DZ87KLT-75K
Optimized for –K processors
Fastest connections with Thunderbolt
TM
PROD UC T BR IEF
The ultimate gaming foundation
FIND YOUR EXTREME
Whether you’re into extreme gaming, overclocking or high-end video manipulation, Intel® Destkop Board DZ87KLT-75K is the motherboard for you. This board has been highly optimized for Intel® –K processors to take full advantage of what the processor family has to offer. Support for CrossFireX and SLI, USB 3.0, Sata 6 Gb/s and dual Intel LAN allows endless connection possibilities. And if you enjoy pushing the envelope with the ultimate in connectivity, this board offers on-board Thunderbolt
TM
technology for blistering bidirectional 10Gb/s transfer rates. Nothing moves content in and out of your system faster. All of this in a board from Intel – your trusted technology partner.
Control is all about the BIOS and only genuine Intel® Desktop Boards have the most advanced BIOS interface available today: Intel® Visual BIOS. With the ability to tweak anything and everything with a completely graphical interface, you’ll be able to take your rig to new heights with ease.
ADVANCED TECHNOLOGY
This board supports technologies that you will
not find on the competition. Superior Phase
Shedding Technology provides automatic power regulation to keep your system cooler
while minimizing energy consumption. Power
Supervisor minimizes thermal stress to your
CPU while still delivering maximum power.
And Fast Boot technology gets you into the game faster by eliminating needless startup steps in BIOS.
PROD UC T BR IEF

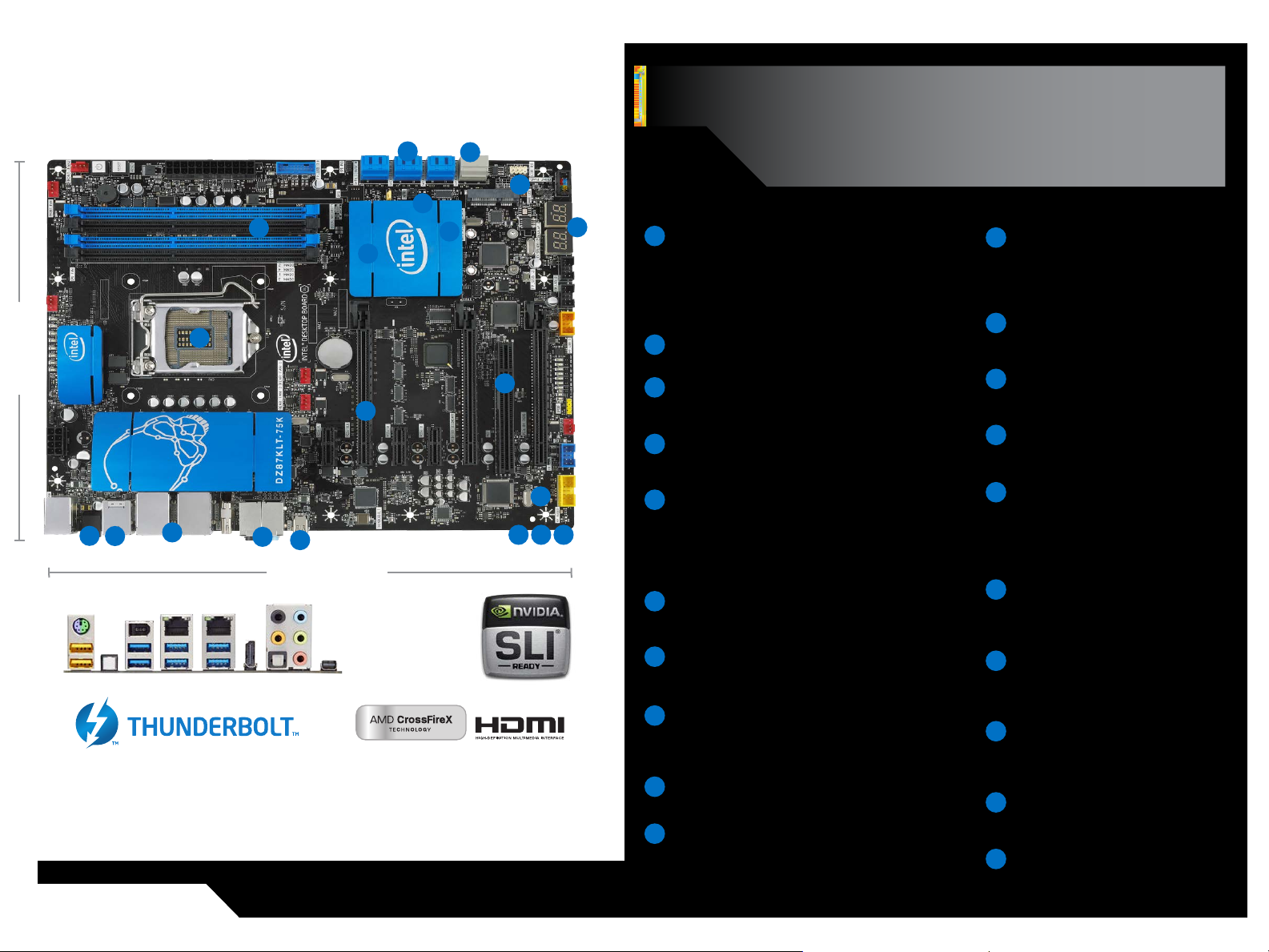

Intel® Desktop Board DZ87KLT-75K
Features and Benefits
9.6” (24.38cm)



11.6” (29.46cm)
Extreme Series





  
Support for the Intel® 4th Generation Core™ i7
1
processor in the LGA 1150 package:
optimized for the Intel® -K Processors. Features Intel® Turbo Boost Technology, Intel® Hyper-Threading Technology for exceptional performance and scalability, and 8 MB Shared
Intel® Smart Cache, enabling dynamic and efficient allocation
of cache
2
Intel® Z87 Express Chipset: Features Intel® Smart
Response Technology.
Thunderbolt Connector: Providing revolutionary I/O
3
technology with 10Gb/s bi-directional dual protocol interface for data and display.
Four DIMM slots: Designed to support overclocked DDR3
4
2400 + O.C. memory, delivering up to 32 GB /s memory bandwidth
Eight Super-Speed USB 3.0 ports (6 external, 2
5
via internal header), two IEEE 1394a ports (1 external, 1 via internal header), and 8 Hi-Speed USB 2.0 ports (2 external, 6 via internal headers):
Two USB 2.0 ports (yellow) external and 2 via internal provide high current and fast charging capability.
Three PCI Express 3.0* x16 slots: Support for
6
certified AMD CrossFireX* and NVIDIA* SLI.* One HDMI port
supporting HDMI 1.4a
Three PCI Express 2.0* x1and one PCI connec-
7
tors:
devices.
6
Flexibility to support PCI Express and legacy PCI
Highly
(8+2) 10-channel Intel® High Definition
11
12
13
¹
14
15
16
17
7
Audio (7.1):
audio that rivals the performance of high-end discrete solutions
Dual Intel® Gigabit Ethernet LAN:
Features onboard 10 /100 /1000 Mb /s
Ethernet LANconnectivity.
Consumer infrared: Supports receiving,
learning, and emitting capabilities and eliminates the need for a USB CIR dongle
Back-to-BIOS switch: Allows easy access to
the BIOS for easy overclocking¹ and recovery.
Post Code Decoder: Allows for display of
post codes for debug along with the included post code quick reference card displaying critical areas to help troubleshoot performance increase road blocks.
Exclusive voltage regulator heat sinks:
Provides reliable and silent cooling for extreme Core, Graphics, and Memory performance tuning.
Initialization and diagnostic LEDs:
Provides instant visible system feedback.
Enables high-quality integrated
PROD UC T BR IEF
Eight SATA 6.0 Gb/s ports and one full length
®
8
PCIe Mini Card slot supporting mSATA Solid-State Drive capability via Intel PCH. Intel® Rapid Storage Technology
9
Separate SATA 6.0 Gb/s controller adding 2 additional ports
10
Intel® Smart Response and Intel® Rapid Start Technologies:
capacity. Dramatically improves response time when a small capacity SSD is used in conjunction with a large HDD
Provides SSD like performance with HDD
18
100% Solid state capacitors and exclusive Power Supervisor:
stability and power for advanced performance tuning.
ATX (9.6¨ × 11.6¨) Form Factor: ATX
19
8
board supports more fully featured tower designs.
Lead-free: Meets all worldwide regulatory
20
requirements for lead-free manufacturing.
Maximizes
Intel® Desktop Board DZ87KLT-75K
PROCESSOR Processor Support
• Highly optimized for Intel® –K Processors
• Intel® Core i7, Intel® Core i5 and other Intel® processors in the LGA 1150 package
• Intel® Turbo Boost Technology
• Intel® Hyper-Threading Technology
• Integrated Memory Controller with support for up to 32GB of system memory DDR3 2400MHz+
TM TM
4
5
6
O.C. SDRAM
• Intel® Fast Memory Access
• Support Intel® 64 architecture
CHIPSET
• Intel® Z87 Express Chipset
• Intel® Rapid Storage Manager (Raid 0, 1, 5, 10)
• Intel® Smart Response Technology
• Intel® Rapid Start Technology
THUNDERBOLT CONNECTOR
• 10Gb/s bi-directional and dual protocol for data and display
INTEL® PRO 10/100/1000 NETWORK CONNECTION
• Dual Intel® LAN on the back panel
• New low-power design can meet Energy Star*
³
8
5.2V with support for 6.0.
USB/1394 PORTS
• Six Super-Speed USB 3.0 ports (blue) via back panel
• Two Super-Speed USB 3.0 ports via one internal header
• Two Hi-Speed USB 2.0 ports (yellow) via back panel, both fast charging, high current ports
• Six Hi-Speed USB 2.0 ports via three internal headers, including two fast charging, high current ports
• One 1394a port via back panel
• One 1394a port via internal header
EXPANSION CAPABILITIES
• Three PCI Express* 2.0 x1 slots
• One PCI slot
• One full length PCIe Mini Card slot supporting mSATA Solid-State Drive capability
GRAPHICS
• Three PCI Express* 3.0 x16 connectors (switchable to x8 or x4)
• One HDMI port supporting HDMI 1.4a
AUDIO
• 10-channel Intel® High Definition Audio codec
7
• 8-channel audio via back panel
• 2-channel audio via front panel
• Back panel support for output via optical cable
• One internal header for S/PDIF output for HDMI* support
SYSTEM BIOS
• Intel® Visual Bios
• 64 Mb Flash EEPROM with Intel® Platform Innovation Framework for EFI Plug and Play, IDE drive auto-configure
• Advanced configuration and power interface V3.0b, SMBIOS2.5
• Intel® Express BIOS update support
• Fast Boot BIOS – Optimized POST for almost instant-on access to PC from power on
HARDWARE MANAGEMENT FEATURES
• Processor fan speed control
• System chassis fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• Power managemetn support for ACPI 3.0b
SYSTEM MEMORY Memory Capacity
• Four 240-pin DIMM connectors supporting dual-channel memory. Two double-sided DIMMs per channel.
• Maximum system memory up to 32GB
²
using 8 GB double-sided DIMMS
Memory Types
• DDR3 2400MHz+ (O.C.)/1600/1333/1066 SDRAM memory support
• Non-ECC memory
Memory Voltage
• 1.65V, 1.5V and 1.35V
• Support for Intel® Extreme Mmeory Profile (Intel® XMP)
JUMPERS AND FRONT PANEL CONNECTORS Jumpers
• Single configuration jumper design
• Jumper access for BIOS maintenance mode
Front Panel Connectors
• Reset, HDD LED, Power LED, Power on/off
• One front-panel Super-Speed USB 3.0 header (2 ports)
• Three front-panel High-Speed USB 2.0 headers (6 ports)
• Front-panel audio header
• One IEEE 1394a header
• CIR Receiver
MECHANICAL Board Style
• ATX
Board Size
• 11.6” x 9.6” (29.46 cm x 24.38 cm)
Baseboard Power Requirements
• ATX 12 V
COMPLIANCE WITH REGULATIONS AND STANDARDS Safety Regulations
UL/CSA 60950-1 EN 60950-1 IEC 60950-1
EMC Class B Regulations
CISPR 22 CIPSR 24 FCC 47 CFR Part 15, Subpart B ICES-003 EN 55022 EN 55024 EN 61000-3-2 EN 61000-3-3 IEC/EN 61000-4 Series VCCI V-3 KN-22 KN-24 CNS 13438
Environmental Compliance
Europe RoHS China RoHS
WARNING: Altering PC memory frequency, voltage and/or latency may: (i) reduce
1
system stability and useful life of the system, memory and processor; (ii) cause the processor and other system components to fail; (iii) cause reductions in system performance; (iv) cause additional heat or other damage; and (v) affect system data integrity. Intel has not tested, and does not warranty, the operation of the memory beyond its specifications. Intel assumes no responsibility that the memory, including if used with altered clock frequencies and/or voltages, will be fit for any particular purpose. Check with memory manufacturer for warranty and additional details. System resources and hardware (such as PCI and PCI Express*) require physical
2
memory address locations that can reduce available addressable system memory. This could result in a reduction of as much as 1 GB or more of physical addressable memory being available to the operating system and applications, depending on the system configuration and operating system. 64-bit computing on Intel® architecture requires a computer system with
3
a processor, chipset, BIOS, operating system, device drivers, and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See http://developer. intel.com/technology/ intel64/index.htm for more information.
4
Intel® Turbo Boost Technology requires a PC with a processor with Intel Turbo Boost Technology capability. Intel Turbo Boost Technology performance varies depending on hardware, software, and overall system configuration. Check with your PC manufacturer on whether your system delivers Intel Turbo Boost Technology. See www.intel.com/technology/turboboost for more information. Intel® Hyper-Threading Technology requires a computer system with a processor
5
supporting HT Technology and an HT Technology-enabled chipset, BIOS, and operating system. Performance will vary depending on the specific hardware and software you use. For more information including details on which processors support HT Technology, see www.intel.com/info/hyperthreading. Maximum peak memory bandwidth requires four DDR 3 modules to be populated
6
in each of the blue memory slots. DDR 3 2400 memory support on this motherboard requires advanced knowledge of BIOS and memory tuning; individual results may vary. For specific supported memory for this motherboard, please visit www.intel. com/products/motherboard/ for more details.
7
Intel® High Definition Audio requires a system with an appropriate Intel® chipset and a motherboard with an appropriate codec and the necessary drivers installed. System sound quality will vary depending on actual implementation, controller, codec, drivers, and speakers. For more information about Intel® HD Audio, refer to www.intel.com/design/chipsets/hdaudio.htm.
8
BIOS Update may be required to support Rapid Start Technology features. This Feature may not be available at initial launch of product
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life-saving, or life-sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice. All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice. Availability in different channels may vary. Actual Intel® Desktop Board may differ from the image shown.
Requires an Intel® WiDi enabled system and Intel WiDi enabled receiver device. 1080p and Blu-ray* or other protected content playback only available on 2nd or 3rd gen Intel® Core™ processor-based PCs with built-in visuals enabled, a compatible receiver device and media player, and supporting Intel WiDi software and graphics driver installed. Consult your PC manufacturer. For more information, see www.intel.com/go/widi.
Intel, the Intel logo, Intel Core, Pentium, and Celeron are trademarks of Intel Corporation in the U.S. and other countries. * Other names and brands may be claimed as the property of others.
Copyright© 2013 Intel Corporation. All rights reserved.
10/12/FH/MED/PDF 328150-001US
