Intel BOXNUC8I3BEH2 Product Data Sheet

Product Brief
®
Intel
nUC KIts
• Intel® Optane™ Memory Ready
1,2
• Iris® Plus Graphics 655
• Thunderbolt™ 3
The Shape that Fits the Future.
INTEL® NUC: Go Small. Get Big.
INTEL® NUC: Go SmaLL. GET BIG.
Get ready for spectacularly responsive performance from the Intel® NUC Mini PC kits with 8th generation Intel® Core™ i3 processors. The latest generation of Intel NUC kits let you or your customers build the exact system they want. From choosing chassis size
to memory options to storage congurations, the benet of building an Intel NUC kit is the ability to completely customize the kit for your specic usage. Whether working
on presentations, word processing, or streaming media, the Intel® NUC8i3BEK and NUC8i3BEH Mini PC kits deliver the features people want—in a size that ts easily into any lifestyle and any room in the house.
The first Intel NUC Mini PC kits with a dual-core 8th generation Intel® Core™ i3 processor
The Intel NUC8i3BEK Mini PC kit with a true dual-core 8th generation Intel Core i3 processor delivers a big jump in performance compared to the previous generation Intel®
NUC7i3BNH/BNK kits. Whether it’s built for a new home PC or a system with 4K UHD
graphics for picture perfect entertainment, the Intel NUC8i3BEK Mini PC kit gives great visual immersion with Iris® Plus Graphics 655 and the unprecedented performance of Intel® Core™ processors.
The slightly taller Intel NUC8i3BEH has the same processor and graphics, and also
has room for a 2.5" HDD and is Intel® Optane™ memor y ready. By coupling a 2.5" HDD and Intel Optane memory, performance improves dramatically with up to 1.4x
media loading.
3,4
faster
Work Like a Boss with Thunderbolt™ 3, USB 3.1, and 4K Ultra HD
The Intel NUC Mini PC kits have chassis that are connectivity powerhouses. Both come
with Thunderbolt™ 3 which supports up to 40 GBps of data transfer, four USB 3.1 ports, two additional USB ports via 1x4 internal headers. There’s also room for an M.2 SSD. The Intel NUC Mini PC kits support triple displays all in 4K Ultra HD—with an HDMI* 2.0a port and DisplayPort* 1.2 via USB-C—so images or work can show across three screens without losing delity.
Think you know what small can do? Think again.
In a footprint that’s almost zero—especially when compared with a tower—the Intel NUC
Mini PC kits can be custom built to have the performance and features of a desktop PC in
a device that ts in the palm of your hand. The small size means the Intel NUC can be
positioned almost anywhere—from behind a display to tucked discretely in an entertain­ment center. And with improved cooling, fan noise is minimal—which means a quieter experience no matter where the Intel NUC is positioned.
The Intel® NUC: who says small isn’t powerful?
Power, CaPaBIlItIes, and PerformanCe In a near-zero footPrInt

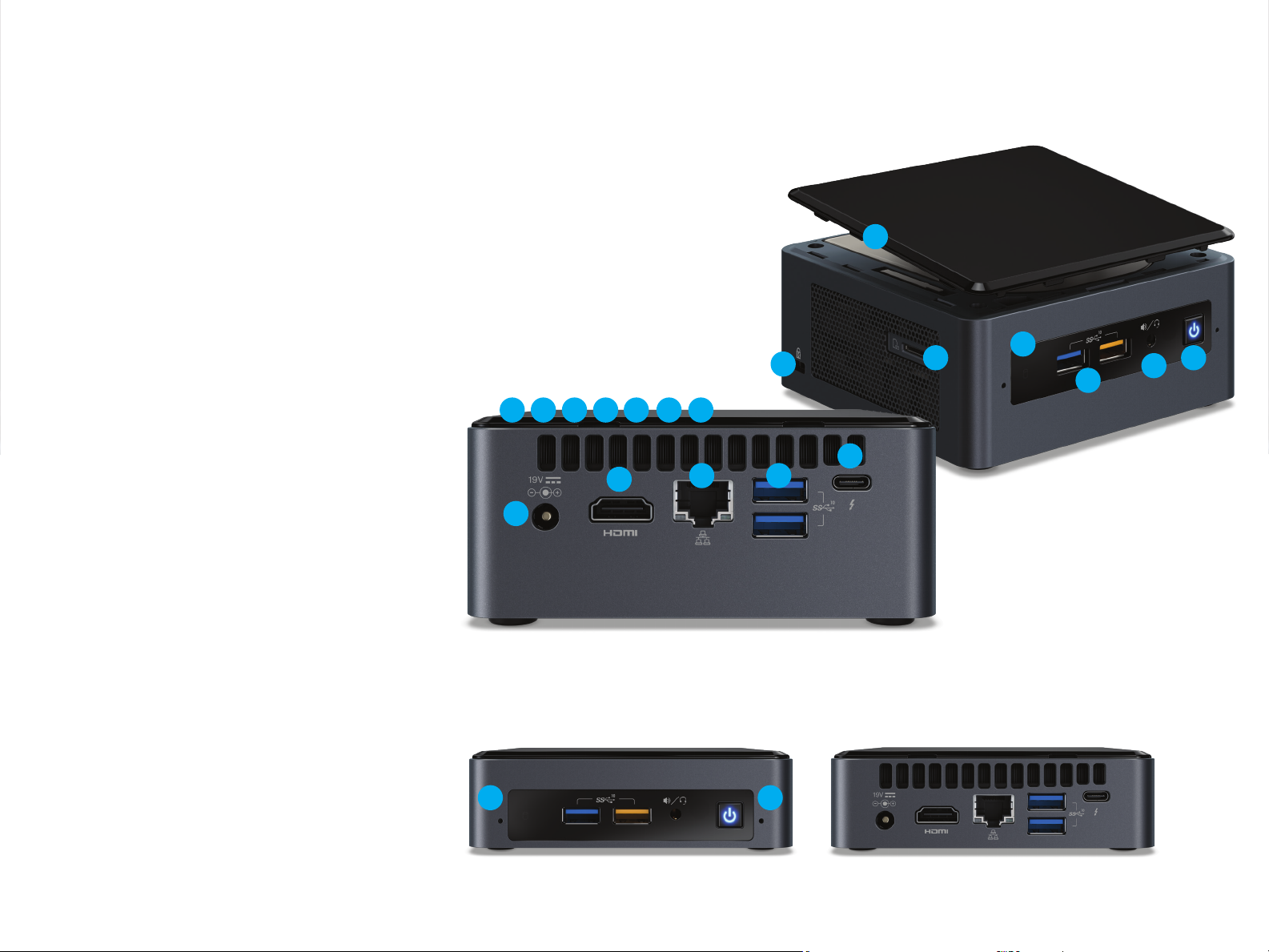

Highlighted Features
1 8th generation Intel® Core™ i3-8109U processor
2 Iris® Plus Graphics 655
3 Two DDR4 SO-DIMM sockets (up to 32 GB, 2400 MHz)
4 1x SATA3 port for connection to 2.5" HDD or
SSD (NUC8i3BEH)
5 M.2 slot with flexible support for a 42 or 80 mm M.2 SSD
6 Intel® Optane™ memory ready (up to 32 GB, NUC8i3BEH)
7 Intel® Dual Band Wireless-AC 9560 and Bluetooth* 5.0
8 Back panel DC power connector (12–19V)
9 HDMI* 2.0a display port supporting
8 channel audio (7.1 surround sound)
10 Intel® Gigabit LAN
11 Two USB 3.1 ports on the back panel
12 Thunderbolt™ 3 USB Type-C port providing
DisplayPort* 1.2 or USB 3.1 gen 2
13 Kensington lock support
14 Support for user-replaceable third-party lids
15 Micro SD card slot
16 Consumer infrared sensor
17 Two USB 3.1 ports (including one charging port)
on the front panel
18 Front panel headphone/microphone jack
19 Front panel power button
20 Dual-array front microphones
1 2 3 4 5 6 7
9
8
NUC8i3BEH
20
10 11
20
13
12
14
15
16
17
18
19
NUC8i3BEK
NUC8i3BEK and NUC8i3BEH PRODUCT BRIEF 3
Intel® nUC KIts nUC8¡3BeK and nUC8¡3BeH
Technical Specications
Processor
• Intel® Core™ i3-8109U processor (3.0 GHz -
3.6 GHz, Dual Core, 4 MB Cache, 28W TDP)
Graphics
• Iris® Plus Graphics 655
• HDMI* 2.0a port with 4K at 60 Hz
• USB Type-C port with DisplayPort* 1.2
System Memory
• Two DDR4 SO-DIMM sockets (up to 32 GB, 2400 MHz), 1.2V
Intel® Optane™ Memory
• Room for up to 32 GB in an M.2 slot
(Intel NUC8i3BEH only)
Storage Capabilities
NUC8i3BEK
• Micro SDXC slot with UHS-I support on the side
• One M.2 connector supporting 22x42 or 22x80 M.2 SSD
NUC8i3BEH
• Micro SDXC slot with UHS-I support on the side
• One M.2 connector supporting 22x42 or 22x80 M.2 SSD
• One SATA3 port for connection to 2.5" HDD or SSD (up to 9.5 mm thickness)
Peripheral Connectivity
• Intel® Gigabit LAN
• Thunderbolt™ 3 with data transfer up to 40 Gbps
• Four USB 3.1 ports (two back panel ports and two front ports including one charging port)
• Two additional USB 2.0 ports via
internal header
• Intel® Dual Band Wireless-AC 9560 (802.11ac),
2x2, up to 1.73 Gbps
• Dual Mode Bluetooth* 5.0
System Bios
• 64 Mb Flash EEPROM with Intel® Platform
Innovation Framework for EFI Plug and Play
• Advanced configuration and power interface
V3.0b, SMBIOS2.5
• Intel® Visual BIOS
• Intel® Express BIOS update support
Hardware Management Features
• Processor fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• ACPI-compliant power management control
Expansion Capabilities
• Two Internal USB 2.0 ports via t wo 1x4 headers (for replaceable lid support)
• One Consumer Electronics Control header
Audio
• Up to 7.1 surround audio via HDMI*
• Headphone/microphone jack on the front panel
• Dual-array microphones on the front panel
Front Panel Header
• Reset, HDD LED, Power LEDs, power on/off
Mechanical Chassis Size
NUC8i3BEK
• 4.60” x 4.40” x 1.41”
• 117 mm x 112 mm x 36 mm
NUC8i3BEH
• 4.60" x 4.40" x 2.01"
• 117 mm x 112 mm x 51 mm
Baseboard Power Requirements
• 19V, 90W power brick
Environment Operating Temperature
• 0° C to +40° C
Storage Temperature
• -20° C to +60° C
Product Safety Regulations and Standards
• IEC 60950 -1
• UL 60950 -1
• EN 60950 -1
• CAN/CSA-C22.2 No. 60950-1
1
Availabl e on the Intel® NUC Kit N UC8i3BEH o nly.
2
Intel tech nologies may requi re enabled hardwar e, specic software, or services
activat ion. Performance varies depe nding on system conguration. Chec k with your system ma nufacturer or retailer or learn more at int el.com/optan ememory
3
Benc hmark results we re obtained pri or to implement ation of recent software
patches and rmware up dates intended to a ddress exploit s referred to as “Spec tre” and “Meltd own”. Implementation of these up dates may make thes e
result s inapplicable to your device or s ystem.
Copyri ght 2018 © Intel Corporat ion. All rights rese rved. Intel, the Inte l logo, Inte l Inside, Int el. Experienc e What’s Ins ide, the Intel Exper ience What’s Insi de logo, Intel Optane, Ir is Plus, Thunderb olt, and Intel Core are tr ademarks of Intel Cor poration or its subsidiaries in the U.S. and/or other countries.
*Other na mes and brands may be claim ed as the property of ot hers. Printed in USA 0518/BCP/ HBD/PDF Please Recycle 337580-001US
4
As measured by Media Pr oject Load Work load compari ng 8th Gen Intel®
Core™ i7-8750 H processor (32 GB Intel® Optane™ mem ory module) + 256 GB PCIe* S SD + 1 TB HDD vs. 8th Ge n Intel Core i7-875 0H processor + 256 GB PCIe S SD + 1 TB HDD.
Inte l produc ts are not intended for use in me dical, life-s aving, or life-sustaining
applic ations. Intel may make changes to specications and product descriptions
at any time, w ithout notic e.
All pr oducts, dates, and gures speci ed are preliminar y based on cur rent
expect ations, and are subject to change without notice. Availab ility in differe nt
channels may vary.
®
Actual Intel
NUC kit may dif fer from the image show n.
INFOR MATION IN THIS DOCUMENT IS PROV IDED IN CONNECTION WITH
®
INTEL
PRODUC TS. NO LICENSE, EXP RESS OR IMPLIED, BY ESTOPP EL
OR OTHERWISE, TO ANY INTELLECTUAL PROPERT Y RIGHTS IS GRANTED BY THIS DOCU MENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDI TIONS OF SALE FOR SUC H PRODUCTS, INTEL ASSUM ES NO LI­ABILITY WHATSOEVE R, AND INTEL DISCL AIMS ANY EXPR ESS OR IMPLIED WARR ANTY, RELATING TO SALE AN D/OR USE OF INTEL PROD UCTS INCLUDING LIABILI TY OR WARRANTIES RELATING TO FITN ESS FOR A PARTICU LAR PURPOSE, M ERCHANTABILIT Y, OR INFRIN GEMENT OF ANY PATENT, COPYRIGH T, OR OTHER INTELLECT UAL PROPERTY RIG HT.
EMC/RF Regulations and Standards (Class B)
• CISPR 32
• FCC CFR Title 47, Chapter I, Part 15, Subparts
B, C, E
• ICES-003
• EN 55032
• EN 55024
• ETSI EN 300 328
• ETSI EN 301 489-1
• ETSI EN 301 489-17
• ETSI EN 301 893
• EN 62311
• AS/NZS 2772.2
• AS/NZS 4268
• VCCI V-2, V-3, V-4
• KN-32
• KN-24
• CNS 13438
Environmental Regulations
• RoHS Directive 2011/65/EU
• WEEE Directive 2012/19/EU
• China RoHS - Management Methods for Restricted Use of Hazardous Substances in
Electrical and Electronic Products
Look for Intel® NUC with Intel Inside® at
www.intel.com/NUC
