User Guide for NUC7i5BNKP, NUC7i7BNKQ
Intel® NUC7 Home, a Mini PC with Windows® 10 – NUC7i5BNKP
Intel® NUC7 Enthusiast, a Mini PC with Windows® 10 – NUC7i7BNKQ
User Guide
1
User Guide for NUC7i5BNKP, NUC7i7BNKQ
Before You Begin
CAUTION
The procedures in this guide assume familiarity with the general terminology associated with
personal computers and with the safety practices and regulatory compliance required for using
and modifying electronic equipment.
Always disconnect the computer from its power source and from any network before performing any
of the procedures described in this guide.
Failure to disconnect power or networks before you open the computer or perform any procedures can
result in personal injury and/or equipment damage. Some circuitry on the board can continue to
operate even though the front panel power button is off.
Follow these guidelines before you begin:
Always follow the steps in each procedure in the correct order.
Create a log to record information about your computer, such as model, serial numbers,
installed options, and configuration information.
Electrostatic discharge (ESD) can damage components. Perform the procedures described in
this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam
pad. If such a station is not available, you can provide some ESD protection by wearing an
antistatic wrist strap and attaching it to a metal part of the computer chassis.
Installation Precautions
When you install and test the Intel NUC, observe all warnings and cautions in the installation
instructions.
To avoid injury, be careful of:
Sharp pins on connectors
Sharp pins on circuit boards
Rough edges and sharp corners on the chassis
Hot components (such as SSDs, processors, voltage regulators, and heat sinks)
Damage to wires that could cause a short circuit
Observe Safety and Regulatory Requirements
If you do not follow these instructions, you increase your safety risk and the possibility of
noncompliance with regional laws and regulations.
2
User Guide for NUC7i5BNKP, NUC7i7BNKQ
This guide tells you how to:
• Upgrade memory (RAM)
• Change/install an M.2 SSD
• Use a VESA mount bracket
• Identify the correct power adapter
• Installing an operating system
• Keeping device drivers current
Open the Intel NUC Chassis
To open the Intel NUC chassis, follow these steps:
1. Using a screwdriver, unscrew the four corner screws on the bottom cover of the chassis and lift
the cover (using an electric or battery operated screw driver can damage the NUC).
3
User Guide for NUC7i5BNKP, NUC7i7BNKQ
NUC7i5BNKP
Two - 4GB memory modules – 8GB Total
NUC7i7BNKQ
Two - 8GB memory modules – 16GB Total
Upgrading System Memory
The Intel NUC Mini PCs NUC7i5BNKP and NUC7i7BNKQ have two 260-pin DDR4 SO-DIMM sockets.
Both mini PCs come with pre-installed memory.
Pre-installed memory
To upgrade memory, be sure to select memory modules that meet these requirements:
1.2V low voltage memory
2133 MHz SO-DIMMs
Non-ECC
Find compatible memory modules in the Intel Product Compatibility Tool
NUC7i5BNKP
NUC7i7BNKQ
To upgrade or add memory, follow these steps:
1. Observe the precautions in "Before You Begin" on page 2.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and
disconnect the power cord.
3. Remove the computer’s bottom chassis cover.
Upgrade to different memory
a. Remove the pre-installed memory module
i. Gently spread the retaining clips at each end of the memory socket, which causes
the module to pop out of the socket (C).
ii. Holding the module by the edges, lift it away from the socket, and store it
in an anti-static package.
b. Install the new memory module
i. Align the space at the bottom edge of the memory module with the key in
the socket.
ii. Insert the bottom edge of the module at a 45 degree angle into the socket
(A).
iii. When the module is inserted, push down on the outer edges of the
module until the retaining clips snap into place (B). Make sure the clips
are firmly in place (C).
4
User Guide for NUC7i5BNKP, NUC7i7BNKQ
NUC7i5BNKP
One - 256GB Intel® 600p NVMe SSD
NUC7i7BNKQ
One - 512GB Intel® 600p NVMe SSD
Install an additional memory module
a. Align the space at the bottom edge of the memory module with the key on the socket.
b. Insert the bottom edge of the module at a 45 degree angle into the socket (A).
c. When the module is inserted, push down on the outer edges of the module until
the retaining clips snap into place (B). Make sure the clips are firmly in place (C).
4. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets.
5. Replace the computer’s cover and reconnect the power cord.
Changing an M.2 SSD
The Intel NUC Kits NUC7i5BNKP and NUC7i7BNKQ support either an 80mm or 42mm SSD. Both mini
PCs come pre-installed with an m.2 SSD.
Pre-installed M.2
Find compatible M.2 SSDs in the Intel Product Compatibility Tool
NUC7i5BNKP
NUC7i7BNKQ

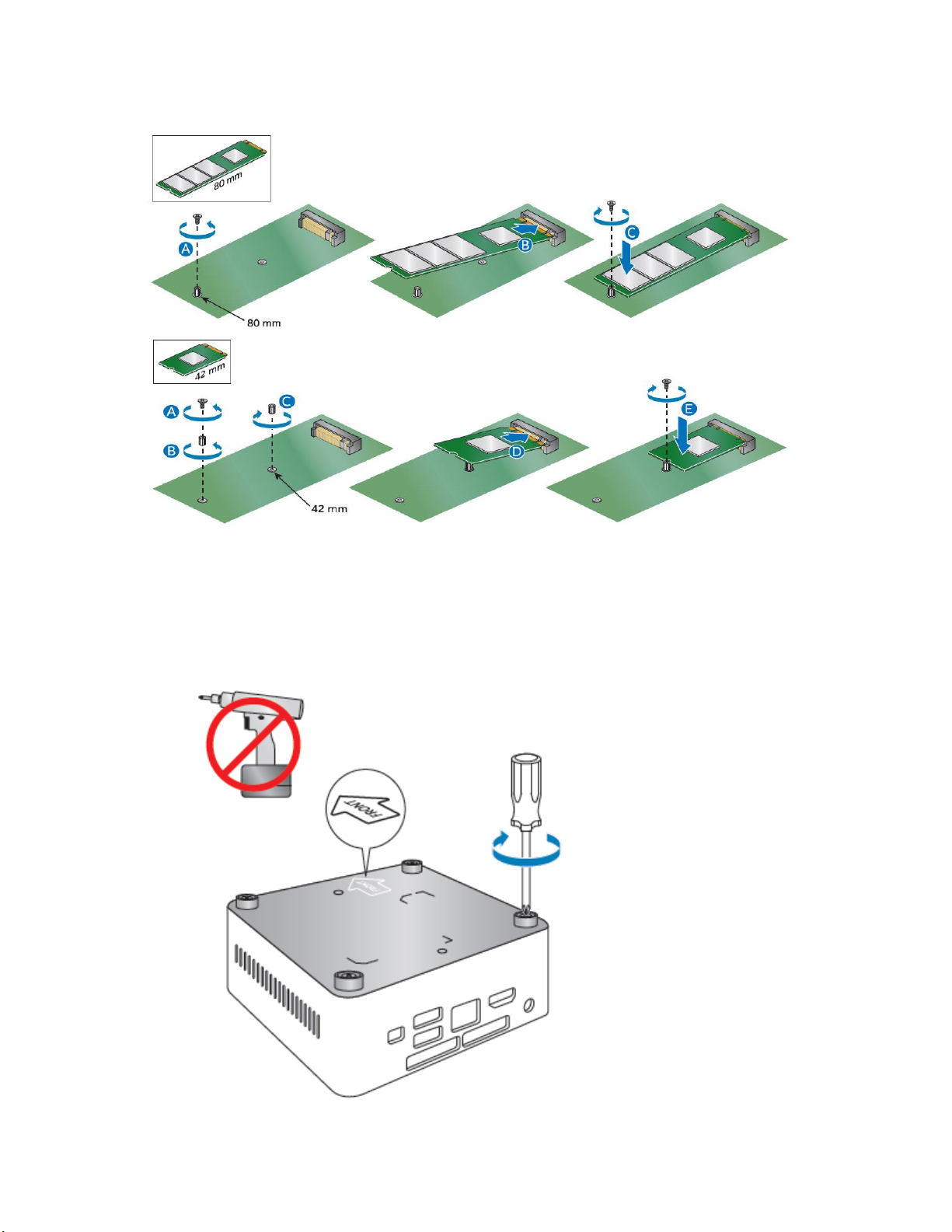

To Change an M.2 SSD:
1. Remove the small silver screw from the 80mm or 42mm metal standoff on the board (A).
2. Remove the pre-installed SSD from the connector.
3. Align the space at the bottom of the new M.2 SSD to the key on the connector.
4. Insert the bottom edge of the M.2 SSD into the connector (B).
5. Secure the card to the standoff with the small silver screw (C).
5
User Guide for NUC7i5BNKP, NUC7i7BNKQ
Close the Chassis
After all components have been installed, close the Intel NUC chassis (using an electric or battery
operated screw driver can damage the NUC).
6
User Guide for NUC7i5BNKP, NUC7i7BNKQ
Attach and Use the VESA Bracket (Optional)
Follow these instructions to attach and use the VESA mount bracket:
1. Using the four small black screws that are included in the box, attach the VESA bracket to the
back of the monitor or TV.
2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.
3. Slide the Intel NUC onto the VESA mount bracket.
7
User Guide for NUC7i5BNKP, NUC7i7BNKQ
Plug
Code
US
UK
EU
AUS
Country
United States
United Kingdom
European Union
Australia
Plug
Code
CHN
IND
KOR
ARG
Country
China
India
South Korea
Argentina
Power Adapters
Country-specific power plug adapters are included in the Intel NUC Mini PC box.
1. Choose the correct adapter for your region.
8
User Guide for NUC7i5BNKP, NUC7i7BNKQ
Plug
Code
BRA
Country
Brazil
2. Slide the adapter (B) onto the power plug, locking it into place (A).
9
User Guide for NUC7i5BNKP, NUC7i7BNKQ
3. Connect AC power.
Installing an Operating System
If a Hard drive or SSD has been removed or replaced, it may be necessary to reinstall the Windows® 10
operating system. Refer to Operating System Installation page for installation steps.
Keeping Intel NUC Drivers Current
To download the latest Microsoft* Windows* drivers and BIOS updates, use the Intel® Driver & Support
Assistant (Intel® DSA) or the specific Download Center page:
Intel® NUC 7 Home, a Mini PC with Windows® 10 – NUC7i5BNKP
Intel® NUC 7 Enthusiast, a Mini PC with Windows® 10 – NUC7i7BNKQ
10
User Guide for NUC7i5BNKP, NUC7i7BNKQ
The following Drivers are available:
Realtek* Audio
Intel® Bluetooth
Intel® Chipset
ITE* Consumer Infrared
Intel® Graphics
Intel® ME
Intel® Rapid Storage Technology
Intel® Ready Mode Technology
Intel® LAN (wired and wireless)
Thunderbolt™
Realtek Card Reader Driver
11
