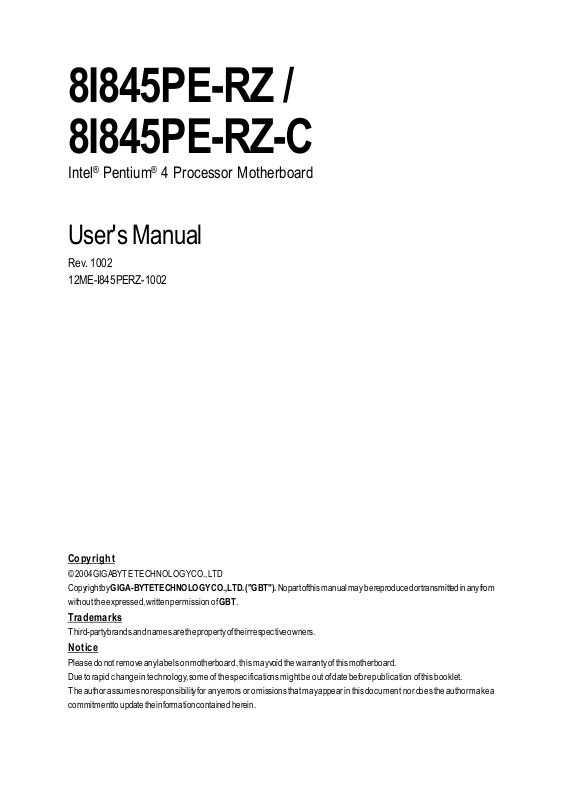

Intel 8I845PE-RZ, 8I845PE-RZ-C User Manual

8I845PE-RZ / 8I845PE-RZ-C

Intel® Pentium® 4 Processor Motherboard

User's Manual

Rev. 1002 12ME-I845PERZ-1002

Copy ri ght

without the expressed, written permission of GBT.

Tra demar ks

Third-party brands and names are the property of their respective owners.

Not ice

Please do not remove any labels on motherboard, this may void the warranty of this motherboard.

Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.

The author assumes no responsibility for any errors or omissions that may appear in this docum ent nor does the author make a com mitment to update the information contained herein.

Feb. 20, 2004

Mother Board

8I845PE-RZ

Feb. 20 ,2004

Motherboard

8I845PE-RZ

Preparing Your Computer

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have one, touch both of your hands to a safely grounded object or to a metal object, such as the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or other components.

4. Place components on a grounded antistatic pad or on the bag that came with the components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX power connector on the motherboard.

Installing the motherboard to the chassis

If the motherboard has mounting holes, but they don't line up with the holes on the base and there are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the

mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful of your hands). In this way you can still attach the motherboard to the base without worrying about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the board or cause board malfunctioning.

Table of Contents

English

Chapter 1 Introduction................................................................................................5

Chapter 2 BIOS Setup ............................................................................................. 19

Features Summary...........................................................................................................................5

8I845PE-RZ Series Motherboard Layout.........................................................................................6

Block Diagram .................................................................................................................................. 7

Hardware Installation Process ......................................................................................................... 8

Step 1: Install the Central Processing Unit (CPU)..........................................................................8

Step 1-1: CPU Installation .................................................................................................9

Step 1-2: CPU Cooling Fan Installation ............................................................................ 9

Step 2: Install Memory Modules....................................................................................................10

Step 3: Install AGP Card ............................................................................................................... 11

Step 4: Install I/O Peripherals Cables ........................................................................................... 11

Step 4-1: I/O Back Panel Introduction ............................................................................. 11

Step 4-2: Connectors Introduction ...................................................................................12

The Main Menu (For example: BIOS Ver. : Fac) .........................................................................19

Standard CMOS Features ............................................................................................................. 21

Advanced BIOS Features .............................................................................................................23

Integrated Peripherals .....................................................................................................................24

Power Management Setup .............................................................................................................26

PnP/PCI Configurations ................................................................................................................. 28

PC Health Status............................................................................................................................29

Frequency/Voltage Control ............................................................................................................. 30

Top Performance .............................................................................................................................31

Load Fail-Safe Defaults ................................................................................................................... 32

Load Optimized Defaults ................................................................................................................. 32

Set Supervisor/User Password.....................................................................................................33

Save & Exit Setup .........................................................................................................................34

Exit Without Saving ........................................................................................................................34

Chapter 3 Install Drivers ........................................................................................... 35

- 4 -8I845PE-RZ Series Motherboard

Chapter 1 Introduction

Features Summary

CP U — Socket 478 for Intel® Pentium® 4 (Northwood, Prescott

Technology

— Intel® Pentium® 4 80 0

(Note 2)

/533/4 00M Hz F SB

— 2nd cache depen ds on C PU

Chip set — North Bridge : Intel® 82845 PE M CH

— South Bridge : Intel® 82801 (ICH4)

Me mo ry — 3 184- pin DDR DIM M s ockets, su pports up to 2GB D RAM (Ma x)

— Supports DDR4 00

(Note 3)

/DDR333/DDR266 DIMM

— Suppo rts only 2.5V DD R SDR AM

Slots — 1 AG P s lot 4X ( 1.5V) de vice suppo rt

— 5 PCI slots su pport 33M Hz & PCI 2.2 compliant

On-Board IDE — 2 IDE con troller prov ide IDE HD D/CD-R OM(IDE1 , IDE2) with PIO, Bus

Master (Ul tra DMA33/ATA66/ATA100) operation mo des

— Can c onnec t up to 4 IDE devic es On-Bo ard F loppy — 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and 2.88M bytes On-Board P eripherals — 1 Par allel p ort sup ports Norm al/EPP/ECP mode

— 2 Seri al port (COM A/COM B)

— 6 US B 2.0/1 .1 po rts (2 x Rear, 4 x Fron t by cabl e)

— 1 Front Audi o connec tor

— 1 PS /2 Keyb oard

— 1 PS/ 2 M ouse On-Bo ard LAN * — Buili t-in RTL 8100C ch ipset *

— 1 RJ 45 port * On-Board Sound — CMedia 9761A COD EC

— Support 2/4 /6 chann el

— Line O ut / Line In / Mi c In

— SPDIF Ou t /SPD IF In

— CD In/ AUX_IN/ Ga me Port BIOS — Licen sed AW ARD BIOS

— Supports Q- Flash

™

I/O Control — ITE8712 Hardware M onitor — CPU/ System Fan Revolution detect

— CPU/ System Fan F ail W arni ng

— CPU O verheat Warni ng

— System Voltage Detect Additional F eatures — Suppo rts @BIOS

— Suppo rts Easy Tune 4

™

Ove rclo ckin g — Over Voltage (DDR/AGP/CPU) by BIOS

— Ove r Cl ock (DDR/A GP/C PU) by BIOS Form Factor — ATX siz e form factor, 29.5 cm x 21cm

(Note 1) Prescott processors with up to 533MHz FSB are supported.

(Note 2) A Northwood processor with 800MHz FSB can be supported through overclocking in BIOS.

(Note 3) When 800MHz FSB is selected as processor frequency, mem ory will automatically adjust to DDR400.

"*" For 8I845PE-RZ only.

- 5 -

(Note 1)

) with HT

Introduction

English

8I845PE-RZ Series Motherboard Layout

English

KB_MS

COMA

LINE_OUT

LINE_IN

MIC_IN

USB

CODEC

CD _IN

LPT

COMB

GAME

SUR_C EN

LAN *

RTL8 10 0C *

AUX_IN

CPU_FAN

F_AU DIO

ATX_12 V

21 cm

SOC KET 478

Intel 8 45PE

PCI1

PCI2

PCI3

PCI4

AGP

BIOS

8I845PE-RZ

DDR1

CLR_ CM OS

Intel ICH 4

DDR2

ATX

29.5 cm

FD D

DDR3

SYS _FAN

BAT

ITE8712

"*" For 8I845PE-RZ only.

"#" For 8I845PE-RZ-C only.

SPDIF_IO

PCI5

F_U SB1

F_U SB2

F_PANEL

IDE2

IDE1

PWR_ LED

- 6 -8I845PE-RZ Series Motherboard

Block Diagram

English

AGPC LK

(66MHz)

5 P CI

PCICL K

(33MHz)

AGP 4X

RJ45 *

RTL81 00C *

AC97 Li nk

AC97

CODE C

MIC

LINE-IN

LINE-OUT

Pentium 4

Socket 478

CP U

Intel 845PE

ICH4

6 U SB

Ports

System Bus

400/533MHz

266/333MHz

48 MHz

LPC BUS

24 MHz

ATA33/66/100

IDE Channels

CPUCLK+/- ( 100/133M Hz)

DDR

GMCHCLK(66M Hz)

HCLK+/- (100/133MHz)

66MHz

33 MHz

14.318 MHz

BIOS

IT8712

33 MHz

Game Port

Flop py

LPT Port

PS/2

KB/M ouse

COM

Por ts

PCICLK (33M Hz)

USBCLK (48 MHz)

"*" For 8I845PE-RZ only.

14.318 MHz 33 MHz

CLK GEN

- 7 -

GMCH CLK(66M Hz) CPUCLK+/- ( 100/133M Hz)

AGPCLK (66M Hz) HCLK+/- (100/133MHz)

Introduction

Hardware Installation Process

To s et up your co mp uter, you mus t co mpl ete the following steps:

English

Step 1- Install the Central P rocess ing Unit (CP U) Step 2- Install mem ory modules Step 3- Install e xpansi on car ds Step 4- C onnec t ribbo n c ables , ca binet wires, and power supp ly

Step 4

Step 1

Step 2

Step 4

Step 3

Step 1: Install the Central Processing Unit (CPU)

Before i nstalling the p rocess or, adh ere to the following warning:

1. Pleas e m ake sure the CPU type i s supp orted by the m otherboard.

2. The p rocess or will over heat without the he atsink an d/or fan, resul ting i n perm anent irreparable dam age.

3. If you do not match the CP U socke t Pin 1 and CPU cut edge well, it will caus e im proper installation. Please change the in sert orientation.

4. Apply therma l grea se between the proce ssor a nd cooling fan.

5. Never run the pro cessor without the he atsink p roperl y and firmly attached . Perm anent dam age will resul t.

6. Pleas e set the CPU hos t frequency in accorda nce with your pr ocessor 's spe cifications. We don' t recomm end you to set the system bus frequency over the CPU's specification becau se these specific bus frequenc ies are no t the standard specifica tions for CPU, chipset and mos t of the periphe rals. Wh ether your s ystem ca n ru n under these specific bus freq uencies pr operly will depe nd on your hardware configura tions, includ ing CP U, Me mo ry, Card s… etc.

HT fu nctio nality re quir ement c ontent :

Ena bl ing the fun ctio nal ity of H yp er- Thr ea din g Techn ol ogy for your c om puter system requir es all o f the following pla tform com ponents:

- CP U: An Intel® Pen tium 4 Proce ssor with HT Techno logy

- Chi pset: An Intel® Chi pset that suppo rts H T Technolo gy

- BIOS: A BIOS that su pports HT Technol ogy an d has it enabled

- OS: An op eration s ystem that has optim izations for HT Techn ology

- 8 -8I845PE-RZ Series Motherboard

Step 1-1: CPU Installation

English

Socket

Actuation

Lever

Figure 1. Pull the r od to the 9 0-degree directly.

Figure 2. Locate Pin 1 in the s ocket an d loo k for a (golde n) cu t edge on the CPU up per corn er. Insert the C PU into the soc ket. (Do not force the CPU i nto the sock et.) Then mov e the s ock et l eve r to the locke d position while ho lding pressure on the c enter of the CPU.

Step 1-2: CPU Cooling Fan Installation

Figure 1. Apply the therm al tape(or grease) to provide better heat conduction between you r CP U a nd c oolin g fan.

Figure 2. Fasten the coo ling fan suppor ting-base o nto the CPU socket on the motherboard.

Figure 3. Ma ke sur e the CPU fan is plugg ed to the CPU fan co nnector, than install c omp lete.

- 9 - Har dware Installation Process

Step 2: Install Memory Modules

English

The mother boar d ha s 3 du al inl ine mem ory m odul e (DIM M) s ocke ts. Th e BIOS wil l autom atica lly detects me mo ry type and siz e. To instal l the mem ory mo dule , just p ush it ve rtical ly into the DIMM socket. The DIM M m odule can only fit in one direction due to the notch. Mem ory size c an vary between soc ke ts.

Before i nstalling the m emory modules, adhere to the following warning:

1. Please note that the DIMM m odule can onl y fit in one di rection due to the one notch. Wrong o rientation will cause im proper installation. Please change the insert orientation.

2. Due to (Intel 845PE/ GE) chipset archi tecture limi tation, a FSB 533 Pentium 4 pr ocessor will sup port D DR333/ DDR266 me mor y m odule. A FSB 40 0 Pentium 4 processor will onl y support DDR2 66 me mory modu le.

Notch

DDR

1. The DIMM sock et has a notch, so the DIM M me mor y mo dule can o nly fit in one d irection.

2. Insert the DIMM m em ory m odule ver tically in to the DIM M soc ket. The n pus h i t down.

3. Close the pl astic c lip at both e dges of the DIMM sockets to lo ck the DIMM m odule. Reve rse the installation steps when yo u wish to rem ove the DIMM modu le.

- 10 -8I845PE-RZ Series Motherboard

Step 3: Install AGP Card

1. Read the relateAGP card's instruction document before install the AGP card into the computer.

2. If your AG P card has "AGP 4X (1.5V) notch" (show below), please ma ke sure your AGP c ard is AGP 4X(1.5V).

3. Plea se car efully pull out the small white- drawabl e bar at the end of the AG P slot when you try to install/ U ninstall the AGP ca rd. Ple ase alig n the AGP card to the onboard AGP slot and pr ess firm ly down on the slot .M ake s ure you r AGP card is lock ed by the small white- drawab le ba r.

Step 4: Install I/O Peripherals Cables

Step 4-1: I/O Back Panel Introduction

} *

{

English

u PS/2 Keyboard and PS/2 Mouse connector

This connec tor supp orts s tandard P S/2 ke yboard and PS/2 m ouse.

v Parallel port (LPT)

Devic e like printer can b e conne cted to Pa rallel port.

w/x Serial port (COMA/COMB)

Mo use and mode m e tc. can be conn ected to Serial port.

y Game/MIDI port

This conne ctor s uppor ts joystick, M IDI keyboard and other relate audio devices.

z Line Out jack

Connec t the stereo speak ers or earphone to this c onnector.

{ Line In jack

Devi ces l ike CD-R OM , walkm an etc. can be connect to Line In jack.

"*" For 8I845PE-RZ only.

- 11 - Hardware Installation Proc ess

| MIC In jack

English

} LAN port *

~ USB port

Step 4-2: Connectors Introduction

Mi crophon e can be c onnect to M IC In jac k. After installation of the audio driver, you are able to use 2 /4/6-channel audio feature by software selection . You can connect "Fron t speaker" to "Li ne Out" ja ck, Con nect " Rear sp eaker" to "Line In" jack an d conn ect "Center /Subwoofer" to "M IC In" jac k.

LAN is fast Ethernet with 10/10 0M bps sp eed.

Before you conn ect you r d evice (s) i nto USB connector( s), p lease m ake sure yo ur de vice( s) such as USB k eyboa rd, m ous e, scann er, zi p, sp eaker. ..etc. Have a stand ard USB interface. Also m ake sure your OS supports USB controller. If your OS does not support USB controller, please contact OS ve ndor for possi ble patch o r drive r upgra de. For m ore i nformation please contact y our OS or dev ice( s) ven dors .

1) ATX_12V

2) ATX

3) CPU_FAN

4) SYS_FAN

5) IDE1 / IDE2

6) FDD

7) PWR_LED

8) F_PANEL

9) F_AUDIO

"*" For 8I845PE-RZ only.

1514 8

4 17

10) SUR_CEN

11) CD_IN

12) AUX_IN

13) SPDIF_IO

14) CI

15) F_USB1 / F_USB2

16) CLR_CMOS

17) BAT

- 12 -8I845PE-RZ Series Motherboard
