Getting started
3 About this manual
7 Layout
14 Turning the computer on
and off
16 Unlocking the screen
16 Windows
Basics
19 Using the computer as a
tablet
21 Touch screen (optional)
26 Keyboard
28 Touchpad (optional)
32 Memory card
35 External display
37 Wired LAN
(For 15.6 inch models)
40 Wireless LAN
42 Using the security slot
(For 15.6 inch models)
Applications
43 Using applications
44 Samsung Settings
45 Samsung Update
46 Samsung PC Help (Self-
help application)
Settings & Upgrade
47 LCD brightness
49 Volume
50 BIOS (Setup utility)
56 Battery
Troubleshooting
59 Samsung Recovery
65 Windows recovery
function
65 Q&A
Appendix
69 Product specifications
70 Ergonomic tips
74 Powering your device
76 Safety precautions
89 Important safety
information
92 Replacement parts and
accessories
95 Regulatory compliance
statements
113 WEEE symbol information
115 Samsung package Take-
Back program
2
•
This user manual describes procedures for using the
Getting started
About this manual
•
This user manual is specially designed to detail the computer’s
functions and features.
•
The user manual supplied with the computer may vary
depending on the model.
•
Please read this manual before using the computer to ensure
safe and proper use.
•
Optional accessories, some devices, and software referred to
in this manual may not be provided or may not be subject to
upgrades. Note that the computer environment referred in
the user manual may not be the same as your environment.
touchpad, mouse and touch screen. Instructions for using the
touch screen are for models with the touch screen feature.
•
Images and screenshots are those of the representative model
of the series and may differ in appearance from the actual
product.
•
Content may differ from the final product and is subject to
change without prior notice. For the latest version of the
manual, refer to the Samsung website, www.samsung.com.
•
Descriptions are based on the computer’s default settings
and the Windows 10 operating system. Available features and
additional services may vary depending on the computer or
operating system.
3
Getting started
Instructional icons and expressions
Warning
others
Caution
computer or other equipment
Note
The path you should follow to carry out an instruction. For
example, “select
should select
Select Click the mouse or tap the touchpad or touch screen.
: situations that could cause injury to yourself or
: situations that could cause damage to the
: notes, usage tips, or additional information
Settings
Settings
→
Devices
and then
” indicates that you
Devices
.
Copyright
Copyright © 2016 Samsung Electronics
This manual is protected under international copyright laws.
No part of this manual may be reproduced, distributed, translated,
or transmitted in any form or by any means, electronic or
mechanical, including photocopying, recording, or storing in any
information storage and retrieval system, without the prior written
permission of Samsung Electronics.
Computer specifications or the contents of this manual may
be changed without prior notice due to an upgrade of the
computer’s functions.
4
Getting started
Trademarks
•
Samsung and the Samsung logo are trademarks or registered
trademarks of Samsung Electronics.
•
HDMI, the HDMI logo, and
the term High Definition
Multimedia Interface are
trademarks or registered
•
Intel and Core are trademarks or registered trademarks of the
Intel Corporation.
•
Microsoft, MS-DOS, and Windows are trademarks or registered
trademarks of the Microsoft Corporation.
•
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
worldwide.
•
Wi-Fi®, Wi-Fi Protected Setup™, Wi-Fi Direct™, Wi-Fi
CERTIFIED
the Wi-Fi Alliance.
, and the Wi-Fi logo are registered trademarks of
™
trademarks of HDMI Licensing
LLC.
•
All other trademarks and copyrights are the property of their
respective owners.
As an ENERGY STAR
Samsung has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
•
The ENERGY STAR Program has reduced greenhouse gas
emissions and saved energy through voluntary labeling.
•
Power management setting of this product have been
enabled by default, and have various timing settings from
1 minute to 5 hours.
•
The product can wake with a button press on the chassis from
Partner,
®
®
sleep mode.
5
Getting started
Data precautions
Samsung Electronics shall not be liable for any data loss. Please
take care to avoid losing any important data and back up your
data to prevent any such data loss.
Operating system and software support
If you change the product’s factory OS (Operating System) to
another OS or if you install software which is not supported by the
product’s original factory OS, you will not receive any technical
support, product exchange or refund, and a fee will be charged
when requesting a service.
Please use your computer with the original factory OS. If you
install an OS other than the factory OS, data may be deleted or the
computer may not start.
Product capacity representation
Storage capacity representation
The capacity of the storage device (HDD, SSD) of the manufacturer
is calculated assuming that 1 KB = 1,000 Bytes.
However, the operating system (Windows) calculates the storage
device capacity assuming that 1 KB = 1,024 Bytes. Therefore, the
available capacity of the HDD in Windows is smaller than the
actual capacity due to the difference in capacity calculation. For
example, for an 80 GB HDD, Windows calculates the capacity as
74.5 GB, (80x1,000x1,000x1,000) Bytes/(1,024x1,024x1,024) Bytes
= 74.505 GB.
In addition, the capacity representation in Windows may be even
smaller because some programs, such as Samsung Recovery, may
reside in a hidden area of the HDD.
Memory capacity representation
The available memory capacity in Windows is less than the actual
capacity of memory. This is because some memory is required for
regular system operations.
For example, for 1 GB (= 1,024 MB) memory installed, Windows
may report the capacity as 1,022 MB or less.
6
Getting started
Layout
•
Features or options may differ depending on the model.
•
The items marked as optional may not be provided or
may be provided in different locations.
•
Since some space on the SSD is reserved for system
recovery and operations, the available space on the SSD
may be less than the actual capacity.
Front view
▶ For 13.3 inch models
Number/Name Description
Camera indicator
light
Camera
LCD/Touch screen
(optional)
1
Illumination
2
sensor
•
This indicates the camera
operating status.
•
Using this camera, you can take
still pictures and record video.
•
The screen’s images are displayed
here.
•
Recognizes touch interactions
(Only for touch screen models).
•
The sensor detects the ambient
light.
•
If the ambient light level becomes
too low, the keyboard’s backlight
will automatically turn on.
•
If there is sufficient ambient
lighting, the keyboard’s backlight
will automatically turn off.
•
3
Keyboard
4
Touchpad
5
6
7
Do not block the sensor.
•
Enter text or control computer
functions.
•
Moves the cursor and selects
options.
•
Functions as a mouse.
Getting started
▶ For 15.6 inch models
Number/Name Description
1
light
Camera indicator
2
Camera
•
This indicates the camera
operating status.
•
Using this camera, you can take
still pictures and record video.
•
The screen’s images are displayed
LCD/Touch screen
3
(optional)
here.
•
Recognizes touch interactions
(Only for touch screen models).
•
4
The sensor detects the ambient
light.
•
5
If the ambient light level becomes
too low, the keyboard’s backlight
6
Illumination
will automatically turn on.
sensor
•
If there is sufficient ambient
lighting, the keyboard’s backlight
will automatically turn off.
•
Do not block the sensor.
•
Enter text or control computer
Keyboard
functions.
•
Moves the cursor and selects
Touchpad
options.
•
Functions as a mouse.
8
Getting started
Right view
▶ For 13.3 inch models
1 2 3 34
Number/Name Description
Volume button
/
Power button /
Power LED
Microphone
USB 2.0 port
•
Adjusts the volume level.
•
Turns the computer on and off.
•
Shows the operating status of the
computer.
–
Red
–
Green
–
Blue
•
You can use the built-in
microphone.
•
Connect various peripheral
devices, such as a mouse, camera,
or keyboard.
: Charging
: Fully charged
: Turned on
9
Getting started
▶ For 15.6 inch models
1 2 3 4 5
Number/Name Description
Volume button
/
Power button /
Power LED
Memory card slot
(optional)
USB 2.0 port
•
Adjusts the volume level.
•
Turns the computer on and off.
•
Shows the operating status of the
computer.
–
Red
–
Green
–
Blue
•
Insert a memory card into the slot.
•
Connect various peripheral
devices, such as a mouse, camera,
or keyboard.
•
Secure the computer by
: Charging
: Fully charged
: Turned on
10
Security slot
connecting an optional lock and
cable to it.
Getting started
Left view
▶ For 13.3 inch models
1 2 3
About the chargeable USB port
•
It may take longer to charge the battery when charging a USB
device.
•
The battery power level may be reduced when charging a USB
device while the computer is powered by the battery.
•
The charging status of the USB device is not displayed on the
computer.
•
To turn on the charging function while the computer is
turned off, open the
Convenience
•
This feature may not be available on some USB devices.
→
Samsung Settings
USB charging in sleep mode
4
5 6
application and select
→ ON.
Number/Name Description
•
This jack connects to the AC
DC jack
HDMI port
USB 3.0 port
USB-C™ port
Earpiece/Headset
jack
Memory card slot
adapter to supply power to the
computer.
•
Used to connect an HDMI cable
to an external device.
•
Connect various peripheral
devices, such as a mouse, camera,
or keyboard.
•
The USB-C™ port can be used to
connect and charge a USB-C
device, or connect to an external
display device.
•
Purchase an adapter
separately to connect to
an external display
•
The computer cannot be
charged via the USB-C
port.
•
Connect an earpiece or a headset
to the computer to listen to
audio.
•
Insert a memory card into the
™
™
11
slot.
Getting started
▶ For 15.6 inch models
1 13 5
2
4
6
7
About the chargeable USB port
•
It may take longer to charge the battery when charging a USB
device.
•
The battery power level may be reduced when charging a USB
device while the computer is powered by the battery.
•
The charging status of the USB device is not displayed on the
computer.
•
To turn on the charging function while the computer is
turned off, open the
Convenience
•
This feature may not be available on some USB devices.
→
Samsung Settings
USB charging in sleep mode
application and select
→ ON.
Number/Name Description
Microphone
DC jack
Wired LAN port
HDMI port
USB 3.0 port
USB-C™ port
•
You can use the built-in microphone.
•
This jack connects to the AC adapter
to supply power to the computer.
•
Connect the Ethernet cable to this
port.
You can use a wired LAN by using
the LAN adapter (optional).
•
Used to connect an HDMI cable to an
external device.
•
Connect various peripheral devices,
such as a mouse, camera, or
keyboard.
•
The USB-C™ port can be used to
connect and charge a USB-C
device, or connect to an external
display device.
•
Purchase an adapter
separately to connect to an
external display.
•
The computer cannot be
™
12
Earpiece/Headset
jack
charged via the USB-C
•
Connect an earpiece or a headset to
the computer to listen to audio.
™
port.
Getting started
Bottom view
▶ For 13.3 inch models
2
3
▶ For 15.6 inch models
1
1
2
3
3
Number/Name Description
•
The internal heat of the computer is
emitted through these holes.
3
13
Fan vents
Internal
battery
Speaker
•
If the vents are blocked the computer
may overheat. Avoid blocking the vents
as this may be dangerous.
•
Provides power to the computer when
not connected to an AC adapter.
•
To remove or replace the internal battery,
take it to a Samsung Service Center. You
will be charged for this service.
•
Sound is emitted from the speakers.
Getting started
Turning the computer on and off
The computer turns on automatically when the LCD panel is
3
opened.
Fully charge the battery using the AC adapter before using
the computer
for the first time
.
Turning the computer on
Before turning on the computer, check that the battery is
1
charged and charge it if necessary.
Open the LCD panel.
2
If the computer does not turn on automatically, press the
Power button.
14
Set the device not to automatically turn on the computer
when the LCD panel is opened.
1. Select the Start button (
Samsung Settings
2. Select
Convenience
.
→
) →
All apps
Auto Booting
→
→
Off
Samsung
.
→
Getting started
About Windows Activation
When you turn the computer on for the first time, the Windows
activation screen appears.
Follow the activation procedures according to the instructions on
the screen to use the computer.
The computer’s date and time may be incorrect when you turn it
on for the first time. They may also be incorrect if the battery has
been fully discharged or removed. To set the date and time, go
to the desktop taskbar and right-click the clock area. Then, select
Adjust date/time
•
To adjust the brightness of the screen, see LCD
brightness.
•
To adjust the sound, see Volume.
and set the current date and time.
Turning the computer off
Select the Start button ( ).
1
2
Select
Power
→
Shut down
.
15
•
Save all data before turning off the computer.
•
Since the procedures to turn the computer off may
differ depending on the installed operating system,
turn the computer off according to the procedures for
the purchased operating system.
Getting started
Unlocking the screen
To unlock the lock screen, do one of the following:
•
Touch screen
•
Mouse
•
Keyboard
•
Touchpad
If the account has a password, enter the password to log in after
unlocking the screen.
: Click the lock screen.
: Swipe upwards from the bottom of the screen.
: Press any key.
: Tap the touchpad.
Windows
Microsoft Windows is an operating system that is used to control a
computer.
•
Images and available features may differ depending on
the model and operating system.
•
This manual is designed for Windows 10 and content
may differ depending on the OS version.
•
The image displayed on the desktop screen may differ
between models and OS versions.
Help
To access help information, select the Start button ( ) →
→
Get started
.
All apps
Using the control panel
You can adjust basic system settings, such as hardware, software,
or user account settings.
Select the Start button (
Control Panel
select
Then, select options you want to change.
16
Control Panel
. Alternatively, right-click the Start button ( ) and
.
) →
All apps
→
Windows system
→
Getting started
Using a multi desktop
Multi desktop allows you to work on various tasks at the same
time via multiple desktops. You can use different desktops for
various purposes.
Creating a new desktop
Select on the taskbar.
1
Select
2
A new desktop will be added. You can select a desktop from
the list displayed at the bottom of the screen.
New desktop
.
Deleting a desktop
Select on the taskbar.
1
Move the cursor over the desktop icon you want to delete.
2
Then, select
in the upper-right corner of the icon.
Moving a program to another desktop
Select on the taskbar.
1
Right-click a window, select
2
the desktop you want to move the window to.
Move to
and select the name of
Multi desktop list
17
Getting started
Action Center
The Windows 10 action center allows you to receive system
notifications, such as updates, and push notifications, such as
emails and SNS updates. You can also adjust settings conveniently.
For example, you can select wireless network options or adjust the
volume and screen brightness via hot keys in the action center.
Checking notifications
Select on the taskbar.
1
When the action center panel appears, select a message to
2
check it.
18
You can enable or disable push notifications for
applications. You can also set personalized hot keys to
appear in the action center by selecting the Start button
) →
(
Settings
→
System
→
Notifications & actions
.
Basics
Using the computer as a tablet
You can use the computer as a tablet by folding the LCD panel
behind the keyboard.

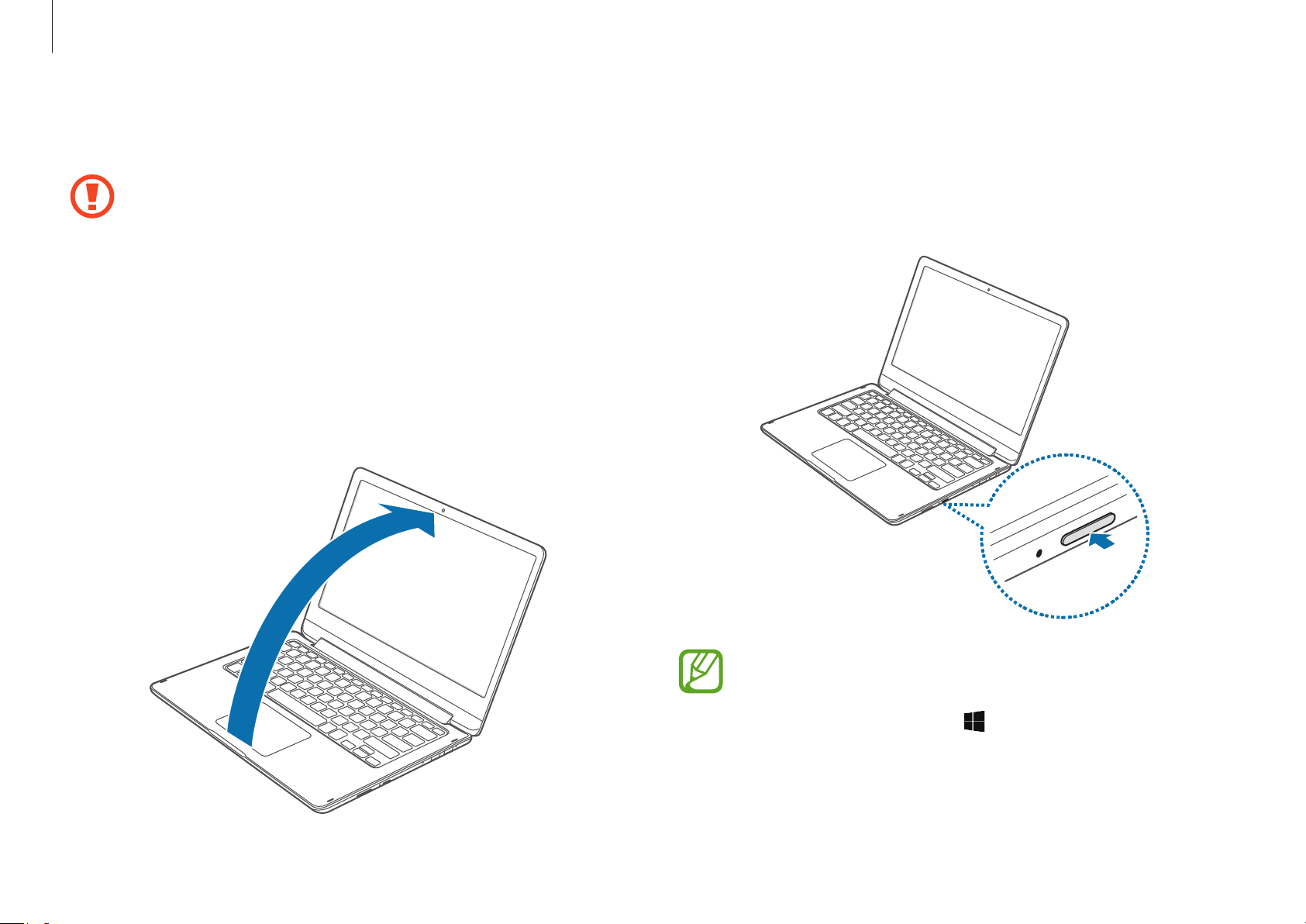

Open the LCD panel and rotate it away from the keyboard
1
until it touches the bottom side of the computer.
When the LCD panel is tilted past the transition point
•
The keyboard and touchpad will automatically be
locked and will not function. But, during processes that
start before Windows operation, such as the BIOS setup
or DOS, the keyboard and touchpad will not be locked.
•
The display will rotate automatically depending on the
computer’s orientation.
When storing the computer in a bag or carrying it, close
the LCD panel to protect the computer.
19
Basics
A mode switch confirmation message will appear when the
2
LCD panel is tilted past the transition point. Select
switch the computer’s display to tablet mode.
Yes
to
•
When you rotate the LCD panel back to the normal
position, a mode switch confirmation message will
Yes
appear. Select
desktop mode.
•
When the screen is turned off while using the computer
as a tablet, press the Volume button to unlock the
screen. When the computer is in sleep mode, press the
Power button to unlock the screen.
You can also switch the computer’s display to tablet mode without
rotating the LCD panel.
to switch the computer’s display to
The display will switch to tablet mode.
Select on the taskbar.
1
When the action center panel appears, select
2
Tablet mode
.
20
Basics
Touch screen (optional)
Use your fingers on the touch screen to perform actions.
Touch screen gestures
Tapping
To select menus, options, or applications, tap the touch screen.
Double-tapping
To open files or items, double-tap the touch screen.
Tapping and holding (right-clicking)
To use additional options of an item, tap and hold it on the touch
screen.
21
Basics
Dragging
To move an item to another location, tap and hold it, and then
drag it on the touch screen to the desired location.
Scrolling
To scroll up, down, left, or right, swipe on the touch screen.
or
Spreading and pinching
To zoom in, spread two fingers apart on an image or text. Pinch to
zoom out.
22
Basics
•
Do not subject the touch screen to severe impacts or
press it with sharp objects. Doing so may damage the
touch screen.
•
Do not allow the touch screen to come into contact
with other electrical devices. Electrostatic discharges
can cause the touch screen to malfunction.
•
Do not expose the touch screen to water. The touch
screen may malfunction in humid conditions or when
exposed to water.
•
Do not spray liquid cleansing solutions directly onto
the touch screen. The solution may enter the touch
screen or cause undesired operation. To clean the
screen, dampen a cloth with solution and gently wipe
the screen. Do not use solutions or cloths that contain
abrasive materials, as they may damage the touch
screen.
•
Do not damage the edges of the touch screen. Doing so
may damage the touch screen.
•
Leaving the touch screen idle for extended periods
may result in afterimages (screen burn-in) or ghosting.
Turn off the touch screen when you are not using the
computer.
•
Make sure your hands are clean and dry before using
the touch screen. Remove any moisture from your
hands before using the touch screen.
•
Do not expose the computer to foreign substances.
Doing so may cause the touch screen to malfunction.
•
Very light touches on the touch screen may not be
recognized.
•
Precisely tap items on the touch screen for the best
results.
•
The touch screen sensors are located on the edges of
the touch screen. Therefore, do not cover the edges of
the touch screen with protective covers or accessories.
•
Touch screen gestures are available for touch screen
models running Windows and work only with some
23
applications.
Basics
Entering text
Use the virtual keyboard to enter text.
To open the virtual keyboard, select
•
Some languages are not support by the virtual
keyboard. To enter text, change the input language to
one of the supported languages.
•
When using the computer for extended periods, it is
recommended to enter text with the physical keyboard.
on the taskbar.
Changing the keyboard layout
To change the keyboard layout, select and select one of the
following:
•
•
: Simplified Qwerty keyboard
: Split Qwerty keyboard for entering text with two hands
8
Number Description
•
Delete a preceding character.
•
Move to the next line.
•
Create an uppercase character. For all caps, tap
it twice.
•
Change the keyboard layout.
•
Move the cursor.
•
Enter a space.
•
Enter emoticons.
•
words.
•
: Handwriting keyboard used to enter text from written
: Standard Qwerty keyboard
24
•
Enter numerals and punctuation marks.
Basics
Entering uppercase
Select before entering a character. For all caps, tap it twice.
Changing language keyboards
Add keyboards to enter text in other languages. Select →
Language preferences
language
→ a language. Then, select and select a language.
→
Region & language
→
Add a
Handwriting
Select → , and then write a word in the on-screen text
input field.
Handwriting is not supported for some languages.
Copying and pasting
Tap and drag your finger across text to select it.
1
Tap and hold the text to display the options.
2
Select
3
Tap and hold a text input field and then select
4
Copy
or
Cut
.
Paste
.
25
Basics
Keyboard
Enter text or access computer functions with the keyboard.
•
Images and available features may differ depending on the model and operating system.
•
The keyboard layout may differ depending on the country.
Using hot keys
To use keyboard hot keys, do one of the following:
•
Press the
press a hot key.
Fn Lock
key. When the
Fn Lock
key LED turns on,
•
Press and hold the Fn key and press a hot key.
+
26
When the
pressing the
Fn Lock
→
key is on, hot keys are activated without
Fn
key.
Basics
Hot key functions
Key/Icon Description
•
F1
F2
F3
F4
F5
F6
Samsung Settings
Settings
•
Screen brightness control
brightness of the display.
•
LCD/External monitor
LCD and an external display device when an
external display device is connected to the
computer.
•
Touchpad
off.
•
Mute
: Mute or unmute the audio.
: Launch the
application.
: Switch between the
: Turn the touchpad function on or
Samsung
: Adjust the
Key/Icon Description
F7
•
Volume control
F8
•
F9
F10
F11
F12
Keyboard backlight
backlight on or off.
•
Video HDR
clearer.
This feature is applied to only the videos
and may not be available for some video
players or sites.
•
Invert the screen so that the image appears
normally when the screen is flipped.
This feature may not be available in some
applications, such as games.
•
Wi-Fi network
: Adjust the volume level.
: Turn the keyboard
: Make the video brighter and
: Turn the Wi-Fi feature on or off.
27
Fn +
•
Right-click
If the hot keys do not work properly, install the
Settings
application.
: Perform the right-click function.
Samsung
Basics
Touchpad (optional)
Use the touchpad to move the cursor or select an item. The left
and right buttons of the touchpad act the same as the left and
right buttons of a mouse.
•
Use the touchpad only with fingers. The touchpad will
not recognize actions of other objects.
•
Images and the touchpad layout may differ depending
on the model.
Basic touchpad functions
Moving
To move the cursor, move a finger on the touchpad.
Clicking
Tap the touchpad or press the left touchpad button.
Tap
or
Click
Double-clicking
Double-tap the touchpad or press the left touchpad button twice.
28
Tap-tap
or
Click-click
Basics
Right-clicking
This function enables right-clicking.
To right-click an item, press the right touchpad button.
Click
Dragging
To move an icon or an app tile to a desired location, press and hold
it and then drag it to the target position with the left touchpad
button pressed.
Gesture functions
Swiping
To scroll up, down, left or right to a desired location, swipe with
two fingers on the touchpad.
or
Pinching
To zoom in, spread two fingers apart while viewing a website,
Press and hold the left
touchpad button
map, or image. Pinch to zoom out.
Move
29
Basics
Configuring touchpad gestures
Configure touchpad gestures to use the touchpad more efficiently.
Select the Start button (
touchpad
→ desired options.
Some options in the touchpad settings may not be
available depending on the model.
) →
Settings
→
Devices
→
Mouse &
Touchpad lock
Press and hold the Fn key and press the F5 key to lock the
touchpad.
+
Press & Go gestures
Use Press & Go gestures on the touchpad to easily move to the
previous screen of the webpage or the folder, or go to the top or
bottom of the display with just one finger.
You can use only this feature in Internet Explorer, Microsoft
Edge, and Windows Explorer.
Tap the touchpad lightly.
1
When you want to use Press & Go gestures, tap the
30
touchpad lightly. If the contact area of the touchpad is
too wide or you tap the touchpad firmly, the Press & Go
gestures may not function properly.
Basics
When the arrows appear on the screen, swipe your finger on
2
the touchpad in the direction you want.
The Press & Go gestures will act as described in the table
below.
Swipe your finger upwards.
You can go to the top of the webpage or the
files list of the current folder.
Swipe your finger downwards.
You can go to the bottom of the webpage
or the files list of the current folder.
Swipe your finger to the left or right.
You can go to the previous screen of the
webpage or the current folder.
Deactivating Press & Go gestures
You can deactivate the Press & Go gestures on
Select the Start button ( ) →
1
Samsung Settings
2
Select
Input
and set
.
Press & Go
All apps
to
Off
→
.
Samsung Settings
Samsung
→
.
31
Basics
Memory card
•
Some memory cards may not be fully compatible with
the computer. Using an incompatible card may damage
Use a memory card to transfer data to other devices, such as
digital cameras or MP3 players. Memory cards are sold separately.
Purchase a memory card with the necessary capacity for the
requirement.
This computer supports the following types of memory cards.
Abbreviation Description
•
micro SD
micro SDHC
micro SDXC
micro Secure Digital
•
micro Secure Digital High Capacity
•
micro Secure Digital eXtended Capacity
the computer or the memory card, or corrupt the data
stored in it.
•
Use caution to insert the memory card in the indicated
direction.
•
Store the card separately to prevent losing the card
when moving the computer.
•
Memory card speeds vary.
32
Basics
Inserting a memory card
If a pop-up message appears, choose an action.
3
If a dummy card or a memory card adapter is inserted in the
1
memory card slot, remove it.
Insert a memory card into the memory card slot in the
2
indicated direction.
Select
4
Save, move, or delete data on the memory card.
5
The memory card folder opens only on the desktop.
Open folder to view files
.
Removing a memory card
Push the card gently until it disengages from the memory card
slot. Grasp the end of the card and pull it out of the slot.
33
Basics
Formatting a memory card
Format the memory card to remove all data or before using it for
the first time.
Formatting a memory card deletes all data saved on
the card. If necessary, back up important data before
formatting the card.
On the taskbar, select File Explorer ( ).
1
•
To use a memory card to exchange data with a digital
device, such as a digital camera, formatting the data
with the digital device is recommended.
•
When trying to use a formatted memory card in
another digital device, format the memory card again in
the device.
•
Data protected by copyright laws cannot be reviewed
or modified.
•
Inserting and removing a memory card repeatedly may
Right-click the memory card drive, and then select
2
3
Select
Start
.
Format
.
damage the memory card.
•
Secure Digital Input Output (SDIO) is not supported.
•
If the write-protect tab is in the locked position, you
cannot format, write, or delete data on the card.
34
Basics
HDMI port
HDMI port
External display
Connecting the computer to an external display device can be
useful for presentations or when watching a movie. The cables
and adapters required to connect an external display are sold
separately. The computer supports HDMI cables, USB-C
cables, and USB-C
HDMI cable USB-C™ display cable USB-C™ display
•
Check the available ports on the display device to
ensure that it is compatible with the computer.
display adapters.
™
™
adapter
display
Connecting to a display
Connect the HDMI cable to the corresponding port of the
1
computer.
Connect the other end of the cable to the HDMI port of the
2
external display.
If the display has several HDMI ports, connect the cable to the
DVI IN port.
<When using an HDMI cable>
•
An external display is not supported when using DOS or
the Command Prompt window.
35
Basics
Connect the power cord to the external display.
3
Turn on the display and change its display mode to one that
4
supports an external input.
Press and hold the Fn key and press the F4 key.
5
Select a mode.
6
PC screen only
Show the screen on the computer monitor only.
Duplicate
Show the screen on both the computer and the
external display.
Extend
Extend the screen to the external display.
You can also select a mode by right-clicking the Start
button (
and Personalization
settings
information, refer to OS help.
) and selecting
→
Multiple displays
Control Panel
→
Display
→
Appearance
→
Change display
→ an option. For more
Second screen only
Show the screen on the external display only.
36
Basics
Wired LAN (For 15.6 inch models)
To access the Internet at home, set up an account with an Internet
service provider (ISP). To purchase Internet service and a modem,
contact a local ISP.
•
Some features or procedures may differ depending on
the model.
•
These descriptions are written for Windows 10, so some
figures and descriptions may differ from your operating
system. Since the procedures for other Windows
operating systems are similar, use the computer
referring to these descriptions.

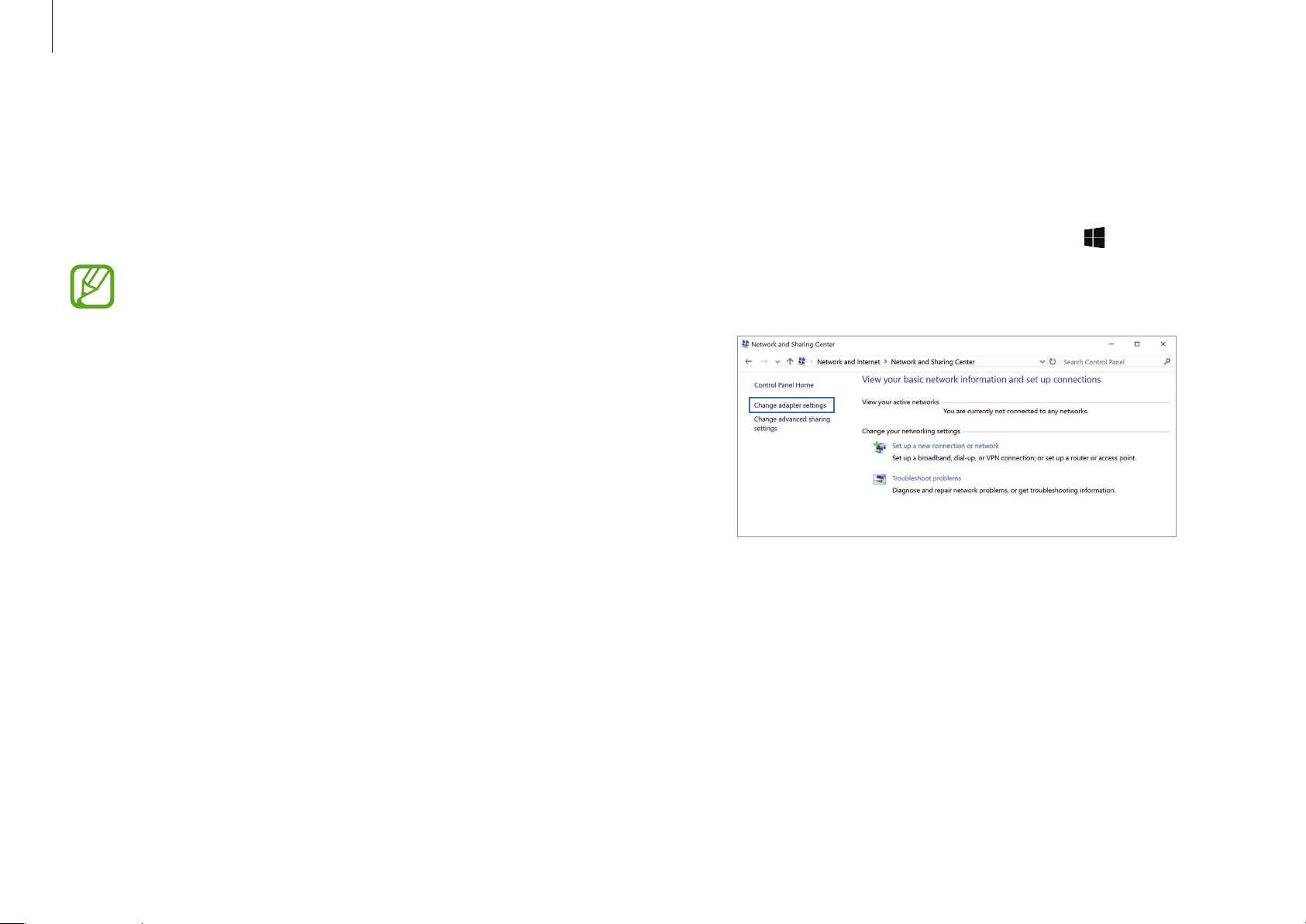

Wired LAN
Connect a LAN cable to the LAN port on the computer.
1
On the desktop, right-click the Start button ( ) and select
2
Control Panel
Sharing Center
→
Network and Internet
→
Change adapter settings
→
Network and
.
37
Right-click
3
name may differ depending on the computer’s network
device.
Ethernet
and select
Properties
. The LAN device
Loading...
