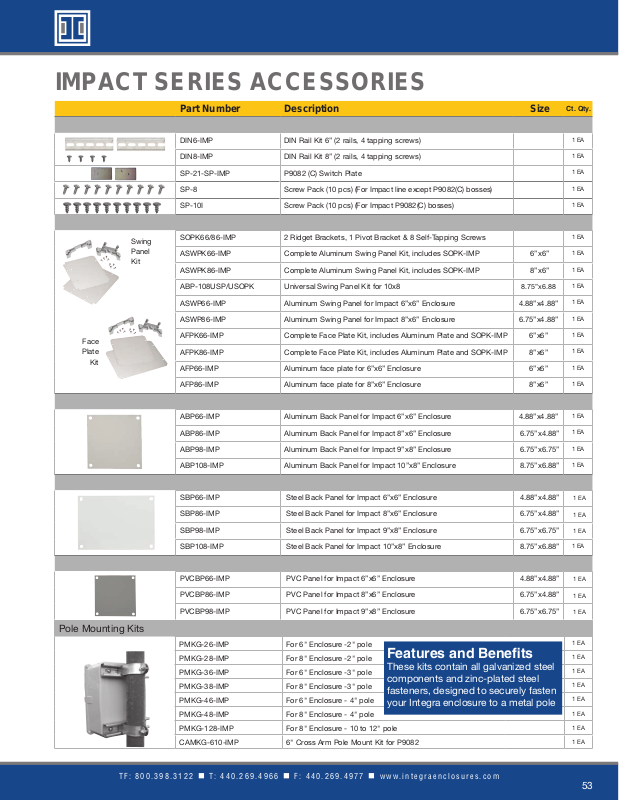

Integra IMPACT SERIES Accessories Catalog

IMPACT SERIES ACCESSORIES

Face Plate

Kit

Swing Panel Kit

Part Number Description Size

DIN6-IMP DIN Rail Kit 6” (2 rails, 4 tapping screws)

DIN8-IMP DIN Rail Kit 8” (2 rails, 4 tapping screws)

SP-21-SP-IMP P9082 (C) Switch Plate

SP-8 Screw Pack (10 pcs) (For Impact line except P9082(C) bosses)

SP-10I Screw Pack (10 pcs) (For Impact P9082(C) bosses)

SOPK66/86-IMP 2 Ridget Brackets, 1 Pivot Bracket & 8 Self-Tapping Screws

ASWPK66-IMP Complete Aluminum Swing Panel Kit, includes SOPK-IMP 6”x6”

ASWPK86-IMP Complete Aluminum Swing Panel Kit, includes SOPK-IMP 8”x6”

ABP-108USP/USOPK Universal Swing Panel Kit for 10x8

ASWP66-IMP Aluminum Swing Panel for Impact 6”x6” Enclosure 4.88”x4.88”

ASWP86-IMP Aluminum Swing Panel for Impact 8”x6” Enclosure 6.75”x4.88”

AFPK66-IMP Complete Face Plate Kit, includes Aluminum Plate and SOPK-IMP 6”x6”

AFPK86-IMP Complete Face Plate Kit, includes Aluminum Plate and SOPK-IMP 8”x6”

AFP66-IMP Aluminum face plate for 6”x6” Enclosure 6”x6”

AFP86-IMP Aluminum face plate for 8”x6” Enclosure 8”x6”

8.75”x6.88

Ct. Qty.

1 EA

Pole Mounting Kits

ABP66-IMP Aluminum Back Panel for Impact 6”x6” Enclosure 4.88”x4.88”

ABP86-IMP Aluminum Back Panel for Impact 8”x6” Enclosure 6.75”x4.88”

ABP98-IMP Aluminum Back Panel for Impact 9”x8” Enclosure 6.75”x6.75”

ABP108-IMP Aluminum Back Panel for Impact 10”x8” Enclosure 8.75”x6.88”

SBP66-IMP Steel Back Panel for Impact 6”x6” Enclosure 4.88”x4.88”

SBP86-IMP Steel Back Panel for Impact 8”x6” Enclosure 6.75”x4.88”

SBP98-IMP Steel Back Panel for Impact 9”x8” Enclosure 6.75”x6.75”

SBP108-IMP Steel Back Panel for Impact 10”x8” Enclosure 8.75”x6.88”

PVCBP66-IMP PVC Panel for Impact 6”x6” Enclosure 4.88”x4.88”

PVCBP86-IMP PVC Panel for Impact 8”x6” Enclosure 6.75”x4.88”

PVCBP98-IMP PVC Panel for Impact 9”x8” Enclosure 6.75”x6.75”

PMKG-26-IMP For 6" Enclosure -2" pole

PMKG-28-IMP For 8" Enclosure -2" pole

PMKG-36-IMP For 6" Enclosure -3" pole

PMKG-38-IMP For 8" Enclosure -3" pole

PMKG-46-IMP For 6" Enclosure - 4" pole

PMKG-48-IMP For 8" Enclosure - 4" pole

PMKG-128-IMP For 8" Enclosure - 10 to 12" pole

CAMKG-610-IMP 6" Cross Arm Pole Mount Kit for P9082

Features and Benets

These kits contain all galvanized steel components and zinc-plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

1 EA
