Page 1

DVD Player

DPS-5.9

Instruction Manual

Page 2

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PORTABLE CART WARNING

S3125A

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or

water,

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation.

Leave 20 cm (8") of free space at the top and sides and

10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a ﬂue-like gap for warm air to escape.

Page 3

Precautions

1. Recording Copyright —Unless it’s for personal use

only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse —The AC fuse inside the unit is not user-

serviceable. If you cannot turn on the unit, contact the dealer from whom you purchased this unit.

3. Care —Occasionally you should dust the unit all over

with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the ﬁnish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 100-240 V, 50/60 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure War ning

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, ﬁre or the like.

7. Never Touch this Unit with Wet Hands —Never

handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by the dealer from whom you purchased this unit.

8. Handling Notes

• If you need to transport this unit, use the original

packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit

for a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm

after prolonged use. This is normal.

• If you do not use this unit for a long time, it may

not work properly the next time you turn it on, so be sure to use it occasionally.

• When you’ve ﬁnished using this unit, remove all

discs and turn off the power.

9. Installing this Unit

• Install this unit in a well-ventilated location.

• Ensure that there’s adequate ventilation all

around this unit, especially if it’s installed in an audio rack. If the ventilation is inadequate, the unit may overheat, leading to malfunction.

• Do not expose this unit to direct sunlight or heat sources, because its internal temperature may rise, shortening the life of the optical pickup.

•Avoid damp and dusty places, and places subject to vibrations from loudspeakers. Never put the unit on top of, or directly above a loudspeaker.

• Install this unit horizontally. Never use it on its side or on a sloping surface, because it may cause a malfunction.

• If you install this unit near a TV, radio, or VCR, the picture and sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR.

10. To Obtain a Clear Picture —This unit is a high-

tech, precision device. If the lens on the optical pickup, or the disc drive mechanism becomes dirty or worn, the picture quality may be affected. To maintain the best picture quality, we recommend regular inspection and maintenance (cleaning or worn part replacement) every 1,000 hours of use depending on the operating environment. Contact the dealer from whom you purchased this unit for details.

11. Moisture Condensation Moisture condensation may damage this unit.

Read the following carefully: Moisture may condense on the lens of the optical pickup, one of the most important parts inside this unit.

• Moisture condensation can occur in the following

situations: – The unit is moved from a cold place to a warm

place.

–A heater is turned on, or cold air from an air

conditioner is hitting the unit.

– In the summer, when this unit is moved from an

air conditioned room to a hot and humid place.

– The unit is used in a humid place.

• Do not use this unit when there’s the possibility

of moisture condensation occurring. Doing so may damage your discs and certain parts inside this unit.

If condensation does occur, remove all discs and leave this unit turned on for two to three hours. By this time, the unit will have warmed up and any condensation will have evaporated.

12. Region Numbers —The DVD standard uses region

numbers to control how discs can be played around the world, the world being divided into six regions. This unit will only play DVD discs that match its region number, which can be found on its rear panel

ALL

(e.g., , ).

13. About this Manual —This manual explains how to

use all of this unit’s functions. Although the DVD standard offers many special features, not all discs use them all, so depending on the disc being played, this unit may not respond to certain functions. See the disc’s sleeve notes for supported features.

Page 4

Precautions —Continued

This unit contains a semiconductor laser system and is classiﬁed as a “CLASS 1 LASER PRODUCT”. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure.

CAUTION:

CLASS 1M VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

The label on the right is applied on the rear panel.

1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet.

2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualiﬁed personnel.

For U.S. models

FCC Information for User

CAUTION:

The user changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For Canadian Models

NOTE:

COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:

CAUTION:

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

THIS CLASS B DIGITAL APPARATUS

TO PREVENT ELECTRIC SHOCK,

Modèle pour les Canadien

REMARQUE:

LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA. Sur les modèles dont la ﬁche est polarisée:

ATTENTION:

TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

CET APPAREIL NUMÉRIQUE DE

POUR ÉVITER LES CHOCS ÉLEC-

For British models

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualiﬁed service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral Brown: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT

The plug is ﬁtted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse. If the power cord’s plug is not suitable for your socket outlets, cut it off and ﬁt a suitable plug. Fit a suitable fuse in the plug.

For European Models

Declaration of Conformity

We,

ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY

K. MIYAGI

ONKYO EUROPE ELECTRONICS GmbH

Page 5

Contents

Important Safety Instructions .................. 2

Precautions................................................ 3

Introduction ............................................... 6

Supplied Accessories.....................................6

DPS-5.9 Features...........................................7

Disc Notes .....................................................8

DPS-5.9-related Terminology .....................11

Controls & Connectors........................... 12

Front Panel ..................................................12

Display ........................................................13

Rear Panel ...................................................14

Remote Controller.......................................15

Before Using the DPS-5.9....................... 17

Installing the Remote Controller’s

Batteries.................................................17

Using the Remote Controller.......................17

Connecting the DPS-5.9 ......................... 18

Before Making Any Connections................18

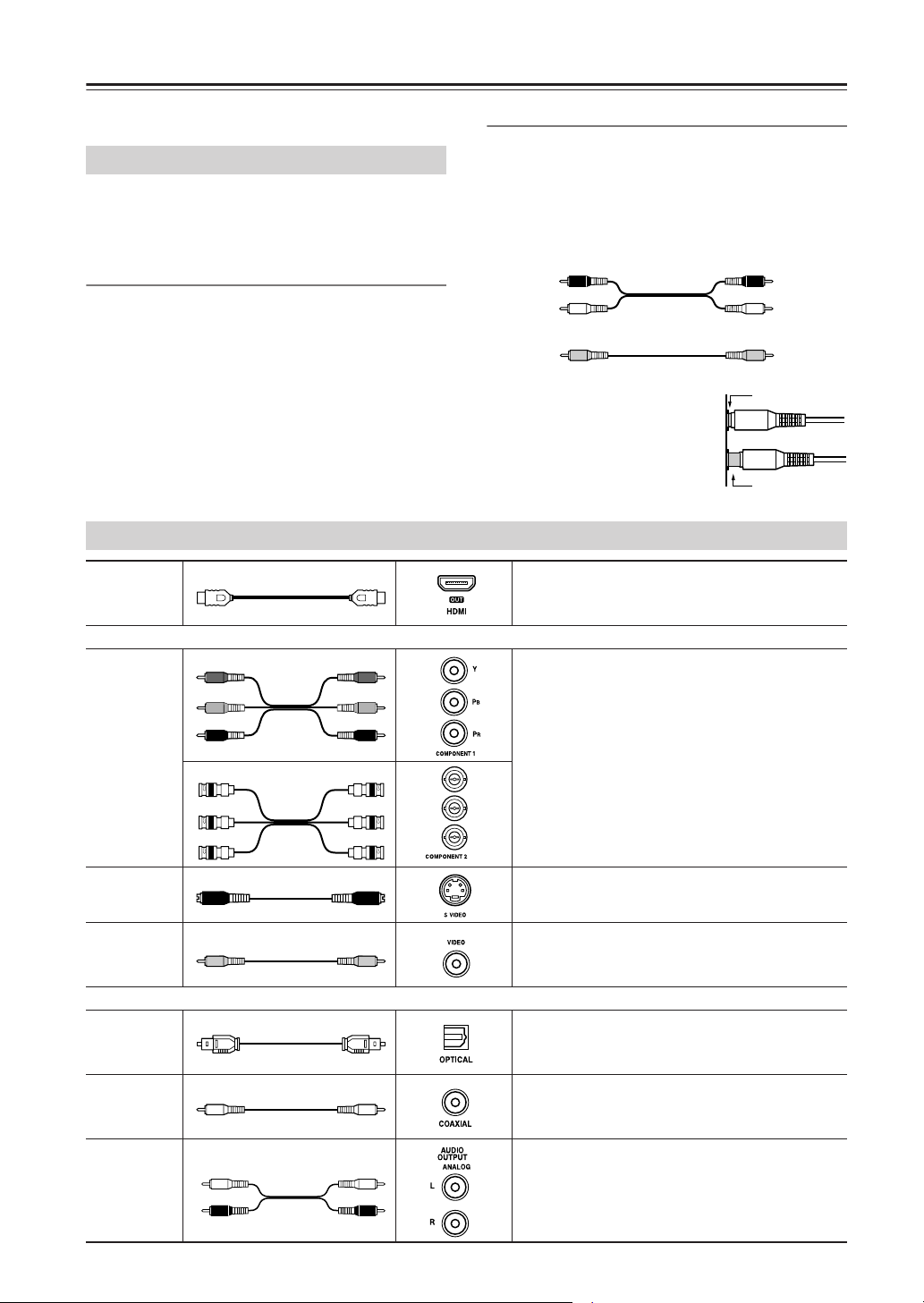

AV Cables & Connectors............................18

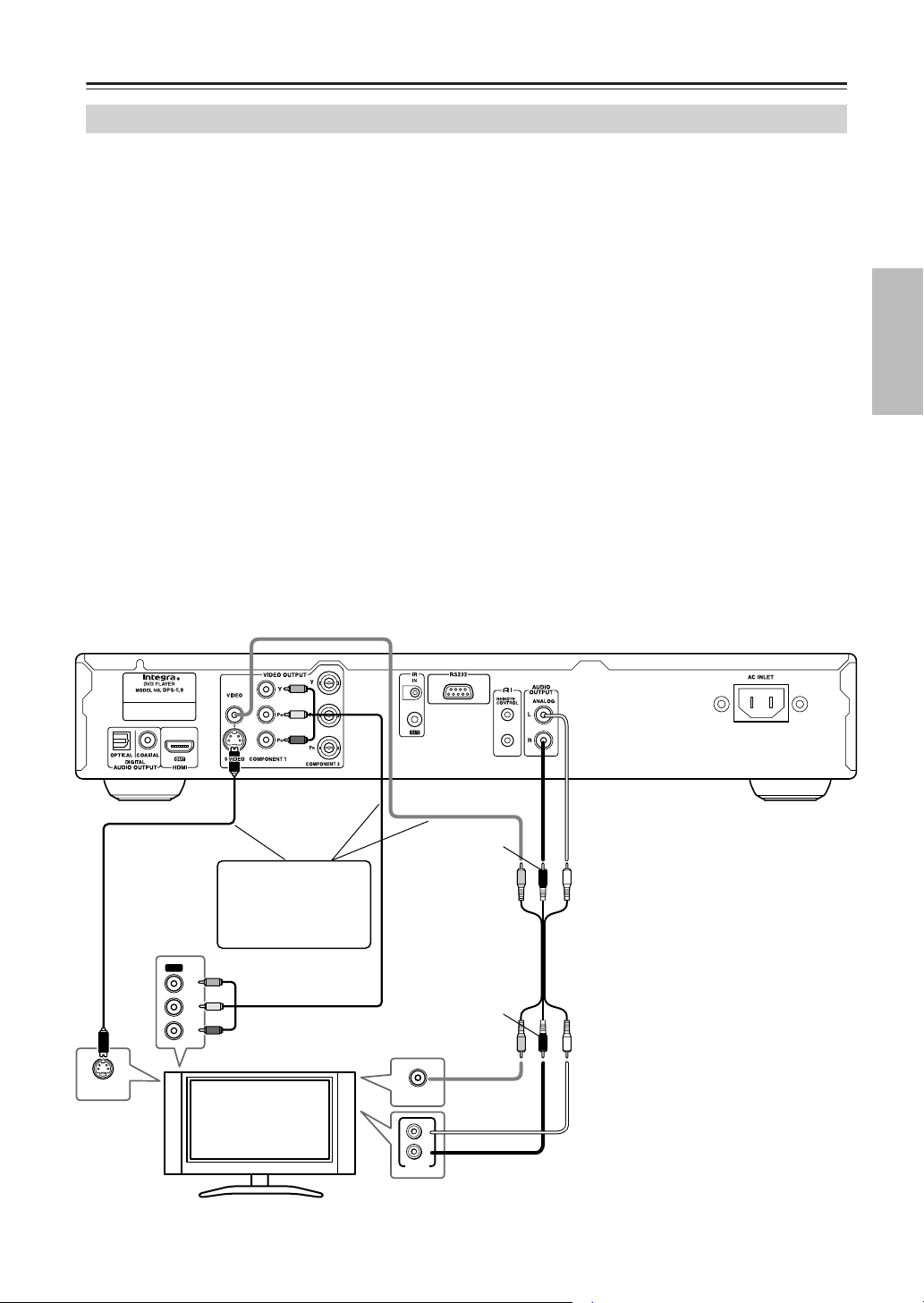

Connecting Your TV or Projector...............19

Connecting an AV receiver.........................20

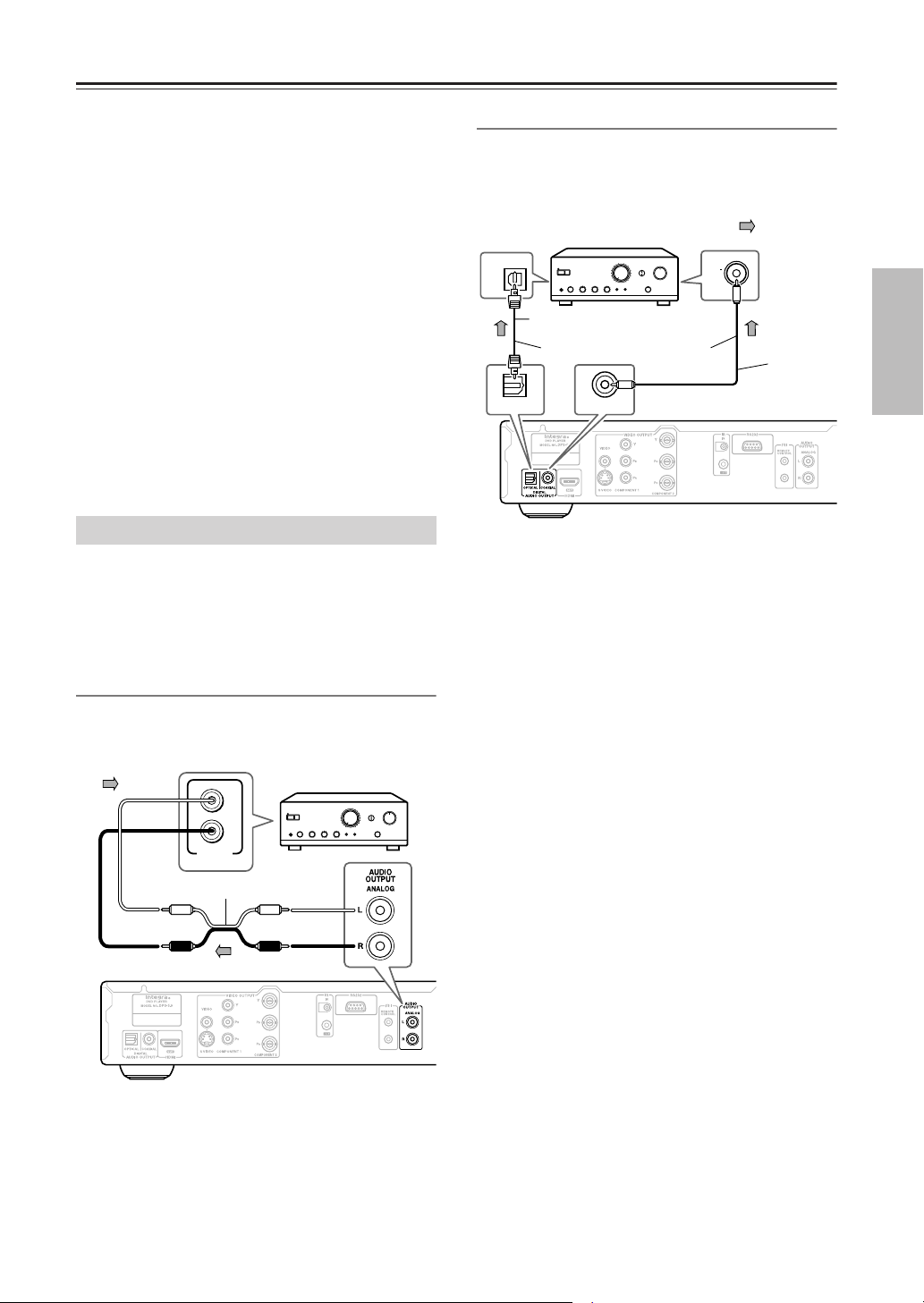

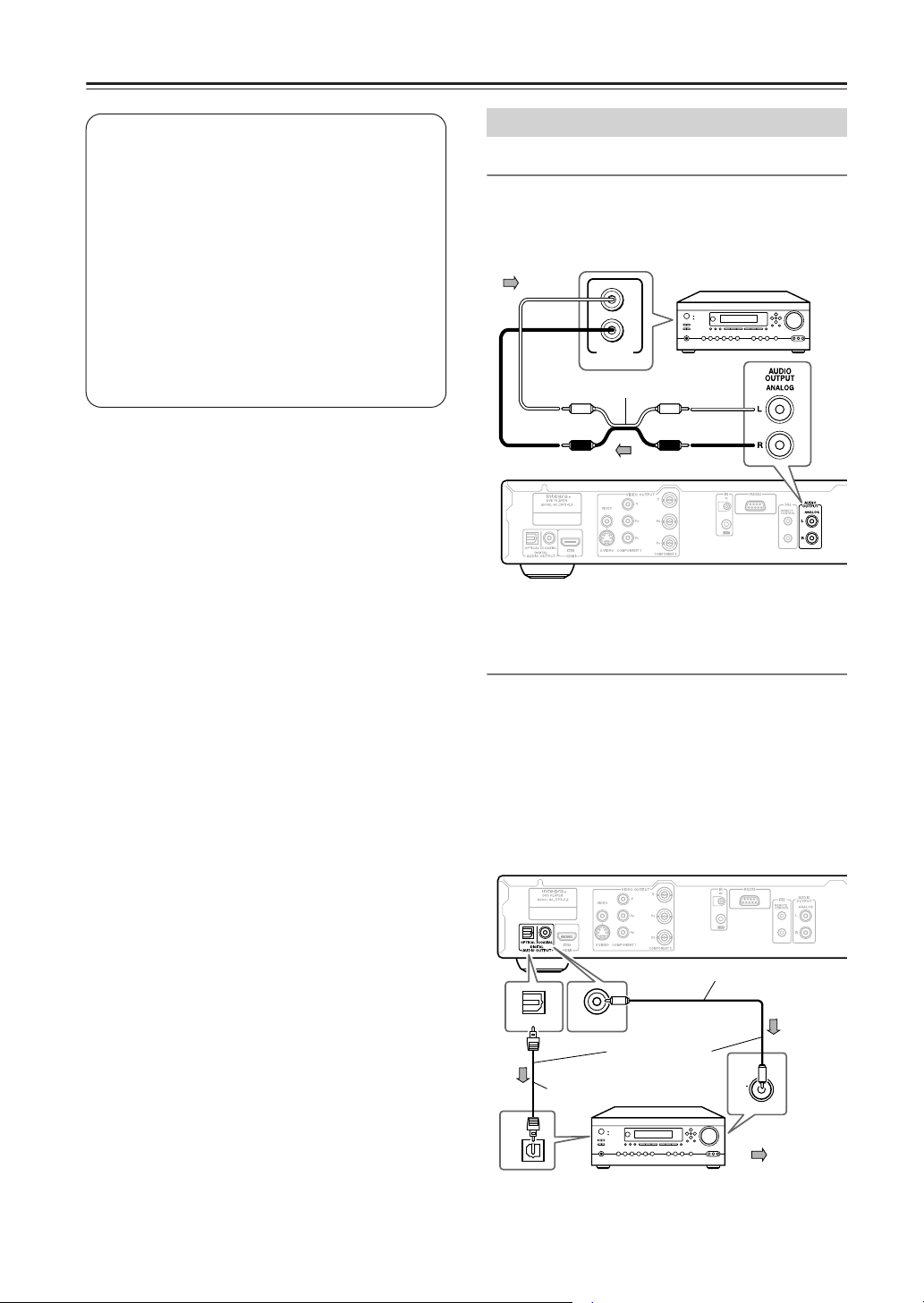

Connecting a Stereo Amp ...........................21

Connecting a Component with an HDMI

Input....................................................... 22

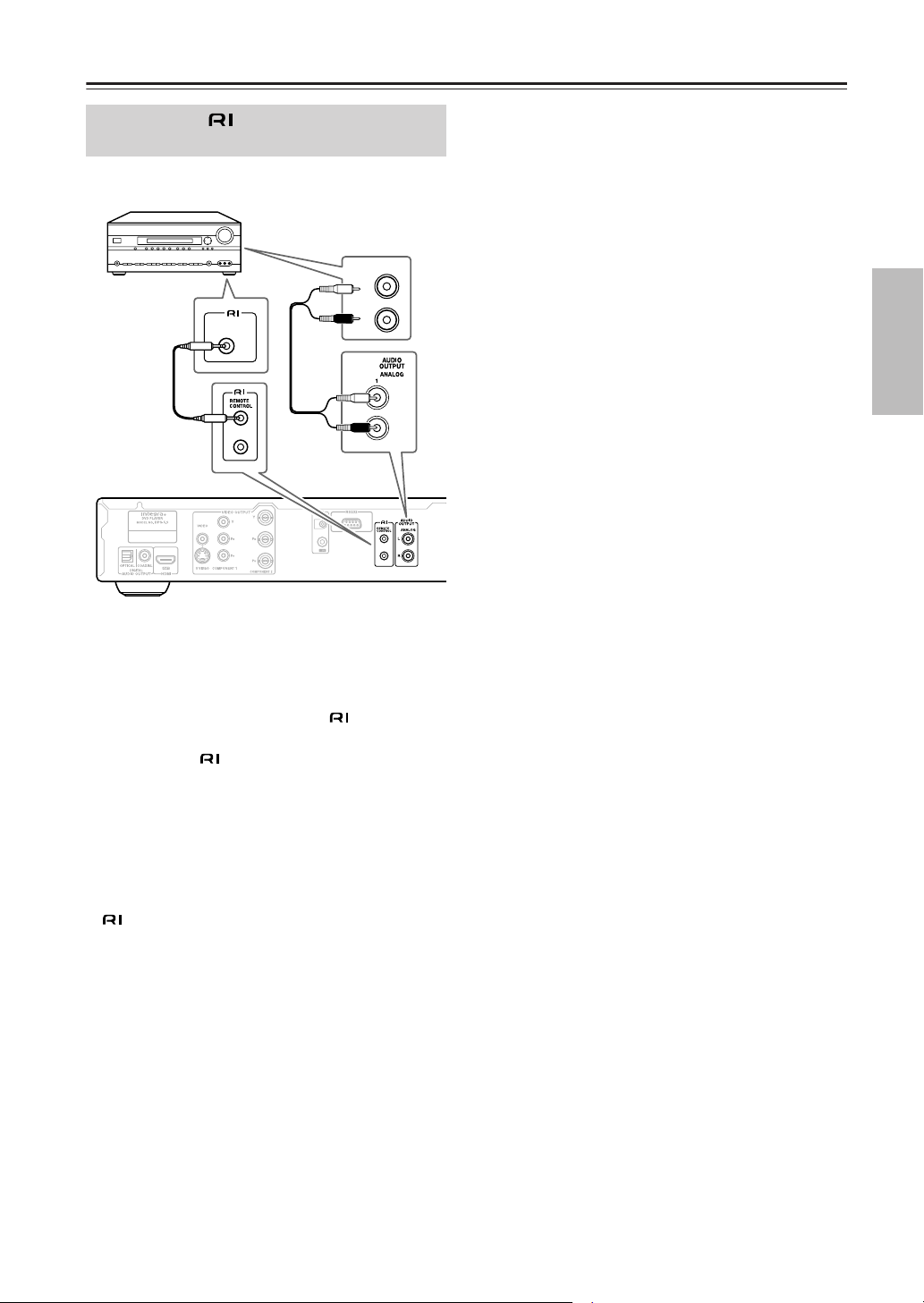

Connecting -compatible Components .........23

Controlling AV Components that are Out of

Range.....................................................24

Advanced Playback.................................37

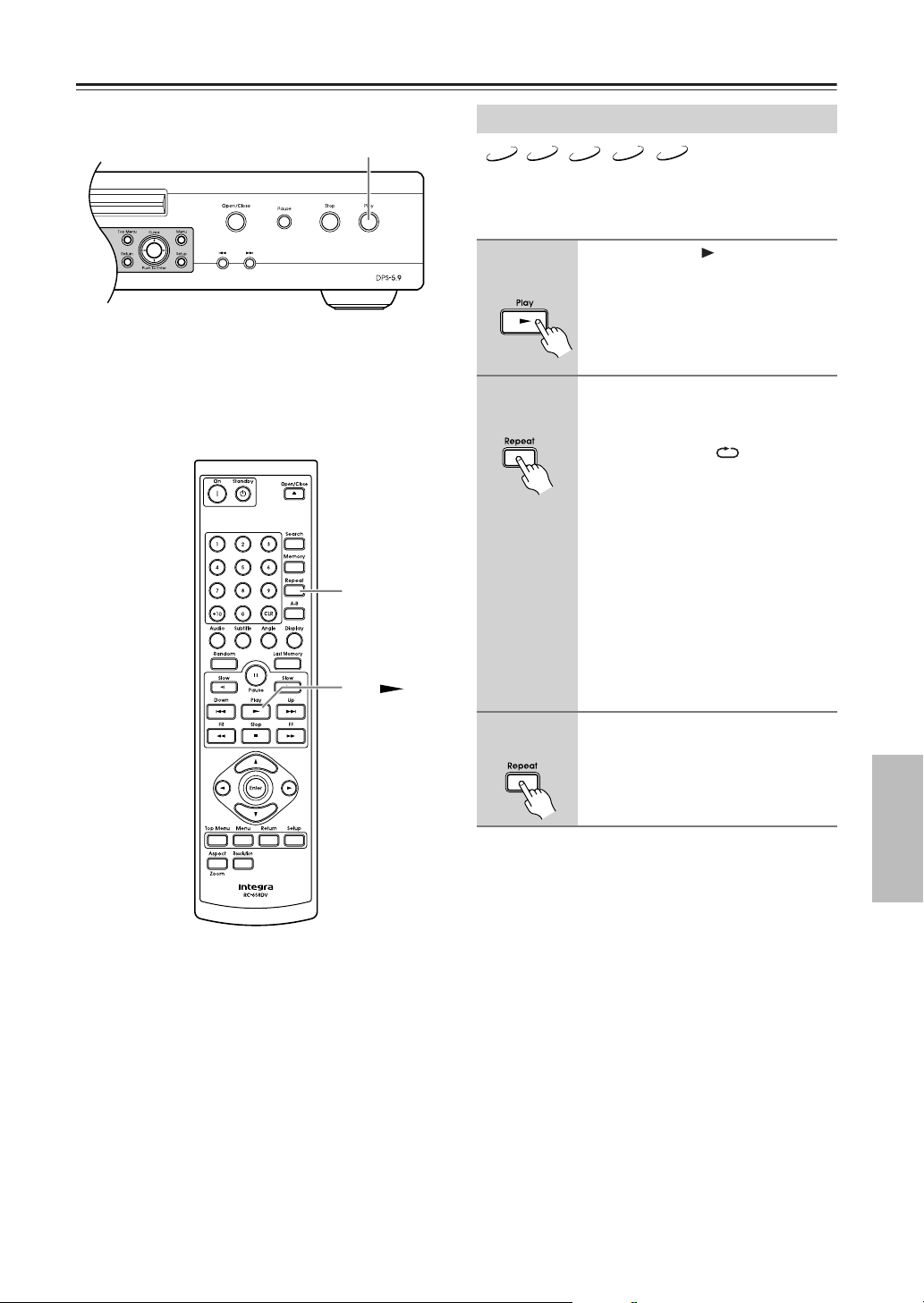

Repeat Playback ......................................... 37

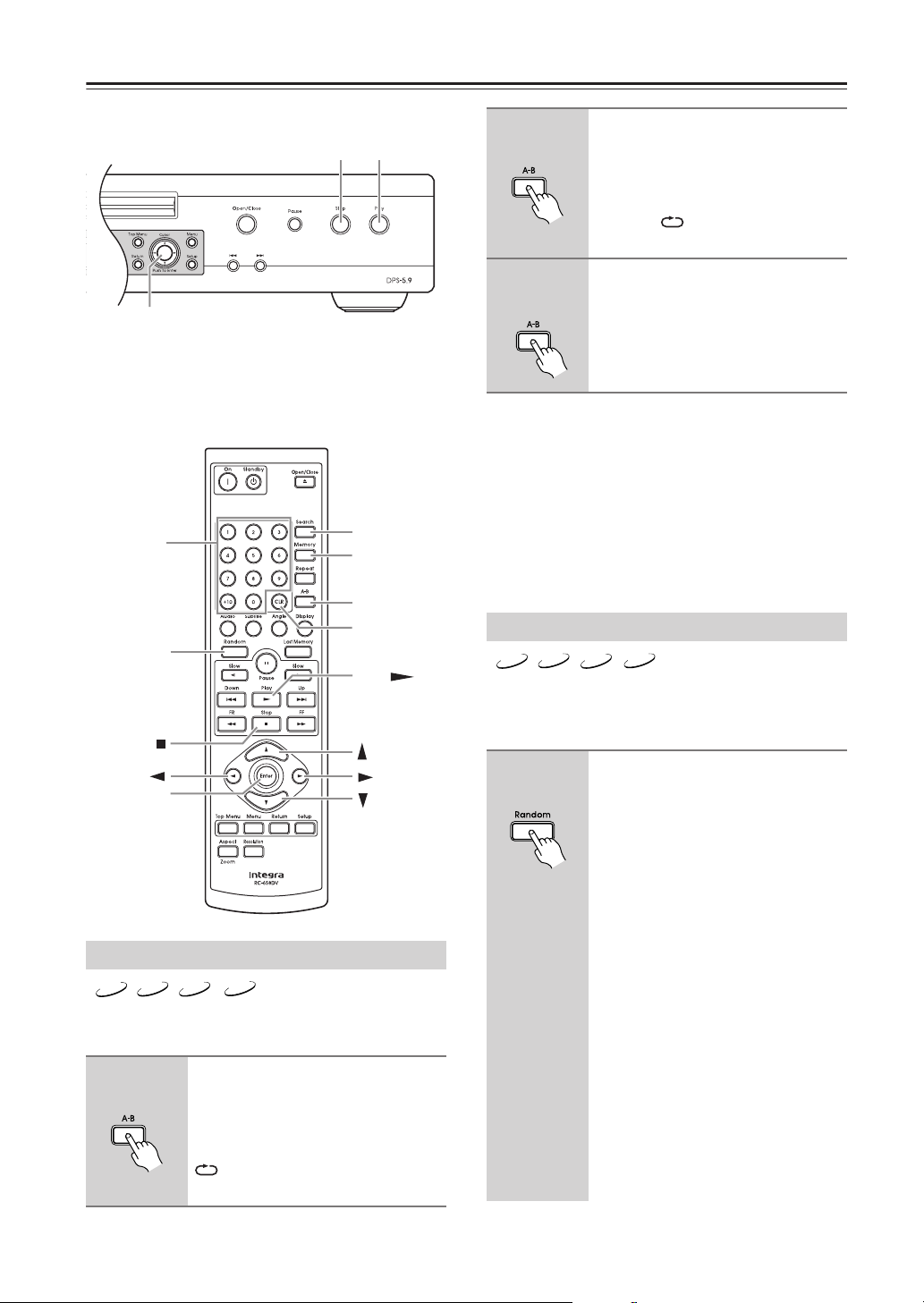

A–B Repeat Playback................................. 38

Random Playback....................................... 38

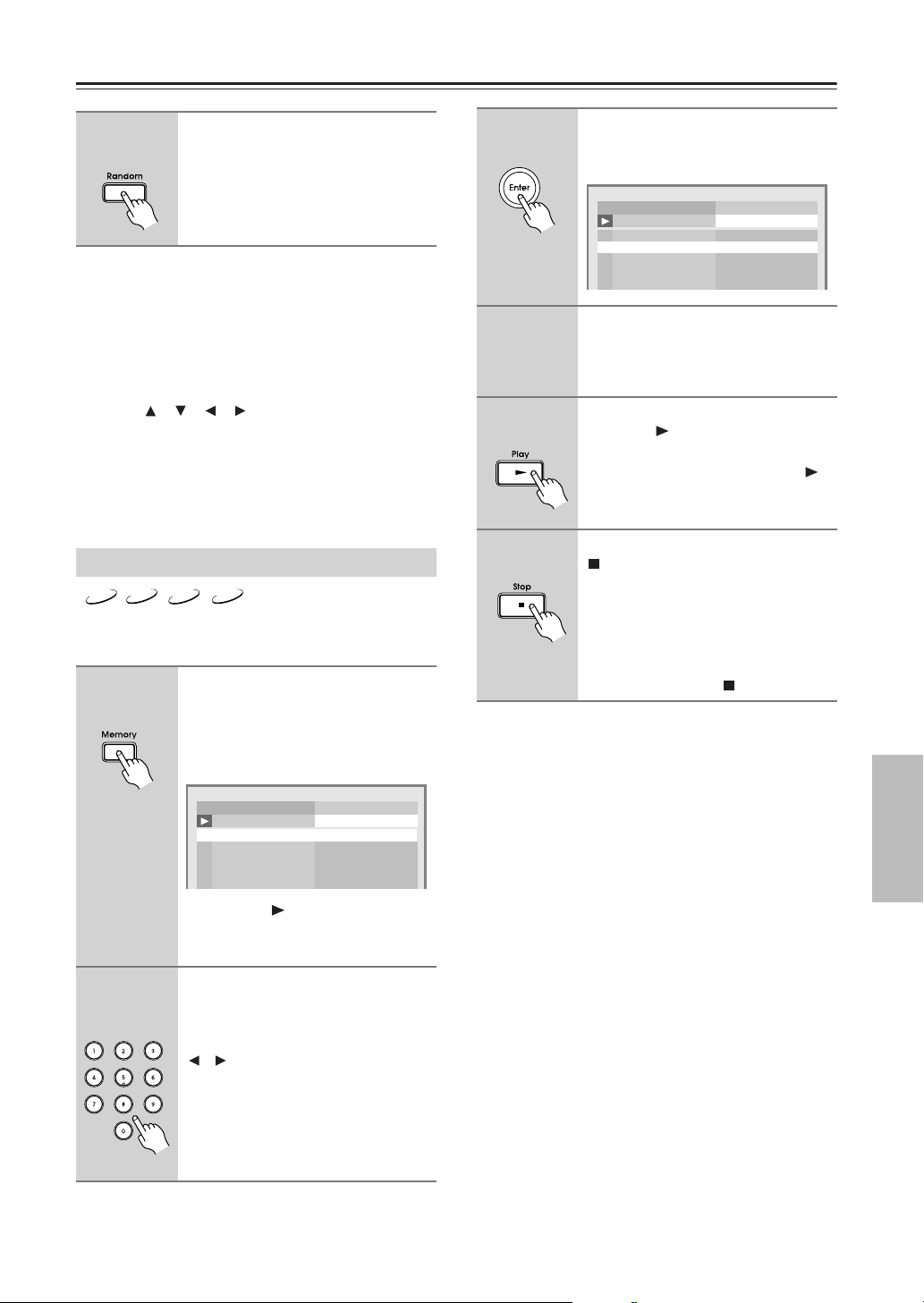

Memory Playback....................................... 39

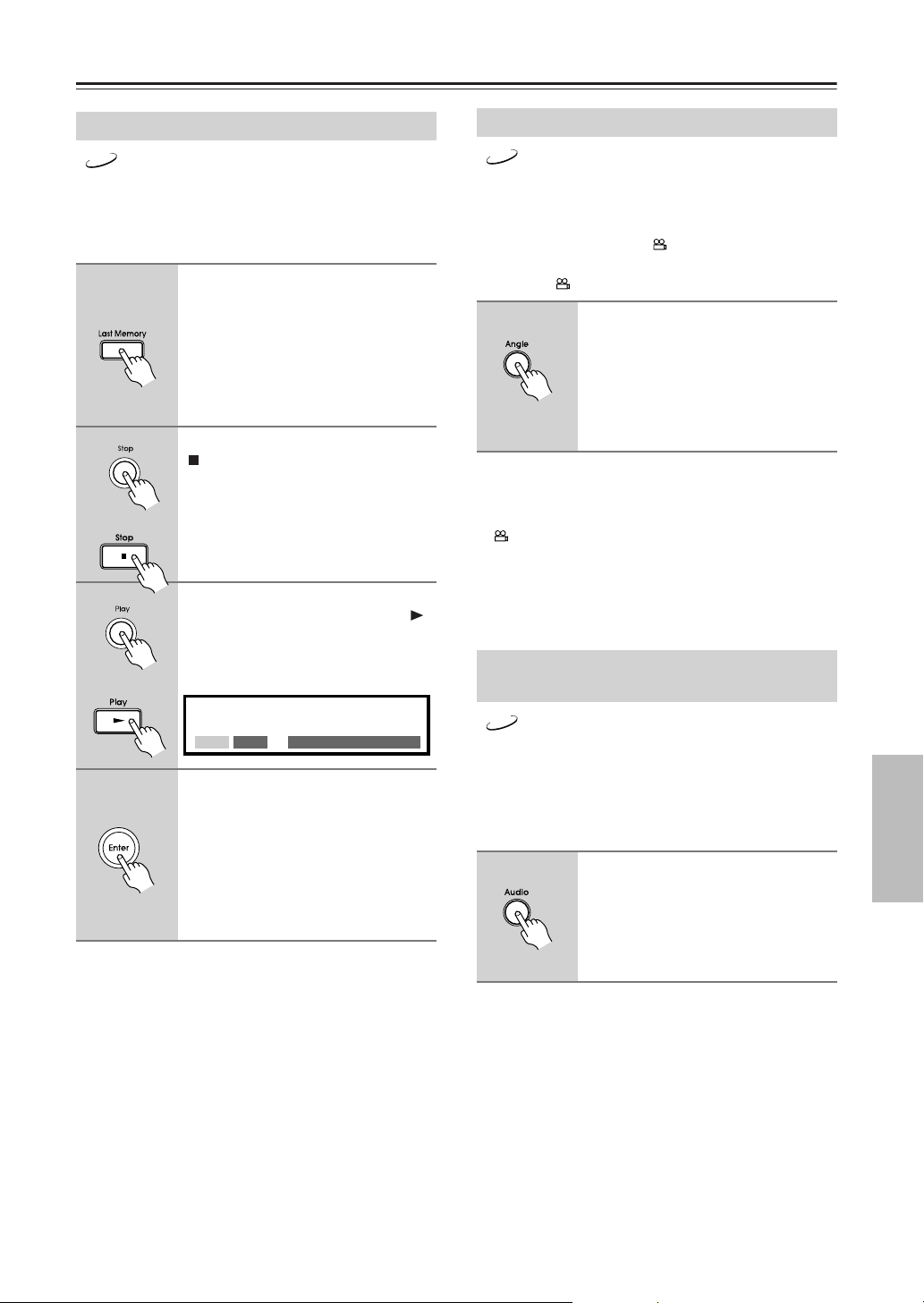

Using Last Memory.................................... 41

Selecting Camera Angles............................ 41

Selecting Languages & Audio Formats...... 41

Selecting Subtitles ...................................... 42

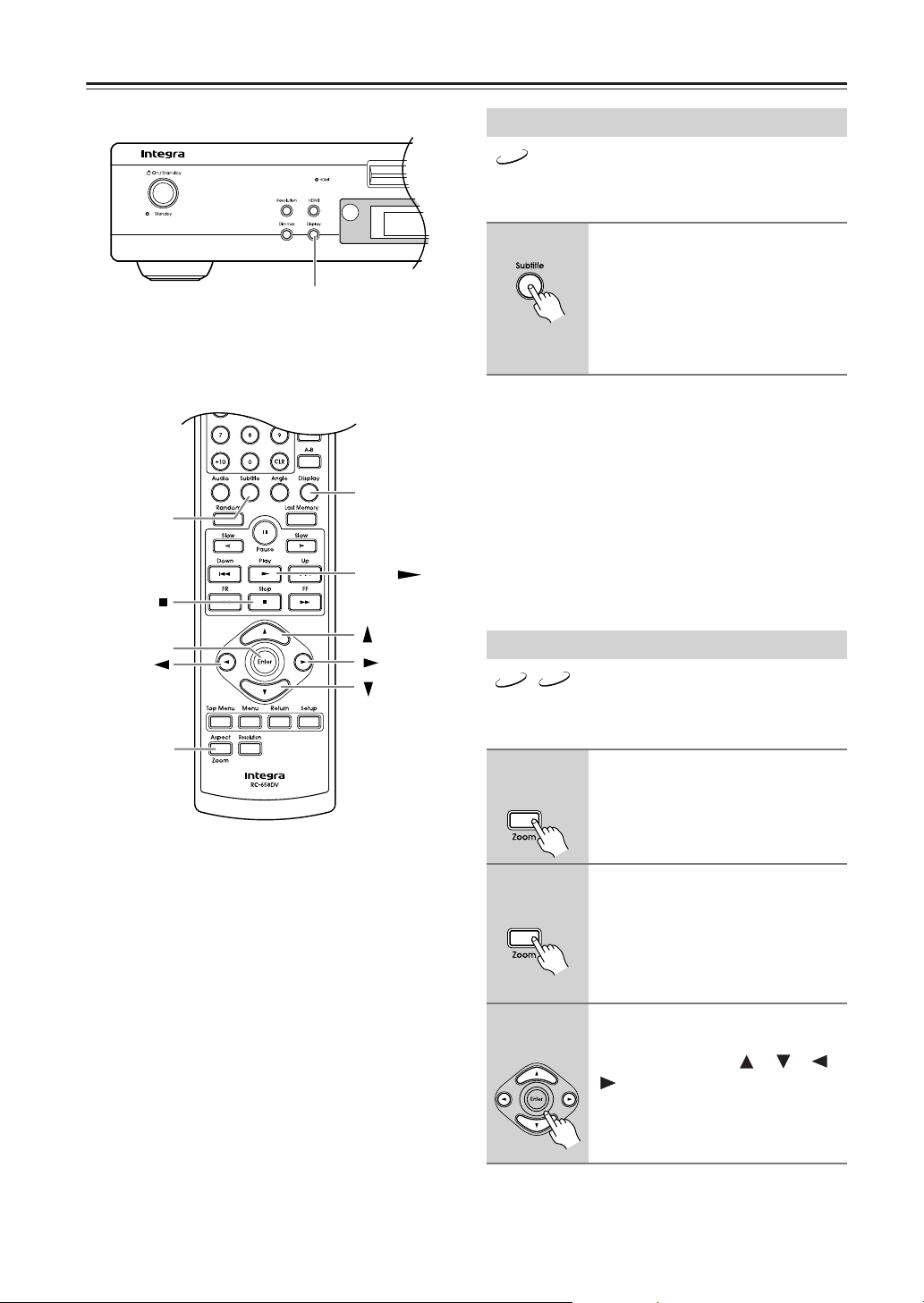

Zooming...................................................... 42

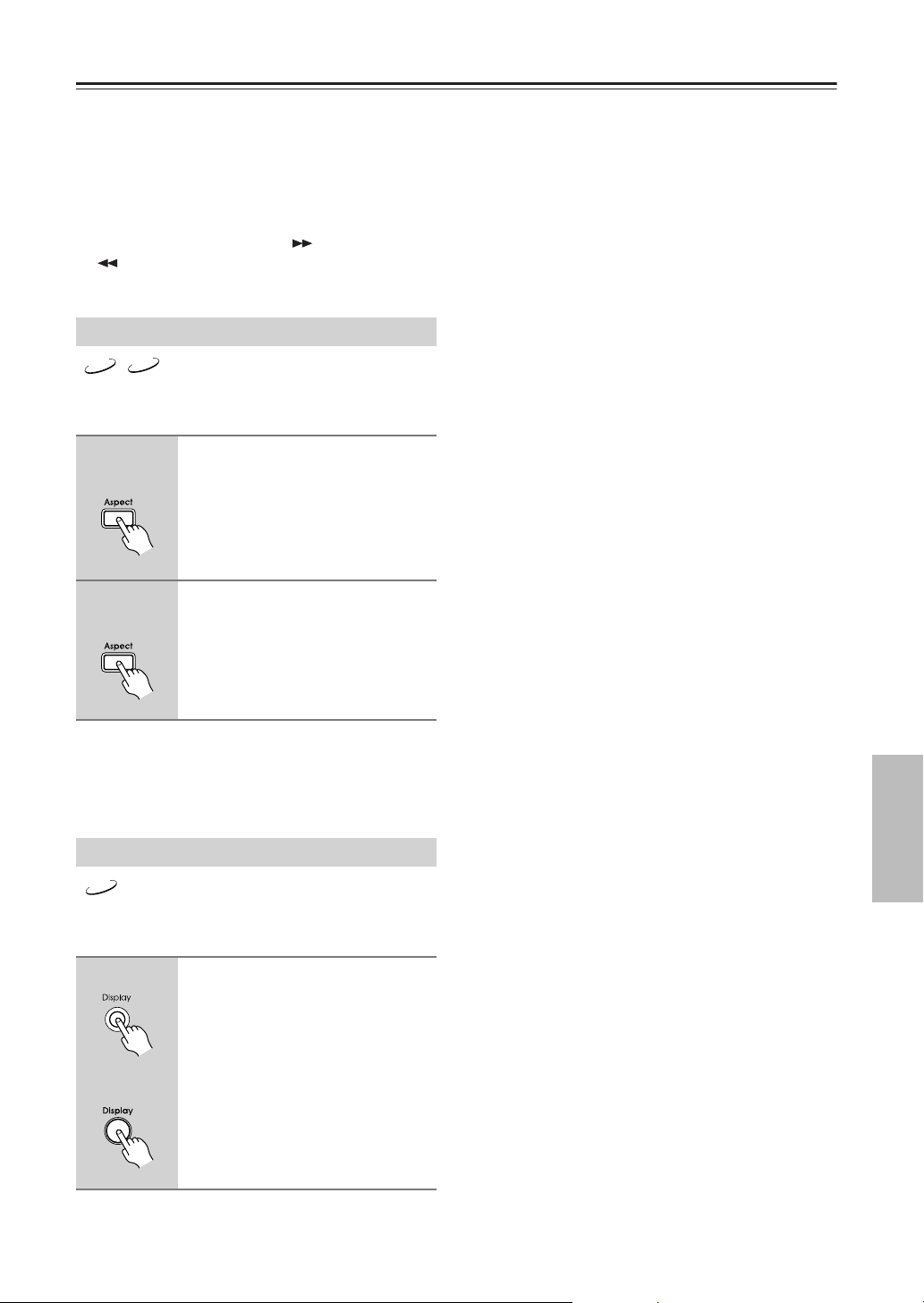

Setting the View Mode............................... 43

Displaying Information............................... 43

Configuring the DPS-5.9 .........................44

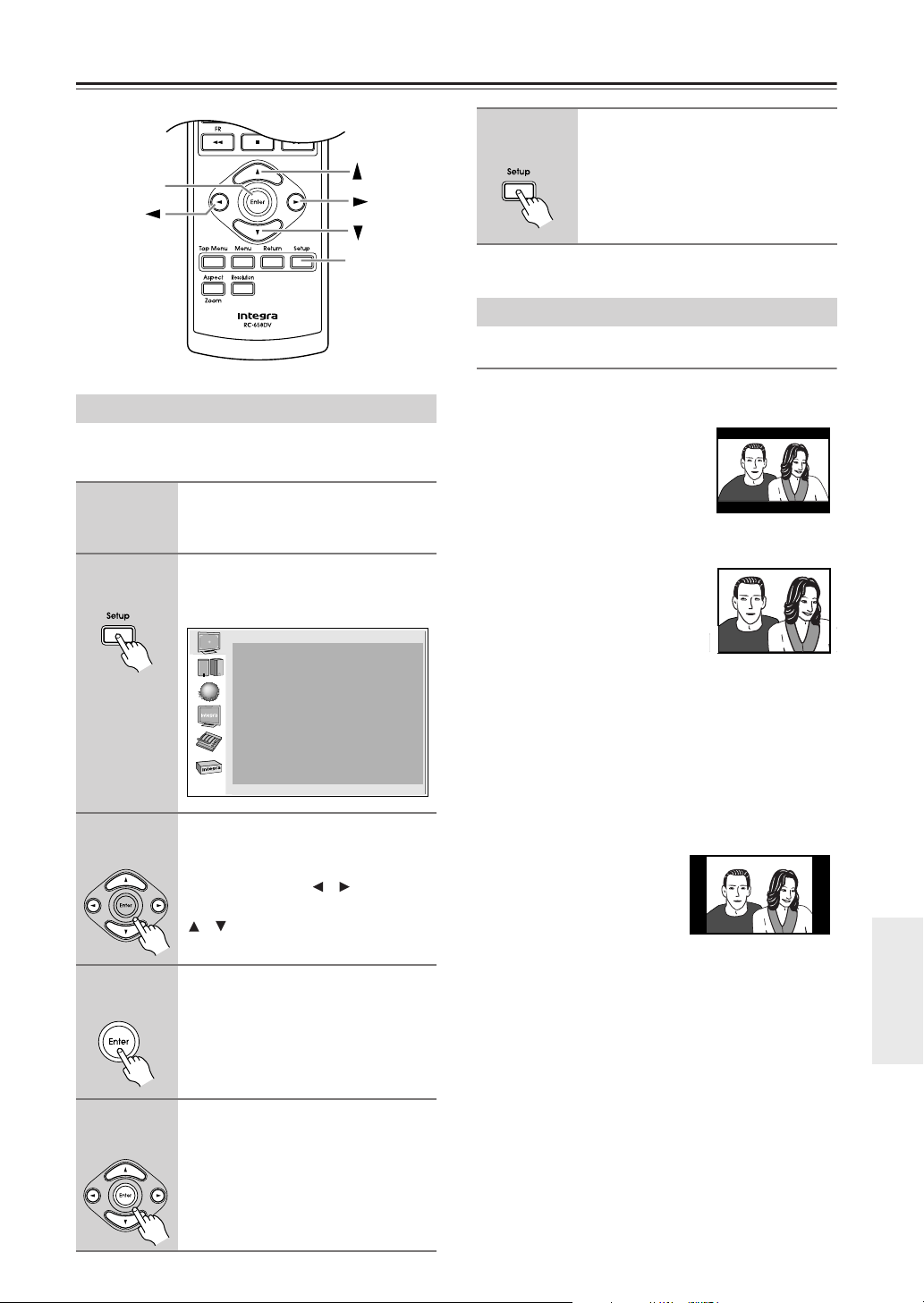

Using the On-screen Setup Menus ............. 45

Picture Menu............................................... 45

Audio Menu................................................ 47

Language Menu .......................................... 48

Display Menu ............................................. 48

Operating Setting Menu.............................. 49

Initial Setup Menu ...................................... 50

Selecting Other Languages......................... 50

Language Code List.................................... 51

Troubleshooting ......................................52

Specifications ..........................................56

Overview

Connections

and Setting up

Getting Started

Basic Playback

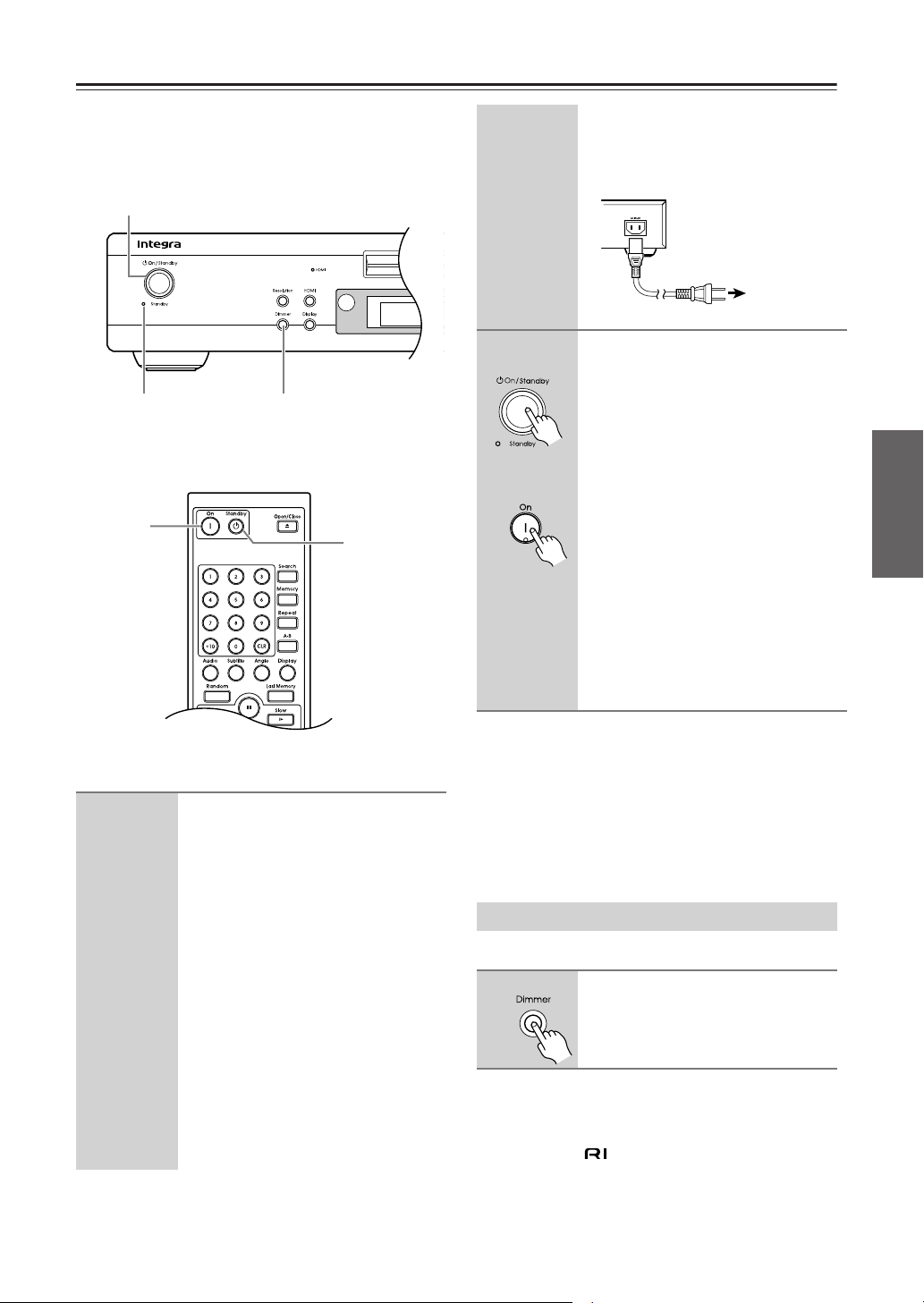

Connecting the Power/Turning on the

DPS-5.9 .......................................... 25

Adjusting the Display Brightness................25

Initial Setup.............................................. 26

First Time Setup..........................................26

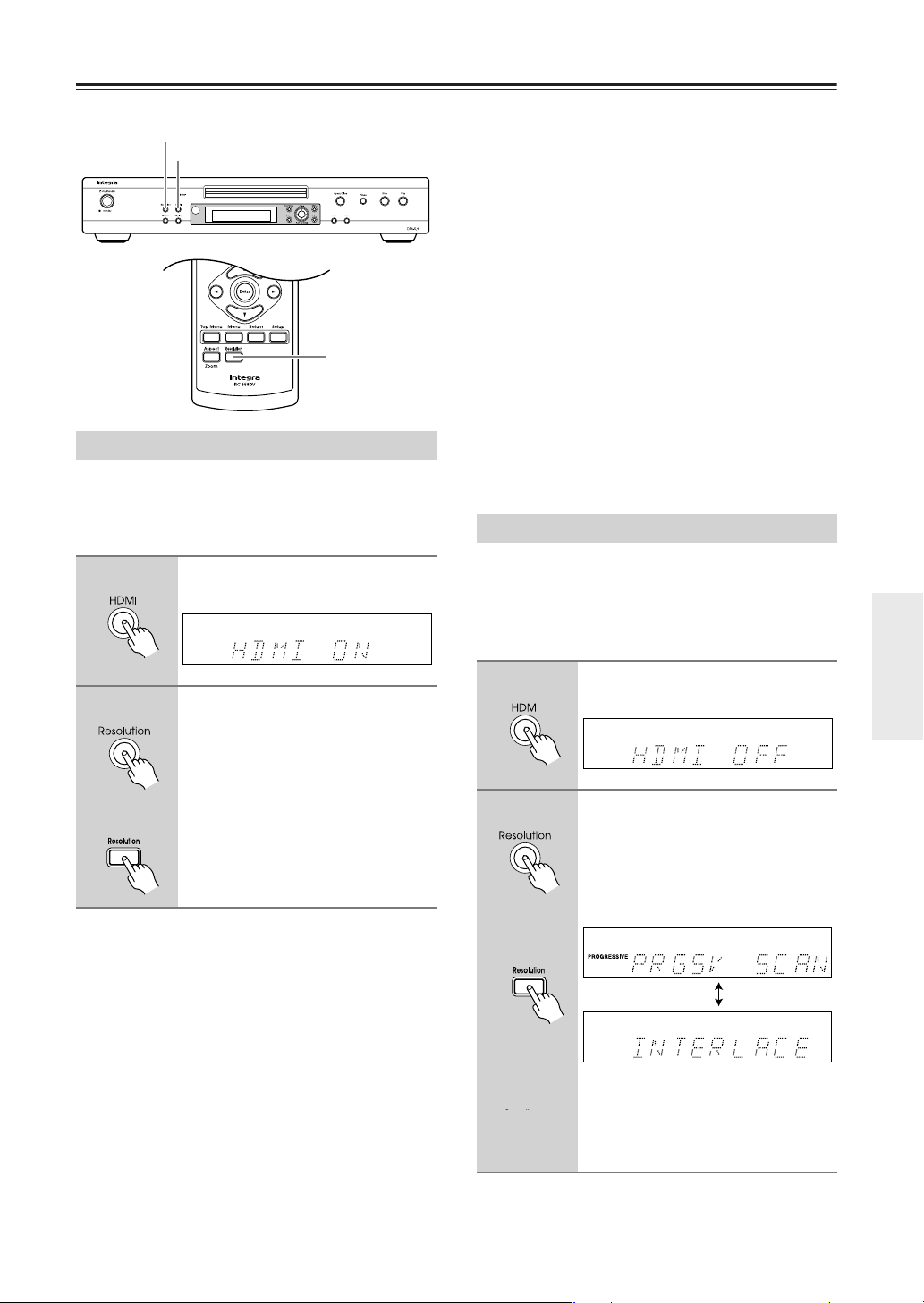

HDMI and Progressive Settings............. 27

Setting the HDMI........................................27

Selecting Progressive or Interlace...............27

Basic Playback ........................................ 28

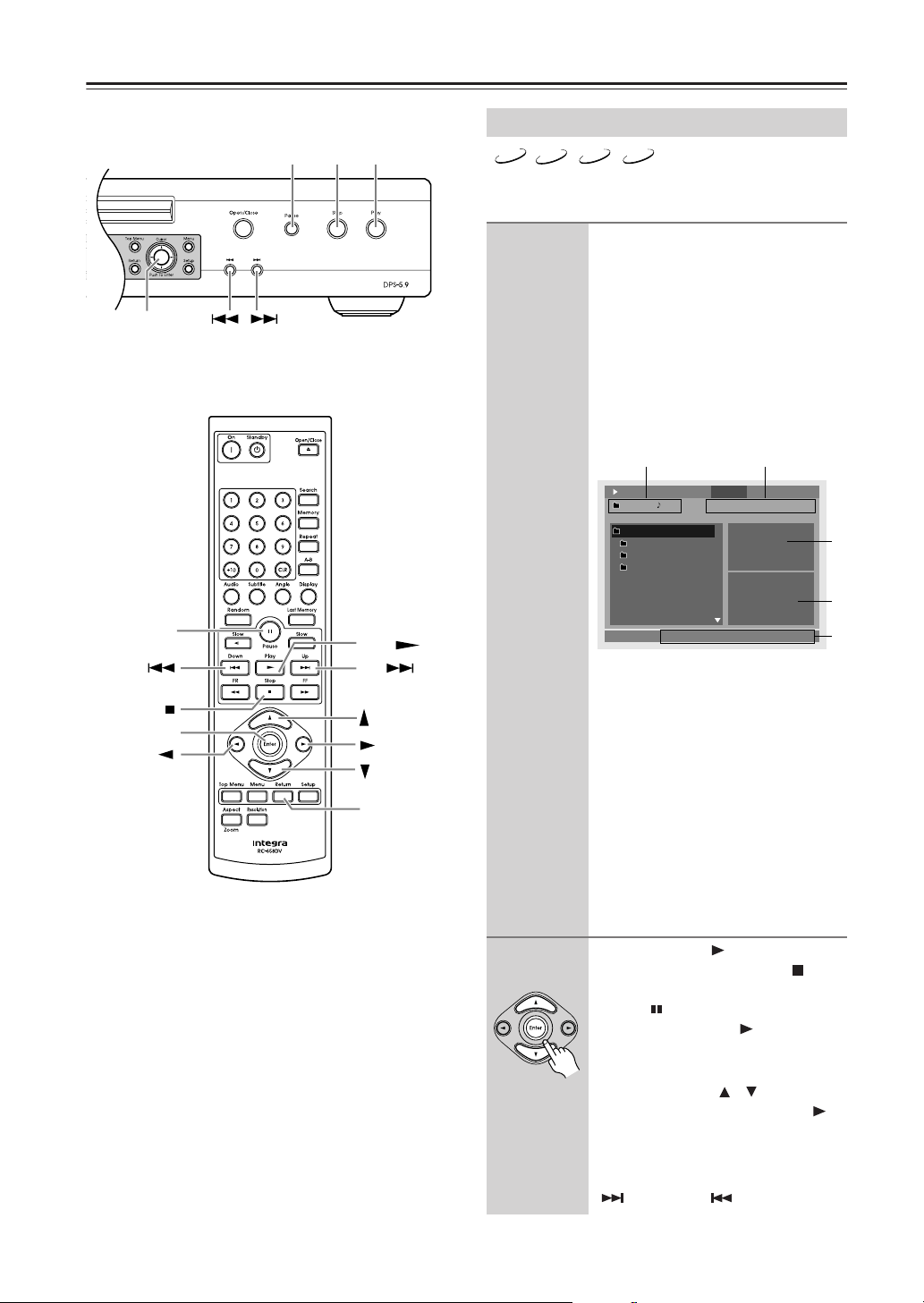

Starting, Pausing & Stopping Playback ......29

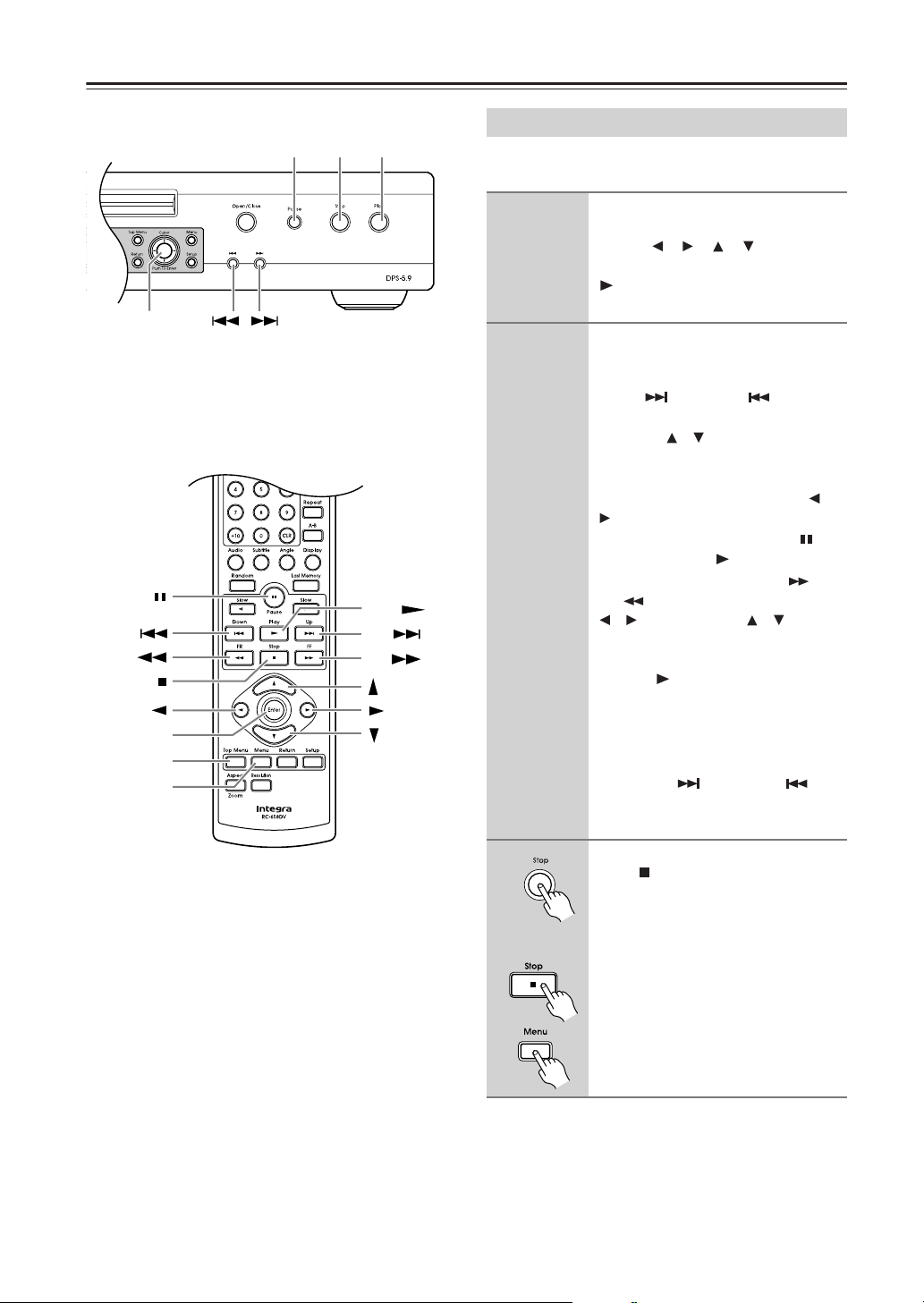

Navigating Disc Menus...............................29

Using the Disc Navigation Window............30

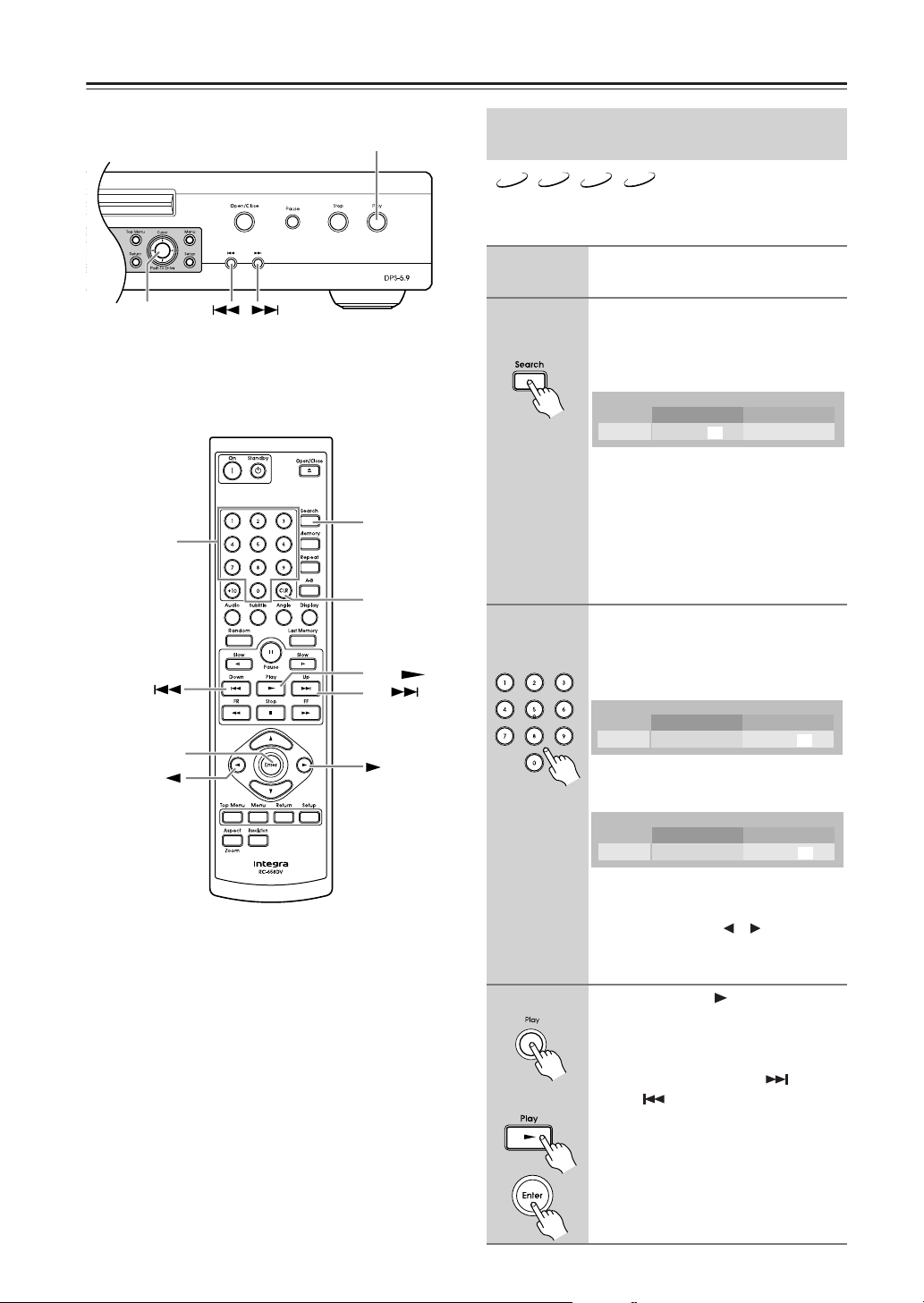

Selecting Titles, Chapters & Tracks by

Number.................................................. 32

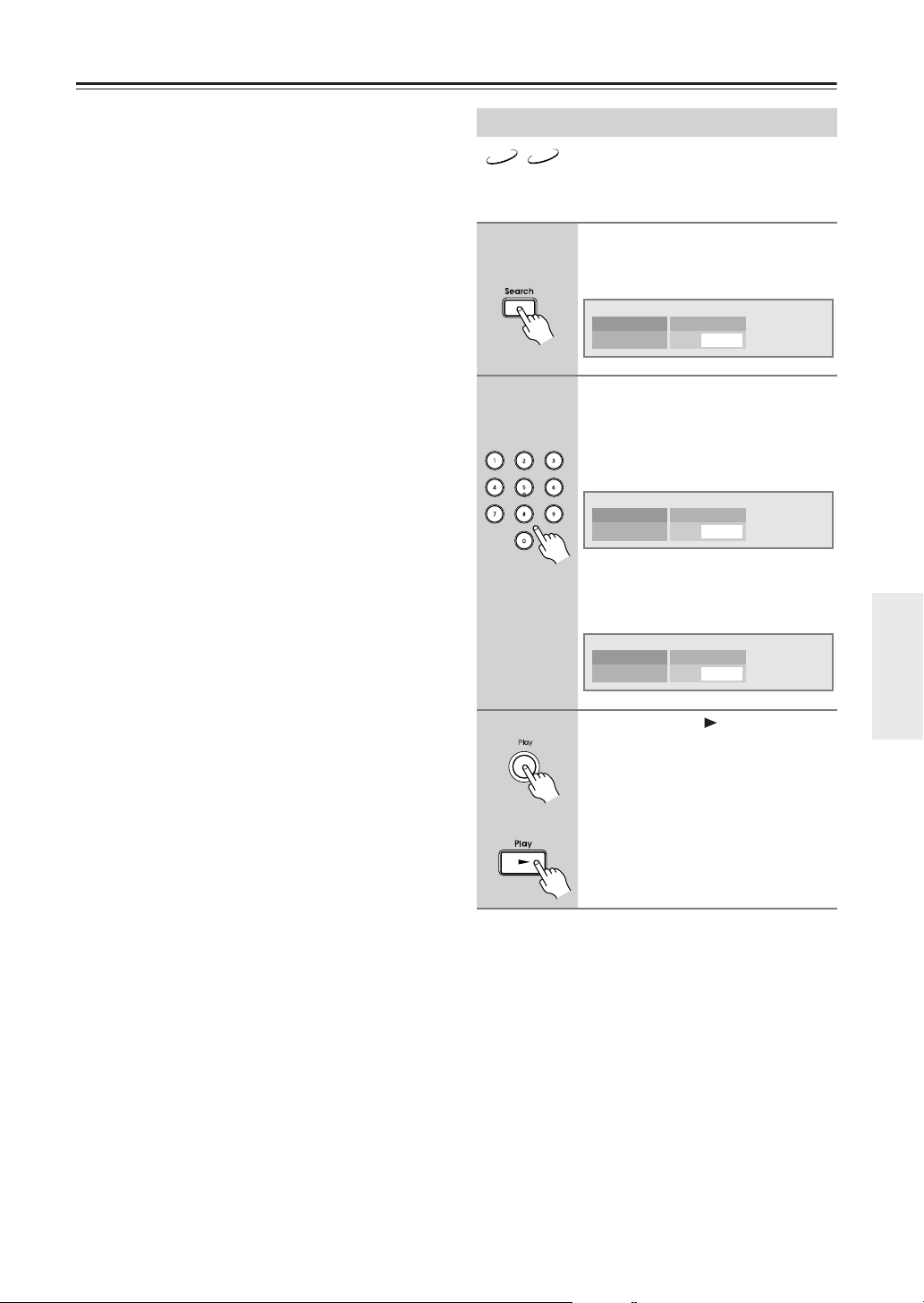

Locating Specific Points in Time................33

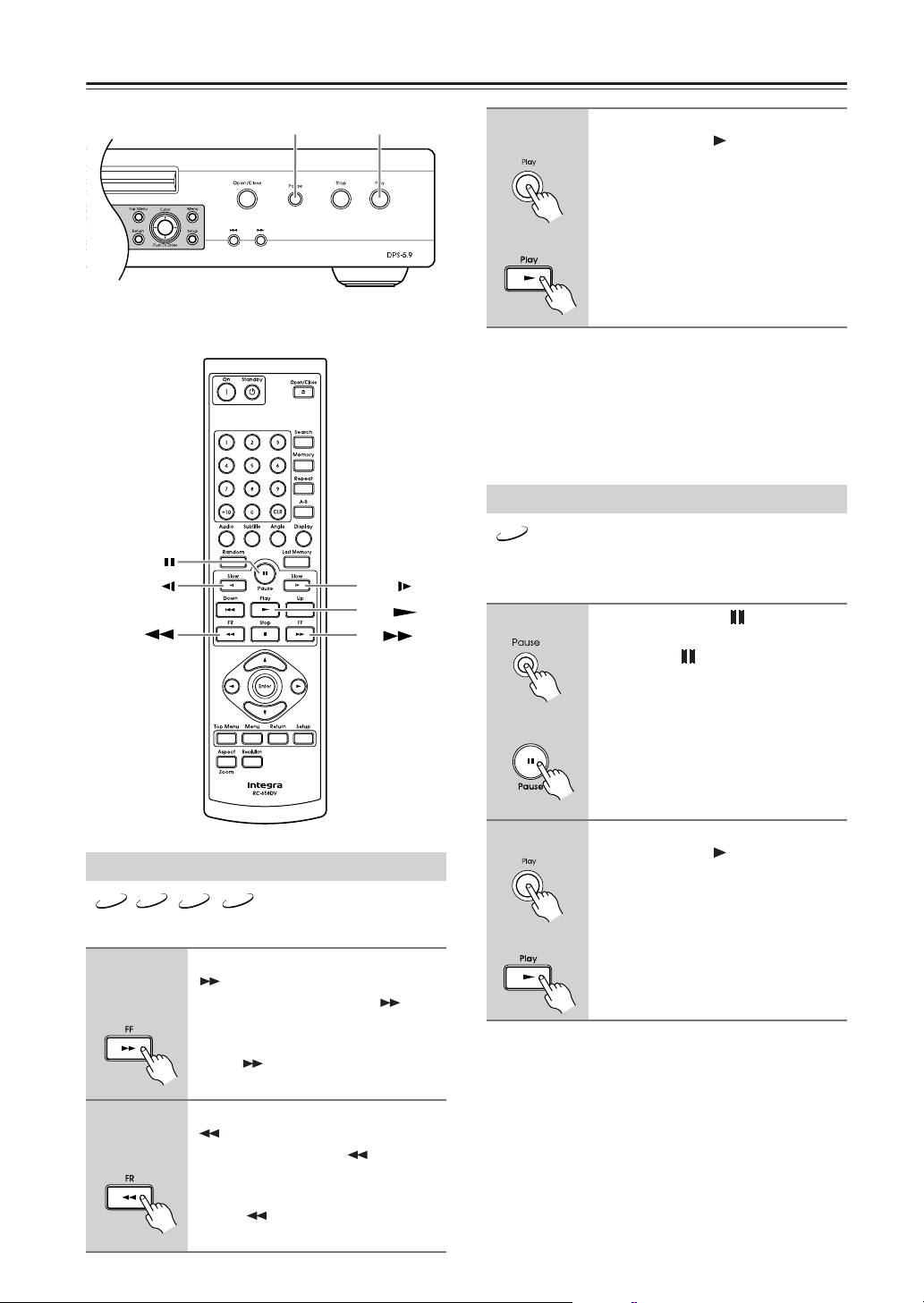

Fast Forward & Reverse..............................34

Frame-by-Frame Playback ..........................34

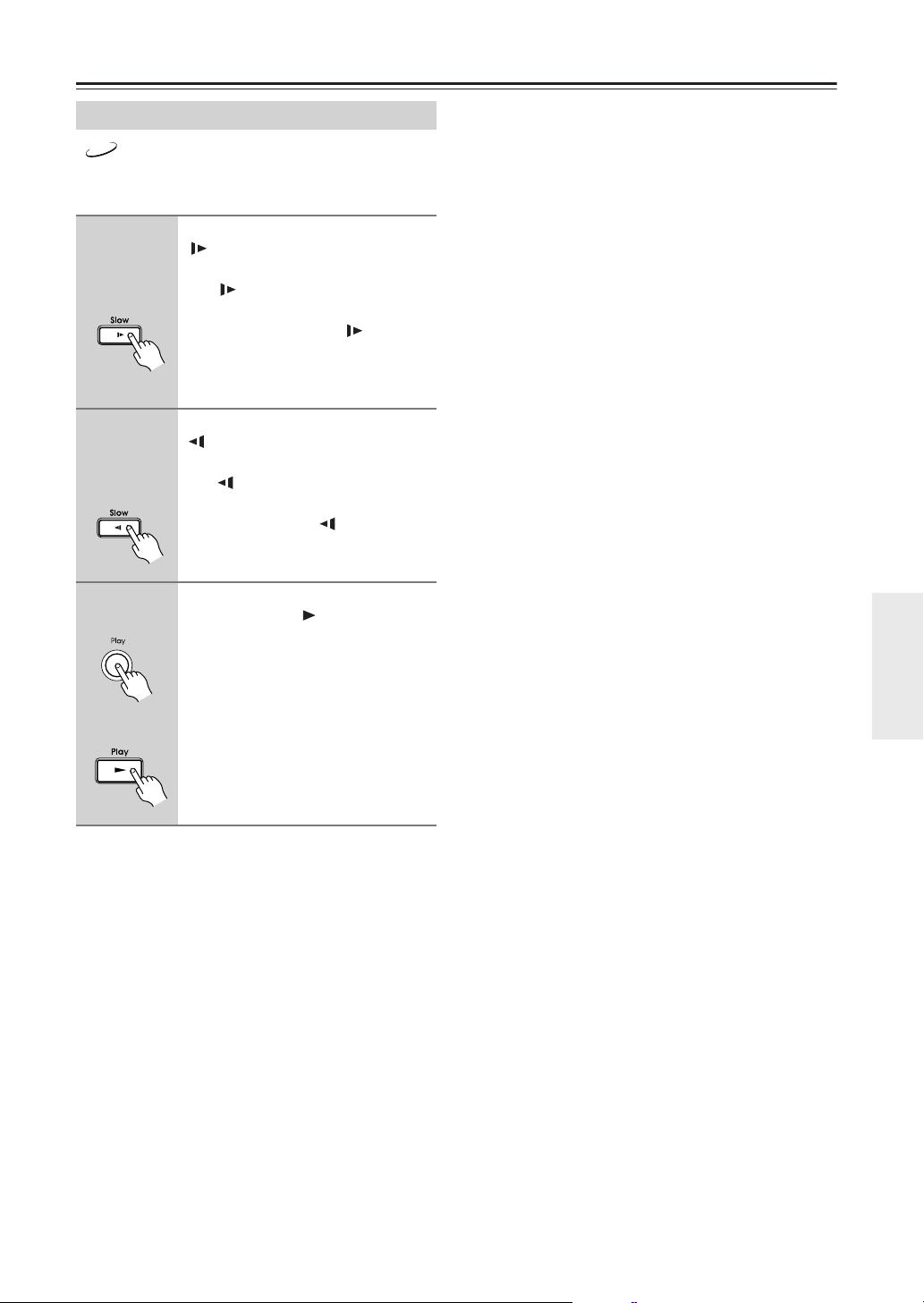

Slow-motion Playback ................................35

Using JPEG CDs......................................... 36

Playback

Techniques

Detailed Settings

information

Miscellaneous

Page 6

Introduction

Thank you for purchasing an Integra DPS-5.9 DVD Player. Read this manual carefully before using your new DVD Player. A good understanding of its features and operation will allow you to achieve optimum performance and enjoyment.

Keep this manual for future reference.

Supplied Accessories

Make sure you have the following accessories:

Remote controller (RC-658DV) & 2 batteries (AA/R6)

AV connecting cable (RCA) (4.9 ft., 1.5 m)

cable (2.6 ft., 0.8 m)

This cable is used to connect the DPS-5.9 to other compatible Integra/Onkyo components for (Remote Interactive) control.

To use , in addition to an make an analog audio connection (RCA) between the DPS-5.9 and your Integra/Onkyo AV receiver.

connection, you must

Coaxial digital cable (3.3 ft., 1.0 m)

Power cord

(5.9 ft., 1.8 m : North American model) (6.6 ft., 2 m : Australian model)

In catalogs and on packaging, the letter at the end of the product name indicates the color. Speciﬁcations and operation are the same regardless of color.

Page 7

Introduction —Continued

DPS-5.9 Features

Highlights

• HDMI output with 1080p upscaling

• 480i HDMI output for use with AV receivers and TVs with advanced scaling built in

• Dolby

Digital and DTS Digital Out

•DVD-Video playback

• Audio CD playback

• MP3/WMA

playback with on-screen display

• JPEG picture display and slideshow (with HD JPEG resolution via HDMI)

• CD-R, CD-RW (Audio CD, MP3/WMA/JPEG)

•DVD-R/RW, DVD+R/RW (DVD-Video, MP3/WMA/ JPEG)

Video

• Advanced 108 MHz/14-bit video D/A converter

• HDMI

•2 component video outputs

• S-Video and composite video outputs

•Title, chapter, track, or time search

• Last Memory function allows you to resume playback

• Supports 4:3 and 16:9 aspect ratio TVs

•View mode (Normal/View mode 1/2/3)

• Multiple camera angle support

•Parental Lock function

• Screen Saver function

digital interface

from a speciﬁc point on a DVD-Video disc, even if that disc has been removed from the DPS-5.9

• Random playback options include: Title and Folder (MP3/WMA)

• Supports up to 8 soundtracks/languages

• Supports up to 32 subtitle languages

*1.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

*2.

Manufactured under license under U.S. Patent #’s: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. All rights reserved.

*3. Windows Media, and the Windows logo are trademarks, or reg-

istered trademarks of Microsoft Corporation in the United States and/or other countries.

*4.

HDMI, the HDMI logo and High-Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

RIHD is a trademark of Onkyo Corporation.

• Niles is a registered trademark of Niles Audio Corporation.

• Xantech is a registered trademark of Xantech Corporation.

Audio

• Digital/analog isolated circuit layout to reduce digital noise

• Audiophile-class performance

• Dynamic Range Control setting

• 24-bit/192 kHz D/A converter

• Coaxial digital output

• Optical digital output

• Analog output

Others

• Onkyo RIHD

• Ultra-quiet loading mechanism

• Program playback (32 tracks, Title, Chapter)

• Zoom function

• Adjustable display brightness

• Slow motion playback

•Fast forward and reverse

• Repeat playback options include: Chapter, Title, Track, and Folder (MP3/WMA)

system control

Page 8

Introduction —Continued

Disc Notes

Supported Discs

The DPS-5.9 supports the following discs.

Disc Logo Format or ﬁle type

DVD-Video

DVD-R

DVD-RW

Audio CD

CD-R

CD-RW

JPEG CD

– DVD+R/RW – The DPS-5.9 supports DVD+R/RW discs recorded in the following formats:

• Discs recorded in DVD-Video mode.

• Discs recorded in ISO 9660 Level 2 or Joliet format containing MP3, WMA, or JPEG ﬁles.

*1 The Australian model will play PAL and NTSC DVD-Video

discs. When set to AUTO, PAL and NTSC video is output as it is. When set to PAL, only PAL video is output. When set to NTSC, only NTSC video is output.

*2 MP3, WMA, and JPEG ﬁles are supported on discs recorded in

ISO 9660 Level 2 or Joliet format. (See “MP3/WMA/JPEG Compatibility” on page 9 for more details.) However, some CD-R, CD-RW, DVD-R, and DVD-RW discs may not work properly for any of the following reasons: incomplete disc ﬁnalization, disc burner characteristics, disc characteristics, the disc is damaged or dirty, the total size of the data is too small. See the manual supplied with your disc burner for more information. Condensation or dirt on the optical pickup lens can also affect playback.

*3 Some audio CDs feature copy protection that doesn’t conform

to the ofﬁcial CD standard. Since these are nonstandard discs, they may not play properly in the DPS

DVD-Video, MP3, WMA, JPEG

PCM

Audio CD, MP3, WMA, JPEG

JPEG

5.9.

• The DPS-5.9 supports DVD-R/+R dual layer discs.

• The DPS-5.9 does not support disc types not listed.

• The DPS-5.9 supports 8 cm and 12 cm discs.

• Don’t use discs with an unusual shape, such as those shown below, because you may damage the DPS-5.9.

• Don’t use discs that have residue from adhesive tape, rental discs with peeling labels, or discs with custommade labels or stickers. Doing so may damage the DPS-5.9 and you may not be able to remove the disc properly.

About playing copy-controlled CDs

Some copy-controlled CDs may not conform to ofﬁcial CD standards. They are special discs and may not play on the DPS-5.9.

DVD Region Numbers

The North American DPS-5.9 supports only Region 1 DVD-Video discs bearing this logo.

The Australian DPS-5.9 supports only Region 4 DVD-Video discs bearing this logo.

If you attempt to play a disc intended for another region, a message saying that the disc cannot be played appears.

Function Support

The following icons are used throughout this manual to indicate which functions can be used with the various disc formats and ﬁle types.

Icon Disc format or ﬁle type

DVD

MP3

WMA

JPEG

DVD-Video

Audio CD

MP3 ﬁle

WMA ﬁle

JPEG ﬁle

About this Manual

This manual explains how to use all of the DVD player’s functions. Although the DVD standard offers many special features, not all discs use them all, so depending on the disc being played, the DVD player may not respond to certain functions. See your disc’s sleeve notes for supported features.

When you attempt to use a DVD feature that is not available, this logo may appear on-screen, indicating that the feature is not supported by the current disc or by the DVD player.

Page 9

Introduction —Continued

Disc Content Organization

DVD-Video Format

DVD-Video discs contain titles, which are usually subdivided into chapters.

Title 1

Chapter 1 Chapter 2

DVD-Video

Chapter 1

Title 2

Chapter 2

Audio CD Format

Audio CDs contain tracks.

Track 2 Track 4Track 3Track 1 Track 5

Audio CD

MP3/WMA Files

MP3 and WMA ﬁles are typically organized into folders. The DPS-5.9 handles MP3 and WMA ﬁles as tracks.

Folder 1 Folder 2

Track 1

Track 2

MP3/WMA (CD-R/CD-RW/DVD-R/DVD-RW/ DVD+R/DVD+RW)

Track 3

Track 2Track 1

JPEG Files

JPEG picture ﬁles are typically organized into folders. The DPS-5.9 handles JPEG ﬁles as tracks.

Folder 1 Folder 2

Track 1

Track 2

JPEG (CD-R/CD-RW/DVD-R/DVD-RW/ DVD+R/DVD+RW)

Track 3

Track 2Track 1

MP3/WMA/JPEG Compatibility

• The DPS-5.9 can play/display MP3, WMA, and JPEG ﬁles recorded on CD-R, CD-RW, DVD-R, DVD-RW, DVD+R and DVD+RW discs.

• Discs must be in ISO 9660 Level 2 or Joliet format (folders can be up to eight levels deep). Music ﬁles recorded on discs that use the HFS (hierarchical ﬁle system) cannot be played.

• Discs must be ﬁnalized.

• The DPS-5.9 can only recognize the ﬁrst session on multisession discs.

•You can determine the order in which the DPS-5.9 plays/displays your MP3/WMA songs and JPEG pictures by preﬁxing ﬁle and folder names with a threedigit number. For example 001.Root, 002.Folder, and so on, and 001.Track.mp3, 002.Track.mp3, and so on.

• Only the ﬁrst eight characters of folder and track names (excluding the ﬁlename extension) are displayed.

• The folder numbered “001” appears as “ROOT” in the Disc Navigator.

• The DPS-5.9 supports up to 255 folders and up to 255 ﬁles per folder.

• If you try to play an incompatible ﬁle, the message “This format cannot be played” appears on the display.

MP3

• MP3 ﬁles must be MPEG1 Audio Layer 3 format, 44.1 or 48 kHz, ﬁxed bit-rate.

• MP3 ﬁles must have a “.mp3” or “.MP3” ﬁlename extension.

•Variable bit-rates (VBR) from 64 kbps to 320 kbps are supported. (Playing times may display incorrectly with VBR.)

WMA

• WMA ﬁles must have the copyright option turned off.

• Sampling rates 44.1/48 kHz are supported.

•Variable bit-rates (VBR) from 48 kbps to 192 kbps are supported. (Playing times may display incorrectly with VBR.)

• WMA ﬁles must have a “.wma” or “.WMA” ﬁlename extension.

JPEG

• JPEG ﬁles must have a “.jpg” or “.JPG” ﬁlename

■

extension.

• JPEG ﬁles must be less than 5 megabytes in size.

About WMA

WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. WMA content can be encoded by using Windows Media

Player version 7, 7.1 or 8.

Page 10

Introduction —Continued

Handling Discs

•Never touch the underside of a disc. Always hold discs by the edge, as shown.

Underside

•Never attach adhesive tape or sticky labels to discs.

Cleaning Discs

•For best results, keep your discs clean. Fingerprints and dust can affect the sound and picture quality and should be removed as follows. Using a clean soft cloth, wipe from the center outwards, as shown. Never wipe in a circular direction.

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material without permission.

DVD-Video discs are copy-protected, and any recordings made from these discs will be distorted.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright-protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

✔

•To remove stubborn dust or dirt, wipe the disc with a damp soft cloth, and then dry it with a dry cloth.

•Never use solvent-based cleaning ﬂuids, such as thinner or benzine, commercially available cleaners, or antistatic sprays intended for vinyl records, because they may damage the disc.

Storing Discs

• Don’t store discs in places subject to direct sunlight, or near heat sources.

• Don’t store discs in places subject to moisture or dust, such as in a bathroom or near a humidiﬁer.

•Always store discs in their cases and vertically. Stacking, or putting objects on unprotected discs may cause warping, scratches, or other damage.

Page 11

Introduction —Continued

DPS-5.9-related Terminology

CD-R (Compact Disc Recordable): A type of

CD that can be recorded only once. Can be used to make audio CDs, or MP3/WMA/JPEG discs.

CD-RW (Compact Disc Rewritable): A type of

CD that can be recorded many times. Can be used to make audio CDs, MP3/WMA/JPEG discs.

Chapter: Titles on DVD-Video discs can be subdi-

vided into chapters.

Component video: A video connection format

that separates the luminance (Y) and color difference signals (P S-Video.

Composite video: A video connection format that

mixes the luminance and color signals together.

Dolby Digital: The multi-channel digital surround

sound format used on most DVD-Videos.

Downmixing: The process of mixing multiple

audio channels into fewer channels. For example, a surround mix can be downmixed into two channels for reproduction on stereo systems.

Downsampling: The process of reducing the sam-

pling rate of digital audio.

DTS (Digital Theater System): The surround

format that uses less compression for faithful reproduction.

DVD-R (DVD Recordable): A type of DVD disc

that can be recorded only once. Can be used to make DVD-Video discs or to store computer data.

DVD-RW (DVD Rewritable): A type of DVD disc

that can be recorded many times. Can be used to make DVD-Video discs or to store computer data.

DVD-Video: The format for storing movies on

DVD, with interactive menus, multiple language soundtracks, subtitles, camera angles, and so on.

Field: In interlaced scanning, a ﬁeld is a single scan

of the screen. There are two ﬁelds per frame.

Frame: An individual TV picture is called a frame.

With the NTSC color system there are 30 frames per second.

HD: Abbreviation for high deﬁnition, as in

HDTV(high-deﬁnition TV).

HDCP (High-bandwidth Digital Content Protection): The video encryption technology

developed by Intel for HDMI/DVI. It’s designed to protect video content and requires a HDCP-compatible device to display the encrypted video.

, P

), providing better picture quality than

HDMI (High Deﬁnition Multimedia Interface):

A new connection format that greatly simpliﬁes AV connections by carrying uncompressed SD or HD digital video and digital audio all in one cable.

Interlaced scanning: TV pictures are made by

scanning the screen in horizontal lines from top to bottom. With Interlaced scanning, two scans ( ﬁelds ) are used to make each picture ( Progressive scanning.

■ JPEG (Joint Photographic Experts Group):

The compressed ﬁle format used to store digital photos.

■ LFE (Low-Frequency Effects): The surround- sound channel used for low-frequency effects.

■ Linear PCM: The uncompressed digital audio for- mat used for audio CDs. PCM stands for Pulse Code

modulation.

■ MP3 (MPEG 1 Audio Layer 3): Popular com- pressed ﬁle format for storing digital music.

■ MPEG1 (Moving Picture Experts Group 1):

The compressed digital video format used for Video CDs.

■ MPEG2 (Moving Picture Experts Group 2):

The compressed digital video format used for DVD-Videos, offering better picture quality than MPEG1.

■ NTSC: The color TV system used in the United States, Japan, Taiwan, and Korea.

■ PAL: The color TV system used in most of Europe, the United Kingdom, Australia, Brazil, and China.

■ Progressive scanning: TV pictures are made by scanning the screen in horizontal lines from top to bottom. With progressive scanning, each picture (frame) is made by scanning the entire screen in one go, resulting is a clearer and stabler picture. Contrast with Interlaced scanning.

■ RIHD (Remote Interactive over HDMI):

Onkyo’s implementation of CEC (Consumer Electronics Control), which allows integrated system control over HDMI and is part of the HDMI standard.

■ S-Video: A video connection format that separates the luminance (Y) and color (C) signals, providing better picture quality than composite video.

■ Title: Movies on DVD-Video are called titles.

■ WMA (Windows Media Audio): A compressed

ﬁle format for storing digital music.

frame). Contrast with

■

Page 12

Controls & Connectors

Front Panel

1 2 3 4 5 6 7 8 9 J

S RQ

The page numbers in parentheses show where you can ﬁnd the main explanation for each item.

A On/Standby button (25)

This button is used to set the DPS-5.9 to On or Standby. Don’t turn on the power until you’ve completed, and double checked all connections.

B Standby indicator (25)

This indicator lights up when the DPS-5.9 is in Standby.

C Resolution button (27)

This button is used to select the video resolution for the HDMI output. When the HDMI Output Setting is set to Off, it sets the component video output to progressive or interlaced.

D HDMI button (27)

This button is used to turn HDMI on or off.

E HDMI indicator (27)

This indicator lights up when a HDMI signal is being output.

F Disc tray (28)

Discs are loaded here.

G Top Menu button (30, 36)

With DVD discs, this button displays the main menu. With a JPEG disc, it displays thumbnails of the images.

H Cursor /// & Enter buttons (45)

The four cursor buttons located around the central [Enter] button are used to navigate DVD-Video menus and the onscreen setup menus. The central [Enter] button is used to start playback of the selected title, chapter, or track and to conﬁrm settings.

I Menu button (30, 36)

This button is used to display a menu on a DVD or to open the Disc Navigator when using a JPEG disc.

PON

J Open/Close button (28)

This button is used to open and close the disc tray.

K Pause button (29, 34)

This button is used to pause playback.

L Stop button (29-31)

This button is used to stop playback.

M Play button (29)

This button is used to start playback.

N Down/Up / buttons (29-32, 36)

The Down [ ] button is used to select the previous chapter or track. During playback it selects the beginning of the current track. The Up [ ] button is used to select the next chapter or track.

O Setup button (45)

This button is used to open and close the onscreen setup menus.

P Return button (45)

This button is used to exit the onscreen setup.

Q Remote control sensor (17)

This sensor receives control signals from the remote controller.

R Display button (43)

This button is used to display information about the title, chapter, or track, including the elapsed time, remaining time, total time, and so on. Press it repeatedly to display more information.

S Dimmer button (25)

This button is used to adjust the display brightness.

normal dim dimmer

K L M

Page 13

Controls & Connectors—Continued

Display

1 2 A

The page numbers in parentheses show where you can ﬁnd the main explanation for each item.

1 D indicator

The D indicator appears when playing Dolby Digital material.

2 Disc type indicators

These indicators show the type of disc loaded.

3 TITLE indicator

While stopped, the total number of titles on the current disc is displayed here. During playback, the number of the current title is displayed.

4 TRACK indicator

This indicator appears while track numbers are being displayed. While stopped, the total number of tracks on the current audio CD or MP3/WMA disc are displayed.

During playback, the number of the current track is displayed.

5 CHP indicator

This indicator appears while the number of the current chapter is being displayed.

6 RANDOM indicator (38)

This indicator appears when using the Random function.

54 69

B PROGRESSIVE indicator (27)

This indicator appears when progressive video is being output by the component video output. While this indicator is on, nothing is output by the other video outputs.

Note:

•To output video from the composite video and SVideo outputs, press [Resolution] button

DTS indicator

This indicator appears when playing DTS material.

Play indicator (29)

This indicator is shown during playback.

Pause indicator (29)

This indicator appears when playback is paused.

MP3 indicator

This indicator appears when playing an MP3 disc.

Message & time area

Time information, such as total time, remaining time, and so on, is displayed here in hours, minutes, and seconds. Other messages are also displayed.

7 MEMORY indicator (39)

This indicator appears when using the Memory function.

8 REMAIN indicator

This indicator appears while the remaining time is being displayed.

9 Repeat indicator (37)

This indicator appears when A-B playback or repeat playback is used.

0 A-B indicator (38)

These indicators appear when using the A-B Repeat function.

A Camera angle indicator (41)

This indicator appears if the DVD-Video disc being played features multiple camera angles.

Page 14

Controls & Connectors—Continued

Rear Panel

BC DE

FGHI JK L

A VIDEO OUTPUT

This RCA connector can be used to connect a TV or projectors with composite video inputs.

B IR IN/OUT (24)

The IR IN connector can be used to connect a commercially available IR receiver, which can be used to pickup signals from the remote controller when the DPS-5.9 is located in another room, installed in a rack, or is out of range of the remote controller.

The IR OUT connector can be used to connect a commercially available IR emitter, which can be used to pass remote controller signals received by the IR IN along to other AV components.

C RS 232

This port is for servicing.

D REMOTE CONTROL

These (Remote Interactive) connectors can be connected to the connectors on your other Integra/Onkyo AV components for interactive control.

Connecting an cable only does not make the system operational. You must also connect the audio cables as well.

If you’re using RIHD, do not connect anything to these connectors.

G COAXIAL AUDIO OUTPUT

This coaxial digital audio output can be connected to a coaxial digital audio input on a hi-ﬁ amp, AV receiver, or surround sound decoder (Dolby Digital, DTS) with supplied coaxial digital cable.

H HDMI OUT

This HDMI jack outputs digital video and audio and can be connected to an HDMI input on a compatible TV or other component.

I S VIDEO OUTPUT

This connector can be used to connect TV or projector with S-Video input.

J COMPONENT 1 VIDEO OUTPUT

These RCA connectors can be used to connect a TV or projector with RCA component video inputs.

The DPS-5.9 has two component video outputs, the COMPONENT 1 and COMPONENT 2, however, they output the same video signal.

K COMPONENT 2 VIDEO OUTPUT

These BNC connectors can be used to connect a TV or projector with BNC component video inputs.

The DPS-5.9 has two component video outputs, the COMPONENT 1 and COMPONENT 2, however, they output the same video signal.

E ANALOG AUDIO OUTPUT

These RCA connectors can be connected to the analog audio inputs on a hi-ﬁ amp or AV receiver.

F OPTICAL AUDIO OUTPUT

This optical digital audio output can be connected to an optical digital audio input on a hi-ﬁ amp, AV receiver, or surround sound decoder (Dolby Digital, DTS).

L AC INLET

The supplied power cord connects to this polarized inlet. The other end of the power cord should be connected to a suitable wall outlet. On the Australian model, the power cord is not polarized.

See page 18–24 for connection information.

Page 15

Controls & Connectors—Continued

Remote Controller

4 5 6

8 9

T U

V W X

a b

The page numbers in parentheses show where you can ﬁnd the main explanation for each item.

A On button (25)

This button is used to turn on the DPS-5.9. Don’t turn on the DPS-5.9 until you’ve completed, and double checked all connections.

B Standby button (25)

This button is used to set the DPS-5.9 to Standby.

C Number buttons (32, 33, 39, 49)

These buttons are used to enter title, chapter, and track numbers and to enter times for locating speciﬁc points in time. To enter a single-digit number, simply press the corresponding button. To enter a double-digit number, enter the numbers in order from left-to-right (e.g., to enter 14, press [1] then [4]. The [+10] button is used to enter multiples of ten (i.e., 10, 20, 30, and so on). For example, to enter the number 25, press the [+10] button twice followed by the [5] button.

D Audio button (29, 41)

This button is used to select foreign language soundtracks and audio formats (e.g., Dolby Digital or DTS).

E Subtitle button (29, 42)

This button is used to select subtitles.

F Random button (38)

This button is used with the Random Playback function.

M N

G Slow [ ]/[ ] buttons (35)

These buttons are used for slow motion playback.

H Down [ ] button (29- 32, 36)

This button is used to select the previous chapter or track. During playback it selects the beginning of the current track.

I Play [ ] button (29)

This button is used to start playback.

J FR [ ] button (34)

This button is used to start fast reverse.

K [], [], [], [] buttons (29, 31, 36)

These buttons are used to navigate DVD-Video menus and the on-screen setup menus.

L Top Menu button (29, 36)

This button is used to select the top menu.

Page 16

Controls & Connectors—Continued

M Menu button (29, 36)

This button is used to select the menu.

N Aspect/Zoom button (42, 43, 46)

This button is used to change the view mode. Pressing and holding it for a few seconds selects Zoom mode.

O Resolution button (27)

This button is used to set the video resolution of the HDMI OUT, and to turn the HDMI OUT on or off.

P Open/Close [ ] button (28)

This button is used to open and close the disc tray.

Q Search button (32, 33)

This button is used to search for titles, chapters, tracks, and speciﬁc points in time.

R Memory button (39)

This button is used with the Memory Playback function.

S Repeat button (37)

This button is used to set the Repeat Playback functions.

T A–B button (38)

This button is used to set the A–B Repeat Playback function.

c Enter button (45)

This button is used to start playback of the selected title chapter, or track and to conﬁrm settings.

d Setup button (45)

This button is used to open and close the on-screen setup menus.

e Return button (45)

This button is used to return to the previous screen.

U CLR button (40, 49)

This button is used to cancel various functions.

V Display button (43)

This button is used to display information about the current disc, title, chapter, or track, including the elapsed time, remaining time, total time, and so on.

W Angle button (41)

This button is used to select different camera angles.

X Last Memory button (41)

This button is used with the Last Memory function.

Y Pause [ ] button (29, 34)

This button is used to pause playback. For DVDs, pressing this button while playback is paused moves the video forward one frame at a time.

Z Up [ ] button (29- 32, 36)

This button is used to select the next chapter or track.

a FF [ ] button (34)

This button is used to start fast forward.

b Stop [ ] button (29- 31)

This button is used to stop playback

Page 17

Before Using the DPS-5.9

Installing the Remote Controller’s Batteries

Open the battery compartment, as

shown.

Insert the two supplied batteries (AA/

R6) in accordance with the polarity diagram inside the battery compartment.

Close the battery compartment.

Notes:

• If the remote controller doesn’t work reliably, try replacing both batteries.

• Don’t mix new and old batteries, or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent possible leakage and corrosion.

• Flat batteries should be removed as soon as possible to prevent possible leakage and corrosion.

Using the Remote Controller

To use the remote controller, point it at the DPS-5.9’s remote control sensor, as shown below.

Remote control sensor

DPS-5.9

30˚

Notes:

• The remote controller may not work reliably if the DPS-5.9 is subjected to bright light, such as direct sunlight or inverter-type ﬂuorescent lights. Keep this in mind when installing the DPS-5.9.

• If another remote controller of the same type is used in the same room, or the DPS-5.9 is installed close to equipment that uses infrared rays, the remote controller may not work reliably.

• Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.

• The remote controller may not work reliably if the DPS-5.9 is installed in a rack behind colored glass doors. Keep this in mind when installing the DPS-5.9.

• The remote controller will not work if there’s an obstacle between it and the DPS-5.9’s remote control sensor.

30˚

Approx. 16 ft. (5 m)

Page 18

Connecting the DPS-5.9

This chapter explains how to connect the DPS-5.9 to your other AV components.

Before Making Any Connections

• Read the manuals supplied with your AV components.

• Don’t connect the power cord until you’ve completed all audio and video connections.

Optical Digital Jack

The DPS-5.9’s optical digital jack has shutter-type cover that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.

Caution: To prevent shutter damage, hold the optical plug straight when inserting and removing.

AV Cables & Connectors

HDMI

RCA AV Connection Color Coding

RCA AV connections are usually color coded: red, white, and yellow. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use white plugs to connect left-channel audio inputs and outputs (typically labeled “L”). And use yellow plugs to connect composite video inputs and outputs.

Right (red)

Left (white)

(Yellow)

• Push the plugs in all the way to make a good connection.

•To prevent interference, keep audio and video cables away from power cords and speaker cables.

HDMI connections can carry uncompressed, standard or high deﬁnition digital video and digital audio, for the best picture and sound quality.

Video

Analog audio

Composite video

Right (red)

Left (white)

(Yellow)

Right!

Wrong!

Component video

S-Video

Composite video

Optical digital

Coaxial digital

Analog

Component video separates the luminance (Y) and color difference signals (P

R, PB), providing the

best picture quality. (Some TV manufacturers label their component video inputs slightly differ-

ently.) The DPS-5.9 has RCA and BNC component video

outputs.

S-Video provides better picture quality than composite video.

Composite video can be found on virtually all TVs, VCRs, and other video equipment. Use only dedicated composite video cables.

Audio

Optical digital audio connections with the optical digital audio output and a suitable AV receiver, you can enjoy DVD-Videos with surround sound.

Coaxial digital audio connections with the coaxial digital audio output and a suitable AV receiver, you can enjoy DVD-Videos with surround sound.

RCA analog audio connectors can be found on virtually all AV components.

Page 19

Connecting the DPS-5.9—Continued

Connecting Your TV or Projector

This section explains how to connect the DPS-5.9 to your TV or projector.

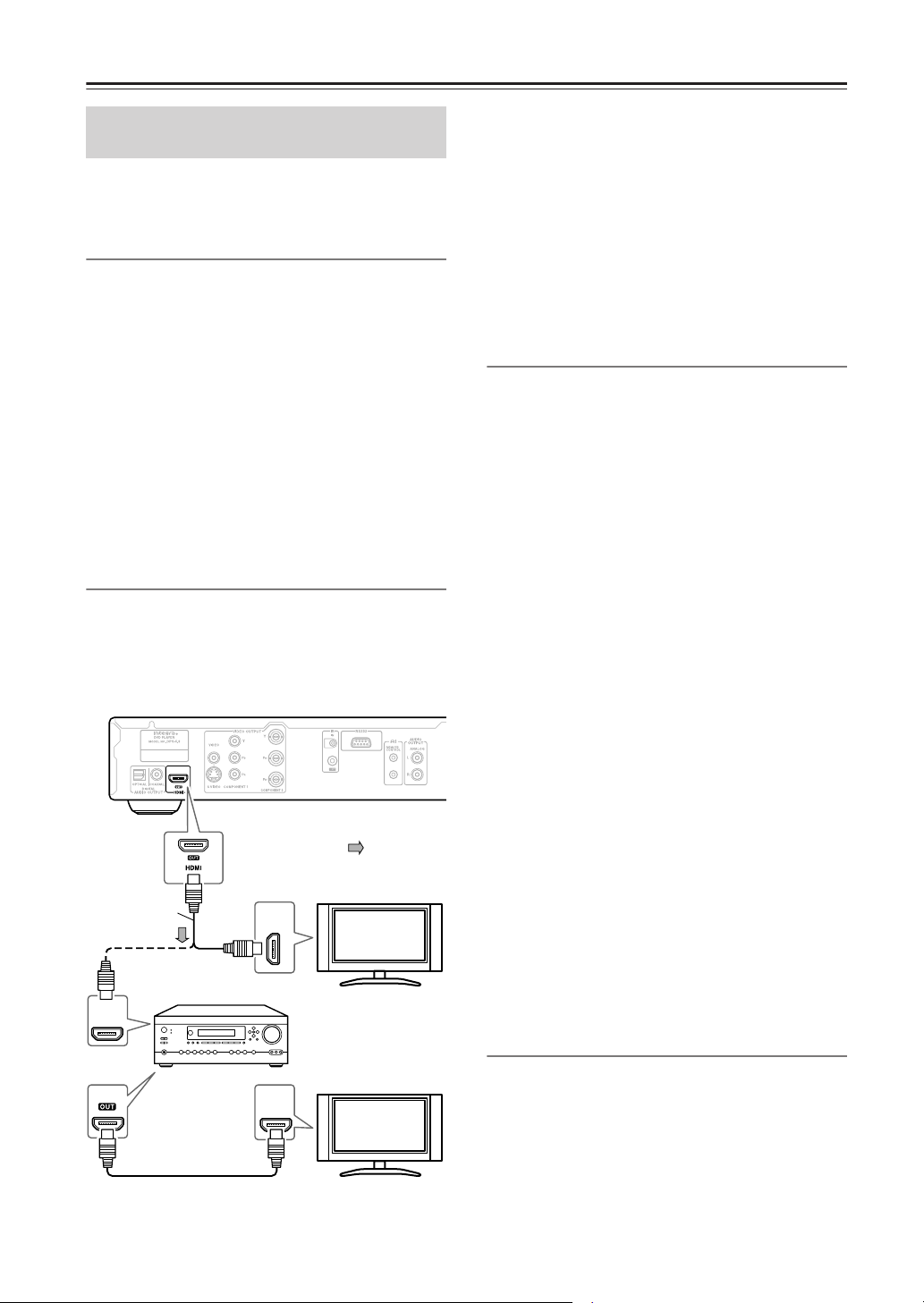

See page 22 for connecting a TV or projector that supports HDMI.

In this hookup example, the TV handles the audio and video. To enjoy Dolby Digital or DTS (surround), you’ll need a compatible decoder (see page 20).

The DPS-5.9 has four types of video output: HDMI, component video, S-Video, and composite video. HDMI offers the best picture quality, so if your TV supports it, see page 22. Component video offers the next best picture quality, so if your TV supports it, use a commercially available component video cable to connect the DPS-5.9’s COMPONENT VIDEO OUTPUT to the component video input on your TV. If your TV supports progressive scanning, you must use component video in order to take advantage of that feature. S-Video offers better picture quality than composite video, so if your TV supports it, use the S-Video cable to connect the DPS-5.9’s S VIDEO OUTPUT to an S-Video input on your TV. Failing that, use the supplied composite video

cable to connect the DPS-5.9’s VIDEO OUTPUT to a composite video input on your TV.

Compatibility of this unit with progressive-scan TVs.

This player is compatible with progressive video Macro Vision System Copy Guard.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE “STANDARD DEFINITION” OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

S-Video cable

Component video cable*

S VIDEO IN

Only one connection required! Choose component video, S-Video, or composite video.

TV or projector

VIDEO IN

ANALOG

INPUT

(red)

(yellow) (white)

AV RCA

cable

(supplied)

(red)

(yellow) (white)

*1 The DPS-5.9 has two component

video outputs. The COMPONENT 1 output uses RCA connectors. The COMPONENT 2 output uses BNC connectors. They output the same video signal.

Page 20

Connecting the DPS-5.9—Continued

• When the HDMI Output setting is set to On (see pages 27, 46), the DPS-5.9 cannot output progressive video. To output progressive video, you must set the HDMI Output setting to Off (see pages 27,

46), and set the Progressive setting to Progressive (see pages 27, 46).

• When the Progressive setting is set to Progressive so that progressive video is output by the COMPONENT VIDEO OUTPUT, and the PROGRESSIVE indicator is shown, nothing is output by the VIDEO (composite video) and S VIDEO (S-Video) outputs. To output video from these outputs, you must set the Progressive setting to Interlace (see pages 27, 46).

Notes:

• Before making any connections, turn off the DPS-5.9 and your TV and disconnect their power cords from the wall outlets.

• Also refer to the connection information supplied with your TV.

• Connect the DPS-5.9’s video outputs directly to your TV. Don’t connect a VCR or other video equipment in between your DPS-5.9 and TV. Doing so may result in picture distortion, because of the copy protection system used on DVD-Video discs.

• When you use the analog audio outputs, don’t play DTS CDs or don’t select DTS soundtracks on DVD-Video discs. Doing so will produce unpleasant digital noise, which may damage your equipment.

Connecting an AV receiver

Analog Connection

Use an RCA audio cable to connect the DPS-5.9’s ANALOG AUDIO OUTPUTs to a pair of analog audio inputs on your AV receiver, as shown.

Signal flow

(white)

(red)

ANALOG

INPUT

RCA cable

Digital Connection

To enjoy Dolby Digital or DTS surround sound, you need to connect one of the DPS-5.9 digital audio outputs to the digital input on a Dolby Digital or DTS decoder or an AV receiver with built-in decoders.

Use an optical (or coaxial) digital audio cable to connect the DPS-5.9’s COAXIAL (or OPTICAL) DIGITAL AUDIO OUTPUT to an optical (or coaxial) input on your AV receiver, as shown.

AV receiver

(white)

(red)

COAXIALOPTICAL

Connect one or

the other

Optical digital cable

OPTICAL

Dolby Digital/DTS decoder

or AV receiver with built-in decoders.

Coaxial digital cable

(supplied)

COA XIAL

Signal flow

Page 21

Connecting the DPS-5.9—Continued

Notes:

• Make sure that the Digital/HDMI Audio Out setting on the Audio menu is set to All (see page 47). Otherwise, you won’t get surround sound.

• Also refer to the connection information supplied with your AV receiver or decoder.

• When playing Dolby Digital or DTS source material, be sure to select Dolby Digital or DTS decoding, respectively, on your AV receiver or decoder. See the relevant manuals.

•You can experience Dolby Digital only with DVDs that bear the Dolby Digital logo. Likewise, you can experience DTS only with DVDs or CDs that bear the DTS logo.

Connecting a Stereo Amp

This section explains how to connect the DPS-5.9 to a stereo amp for better sound quality than that of most TVs. This is ideal for playing your audio CDs and MP3/ WMA discs in the DPS-5.9. DVD-Video discs will sound better too.

Analog Connection

Use an RCA audio cable to connect the DPS-5.9’s ANALOG AUDIO OUTPUTs to a pair of analog audio inputs on your stereo amp, as shown.

Signal flow

Stereo amp

Digital Connection

Use an optical (or coaxial) digital audio cable to connect the DPS-5.9’s COAXIAL (or OPTICAL) DIGITAL AUDIO OUTPUT to an optical (or coaxial) input on your stereo amp, as shown.

COA XIAL

Signal flow

Coaxial

digital

cable

(supplied)

Stereo amp

OPTICAL

Optical digital cable

Connect one or the other

OPTICAL

COAXIAL

Notes:

• Be sure to set the Audio menu, Digital/HDMI Audio Out setting to “PCM” (see page 47). Otherwise an unpleasant digital noise may be heard, which may damage your equipment.

• When the Audio menu, Digital/HDMI Audio Out setting is set to “PCM,” Dolby Digital signals will be converted and output as PCM. DTS signals will not be output at all.

•Never connect the DPS-5.9 to the AC-3RF input on a Dolby Digital receiver. The AC-3RF format is not supported by the DPS-5.9.

ANALOG

INPUT

RCA cable

(white)

(red)

(white)

(red)

Note:

• When you use the analog audio outputs, don’t play DTS CDs or don’t select DTS soundtracks on DVD-Video discs. Doing so will produce unpleasant digital noise, which may damage your equipment.

Page 22

Connecting the DPS-5.9—Continued

Connecting a Component with an HDMI Input

This section shows how to connect the DPS-5.9 to an AV receiver, HDTV, or projector with an HDMI input.

What is HDMI?

HDMI (High Deﬁnition Multimedia Interface) is a new connection format that can carry uncompressed, standard or high deﬁnition digital video and up to eight channels of digital audio. Until now, several separate video and audio cables have been required to connect AV components together. With HDMI, a single cable is all that’s necessary to achieve the best picture and audio quality.

HDMI video is compatible with DVI (Digital Visual Interface). To send HDMI video to a DVI input requires an HDMI-to-DVI cable. The DPS-5.9 supports HDCP (High-bandwidth Digital Content Protection), and for an HDMI-to-DVI connection to work, the other component must also support it. Note that this may not work with some DVI components.

Using HDMI

Use the HDMI cable to connect the DPS-5.9’s HDMI OUT to an HDMI input on your AV receiver. Alternatively, you can connect the DPS-5.9 directly to the HDMI input on your TV.

Notes:

• The DPS-5.9 supports HDCP (High-bandwidth Digital Content Protection), a protection system for digital video. HDMI components that you connect to the DPS-5.9 must also support HDCP.

•Even if you connect a component that does not support HDCP to the DPS-5.9, there will be no picture or sound.

• The DPS-5.9 supports HDMI (High-Deﬁnition Multimedia Interface) Speciﬁcation Information Version

1.0.

HDMI & the DPS-5.9

■ Video

The DPS-5.9’s HDMI OUT supports the following video resolutions:

• 720 x 480i 60 Hz

• 720 x 480p 60 Hz

• 720 x 576i 50 Hz ( Australian model only)

• 720 x 576p 50 Hz ( Australian model only)

• 1280 x 720p 50/60 Hz

• 1920 x 1080i 50/60 Hz

• 1920 x 1080p 50/60 Hz

If the connected HDTV or projector doesn’t support a resolution, you may get no picture.

On the DPS-5.9, you can select a resolution suitable for use with the connected HDTV or projector (see page 27).

HDMI cable

HDMI

AV receiver

HDMI

■ Audio Formats

The DPS-5.9’s HDMI OUT supports the following audio formats:

• PCM (48 kHz, 44.1 kHz, 96kHz)

• Dolby Digital

• DTS

Signal flow

If your TV only supports HDMI digital audio up to 48 kHz, change the Linear PCM Out setting to Down Sample On (see page 47).

If your TV doesn’t support Dolby Digital, set the Digital/

HDTV,

projector

HDMI Audio Out setting to PCM (see page 47). If your TV doesn’t support DTS, the DPS-5.9 will not be

able to play DTS format audio or soundtracks. In this case, on your DVD-Video disc’s audio setup menu, select an audio format other than DTS.

RIHD (CEC)

The DPS-5.9 supports RIHD (Remote Interactive over

HDTV,

projector

HDMI), which is Onkyo’s implementation of CEC (Consumer Electronics Control), which allows integrated system control over HDMI and is part of the HDMI standard. In addition to Integra/Onkyo AV components, it allows interoperability with CEC-compatible AV components and TVs made by other manufacturers.

To use RIHD, make sure that CEC is turned on on your other components (e.g., TV, AV receiver)

Page 23

Connecting the DPS-5.9—Continued

Connecting -compatible Components

AV receiver

REMOTE CONTROL

• The remote controller supplied with Integra/Onkyo AV receiver or ampliﬁers can be used to control the DPS-5.9.

• The function of the upper and lower connectors are the same. Connect to either one.

• Connecting an cable only does not make the system operational. You must also connect the audio cables as well.

•For remote control operation, you must make an analog RCA connection between your DPS-5.9 and the other AV component, even if they are connected digitally.

• If you’re using RIHD, do not connect anything to the

connectors.

Page 24

Connecting the DPS-5.9—Continued

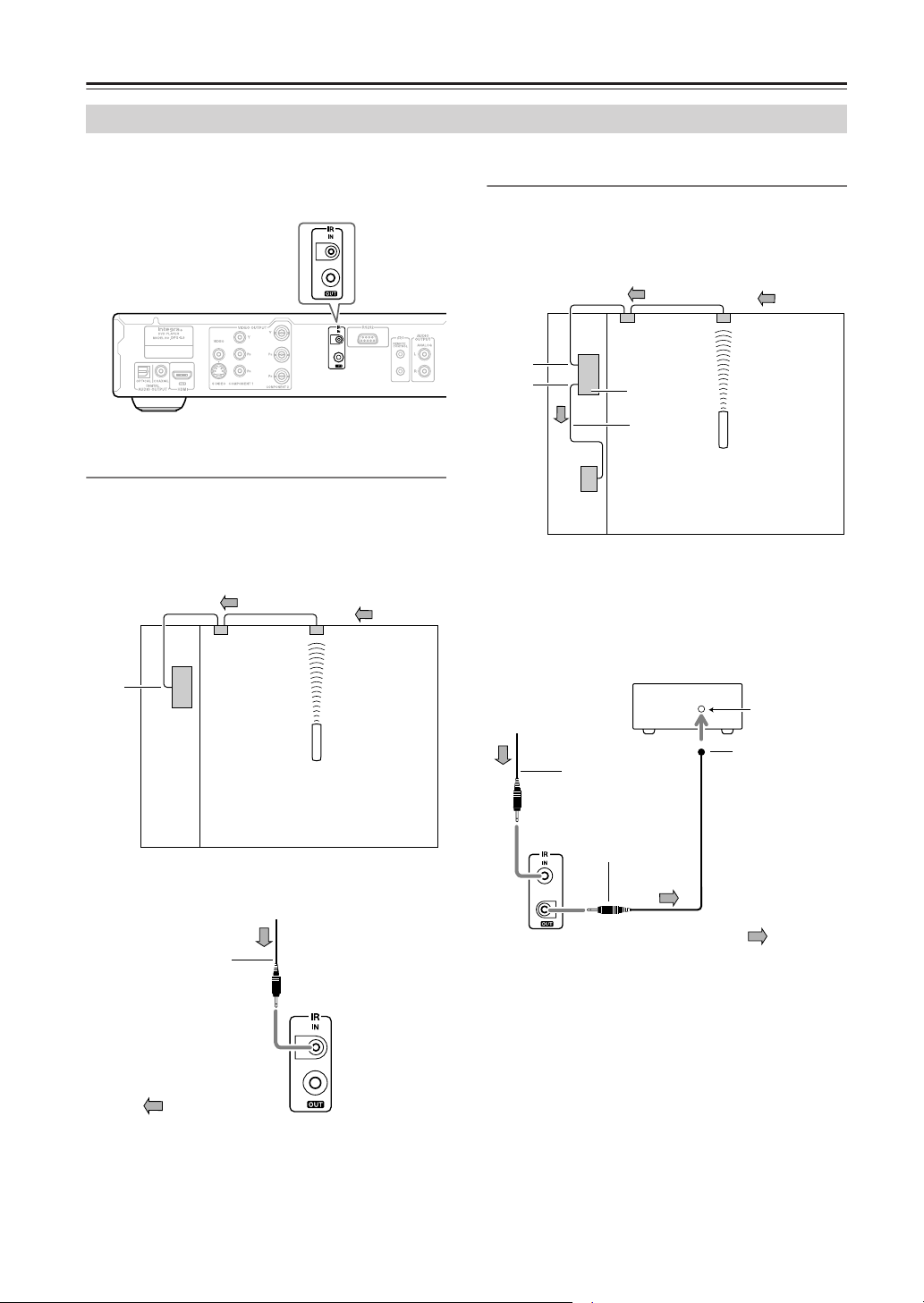

Controlling AV Components that are Out of Range

You can use the following multi-room kits to control the DPS-5.9 when it’s out of range of the remote controller:

• Multiroom kits such as those made by Niles and Xantech.

Controlling Other Out-of-range AV Components

If another AV component is out of range of its remote controller, you can use a commercially available IR emitter to retransmit the remote controller signals received at the DPS-5.9’s IR IN, as shown below.

IR IN

IR OUT

Connecting block

DPS-5.9

Signal flow

IR receiver

Controlling the DPS-5.9 When It’s Out of Range

If the DPS-5.9 is located in another room, installed in a cabinet, or out of range of its remote controller, you can use a commercially available IR receiver to pickup the remote controller signals and feed them to the DPS-5.9, as shown below.

Signal flow

Connecting block

IR IN

DPS-5.9

Remote controller

Inside cabinet

Connect the IR receiver to the DPS-5.9 as shown below.

from connecting block

Miniplug cable

IR receiver

IR emitter

Remote controller

Other component

Connect the IR emitter to the DPS-5.9’s IR OUT, and place the IR emitter in front of the other AV component’s remote control sensor (usually located on its front panel), as shown below. See the instructions supplied with the IR emitter.

Other component

from connecting block

Miniplug cable

DPS-5.9

Miniplug

IR Emitter

Remote control sensor

IR emitter

Signal flow

Only remote controller signals received by the DPS-5.9’s IR IN are fed through to the IR OUT. Signals picked up by the DPS-5.9’s remote control sensor are not output.

Signal flow

DPS-5.9

Page 25

Connecting the Power/Turning on the DPS-5.9

Remote controller

Before connecting

• Make sure that all the connections on pages 18–23 are complete (the connection to a TV is required).

On/Standby

Standby indicator Dimmer

Standby

•For the above reasons, do not plug the DPS-5.9 into a switched power supply found on some ampliﬁers and AV receivers.

To a wall outlet

Press [On/Standby] button on the DPS-5.9 or [On] on the remote controller.

Turn on your TV and select the input through which the DPS-5.9 is connected.

The DPS-5.9 turns on and the Standby indicator turns off.

•To put the DPS-5.9 in the standby mode, press [On/Standby] on the DPS-5.9, or [Standby] on the remote controller.

• While the Standby indicator lights up, the DPS-5.9 can receive signals from the remote controller.

• Setting the [On/Standby] button to standby does not shut off the power completely.

Plug the supplied power cord into the AC INLET and then into the power outlet on the wall.

• Do not use a power cord other than the one supplied with the DPS-5.9. The power cord supplied is designed for use with the DPS-5.9 and should not be used with any other device.

•Never have the power cord disconnected from the DPS-5.9 while the other end is plugged into the wall outlet. Doing so may cause an electric shock. Always connect by plugging into the wall outlet last and disconnect by unplugging from the wall outlet ﬁrst.

• Before unplugging the DPS-5.9 from the power outlet, make sure you ﬁrst switch it into standby.

Note:

• The DPS-5.9 features a screen saver and an auto power off function. If the DPS-5.9 is stopped and no button is pressed for 15 minutes, the screen saver starts (see page 48). If the disc tray is closed but no disc is playing and no control is pressed for 20 minutes, the DPS-5.9 automatically goes into standby (see page 50).

Adjusting the Display Brightness

You can adjust the brightness of the display as follows.

Note:

• When the display brightness is changed, the display brightness of other Integra/Onkyo AV components connected via also changes. This does not work for components connected via RIHD.

Press the [Dimmer] button repeatedly to cycle through the following options:

Dim, dimmer, or normal.

Page 26

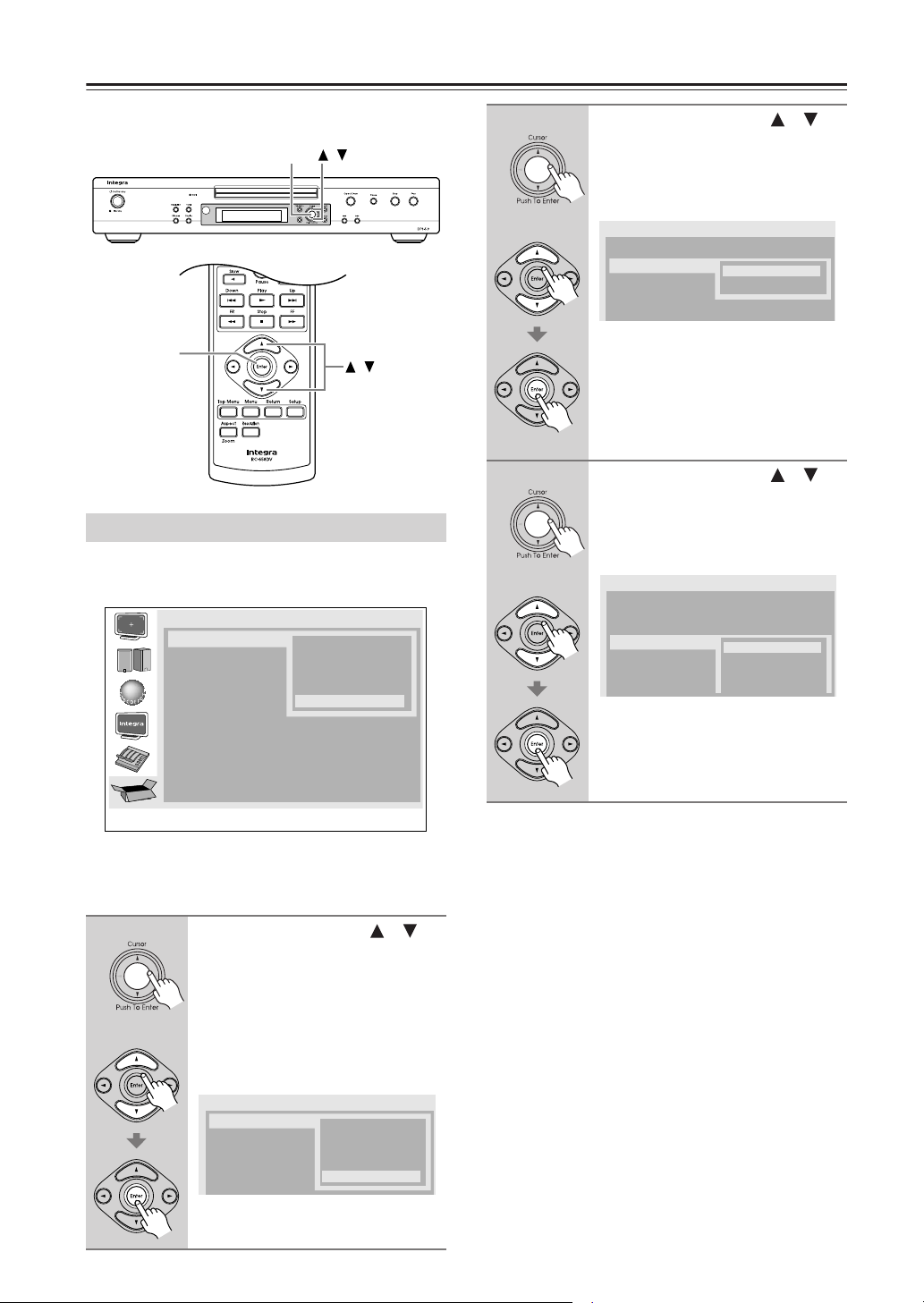

Initial Setup

This chapter explains the settings you need to make the very ﬁrst time the DPS-5.9 is turned on.

Enter

First Time Setup

The very ﬁrst time you turn on the DPS-5.9, the Initial Setup menu appears onscreen.

Initial Setup

TV Shape

HDMI Output Setting

On-Screen Language

4:3 Letter box

4:3 Pan Scan

16:9 Widescreen

✔

16:9 Compressed

Remote controller

Use the Up and Down [ ]/[ ] buttons to select “On” or “Off” for the “HDMI Output Setting,” and then press [Enter].

Select “On” to use the HDMI output.

Initial Setup

TV Shape

HDMI Output Setting

On-Screen Language

: 16:9 Compressed

✔

Off

The “On-Screen Language” menu appears next.

Use the Up and Down [ ]/[ ] buttons to select a language, and then press [Enter].

See page 48 for more information on the language options.

Initial Setup

TV Shape

HDMI Output Setting

On-Screen Language

: 16:9 Compressed

: On

✔

English Français Español

The Initial Setup menu closes and the setup is complete.

The DPS-5.9 is now ready to use.

Here you need to make a few settings to get the DPS-5.9 up and running. You can change these settings later (see page 45).

Use the Up and Down [ ]/[ ] buttons to select a TV shape, and then press [Enter].

Select “4:3 Letter box” or “4:3 Pan Scan” if you have a 4:3 TV. Select

Remote controller

“16:9 Widescreen” or “16:9 Compressed” if you have a widescreen TV. See page 45 for more information.

Initial Setup

TV Shape

HDMI Output Setting

On-Screen Language

4:3 Letter box

4:3 Pan Scan

16:9 Widescreen

✔

16:9 Compressed

The “HDMI Output Setting” menu appears next.

Notes:

•You can cancel the Initial Setup by pressing the [Setup] button and complete the settings later by using the onscreen setup menus (see page 45).

• When the DPS-5.9 is connected via HDMI, and the HDMI Control setting is set to On (default), the language settings on a CEC-compatible TV may affect the onscreen displays.

Page 27

HDMI and Progressive Settings

Resolution

HDMI

Resolution

Setting the HDMI

This section explains how to turn on the HDMI OUT and change the video resolution when your TV or projector is connected to the HDMI OUT.

See page 22 for HDMI connection information.

Press the DPS-5.9’s [HDMI] button to turn on HDMI.

720p 1280

1080i 1920

1080p 1920

Tip:

• These settings can also be changed by using the HDMI Output and HD Resolution settings on the onscreen setup menus (see pages 46).

Notes:

• Be sure to choose a resolution that’s supported by your TV. If you select a resolution that your TV doesn’t support, there will be no picture.

• When the HDMI OUT is on, interlaced video is output by the composite video, S-Video, and component video outputs.

Selecting Progressive or Interlace

If your TV’s component video input supports progressive video, you can set the DPS-5.9 to progressive and enjoy progressive video on your TV. If your TV’s component video input doesn’t support progressive video, set the DPS-5.9 to Interlace.

720p 50/60Hz

1080i 50/60Hz

1080p 50/60Hz

Remote controller

The DPS-5.9 supports the following resolutions:

Auto (default):

The resolution is automatically scaled to the preferred resolution of the TV connected to the HDMI OUT.

If Auto is selected but the DPS-5.9 doesn’t support the resolution preferred by the TV, the resolution will be 480p/576p.

480i (720

The setting displayed depends on the country in which you purchased the DPS-5.9 (720 576i 50Hz).

480p (720

The setting displayed depends on the country in which you purchased the DPS-5.9 (720 576p 50Hz).

Press the [Resolution] button repeatedly to change the HDMI resolution.

The ﬁrst button press displays the current resolution onscreen. Press the button again while the resolution is displayed to change the setting.

480i/576i)

480i 60Hz or 720

480p/576p)

480p 60Hz or 720

Remote controller

Press the DPS-5.9’s [HDMI] button to turn off HDMI.

Use the [Resolution] button to select progressive or interlace.

The ﬁrst button press displays the current setting onscreen. Press the button again while the setting is displayed to change the setting.

The PROGRESSIVE indicator appears on the display when progressive is selected. (If the HDMI OUT is on, the indicator will not appear.)

Page 28

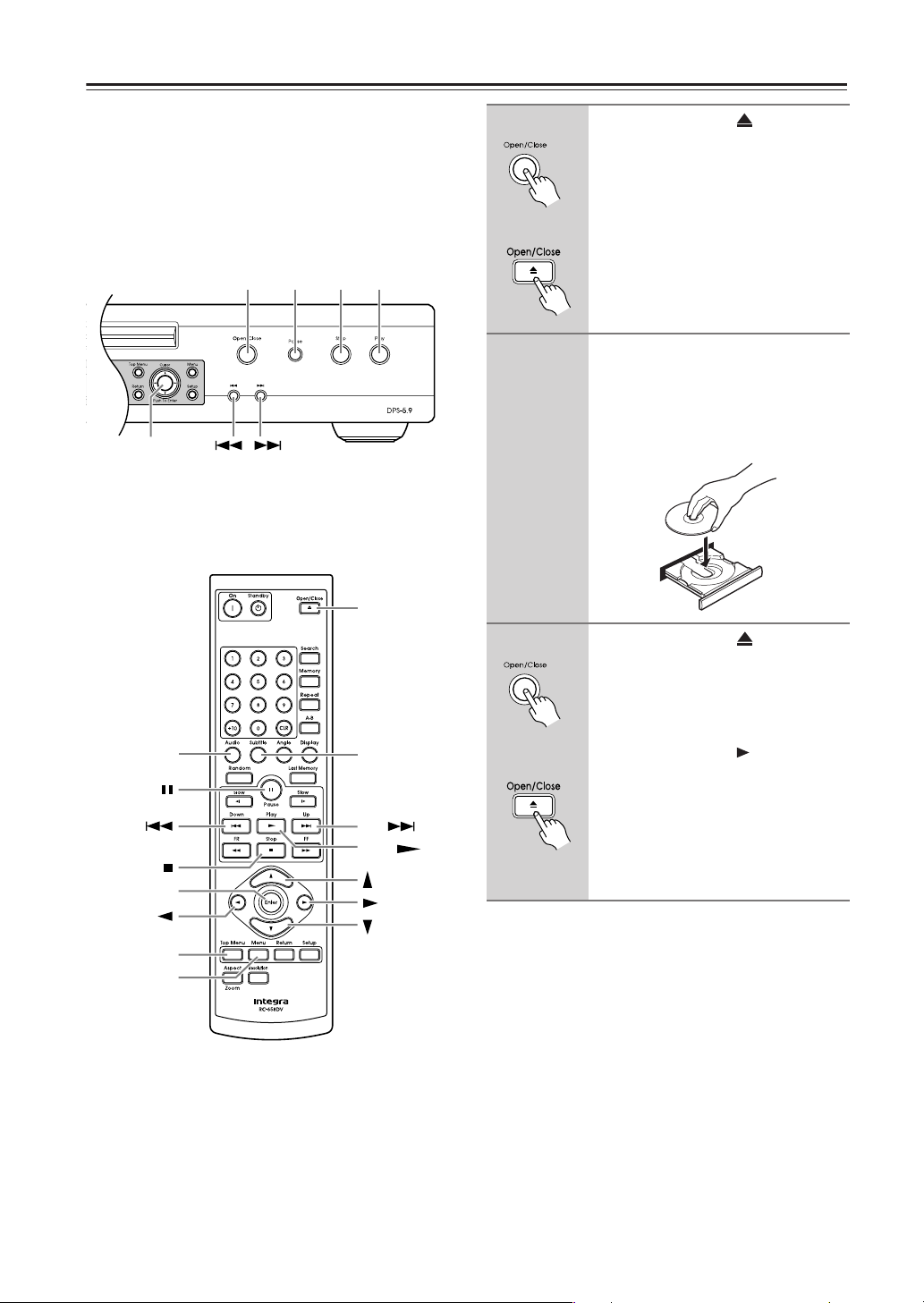

Basic Playback

Remote controller

This chapter covers basic playback. Advanced playback functions are covered in the next chapter.

Important:

• Throughout this manual, the term DVD refers to DVD-Video, DVD-R/RW, and DVD+R/RW discs. When a function is speciﬁc to a particular type of DVD disc, it will be speciﬁed.

Stop PauseOpen/Close

Play

Enter

Open/ Close

Remote controller

Press Open/Close to open the disc tray.

Load a disc.

Load a disc with the label side facing up, using the disc tray guide to align the disc (if you’re loading a double-sided DVD disc, load it with the side you want to play face down).

Press Open/Close .

The disc tray closes and the relevant disc type indicator appears on the display.

Audio

Pause

Down

Stop

Enter

Top Menu

Subtitle

Play

Tip:

If you press the Play [ ] button, the disc tray will close and, depending on the type of disc, playback will start automatically.

•For details on playing JPEG picture discs, see “Using JPEG CDs” on page 36.

Only load discs that are supported by the DPS- 5.9 . See pages 8 to 10.

Page 29

Basic Playback —Continued

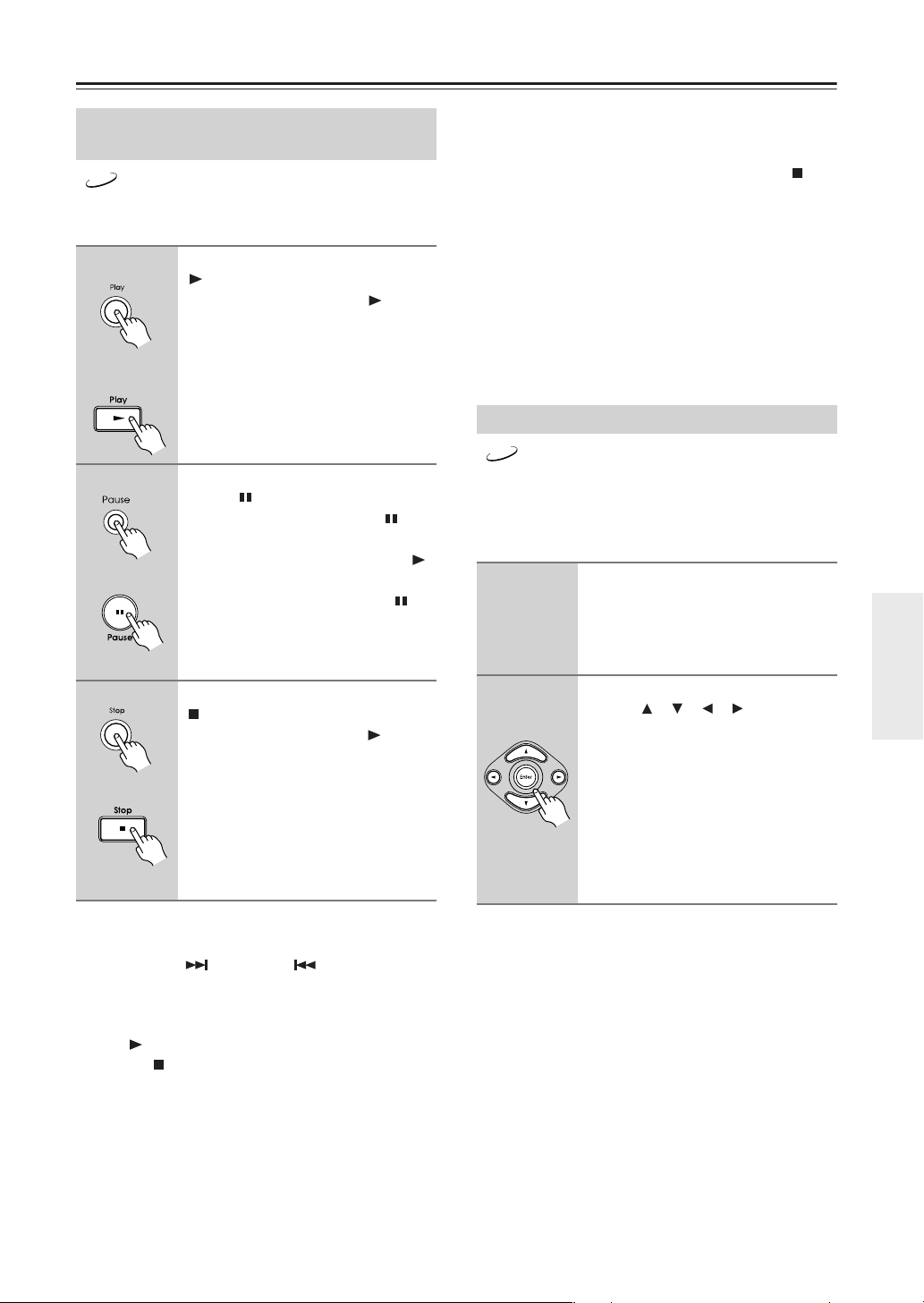

Starting, Pausing & Stopping Playback

DVD

This section explains how to start, pause, and stop playback.

■ Start To start playback, press the Play [] button.

Playback starts and the Play indicator appears on the display.

If the disc is a DVD-Video, you may

Remote controller

■ Pause To pause playback, press the

Remote controller

need to start playback from a menu.

Pause [ ] button.

Playback pauses and the Pause indicator appears on the display.

To resume playback, press the Play [ ] button.

Playback resumes and the Pause indicator disappears.

• Prolonged display of the same picture or menu may cause irreparable damage to your TV screen, known as

screen burn-in . To prevent this, don’t keep playback

paused for too long and always press the Stop [ ] button when you’ve ﬁnished playing a DVD-Video disc. Your DPS-5.9 features a screen saver to protect your TV from the effects of burn-in (see page 48).

•With some DVD-Video discs, you may experience picture noise that is not normally visible with regular TV broadcasts. This is usually because DVD-Video discs uses a lot of high-resolution video data. The amount of noise, if any, will depend on your particular TV and the problem can sometimes be alleviated by turning down your TV’s sharpness control.

Navigating Disc Menus

DVD

DVD-Video discs usually have an on-screen menu from which you can select titles, chapters, and other options, including foreign language soundtracks, subtitles, and audio formats (e.g., Dolby Digital or DTS).

Load a DVD-Video disc.

See page 28. With DVD-Video discs, a menu usually

appears automatically. If it doesn’t, try pressing the [Top Menu] button.

■ Stop To stop playback, press the Stop [] button.

Playback stops and the Play indicator disappears.

Remote controller

Notes:

• During playback, you can select chapters or tracks by using the Up [ ] and Down [ ] buttons.

• When you stop playback of a DVD-Video disc, the DPS-5.9 remembers the point at which playback was stopped. To resume playback from that point, press the Play [ ] button. To cancel the Resume function, press the Stop [ ] button again. The Resume function is reset when another disc is selected.

•With the Last Memory function you can resume playback from a speciﬁc point even if the disc has been removed (see page 41).

• Do not move the DPS-5.9 or subject it to vibration during playback. Doing so may damage your discs or DPS-5.9.

Remote controller

Notes:

• Not all DVD-Video discs have menus.

• Menu operation varies from disc-to-disc. See the disc’s sleeve notes for details.

• On some DVD-Video discs, options such as foreign language soundtracks, subtitles, and audio formats appear on a separate menu called the disc menu, and titles and chapters appear on what’s called the title

menu . To display the disc menu, press the [Menu] but-

ton. If no menu appears, press the [Top Menu] button.

•With DVD-Video discs, foreign language soundtracks and audio formats can usually be selected during playback by using the remote controller’s [Audio] button (see page 41). Similarly, subtitles can be selected by using the remote controller’s [Subtitle] button (see page 42).

Use the remote controller’s navigation [ ], [ ], [ ], [ ] buttons to select items on the menu, and use the [Enter] button to conﬁrm your selection.

If you select a playback option (e.g., subtitles), another menu of options will typically appear, in which case you use the remote controller’s navigation buttons to select items and the [Enter] button to conﬁrm your choice.

Page 30

Basic Playback—Continued

StopPause

Play

Using the Disc Navigation Window

MP3 WMA

On the disc navigation window, you can select CD tracks or MP3, WMA, or JPEG ﬁles.

JPEG

Down

Enter

Pause

Stop

Enter

Play

Return

Load an audio CD or MP3, WMA, or JPEG disc.

See page 28. The disc navigation window appears. It may take a while to read the contents

of discs that contain many ﬁles and folders.

For JPEG discs, press the [Menu] button to open the disc navigation window.

This is the display for an MP3 disc.

Play DATADisc

1/10 1/8

/MP3 music

001. ROOT

002. MP3 music

003. Integra 1

004. Integra 2

001. Track01

002. Track02

003. Track03

004. Track04

00:00:24 00:05:06 00:05:30

: Off

Repeat Ramdom

: Off

Name: Integra Title Artist Name: Integra Artist

A Folder number and ﬁle number. B Elapsed time, remaining time, and

total time of currently playing song. (Only elapsed time is shown for WMA ﬁles.) (See also page 43.)

C Repeat function and Random

function status.

D For JPEG ﬁles, a preview and the

ﬁle size are displayed here.

E Information about the song

currently playing (e.g., song title, artist name, album name) is displayed here, if available.

Remote controller

Press the Play [ ] button to start playback. Press the Stop [ ] button to stop playback. Press the Pause [ ] button to pause playback and the Play [ ] button to resume it.

For audio CDs:

Use the Up/Down [ ]/[ ] buttons to select a track, and press the Play [ ] button (or [Enter]) to start playback.

You can select the next or previous track during playback by using the Up [] and Down [ ] buttons.

Page 31

Basic Playback—Continued

Press the Down [ ] button to restart the current track. Press it again to select earlier tracks.

Alternatively, the number button is used to select a track.

For MP3, WMA, and JPEG discs:

To open a folder, use the remote controller’s Up/Down [ ]/[ ] buttons to select it, and then press [Enter].

Use the Up/Down [ ]/[ ] buttons to select tracks in the open folder.

You can select the next or previous track during playback by using the Up [] and Down [ ] buttons.

Press the Down [ ] button to restart the current track. Press it again to select earlier tracks.

Use the Left/Right [ ]/[ ] buttons to select other folders.

To close a folder (i.e., move back up the directory tree), press the [Return] button.

When all the tracks in that folder have been played, tracks in the next folder are played.

If the disc contains MP3/WMA ﬁles and JPEG ﬁles, they are played/displayed in order. JPEG ﬁles will be displayed in a slideshow. Press the [Top Menu] button to display the ﬁrst nine pictures at thumbnail-size (see page 36). Depending on the disc, the ﬁrst nine pictures may be displayed automatically.

Remote controller

Notes:

•You can use the Random Playback function to play a random selection of MP3/WMA ﬁles (page 38).

• During random playback, or memory playback, the remote controller’s navigation [ ], [ ], [ ], [ ] buttons cannot be used with the disc navigation window.

• Depending on their size and format, some JPEG ﬁles cannot be displayed.

Press the Stop [ ] button to stop playback.

Page 32

Basic Playback—Continued

Play

Selecting Titles, Chapters & Tracks by Number

DVD

MP3 WMA

This section explains how to select titles, chapters, and tracks by number.

Enter

Number buttons

Down

Enter

CLR

Play Up

Remote controller

Load a disc.

See page 28.

Press the [Search] button.

The Search window appears on-screen, as shown.

This is the display for a DVD-Video disc.

Disc

DVD-VIDEO

Title Chapter

Current/Total 3

Current/Total 22

With some DVD-Video discs, you can select only titles, and the Chapter Current/ Total information is not displayed. Some discs won’t allow you to select titles.

For audio CDs, you can select tracks. For MP3 and WMA discs, you can select tracks and folders.

Use the number buttons to specify a chapter or title.

To enter, for example, “2,” press the [2] button.

Disc

DVD-VIDEO

Title Chapter

Current/Total

Current/Total 22

To enter, for example, “12,” press the [1] button, followed by the [2] button.

Disc

DVD-VIDEO

Title Chapter

Current/Total

Current/Total 2212

Remote controller

To clear the number, press the [CLR] button.

Use the Left/Right [ ]/[ ] buttons to toggle between Title and Chapter or Folder and Track.

Press the Play [ ] or [Enter] button to start playback of the speciﬁed chapter or title.

During playback, you can select other chapters by using the Up [ ] and Down [ ] buttons.

Page 33

Basic Playback—Continued

Notes:

•You can also select chapters by using the number buttons, without opening the Search window.

• If the current DVD-Video disc contains only one title, you won’t be able to select other titles. Similarly, if it contains no chapters, you won’t be able to select chapters.

•DVD-Video discs usually have on-screen menus for selecting titles and chapters (see page 29).

•With some discs you may not be able to select titles and chapters as described here.

Locating Speciﬁc Points in Time

DVD

With the Time Search function you can locate speciﬁc points in time.

Remote controller

Press the [Search] button twice.

The Search window appears on-screen, as shown.

Disc

DVD-VIDEO -- : -- : --

Title

Use the number buttons to enter a time.

To enter, for example, 1 hour, 25 minutes, 30 seconds, press the [1], [2], [5], [3], and [0] buttons.

Disc

DVD-VIDEO 1 : 25 : 30

Title

To enter, for example, 2 minutes, 15 seconds, press the [2], [1], and [5] buttons.

Disc

DVD-VIDEO 0 : 02 : 15

Title

Press the Play [ ] or [Enter] button to locate the speciﬁed point.

Playback starts from the speciﬁed point.

Remote controller

Notes:

• The Time Search function works only within the currently playing title (DVD-Video) or track (audio CD). For example, if the current title is one hour long and you enter the time 1 hour, 30 minutes, nothing will happen.

• In some cases, playback may start from a slightly different point to the one you speciﬁed.

•Time Search may not work with some discs.

•You can’t use the [Search] button during random playback, or memory playback.

Page 34

Basic Playback—Continued

Pause

Slow

Pause

Play

Slow

Play

■ Resume

playback

Remote controller

To resume normal playback, press the Play [ ] button.

Note:

• No sound is output during fast forward or fast reverse of a DVD-Video, MP3, or WMA disc.

Frame-by-Frame Playback

DVD

With the Frame-by-Frame Playback function, you can forward playback one frame at a time.

Remote controller

Press the Pause [ ] button to pause playback, and then press the Pause [ ] button repeatedly to forward playback one frame at a time.

Fast Forward & Reverse

DVD

MP3 WMA

The section explains how to fast forward and reverse.

■ Fast forward

Remote controller

During playback, press the FF [] button to start fast forward.

Playback fast forwards and “ x 2” appears on-screen.

To change the fast-forward speed, press the FF [ ] button repeatedly to select: x 2, x 4, x 8, or x 16.

■ Fast reverse

Remote controller

During playback, press the FR [] button to start fast reverse.

Playback reverses and “ x 2” appears on-screen.

To change the fast-reverse speed, press the FR [ ] button repeatedly to select: x 2, x 4, x 8, or x 16.

Remote controller

To resume normal playback, press the Play [ ] button.

Notes:

• No sound is output during frame-by-frame playback.

• Prolonged display of the same picture or menu may cause irreparable damage to your TV screen, known as screen burn-in. To prevent this, don’t display the same frame for too long. Your DPS-5.9 features a screen saver to protect your TV from the effects of burn-in (page 48).

Page 35

Basic Playback—Continued

Slow-motion Playback

DVD

With the Slow-motion Playback function you can watch a scene slowly either forward or backward.

■ Forward slow motion

Remote controller

■ Backward slow motion

Remote controller

■ Resume playback

Remote controller

During playback, press the Slow [] button.

Forward slow-motion playback starts and “ 1/2” appears on-screen.

To change the slow-motion speed, press the Slow Forward [ ] button repeatedly to select: 1/2, 1/4, 1/6, or 1/

During playback, press the Slow [] button.

Backward slow-motion playback starts and “ 1/2” appears on-screen.

To change the slow-motion speed, press the Slow Back [ ] button repeatedly to select: 1/2, 1/4, 1/6, or 1/8.

To resume normal playback, press the Play [ ] button.

Notes:

• No sound is output during slow-motion playback.

• The slow-motion speed indication is only approximate, and the actual speed will vary from disc to disc.

Page 36

Basic Playback—Continued

Pause Stop

Play

Using JPEG CDs

The DPS-5.9 supports JPEG CDs, so you can view your photos on TV either individually or as a slideshow.

Enter

Pause

Down

Stop

Enter

Top Menu

Play

Load a CD containing JPEG pictures.

Use the [ ], [ ], [ ], [ ] buttons to select a picture, and then press the Play [] or [Enter] button to start the slideshow.

You can use the following functions during the slideshow:

To display the next or previous picture, use the Up [ ] and Down [ ] buttons.

To turn a picture upside down, use the Up/Down [ ]/[ ] buttons (not while zoomed in).

To rotate a picture clockwise or counterclockwise, use the Left/Right [ ]/ [] buttons (not while zoomed in).

To pause the slideshow, press the [ ] button. Press the Play [ ] button to resume.

To zoom in or out, use the FF [ ] and FR [ ] buttons. Use the Left/Right [ ]/[ ] and Up/Down [ ]/[ ] buttons to move around the picture while zoomed in. To cancel the zoom, press the Play [ ] button.

To return to the navigation window, press the [Menu] button.

To view the thumbnail display, press the [Top Menu] button.

Use the Up [ ] and Down [ ] buttons to display the next or previous thumbnail page.

Remote controller

Notes:

•You can view JPEG images in high deﬁnition by changing the HD JPEG mode setting (see page 46).

• The Memory and Random functions cannot be used with JPEG ﬁles.

• The Zoom function cannot be used in HD JPEG mode.

To stop the slideshow, press the Stop [ ] or [Menu] button.

Depending on the type of JPEG disc, either the ﬁrst nine pictures appear in thumbnail-size or the disc navigation window appears.

The slideshow stops automatically when all pictures have been displayed.

Page 37

Advanced Playback

Play

Repeat Playback

DVD

MP3 WMA

With the Repeat Playback function you can play the current disc, title, chapter, track, or folder of MP3/WMA/ JPEG ﬁles over-and-over again.

JPEG

Repeat

Play

Remote controller

Press the Play [ ] button to start repeat playback.

Press the [Repeat] button repeatedly to select a repeat option.

The currently selected repeat option appears on-screen, “ ” and repeat option (i.e.,R_CHP, etc.) appear on the display.

The available options depend on the current disc type, as follows:

DVD-Video: Chapter Repeat, Title Repeat, Disc

Repeat, Repeat Off. CD: Track Repeat, Disc Repeat,

Repeat Off. MP3, JPEG, WMA: Track Repeat,

Folder Repeat, Disc Repeat, Repeat Off.

To cancel Repeat Playback, use the [Repeat] button to select Off.

Notes:

• Repeat Playback may not work with some DVD-Video discs.

• If you press the [Repeat] button while the Memory Playback function is on (see page 39), the current memory list will play repeatedly.

• The Repeat function can be used in combination with the Random function (see page 38).

Page 38

Advanced Playback—Continued

PlayStop

Enter

Number buttons

Random

Stop

Enter

Memory

A-B

CLR

Play

A–B Repeat Playback

DVD

With the A–B Repeat Playback function you can play a speciﬁed section over-and-over again.

Remote controller

MP3 WMA

During playback, press the [A–B] button to set the A point (i.e., the start of the section you want to repeat).

“Repeat A-” appears onscreen, and the

A indicator and “R_A” appear on

the display.

Remote controller

Press the [A–B] button again to set the B point (i.e., the end of the section you want to repeat).

Playback repeats between the A and B points, and “Repeat A-B” appears onscreen. A-B indicator and “R_AB” appear on the display.

Remote controller

To cancel A–B Repeat Playback, press the [A–B] button to select Off.

Notes:

• A–B Repeat Playback may not work with some DVD-Video discs.

• In some cases, the A and B points may be at slightly different points to the ones you speciﬁed.

Random Playback

DVD

MP3 WMA

With the Random Playback function you can enjoy a random selection of titles, chapters, tracks, or MP3/ WMA folders

Remote controller

During playback, press the [Ran dom] button repeatedly to select a random option.

The currently selected random option appears on-screen.

The available options depend on the current disc type, as follows:

DVD-Video: Title Random, Disc Ran-

dom, Random Off.

CD: Disc Random, Random Off. MP3, WMA: Folder Random, Disc

Random, Random Off. With the Title Random option, chapters

within the current title are played at random. With the Disc Random option, titles, chapters, tracks, or folders on the disc are played at random.

Random playback begins after the current chapter or track has ﬁnished.

Random playback stops automatically when all of the items have been played once.

Page 39

Advanced Playback

—Continued

Remote controller

To cancel random playback, use the [Random] button to select Off.

Notes:

• Random playback may not work with some discs.

• Random playback cannot be used with the Memory Playback function.

•You can’t use the [Search] button during random playback.

• During random playback, the remote controller’s navigation [ ], [ ], [ ], [ ] buttons and number buttons cannot be used with the disc navigation window.

• The Random Playback function can be combined with the Repeat Playback function.

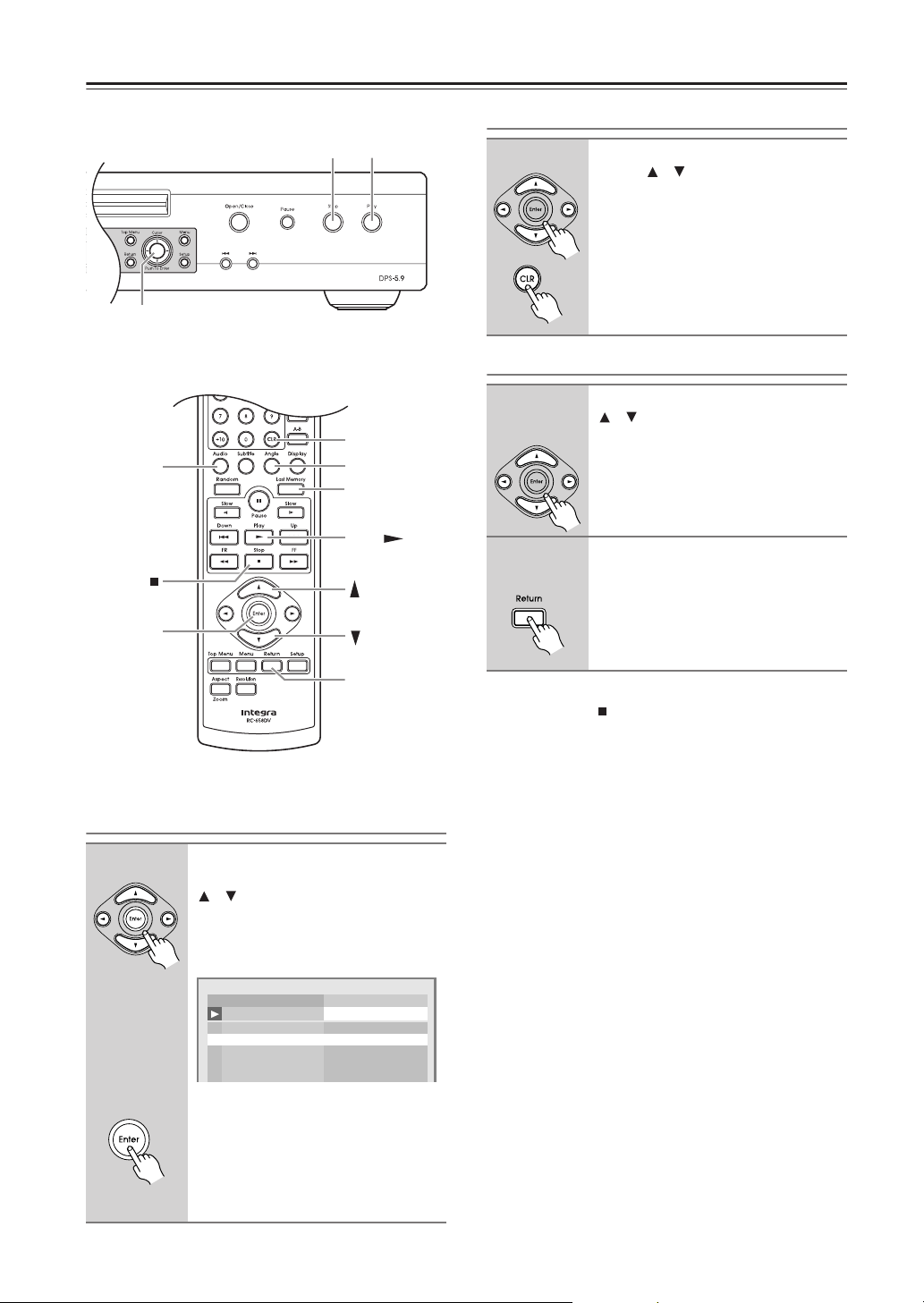

Memory Playback

DVD

MP3 WMA

With the Memory Playback function, you can create your own memory list of up to 32 chapters, or tracks.

Remote controller

Press the [Memory] button.

MEMORY indicator appears in the dis play.

The Memory List window appears onscreen, as shown.

No.

Chapter/Total

01 02 03 04 05 --- / --- --- / ---

Memory List

Title/Folder Chapter/Track

001 / 002 --- / 008

--- / --- --- / ---

Current/Total

The top row ( ) is used to enter title/ folder, and chapter/track numbers. Items in the memory list are numbered.

Remote controller

Press the [Enter] button.

The new item is added to the memory list as item 01.

No.

Chapter/Total

01 02 03 04 05 --- / --- --- / ---

Memory List

Title/Folder Chapter/Track

001 / 002

--- / --- --- / ---

Current/Total

--- / 008

005 / 008

Repeat steps 2 and 3 to add more items to the memory list.

New items will be added to the memory list as items 02, 03, and so on.

To play the memory list, press the Play [ ] button.

The Memory Play Setup window must be open when you press the Play [ ] button.

To stop playback, press the Stop [] button.

While playback is stopped, you can delete the memory list by pressing the [CLR] button.

While playback is stopped, you can cancel the Memory Playback function by pressing the Stop [ ] button again.

Remote controller

Enter the title/folder, and chapter/ track numbers of the item you want to add to the memory list.

Use the remote controller’s Left/Right [ ]/[ ] buttons to select the parameters, and use the number buttons to select the number.

Page 40

Advanced Playback —Continued

Deleting Items from the List

Enter

Audio

Stop

Enter

PlayStop

CLR

Angle

Last Memory

Play

Remote controller

Editing Steps

Remote controller

To delete an item, use the Up/ Down [ ]/[ ] buttons to select it, and then press the [CLR] button.

The item is deleted and subsequent items move up the list.

To edit a item, use the Up/Down [ ]/[ ] buttons to select it, edit the title/folder, and chapter/track numbers, and then press the [Enter] button.

To close the Memory Play Setup window, press the [Return] button.

nserting New Items in the List

•

Remote controller

To insert a new item into the memory list, use the Up/Down [ ]/[ ] buttons to select the item before which you want to insert the new item, and then press the [Enter] button.

Memory List

Title/Folder Chapter/Track

001 / 002

--- / --- --- / ---02 001 / 002 001 / --- --- / 008

Remote controller

No.

Chapter/Total

03 04 05 --- / --- --- / ---

Enter the title/folder, and chapter/ track numbers of the item to be inserted.

Press the [Enter] button.

The new item is inserted into the memory list.

Return

Current/Total

--- / 008

005 / 008

003 / 008

Deleting the memory list:

Press the Stop[ ] button to stop playback of the mem ory list, and while “Memory” is displayed on-screen, press the [CLR] button. The memory list is deleted and “Memory Clear” is displayed on-screen.

Notes:

• The entire memory list is cleared when the DPS-5.9 is set to Standby.

• The Memory Playback function cannot be used with some discs.

• JPEG images can be added to the memory list, however, they will not be displayed.

Page 41

Advanced Playback—Continued

Using Last Memory

DVD

With the Last Memory function you can resume playback from where you left off even if another disc has been removed. Last Memory also remembers the soundtrack and subtitle languages that you were using.

Remote controller

Notes:

• The Last Memory function can store the settings for DVD-Video disc.

• The Last Memory function will not work while a menu is being displayed on-screen.

• The Last Memory function may not work with some DVD-Video discs.

During playback, press the [Last Memory] button.

The last memory point for the disc is stored, “LAST MEM” appears on the display.

If the [Last Memory] button is pressed again, the last memory point will be updated.

To stop playback, press the Stop [] button once or twice.

Now you may remove the disc and turn off the DPS-5.9.

To resume playback, load the disc and then press the Play [ ] button.

The Last Memory dialog box appears, as shown.

Last Memory is set. Start playback from memory location ?

Ye s No Memory Clear

To resume playback from last memory point, select “Yes,” and then press [Enter].

To start playback from the beginning, select “No,” and then press [Enter].

To start playback from the beginning and delete the last memory point, select “Memory Clear,” and then press [Enter].

Selecting Camera Angles

DVD

Some DVD-Video discs feature multiple camera angles that allows you to view scenes from different angles. If the currently playing DVD-Video disc features multiple camera angles, the camera indicator appears on the display. Such a disc usually has the multiple camera angle logo ( ) printed on its sleeve notes.

Remote controller

Notes:

•With some DVD-Video discs you may not be able to select different camera angles even though the camera

indicator is displayed.

•With some DVD-Video discs you can select camera angles from a menu.

• Some DVD-Video discs won’t allow you to select different camera angles while playback is paused.

Press the [Angle] button repeatedly to cycle through the available camera angles.

The number of the currently selected camera angle appears on-screen. For example, on a disc with three camera angles, you’d see 1/3, 2/3, and 3/3.

Selecting Languages & Audio Formats

DVD

Some DVD-Video discs feature soundtracks in several languages and audio formats (e.g., Dolby Digital or DTS). Music DVD-Video discs sometimes feature soundtracks in several audio formats, such as PCM or Dolby Digital 5.1. See the disc’s sleeve notes for details

Remote controller

Notes:

•With DVD-Video discs, when you stop playback and cancel the Resume function (see page 29), the soundtrack language will revert to your default language (see page 48), or the disc’s default language.

•With some discs, selecting another soundtrack may cause the picture to skip momentarily.

•With some DVD-Video discs you need to select soundtracks from a menu, and you may not be able to select other soundtracks during playback.

During playback, press the [Audio] button repeatedly to cycle through the available soundtracks.

The name of the selected soundtrack appears on-screen for several seconds.

Page 42

Advanced Playback—Continued

Selecting Subtitles

DVD

Some DVD-Video discs feature subtitles in several languages. See the disc’s sleeve notes for details.

Subtitle

Stop

Enter

Zoom / Aspect

Display

Play

Remote controller

Notes:

•With DVD-Video discs, when you stop playback and cancel the Resume function (see page 29), the subtitle language will revert to your default subtile language (see page 48), or the disc’s default subtitle language.

•With some DVD-Video discs you can select subtitles from a menu, and you may not be able to select subtitles during playback.

During playback, press the [Subtitle] button repeatedly to cycle through the available subtitles.

The name of the selected subtitle appears on-screen for several seconds.

To turn off subtitles, use the [Subtitle] button to select Off.

Zooming

JPEG

DVD-V

With the Zoom function you can enlarge any part of the picture.

Remote controller

During playback or while playback is paused, press and hold the [Zoom] button for 2 seconds.

“Zoom x 1.0” appears on-screen.

Remote controller

Press the [Zoom] again repeatedly to Zoom in.

The number of zoom steps available depends on the resolution of the disc or ﬁle.

After the maximum zoom, the picture returns to its normal size.

To see other areas of the picture while zoomed, use the remote

controller’s arrow [ ], [ ], [ ], [] buttons.

Page 43

Advanced Playback—Continued

Notes:

• The Zoom function may not work with some discs.

• The Zoom function can also be used during slowmotion playback.

• The Zoom function cannot be used with HD JPEG playback or disc menus.

•You can use the Fast Forward [ ] and Fast Reverse [] buttons to zoom in and out during a slideshow.

Setting the View Mode

JPEG

DVD-V

With the View Mode function you can adjust the aspect of the picture so that it fits your TV screen.

Remote controller

Notes:

• This setting does not apply to DVD menus.

• The View Mode can also be changed by using the onscreen menu(see page 46).

Press the [Aspect] button.

“View Mode 1” appears on-screen.

Press the [Aspect ] again repeatedly to select the viewmode options:

Nomal, View mode1, View mode2, View mode3

Displaying Information

DVD

The information displayed depends on the type of disc, as follows:

■ DVD-Video

Onscreen:

• Current/total title number, elapsed title time, remaining title time, total title time, selected soundtrack, selected subtitle, and the number of available camera angles.

• Current/total chapter number, elapsed chapter time, remaining chapter time, and total chapter time.

Display:

• Elapsed chapter time

• Remaining title time

■ Audio CD

Onscreen:

• Current/total track number, elapsed track time, remaining track time, and total track time.

• Current/total track number, elapsed disc time, remaining disc time, and total disc time.

Display:

• Elapsed track time

• Remaining track time

• Elapsed disc time

• Remaining disc time

■ MP3, WMA

Onscreen:

• Current/total folder number, current/total track number in the folder, elapsed track time, remaining track time, and total track time.

Display:

• Elapsed track time

• File name

•Folder name

•Total number of folders

You can display various information about the current disc, title, chapter, or track as follows.

Remote controller

During playback, press the [Display] button.

Various information appears on-screen. The operating status (e.g., Stop, Play,

Resume), and disc type information is displayed along the top of the screen.

■ JEPG

Display:

•Folder number, track number

• File name

•Folder name

•Total number of folders

Page 44

Conﬁguring the DPS-5.9

This chapter explains the various functions and settings of the on-screen setup menus. Functions and settings are arranged into six menus: Picture, Audio, Language, Display, Operation Setting, and

Initial Setup. The following table lists all the functions and settings, with a brief description and page number where you can ﬁnd full

details.

Menu Setting Description Page #

TV Shape Select the aspect ratio that matches your TV. 45

View Mode Stretch the picture to ﬁt your TV screen. 46

HDMI Output Setting Turn HDMI video output on or off. 46


Audio

Language

Display

Operation Setting

Initial Setup TV Shape

Progressive Setting Set the component video output to progressive or interlaced. 46

HD Resolution Select the video resolution for the HDMI OUT. 46

HD JPEG Mode For displaying JPEG images at a high resolution on a HDTV. 46

Video Black Level Choose a video black level. 47

Brightness Adjust the picture brightness. 47

Sharpness Adjust the picture sharpness. 47

PAL Output Setting (Australian model only)

Digital/HDMI Audio Out

Linear PCM Out

Dynamic Range Control Set the Dynamic Range function. 47

On-Screen Language

Disc Menu Language Select your preferred language for disc menus. 48

Audio Language Select your preferred language for soundtracks. 48

Subtitle Language Select your preferred language for subtitles. 48

On-Screen Display Turn on or off on-screen messages and indicators. 48

On-Screen Display Color Select a color for on-screen setup menus and messages. 48

Background Select a background color for when playback is stopped. 48

Screen Saver Set the Screen Saver function. 48

Parental Lock Set the Parental Lock function. 49

Security Code Change a security code for use with parental lock. 49

HDMI Control Turn on or off RIHD control over HDMI. 50

Power Control Turn on or off RIHD power control over HDMI. 50

Direct Change Turn on or off RIHD direct change over HDMI. 50

Auto Power Off Sets the Auto power off function. 50

HDMI Output Setting

On-Screen Language

Convert the disc’s video format. 47

Settings for the digital signal output by the optical, coaxial, and HDMI digital audio outputs.

Select whether or not the DPS-5.9 downsamples 96 kHz digital audio.

Select a language for the on-screen setup menus and messages.

This menu appears automatically the very ﬁrst time you turn on your DPS-5.9. (These settings are available in other menus.)

Page 45

Conﬁguring the DPS-5.9—Continued

Enter

Setup

Using the On-screen Setup Menus

This section explains how to use the on-screen setup menus.

Remote controller

Turn on your DPS-5.9 and TV.

On your TV, select the video input to which the DPS-5.9 is connected.

Press the [Setup] button.

The on-screen setup menu appears, as shown.


TV Shape

View Mode

HDMI Output Setting

Progressive Setting

HD Resolution

HD Jpeg mode

Video Black Level

Brightness

Sharpness

: 16:9 Compressed

: Normal

: On

: Interlace

: Auto

: Off

: Light

: 4

Use the remote controller’s navigation buttons to navigate the menus.

Use the Left/Right [ ]/[ ] buttons to move left or right. Use the Up/Down [ ]/[ ] buttons to move up or down.

When you’ve selected an item, press the [Enter] button to see the available options.

Use the navigation buttons to select the options, and press the [Enter] button to conﬁrm your selection.

Press the [Return] button to go back one step.

Remote controller

When you’ve ﬁnished, press the [Setup] button again.

The on-screen setup menu closes.

Picture Menu

TV Shape

With this setting you can select a picture format to match the aspect ratio of your TV.

4:3 Letter box: Choose this

option if you have a standard TV (4:3 aspect ratio). When you watch widescreen DVD-Video movies, the entire picture will be visible and there will be black bars at the top and bottom of the screen, as shown.

4:3 Pan Scan: Choose this

option if you have a standard TV (4:3 aspect ratio) and want to use the full height of the screen when watching widescreen DVD-Video movies. In order to use the full height of the screen, the picture will be cropped on both sides, as shown. This option won’t work with discs that don’t support pan and scan.

16:9 Widescreen: Choose this option if you have a

widescreen TV (16:9 aspect ratio). Depends on TV, the picture appears stretched when watching programs in 4:3 format.

16:9 Compressed (default):

Choose this option if you have a widescreen TV (16:9 aspect ratio) and the picture appears stretched when watching programs in 4:3 format. Some widescreen TVs have a setting to correct this. If your TV doesn’t, and 4:3 programs appear stretched, select this option to correct the problem.

Notes:

• This setting does not apply to DVD menus.

• When the HDMI OUT signal is at a resolution of 720p, 1080i, or 1080p programs in 4:3 format will appear stretched, so we recommend that you select the 16:9 Compressed option.

•With some DVD-Video discs this setting may have no effect. See the disc’s sleeve notes to see which picture format is used.

Page 46

Conﬁguring the DPS-5.9—Continued

View Mode

With this setting you can adjust the aspect of the picture so that it ﬁts your TV screen. Due to your TV’s aspect ratio setting and the DVD’s aspect ratio, black bars may appear above and below the picture or at the sides and the aspect of the picture may be unsuitable. In this case, use this setting to adjust the aspect of the picture as you like.

Normal (default): The picture is displayed in its

original aspect ratio.

View Mode 1: The picture is stretched horizontally

to make it ﬁt the height of the screen.

View Mode 2: The picture is stretched vertically to

make it ﬁt the width of the screen.

View Mode 3: The picture is stretched horizontally

and vertically to make it ﬁt the screen.

Tip:

The view mode can also be changed by using the remote controller’s [Aspect] button.

Note:

• This setting does not apply to DVD menus.

HDMI Output Setting

With this setting you can turn the HDMI video output on or off. See page 27 for more information.

On (default): Video is output by the HDMI OUT. Off: Video is not output by the HDMI OUT.

Progressive Setting

With this setting you can set the component video output to progressive or interlaced. While the HDMI Output Setting is set to On, this setting is ﬁxed at Interlace and cannot be changed. See page 27 for more information.

Interlace: Component video output is interlaced.

Progressive:

Notes:

• When Progressive is selected, no video is output by the composite video, S-Video, and HDMI outputs.

Component video output is progressive.

HD Resolution

With this setting you can set the video resolution for the HDMI OUT.

Auto (default): The resolution is automatically

scaled to the preferred resolution of the TV connected to the HDMI OUT. If Auto is selected but the DPS-5.9 doesn’t support the resolution preferred by the TV, the resolution will be 480p/576p.

480i (480i/576i): The setting displayed depends on

the country in which you purchased the DPS-5.9. 720 x 480i 60 Hz or 720 x 576i 50 Hz

480p (480p/576p): The setting displayed depends on

the country in which you purchased the DPS-5.9. 720 x 480p 60 Hz or 720 x 576p 50 Hz

720p: 1280 x 720p 50/60 Hz 1080i: 1920 x 1080i 50/60 Hz 1080p: 1920 x 1080p 50/60 Hz

Tip:

When the HDMI Output Setting is set to On, you can also change this setting by using the remote controller’s [Resolution] button (see page 27).

Note:

• If Auto selected but the DPS-5.9 doesn’t support the resolution preferred by the TV, the resolution will be 480p/576p.

HD JPEG Mode

If your TV is connected to the HDMI OUT and the HDMI resolution is set to 720p, 1080i, or 1080p, this setting allows you to display your JPEG pictures in high deﬁnition.

On: JPEG pictures displayed in high deﬁnition. Off (default): JPEG pictures displayed as normal.

Notes:

• If your TV is connected to a video output other than the HDMI OUT, or the HD Resolution set to something other than 720p, 1080i, or 1080p, even if this setting is set to On, your JPEG pictures will not be displayed in high deﬁnition.

• When using HD JPEG, it may take a while to display each picture. And the Zoom function cannot be used. Also, on-screen status messages such as “Play” and “Stop” are not displayed.

• When On is selected, and JPEG pictures are being displayed in high deﬁnition via the HDMI OUT, nothing is output by the other video outputs.

Page 47

Conﬁguring the DPS-5.9—Continued

Video Black Level

With this setting you can adjust the picture blackness of analog video output.

Light: Blacks are lighter, and the entire picture

becomes lighter.

Dark: Blacks are darker, and the entire picture

becomes darker. On the North American model, Light is the default setting. On the Australian model, Dark is the default setting.

Brightness

With this setting you can adjust the picture brightness.

1-7: 1 is the darkest. 7 is the brightest. The default

brightness is 4 (default).

Sharpness

With this setting you can adjust the picture sharpness.

1-7: 1 is the softest. 7 is the sharpest. The default

sharpness is 4 (default).

PAL Output Setting (Australian model only)

With this setting you can specify how the DPS-5.9 outputs video signals.

AUTO (default): Use this option to watch PAL and

NTSC format discs. The DPS-5.9 does not convert

the video format. When you play a PAL disc, the

video output will be PAL format. And when you play

an NTSC disc, it’ll be NTSC format. Your TV must

support NTSC playback in order to watch NTSC for-

mat discs.

NTSC: Use this option if you want to play only

NTSC format discs. When you play a PAL disc, the

DPS-5.9 will convert PAL format video signals to

NTSC-compatible format.

PAL: Use this option if your TV doesn’t support

NTSC playback, or the picture is distorted when

watching NTSC discs. The DPS-5.9 will convert

NTSC format video signals to PAL-compatible for-

mat.

Note:

• This setting can also be changed by pressing and hold-

ing the Up Standby] button.

button, and then pressing [On/

Audio Menu

Digital/HDMI Audio Out

With this setting you can conﬁgure the optical, coaxial, and HDMI digital outputs.

All (default): Dolby Digital and DTS signals are out-

put as they are.

PCM: Dolby Digital signals are down mixed to 2

channels and output as PCM.

Off: No digital signals are output.

Linear PCM Out

With this setting you can conﬁgure the DPS-5.9 to output digital audio with higher sampling rates (e.g., 96 kHz) as it is or down sample it to 48 kHz.

If the AV component you connect to the DPS-5.9’s digital audio outputs supports 96 kHz digital audio, select Down Sample Off. Otherwise, select Down Sample On.

Down Sample On: 96 kHz digital audio is down

sampled and output at 48 kHz.

Down Sample Off (default): 96 kHz digital audio is

output as it is.

Notes:

• Some copy-protected DVD-Video discs may use 96 kHz digital audio only for A/D conversion to the analog audio outputs.

•With some discs, even if you select Down Sample Off, the digital audio will be down sampled to 48 kHz, and in some cases may not be output by the DPS-5.9’s digital audio outputs.

Dynamic Range Control (Dolby Digital only)

With the Dynamic Range Control function you can reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels—ideal for watching movies late at night when you don’t want to disturb anyone.

On: The dynamic range of Dolby Digital material is

compressed.

Off (default): The full dynamic range is preserved.

Notes:

• The impact of the Dynamic Range Control function depends on the Dolby Digital material that you are playing and with some material there will be little or no effect.

• When the DPS-5.9 is set to Standby, this function is automatically set to off.

Page 48

Conﬁguring the DPS-5.9—Continued

Language Menu Display Menu

On-Screen Language

With this setting you can select a language for the onscreen setup menus and messages.

Select one of the displayed language.

Disc Menu Language

With this setting you can select your preferred language for disc menus. When you play a DVD-Video disc with multiple language disc menus, your preferred language will be selected automatically.

Select “Others” if you can’t ﬁnd your language displayed. See “Selecting Other Languages” on page 50.

Notes:

• Not all DVD-Video discs have menus in multiple languages.

•Even if a DVD-Video disc has menus in multiple languages, this setting may not always work.

• If a DVD has only one menu language, that will be used.

•With some DVD-Video discs you can select languages from a menu.

Audio Language

With this setting you can select your preferred language for soundtracks. When you play a DVD-Video disc with multiple language soundtracks, your preferred language will be selected automatically.

Select “Others” if you can’t ﬁnd your language displayed. See “Selecting Other Languages” on page 50.

Notes:

• Not all DVD-Video discs have soundtracks in multiple languages.

•Even if a DVD-Video disc has soundtracks in multiple languages, this setting may not always work.

• If a DVD has only one soundtrack, that will be used.

•With some DVD-Video discs you can select languages from a menu.

Subtitle Language

With this setting you can select your preferred language for subtitles. When you play a DVD-Video disc with multiple language subtitles, your preferred language will be selected automatically.

Select “No Subtitle” if you don’t want subtitles displayed. Select “Others” if you can’t ﬁnd your language. See “Selecting Other Languages” on page 50.

Notes:

• Not all DVD-Video discs have subtitles.

•Even if a DVD-Video disc has subtitles in multiple languages, this setting may not always work.

• If a DVD has only one subtitle language, that will be used.

•With some DVD-Video discs you can select subtitles from a menu.

On-Screen Display

With this setting you can turn on or off on-screen messages, such as “Play,” “Stop,” and “Resume.”

On (default): On-screen messages are displayed. Off: On-screen messages are not displayed.

On-Screen Display Color

With this setting you can set the color and theme of the Disc navigation window.

Pearl (default):

Sapphire:

Amethyst:

Garnet:

Background

With this setting you can select the color of the background that’s displayed when the DPS-5.9 is stopped.

Blue:

Gray:

Graphic (default):

the On-Screen Display Color setting is used.

The theme picture speciﬁed for

Screen Saver

With the Screen Saver function you can protect your TV against screen burn-in, which can occur when the same image or menu is displayed for a long time.

On (default): Screen saver on. Off: Screen saver off.

When the Screen Saver function is set to On, and DVD-Video playback is stopped for 15 minutes, the Screen Saver function automatically displays a moving image.

Once the screen saver has been activated, you can cancel it by pressing the Play [ ] button.

Note:

• The Screen Saver function also works with audio CDs and MP3/WMA/JPEG discs.

Page 49

Conﬁguring the DPS-5.9—Continued

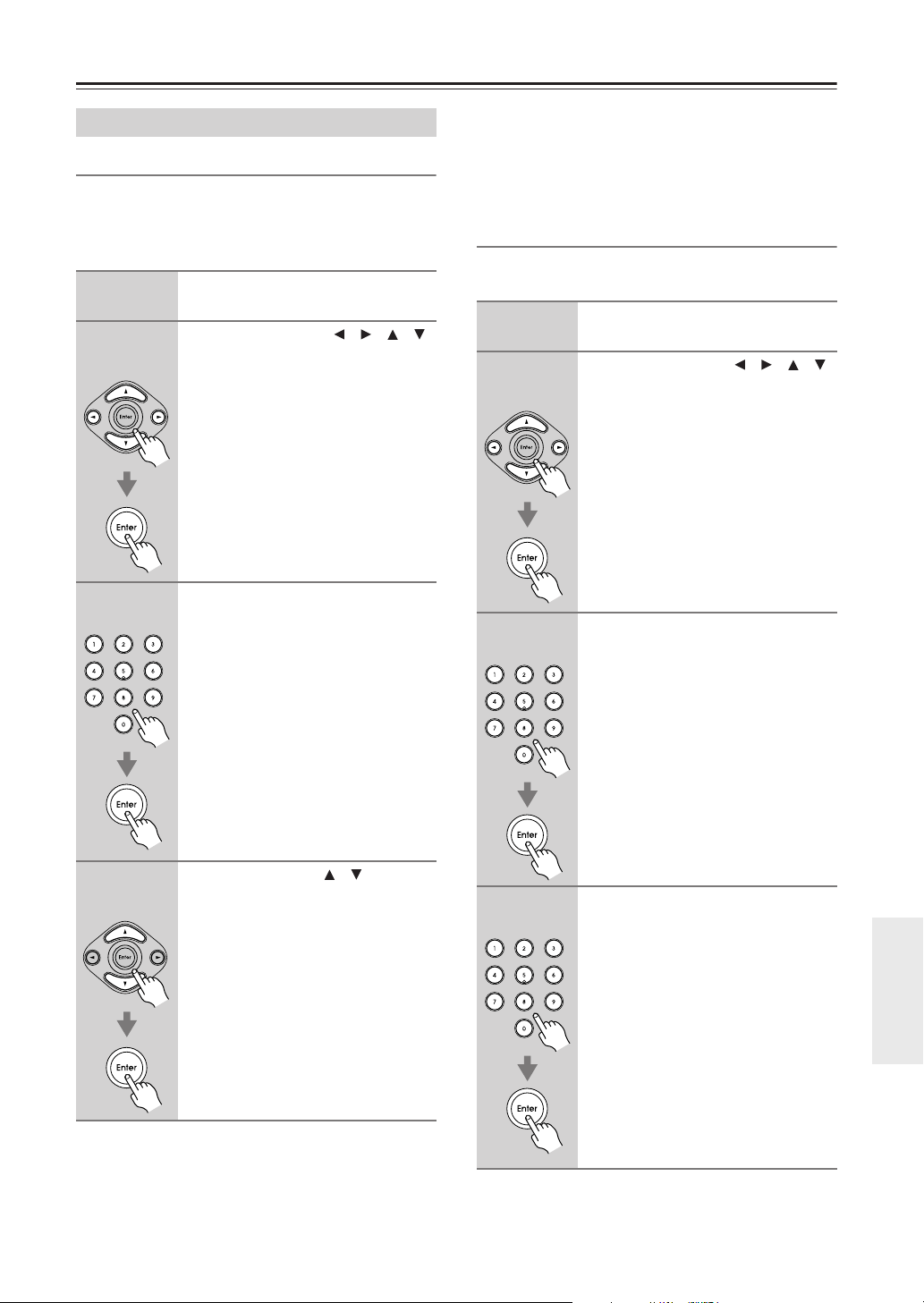

Operating Setting Menu

Parental Lock

With the Parental Lock function you can block access to certain scenes that the authors have ﬂagged as being unsuitable for children.

To use parental lock, you must set a security code.

Remote controller

Select “Operation Setting” menu in the setup.

Use the navigation [ ]/[ ]/[ ]/[ ] buttons to select “Parental Lock”, and then press the [Enter] button.

The security code input screen appears.

Enter the security code using the remote controller’s number buttons, and then press the [Enter] button.

The default security code is “8888.” You can change the security code in the next step.

• Not all discs use parental lock. See the disc’s sleeve notes for details.

• Discs with parental lock may cut certain scenes, replace certain scenes with children-friendly scenes, or prevent playback of the entire disc.

Change the Security Code

To change the Security Code, conﬁrm your existing code then enter a new one.

Remote controller

Select “Operation Setting” menu in the setup.

Use the navigation [ ]/[ ]/[ ]/[ ] buttons to select “Security Code”, and then press the [Enter] button.

The security code input screen appears.

Enter the existing security code using the remote controller’s number buttons, and then press the [Enter] button.

The default security code is “8888.” Even if a new security code has been entered, the code “8888” can still be used.

Once the security code has been entered, the new security code input screen appears.

Remote controller

Notes:

• When entering a security code, you can use the [CLR] button to delete the numbers entered so far, if necessary.

Use the Up/Down [ ]/[ ] buttons to change the level of parental lock, and then press the [Enter] button.

At level 8 parental lock is off, with level 1 being the strictest level.

Remote controller

Note:

• If you forget your security code, enter “8888” instead. “8888” is a security code that can always be used.

Enter the new security code using the remote controller’s number buttons, and then press the [Enter] button.

The new security code has been set.

Page 50

Conﬁguring the DPS-5.9—Continued

HDMI Control

With this setting, you can turn RIHD control over HDMI on or off.

On (default): RIHD control on. Off: RIHD control off.

Notes:

• RIHD (Remote Interactive over HDMI) is Onkyo’s implementation of CEC (Consumer Electronics Control), which allows integrated system control over HDMI and is part of the HDMI standard. In addition to Integra/Onkyo AV components, it allows interoperability with CEC-compatible AV components and TVs made by other manufacturers. However, operation with components other than RIHD-compatible components or recommended components cannot be guaranteed.

• Select Off if a connected component is incompatible or you’re not sure about its compatibility.

• If operation is unreliable when set to On, select Off instead.

Power Control

With this setting, you can turn RIHD power control over HDMI on or off.

On (default): RIHD power control on. Off: RIHD power control off.

Notes:

• The Power Control setting can be set only when the HDMI Control setting is set to On.

• When set to On, the DPS-5.9 can be turned on or off automatically along with the other RIHD-compatible components in the system.

• HDMI power control only works with RIHD-compatible components that support it and may not work properly with some components due to their settings or compatibility.

• When set to On, the DPS-5.9 consumes more power.

Auto Power Off

The Auto power off function automatically turns off the DPS-5.9 after 20 minutes of inactivity.

Initial Setup Menu

This menu appears automatically the very ﬁrst time you turn on the DPS-5.9. See “First Time Setup” on page 26 for more information.

TV Shape—see page 45

HDMI Output Setting—see page 46

On-Screen Language—see page 48

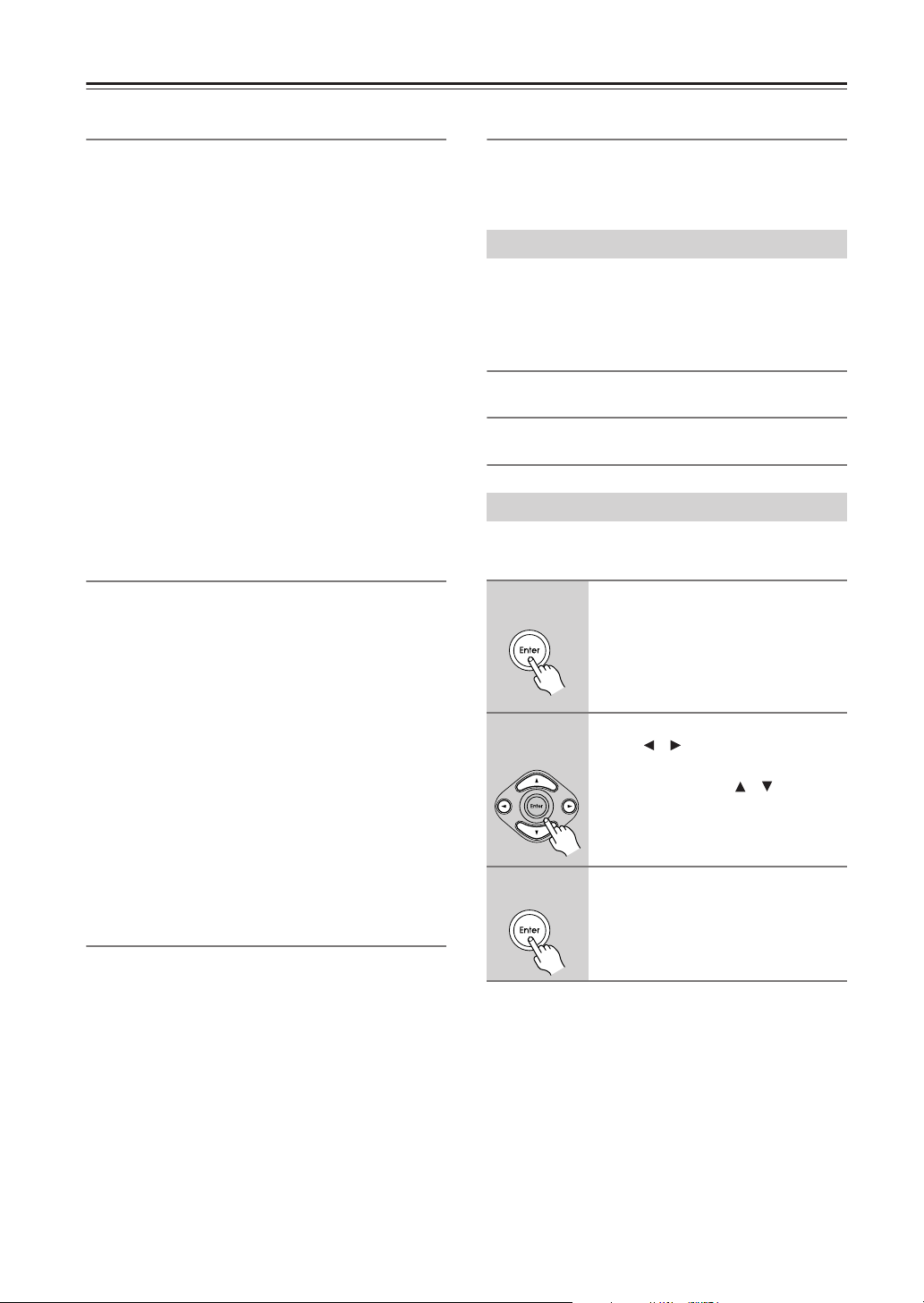

Selecting Other Languages

This section explains how to select other languages for disc menus, audio, and subtitles.

Remote controller

Select “Others” from the Disc Menu Language, Audio Language, or Subtitle menu, and then press [Enter].

The language code boxes appear.

Use the remote controller’s Left/ Right [ ]/[ ] buttons to select the code boxes.

Use the Up/Down [ ]/[ ] buttons to enter a language code.

See adjacent table for language codes.

When you’ve ﬁnished, press the [Enter] button.

Direct Change

With this setting, you can turn RIHD direct change over HDMI on or off.

On (default): RIHD direct change on. Off: RIHD direct change off.

Notes:

• The Direct Change setting can be set only when the HDMI Control setting is set to On.

• When set to On, when playback is started on the DPS-5.9, it will automatically be selected as the input source on an RIHD-compatible TV or AV receiver.

• HDMI direct change only works with RIHD-compatible components that support it and may not work properly with some components due to their settings or compatibility.

Page 51

Conﬁguring the DPS-5.9—Continued

Language Code List

Use this list when specifying other languages.

Language Code Language Code

Japanese JA Kirghiz KY English EN Latin LA French FR Lingala LN German DE Laothian LO Italian IT Lithuanian LT Spanish ES Latvian LV Chinese ZH Malagasy MG Dutch NL Maori MI Por tuguese PT Macedonian MK Swedish SV Malayalam ML Russian RU Mongolian MN Korean KO Moldavian MO Greek EL Marathi MR Afar AA Malay MS Abkhazian AB Maltese MT Afrikaans AF Burmese MY Amharic AM Nauru NA Arabic AR Nepali NE Assamese AS Norwegian NO Aymara AY Occitan OC Azerbaijani AZ Oromo OM Bashkir BA Oriya OR Byelorussian BE Panjabi PA Bulgarian BG Polish PL Bihari BH Pashto, Pushto PS Bislama BI Quechua QU Bengali BN Rhaeto-Romance RM Tibetan BO Kirundi RN Breton BR Romanian RO Catalan CA Kinyarwanda RW Corsican CO Sanskrit SA Czech CS Sindhi SD Welsh CY Sangho SG Danish DA Serbo-Croatian SH Bhutani DZ Sinhalese SI Esperanto EO Slovak SK Estonian ET Slovenian SL Basque EU Samoan SM Persian FA Shona SN Finnish FI Somali SO Fiji FJ Albanian SQ Faroese FO Serbian SR Frisian FY Siswati SS Irish GA Sesotho ST Scots-Gaelic GD Sundanese SU Galician GL Swahili SW Guarani GN Tamil TA Gujarati GU Telugu TE Hausa HA Tajik TG Hindi HI Thai TH Croatian HR Tigrinya TI Hungarian HU Turkmen TK Armenian HY Tagalog TL Interlingua IA Setswana TN Interlingue IE Tonga TO Inupiak IK Turkish TR Indonesian IN Tsonga TS Icelandic IS Tatar TT

Language Code Language Code

Hebrew IW Twi TW Yiddish JI Ukrainian UK Javanese JW Urdu UR Georgian KA Uzbek UZ Kazakh KK Vietnamese VI Greenlandic KL Volapük VO Cambodian KM Wolof WO Kannada KN Xhosa XH Kashmiri KS Yoruba YO Kurdish KU Zulu ZU

Page 52

Troubleshooting

Symptom Possible cause Remedy

Can’t turn on the DPS-5.9?

No picture?

No sound?

The power cord is not connected. Connect the power cord to a suitable wall outlet.

External interference is affecting the DPS-5.9’s digital circuitry.

The wrong input source is selected on your TV.

The video cable is not connected properly. On the Australian model, the PAL Output Setting is

set incorrectly for the connected TV.

No HDMI Video Output?

The HDMI Output Setting is set to Off. Your TV doesn’t support HDMI Resolution set-

tings of 480i, 720p, 1080i, and 1080p.

No Component Video Output?

Your TV does not support progressive scanning.

HD JPEG mode is on.

No S-Video or Composite Video Output?

The Progressive setting is set to Progressive.

The Progressive setting is not set to interlaced.

Your TV is connected with S-video or composite video and HD JPEG mode is selected.

The wrong input source is selected on your hi-ﬁ amp or AV receiver.

The audio cable is not connected properly. Check the audio cable and correct as necessary (page 19–23). Your hi-ﬁ amp or AV receiver is turned off. Turn on your hi-ﬁ amp or AV receiver.

The Digital/HDMI Audio Out setting is incorrect.

No Sound from the HDMI OUT?

The Digital/HDMI Audio Out setting is set to Off.

DPS-5.9 is connected to the DVI jack on your TV or AV receiver.

The HDMI setting on your TV or AV receiver is set to DVI.

Your TV or AV receiver doesn’t support Dolby Digital.

Your TV or AV receiver doesn’t support DTS.

Your TV or AV receiver doesn’t support 96 kHz PCM.

Turn off the DPS-5.9, wait ﬁve seconds, then try turning it on again. If that fails, disconnect the power cord from the wall outlet, wait 10 seconds, reconnect it, then try turning it on again.

On your TV, select the input to which the DPS-5.9 is connected (page 26).

Check the video cable and correct as necessary (pages 19, 22). Change the PAL Output Setting to the correct setting for the

TV.

Try pressing the [HDMI] button on the front panel to switch the HDMI OUT on, and then pressing the [Resolution] button repeatedly to get picture (page 27).

Press the [HDMI] button on the front panel to turn off HDMI, and then press the [Resolution] button to change the component video output to interlace (page 27). Make sure the PROGRESSIVE indicator is not on.

When HD JPEG mode is on, no video is output by the COMPONENT VIDEO OUT (page 46).

When set to Progressive, only the component video output outputs video.

HD JPEG mode can only be used with the HDMI OUT.

On your hi-ﬁ amp or AV receiver, select the input to which the DPS-5.9 is connected (page 21).

Check the Digital/HDMI Audio Out setting and correct as necessary (page 47).

Change the Digital/HDMI Audio Out setting to either All or PCM (page 47).

You won’t hear any sound from the HDMI output if the source component is only DVI/HDCP-Compatible.

Change the HDMI setting on your TV or AV receiver to HDMI.

Change the Digital/HDMI Audio Out setting to PCM (page 47).

The DPS-5.9 will not be able to play DTS format audio or soundtracks. On your DVD-Video disc’s audio setup menu, select an audio format other than DTS (see “Audio Formats” on page 22).

Change the Linear PCM Out setting to Down Sample On (page 47).

Page 53

Troubleshooting—Continued

Symptom Possible cause Remedy

No Digital Audio Output?

The Digital/HDMI Audio Out setting is set to Off.

Your TV or AV receiver doesn’t support Dolby Digital.

No sound?

The picture distorts occasionally?

Picture instability or noise?

Can’t start playback?

Can’t play MP3/WMA/ JPEG discs?

Can’t select MP3 ﬁles?

Can’t play WMA ﬁles?

Can’t view JPEG ﬁles?

The message “BAD DISC” appears on the display?

Buttons on the DPS-5.9 and remote controller don’t work?

Your TV or AV receiver doesn’t support DTS.

The source material is DTS and the Digital/ HDMI Audio Out setting is set to PCM.

Your TV or AV receiver doesn’t support 96 kHz PCM.

The disc is dirty. Remove the disc and clean it (page 10). You’re using the Fast Forward or Fast Reverse

function. The DPS-5.9 is connected to your TV via a

VCR or other video equipment and its copy protection system is affecting the picture.

No disc loaded. Load a disc (page 28). The disc is incompatible. Load only compatible discs (page 8). The disc is upside down. Load the disc the correct way up (page 28). The disc is not centered in the disc tray. Place the disc in the center of the disc tray (page 28). The disc is dirty. Remove the disc and clean it (page 10). The disc supports parental lock and the Paren-

tal Lock function is on. The disc is not ISO9660 Level 2 format or

Joliet. The disc has not been ﬁnalized. Finalize the disc (page 9). MP3 ﬁles without a “.mp3” or “.MP3” ﬁle-

name extension are not recognized.

The sampling rate or bit-rate is not supported.

WMA ﬁles without a “.wma” or “.WMA” ﬁlename extension are not recognized.

The WMA ﬁle’s copyright option is on. Don’t use the copyright option (page 9). JPEG ﬁles without a “.jpg” or “.JPG” ﬁlename

extension are not recognized.

The JPEG ﬁle is too big.

The disc is dirty. Remove the disc and clean it (page 10).

Power supply voltage ﬂuctuations and other anomalies, such as static electricity, can interfere with normal operation.

Change the Digital/HDMI Audio Out setting to either All or PCM (page 47).

Change the Digital/HDMI Audio Out setting to PCM (page 47).

The DPS-5.9 will not be able to play DTS format audio or soundtracks. On your DVD-Video disc’s audio setup menu, select an audio format other than DTS.

When the Digital/HDMI Audio Out setting is set to PCM, DTS sources are not output by the digital audio outputs. Change the setting to ALL.

Change the Linear PCM Out setting to Down Sample On (page 47).

A little picture distortion may occur when using these functions. This is normal.

Connect the DPS-5.9 directly to your TV (page 19).

Turn off the Parental Lock function (page 49).

Use only ISO9660 Level 2 format or Joliet discs (page 9).

Use the correct ﬁlename extension (page 9).

Use MP3 ﬁles that use the supported sampling rates and bit-rates.

Use the correct ﬁlename extension (page 9).

Use JPEG ﬁles that are less than 5 megabytes (page 9).

Turn off the DPS-5.9, wait ﬁve seconds, then turn it on again. If that doesn’t resolve the issue, disconnect the power cord from the wall outlet, wait ﬁve seconds, reconnect it, then try again.

Page 54

Troubleshooting—Continued

There are no batteries in the remote controller. Install new batteries (page 17). The batteries are ﬂat. Replace with new batteries (page 17).

The batteries are installed incorrectly.

You’re not pointing the remote controller at

Buttons on the DPS-5.9 work OK but those on the remote controller don’t?

The functions don’t work?

RIHD doesn’t work?

the DPS-5.9’s remote sensor.

You’re too far away from the DPS-5.9.

A strong light source is interfering with the DPS-5.9’s remote sensor.

If the DPS-5.9 is installed in a cabinet with colored glass doors, the remote controller may not work reliably when the doors are closed.

The cable is not connected properly. Make sure the cable is connected properly.

The DPS-5.9 is not connected with an analog audio connection.

The HDMI Control setting is set to Off. Set the HDMI Control setting to On. A component in your system does not support

CEC. A component in your system has HDMI CEC

control turned off.

One of the components in your system does not support CEC or is not connected correctly.

There’s a problem with the HDMI cable that you’re using.

The DPS-5.9’s settings may be changed by disconnecting and connecting the HDMI cable.

An cable is connected to the DPS-5.9 and RIHD function is on.

Check the batteries and correct as necessary (page 17).

Point the remote controller at the DPS-5.9’s remote sensor (page 17).

Use the remote controller closer to the DPS-5.9 (page 17). The remote controller has a range of approximately 16 ft. (5 meters).

Make sure that the DPS-5.9 is not subjected to direct sunshine or inverter-type ﬂuorescent lights. Relocate if necessary.

Open the doors, or use a cabinet without colored glass.

To use , you must make an connection and an analog audio connection (RCA) between the DPS-5.9 and the AV receiver, even if they are connected digitally.

Refer to the component’s instruction manual to see if it supports CEC.

Refer to the component’s instruction manual and turn on HDMI CEC control.

Refer to the other component’s instruction manual to see if it supports CEC and check your connections.

Try another HDMI cable.

Display a video manually on the TV.

Disconnect the cable.

Page 55

Troubleshooting—Continued

■ Abnormal Behavior

The DPS-5.9 contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely even that this should happen, unplug the power cord from the wall outlet, wait at least ﬁve seconds, and then plug it back in again. Alternatively, press and hold the Stop [ ] button until “RESET” appears on the display (about 10 seconds).

■ Restoring the Default Settings

To reset the DPS-5.9 to its factory defaults, turn it on, and when “INTEGRA DVD” has disappeared from the display, while holding down the Stop [ ] button, press the [On/Standby] button. “INITIALIZE” appears on the display. When the reset is complete, “COMPLETE” is displayed, and the DPS-5.9 enters Standby mode.

■ HDMI Status Mode

If you’re using an HDMI connection and there’s no picture or sound, you can check the status of the HDMI connection by pressing and holding down the DPS-5.9’s [Display] button for 10 seconds until a message ID appears on the display. Look up the message ID in the following tables and check the HDMI connections and settings on both the DPS-5.9 and the connected component.

HDMI connection and HDMI-related settings status

Displayed ID Message

MSG ID 001 MSG ID 005 MSG ID 015

Tu rn the DPS-5.9 and the connected component off, then turn them on again. Make sure that the connected component is working properly and that the DPS-5.9’s HDMI settings are conﬁgured suitably for that component.

No picture from the HDMI connection

Displayed ID Message

MSG ID 002 The HDMI Output Setting is set to Off. Change it to On (page 27).

MSG ID 003 MSG ID 004

MSG ID 005 MSG ID 006 MSG ID 007

MSG ID 008

MSG ID 009

No sound from the HDMI connection

Displayed ID Message

MSG ID 010

MSG ID 011 MSG ID 014

MSG ID 012 MSG ID 013

MSG ID 016 MSG ID 017

The HDMI cable may not be connected properly. Check the connection. Also, make sure the HDMI input on the TV or AV receiver is correctly conﬁgured to received HDMI.

Make sure the HDMI input on the TV or AV receiver is correctly conﬁgured to received HDMI. The connected component may not support HDCP. Make sure the connected component supports HDCP. Tu rn the DPS-5.9 and the connected component off, then turn them on again. The DPS-5.9 may be connected to the other component’s DVI jack. Some TVs may not properly receive the video output by the DPS-5.9. Also, with a DVI connection, there will be no sound.

The DPS-5.9’s HD Resolution setting is set to 480i or 720p or 1080i or 1080p. If your TV doesn’t support these resolutions, select another resolution (page 27).

The connected component may not be receiving the HDMI signal properly. Tr y selecting another resolution on the DPS-5.9 (page 27).

The DPS-5.9’s Digital/HDMI Audio Out setting is set to Off. Change the setting to All or PCM (page 47).

The connected component may not support 96 kHz PCM. Set the DPS-5.9’s Linear PCM Out setting to Down Sample On (page 47).

The connected component may not support Dolby Digital. Set the DPS-5.9’s Digital/HDMI Audio Out setting to PCM (page 47).

The connected component may not support DTS. The DPS-5.9 cannot play the DTS format audio or soundtrack. On your DVD-Video disc’s audio setup menu, select an audio format other than DTS.

Page 56

Speciﬁcations

Signal System

Composite Video Output/Impedance 1.0 V (p-p)/75Ω negative sync, RCA

S-Video Output/Impedance

Component Video Output/Impedance

Component Video Frequency Response

Frequency Response

DVD Linear Audio 4 Hz–44 kHz (96 kHz), 4 Hz–22 kHz (48 kHz)

Audio CD 4 Hz–20 kHz (44.1 kHz)

Signal to Noise Ratio 95 dB

Audio Dynamic Range 96 dB

THD (Total Harmonic Distortion) 0.007% (1 kHz)

Wow and Flutter Below threshold of measurability

Audio Output (Digital/Optical) –22.5 dBm

Audio Output/ Impedance (Digital /Coaxial) 0.5 Vp–p/ 75 Ω

Audio Output/Impedance (Analog) 2.0 V (rms), 540Ω

Power supply

Power Consumption 15 W

Stand-by Power Consumption 0.5 W

Dimensions (W x H x D) 435 X 80.4 X 311.6 mm (17-1/8" X 3-3/16" X 12-1/4")

Weight 3.7 kg (8.2 lbs.)

Operating Conditions Temperature/Humidity 5°C–35°C (41°F–95°F) / 5%–85%

Disc compatibility

DVD Linear Sound

Audio CD 4 Hz–20 kHz (44.1kHz)

North American model AC 120 V, 60 Hz

Australian model AC 100–240 V, 50/60 Hz

NTSC (North American model), PAL/NTSC (Australian model)

Y: 0.7 V (p-p)/75Ω negative sync, 4-pin mini DIN, C: 0.286 V (p-p)/75Ω

Y: 1.0 V (p-p)/75Ω, P

5 Hz–50 MHz

4 Hz–44 kHz (96kHz) 4 Hz–22 kHz (48kHz)

AUDIO CD, DVD-VIDEO, MP3, WMA, CD-R and RW, DVD

R(include DL) and RW(VIDEO MODE), JPEG-CD

Disc that have not been property ﬁnalized may only be partially playable or not playable at all.

B/PR: 0.7 V (p-p)/75Ω, RCA/BNC

Speciﬁcations and features subject to change without notice.
