Integra DHC-40.2 Owner's Manual

Download

Page 1

AV Controller

DHC-40.2

Instruction Manual

Page 2

Important Safety Instructions

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

AVIS

PORTABLE CART WARNING

S3125A

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by fol-

lowing the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and

no objects

filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.

Page 3

Precautions

1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not user-serviceable. If you cannot turn on the unit, contact the dealer from whom you purchased this unit.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

Pressing On/Standby to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure War nin g

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by the dealer from whom you purchased this unit.

8. Handling Notes

• If you need to transport this unit, use the original

packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit for

a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm after

prolonged use. This is normal.

• If you do not use this unit for a long time, it may not

work properly the next time you turn it on, so be sure to use it occasionally.

For U.S. models

FCC Information for User CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer from whom you purchased this unit or an experienced radio/TV technician for help.

For Canadian Models

NOTE:

PLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:

CAUTION:

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

THIS CLASS B DIGITAL APPARATUS COM-

TO PREVENT ELECTRIC SHOCK,

Modèle pour les Canadien

REMARQUE:

LA CLASSE B EST CONFORME À LA NORME NMB003 DU CANADA.

Sur les modèles dont la fiche est polarisée:

ATTENTION:

TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

CET APPAREIL NUMÉRIQUE DE

POUR ÉVITER LES CHOCS ÉLEC-

Page 4

Thank you for purchasing an Integra AV controller.

Note

Batteries (AA/R6)

Remote control sensor

AV controller

Approx. 16 ft. (5 m)

Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV controller. Please retain this manual for future reference.

Supplied Accessories

Make sure you have the following accessories:

Indoor FM antenna (➔ 20)

AM loop antenna (➔ 20)

Power cord (➔ 20)

Speaker setup microphone (➔ 28)

Remote controller and two batteries (AA/R6)

In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color.

Using the Remote Controller

Installing the Batteries

• If the remote controller doesn’t work reliably, try replacing the batteries.

• Don’t mix new and old batteries or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

• Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.

Aiming the Remote Controller

To use the remote controller, point it at the AV controller’s remote control sensor, as shown below.

Page 5

Contents

Introduction

Important Safety Instructions ......................................... 2

Precautions....................................................................... 3

Supplied Accessories...................................................... 4

Using the Remote Controller .......................................... 4

Features ............................................................................ 6

Front & Rear Panels......................................................... 8

Front Panel..................................................................... 8

Display............................................................................ 9

Rear Panel ................................................................... 10

Remote Controller.......................................................... 11

Controlling the AV Controller........................................ 11

About Home Theater...................................................... 12

Enjoying Home Theater................................................ 12

Connections

Connecting the AV Controller....................................... 13

Connecting Your Speakers .......................................... 13

Bi-amping the Front Speakers...................................... 15

About AV Connections ................................................. 16

Connecting Your Components with HDMI.................... 17

Connecting Your Components ..................................... 18

Connecting Integra/Onkyo u Components ................ 19

Connecting Antenna..................................................... 20

Connecting the Power Cord ......................................... 20

Which Connections Should I Use?............................... 21

Turning On & Basic Operations

Turning On/Off the AV Controller ................................. 23

Turning On ................................................................... 23

Turning Off ................................................................... 23

Basic Operations............................................................ 24

Selecting the Language Used for

the Onscreen Setup Menus ....................................... 24

Playing the Connected Component.............................. 24

Displaying Source Information ..................................... 24

Setting the Display Brightness ..................................... 24

Muting the AV Controller .............................................. 25

Using the Sleep Timer.................................................. 25

Using the Home Menu.................................................. 25

Changing the Input Display .......................................... 26

Using Headphones....................................................... 26

Using Easy Macros ...................................................... 26

Audyssey MultEQ

Speaker Setup ........................................................... 27

Listening to the Radio ................................................... 30

Using the Tuner............................................................ 30

Presetting FM/AM Stations........................................... 31

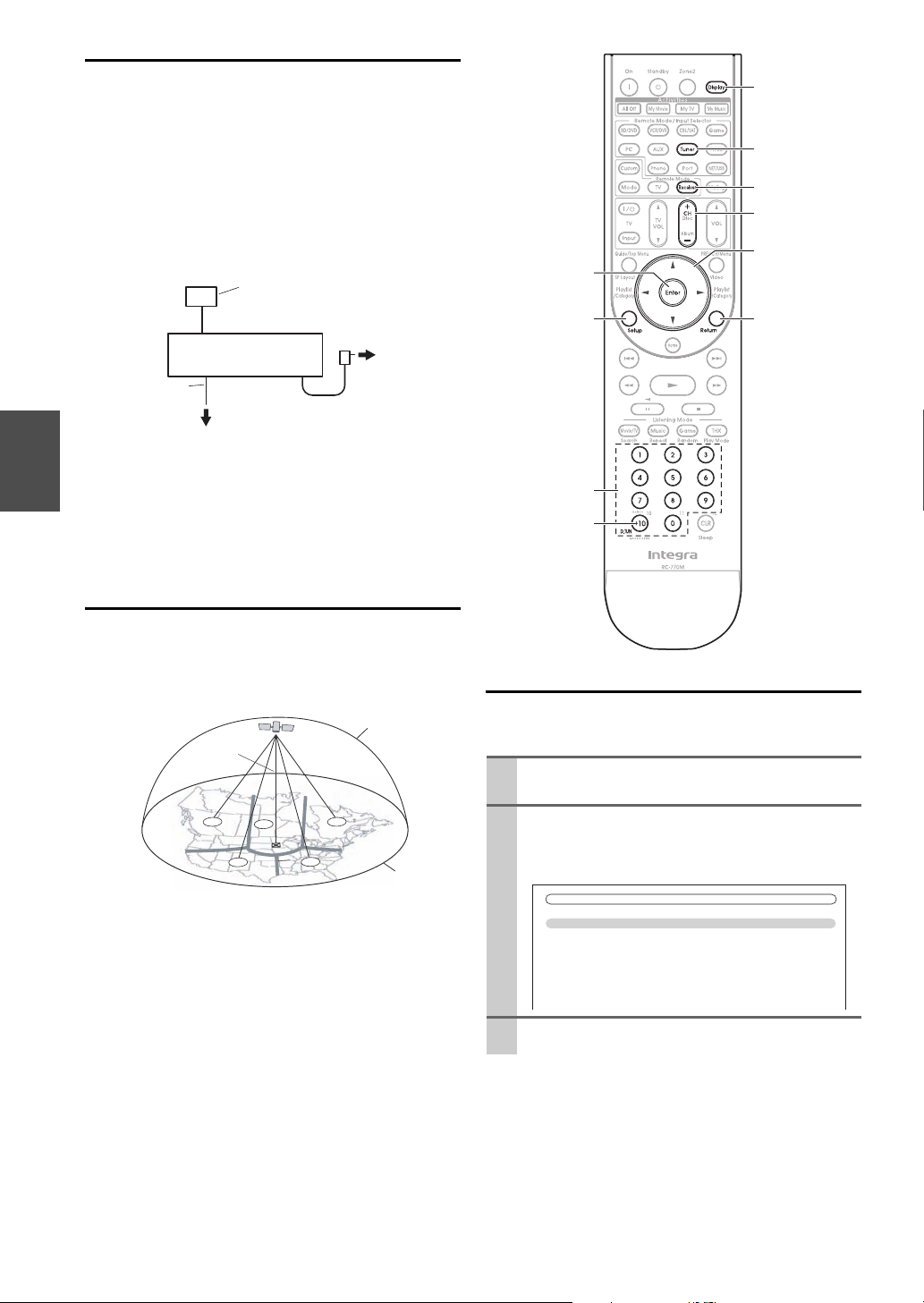

Listening to SIRIUS Satellite Radio

Recording ....................................................................... 37

Using the Listening Modes ........................................... 38

Selecting Listening Modes ........................................... 38

About Listening Modes................................................. 39

Room Correction and

............................ 31

Advanced Operations

Advanced Setup .............................................................44

On-screen Setup Menus............................................... 44

Common Procedures in Setup Menu ........................... 44

Input/Output Assign ......................................................45

Speaker Setup.............................................................. 48

Audio Adjust .................................................................51

Source Setup................................................................ 53

Listening Mode Preset.................................................. 58

Miscellaneous............................................................... 58

Hardware Setup............................................................ 59

Lock Setup.................................................................... 61

Using the Audio Settings ..............................................61

NET/USB.......................................................................... 64

About NET ....................................................................64

Connecting the AV Controller .......................................64

Listening to Internet Radio............................................ 65

Playing Music Files on a Server ...................................66

Remote Playback from

Media Server/Personal Computer.............................. 69

Network Settings .......................................................... 70

About USB.................................................................... 72

Multi Zone ....................................................................... 74

Connecting Zone 2 .......................................................74

Setting the Multi Zone................................................... 75

Using Zone 2 ................................................................ 75

Using the 12V Triggers................................................. 77

Using the Remote Controller in

Zone 2 and Multiroom Control Kits ............................ 78

Controlling iPod & Other Components

Controlling iPod ............................................................. 79

Connecting the iPod Directly to the USB Port ..............79

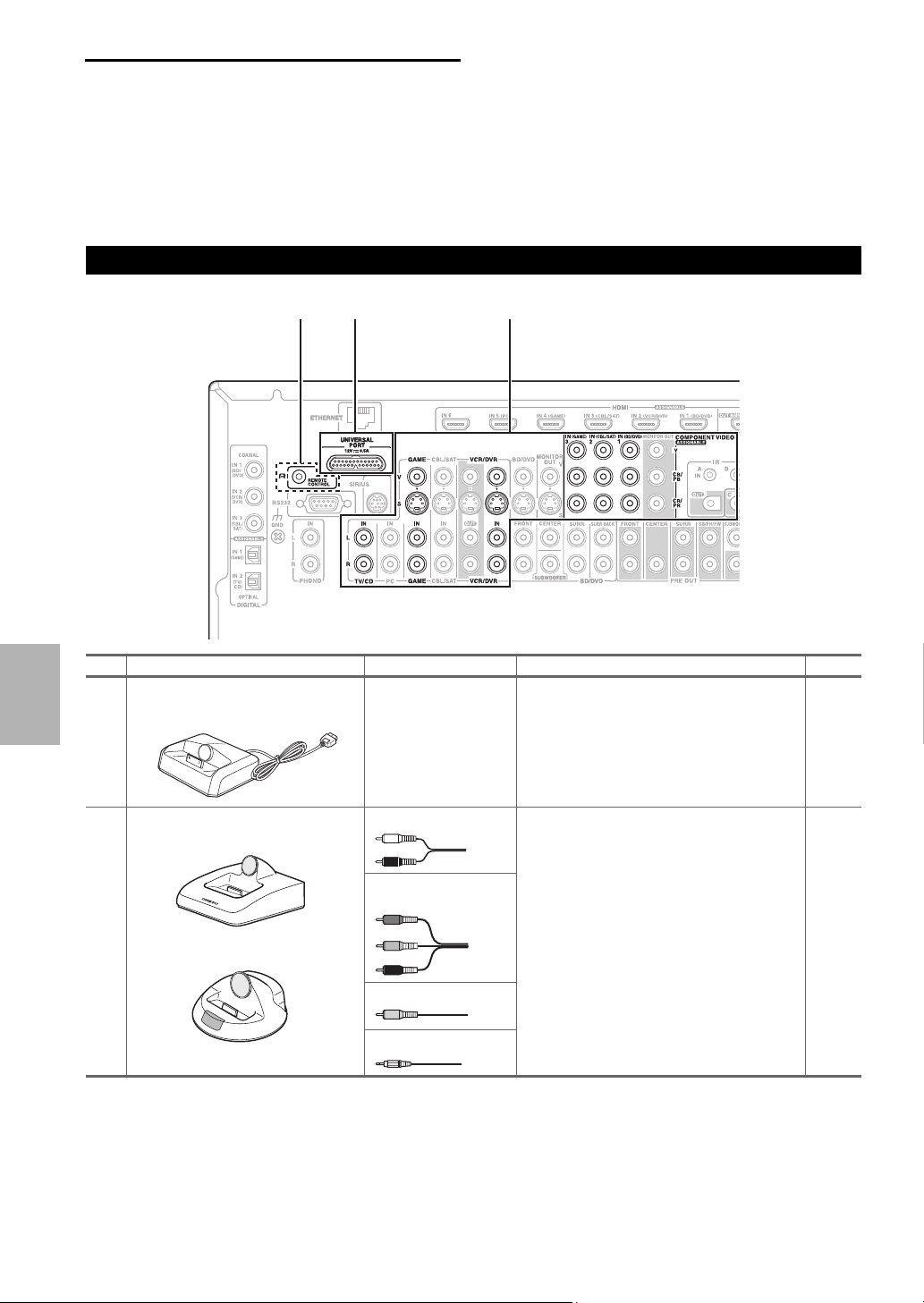

Connecting an Onkyo Dock.......................................... 80

Using the Onkyo Dock.................................................. 81

Controlling Your iPod.................................................... 82

Controlling Other Components..................................... 84

Preprogrammed Remote Control Codes ......................84

Looking up for Remote Control Code ...........................84

Entering Remote Control Codes................................... 85

Remote Control Codes for

Integra/Onkyo Components Connected via u ......... 85

Resetting Remote Mode Buttons.................................. 86

Resetting the Remote Controller ..................................86

Controlling Other Components .....................................86

Learning Commands ....................................................88

Using Normal Macros ................................................... 89

Others

Troubleshooting ............................................................. 90

Specifications ................................................................. 95

About HDMI..................................................................... 96

Using an RIHD-compatible TV, Player, or Recorder

Video Resolution Chart.................................................. 99

..... 97

To reset the AV controller to its factory defaults, turn it on and, while holding down VCR/DVR, press On/Standby (➔ 90).

Page 6

Features

Processing

• THX Ultra2 Plus*1 Certified

• HDMI Video Upscaling (to 1080p Compatible) with Faroudja DCDi Cinema Enhancement

• HDMI (Ver.1.4a with Audio Return Channel, 3D), DeepColor, x.v.Color DTS-HD High Resolution Audio, Dolby TrueHD

*10

, Lip Sync, DTS*2-HD Master Audio,

Dolby Digital Plus, DSD and Multi-CH PCM

• Dolby Pro Logic IIz

– New Surround Format (front-

high)

• Audyssey DSX™

for New Surround Channels (front-

wide/front-high)

• 4 DSP Modes for Gaming; Rock/Sports/Action/RPG

• Non-Scaling Configuration

•A-Form Listening Mode Memory

• Direct Mode

• Music Optimizer

for Compressed Digital Music files

• 192 kHz/24-bit D/A Converters

• Powerful and Highly Accurate 32-bit Processing DSP

• Jitter Cleaning Circuit Technology

Connections

• 7 HDMI*6 Inputs (1 on front panel) and 2 Outputs

• Onkyo p for System Control

• 5 Digital Inputs (2 Optical/3 Coaxial)

• Component Video Switching (3 Inputs/1 Output)

• Universal Port for the Optional Dock for iPod*9/HD Radio™*7 tuner module

• Dual Subwoofer Pre Out

• Internet Radio vTuner/Pandora/Rhapsody/Slacker/Mediafly/Napster)

Services available may vary depending on the region.

• Network Capability for Streaming Audio Files

• Bi-Amping Capability for FL/FR with SBL/SBR

• Analog RGB Video Input (D-sub 15) for PC

• Front-Panel USB Input for Memory Devices and iPod

Connectivity (SIRIUS Internet Radio*8/

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “Surround EX” and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license from Audyssey Laboratories™. U.S. and foreign patents pending. Audyssey MultEQ Audyssey DSX™, Audyssey Dynamic Volume Audyssey Dynamic EQ marks of Audyssey Laboratories.

Music Optimizer™ is a trademark of Onkyo Corporation.

“HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.”

HD Radio™ and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corporation. To receive HD Radio broadcasts, you must install an Onkyo UP-HT1 HD Radio tuner module (sold separately).

are registered trademarks and trade-

and

Miscellaneous

• 40 SIRIUS*8/FM/AM Presets

®*4

• Audyssey MultEQ

to Correct Room Acoustic Prob-

lems

®*4

• Audyssey Dynamic EQ

• Audyssey Dynamic Volume

for Loudness Correction

®*4

to Maintain Optimal

Listening Level and Dynamic Range

•Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/200 Hz)

• A/V Sync Control Function (up to 250 ms)

• Auto Power-down Function

• Preprogrammed (with onscreen display setup) RI-Compatible Learning Remote with 4 Activities and ModeKey LEDs

• ISF (Imaging Science Foundation) Video Calibration

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

*10

“x.v.Color” is a trademark of Sony Corporation.

Page 7

*11

Rhapsody and the Rhapsody logo are registered trademarks of RealNetworks, Inc.

THX Ultra2 Plus

Before any home theater component can be THX Ultra2 Plus certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Ultra2 Plus logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. THX Ultra2 Plus requirements define hundreds of parameters, including power amplifier performance, and pre-amplifier performance and operation for both digital and analog domains. THX Ultra2 Plus receivers also feature proprietary THX technologies (e.g., THX Mode) which accurately translate movie soundtracks for home theater playback.

“Xantech” is a registered trademark of Xantech Corporation.

“Niles” is a registered trademark of Niles Audio Corporation.

“DLNA®, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance.”

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited consumer uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Page 8

Front & Rear Panels

y z

de fhgijklmn o p q

s u

Front Panel

The actual front panel has various logos printed on it. They are not shown here for clarity. The page numbers in parentheses show where you can find the main explanation for each item.

a On/Standby button (➔ 23) b Standby indicator (➔ 23) c Zone 2 indicator (➔ 75) d Tone and –/+ buttons (➔ 62, 76) e Remote control sensor (➔ 4) f Display (➔ 9) g Movie/TV button (➔ 38) h Music button (➔ 38) i Game button (➔ 38) j Dimmer button (➔ 24) k Memory button (➔ 31) l Tuning Mode button (➔ 30) m Display button (➔ 24) n Setup button (➔ 44)

o Tuning, Preset (➔ 30), arrow and Enter buttons p Return button q Ma

ster Volume control (➔ 24)

r Zone 2 and Off buttons (➔ 75) s Zone 2 Level buttons (➔ 76) t Phones jack (➔ 26) u AUX I nput HDMI jack (➔ 17) v Input selector buttons (➔ 24) w USB port (➔ 72, 79) x AUX I nput Video jack (➔ 18) y AUX I nput Audio jacks (➔ 18) z Setup Mic jack (➔ 28)

Page 9

Display

bda e

fgh

jkl

For detailed information, see the pages in parentheses.

a Speaker/channel indicators b Listening mode and format indicators (➔ 38, 62) c NETWORK indicator (➔ 65, 66, 70) d Tuning indicators

AUTO indicator (➔ 30) TUNED indicator (➔ 30) FM STEREO indicator (➔ 30)

e SLEEP indicator (➔ 25) f Bi AMP indicator (➔ 15)

g Headphone indicator (➔ 26) h Audyssey indicator (➔ 27, 50)

Dynamic EQ indicator (➔ 53) Dynamic Vol indicator (➔ 53)

i Message area j USB indicator (➔ 72, 79) k Volume level (➔ 24) l MUTING indicator (➔ 25) m Audio input indicators

Page 10

Rear Panel

ab

c

a DIGITAL IN COAXIAL and OPTICAL jacks b RS232 terminal

Terminal for control.

c u REMOTE CONTROL jack d ETHERNET port e UNIVERSAL PORT jack f MONITOR OUT V and S jacks g HDMI IN and HDMI output (HDMI OUT MAIN and

HDMI OUT SUB) jacks

h COMPONENT VIDEO IN and MONITOR OUT

jacks

i IR IN (A/B) and OUT jacks j 12V TRIGGER OUT (A/B/C) jacks k ZONE 2 OUT V jack l FM ANTENNA jack and AM ANTENNA terminal m PC IN port n AC INLET

qrs

o GND screw p SIRIUS antenna jack q Composite, S-Video and analog audio jacks

(BD/DVD IN, VCR/DVR IN and OUT, CBL/SA GAME IN, PC IN, TV/CD IN and PHONO IN)

r Multichannel input jacks

(FRONT L/R, CENTER, SURR L/R and SUBWOOFER)

s PRE OUT jacks

(FRONT L/R, CENTER, SURR L/R, SB/FH/FW L/R, SUBWOOFER and ZONE 2 L/R)

SB···Surround Back, FH···Front High, FW···Front Wide

See “Connecting the AV Controller” for connection information (➔ 13 to 22).

L/R, SURR BACK

nh j

T IN,

Page 11

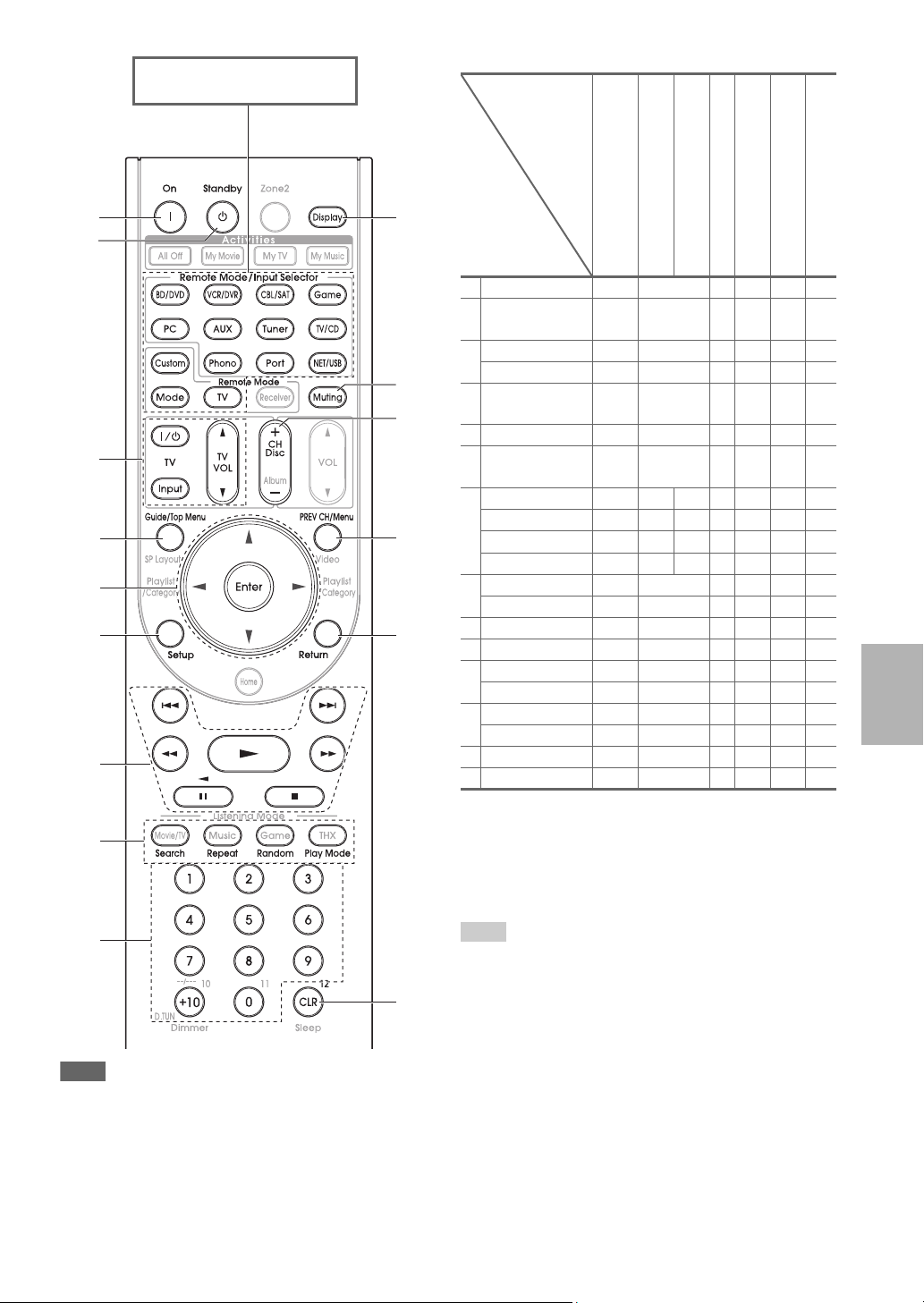

Remote Controller

Controlling the AV Controller

To control the AV controller, press Receiver to select Receiver mode. You can also use the remote controller to control Onkyo Blu-ray Disc/DVD player, CD player and other components. See “Entering Remote Control Codes” for more details (➔ 85).

For detailed information, see the pages in parentheses.

a Standby button (➔ 23) b On button (➔ 23) c Activities buttons (All Off, My Movie, My TV and

My Music) (➔ 26, 89)

d Remote Mode/Input Selector buttons

(BD/DVD, VCR/DVR, CBL/SAT, Game, PC, AUX, Tune r, TV/CD, Phono, Port and NET/USB) (➔ 24)

e Arrow q/w/e/r and Enter buttons f Setup button (➔ 44) g Listening Mode buttons (Movie/TV, Music,

Game and THX) (➔ 38)

h Dimmer button (➔ 24) i Display button (➔ 24) j Muting button (➔ 25) k VOL l Return button m Home button (➔ 25) n Sleep button (➔ 25)

■ Controlling the tuner

To control the AV controller’s tuner, press Tun er (or Receiver). You can select AM or FM by pressing Tun er repeatedly.

a Arrow q/w buttons (➔ 30) b D.TUN button (Tu ne r remote mode only) (➔ 30) c CH +/– button (➔ 31) d Number buttons (➔ 30)

q/w button (➔ 24)

When you want to change the remote controller mode without changing the current input source, press Mode and within about 8 seconds, press Remote Mode. Then, with the AV controller’s remote controller, you can control the component corresponding to the button you pressed.

SP Layout is not used for this model. Video functions as a short cut of Home.

Page 12

Corner position

1/3 of wall

position

Tip

• To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results.

About Home Theater

Enjoying Home Theater

Thanks to the AV controller’s superb capabilities, you can enjoy surround sound with a real sense of movement in your own home—just like being in a movie theater or concert hall. With Blu-ray Discs or DVDs, you can enjoy DTS and Dolby Digital. With analog or digital TV, you can enjoy Dolby Pro Logic IIx, DTS Neo:6, or Onkyo’s original DSP listening modes.

You can also enjoy THX Surround EX (THX-certified THX speaker system recommended).

abFront speakers (Left and Right)

These output the overall sound. Their role in a home theater is to provide a solid anchor for the sound image. They should be positioned facing the listener at about ear level, and equidistant from the TV. Angle them inward so as to create a triangle, with the listener at the apex.

c Center speaker

This speaker enhances the front speakers, making sound movements distinct and providing a full sound image. In movies it’s used mainly for dialog. Position it close to your TV facing forward at about ear level, or at the same height as the front speakers.

deSurround speakers (Left and Right)

These speakers are used for precise sound positioning and to add realistic ambience. Position them at the sides of the listener, or slightly behind, about 2 to 3 feet (60 to 100 cm) above ear level. Ideally they should be equidistant from the listener.

f Subwoofer(s)

The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one-third the width of the wall, as shown.

ghSurround back speakers (Left and Right)

These speakers are necessary to enjoy Dolby Digital EX, DTS-ES Matrix, DTS-ES Discrete, THX Surround EX, etc. They enhance the realism of surround sound and improve sound localization behind the listener. Position them behind the listener about 2 to 3 feet (60 to 100 cm) above ear level.

ijFront high speakers (Left and Right)

These speakers are necessary to enjoy Dolby Pro Logic IIz Height, and Audyssey DSX™. They significantly enhance the spatial experience. Position them at least 3.3 feet (100 cm) above the front speakers (preferably as high as possible) and at an angle slightly wider than the front speakers.

klFront wide speakers (Left and Right)

These speakers are necessary to enjoy Audyssey DSX. They significantly enhance the spatial experience. Position them well outside of the front speakers. See also about optimum speaker placement for Audyssey DSX.

http://www.audyssey.com/technology/dsx.html

Page 13

Connecting the AV Controller

Note

Surround back/

Front high/ Front wide

right speaker*

AV controller

Multichannel power amplifier

Front right

speaker

Center

speaker

Front left

speaker

Surround back/

Front high/ Front wide

left speaker*

Surround

left

speaker

Surround

right

speaker

Connecting Your Speakers

The AV controller is designed to be used with a separate multichannel power amplifier. You connect the AV controller’s PRE OUT jacks to the amplifier’s inputs, and connect your speakers to the amplifier’s speakers terminals. Speaker settings such as crossover frequency and distance are set on the AV controller.

Speaker Configuration

The following table indicates the channels you should use depending on the number of speakers that you have.

For 7.1-channel surround-sound playback, you need 7 speakers and a powered subwoofer.

Number of speakers 23456777

Front speakers ✔✔✔✔✔✔✔✔ Center speaker ✔ ✔✔✔✔✔ Surround speakers ✔✔✔✔✔✔ Surround back speaker Surround back speakers Front high speakers Front wide speakers

If you’re using only one surround back speaker, connect it to

*1*2

✔

the SURR BACK L terminals.

Front high, surround back and front wide speakers cannot be used at the same time.

No matter how many speakers you use, a powered subwoofer is recommended for a really powerful and solid bass. To get the best from your surround sound system, you need to set the speaker settings. You can do this automatically (➔ 27) or manually (➔ 48).

Connecting a Power Amplifier with RCA Inputs

You can connect the AV controller to a multichannel power amplifier with RCA input jacks by using a multichannel RCA audio cable or several stereo RCA audio cables. See your multichannel power amplifier’s instruction manual for more information on connecting speakers.

SURR OUND B A CK R GHT

SURR OUND RIGHT

FR ONT RIGHT

FR ONT

LEFT

SURR OUND LEFT CENTER

INPUT SELECT

OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT

Specify crossover frequency for the channel that you want to output in “Speaker Configuration” (➔ 48).

INPUT SELECT

NPUT

SELECT

SURR OUND B A CK LEFT

NPUT

SELECT

Page 14

Using Dipole Speakers

TV/screen

Dipole speakers

Normal speakers

Powered subwoofer

You can use dipole speakers for the surround and surround back speakers. Dipole speakers output the same sound in two directions.

Dipole speakers typically have an arrow printed on them to indicate how they should be positioned. The surround dipole speakers should be positioned so that their arrows point toward the TV/screen, while the surround back dipole speakers should be positioned so that their arrows point toward each other, as shown.

ab Front speakers c Center speaker de Surround speakers f Subwoofer(s) gh Surround back speakers ij Front high speakers kl Front wide speakers

Connecting the Powered Subwoofers

Using a suitable cable, connect the AV controller’s SUBWOOFER PRE OUT jack to an input on your powered subwoofer, as shown. If your subwoofer is unpowered and you’re using an external amplifier, connect the SUBWOOFER PRE OUT jack to an input on the amp.

You can connect the powered subwoofer with two SUBWOOFER PRE OUT jacks respectively. The same signal is output from each jack.

Page 15

Note

Bi-amping the Front Speakers

Tweeter (high)

AV controller

Multichannel power amplifier

Surround right

speaker

Front right speaker

Center speaker

Front left speaker

Surround left

speaker

Woofer (low)

The FRONT L/R and SURR BACK L/R outputs can be used with front speakers and surround back speakers, respec- tively, or bi-amped to provide separate tweeter and woofer feeds for a pair of front speakers that support bi-amping, providing improved bass and treble performance.

• When bi-amping is used, the AV controller is able to feed up to 5.1 speakers in the main room.

• For bi-amping, the FRONT L/R outputs feed the front speakers’ woofer terminals. And the SURR BACK L/R outputs feed the front speakers’ tweeter terminals.

• Once you’ve completed the bi-amping connections shown below and turned on the AV controller, you must set the “Speakers Type(Front)” setting to “Bi-Amp” to enable bi-amping (➔ 48).

• When making the bi-amping connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) terminals.

• Bi-amping can only be used with speakers that support bi-amping. Refer to your speaker manual.

See your multichannel power amplifier’s instruction manual for more information on connecting speakers.

SURR OUND B A CK RIGHT

INPUT SELECT

OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT

SURR OUND RIGHT

INPUT SELECT

FR ONT RIGHT

INPUT SELECT

CENTER

INPUT SELECT

FR ONT

LEFT

INPUT SELECT

SURR OUND LEFT

NPUT

SELECT

SURR OUND B A CK LEFT

INPUT SELECT

Page 16

Note

Caution

About AV Connections

HDMI cable Other cables

: Video & Audio

: Video : Audio

Game console

Blu-ray Disc/

DVD player

TV, projector, etc.

Game console

Blu-ray Disc/

DVD player

TV, projector, etc.

AV controllerAV controller

Right!

Wrong!

B/CB

PR/CR

Green

Blue

Red

Yellow

Orange

White

Red

Connected image with AV components

• Before making any AV connections, read the manuals supplied with your AV components.

• Don’t connect the power cord until you’ve completed and double-checked all AV connections.

• Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

• To prevent interference, keep audio and video cables away from power cords and speaker cables.

AV Cables and Jacks

Signal Cable Jack Description

Video and Audio

Video Component video Component video separates the luminance (Y) and color

HDMI HDMI connections can carry digital video and audio.

HDMI

difference signals (P

B/CB

, PR/CR), providing the best picture quality (some TV manufacturers label their component video sockets slightly differently).

Analog RGB This is a conventional analog interface to connect a PC and

S-Video S-Video separates the luminance and color signals and pro-

Composite video Composite video is commonly used on TVs, VCRs, and

Audio Optical digital

audio

OPTICAL

Coaxial digital audio

Analog audio (RCA)

Multichannel analog audio (RCA)

Available sampling rate for PCM input signal is 32/44.1/48/88.2/96 kHz. Even 176.4/192 kHz is effective in case of the HDMI connection.

• The AV controller does not support SCART plugs.

• The AV controller’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed.

Push plugs in all the way.

• To prevent shutter damage, hold the optical plug straight when inserting and removing.

a display device (also called D-Sub or D-subminiature).

vides better picture quality than composite video.

other video equipment. Optical digital connections allow you to enjoy digital

sound such as PCM

, Dolby Digital or DTS. The audio

quality is the same as coaxial. Coaxial digital connections allow you to enjoy digital

sound such as PCM

, Dolby Digital or DTS. The audio

quality is the same as optical. Analog audio connections (RCA) carry analog audio.

This cable carries multichannel analog audio and is typically used to connect DVD players with a 7.1-channel analog audio output. Several standard analog audio cables can be used instead of a multichannel cable.

Page 17

Tip

Note

Connecting Your Components with HDMI

Game console

VCR or DVD recorder/Digital Video Recorder

TV, projector, etc.

Satellite, cable, set-top box, etc.

Blu-ray Disc/DVD player

Camcorder

Personal computer

Connect your components to the appropriate jacks. The default input assignments are shown below.

✔: Assignment can be changed (➔ 46).

Jack Signal Components Assignable

Input HDMI IN 1 Audio/Video Blu-ray Disc/DVD player ✔

HDMI IN 2 VCR or DVD recorder/Digital Video Recorder ✔ HDMI IN 3 Satellite, cable, set-top box, etc. ✔ HDMI IN 4 Game console ✔ HDMI IN 5 Personal computer ✔ HDMI IN 6 Other components ✔ AUX INPUT HDMI Camcorder

Output HDMI OUT MAIN TV

HDMI OUT SUB Projector, etc.

Refer to “About HDMI” (➔ 96) and “Using an RIHD-compatible TV, Player, or Recorder” (➔ 97).

■ Audio return channel (ARC) function

Audio return channel (ARC) function enables an HDMI capable TV to send the audio stream to the HDMI OUT MAIN of the AV controller. To use this function, you must select the TV/CD input selector.

• To use ARC function, you must select the TV/CD input selector, your TV must support ARC function and “HDMI Control (RIHD)” is set to “On” (➔ 60).

• To listen to audio received by the HDMI IN jacks through your TV’s speakers: – Set the “TV Control” setting to “On” (➔ 61) for an p-compatible TV. – Set the “Audio TV Out” setting to “On” (➔ 59) when the TV is not compatible with p or the “TV Control” setting to “Off”.

– Set your Blu-ray Disc/DVD player’s HDMI audio output setting to PCM. – To listen to TV audio through the AV controller, see “Connecting Your Components” (➔ 18).

• When listening to an HDMI component through the AV controller, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV controller). If the TV power is off or the TV is set to another input source, this may result in no sound from the AV controller or the sound may be cut off.

•When the “Audio TV Out” setting is set to “On” (➔ 59) to hear from your TV’s speakers, by controlling the AV controller’s volume, the sound will be output from the AV controller’s speakers, too. When the speakers of p-compatible TV, by controlling the AV controller’s volume, the AV controller’s speakers will produce sound while the TV’s speakers are muted. To stop the AV controller’s speakers producing sound, change the settings, change your TV’s settings, or turn down the AV controller’s volume.

“TV Control” setting is set to “On” (➔ 61) to hear from

Page 18

Connecting Your Components

Front

Rear

Connect your components to the appropriate jacks. The default input assignments are shown below.

✔: Assignment can be changed (➔ 47).

No. Jack Signal Components Assignable

AUX Input Video Composite video Camcorder, etc

Audio L/R Analog audio

COMPONENT

VIDEO

DIGITAL COAXIAL IN 1 (BD/DVD) Digital audio Blu-ray Disc/DVD player ✔

MONITOR OUT Composite video

BD/DVD IN Analog audio, VCR/DVR IN VCR or DVD recorder/digital

CBL/SAT IN Satellite, cable, set-top box, etc. GAME IN Game console PC IN Analog audio Personal computer TV/CD IN TV, CD player,

PHONO IN UNIVERSAL PORT Analog audio/

PC IN Analog RGB Personal computer

Multichannel input Analog audio DVD player, DVD-Audio or

IN 1 (BD/DVD) Component video Blu-ray Disc/DVD player ✔ IN 2 (CBL/SAT) Satellite, cable, set-top box, etc. ✔ IN 3 (GAME) Game console ✔ MONITOR OUT TV, projector, etc.

IN 2 (VCR/DVR) VCR or DVD recorder/digital

IN 3 (CBL/SAT) Satellite, cable, set-top box, etc. ✔

OPTICAL IN 1 (GAME) Game console ✔

IN 2 (TV/CD) TV, CD player ✔

and S-Video

composite video and S-Video

video

video recorder

TV, projector, etc.

Blu-ray Disc/DVD player

video recorder

cassette tape deck, MD, CD-R, Turntable

Turntable Universal port optional dock

(UP-A1 etc.)

Super Audio CD-capable player, or an MPEG decorder

✔

Page 19

Note

L R

FRONT

BD/DVD

TV/CD

REMOTE CONTROL

ANALOG

AUDIO OUT

L R

ANALOG

AUDIO OUT

e.g., CD player

e.g., DVD player

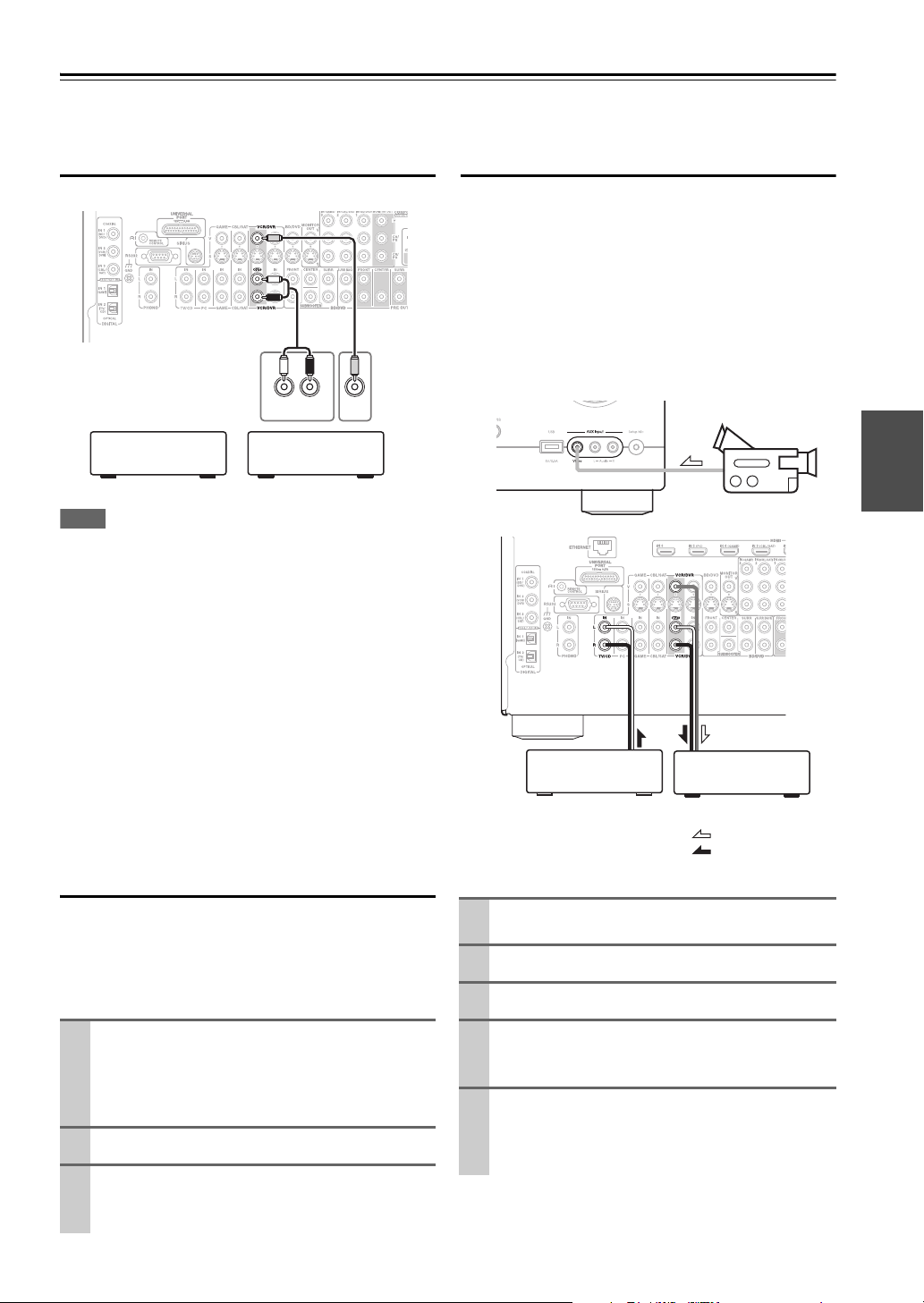

Connect a turntable (MM) that has built-in a phono preamp to TV/CD IN or connect it to PHONO IN with the phono preamp turned off. If your turntable (MM) doesn’t have a phono preamp, connect to PHONO IN. If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer to connect to PHONO IN. See your turntable’s manual for details. If your turntable has a ground wire, connect it to the AV controller’s GND screw. With some turntables, connecting the ground wire may produce an audible hum. If this happens, disconnect it.

When you connect your personal computer to PC IN and select PC input selector, video of the personal computer is output from HDMI outputs. However, because the AV controller selects the video input in the order of HDMI > component > analog RGB, if you have assigned HDMI IN to the PC input selector, the AV controller will output signals from HDMI IN in priority to PC IN.

To select the multichannel input, select the BD/DVD input selector and see “Audio Selector” (➔ 63). To adjust the subwoofer sensitivity for the multichannel input, see “Subwoofer Input Sensitivity” (➔ 47).

• The AV controller can output audio and video signals from the AUX INPUT jacks to the VCR/DVR OUT jacks.

• With connection D, you can listen and record audio from the external components while you are in Zone 2. You can listen and record audio from the external components in the main room; you can listen to the audio in Zone 2 as well.

• With connection C, you can enjoy Dolby Digital and DTS. (To record or listen in Zone 2 as well, use C and D.)

■ How to record the video

With the connections described above, you cannot record the video through the AV controller. To make a connection for video recording (➔ 37).

Connecting Integra/Onkyo u Components

Step 1:

Make sure that each Integra/Onkyo component is connected with an analog audio cable (connection D in the hookup examples) (➔ 18).

Step 2:

Make the u connection (see illustration below).

Step 3:

If you’re using an RI Dock, or cassette tape deck, change the Input Display (➔ 26).

With u (Remote Interactive), you can use the following special functions:

■ System On/Auto Power On

When you start playback on a component connected via u while the AV controller is on Standby, the AV con-

troller will automatically turn on and select that component as the input source.

■ Direct Change

When playback is started on a component connected via u, the AV controller automatically selects that compo-

nent as the input source.

■ Remote Control

You can use the AV controller’s remote controller to control your other u-capable Integra/Onkyo compo-

nents, pointing the remote controller at the AV controller’s remote control sensor instead of the component. You must enter the appropriate remote control code first (➔ 85).

•Use only u cables for u connections. u cables are supplied with Integra/Onkyo players (DVD, CD, etc.).

• Some components have two u jacks. You can connect either one to the AV controller. The other jack is for connecting addi-

tional u-capable components.

• Connect only Integra/Onkyo components to u jacks. Connecting other manufacturer’s components may cause a malfunction.

• Some components may not support all u functions. Refer to the manuals supplied with your other Integra/Onkyo components.

• While Zone 2 is on, the System On/Auto Power On and Direct Change u functions do not work.

• Do not use RI connections if you use HDMI Control (RIHD) (➔ 60).

Page 20

Note

Tip

Note

Connecting Antenna

Thumbtacks, etc.

Insert the plug fully into the jack.

Push.

Assembling the AM loop antenna.

Indoor FM antenna (supplied)

AM loop antenna (supplied)

Caution

• Be careful that you don’t injure yourself when using thumbtacks.

Insert wire. Release.

To AC wall outlet

This section explains how to connect the supplied indoor FM antenna and AM loop antenna. The AV controller won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.

• Once your AV controller is ready for use, you’ll need to tune into a radio station and position the antenna to achieve the best possible reception.

• Keep the AM loop antenna as far away as possible from your AV controller, TV, speaker cables, and power cords.

• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

• If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna.

Connecting the Power Cord

• Before connecting the power cord, connect all of your speakers and AV components.

• Turning on the AV controller may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV controller into a different branch circuit.

• Do not use a power cord other than the one supplied with the AV controller. The supplied power cord is designed exclusively for use with the AV controller and should not be used with any other equipment.

• Never disconnect the power cord from the AV controller while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the AV controller.

Step 1:

Connect the supplied power cord to the AV controller’s AC INLET.

Step 2:

Plug the power cord into an AC wall outlet.

Page 21

Note

Which Connections Should I Use?

Blu-ray Disc/DVD player, etc.

AV controller

TV, projector, etc.

Video Signal Flow Chart

Composite

S-Video Component HDMI

Composite

S-Video Component HDMI

PC IN

(Analog RGB)

AV controller

Composite

S-Video

Component

Video Signal Flow Chart

HDMI

TV, projector, etc

Blu-ray Disc/DVD player, etc.

S-Video Component

PC IN

(Analog RGB)

The AV controller supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your components. Use the following sections as a guide.

Video Connection Formats

Video component can be connected by using any one of the following video connection formats: composite video, S-Video, PC IN (Analog RGB), component video or HDMI, the latter offering the best picture quality. The AV controller can upconvert and downconvert between video formats, depending on the “Monitor Out” setting (➔ 45), which generally determines whether video signals are upconverted for the component video output or the HDMI output.

For optimal video performance, THX recommends that video signals pass through the system without upconversion (e.g., component video input through to component video output).

To by-pass video upconversion in the AV controller, simultaneously press the VCR/DVR and Return on the AV controller. While continuing to hold down the VCR/DVR, press Return to toggle until “Skip” appears on the display. Release both buttons.

To use the video upconversion in the AV controller, repeat the above process until “Use” appears on the display and release the buttons.

■ “Monitor Out” setting set to “HDMI Main” or “HDMI Sub”

Video input signals flow through the AV controller as shown, with composite video, S-Video, PC IN (Analog RGB) and component video sources all being upconverted for the HDMI output.

Use these settings if you connect the AV controller’s HDMI OUT MAIN or HDMI OUT SUB, respectively, to your TV.

The composite video, S-Video and component video outputs pass through their respective input signals as they are.

• If not connected to the same output you have selected in the “Moni-

■ “Monitor Out” setting set to “Both”, “Both(Main)” or “Both(Sub)”

Video input signals flow through the AV controller as shown, with composite video, S-Video, PC IN (Analog RGB) and component video sources all being upconverted for both HDMI outputs. Use these settings if you connect the AV

controller’s HDMI OUT MAIN and HDMI OUT SUB to your TVs.

The composite video, S-Video and component video outputs pass through their respective input signals as they are.

•The “Monitor Out” setting will be automatically switched to “Analog” (➔ 45) if not connected to both outputs when “Both” is

tor Out” setting, the “Monitor Out” setting will be automatically switched to “Analog” (➔ 22). In this case, the setting of the output resolution will be that for HDMI output (➔ 45). Moreover, it will be switched to “1080i” when “1080p” is selected, and to “Through” when “Auto ” is selected.

MONITOR OUT

 Both: Video signals are output from both HDMI outputs

at the resolution supported by both TVs. You cannot select “Resolution” setting.

 Both(Main): Video signals are output from both HDMI

outputs but HDMI OUT MAIN will become a priority; depending on the resolution, video signals may not be out-

MONITOR OUT

put from HDMI OUT SUB.

 Both(Sub): Video signals are output from both HDMI outputs but HDMI OUT SUB will become a priority; depend-

ing on the resolution, video signals may not be output from HDMI OUT MAIN.

selected or if not connected to a priority output when “Both(Main)” or “Both(Sub)” is selected.

Page 22

■ “Monitor Out” setting set to “Analog”

Blu-ray Disc/DVD player, etc.

AV controller

TV, projector, etc.

Composite

S-Video

Component

Video Signal Flow Chart

HDMI

PC IN (Analog RGB) input signal is output at 720p resolution.

S-Video Component

PC IN

(Analog RGB)

Blu-ray Disc/DVD player, etc.

AV controller

TV, projector, etc.

Composite

S-Video

Component

Video Signal Flow Chart

HDMI

OUT

*1 *

*1*

Blu-ray Disc/DVD player, etc.

AV c ontr olle r

TV, projector, etc.

HDMICoaxial Analog

Audio Signal Flow Chart

HDMI Analog

Multichannel

Depends on the “Audio TV Out” setting (➔ 59).

This setting is available, when “Audio Return Ch” setting is set to “Auto” (➔ 60), you must select the TV/CD input selector and your TV must support ARC function.

Only the front L/R channels are output.

Optical

Video input signals flow through the AV controller as shown, with composite video, S-Video and PC IN (Analog RGB) sources being upconverted for the component video output.

Use this setting if you connect the AV controller’s COMPONENT VIDEO MONITOR OUT to your TV.

Composite video is upconverted to S-Video and S-Video is downconverted to composite video. Note that these conversions only apply to the MONITOR OUT V and S outputs, not the VCR/DVR OUT V and S outputs.

The composite video, S-Video and component video outputs pass through their respective input signals as they are.

This signal flow also applies when the “Resolution” setting is set to “Through” (➔ 45).

Video Signal Flow and the Resolution Setting

When the “Monitor Out” setting is set to “Analog” (➔ 45), if the “Resolution” setting is set to anything other than “Through” (➔ 45), the video signal flow will be as shown here, with composite video and S-Video sources being upconverted for the component video output.

The composite video, S-Video, and component video outputs pass through their respective analog input signals as they are. HDMI input signals are not output.

MONITOR OUT

Audio Connection Formats

Audio component can be connected by using any of the following audio connection formats: analog, analog multichannel, optical, coaxial, or HDMI.

When choosing a connection format, bear in mind that the AV controller does not convert digital input signals for analog line outputs and vice versa. For example, audio signals connected to an optical or coaxial digital input are not output by the analog VCR/DVR OUT.

If signals are present at more than one input, the inputs will be selected automatically in the following order of priority: HDMI, digital, analog.

MONITOR OUT

Page 23

Standby indicator

On/Standby

Standby

Receiver

Remote controllerFront panel

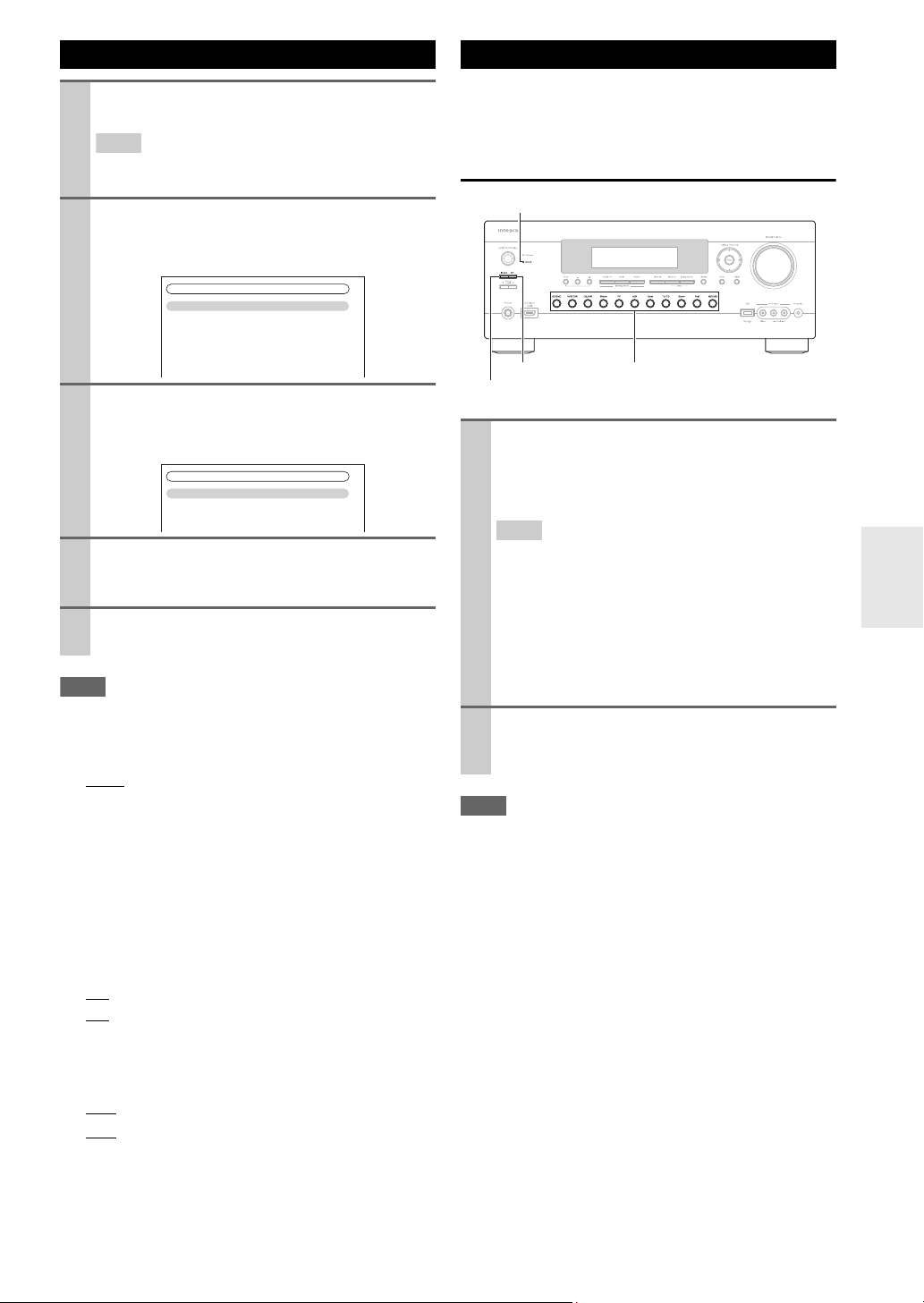

Turning On/Off the AV Controller

Turn ing On

Press On/Standby on the front panel.

Press Receiver followed by On on the remote controller.

The AV controller comes on, the display lights, and the Standby indicator goes off. Pressing the remote controller’s On again will turn on any components connected via u.

Turn ing Off

Press On/Standby on the front panel.

Press Receiver followed by Standby on the remote controller.

The AV controller will enter Standby mode. To prevent any loud surprises when you turn on the AV controller, always turn down the volume before you turn it off.

Page 24

Basic Operations

Tip

Sampling

frequency

Input source

Signal format

Input signal

resolution

Output

resolution

Listening

mode

This manual describes the procedure using the remote controller unless otherwise specified.

Selecting the Language Used for the Onscreen Setup Menus

You can determine the language used for the onscreen setup menus. See “Language” in the “OSD Setup” (➔ 59).

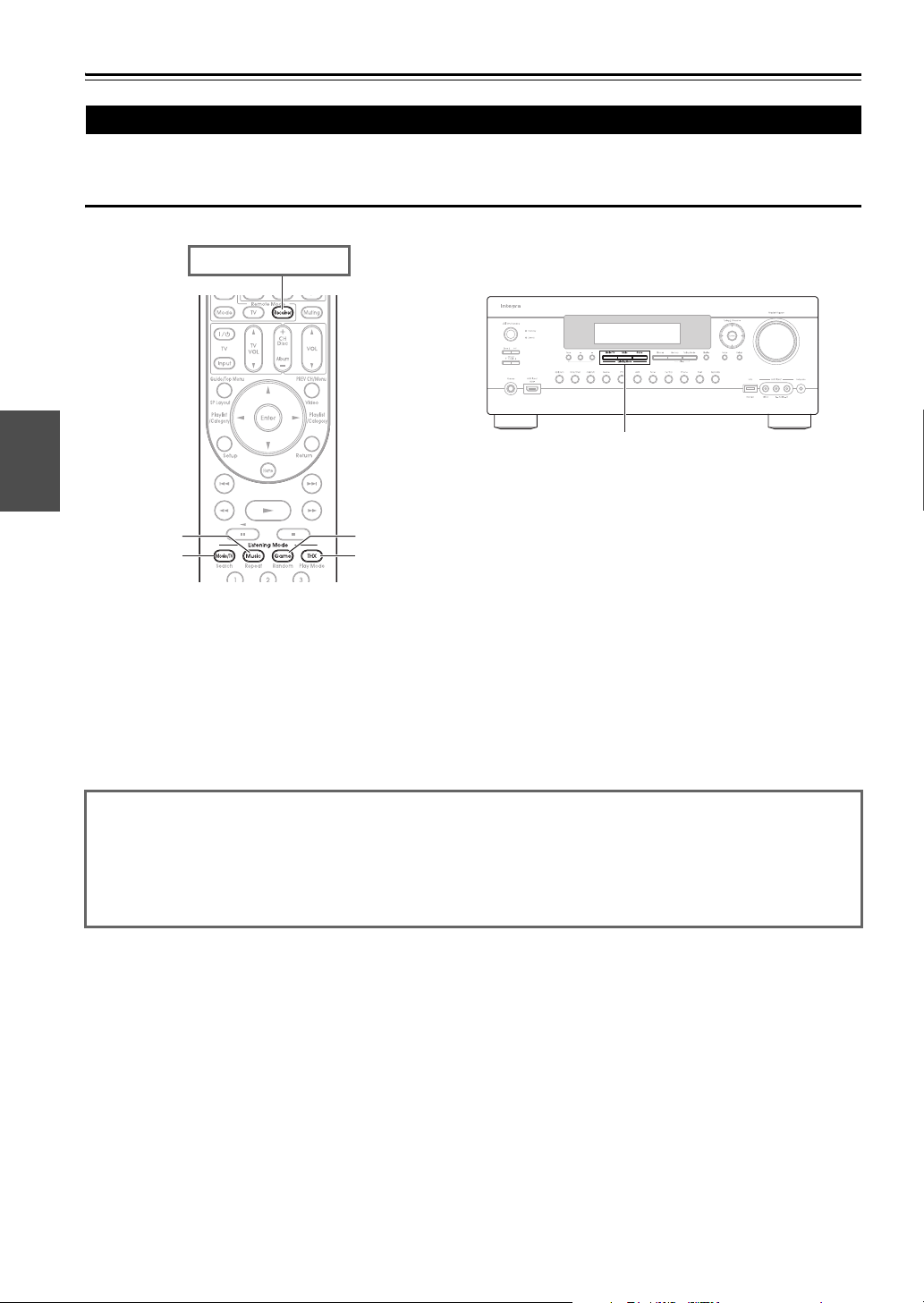

Playing the Connected Component

■ Operating on the AV controller

Use the input selector buttons to select the input

source.

Start playback on the source component.

See also:

• “Controlling Other Components” (➔ 84)

• “Controlling iPod” (➔ 79)

• “Listening to the Radio” (➔ 30)

To adjust the volume, use the Master Volume

control.

Select a listening mode and enjoy!

See also:

• “Using the Listening Modes” (➔ 38)

• “Audyssey” (➔ 53)

■ Operating with the remote controller

Press Receiver followed by Input Selector.

Start playback on the source component.

See also:

• “Controlling Other Components” (➔ 84)

• “Controlling iPod” (➔ 79)

• “Listening to the Radio” (➔ 30)

To adjust the volume, use VOL q/w.

Select a listening mode and enjoy!

See also:

• “Using the Listening Modes” (➔ 38)

• “Audyssey” (➔ 53)

Displaying Source Information

You can display various information about the current input source as follows. (Components connected to the UNIVERSAL PORT jack are excluded.)

Press Receiver followed by Display repeatedly to cycle through the available information.

• Alternatively, you can use the AV controller’s Display.

The following information can typically be displayed.

The input source is displayed with the default name even when you have entered a custom name in “Name Edit” (➔ 54).

If the input signal is analog, no format information is displayed. If the input signal is PCM, the sampling frequency is displayed. If the input signal is digital but not PCM, the signal format and the number of channels is displayed. For some digital input signals, including multichannel PCM, the signal format, number of channels, and sampling frequency is displayed. Information is displayed for about three seconds, then the previously displayed information reappears.

Setting the Display Brightness

You can adjust the brightness of the AV controller’s display.

Press Receiver followed by Dimmer repeatedly to select: dim, dimmer, or normal brightness.

• Alternatively, you can use the AV controller’s Dimmer.

Page 25

Tip

Note

Muting the AV Controller

BD/DVD

Audio

Video Info Input Listening Mode

Bass Treble Subwoofer Level Center Level Dynamic EQ Dynamic Volume

0dB

You can temporarily mute the output of the AV controller.

Press Receiver followed by Muting.

The output is muted and the MUTING indicator flashes on the display.

• To unmute, press Muting again or adjust the volume.

• The Mute function is cancelled when the AV controller is set to Standby.

Using the Sleep Timer

With the sleep timer, you can set the AV controller to turn off automatically after a specified period.

Press Receiver followed by Sleep repeatedly to select the required sleep time.

The sleep time can be set from 90 to 10 minutes in 10 minute steps.

The SLEEP indicator lights on the display when the sleep timer has been set. The specified sleep time appears on the display for about 5 seconds, then the previous display reappears.

• If you need to cancel the sleep timer, press Sleep repeatedly until the SLEEP indicator goes off.

• To check the time remaining until the AV controller sleeps, press Sleep. Note that if you press Sleep while the sleep time is being displayed, you’ll shorten the sleep time by 10 minutes.

Using the Home Menu

The Home menu provides you quick access to frequently used menus without having to go through the long standard menu. This menu enables you to change settings and view the current information.

Use q/w/e/r to make the desired selection.

■ Audio

 You can change the following settings: “Bass”,

“Tre ble”, “Subwoofer Level”, “Center Level”, “Dynamic EQ”, “Dynamic Volume”, “Late

Night”, “Music Optimizer”, “Re-EQ”, “ReEQ(THX)” and “Audio Selector”.

See also:

• “Audyssey” (➔ 53)

• “Using the Audio Settings” (➔ 61)

■ Video

 You can change the following settings: “Wide

Mode”, “Picture Mode”, “Brightness”, “Contrast”, “Hue” and “Saturation”.

The remote controller’s Video acts as a shortcut for this menu.

See also:

•“Picture Adjust” (➔ 55)

*3*4

■ Info

 You can view the information of the following

items: “Audio”, “Video” and “Tu ne r”.

■ Input

*4*5

 You can select the input source while viewing

the information as follows: the name of input selectors, input assignments, and radio information, and ARC function setting.

Press Enter to display the current input source, followed by q/w to select the desired input

source. Pressing Enter again switches to the selected input source.

■ Listening Mode

 You can select the listening modes that are

grouped in the following categories: “MOVIE/ TV”, “MUSIC”, “GAME” and “THX”.

Use q/w to select the category and e/r to select the listening mode. Press Enter to switch to the selected listening mode.

Press Receiver followed by Home.

The following information will be superimposed on the TV screen.

If Direct listening mode is selected, “Dynamic EQ” and “Dynamic Volume” cannot be selected.

Only when you have selected “Custom” in the “Picture Mode” (➔ 56), pressing Enter allows you to adjust the fol-

lowing items via the Home menu; “Brightness”, “Contrast”, “Hue” and “Saturation”. Press Return to return to the original Home menu.

Depending on the input source and listening mode, not all channels shown here output the sound.

When you have entered a custom name in “Name Edit” (➔ 54), the input source is displayed with that name. But even if not, the component name may be displayed if the AV controller receives it via HDMI connection (➔ 17).

For the Port input selector, the name of Universal Port Option Dock will be displayed.

Page 26

Note

Changing the Input Display

TV/CD MD CDR

DOCK



TA PE



GAME  DOCK

VCR/DVR  DOCK

Note

Using Easy Macros

When you connect an u-capable Onkyo component, you must configure the input display so that u can work

properly. This setting can be done only from the front panel.

Press TV/CD, Game or VCR/DVR so that “TV/

CD”, “GAME” or “VCR/DVR” appears on the display.

Press and hold down TV/CD, Game or VCR/DVR

(about 3 seconds) to change the input display.

Repeat this step to select “MD”, “CDR”, “DOCK” or “TAPE ”. For the TV/CD input selector, the input display changes in this order:

For the Game input selector, the setting changes in this order:

For the VCR/DVR input selector, the setting changes in this order:

• DOCK can be selected for the TV/CD, Game or VCR/DVR input selector, but not at the same time.

• Enter the appropriate remote control code before using the remote controller for the first time (➔ 84).

Using Headphones

Connect a pair of stereo headphones with a standard plug (1/4 inch or 6.3 mm) to the Phones jack.

Using the Easy macro command in the Easy macro mode, you can sequentially operate Onkyo components with simple commands by simply pressing one button. The default actions are described below. Press Activities to start the Easy macro command. Once the AV controller has entered the normal macro mode, all of Activities will automatically switch to the normal macro mode. In this case, pressing All Off will set only the AV controller to Standby mode.

Press My Movie, My TV, or My Music. My Movie (default):

1. The TV connected to the AV controller is turned on.

2. The Onkyo DVD player connected to the AV controller is turned on.

3. The AV controller is turned on.

4. The input selector of the AV controller is set to “BD/DVD”.

5. The player starts playback.

My TV (default):

1. The TV connected to the AV controller is turned on.

2. The cable set-top box connected to the AV controller is turned on.

3. The AV controller is turned on.

4. The input selector of the AV controller is set to “CBL/SAT”. You can enjoy cable TV.

My Music (default):

1. The Onkyo CD player connected to the AV controller is turned on.

2. The AV controller is turned on.

3. The input selector of the AV controller is set to “TV/CD”.

4. The player starts playback.

• Once you start the Easy macro command, you cannot use

other Activities during the execution. If you want to operate other components halfway, press All Off to stop and press desired Activities.

Depending on the start-up time of Blu-ray Disc/DVD player, the AV controller may not activate this playback command. In

this case, press 1 on the remote controller.

• Always turn down the volume before connecting your headphones.

• While the headphones plug is inserted in the Phones jack, the Headphone indicator, speaker/channel indicator FL and FR lights.

• When you connect a pair of headphones, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono or Direct.

• Only the Stereo, Direct, and Mono listening modes can be used with headphones.

Turning Off the Components

Press All Off.

1. The connected component stops and turns off.

2. The AV controller turns off.

3. The TV connected to the AV controller turns off (Standby).

When My Music is selected, with the default settings, this will not be performed.

With some televisions, the power may not be turned off (or enter standby).

*1*2

Page 27

Changing Source Component

Note

def cab

: Listening area

a to f: Listening position

Using Audyssey MultEQ

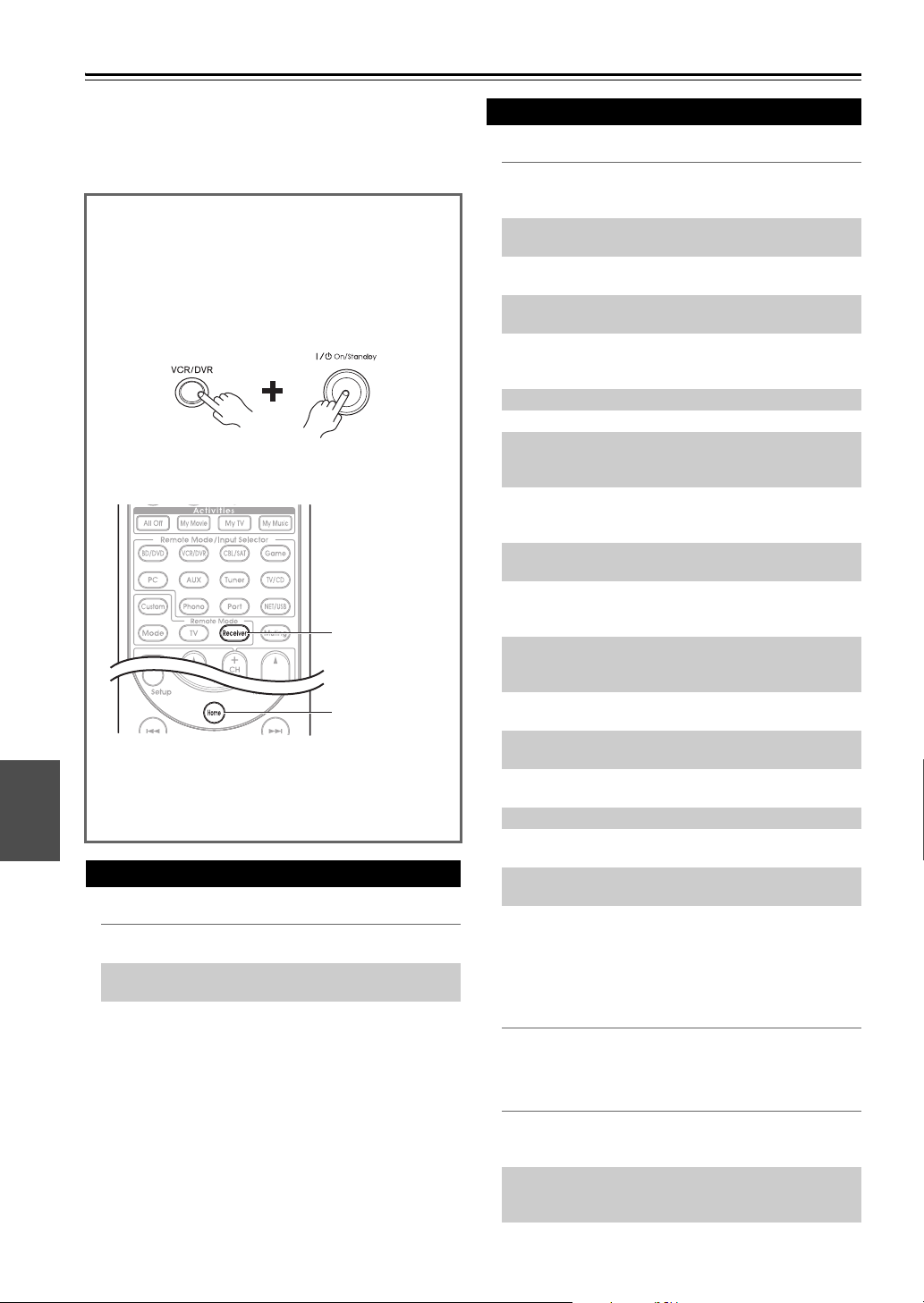

When you want to operate the component that is not assigned as the source component, you can assign it as the source component.

While holding down Remote Mode, press and hold down My Movie, My TV, or My Music (about 3 seconds).

Activities that you pressed flashes twice, indicating that the setting has been established.

Examples:

When you press My Music and want to start the Onkyo Cassette recorder, while holding down TV/ CD, press and hold down My Music (about 3 seconds) flashes twice.

Restoring Default

While holding down Home, press and hold down

All Off until All Off lights (about 3 seconds).

Release Home and All Off and press All Off

again.

All Off flashes twice.

Audyssey MultEQ® Room Correction and Speaker Setup

Using Audyssey MultEQ to create a listening environment in your home theater that all listeners will enjoy, Audyssey MultEQ takes measurements at up to six positions within the listening area. Position the microphone at ear height of a seated listener with the microphone tip pointed directly at the ceiling using a tripod. Do not hold the microphone in your hand during measurements as this will produce inaccurate results.

■ First measurement position

Also referred to as the Main Listening Position this refers to the most central position where one would normally sit within the listening environment. MultEQ uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.



■ Second

These are the other listening positions (i.e., the places where the other listeners will sit). You can measure up to six positions.

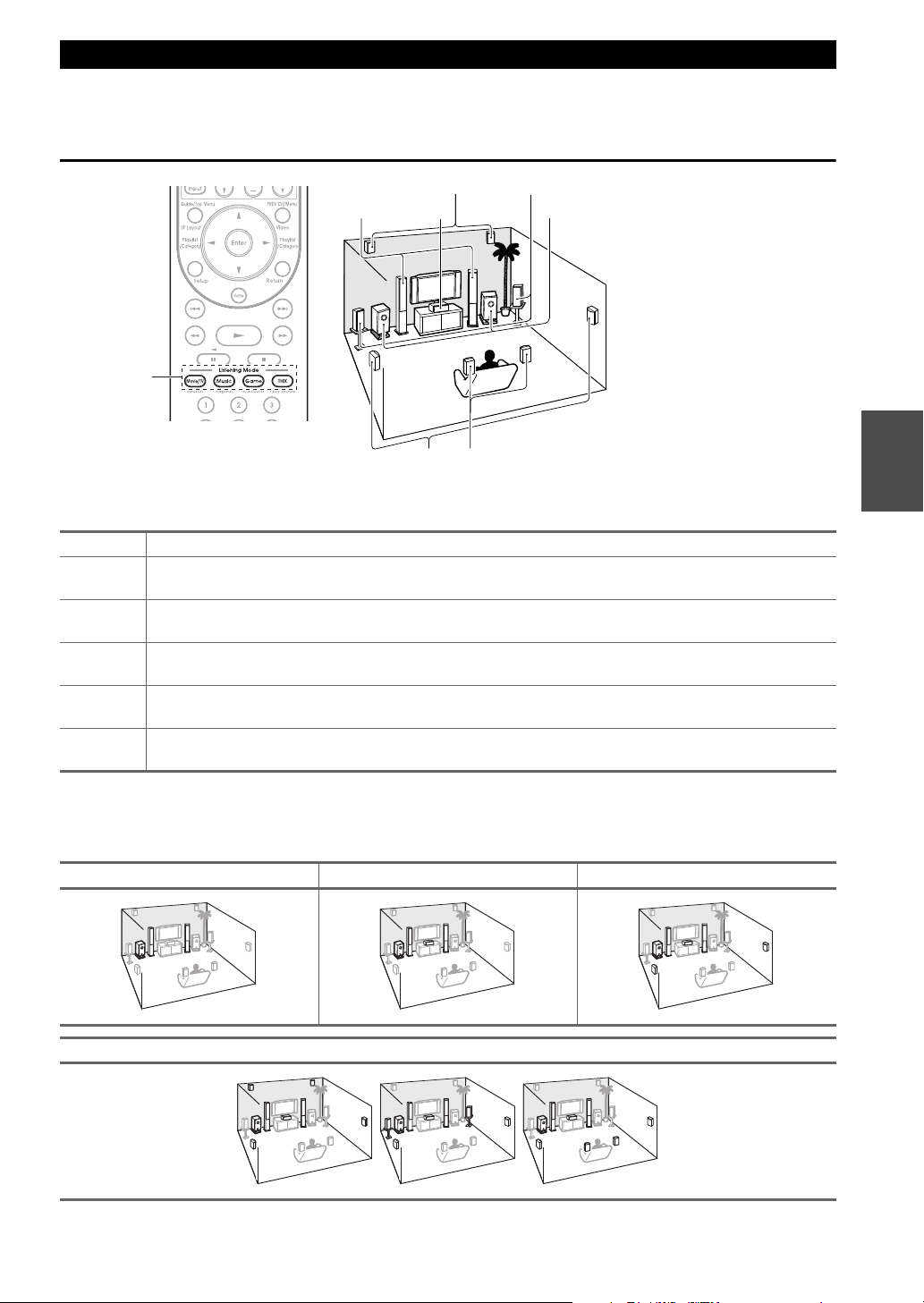

The following examples show some typical home theater seating arrangements. Choose the one that best matches yours, and position the microphone accordingly when prompted.

Sixth measurement positions

With the supplied calibrated microphone, Audyssey MultEQ automatically determines the number of speakers connected, their size for purposes of bass management, optimum crossover frequencies to the subwoofer (if present), and distances from the primary listening position. Audyssey MultEQ then removes the distortion caused by room acoustics by capturing room acoustical problems over the listening area in both the frequency and time domain. The result is clear, well-balanced sound for everyone. Enabling Audyssey MultEQ allows you to also use Audyssey Dynamic EQ octave-to-octave balance at any volume level (➔ 53). Before using this function, connect and position all of your speakers. If “Dynamic EQ” is set to “On” (➔ 53), the “Equalizer” setting will be set to “Audyssey” (➔ 50). On the other hand, if it is set to “Off”, the “Dynamic Volume” setting will be set to “Off” (➔ 53). It takes about 30 minutes to complete Audyssey MultEQ Room Correction and Speaker Setup for 6 positions. Total measurement time varies depending on the number of speakers.

, which maintains the proper

• Make the room as quiet as possible. Background noise and Radio Frequency Interference (RFI) can disrupt the room measurements. Close windows, televisions, radios, air conditioners, fluorescent lights, home appliances, light dimmers, or other devices. Turn off the cell phone (even if it is not in use) or place it away from all audio electronics.

• The microphone picks up test tones which played through each speaker as Audyssey MultEQ Room Correction and Speaker Setup run.

• Audyssey MultEQ Room Correction and Speaker Setup cannot be performed while a pair of headphones is connected.

Page 28

Note

Turn on the AV controller and the connected TV.

Note

Speaker setup microphone

Setup Mic jack

MultEQ: Auto Setup

Speakers Type(Front) Surr Back/Front High/Front Wide Preout Subwoofer

Normal

Surr Back

Yes

Note

On the TV, select the input to which the AV controller is connected.

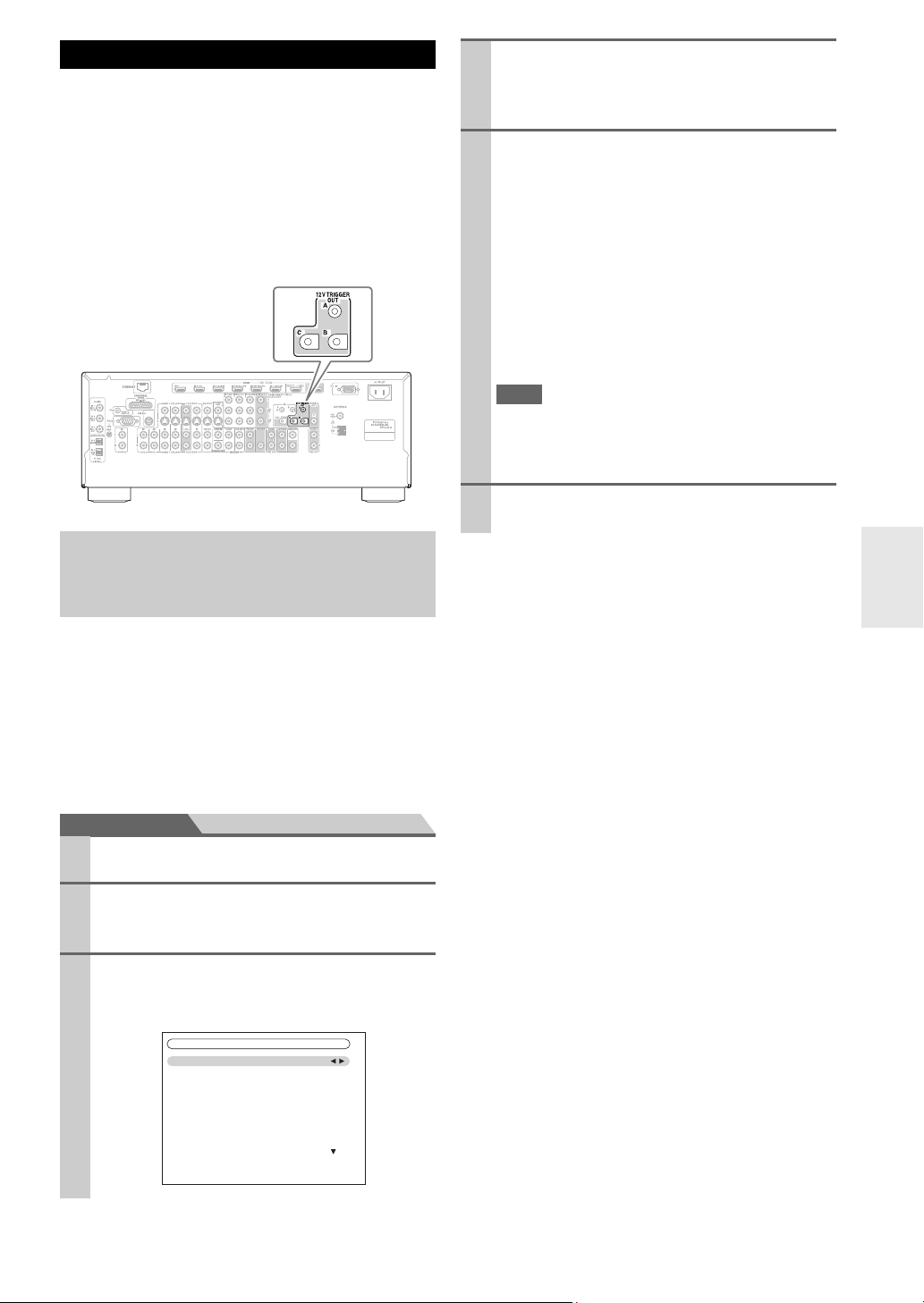

Set the speaker setup microphone at the Main Lis-

tening Position a, and connect it to the Setup Mic jack.

The speaker setting menu appears.

When you’ve finished making the settings, press

Enter.

• If your front speakers are bi-amped, you must select “Bi-Amp” in the “Speakers Type(Front)” setting (➔ 48).

• In accordance with the connected speakers, set the “Surr Back/Front High/Front Wide Preout” setting to “Surr Back”, “Front High” or “Front Wide”.

• If you are using a subwoofer(s), select “Ye s ” in the “Subwoofer” (➔ 48). If not, select “No” and skip step 4.

• When the “Speakers Type(Front)” is set to “Bi-Amp”, “Surr Back/Front High/Front Wide Preout” setting is fixed at “Front”.

If you use a powered subwoofer(s), adjust the sub-

woofer volume level to 75dB.

Test tones are played through the subwoofer. Use the volume control on the subwoofer.

Press Enter.

Audyssey MultEQ

Room Correction and Speaker Setup starts. Test tones are played through each speaker as Audyssey MultEQ Room Correction and Speaker Setup runs. This process takes a few minutes. Please

refrain from talking during measurements and do not stand between speakers and the microphone.

Do not disconnect the speaker setup microphone during Audyssey MultEQ Room Correction and Speaker Setup, unless you want to cancel the setup.

Place the setup microphone at the next position,

and then press Enter.

Audyssey MultEQ performs more measurements. This takes a few minutes.

When prompted, repeat step 6.

Use q/w to select an option, and then press Enter.

MultEQ: Auto Setup

Subwoofer Yes Front 40Hz Center 40Hz Surround 100Hz Front Wide None Front High None Surr Back 120Hz Surr Back Ch 2ch

Save Cancel

- - Review Speaker Configuration - -

The options are:

 Save:

Save the calculated settings and exit Audyssey MultEQ

Setup

Room Correction and Speaker

 Cancel:

Cancel Audyssey MultEQ

Speaker Setup

• You can view the calculated settings for the speaker con-

figuration, speaker distances, and speaker levels by using e/r.

Disconnect the speaker setup microphone.

Room Correction and

• If your subwoofer does not have a volume control, disre-

• If you set the subwoofer’s volume control to its maximum

gard the level displayed and press Enter to proceed to the next step.

and the displayed level is lower than 75 dB, leave the subwoofer’s volume control at its maximum and press Enter to proceed to the next step.

• When Audyssey MultEQ Room Correction and Speaker Setup is complete, the “Equalizer” will be set to “Audyssey” (➔ 50). The Audyssey indicator will light (➔ 9).

• You can cancel Audyssey MultEQ Room Correction and Speaker Setup at any point in this procedure simply by disconnecting the setup microphone.

• Do not connect or disconnect any speakers during Audyssey MultEQ Room Correction and Speaker Setup.

• If the AV controller is muted, it will be unmuted automatically when Audyssey MultEQ Room Correction and Speaker Setup starts.

• Changes to the room after Audyssey MultEQ Room Correction and Speaker Setup requires you run Audyssey MultEQ Room Correction and Speaker Setup again, as room EQ characteristics may have changed.

Page 29

Error Messages

Tip

Note

Ambient noise is too high.

Retry Cancel

MultEQ: Auto Setup

Error message

Changing the Speaker Settings Manually

While Audyssey MultEQ® Room Correction and Speaker Setup is in progress, one of the error messages below may appear.

The options are:

 Retry:

Try again.

 Cancel:

Cancel Audyssey MultEQ Room Correction and Speaker Setup.

• Ambient noise is too high.

The background noise is too loud. Remove the source of the noise and try again.

• Speaker Matching Error!

The number of speakers detected was different from that of the first measurement. Check the speaker connection.

•Writing Error!

This message appears if saving fails. Try saving again. If this message appears after 2 or 3 attempts, contact the dealer from whom you purchased this unit.

•Speaker Detect Error

This message appears if a speaker is not detected. “No” means that no speaker was detected.

• See “Speaker Configuration” for appropriate settings (➔ 13).

You can manually make changes to the settings found during Audyssey MultEQ Room Correction and Speaker Setup.

See also:

• “Speaker Configuration” (➔ 48)

• “Speaker Distance” (➔ 49)

• “Level Calibration” (➔ 49)

• “Equalizer Settings” (➔ 50)

• Please note that THX recommends any THX main speakers be set to “80Hz(THX)”. If you set up your speakers using

Audyssey MultEQ

please make sure manually that any THX speakers are set to 80 Hz (THX) crossover (➔ 48).

• Sometimes due to the electrical complexities of subwoofers and the interaction with the room, THX recommends setting the level and the distance of the subwoofer manually.

• Sometimes due to interaction with the room, you may notice irregular results when setting the level and/or distance of the main speakers. If this happens, THX recommends setting them manually.

Room Correction and Speaker Setup,

Using a Powered Subwoofer

If you’re using a powered subwoofer and it outputs very low-frequency sound at a low volume level, it may not be detected by Audyssey MultEQ Room Correction and Speaker Setup.

If the “Subwoofer” appears on the “Review Speaker Configuration” screen as “No”, increase the subwoofer’s volume to the half-way point, set it to its highest crossover frequency, and then try running Audyssey MultEQ Room Correction and Speaker Setup again. Note that if the volume is set too high and the sound distorts, detection issues may occur, so use an appropriate volume level. If the subwoofer has a low-pass filter switch, set it to Off or Direct. Refer to your subwoofer’s instruction manual for details.

Page 30

Listening to the Radio

Band Frequency

This section describes the procedure using the buttons on the front panel unless otherwise specified.

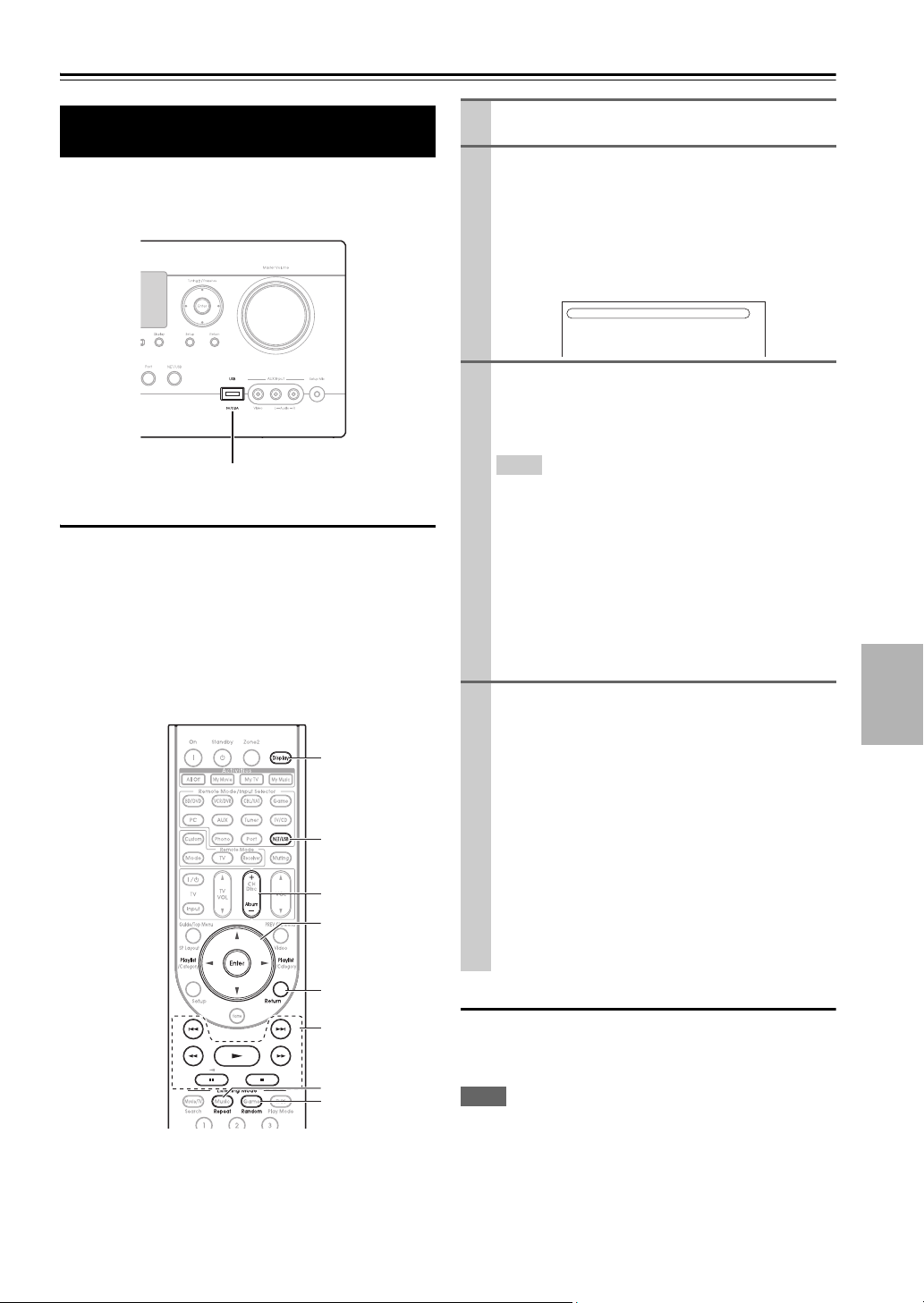

Using the Tuner

With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection. This model changes frequency steps (➔ 59).

Listening to the Radio

Press Tun er to select either “AM” or “FM”.

In this example, FM has been selected. Each time you press Tune r, the radio band changes

between AM and FM.

(Actual display depends on the country.)

Tuning into Radio Stations

■ Manual tuning mode

Press Tuning Mode so that the AUTO indicator

goes off on the display.

Press and hold Tuning q/w.

The frequency stops changing when you release the button.

Press the buttons repeatedly to change the frequency one step at a time.

In manual tuning mode, FM stations will be in mono.

Tuning into weak FM stereo stations

If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch to

manual tuning mode and listen to the station in mono.

■ Tuning into stations by frequency

You can tune into AM and FM stations directly by entering the appropriate frequency.

On the remote controller, press Tu ne r repeatedly

to select “AM” or “FM”, followed by D.TUN.

■ Auto tuning mode

Press Tuning Mode so that the AUTO indicator

lights on the display.

Press Tun in g q/w.

Searching stops when a station is found.

When tuned into a station, the TUNED indicator lights. When tuned into a stereo FM station, the FM STEREO indicator lights on the display, as shown.

TUNED

AUTO

TERE

(Actual display depends on the country.)

Within 8 seconds, use the number buttons to enter

the frequency of the radio station.

For example, to tune to 87.50 (FM), press 8, 7, 5, 0. If you have entered the wrong number, you can retry

after 8 seconds.

Page 31

Note

Tip

Presetting FM/AM Stations

Listening to SIRIUS Satellite Radio

You can store a combination of up to 40 of your favorite FM/AM radio stations as presets.

Tune into the FM/AM station that you want to

store as a preset.

See the previous section.

Press Memory.

The preset number flashes.

While the preset number is flashing (about 8 sec-

onds), use Preset e/r to select a preset from 1 through 40.

Press Memory again to store the station or chan-

nel.

The station or channel is stored and the preset number stops flashing.

Repeat this procedure for all of your favorite FM/ AM radio stations.

• You can name your radio presets for easy identification (➔ 54). Its name is displayed instead of the band and frequency.

Selecting Presets

To select a preset, use Preset e/r on the AV con- troller, or the remote controller’s CH +/–.

• You can also use the remote controller’s number buttons to select a preset directly.

To listen to Satellite Radio, you’ll need to connect a SIRIUS Satellite Radio tuner (sold separately) to your SiriusReady receiver. SIRIUS Satellite Radio is available to residents of the US (except Alaska and Hawaii) and Canada.

Satellite Radio delivers a variety of commercial-free music from categories ranging from Pop, Rock, Country, R&B, Dance, Jazz, Classical and many more plus coverage of all the top professional and college sports including play by play games from select leagues and teams. Additional programming includes expert sports talk, uncensored entertainment, comedy, family programming, local traffic and weather and news from your most trusted sources.

Once you’ve purchased a SIRIUS tuner you’ll need to activate it and subscribe to begin enjoying the service. Easy to follow installation and setup instructions are provided with the SIRIUS tuner. There are a variety of programming packages available, including the option of adding “The Best of XM” programming to the SIRIUS service. The Best of XM service is not available to SIRIUS Canada subscribers at this time. Please check with SIRIUS Canada for any updates using the numbers and web address below.

Family friendly packages are also available to restrict channels featuring content that may be inappropriate for children.

To subscribe to SIRIUS, U.S. and Canadian customers can call 1-888-539-SIRIUS (1-888-539-7474) or visit sirius.com (US) or siriuscanada.ca (Canada).

Deleting Presets

Select the preset that you want to delete.

See the previous section.

While holding down Memory, press Tu ni ng Mode.

The preset is deleted and its number disappears from the display.

Page 32

Setting Up the SiriusConnect™ Home Tuner

SiriusConnect

receiver

8-pin mini DIN connector cable

AC power

Indoor/outdoor antenna with 21-foot cable

SIRIUS jack on the rear of the AV controller

HORIZON

SKY

SOUTH

WEST EAST

NORTH

Number buttons

Display

Tune r

Receiver

CH +/–

q/w/e/r

Return

D.TUN

Enter

Setup

The optional SiriusConnect Home tuner kit includes everything for easy home installation, including the SiriusConnect receiver, indoor/outdoor antenna with 21-foot cable, 8-pin mini DIN connector cable, and an AC power adapter. See the SiriusConnect Home tuner’s instructions for more information.

Use the 8-pin mini DIN connector cable to connect the SiriusConnect receiver to the SIRIUS jack on the rear of the AV controller.

To use the included antenna indoors, you must place it at a north-, west-, or east-facing window, depending on where you live. If this isn’t possible, you’ll need to install it outside, away from any overhead obstructions.

Positioning the Antenna

For a consistent satellite signal, the antenna must be positioned correctly. Use the following map to determine which area you are in and position the antenna accordingly.

Area 1: Point the antenna toward the sky in the east, northeast, or southeast, either through a window or out-

side.

Area 2: Point the antenna toward the sky in the north or northeast, either through a window or outside. Area 3: Point the antenna toward the sky in the north or northwest, either through a window or outside. Area 4: Point the antenna toward the sky in the west, northwest, or southwest, either through a window or out-

side. Area 5: Put the antenna outside and point it straight up.

The antenna cannot be used indoors.

Setting the Satellite Radio Mode

Before you can listen to SIRIUS Satellite Radio, you must set the “SAT Radio Mode” setting to “SIRIUS”.

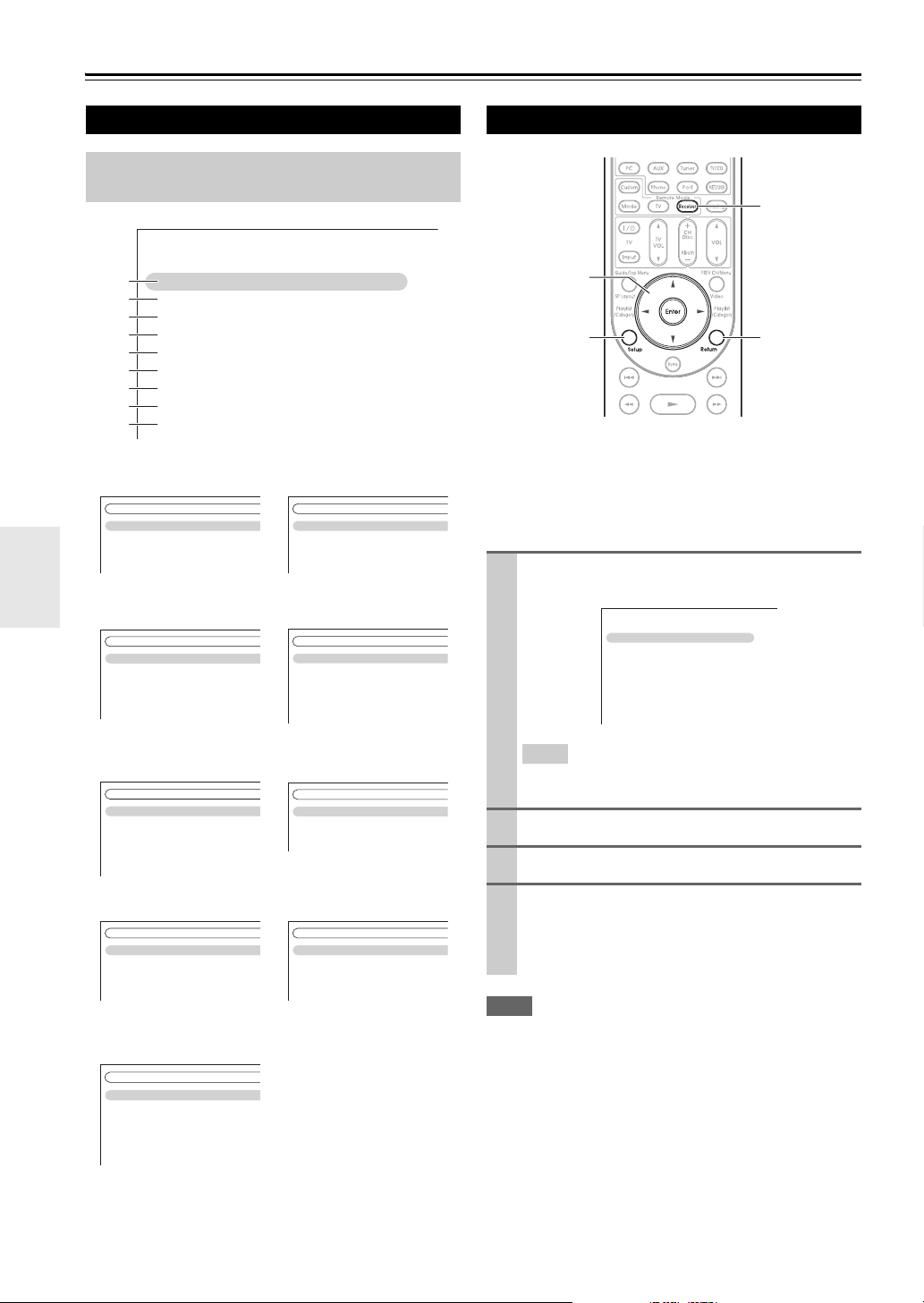

Press Receiver followed by Setup.

The main menu appears onscreen.

Use q/w to select “Hardware Setup”, and then

press Enter. The “Hardware Setup” menu appears.

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Auto Power Down

6. Network

7. Firmware Update

Use q/w to select “Tuner”, and then press Enter.

Page 33

Tip

Note

Use q/w to select “SAT Radio Mode”, and e/r to

7–3. Tuner

FM/AM Frequency Step SAT Radio Mode Antenna Aiming SIRIUS Parental Lock

200kHz/10kHz

SIRIUS

Channel name

Channel number

select “SIRIUS”.

Pressing e/r cycles through the following options:

 None:

Select if you’re not using Satellite Radio.

 SIRIUS:

Select to use SIRIUS Satellite Radio.

When you’ve finished, press Setup.

Setup closes.

• Alternatively, you can use the AV controller’s Setup, arrow buttons, and Enter.

Selecting SIRIUS Satellite Radio

Press Tun er repeatedly to select “SIRIUS”.

If “CHECK SIRIUS TUNER” appears on the display, make sure the SiriusConnect receiver is connected properly. If “ANTENNA ERROR” appears, make sure the antenna is connected properly.

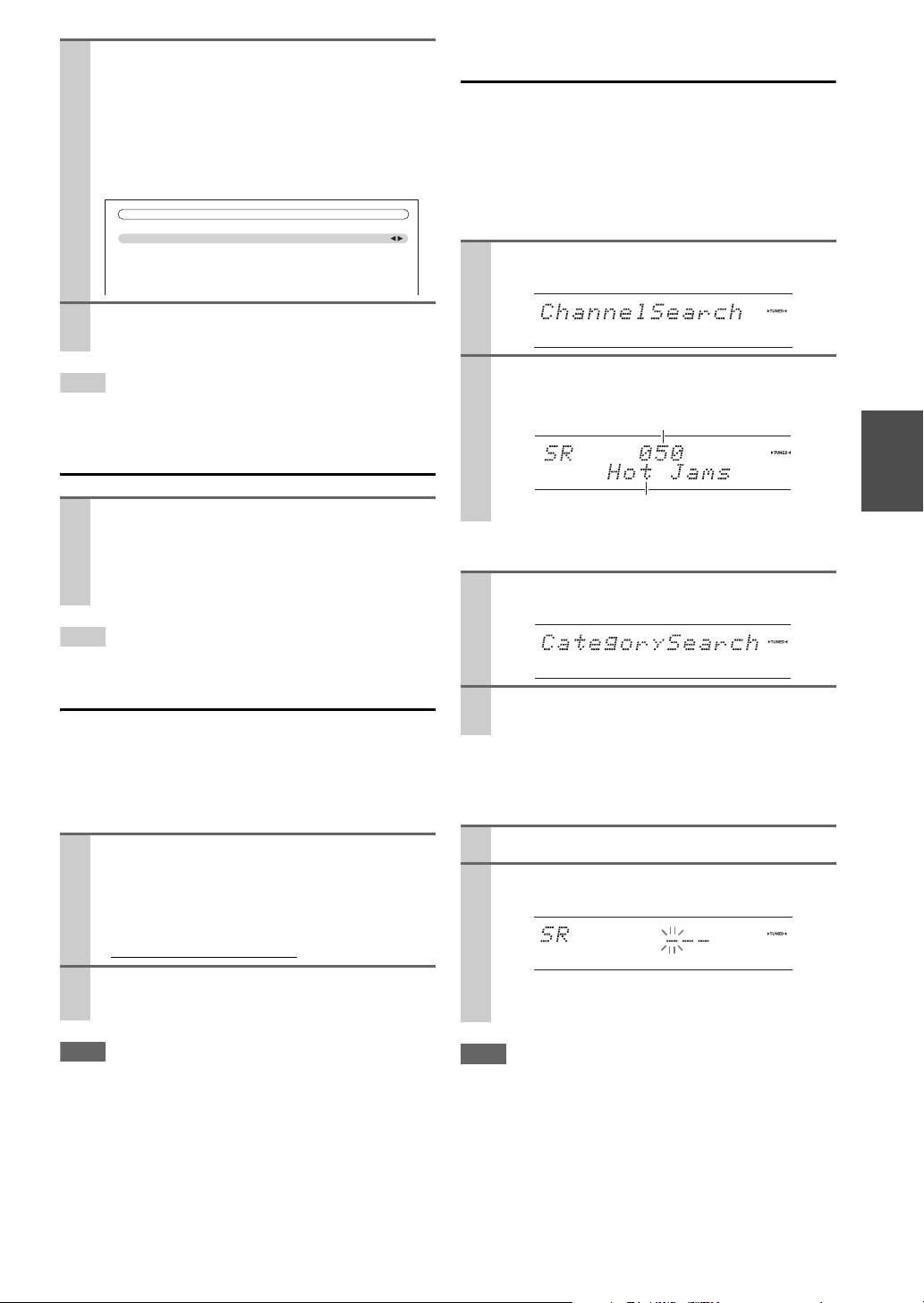

Selecting Channels using the Remote Controller

There are three ways to select SIRIUS Satellite Radio channels:

1. Channel Search mode: select any channel.

2. Category Search mode: select channels by category.

3. Direct tuning: enter channel number.

■ Channel Search mode

Press Enter repeatedly to select Channel Search

mode.

Use q/w to select a channel.

You can also use e/r to select a category.

■ Category Search mode

Press Tuner, and then press Enter repeatedly to

select Category Search mode.

• Alternatively, you can use the AV controller’s Tu ne r.

Signing Up for SIRIUS Satellite Radio

Before you can use SIRIUS Satellite Radio, you must first sign up for an account. You’ll need a major credit card and your SIRIUS Satellite Radio ID, which you can get from the AV controller, as explained below, or from the SiriusConnect Home tuner package.

Use Tuning q/w on the AV controller to select

channel 0.

Your SIRIUS Satellite Radio ID number is displayed. Write it below.

To sign up, go to: http://activate.siriusradio.com

or call: 1-888-539-SIRIUS (7474)

• Your ID is also displayed on the Satellite Radio screen. See “Positioning the SiriusConnect Home Antenna” (➔ 36).

Use e/r to select a category, and q/w to select a

channel in that category.

■ Direct tuning

You can select a SIRIUS Satellite Radio channel directly by entering its number.

Press D.TUN.

Within 8 seconds, use the number buttons to enter

the channel number.

For example, to select channel #20, press 0, 2, 0, or 2, 0, Enter.

• If you select an unavailable channel, “INVALID CHANNEL” appears on the display.

• If you select a channel that you are not subscribed to, “CALL SIRIUS” appears on the display.

• Channels that are locked must be unlocked before you can listen to them. See “SIRIUS Parental Lock” (➔ 34) for more information.

Page 34

■ Selecting the previously selected channel

Tip

Note

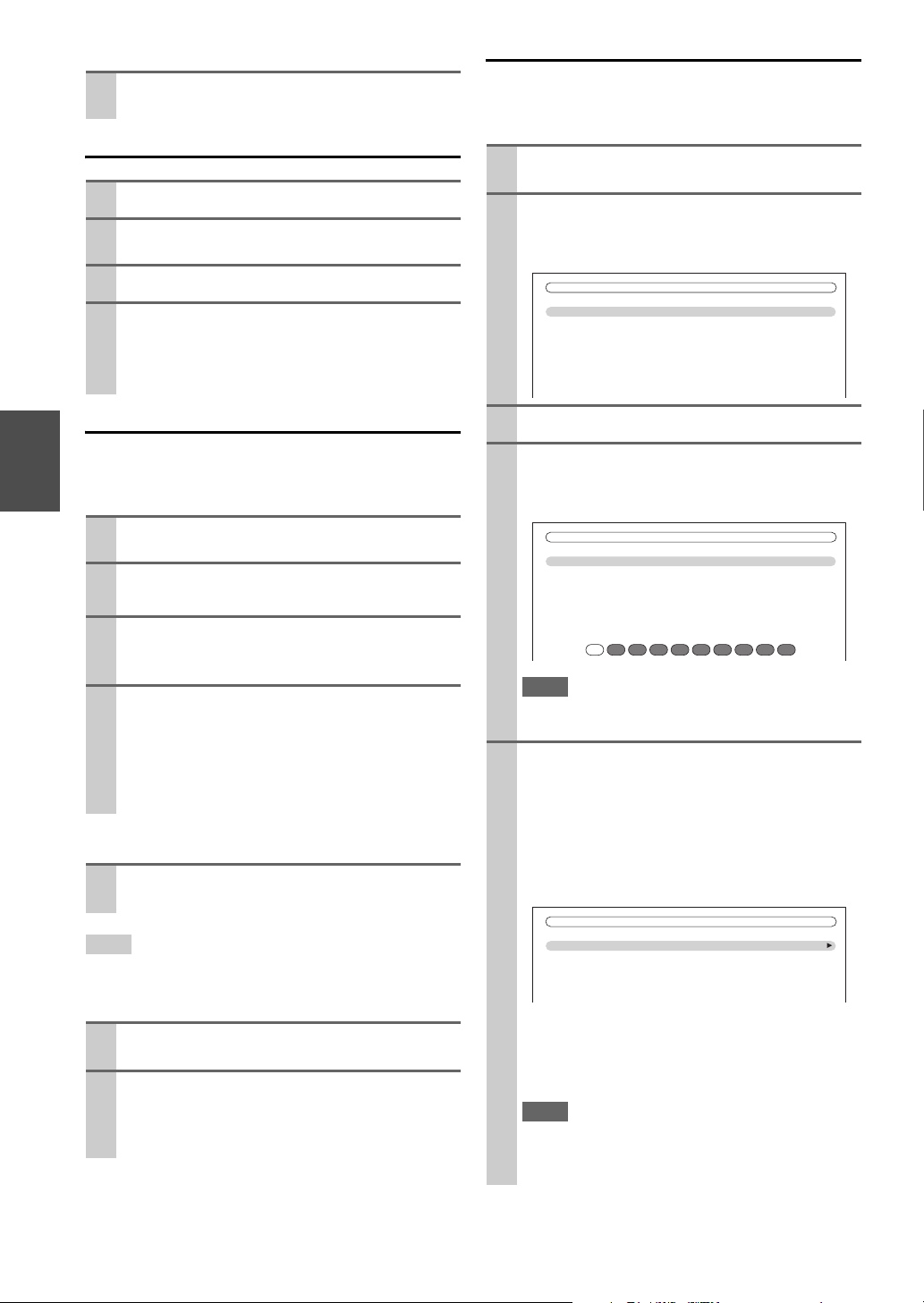

SIRIUS Parental Lock

Enter Code

0 1 2 3 4 5 6 7 8 9

SIRIUS Parental Lock

Edit Code Parental Lock

SIRIUS Parental Lock

Press Return to select the previously selected channel.

Selecting Channels on the AV Controller

Press Tun er repeatedly to select “SIRIUS”.

Press Tuning Mode repeatedly to select Channel

Search mode or Category Search mode.

Press Enter repeatedly to select a category.

Use Tun in g q/w to select a channel.

In Channel Search mode, you can select any channel. In Category Search mode, you can only select chan-

nels from the currently selected category.

Presetting Channels

You can store a combination of up to 40 of your favorite SIRIUS Satellite Radio channels and FM/AM radio stations as presets.

Tune into the SIRIUS channel that you want to

store as a preset.

Press Memory on the AV controller.

The preset number flashes.

While the preset number is flashing (about 8 sec-

onds), use Preset e/r on the AV controller to select a preset from 1 through 40.

Press Memory on the AV controller again to store

the channel.

The channel is stored and the preset number stops flashing.

Repeat this procedure for all of your favorite SIRIUS Satellite Radio channels.

■ Selecting presets

To select a preset, use Preset e/r on the AV con- troller or the remote controller’s CH +/–.

With SIRIUS Parental Lock, you can lock out channels that you do not want to receive and use a 4-digit PIN number to prevent others from unlocking them.

Press Receiver followed by Setup.

The main menu appears onscreen.

Use q/w to select “Hardware Setup”, and then

press Enter. The “Hardware Setup” menu appears.

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Auto Power Down

6. Network

7. Firmware Update

Use q/w to select “Tuner”, and then press Enter.

Use q/w to select “SIRIUS Parental Lock”, and

then press Enter.

The following screen appears.

•If the “SAT Radio Mode” is set to “None” (➔ 32), the “SIRIUS Parental Lock” setting is not available.

Use e/r to select a number on the screen, and

then press Enter.

Repeat this for each of the four digits in the PIN number.

If you’re entering the PIN number for the very first time, the default is “0000”. The following screen appears.

• You can also use the number buttons to select a preset directly.

■ Deleting presets

Select the preset that you want to delete.

See the previous section.

While holding down Memory press Tuning

Mode on the AV controller.

The preset is deleted and its number disappears from the display.

If you’ve already set a PIN number, you must enter the correct PIN to get to this screen. If you enter the wrong PIN, the message “Wrong Code!” appears and you’ll have to enter the PIN again.

•The “SIRIUS Parental Lock” setting cannot be set unless the AV controller and the SiriusConnect receiver are connected.

Page 35

Note

Tip

Use q/w to select “Parental Lock”, and then press

Note

SIRIUS Parental Lock

Enter Code

0 1 2 3 4 5 6 7 8 9

Note

SIRIUS Parental Lock

Edit Code Parental Lock

SIRIUS Parental Lock

New Code

0 1 2 3 4 5 6 7 8 9

SIRIUS Parental Lock

Confirm

0 1 2 3 4 5 6 7 8 9

Enter.

The channel number, channel name, and the current status are displayed.

Use q/w to select a channel, and e/r to select

“Locked” or “Unlocked”.

Press Enter to save your changes, or press Return

to return to the previous screen without saving.

When Enter is pressed, the confirmation message “Locked” or “Unlocked” appears.

Press Setup.

Setup closes.

• You can temporarily release the parental lock by selecting the locked channel directly by entering the number (Direct tuning) or selecting the preset.

• To unlock a channel, you must enter the correct PIN number and change it to Unlocked in step 6.

• Alternatively, you can use the AV controller’s Setup, arrow buttons, and Enter.

Changing the PIN Number

Use e/r to select a number on the screen, and

then press Enter.

Repeat this for each of the four digits in the PIN number.

If you’re entering the PIN number for the very first time, the default is “0000”. The following screen appears.

If you’ve already set a PIN number, you must enter the correct PIN to get to this screen. If you enter the wrong PIN, the message “Wrong Code!” appears and you’ll have to enter the PIN again.

•The “SIRIUS Parental Lock” setting cannot be set unless the AV controller and the SiriusConnect receiver are connected.

Use q/w to select “Edit Code”, and then press

Enter.

The following screen appears.

Press Receiver followed by Setup.

The main menu appears onscreen.

Use q/w to select “Hardware Setup”, and then

press Enter. The “Hardware Setup” menu appears.

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Auto Power Down

6. Network

7. Firmware Update

Use q/w to select “Tuner”, and then press Enter.

Use q/w to select “SIRIUS Parental Lock”, and

then press Enter.

The following screen appears.

• If the “SAT Radio Mode” is set to “None” (➔ 32), the “SIRIUS Parental Lock” setting is not available.

Use e/r to select a number on the screen, and

then press Enter.

Repeat this for each of the four digits in the new PIN number.

The following screen appears.

Confirm the new PIN number by entering it again.

If you confirm the PIN number correctly, the new PIN is saved and the message “Complete” appears.

If you confirm the PIN number incorrectly, “Wrong Code!” appears, and you’ll be returned to step 5 to try again.

Press Setup.

Setup closes.

Page 36

Displaying SIRIUS Satellite Radio

Note

Recording

Note

AUDIO

L R

VIDEO

Cassette, CDR, MD,

etc.

VCR, DVD recorder

Camcorder

VCRCD player

: Video signal : Audio signal

This section explains how to record the selected input source to a component with recording capability, and how to record audio and video from different sources.

Connecting a Recording Component

• The AV controller must be turned on for recording. Recording is not possible while it’s in Standby mode.

• If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV controller, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs. See the manuals supplied with your TV and VCR for details.

• Video signals connected to composite video inputs can be recorded only via composite video outputs. If your TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output.

• The surround sound and DSP listening modes cannot be recorded.

• Copy-protected Blu-ray Disc/DVDs cannot be recorded.

• Sources connected to a digital input cannot be recorded. Only analog inputs can be recorded.

• DTS signals will be recorded as noise, so don’t attempt analog recording of DTS CDs or LDs.

Recording Separate AV Sources

Here you can record audio and video from completely separate sources, allowing you to overdub audio onto your video recordings. This function takes advantage of the fact that when an audio-only input source (TV/CD, PHONO, etc.) is selected, the video input source remains unchanged.

In the following example, audio from the CD player connected to the TV/CD IN and video from the camcorder connected to the AUX Input Video jack are recorded by the VCR connected to the VCR/DVR OUT jacks.

AV Recording

Audio sources can be recorded to a recorder (e.g., cassette deck, CDR, MD) connected to the VCR/DVR OUT jacks. Video sources can be recorded to a video recorder (e.g., VCR, DVD recorder) connected to the VCR/DVR OUT jack.

Use the input selector buttons to select the source

that you want to record.

You can watch the source while recording. The AV controller’s Master Volume control has no effect on recording.

On your recorder, start recording.

On the source component, start playback.

If you select another input source during recording, that input source will be recorded.

Prepare the camcorder and CD player for play-

back.

Prepare the VCR for recording.

Press AUX input selector.

Press TV/CD input selector.

This selects the CD player as the audio source, but leaves the camcorder as the video source.

Start recording on the VCR and start playback on

the camcorder and CD player.

The video from the camcorder and the audio from the CD player are recorded by the VCR.

Page 38

Using the Listening Modes

Press Receiver first.

Game THX

Music

Movie/TV

Movie/TV, Music, Game

Selecting Listening Modes

See “About Listening Modes” for detailed information about the listening modes (➔ 39).

Listening Mode Buttons

Movie/TV button

This button selects the listening modes intended for use with movies and TV.

Music button

This button selects the listening modes intended for use with music.

• The Dolby Digital and DTS listening modes can only be selected if your Blu-ray Disc/DVD player is connected to the AV controller with a digital audio connection (coaxial, optical, or HDMI).

• The listening modes you can select depends on the format of the input signal. To check the format, see “Displaying Source Information” (➔ 24).

• While a pair of headphones is connected, you can select the following listening modes: Mono, Direct, and Stereo.

• The listening modes cannot be used while you are listening to sound through your TV speakers coming from components connected to the AV controller (“TV Sp On” appears on the front panel).

Game button

This button selects the listening modes intended for use with video games.

THX button

This button selects the THX listening modes.

Page 39

About Listening Modes

abFront speakers c Center speaker deSurround speakers f Subwoofer(s) ghSurround back speakers ijFront high speakers klFront wide speakers

Listening

Mode

The AV controller’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound.

Explanatory Notes

■ Input Source

The following audio formats are supported by the listening mode.

A S

This is mono (monophonic) sound. This is stereo (stereophonic) sound. Two independent audio signal channels are reproduced through two

speakers.

This is 5.1-channel surround sound. This surround system has five main channels of sound and a sixth subwoofer channel (called the point-one channel).

This is 7.1-channel surround sound. This is a further sound enhancement to 5.1 channel sound with two additional speakers that provide greater sound envelopment and more accurate positioning of sounds.

This is DTS-ES surround sound. This surround system can produce a discrete or a matrix-encoded sixth channel from existing DTS 5.1 encoded material.

This is Dolby Digital EX surround sound. This provides a center back surround channel from 5.1-channel sources.

■ Speaker Layout

The illustration shows which speakers are activated in each channel. See “Speaker Configuration” for the speaker setup (➔ 48).

ZXC

Page 40

Listening Modes

Di rect

Stereo

Mono

Multich

PL Mo v i e

PL Mu s i c

PL Game

PL x Mo v i e

PL x Mu s i c

PL x Game

Dolby EX

Dolby D EX

Dolby D

TeHDru

DTS

Listening Mode Description Input

Source

Direct In this mode, audio from the input source is output without surround-sound

processing. The “Speaker Configuration” (presence of speakers), “Sp Distance” and “A/V Sync” settings are enabled, but much of the processing set via Home is disabled. See “Advanced Setup” for more details (➔ 44).

A S D F G H

Stereo Sound is output by the front left and right speakers and subwoofer.

A S

Mono Use this mode when watching an old movie with a mono soundtrack, or use

it with the foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as karaoke DVDs.

Multichannel This mode is for use with PCM multichannel sources.

D F G H

D F

Dolby Pro Logic IIx Dolby Pro Logic II

Dolby Pro Logic IIx expands any 2-channel source for 7.1-channel playback. It provides a very natural and seamless surround-sound experience that

S XCN

fully envelops the listener. As well as music and movies, video games can also benefit from the dramatic spatial effects and vivid imaging. If you’re not using any surround back speakers, Dolby Pro Logic II will be used instead of Dolby Pro Logic IIx.

• Dolby PLIIx Movie

Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g., TV, DVD, VHS).

• Dolby PLIIx Music

Use this mode with any stereo or Dolby Surround (Pro Logic) music source (e.g., CD, radio, cassette, TV, VHS, DVD).

• Dolby PLIIx Game

Use this mode with video games, especially those that bear the Dolby Pro Logic II logo.

• Dolby PLIIx Movie and Dolby PLIIx Music

These modes use the Dolby Pro Logic IIx modes to expand 5.1-channel sources for 7.1-channel playback.

Dolby Pro Logic IIz Height

PL z He i gh t

Dolby EX These modes expand 5.1-channel sources for 6.1/7.1-channel playback.

Dolby Pro Logic IIz Height is designed to more effectively use existing program material when height channel speaker outputs are present. Dolby Pro Logic IIz Height can be used to upmix a variety of sources from movies and music, but are particularly well-suited to upmix game content.

They’re especially suited to Dolby EX soundtracks that include a matrixencoded surround back channel. The additional channel adds an extra dimen-

S D F

D H

sion and provides an enveloping surround sound experience, perfect for rotating and fly-by sound effects.

Dolby Digital In this mode, audio from the input source is output without surround-sound

D XCN

processing. “Speaker Configuration” (presence of speakers), “Crossover”, “Sp Distance”, “A/V Sync” and much of the processing set via Home are

Dolby Digital Plus

enabled. See “Advanced Setup” for more details (➔ 44).

D XCN F XCN

Dolby TrueHD

D XCN F XCN

DTS

D XCN

Speaker Layout

ZXC

ZXC N

XCN

Page 41

Listening Mode Description Input

DTS HD HR

DTS HD MSTR

DTS E xp r e s s

DSD

DTSe 96/ 24

ES Discrete

ES Ma t r i x

Neo:6

Neo:6Neo:6 Cinema

Neo:6 Mu s i c

Aud y s sey DSX

PL Mo v i eDSX

PL Mu s i cDSX

PL Game DSX

Neo:6Neo:6 C i n D S X

Neo:6 M u s D S X

Source

DTS-HD High Resolution Audio

(Continued from the previous page )

DXCN FXCN

Speaker Layout

DTS-HD Master Audio

DTS Express

DSD

DTS 96/24

This mode is for use with DTS 96/24 sources. This is high-resolution DTS with a 96 kHz sampling rate and 24-bit resolution, providing superior fidelity. Use it with DVDs that bear the DTS 96/24 logo.

DTS-ES Discrete

This mode is for use with DTS-ES Discrete soundtracks, which use a discrete surround back channel for true 6.1/7.1-channel playback. The seven totally separate audio channels provide better spatial imaging and 360degree sound localization, perfect for sounds that pan across the surround channels. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Discrete soundtrack.

DTS-ES Matrix

This mode is for use with DTS-ES Matrix soundtracks, which use a matrixencoded back-channel for 6.1/7.1-channel playback. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Matrix soundtrack.

DTS Neo:6 This mode expands any 2-channel source for up to 7.1-channel playback. It

uses seven full-bandwidth channels of matrix decoding for matrix-encoded material, providing a very natural and seamless surround sound experience that fully envelops the listener.

•Neo:6 Cinema

Use this mode with any stereo movie (e.g., TV, DVD, VHS).

•Neo:6 Music

Use this mode with any stereo music source (e.g., CD, radio, cassette, TV, VHS, DVD).

This mode uses Neo:6 to expand 5.1-channel sources for 6.1/7.1-channel playback.

Audyssey DSX

Audyssey DSX™ is a scalable system that adds new speakers to improve surround impression. Starting with a 5.1 system Audyssey DSX first adds Wide channels for the biggest impact on envelopment. Research in human hearing has proven that information from the Wide channels is much more critical in the presentation of a realistic soundstage than then Back Surround channels found in traditional 7.1 systems. Audyssey DSX then creates a pair of Height channels to reproduce the next most important acoustical and perceptual cues. In addition to these new Wide and Height channels, Audyssey DSX applies Surround Envelopment Processing to enhance the blend between the front and surround channels.

The combination of Dolby Pro Logic II and Audyssey DSX modes can be used.

The combination of Neo:6 Cinema/Music and Audyssey DSX modes can be used.

DXCN FXCN

XCN

DXCN

SXCN

N F G

Page 42

Listening Mode Description Input

THX Cinema

THX Mu s i c

THX Game s

THX U2 iCnema

THX U2 Music

THX U2 Games

THX Su r r EX

Source

THX Founded by George Lucas, THX develops stringent standards that ensure

movies are reproduced in movie theaters and home theaters just as the director intended. THX Modes carefully optimize the tonal and spatial characteristics of the soundtrack for reproduction in the home-theater environment.

D F G

They can be used with 2-channel matrixed and multichannel sources. Surround back speaker output depends on the source material and the selected listening mode.

•THX Cinema

THX Cinema mode corrects theatrical soundtracks for playback in a home theater environment. In this mode, THX Loudness Plus is configured for cinema levels and Re-EQ, Timbre Matching, and Adaptive Decorrelation are active.

•THX Music

THX Music mode is tailored for listening to music, which is typically mastered at significantly higher levels than movies. In this mode, THX Loudness Plus is configured for music playback and only Timbre Matching is active.

• THX Games

THX Games mode is meant for spatially accurate playback of game audio, which is often mixed similarly to movies but in a smaller environment. THX Loudness Plus is configured for game audio levels, with Timbre Matching active.

The combination of Dolby Pro Logic II/IIx Games modes can be used.

and THX Cinema/Music/

S D H

The combination of Dolby Pro Logic IIz Height Music/Games modes can be used.

and THX Cinema/

S D F G H

The combination of DTS Neo:6 and THX Cinema/Music/Games modes can be used.

S D F H

• THX Ultra2 Cinema

This mode expands 5.1-channel sources for 7.1- channel playback. It does

D F

this by analyzing the composition of the surround source, optimizing the ambient and directional sounds to produce the surround back channel output.

•THX Ultra2 Music

This mode is designed for use with music. It expands 5.1-channel sources for 7.1-channel playback.

•THX Ultra2 Games

This mode is designed for use with video games. It can expand 5.1-channel sources for 6.1/7.1-channel playback.

• THX Surround EX

This mode expands 5.1-channel sources for 6.1/7.1- channel playback. It’s especially suited to Dolby Digital EX sources. THX Surround EX, also known as Dolby Digital Surround EX, is a joint development between Dolby Laboratories and THX Ltd.

Speaker Layout

Page 43

Onkyo-Original DSP Listening Modes

Note

Or ches t r a

Unpl ugged

Studio Mix

TV L og i c

Game RPG

Game A c t i o n

Game Ro c k

Game S po r t s

Al l Ch Stereo

Fu l l Mono

T D

Listening Mode Description Input

Source

Orchestra Suitable for classical or operatic music, this mode emphasizes the surround

channels in order to widen the stereo image, and simulates the natural reverberation of a large hall.

Unplugged Suitable for acoustic instruments, vocals, and jazz, this mode emphasizes the

front stereo image, giving the impression of being right in front of the stage.

Studio-Mix Suitable for rock or pop music, listening to music in this mode creates a

A S D F G H

lively sound field with a powerful acoustic image, like being at a club or rock concert.

TV Logic This mode adds realistic acoustics to TV shows produced in a TV studio,

surround effects to the entire sound, and clarity to voices.

Game-RPG Use this mode when playing role playing game discs.

Game-Action Use this mode when playing action game discs.

Game-Rock Use this mode when playing rock game discs.

Game-Sports Use this mode when playing sports game discs.

All Ch Stereo Ideal for background music, this mode fills the entire listening area with ste-

reo sound from the front, surround, and surround back speakers.

Full Mono In this mode, all speakers output the same sound in mono, so the sound you

hear is the same regardless of where you are within the listening room.

Speaker

Layout

XCN

T- D ( Th e at er Dimensional)

With this mode you can enjoy a virtual surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there’s too much reverb,

ZXC

so we recommend that you use this mode in an environment with little or no natural reverb.

Based on the audio channels contained in the source, the corresponding speakers will output the sound.

If there are no surround back speakers is being used, Dolby Pro Logic II is used.

Surround back and front wide speakers are not supported.

Front high and front wide speakers are not supported.

For the Blu-ray Discs, Dolby Digital is used in a 3.1/5.1-channel speaker system.

AV controller can input the DSD signal from HDMI IN. Setting the output setting on the player side to PCM might obtain a better sound according to the player. In that case, set the output setting on the player side to PCM.

DTS is used depending on the configuration of the AV controller (e.g., Audyssey Dynamic EQ® is on).

If there are no surround back speakers, DTS is used.

• This listening mode can be selected only when all the following conditions are satisfied: a. Center speaker is connected. b. Either of front high or front wide speakers is connected.

• The listening modes cannot be selected with some source formats.

Page 44

Note

1. Input/Output Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Remote Controller Setup

9. Lock Setup

a b c d e f g h i

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

1. Input/Output Assign

1. Volume Setup

2. OSD Setup

3. 12V Trigger A Setup

4. 12V Trigger B Setup

5. 12V Trigger C Setup

6. Miscellaneous

1. Remote Mode Setup

8. Remote Controller Setup

1. BD/DVD

2. VCR/DVR

3. CBL/SAT

4. GAME

5. PC

6. AUX

5. Listening Mode Preset

Tip

Return

Enter

q/w/e/r

Setup

Receiver

Advanced Setup

On-screen Setup Menus

This manual describes the procedure using the remote controller unless otherwise specified.

a Input/Output Assign

(➔ 45)

b Speaker Setup

(➔ 48)

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

c Audio Adj ust

(➔ 51)

3. Audio Adjust

1. Multiplex/Mono

2. Dolby

3. DTS

4. Audyssey DSX

5. Theater-Dimensional

6. LFE Level

f Miscellaneous

(➔ 58)

g Hardware Setup

(➔ 59)

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Auto Power Down

6. Network

7. Firmware Update

h Remote Controller

Setup (➔ 84)

Common Procedures in Setup Menu

The on-screen setup menus appear on the connected TV and provide a convenient way to change the AV controller’s various settings. Settings are organized into 9 categories on the main menu.

Carry out the settings by using the on-screen display.

Press Receiver followed by Setup.

The following menu appears.

1. Input/Output Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Remote Controller Setup

9. Lock Setup

• If the main menu doesn’t appear, make sure the appropriate external input is selected on your TV.

Use q/w to select a menu, and then press Enter.

Use q/w to select target and then press Enter.

d Source Setup (➔ 53) i Lock Setup (➔ 61)

4. Source Setup

1. Audyssey

2. IntelliVolume

3. A/V Sync

4. Name Edit

5. Picture Adjust

e Listening Mode Preset

(➔ 58)

9. Lock Setup

Setup

Use q/w to select option and use e/r to change

the setting.

Press Setup to close the menu. Press Return to return to the previous menu.

• This procedure can also be performed on the AV controller by using Setup, arrow buttons, and Enter.

• During Audyssey MultEQ Setup, messages, etc., that are displayed on the TV screen will appear in the Display.

Room Correction and Speaker

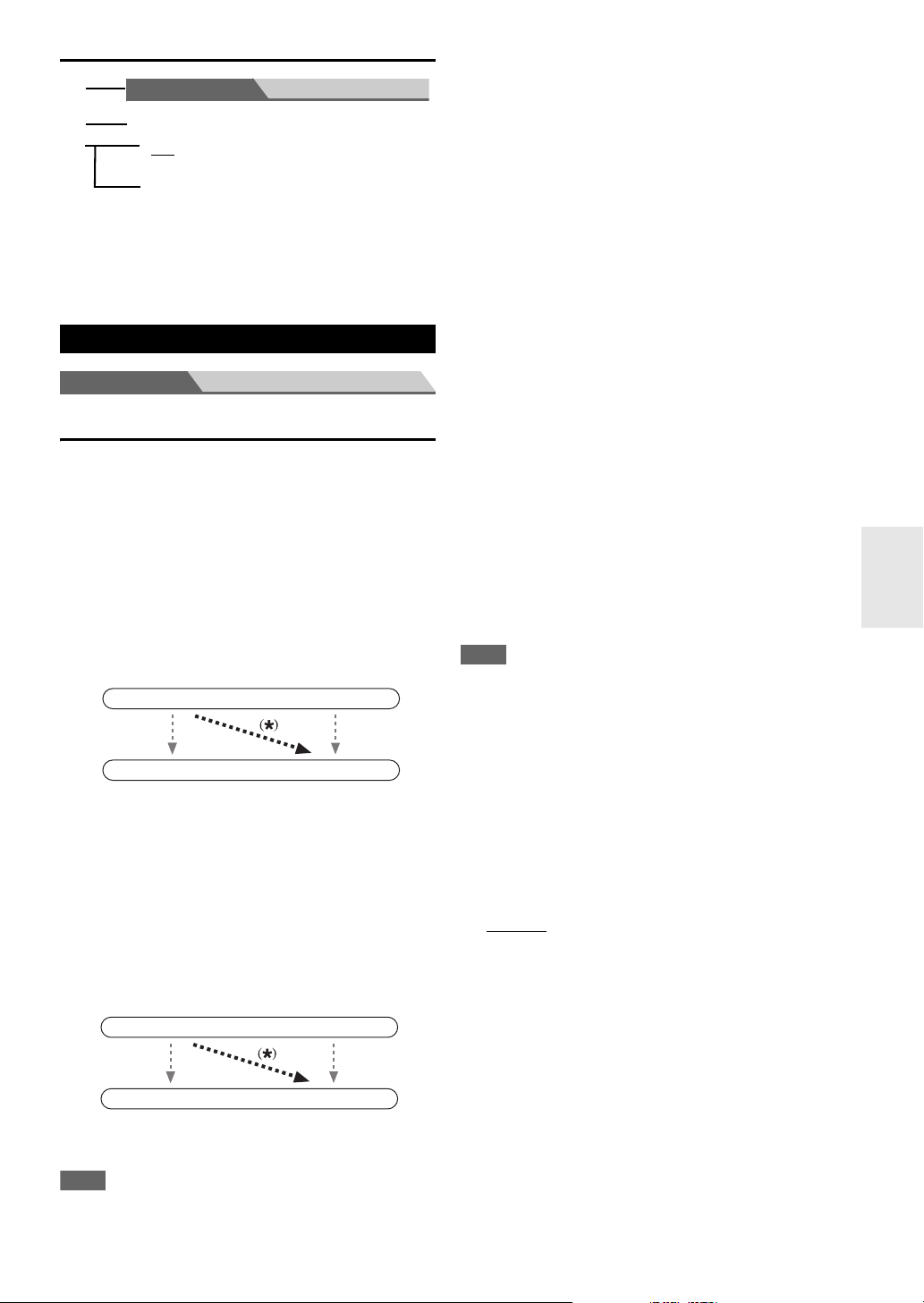

Page 45

Explanatory Notes

Note

a Menu selection b Setting target c Setting options (default setting underlined)

Main Menu Speaker Setup

■ Subwoofer

 Ye s

Select if a subwoofer is connected.

 No:

Select if no subwoofer is connected.

b c

OUT

Composite video, S-Video,

component video

Composite video, S-Video,

component video

HDMI

Composite video, S-Video

Component video

Input/Output Assign

Main Menu Input/Output Assign

Monitor Out

On the “Monitor Out” settings, you can select whether or not to have the video sources’ images output through the HDMI output, as well as whether to have the onscreen setup menu output through the HDMI output or through an analog output.

If you connect your TV to HDMI output, “Monitor Out” setting is automatically set so that the onscreen setup menus are displayed and composite video, S-Video, and component video sources are upconverted

and output.

■ Monitor Out

 Analog:

Select this if your TV is connected to the COMPO-

NENT VIDEO MONITOR OUT, MONITOR OUT S, or MONITOR OUT V.

 HDMI Main:

Select this if your TV is connected to the HDMI OUT MAIN.

 HDMI Sub:

Select this if your TV is connected to the HDMI OUT SUB.

 Both:

Select this if your TVs are connected to the HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs at the resolution supported by both TVs.

 Both(Main):

Select this if your TVs are connected to the HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs but HDMI OUT MAIN will become a priority; depending on the resolution, video signals may not be output from HDMI OUT SUB.

 Both(Sub):

Select this if your TVs are connected to the HDMI OUT MAIN and HDMI OUT SUB. V

ideo signals are output from both HDMI outputs but HDMI OUT SUB will become a priority; depending on the resolution, video signals may not be output from HDMI OUT MAIN.

If you connect your TV to the COMPONENT VIDEO MONITOR OUT (not the HDMI output), “Monitor Out” setting is automatically set so that the onscreen setup menus are displayed and composite video and S-Video

sources are upconverted

and output.

OUT

• See “Video Connection Formats” (➔ 21) for charts showing how the “Monitor Out” and “Resolution” settings (➔ 45) affect the video signal flow through the AV controller.

• If not connected to the same output you have selected in the “Monitor Out” setting, the “Monitor Out” setting will be automatically switched to “Analog” (➔ 22).

• For Deep Color output, if the “Monitor Out” setting is set to “Both(Main)” or “Both(Sub)”, the number of bit may be limited due to the capability of your TV connected to a priority output.

■ Resolution

You can specify the output resolution for the HDMI

output

and COMPONENT VIDEO MONITOR OUT and have the AV controller upconvert the picture resolution as necessary to match the resolution supported by your TV.

 Through

: Select this to pass video through the AV controller at the same resolution and with no conversion.

 Auto

: Select this to have the AV controller automatically convert video at resolutions not supported by your TV.

 480p:

Select this for 480p output and video conversion as necessary.

 720p:

Select this for 720p output and video conversion as necessary.

 1080i:

Select this for 1080i output and video conversion as necessary.

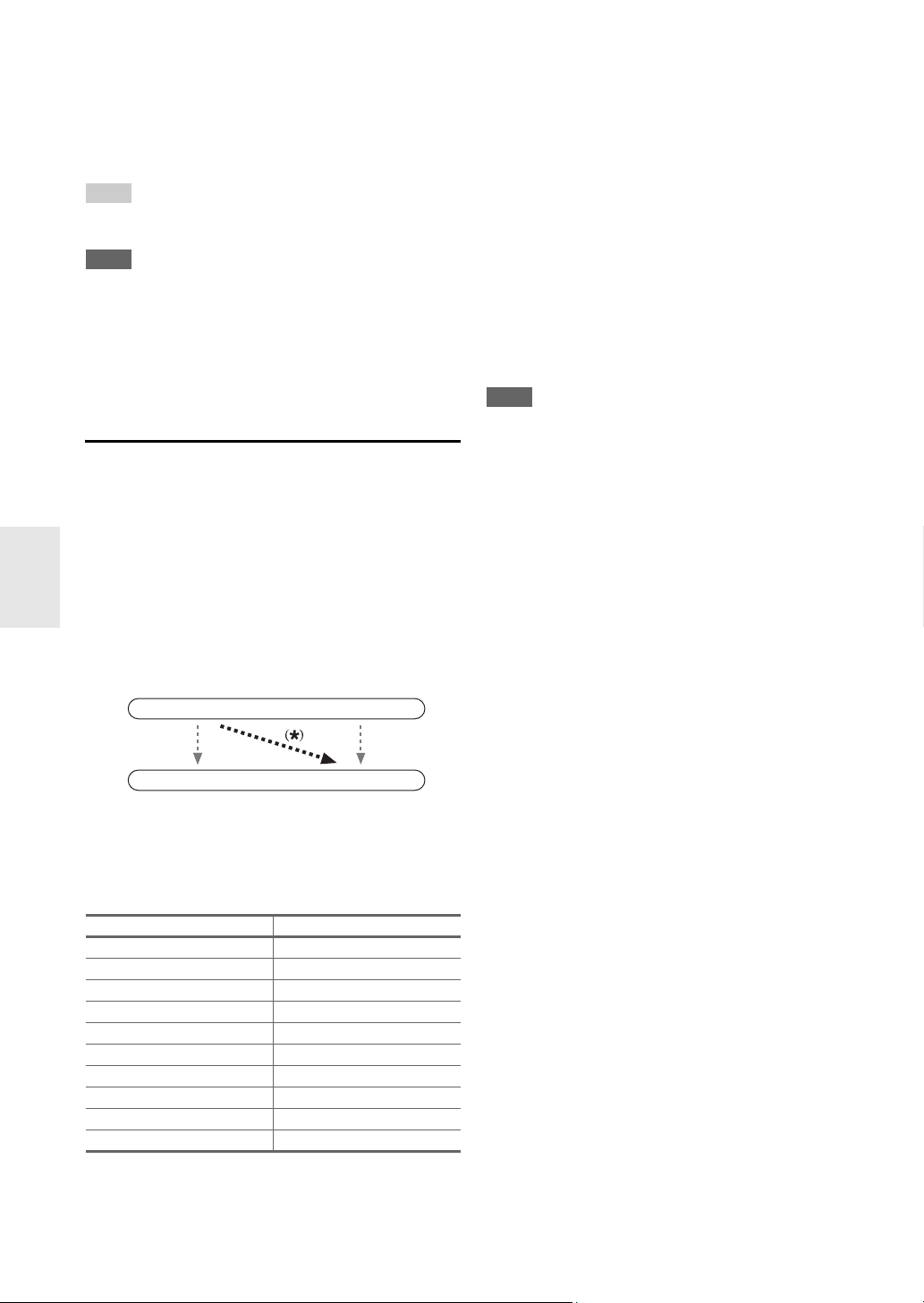

Page 46

 1080p*2:

Tip

Note

Composite video, S-Video,

component video

Composite video, S-Video,

component video

HDMI

Select this for 1080p output and video conversion as necessary.

 Source:

Output will be according to the resolution level which was set in the “Picture Adjust” setting (➔ 55).

•The “Resolution” setting can be set for each “Monitor Out” setting.

•If the “Monitor Out” setting is set to “Both”, this setting is fixed at “Auto ”.

PC IN (Analog RGB) input signal is output at 720p resolution when the “Monitor Out” setting is set to “Analog” (➔ 45) and the “Resolution” setting is set to “Through”.

These settings are not available when the “Monitor Out” setting is set to “Analog”.

HDMI Input

If you connect a video component to an HDMI input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to HDMI IN 2, you must assign “HDMI2” to the “BD/DVD” input selector.

If you’ve connected your TV to the AV controller with an HDMI cable, composite video, S-video and component video sources can be upconverted* and output by the HDMI output*1. You can set this for each input selector by selecting the “-----” option.

OUT

■ BD/DVD, VCR/DVR, CBL/SAT, GAME, PC,

TV/CD, PHONO, PORT

 HDMI1, HDMI2, HDMI3, HDMI4, HDMI5,

HDMI6:

Select the HDMI IN to which the video component has been connected.

 -----:

Output composite video, S-Video, and component video sources from the HDMI output. The video output signal from the HDMI output is the one configured in “Component Video Input” (➔ 47).

•“AUX” is used only for input from the front panel.

• Each HDMI input cannot be assigned to two input selectors or more. When HDMI1 - HDMI6 have already been assigned, you must set first any unused input selectors to “-----” or you will be unable to assign HDMI1

- HDMI6 to input selector.

• For composite video, S-Video, and component video upconversion for the HDMI output, the “Monitor Out” setting must be set to other than “Analog” (➔ 45), and the “HDMI Input” setting must be set to “-----”. See “Video Connection Formats” for more information on video signal flow and upconversion (➔ 21).

• If no video component is connected to HDMI output (even if the HDMI input is assigned), the AV controller selects the video source based on the setting of “Component Video Input”.

•When an HDMI IN is assigned to an input selector as explained here, the same HDMI IN will be set as a priority in the “Digital Audio Input” (➔ 47). In this case, if you want to use the coaxial or optical audio input, make the selection in the Audio Selector in the Home menu (➔ 25).

•“TUNER” selector cannot be assigned and is fixed at the “-----” option.

• If you connect a component (such as UP-A1 Dock that seated iPod) to UNIVERSAL PORT jack, you cannot assign any input to “PORT” selector.

• Do not assign the component connected with the HDMI input to “TV/CD” selector when you set “TV Control” setting to “On” (➔ 61). Otherwise, appropriate CEC (Consumer Electronics Control) operation will not be guaranteed.

This applies only when “Monitor Out” setting is set to other than “Analog” (➔ 45).

Input selector Default assignment

BD/DVD HDMI1

VCR/DVR HDMI2

CBL/SAT HDMI3

GAME HDMI4

PC HDMI5 AUX F RONT (Fixed) TUNER ----- (Fixed)

TV/CD -----

PHONO -----

PORT -----

Page 47

Component Video Input

Note

Composite video, S-Video

Component video

Digital Audio Input

If you connect a video component to a component video input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to COMPONENT VIDEO IN 2, you must assign “IN2” to the “BD/DVD” input selector.

If you’ve connected your TV to the AV controller with a component video cable, you can set the AV controller so that composite video and S-Video sources are upconverted* and output by the COMPONENT VIDEO MONI-

TOR OUT*1. You can set this for each input selector by

selecting the “-----” option.

Only when “Monitor Out” setting is set to “Analog” (➔ 45).

OUT

Here are the default assignments.

Input selector Default assignment

BD/DVD IN1

VCR/DVR - - - - -

CBL/SAT IN2

GAME IN3

PC -----

AUX ----TUNER ----- (Fixed)

TV/CD -----

PHONO -----

PORT -----

■ BD/DVD, VCR/DVR, CBL/SAT, GAME, PC, AUX,

TV/CD, PHONO, PORT

 IN1, IN2, IN3:

Select a corresponding component video input that the video component has been connected.

 -----:

Select if you are using HDMI output, rather than the COMPONENT VIDEO MONITOR OUT, for the output from composite video, S-Video, and component video sources.

• For composite video and S-Video upconversion for the COM- PONENT VIDEO MONITOR OUT, the “Monitor Out” set- ting must be set to “Analog” (➔ 45), and the “Component Video Input” setting must be set to “-----”. See “Video Connection Formats” for more information on video signal flow and upconversion (➔ 21).

• If not connected to the same output you have selected in the “Monitor Out” setting, the “Monitor Out” setting will be automatically switched to “Analog” (➔ 45).

• If you connect a component (such as UP-A1 Dock that seated iPod) to the UNIVERSAL PORT jack, you cannot assign any input to “PORT” selector.

If you connect a component to a digital audio input, you must assign that input to an input selector. For example, if you connect your CD player to the OPTICAL IN 1, you must assign “OPT1” to the “TV/CD” input selector.

Here are the default assignments.

Input selector Default assignment

BD/DVD COAX1

VCR/DVR COAX2

CBL/SAT COAX3

GAME OPT1

PC -----

AUX ----TUNER ----- (Fixed)

TV/CD OPT2

PHONO -----

PORT -----

■ BD/DVD, VCR/DVR, CBL/SAT, GAME, PC,

TV/CD, PHONO, PORT

 COAX1, COAX2, COAX3, OPT1, OPT2:

Select a corresponding digital audio input that the component has been connected.

 -----:

Select if the component is connected to an analog audio input.

• When an HDMI IN is assigned to an input selector in “HDMI Input” (➔ 46), the same HDMI IN will be set as a priority in this assignment. In this case, if you want to use the coaxial or optical audio input, make the selection in the Audio Selector in the Home menu.

• Available sampling rate for PCM signals from a digital input (optical and coaxial) is 32/44.1/48/88.2/96 kHz/16, 20, 24 bit.

• If you connect a component (such as UP-A1 Dock that seated iPod) to the UNIVERSAL PORT jack, you cannot assign any input to “PORT” selector.

Analog Audio Input

Some DVD players output the LFE channel from their analog subwoofer output at 15 dB higher than normal. With this setting, you can change the AV controller’s subwoofer sensitivity to match your DVD player.

■ Subwoofer Input Sensitivity

 0dB

to 15dB in 5 dB step.

• This setting only affects signals connected to the AV controller’s multichannel input SUBWOOFER jack.

• If you find that your subwoofer is too loud, try the 10 dB or 15 dB setting.

Page 48

Note

Speaker Setup

Speaker Configuration

Main menu Speaker Setup

Some of the settings in this section are set automatically by Audyssey MultEQ® Room Correction and Speaker Setup function (➔ 27).

Here you can check the settings made by Audyssey MultEQ Room Correction and Speaker Setup function, or set them manually, which is useful if you change one of the connected speakers after using Audyssey MultEQ Room Correction and Speaker Setup function.

• These settings are disabled when: – a pair of headphones is connected, or –the “Audio TV Out” setting is set to “On” (➔ 59) and an

input selector other than HDMI is selected.

Speaker Settings

If you change these settings, you must run Audyssey MultEQ Room Correction and Speaker Setup again (➔ 27).

If you bi-amp the front speakers, you must change the “Speakers Type(Front)” setting (➔ 48).

For hookup information, see “Bi-amping the Front Speakers” (➔ 15).

• When bi-amping is used, the AV controller is able to drive up to

5.1 speakers in the main room.

• Before you change these settings, turn down the volume.

■ Speakers Type(Front)

 Normal

 Bi-Amp:

: Select this if you’ve connected your front speakers normally.

Select this if you’ve bi-amped your front speakers.

This setting is set automatically by Audyssey MultEQ Room Correction and Speaker Setup function (➔ 27).

With these settings, you can specify which speakers are connected and a crossover frequency for each speaker. Specify “Full Band” for speakers that can output low frequency bass sounds adequately, for example, speakers with a good sized woofer. For smaller speakers, specify a crossover frequency. Sounds below the crossover frequency will be output by the subwoofer instead of the speaker. Refer to your speaker’s manuals to determine the optimum crossover frequencies. If you set up your speakers using Audyssey MultEQ Room Correction and Speaker Setup, please make sure manually that any THX speakers are set to “80Hz(THX)” crossover.

■ Subwoofer

 Ye s

Select if a subwoofer is connected.

 No:

Select if no subwoofer is connected.

■ Front

 Full Band  40Hz, 45Hz, 50Hz, 55Hz, 60Hz, 70Hz, 80Hz(THX)

to 130Hz, 150Hz, 200Hz

•If the “Subwoofer” setting is set to “No”, the “Front” setting is fixed at “Full Band”.

■ Center*1, Surround*1, Surr Back

*2*3*4

 Full Band  40Hz, 45Hz, 50Hz, 55Hz, 60Hz, 70Hz, 80Hz(THX)

to 130Hz, 150Hz, 200Hz

 None:

Select if no speaker is connected.

■ Front Wide

*1*2*4

, Front High

*1*2*4

 Full Band  40Hz, 45Hz, 50Hz, 55Hz, 60Hz, 70Hz, 80Hz(THX)

to 130Hz, 150Hz, 200Hz

 None

Select if no speaker is connected.

•The “Front Wide”, “Front High” and “Surr Back” settings are cannot be set at the same time.

“Full Band” can be selected only when “Full Band” is selected in the “Front” setting.

If the “Surround” setting is set to “None”, this setting cannot be selected.

If the “Surround” setting is set to anything other than “Full Band”, “Full Band” cannot be selected here.

If the “Speakers Type(Front)” setting is set to “Bi-Amp” (➔ 48), this setting cannot be selected.

Page 49

■ Surr Back Ch

Note

Tip

 1ch:

Select if only one surround back speaker is connected.

 2ch

: Select if two (left and right) surround back speakers are connected.

•If the “Surr Back” setting is set to “None” (➔ 48), this setting cannot be selected.

■ LPF of LFE

(Low-Pass Filter for the LFE Channel)

 80Hz, 90Hz, 100Hz, 110Hz, 120Hz

With this setting, you can specify the cutoff frequency of the LFE channel’s low-pass filter (LPF), which can be used to filter out unwanted hum. The LPF only applies to sources that use the LFE channel.

■ Double Bass

This setting is NOT set automatically by Audyssey MultEQ® Room Correction and Speaker Setup function (➔ 27).

Speaker Distance

This setting is set automatically by Audyssey MultEQ Room Correction and Speaker Setup function (➔ 27).

Here you can specify the distance from each speaker to the listening position so that the sound from each speaker arrives at the listener’s ears as the sound designer intended.

■ Unit

 feet

Distances can be set in feet. Range: “0.2ft” to “30.0ft” in 0.2 foot steps.

 meters:

Distances can be set in meters. Range: “0.06m” to “9.00m” in 0.06 meter steps.

■ Left, Front Wide Left, Front High Left, Center,

Front High Right, Front Wide Right, Right, Surr Right, Surr Back Right, Surr Back Left, Surr Left, Subwoofer

 Specify the distance from the each speaker to your lis-

tening position.

With the Double Bass function, you can boost bass output by feeding bass sounds from the front left, right, and center channels to the subwoofer.

 On

Double Bass function on.

 Off(THX):

Double Bass function off.

• This function can be set only if the “Subwoofer” setting is set to “Ye s”, and the “Front” setting is set to “Full Band”.

• If you’re using THX-certified speakers, select “Off(THX)”.

• Speakers that you set to “No” or “None” in the “Speaker Con-

figuration” cannot be selected (➔ 48).

Level Calibration

This setting is set automatically by Audyssey MultEQ Room Correction and Speaker Setup function (➔ 27).

Here you can adjust the level of each speaker with the built-in test tone so that the volume of each speaker is the same at the listening position.

■ Left, Front Wide Left, Front High Left, Center

Front High Right, Front Wide Right, Right, Surr Right, Surr Back Right, Surr Back Left, Surr Left

 –12.0dB to 0.0dB to +12.0dB in 0.5 dB step.

■ Subwoofer

 –15.0dB to 0.0dB to +12.0dB in 0.5 dB step.

• Speakers that you set to “No” or “None” in the “Speaker Con- figuration” cannot be selected (➔ 48).

• The speakers cannot be calibrated while the AV controller is muted.

• The test tone is output at the standard level for THX, which is 0 dB (absolute volume setting 82). If you normally listen at volume settings below this, be careful because the test tone will be much louder.

For the center speaker and subwoofer, the level settings made by using the Home menu are saved (➔ 25).

• If you’re using a handheld sound level meter, adjust the level of each speaker so that it reads 75 dB SPL at the listening position, measured with C-weighting and slow reading.

Page 50

Equalizer Settings

Note

Tip

This setting is set automatically by Audyssey MultEQ Room Correction and Speaker Setup function (➔ 27).

With the Equalizer settings, you can adjust the tone of speakers individually with a 15-band equalizer. The volume of each speaker can be set (➔ 49).

■ Equalizer

 Manual:

You can adjust the equalizer for each speaker manually. If you selected “Manual”, continue with this procedure.

Press w to select “Channel”, and then use e/

r to select a speaker.

Use q/w to select a frequency, and then use

the e/r to adjust the level at that frequency.

The volume at each frequency can be adjusted from –6dB to 0dB

• You can select: “25Hz”, “40Hz”, “63Hz”, “100Hz”, “160Hz”, “250Hz”, “400Hz”, “630Hz”, “1000Hz”, “1600Hz”, “2500Hz”, “4000Hz”, “6300Hz”, “10000Hz”, or “16000Hz”. And for the subwoofer, “25Hz”, “40Hz”, “63Hz”, “100Hz”, or “160Hz”.

• While the Direct listening mode is selected, the equalizer settings have no effect.

• Low frequencies (e.g., 63Hz) affect bass sounds; high frequencies (e.g., 16000Hz) affect treble sounds.

Use q to select “Channel”, and then use e/r

to select another speaker.

Repeat steps 1 and 2 for each speaker. You cannot select speakers that you set to “No”

or “None” in the “Speaker Configuration” (➔ 48).

 Audyssey:

This is selected automatically by Audyssey MultEQ Room Correction and Speaker Setup function. The Audyssey indicator will light (➔ 9) and “Dynamic EQ” (➔ 53) and “Dynamic Volume” (➔ 53) become available .

 Off

Tone off, response flat.

to +6dB in 1 dB steps.

THX Audio Setup

With the “Surr Back Speaker Spacing” setting, you can

specify the distance between your surround back speakers. If you’re using a THX-certified subwoofer, set the “THX

Ultra2/Select2 Subwoofer” setting to “Yes ”. You can then apply THX’s Boundary Gain Compensation (BGC) to compensate the perceived exaggeration of low frequencies for listeners sitting very close to a room boundary (i.e., wall). You can also set the THX Loudness Plus. When the “Loudness Plus” is set to “On”, it is possible to enjoy even subtle nuances of audio expression at low volume. This result is only available when the THX listening mode is selected.

■ Surr Back Speaker Spacing

 <1ft(<0.3m):

Select this if your surround back speakers are between 0 and 1 foot (0–30 cm) apart.

 1ft - 4ft (0.3m - 1.2m):

Select this if your surround back speakers are between 1 and 4 feet (0.3–1.2 m) apart.

 > 4ft (> 1.2m)

Select this if your surround back speakers are more than 4 feet (1.2 m) apart.

• Cannot be set if “Surr Back Ch” is set to “1ch” (➔ 49), “Speakers Type(Front)” is set to “Bi-Amp” (➔ 48), or “Surr Back” is set to “None” (➔ 48).

■ THX Ultra2/Select2 Subwoofer

 No

: Select this if you do not have a THX-certified subwoofer.

 Ye s :

Select this if you have a THX-certified subwoofer.

•If the “Subwoofer” setting is set to “No”, this setting cannot be selected (➔ 48).

■ BGC

 Off:

Select this to turn off BGC.

 On

Select this to turn on BGC.

• This setting is only available if “THX Ultra2/Select2 Sub- woofer” is set to “Ye s ”.

■ Loudness Plus

 Off:

Select this to turn off Loudness Plus.

 On

Select this to turn on Loudness Plus.

Page 51

■ Preserve THX Settings

Note

 Ye s

: Audyssey Dynamic EQ® / Audyssey Dynamic Volume® will not be active in THX listening mode.

 No:

Audyssey Dynamic EQ / Audyssey Dynamic Volume will be active in THX listening mode depending on the setting.

• This setting is fixed at “Yes ” if “Loudness Plus” is set to “On”.

THX Loudness Plus

THX Loudness Plus is a new volume control technology featured in THX Ultra2 Plus™ and THX Ultra2 Plus™ Certified receivers. With THX Loudness Plus, home theater audiences can now experience the rich details in a surround mix at any volume level. A consequence of turning the volume below Reference Level is that certain sound elements can be lost or perceived differently by the listener. THX Loudness Plus compensates for the tonal and spatial shifts that occur when the volume is reduced by intelligently adjusting ambient surround channel levels and frequency response. This enables users experience the true impact of soundtracks regardless of the volume setting. THX Loudness Plus is automatically applied when listening in any THX listening mode. The new THX Cinema, THX Music, and THX Games modes are tailored to apply the proper THX Loudness Plus settings for each type of content.

Audio Adjust

Main menu Audio Adjust

With the Audio Adjust functions and settings, you can adjust the sound and listening modes as you like.

Multiplex/Mono

■ Multiplex

This setting determines which channel of a stereo multiplex source is output. Use it to select audio channels or languages with multiplex sources, multilingual TV broadcasts, and so on.

Input Channel

 Main

The main channel is output.

 Sub:

The sub channel is output.

 Main/Sub:

Both the main and sub channels are output.

■ Mono

This setting specifies the channel to be used for playing any 2-channel digital source such as Dolby Digital, or 2-channel analog/PCM source in the Mono listening mode.

Input Channel

 Left + Right

Both the left and right channels are output.

 Left:

Only the left channel is output.

 Right:

Only the right channel is output.

Output Speaker

 Center

Mono audio is output by the center speaker.

 Left / Right:

Mono audio is output by the front left and right speakers.

This setting determines which speakers output mono audio when the Mono listening mode is selected.

• If the “Center” setting is set to “None” (➔ 48), this setting is fixed at “Left / Right”.

Page 52

Dolby

Note

Front left speaker Front right speaker

■ PLIIx Music (2ch Input)

These settings apply to only 2-channel stereo sources. If you’re not using any surround back speakers, these

settings apply to Dolby Pro Logic II, not Dolby Pro Logic IIx.

Panorama

 On:

Panorama function on.

 Off

Panorama function off.

With this setting, you can broaden the width of the front stereo image when using the Dolby Pro Logic IIx Music listening mode.

Dimension

 –3 to 0

With this setting, you can move the sound field forward or backward when using the Dolby Pro Logic IIx Music listening mode. Higher settings move the sound field backward. Lower settings move it forward.

If the stereo image feels too wide, or there’s too much surround sound, move the sound field forward to improve the balance. Conversely, if the stereo image feels like it’s in mono, or there’s not enough surround sound, move it backward.

Center Width

 0 to 3

With this setting, you can adjust the width of the sound from the center speaker when using the Dolby Pro Logic IIx Music listening mode. Normally, if you’re using a center speaker, the center channel sound is output by only the center speaker. (If you’re not using a center speaker, the center channel sound will be distributed to the front left and right speakers to create a phantom center). This setting controls the front left, right, and center mix, allowing you to adjust the weight of the center channel sound.

■ PLIIz Height Gain

The Height Gain Control in Dolby Pro Logic IIz enables the listener to select how much gain is applied to the front high speakers. There are three settings, “Low”, “Mid” and “High”, and the front high speakers are accentuated in that order. While “Mid” is the default listening setting, the listener may adjust the Height Gain Control to their personal preference.

 Low:

 Mid:

 High:

to +3

to 7

Low PLIIz Height Gain becomes active.

Medium PLIIz Height Gain becomes active.

High PLIIz Height Gain becomes active.

back speakers are connected. This setting is effective with Dolby Digital, Dolby Digital Plus and Dolby TrueHD only.

 Auto:

If the source signal contains a Dolby EX flag, the Dolby EX or THX Surround EX listening mode is used.

 Manual

You can select any available listening mode.

•If the “Surr Back” setting is set to “None” (➔ 48), this setting cannot be selected.

•If the “Front High” or “Front Wide” setting is enabled (➔ 48), this setting is fixed at “Manual”.

DTS

■ Neo:6 Music

Center Image

 0 to 2

to 5 The DTS Neo:6 Music listening mode creates 6-channel surround sound from 2-channel stereo sources. With

this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel.

Setting a value “0” in the middle is set to hear a sound. Sound is spread in left and right (the outside) so that the set value is made big. Please adjust by liking.

Audyssey DSX™

■ Soundstage

 –3dB to Reference

to +3dB With this setting, you can adjust the soundstage when using Audyssey DSX™.

•If the “Center” setting is set to “None”, or both “Front High”

and “Front Wide” settings are set to “None” (➔ 48), this setting cannot be selected.

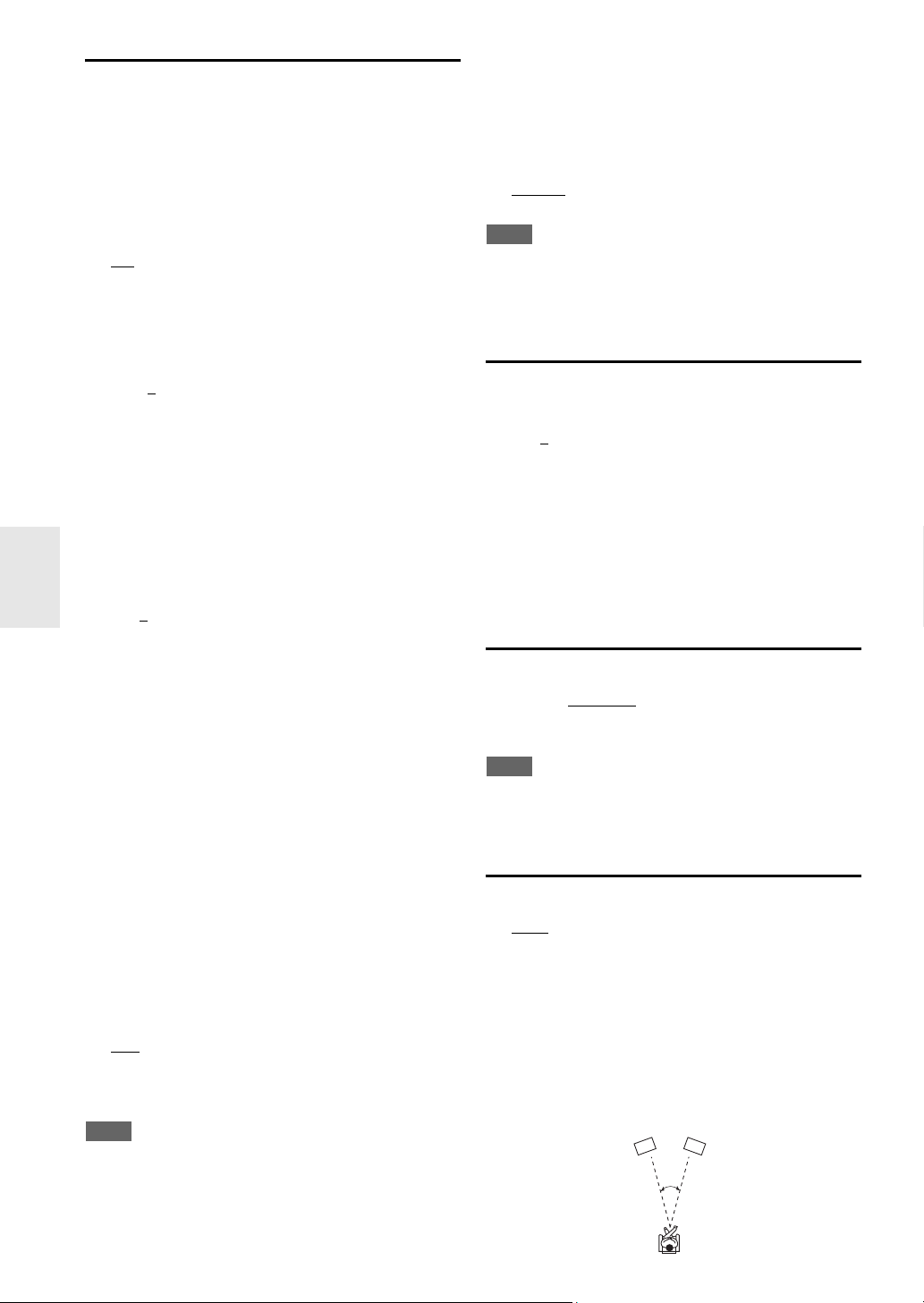

Theater-Dimensional

■ Listening Angle

 Wide

Select if the listening angle is 40 degrees.

 Narrow:

Select if the listening angle is 20 degrees.

With this setting, you can optimize the Theater-Dimensional listening mode by specifying the angle of the front left and right speakers relative to the listening position. Ideally, the front left and right speakers should be equidistant from the listening position and at an angle close to one of the two available settings.

•If the “Front High” settings is set to “None” (➔ 48), this setting cannot be selected.

■ Dolby EX

This setting determines how Dolby EX encoded signals

are handled. This setting is unavailable if no surround

20°/40°

Page 53

LFE Level

Note

■ Dolby Digital*1, DTS*2, Multich PCM, Dolby

TrueHD, DTS-HD Master Audio, DSD

 –QdB, –20dB, –10dB, or 0dB

With these settings, you can set the level of the LFE (Low Frequency Effects) channel individually for each input sources. If you find that low-frequency effects are too loud when using one of these sources, change the setting to –20 dB or

–Q dB.

Dolby Digital and Dolby Digital Plus sources.

DTS and DTS-HD High Resolution Audio sources.

DSD (Super Audio CD) sources.

Source Setup

Items can be set individually for each input selector.

Preparation

Press the input selector buttons to select an input source.

Main menu Source Setup

Audyssey

When Audyssey MultEQ® Room Correction and Speaker Setup is complete, the “Equalizer” (➔ 50) will be set to “Audyssey” and the “Dynamic EQ” will be set to “On”.

■ Dynamic EQ

 Off

Audyssey Dynamic EQ

 On:

Audyssey Dynamic EQ on. The Dynamic EQ indicator will light (➔ 9).

With Audyssey Dynamic EQ, you can enjoy great

sound even when listening at low volume levels.

Audyssey Dynamic EQ solves the problem of deterio-

rating sound quality as volume is decreased by taking

into account human perception and room acoustics. It

does so by selecting the correct frequency response and

surround volume levels moment-by-moment so that the

content sounds the way it was created at any volume

level — not just at reference level.

• If Direct listening mode is selected, this setting cannot be

selected.

off.

■ Reference Level

Audyssey Dynamic EQ Reference Level Offset

 0dB

It should be used when listening to movies.

 5dB:

Select this setting for content that has a very wide dynamic range, such as classical music.

 10dB:

Select this setting for jazz or other music that has a wider dynamic range. This setting should also be selected for TV content as that is usually mixed at 10 dB below film reference.

 15dB:

Select this setting for pop/rock music or other program material that is mixed at very high listening levels and has a compressed dynamic range.

Movies are mixed in rooms calibrated for film reference. To achieve the same reference level in a home theater system each speaker level must be adjusted so that –30 dBFS band-limited (500 Hz to 2000 Hz) pink noise produces 75 dB sound pressure level at the listening position. A home theater system automatically calibrated by Audyssey MultEQ will play at reference level when the master volume control is set to the 0 dB position. At that level you can hear the mix as the mixers heard it.

Audyssey Dynamic EQ is referenced to the standard film mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, film reference level is not always used in music or other non-film content. Audyssey Dynamic EQ Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard.

• If “Dynamic EQ” setting is set to “Off”, this setting cannot be selected.

■ Dynamic Volume

 Off

Audyssey Dynamic Volume® off.

 Light:

Light Compression Mode becomes active.

 Medium:

Medium Compression Mode becomes active.

 Heavy:

Heavy Compression Mode becomes active. This setting affects volume the most, causing all sounds to be of equal loudness.

• Even if you have selected other than “Audyssey” in “Equalizer” setting after performing Audyssey MultEQ Room Correction and Speaker Setup, selecting “On” in the “Dynamic EQ” will change the “Equalizer” setting to “Audyssey” (➔ 50).

• If you would like to use Audyssey Dynamic Volume, when using THX listening modes, set “Loudness Plus” setting to “Off” (➔ 50) and set “Preserve THX Settings” setting to “No” (➔ 51).

Page 54

• When “Dynamic Volume” is set to effective, “Equalizer” is set

Note

to “Audyssey” (➔ 50) and “Dynamic EQ” is set to “On”. When “Dynamic EQ” is set to “Off”, “Dynamic Volume” becomes “Off” automatically.

• When “Dynamic Volume” is set to effective, the Dynamic Vol indicator will light (➔ 9).

• If Direct listening mode is selected, this setting cannot be selected.

Audyssey MultEQ® then removes the distortion caused by room acoustics by capturing room acoustical problems over the listening area in both the frequency and time domain. The result is clear, well-balanced sound for everyone. Enabling Audyssey MultEQ allows you to also use Audyssey Dynamic EQ octave-to-octave balance at any volume level.

Before using this function, connect and position all of your speakers.

About Audyssey Dynamic EQ

Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Dynamic EQ selects the correct frequency response and surround levels moment-by-moment at any userselected volume setting. The result is bass response, tonal balance, and surround impression that remain constant despite changes in volume. Dynamic EQ combines information from incoming source levels with actual output sound levels in the room, a prerequisite for delivering a loudness correction solution. Audyssey Dynamic EQ works in tandem with Audyssey MultEQ to provide well-balanced sound for every listener at any volume level.

About Audyssey Dynamic Volume

Audyssey Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Dynamic Volume looks at the preferred volume setting by the user and then monitors how the volume of program material is being perceived by listeners in real time to decide whether an adjustment is needed. Whenever necessary, Dynamic Volume makes the necessary rapid or gradual adjustments to maintain the desired playback volume level while optimizing the dynamic range. Audyssey Dynamic EQ is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression, and dialog clarity remain the same whether watching movies, flipping between television channels, or changing from stereo to surround sound content.

, which maintains the proper

IntelliVolume

■ IntelliVolume

 –12dB to 0dB

With IntelliVolume, you can set the input level for each input selector individually. This is useful if one of your source components is louder or quieter than the others.

Use e/r to set the level. If a component is noticeably louder than the others, use e to reduce its input level. If it’s noticeably quieter, use r to

increase its input level.

to +12dB in 1 dB steps.

A/V Sync

■ A/V Sync

 0ms

to 250ms in 2 ms steps.

When using your DVD player’s progressive scanning function, you may find that the picture and sound are out of sync. With the A/V Sync setting, you can correct this

by applying a delay to the audio signal. To view the TV picture while setting the delay, press Enter. To return to the previous screen, press Return.

If HDMI Lip Sync is enabled (➔ 60) and your TV or display supports HDMI Lip Sync, the displayed delay time will be the summation of the A/V Sync delay time and the HDMI Lip Sync delay time. The HDMI Lip Sync delay time is displayed underneath in parentheses.

• A/V Sync is disabled when the Direct listening mode is used with an analog input source.

•“A/V Sync” is not operable when the input selector is set to “NET/USB”.

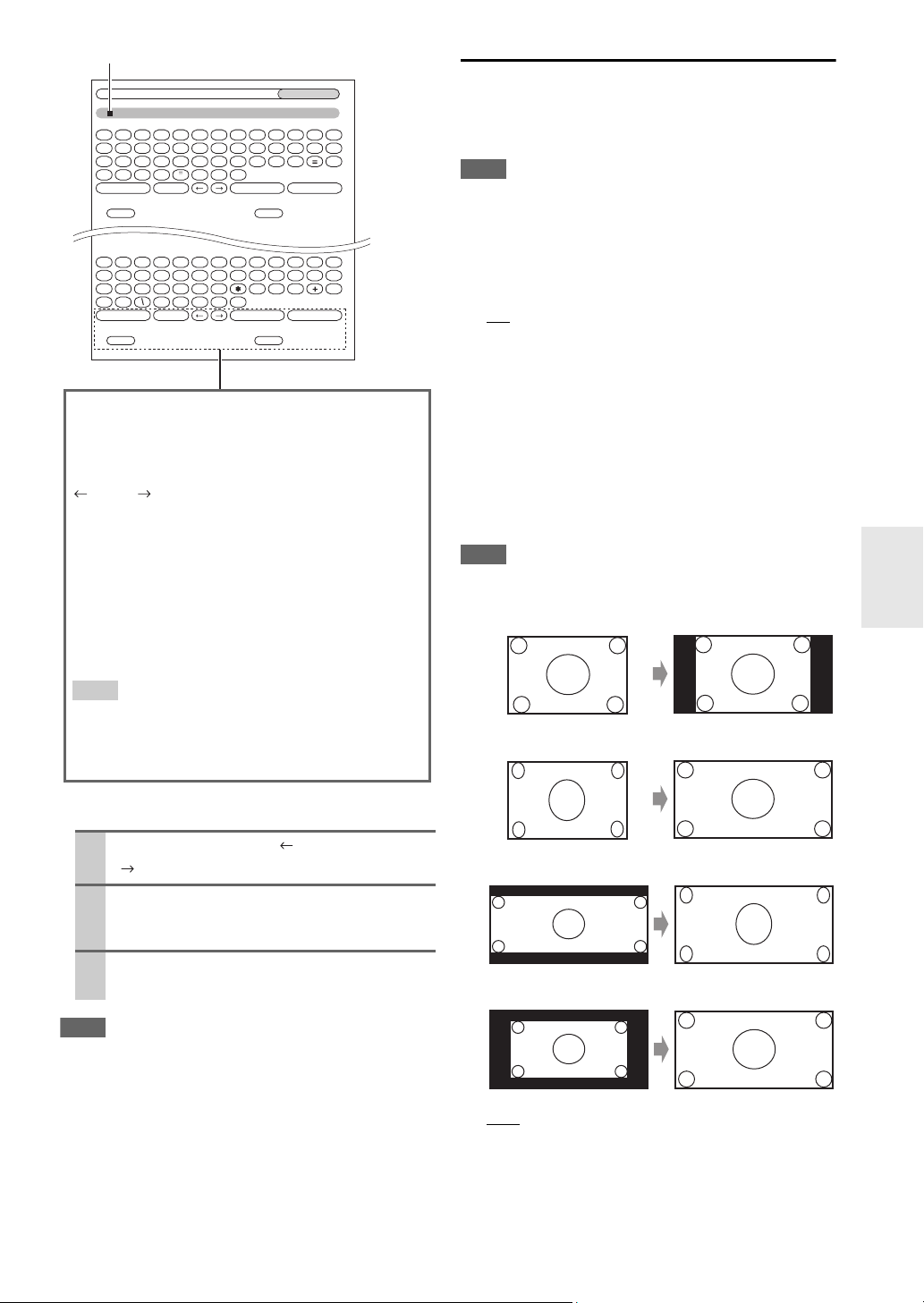

Name Edit

You can enter a custom name for each individual input selector (excluding Tun er ) and radio preset for easy identification. When entered, the custom name will appear on the display.

The custom name is edited using the character input screen.

■ Name

Use q/w/e/r to select a character, and then

press Enter.

Repeat this step to enter up to 10 characters.

When you’ve finished, to store a name, be sure

to use q/w/e/r to select “OK”, and then press Enter. Otherwise it will not be saved.

Page 55

Note

Picture Adjust

Note

Name input area

Shift*1:

Switches the displayed character.

Space:

Enters a space character.

(Left)/ (Right):

Selected when the cursor is moved within the Name input area.

BackSpace

: “BackSpace” moves the cursor backward one character space. In addition, “BackSpace” deletes the

character to the left of the cursor.

OK:

Selects when the entry is complete.

Tip

You can also be performed on the remote controller by using +10.

Press CLR on the remote controller, you can delete all characters in the input.

abcde fgh i j k lm nopqr s t uvwxyz 1234567890

{}| : <>

+10 CLR

ABCDEF GH I J KLM NOPQRS T UVWXY Z

!@#$%

[]

+10 CLR

4-4. Name Edit

Name

Back SpaceShift OK

()_ ~

Back SpaceShift OK

Space

Shift All Erase

;

Space

Shift All Erase

BD/DVD

–`

Using “Picture Adjust”, you can adjust the picture quality and reduce any noise appearing on the screen.

To view the TV picture while setting, press Enter. To return to the previous screen, press Return.

• If you are using the analog RGB input, the following settings have no effect: “Film Mode”, “Edge Enhancement”, and “Noise Reduction”.

•“Picture Adjust” is not operable when the input selector is set to “NET/USB”.

■ Game Mode

 Off

Game Mode off.

 On:

Game Mode on. If video signal delay occurs during playback on a video component (i.e. game console), select the corresponding input source and set the “Game Mode” setting to “On”. The delay will decrease but in return the picture quality will become poor.

■ Wide Mode

This setting determines the aspect ratio.

• When the “Game Mode” is set to “On”, this setting is fixed at

“Full”.

 4:3:

To correct a character:

Use q/w/e/r to select “ ”(Left) or

“ ”(Right), and then press Enter.

Press Enter several times to select the incorrect

character (The cursor moves one letter each time Enter is pressed).

Use q/w/e/r to select the correct character,

and then press Enter.

• To name a radio preset, use Tun er to select AM or FM, and then select the preset (➔ 31).

• You cannot enter a custom name for SIRIUS radio presets.

•“Name Edit” is not operable when the input selector is set to “NET/USB”.

To restore a custom name to the default, erase the custom name by entering an empty white space for each letter.

 Full:

 Zoom:

 Wide Zoom:

 Auto

: According to the input signals and monitor output setting, the AV controller automatically selects the “4:3”, “Full”, “Zoom” or “Wide Zoom” mode. For the monitor output setting (➔ 45).

Page 56

■ Picture Mode

Note

 Through:

The following settings are set to the default values: “Film Mode”, “Edge Enhancement”, “Noise Reduction”, “Brightness”, “Contrast”, “Hue”, “Saturation”, “Gamma”, “Red Brightness”, “Red

Contrast”, “Green Brightness”, “Green Contrast”, “Blue Brightness”, “Blue Contrast”

 Custom

: You can set the following settings as you like: “Film Mode”, “Edge Enhancement”, “Noise Reduction”, “Brightness”, “Contrast”, “Hue”, “Saturation”, “Gamma”, “Red Brightness”, “Red Contrast”, “Green Brightness”, “Green Contrast”, “Blue Brightness”, “Blue Contrast”

 ISF Day:

Stetting when a room is bright.

 ISF Night:

Stetting when a room is dark.

 Cinema:

Selected when the picture source is movie film, etc.

 Game:

Select to use in connecting a game console.

With “Picture Mode”, you can change the following set- tings to be suitable for the movie or game screen by one operation; “Film Mode”, “Edge Enhancement”, “Noise Reduction”, “Resolution”, “Brightness”, “Contrast”, “Hue”, “Saturation”, “Gamma”, “Red Brightness”, “Red Contrast”, “Green Brightness”, “Green Con- trast”, “Blue Brightness”, “Blue Contrast”.

The controller has been designed to incorporate setup and calibration standards established by the Imaging Science Foundation (ISF). The ISF has developed carefully crafted, industry-recognized standards for optimal video performance and has implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from the controller. Accordingly, Onkyo recommends that setup and calibration be performed by an ISF Certified installation technician.

• When the “Picture Mode” setting is set to other than “Custom”, the following settings cannot be selected: “Film Mode”, “Edge

Enhancement”, “Noise Reduction”, “Brightness”, “Contrast”, “Hue”, “Saturation”, “Gamma”, “Red Brightness”,

“Red Contrast”, “Green Brightness”, “Green Contrast”, “Blue Brightness”, “Blue Contrast”.

■ Film Mode

*2*3

 Video:

Does not process in either “3:2” or “2:2”.

 Auto:

Adjusts to the picture source, automatically selecting “Film Mode”.

 3:2:

Selected when the picture source is movie film, etc.

 2:2:

Selected when the picture source is computer graphics, animation, etc.

The AV controller will adjust to the picture source, processing in either “3:2” or “2:2” (Film Mode). It automatically converts the source to the appropriate progressive signal and reproduces the natural quality of the original picture.

When the “Film Mode” setting is set to “Auto”, the AV controller automatically detects the picture source and in either “3:2” or “2:2”. However, there may be times when you will get a better picture by setting “Film Mode” yourself.

•If the “Game Mode” setting is set to “On” (➔ 55), this setting is fixed at “Video”.

■ Edge Enhancement

*2*3

 0 to +10

With this setting you can adjust the sharpness of edges in the picture. “0” is the softest. “+10” is the sharpest.

■ Noise Reduction

*2*3

 Off:

Noise reduction off.

 Low

Low noise reduction.

 Mid:

Medium noise reduction.

 High:

High noise reduction. With this setting, you can reduce noise appearing on the screen.

•If the “Game Mode” setting is set to “On” (➔ 55), this setting

is fixed at “Off”.

Page 57

■ Resolution

Tip

Note

*2*3

 Through:

Select this to pass video through the AV controller at the same resolution and with no conversion.

 Aut o:

Select this to have the AV controller automatically convert video at resolutions not supported by your TV. When the “Monitor Out” is set to “Analog”, this setting will be changed to “Through”.

 480p:

Select this for 480p output and video conversion as necessary.

 720p:

Select this for 720p output and video conversion as necessary.

 1080i:

Select this for 1080i output and video conversion as necessary.

 1080p:

Select this for 1080p output and video conversion as necessary. When the “Monitor Out” is set to “Ana- log”, this setting will be changed to “1080i”.

You can specify the output resolution for the HDMI outputs and have the AV controller upconvert the picture resolution as necessary to match the resolution supported by your TV.

Available only when “Source” has been selected in the “Resolution” of the “Monitor Out” setting (➔ 45).

■ Brightness

*1*2*3

 –50 to 0 to +50

With this setting you can adjust the picture brightness. “–50” is the darkest. “+50” is the brightest.

■ Contrast

*1*2*3

 –50 to 0 to +50

With this setting you can adjust contrast. “–50” is the least. “+50” is the greatest.

*1*2*3

■ Hue

 –20 to 0 to +20

With this setting you can adjust the red/green balance. “–20” is the strongest green. “+20” is the strongest red.

■ Saturation

*1*2*3

 –50 to 0 to +50

With this setting you can adjust saturation. “–50” is the weakest color. “+50” is the strongest color.

■ Gamma

*2*3

 –3 to 0 to +3

Adjust the balance of incoming picture R (red), G (green), and B (blue) color data signal to the output color data signal.

■ Red Brightness

*2*3

 –50 to 0 to +50

With this setting you can adjust the picture red brightness. “–50” is the darkest. “+50” is the brightest.

■ Red Contrast

*2*3

 –50 to 0 to +50

With this setting you can adjust red contrast. “–50” is the least. “+50” is the greatest.

■ Green Brightness

*2*3

 –50 to 0 to +50

With this setting you can adjust the picture green brightness. “–50” is the darkest. “+50” is the brightest.

■ Green Contrast

*2*3

 –50 to 0 to +50

With this setting you can adjust green contrast. “–50” is the least. “+50” is the greatest.

■ Blue Brightness

*2*3

 –50 to 0 to +50

With this setting you can adjust the picture blue brightness. “–50” is the darkest. “+50” is the brightest.

■ Blue Contrast

*2*3

 –50 to 0 to +50

With this setting you can adjust blue contrast. “–50” is the least. “+50” is the greatest.

This procedure can also be performed on the remote controller by using the Home menu (➔ 25).

Press CLR if you want to reset to the default value.

• If you are using the analog RGB input, the following settings have no effect: “Film Mode”, “Edge Enhancement”, and “Noise Reduction”.

•“Picture Adjust” is not operable when the input selector is set to “NET/USB”.

When the “Picture Mode” setting is set to anything other than “Custom”, this setting cannot be used.

Page 58

Listening Mode Preset

Note

1. BD/DVD

2. VCR/DVR

3. CBL/SAT

4. GAME

5. PC

6. AUX

5. Listening Mode Preset

You can assign a default listening mode to each input source that will be selected automatically when you select each input source. For example, you can set the default listening mode to be used with Dolby Digital input signals. You can select other listening modes during playback, but the mode specified here will be resumed once the AV controller has been set to Standby.

Main menu Listening Mode Preset

Use q/w to select the input source that you want to

set, and then press Enter.

The following menu appears.

■ DTS/DTS-ES/DTS-HD

With this setting, you can specify the listening mode to be used when a DTS or DTS-HD High Resolution Audio format digital audio signal is played (DVD, LD, CD, etc.). Specifies the default listening mode for DTSHD Master Audio sources, such as Blu-ray or HD DVD (input via HDMI).

■ Other Multich Source

Specifies the default listening mode for multichannel PCM sources from HDMI IN such as DVD-Audio, and DSD multichannel sources such as Super Audio CD.

Miscellaneous

Main menu Miscellaneous

Volume Setup

For “TUNER” input selector only “Analog” will be available. For “NET/USB” input source only “Digi- tal” will be available.

• If you connect an input component (such as UP-A1 series Dock that seated iPod) to the UNIVERSAL PORT jack, you can assign only listening modes for the analog sound to “PORT” selector.

Use q/w to select the signal format that you want

to set, and then use e/r to select a listening mode.

Only listening modes that can be used with each input signal format can be selected (➔ 39 to 43).

The “Last Valid” option means that the listening mode selected last will be used. The “Straight Decode” option means that straight decoding listening mode (Dolby Digital, DTS, etc.) is selected.

■ Analog/PCM

With this setting, you can specify the listening mode to be used when an analog (CD, TV, LD, VHS, MD, turntable, radio, cassette, cable, satellite, etc.) or PCM digital (CD, DVD, etc.) audio signal is played.

■ Mono/Multiplex Source

With this setting, you can specify the listening mode to be used when a mono digital audio signal is played (DVD, etc.).

■ 2ch Source

With this setting, the default listening mode for 2-channel (2/0) stereo sources in a digital format, such as Dolby Digital or DTS.

■ Dolby D/Dolby D +/TrueHD

With this setting, you can specify the listening mode to be used when a Dolby Digital or Dolby Digital Plus format digital audio signal is played (DVD, etc.). Specifies the default listening mode for Dolby TrueHD sources, such as Blu-ray or HD DVD (input via HDMI).

■ Volume Display

 Absolute

Display range is “Min”, “0.5” through “99.5”, “Max”.

 Relative (THX):

Display range is “–QdB”, “–81.5dB” through

“+18.0dB”. With this setting, you can choose how the volume level is displayed. The absolute value 82 is equivalent to the relative value 0dB.

■ Muting Level

 –

QdB (fully muted), –50dB to –10dB in 10 dB steps. This setting determines how much the output is muted when the muting function is used (➔ 25).

■ Maximum Volume

 Off

, 50 to 99 (Absolute display)

 Off

, –32dB to +17dB (Relative display) With this setting, you can limit the maximum volume. To disable this setting, select “Off”.

■ Power On Volume

 Last

, Min, 1 to 99 or Max (Absolute display) , –QdB, –81dB to +18dB (Relative display)

 Last

With this preference, you can specify the volume setting to be used each time the AV controller is turned on.

To use the same volume level that was used when the AV controller was turned off, select “Last”. The “Power On Volume” cannot be set higher than the “Maximum Volume” setting.

■ Headphone Level

 –12dB to 0dB

to +12dB With this preference, you can specify the headphone volume relative to the main volume. This is useful if there’s a

volume difference between your speakers and your headphones.

Page 59

OSD Setup

Note

Tune r

■ On Screen Display

This preference determines whether operation details are displayed onscreen when an AV controller function is adjusted.

 On

Displayed.

 Off:

Not displayed. Even when “On” is selected, operation details may not be output if the input source is connected to an HDMI IN.

■ Language

 English

, Deutsch, Français, Español, Italiano,

Nederlands, Svenska, Chinese

This setting determines the language used for the onscreen setup menus.

12V Trigger A/B/C Setup

See “Using the 12V Triggers” (➔ 77).

Hardware Setup

Main menu Hardware Setup

Remote ID

■ Remote ID

 1

, 2, or 3

When several Integra/Onkyo components are used in the same room, their remote ID codes may overlap. To differentiate the AV controller from the other components, you can change its remote ID from “1”, to “2” or “3”.

• If you do change the AV controller’s remote ID, be sure to

change the remote controller to the same ID (see below), otherwise, you won’t be able to control it with the remote controller.

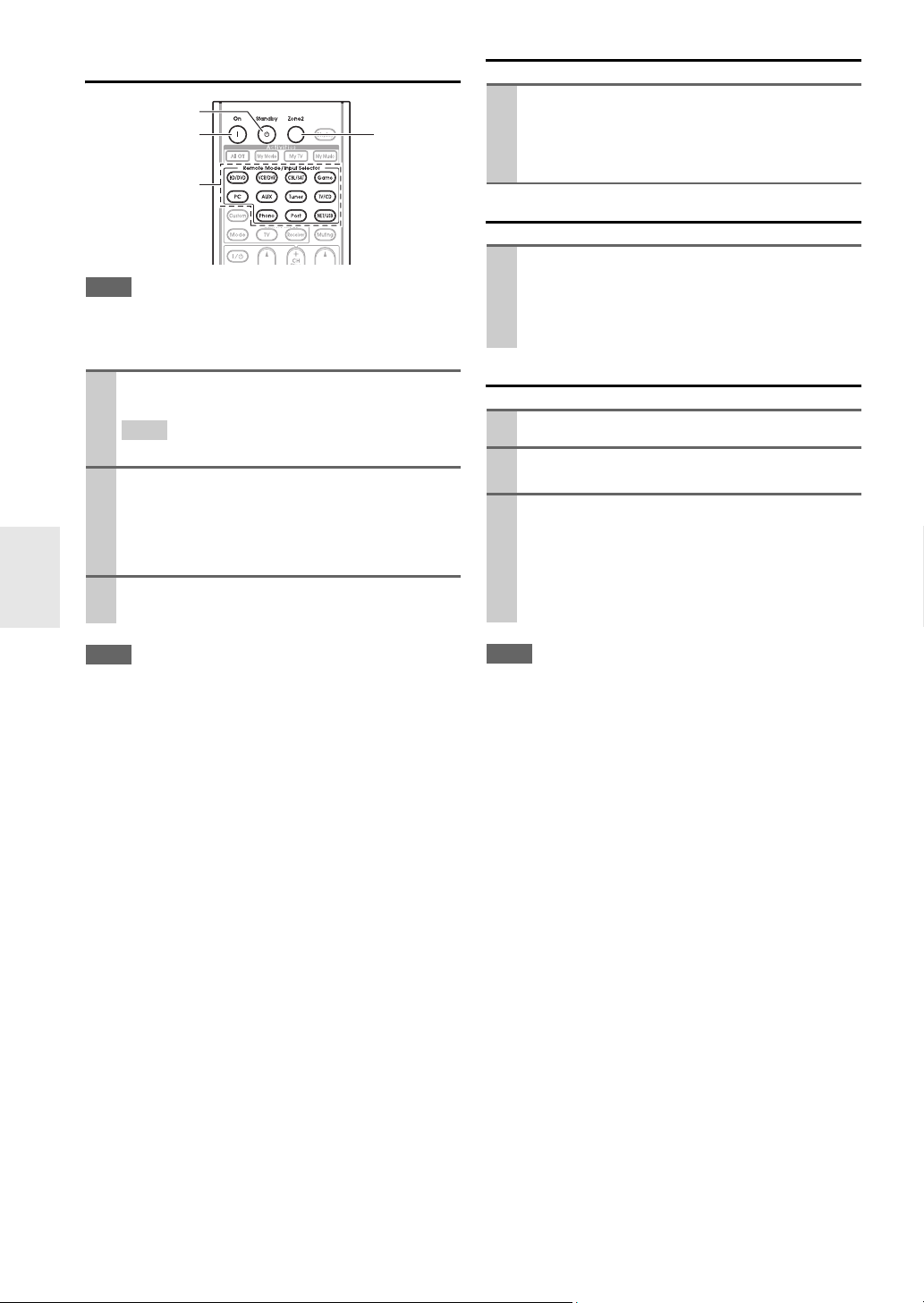

Changing the Remote Controller’s ID

While holding down Receiver, press and hold

down Setup until Receiver lights (about 3 sec-

onds).

Use the number buttons to enter ID 1, 2, or 3.

Receiver flashes twice.

Multi Zone

See “Setting the Multi Zone” (➔ 75).

For FM/AM tuning to work properly, you must specify the FM/AM frequency step used in your area. Note that when this setting is changed, all radio presets will be deleted.

■ FM/AM Frequency Step

 200kHz

/10kHz:

Select if 200 kHz/10 kHz steps are used in your area.

 50kHz/9kHz:

Select if 50 kHz/9 kHz steps are used in your area.

SIRIUS Settings

See “Listening to SIRIUS Satellite Radio®” (➔ 31) for more information.

■ SAT Radio Mode

If you connect a SIRIUS Satellite Radio antenna to the AV controller (sold separately), set this setting to “SIR- IUS”.

■ Antenna Aiming

■ SIRIUS Parental Lock

These items are for use with SIRIUS Satellite Radio. It’s not available if “SAT Radio Mode” is set to “None”.

HDMI

■ Audio TV Out

 Off

The audio is not output from the HDMI output.

 On:

The audio is output from the HDMI output.

This preference determines whether the incoming audio signal is output from the HDMI output. You may want to turn this preference on if your TV is connected to the HDMI output and you want to listen to the audio from a connected component through your TV’s speakers. Normally, this should be set to “Off”.

• Listening mode cannot be changed when this setting is set to “On” and the input source is not HDMI.

“On” is selected and the audio can be output from the TV, the

• If AV controller will output no sound through its speakers. In this case, “TV Sp On” appears on the display.

“TV Control” is set to “On”, this setting is fixed to

• When

“Aut o”.

• With some TVs and input signals, no sound may be output even when this setting is set to

• When the “Audio TV Out” setting is set to trol” is set to TV’s speakers (➔ 17), if you turn up the AV controller’s volume control, the sound will be output by the AV controller’s front left and right speakers. To stop the AV controller’s speakers producing sound, change the settings, change your TV’s settings, or turn down the AV controller’s volume.

• If the “Monitor Out” setting is set to “Both(Main)” or “Both(Sub)” (➔ 45) and if your TV connected to a priority output cannot output the audio, the sound will be heard from AV controller’s speakers.

“On” (➔ 61) and you’re listening through your

“On” (➔ 61).

“On”, or “TV Con-

Page 60

■ Lip Sync

Note

 Disable

HDMI lip sync disabled.

 Enable:

HDMI lip sync enabled.

The AV controller can be set to automatically correct any delay between the video and the audio, based on the data from the connected monitor.

• This function works only if your HDMI-compatible TV supports HDMI Lip Sync.

• You can check the amount of delay being applied by the HDMI Lip Sync function on the A/V Sync screen.

•If the “Monitor Out” setting is set to “HDMI Main”, “Both(Main)” or “Both” (➔ 45), the delay will be corrected in accordance with the monitor connected to HDMI OUT MAIN. On the other hand, if “HDMI Sub” or “Both(Sub)” is selected, the delay will be corrected in accordance with the monitor connected to HDMI OUT SUB.

■ HDMI Control (RIHD)

 Off

disabled.

 On:

This function allows

enabled.

-compatible components connected via HDMI to be controlled with the AV controller (➔ 96 to 97).

■ Audio Return Channel

 Off:

Select “Off” if you don’t want to use audio return channel (ARC) function.

 Auto

: The audio signal from your TV tuner can be sent to the HDMI OUT MAIN of the AV controller.

Audio return channel (ARC) function enables an HDMI (Audio Return Channel) capable TV to send the audio stream to the HDMI OUT MAIN of the AV controller. To use this function, you must select the TV/CD input selector and your TV must support ARC function.

•The “Audio Return Channel” setting can be set only when the “HDMI Control (RIHD)” setting is set to “On”.

• This setting is set to “Auto” automatically when the “HDMI Control (RIHD)” is set to “On” first time.

■ Power Control

 Off:

Power Control disabled.

 On

Power Control enabled.

To link the power functions of p-compatible components connected via HDMI, select “On”.

This setting is set to “On” automatically when the “HDMI Control (RIHD)” is set to “On” first time.

• When set to “On” and close the menu, the name of connected p-compatible components and “RIHD On” are dis-

played on the AV controller. “Search...”  “(name)”  “RIHD On” When the AV controller cannot receive the name of the component, it is displayed as “Player*” or “Recorder*”, etc (“*” means the number of two or more component). When set to “Off” and close the menu, “RIHD Off” are displayed on the AV controller. “Disconnect”  “RIHD Off”

• When an p-compatible component is connected to the AV controller via the HDMI cable, the name of the connected component is displayed on the AV controller display. For example, while you are watching TV broadcasting, if you operate a Blu-ray Disc/DVD player (being powered on) by the remote control of the AV controller, the name of the Blu-ray Disc/DVD player is displayed on the AV controller.

“Off” when a connected piece of equipment is not com-

•Set to patible or it is unclear whether the equipment is compatible or not.

• If movement is unnatural when set to

“Off”.

• Refer to the connected component’s instruction manual for details.

•The p control does not support HDMI OUT SUB. Use HDMI OUT MAIN instead.

• When the source equipment is connected with the u connection, it may malfunction if “HDMI Control (RIHD)” is set to

“On”, change the setting

“On”.

•The “Power Control” setting can be set only when the “HDMI

Control (RIHD)

• HDMI power control only works with p-compatible components that support it and may not work properly with some components due to their settings or compatibility.

• When set to “On”, power consumption will increase.

• When set to “On”, regardless of whether the AV controller is On or in Standby, both audio and video stream from an HDMI input will be output to the TV or other components via HDMI connection (HDMI pass through function).

• The power consumption during standby mode will increase during the HDMI pass through function; however if your TV supports CEC (Consumer Electronics Control), the power consumption can be saved in the following cases:

1. The TV is in standby mode.

2. You are watching a TV program.

• Refer to the connected component’s instruction manual for details.

” setting is set to “On”.

Page 61

■ TV Control

Note

 Off:

TV Control disabled.

 On

TV Control enabled. Set to “On” when you want to control the AV controller from an p-compatible TV that is connected to HDMI.

• Do not assign the component connected with the HDMI input to

the TV/CD se le ct or whe n y ou se t “TV Control” setting to “On”. Otherwise, appropriate CEC (Consumer Electronics Control) operation is not guaranteed.

“Off” when the TV is not compatible or when it is unclear

•Set to

whether the TV is compatible or not.

•The

“TV Control” setting can be set only when the “HDMI

Control (RIHD)

tings are both set to “On”.

• Refer to the connected component’s instruction manual for

details.

” (➔ 60) and “Power Control” (➔ 60) set-

After changing the settings of the “HDMI Control (RIHD)”, or

“TV Control”

“Audio Return Channel”, “Power Control”

, turn off the power to all connected

pieces of equipment and then turn them on again. Refer to the user’s manuals for all connected pieces of equipment.

■ Version

The current version of the firmware is displayed.

■ Receiver

 via NET:

You can update the firmware via Internet. Check the network connection before update.

 via USB:

You can update the firmware from a USB mass storage device.

You can update the AV controller’s firmware. Do not shutdown the power of the AV controller while update.

■ Universal Port

 via NET:

You can update the firmware via Internet. Check the network connection before update.

 via USB:

You can update the firmware from a USB mass stor-

age device. You can update the Onkyo dock’s firmware. Do not shutdown the power of the AV controller while update.

• This update shall not be performed when no dock is connected

to UNIVERSAL PORT jack.

Lock Setup

Auto Power Down

■ Auto Power Down

 Off:

Auto Power Down disabled.

 On:

Auto Power Down enabled.

The AV controller will automatically perform STANDBY operation when “Auto Power Down” is set to

“On”

, with no audio or video signal output, and if there is no operation for 30 minutes. “Auto Power Down” will display on the display and OSD from 30 seconds before the Auto Power Down functions. Default setting: Off

• Depending on some sources, the auto power-down function may

activate during playback.

• The Auto Power Down function does not work when Zone 2 is

on.

Network

See “Network Settings” (➔ 70).

Firmware Update

• Perform the firmware update only when an announcement is

posted on the Integra web site.

• It takes about 30 minutes to complete the firmware update.

With this preference, you can protect your settings by locking the setup menus.

Main menu Lock Setup

■ Setup

 Locked:

Setup menus locked.

 Unlocked

Setup menus not locked.

When the setup menus are locked, you cannot change any setting.

Using the Audio Settings

You can change various audio settings from the Home menu (➔ 25).

Press Receiver followed by Home.

Useq/w to select “Audio”, and then use q/w/e/r

to make the desired selection.

• These settings are disabled when: – a pair of headphones is connected, or –the “Audio TV Out” setting is set to “On” (➔ 59) and an

input selector other than HDMI is selected.

Page 62

Tone Control Settings

Note

Late Night

You can adjust the bass and treble for the front speakers, except when the Direct or THX listening mode is selected.

■ Bass

 –10dB to 0dB to +10dB in 2 dB steps.

You can boost or cut low-frequency sounds output by the front speakers.

■ Treble

 –10dB to 0dB

to +10dB in 2 dB steps. You can boost or cut high-frequency sounds output by the front speakers.

Operating on the AV controller

Press Tone on the AV controller repeatedly to

select either “Bass” or “Treble”.

Use –/+ to adjust the bass, treble or balance.

• This setting is not available when the multichannel Analog input is selected.

Speaker Levels

You can adjust the volume of each speaker while listening to an input source.

These temporary adjustments are cancelled when the AV controller is set to Standby. To save the setting you made here, go to “Level Calibration” (➔ 49) before setting the AV controller to Standby.

■ Subwoofer Level

 –15.0dB to 0.0dB to +12.0dB in 1 dB steps.

■ Center Level

 –12.0dB to 0.0dB

• You cannot use this function while the AV controller is muted.

• Speakers that are set to “No” or “None” in the “Speaker Configuration” (➔ 48) cannot be adjusted.

to +12.0dB in 1 dB steps.

Audyssey Settings

■ Dynamic EQ

See “Dynamic EQ” of “Source Setup” (➔ 53).

■ Dynamic Volume

See “Dynamic Volume” of “Source Setup” (➔ 53).

With the Late Night function, you can reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels— ideal for watching movies late at night when you don’t want to disturb anyone.

■ Late Night

For Dolby Digital and Dolby Digital Plus sources, the options are:

 Off

Late Night function off.

 Low:

Small reduction in dynamic range.

 High:

Large reduction in dynamic range.

For Dolby TrueHD sources, the options are:

 Auto

: The Late Night function is set to “On” or “Off” automatically.

 Off:

Late Night function off.

 On:

Late Night function on.

• The effect of the Late Night function depends on the material that you are playing and the intention of the original sound designer, and with some material there will be little or no effect when you select the different options.

• The Late Night function can be used only when the input source is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.

• The Late Night function is set to “Off” when the AV controller is set to Standby. For Dolby TrueHD sources, it will be set to “Auto”.

Music Optimizer

The Music Optimizer function enhances the sound quality of compressed music files. Use it with music files that use “lossy” compression, such as MP3.

■ Music Optimizer

 Off

Music Optimizer off.

 On:

Music Optimizer on. The M.Opt indicator will light (➔ 9).

• The Music Optimizer function only works with PCM digital audio input signals with a sampling rate below 48 kHz and analog audio input signals. The Music Optimizer is disabled when the Direct listening mode is selected.

• The setting is stored individually for each input selector.

Page 63

Re-EQ

Note

With the Re-EQ function, you can compensate a soundtrack whose high-frequency content is too harsh, making it more suitable for home theater viewing.

■ Re-EQ

 Off

Re-EQ Function off.

 On:

Re-EQ Function on. This function can be used with the following listening modes: Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Multichannel, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS Express, DSD, Dolby EX, Dolby Pro Logic IIz Height, Dolby PLIIx Movie, Neo:6 Cinema and 5.1-channel source + Neo:6.

■ Re-EQ(THX)

 Off:

Re-EQ (THX) Function off.

 On

Re-EQ (THX) Function on. This function can be used with the following listening modes: THX Cinema, THX Surround EX, and

THX Ultra2 Cinema.

• Settings for the Re-EQ function are kept in each listening mode.

However, in THX listening mode, when the AV controller is turned off, it will return to “On”.

Audio Selector

You can set priorities of audio output when there are both digital and analog inputs.

■ Audio Selector

 ARC:

The audio signal from your TV tuner can be sent to

the HDMI OUT MAIN of the AV controller.

With this selection the TV’s audio can be automati-

cally selected as a priority among other assignments.

 HDMI:

This can be selected when HDMI IN has been

assigned as an input source. If both HDMI (HDMI

IN) and digital audio inputs (COAXIAL IN or OPTI-

CAL IN) have been assigned, HDMI input is auto-

matically selected as a priority.

 COAX:

This can be selected when COAXIAL IN has been

assigned as an input source. If both coaxial and

HDMI inputs have been assigned, coaxial input is

automatically selected as a priority.

 OPT:

This can be selected when OPTICAL IN has been

assigned as an input source. If both optical and

HDMI inputs have been assigned, optical input is

automatically selected as a priority.

 Multich:

The AV controller always outputs analog signals from multichannel analog input.

 Analog:

The AV controller always outputs analog signals.

• The setting is stored individually for each input selector.

• This setting can be made only for the input source that is assigned as HDMI IN, COAXIAL IN, or OPTICAL IN.

• To select the digital audio input, see “Digital Audio Input” for more detail (➔ 47).

•“Multich” can be selected only when the selector is set to “BD/ DVD”.

You can select “ARC” if you select the TV/CD input selector. But you cannot select it if you’ve selected “Off” in the “Audio Return Channel” setting (➔ 60).

Setting the Incoming Digital Signal (Fixed Mode)

By pressing Enter while selecting “HDMI”, “COAX”, “OPT” in the “Audio Selector”, you can specify the input signal in the Fixed Mode. Pressing Enter again allows you to return to the “Audio Selector” setting.

Normally, the AV controller detects the signal format automatically. However, if you experience either of the following issues when playing PCM or DTS material, you can manually set the signal format to PCM or DTS.

• If the beginnings of tracks from a PCM source are cut off, try setting the format to PCM.

• If noise is produced when fast forwarding or reversing a DTS CD, try setting the format to DTS.

 Auto:

The format is detected automatically. If no digital input signal is present, the corresponding analog input is used instead.

 PCM:

Only 2-channel PCM format input signals will be heard. If the input signal is not PCM, the PCM indicator will flash and noise may also be produced.

 DTS:

Only DTS (but not DTS-HD) format input signals will be heard. If the input signal is not DTS, the DTS indicator will flash and there will be no sound.

• The setting is stored individually for each input selector.

• The setting will be reset to “Aut o” when you change the setting in the “Audio Selector” (➔ 63).

Page 64

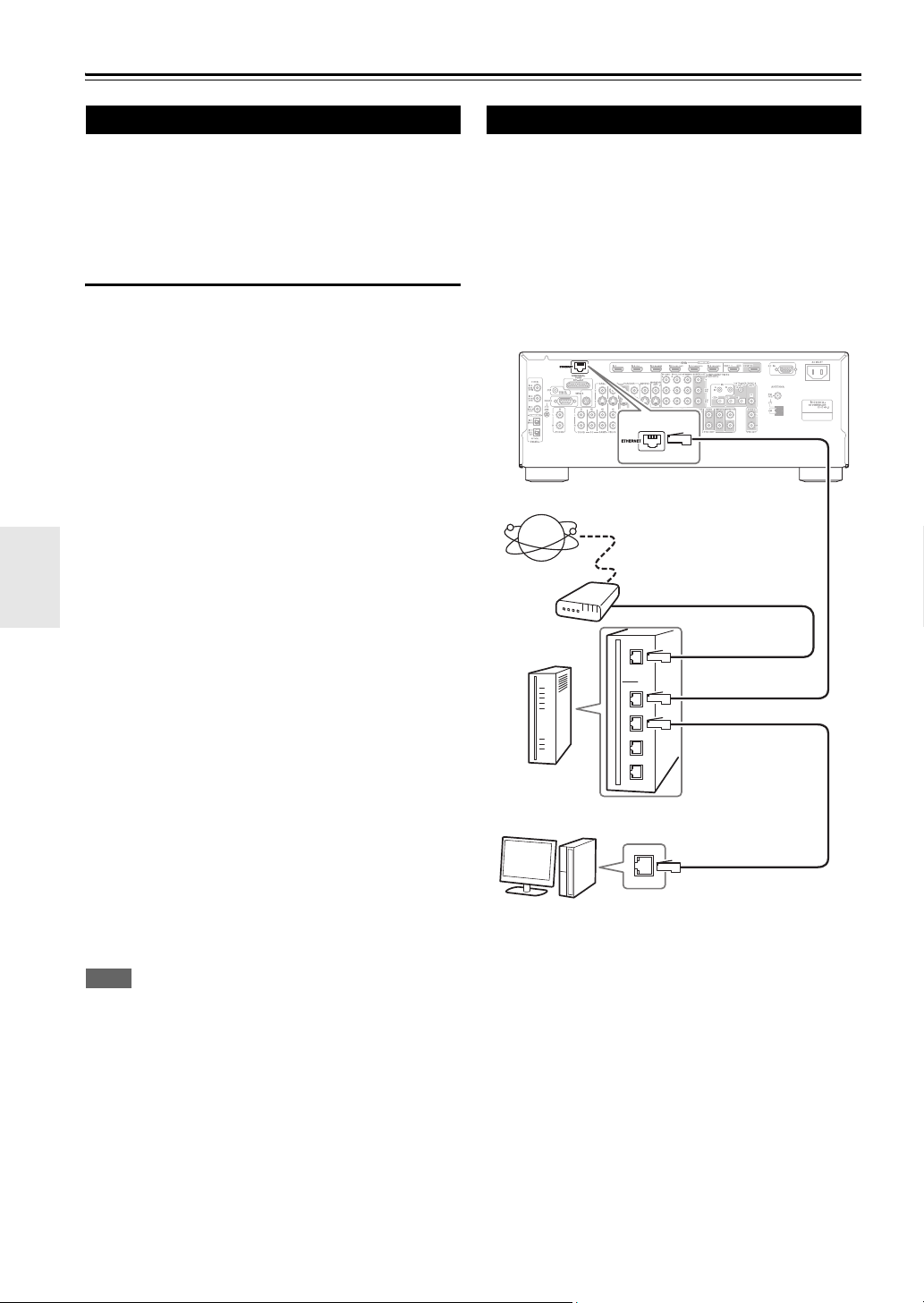

NET/USB

Note

Internet radio

Modem

Router

Computer or media server

LAN/Ethernet port

WAN port

LAN port

About NET Connecting the AV Controller

The AV controller is network-ready, which means you can hook it up to your home network with a standard Ethernet cable and enjoy the music files stored on your computer or media server. If your network is connected to the Internet, you can also enjoy Internet radio.

Network Requirements

■ Ethernet Network

For best results, a 100Base-TX switched Ethernet network is recommended. Although it’s possible to play music on a computer that’s connected to the network wirelessly, playback may be unreliable, so wired connections are recommended.

■ Ethernet Router

A router manages the network, routing data and supplying IP addresses. Your router must support the following:

• NAT (Network Address Translation). NAT allows several networked computers to access the Internet simultaneously via a single Internet connection. The AV controller needs Internet access for Internet radio.

• DHCP (Dynamic Host Configuration Protocol). DHCP supplies IP addresses to network devices, allowing them to configure themselves automatically.

• A router with a 100Base-TX switch built-in is recommended.

Some routers have a modem built-in, and some ISPs require you to use specific routers. Please consult your ISP or computer dealer if you’re unsure.

■ CAT5 Ethernet cable

Use a shielded CAT5 Ethernet cable (straight-type) to connect the AV controller to your home network.

To connect the AV controller to your home network, plug one end of a shielded CAT5 Ethernet cable into the AV controller’s ETHERNET port, and plug the other end into a LAN port on your router or switch.

The following diagram shows how you can connect the AV controller to your home network. In this example, it’s connected to a LAN port on a router, which has a 4-port 100Base-TX switch built-in.

■ Internet Access (for Internet radio)

To receive Internet radio, your Ethernet network must have Internet access. A narrowband Internet connection (e.g., 56K modem, ISDN) will not provide satisfactory results, so a broadband connection is strongly recommended (e.g., cable modem, xDSL modem, etc). Please consult your ISP or computer dealer if you’re unsure.

• To receive Internet radio with the AV controller, your broadband Internet connection must be working and able to access the Web. Consult your ISP if you have any problems with your Internet connection.

• The AV controller uses DHCP to configure its network settings automatically. If you want to configure these settings manually, see “Network Settings” (➔ 70).

• The AV controller does not support PPPoE settings, so if you have a PPPoE-type Internet connection, you must use a PPPoEcompatible router.

• Depending on your ISP, you may need to specify a proxy server to use Internet radio. If your computer is configured to use a proxy server, use the same settings for the AV controller (➔ 70).

Page 65

Note

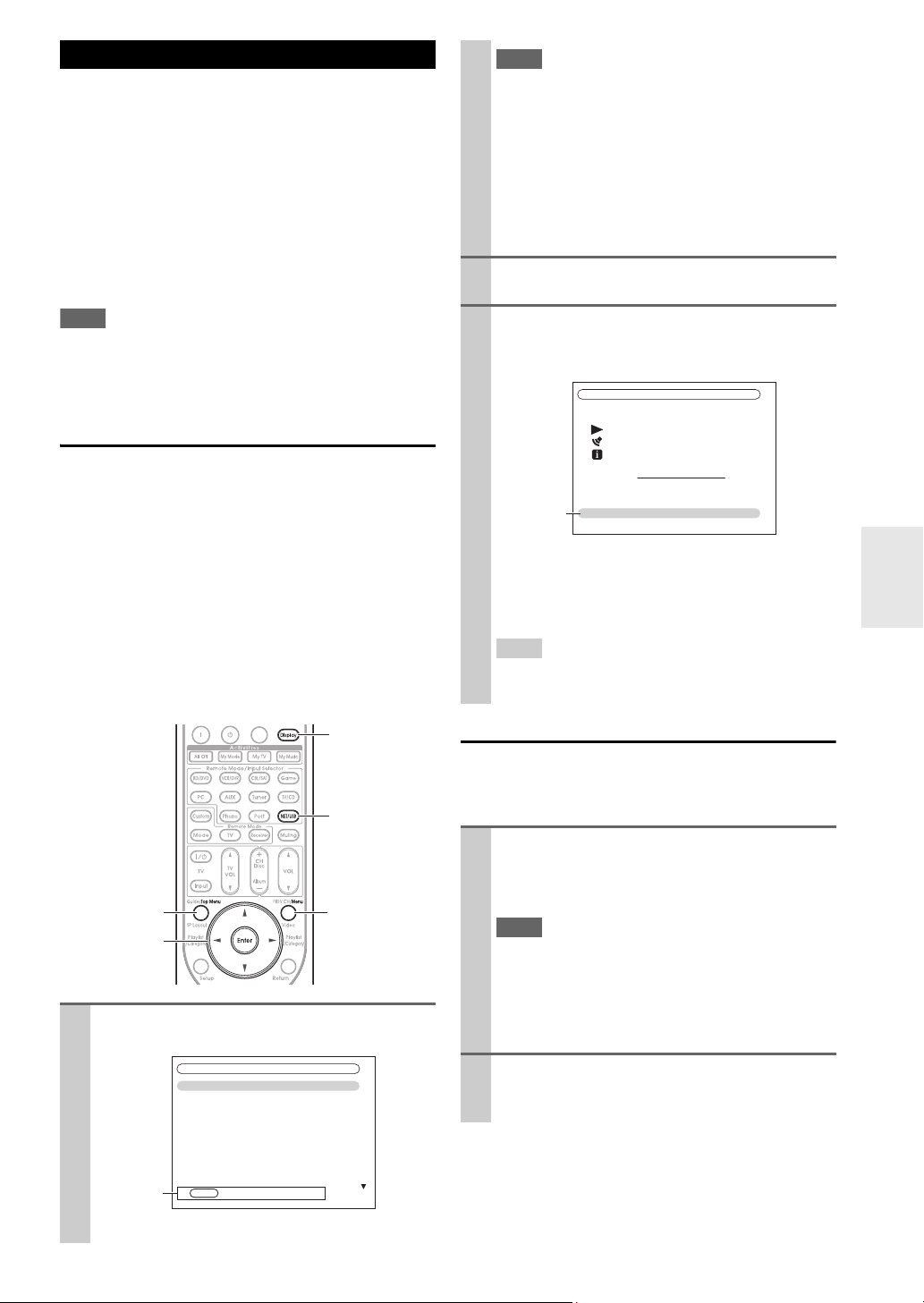

Listening to Internet Radio

Display

NET/USB

Top M e n u

Enter

q/w/e/r

Internet Radio

1. vTuner Internet Radio

2. Pandora Internet Radio

3. Rhapsody

4. SIRIUS Internet Radio

5. Slacker Internet Radio

6. Mediafly Internet Radio

7. Napster Internet Radio

8. ---

9. ---

10. ---

Go to Menu

Note

Tip

Note

To receive Internet radio, you must connect the AV controller to a network with Internet access (➔ 64). You can select Internet radio stations by connecting to the AV controller from your computer and selecting stations in your Web browser. Preset up to 40 Internet radio stations. Internet radio URLs in the following formats are supported: PLS, M3U, and podcast (RSS). However, depending on the type of data or audio format used by the Internet radio station, you may not be able to listen to some stations.

• If you’re using a narrowband Internet connection (e.g., 56K modem or ISDN), depending on the station, Internet radio may not work satisfactorily. For best results, use a broadband connection (e.g., cable modem, xDSL modem, etc).

•When the NETWORK indicator flashes, confirm that the Ethernet cable is firmly connected to the AV controller.

• Services available may vary depending on the region. See the separate instructions for more information.

MENU: When menu operations are enabled, “MENU” appears. Press Menu to display the menu. TOP MENU: Press Top M e n u to go to the top menu of the Internet Radio services.

Use q/w to select “vTuner Internet Radio”, and

then press Enter.

Use q/w to select a program, and then press

Enter.

Playback starts and the following screen appears.

All Stations

Listening to vTuner Internet Radio

This unit includes the full vTuner Internet Radio Service at no additional charge. Once you have connected your unit to the Internet you can select vTuner Internet Radio to search for and play Internet radio stations and podcasts at any time. To enhance your Internet radio experience, the http://onkyo.vtuner.com/ portal is available to you as an easy way to browse to find stations, set up/organize your favorites, add your own stations, get help, etc. After the first time you try Internet radio/vTuner on your unit you can use the MAC Address of your unit to create a member login account (email address and password) on the http:// onkyo.vtuner.com/ portal. To verify your MAC Address, please see “Network Settings” (➔ 70).

- - -

1. fm indie 104 The internet’s best source for i

0:00:00 WMA 128kbps 16bit/44.1kHz

Go to Menu

Press Menu to allow selection from the following menu items.

 Stations like this:

Stations like the one currently being played back are displayed.

• If you press Display, you can toggle between the playback screen and the list screen.

Listening to Other Internet Radio

To listen to other internet radio stations, insert the following step after step 1 in the “Listening to vTuner Internet Radio”.

On your computer, start your Web browser and

enter the AV controller’s IP address in the browser’s Internet address (URL) field.

The browser connects to the AV controller.

Press NET/USB repeatedly to select the Internet

Radio screen.

The NETWORK indicator lights (➔ 9).

• The AV controller’s IP address is shown on the “Net- work” screen (➔ 70).

• If you’re using DHCP, your router may not always allocate the same IP address to the AV controller, so if you find that you can’t connect to the AV controller, recheck the AV controller’s IP address on the “Network” screen.

Click on the “Preset Internet Radio” tub.

Set the username and password in the “Custom Setting”.

Page 66

Enter the preset name and Internet address

Note

Display

NET/USB

Enter

q/w/e/r

Return

1, 3, 2, 5, 4, 7, 6

Repeat Random

1 / 10

Server

Server1 Server2 Server3 Server4 Server5 Server6 Server7 Server8 Server9 Server10

(URL).

URL

WEB Setup Menu

Network set ing

Save Refresh

1 Internet Radio Information 2

Delete

Unit Information

No 1 Name

Click “Save” to save the Internet radio station.

Preset Internet Radio

Tuner Internet Radio

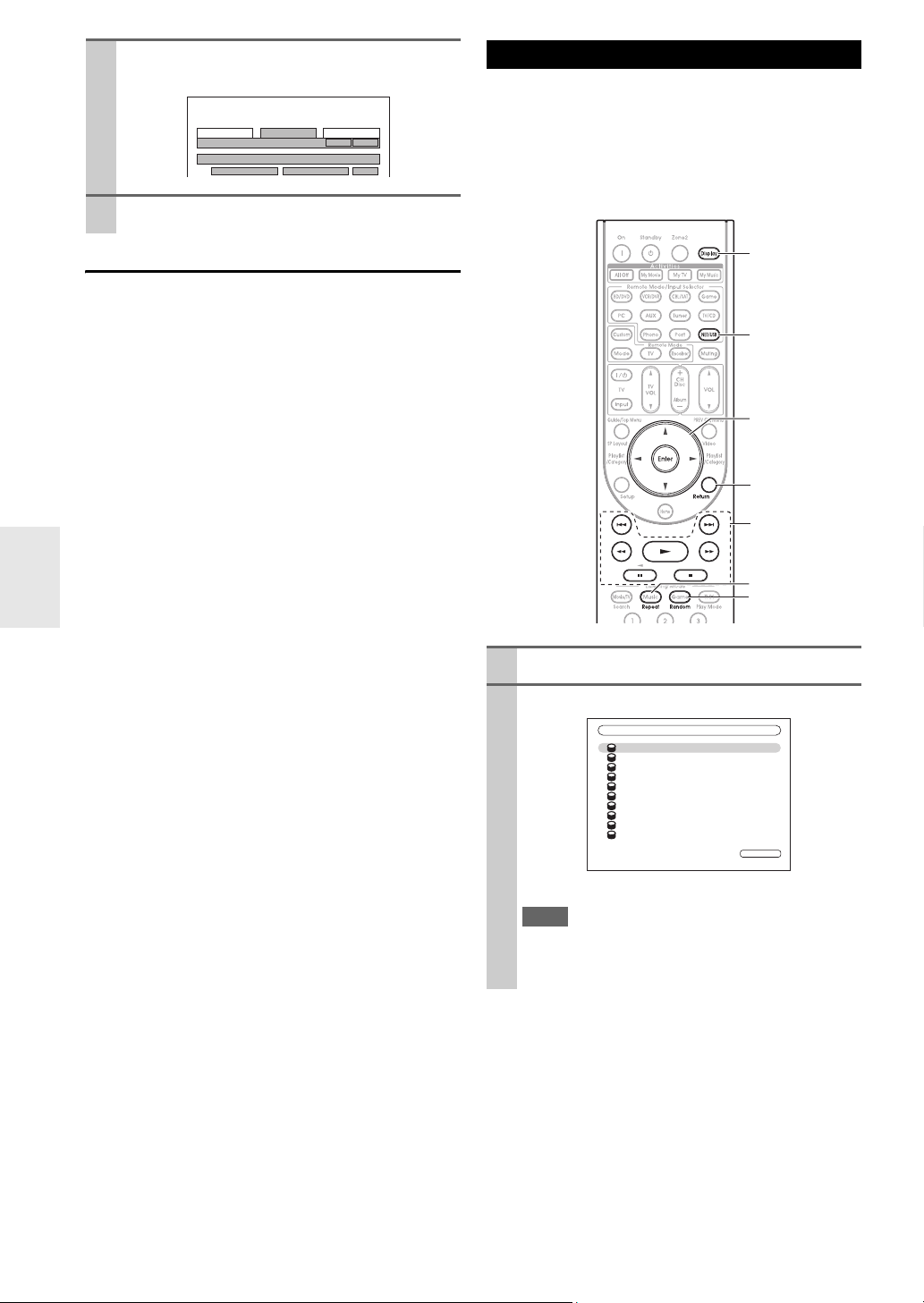

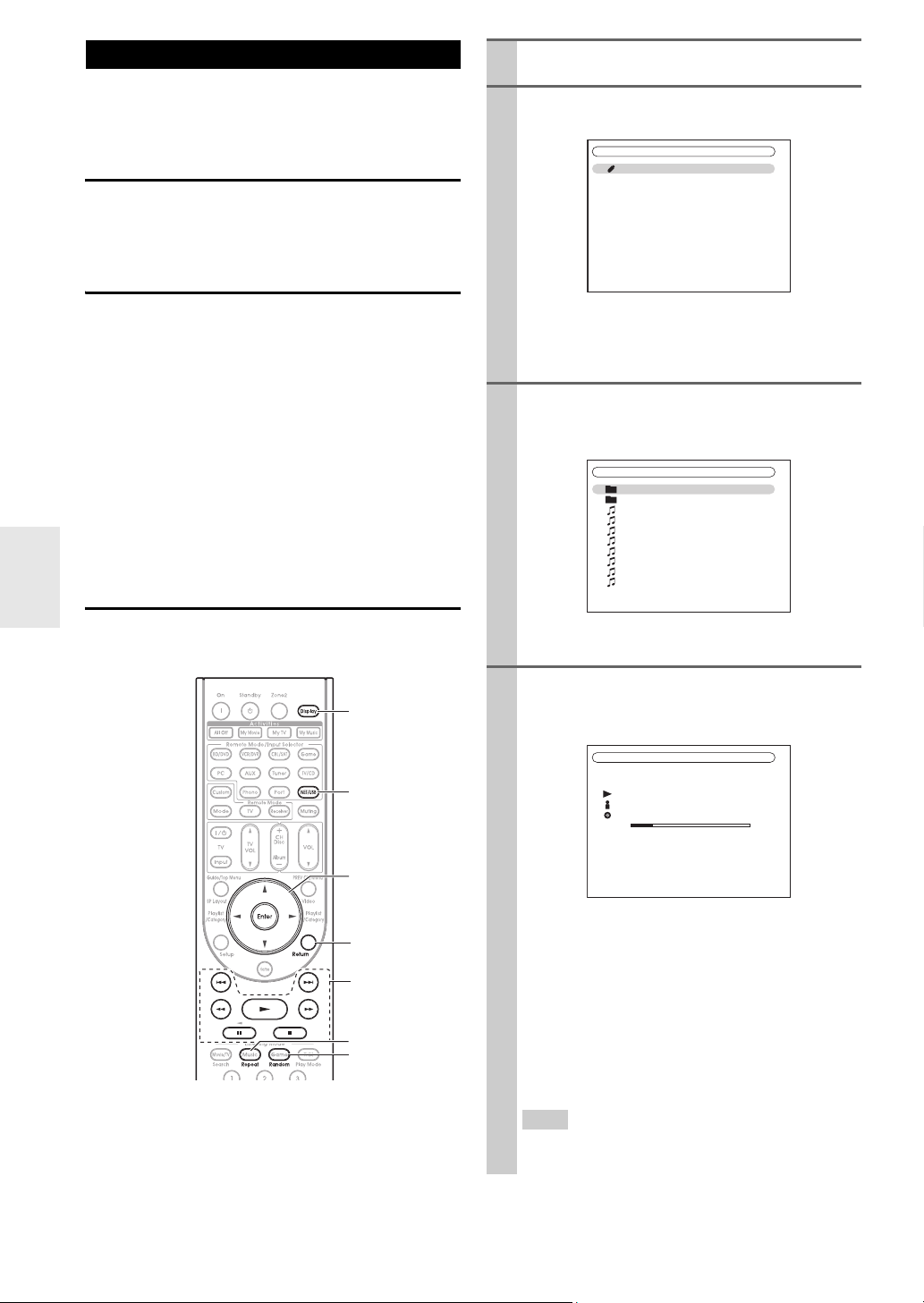

Playing Music Files on a Server

This section explains how to play music files on a computer or media server through the AV controller. See “Supported Audio File Formats” to “About DLNA” for details on supported music servers and music file formats.

For Windows Media Player 11 Setup” (➔ 67).

Player 11, see “Windows Media®

Registering Presets

Once you’ve added a station to the list, simply select it on the Internet Radio screen, and then press Enter to start playback.

From the search results you can preset the stations and songs but cannot listen to them directly.

■ Items on the Internet Radio Top Menu

 Create new preset:

Add a favorite station or Internet Radio to the presets.

 Rename this preset:

You can rename the preset.

 Delete this preset:

This will delete the preset.

■ Station and Song Presets

You can add the currently playing song or station to the presets.

1. Press Menu with the station selected or while a song is playing.

2. Use q/w to select “Add this station to preset”, and press Enter.

Start your computer or media server.

Press NET/USB to select the “Server” screen.

The NETWORK indicator lights (➔ 9).

• When the NETWORK indicator flashes, confirm the network connection.

• To update the screen, press Return.

Page 67

Note

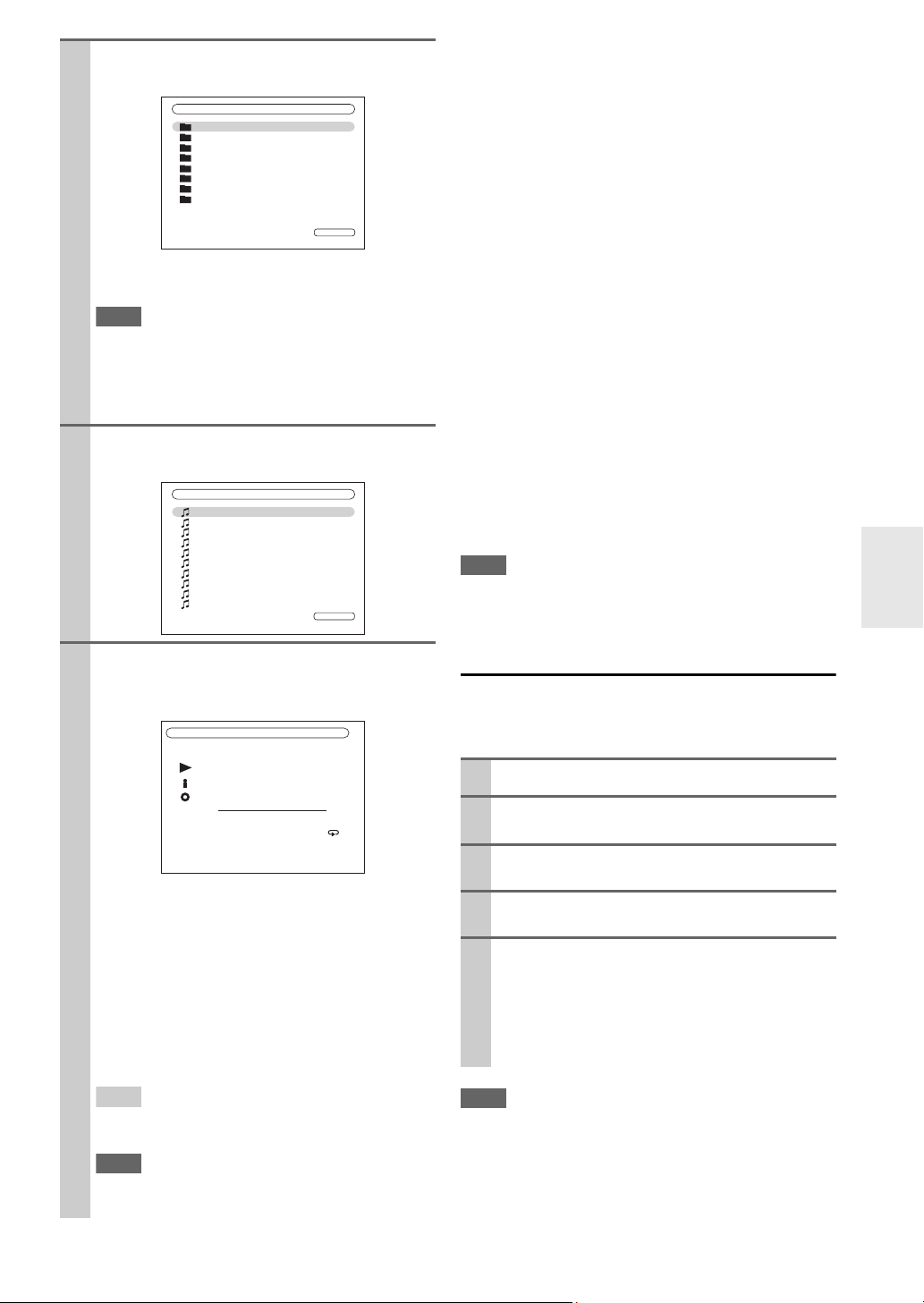

Use q/w to select a server, and then press Enter.

Note

Tip

Note

All Music

Song 1

1 / 10

Song 2 Song 3 My favorite song 1 My favorite song 2 My favorite song 3 My favorite song 4 My favorite song 5 My favorite song 6 My favorite song 7

A list of items on the server appears.

Server1

Search Recently Added Artists Album Songs Genre Yea r Rating

1 / 8

You can search for music by Artist, Album, or Track.

• The search function does not work with media servers which do not support this function.

• Depending on the sharing settings in the media server, the AV controller may not able to access the content. Refer to the instruction manual of the media server.

Use q/w to select an item, and then press Enter.

A list of music files appears.

Random Playback

The Random function can only be set while the PLAY screen is displayed. To play songs in random order, during playback (or while playback is paused or stopped), press Random. All of the songs in the current folder will be played in random order. When all of the songs in the folder have been played once, they’ll all be played again in a different random order. To cancel random playback, press Random again. Random playback supports up to 20000 songs per folder. If a folder contains more than this, songs over 20000 are not included in random playback.

Repeat Playback

The Repeat function can only be set while the PLAY screen is displayed.

To play songs repeatedly, during playback (or while playback is paused or stopped), press Repeat repeatedly to select: Repeat1, Repeat Folder, Repeat All, or Off. In Repeat1 mode, the current song is played repeatedly. In Repeat Folder mode, all of the songs in the current folder are played repeatedly. In Repeat All mode, all of the songs on the current server are played repeatedly. To cancel repeat playback, press Repeat repeatedly to select Off.

Use q/w to select a music file, and press Enter or

1 to start playback.

Playback starts and the following screen appears.

My favorite song 1

4 / 10 My favorite song 1

Artist name

My favorite album

0:00:00

MP3 128kbps 44.1kHz

ALL

To return to the previous menu during playback, press Return.

To stop playback, press 2. To select the next song, press 6. To select the

beginning of the current song, press 7. To select the previous song, press 7 twice.

To pause playback, press 3. To fast forward the current song, press 4. To fast reverse the current song, press 5.

• If the message “No Item.” appears, this means that no information can be retrieved from the server. In this case, check your server, network, and AV controller connections.

Windows Media® Player 11 Setup

This section explains how to configure Windows Media Player 11 so that the AV controller can play the music files stored on your computer.

Start Windows Media Player 11.

On the Library menu, select Media Sharing.

The Media Sharing dialog box appears.

Select the Share my media check box, and then

click OK.

Select the AV controller in the list, and then click

Allow.

Click OK to close the dialog box.

This completes the Windows Media Player 11 configuration.

You can now play the music files in your Windows Media Player 11 library through the AV controller (➔ 66).

• If you press Display, you can toggle between the playback screen and the list screen.

• For some sort of media server, Fast Forward/Fast Reverse/ Pause operations do not work.

• Windows Media Player 11 can be downloaded for free from the Microsoft Web site.

Page 68

Supported Audio File Formats

Note

For server playback, the AV controller supports the following music file formats: MP3, WMA, WAV, FLAC, Ogg Vorbis, AAC and LPCM. Not all servers support all formats.

■ MP3

• MP3 files must be MPEG-1/MPEG-2 Audio Layer 3 format with a sampling rate of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz and a bit-rate of between 8 kbps and 320 kbps. Incompatible files cannot be played.

• Number of channels: 2

• Variable bit-rate (VBR) MP3 files are supported. (Playing times may not display correctly.)

• MP3 files must have a “.mp3” or “.MP3” filename extension.

■ WMA

WMA stands for Windows Media Audio and is an audio compression technology developed by Microsoft Corporation. Audio can be encoded in WMA format by using Windows Media

• WMA files must have the copyright option turned off.

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz and bitrates of between 5 kbps and 320 kbps, and WMA DRM are supported. Incompatible files cannot be played.

• Number of channels: 2

• Variable bit-rates (VBR) are supported. (Playing times may display incorrectly with VBR.)

• WMA Pro/Voice formats are not supported.

• WMA files must have a “.wma” or “.WMA” filename extension.

■ WMA Lossless

• Sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz and bitrates of between 5 kbps and 320 kbps are supported. Incompatible files cannot be played.

• Quantization bit: 16 bit, 24 bit

• Number of channels: 2

• Variable bit-rates (VBR) are supported. (Playing times may display incorrectly with VBR.)

• WMA files must have a “.wma” or “.WMA” filename extension.

■ WAV

WAV files contain uncompressed PCM digital audio.

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz,

88.2 kHz, and 96 kHz are supported. Incompatible files cannot be played.

• Quantization bit: 8 bit, 16 bit, 24 bit

• Number of channels: 2

• WAV files must have a “.wav” or “.WAV” filename extension.

Player.

■ AAC

AAC stands for MPEG-2/MPEG-4 Audio.

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz,

88.2 kHz, 96 kHz and bitrates of between 8 and 320 kbps, are supported. Incompatible files cannot be played.

• Number of channels: 2

• Variable bit-rate (VBR) files are supported. (Playing times may not display correctly.)

• AAC files must have a “.aac”, “.m4a”, “.mp4”, “.3gp”, “.3g2”, “.AAC”, “.M4A”, “.MP4”, “.3GP” or “.3G2” filename extension.

■ FLAC

FLAC is a file format for lossless audio data compression.

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz,

88.2 kHz, and 96 kHz are supported. Incompatible files cannot be played.

• Quantization bit: 8 bit, 16 bit, 24 bit

• Number of channels: 2

• Variable bit-rates (VBR) are supported. (Playing times may display incorrectly with VBR.)

• FLAC files must have a “.flac” or “.FLAC” filename extension.

• Not all servers support all formats.

■ Ogg Vorbis

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz and bitrates of between 48 kbps and 500 kbps are supported. Incompatible files cannot be played.

• Number of channels: 2

• Variable bit-rates (VBR) are supported. (Playing times may display incorrectly with VBR.)

• Ogg Vorbis files must have a “.ogg” or “.OGG” filename extension.

■ LPCM (Linear PCM)

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz,

88.2 kHz, and 96 kHz are supported.

• Quantization bit: 8 bit, 16 bit, 24 bit

• Number of channels: 2

Page 69

Server Requirements

Note

The AV controller can play digital music files stored on a computer or media server and supports the following technologies:

• Windows Media

• Windows Media Connect 2.0

• DLNA-certified media server If the operating system of your computer is Windows

Vista, Windows Media Player 11 is already installed. Windows Media Player 11 for Windows XP can be down-

loaded for free from the Microsoft Web site.

• The computer or media server must be on the same network as the AV controller.

• Each folder may contain up to 20000 music files, and folders may be nested up to 16 levels deep.

• For some sort of media server, the AV controller may not able to recognize it, or may not able to play stored music files.

Player 11

Remote Playback from Media Server/ Personal Computer

Remote Playback means you can play the music files stored on the DLNA-certified device such as media server with this product by operating the controller device in the home network.

Server Requirements

•Windows Media® Player 12

• DLNA-certified (the DLNA Interoperability Guidelines version 1.5) media server or controller device

Setting varies depending on the device. Refer to your device’s instruction manual for details.

If the operating system of your personal computer is Windows 7, Windows Media Player 12 is already installed. For more information, see the Microsoft Web site.

Supported Music File Formats

Minimum system requirements for Windows Media Player 11 for Windows XP

Operating system

Windows XP Home Edition (SP2), Windows XP Professional (SP2), Windows XP Tablet PC Edition (SP2), Update Rollup 2 for Windows XP Media Center Edition 2005 (KB900325), October 2006 Update Rollup for Windows XP Media Center Edition (KB925766)

Processor: 233 MHz Intel Pentium II, Advanced

Micro Devices (AMD), etc.

Memory: 64 MB

Hard disk: 200 MB of free space

Drive: CD or DVD drive

Modem: 28.8 kbps

Sound card: 16-bit sound card

Monitor: Super VGA (800 x 600)

Video card: 64 MB VRAM, DirectX 9.0b

Software: Microsoft ActiveSync (only when

using a Windows Mobile-based Pocket PC or smartphone)

Web browser: Microsoft Internet Explorer 6 or

Netscape 7.1

About DLNA

See “Supported Audio File Formats” (➔ 68).

• For remote playback, this product does not support the following music file formats: FLAC and Ogg Vorbis.

Windows Media Player 12 Setup

This section explains how to configure Windows Media Player 12 so that the product can play the music files stored on your personal computer.

Start Windows Media Player 12.

On the “Stream” menu, select “Turn on media

streaming”.

A dialog box appears.

Move your cursor and click on “Turn on media

streaming”.

A list of media server appears. Wording may vary slightly depending on the network location.

Select the product in the list, and then click

“Allowed”.

Click “OK” to close the dialog box.

This completes the Windows Media Player 12 configuration.

You can now play the music files in your Windows Media Player 12 library through the product.

The Digital Living Network Alliance is an international, cross-industry collaboration. Members of DLNA develop a concept of wired and wireless interoperable networks where digital content such as photos, music, and videos can be shared through consumer electronics, personal computers, and mobile devices in and beyond the home. The AV controller certificate the DLNA Interoperability Guidelines version 1.5.

Page 70

Using Remote Playback

Note

Tip

Note

Tip

Start Windows Media® Player 12.

Before remote playback, setup on Windows Media Player 12 is required.

On the product, press NET/USB to select the

server screen.

A list of media server appears.

•The NETWORK indicator on the product’s display lights up. When it flashes, confirm the network connection.

• While the music files on another media server are being played, remote playback cannot be used. Stop playback on another media server.

On Windows Media Player 12, right-click on

music file.

Right-click menu appears. For selecting another media server, select media server from “Other Libraries” menu on Windows Media Player 12.

Select the product from right-click menu.

“Play to” window appears and playback on the product starts. Operations during remote playback can be made from “Play to” window of Windows 7 on your personal computer. During remote playback, operations (such as Playback, Pause, Fast Forward, Fast Rewind, Previous, Next, Repeat, Random) cannot be made on the product.

Remote Playback

My favorite song 1

Artist name

My favorite album

1:00:00

MP3 128kbps 44.1kHz

Network Settings

• When modifying network settings, after modifying it is necessary to execute “Save”.

This section explains how to configure the AV controller’s network settings manually.

If your router’s DHCP server is enabled, you don’t need to change any of these settings, as the AV controller is set use DHCP to configure itself automatically by default (i.e., DHCP is set to Enable). If, however, your router’s DHCP server is disabled, for example, you’re using static IP addresses, you’ll need to configure these settings yourself, in which case, a knowledge of Ethernet networking is essential.

What’s DHCP?

DHCP (Dynamic Host Configuration Protocol) is used by routers, computers, the AV controller, and other devices to automatically configure themselves on a network.

What’s DNS?

The DNS (Domain Name System) translates domain names into IP addresses. For example, when you enter a domain name such as www.onkyousa.com in your Web browser, before accessing the site, your browser uses DNS to translate this into an IP address, in this case

63.148.251.142.

Press Receiver, followed by Setup.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the

appropriate external input is selected on your TV.

Use q/w to select “Hardware Setup”, and then

press Enter.

The “Hardware Setup” menu appears.

• To stop playback and return to the previous menu during remote playback, press Return on the product or remote controller. To stop playback during remote playback, press

Stop [2] on the remote controller.

Adjusting the Volume

You can adjust the volume of your AV controller by adjusting the volume bar in the “Remote Playback” window. The default maximum volume for the AV controller is 82 (0dB). If you wish to change this, enter the maximum volume value from the Web Setup in your browser.

The volume value of the remote window and the volume value of the AV controller may not always match.

Adjustments you make to the volume in the AV controller will not be reflected in the “Remote Play- back” window.

Windows and the Windows logo are trademarks of the Microsoft group of companies.

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Auto Power Down

6. Network

7. Firmware Update

Use q/w to select “Network”, and then press

Enter.

The “Network” screen appears.

7-6. Network

MAC Address DHCP

IP Address Subnet Mask Gateway DNS Server

Proxy URL

Proxy Port

Use q/w to select the setting, and use e/r to set

xx : xx : xx − yy : yy : yy

Enable

aaa.bbb.ccc.ddd aaa.bbb.ccc.ddd aaa.bbb.ccc.ddd aaa.bbb.ccc.ddd

8080

them.

To enter an IP address, select the setting, and then press Enter. The arrow can then be used to enter numbers. Press Enter again to set the number.

The settings are explained below.

Page 71

Note

When you’ve finished, press Return.

Save

Cancel

7-6. Network

The save confirmation screen appears.

Use q/w to select “Save”, and then press Enter.

When modifying network settings, after modifying it is necessary to execute “Save”.

When you’ve finished, press Setup.

The setup menu closes.

• This procedure can also be performed on the AV controller by using its Setup, arrows, and Enter.

■ Mac Address

This is the AV controller’s MAC (Media Access Control) address. This address cannot be changed.

■ DHCP

This setting determines whether or not the AV controller uses DHCP to automatically configure its IP Address, Subnet Mask, Gateway, and DNS Server settings.

 Enable:

DHCP enabled.

 Disable:

DHCP disabled.

If you select “Disable”, you must configure the “IP

Address”, “Subnet Mask”, “Gateway”, and “DNS Server” settings yourself.

■ IP Address

If you set the “DHCP” setting to “Disable”, you must specify an IP address. Enter a static IP address provided by your ISP. The IP address must be within the following ranges.

 Class A:

10.0.0.0 to 10.255.255.255

 Class B:

172.16.0.0 to 172.31.255.255

 Class C:

192.168.0.0 to 192.168.255.255

Most routers use Class C IP addresses.

■ Subnet Mask

If you set the “DHCP” setting to “Disable”, you must specify a subnet mask address. Enter the subnet mask address provided by your ISP (typically: 255.255.255.0).

■ Gateway

If you set the “DHCP” setting to “Disable”, you must specify a gateway address. Enter the gateway address provided by your ISP.

■ DNS Server

If you set the “DHCP” setting to “Disable”, you must specify a DNS server. Enter the DNS server addresses provided by your ISP.

■ Proxy URL

To use a Web proxy, enter its URL here.

■ Proxy Port

If you’re using a Web proxy, enter a proxy port number here.

■ Control

This setting enables or disables control over the network.

 Enable:

Control over the network enabled.

 Disable

• When set to “Enable”, power consumption on standby mode increases.

■ Port Number

This is the network port used for control over the network.

• Set the port number between from “49152” to “65535”.

Control over the network disabled.

Page 72

About USB

Display

NET/USB

Enter

q/w/e/r

Return

1, 3, 2, 5, 4, 7, 6

Repeat Random

Tip

1 / 1

USB

USB Storage

USB can be used to play music files stored on USB mass storage devices (e.g., USB flash drives and MP3 players), which can be plugged into the AV controller’s USB port.

Supported Audio File Formats

For USB mass storage device playback, the AV controller supports music file formats. See “Supported Audio File Formats” (➔ 68).

USB Mass Storage Device Requirements

• The AV controller supports USB devices that support the USB mass storage device class.

• Playback may not be possible with some USB devices even if they conform to the USB mass storage device class.

• USB devices formatted with the FAT16 or FAT32 file system are supported.

• If the storage device has been partitioned, each section will be treated as an independent device.

• Each folder may contain up to 20000 music files and folders, and folders may be nested up to 16 levels deep.

• USB hubs and USB devices with hub functions are not supported.

Playing Music Files on a USB Device

Plug your USB mass storage device into the AV

controller’s USB port.

Press NET/USB repeatedly to select the “USB”

input.

The USB indicator lights (➔ 9) if the AV controller is able to read the USB mass storage device. The USB indicator flashes if the AV controller cannot read the USB mass storage device.

Use q/w to select a USB mass storage device, and

then press Enter.

A list of the device’s contents appears.

USB Storage

Folder1 Folder2 01_Song_Track1 02_Song_Track2 03_Song_Track3 04_Song_Track4 05_Song_Track5 06_Song_Track6 07_Song_Track7 08_Song_Track8

2 / 5

This section explains how to play music files on a USB mass storage device.

To open a folder, use q/w to select it, and then press Enter.

Use q/w to select a music file, and press Enter or

1 to start playback.

Playback starts and the following screen appears.

Folder1

1/17

02_Song_Track2 Artist Album

00:10

MP3 128kbps 16bit/44.1kHz

01:12:34

• To return to the previous menu during playback, press Return.

• To stop or pause playback, press 2 or 3, respectively.

• To select the next song, press 6. To select the beginning of the current song, press 7. To select the previous song, press 7 twice.

• To fast forward the current song, press 4. To fast reverse the current song, press 5.

• If you press Display, you can toggle between the playback screen and the list screen.

Page 73

Random Playback

Note

The Random function can only be set while the PLAY screen is displayed. To play songs in random order, while the list of songs is displayed, press Random. All of the songs in the current folder will be played in random order. When all of the songs in the folder have been played once, they’ll all be played again in a different random order. To cancel random playback, press Random again. Random playback supports up to 20,000 songs per folder. If a folder contains more than this, songs over 20,000 are not included in random playback.

Repeat Playback

The Repeat function can only be set while the PLAY screen is displayed.

To play songs repeatedly, during playback (or while playback is paused or stopped), press Repeat repeatedly to select: Repeat1, Repeat Folder, Repeat All, or Off. In Repeat1 mode, the current song is played repeatedly. In Repeat Folder mode, all of the songs in the current folder are played repeatedly. In Repeat All mode, all of the songs on the USB mass storage device (in the same partition) are played repeatedly. To cancel repeat playback, press Repeat repeatedly to select Off.

• If you connect a USB hard disk drive to the AV controller’s USB port, we recommend that you use its AC adapter to power it.

• Do not connect the AV controller’s USB port to a USB port on your computer. Music on your computer cannot be played through the AV controller in this way.

• The AV controller supports USB MP3 players that support the USB Mass Storage Class standard, which allows USB storage devices to be connected to computers without the need for special drivers or software. Note that not all USB MP3 players support the USB Mass Storage Class standard. Refer your USB MP3 player’s instruction manual for details.

• Protected WMA music files on an MP3 player cannot be played.

• Onkyo accepts no responsibility whatsoever for the loss or damage to data stored on a USB mass storage device when that device is used with the AV controller. We recommend that you back up your important music files beforehand.

• MP3 players containing music files that are managed with special music software, and the iPod containing music files managed with iTunes are not supported.

• Operation with all USB mass storage devices including the ability to power them is not guaranteed.

• Do not connect your USB mass storage device via a USB hub. The USB mass storage device must be connected directly to the AV controller’s USB port.

• If the USB mass storage device contains a lot of data, the AV controller make take a while to read it.

• USB memory devices with security functions cannot be played.

Page 74

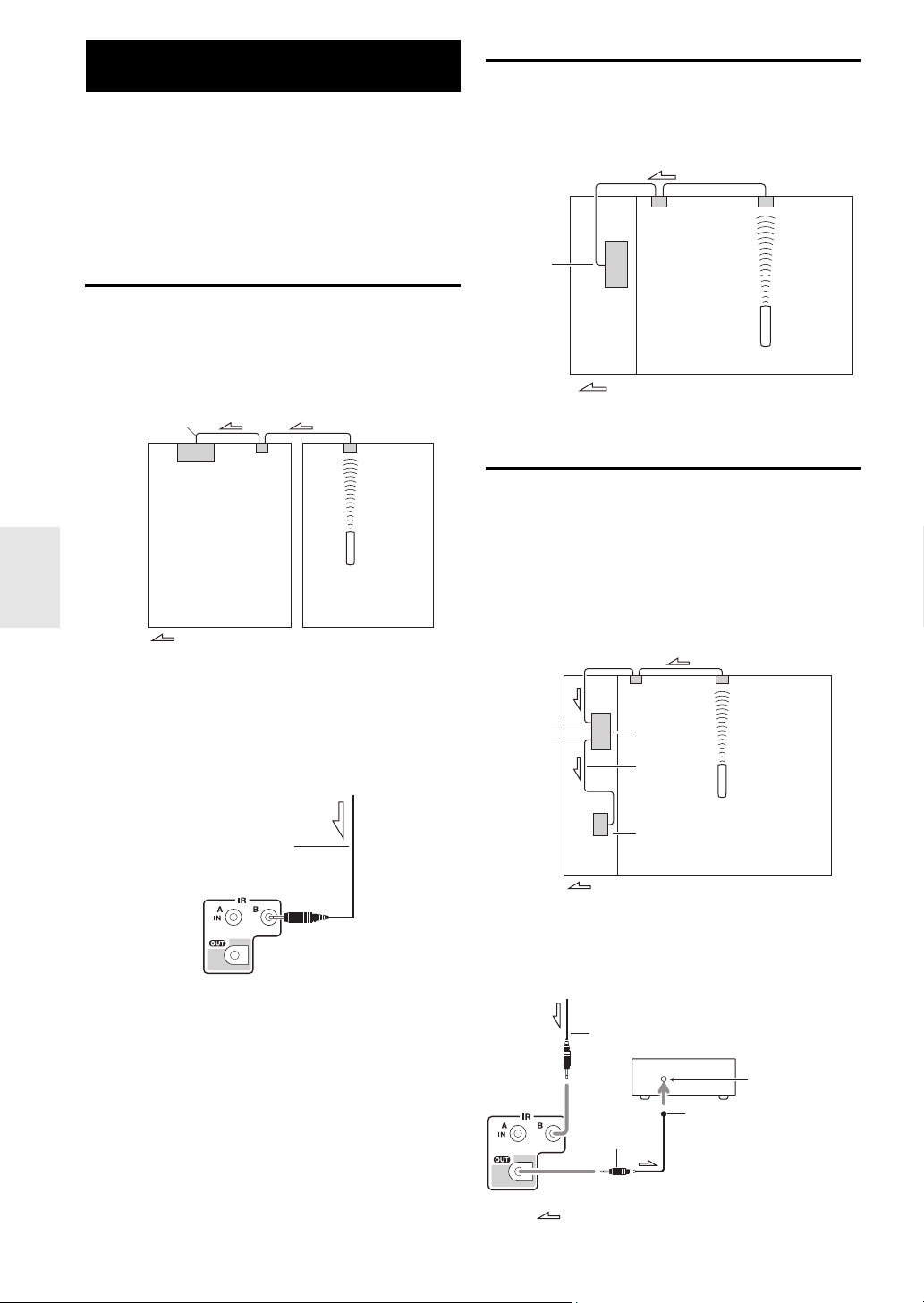

Multi Zone

Note

AV controller

Main room

Zone 2

Receiver/

integrated amp

Multichannel power amp

Main room

Zone 2

AV c ontr olle r

In addition to your main listening room, you can also enjoy playback in the other room, or as we call Multi Zone. And, you can select a different source for each room.

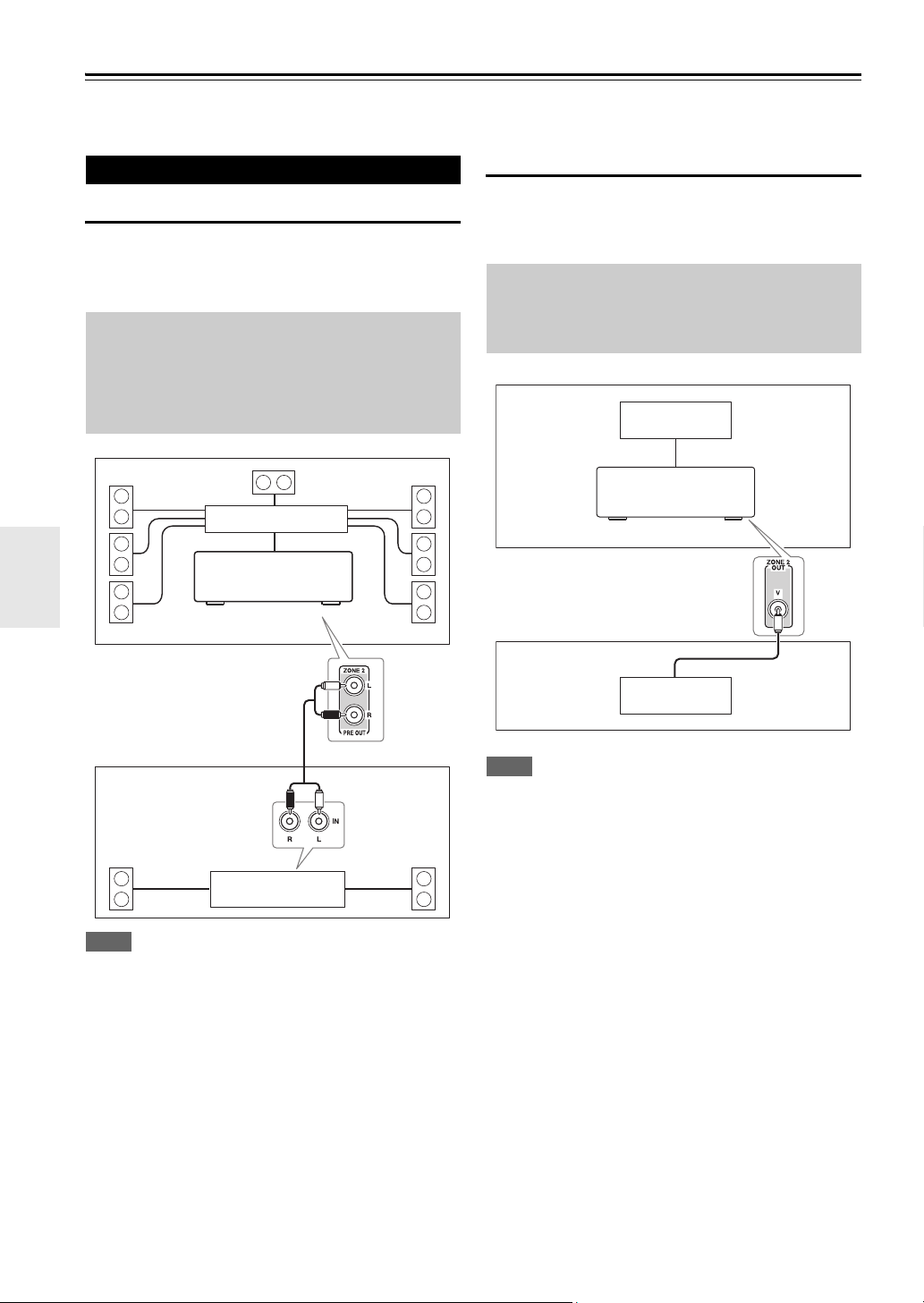

Connecting Zone 2

Connecting Your Zone 2 Speakers

This setup allows 7.1-channel playback in your main listening room and 2-channel stereo playback in Zone 2, with a different source in each room.

Hookup

• Use an RCA audio cable to connect the AV controller’s ZONE 2 PRE OUT L/R jacks to an analog audio input on your Zone

2 amp.

• Connect your Zone 2 speakers to the speaker terminals on your Zone 2 amp.

Zone 2 Video Output

The AV controller features a composite video output for connection to a TV in Zone 2, so you can enjoy both audio and video in that zone.

Hookup

• Use a composite video cable to connect the AV controller’s ZONE 2 OUT V jack to a composite video input on your Zone 2 TV.

• With the default settings, the Zone 2 volume must be set on the Zone 2 amp. If your Zone 2 amp has no volume control, set the “Zone 2 Out” setting to “Va ri a bl e” so that you can set the Zone 2 volume on the AV controller (➔ 75).

•The ZONE 2 OUT V jack outputs video from components con- nected to composite video inputs.

Page 75

Note

Setting the Multi Zone

Tip

7-2. Multi Zone

Zone2 Out Zone2 Maximum Volume Zone2 Power On Volume

Fixed

Off

Last

Tip

Zone 2 indicator

Input selector buttons

Zone 2

Off

Using Zone 2

Press Receiver followed by Setup.

The main menu appears onscreen.

• If the main menu doesn’t appear, make sure the appropriate external input is selected on your TV.

Use q/w to select “Hardware Setup”, and then

press Enter. The “Hardware Setup” menu appears.

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Auto Power Down

6. Network

7. Firmware Update

Use q/w to select “Multi Zone”, and then press

Enter.

The “Multi Zone” menu appears.

Use q/w to select an item, and use e/r to change

it.

The items are explained below.

Press Setup.

The setup menu closes.

• This procedure can also be performed on the AV controller by using Setup, arrows, and Enter.

■ Zone 2 Out

 Fixed

: The Zone 2 volume must be set on the amp in that zone.

 Va ri a bl e:

The Zone 2 volume can be set on the AV controller.

If you’ve connected your Zone 2 speakers to an amp with no volume control, set the “Zone 2 Out” setting, respectively, to “Var ia b le ” so that you can set the volume, balance, and tone of zone 2 on the AV controller.

■ Zone 2 Maximum Volume

 Off, 50 to 99 (Absolute display)  Off

, –32dB to +17dB (Relative display)

With this setting, you can limit the maximum volume for Zone 2.

This section explains how to turn Zone 2 on and off, how to select an input source for Zone 2, and how to adjust the volume for Zone 2.

Controlling Zone 2 from the AV controller

To turn on Zone 2 and select an input source, press

Zone 2 followed by an input selector button within 8 seconds.

Zone 2 turns on, the Zone 2 indicator lights.

• 12V TRIGGER OUT goes high (+12 V).

To select AM or FM, press Tu ner input selector and Zone 2 repeatedly.

You can also select SIRIUS.

To select the same source as that of the main room, press Zone 2 twice. “Zone 2 Selector: Source” appears on the display.

To turn off Zone 2, press Off.

The zone is turned off, and the Zone 2 indicator goes off.

• When Zone 2 is turned off, the output from the 12V TRIGGER OUT goes low (0 volts).

■ Zone 2 Power On Volume

 Last

, Min, 1 to 99 or Max (Absolute display) , –QdB, –81dB to +18dB (Relative display)

 Last

This setting determines what the volume will be for Zone 2 each time the AV controller is turned on.

To use the same volume level as when the AV controller was last turned off, select “Last”.

The “Zone 2 Power On Volume” cannot be set higher than the “Zone 2 Maximum Volume” setting.

Page 76

Controlling Zone 2 with the Remote

Note

Tip

Zone2

Standby

Input

Selector

Controller

Adjusting the Volume for Zone 2

On the remote controller, press Zone2, and then use VOL q/w.

On the AV controller, press Zone 2 Level Up q/ Down w.

Muting Zone 2

On the remote controller, press Zone2, and then press Muting.

• To control Zone 2, you must press the remote controller’s Zone2 first.

• Zone2 turns red while Zone 2 is on.

Press Zone2, then point the remote controller at

the AV controller and press On.

•The 12V TRIGGER OUT goes high (+12 V).

To select an input source for Zone 2, press Zone2,

followed by Input Selector.

To select AM or FM, press Tu ner input selector and Zone2.

You can also select SIRIUS.

To turn off Zone 2, press Zone2, followed by

Standby.

• Only analog input sources are output by the ZONE 2 PRE OUT and FRONT WIDE/ZONE 2 L/R terminals. Digital input sources are not output. If no sound is heard when an input source is selected, check if it’s connected to an analog input.

• You cannot select different AM or FM radio stations for your main room and Zone 2. The same AM/FM radio station will be heard in each room. For example, if you have an FM station for the main room, that station will also be used in Zone 2.

• When you connect Zone 2 speakers directly to the AV controller, listening modes that require surround back speakers or front high speakers or front wide speakers (6.1/7.1), such as Dolby Digital EX, DTS-ES, THX Ultra2 Cinema, Dolby Pro Logic IIz Height, and Audyssey DSX™ are unavailable.

• When the input selector of Zone 2 is selected, power consumption on standby mode slightly increases.

• While Zone 2 is on, u functions will not work.

To unmute a zone, on the remote controller, press

Zone2, and then press Muting again.

Adjusting the Tone and Balance of Zone 2

On the AV controller, press Zone 2.

Press the AV controller’s Tone to select “Bass”,

“Treble” or “Balance”.

Use –/+ to adjust the bass, treble or balance.

• You can boost or cut the bass or treble from –10 dB to +10 dB in 2 dB steps.

• You can adjust the balance from 0 in the center to +10 dB to the right or +10 dB to the left in 2 dB steps.

• Zone 2 can also be unmuted by adjusting the volume.

• The Zone 2 volume, tone, and balance function have no effect on ZONE 2 PRE OUT when the “Zone 2 Out” setting is set to “Fixed” (➔ 75).

Page 77

Using the 12V Triggers

Note

The 12V triggers A, B, and C can be used to turn on 12V trigger-capable components automatically when they are selected as the input source. The triggers can be set so that they activate when a connected component is selected as the input source for the main room, Zone 2 or any combination of rooms. When triggered, the output from a 12V TRIGGER OUT goes high (+12 volts and 150 milliamperes max. at TRIGGER OUT A; +12 volts and 25 milliamperes max. at TRIGGER OUT B and C).

Hookup

• Use a miniplug cable to connect the AV controller’s 12V TRIGGER OUT A, B, or C jack to the 12 V trigger input on

a connected component.

Use q/w to select “Delay”, and use e/r to select:

0sec, 1sec, 2sec, or 3sec.

When 0 sec is selected, the trigger signal is output as soon as the input source is changed.

Use q/w to select an input source, and use e/r to

select an option.

 Off:

No trigger signal is output. A 12-volt trigger signal is output when the connected component is selected as the source for:

 Main:

Main room.

 Zone 2:

Zone 2.

 Main/Zone 2:

Main room or Zone 2.

• By default, all input sources on the “12V Trigger A

Setup” menu are set to “Main”, those on the “12V Trigger B Setup” menu are set to “Main/Zone 2”, and those on the “12V Trigger C Setup” menu are set to “Zone 2”

When you’ve finished, press Setup.

The setup menu closes.

When several components are turned on simultaneously by using triggers A, B, and C, depending on the type of components, a large amount of current may be drawn momentarily. To prevent this, you can delay trigger signals A, B, and C individually. Another application for trigger delay is eliminating the “thump” noise that’s sometimes heard when a source component is turned on. Delaying the trigger signal for your power amplifier so that it’s the last component to be turned on will accomplish this.

Menu Miscellaneous

Press Receiver followed by Setup.

The main menu appears.

Use q/w to select “Miscellaneous”, and then press

Enter.

The Miscellaneous menu appears.

Use q/w to select “12V Trigger A, B or C Setup”,

and then press Enter. The 12V Trigger A, B or C Setup screen appears.

6-3. 12V Trigger A Setup

Delay BD/DVD VCR/DVR CBL/SAT GAME PC AUX

0sec Main Main Main Main Main Main

Page 78

Using the Remote Controller in Zone 2

IR IN A or B

Connecting

block

IR receiver

Remote controller

Main room Zone 2

Signal flow

From the Connecting block

Miniplug cable

AV controller

IR receiver

Connecting

block

IR IN

A or B

Remote controller

Signal flow

Inside

cabinet

IR receiver

Connecting

block

IR IN

A or B

AV controller

IR Emitter

IR OUT

Remote controller

Other component

Signal flow

Miniplug cable

Remote controller

sensor

Emitter

IR Emitter

Miniplug

Signal flow

AV controller

and Multiroom Control Kits

To control the AV controller with the remote controller while you’re in the Zone 2 room, you’ll need a commercially available multiroom remote control kit.

• Multiroom kits are made by Niles and Xantech. These kits can also be used when there isn’t a clear line of

sight to the AV controller’s remote sensor, such as when it’s installed inside a cabinet.

Using a Multiroom Kit with Zone 2

In this setup, the IR receiver in Zone 2 picks up the infrared signals from the remote controller and feeds them through to the AV controller in the main room via the connecting block.

Using a Multiroom Kit with a Cabinet

In this setup, the IR receiver picks up the infrared signals from the remote controller and feeds them to the AV controller located in the cabinet via the connecting block.

Using a Multiroom Kit with Other Components

In this setup, an IR emitter is connected to the AV controller’s IR OUT jack and placed in front of the other compo- nent’s remote control sensor. Infrared signals received at the AV controller’s IR IN A or B jack are fed through to the other component via the IR emitter. Signals picked up by the AV controller’s remote control sensor are not output.

The miniplug cable from the connecting block should be connected to the AV controller’s IR IN A or B jack, as shown below. The IR IN A and B jacks are identical. Up to two IR receivers can be connected.

The IR emitter should be connected to the AV controller’s

IR OUT jack, as shown below.

Page 79

Note

USB port

Display

NET/USB

Album +/–

q/w, Enter, Playlist e/r

Return

1, 3, 2, 5, 4, 7, 6

Repeat Random

Tip

iPod(STD)

Push “DISPLAY” button switch to Extended mode.

Controlling iPod

Connecting the iPod Directly to the USB Port

USB can be used to play music files stored on iPod/ iPhone, which can be plugged into the AV controller’s USB port.

Press NET/USB repeatedly to select the USB

input.

Connect the USB cable that comes with the iPod/

iPhone to the USB port at the front of the AV controller.

•The USB indicator lights (➔ 9) if the AV control- ler is able to read the iPod/iPhone.

•The USB indicator flashes if the AV controller can- not read the iPod/iPhone.

Press Display to switch to Extended Mode*3.

A list of your iPod model’s contents appears. To open a folder, use q/w to select it, and then press

Enter.

Playing Music Files on the iPod/iPhone

This section explains how to play music files on the iPod/ iPhone*1.

Compatible iPod models

Made for:

• iPod touch (1st and 2nd generation)

• iPod classic

• iPod (5th generation)

• iPod nano (1st, 2nd, 3rd, 4th and 5th generation)

• All iPhone models

• With the default settings, the iPod/iPhone can be manipulated as Standard Mode

• Pressing Display again switches back to Standard Mode.

The following iPod models are not supported in Standard Mode. These iPod models can only be controlled in Extended Mode.

When you disconnect the iPod/iPhone, the AV controller stores the mode. This means that if you disconnect when in Extended Mode, the AV controller will start in Extended Mode when you next connect the iPod/ iPhone.

Use q/w to select a music file, and press Enter or

1 to start playback.

• To return to the previous menu during playback, press Return.

• To stop or pause playback, press 2 or 3, respectively.

• To select the next song, press 6. To select the beginning of the current song, press 7. To select the previous song, press 7 twice.

• To fast forward the current song, press 4. To fast reverse the current song, press 5.

• To switch the repeat mode, press Repeat. To switch the random mode, press Random.

Standard Mode control

The content information is not displayed be manipulated using the iPod/iPhone or the Remote Control.

• The audio of video content can be played back but no video will be displayed onscreen.

onscreen

, but can

Page 80

Extended Mode control

The content information is displayed (lists are displayed) on the on-screen, and you can select and manipulate the content while looking at the screen.

Top screen list:

• Playlists*4

• Artists

•Albums

Connecting an Onkyo Dock

*1 BA

•Genres

• Songs

•Composers

• Shuffle Songs

•Now Playing

Displays a list. Plays all tracks in random order. Displays information about currently playing track.

No. Onkyo Dock Cable Note Page

UP-A1 Dock

(Universal Port Option Dock)

— • When UP-A1 Dock that seated iPod is con-

nected, the power consumption on standby

mode slightly increases.

• You can control your iPod when “Port” is selected as the input source.

• See the UP-A1 Dock’s instruction manual for more information.

RI Dock Analog audio (RCA) • See the RI Dock’s instruction manual for more

information.

To u s e u (Remote Interactive), you must

Component video

make an analog audio connection (RCA) between the AV controller and the RI Dock.

B/CB

PR/CR

Composite video

u cable

Models sold are different depending on the region.

Page 81

Note

Using the Onkyo Dock

Dock is sold separately. For the latest information on the Onkyo Dock compo-

nents, see the Onkyo web site at: http://www.onkyo.com Before using the Onkyo Dock components, update your iPod with the latest software, available from the Apple web site. For supported iPod models, see the instruction manual of the Onkyo Dock.

UP-A1 Dock

With the UP-A1 Dock, you can easily play the music, photo, or movie stored on your Apple iPod through the AV controller and enjoy great sound.

You can use the AV controller’s remote controller to operate your iPod.

■ Basic Operation

■ Using Your iPod models Alarm Clock

You can use your iPod models Alarm Clock function to automatically turn on your iPod and the AV controller at a specified time. The AV controller’s input source will automatically be set to the Port selector.

• To use this function, your iPod must be in the UP-A1 Dock, and the UP-A1 Dock must be connected to the AV controller.

• This function works only in the Standard mode (➔ 83).

• When you use this function, be sure to set the AV controller’s volume control to a suitable level.

• When Zone 2 is turned on, you can’t use this function.

• You cannot use this function for sound effects on your iPod.

■ Charging Your iPod models Battery

The UP-A1 Dock charges your iPod models battery while your iPod is in the UP-A1 Dock and connected to the UNIVERSAL PORT jack on the AV controller. While your iPod is seated in the UP-A1 Dock, its battery will be charged when the AV controller is set to “On” or “Standby”.

The AV controller may take several seconds to startup, so you might not hear the first few seconds of the first song.

Auto Powe r On

If you start iPod playback while the AV controller is on Standby, the AV controller will automatically turn on and select your iPod as the input source.

Direct Change

If you start iPod playback while listening to another input source, the AV controller will automatically select your iPod as the input source.

Using the AV controller’s Remote Controller

You can use the AV controller’s remote controller to control basic iPod functions (➔ 82).

■ Operating Notes

• Functionality depends on your iPod model and generation.

• Before selecting a different input source, stop iPod playback to prevent the AV controller from selecting the iPod input source by mistake.

• If any accessories are connected to your iPod, the AV controller may not be able to select the input source properly.

• When connecting UP-A1 Dock to the radio tuner UP-HT1 with AUTO selected by the tuner’s Mode Selector switch, you can switch the input source between UP-A1 Dock and the tuner, by pressing Port repeatedly on the front panel.

• While your iPod is in the UP-A1 Dock, its volume control has no effect. If you adjust your iPod models volume control while it’s in the UP-A1 Dock, make sure it’s not set too high before you reconnect your headphones.

• The Auto Power On function will not work if you set your iPod in the UP-A1 Dock while it is playing.

• When Zone 2 is turned on, you can’t use Auto Power On and Direct Change functions.

• Do not turn off the power with the iPod still connected to this unit via the UP-A1 Dock.

• Set your iPod in the UP-A1 Dock after the AV controller turns on.

• When UP-A1 Dock that seated iPod is connected, the power consumption on standby mode slightly increases.

■ Status Messages

•PORT Reading

The AV controller is checking the connection with the dock.

• PORT Not Support

The AV controller do not support the connected dock.

•PORT UP-A1

UP-A1 Dock is connected.

• The AV controller displays the message “UP-A1” for several seconds after recognizing the UP-A1.

• When the status message is not displayed on the AV controller’s display, check the connection to your iPod.

RI Dock

With the RI Dock, you can easily play the music stored on your Apple iPod through the AV controller and enjoy great sound, and watch iPod slideshows and videos on your TV. In addition, the onscreen display (OSD) allows you to view, navigate, and select your iPod model’s contents on your TV, and with the supplied remote controller, you can control your iPod from the comfort of your sofa. You can even use the AV controller’s remote controller to operate your iPod.

• Enter the appropriate remote control code before using the AV controller’s remote controller for the first time (➔ 85).

• Connect the RI Dock to the AV controller with an u cable (➔ 80).

• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/ DOCK”.

• Set the AV controller’s Input Display to “DOCK” (➔ 26).

Page 82

■ System Function

Note

System On

When you turn on the AV controller, RI Dock and iPod turn on automatically. In addition, when the RI Dock and iPod are on, the AV controller can be turned on by pressing On/Standby.

Auto Power On

If you press the remote controller’s 1 while the AV controller is on Standby, the AV controller will automatically turn on, select your iPod as the input source, and your iPod will start playback.

Direct Change

If you start iPod playback while listening to another input source, the AV controller will automatically switch to the input to which the RI Dock is connected.

Using the AV controller’s Remote Controller

You can use the AV controller’s remote controller to control basic iPod functions.

Using Your iPod models Alarm Clock

If you use the Alarm Clock function on your iPod to start playback, the AV controller will automatically turn on at the specified time and select your iPod as the input source.

• Linked operations do not work with video playback or when the alarm is set to play a sound.

• If you use your iPod with any other accessories, iPod playback detection may not work.

• This function works only in the Standard mode (➔ 83).

■ Operating Notes

• Use the AV controller’s volume control to adjust the playback volume.

• While your iPod is inserted in the RI Dock, its volume control has no effect. If you adjust your iPod models volume control while it’s in the UP-A1 Dock, make sure it’s not set too high before you reconnect your headphones.

Controlling Your iPod

By pressing Remote Mode that’s been programmed with the remote control code for your Dock, you can control your iPod in the Dock. See “Entering Remote Control Codes” for details on entering a remote control code (➔ 85). See the Dock’s instruction manual for more information.

■ UP-A1 Dock

Port is preprogrammed with the remote control code for controlling a Dock with Universal Port connector.

You can control your iPod when “Port” is selected as the input source.

Without the RI Control

You must enter a remote control code 82990 first (➔ 85).

■ RI Dock

• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/ DOCK”.

• On/Standby may not work with a remote control code (without u). In this case, make an u connection and enter a remote control code 81993 (with u).

With the RI Control

In this case, make an u connection and enter a remote control code 81993 (with u).

• Set the AV controller’s Input Display to “DOCK” (➔ 26).

• On the 5th generation iPod and iPod nano, the click wheel is disabled during playback.

Page 83

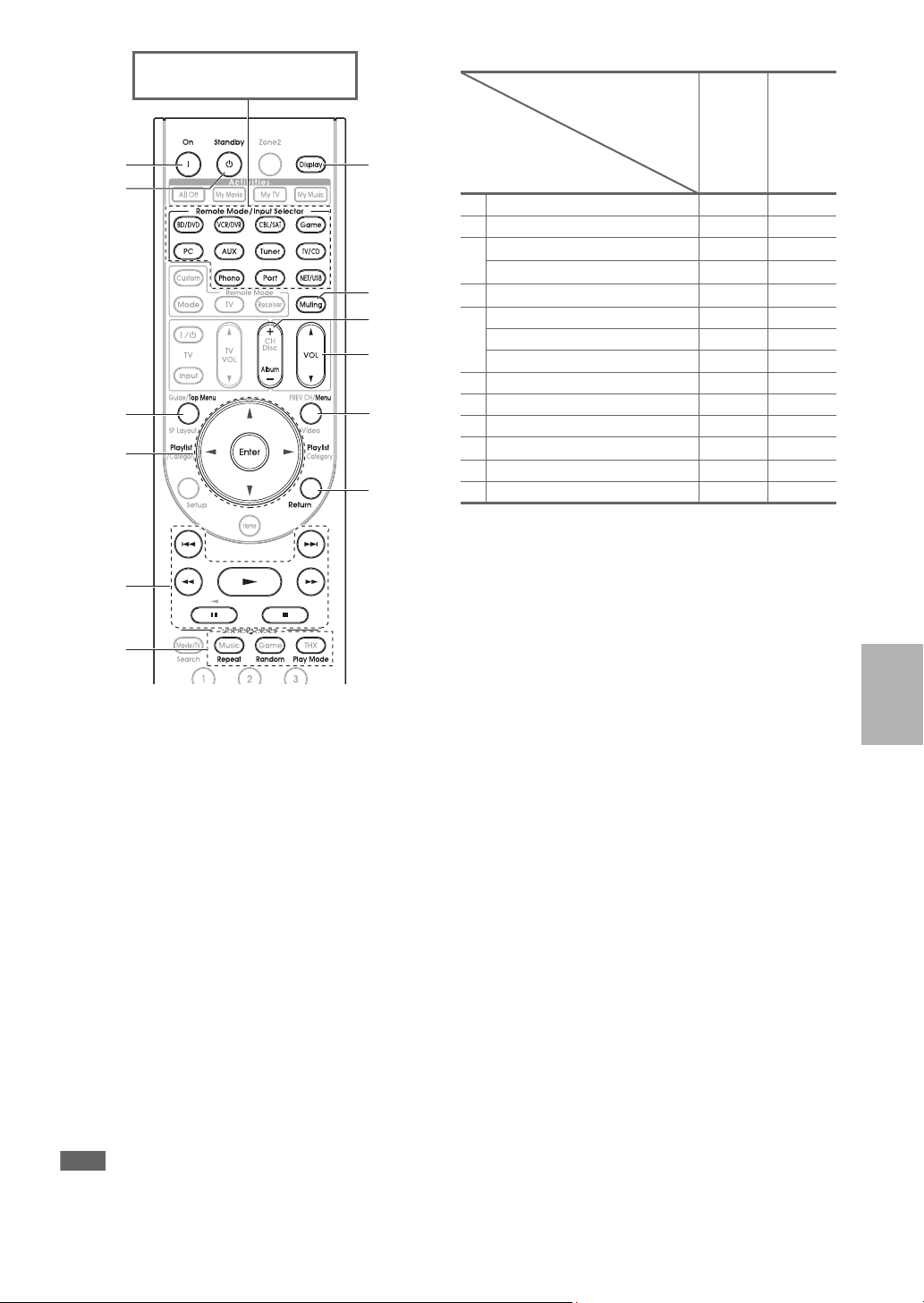

✔: Available buttons

Note

a a

Press the appropriate Remote Mode first.

Onkyo Dock

Buttons

UP-A1 Dock

On, Standby

Top Menu

b c q/w/e/rEnter

Playlist e/r

d 1, 3, 2, 5, 4, 7, 6

Repeat ✔✔

Random ✔✔

Play Mode

Display

Muting ✔✔

Album +/– ✔✔

h i VOL q/w

Menu ✔

Return ✔

✔✔

✔

✔✔

✔

✔✔

✔

u Dock

• With some iPod models, generations and RI Docks, certain buttons may not work as expected.

• For detailed operation of the iPod, please refer to the instruction manual of RI Dock.

This button does not turn the Onkyo DS-A2 or DS-A2X RI Dock on or off. Your iPod may not respond the first time you press this button, in which case you should press it again. This is because the remote controller transmits the On and Standby commands alternately, so if your iPod is already on, it will remain on when the remote controller transmits an On command. Similarly, if your iPod is already off, it will remain off when the remote controller transmits an Off command.

Press Display to change the following modes:

Standard mode

Nothing is displayed on your TV and you navigate and select your contents by using your iPod models display. Only this mode can playback the video.

Extended mode (Music)

Playlists (artists, albums, songs, and so on) are displayed on your TV, and you can navigate and select your music while looking at your TV.

Extended mode (Video)

Playlists (Movies, Music Videos, TV Shows, Video Podcasts, or Rentals) are displayed on your TV, and you can navigate and select your video while looking at your TV.

In Extended mode (see *2), Playlist is used as the page jump button. With the page modes, you can quickly locate your favorite songs even when your song lists, artist lists, and so on are very long.

Resume mode

With the Resume function, you can resume playback of the song that was playing when you removed your iPod from the RI Dock or Standard mode is selected.

Top Menu works as a Mode button when used with a DS-A2 RI Dock.

Display turns on backlight for 30 seconds.

• In Extended mode (see *2), the playback will be continued even if the AV controller is turned off.

• In Extended mode (see

), you cannot operate your iPod directly. ), it may take some time to acquire the contents.

Page 84

Controlling Other Components

Note

1. Remote Mode Setup

8. Remote Controller Setup

TV BD/DVD VCR/DVR CBL/SAT GAME PC AUX TV/CD PHONO

8–1. Remote Mode Setup

Tip

TV TV/DVD TV/VCR

8–1. Remote Mode Setup

Remote control code

You can use the AV controller’s remote controller (RC-770M) to control your other AV components, including those made by other manufacturers. This section explains how to enter the remote control code (with the default underlined) for a component that you want to control: DVD, TV, CD, etc.

• Learn commands directly from another component’s remote controller.

•Program Activities to perform a sequence of up to 32 remote control actions.

Preprogrammed Remote Control Codes

The following Remote Mode are preprogrammed with remote control codes for controlling the components listed. You do not need to enter a remote control code to control these components. For details on controlling these components, see the pages indicated.

BD/DVD Integra/Onkyo Blu-ray Disc player (➔ 86) TV/CD Integra/Onkyo CD player (➔ 86) Port Onkyo Universal Port Option (➔ 82)

Looking up for Remote Control Code

You can look up for appropriate remote control code from on-screen setup menu.

Use q/w to select remote mode, and then press

Enter.

The category selection menu appears.

Use q/w to select category, and then press

Enter.

The brand name input panel appears.

8–1. Remote Mode Setup

Category Brand

ABCDEFGH I J KLM NOPQRS TU VWXYZ 1234567890 &@

Space

Use q/w/e/r to select a character, and then

Back Space

press Enter.

Repeat this step from the 1st character to the 3rd character of the brand name. When you have entered the 3rd character, press Enter. After searching, a list of the brand name appears.

8–1. Remote Mode Setup

Brand

–

TVCategory

• This setting can be carried out by using on-screen setup menu

only.

Press Receiver followed by Setup.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the

appropriate external input is selected on your TV.

Use q/w to select “Remote Controller Setup”,

and then press Enter. The “Remote Controller Setup” menu appears.

Use q/w to select “Remote Mode Setup”, and

then press Enter. The “Remote Mode Setup” menu appears.

Sonawa Sonber Songba Sonic Soniko

• If the brand name is not found, use r to select “Not Listed”, and then press Enter.

The brand name input panel appears.

Use q/w to select brand, and then press Enter.

After searching, a remote control code and the input procedure appear. Try it.

8–1. Remote Mode Setup

Code 11339

1. While holding down Remote Mode [TV], press and hold down [DISPLAY] (3 seconds).

2. Enter the 5-Digit remote control code.

3. Push some key to see if the TV responds.

4. Push Remote Mode [RECEIVER].

5. Choose “Works” or “Doesn’t work”.

Works Doesn’t work (Try next code)

Not Listed

Page 85

Note

If you can control component, press Receiver,

Note

use q/w to select “Works”, and then press Enter.

The “Remote Mode Setup” menu appears.

If you cannot control component, press Receiver, use q/w to select “Doesn’t work(Try

next code)” and press Enter.

The next code appears.

Press Setup.

The setup menu closes.

Entering Remote Control Codes

You’ll need to enter a code for each component that you want to control.

Look up the appropriate remote control code in

the separate Remote Control Codes list.

The codes are organized by category (e.g., DVD player, TV, etc.).

While holding down Remote Mode to which you

want to enter a code, press and hold down Display (about 3 seconds).

The Remote Mode button lights.

• Remote control codes cannot be entered for Receiver and Zone2.

• Only TV remote control codes can be entered for TV.

• Except for Receiver, TV and Zone2, remote control codes from any category can be entered as Remote Mode. However, these buttons also work as input selector buttons (➔ 24), so choose a Remote Mode that corresponds with the input to which you connect your component. For example, if you connect your CD player to the CD input, choose TV/CD when entering its remote control code.

Within 30 seconds, use the number buttons to

enter the 5-digit remote control code.

Remote Mode button flashes twice. If the remote control code is not entered success-

fully, Remote Mode button will flash once slowly.

• The remote control codes provided are correct at the time of printing, but are subject to change.

Remote Control Codes for Integra/ Onkyo Components Connected via u

Integra/Onkyo components that are connected via u are controlled by pointing the remote controller at the AV controller, not the component. This allows you to control components that are out of view, in a rack, for example.

Make sure the Integra/Onkyo component is con-

nected with an u cable and an analog audio cable (RCA).

See “Connecting Integra/Onkyo u Components” for details (➔ 19).

Enter the appropriate remote control code for

Remote Mode.

• BD/DVD

 31612:

Integra/Onkyo DVD player with u

• TV/CD

 71327:

Integra/Onkyo CD player with u

 42157:

Onkyo cassette tape deck with u

• Port

 81993:

Onkyo Dock with u See the previous section for how to enter remote control codes.

• When using a cassette tape deck connected via u, press

and hold TV/CD to switch to TAPE.

Press Remote Mode, point the remote controller

at the AV controller, and operate the component.

If you want to control an Integra/Onkyo component by pointing the remote controller directly at it, or you want to control an Integra/Onkyo component that’s not connected

via u, use the following remote control codes:

• BD/DVD :

 30627

Integra/Onkyo DVD player without u

• TV/CD

 71817

Integra/Onkyo CD player without u

 11807:

TV with p

Page 86

If you want to control an Integra/Onkyo component by

Note

pointing the remote controller directly at it, use the following remote control codes:

 32900:

Integra/Onkyo Blu-ray Disc player

 32901:

Integra/Onkyo HD-DVD player

 70868:

Onkyo MD recorder without u

 71323:

Onkyo CD recorder without u

 82990:

Onkyo Dock without u

• If you connect a cassette tape deck to the TV/CD IN jack, or connect an RI Dock to the to the TV/CD IN or VCR/DVR IN or

GAME IN jacks, for u to work properly, you must set the Input Display accordingly (➔ 26).

Controlling Other Components

By pressing Remote Mode that’s been programmed with the remote control code for your component, you can control your component as below. For details on entering a remote control code for other components, see “Entering Remote Control Codes” (➔ 85).

Controlling a TV

TV is preprogrammed with the remote control code for

controlling a TV that supports the p some models). The TV must be able to receive remote

control commands via p and be connected to the AV controller via HDMI. If controlling your TV via

p doesn’t work very well, program your TV’s remote control code into TV and use the TV remote mode to control your TV.

(limited to

Resetting Remote Mode Buttons

You c an r es e t a Remote Mode to its default remote control code.

While holding down Remote Mode that you want

to reset, press and hold down Home until Remote Mode button lights (about 3 seconds).

Within 30 seconds, press Remote Mode again.

Remote Mode button flashes twice, indicating that the button has been reset. Each of Remote Mode is preprogrammed with a remote control code. When a button is reset, its preprogrammed code is restored.

• The learning command is also reset.

Resetting the Remote Controller

You can reset the remote controller to its default settings.

While holding down Receiver, press and hold

down Home until Receiver lights (about 3 seconds).

Within 30 seconds, press Receiver again.

Receiver flashes twice, indicating that the remote controller has been reset.

Controlling a Blu-ray Disc/DVD Player, HD DVD Player or DVD Recorder

BD/DVD is preprogrammed with the remote control code

for controlling a component that supports the p*1 (limited to some models). The component must be able to

receive remote control commands via p and be connected to the AV controller via HDMI.

The

system control function of the HDMI standard.

supported by the

AV controller

is the CEC

Page 87

Note

Tip

a a

Press the appropriate Remote Mode first.

Components

Buttons

✔: Available buttons

DVD player/DVD recorder

Blu-ray Disc player

HD DVD player

VCR/PVR

Satellite receiver

Cable receiver

CD player/CD recorder

MD recorder

Cassette tape deck

On, Standby ✔✔ ✔✔✔✔

a b 9, Input,

TV VOL q/w

Guide ✔✔✔

Top M e n u ✔

d q/w/e/r

Enter

Setup ✔✔ ✔✔✔

e f 1, 3, 2, 5,

4, 7, 6

Repeat

Random

Play Mode Number: 1 to 9, 0 ✔✔ ✔✔✔

Number: +10

Display ✔✔ ✔✔✔

Muting ✔✔ ✔✔✔✔

CH +/– ✔✔ ✔✔

Disc +/– ✔✔

PREV CH ✔✔✔

Menu ✔

Return ✔✔ ✔✔

CLR ✔✔ ✔✔✔

The p function is not supported. The p supported by the AV controller is the CEC system control function of the HDMI standard.

These buttons function as colored buttons or A, B, C, D buttons.

3 (Pause) functions as reverse playback.

✔

✔✔ ✔✔✔

✔✔✔✔

✔

*1*2✔*1✔*2

✔

*1*2

✔

*1*2✔*1✔*2

✔

*1*2✔*1✔*2

✔

*1✔*1

✔

✔✔ ✔

✔

• With some components, certain buttons may not work as expected, and some may not work at all.

• See the “Controlling Your iPod” about the operation of iPod (➔ 82).

Page 88

Note

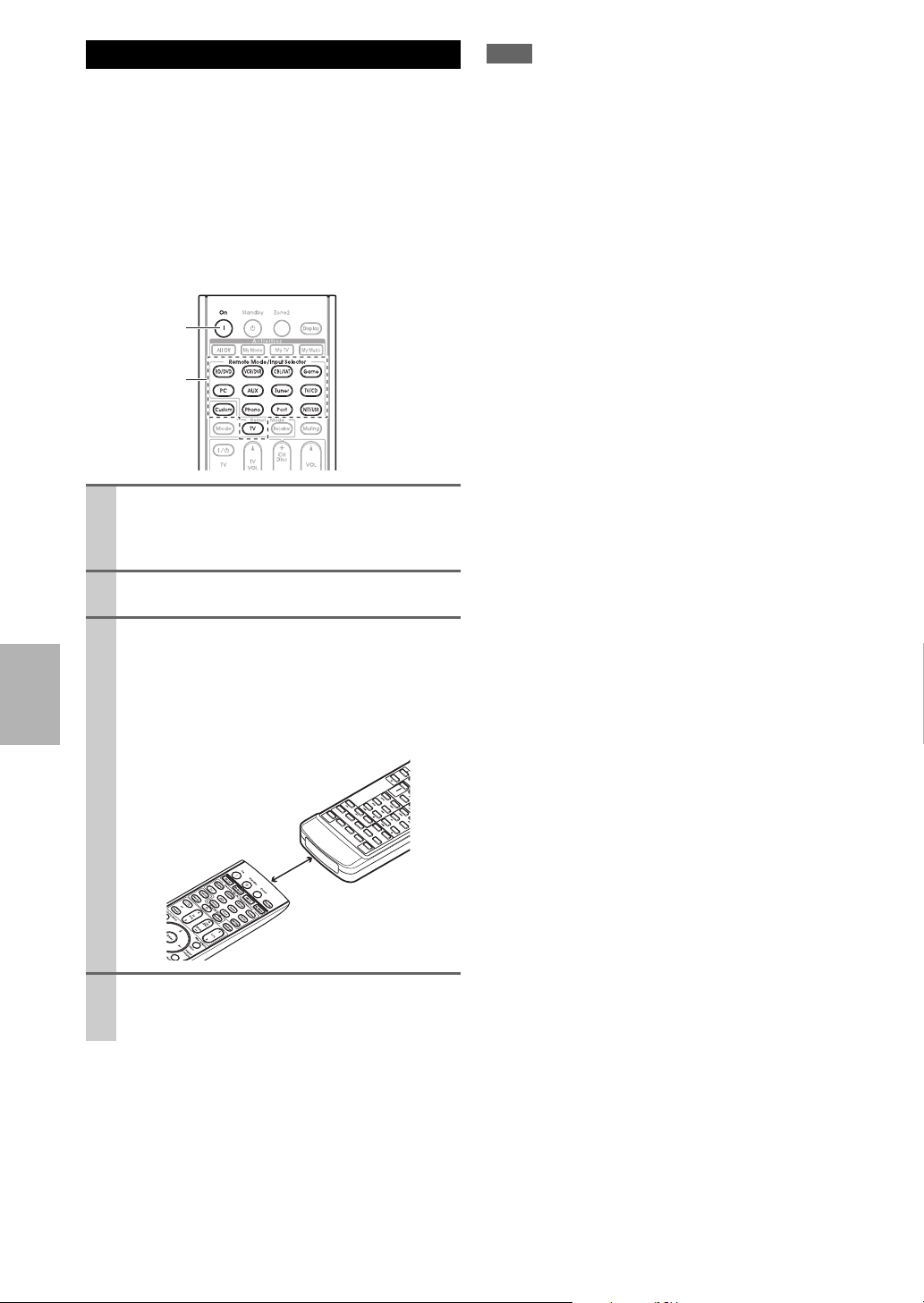

Learning Commands

Remote

Mode

About 2 to 6 inches (5 to 15 cm)

Supplied remote controller

The AV controller’s remote controller can learn the commands of other remote controllers. By transmitting, for example, the Play command from your CD player’s remote controller, the remote controller can learn it, and

then transmit the exact same command when its 1 is pressed in the CD remote mode.

This is useful when you’ve entered the appropriate remote control code (➔ 85) but some buttons don’t work as expected.

While holding down Remote Mode for the mode

in which you want to use the command, press and hold down On until Remote Mode button lights (about 3 seconds).

On the supplied remote controller, press the but-

ton you want to learn the new command.

Point the remote controllers at each other, about 2

to 6 inches (5 to 15 cm) apart, and then press and hold the button whose command you want to learn until Remote Mode button flashes.

If the command is learned successfully, Remote Mode button flashes twice.

• The following buttons cannot learn new commands: Remote Mode, All Off, My Movie, My TV, My Music, Mode.

• The remote controller can learn approximately 70 to 90 commands, although this will be less if commands that use a lot of memory are learned.

• Remote controller buttons such as Play, Stop, Pause, and so on are preprogrammed with commands for controlling Onkyo CD players, cassette decks, and DVD players. However, they can learn new commands, and you can restore the preprogrammed commands at any time by resetting the remote controller (➔ 86).

• To overwrite a previously learned command, repeat this procedure.

• Depending on the remote controller that you are using, there may be some buttons that won’t work as expected, or even some remotes that cannot be learned at all.

• Only commands from infrared remote controllers can be learned.

• When the remote controller’s batteries expire, all learned commands will be lost and will have to be learned all over again, so don’t discard your other remote controllers.

■ Deleting Learning Commands

1. While holding down Remote Mode for the mode in

which you want to delete the command, press and hold down TV 9 until Remote Mode button lights (about 3 seconds).

2. Press Remote Mode or the button from which you

want to delete the commands. Remote Mode button flashes twice. When you press Remote Mode, all commands learned in that remote mode will be deleted.

O M

RE E

H O

N E E OR

OWER

To learn more commands, repeat steps 2 and 3.

Press any Remote Mode when you’ve finished. Remote Mode button flashes twice.

Page 89

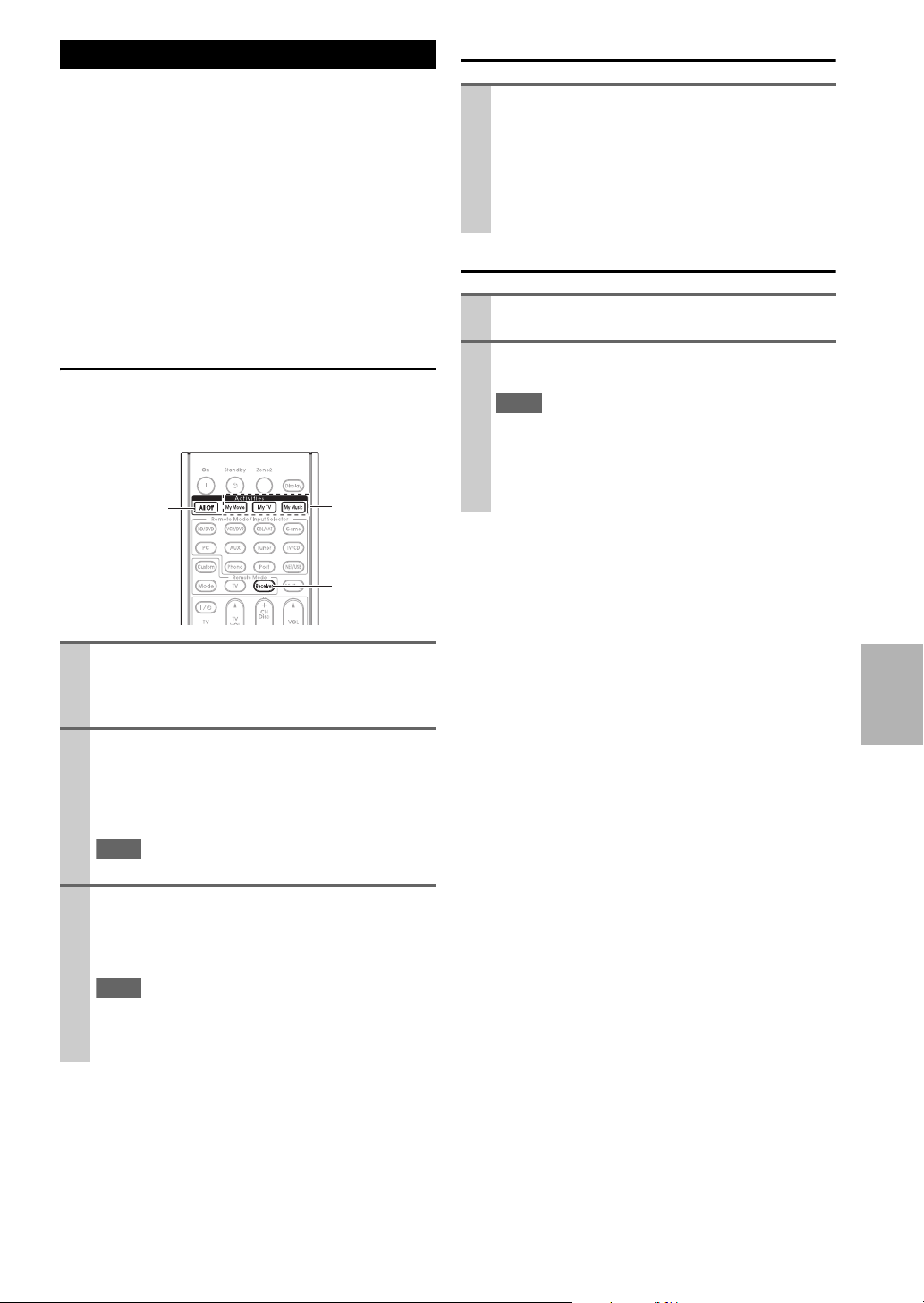

Using Normal Macros

Note

All Off

My Movie, My TV, My Music

Receiver

Note

Running Macros

You can program the remote controller’s Activities to perform a sequence of remote control actions.

Example:

To play a CD you typically need to perform the following actions:

1. Press Receiver to select the Receiver remote controller mode.

2. Press On to turn on the AV controller.

3. Press TV/CD to select the TV/CD input source.

4. Press 1 to start playback on the CD player.

You can program Activities so that all four actions are performed with just one button press.

Making Macros

Each Activities can store one macro, and each macro can contain up to 32 commands.

Press My Movie, My TV or My Music.

The commands in the macro are transmitted in the order in which they were programmed. Keep the remote controller pointed at the AV controller until all of the commands have been transmitted.

Macros can be run at any time, regardless of the current remote controller mode.

Deleting Macros

While holding down Home, press and hold down

All Off until All Off lights (about 3 seconds).

Press All Off again.

All Off flashes twice.

• It changes into Easy macro mode when the macro is deleted (➔ 26).

• When you using Normal macro mode, you cannot use the easy macro command including the change of the source component.

While holding down Receiver, press and hold

down My Movie, My TV or My Music until My Movie, My TV, or My Music lights (about 3

seconds).

Press the buttons whose actions you want to pro-

gram into the macro in the order you want them performed.

For the CD example above, you’d press the following buttons: On, TV/CD, 1.

• MODE is invalid at macro making operation.

When you’ve finished, press Activities again.

Activities button flashes twice. If you enter 32 commands, the process will finish

automatically.

• Once you have taught a new macro commands, the original macro will no longer work. If you retrieve it, you will have to taught again.

Page 90

Troubleshooting

Receiver

Home

If you have any trouble using the AV controller, look for a solution in this section. If you can’t resolve the issue yourself, contact the dealer from whom you purchased this unit.

If you can’t resolve the issue yourself, try resetting the AV controller before contacting the dealer from whom you purchased this unit.

To reset the AV controller to its factory defaults, turn it on and, while holding down VCR/DVR, press On/ Standby. “Clear” will appear on the display and the AV controller will enter Standby mode.

Note that resetting the AV controller will delete your radio presets and custom settings.

To reset the remote controller to its factory defaults, while holding down Receiver, press and hold down Home until Receiver button lights (about 3 seconds). Within 30 seconds, press Receiver again.

Power

■ Can’t turn on the AV controller

Make sure that the power cord is properly plugged into the wall outlet.

Unplug the power cord from the wall outlet, wait five seconds or more, then plug it in again.

—

Audio

■ There’s no sound, or it’s very quiet

Make sure that your multichannel power amplifier is turned on and set up correctly and connected to the AV controller properly.

Make sure that the digital input source is selected properly.

Make sure that all audio connecting plugs are pushed in all the way.

Make sure that the inputs and outputs of all components are connected properly.

Make sure that the polarity of the speaker cables is correct, and that the bare wires are in contact with the metal part of each speaker terminal.

Make sure that the input source is properly selected. 24 Make sure that the speaker cables are not shorting. — Check the volume. The AV controller is designed for

home theater enjoyment. It has a wide volume range, allowing precise adjustment.

If the MUTING indicator is flashing on the display, press the remote controller’s Muting to unmute the AV controller.

While a pair of headphones is connected to the Phones jack, no sound is output by the speakers.

If there’s no sound from a DVD player connected to an HDMI IN, check the DVD player’s output settings, and be sure to select a supported audio format.

Check the digital audio output setting on the connected device. On some game consoles, such as those that support DVD, the default setting is off.

With some DVD-Video discs, you need to select an audio output format from a menu.

If your turntable uses an MC cartridge, you must connect an MC head amp, or an MC transformer.

Make sure that none of the connecting cables are bent, twisted, or damaged.

Not all listening modes use all speakers. 39 Specify the speaker distances and adjust the individ-

ual speaker levels. Make sure that the speaker setup microphone is not

still connected. The input signal format is set to “PCM” or “DTS”.

Set it to “Aut o”.

■ Audio Return Channel audio can be heard via

the TV/monitor speakers connected to the HDMI OUT SUB jack

Change the “Audio Selector” settings of the TV/CD input selector.

17-19

—

■ Only the front speakers produce sound

When the Stereo or Mono listening mode is selected, only the front speakers and subwoofer produce sound.

In the Mono listening mode, only the front speakers output sound if the “Output Speaker” setting is set to “Left / Right”.

Check the Speaker Configuration. 48

—

Page 91

■ Only the center speaker produces sound

If you use the Dolby Pro Logic IIx Movie, Dolby Pro Logic IIx Music, or Dolby Pro Logic IIx Game listening mode with a mono source, such as an AM radio station or mono TV program, the sound is concentrated in the center speaker.

In the Mono listening mode, only the front speakers output sound if the “Output Speaker” setting is set to “Center”.

Make sure the speakers are configured correctly. 48

—

■ The speaker volume cannot be set as required

(The volume cannot be set to Max(100))

Check to see if a maximum volume has been set. 58 If the volume level of each individual speaker has

been adjusted to high positive values, then the maximum master volume possible may be reduced. Note that the individual speaker volume levels are set automatically after Audyssey MultEQ rection and Speaker Setup function has been completed.

Room Cor-

27, 49

■ The surround speakers produce no sound

When the T-D (Theater-Dimensional), Stereo or Mono listening mode is selected, the surround speakers produce no sound.

Depending on the source and current listening mode, not much sound may be produced by the surround speakers. Try selecting another listening mode.

Make sure the speakers are configured correctly. 48

—

■ The center speaker produces no sound

When the Stereo or Mono listening mode is selected, the center speaker produces no sound.

In the Mono listening mode, only the front speakers output sound if the “Output Speaker” setting is set to “Left / Right”.

Make sure the speakers are configured correctly. 48

—

■ The front high, front wide and surround back

speakers produce no sound

Depending on the current listening mode, no sound may be produced by the front high, front wide and surround back speakers. Select another listening mode.

Not much sound may be produced by the front high, front wide and surround back speakers with some sources.

Make sure the speakers are configured correctly. 48

—

■ The subwoofer produces no sound

When you play source material that contains no information in the LFE channel, the subwoofer produces no sound.

Make sure the speakers are configured correctly. 48

—

■ There’s no sound with a certain signal format

Check the digital audio output setting on the connected device. On some game consoles, such as those that support DVD, the default setting is off.

With some DVD-Video discs, you need to select an audio output format from a menu.

Depending on the input signal, some listening modes cannot be selected.

—

39–43

■ Noise can be heard

Using cable ties to bundle audio cables with power cords, speaker cables, and so on may degrade the audio performance, so don’t do it.

An audio cable may be picking up interference. Try repositioning your cables.

—

■ The Late Night function doesn’t work

Make sure the source material is Dolby Digital, Dolby Digital Plus, and Dolby TrueHD.

■ About DTS signals

When DTS program material ends and the DTS bitstream stops, the AV controller remains in DTS listening mode and the DTS indicator remains on. This is to prevent noise when you use the pause, fast forward, or fast reverse function on your player. If you switch your player from DTS to PCM, because the AV controller does not switch formats immediately, you may not hear any sound, in which case you should stop your player for about three seconds, and then resume playback.

With some CD and LD players, you won’t be able to playback DTS material properly even though your player is connected to a digital input on the AV controller. This is usually because the DTS bitstream has been processed (e.g., output level, sampling rate, or frequency response changed) and the AV controller doesn’t recognize it as a genuine DTS signal. In such cases, you may hear noise.

When playing DTS program material, using the pause, fast forward, or fast reverse function on your player may produce a short audible noise. This is not a malfunction.

—

■ The beginning of audio received by an HDMI IN

can’t be heard

Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately.

—

■ Can’t get 6.1/7.1 playback

If no surround back speakers, front wide and front high speakers are connected, 6.1/7.1 playback is not possible.

You can not always select all of the listening modes, depending on the number of the speakers connected.

—

39–43

Page 92

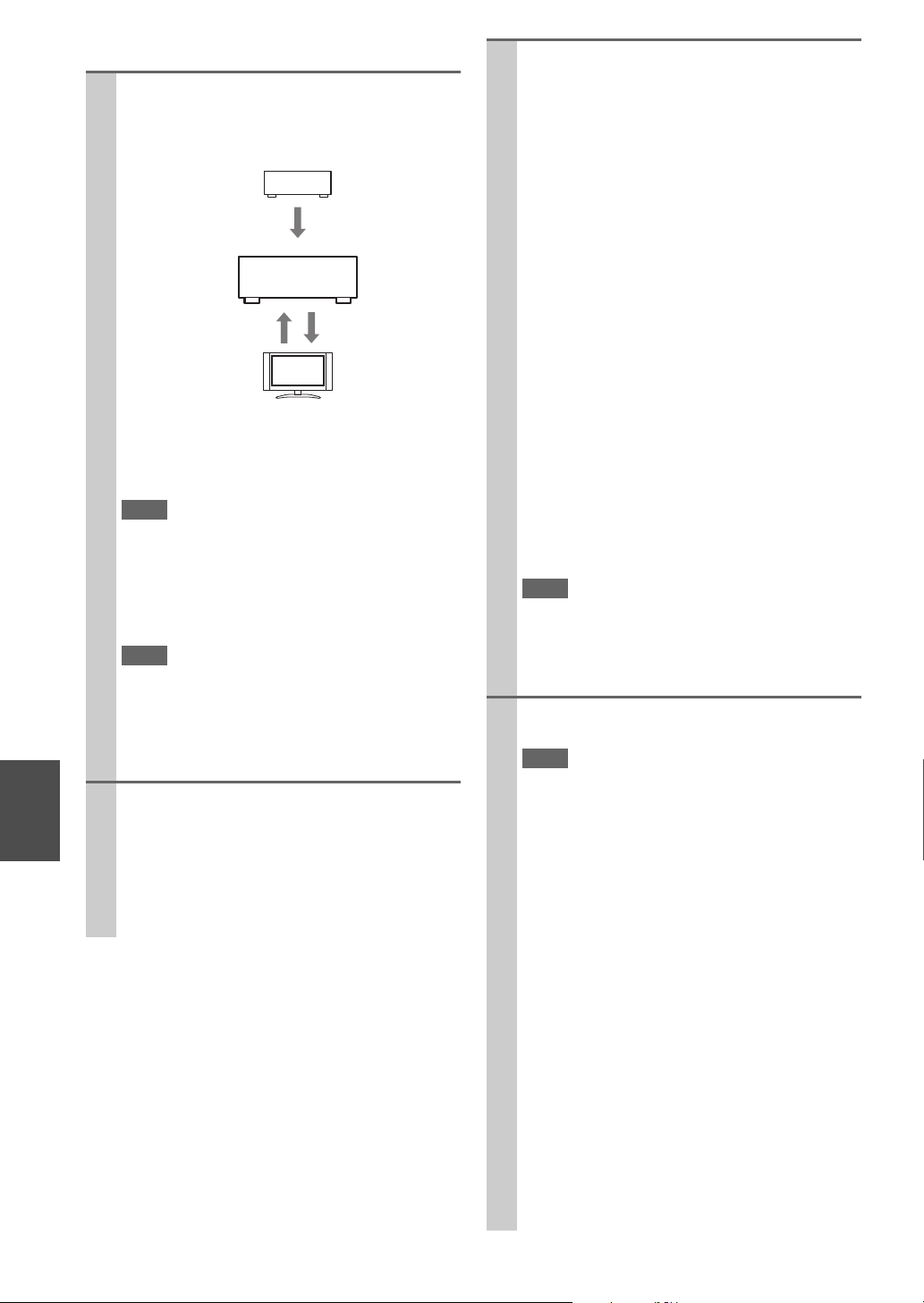

Video

Tune r

■ There’s no picture

Make sure that all video connecting plugs are pushed in all the way.

Make sure that each video component is properly connected.

If your TV is connected to the HDMI output, set the “Monitor Out” setting other than “Analog”, and select “-----” in the “HDMI Input” to watch com- posite video, S-Video, and component video sources.

If your TV is connected to the COMPONENT

VIDEO MONITOR OUT, MONITOR OUT S, or MONITOR OUT V, set the “Monitor Out” setting

to “Analog”, and select “-----” in the “Compo- nent Video Input” to watch composite video and S-

Video sources. If the video source is connected to a composite video

input, your TV must be connected to the HDMI output or the corresponding composite video output.

If the video source is connected to an HDMI input, you must assign that input to an input selector, and your TV must be connected to the HDMI output.

On your TV, make sure that the video input to which the AV controller is connected is selected.

If you selected “Both(Main)” or “Both(Sub)” in the “Monitor Out” setting, no picture may appear on your TV that is connected to a secondary HDMI output (not a priority HDMI output). In this case, change the setting to “Both”.

■ There’s no picture from a source connected to

an HDMI IN

Reliable operation with an HDMI-to-DVI adapter is not guaranteed. In addition, video signals from a PC are not guaranteed.

When the Resolution is set to any resolution not supported by the TV, no video is output by the HDMI outputs.

If the message “Resolution Error” appears on the AV controller’s display, this indicates that your TV does not support the current video resolution and you need to select another resolution on your DVD player.

■ The on-screen menus don’t appear

On your TV, make sure that the video input to which the AV controller is connected is selected.

If your TV is connected to the analog outputs, set the “Monitor Out” setting to “Analog”.

■ The on screen display does not appear

Depending on the input signal, the on screen display may not appear when the input signal from the HDMI IN is output to a device connected to the HDMI output.

17, 18, 80

45, 46

45, 47

17, 46

—

■ Reception is noisy, FM stereo reception is

noisy, or the FM STEREO indicator doesn’t light

Relocate your antenna. — Move the AV controller away from your TV or com-

puter. Listen to the station in mono. 30 When listening to an AM station, operating the

remote controller may cause noise. Passing cars and airplanes can cause interference. — Concrete walls weaken radio signals. — If nothing improves the reception, install an outdoor

antenna.

—

Remote Controller

■ The remote controller doesn’t work

Before operating this unit, be sure to press Receiver.

Make sure that the batteries are installed with the correct polarity.

Install new batteries. Don’t mix different types of batteries, or old and new batteries.

Make sure that the remote controller is not too far away from the AV controller, and that there’s no obstruction between the remote controller and the AV controller’s remote control sensor.

Make sure that the AV controller is not subjected to direct sunshine or inverter-type fluorescent lights. Relocate if necessary.

If the AV controller is installed in a rack or cabinet with colored-glass doors, the remote controller may not work reliably when the doors are closed.

Make sure you’ve selected the correct remote controller mode.

When using the remote controller to control other manufacturers’ AV components, some buttons may not work as expected.

Make sure you’ve entered the correct remote control code.

Make sure to set the same ID on both the AV controller and remote controller.

■ Can’t control other components

If it’s an Integra/Onkyo component, make sure that the u cable and analog audio cable are connected properly. Connecting only an u cable won’t work.

Make sure you’ve selected the correct remote controller mode.

If you’ve connected a cassette tape deck, to the TV/

CD IN jack, or an RI Dock to the TV/CD IN or GAME IN or VCR/DVR IN jacks, for the remote

controller to work properly, you must set the input display.

If you cannot operate it, you will need to enter the appropriate remote control code.

To control another manufacturer’s component, point the remote controller at that component.

If none of the codes work, use the Learning function to learn the commands of the other component’s remote controller.

—

11, 86

—

11, 86

Page 93

To control an Integra/Onkyo component that’s connected via u, point the remote controller at the AV

controller. Be sure to enter the appropriate remote control code first.

To control an Integra/Onkyo component that’s not connected via u, point the remote controller at the

component. Be sure to enter the appropriate remote control code first.

The entered remote control code may not be correct. If more than one code is listed, try each one.

—

■ Can't learn commands from another remote

controller

When learning commands, make sure that the transmitting ends of both remote controllers are pointing at each other.

Are you trying to learn from a remote controller that cannot be used for learning? Some commands cannot be learned, especially those that contain several instructions.

—

■ Can’t connect to the AV controller from a Web

browser

If you’re using DHCP, your router may not always allocate the same IP address to the AV controller, so if you find that you can’t connect to a server or Internet radio station, recheck the AV controller’s IP address on Network screen.

Check the

“Network Settings”

—

USB Mass Storage Device Playback

■ Can’t access the music files on a USB device

Make sure the USB device is plugged in properly. — The AV controller supports USB devices that sup-

port the USB mass storage device class. However, playback may not be possible with some USB devices even if they conform to the USB mass storage device class.

USB memory devices with security functions cannot be played.

—

Recording

■ Can’t record

On your recorder, make sure the correct input is selected.

To prevent signal loops and damage to the AV controller, input signals are not fed through to outputs with the same name (VCR/DVR IN to VCR/DVR OUT).

Zone 2

■ There’s no sound

Only components connected to analog inputs can be played in Zone 2.

Music Server and Internet Radio

■ Can’t access the server or Internet radio

Check the network connection between the AV controller and your router or switch.

Make sure that your modem and router are properly connected, and make sure they are both turned on.

Make sure the server is up and running and compatible with the AV controller.

Check the “Network Settings”. 70

—

69, 69

Others

■ Stand-by power consumption

In the following cases, the power consumption could reach a maximum of approximately 40W:

1. You are using the Universal Port jack.

2. “Control” is set to “Enable” in the “Network” setting.

3. “HDMI Control (RIHD)” setting is set to “On”. (Depending on the TV status, the AV controller will enter Standby mode as usual.)

■ The sound changes when I connect my

headphones

When a pair of headphones is connected, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono or Direct.

■ The speaker distance cannot be set as required

In some cases, corrected values suitable for home theater use may be set automatically.

■ How do I change the language of a multiplex

source

Use the “Multiplex” setting on the “Audio Adjust” menu to select “Main” or “Sub”.

60, 71, 80

—

■ Playback stops while listening to music files on

the server

Make sure your server is compatible with the AV controller.

If you download or copy large files on your computer, playback may be interrupted. Try closing any unused programs, use a more powerful computer, or use a dedicated server.

If the server is serving large music files to several networked devices simultaneously, the network may become overloaded and playback may be interrupted. Reduce the number of playback devices on the network, upgrade your network, or use a switch instead of a hub.

69, 69

—

■ The u functions don’t work

To us e u, you must make an u connection and an analog audio connection (RCA) between the component and AV controller, even if they are connected digitally.

■ The functions System On/Auto Power On and

Direct Change don’t work for components connected via u

These functions don’t work when Zone 2 is turned on.

Page 94

■ When performing “Audyssey MultEQ® Room

Note

Correction and Speaker Setup”, the measurement fails showing the message “Ambient noise is too high.”.

This can be caused by any malfunction in your speaker unit. Check if the unit produces normal sounds.

■ The following settings can be made for the

S-Video and composite video inputs

You must use the buttons on the unit to make these settings.

1. While holding down the input selector button for the input source that you want to set, press Setup.

2. Use e/r to change the setting.

3. Press the input selector button for the input source that you want to set when you’ve finished.

• Video Attenuation

This setting can be made for the BD/DVD, VCR/DVR, CBL/SAT, Game, or AUX input.

If you have a games console connected to the composite video input, and the picture isn’t very clear, you can attenuate the gain.

Video ATT:OFF: (default). Video ATT:ON: Gain reduced by 2dB.

The AV controller contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least five seconds, and then plug it back in again.

Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

—

Important Note Regarding Video Playback

The AV controller can upconvert component video, SVideo, and composite video sources for display on a TV connected to the HDMI output. However, if the picture quality of the source is poor, upconversion may make the picture worse or disappear altogether.

In this case, try the following:

If the video source is connected to a component

video input, connect your TV to the COMPONENT VIDEO MONITOR OUT.

If the video source is connected to an S-Video input, connect your TV to a MONITOR OUT S. If the video source is connected to a composite video input, connect your TV to MONITOR OUT V.

On the main menu, select “Input/Output Assign”,

and then select “HDMI Input”.

Select the relevant input selector, and assign it to “-----” (➔ 46).

On the main menu, select “Input/Output Assign”,

and then select “Component Video Input” (➔ 47):

If the video source is connected to COMPONENT VIDEO IN 1, select the relevant input

selector, and assign it to “IN1”.

If the video source is connected to COMPO- NENT VIDEO IN 2, select the relevant input selector, and assign it to “IN2”.

If the video source is connected to COMPO- NENT VIDEO IN 3, select the relevant input selector, and assign it to “IN3”.

If the video source is connected to an S-Video input or composite video input, select the relevant input selector, and assign it to “-----”.

Before disconnecting the power cord from the wall outlet, set the AV controller to Standby.

• If “Monitor Out” setting is set to “Analog”, press VCR/DVR and Return on the AV controller at the same time. Select “Skip” in

the “VideoProcessor” setting on the display. To reset back to the original setting, press the same button at the same time. If you select “Use”, the AV controller will output video signals from the video processor.

Page 95

Specifications

Amplifier Section

Input Sensitivity and Impedance

200 mV/47 k (LINE)

2.5 mV/47 k (PHONO MM)

Rated RCA Output Level and Impedance

200 mV/470  (PRE OUT)

Maximum RCA Output Level and Impedance

4.6 V/470  (PRE OUT)

Phono Overload 70 mV (MM 1 kHz 0.5%) Frequency Response 5 Hz - 100 kHz/+1 dB, -3 dB (Direct mode) Tone Control Characteristics

±10 dB, 50 Hz (BASS) ±10 dB, 20 kHz (TREBLE)

Signal to Noise Ratio 106 dB (LINE, IHF-A)

80 dB (PHONO, IHF-A)

Video Section

Input Sensitivity/Output Level and Impedance

1 Vp-p/75  (Component and S-Video Y)

0.7 Vp-p/75  (Component PB/CB, PR/CR)

0.25 Vp-p/75  (S-Video C) 1 Vp-p/75  (Composite

Component Video Frequency Response

5 Hz - 100 MHz/+0 dB, -3 dB

Tuner Section

■ Video Inputs

Component IN 1, IN 2, IN3 S-Video BD/DVD, VCR/DVR, CBL/SAT, GAME Composite BD/DVD, VCR/DVR, CBL/SAT, GAME,

Analog RGB input PC IN

AUX

■ Video Outputs

Component MONITOR OUT S-Video MONITOR OUT, VCR/DVR OUT Composite MONITOR OUT, VCR/DVR OUT,

ZONE 2 OUT

■ Audio Inputs

Digital Optical: 2

Analog BD/DVD, VCR/DVR, CBL/SAT, GAME,

Multichannel Inputs 7.1

Coaxial: 3

PC, TV/CD, AUX, PHONO

■ Audio Outputs

Analog VCR/DVR, ZONE 2 PRE OUT Analog Multichannel Pre Outputs

Subwoofer Pre Outputs 2 Phones 1 (6.3 ø)

FM Tuning Frequency Range

87.5 MHz - 107.9 MHz

AM Tuning Frequency Range

530 kHz - 1710 kHz

Preset Channel 40 Digital Tuner SIRIUS

General

Power Supply AC 120 V, 60 Hz Power Consumption 0.5 A Stand-by Power Consumption

0.2 W

Dimensions (W  H  D)

Wei ght 8.0 kg (17.6 lbs.)

■ HDMI

Input IN 1, IN 2, IN 3, IN 4, IN 5, IN 6,

Output OUT MAIN, OUT SUB Video Resolution 1080p Audio Format Dolby TrueHD, DTS Master Audio,

Supported 3D, Audio Return Channel, Deep Color,



435 mm 17-1/8"  6-13/16"  14-3/8"

AUX IN PUT

DVD-Audio, DSD

x.v.Color, LipSync, CEC

173.5 mm  365 mm

■ Others

SETUP MIC 1 RS232 1 Ethernet 1 IR Input 2 IR Output 1 12 V Trigger Out 3 USB 1 Universal Port 1 RI 1

Specifications and features are subject to change without notice.

Page 96

About HDMI

Note

Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, Blu-ray Disc/DVD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2-channel PCM, multichannel digital audio, and multichannel PCM).

The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface)*1, so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.)

The AV controller uses HDCP (High-bandwidth Digital Content Protection) can display the picture.

The AV controller’s HDMI interface is based on the following: Audio Return Channel, 3D, x.v.Color, Deep Color, Lip Sync, DTS-HD Master Audio, DTS-HD High Resolution

Audio, Dolby TrueHD, Dolby Digital Plus, DSD and Multichannel PCM

Supported Audio Formats

• 2-channel linear PCM (32–192 kHz, 16/20/24 bit)

• Multichannel linear PCM (up to 7.1 ch, 32–192 kHz, 16/20/24 bit)

• Bitstream (DSD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio)

Your Blu-ray Disc/DVD player must also support HDMI output of the above audio formats.

About Copyright Protection

, so only HDCP-compatible components

The AV controller supports HDCP (High-bandwidth Digital Content Protection)*2, a copy-protection system for digital video signals. Other devices connected to the AV controller via HDMI must also support HDCP.

DVI (Digital Visual Interface): The digital display interface standard set by the DDWG*3 in 1999.

HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by Intel for HDMI/DVI. It’s designed to protect video content and requires a HDCP-compatible device to display the encrypted video.

DDWG (Digital Display Working Group): Lead by Intel, Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open industry group’s objective is to address the industry’s requirements for a digital connectivity specification for high-performance PCs and digital displays.

• The HDMI video stream is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you’ll need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported.

• The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If the picture is poor or there’s no sound from a component connected via HDMI, check its setup. Refer to the connected component’s instruction manual for details.

Page 97

Using an RIHD-compatible TV, Player, or Recorder

Note

p, which stands for Remote Interactive over HDMI, is the name of the system control function found on Integra/ Onkyo components. The AV controller can be used with CEC (Consumer Electronics Control), which allows system control over HDMI and is part of the HDMI standard. CEC provides interoperability between various components, however,

operation with components other than p-compatible components cannot be guaranteed.

■ About p-compatible components

The following components are p-compatible. (As of February 2010) See the Onkyo web site for latest information.

• Panasonic VIERA Link compatible TV

• Toshiba REGZA-LINK compatible TV

• Sharp TV (See Onkyo web site for latest information on compatible models.)

Players/Recorders

• Onkyo and Integra p-compatible players

• Panasonic VIERA Link compatible players and recorders (only when used together with Panasonic VIERA Link compatible TV)

• Toshiba REGZA-LINK compatible players and recorders (only when used together with Toshiba REGZALINK compatible TV)

• Sharp players and recorders (only when used together with Sharp TV)

Models other than those mentioned above may have some interoperability if compatible with CEC which is part of the HDMI Standard, but operation cannot be guaranteed.

• Do not connect the p-compatible component more than the following number to the HDMI input terminal so that the linked operations work properly. –Blu-ray Disc/DVD player is up to three. –Blu-ray Disc recorder/DVD recorder/Digital Video Recorder is

up to three.

–Cable/Satellite Set-top box is up to four.

• Do not connect the AV controller to the other AV controller/AV amplifier via HDMI.

•When the p-compatible component more than the above-mentioned is connected, the linked operations are not guaranteed.

■ Operations that can be performed with p

connection

For p-compatible TV

The following linked operation is possible by connecting the AV controller to an p-compatible TV.

• The AV controller will enter Standby mode when the power of the TV is turned to Standby.

• You can set on the menu screen of the TV to either output the audio from the speakers connected to the AV controller, or from the speakers of the TV.

• It is possible to output the video/audio from the antenna or from the input jack of the TV from the speakers connected to the AV controller. (A connection such as optical digital cable or similar is required above the HDMI cable.)

• Input to the AV controller can be selected with the remote controller of the TV.

• Operations such as volume adjustment or similar for the AV controller can be performed from the remote controller of the TV.

For p-compatible players/recorders

The following link operation is possible by connecting the AV controller to an p-compatible player/recorder.

• When the playback is started on the player/recorder, input of the AV controller will switch to the HDMI input of the player/recorder that is playing back.

• Operation of the player/recorder is possible with the remote controller supplied with the AV controller.

Not all functions may operate depending on the model.

Page 98

Note

Blu-ray Disc/DVD player, etc.

AV controller

TV, projector, etc.

DIGITAL AUDIO

connection

(OPTICAL)

HDMI connection

Note

■ How to connect and setup

Confirm the connecting and setting.

1. Connect the HDMI OUT MAIN jack to the HDMI input jack of the TV.

2. Connect the audio output from the TV to the OPTICAL IN 2 jack of the AV controller using an optical digital cable.

• When you use the audio return channel (ARC) function

with TV an HDMI (Audio Return Channel) capable TV, this connection is not required (➔ 60).

3. Connect the HDMI output of the Blu-ray Disc/ DVD player/recorder to the HDMI IN 1 jack of the AV controller.

• It is necessary to assign the HDMI input when connecting

the Blu-ray Disc/DVD player/recorder to other jacks (➔ 46). Do not assign the components connected to the HDMI IN to the TV/CD input at this time. Appropriate CEC (Consumer Electronics Control) operation can not be guaranteed.

Change each item in the “HDMI Setup” as below:

• HDMI Control (RIHD): On

• Audio Return Channel (ARC): Auto

• Power Control: On

• TV Control: On

See details of each setting (➔ 60, 61).

Confirm the settings.

1. Turn on the power for all connected components.

2. Turn off the power of the TV, and confirm that the power of the connected components is turned off automatically with the link operation.

3. Turn on the power of the Blu-ray Disc/DVD player/recorder.

4. Start playback of the Blu-ray Disc/DVD player/ recorder, and confirm the following.

• The power of the AV controller is turned on

automatically, and input with the Blu-ray Disc/DVD player/recorder connected is selected.

• The power of the TV is turned on automati-

cally, and input with the AV controller connected is selected.

5. Following the operating instructions of the TV, select “Use the TV speakers” from the menu screen of the TV, and confirm that the audio is output from the speakers of the TV, and not from the speakers connected to the AV controller.

6. Select “Use the speakers connected from the AV controller” from the menu screen of the TV, and confirm that the audio is output from the speakers connected to the AV controller, and not from the TV speakers.

• Perform the above operations when you initially use the

AV controller, when the settings of each component are changed, when the main power of each component is turned off, when the power cable is disconnected from the power supply, or when there has been a power outage.

Operate with the remote controller.

See the list of available buttons (➔ 87).

• Audio from DVD-Audio or Super Audio CD may not out-

put from the TV speakers. You will be able to output the audio from the TV speakers by setting the audio output of the DVD player to 2ch PCM. (It may not be possible depending on the player models.)

• Even if you set to output audio on the TV speakers, audio

will be output from the speakers connected to the AV controller when you adjust the volume or switch the input on the AV controller. To output audio from the TV speakers, re-do the operations on the TV.

• Do not connect the u cable when connecting to the u

and u audio control compatible components.

• When you select anything other than the HDMI jack

where the AV controller is connected as the input on the TV, input on the AV controller will be switched to “TV/ CD”.

• The AV controller will automatically power on in conjunc-

tion when it determines it to be necessary. Even if the AV controller is connected to an p compatible TV or

player/recorder, it will not power on if it is not necessary. It may not power on in conjunction when the TV is set to output audio from the TV.

• Linked functions with the AV controller may not work

depending on the model. Operate the AV controller directly in such cases.

Page 99

Video Resolution Chart

Output

Input

The following tables show how video signals at different resolutions are output by the AV controller.

NTSC

✔: Output

HDMI Component S-Video

1080p 1080i 720p 480p 480i 1080p 1080i 720p 480p 480i 480i

HDMI 1080p ✔

1080i ✔✔✔

720p ✔✔✔

480p ✔✔✔✔

480i ✔✔✔✔✔

Component 1080p ✔✔

1080i ✔✔✔ ✔✔

720p ✔✔✔ ✔✔

480p ✔✔✔✔

480i ✔✔✔✔✔

S-Video Composite

PC IN (Analog RGB)

Available resolution: [640  480 60/72/75 Hz] [800  600 56/60/72/75 Hz] [1024  768 60/70/75 Hz] [1280  1024 60 Hz]

The output is limited to 480p for an effective signal in the effect of Macrovision.

PC IN (Analog RGB) input signal is output at 720p resolution when you select “Analog” in the “Monitor Out” setting (➔ 45) and “Through” in the “Resolution” setting (➔ 45).

480i ✔✔✔✔✔

✔✔✔✔

✔

✔✔

✔

✔✔✔

✔

Composite

Page 100
