Insulet 017 Usr Manual

Download

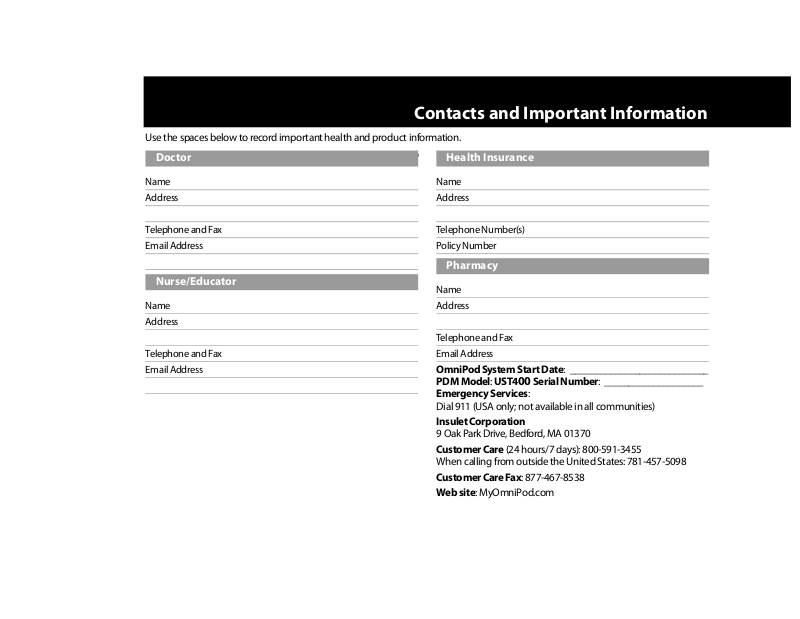

Contacts and Important Information

Doctor

Nurse/Educator

Health Insurance

Pharmacy

Use the spaces below to record important health and product information.

Name

Address

Telephone and Fax

Email Address

Name

Address

Telephone and Fax

Email Address

Name

Address

Telephone Number(s)

Policy Number

Name

Address

Telephone and Fax

Email Address

OmniPod System Start Date: ____________________________ PDM Model: UST Emergency Services:

Dial 911 (USA only; not available in all communities)

Insulet Corporation

9 Oak Park Drive, Bedford, MA 01370 Customer Care (24 hours/7 days): 800-591-3455

When calling from outside the United States: 781-457-5098

Customer Care Fax: 877-467-8538 Web site: MyOmniPod.com

400 Serial Number: ____________________

© 2011 Insulet Corporation. All rights reserved. OmniPod is a registered trademark of Insulet Corporation. U.S. Patent No. 6,740,059. FreeStyle is a registered trademark of Abbott Laboratories. Third-party trademarks used herein are the trademarks of their respective owners.

14421-AW Rev A

Contents

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

About This User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Conventions and Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

Important Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Contraindications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Your Role: Safely Using the OmniPod System . . . . . . . . . . . . . . . . . . . xi

1 Your New OmniPod Insulin Management System . . . . . . . . . . 1

Insulin Delivery with the OmniPod System. . . . . . . . . . . . . . . . . . . . . . 1

How Does the OmniPod System Work? . . . . . . . . . . . . . . . . . . . . . . . . . 2

No tubing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Automated cannula insertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

A fully-integrated design with blood glucose monitoring . . . . 2

Suggested bolus calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Reference food library and carb presets . . . . . . . . . . . . . . . . . . . . . . 3

Record keeping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Personalizing your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

The Pod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

The Personal Diabetes Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Buttons that program and control the OmniPod System. . . . . 5

Primary screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Safety Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Automatic priming, safety checks, and insertion . . . . . . . . . . . . . . 8

Rapid occlusion detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Alerts and alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

The OmniPod Starter Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Set Up the Personal Diabetes Manager (PDM) . . . . . . . . . . . . . . . . . . . 9

Turn on the PDM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

The Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Enter your PDM ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Select the ID screen color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Set date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Enter basal settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Enter blood glucose sound setting and BG goal. . . . . . . . . . . . . 12

Set the suggested bolus calculator. . . . . . . . . . . . . . . . . . . . . . . . . . 12

Enter target blood glucose value. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Enter minimum BG allowed for use in bolus calculation. . . . . 13

Enter insulin-to-carbohydrate ratio. . . . . . . . . . . . . . . . . . . . . . . . . . 13

Enter correction factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Set reverse correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

iii

Contents

Enter the duration of insulin action . . . . . . . . . . . . . . . . . . . . . . . . . . 14

ect bolus increment and enter maximum bolus. . . . . . . . . . 14

Sel

Set extended bolus doses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Set low reservoir advisory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Set expiration notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3 Understanding and Adjusting Basal Rates . . . . . . . . . . . . . . . . 16

What Is a Basal Rate? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Personalized Basal Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Create a basal program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Enable an existing basal program . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Change, rename, copy, or delete a basal program . . . . . . . . . . . 20

Temporary Basal Rates and Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

What is a temporary basal rate? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Enable a one-time temporary basal rate . . . . . . . . . . . . . . . . . . . . . 23

Cancel a one-time temporary basal rate . . . . . . . . . . . . . . . . . . . . . 24

Create a temporary basal preset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Enable an existing temporary basal preset . . . . . . . . . . . . . . . . . . 25

Cancel an active temporary basal preset . . . . . . . . . . . . . . . . . . . . 26

Change, rename, or delete a temporary basal preset . . . . . . . . 26

Maximum Basal Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

What is the maximum basal rate?. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Change the maximum basal rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4 Understanding and Delivering Bolus Doses. . . . . . . . . . . . . . . 28

What Is a Bolus? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Bolus Dose Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Suggested Bolus Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

How a suggested bolus is calculated . . . . . . . . . . . . . . . . . . . . . . . . 30

Deliver a Normal Bolus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Deliver a bolus when suggested bolus calculator is On. . . . . . 31

Deliver a bolus manually (suggested bolus calc is Off). . . . . . . 33

Deliver an Extended Bolus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Deliver an extended bolus instead of a normal bolus. . . . . . . . . . . 34

Cancel Active Boluses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Replace an Extended Bolus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Bolus Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Create a bolus preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Enable an existing bolus preset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Change, rename, or delete a bolus preset . . . . . . . . . . . . . . . . . . . 39

Cancel an active bolus preset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Carb Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Create a carb preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Change or edit a carb preset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Delete a carb preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Reference Food Library. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Access the reference food library . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

5 Using the Pod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

The Pod Change Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Gather equipment and supplies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Deactivate the current Pod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Fill a new Pod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Select the infusion site. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Apply the new Pod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Insert cannula and begin insulin delivery. . . . . . . . . . . . . . . . . . . . 52

Check Pod Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Contents

Suspend Insulin Delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

ume Insulin Delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Res

Avoid Infusion Site Infections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Get the Most From Your Pod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Avoid extreme temperatures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Water and your Pod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Safe storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

6 Using the Personal Diabetes Manager . . . . . . . . . . . . . . . . . . . . 58

The ID Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

The Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Insulin gauge and display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

PDM settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

The System Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Reset the Date or Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Reset the time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Reset the date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Change Bolus and Basal Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Bolus calcs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Ratios/factors/targets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Temp basal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Extended. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Bolus increment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Max bolus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Max basal rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Alerts and Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Set alerts and reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Change Blood Glucose Meter Settings . . . . . . . . . . . . . . . . . . . . . . . . . 69

Change BG goal limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Manage the blood glucose tags list . . . . . . . . . . . . . . . . . . . . . . . . . 69

Change BG sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Customize the Personal Diabetes Manager . . . . . . . . . . . . . . . . . . . . 70

Set PDM options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Set Diagnostic Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Diagnostic options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Set a Reminder to Vibrate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Get the Most from Your PDM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Keep it handy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Communicating with the Pod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Water and your PDM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Avoid extreme temperatures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Electrical interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

7 Checking Your Blood Glucose . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

The Built-in FreeStyle® Blood Glucose Meter . . . . . . . . . . . . . . . . . . . 76

The FreeStyle® Blood Glucose Test Strips. . . . . . . . . . . . . . . . . . . . . . . 77

Important test strip information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

The FreeStyle® Control Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

When to perform a control solution test. . . . . . . . . . . . . . . . . . . . . 78

Check that the meter and test strips are working. . . . . . . . . . . . 78

Control solution expiration date. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Ensure accurate control solution results. . . . . . . . . . . . . . . . . . . . . 78

Out-of-range control solution results. . . . . . . . . . . . . . . . . . . . . . . . 79

Performing a Control Solution Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Performing a blood glucose reading . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

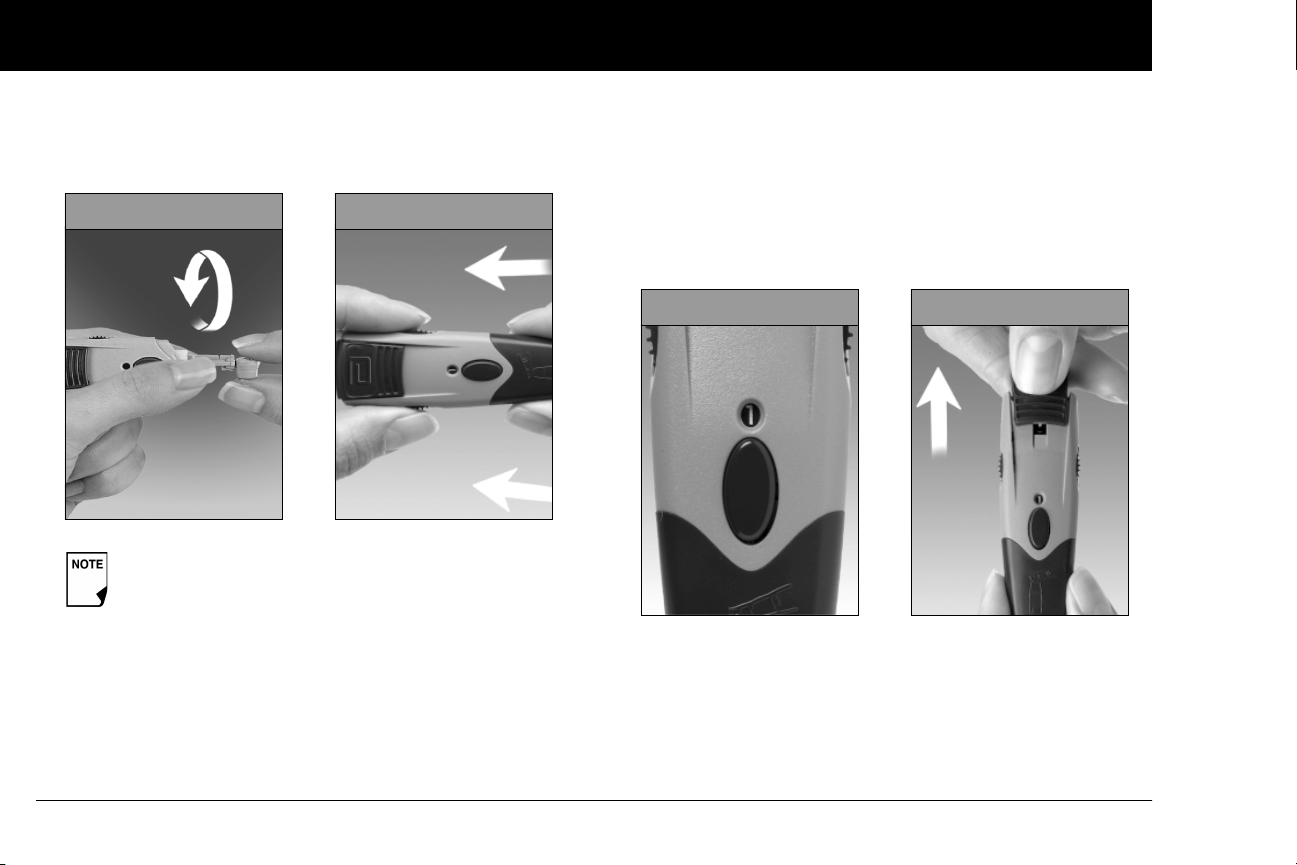

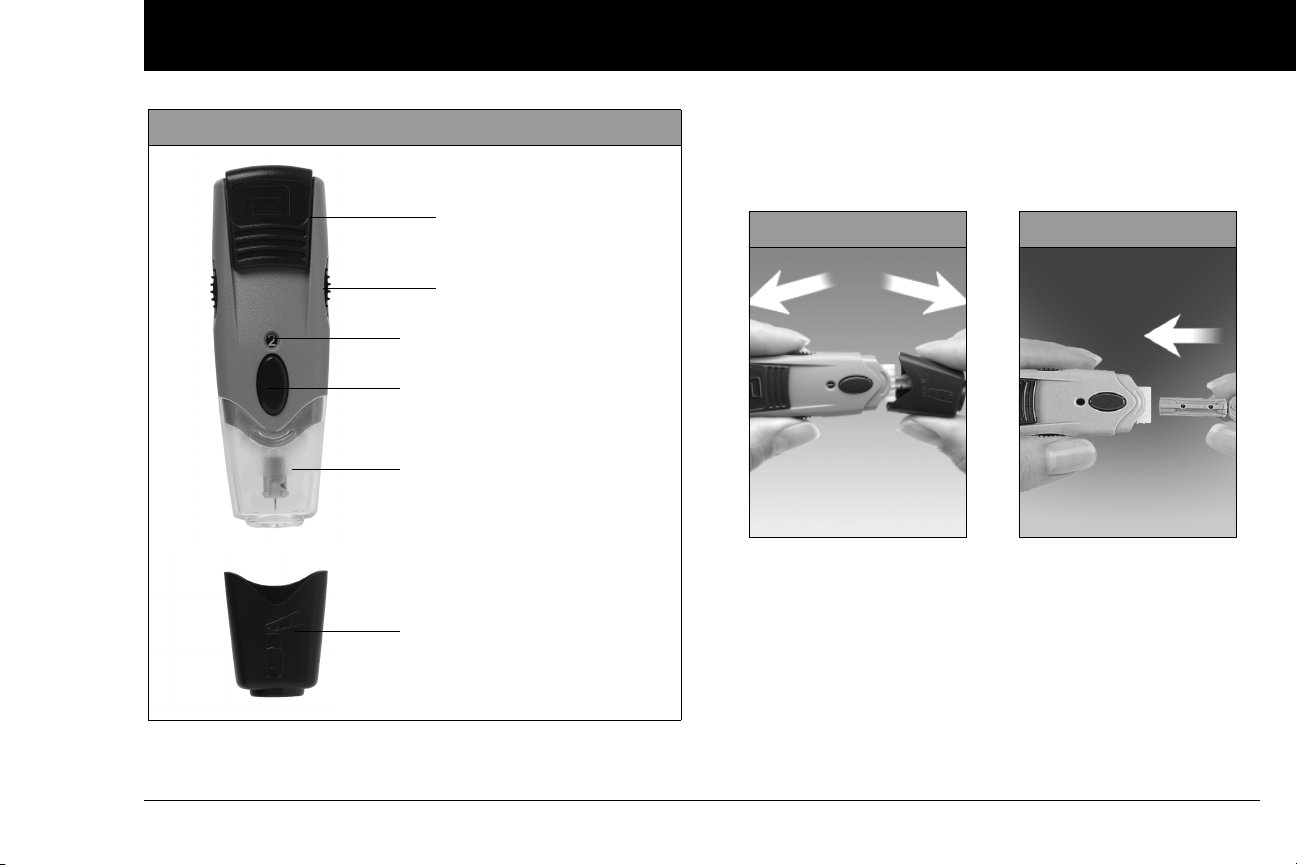

Prepare the lancing device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Contents

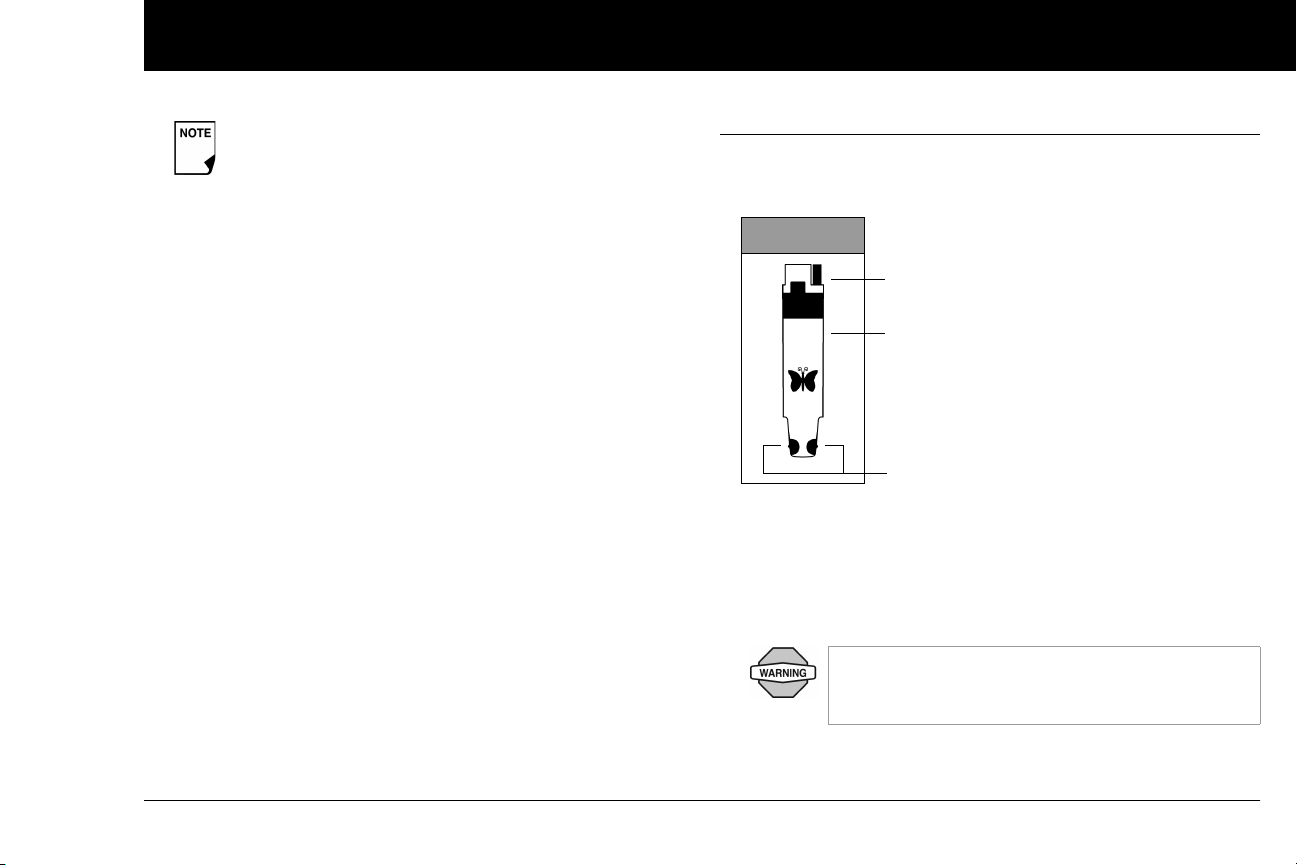

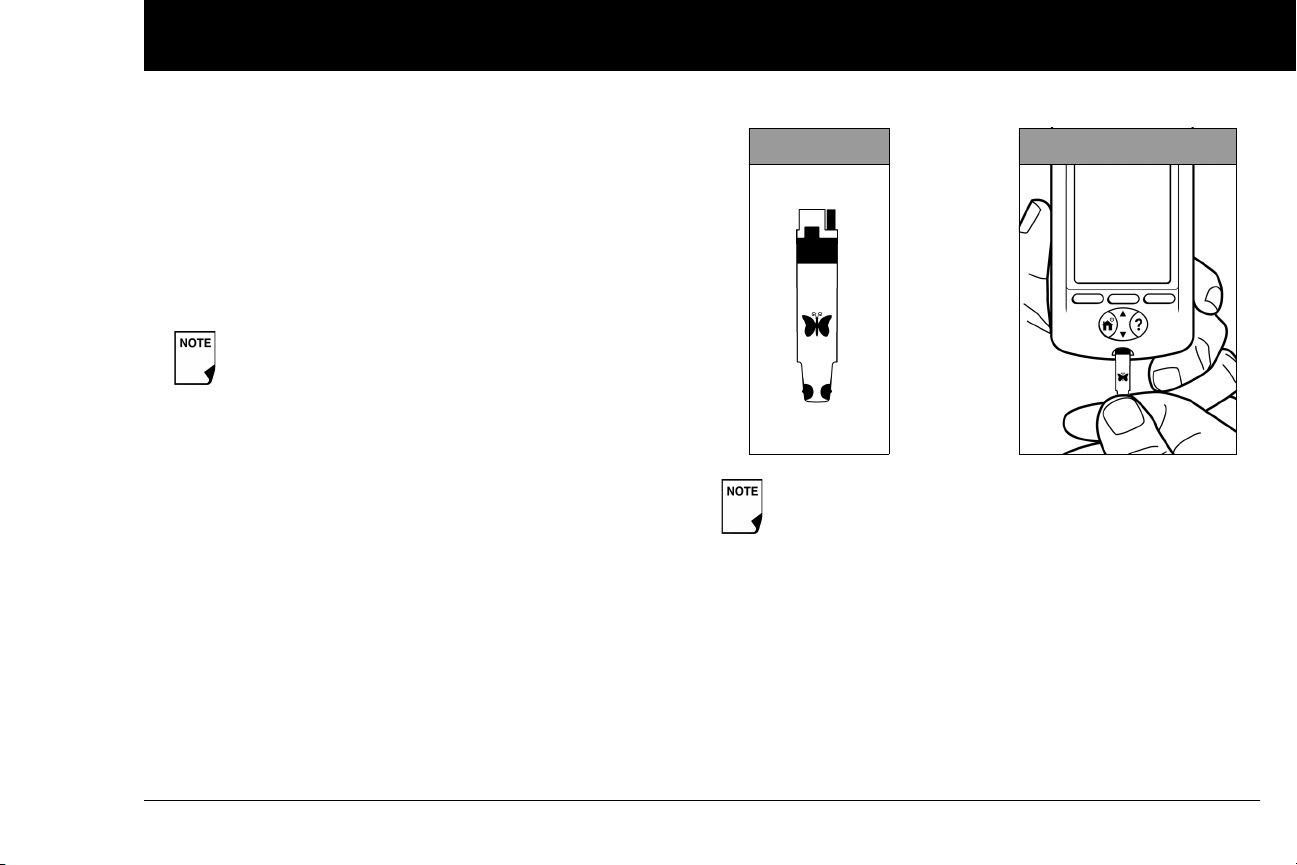

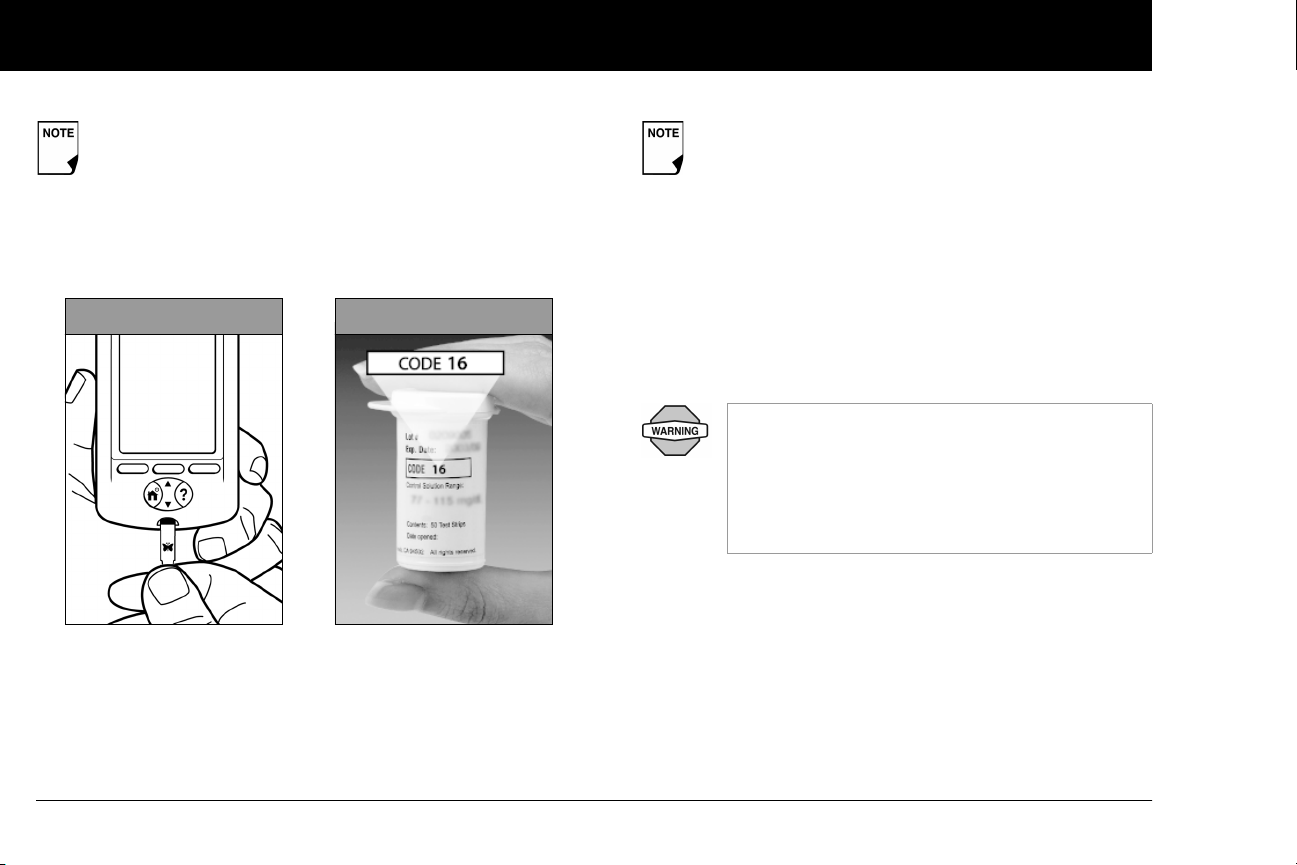

Insert the blood glucose test strip . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

the blood glucose test strip code . . . . . . . . . . . . . . . . . . . . . . . . 86

Set

Lance your finger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

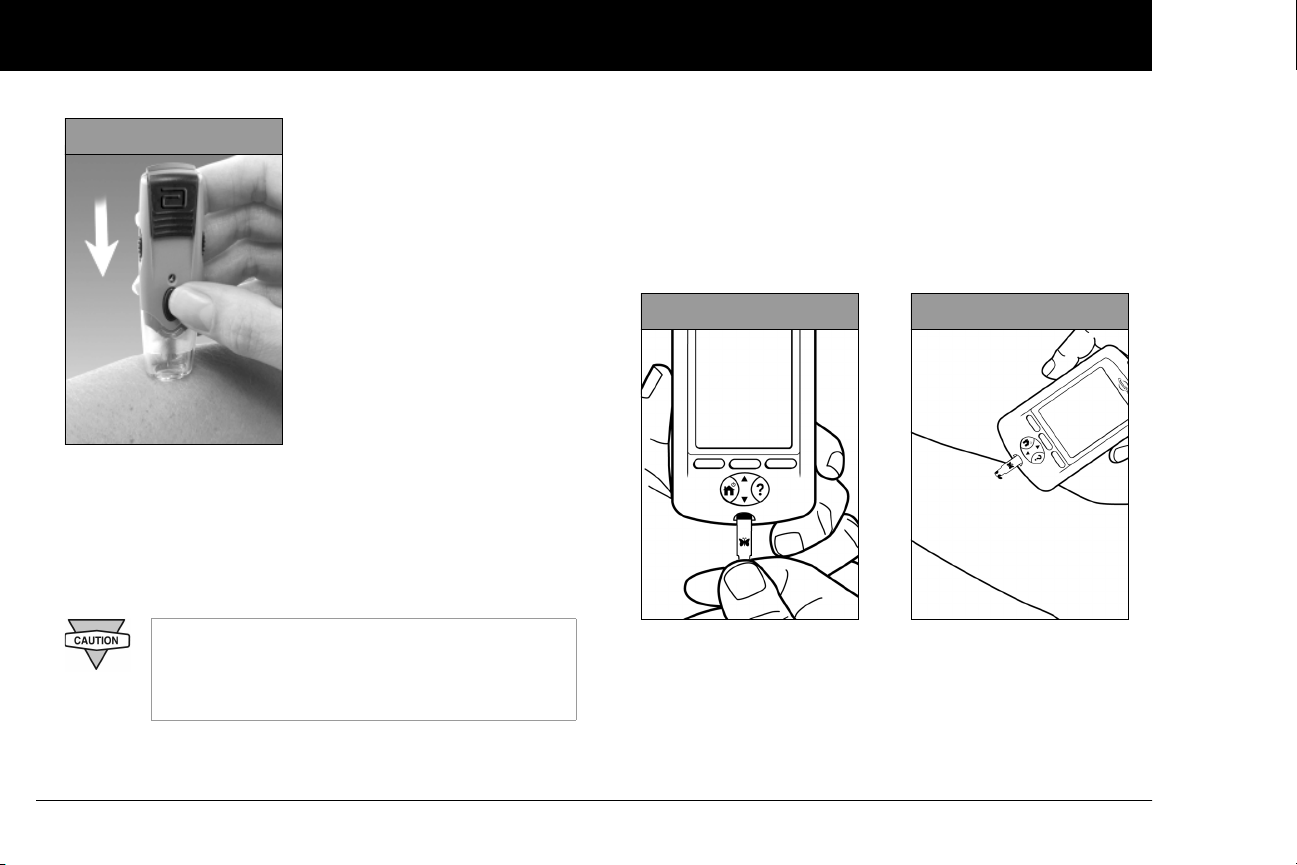

Lance your forearm, upper arm, or hand. . . . . . . . . . . . . . . . . . . . . 88

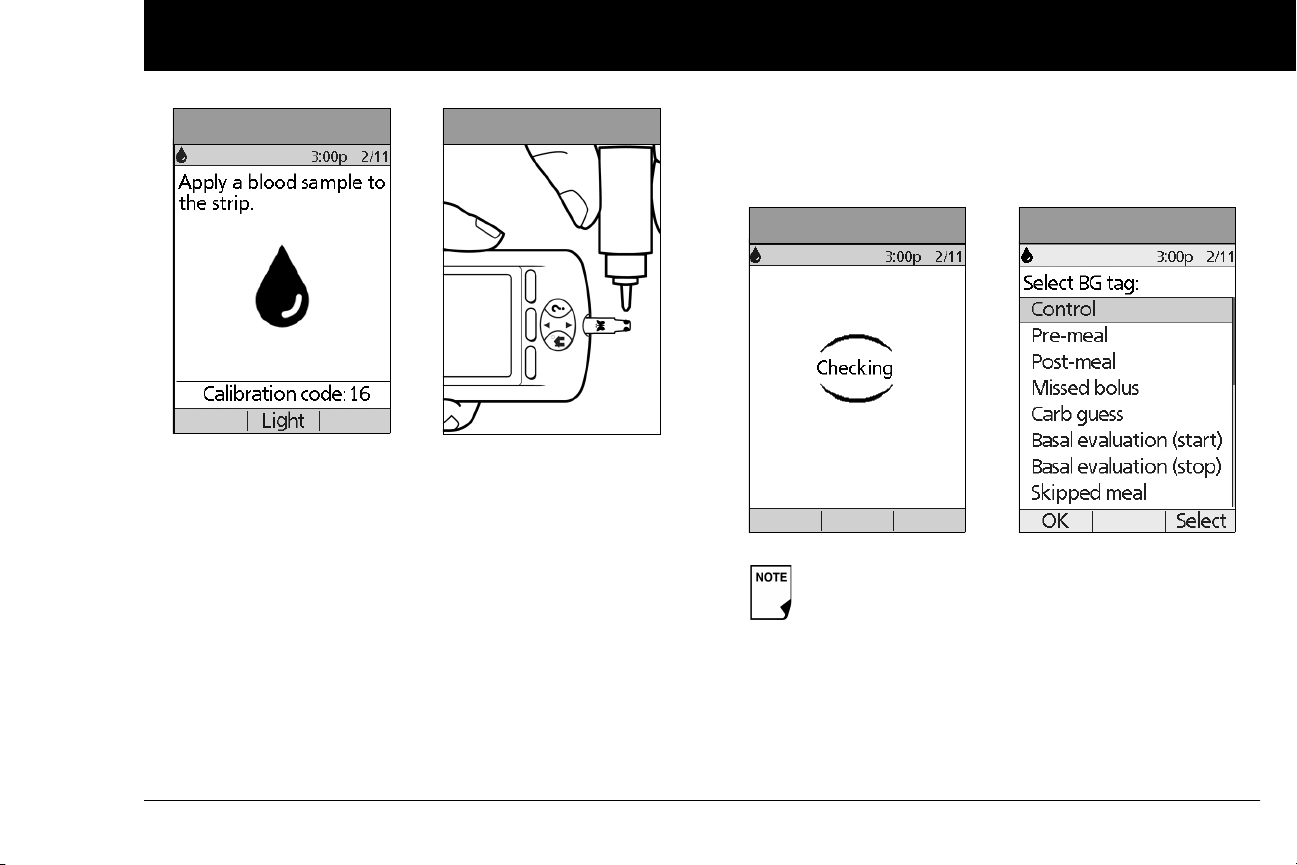

Fill the blood glucose test strip with blood . . . . . . . . . . . . . . . . . . 89

Wait for the reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Remove the lancet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Blood Glucose Results and the Suggested Bolus

Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Entering Blood Glucose Readings Manually . . . . . . . . . . . . . . . . . . . . 92

Editing Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Low and High Blood Glucose Readings. . . . . . . . . . . . . . . . . . . . . . . . . 94

Low readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

High readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Important Health-Related Information . . . . . . . . . . . . . . . . . . . . . . . . . 95

8 Understanding Your Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Record Keeping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Special symbols in record screens . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Insulin Delivery Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

View insulin delivery records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Blood Glucose Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

View single-day trends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

View multiple-day trends. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Alarm Records. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Carbohydrate Records. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

All Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

User Information/Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

9 Living with Diabetes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Your Role: Safely Using the OmniPod System. . . . . . . . . . . . . . . . . . 104

Daily Diabetes Management Activities . . . . . . . . . . . . . . . . . . . . . . . . 105

Check your blood glucose frequently. . . . . . . . . . . . . . . . . . . . . . . 105

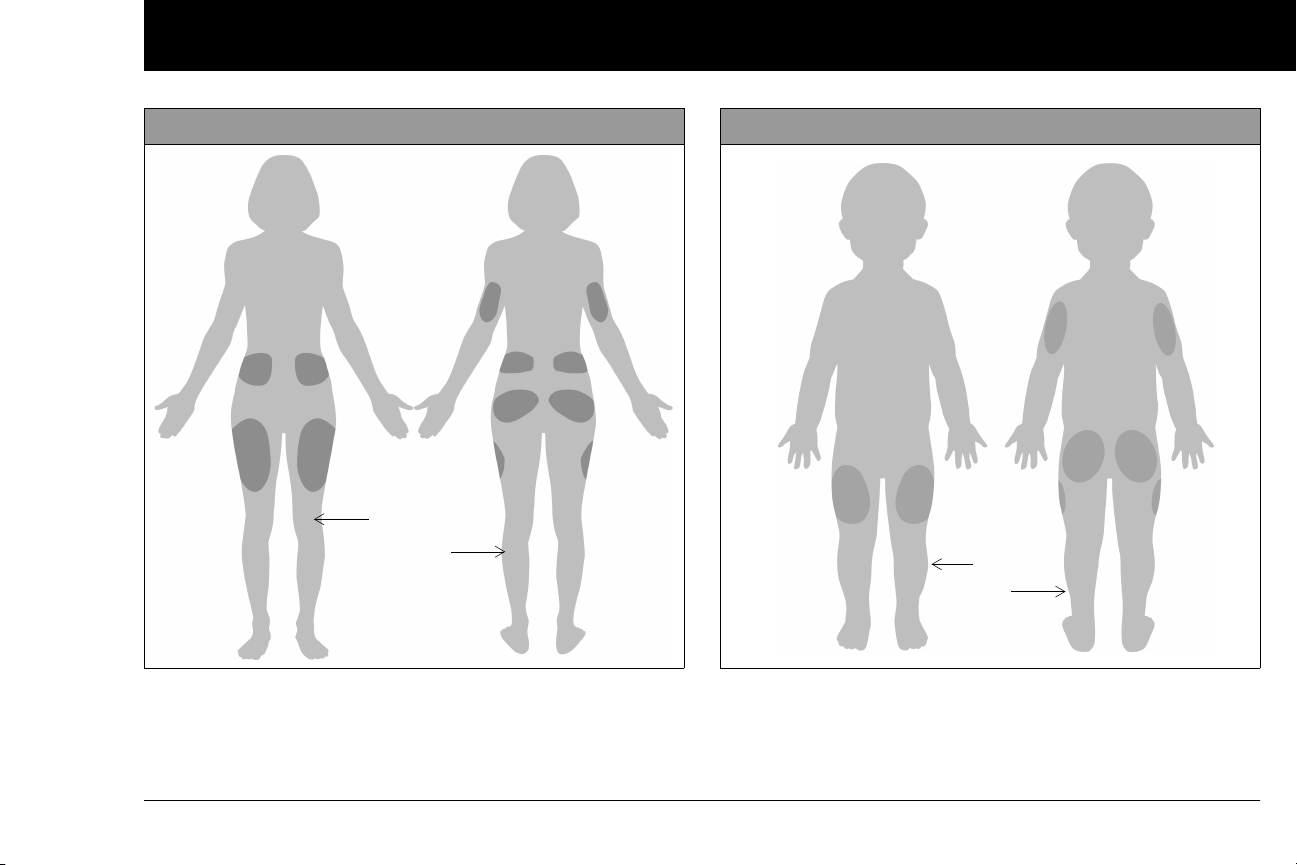

Inspect the infusion site daily. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Prepare for Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Water and Your Pod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Traveling and Vacationing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Plan for changing time zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Take enough supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Minimize airport security delays. . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Travel preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Screening procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Keep supplies accessible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Avoid Lows, Highs, and DKA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

General precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Hypoglycemia (low blood glucose). . . . . . . . . . . . . . . . . . . . . . . . . 109

Hyperglycemia (high blood glucose) . . . . . . . . . . . . . . . . . . . . . . . 114

Diabetic ketoacidosis (DKA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Handling Special Situations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Sick days. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Exercising, playing sports, or working hard . . . . . . . . . . . . . . . . . 119

X-rays, MRIs, and CT scans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Surgery or hospitalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

10 Alerts and Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Safety Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Blood Glucose Meter Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Contents

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

isory Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Adv

Hazard Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Manual Shut-off of a Hazard Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

11 Communication Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

The Communication Process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Failure During Pod Activation or Operation . . . . . . . . . . . . . . . . . . . 131

Failure During Pod Deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Failure During Request for Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Failure During Bolus Cancellation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Pod Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Personal Diabetes Manager Care and Maintenance . . . . . . . . . . . 137

Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Cleaning and disinfecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Replacing batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

If the PDM becomes submerged in water . . . . . . . . . . . . . . . . . . 139

If you drop the PDM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Storage and Supplies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Suggested Bolus Calculator Examples and Guidelines . . . . . . . . 141

Meal bolus calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Insulin-on-board (IOB) calculation. . . . . . . . . . . . . . . . . . . . . . . . . . 141

Examples of suggested bolus calculations . . . . . . . . . . . . . . . . . 142

Calculator guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

OmniPod System Options and Settings . . . . . . . . . . . . . . . . . . . . . . . 145

Pod Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Accuracy Test Results. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Flow rate from startup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Flow rate error. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Personal Diabetes Manager Specifications . . . . . . . . . . . . . . . . . . . . 148

Blood Glucose Meter Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 148

OmniPod System Label Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Personal Diabetes Manager Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

OmniPod System Notice Concerning Interference . . . . . . . . . . . . 150

Electromagnetic Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Customer Bill of Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Mission Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Scope of Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Supply Shipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Inquiries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

CHAP Accredited. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Customer’s Bill of Rights and Responsibilities. . . . . . . . . . . . . . . 156

Limited Warranty for the Personal Diabetes Manager . . . . . . . . . 157

HIPAA Privacy Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Uses and Disclosures of Medical Information. . . . . . . . . . . . . . . 158

Your Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Our Duties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

What To Do If You Have a Problem or Question . . . . . . . . . . . . 163

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

vii

Introduction

■

About This User Guide

Symbols

Symbol Term Meaning

Warning

Caution

Describes potential serious adverse reactions, or indicates conditions that could cause death or serious injury.

Indicates conditions that could cause minor or moderate injury to you or damageto the device.

This User Guide is intended for use only with PDM model UST400. To learn which version of the PDM you have, turn it over. On the back of the PDM, look for “UST400.” If you see it, this is the correct User Guide. If you do not see “UST400” on the back of the PDM, please call Customer Care.

This User Guide is periodically updated. Visit the Cus- tomer Care section of MyOmniPod.com to see the most recent version and to find other helpful information.

viii

Note

Tip

Provides helpful information.

Offers a suggestion for successful use of the OmniPod ment System.

Insulin Manage-

Screen displays shown in this User Guide are for illustra- tive purposes only and should not be considered suggestions for user settings. Consult with your healthcare provider to determine the appropriate settings for you.

Conventions and Terms

Introduction

Convention/Term Meaning

Bold

Italics

Press

Hold

Screen

Button

Names of buttons, soft keys, menus, and screens are in bold.

Words in italics are defined in the Glossary at the end of this User Guide.

Press and release a button or soft key.

Keep pressing a button until its function is complete.

A list of options on the PDM. Options allow you to perform tasks.

Displays programming, operating, and alarm/alert information.

A physical button on the PDM, such as the Home/Power button.

Convention/Term Meaning

Icon

Soft keys

An image on the PDM screen that indicates a menu option or item of information. A table of screen icons appears in the Appendices.

A row of three unlabeled buttons on the PDM whose label or function appears on the screen directly above the button. The label changes depending on the task you are performing.

Important Information

US Federal law restricts this device to sale by or on the order of a physician.

Indication

The OmniPod® Insulin Management System is intended for subcutaneous (below the skin) delivery of insulin at set and variable

rates for the management of diabetes mellitus in persons requir- ing insulin and for the quantitative measurement of glucose in fresh whole capillary blood (in vitro).

Introduction

Contraindications

Insulin pump therapy is NOT recommended for people who are either:

• Unable to perform at least four (4) blood glucose tests per day

• Unable to maintain contact with their healthcare provider

• Unable to use the System according to instructions Do not use the integrated FreeStyle® Blood Glucose Monitoring

Systemfor:

• Testing on newborns

• Testing arterial blood

• Diagnosing of or screening for diabetes mellitus

The OmniPod System is designed to use rapid-acting U-100 insulin. The following U-100 rapid-acting insulin analogs have been tested and found to be safe for use in the Pod: Novolog®/NovoRapid®, Humalog®, or Apidra®. Novolog® is compatible with the OmniPod System for use up to 72 hours (3 days). Before using a different insulin with the OmniPod System, check the insulin drug label to make sure it can be used with a pump. Refer to the insulin labeling and follow your healthcare provider’s directions for how often to replace the Pod.

Not recommended for individuals with hearing loss. Always verify ability to hear Pod/PDM alerts and alarms.

The Pod and PDM may be affected by strong radiation or magnetic fields. Before having an X-ray, MRI, or CT scan (or any similar test or procedure), remove your Pod and put it and the PDM outside the treatment area. Check with your healthcare provider for Pod removal guidelines.

The glucose meter and lancing device are for single patient use. Do not share the device with anyone including other family members. Do not use on multiple patients.

Parts of the device are considered biohazardous and can potentially transmit infectious diseases, even after you have performed cleaning and disinfection.

Please read all the instructions provided in this User Guide and practice the blood glucose testing proce-

dures before using the System. Monitor your blood glucose with the guidance of your healthcare provider. Undetected hyperglycemia or hypoglycemia can result without proper monitoring.

If you are unable to use the System according to instructions, you may be putting your health and safety at risk. Talk with your healthcare provider if you have questions or concerns about using the System properly.

This device is intended for self-testing by the user.

If you are having symptoms that are not consistent with your blood glucose test and you have followed all instructions described in this User Guide, call your healthcare professional.

Introduction

■

Your Role: Safely Using the OmniPod System

Work with your healthcare provider to establish diabetes management guidelines and settings that best fit your needs. These may include:

Insulin-to-Carbohydrate Ratio (IC): Number of grams of carbohydrate covered by one unit of insulin. For example, if your insulin-to-carbohydrate ratio is 1:15, then you need to deliver one unit of insulin to cover every fifteen grams of carbohydrate you eat.

Correction or Sensitivity Factor: How much one unit of insulin will lower blood glucose. For example, if your sensitivity factor is 50, one unit of insulin will lower your blood glucose by 50 mg/dL.

Target Blood Glucose Value: The blood glucose level you want to achieve. For example, you may want to keep your blood glucose close to 100 mg/dL.

Duration of Insulin Action: The length of time that insulin remains active and available in your body after a correction or meal bolus.

Introduction

Your individual needs influence the initial settings you and your healthcare provider will enter into the Personal Diabetes Manager (PDM) during setup (see Chapter 2, Getting Started).

Your healthcare provider must help you enter these initial settings. Soon you will enter and change your own settings with confidence and ease. The OmniPod System is more user-friendly than most electronic devices you use every day. In fact, technology is what makes the OmniPod System so easy to use.

Your healthcare provider is a valuable resource. You will rely on him or her for a lot of critical information about your OmniPod System, especially during the first few weeks and months. When you have questions about diabetes management after starting on the OmniPod System, do not hesitate to talk with your healthcare provider. For nonmedical emergencies or for technical questions about your OmniPod System setup or operation, you can call Customer Care 24 hours a day, 7 days a week.

Customer Care (24 hours/7 days): 800-591-3455 When calling from outside the United States: 781-457-5098

Customer Care Fax: 877-467-8538 Web site: MyOmniPod.com

Your healthcare provider will give you all the tools and training you need to be successful with the OmniPod Insulin Management System. However, in the end, your success depends on YOU. You must become actively involved in your own diabetes management to enjoy the outstanding control, freedom, and flexibility that is possible with the OmniPod System.

Being actively involved means:

• Frequently monitoring blood glucose levels

• Learning how to operate your OmniPod System and practicing proper techniques

• Visiting your healthcare provider

Do NOT attempt to use the OmniPod® Insulin Management System before you receive training from your healthcare provider. Inadequate training could put your health and safety at risk.

xii

CHAPTER 1

Your New OmniPod Insulin Management System

■ Insulin Delivery with the OmniPod System

The OmniPod® Insulin Management System is an innovative continuousinsulin delivery system that provides all the proven benefits of continuous subcutaneous insulin infusion (CSII) therapy in a way no conventional insulin pump can. The System’s innovative design and features allows you to live your life—and manage your diabetes—with unprecedented freedom, comfort, convenience, and ease.

The long-term health benefits of better blood glucose control are well known. Maintaining near-normal blood glucose levels can help you live a longer, healthier life with fewer diabetesrelated complications. The OmniPod System also has many practical, everyday benefits, including convenience, freedom, flexibility, and ease of use.

Continuous insulin delivery most closely mimics the insulin release of a healthy pancreas. Since the landmark 10-year Diabetes Control and Complications Trial (DCCT), the longterm health benefits of maintaining near-normal blood glucose levels have been widely recognized.

Continuous insulin delivery at preset rates eliminates the need for injections and the interruptions that come with them. In addition, with the OmniPod System, insulin delivery can be changed with the press of a button to adapt to snacks or unexpected changes in daily routine. The OmniPod System is a great option for people with diabetes who require insulin.

The OmniPod System works much like the pancreas of a person without diabetes by delivering insulin in two ways:

• A small, constant, background supply of insulin (called a basal rate) is delivered automatically at a programmed rate, all day and night.

• An extra dose of insulin (called a bolus) can be delivered when you need it to match the carbohydrates in a meal or snack or to correct a high blood glucose.

Your New OmniPod Insulin Management System

■ How Does the OmniPod System Work?

The Pod is a small, lightweight, self-adhesive device that you fill with insulin and wear directly on your body. The Pod delivers precise, personalized doses of insulin into your body through a small flexible tube (called a cannula), based on instructions that you program into its wireless companion, the Personal Diabetes Manager. The cannula is inserted only once with each Pod.

The Personal Diabetes Manager (PDM) is a wireless, handheld device that:

• Programs the Pod with your personalized insulin-delivery instructions

• Wirelessly monitors the Pod’s operation

• Incorporates a FreeStyle® blood glucose meter

With just two parts, you’ll enjoy all the functionality and benefits of continuous insulin delivery and blood glucose monitoring. Plus you’ll enjoy the safety, convenience, and freedom of:

No tubing

There is no tubing connecting the Pod to the PDM. You wear the Pod comfortably and discreetly under your clothes. You can carry the PDM separately in a backpack, briefcase, or purse. With the OmniPod Insulin Management System, you don’t have to worry about snagging, tangling, or feeling tethered by tubing.

Suggested bolus calculation

Calculating bolus doses has never been easier. After you check your blood glucose, enter the carbs for your snack or meal. Based on your individual settings, the System displays a suggested bolus dose. You can accept the suggestion, change it, or cancel it.

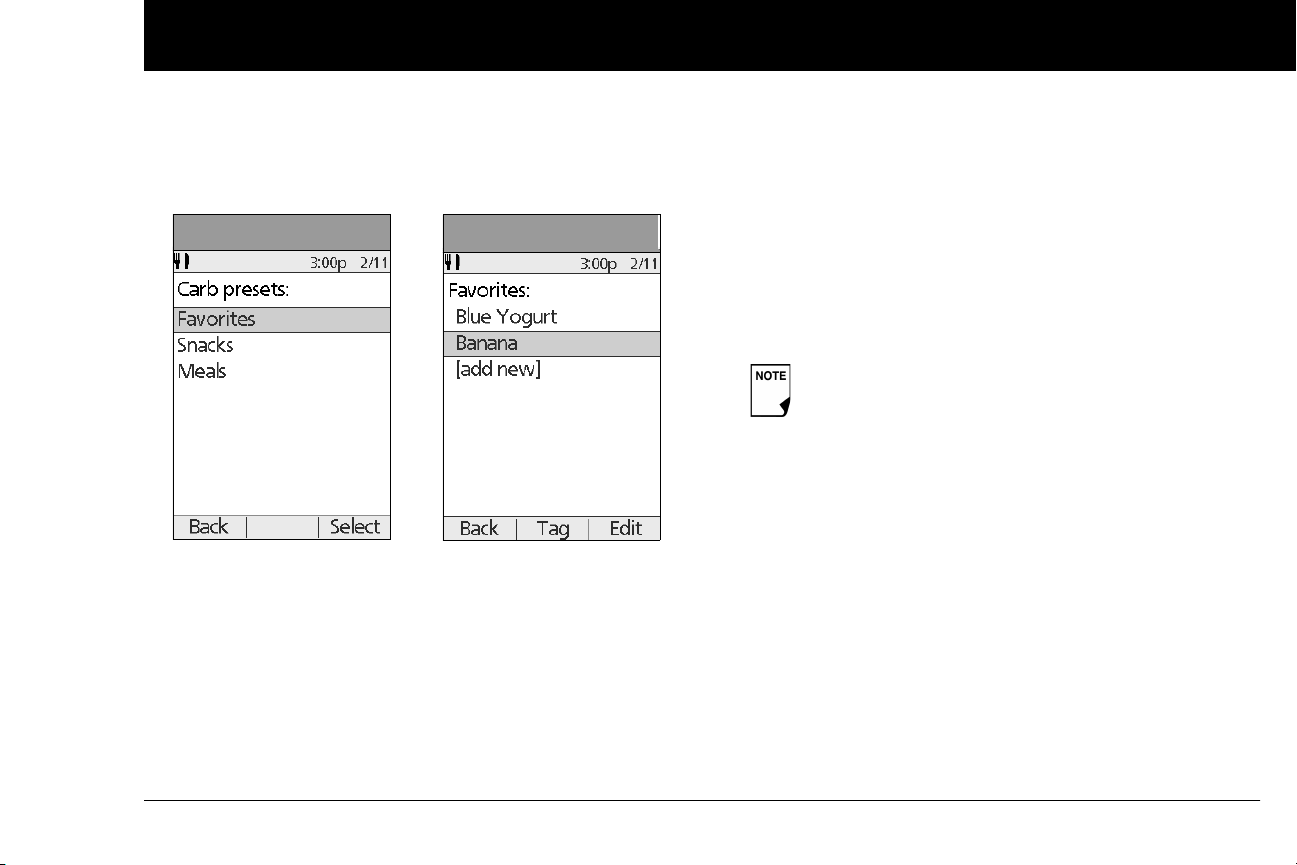

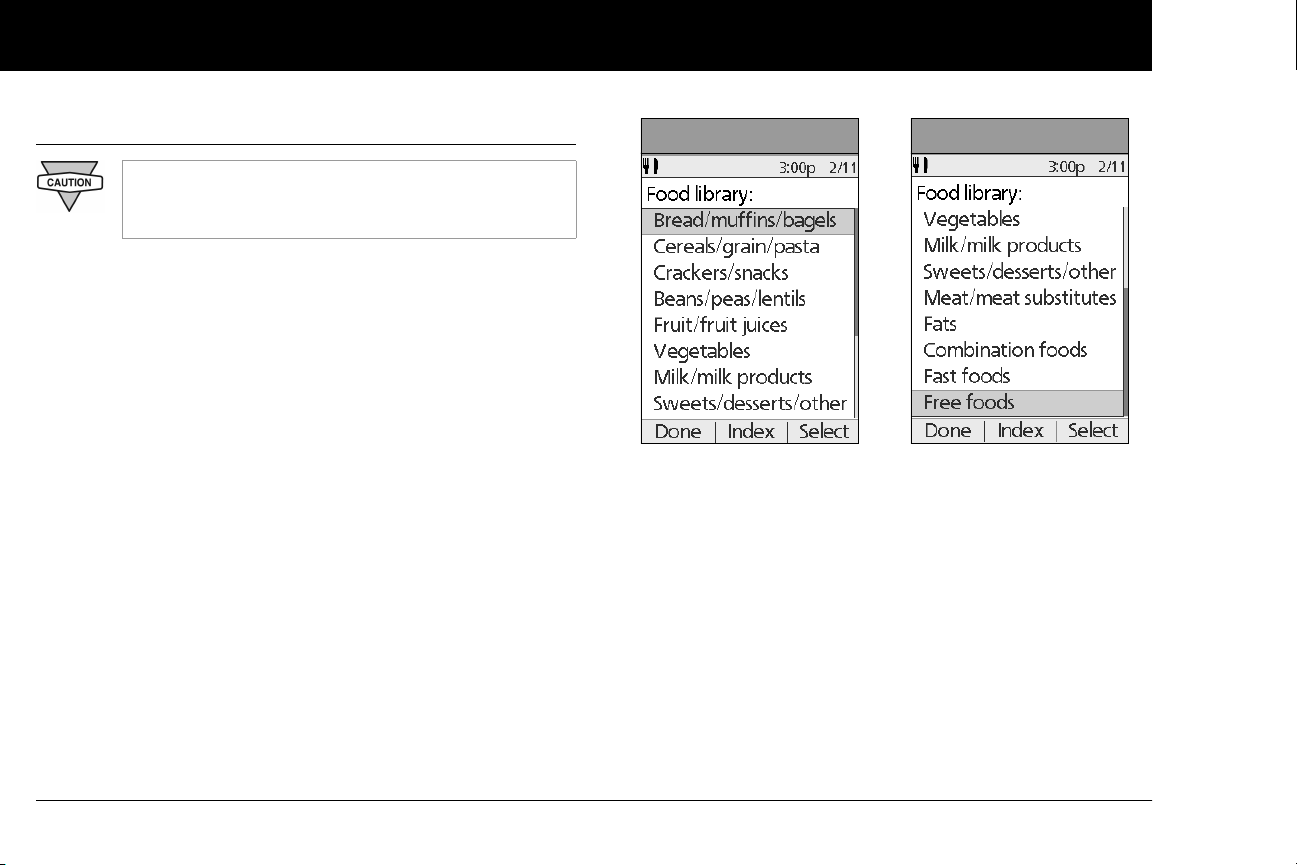

Reference food library and carb presets

To make carbohydrate counting easier, the OmniPod System includes a reference food library. You can look up the carbs and other values for many standard food items. Foods are organized alphabetically and by category.

Your New OmniPod Insulin Management System

You can also enter your own favorite foods, snacks, or entire

ls as “carb presets.” Presets contain the grams of carbohy-

mea drate in the food item or meal. Next time you eat this same food, you don’t have to count the carbs; just select your carb preset and the System does the calculating for you. The System stores up to 36 carb presets.

Automated cannula insertion

With the OmniPod System, you don’t have to insert the infusion set manually or carry around a separate inserter. You simply press

a button on the PDM and the Pod’s automated insertion system safely and consistently inserts the cannula beneath the skin, virtually pain free. It then begins delivering insulin according to your programmed basal rate.

A fully-integrated design with blood glucose monitoring

With a fully integrated two-part design, there’s no need to carry separate infusion sets, reservoirs, or inserters. It’s all integrated into the Pod. With the PDM, you can check your blood glucose level using FreeStyle® blood glucose test strips, but without the hassle of carrying a separate blood glucose meter.

If you prefer to use another blood glucose meter, you can enter the readings manually into the PDM.

Record keeping

Another convenient part of the OmniPod System is record keeping. Paper charts are useful, but sometimes they can be inconvenient to carry or use. The data storage system in the Personal Diabetes Manager (PDM) displays up to 90 days’ worth of information. This includes blood glucose readings, basal rates and bolus doses, carbohydrates, and alarms.

Personalizing your System

You can personalize your OmniPod System in other ways, too:

• Enter and name basal programs

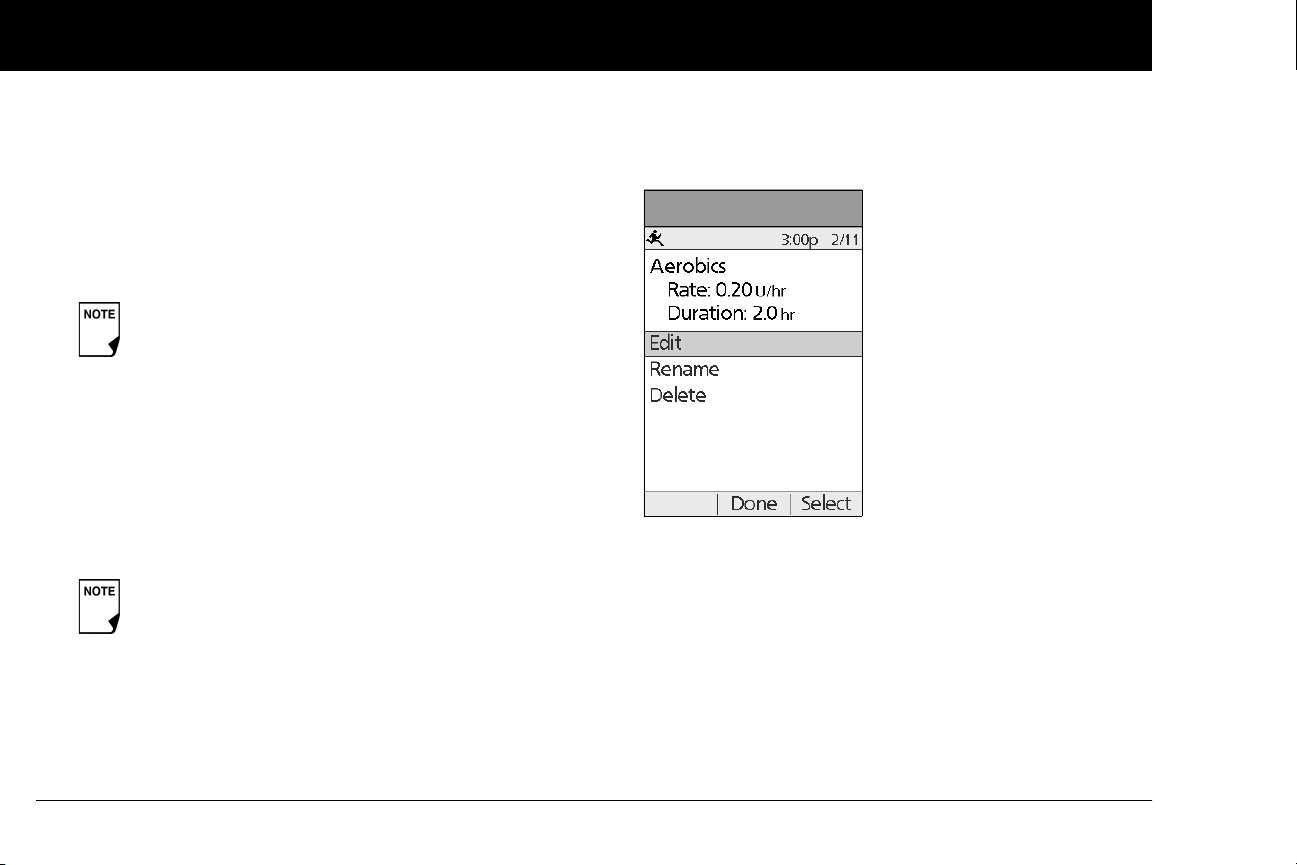

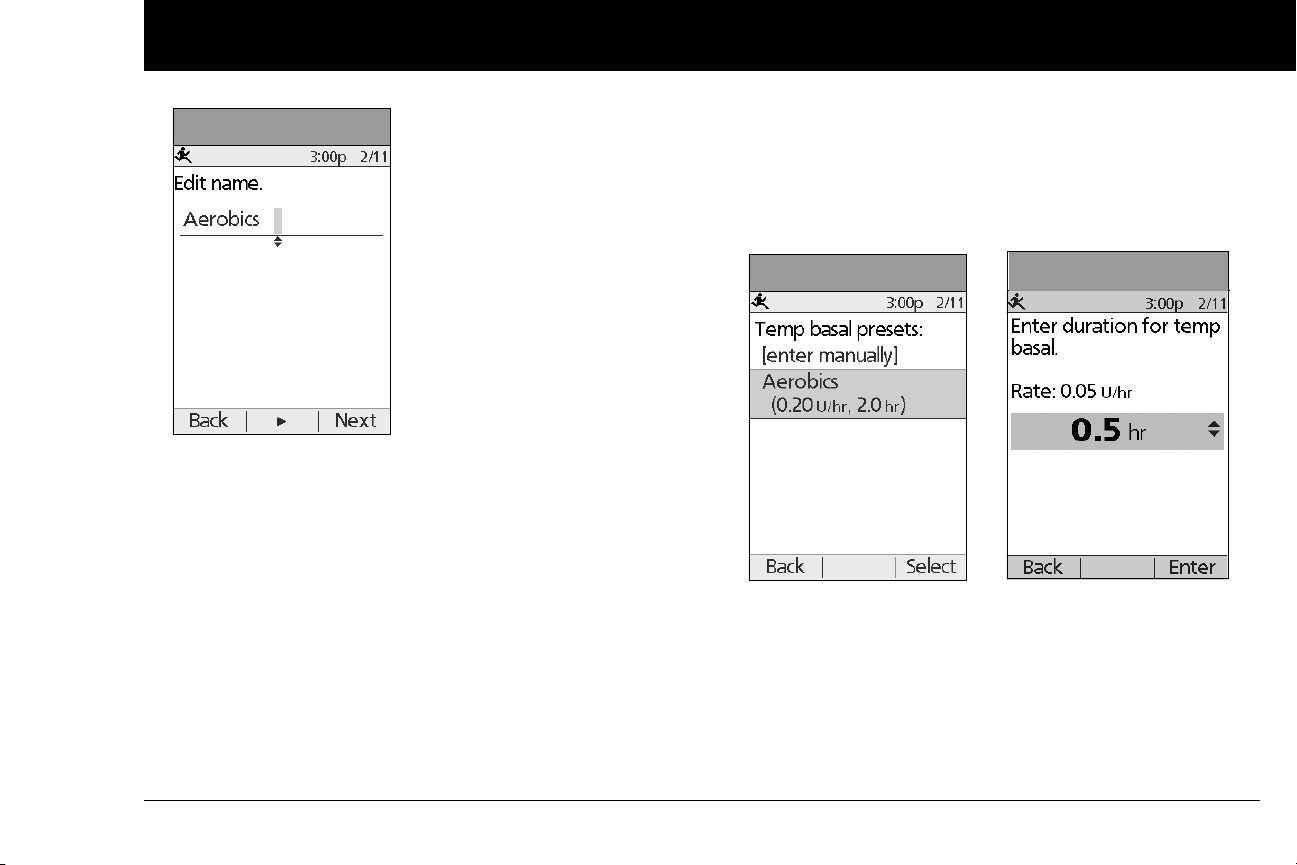

• Name and save temporary basal presets

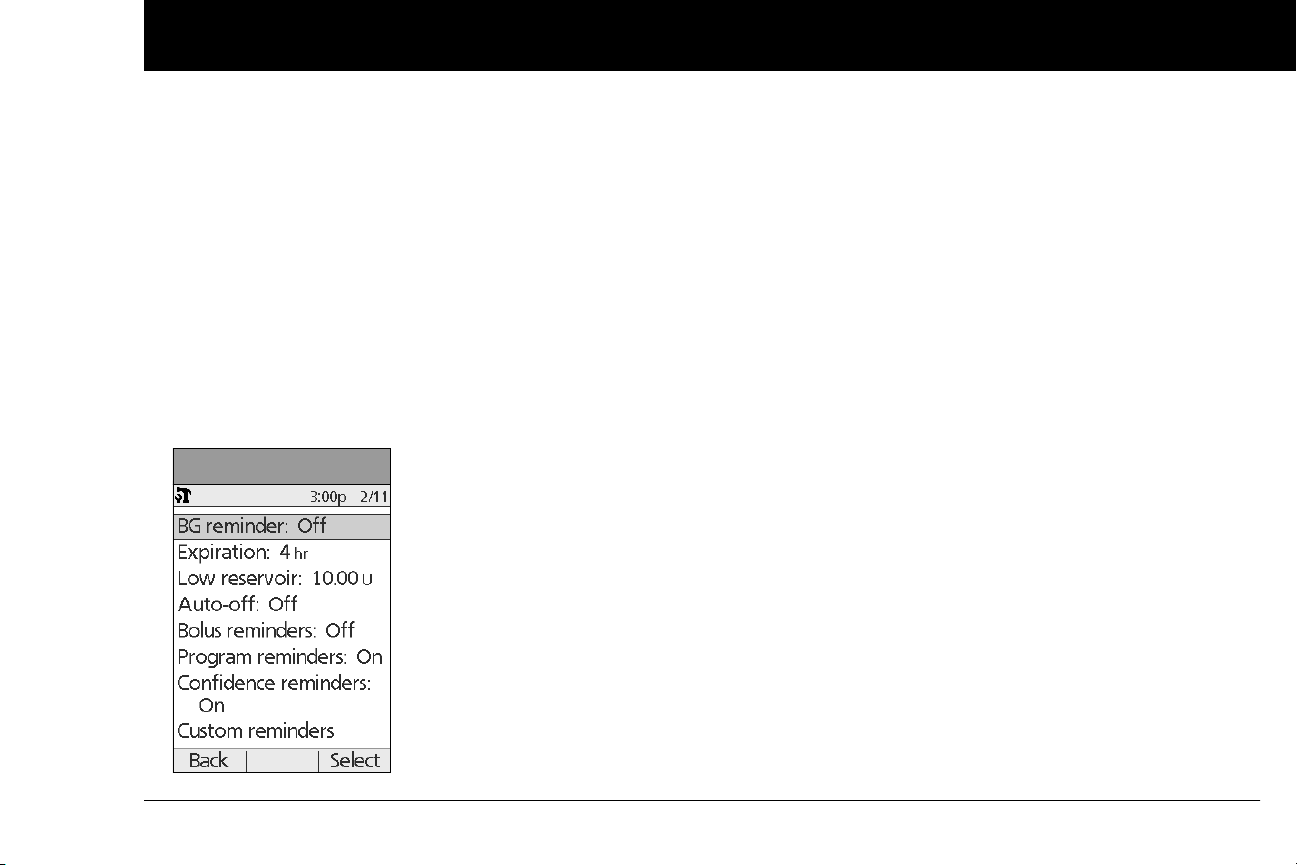

• Add your own customized reminders

• Enter your name, phone number, doctor’s name and number, and other emergency information

Your New OmniPod Insulin Management System

Top

Bottom

Needle cap

Viewing window

Fill port

Figure 1-1

Adhesive backi

Housing vent

Figure 1-2

Up/Down Controller

User Info/ Support

Soft Key Label

Soft Keys

Home/ Power

USB Port

Test Strip Port

LCD Screen

■ The Pod

The Pod (Figure 1-1) is applied to your skin with an adhesive backing, similar to an adhesive bandage.

■ The Personal Diabetes Manager

All Pod operations are programmed and controlled through the palm-sized Personal Diabetes Manager (PDM; Figure 1-2).

Your New OmniPod Insulin Management System

Buttons that program and control the OmniPod System

Button Action

Home/ Power

Up/Down Controller

Soft Keys

Pressing and holding turns the PDM on and off. When the PDM is on, pressing this button (quickly/briefly) displays the Home screen, from which you can choose a menu item or view the Status screens (shown later in this chapter).

Pressing and releasing scrolls through a list of available menu options or numbers, so you can pick the one you want. Holding the button scrolls faster.

Soft key labels and functions depend on the menu or screen you are viewing. The label appears on the screen directly above the physical button you press. Select, Save, and Back are just three examples of the soft key labels on your PDM.

Button Action

User Info/ Support

Pressing opens a User Info/Support screen that displays additional information about the current screen you are viewing. The User Info/Sup- port icon appears when additional information can be viewed. It may be displayed at the top of the screen, to the right of an event detail (such as a suggested bolus), or to the right of a record item (such as a BG history record). (See “Personal Diabetes Manager Icons” in the Appendix).

In addition, pressing and holding this button for 2 seconds enables a “bright mode” on the PDM screen.

Your New OmniPod Insulin Management System

Figure 1-3

Figure 1-4

Primary screens

sages on the screen either:

Mes

• Let you identify your PDM

• Tell you how the System is operating

• List menu choices

• Explain how to perform certain tasks The System’s primary screens are the ID screen (Figure 1-3), the

Status screen (Figure 1-4), and the Home screen (Figure 1-6 on the next page).

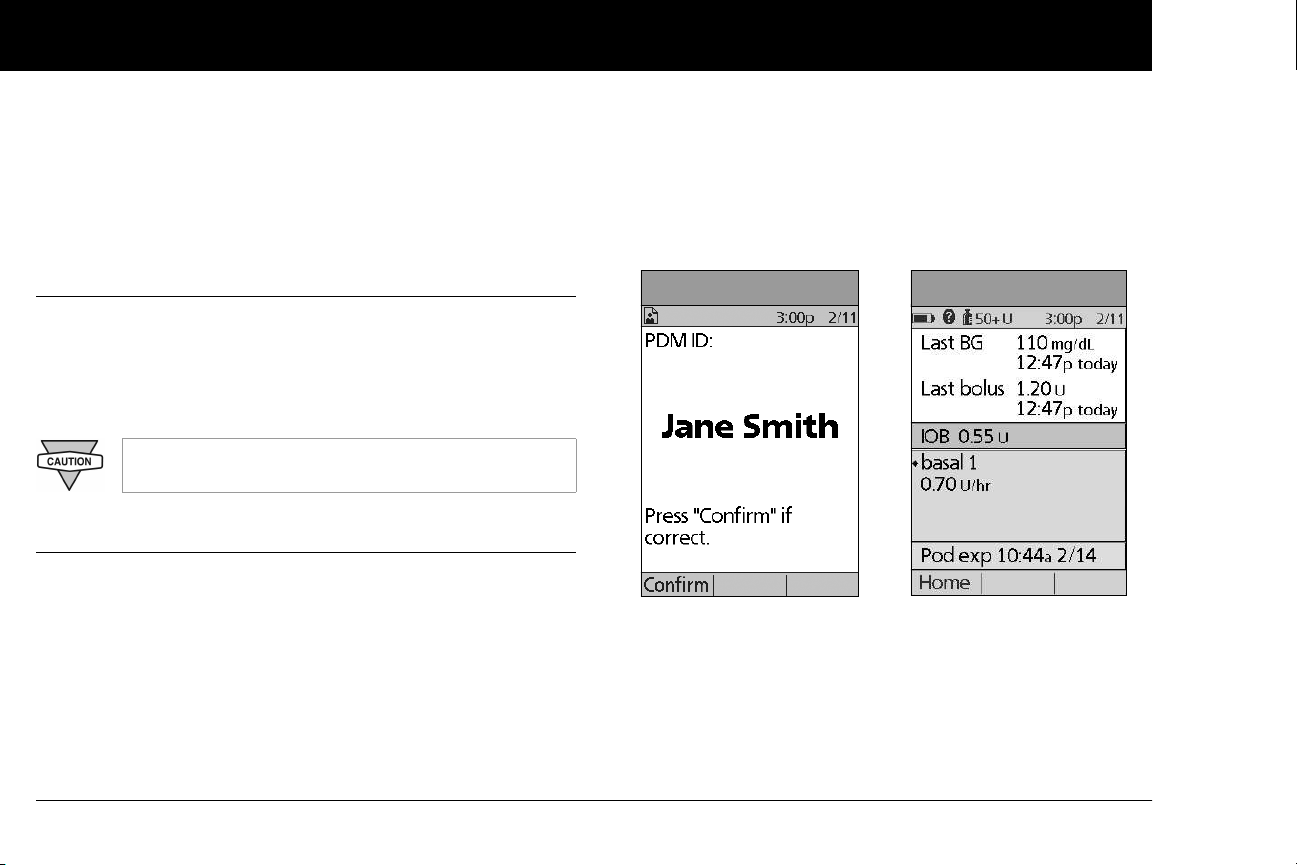

ID screen

The System displays an ID screen to make the PDM easy to iden- tify when you first turn it on. You can personalize the ID screen by adding your name and choosing its color. (See Chapter 6, Using the Personal Diabetes Manager, for details on customizing your PDM.) You must acknowledge the ID screen before you can use the PDM. It is important that you always identify the PDM as yours before you use it.

Status screen

Lists the System’s current operating status (Figure 1-4). From top to bottom, the Status screen displays:

• Time, date, and result of last blood glucose checked or entered manually

• Time, date, and total amount of last bolus delivered

• Amount of Insulin on Board (IOB) will be displayed on Status screen (if calculator in use)

• Name and rate of active basal program or temp basal program

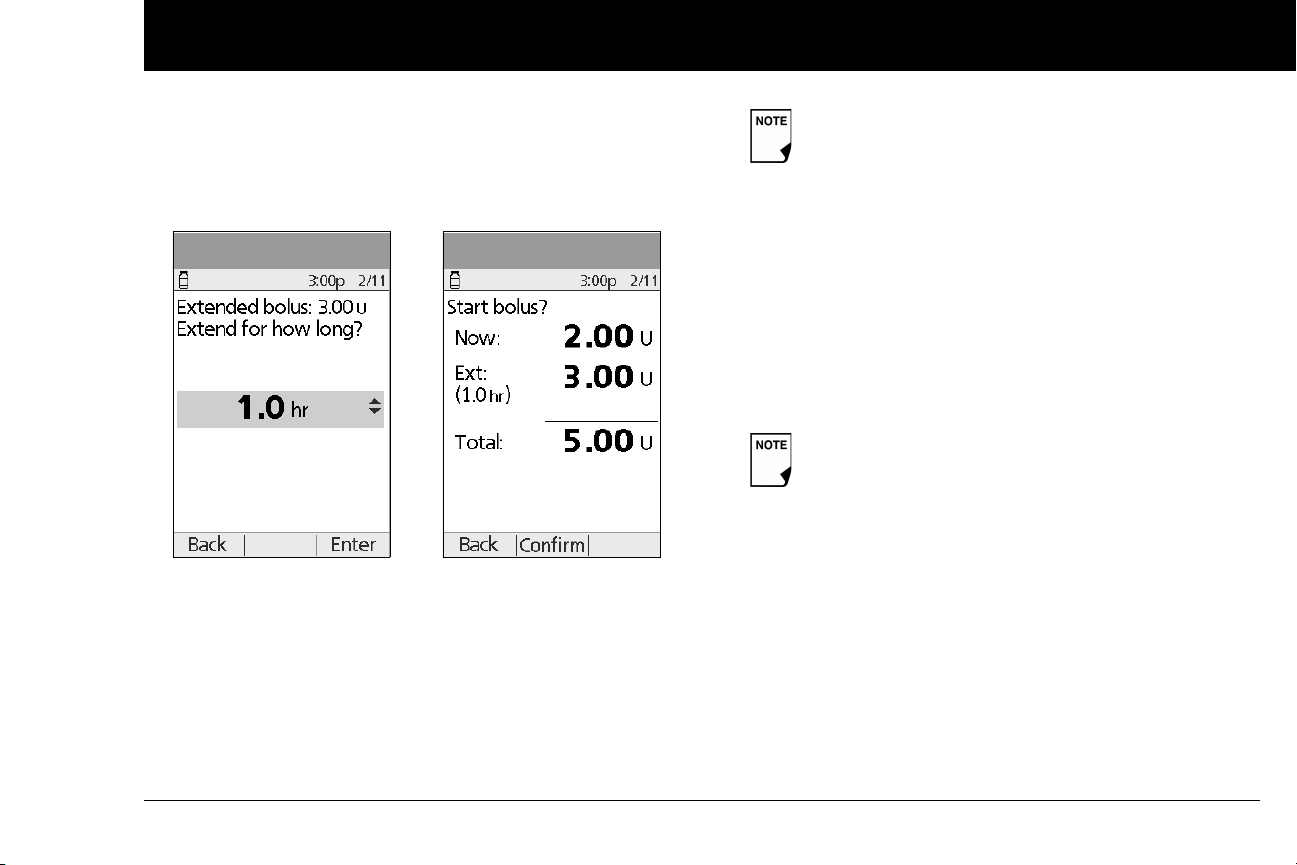

• “Ext bolus,” the amount of insulin, and the delivery time remaining if an extended bolus is being delivered

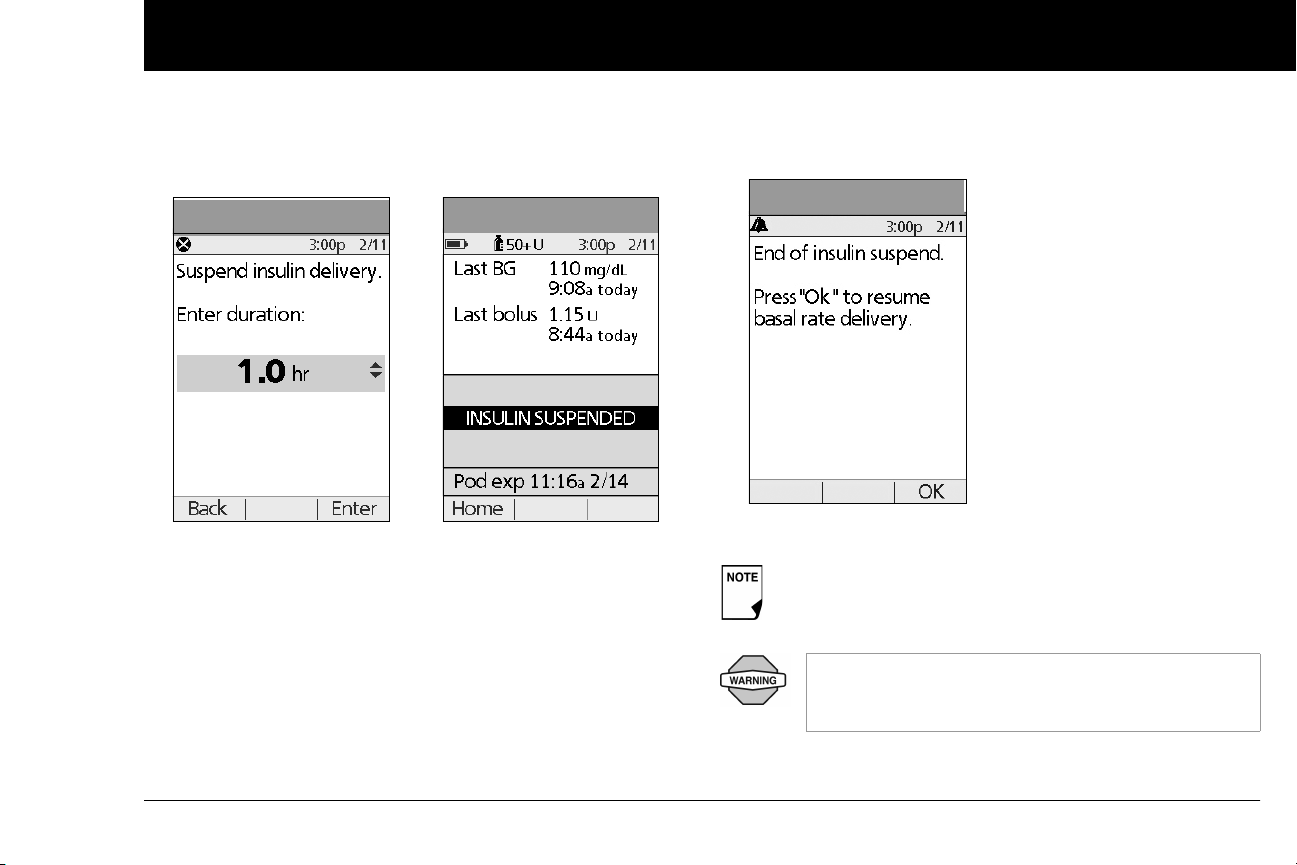

• “INSULIN SUSPENDED” if insulin delivery has been suspended

• Time and date of when the Pod will expire

Your New OmniPod Insulin Management System

Figure 1-5

Figure 1-6

If a Pod has not yet been activated (during Pod changes), the screen displays “No active Pod. Would you like to activate a Pod now?” (See Chapter 5, Using the Pod, for details on activating a Pod.)

Status support screen

m the Status screen, press the User Info/Support button to

Fro see details about the current insulin on board (IOB) in your body (Figure 1-5). See page 30, for additional information describing insulin on board (IOB).

Home screen

Lists all the major menus (Figure 1-6).

• Bolus menu to deliver bolus doses

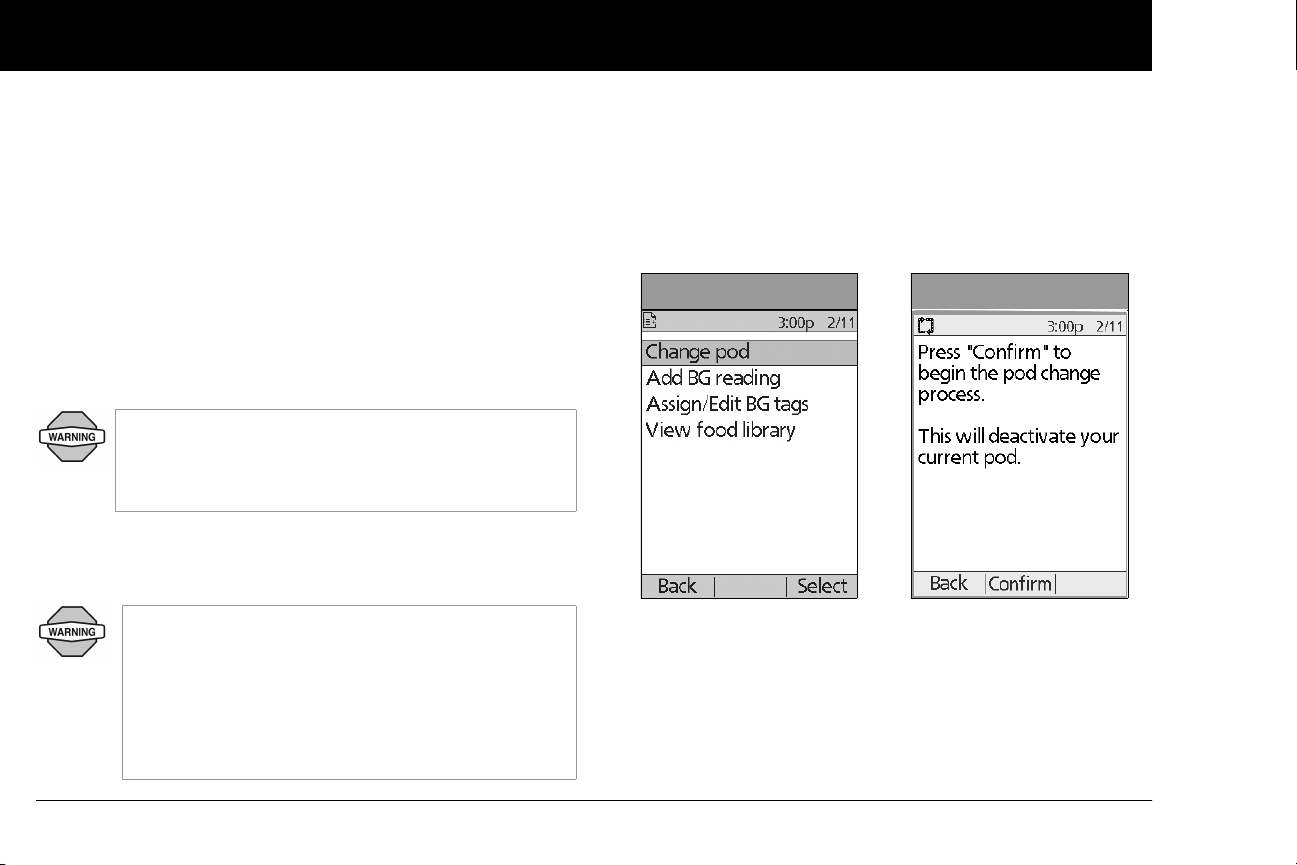

• More actions menu to change the Pod, manually enter blood glucose readings, and assign and edit tags for BG readings that are less than 2 hours old.

• Temp basal menu to deliver temporary basal rates (This submenu does not appear if temp basal is turned Off in Settings.)

• My records menu to review insulin delivery, blood glucose history, alarm history, carb history, and personal user information

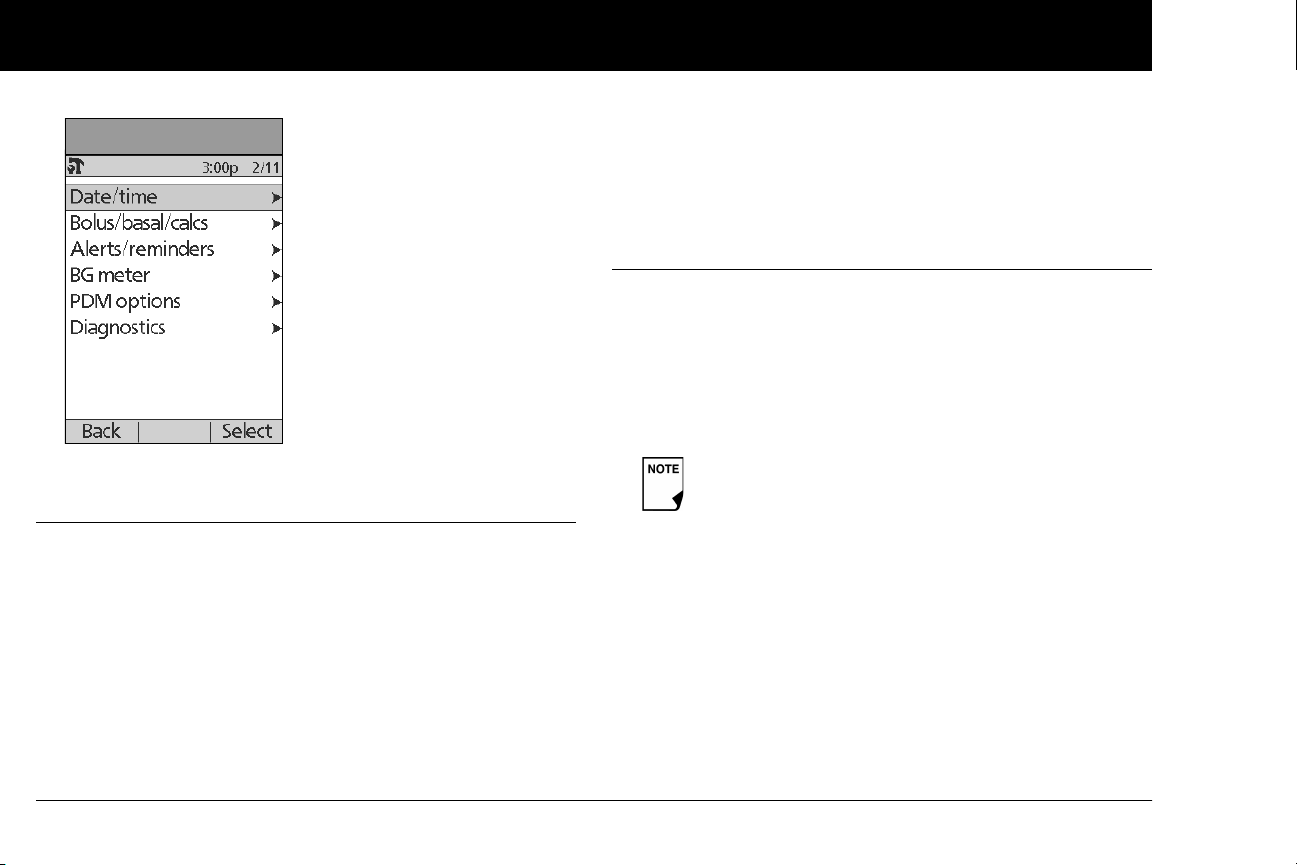

• Settings menu to edit, enter, and name basal programs, temp basal, carbohydrate and bolus presets, and to customize System settings

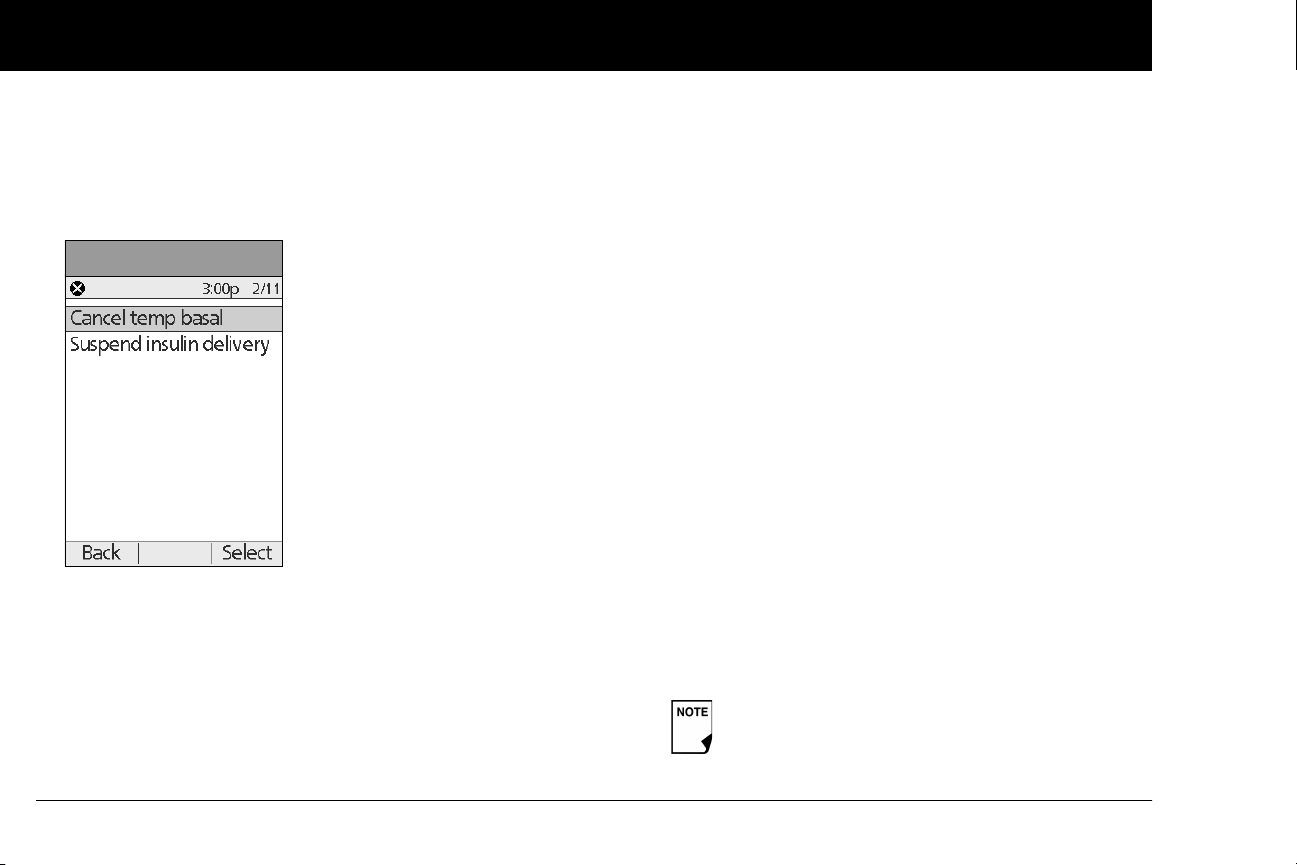

• Suspend menu to suspend, cancel, or resume insulin delivery programs

You can go to the Status screen at any time by pressing Status from the Home screen.

Your New OmniPod Insulin Management System

■ Safety Features

The OmniPod System’s state-of-the-art design includes the latest safety technology. Its built-in safety features include:

Automatic priming, safety checks, and insertion

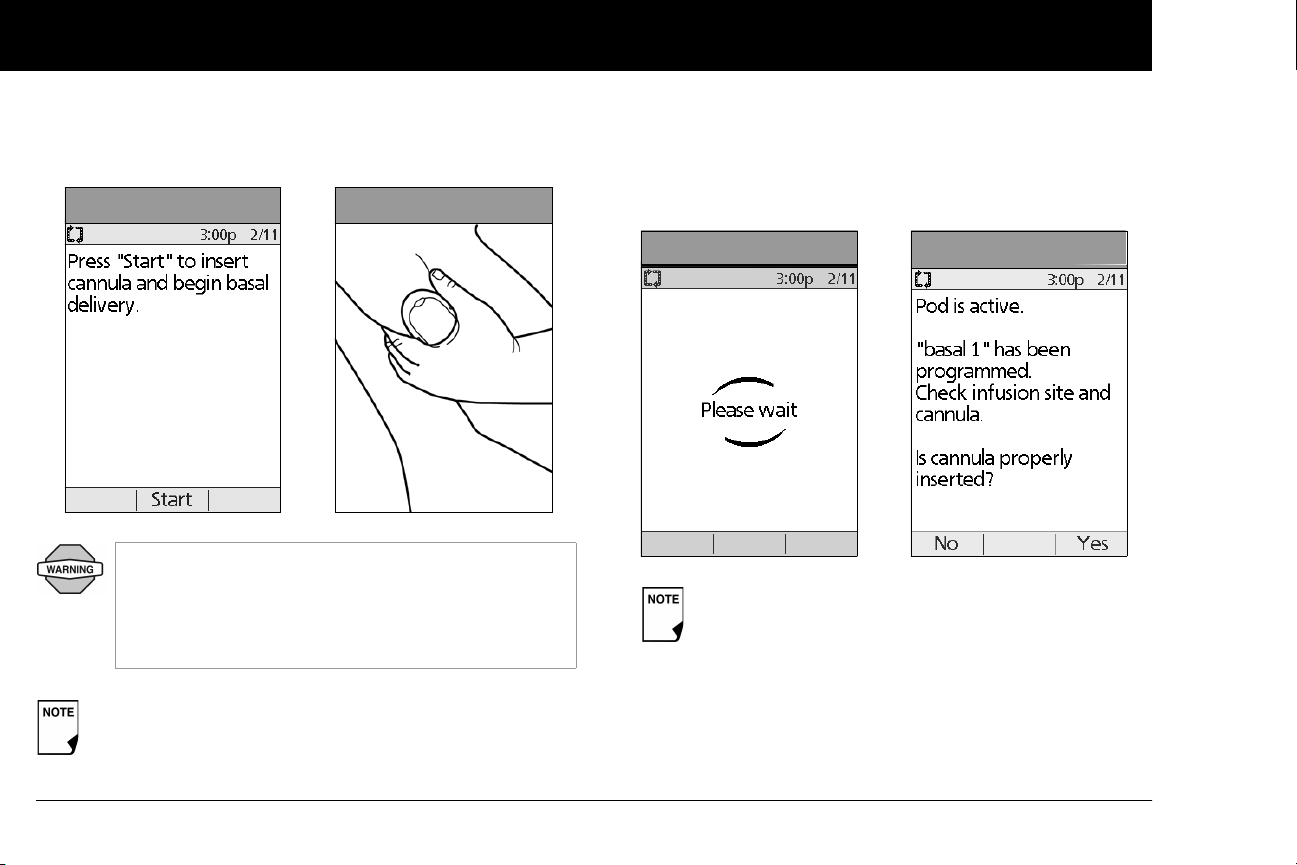

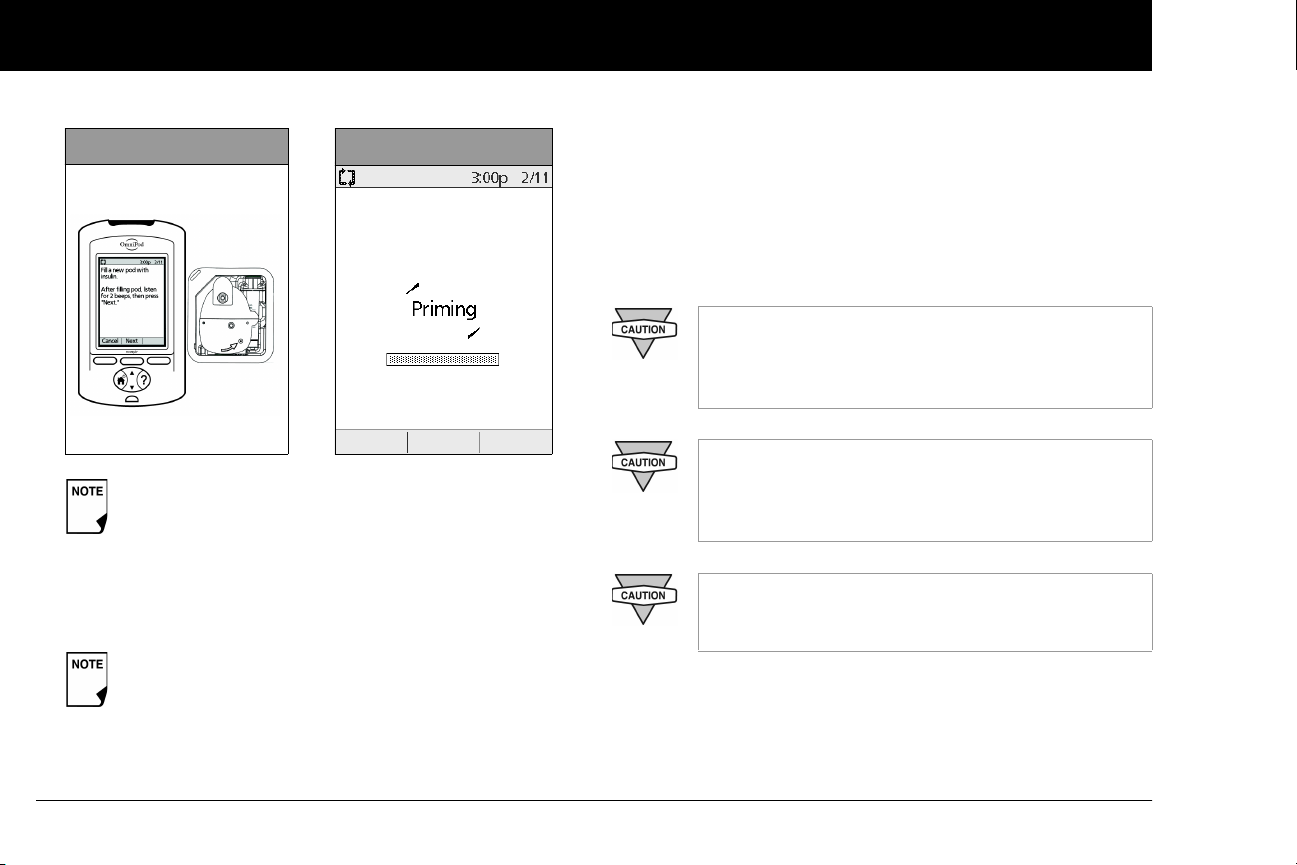

Every time you activate a new Pod, the System automatically primes and performs a safety check on the Pod, then inserts and primes the cannula (see Chapter 5, Using the Pod). Microprocessor technology makes it possible to complete thousands of safety checks in only a few seconds.

The OmniPod System also performs safety checks on the PDM. If it detects any problems in the PDM or the Pod—or in communication between them—it informs you with beeps and onscreen messages.

Rapid occlusion detection

An occlusion is a blockage or interruption in insulin delivery. If the OmniPod System detects an occlusion, it sounds a hazard alarm and prompts you to deactivate and change your Pod (see Chapter 5, Using the Pod).

Alerts and alarms

For your safety, the OmniPod System provides a range of alerts and alarms to tell you that your attention is needed, or to warn you of hazardous situations.

Confirm on ID screen - alerts/alarms do not show on PDM until after ID screen is confirmed.

See Chapter 6, Using the Personal Diabetes Manager, for a description of notifications and how to set them. See Chapter 10, Alerts and Alarms, for a list of safety alarms built into the OmniPod System and how to respond to them.

CHAPTER 2

Getting Started

■ The OmniPod Starter Kit

Your initial shipment contains everything you need to begin using the OmniPod System.

If you are a first-time OmniPod System user, you need to meet with your healthcare provider for training and System setup before using it. To get a head start on learning about your new OmniPod System, review this User Guide and complete the Pre- Training section of OmniPod’s online Interactive Training Program, found in the Customer Care section of MyOmniPod.com. If you have a basic understanding of the System in advance, you will get more out of your training sessions.

After you unpack the Starter Kit, use the “Contents” label on the sided of the box to make sure you have everything. Then complete the Warranty card and promptly mail it to us. Returning the card allows us to contact you with important product updates or Warranty information.

You can also complete the Warranty form online at MyOmniPod.com. 4 year limited Warranty.

Do NOT use the OmniPod System until you have been trained by your healthcare provider. He or she will initialize the System based on your individual needs. Inadequate training or improper setup could put your health and safety at risk.

Prepare and keep an emergency kit with you at all times to quickly respond to any diabetes emergency. For details, see Chapter 9, Living with Diabetes.

■ Set Up the Personal Diabetes Manager (PDM)

Chapter 6 describes the PDM options in detail. The instructions in this chapter are simplified to help you get started.

Insulin Management

Getting Started

Figure 2-1

Figure 2-2

Hard

Reset

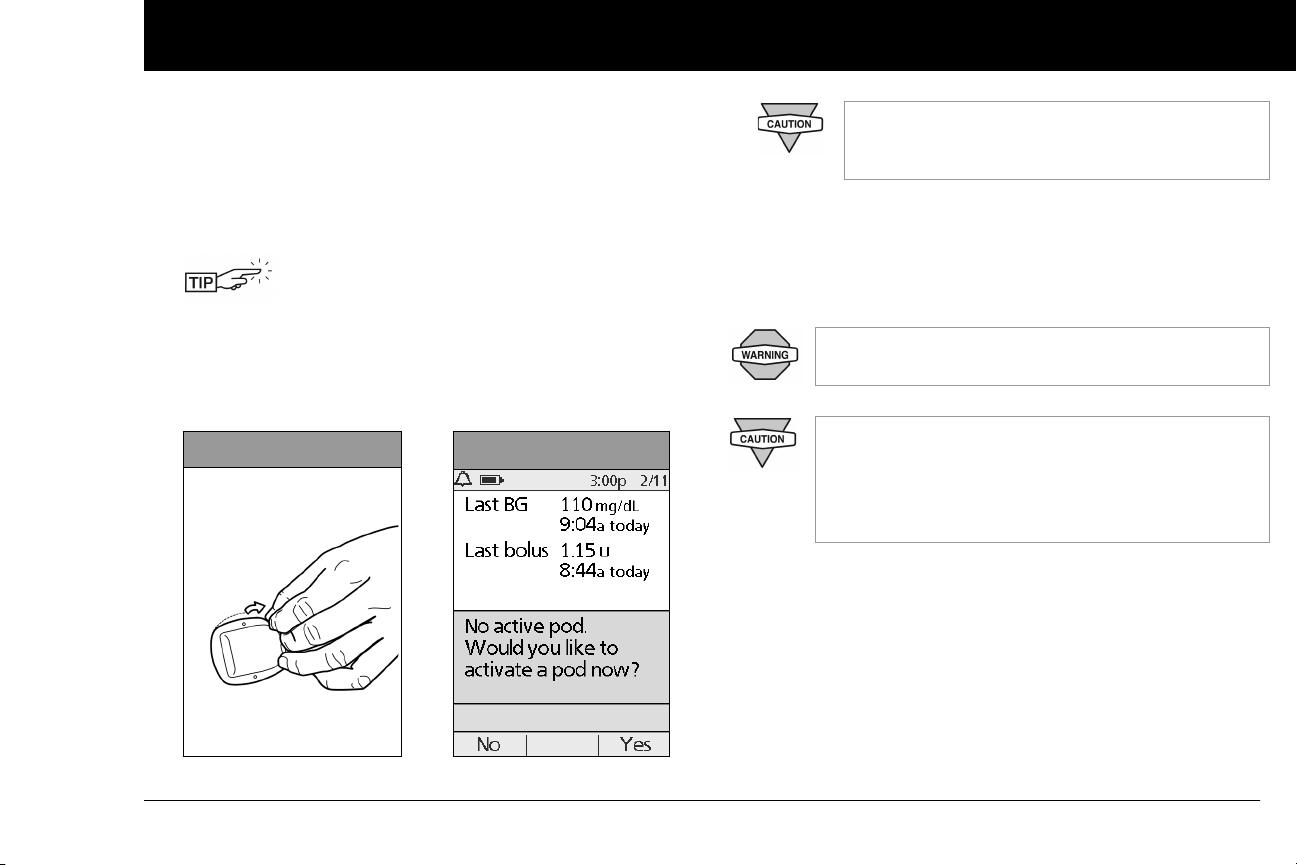

Turn on the PDM

pen the battery compartment on the back of the PDM

1. O by pushing the compartment latch and lifting upward (Figure 2-1). No special tools are necessary.

2. Insert two (2) new AAA alkaline batteries into the compartment.

The diagram inside the compartment shows you which direction to insert the batteries (Figure 2-2).

Do not use any other type of batteries than AAA alkaline batteries to power the PDM. Never use old or used batteries; the PDM may not work properly.

3. Replace the battery door.

4. Turn the PDM face up. The PDM has begun to power on automatically.

■ The Setup Wizard

The first time you turn on the Personal Diabetes Manager, the Setup Wizard comes on automatically. Although setup is easy with the Wizard, if you are a first-time user, your healthcare provider must guide you through the process. Setup takes only a few minutes and is easy to do:

• Use the Up/Down Controller buttons to increase or decrease a number, or to move up or down a list.

Initial settings are “---” [blank] for target blood glucose value, insulin-to-carbohydrate ratio, correction factor, and duration of insulin action.

• Press the Soft Key labeled Next, Select, Done, or Save to con- tinue to the next screen.

• Press Back to return to the previous screen.

Getting Started

You can adjust these settings later as your needs change or as you fine-tune your OmniPod System.

To get started, press Nex begin setting up your PDM.

t on the Wizard's Welcome Screen to

Enter your PDM ID

1. Use the Up/Down Controller buttons to scroll through the list of characters. An up-and-down-arrow symbol on the screen indicates the character you are changing.

2. Press the middle Soft Key (labeled with the right arrow) to move the underscore to the next character.

3. Enter each character one at a time. For example, if you want to enter your name, you might enter J, a, n, e, [space], S, m, i, t, h. (A blank character or space is the first and last option in the scrolling menu.)

4. Press Next.

Select the ID screen color

1. Use the Up/Down Controller bu press Next.

Your ID and the chosen color will be displayed on an identification (ID) screen that you must acknowledge every time you turn on the PDM. Always be sure you properly identify your PDM before using it.

ttons to choose a color, then

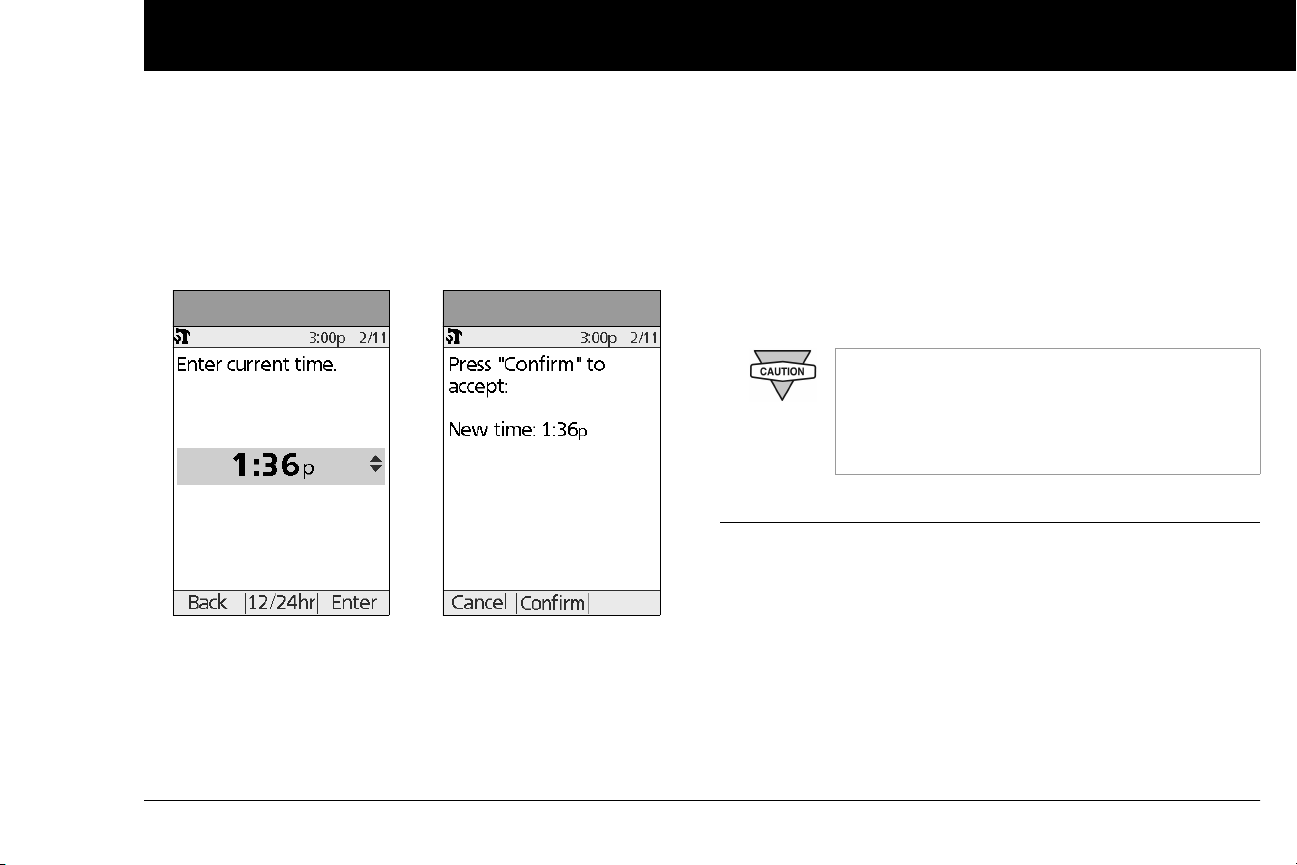

Set date and time

1. Use the Up/D decrease the time. (Press 12/24hr if you prefer a different time format.) Then press Next.

2. Enter the current year, then press Next.

3. Choose the current month, then press Next.

4. Enter the current day of the month, then press Next.

5. Choose the date format you prefer, then press Next.

own Controller buttons to increase or

Enter basal settings

1. Choose a maximum basal rate, then press Next. (The default maximum basal rate is 3 U/hr.)

2. Choose the initial basal rate to use, then press Next. The initial basal program created with the Setup Wizard is

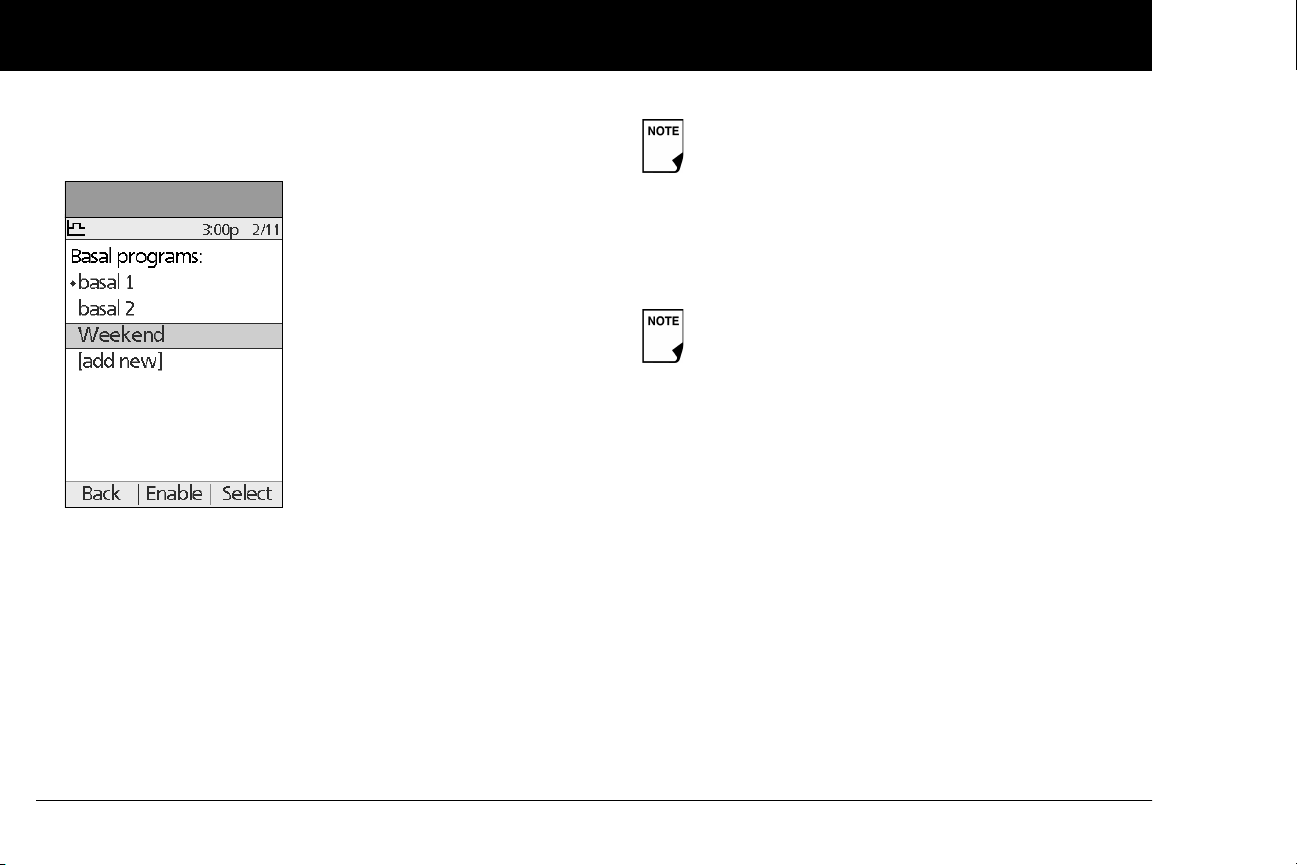

named basal 1. You can change the name in the Settings > Basal Programs menu (see Chapter 3, Understanding and Adjusting Basal Rates).

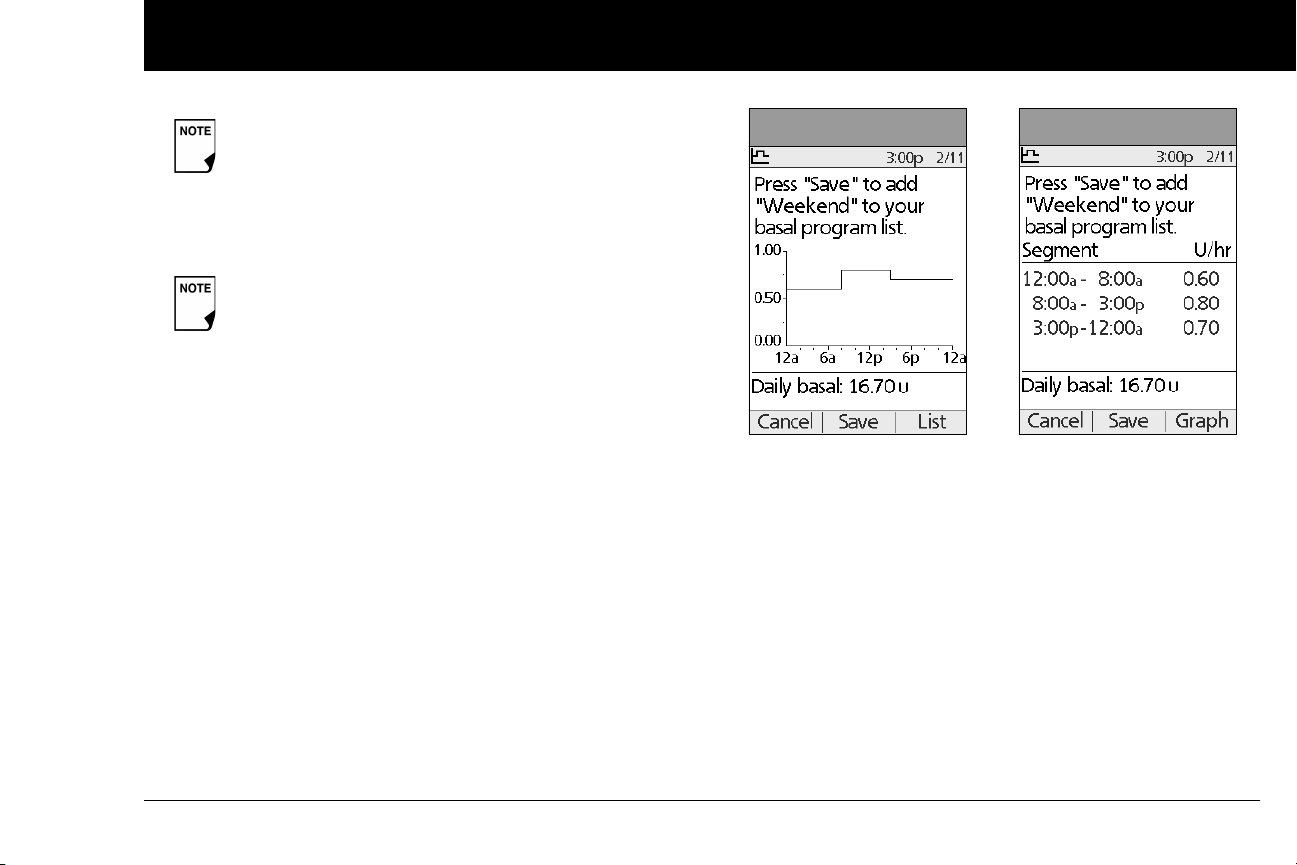

3. Press Done to confirm the basal program shown on the screen. To add more basal segments to the program, or to change the rate shown, see Chapter 3, Understanding and Adjusting Basal Rates.

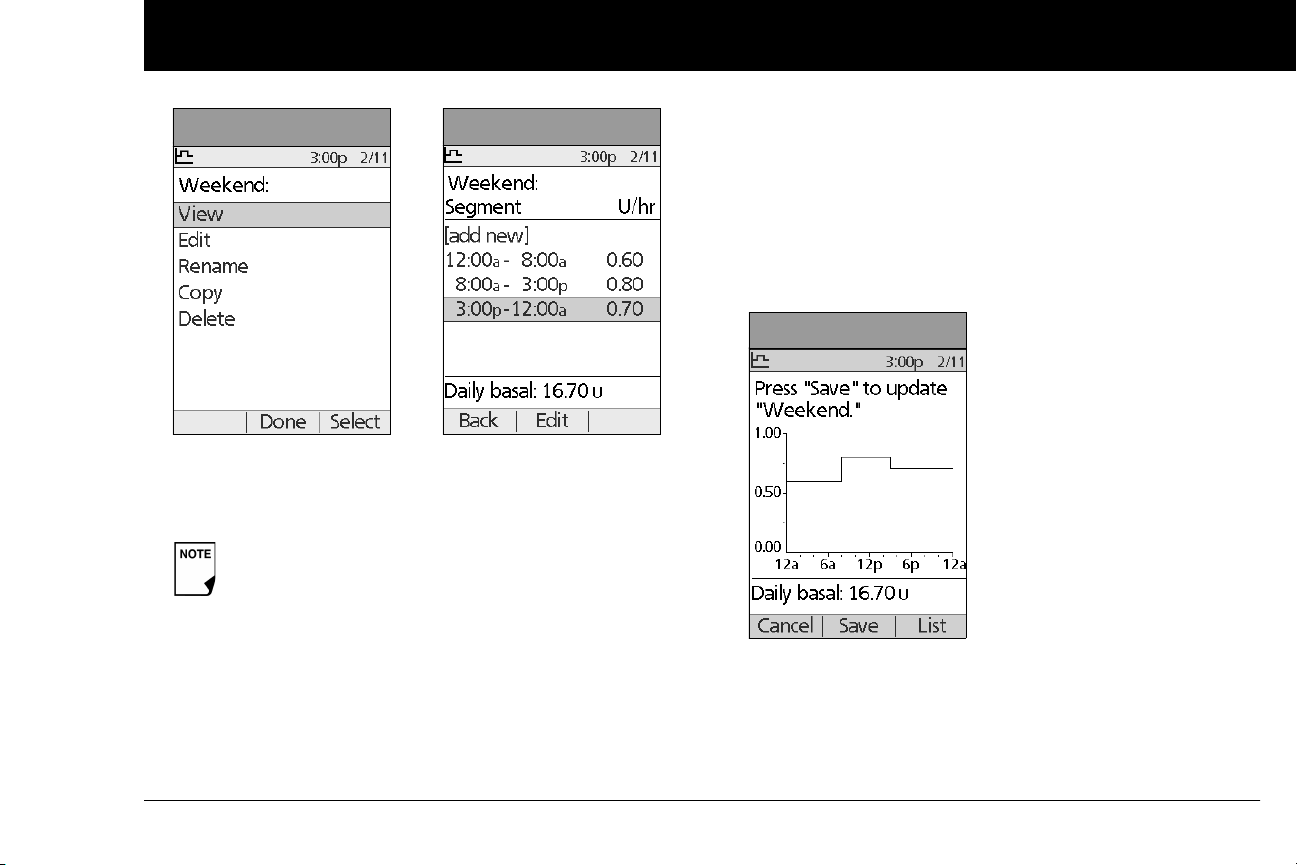

4. To see the basal program as a list, press List. To return to the graphic view, press Graph.

5. Press Save to accept the basal program you have set.

Getting Started

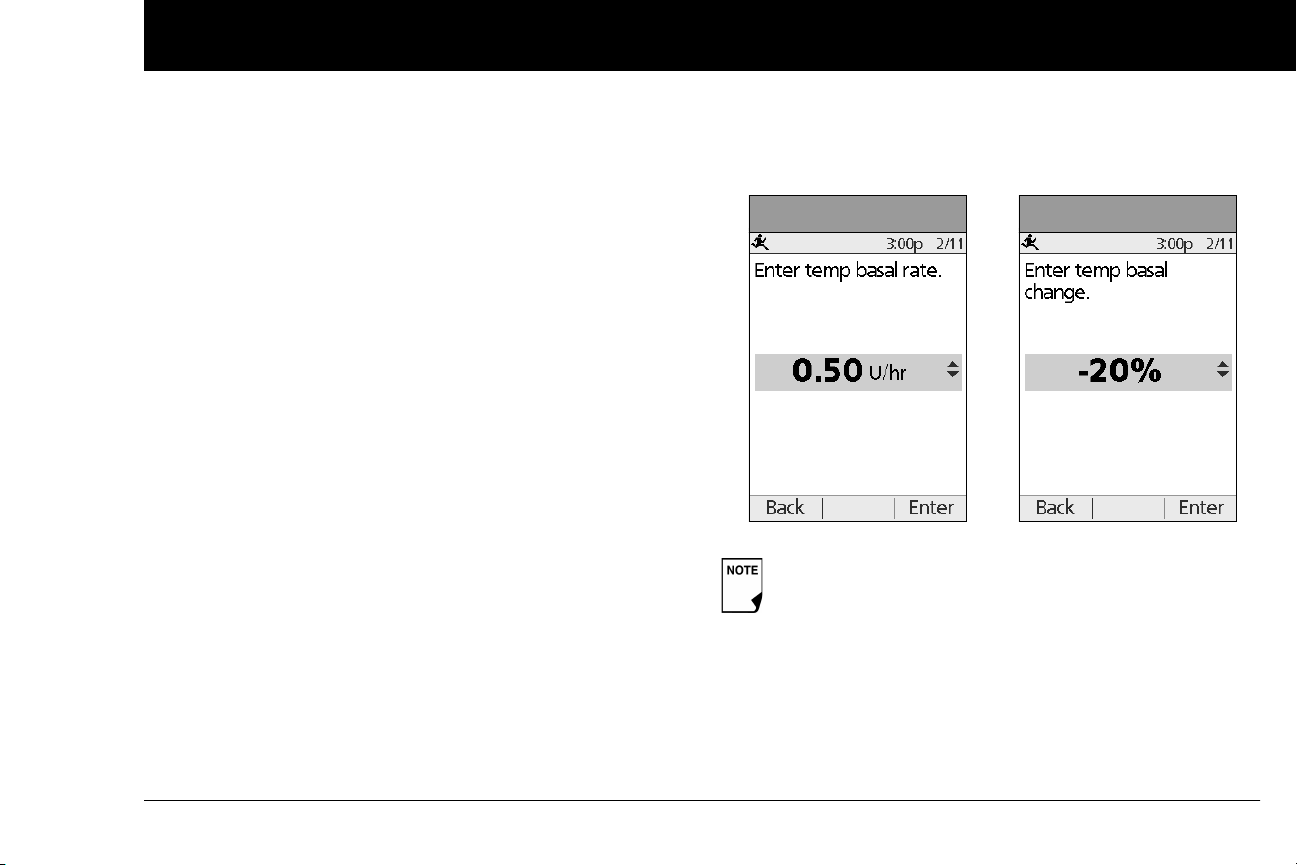

6. Choose a tem % to show temporary basal rates as a percent increase or decrease of your current basal rate. Choose U/hr to show temporary basal rates in units per hour. Or choose Off to turn off the temporary basal feature. For details about setting temporary basals, see Chapter 3, Understanding and Adjusting Basal Rates.

porary basal feature, then press Next. Choose

You can add up to 7 basal programs and set 24 segments per program.

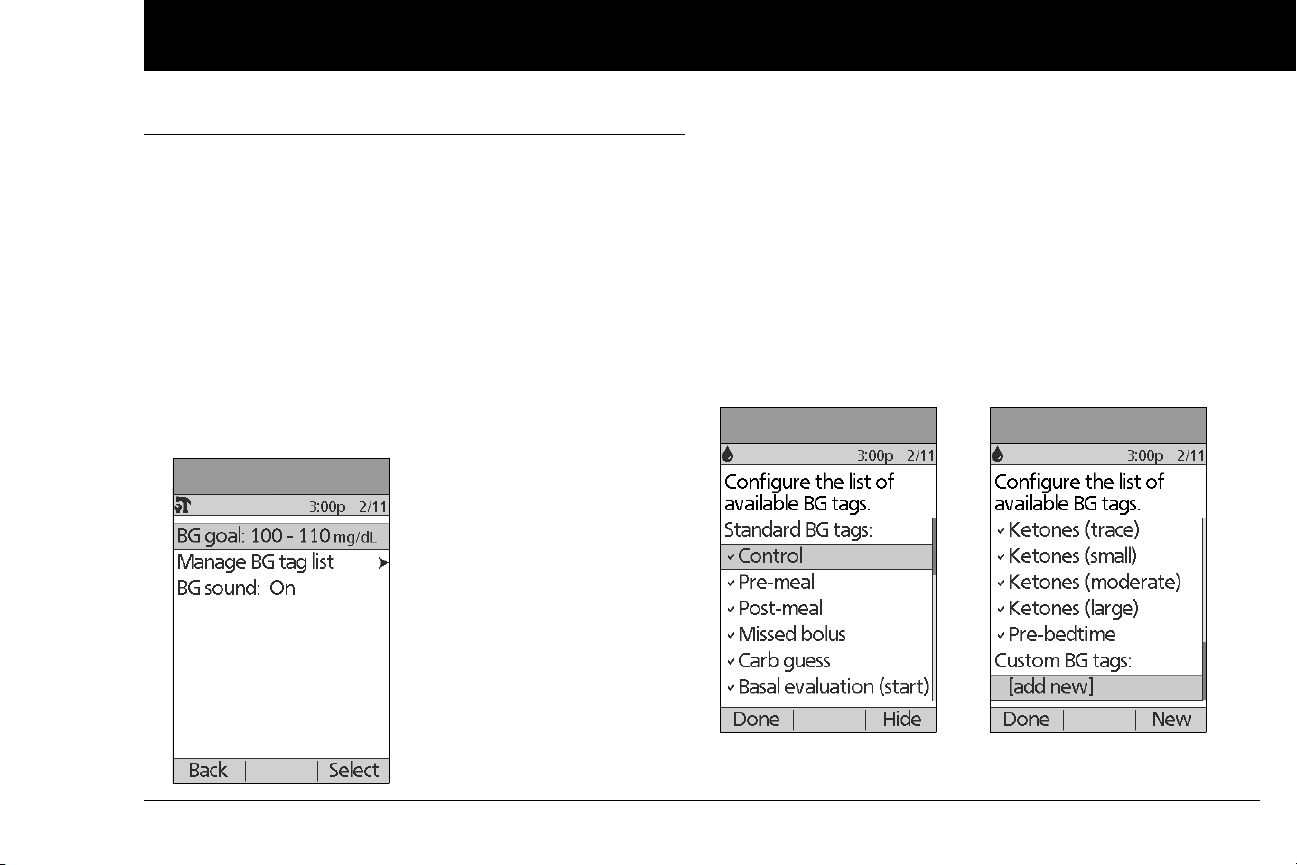

Enter blood glucose sound setting and BG goal

1. To set the sound for the blood glucose meter, choose On or Off, then press Next.

2. Use the Up/Down Controller buttons to enter the lower limit for your blood glucose (BG) goal, then press Next.

3. Enter the upper limit for your BG goal, then press Next.

The lower and upper BG limits are only used when viewing BG History (see Chapter 8, Understanding Your Records).

4. Press Save to accept the BG goal.

Check with your healthcare provider before adjusting these settings.

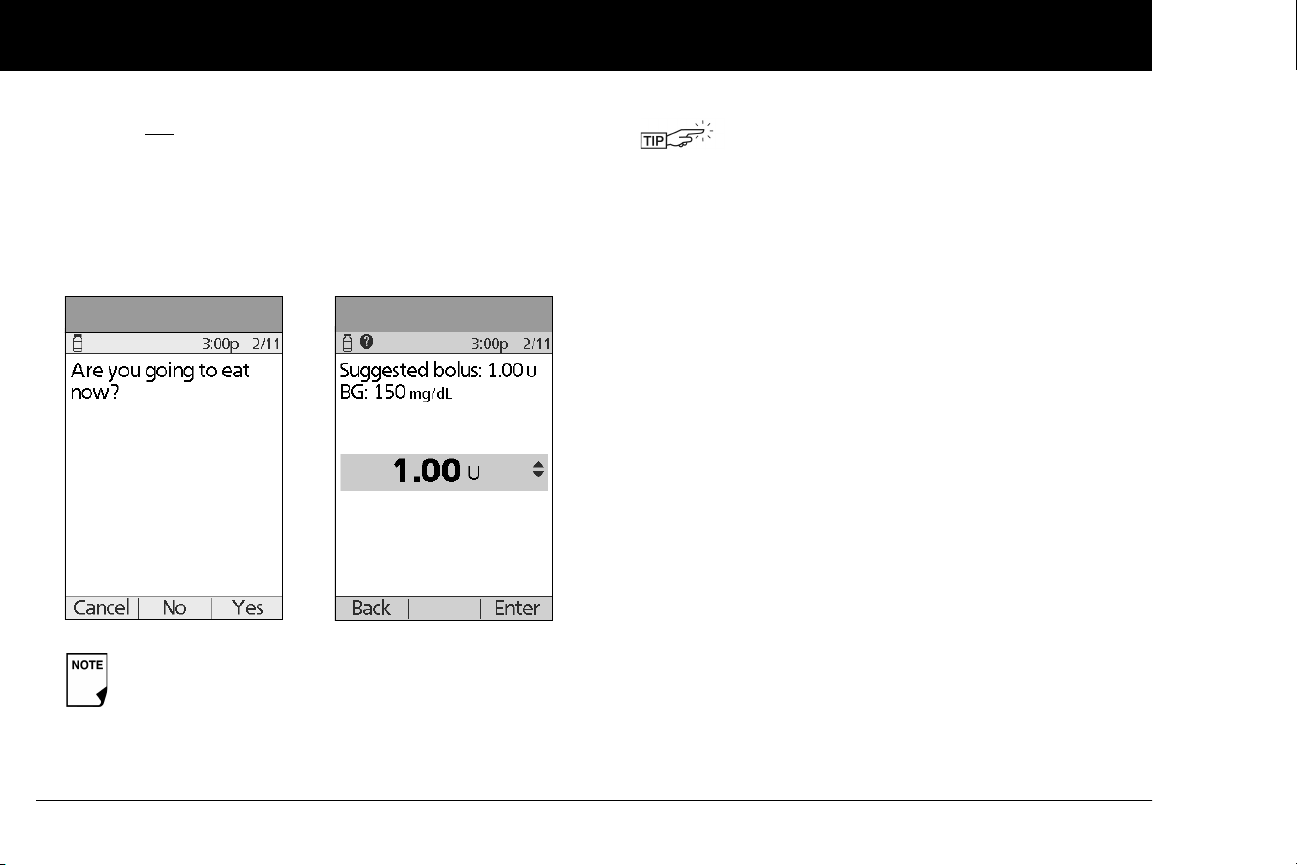

Set the suggested bolus calculator

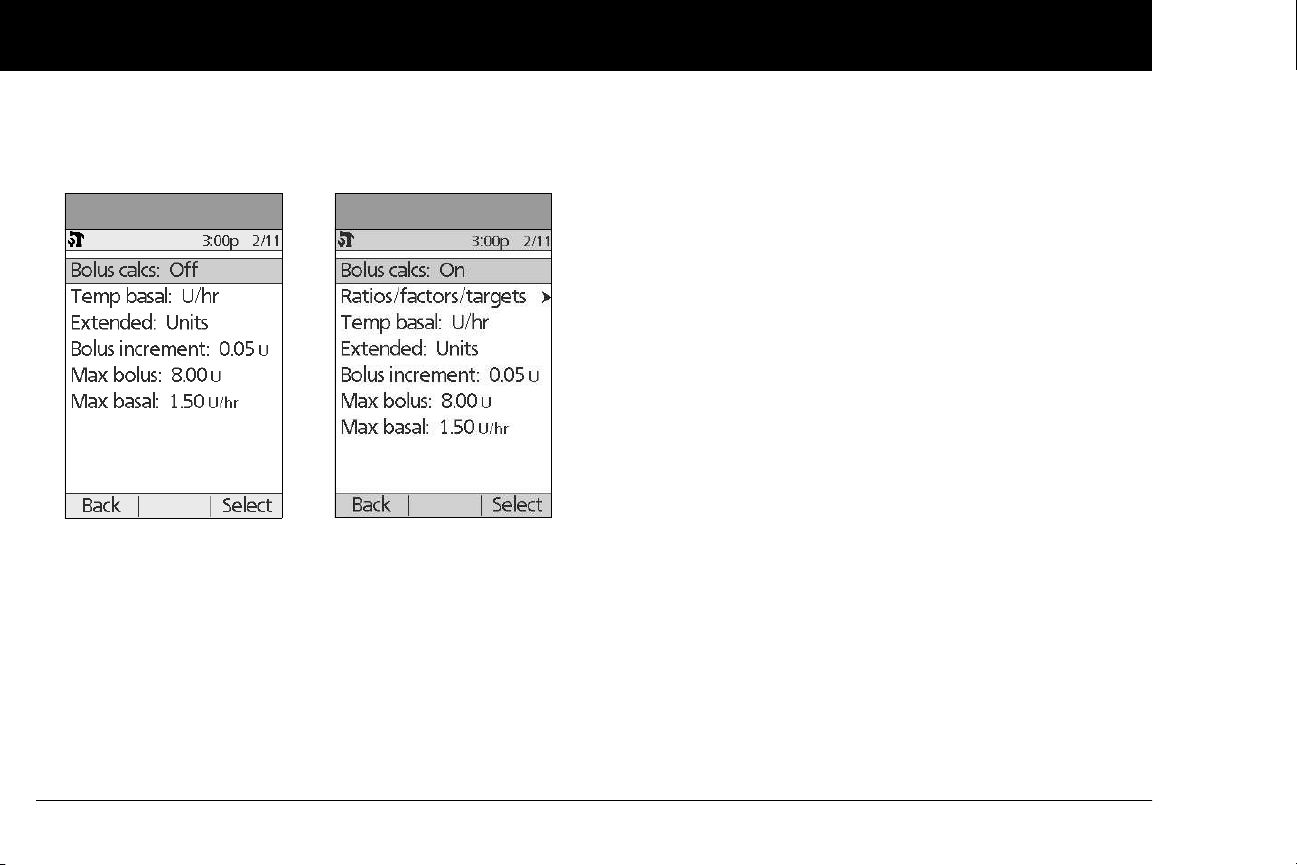

1. To set the suggested bolus calculator feature, choose On or Off, then press Next.

If the suggested bolus calculator is set to On, perform the following steps. If set to Off, you will be prompted to “Select bolus increment” and “Enter maximum bolus.”

Enter target blood glucose value

1. Use the Up/Down Controller button to enter a target blood glucose (BG) value, then press Next.

2. Use the Up/Down Controller buttons to enter the “correct above” value or correction threshold (the BG value above which you want the PDM to suggest a correction bolus), then press Next.

If the suggested bolus calculator is On, a correction bolus will be suggested only when your BG is above the value shown in brackets on the screen.

3. To save the target BG value, press Done. To change these set- tings, select the segment you wish to change and press Edit.

You can define up to 8 target BG time segments. To enter additional segments, choose [add new], then:

a. Press New.

Getting Started

b. Enter a start time for the target BG segment, then press

er.

Ent

c. Enter an end time for the target BG segment, then press

Next.

d. Enter a target blood glucose value, then press Next.

Use the Up/Down Controller buttons to enter the “cor- rect above” value or “correction threshold” (the BG value above which you want the PDM to suggest a correction bolus), then press Next.

e. When you have finished entering segments, press Done.

4. To see the segments as a list, press List. To return to the graphic view, press Graph.

5. Press Save to accept the target BG profile you have set.

Enter minimum BG allowed for use in bolus calculation

1. Use the Up/Down Controller buttons to enter a minimum blood glucose value, below which the System will not calculate a suggested bolus. The values are in 1 mg/dL increments and range from 50 to 70 mg/dL.

2. Press Next.

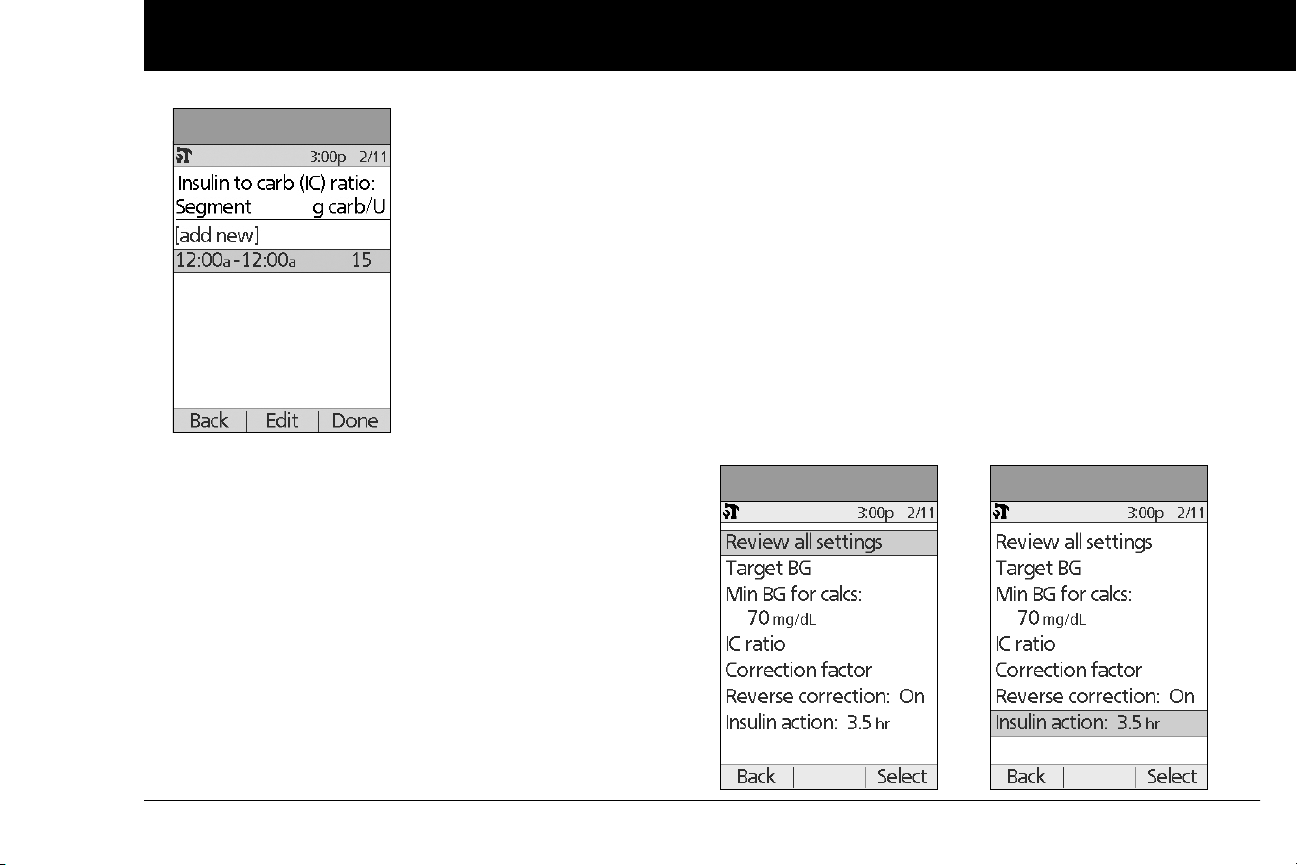

Enter insulin-to-carbohydrate ratio

1. Use the Up/D

to-carbohydrate ratio, then press Next. (Insulin-to-carbohy- drate ratio is the number of carbs covered by 1 unit of insulin.)

own Controller buttons to enter your insulin-

2. To save the ratio, press Done. To change the ratio, select the segment you wish to change and press Edit.

You can define up to 8 insulin-to-carbohydrate time segments. To enter additional ratios, choose [add new], then:

a. Press New. b. Enter a start time for the segment, then press Next. c. Enter an end time for the segment, then press Next. d. Enter the insulin-to-carb ratio for the new time segment,

then press Next.

e. To save the new ratio, press Done.

3. To see the ratios as a list, press List. To return to the graphic view, press Graph.

4. Press Save to accept the ratios you have set.

Enter correction factor

1. Use the Up/D one unit of insulin decreases your blood glucose, then press Next.

2. To save the correction factor, press Done. To change the factor, select the segment you wish to change and press Edit.

You can define correction factors for up to 8 time segments. To enter additional correction factors, choose [add new], then:

own Controller buttons to enter how much

Getting Started

a. Press New.

Enter a start time for the segment, then press Next.

b. c. Enter an end time for the segment, then press Next. d. Enter the correction factor, then press Next. e. To save the new correction factor segment, press Done.

3. To see the factors as a list, press List. To return to the graphic view, press Graph.

4. Press Save to accept the correction factors you have set.

Set reverse correction

1. To set reverse correction, use the Up/Down Controller buttons to choose On or Off, then press Next.

If you enter carbs and reverse corrections are On, the System will subtract insulin from the suggested meal bolus to compensate for a low blood glucose (below the BG target you set). With reverse corrections Off, the System will not subtract insulin from the suggested meal bolus dose due to a low BG. Follow your healthcare provider’s recommendation to set reverse correction On or Off.

Enter the duration of insulin action

1. Use the Up/Down Controller buttons to enter the duration of insulin action (how long insulin lasts in your body), then

press Next.

The duration-of-insulin-action setting is used to calculate the amount of insulin on board (IOB) from a previous correction bolus or meal bolus when you use the suggested bolus calculator.

Select bolus increment and enter maximum bolus

1. Choose a bolus increment (how much each press of the Up/Down Controller buttons will increase or decrease a bolus amount)—either 0.05, 0.10, 0.50, or 1.00 units of insulin—then press Next.

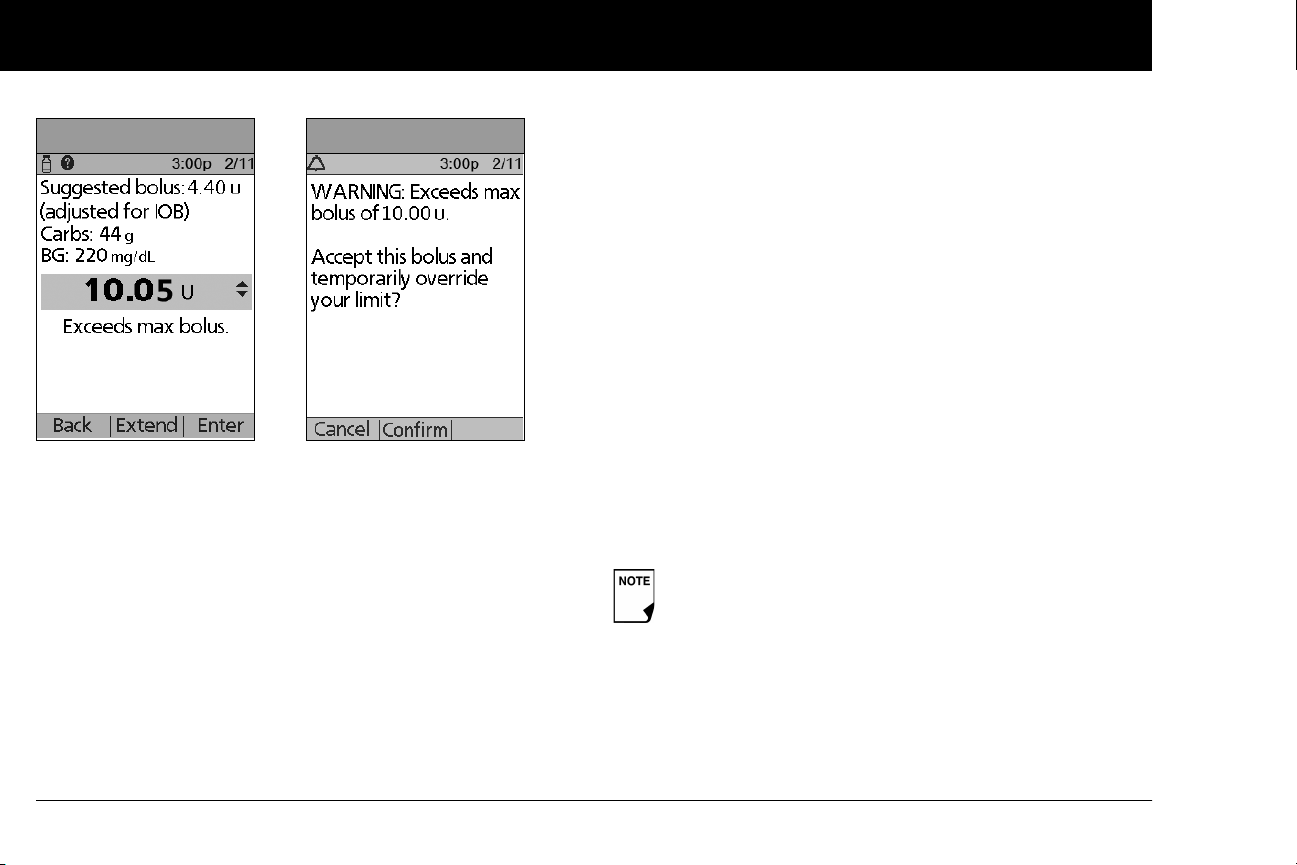

2. Choose the maximum bolus you can give at one time, then press Next.

The maximum bolus default is 10 units. Check with your healthcare provider before adjusting these settings.

Set extended bolus doses

1. To set the units for an extended bolus dose, choose % f cent of the total bolus, or choose Units for units of insulin. To turn off the extended bolus feature, choose Off. Then press Next.

or per-

Getting Started

Set low reservoir advisory

hoose the level of insulin in the reservoir at which the

1. C PDM should give you an alarm. Choose from 10 to 50 units in 5-unit increments, then press Next.

Set expiration notification

1. Choose the number of hours before a Pod expires when the PDM should give you a notification, then press Next. The values are in 1-hour increments and range from 1 to 24 hours. (The default is 4 hours.)

The PDM asks whether you want to activate a Pod.

• Press Yes if you are ready to activate a new Pod. See Chapter 5, Using the Pod, to learn how to activate a new Pod.

• Press No if you do not want to activate a Pod at this time. The PDM displays the Home screen.

You can press and hold the Power button to turn off the PDM at any time during setup. Otherwise, it turns off automatically after 5 minutes. If you do not complete the entire setup within 60 minutes, when you turn on the PDM again you will return to the beginning of the Setup Wizard.

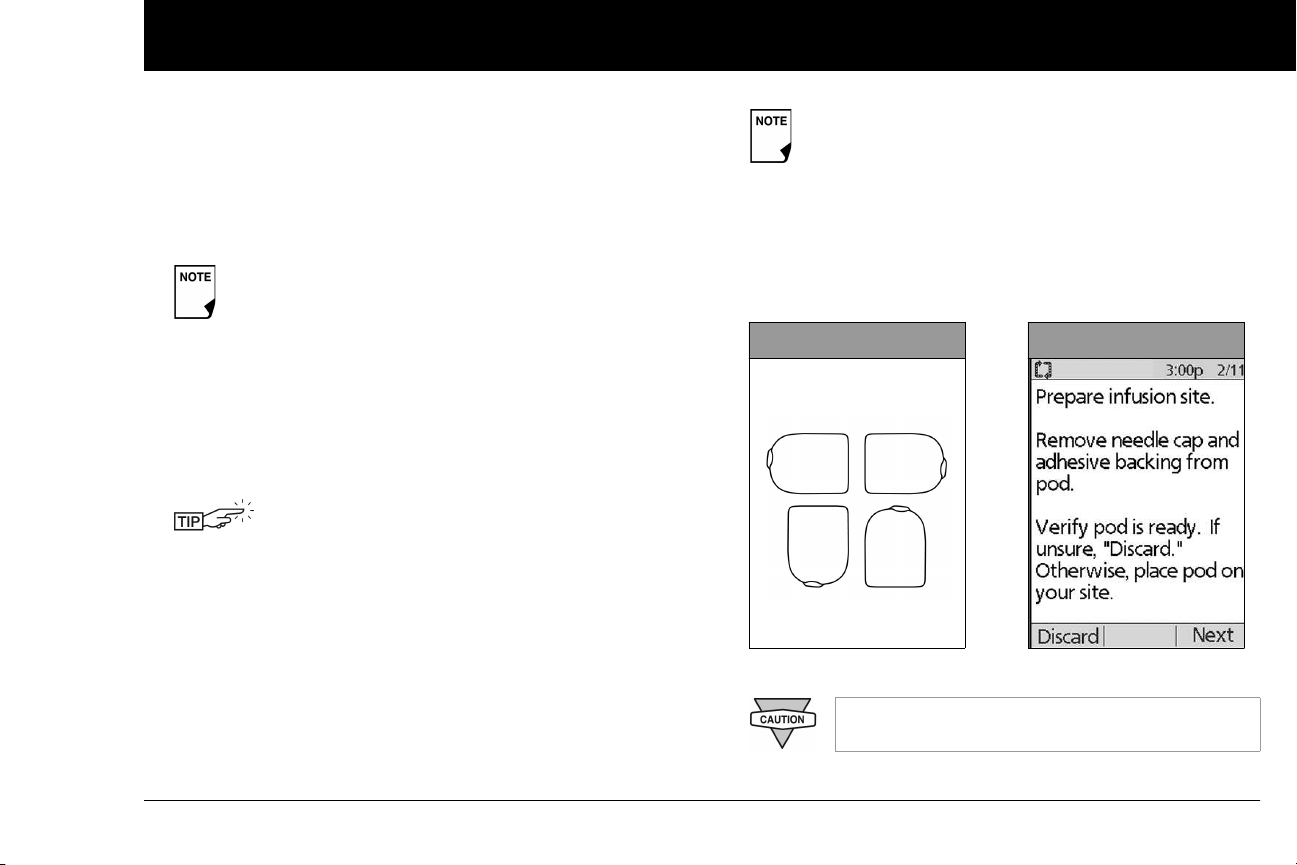

Your healthcare provider will help you fill and apply your first Pod. The process is easy because on-screen messages walk you through every step. Please refer to Chapter 5, Using the Pod, for detailed instructions.

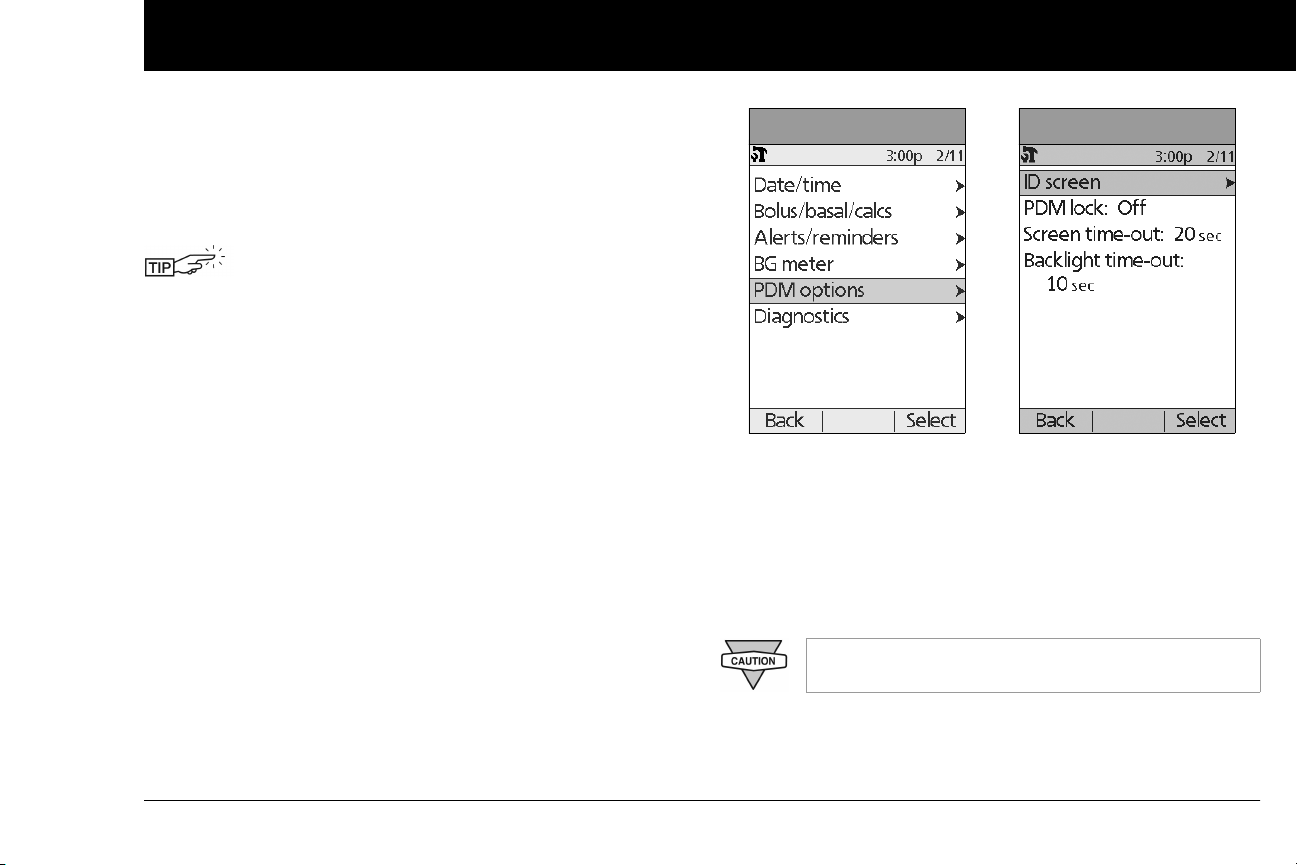

You may want to adjust the PDM screen time-out and backlight time-out. For more information on how to do this, see Chapter 6, Using the Personal Diabetes Manager.

Use the form at the end of this User Guide to write down all your settings from the Setup Wizard. If you ever need to reset or replace your PDM, having these settings handy will make setup very easy.

CHAPTER 3

Understanding and Adjusting Basal Rates

■ What Is a Basal Rate?

A basal rate is a small base or background amount of insulin that is delivered, at a preset rate, continuously for a specified period of time.

Even without eating, our bodies need a small, constant supply of insulin for normal daily living. In people without diabetes, the pancreas continuously delivers this basal insulin. For people using the OmniPod® Insulin Management System, the Pod mimics a healthy pancreas by delivering insulin at the rate that you’ve programmed into the Personal Diabetes Manager (PDM).

Approximately 50% of a person’s total daily insulin dose typically comes from basal insulin delivery; the remaining 50% typically comes from bolus doses (see Chapter 4, Understanding and Delivering Bolus Doses).

■ Personalized Basal Programs

Insulin needs vary throughout the day. Therefore, most people set their basal rates to deliver slightly more or less insulin at

certain times. For example, one person may need to deliver a higher rate of insulin during the early morning and a lower rate during the late evening. A basal program describes the amount of insulin to be delivered during an entire 24-hour period.

A basal program contains at least one basal rate for the 24-hour period, but for most people it will be broken into several time segments, or basal segments, each delivering a different rate of insulin. A sample basal program with three basal segments might be:

12:00 am–8:00 am 0.60 U/hr Between 12:00 am (midnight)

and 8:00 am, the Pod delivers

0.60 units of insulin per hour.

8:00 am–3:00 pm 0.80 U/hr Between 8:00 am and 3:00 pm,

the Pod delivers 0.80 units of insulin per hour.

3:00 pm–12:00 am 0.70 U/hr Between 3:00 pm and 12:00 am

(midnight), the Pod delivers 0.70 units of insulin per hour.

Understanding and Adjusting Basal Rates

Figure 3-1

Figure 3-2

In addition to normal daily changes, insulin needs can vary with

ferent routines or days of the week. For example, regular

dif school or workday routines may differ from weekend routines, and insulin needs may differ, too. With your healthcare provider, you will decide on the basal rates that best match your lifestyle and insulin needs. You will enter at least one basal program (your Basal 1 Program) into your PDM during the setup process (see Chapter 2, Getting Started). You can add other programs later as you fine-tune your System settings or when your needs change.

You can also create temporary basal presets to use on occasions when you need to adjust your basal rate for a short period of time. See “Temporary Basal Rates and Presets” later in this chapter.

Create a basal program

The Personal Diabetes Manager can store up to 7 different basal programs. Each program can contain 24 rates, programmed in half-hour increments. Once you enter a basal program into the PDM, you only need to press a few buttons to pick the program you want. The Pod continues to deliver insulin at those rates until you change that program or switch to another one.

Check with your healthcare provider before adjusting these settings.

1. On the Home screen, use the Up/Down Controller buttons to choose Settings; then press Select.

2. Choose Basal programs (Figure 3-1), then press Select.

3. Choose [add new] (Figure 3-2), then press New.

4. To use the default naming system, simply press Next. The default naming system automatically assigns program names in numerical order, such as basal 1, basal 2, basal 3.

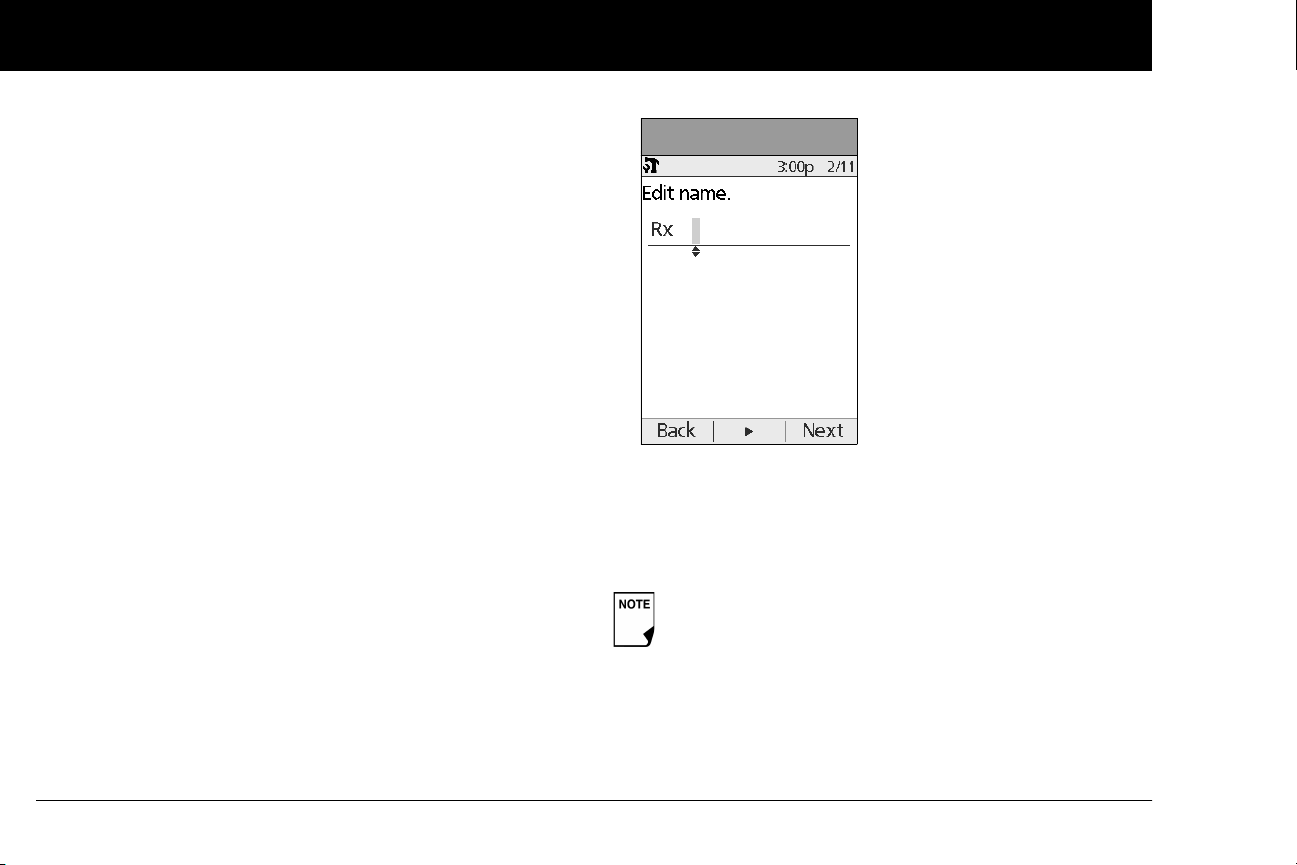

If you want to give a different name to the program: a. Press the Up/Down Controller buttons to scroll through

the list of characters. An up-and-down arrow symbol on the screen indicates the character you are changing.

Understanding and Adjusting Basal Rates

Figure 3-3

Figure 3-4

b. Press the middle Sof

move the underscore to the next character.

c. Enter each character one at a time. For example, if your

weekend schedule is different from your weekday schedule, you might enter W, e, e, k, e, n, d (Figure 3-3). (A blank character or space is the first and last option in the scrolling menu.)

d. Press Next.

t Key (labeled with the right arrow) to

As a safety feature, the words “Invalid basal program name” (Figure 3-4) appear if the name you entered does not have at least one character or if the name is being used for another basal program. Capitals and lowercase letters are considered the same. Press OK to return to the previous screen and enter a different name.

5. Enter the rate, in U/hr, for the first basal segment (from 0.05 to the maximum you entered during setup), then press Next.

6. Review the list showing your new basal program. To use the same basal rate for the entire 24-hour program,

press Done and continue with step 7. Or, to add basal segments and rates (for example, a higher

basal rate between 8:00 am and 3:00 pm): a. Choose an existing basal segment, then press Edit.

Or, choose [add new], then press New.

b. Enter the start time (for example, 8:00 am), then press

Next. Basal segments are in 30-minute increments.

c. Enter the end time (for example, 3:00 pm), then press

Next.

d. Enter the rate for the new basal segment (for example,

0.80U/hr), then press Next.

Figure 3-5

Figure 3-6

Understanding and Adjusting Basal Rates

Basal rates outside the changed segment do not change.

e. Repeat steps a–d for each new segment and rate you

t, then press Done.

wan

7. Review the graph of the new basal program (Figure 3-5).

8. To see the program as a list, press List (Figure 3-6). To see the graph again, press Graph.

The total daily basal that will be delivered is shown at the bottom of each “Basal programs” graph and list.

9. To add the program to the PDM’s memory, press Save.

Repeat steps 1 through 9 (above) for each basal program (up to 7 programs) you want to create.

Enable an existing basal program

1. On the Home screen, use the Up/Down Controller buttons to choose Settings; then press Select.

2. Choose Basal programs, then press Select.

Understanding and Adjusting Basal Rates

Figure 3-7

3. Choose the program you want from the list (Figure 3-7), then ss Enable.

pre

A diamond icon (♦) appears next to the program that

is active. You cannot select the active program to enable it, because it is already running.

4. Press Enable again to start the selected basal program. If a Pod is active, the PDM beeps to indicate that the chosen basal program is running.

As a safety feature, you cannot enable a new basal program while a temporary basal program is in process (see “Temporary Basal Rates and Presets” later in this chapter); you must first cancel the active temporary basal program.

Change, rename, copy, or delete a basal program

1. On the Home screen, use the Up/Down Controller buttons to choose Settings; then press Select.

2. Choose Basal programs, then press Select.

3. Choose a program from the list, then press Select.

To view the segments of the basal program

1. Choose View,

then press Select (Figure 3-8).

Understanding and Adjusting Basal Rates

Figure 3-8

Figure 3-9

Figure 3-10

To edit or add a segment or rate in the basal program

hoose Edit, then press Select.

1. C

3. Enter a start time for the segment you want to change, then press Next.

4. Enter an end time for this segment, then press Next.

5. Enter a basal rate for the new segment, then press Enter.

6. To save the newly entered segment into the basal program, press Save (Figure 3-10). If you want to make additional edits, repeat steps 2–5.

As a safety feature, you must suspend insulin delivery before editing an active basal program (see Chapter 5, Using the Pod). Remember to resume delivery after the edits are made.

2. Choose the segment to change, then press Edit (Figure 3-9). Or, choose [add new], then press New.

7. To see the program as a list, press List. To see the graph again, press Graph.

Understanding and Adjusting Basal Rates

To rename a basal program

fter choosing a program from the list, choose Rename, then

1. A press Select.

2. Press the Up/Down Controller buttons to enter the charac- ters that spell out the new name you want. Press the middle soft key (labeled with the right arrow) to move the underscore to the next character, then press Save.

To copy a basal program

1. After choosing a program from the list, choose Copy, then press Select.

2. Press the Up/Down Controller buttons to enter the charac- ters that spell out the name you want for the copied file. Press the middle soft key (labeled with the right arrow) to move the underscore to the next character, then press Next.

3. To use the same basal program for the entire 24-hour period, press Save.

To edit or add segments to the newly copied basal program, follow the steps under “To edit or add a segment or rate in the basal program” earlier in this chapter.

Instead of suspending, changing, and then resuming the active basal program, try this: Copy the active program, rename it, make the changes, save it, then enable it.

To delete a basal program

1. After choosing a program from the list, choose Delete and then press Select.

2. Press Delete to permanently delete the program.

As a safety feature, you cannot delete the active basal program.

■ Temporary Basal Rates and Presets

What is a temporary basal rate?

A temporary basal rate lets you adjust your basal rate for a predetermined period of time.

On occasion, you may need to change the active basal rate for only a short time. For example, if you are going cross-country skiing for several hours, you may want to lower the basal rate during and after you exercise. This is called a “one-time temporary basal rate.”

Some temporary changes are easy to predict and respond to. They happen routinely and you may know from experience how they affect your insulin needs. For example, you might take the same exercise class twice a week for a few weeks or months, or

Understanding and Adjusting Basal Rates

Figure 3-11

Figure 3-12

join a summer soccer league. For women, a monthly hormonal

nge that affects blood glucose is an example of predictable

cha change. To easily handle predictable, short-term changes, you can “preset” a temporary basal rate, so it is ready whenever you need it. The PDM can remember up to 7 temporary basal presets.

You can set a temporary basal rate for a duration of 30 minutes to 12 hours. Once the time limit is reached, the PDM automatically returns to the active basal program.

When using units per hour, the OmniPod System allows you to set temporary basal rates from 0.0 U/hr, up to your max basal rate. When using percent rate, you can set temporary basal rates from -100% to +95% of your active rate, as long as the temporary rate is less than or equal to your max basal rate.

See the sections below on creating, enabling, cancelling, and changing temporary basal presets.

Enable a one-time temporary basal rate

1. On the Home screen, use the Up/Down Controller buttons to choose Temp basal, then press Select.

2. If you have created temp basal presets, choose [enter manu- ally] from the list, then press Select.

If you have not created any temp basal presets, the PDM skips this step.

3. Enter the temporary basal rate in either units per hour (Figure 3-11) or percent change (Figure 3-12), depending on how you choose to show the rates, then press Enter.

During initial setup, you and your healthcare provider either turned Off temporary basal rates, or chose to show the rates as % or U/hr. To change this setting, see Chapter 6, Using the Personal Diabetes Manager.

4. Enter the duration for the temporary rate, then press Enter.

5. Press Confirm to start the temporary basal rate shown on the screen. The Pod beeps to indicate that the temporary basal rate is running.

Understanding and Adjusting Basal Rates

Figure 3-13

Cancel a one-time temporary basal rate

n the Home screen, use the Up/Down Controller buttons

1. O to choose Suspend/cancel, then press Select.

2. Choose Cancel temp basal (Figure 3-13), then press Select.

3. Press Confirm to cancel the temporary basal shown on the screen.

Create a temporary basal preset

1. On the Home screen, use the Up/Down Controller buttons to choose Settings, then press Select.

2. Choose Presets, then press Select.

3. Choose Temp basal presets, then press Select.

4. Choose [add new], then press New.

5. To use the OmniPod System’s default naming system, simply press Next. The default naming system automatically assigns program names in numerical order, such as temp basal 1, temp basal 2, temp basal 3.

Or, to give a different name to the program: a. Press the Up/Down Controller buttons to scroll through

the list of characters. An up-and-down arrow symbol on the screen indicates the character you are changing.

b. Press the middle Soft Key to move the underscore to the

next character.

c. Enter each character one at a time. For example, if you

take an aerobics class two nights a week, you might enter A, e, r, o, b, i, c, s (Figure 3-14 on the next page). (A blank character or space is the first and last option in the scrolling menu.)

Capitals and lowercase letters are considered the same.

Figure 3-14

Figure 3-15

Understanding and Adjusting Basal Rates

d. Press Next. Enter the new temporary basal rate (or percent change), then

6. press Next.

7. Enter the duration of the temporary basal rate, from 0.5 hours to 12 hours, then press Next.

8. Review the temporary basal name, rate, and duration, then press Save to accept it.

Enable an existing temporary basal preset

1. On the Home screen, use the Up/Down Controller buttons to choose Temp basal, then press Select.

2. Choose the temporary basal preset you want to use from the list (Figure 3-15), then press Select.

Figure 3-16

3. If you want, change the duration for the temporary rate, in half-hour increments, then press Enter (Figure 3-16).

4. Press Confirm to begin the temporary basal rate shown on the screen. The Pod beeps to indicate that the chosen temporary basal preset is running.

Understanding and Adjusting Basal Rates

Figure 3-17

Cancel an active temporary basal preset

n the Home screen, use the Up/Down Controller buttons

1. O to choose Suspend/cancel;, then press Select.

2. Choose Cancel temp basal, then press Select.

3. Press Confirm to cancel the actively running temporary basal preset.

If you suspend insulin delivery while a temp basal is running, the temp basal will be cancelled when you suspend.

Change, rename, or delete a temporary basal preset

1. On the Home screen, use the Up/Down Controller buttons to choose Settings, then press Select.

2. Choose Presets, then press Select.

3. Choose Temp basal presets, then press Select.

4. Choose a temporary preset from the list, then press Edit.

You cannot edit, change, or delete a temporary basal preset that is actively running.

To change a temporary basal preset

1. Choose Edit, then press Select (Figure 3-17).

2. Enter a new rate (or new percent change), for the preset, then press Next.

3. Enter a new duration for the preset, then press Save.

4. Press Done.

Understanding and Adjusting Basal Rates

To rename a temporary basal preset

hoose Rename, then press Select.

1. C

2. Press the Up/Down Controller buttons to enter the charac- ters that spell out the name you want, then press Save.

3. Press Done.

To delete a temporary basal preset

1. Choose Delete, then press Select.

2. Press Delete to permanently delete the preset.

■ Maximum Basal Rate

What is the maximum basal rate?

The maximum basal rate is a safety feature that limits the basal rate (U/hr) that the Pod can deliver. Once you enter it into the PDM memory, the maximum applies to both regular basal programs and temporary basal rates.

You and your healthcare provider will enter an initial maximum basal rate into your PDM during the setup process (see Chapter 2, Getting Started). You can change it later as you fine-tune your System settings or when your needs change.

Change the maximum basal rate

1. On the Home screen, use the Up/Down Controller buttons to choose Settings, then press Select.

2. Choose System setup, then press Select.

3. Choose Bolus/basal/calcs, then press Select.

4. Choose Max basal, then press Select.

5. Enter a new maximum basal rate, then press Enter.

CHAPTER 4

Understanding and Delivering Bolus Doses

■ What Is a Bolus?

A bolus is an extra dose of insulin, delivered when needed to:

• Match the carbohydrates (sugar content) in a meal or snack— also known as a meal bolus

• Lower blood glucose when it gets too high—also known as a correction bolus

This extra dose is in addition to the basal rate delivered through- out the day and night (see Chapter 3, Understanding and Adjusting Basal Rates).

The size of a bolus dose depends on the current factors at the time you deliver the bolus:

• Your blood glucose level

• Your insulin-to-carbohydrate ratio

• Your correction factor

• Your target blood glucose and correct above threshold

• The amount of insulin on board (IOB) (active insulin) from pre- vious meal and correction boluses

• Your correction threshold, the BG level above which you would like to take insulin to reduce an elevated blood glucose

• Your activity level

• The type and amount of food you eat

With the OmniPod System, it is easy to adapt to any situation. With just a few button presses, you can adjust to unexpected or changing insulin needs.

During setup, you entered bolus dose settings in the PDM (see Chapter 2, Getting Started). You can adjust these settings as you fine-tune your System or when your needs change (see Chapter 6, Using the Personal Diabetes Manager).

Check with your healthcare provider before adjusting these settings.

Understanding and Delivering Bolus Doses

■ Bolus Dose Options

So that you can fully enjoy freedom and flexibility in your life, the OmniPod System offers the following bolus dose options:

Suggested bolus calculator: When you want the System to calculate your suggested bolus, based on your personal settings, your current blood glucose, the amount of insulin still active in your body from previous boluses, and the grams of carbohydrate (“carbs” for short) you are about to eat.

Normal bolus: When you need a dose of insulin right away to cover a meal or snack you are about to eat or to reduce a high blood glucose level

Extended bolus: When you are eating high-fat or high-protein foods (which take longer to digest and are slower to affect blood glucose), or when you are eating for an extended period (for example, at a party or during a holiday meal).

The bolus features in the OmniPod System are designed for flexibility and convenience. You can easily transition from a normal to an extended bolus with just a few buttonpresses.

■ Suggested Bolus Calculator

The suggested bolus calculator lets the OmniPod System recommend your bolus based on your personal settings. To review or adjust these settings—including turning the suggested bolus calculator On or Off—see Chapter 6, Using the Personal Diabe- tes Manager.

If the suggested bolus calculator is turned On, the System automatically calculates a bolus dose. If the suggested bolus calculator is turned Off, you must enter a bolus amount manually.

The suggested bolus calculator will display a suggested bolus dose based on the settings you have programmed into the PDM. Check with your healthcare provider before using this feature or adjusting these settings.

If a suggested bolus exceeds the max bolus you have set, the suggested bolus screen displays “Exceeds max bolus.” (Figure 4-1 on next page) If you select Extend or Enter, the following confirmation is displayed “WARNING: Exceeds max bolus of nn.nn U. Accept this bolus and temporarily override your limit?" (Figure 4-2 on next page). Consult your healthcare provider before changing the setting.

Understanding and Delivering Bolus Doses

Figure 4-1

Figure 4-2

How a suggested bolus is calculated

suggested bolus calculator estimates the suggested amount

The for each bolus portion based on your personal settings and inputs.

The settings used to calculate a suggested bolus are:

• Target BG

• Insulin-to-carbohydrate (IC) ratio

• Correction factor (CF)

• Duration of insulin action

The inputs used to calculate a suggested bolus are:

• current BG

• carbs entered

• insulin on board (IOB)

A suggested bolus can have a correction bolus only, a meal bolus only, or both.

Correction bolus: The correction bolus, as the name suggests, “corrects” for a blood glucose (BG) level above your target BG level.

Meal bolus: The meal bolus provides insulin for the carbohydrates you enter into the System.

Insulin on board (IOB): Insulin on Board (IOB) the amount of insulin still working in your body from previous meal and correction boluses. The amount of time the insulin remains “on board” or “active” depends on what you set for your duration of insulin action.

The OmniPod System can only subtract insulin on board (IOB) from a suggested bolus when the current BG is known.

For formulas for each element of the suggested bolus calculation, detailed examples, and additional guidelines of how the suggested bolus calculator works, see the Appendix.

Understanding and Delivering Bolus Doses

Figure 4-3

■ Deliver a Normal Bolus

Deliver a bolus when suggested bolus calculator is On

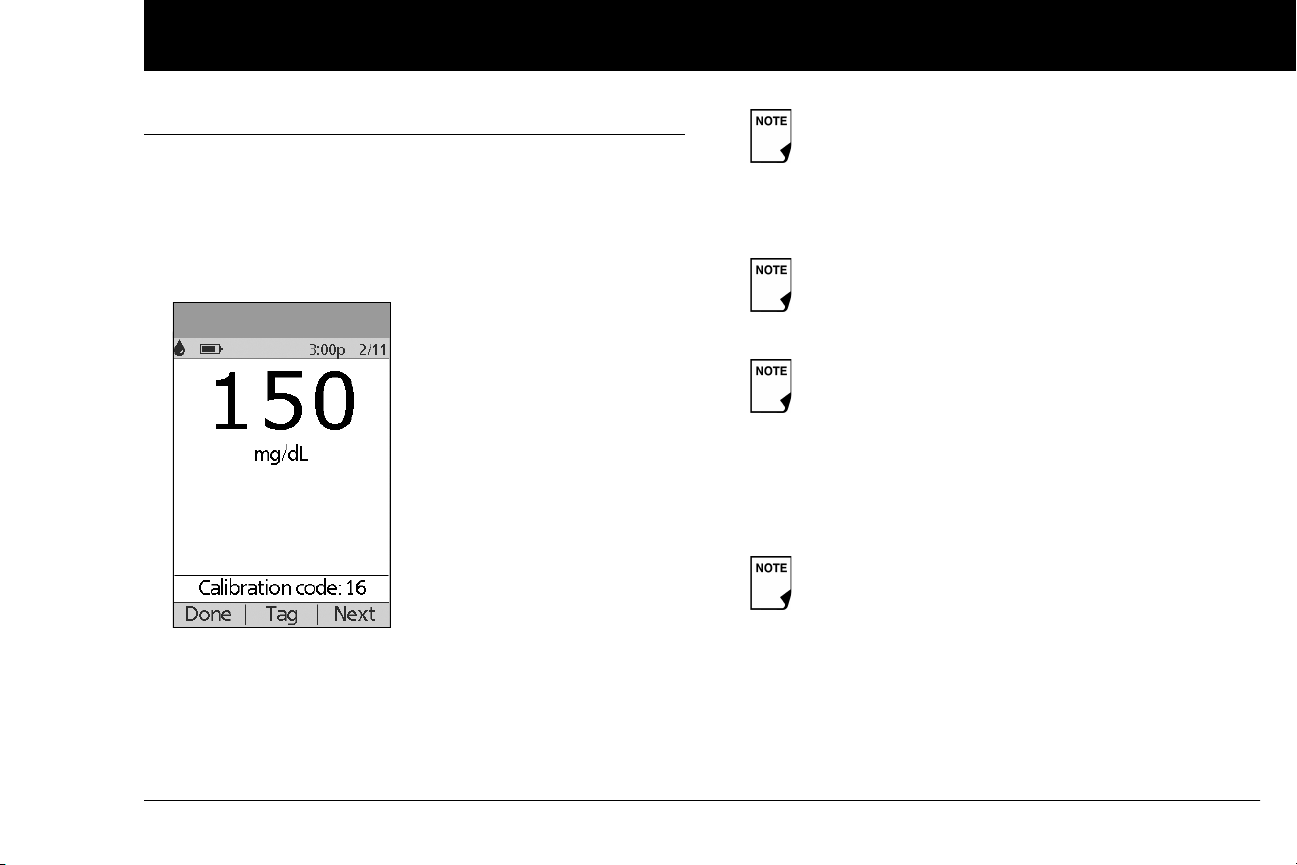

1. After you check your blood glucose, the PDM displays the results (Figure 4-3; see the end of Chapter 7, Checking Your Blood Glucose). Press Next.

A blood glucose value is current for up to 10 minutes after it is tested. So you can wait up to 10 minutes, restart the bolus process, and not have to retest your blood glucose in order to include it in the suggested bolus calculator.

When your blood glucose result reads “HIGH” or “LOW,” the suggested bolus calculator will be disabled.

If you use a separate blood glucose meter—not the Personal Diabetes Manager (PDM)—you will need to enter your blood glucose manually. On the Home screen, choose Bolus, then press Select. Use the Up/ Down Controller buttons to enter your current BG value, then press Yes if you want this value to be used by the suggested bolus calculator.

You can also enter a BG manually by choosing the

More actions menu, then choosing Add BG Read- ing. See the end of Chapter 7, Checking Your Blood

Glucose.

Understanding and Delivering Bolus Doses

Figure 4-4

Figure 4-5

2. If you are not Suggested Bolus screen appears (Figure 4-5). Press Enter to accept the suggested bolus.

Or, if you wish, press the Up/Down Controller buttons to increase or decrease the suggested bolus. Then press Enter to accept the bolus.

going to eat now, press No (Figure 4-4). The

In the Suggested Bolus screen (Figure 4-5), “adjusted for Insulin on Board (IOB)” appears only when Insulin on Board (IOB) is a factor in the calculation.

To view detailed information about the calculations used for this suggested bolus, press the User Info/Support button and scroll through the information screens. Press Close to return to the Suggested Bolus screen.

3. If you are going to eat now: a. Press Yes (Figure 4-5), enter the number of carbohydrates

you are about to eat, then press Enter. If you’ve previously entered a carb preset, then either:

• Use the Up/Down Controller buttons to choose [enter manually], then press Select. Enter the num- ber of carbohydrates that you are going to eat, then press Enter.

• Use the Up/Down Controller buttons to choose favorites, snacks, or meals. From there, select a carb preset you have previously entered (see “Carb Presets” later in this chapter), then press Select.

b. Press Enter to accept the suggested bolus (Figure 4-6 on

the following page). Or press the User Info/Support Soft Key (?) button to view

calculation information used for this suggested bolus. Press Close to return to the Suggested Bolus screen, then press Enter.

Understanding and Delivering Bolus Doses

Figure 4-6

If the reverse correction feature is turned On and if your blood glucose level is below your target, the System subtracts a correction amount from the meal portion of the bolus.

If the reverse correction setting is turned Off, the Systemdoes not subtract anything for a blood glucose level below your target.

4. If you have set the blood glucose reminder option to On a you want to add a reminder:

a. Press Yes. b. Enter the time for the reminder, then press OK.

5. Press Confirm to begin the bolus delivery.

Deliver a bolus manually (suggested bolus calc is Off)

1. On the Home screen, use the Up/Down Controller buttons to choose Bolus, then press Select.

2. Enter the number of units you want to deliver, then press Enter.

3. If the blood glucose reminders feature is turned On, you can now set a blood glucose reminder.

4. Press Confirm to begin the bolus delivery.

As a safety feature, the OmniPod System only allows you to give a bolus at or below the maximum bolus dose you have set. See Chapter 6, Using the Personal Diabetes Manager, for information on resetting your maximum bolus dose. If suggested bolus calc is On, you can enter a temporary manual override to make an adjustment above your max bolus limit (Figure 4-1 and Figure 4-2). Consult your healthcare provider before changing this setting.

Understanding and Delivering Bolus Doses

Figure 4-7

Figure 4-8

■ Deliver an Extended Bolus

The extended bolus feature lets the OmniPod System deliver some (or no) insulin now and the remainder over a period of time you choose.

Deliver an extended bolus instead of a normal bolus

1. After you get your suggested bolus, press Extend instead of Enter (see Figure 4-7).

If you have set the Extended bolus option to Off, the PDM will not display the Extend Soft Key. For information on turning this feature On and Off see Chapter 6, Using the Personal Diabetes Manager.

2. Enter the units of insulin or percentage of the bolus that you want to take immediately (Figure 4-8), then press Enter.

To learn how to set extended boluses in percentages or units, see Chapter 6, Using the Personal Diabetes Manager.

Understanding and Delivering Bolus Doses

Figure 4-9

Figure 4-10

3. Enter the time (up to 8 hours, in 30-minute increments) over ch to deliver the remainder of the bolus, then press Enter

whi (Figure 4-9). In Figure 4-10 you can see a detailed view of the extended bolus.

4. If the blood glucose reminders feature is turned On, you

can now set a blood glucose reminder.

5. Press Confirm to begin the bolus delivery.

As a safety feature, the correction bolus is always delivered first and cannot be extended. Only the meal bolus can be extended. For example:

Total bolus = 5 units

Correction bolus 1 unit Meal bolus 4 units

Deliver now = 2 units

correction bolus 1 unit meal bolus 1 unit

Extend = 3 units

meal portion 3 units

As a safety feature, you cannot deliver two extended boluses at the same time. You can, however, cancel the first extended bolus and replace it with another (see “Replace an Extended Bolus” on page36). You can deliver a normal bolus while an extended bolus is being delivered.

Understanding and Delivering Bolus Doses

Figure 4-11

Figure 4-12

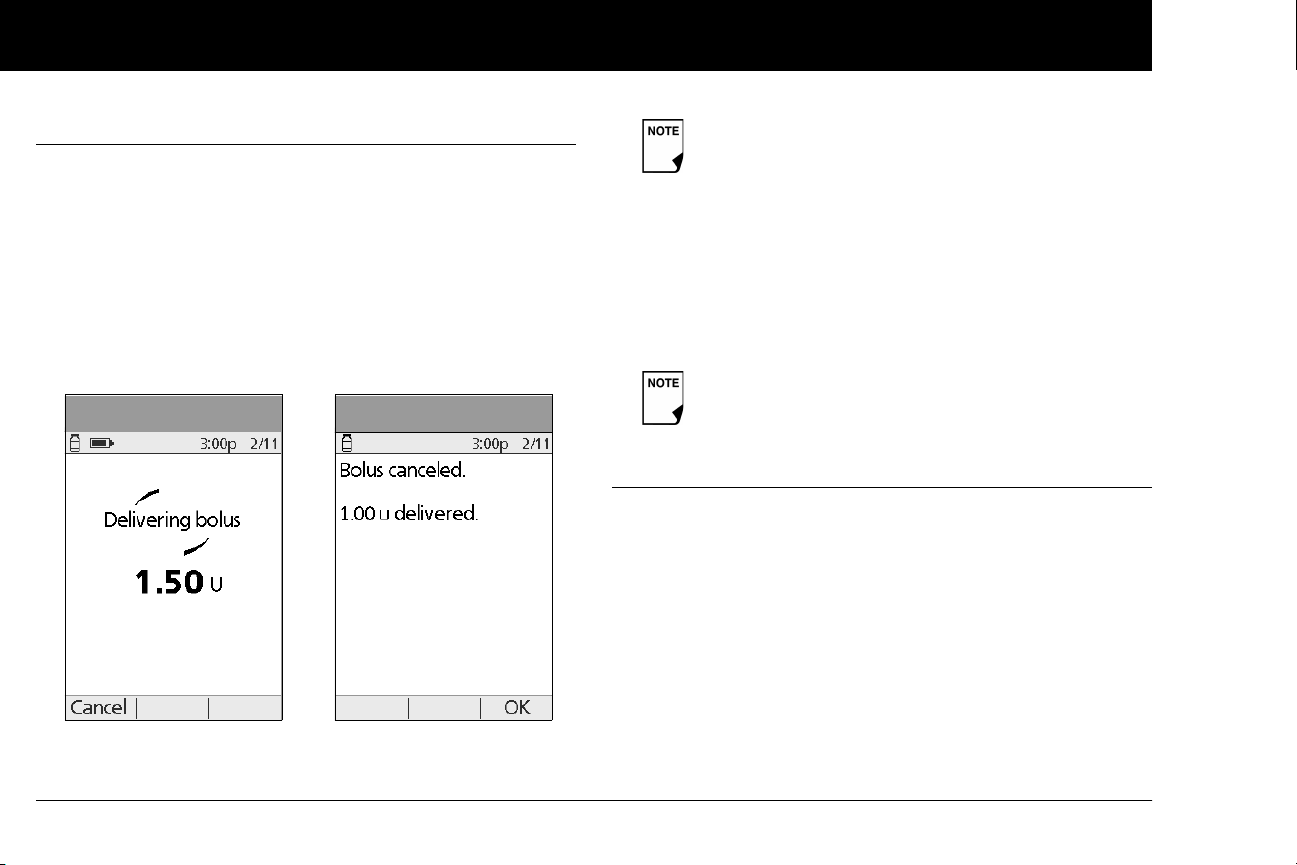

■ Cancel Active Boluses

The OmniPod System is extremely flexible, so you can use it to respond to your changing insulin needs. It is easy to cancel an active bolus (one that is currently being delivered), even after insulin delivery has started.

1. To check the Pod status, refer to Page 54 for detailed instructions. The ID screen must be confirmed before you can check Pod status. An on-screen message appears for as long as a normal bolus is being delivered (Figure 4-11).

If the bolus has already been completely delivered, the “Delivering bolus” message and Cancel do not appear, but the Status screen does appear.

2. Press Cancel. The Pod beeps to confirm the bolus is cancelled. An on-screen

message tells you how much insulin was delivered before you cancelled the bolus (Figure 4-12).

3. Press OK to return to the Status screen.

If your suggested bolus contains both a correction bolus and a meal bolus, the correction bolus is always delivered first.

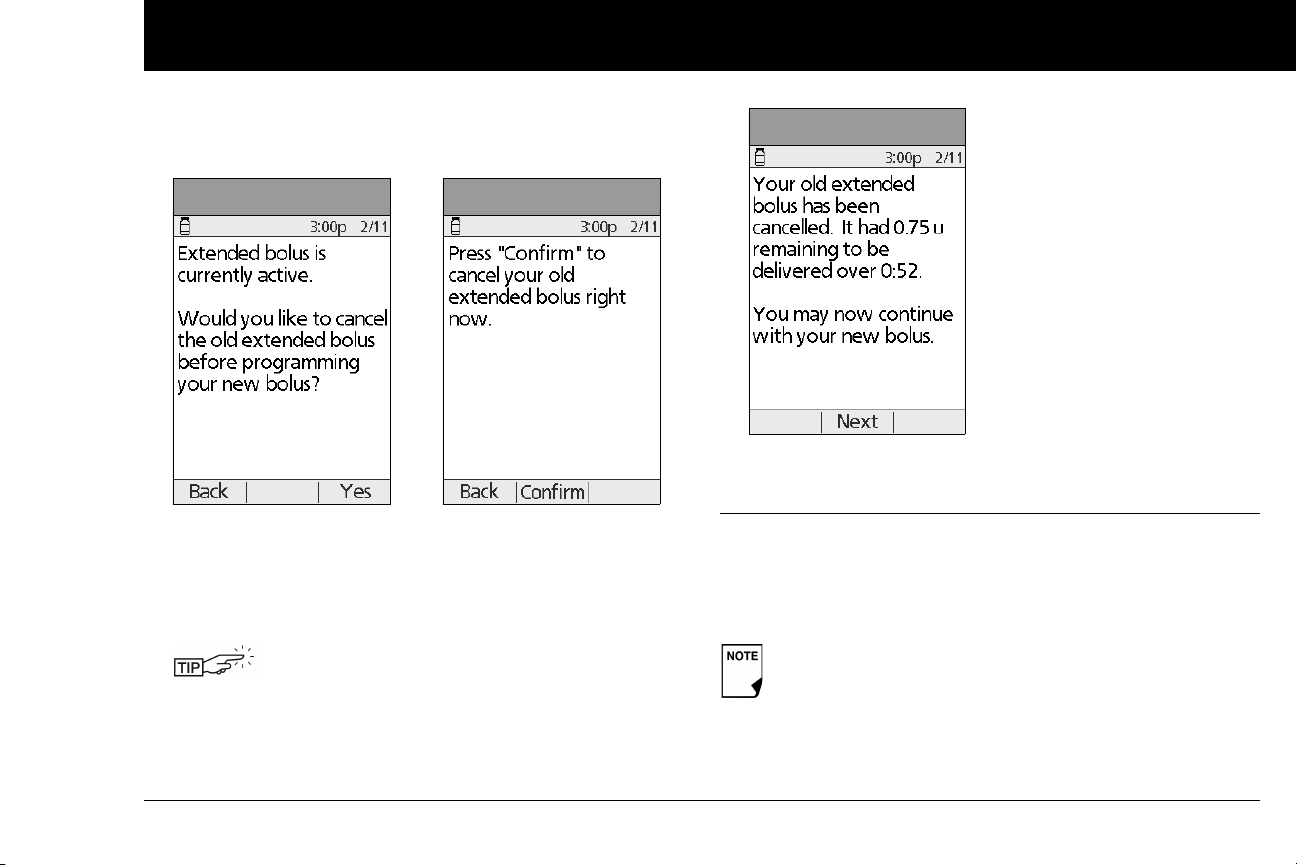

■ Replace an Extended Bolus

You can replace one extended bolus with another. The System tells you how much of the first bolus has not yet been delivered.

1. After you see your suggested bolus, press Extend instead of Enter (see Figure 4-7 on Page 34).

Understanding and Delivering Bolus Doses

Figure 4-13

Figure 4-14

Figure 4-15

2. Press Yes to cancel the active extended bolus (Figure 4-13). r press Back to return to the Suggested Meal Bolus screen.

■ Bolus Presets

3. Press Confirm (Figure 4-14).

4. The screen displays the amount of the old extended bolus

that has yet to be delivered (Figure 4-15). Press Next to return to the Suggested Meal Bolus screen.

You can add what remained of the old extended bolus to the new one.

Bolus presets are bolus amounts that you program for frequent use. For example, if you often take the same bolus at lunchtime, you can create a bolus preset for that amount and name it “Lunch.”

Bolus presets are available only when the suggested bolus calculator feature is turned Off. (If the suggested bolus calculator is turned On, you can still use carb pre- sets. See “Carb Presets” on Page 39.)

Understanding and Delivering Bolus Doses

Figure 4-16

Figure 4-17

Create a bolus preset

n the Home screen use the Up/Down Controller buttons

1. O to choose Settings; then press Select.

2. Choose Presets, then press Select.

3. Choose Bolus presets, then press Select.

4. Choose [add new], then press New.

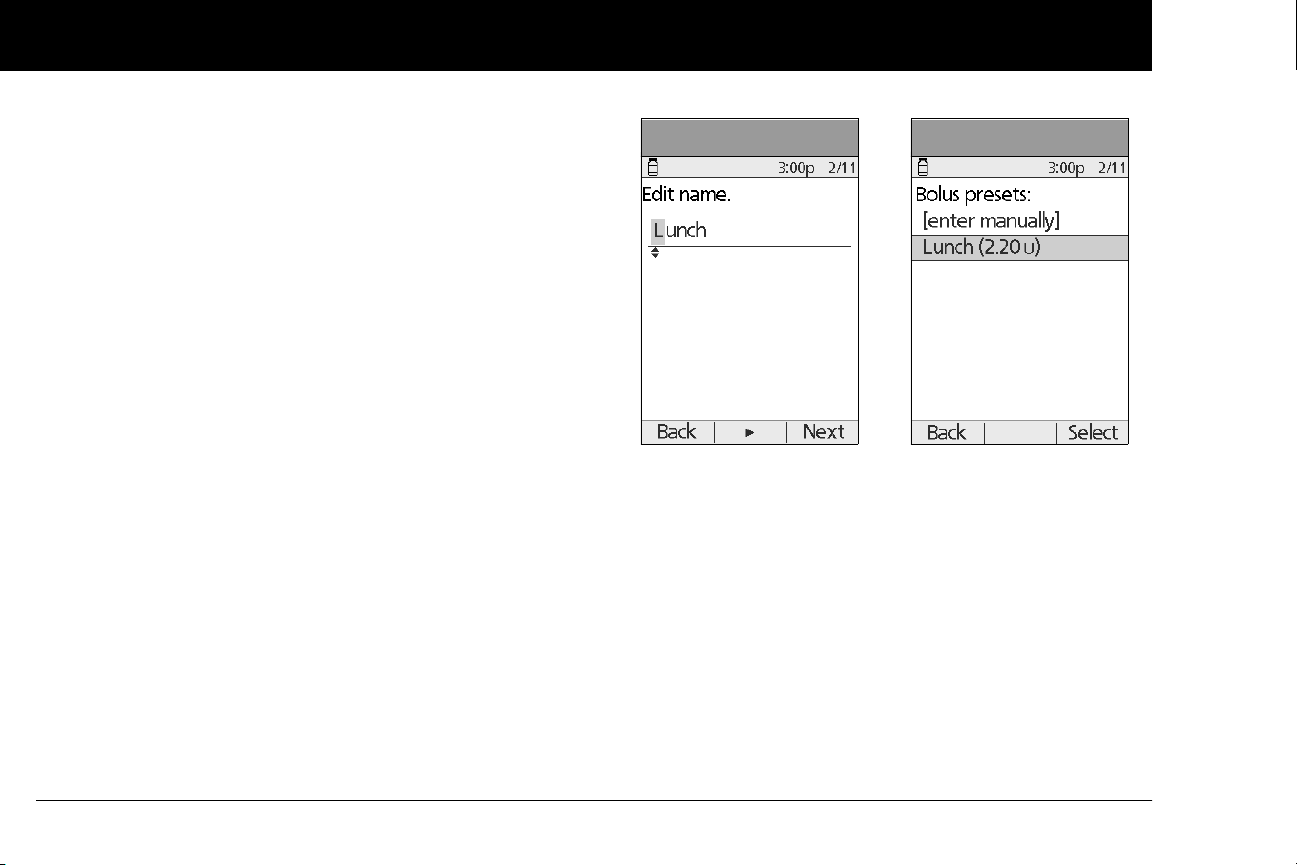

5. To use the OmniPod System’s default naming system, simply press Next. The default naming system automatically assigns program names in numerical order, such as bolus 1, bolus 2, bolus 3.

Or, to give a different name to the program: a. Press the Up/Down Controller buttons to enter the char-

acters that spell the name you want. An up and down arrow symbol on the screen indicates which character you are changing.

b. Press the middle Soft Key (labeled with the right arrow) to

move the underscore to the next character.

c. Enter each character one at a time. For example, if you

frequently take the same bolus at lunchtime, you might enter L, u, n, c, h (Figure 4-16).

d. Press Next.

6. Enter the new bolus preset amount, up to the maximum bolus you entered during setup; then press Next.

7. Review the bolus preset name and amount, then press Save to accept it.

Enable an existing bolus preset

1. On the Home sc to choose Bolus; then press Select.

2. Choose the bolus preset you want to use from the list (Figure 4-17), then press Select.

3. Press Enter to confirm the bolus preset amount, or, if neces- sary, use the Up/Down Controller buttons to adjust the bolus amount.

reen, use the Up/Down Controller buttons

Understanding and Delivering Bolus Doses

4. Press Confirm t

o deliver the bolus shown on the screen.

Change, rename, or delete a bolus preset

1. On the Home screen, use the Up/Down Controller buttons to choose Settings, then press Select.

2. Choose Presets, then press Select.

3. Choose Bolus presets, then press Select.

4. Choose a preset from the list, then press Edit.

Change a bolus preset

1. Choose Edit, then press Select.

2. Enter a new insulin amount for the bolus, then press Save.

Rename a bolus preset

1. Choose Rename, then press Select.

2. Press the Up/Down Controller buttons to enter the charac- ters that spell out the name you want,then press Next.

Delete a bolus preset

1. Choose Dele

2. Press Delete to permanently delete the preset.

te, and then press Select.

Cancel an active bolus preset

1. Press and hold the Power button to turn on the PDM (To check the Pod status, refer to Page 54 for detailed instructions. The ID screen must be confirmed before you can check

Pod status.), if it is not already on. An on-screen message appears as long as a bolus is being delivered.

2. Press Cancel. The Pod beeps to confirm the bolus is cancelled. An on-screen

message tells you how much insulin was delivered before you cancelled the bolus.

3. Press OK to return to the Status screen.

For more details, see “Cancel Active Boluses” earlier in this chapter.

■ Carb Presets

Carb presets are favorite food items, snacks, or meals that you eat frequently. After you enter these items, you can quickly select one when entering carb amounts during the suggested bolus calculator process.

Create a carb preset

1. On the Home sc to choose Settings;,then press Select.

2. Choose Presets, then press Select.

3. Choose Carb presets, then press Select.

4. Choose the category for this carb preset: (Favorites, Snacks, or Meals), then press Select.

5. Choose [add new], then press New.

reen, use the Up/Down Controller buttons

Understanding and Delivering Bolus Doses

Figure 4-18

6. To use the OmniPod System’s default naming system, simply ss Next. The default naming system automatically assigns

pre program names in numerical order, such as carb preset 1, carb preset 2, carb preset 3.

Or, to give a different name to the program: a. Press the Up/Down Controller buttons to enter the char-

acters that spell the name you want. An up and down arrow symbol on the screen indicates the character you are changing.

b. Press the middle Soft Key (the right arrow) to move the

underscore to the next character.

c. Enter each character one at a time. For example, if you

frequently eat a breakfast consisting of plain low-fat yogurt with blueberries, sweetener, and cinnamon, you might enter B, l, u, e, [space], Y, o, g, u, r, t (Figure 4-18).

d. Press Next.

7. Enter the grams of carbohydrate in the meal, then press Next.

8. If you want, enter the grams of fiber, fat, and protein in the

meal, and the total calories. Press Next after each entry.

If you do include grams of fiber in step 8 to the left, the suggested bolus calculator uses carbs minus fiber. Alternatively, in step 7, you can enter the total grams of carbs minus the fiber yourself. Your healthcare provider can best advise you on how to make this entry.

9. Press Save to add the preset to the category.

These additional units are not required. If you prefer not to enter them, simply press Next repeatedly to skip through the screens.

Change or edit a carb preset

1. On the Home sc to choose Settings, then press Select.

2. Choose Presets, then press Select.

reen, use the Up/Down Controller buttons

Understanding and Delivering Bolus Doses

Figure 4-19

Figure 4-20

3. Choose Carb presets,

4. Choose the category of the preset you want to change, then press Select (Figure 4-19).

then press Select.

To change the category for a carb preset

1. Choose the carb preset you want to move to another ca gory, then press Tag (Figure 4-20).

2. Choose a new category, then press Select.

te-

To edit a carb preset

1. Choose the carb preset you want to change, then press Edit.

2. Press Edit again on the next screen.

3. To rename the carb preset, press the Up/Down Controller buttons to enter the characters that spell out the name you want, then press Next.

To “erase” characters, press either Up or Down until you reach the end of the characters, which gives you the option to choose a blank space.

4. Enter the grams of carbohydrate in the meal, then press Next.

5. If you want, enter the grams of fiber, fat, and protein in the meal, and the total calories. Press Next after each entry.

These additional units are not required. If you prefer not to enter them, simply press Next repeatedly to skip through the screens.

6. Press Save to update the preset.

Delete a carb preset

1. On the Home sc to choose Settings, then press Select.

2. Choose Presets, then press Select.

3. Choose Carb presets, then press Select.

4. Choose the category of the preset you want to change, then press Select.

5. Choose the carb preset you want to delete, then press Edit.

6. Press Delete.

7. Press Delete again to permanently delete the preset.

reen, use the Up/Down Controller buttons

Understanding and Delivering Bolus Doses

Figure 4-21a

Figure 4-21b

■ Reference Food Library

The Food Library is for reference only. (Food references contained in the library cannot be populated and used for calculations.)

The OmniPod System includes a reference library of over 1,000 common food items. The library shows each item’s grams or carbohydrate, fat, protein, and fiber values , and calories for a single portion. You can use this information to determine the carbs for a meal or snack you are going to eat. You can also use it to help you create carb presets for your favorite meals.

The items in the food library are derived from the USDA database, USDA National Nutrient Database for Standard Reference.

Access the reference food library

1. On the Home screen, use the Up/Down Controller buttons to choose More actions, then press Select.

2. Choose Food library, then press Select. The screen displays a list of main food categories (Figure 4-21a

and Figure 4-21b).

3. To choose directly from the food categories, choose a main category, then press Select. Choose a subcategory, then press Select. Choose a food item from the subcategory, then press View.

4. To choose from an alphabetical list of foods, press Index. Enter the first letter of the food item, then press Select. Choose a food item from the alphabetical list, then press View.

The screen displays the food item’s:

• Name

• Serving size

• Grams of carbohydrate, fiber, fat, and protein

• Total calories

5. Press OK to return to the list of main food categories.

CHAPTER 5

Using the Pod

■

The Pod Change Process

Replace the Pod at least once every 48–72 hours or up to 200 units of insulin (2–3 days). Refer to the insulin labeling and fol-

low your healthcare provider’s directions for how often to replace your Pod. If you like, you can set the Personal Diabetes Manager (PDM) to notify you when it is time to replace the Pod (see Chapter 6, Using the Personal Diabetes Manager).

WARNINGS!

• Do NOT apply or use a Pod if the sterile packaging is open or damaged, or if the pad has been dropped after removal from the package as this may increase the risk of infection. Pods are sterile unless packaging has been opened or damaged.

• Do NOT apply or use a Pod if it is damaged in any way. A damaged Pod may not work properly.

• To minimize the possibility of site infection, do NOT apply a Pod without first using aseptic technique. This means to:

• wash your hands

• clean the insulin vial with an alcohol prep swab

• clean the infusion site with soap and water

• keep sterile materials away from any possible germs

• Do NOT use a Pod if you are sensitive to or have allergies to acrylic adhesives, or have fragile or easily damaged skin.

• Check often to make sure the Pod and soft cannula are securely attached and in place. A loose or dislodged cannula may interrupt insulin delivery. Verify there is no wetness or scent of insulin, where as may indicate the cannula has dislodged.

• Do NOT apply a new Pod until you have deactivated and removed the old Pod. A Pod that has not been deactivated properly may continue to deliver insulin as programmed, putting you at risk of over infusion and possible hypoglycemia.

• Because insulin Pods use only rapid-acting insulin, users are at increased risk for developing hyperglycemia (high blood glucose) if insulin delivery is interrupted. If it is untreated, severe hyperglycemia can quickly lead to diabetic ketoacido- sis (DKA). DKA can cause symptoms such as breathing difficul-

Using the Pod

Figure 5-1

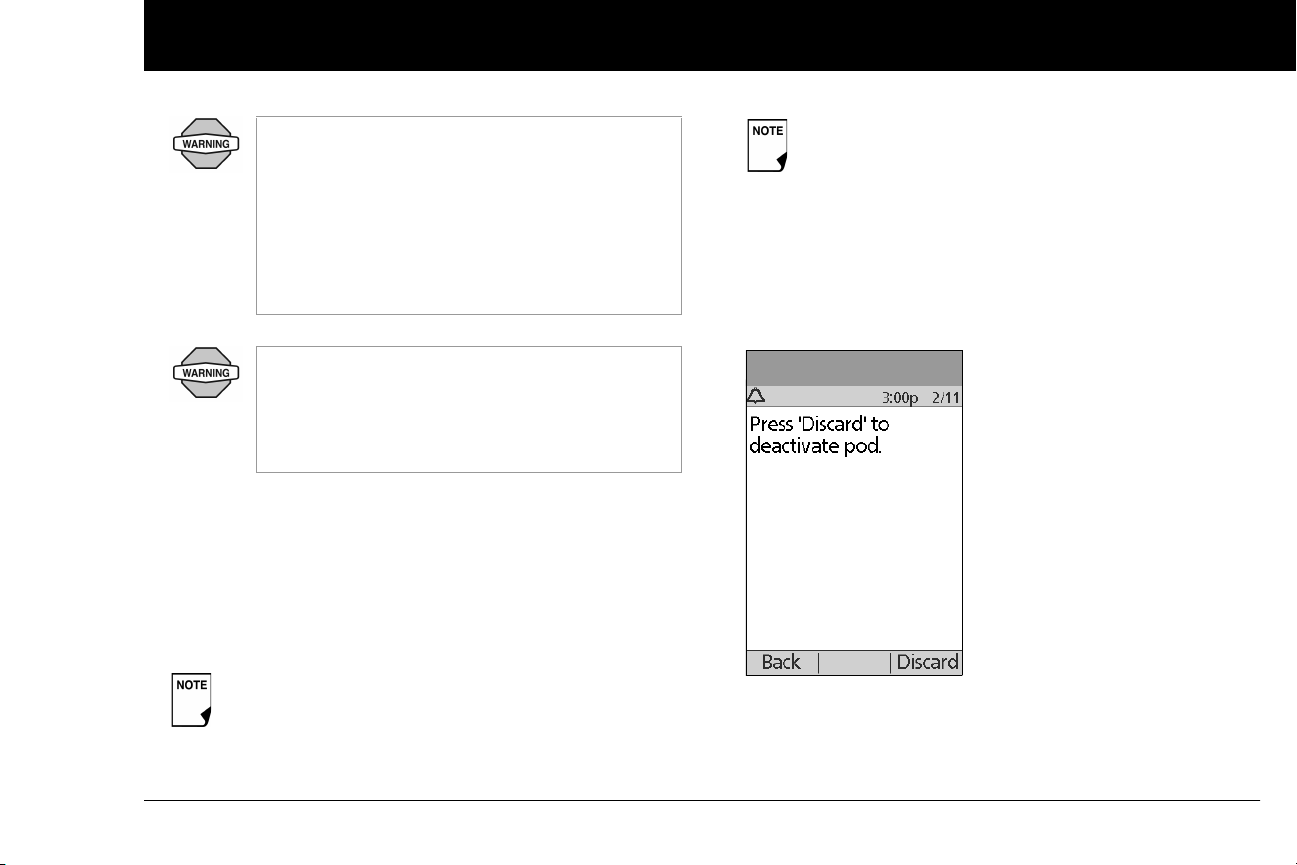

Figure 5-2

ties, shock, coma, or death. If insulin delivery is interrupted for any reason, you may need to replace the missing insulin usually with an injection of rapid-acting insulin. Ask your healthcare provider for instructions on handling interrupted insulin delivery.

Gather equipment and supplies

Gather the following before you begin:

• A vial of rapid-acting U-100 insulin (See the warning on pagex of the Introduction for a list of insulins approved for use in the OmniPod System.)

NEVER use insulin that is cloudy; it may be old or inactive. Failure to use rapid-acting U-100 insulin, or using insulin that is expired or inactive, may lead to hyperglycemia or diabetic ketoacidosis (DKA).

• An unopened Pod

• AN alcohol prep swab

If you are a first-time OmniPod System user, your healthcare provider will guide you through the steps for initializing and applying your first Pod. Do NOT attempt to apply or use a Pod until you have been trained by your healthcare provider. Use of the System with inadequate training or improper setup could put your health and safety at risk.

Deactivate the current Pod

1. On the Home screen, use the Up/Down Controller buttons to choose More actions, then press Select.

2. Choose Change Pod (Figure 5-1), then press Select.

3. Press Confirm (Figure 5-2) to deactivate the current Pod.

4. If an extended bolus or temporary basal or both are actively running, you will see the message in Figure 5-3 on the next page. Press Confirm to accept the cancellation.

Or press Back to return to the More actions menu.

Using the Pod

Figure 5-3

Figure 5-4

5. After you press Confirm, you will see the message in Figure 5-4 on the next page.

To remove the old Pod: a. Gently lift the edges of the adhesive tape from your skin

and remove the entire Pod (Figure 5-3).

Removing the Pod slowly will help to avoid possible skin irritation.

b. Use soap and water to remove any adhesive that remains

on the skin or, if necessary, use an adhesive remover.

c. Discard the used Pod according to local waste disposal

regulations.

Check the infusion site for signs of infection. See “Avoid Infusion Site Infections” later in this chapter.

6. After removing the old Pod, press Next (Figure 5-4).

7. Press Yes to fill and activate a new Pod (Figure 5-4).

Fill a new Pod

Before filling a Pod, ensure that no other Pods are being activated within 24 inches of your PDM.

Before filling a Pod with insulin, ensure that the Pod is above 50° Fahrenheit (10° Celsius). If the Pod has been exposed to temperatures below 50° F (10° C), then allow the Pod to be brought back to room temperature before filling it with insulin.

1. Use an alcohol prep swab to clean the top of the insulin vial, then discard the prep swab.

2. Securely twist the fill needle onto the syringe (Figure 5-5, on the next page).

3. Pull outward to remove the protective cap from the needle (Figure 5-6, on the next page). Save the cap; you will need it later.

Using the Pod

Figure 5-5

Figure 5-6

Fill port

Use care after removing the needle cap and exposing the fill needle.

Only use room temperature insulin when filling the Pod.

4. Determine the amount of insulin you need to insert into the Pod. For example, if you will use this Pod for 48 hours, you need enough insulin to last you 48 hours. Your healthcare provider will help you determine the correct amount.

The Pod requires a minimum of 85 units of insulin to begin operation.

The Pod can deliver up to 200 units of insulin.

5. Draw air into the syringe up to the amount of insulin you want.

6. Insert the needle into the insulin vial and inject the air. This makes it easier to withdraw insulin from the vial.

7. Turn the vial and syringe upside down. Withdraw insulin from the vial into the syringe, expelling any and all air or air bubbles. Fill at least to the MIN (minimum) fill line (Figure 5-5). Refer to the Care Giver Guide as an additional reference.

Make sure there is no air in the syringe before attempting to fill a Pod with insulin.

8. Remove the needle from the vial and insert it straight down into the insulin fill port on the underside of the Pod (Figure 5-6).

Be sure to only insert the fill syringe into the fill port. Attempting to inject insulin into any other location on the Pod may result in damage to the Pod or loss of insulin.

Using the Pod

To ensure proper fill, do not insert the fill syringe at an angle into the fill port.

Do not use any other type of needle or filling device besides the syringe provided with each Pod.

9. Depress the syringe plunger to completely empty the insulin into the Pod. The Pod will beep, indicating that the System is ready to proceed to the next step.

NEVER use a Pod if you hear a crackling noise or feel resistance when you depress the plunger. These conditions can result in interrupted insulin delivery of insulin.

10. Remove the needle from the insulin fill port. The port is selfsealing; insulin will not leak after the needle is removed.

11. Place the protective cap back on the needle and remove the needle from the syringe

Do not insert the fill syringe into the fill port more than once.

NEVER inject air into the fill port. Doing so may result in unintended or interrupted insulin delivery.

The fill syringe is intended for single use only and should be used only with the OmniPod System.

12. After you fill the Pod, it will beep twice. After hearing the beeps, PDM and pod should be adjacent and touching, either in or out of tray to ensure proper communication during priming (Figure 5-7, on the next page). Press Next.

As a safety feature, the communication distance between the Pod and PDM is reduced during activation. Once a Pod is primed and communicates with the PDM, the full communication range is restored and the Pod can receive commands only from that PDM.

13. The Pod will only beep if you have filled it with at least 85 units of insulin. If you have filled the Pod with more than 85 units and still do not hear the 2 beeps, call Customer Care.

14. The System performs a series of safety checks and automatically primes the Pod (Figure 5-8). Once complete, the PDM beeps, letting you know that the priming and safety checks were successful.

Using the Pod

Figure 5-7

Figure 5-8

Select the infusion site

Before applying a new Pod, you must first select an appropriate infusion site. Due to ease of access and viewing, the abdomen is often used. Your healthcare provider may suggest other potential sites that, like the abdomen, typically have a layer of fatty tissue, such as the hip, back of upper arm, upper thigh, or lower back (Figure 5-9 and Figure 5-10, on the next page).

Avoid sites where belts, waistbands, or tight clothing may rub against, disturb, or dislodge the Pod. Also avoid sites where the Pod will be affected by folds of skin.

After filling the Pod with insulin, you should complete the Pod change process within 60 minutes. As a reminder that the Pod has been filled, it will beep every 5 minutes to indicate that time is passing. If you do not set up the Pod within 60 minutes, you must deactivate and discard it.

Once a Pod is activated and communicates with the PDM, it can only receive commands from that PDM, not from any other.

Change the site each time you apply a new Pod. A new infusion site should be at least 1" away from the last site. (Using the same location repeatedly may reduce insulin absorption.)

Do NOT apply the Pod within 2" of your navel or over a mole or scar, where insulin absorption may be reduced.

Figure 5-9: Adult/Youth

Front

Back

Figure 5-10: Toddler

Front Back

Using the Pod

Figure 5-11

Figure 5-12

To help avoid condensation from occurring in the viewing window, make sure both your Pod and your insulin are at room temperature.

You can reduce the risk of infection at the infusion site by following aseptic technique and disinfecting the infusion site. Before applying a new Pod, always:

1. Wash hands with soap and water.

2. Use soap to wash the infusion site.

Antibacterial soap may irritate skin, especially at the infusion site. Ask your healthcare provider how to treat any skin irritation.

3. Dry the site with a clean towel.

4. Use an alcohol prep swab to disinfect the infusion site. Start at the center of the site and gently rub outward in a circular motion.

5. Let the site air-dry thoroughly. Do not blow on the site to dry it.

Apply the new Pod

Prepare the Pod for applying to your infusion site:

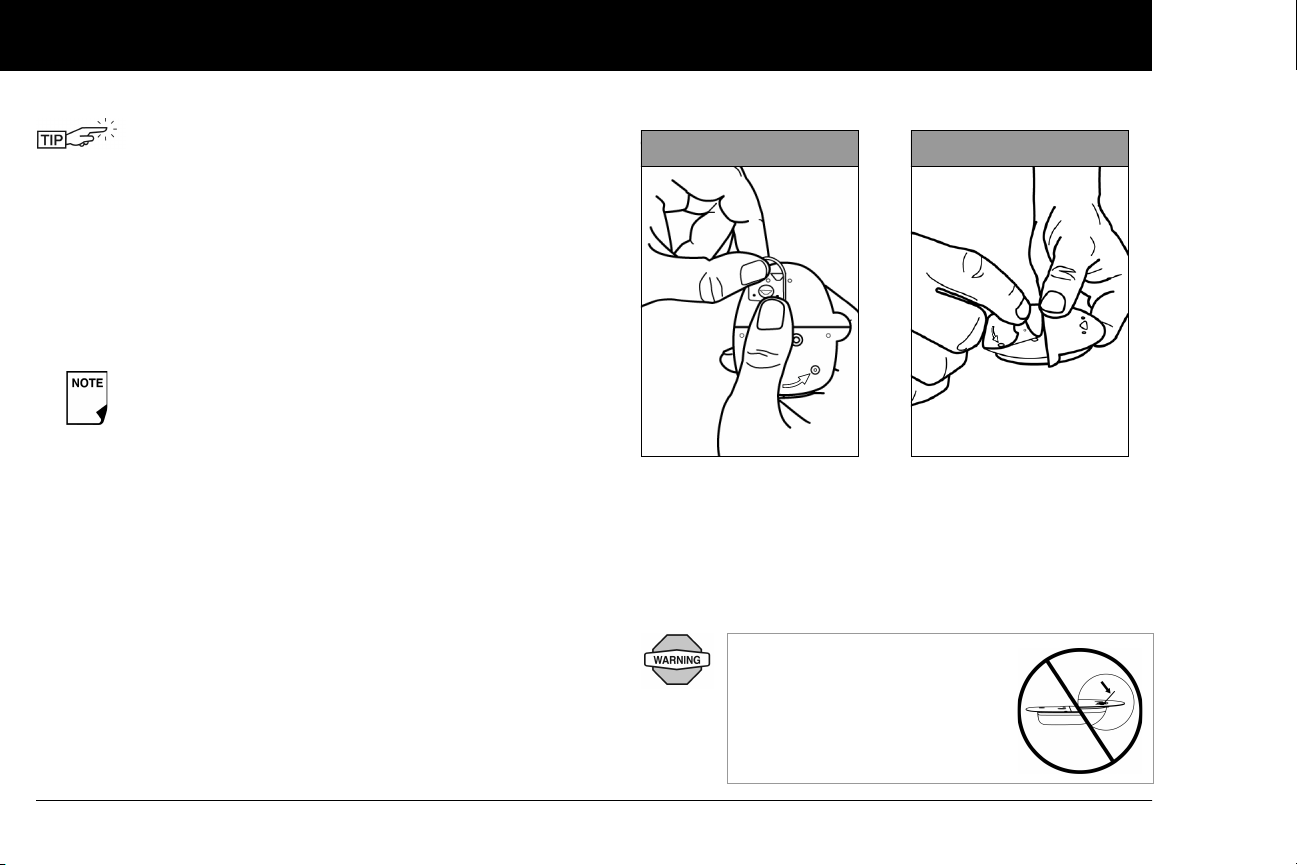

1. To remove the needle cap on the underside of the Pod, place your thumb on the bottom (flat edge) of the needle cap and pull it upwards (Figure 5-11). The needle cap will snap off.

2. How to verify Pod is Ready Pod is:

• Clean and dry

• Adhesive pad is intact and undamaged

• Pod is intact and in its original condition

Verify cannula is not extending beyond adhesive backing once needle cap is removed.

Using the Pod

Figure 5-13

Figure 5-14

• If Pod is accidentally dropped discard - sterility may be compromised.

If you are unsure the Pod is ready to be applied to the site, press “Discard” and do not use (Figure 5-14). Select a new Pod.

Do not remove the needle cap until you are instructed to do so by the PDM. When you remove the needle cap, a drop of insulin may be visible at the end of the cannula or in the well.

3. Using the pull tabs, remove and discard the white paper backing from the adhesive tape (Figure 5-12).

4. Apply the Pod to the prepared infusion site. Press firmly to secure it to your skin.

For the Pod to work best, apply it: a. Crosswise or at a slight angle on your abdo-

men, hip, upper back, or buttocks (in Figure 5-

13)

b. Up and down or at a slight angle on your

upper arm or thigh (in Figure 5-13)

c. At least one inch away from the last site

The Pod’s adhesive keeps it securely in place for up to 3 days. However, if necessary, several products are available to enhance adhesion. Ask your healthcare provider about these products. Avoid getting body lotion, creams, or oils near the infusion site; these products may loosen the adhesive.

5. After you securely apply the Pod, press Next (Figure 5-14).

The adhesive is designed for one-time use. Once removed, a Pod cannot be reapplied.

Using the Pod

Figure 5-15

Figure 5-16

Figure 5-17

Figure 5-18

Insert cannula and begin insulin delivery

1. To insert the soft cannula, press Start (Figure 5-15).

If you are applying a Pod in a place that does not have a lot of fatty tissue or is very lean, pinch the skin around the Pod (Figure 5-17) after you press Start and hold it until the cannula inserts. Occlusions may result in lean areas if you do not use this technique.

The Pod automatically inserts the soft cannula below your skin. It takes a few seconds to complete the insertion process. Once the cannula is inserted, the Pod delivers a prime bolus to fill the cannula with insulin (Figure 5-18).

You will hear a click when the cannula inserts.

The soft cannula is tinted light blue to improve visibility at the insertion site.

Using the Pod

Figure 5-19

Check the infusion site after insertion to ensure that the cannula was properly inserted. It is also a good idea to check your blood glucose about 1.5 to 2 hours after each Pod change and to check the infusion site periodically. If the cannula is not properly inserted, hyperglycemia may result. Verify there is no wetness or scent of insulin, where as may indicate the cannula has dislodged.

If you observe blood in the cannula, check your blood glucose more frequently to ensure insulin delivery has not been affected. If you experience unexpected elevated blood glucose levels, change your Pod.

Once the soft cannula is inserted, the PDM indicates that the Pod is active (Figure 5-18, on the previous page).

Figure 5-18, on the previous page also displays a reminder to check the infusion site and cannula. Make sure the Pod is securely attached to your skin. You can see the cannula through the small viewing window on the Pod.

To help avoid condensation from occurring in the viewing window, make sure both your Pod and your insulin are at room temperature.

Condensation may occur in the viewing window, from sweating and perspiration.

2. Press Yes if you can see that the cannula is properly inserted. The PDM returns to the Status screen.

Press No if you see a problem with the cannula. The PDM instructs you to deactivate the new Pod (Figure 5-19). Press Discard to restart the process with a new Pod.

Or press Back to return to the previous screen.

Using the Pod

NEVER inject insulin (or anything else) into the fill port while the Pod is on your body. Doing so may result in unintended or interrupted insulin delivery.

■

Check Pod Status

To check Pod status, if the PDM is turned Off, press and hold the Power button to display the ID screen, then press Confirm to

display the Status screen. If the PDM is On, press Back until you reach the Status screen. (If you press and hold the Power but- ton, you will turn off the PDM instead.) Or, from the Home screen, press Status.

The PDM automatically checks the status of the Pod. The PDM then displays the current reservoir volume, PDM battery level, last blood glucose, last bolus dose, active basal program, and any alarm conditions. See Chapter 6, Using the Personal Diabetes Manager, for details of what you see on the Status screen.

Once a Pod is activated and communicates with the PDM, it can only receive commands from that PDM, not from any other.

If the Pod goes into hazard alarm condition and the PDM is unable to communicate with it to turn off the alarm, you can turn it off manually. See the end of Chapter 10, Alerts and Alarms, for instructions.

■

Suspend Insulin Delivery

Sometimes you may need to briefly stop insulin delivery (for example, when editing an active basal program or changing the time or date). The OmniPod System lets you suspend all insulin delivery for up to 2 hours. While in suspension, the Pod beeps once every 15 minutes, reminding you that insulin delivery is suspended.

At any time during a suspension period, press Resume to resume the basal program that was running when you suspended insulin delivery.

Extended boluses and temporary basal rates will be cancelled when you suspend insulin delivery.

1. On the Home screen, use the Up/Down Controller buttons to choose Suspend; then press Select.

If a temporary basal or extended bolus is in process, the menu item will read Suspend/cancel instead, and options for cancelling these programs also appear in the menu. If these options appear, choose Suspend insulin delivery.

Using the Pod

Figure 5-20

Figure 5-21

Figure 5-22

2. Enter how long you want to stop all insulin delivery, from 30 minutes to 2 hours, in 30-minute increments (Figure 5-20), then press Enter.

3. Press Confirm to confirm that you want to halt all insulin delivery (basal and bolus). The PDM beeps and an on-screen message lets you know that insulin delivery is indeed suspended (Figure 5-21).

The Pod beeps every 15 minutes until the end of the suspension period. The Status screen shows INSULIN SUSPENDED until you resume insulin delivery (see “Resume Insulin Delivery” on the next page).

At the end of the suspend time, a Pod Advisory alarm occurs (Figure 5-22).

4. To resume your programmed basal rate, press OK.

The Advisory alarm repeats every 15 minutes until you press OK.

Insulin delivery will not resume until you press OK. If you do not press OK to resume insulin delivery, you could develop hyperglycemia (high blood glucose).

Using the Pod

Figure 5-23

■

Resume Insulin Delivery

■

Avoid Infusion Site Infections

1. On the Home screen, use the Up/Down Controller buttons to choose Resume (Figure 5-23), then press Select.

2. Press Confirm to restart the basal program for that time seg- ment.

• Always wash your hands and use the aseptic technique to pre- pare the infusion site before applying a Pod.

• Do not apply a Pod to any area of the skin with an active infection. If you are unsure whether to use a specific site, ask your healthcare provider.

• At least once a day, use the Pod’s viewing window to check the site for signs of infection and to confirm that the soft cannula is securely in place.

• Be aware of the signs of infection, including pain, swelling, redness, discharge, or heat at the site. If you suspect an infection, immediately remove the Pod and apply a new one in a different location. Then call your healthcare provider.

• Change the Pod as instructed by your healthcare provider.

■

Get the Most From Your Pod

Avoid extreme temperatures

The Pod’s operating temperature is between 40° F and 104° F (between 4.4° C and 40° C). Under normal circumstances, your body temperature will keep the Pod well within this range.

Using the Pod

Do NOT expose a Pod to direct sunlight for long periods of time. It is recommended that you remove your Pod prior to using hot tubs, whirlpools, or saunas. These conditions could expose the Pod to extreme temperatures and may also affect the insulin inside the Pod.

Remember to check your blood glucose levels frequently before and after removing the Pod. Check with your healthcare provider for guidelines on removing the Pod for extended periods.

Insulin degrades at high temperatures and will freeze near 32° F (0° C). Check the insulin manufacturer’s instructions for use.

Water and your Pod

The Pod is waterproof up to a depth of 25 feet for up to 60 minutes (IPX8). After exposure to water, rinse off the Pod with clean water and gently dry it with a towel.

Do not expose your Pod to water at depths greater than 25 feet or for more than 60 minutes. Check often to make sure the Pod and soft cannula are securely attached and in place. If the cannula is not properly inserted, hyperglycemia may result. Verify there is no wetness or scent of insulin, where as may indicate the cannula has dislodged.

The PDM is not waterproof. Do not place it in or near water.

Safe storage

Store unopened Pods in a cool, dry place. Extreme heat or cold can damage Pods and cause them to malfunction. If Pods are exposed to extreme temperatures, allow them to return to room temperature before use.

Pods are sterile unless their packaging is opened or damaged. Do NOT apply or use a Pod if its sterile packaging is opened or damaged, or if the Pod has been dropped after removal from the package as this may increase the risk of infection or serious injury.

CHAPTER 6

Figure 6-1

Figure 6-2

Using the Personal Diabetes Manager

■ The ID Screen

When you first turn on the PDM, it displays the identification (ID) screen (Figure 6-1), which allows you to identify that the PDM is yours. You can personalize the ID screen by adding your name and choosing its color. You must acknowledge the ID screen before you can use the PDM.

It is important that you always identify the PDM as yours before you use it.

■ The Status Screen

When a Pod is active and the PDM is turned on, the PDM estab-

hes communication with the Pod to obtain a status check.

lis During the status check, the PDM collects information from the Pod about bolus deliveries, active basal programs, and Pod expiration. The information obtained is then displayed in the status screen, which shows the System’s current operating status.

The Status screen (Figure 6-2) displays:

• Time, date, and result of last blood glucose checked or

• Time, date, and total amount of last bolus delivered

entered manually

Using the Personal Diabetes Manager

• Amount of insulin on board (IOB), if suggested bolus calcula is

tor in use

• Name and rate of active basal program or temp basal

program

• “Ext bolus,” the amount of insulin and the delivery time

remaining if an extended bolus is being delivered

• “INSULIN SUSPENDED” if insulin delivery has been

suspended

• Time and date when the Pod will expire If a Pod has not yet been activated (as in during Pod

changes), the screen displays “No active Pod. Would you like to activate a Pod now?” (See Chapter 5, Using the Pod, for details on activating a Pod.)

Insulin gauge and display

One of the important icons on the Status screen is the insulin gauge at the top of the screen. It indicates how much insulin is left in the Pod’s reservoir. As the reservoir empties, the icon changes to indicate the amount of insulin remaining.

Next to the insulin gauge, the PDM displays the number of units remaining in the Pod. As long as more than 50 units remain, the gauge displays “50+ U.” Once the reservoir volume drops to 50 units, the gauge counts down unit by unit. When the volume falls below 5 units, the display changes to “LOW.”

Regularly checking the insulin gauge enables you to plan Pod changes easily. For example, if you know you will need approximately 20 units during your work day and the insulin gauge shows only 17 units remaining, you can either take a new Pod with you or change it before you leave for the day.

PDM settings

You can adjust the PDM settings to meet your individual needs.

1. From the Status screen, press Home.

2. Use the Up/Down Controller buttons to choose Settings, then press Select.

3. Choose System setup, then press Select.

4. Choose an option from the System setup list, then press

Select (Figure 6-3 on the next page). Check with your health- care provider before making any changes.

Using the Personal Diabetes Manager

Figure 6-3

■ The System Setup Menu

The System setup menu lets you personalize the settings that control the OmniPod System. These include:

• Date and time

• Bolus doses, basal rates, and bolus calculator settings

• Alerts and reminders

• Blood glucose meter settings and tags

• PDM options

• Diagnostics

You and your healthcare provider entered initial System settings using the Setup Wizard (see Chapter 2, Getting Started). After setup, you can use the System setup menu to customize or change those settings, as described in this chapter.

■ Reset the Date or Time

Occasionally, you need to change date and time settings (for example, to adjust for daylight savings time or after resetting the PDM). As a safety feature, you can change date and time settings only when the Pod is deactivated or when insulin delivery is suspended (see Chapter 5, Using the Pod).

1. Suspend insulin delivery.

If you are changing the Pod, you can reset the date or time without suspending by changing the date or time before activating the new Pod.

2. On the Home screen, use the Up/Down Controller buttons to choose Settings; then press Select.

3. Choose System setup, then press Select.

4. Choose Date/time, then press Select.

5. Choose either Date or Time, then press Edit.

Using the Personal Diabetes Manager

Figure 6-4

Figure 6-5

Reset the time

o enter the current time, press the Up/Down Controller

1. T buttons. Press and hold the button to increase or decrease the time faster.

2. Press 12/24 hr to choose either a 12-hour or 24-hour clock, then press Enter (Figure 6-4).

3. Press Confirm to accept the new time (Figure 6-5).

Reset the date

1. Press the Up/Down Controller buttons to choose the cur- rent year, then press Next.

2. Choose the current month, then press Next.

3. Choose the current day, then press Next.

4. Choose the date format to be displayed by the PDM, then press Select.

5. Press Confirm to accept the new date and format.

If you suspended insulin delivery to change the time or date, remember to resume insulin delivery. If you changed the time or date during the Pod change process, remember to activate a new Pod.

■ Change Bolus and Basal Settings

You and your healthcare provider entered initial bolus and basal System settings using the Setup Wizard. Using the System setup menu, you can edit all the OmniPod System bolus and basal settings as your needs change. Check with your healthcare provider before making any changes.

1. On the Home screen, use the Up/Down Controller buttons to choose Settings, then press Select.

2. Choose System setup, then press Select.

3. Choose Bolus/basal/calcs, then press Select.

Using the Personal Diabetes Manager

Figure 6-6a

Figure 6-6b

4. Choose one of the options (Figure 6-6a and Figure 6-6b), then ss Select. Each option is described below.

pre

Bolus calcs

When the suggested bolus calculator is to turn it On, press On and follow these steps:

1. Target BG and correct-above value—You can edit existing

time segments and add segments, up to a total of 8.

turned Off and you want

a. To edit an existing target BG time segment, choose the

segment, then press Edit. Use the Up/Down Controller buttons to choose a new start time, end time, target BG value, and correct-above value (correction threshold). Press Next after each entry.

b. To add a segment, choose [add new], then press New.

Use the Up/Down Controller buttons to choose a start time, end time, target BG value, and correct-above value (correction threshold). Press Next after each entry.

c. When you have completed all the time segments you

want, press Done, then Save.

2. Min BG for calcs (minimum blood glucose value allowed for calculating boluses)—Use the Up/Down Controller buttons to enter a new minimum BG, then press Next.

3. Insulin-to-carb (IC) ratio—You can edit existing time seg- ments and add segments, up to a total of 8.

a. To edit an existing IC ratio time segment, choose the seg-

ment, then press Edit (Figure 6-7 on next page). Use the Up/Down Controller buttons to choose a new start time, end time, and IC ratio. Press Next after each entry.

b. To add a segment, choose [add new], then press New.

Use the Up/Down Controller buttons to choose a start time, end time, and IC ratio. Press Next after each entry.

c. When you have completed all time segments, press

Done, then Save.

Using the Personal Diabetes Manager

Figure 6-7

Figure 6-8a

Figure 6-8b

5. Reverse correction—Choose On or Off, then press Next.

6. Insulin action (duration)—Use the Up/Down Controller buttons to choose a duration of insulin action, then press Done.

7. Press OK.

Ratios/factors/targets

When the suggested bolus calculator is turned On, you can view and change all the settings using the Ratios/factors/targets menu option. Choose Review all settings, then press Select (Figure 6-8a ) or choose one setting from the menu, then press Select (Figure 6-8b). The steps are the same whether you choose all settings or individual ones.

4. Correction factor—Y add segments, up to a total of 8.

a. To edit an existing correction factor time segment, choose

the segment, then press Edit. Use the Up/Down Control- ler buttons to choose a new start time, end time, and correction factor. Press Next after each entry.

b. To add a segment, choose [add new], then press New.

Use the Up/Down Controller buttons to choose a start time, end time, and correction factor. Press Next after each entry.

c. When you have completed all time segments, press

Done, then Save.

ou can edit existing time segments and

Using the Personal Diabetes Manager

When the suggested bolus calculator is turned Off, the Ratios/factors/targets option does not appear in the Bolus/basal/calcs menu.

1. Target BG and correct-above value—Y segments and add segments, up to a total of 8.

a. To edit an existing target BG time segment, choose the

segment, then press Edit. Use the Up/Down Controller buttons to choose a new start time, end time, target BG value, and correct-above value (correction threshold). Press Next after each entry.

b. To add a segment, choose [add new], then press New.

Use the Up/Down Controller buttons to choose a start time, end time, target BG value, and correct-above value (correction threshold). Press Next after each entry.

c. When you have completed all the time segments you

want, press Done, then Save.

2. Min BG for calcs (minimum blood glucose value allowed for calculating boluses)—Use the Up/Down Controller buttons to enter a new minimum BG, then press Enter.

3. Insulin-to-carb (IC) ratio—Number of grams of carbohy-

drate covered by one unit of insulin. You can edit existing

time segments and add segments, up to a total of 8. a. To edit an existing IC ratio time segment, choose the seg-

ment, then press Edit. Use the Up/Down Controller but-

ou can edit existing

tons to choose a new start time, end time, and IC ratio. Press Next after each entry.

b. To add a segment, choose [add new], then press New.

Use the Up/Down Controller buttons to choose a start time, end time, and IC ratio. Press Next after each entry.

c. When you have completed all time segments, press

Done, then Save.

4. Correction factor—You can edit existing time segments and add segments, up to a total of 8.

a. To edit an existing correction factor time segment, choose

the segment, then press Edit. Use the Up/Down Control- ler buttons to choose a new start time, end time, and correction factor. Press Next after each entry.

b. To add a segment, choose [add new], then press New.

Use the Up/Down Controller buttons to choose a start time, end time, and correction factor. Press Next after each entry.

c. When you have completed all time segments, press

Done, then Save.

5. Reverse correction—Choose On or Off, then press Select.

6. Insulin action (duration) or Insulin on Board (IOB)—Use the Up/Down Controller buttons to choose a duration of insulin action, then press Enter.

Using the Personal Diabetes Manager

Temp basal

ose %, U/hr , or Off to set the mode for temporary basal

Cho rates and presets, then press Select.

Extended

Choose %, Units, or Off to set the mode for extended boluses, then press Select.

Bolus increment

Choose 0.05, 0.10, 0.50, or 1.00 units for bolus increments, then press Select.

Max bolus

Use the Up/Down Controller buttons to enter the maximum bolus dose you can take, then press Enter.

Max basal rate

Use the Up/Down Controller buttons to enter the maximum basal rate you can choose, then press Enter.

Some settings have preset defaults, but all settings are changeable. See the Appendix for a list of System specifications, including preset default settings.

For additional details on bolus and basal settings, see Chapter 3, Understanding and Adjusting Basal Rates, and Chapter 4, Understanding and Delivering Bolus Doses.

■ Alerts and Reminders

In addition to automatic safety alarms (see Chapter 10, Alerts and Alarms), the OmniPod System offers a number of personal settings to help you manage your diabetes. These features are optional. You can turn them on or off at any time, except for the alerts. Those you can set at levels that you find convenient to remind you to change your Pod.

Notifications you can use are: BG (blood glucose) reminder: Reminds you to check your blood

glucose. Choose from On or Off. The default setting is Off. When the reminder is on, the PDM asks you each time you enter a bolus dose whether you want to set a BG reminder, and you can then choose a time interval, in 30-minute increments.

Pod expiration: Reminds you when the Pod is nearing the 72hour expiration time. Choose a period from 1 to 24 hours before expiration, in 1-hour increments. The default setting is 4 hours. You will hear 2 sets of beeps every minute for 3 minutes. The notification will repeat every 15 minutes until you press OK to acknowledge it.

Low reservoir: Alerts you when insulin in the Pod reaches a certain level, so you can plan ahead to change the Pod. Choose a level from 10 to 50 units, in 5-unit increments. The default setting is 10 units.

Using the Personal Diabetes Manager

The Low reservoir alert will escalate to an Empty reservoir hazard alarm when insulin is depleted. Be sure to respond to the alert when it occurs.

Auto-off: Alerts you if the PDM does not receive a Pod status

thin a predefined period of time. Obtain Pod status by press-

wi ing and holding the PDM’s Power button. Choose a time period from 1 to 24 hours, in 1-hour increments, or choose Off. The default setting is Off. Refer to page 54 to check Pod status and to Confirm ID.

The Auto-off alert will escalate to a hazard alarm if ignored and will result in the deactivation of your active Pod. Be sure to respond to the alert when it occurs.

Turning the PDM on by inserting a blood glucose test strip does not send a Pod status to the PDM.

This alert can be especially reassuring if you are prone to hypoglycemia unawareness. Ask your healthcare provider about using this alert and where to set it.

If you use the Auto-off feature, always turn on the PDM with the Power button before using the system. This allows the PDM to obtain a Pod status. Refer to page 54 to check Pod status and to Confirm ID.

Bolus reminders: Notifies you if you have not delivered a meal bolus, manually or using the suggested bolus calculator, between the times you specify. Choose On or Off and choose up to 6 time segments.

Program reminders: Pod beeps when a program is in process (see Chapter 3, Understanding and Adjusting Basal Rates; and Chapter 4, Understanding and Delivering Bolus Doses, for details). These include:

• Temporary basal in process

• Extended bolus in process

Choose On or Off. The default setting is On. Confidence reminders: The Pod or PDM beeps in response to

your instructions, so you become familiar with the operation of the OmniPod System and feel confident that you are getting the insulin you need. These notifications include:

• Bolus delivery started

• Bolus delivery completed

• Extended bolus started

• Extended bolus completed

• Temporary basal rate started

• Temporary basal completed

Choose On or Off. The default setting is On.

Using the Personal Diabetes Manager

Figure 6-9

Custom reminders: Di times that you select. You can choose to receive a notification Daily, One time only, or Off. You can change or delete these notifications at any time.

splays text reminders that you enter, at

Set alerts and reminders

1. On the Home screen, use the Up/Down Controller buttons to choose Settings, then press Select.

2. Choose System setup, then press Select.

3. Choose Alerts/reminders, then press Select.

4. Choose the option you want to set (Figure 6-9), then press Select.

5. For all except Bolus reminders and Custom reminders, choose the desired option or set the desired value, then press Select or Enter.

6. For Bolus reminders

• Use the Up/Down Controller buttons to choose On or

Off, then press Select.

• If you chose On, you are taken to a new screen where you

can add, edit or delete reminders:

To add a Bolus reminder

a. Use the Up/Down Controller buttons to choose [add

new], then press New.

b. Choose a start time, then press Next. c. Choose an end time, then press Save.

To edit a Bolus reminder

a. Choose the bolus reminder you wish to edit, then

press Edit. b. Choose Edit, then press Select. c. Enter a new start time, then press Next. d. Enter a new end time, then press Save.

Using the Personal Diabetes Manager

Figure 6-10

To delete a Bolus reminder

hoose the bolus reminder you wish to delete, then

a. C

press Edit. b. Choose Delete then press Select. c. Press Delete to remove the bolus reminder.

7. For Custom reminders

• Use the Up/Down Controller buttons to choose [add new], then press New.

• To use the OmniPod System’s default naming system, simply press Next. The default naming system automatically assigns names in numerical order, such as alert 1, alert 2, alert 3.

If you want to give a different name to the reminder: a. Use the Up/Down Controller buttons to scroll

through the list of characters. An up-and-down arrow symbol on the screen indicates the character you are changing.

b. Press the middle Soft Key (the right arrow) to move the

underscore to the next character.

c. Enter each character one at a time. For example, for a

reminder to pick up a prescription, you might enter R, x (Figure 6-10 ). (A blank character or space is the first and last option in the scrolling menu.)

d. Press Next.

• Enter the time of day for the reminder, in 30-minute increments, then press Next.

• Choose Daily, One time only, or Off, then press Select.

Custom reminders will repeat every 15 minutes until acknowledged.

Using the Personal Diabetes Manager

Figure 6-11

Figure 6-12a

Figure 6-12b

■ Change Blood Glucose Meter Settings

You can adjust blood glucose (BG) meter settings:

• BG goal lower and upper limits (for BG history)

• Manage BG tags list

• BG sound—On or Off

1. On the Home screen, use the Up/Down Controller buttons to choose Settings, then press Select.

2. Choose System setup, then press Select.

3. Choose BG meter, then press Select.

4. Choose the setting you want to change (Figure 6-11), then press Select.

Change BG goal limits

To change the BG goal limits, press Edit, change either or both values, then press Save.

Manage the blood glucose tags list

You can create up to 15 custom blood glucose tags and hide any of the standard tags you do not plan to use. Standard BG tags are shown first on the screen (Figure 6-12a), followed by custom tags, and then [add new] (Figure 6-12b). For more information about tagging BG readings, see Chapter 7, Checking Your Blood Glucose.

Using the Personal Diabetes Manager

1. To hide or show a standard BG tag, choose the tag, and press

w (if it is marked as hidden) or Hide.

Sho

Tags you choose to show will be check marked; hidden ones will not be.

2. To add a custom tag, choose [add new] at the end of the list of custom tags, then press New.

In the Edit name screen, either: a. Press Save to save the new tag with the default name,

custom tag1, custom tag2, and so on; or

b. Use the Up/Down Controller buttons to choose letters

and numbers for a name, followed by the middle Soft Key (the right arrow) to move forward one space. Then press Save.

3. To delete a custom tag, choose the tag, press Delete, then press Delete again. Or press Cancel to leave the tag unchanged.

Change BG sound

To change BG sound, c

hoose On or Off, then press Select.

■ Customize the Personal Diabetes Manager

Additional options let you customize how the PDM operates: ID screen: Identify your PDM by adding your name and choosing

a color. The options you set will be shown on the ID screen every time you turn on the PDM.

PDM lock: “Locks” the buttons on the PDM. The default setting is Off. This safety feature can help avoid accidentally changing basal rates or giving boluses.

Screen time-out: The screen turns off after a time interval that you set, which occurs if you have not pressed any buttons on the PDM. This setting preserves battery power by turning off the screen when you are not using it. Set it at the lowest setting to maximize battery life.

Press and hold the Power button to turn the screen back on. In some cases, if it has been less than 5 minutes since the screen timed out, pressing the Power button returns you to the same screen you were using. If it has been longer than 5 minutes, the PDM brings you to the Status screen. To check the Pod status, refer to Page 54 for detailed instructions. The ID screen must be confirmed before you can check Pod status.

Using the Personal Diabetes Manager

Figure 6-13

Figure 6-14

Backlight time-out: Th using the PDM. The time-out setting dims the backlight and causes the screen to dim when you have not used it within the time interval that you set. Set at the lowest setting to maximize battery life.

For extra brightness on the PDM screen, press and hold the User Info/Support button (?) for 2 seconds. This enables a “bright mode.” The screen will remain in this mode until the PDM times out or you turn it off. To preserve battery life, use this feature only when necessary.

e backlight is on by default while you are

Set PDM options

1. On the Home screen, use the Up/Down Controller buttons to choose Settings, then press Select.

2. Choose System setup, then press Select.

3. Choose PDM options (Figure 6-13), then press Select.

4. Choose one of the options (Figure 6-14), then press Select.

Set ID screen

hange the ID:

To c

1. Choose ID, then press Select.

2. Press the Up/Down Controller buttons to scroll through the list of characters. An up-and-down arrow symbol on the screen indicates the character you are changing.

3. Press the middle Soft Key (labeled with the right arrow) to move the underscore to the next character.

4. Enter each character one at a time. For example, if you want to enter your name, you might enter J, a, n, e, [space], S, m, i, t, h. (A blank character or space is the first and last option in the scrolling menu.)

5. Press Save.

As a safety feature, an ID must be entered to enable the PDM to be identified.

Using the Personal Diabetes Manager

To change the ID screen color:

hoose Screen color, then press Select.

1. C

2. Use the Up/Down Controller buttons to choose a color, then press Select.

Set PDM lock

Choose On or Off, then press Select.

If you choose On, other PDM options and most other soft keys are locked and will not respond to button presses. To use them, you must first set PDM

lock to Off.

Set the Screen time-out

Choose a time interval, then press Select. When the screen times out and goes black, turn it on again by

pressing the Home/Power button.

Set the Backlight time-out

Choose a time interval, then press Sele When the screen dims, turn it on again by pressing any button.

The PDM will ignore the usual command and re-light the screen.

The lowest setting will drain the battery the least.

ct.

■ Set Diagnostic Functions

The Diagnostics screen allows you to instantly confirm how the System is working or to completely update settings entered during setup (see Chapter 2, Getting Started). Options include:

Check alarms: Confirms that all alarms work properly when needed. When you select this function, the PDM beeps and vibrates, then the Pod beeps.

If the PDM fails to beep, immediately call Customer Care. If a Pod is active and fails to beep, change the Pod immediately (see Chapter 5, Using the Pod). Continuing to use the System in these situations may put your health and safety at risk.

Reset PDM (soft reset): Restores all settings in the PDM to the factory defaults.

Resetting the PDM deletes all basal programs, temp basal presets, carb presets, bolus presets, and all suggested bolus settings. Before you use this feature and delete these settings, be sure you have a written record of the information you need. History records will not be deleted.

As a safety feature, you cannot reset the PDM when a Pod is active. You must first deactivate the Pod.

Using the Personal Diabetes Manager

Figure 6-15

Figure 6-16

Diagnostic options

n the Home screen, use the Up/Down Controller buttons

1. O to choose Settings, then press Select.

2. Choose System setup, then press Select.

3. Choose Diagnostics, then press Select.

To check alarms

1. Choose Check alarms, then press Select.

2. Press OK. The PDM beeps three times and vibrates three times. If a Pod is active, it then beeps three times.

Be sure to check the alarm function at every Pod change.

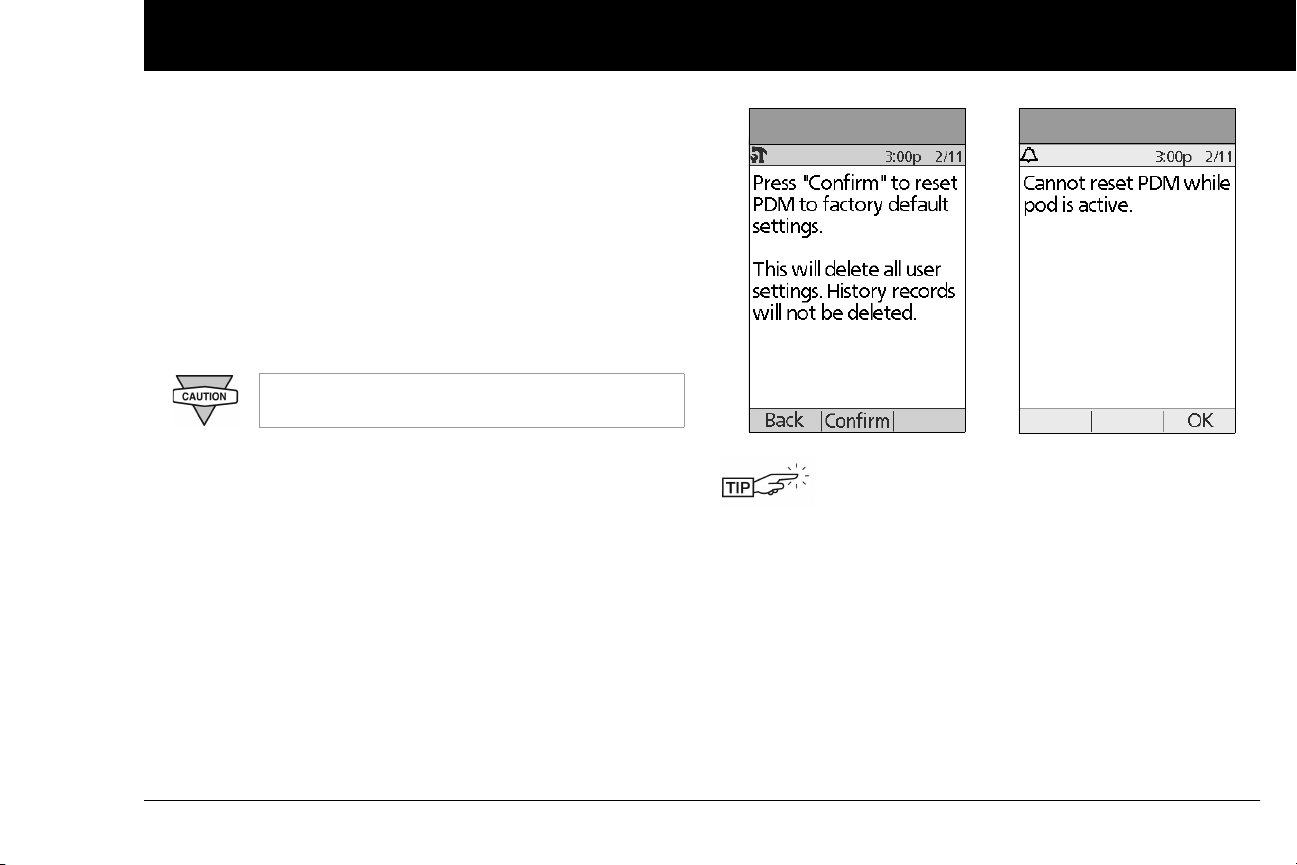

To reset the PDM

1. Choose Reset PDM, then press Select.

2. If the Pod is deactivated, the PDM asks for confirmation and reminds you that you will lose all user settings (Figure 6-15). Press Confirm to reset the PDM.

If the Pod is still active, you will be unable to reset the PDM (Figure 6-16). Press OK to return to the Diagnostics menu.

Use the form at the end of this User Guide to write down all your settings from the Setup Wizard. If you ever need to reset your PDM, having these settings handy will make setup very easy.

Using the Personal Diabetes Manager

■ Set a Reminder to Vibrate

For certain reminders, you can choose vibration instead of beeps or vibration followed by beeps, instead of only beeps. If you activate it, the PDM will vibrate for:

• Blood Glucose reminders

• Missed Bolus reminders

• Custom reminders

• “No active Pod” reminders

The PDM cannot be set to vibrate for hazard or advisory alarms.

To change the type of notification

1. Use the Up/Down Controller buttons to choose Set- tings,then press Select.

2. Choose Vibration, then press Select.

3. Choose Vibrate, Vibrate then beep, or Off (beep only), then press Select. (Vibrate then beep means the PDM will repeat the reminder twice using vibration. After that, it uses beeps.)

Or press Back to return to the Settings menu.

■ Get the Most from Your PDM

Keep it handy

Wireless communication technology means you don’t have to keep the PDM right next to the Pod for the Pod to work. Once you set your basal program, the Pod continues to deliver your basal program 24 hours a day, regardless of the location of the PDM. However, you still need the PDM to deliver a bolus, change the basal rate, and so on. You can store the PDM conveniently inside an article of clothing (like a shirt pocket) or put it discreetly into a drawer, briefcase, or purse.

Communicating with the Pod

When you use the PDM to communicate with the Pod, hold the PDM within 24'' (61 cm) of the Pod.

Water and your PDM

Do NOT use IV Prep wipes, alcohol swabs, soap, detergent, or solvents to clean the screen or any other part of the PDM. The PDM is NOT waterproof. Do NOT immerse it or place it in or near water.

Using the Personal Diabetes Manager

Avoid extreme temperatures

reme operating temperatures can affect PDM batteries and

Ext interfere with System operation. Avoid using the PDM in temperatures below 40°F (4.4°C) or above 104°F (40°C).

Do not store or leave the PDM where it may be exposed to extreme temperatures, such as inside a car. Extreme heat or cold can cause the device to malfunction.

Only connect a USB cable to your PDM when downloading data to a computer. Other PDM functions are disabled while a USB cable is connected, and the PDM cannot communicate with the Pod.

The PDM is compatible only with Windows®-based operating systems. Do not connect a USB cable to your PDM or attempt to download your data to a non-Windows®-based computer operating system, as the PDM may alarm and require a reset.

Never attempt to test your blood glucose while your PDM is connected via USB cable to a computer. Doing so could result in electrical shock.

Electrical interference

The PDM is designed to withstand normal radio interference and electromagnetic fields. However, as with all wireless communication technology, certain operating conditions can interrupt communication. For example, electric appliances such as microwave ovens and electric machinery located in manufacturing environments may cause interference. In most cases, interruptions are easy to resolve (see Chapter 11, Communication Failures).

When you connect a USB cable to the PDM, only use a cable that is less than or equal to 9 feet (2.7 meters) in length.

CHAPTER 7

Checking Your Blood Glucose

■ The Built-in FreeStyle® Blood Glucose Meter

With the FreeStyle® blood glucose meter, checking your blood glucose requires a very small sample size, 0.3 microliter of blood. Refer to your FreeStyle test strip instructions for use for important test strip information.You may want to test for low blood glucose:

• When you feel symptoms such as weakness, sweating, nervousness,headache, or confusion

• When you have delayed a meal after taking insulin

• When your healthcare provider advises you to do so

Keep the system and the FreeStyle® accessories away from young children, as they contain small parts that may be dangerous if swallowed.

Only use FreeStyle® test strips and FreeStyle® control solution with the System. Using other brands of test strips and control solutions with the System can produce inaccurate results.

Never attempt to test your blood glucose while your PDM is connected via USB cable to a computer. Doing so could result in electrical shock.

This Device is intended for self-testing by the user.

Please read all the instructions provided in this User Guide and practice the testing procedures before using the system and FreeStyle® accessories. Follow the guidance of a healthcare professional for proper blood glucose monitoring.

Checking Your Blood Glucose

Figure 7-1

■ The FreeStyle® Blood Glucose Test Strips

Complete information on the FreeStyle® test strips (such as interferences and performance) can be found in the test strip package insert. Please read all instructions provided on the test strip package insert before using the OmniPod System and FreeStyle accessories.

Important test strip information

• Store the blood glucose test strip package in a cool, dry place between 40° and 86° F (4.4° and 30° C).

• Use test strips only when the system is within its operating temperature range, between 40° and 104° F (4.4° and 40° C).

• Keep test strips away from direct sunlight and heat.

• Store test strips in their original vial only; never transfer them to another vial or any other container.

• Never store individual test strips outside the vial.

• After removing a blood glucose test strip from the vial, immediately close the vial cap tightly.

• With clean, dry hands, you can gently touch the test strip anywhere when removing it from the vial or inserting it into the test strip port.

• Do not bend, cut, or alter blood glucose tests strips in any way.

Do not use strips beyond the expiration date printed on the package, as this may cause inaccurate results.

For detailed storage and usage information, refer to the package insert in the box containing the test strip vial.

The cap or vial contains drying agents that may be harmful if inhaled or swallowed and may cause skin or eye irritation.

■ The FreeStyle® Control Solution

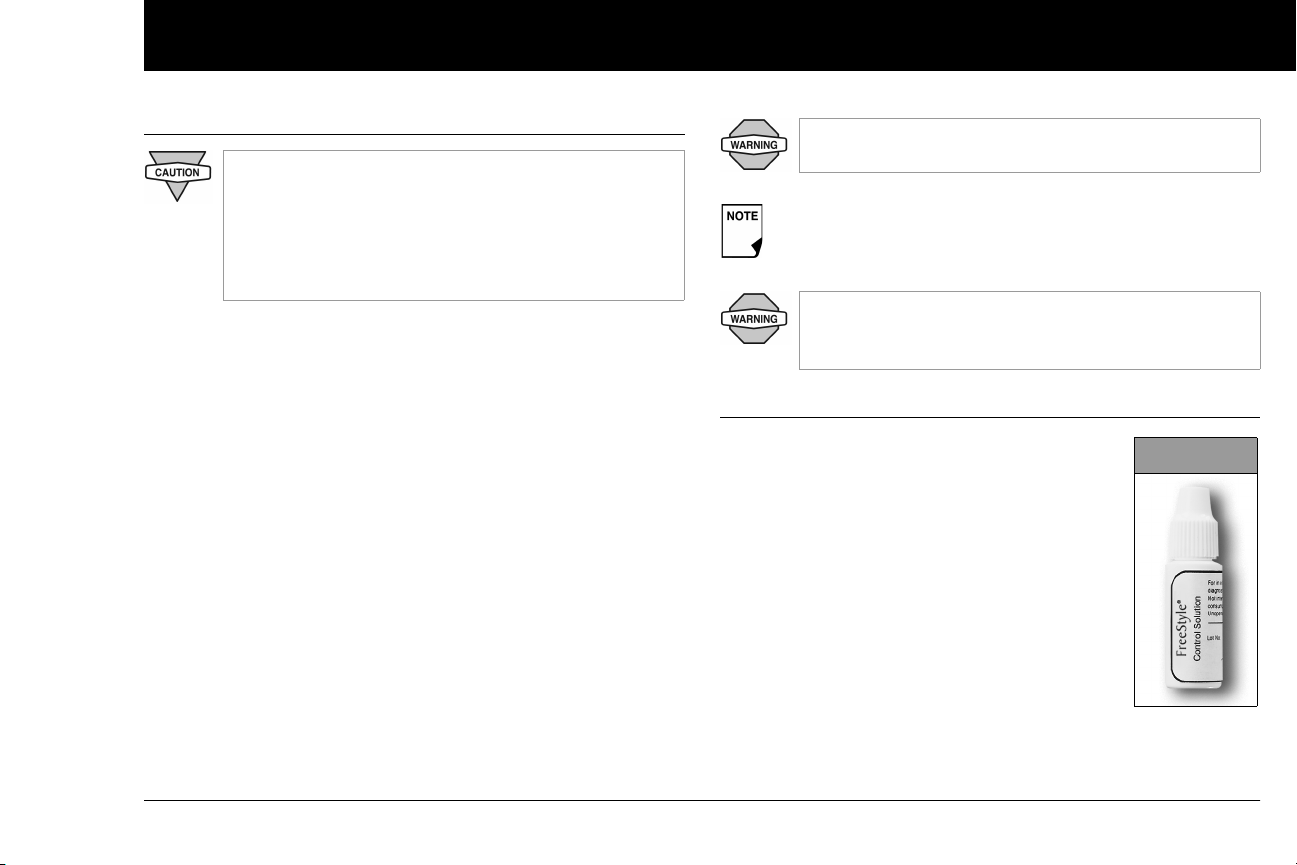

The FreeStyle® control solution (Figure 7-1) is a red liquid that contains a fixed amount of glucose and has two important uses:

• To ensure that your meter and test strips are working together properly

• To practice testing without having to use your own blood

Three levels of control solution are available: Low, Normal, and High. For information on how to obtain control solution, Call Insulet’s Customer Care (24 hours/7 days): 800-591-

3455. When calling from outside the United

States: 781-457-5098.

Checking Your Blood Glucose

When to perform a control solution test

should perform a control solution test:

You

• When you suspect that your meter or test strips are not working properly

• When you think your test results are not accurate or if your test results are not consistent with how you feel

• When you drop or damage your PDM or expose it to liquids

• When your healthcare provider advises you to do so

Check that the meter and test strips are working

A control solution test follows the same procedure as a blood glucose reading, except that you use a sample of control solution instead of a drop of blood. (See “Performing a Blood Glucose Reading” later in this chapter.)

When you perform a control solution test, if the reading is within the control solution acceptable range, the meter is working properly.

Control solution expiration date

FreeStyle® control solution is good for 3 months after the bottle, or until the expiration date printed on the label, whichever comes first. Count forward 3 months from the date you open a new bottle of control solution. This is your discard date. Write this date on the side of the control solution bottle. For example, if you open the control solution on January 15, count

opening

forward 3 months to April 15. This is the discard date to record onthe bottle, as well as the date to discard it and begin using a new bottle.

Ensure accurate control solution results

• Replace the cap on the control solution bottle immedia after using it.

Use only FreeStyle® control solution with the System. Other brands of control solution may produce inaccurate results with this System.

Do not use control solution past the expiration date or you may get inaccurate results.

• Do not add water or any liquid to control solution.

• Control solution tests are specified to be accurate only when performed between 59° and 104° F (15° and 40° C).

Results from FreeStyle® control solution tests do not reflect your blood glucose level.

• The control solution test results should fall within the range printed on the test strip vial label.

tely

Checking Your Blood Glucose

Figure 7-2

Top, to insert into meter

FreeStyle® test strip

Bottom edges, for blood sample

The control solution range is a target range for control solution only. It is not a target range for your blood glucose.

If control solution results are out of this range, REPEAT THE

T.Out-of-range control solution results

TES

Out-of-range test results may be caused by:

• Expired or bad control solution

• Expired or bad test strip

• Error in performing test

• Code on test strip vial does not match code set in the PDM

• Malfunction of the System

• Control solution test done outside 59° to 104° F (15° to 40° C) If your control solution test results continue to fall outside the

range printed on the test strip vial:

1. The System may not be working properly.

2. Do not use the System to test your blood glucose.

3. Call Insulet's Customer Care (24 hours/7 days): 800-591-3455. When calling from outside the United States: 781-457-5098.

■ Performing a Control Solution Test

1. Grasp the bottom of the test strip with the printed side facing up (Figure 7-2).

2. Insert the top of the test strip into the test strip port (Figure 7-3) until it stops. This turns on the PDM and displays the code number on the screen. Refer to page 54 to check Pod status and to Confirm ID.

Always verify and be prepared to adjust the code on the PDM to match the code number on the test strip vial (Figure 7-4).

Checking Your Blood Glucose

Figure 7-3

Figure 7-4

If you need to adjust the code number after the PDM has moved to the next screen, just press the Up/Down Controller buttons. The code screen reappears and you can adjust the number.

The code number remains on the PDM screen for your reference until you have completed the control test.

From some PDM screens, you cannot access the Freestyle® blood glucose meter. For example, you cannot use the meter while you are activating a Pod or when an alert, alarm or communication error screen is displayed. In these cases, if you insert a test strip, the PDM beeps to alert you.

3. To help you see the test strip port in reduced lighting, when insert a test strip into the PDM, you can turn on the port

you light. Press the middle Soft Key labeled Light. To turn the light off, press Light again.

The code number on the screen should match the code number on the side of your test strip vial (Figure 7-4 on previous page). They must always match or your results will be inaccurate. (See “Set the blood glucose test strip code” later in this chapter.)

4. Wait for the PDM to display “Apply a blood sample to the

strip” on the screen (Figure 7-5 on the following page).

Figure 7-5

Figure 7-6

Figure 7-7

Figure 7-8

5. Gently touch only ONE EDGE of the test strip to the control ution. Specifically, apply the control solution to the test

sol strip edge next to one of the dark-colored half-circles (Figure 7-6). If BG sound is set to On, the PDM beeps when the test strip is full.

If you do not apply the sample within 10 seconds, the strip port light turns off. To turn it on again, press Light.

Checking Your Blood Glucose

The “Checking” screen appears while the sample is processing (Figure 7-7). The strip port light turns off when the sample is accepted.

Do not apply control solution to both edges of the test strip.

If BG sound is set to On, the PDM beeps twice. The result appears on the screen.

Checking Your Blood Glucose

6. To mark the result as a control solution result rather than a od glucose test:

blo a. Press Tag. b. Use the Up/Down Controller buttons to select Control

(Figure 7-8), then press Select. You can select a second tag for the test result in the same way.

You can select a maximum of 2 tags.

c. Press OK.

7. If you do not want to mark the test as a control solution test,

press Next instead of Tag.

If the suggested bolus calculator feature is turned Off, the Bolus soft key appears instead of Next.

If you mark a test as a control solution test by mistake, you can unmark it: Press Tag, select Control, then press Clear.

8. Compare the control solution test result to the range printed

on the test strip vial label. If the result does not fall within the range, repeat the test. If the result still does not fall within the range, call Insulet’s Customer Care (24 hours/7 days):

800-591-3455. When calling from outside the United States: 781-457-5098

9. Remove the test strip. If the strip port light was turned on, it now turns off.

If you remove the test strip before this step, you will still see the available soft keys.

Be sure to discard used test strips. (You can only use test strips once.)

■ Performing a Blood Glucose Reading

Figure 7-9 on the following page shows the parts of the FreeStyle® lancing device.

To ensure accurate results, wash your hands and the test site (for example, your upper arm) with soap and water. Do not leave any cream or lotion on the test site. Thoroughly dry your hands and the test site.

Release button

Depth indicator window

Depth settings dial

Gray cap, for testing on the fingers

Cocking handle

Figure 7-9

Clear cap, for testing sites other than the finger

Figure 7-10

Figure 7-11

Checking Your Blood Glucose

Prepare the lancing device

nap off the cap on the lancing device at an angle

1. S (Figure 7-10).

2. Insert a new FreeStyle® lancet firmly into the white lancet holder cup (Figure 7-11). Pushing the device into the cup may cock the device, which is fine.

3. Hold the lancet firmly in place with one hand. With your other hand, twist off the rounded top (Figure 7-12 on the following page).

Checking Your Blood Glucose

Figure 7-12

Figure 7-13

Figure 7-14

Figure 7-15

4. Replace the cap until it snaps or clicks into place (Figure 7-13). careful not to touch the exposed needle on the lancet.

Use the clear cap to lance at the following test sites: forearm, upper arm and hand. Use the gray cap for finger tests only.

5. The lancing device offers four different depth settings. Level 1 is the shallowest depth; level 4 is the deepest. Move the dial to the desired setting as shown in the depth indicator window (Figure 7-14). To lance your finger, we recommend that you start at Level 1. To lance your arm, we recommend that you start at level 2.

Figure 7-16

Top

Bottom

Figure 7-17

6. Pull out the dark gray cocking handle until it clicks (Figure 7on the previous page). (You may have already cocked the

15 handle in step 2. This is okay.)

You are now ready to perform a blood glucose test.

Insert the blood glucose test strip

1. Insert a new blood glucose test strip into the test strip port

until it stops. The test strip port is at the bottom of the PDM.

From some PDM screens, you cannot access the FreeStyle® blood glucose meter. For example, you cannot use the meter while you are activating a Pod or when an alert, alarm or communication error screen is displayed. In these cases, if you insert a test strip, the PDM beeps to alert you.

2. To help you see the test strip port in reduced lighting, press

the middle soft key labeled Light. To turn the light off, press Light again.

3. Insert only the top end of the strip into the test strip port (Fig-

ure 7-16 and Figure 7-17).

Checking Your Blood Glucose

If you do not start the test within 2 minutes, the PDM powers off. To restart the PDM, take out the unused strip and reinsert it, or simply press and hold the Power but- ton to turn on the PDM. Refer to page 54 to check Pod status and to Confirm ID.

Checking Your Blood Glucose

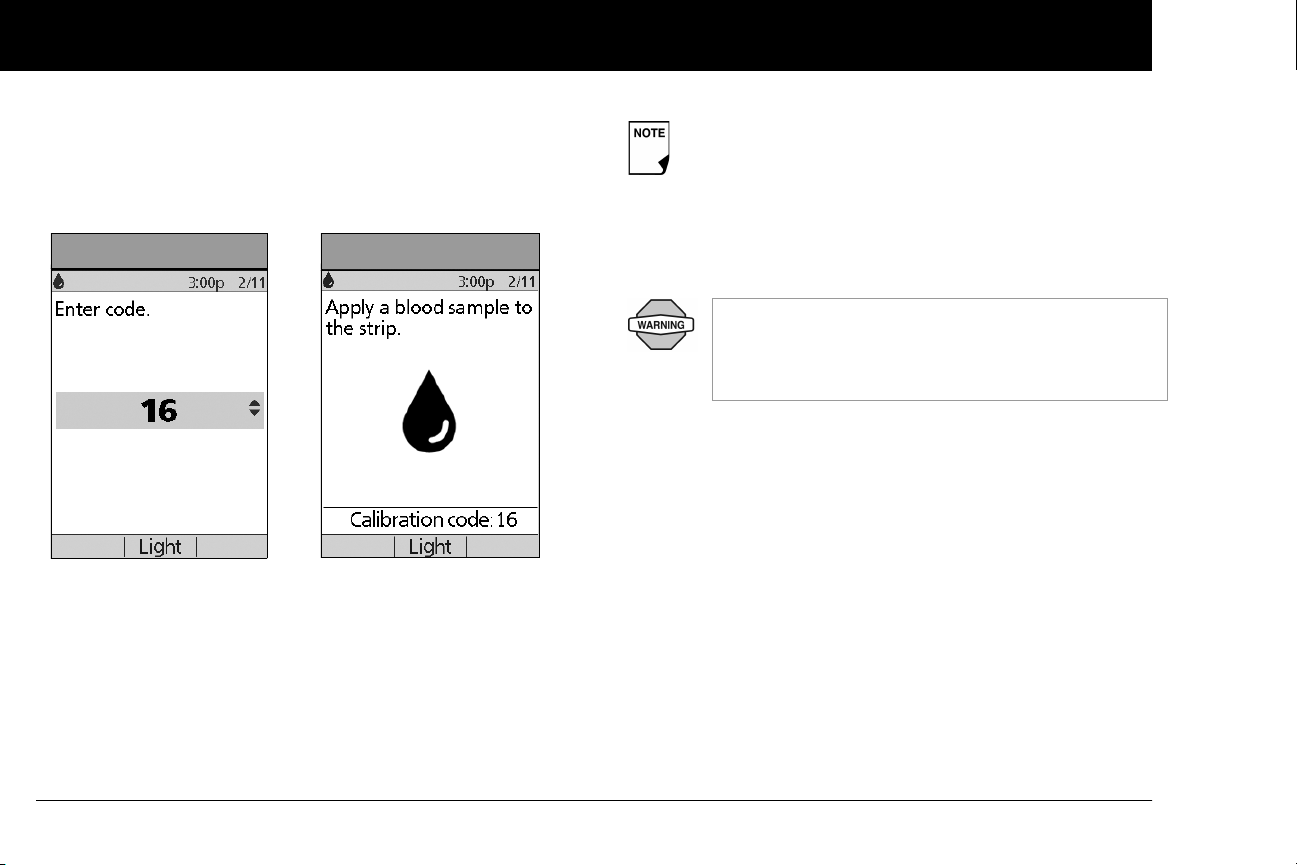

Figure 7-18

Figure 7-19

Set the blood glucose test strip code

er you insert the strip, the PDM displays a code number

Aft (Figure 7-18). This number must match the code on the side of the vial.

To change the code number, press the Up/Down Controller buttons until the number matches the number on your vial. The numbers are between 1 and 50.

If you do not adjust the code number within 2 seconds, the next screen appears automatically (Figure 7-19).

If you need to adjust the code number after the PDM hasmoved to the next screen, just press the Up/Down Controller buttons. The code screen reappears and you can adjust the number.

The code number remains on the PDM screen for your reference until you have completed the BG test.

The code number on the screen should match the code number on the side of your test strip vial (Figure 7-4). They must always match or your results will be inaccurate.

Lance your finger

1. To stimulate blood flow, keep your hand warm or lower your hand to waist level and gently massage your finger.

2. Set the depth setting on the lancing device (Figure 7-20 on the following page).

3. Lightly touch the lancing device (with the gray cap) against the side of your fingertip (Figure 7-21 on the following page).

Checking Your Blood Glucose

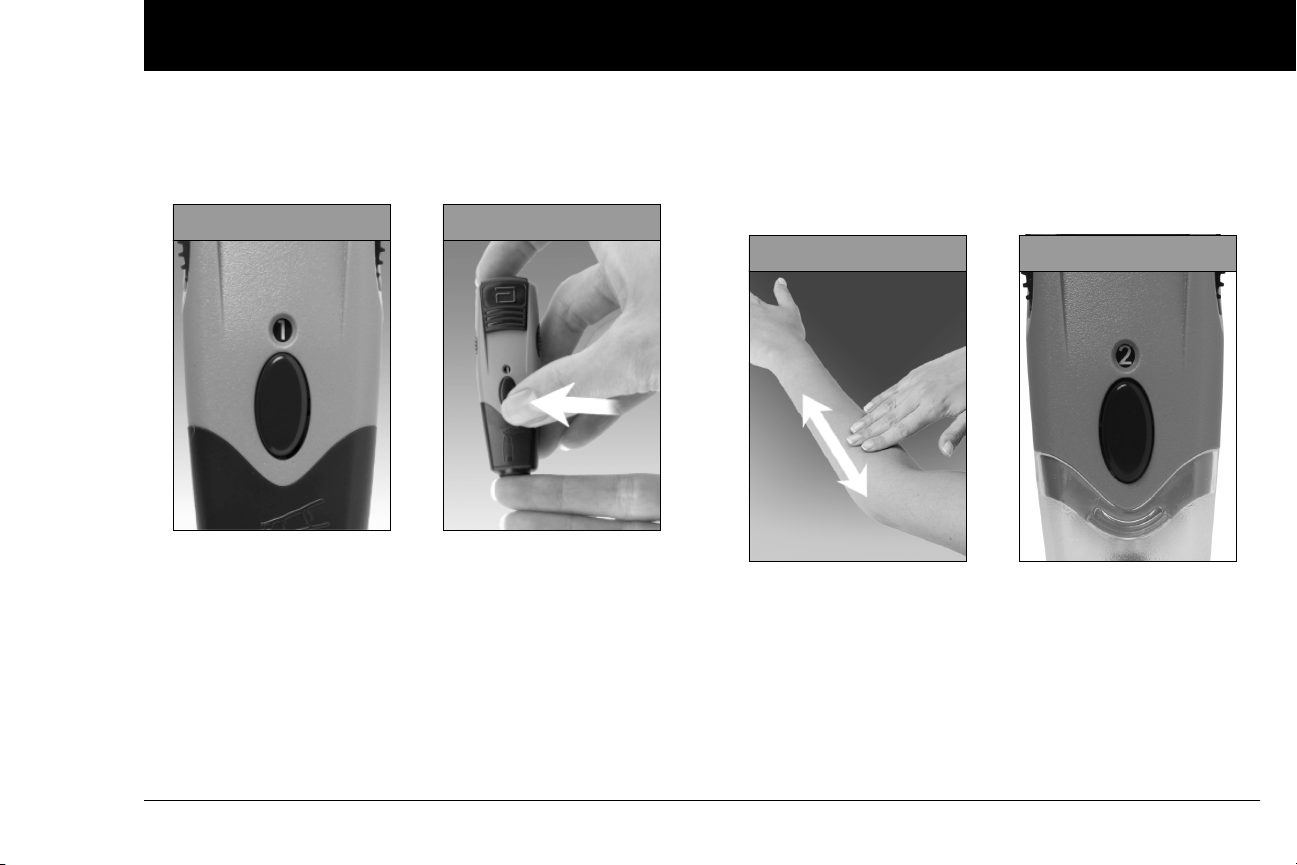

Figure 7-20

Figure 7-21

Figure 7-22

Figure 7-23

4. Press the release button. ently squeeze your finger, if needed, until a blood drop the

5. G

size of a pinhead forms.

Lance your forearm, upper arm, or hand

1. To bring fresh blood to the surface of the test site, rub the site vigorously for a few seconds (Figure 7-22) until you feel it getting warm.

2. Set the depth setting on the lancing device (Figure 7-23).

3. Hold the lancing device (with the clear cap) against the top of your test site.

4. Press the release button. Do not lift up; continue to hold the button and gradually increase pressure against the site for several seconds (Figure 7-24 ,on the next page).

Checking Your Blood Glucose

Figure 7-24

Figure 7-25

Figure 7-26

5. While holding the lancing device on your test site, look ough the clear cap. The blood sample should be about the

thr size of a pinhead.

6. Lift the lancing device straight up; be careful not to smear the

blood sample on your test site.

Fill the blood glucose test strip with blood

1. Make sure that the strip is in the PDM and the PDM is powered on. If the PDM has powered off, take out the strip and reinsert it (Figure 7-25), or simply press and hold the Power button to turn on the PDM. Refer to page 54 to check Pod status and to Confirm ID.

Avoid lancing areas with obvious veins or moles to avoid excess bleeding. Also avoid lancing areas where tendons or bones stick out (for example, hand bones).

2. Bring the strip to the blood sample at a slight angle (Figure 7-

26). If you do not apply the sample within 10 seconds, the strip

port light turns off. To turn it on again, press Light.
