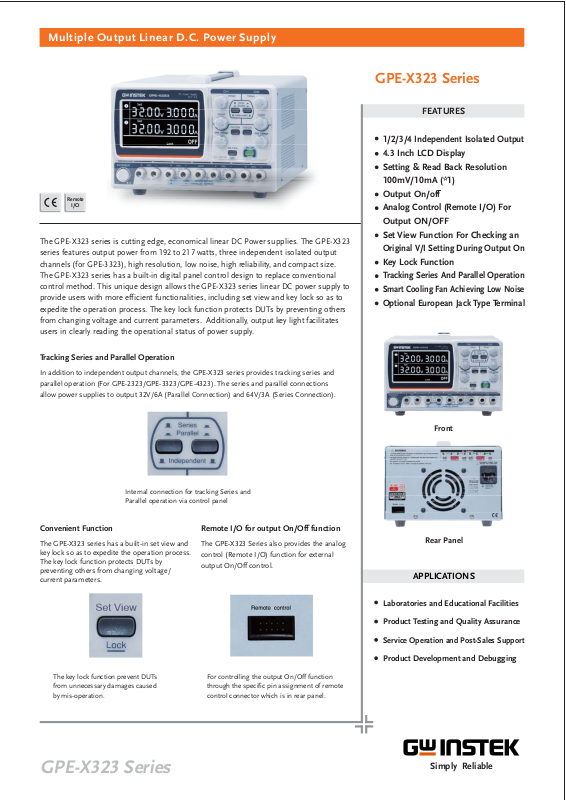

Instek GPE-3323 Data Sheet

Multiple Output Linear D.C. Power Supply

Remote

I/O

The GPE-X323 series is cutting edge, economical linear DC Power supplies. The GPE-X323
series features output power from 192 to 217 watts, three independent isolated output
channels (for GPE-3323), high resolution, low noise, high reliability, and compact size.
The GPE-X323 series has a built-in digital panel control design to replace conventional
control method. This unique design allows the GPE-X323 series linear DC power supply to
provide users with more efficient functionalities, including set view and key lock so as to
expedite the operation process. The key lock function protects DUTs by preventing others
from changing voltage and current parameters. Additionally, output key light facilitates
users in clearly reading the operational status of power supply.

GPE-X323 Series

FEATURES

1/2/3/4 Independent Isolated Output

4.3 Inch LCD Display
Setting & Read Back Resolution
100mV/10mA (*1)
Output On/off
Analog Control (Remote I/O) For
Output ON/OFF
Set View Function For Checking an
Original V/I Setting During Output On
Key Lock Function
Tracking Series And Parallel Operation
Smart Cooling Fan Achieving Low Noise
Optional European Jack Type Terminal

Tracking Series and Parallel Operation

In addition to independent output channels, the GPE-X323 series provides tracking series and
parallel operation (For GPE-2323/GPE-3323/GPE-4323). The series and parallel connections
allow power supplies to output 32V/6A (Parallel Connection) and 64V/3A (Series Connection).

Internal connection for tracking Series and
Parallel operation via control panel

Convenient Function

The GPE-X323 series has a built-in set view and
key lock so as to expedite the operation process.
The key lock function protects DUTs by
preventing others from changing voltage/
current parameters.

Remote I/O for output On/Off function

The GPE-X323 Series also provides the analog
control (Remote I/O) function for external
output On/Off control.

Front

Rear Panel

APPLICATIONS

Laboratories and Educational Facilities

Product Testing and Quality Assurance

The key lock function prevent DUTs
from unnecessary damages caused
by mis-operation.

GPE-X323 Series

Service Operation and Post-Sales Support

Product Development and Debugging

For controlling the output On/Off function
through the specific pin assignment of remote
control connector which is in rear panel.

Simply Reliable

SPECIFICATIONS

GPE-4323 GPE-3323 GPE-2323

OUTPUT MODE

CONSTANT
VOLTAGE
OPERATION

CONSTANT
CURRENT
OPERATION

TRACKING
OPERATION
(CH1,CH2)

CH3 OPERATION
FOR (GPE-3323)

METER

INSULATION

ENVIRONMENT
CONDITION

OTHER

Note : (*1) For a higher resolution (10mV/1mA), please follow the setting procedure of the user manual on p35.

When using a higher resolution, the current or voltage adjustment may be limited by the knob sensibility.

ORDERING INFORMATION

GPE-1326 Single Channel, 192W Linear DC Power Supply
GPE-2323 2 Channels, 192W Linear DC Power Supply
GPE-3323 3 Channels, 217W Linear DC Power Supply
GPE-4323 4 Channels, 212W Linear DC Power Supply

Number of Channel
Voltage
Current
Tracking Series Voltage
Tracking Parallel Current

Line Regulation
Load Regulation
Ripple & Noise
Recovery Time

Line Regulation
Load Regulation
Ripple & Noise

Tracking Error
Parallel Regulation

Series Regulation
Ripple & Noise

Output Voltage
Output Current
Line Regulation
Load Regulation
Ripple & Noise

Voltage Resolution
Current Resolution
Setting Accuracy
Readback Accuracy

Chassis and Terminal
Chassis and AC Cord

Operation Temp
Storage Temp
Operating Humidity
Storage Humidity

Power Source
Dimensions & Weight

0~32V

0~32V

0~15V 0~32V

0~5V 0~32V
0~1A 0~3A0~1A 0~3A

0~64V 0~64V 0~64V

0~6A 0~6A 0~6A

≦0.01%+3mV
≦≦≦＞0.01%+3mV(rating current 3A); 0.02%+5mV(rating current 3A)
≦1mVrms(5Hz~1MHz)
≦100 (50% Load Change, minimum load 0.5A)ms

≦0.2%+3mA
≦0.2%+3mA
≦3mArms

≦≦0.1%+10mV of Master(0~32V) No Load , with Load add load regulation 100mV)

Line : 0.01%+3mV≦
Load : 0.01%+3mV(rating current 3A); 0.02%+5mV(rating current 3A)≦≦≦＞
Line : 0.01%+5mV≦
Load : 100mV≦

5.0V, ±5%
5A

≦3mV
≦5mV

1mVrms(5Hz~1MHz)

100mV (*1)
10mA (*1)
Voltage±(0.1% of reading +30mV); Current±(0.3% of reading +6mA)
Voltage±(0.1% of reading +30mV); Current±(0.3% of reading +6mA)

20M or above (DC 500V)W
30M or above (DC 500V)W

0~40℃

-10~70℃

≦80% RH
≦70% RH

AC100V/120V/220V±10%; 230V(+10%~-6%); 50/60Hz
210(W)x 155(H) x 306(D) mm ; Approx. 7kg

ACCESSORIES

User Manual (CD) x 1 ; Power Cord x 1

GPE-1326 Test Lead GTL-104 x 1 ; GTL-105 x 1 ; or European GTL-204A x 1, GTL-203A x1
GPE-2323 Test Lead GTL-104 x 2 ; or European GTL-204A x 2,
GPE-3323 Test Lead GTL-104 x 3 ; or European GTL-204A x 3
GPE-4323 Test Lead GTL-104 x 2 ; GTL-105 x 2 or European GTL-204A x 2 , GTL-203A x 2

5V
5A

Specifications subject to change without notice.

GPE-1326

CH1CH2CH1CH1 CH2 CH3 CH1CH4 CH2 CH3

0~32V0~32V0~32V

0~6A0~3A0~3A0~3A 0~3A

---

PE-x303CD1DH
