GPR-M SERIES
CONSTANT VOLTAGE OPERATION
CONSTANT CURRENT OPERATION
METER
INSULATION
POWER SOURCE
ACCESSORIES
DIMENSIONS

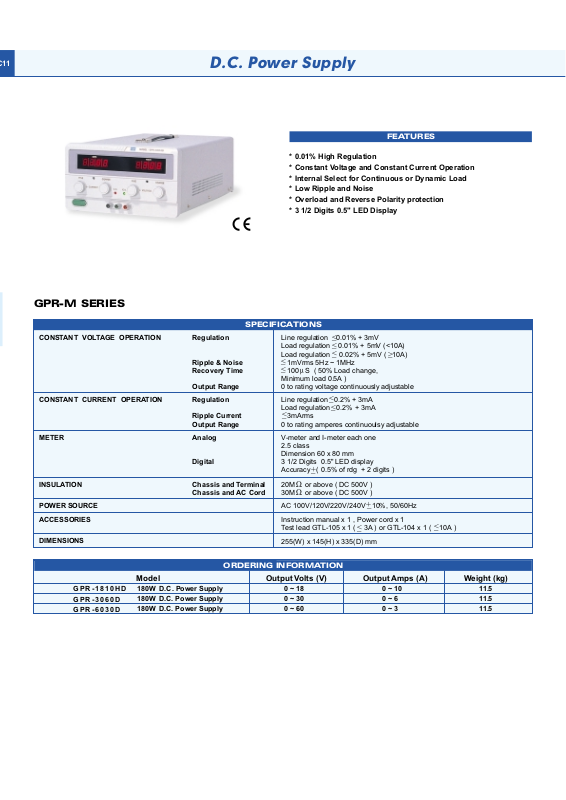

D.C. Power Supply
* 0.01% High Regulation
* Constant Voltage and Constant Current Operation
* Internal Select for Continuous or Dynamic Load
* Low Ripple and Noise
* Overload and Reverse Polarity protection
* 3 1/2 Digits 0.5" LED Display
SPECIFICATIONS
Regulation
Ripple & Noise
Recovery Time
Output Range
Regulation
Ripple Current
Output Range
Analog
Digital
Chassis and Terminal
Chassis and AC Cord
Line regulation 0.01% + 3mV
Load regulation 0.01% + 5mV (<10A)
Load regulation 0.02% + 5mV ( 10A)
_
<
1mVrms 5Hz ~ 1MHz
_
<
100 S ( 50% Load change,
Minimum load 0.5A )
0 to rating voltage continuously adjustable
Line regulation 0.2% + 3mA
Load regulation 0.2% + 3mA
_
<
3mArms
0 to rating amperes continuoulsy adjustable
V-meter and I-meter each one
2.5 class
Dimension 60 x 80 mm
3 1/2 Digits 0.5" LED display
Accuracy ( 0.5% of rdg + 2 digits )
20M or above ( DC 500V )
30M or above ( DC 500V )
AC 100V/120V/220V/240V 10%, 50/60Hz
Instruction manualx1,Power cord x 1
Test lead GTL-105x1( 3A)orGTL-104x1( 10A)
255(W) x 145(H) x 335(D) mm
_
+
W
W
FEATURES
_
<
_
<
_
<
_
<
_
<
_
<
_
>
_
+
_
<
GPR-1810HD
GPR-3060D
GPR-6030D
ORDERING INFORMATION
Model Output Volts (V) Output Amps (A) Weight (kg)
180W D.C. Power Supply
180W D.C. Power Supply
180W D.C. Power Supply
0~18 0~10 11.5
0~30 0~6
0~60 0~3
11.5
11.5
