Page 1
Patent No: 81011
CONSTANT
VOLTAGE
OPERATION
CONSTANT
CURRENT
OPERATION
METER
INSULATION
POWER SOURCE
ACCESSORIES
DIMENSIONS

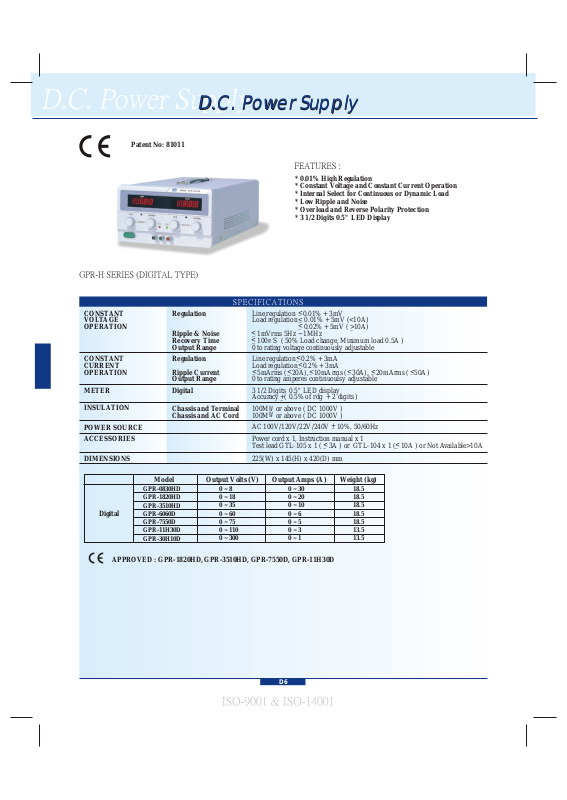

D.C. Power Supply
D.C. Power Supply
Regulation
Ripple & Noise
Recovery Time
Output Range
Regulation
Ripple Current
Output Range
Digital
Chassis and Terminal
Chassis and AC Cord
* 0.01% High Regulation
* Constant Voltage and Constant Current Operation
* Internal Select for Continuous or Dynamic Load
* Low Ripple and Noise
* Overload and Reverse Polarity Protection
* 3 1/2 Digits 0.5" LED Display
_
Line regulation 0.01% + 3mV
Load regulation 0.01% + 5mV (<10A)
0.02% + 5mV ( 10A)
_
<
1mVrms 5Hz ~ 1MHz
_
<
100 S ( 50% Load change, Minimum load 0.5A )
m
0 to rating voltage continuously adjustable
Line regulation 0.2% + 3mA
Load regulation 0.2% + 3mA
_
<
5mArms ( 20A), 10mArms ( 30A), 20mArms ( 50A)
0 to rating amperes continuoulsy adjustable
3 1/2 Digits 0.5" LED display
Accuracy ( 0.5% of rdg + 2 digits )
W
100M or above ( DC 1000V )
W
100M or above ( DC 1000V )
AC 100V/120V/22V/240V 10%, 50/60Hz
Power cord x 1, Instruction manual x 1
Test lead GTL-105 x 1 ( 3A ) or GTL-104 x 1 ( 10A ) or Not Available>10A
225(W) x 145(H) x 420(D) mm
<
_
<
_
<
_
<
_
<
_
<
_
<
_
+
_
<
_
>
_
_
<
<
_
+
_
<
_
<
Model Output Volts (V) Output Amps (A) Weight (kg)
GPR-0830HD
GPR-1820HD
Digital
APPROVED : GPR-1820HD, GPR-3510HD, GPR-7550D, GPR-11H30D
GPR-3510HD
GPR-6060D
GPR-7550D
GPR-11H30D
GPR-30H10D
0 ~ 8
0 ~ 18
0 ~ 35
0 ~ 60
0 ~ 75
0 ~ 110
0 ~ 300
0 ~ 30 18.5
0 ~ 20
0 ~ 10
0 ~ 6
0 ~ 5
0 ~ 3
0 ~ 1
D6
18.5
18.5
18.5
18.5
13.5
13.5
