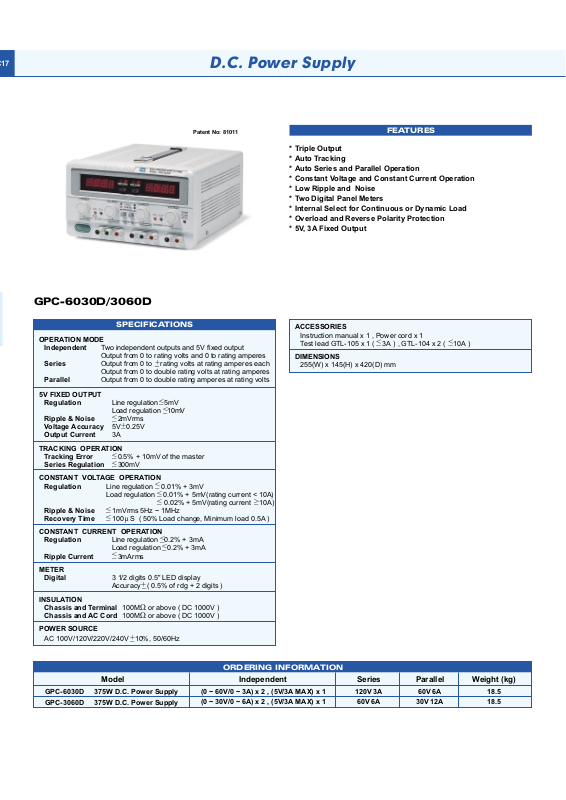

D.C. Power Supply
GPC-6030D/3060D
SPECIFICATIONS
OPERATION MODE
Independent
Series
Parallel
5V FIXED OUTPUT
Regulation
Ripple & Noise
Voltage Accuracy
Output Current
TRACKING OPERATION
Tracking Error
Series Regulation
CONSTANT VOLTAGE OPERATION
Regulation
Ripple & Noise
Recovery Time
CONSTANT CURRENT OPERATION
Regulation
Ripple Current
METER
Digital
INSULATION
Chassis and Terminal
Chassis and AC Cord
POWER SOURCE
AC 100V/120V/220V/240V 10%, 50/60Hz
Two independent outputs and 5V fixed output
Output from 0 to rating volts and 0 to rating amperes
Output from 0 to rating volts at rating amperes each
Output from 0 to double rating volts at rating amperes
Output from 0 to double rating amperes at rating volts
Line regulation 5mV
Load regulation 10mV
_
<
2mVrms
_
+
5V 0.25V
3A
_
<
0.5% + 10mV of the master
_
<
300mV
Line regulation 0.01% + 3mV
Load regulation 0.01% + 5mV(rating current < 10A)
_
<
1mVrms 5Hz ~ 1MHz
_
<
100 S ( 50% Load change, Minimum load 0.5A )
Line regulation 0.2% + 3mA
Load regulation 0.2% + 3mA
_
<
3mArms
3 1/2 digits 0.5" LED display
Accuracy ( 0.5% of rdg + 2 digits )
_
+
100M or above ( DC 1000V )
W
100M or above ( DC 1000V )
W
_
+
Patent No: 81011
_
+
_
<
_
<
_
<
_
<
_
<
0.02% + 5mV(rating current 10A)
_
<
_
<
FEATURES
* Triple Output
* Auto Tracking
* Auto Series and Parallel Operation
* Constant Voltage and Constant Current Operation
* Low Ripple and Noise
* Two Digital Panel Meters
* Internal Select for Continuous or Dynamic Load
* Overload and Reverse Polarity Protection
* 5V, 3A Fixed Output
ACCESSORIES
Instruction manualx1,Power cord x 1
Test lead GTL-105x1( 3A),GTL-104x2( 10A)
DIMENSIONS
255(W) x 145(H) x 420(D) mm
_
>
Model Independent Series Parallel Weight (kg)
GPC-6030D 375W D.C. Power Supply
GPC-3060D 375W D.C. Power Supply
ORDERING INFORMATION
(0 ~ 60V/ x 2 ,0 ~ 3A) (5V/3A MAX) x 1
(0 ~ 30V/ x 2 ,0 ~ 6A) (5V/3A MAX) x 1
120V 3A
60V 6A
60V 6A
30V 12A
18.5
18.5
