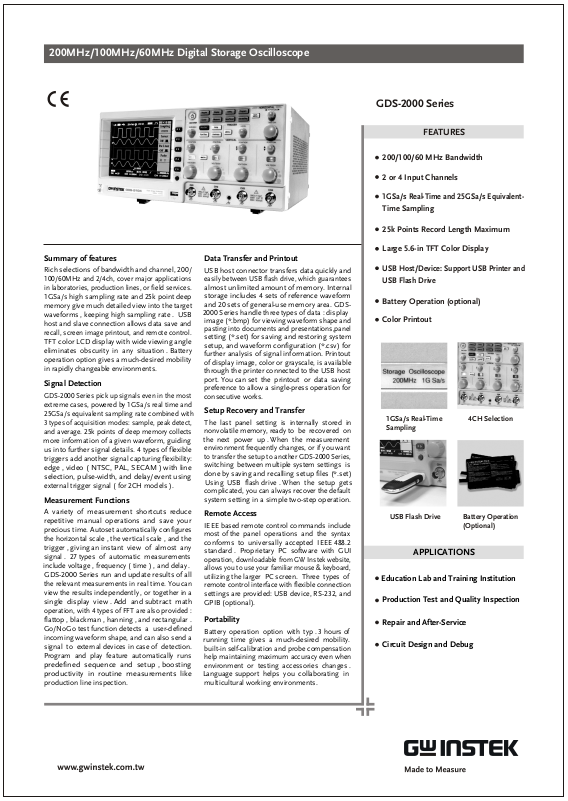

Instek GDS-2064 Data Sheet

200MHz/100MHz/60MHz Digital Storage Oscilloscope

GDS-2000 Series

FEATURES

200/100/60 MHz Bandwidth

2 or 4 Input Channels

1GSa/s Real-Time and 25GSa/s Equivalent­Time Sampling

25k Points Record Length Maximum

Summary of features

Rich selections of bandwidth and channel, 200/
100/60MHz and 2/4ch, cover major applications
in laboratories, production lines, or field services.
1GSa/s high sampling rate and 25k point deep
memory give much detailed view into the target
waveforms , keeping high sampling rate . USB
host and slave connection allows data save and
recall, screen image printout, and remote control.
TFT color LCD display with wide viewing angle
eliminates obscurity in any situation . Battery
operation option gives a much-desired mobility
in rapidly changeable environments.

Signal Detection

GDS-2000 Series pick up signals even in the most
extreme cases, powered by 1GSa/s real time and
25GSa/s equivalent sampling rate combined with
3 types of acquisition modes: sample, peak detect,
and average. 25k points of deep memory collects
more information of a given waveform, guiding
us into further signal details. 4 types of flexible
triggers add another signal capturing flexibility:
edge , video ( NTSC, PAL, SECAM ) with line
selection, pulse-width, and delay/event using
external trigger signal ( for 2CH models ).

Measurement Functions

A variety of measurement shortcuts reduce
repetitive manual operations and save your
precious time. Autoset automatically configures
the horizontal scale , the vertical scale , and the
trigger , giving an instant view of almost any
signal . 27 types of automatic measurements

include voltage , frequency ( time ) , and delay .

GDS-2000 Series run and update results of all
the relevant measurements in real time. You can
view the results independently , or together in a
single display view . Add and subtract math
operation, with 4 types of FFT are also provided :
flattop , blackman , hanning , and rectangular .
Go/NoGo test function detects a user-defined
incoming waveform shape, and can also send a
signal to external devices in case of detection.

Program and play feature automatically runs

predefined sequence and setup , boosting
productivity in routine measurements like
production line inspection.

Data Transfer and Printout

USB host connector transfers data quickly and
easily between USB flash drive, which guarantees
almost unlimited amount of memory. Internal
storage includes 4 sets of reference waveform
and 20 sets of general-use memory area. GDS-

2000 Series handle three types of data : display

image (*.bmp) for viewing waveform shape and
pasting into documents and presentations,panel

setting (*.set) for saving and restoring system
setup, and waveform configuration (*.csv) for
further analysis of signal information. Printout
of display image, color or grayscale, is available
through the printer connected to the USB host
port. You can set the printout or data saving
preference to allow a single-press operation for
consecutive works.

Setup Recovery and Transfer

The last panel setting is internally stored in
nonvolatile memory, ready to be recovered on

the next power up . When the measurement

environment frequently changes, or if you want
to transfer the setup to another GDS-2000 Series,
switching between multiple system settings is
done by saving and recalling setup files (*.set)

Using USB flash drive . When the setup gets
complicated, you can always recover the default
system setting in a simple two-step operation.

Remote Access

IEEE based remote control commands include
most of the panel operations and the syntax
conforms to universally accepted IEEE 488.2
standard . Proprietary PC software with GUI
operation, downloadable from GW Instek website,
allows you to use your familiar mouse & keyboard,
utilizing the larger PC screen. Three types of
remote control interface with flexible connection
settings are provided: USB device, RS-232, and

GPIB (optional).

Portability

Battery operation option with typ . 3 hours of

running time gives a much-desired mobility.

built-in self-calibration and probe compensation
help maintaining maximum accuracy even when
environment or testing accessories changes .

Language support helps you collaborating in
multicultural working environments.

Large 5.6-in TFT Color Display

USB Host/Device: Support USB Printer and
USB Flash Drive

Battery Operation (optional)

Color Printout

1GSa/s Real-Time
Sampling

USB Flash Drive

4CH Selection

Battery Operation
(Optional)

APPLICATIONS

Education Lab and Training Institution

Production Test and Quality Inspection

Repair and After-Service

Circuit Design and Debug

SPECIFICATIONS

VERTICAL

TRIGGER Sources

EXT TRIGGER
(2CH Only)

HORIZONTAL

X-Y MODE

SIGNAL
ACQUISITION

CURSORS AND
MEASUREMENT

CONTROL PANEL
FUNCTION

DISPLAY

INTERFACE

POWER SOURCE

MISCELLANEOUS

DIMENSIONS & WEIGHT

Ordering Information

GDS-2062 60MHz, 2-channel, Color LCD Display DSO
GDS-2064 60MHz, 4-channel, Color LCD Display DSO
GDS-2102 100MHz, 2-channel, Color LCD Display DSO
GDS-2104 100MHz, 4-channel, Color LCD Display DSO
GDS-2202 200MHz, 2-channel, Color LCD Display DSO
GDS-2204 200MHz, 4-channel, Color LCD Display DSO

Channels
Bandwidth
Rise Time

Sensitivity
Accuracy

Input Coupling
Input Impedance

Polarity
Maximum Input

Waveform Signal Process
Offset Range

Bandwidth Limit 20MHz ( 3dB)

Modes
Coupling

Sensitivity

Range
Sensitivity
Input Impedance
Maximum Input

Range
Modes
Accuracy
Pre-Trigger
Post-Trigger

X-Axis Input
Y-Axis Input
Phase Shift

Real-Time Sample Rate
Equivalent Sample Rate
Vertical Resolution
Record Length
Acquisition Mode
Peak Detection

Average

Voltage Measurement
Time Measurement
Delay Measurement

Cursors Measurement
Auto Counter

Autoset
Save Setup
Save Waveform

TFT LCD Type
Display Resolution

Display Graticule
Display Brightness

Go/NoGo Output
RS-232 Interface
GPIB Interface (Option)
USB

Line Voltage Range
Battery Power(Option)

Multi-Language Menu
Online Help
Time Clock

254D 142H 310W(mm), Approx. 4.3kg

GDS-2062/2064 GDS-2102/2104 GDS-2202/2204

2/4 2/4 2/4

DC ~ 60MHz ( 3dB) DC ~ 100MHz ( 3dB) DC ~ 200MHz ( 3dB)

5.8ns Approx.

2mV/div ~ 5V/div (1-2-5 increments)
(3% x |Readout|+0.05 div x Volts/div+0.8mV)

3.5ns Approx. 1.75ns Approx.

AC, DC & Ground
1M 2%, ~16pF

Normal & Invert
300V (DC+AC peak), CATII
+ , , FFT

2mV/div ~ 20mV/div : 0.5V ; 50mV/div ~ 200mV/div : 5V ; 500mV/div ~ 2V/div : 50V ; 5V/div : 300V

CH1 , CH2 , Line , EXT(2CH Only) / (CH3,CH4)
Auto-Level, AUTO, NORMAL, SINGLE, TV, Edge, Pulse Width Time-delay(2CH Only), Event-delay(2CH Only)
AC , DC , LF rej. , HF rej. , Noise rej.
DC ~ 25MHz : Approx. 0.5div or 5mV
25MHz ~ 60/100/200MHz : Approx. 1div or 10mV

15V

DC ~ 30MHz : ~ 50mV ; 30M ~ 60/100/200MHz : ~100mV
1M 2% , ~ 16pF
300V (DC AC peak) , CATII

1ns/div ~ 10s/div (1-2-5 increments); ROLL : 250ms/div ~ 10s/div
MAIN, WINDOW, WINDOW ZOOM, ROLL, SCAN, X-Y

0.01%
20 div maximum
1000 div

Channel 1
Channel 2

3 at 100kHz

1GSa/s maximum
25GSa/s maximum
8 Bits
25K Dots maximum
Normal, Peak Detect, Average
10ns
2 , 4 , 8 , 16 , 32 , 64 , 128 , 256

V , V , V , V , V , V , V , V , Rise Preshoot/ Overshoot , Fall Preshoot/Overshoot

pp amp avg rms hi lo max min

Freq , Period , Rise Time , Fall Time , Positive Width , Negative Width , Duty Cycle
Eight different delay measurement

Voltage difference between cursors ( V) Time difference between cursors ( T)
Resolution : 6 digits
Accuracy : 2%
Signal Source: All available trigger source except the Video trigger mode

Adjust Vertical VOLT/DIV, Horizontal TIME/DIV, and Trigger level automatically
Up to 20 sets of measurement conditions
24 sets of waveform

5.6 inch
234 (Vertically) x 320 (Horizontally) Dots

8 x 10 divisions ; 8 x 12 divisions (menu off)
Adjustable

5V Maximum/10mA TTL Open Collector Output
DB 9-pin male DTE RS-232 interface

Fully programmable with IEEE 488.2 compliance
USB Host/Device 2.0 full speed supported

AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection
Battery : 11.1V Li-Ion battery pack
Charge Time : 8 hours (Power ON)
Operating Time : 3 hours , depending on operating condition

Available
Available
Time and Date, Provide the Date/Time for saved data

Option

Opt. 01: GPIB Interface
Opt. 02: Battery power
( Factory installed, include additional
DC Power & Battery charger circuits
and Li-lon Battery pack x 2 )

Specifications subject to change without notice.

Standard Accessories

Probe-GTP-060A:60MHz x10/x1 Switchable Passive Probe for GDS-2062/2064
Probe-GTP-250A:250MHz x10/x1 Switchable Passive Probe for GDS-2202/2204
Probe-GTP-100A:100MHz x10/x1 Switchable Passive Probe for GDS-2102/2104
User Manual
Power cord

DS-2000GD0DH
