Page 1
Level
TROLL®
Accessories
Information Sheet
Catalog No. 52530

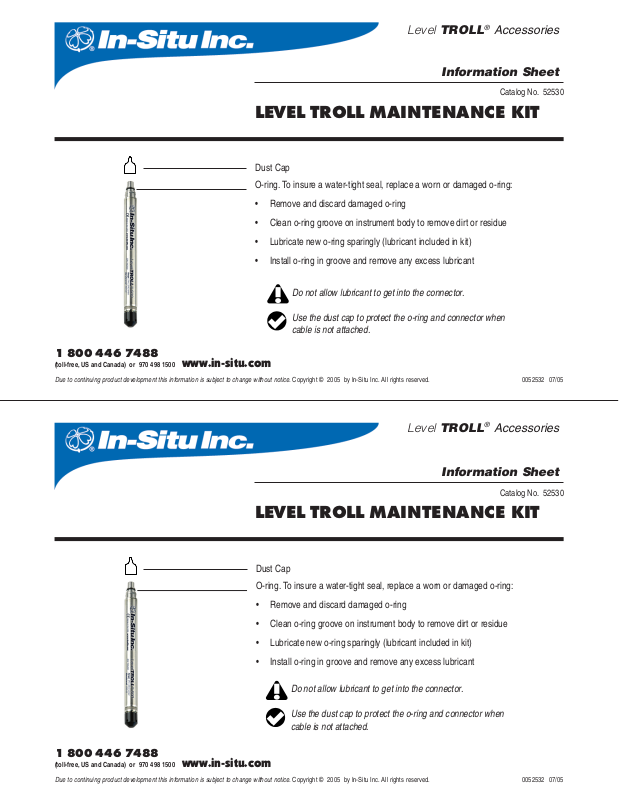

LEVEL TROLL MAINTENANCE KIT
Dust Cap
O-ring. To insure a water-tight seal, replace a worn or damaged o-ring:
• Remove and discard damaged o-ring
• Clean o-ring groove on instrument body to remove dirt or residue
• Lubricate new o-ring sparingly (lubricant included in kit)
• Install o-ring in groove and remove any excess lubricant
Do not allow lubricant to get into the connector.
Use the dust cap to protect the o-ring and connector when
cable is not attached.
1 800 446 7488
(toll-free, US and Canada) or 970 498 1500 www.in-situ.com
Due to continuing product development this information is subject to change without notice. Copyright © 2005 by In-Situ Inc. All rights reserved.
Level
LEVEL TROLL MAINTENANCE KIT
Dust Cap
O-ring. To insure a water-tight seal, replace a worn or damaged o-ring:
• Remove and discard damaged o-ring
• Clean o-ring groove on instrument body to remove dirt or residue
• Lubricate new o-ring sparingly (lubricant included in kit)
0052532 07/05
TROLL®
Accessories
Information Sheet
Catalog No. 52530
• Install o-ring in groove and remove any excess lubricant
Do not allow lubricant to get into the connector.
Use the dust cap to protect the o-ring and connector when
cable is not attached.
1 800 446 7488
(toll-free, US and Canada) or 970 498 1500 www.in-situ.com
Due to continuing product development this information is subject to change without notice. Copyright © 2005 by In-Situ Inc. All rights reserved.
0052532 07/05
