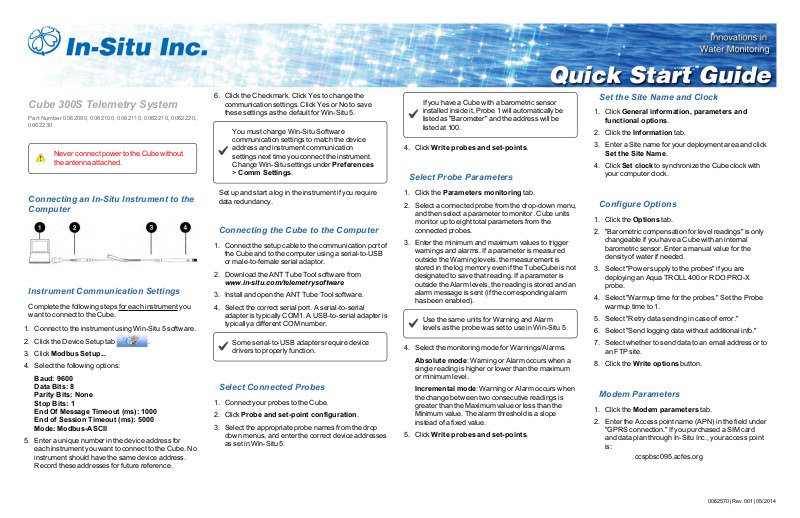

Cube 300S Telemetry System
Part Number 0062090, 0062100, 0062110, 0062210, 0062220,
0062230
Never connect power to the Cube without
the antenna attached.
6. Click the Checkmark. Click Yes to change the
communication settings. Click Yes or No to save
these settings as the default for Win-Situ 5.
You must change Win-Situ Software
communication settings to match the device
address and instrument communication
settings next time you connect the instrument.
Change Win-Situ settings under Preferences
> Comm Settings.
If you have a Cube with a barometric sensor
installed inside it, Probe 1 will automatically be
listed as "Barometer" and the address will be
listed at 100.
4. Click Write probes and set-points.
Select Probe Parameters
Set the Site Name and Clock
1. Click General information, parameters and
functional options.
2. Click the Information tab.
3. Enter a Site name for your deployment area and click
Set the Site Name.
4. Click Set clock to synchronize the Cube clock with
your computer clock.
Connecting an In-Situ Instrument to the Computer
Instrument Communication Settings
Complete the following steps for each instrument you
want to connect to the Cube.
1. Connect to the instrument using Win-Situ 5 software.
2.
Click the Device Setup tab .
3. Click Modbus Setup...
4. Select the following options:
Baud: 9600
Data Bits: 8
Parity Bits: None
Stop Bits: 1
End Of Message Timeout (ms): 1000
End of Session Timeout (ms): 5000
Mode: Modbus-ASCII
5. Enter a unique number in the device address for
each instrument you want to connect to the Cube. No
instrument should have the same device address.
Record these addresses for future reference.
Set up and start a log in the instrument if you require
data redundancy.
Connecting the Cube to the Computer
1. Connect the setup cable to the communication port of
the Cube and to the computer using a serial-to-USB
or male-to-female serial adaptor.
2. Download the ANT Tube Tool software from
www.in-situ.com/telemetrysoftware
3. Install and open the ANT Tube Tool software.
4. Select the correct serial port. A serial-to-serial
adapter is typically COM1. A USB-to-serial adapter is
typically a different COM number.
Some serial-to-USB adapters require device
drivers to properly function.
Select Connected Probes
1. Connect your probes to the Cube.
2. Click Probe and set-point configuration.
3. Select the appropriate probe names from the drop
down menus, and enter the correct device addresses
as set in Win-Situ 5.
1. Click the Parameters monitoring tab.
2. Select a connected probe from the drop-down menu,
and then select a parameter to monitor. Cube units
monitor up to eight total parameters from the
connected probes.
3. Enter the minimum and maximum values to trigger
warnings and alarms. If a parameter is measured
outside the Warning levels, the measurement is
stored in the log memory even if the TubeCube is not
designated to save that reading. If a parameter is
outside the Alarm levels, the reading is stored and an
alarm message is sent (if the corresponding alarm
has been enabled).
Use the same units for Warning and Alarm
levels as the probe was set to use in Win-Situ 5.
4. Select the monitoring mode for Warnings/Alarms.
Absolute mode: Warning or Alarm occurs when a
single reading is higher or lower than the maximum
or minimum level.
Incremental mode: Warning or Alarm occurs when
the change between two consecutive readings is
greater than the Maximum value or less than the
Minimum value. The alarm threshold is a slope
instead of a fixed value.
5. Click Write probes and set-points.
Configure Options
1. Click the Options tab.
2. "Barometric compensation for level readings" is only
changeable if you have a Cube with an internal
barometric sensor. Enter a manual value for the
density of water if needed.
3. Select "Power supply to the probes" if you are
deploying an Aqua TROLL 400 or RDO PRO-X
probe.
4. Select "Warmup time for the probes." Set the Probe
warmup time to 1.
5. Select "Retry data sending in case of error."
6. Select "Send logging data without additional info."
7. Select whether to send data to an email address or to
an FTP site.
8. Click the Write options button.
Modem Parameters
1. Click the Modem parameters tab.
2. Enter the Access point name (APN) in the field under
"GPRS connection." If you purchased a SIM card
and data plan through In-Situ Inc., your access point
is:
ccspbsc095.acfes.org
0062570| Rev. 001 | 05/2014
Page 2
If you are using a third-party cellular service
provider, you must contact them for your APN.
3. If your cellular service provider requires a user name
and password, enter those in the fields under the
access point name. In-Situ Inc. does not require a
user name or password.
4. Enter up to 2 phone numbers in the fields under
"SMS" to receive data or alerts via text messages.
5. To receive data or alerts using email, enter the SMTP
server for your email or internet service provider. If
your provider requires a user name and password,
enter those in the fields under the SMTP server.
6. Enter the email address you'd like to receive the email
from (must be a valid address), the address to receive
email, and a carbon copy address if desired.
7. If you are using FTP to receive data, fill in all the fields
of the FTP parameters section.
8. Click Write options and parameters.
Activate Alarms
1. Click the Alarms tab.
2. Select the alarms you wish to activate. To activate
alarms that are dependent on probe parameter
readings, select "Reading from probe out of range."
3. Under the "Alarm options" heading, select whether to
send alarms using SMS (text) messages when they
occur, then select whether to send alarm statuses
each time the Cube sends measurement values.
4. Enter the number of consecutive times a parameter in
Absolute alarm mode can exceed it's threshold
before an SMS message is generated. A value of 1
means an SMS message is generated every time.
5. Enter the number of consecutive times a parameter in
Incremental alarm mode can exceed it's threshold
before an SMS message is generated. A value of 1
means an SMS message is generated every time.
6. Enter the maximum number of text messages to be
sent for the same Alarm episode.
7. Enter the maximum number of alarms that can be
sent per day.
8. Click Write alarm parameters.
Set Probe Reading Schedule
1. Click Periodicity of wake-up events.
2. Select how often in minutes the Cube reads the
probes. A value of 0 means the Cube never reads the
probes, a value of 60 means every hour, and a value
of 1440 means a reading every 24 hours.
3. Select how often the Cube saves the readings. A
value of 1 means every reading.
4. Click the checkbox if you want the Cube to transmit
data every time it logs (not recommended).
5. Select the significant digits to be included in the data.
6. Click Write periodicity and options.
Set Wake Up Events
The Cube can be programmed with up to 8 different
wake up periods. A wake up period is when the Cube
sends data, sends a status text message, or waits for
an external connection.
1. Click the Wake up events tab.
2. Under "Wake up no. 1," select the amount of time for
the Cube to wake up.
3. Select the day of the week for the wake up event.
4. Select the starting time. The Cube cannot be
programmed for 12:00:00 AM.
5. Select the type of task for this wake up event. If "Wait
for phone connections" is selected, other options
become available.
6. Scroll down to program additional wake up events.
7. When all events are programmed, click Write wake
up events.
Activate the Modem
1. Click Functional mode and test.
2. Click the Modem, settings, and tests tab.
3. Click the Activate modem button.
4. Select the GSM band for your geographical area and
click the Set GSM band button.
5. Click the Verify SIM and PIN button.
6. Click the Show signal quality button if you are near
your deployment area.
7. Click the Deactivate modem button.
Test Remote Communications
1. Click the Test tab.
2. Click the SMS sending test button to send a test text
message to the phone number(s) you specified in the
previous setup.
∙ Error 505 indicates a forbidden character has been
inserted in the phone number string.
3. Click the Data sending test button to have a sample
data file sent to either the FTP site or email addresses
you specified in the previous setup.
∙ Error 812 indicates the Access Point Name is
incorrect or unavailable.
∙ Error 841 indicates the FTP username, password,
or FTP address is incorrect.
Start the Cube
1. Click the Status tab.
2. Select the day the Cube will turn on. If the Switch-on
day is anything but "Now," also select a time to start
the device.
3. Click the Start device button if you want to start the
Cube now. If the Switch-on day is a different day,
close the software and the Cube will start on the
specified day.
Deploy the Cube
Deploy your In-Situ Inc. Instruments as described in the
Owner's Manual.
The Cube must be deployed in an area that receives
direct sunlight for most of the day. In the northern
hemisphere, deploy the Cube with the solar panel
facing south. In the southern hemisphere, deploy the
Cube with the solar panel facing north.
The Cube includes four plastic mounting adapters that
can be attached to the pre-drilled holes on the back of
the enclosure using the provided screws. In-Situ Inc.
recommends using bolts to secure the plastic mounting
brackets to your deployment location.
If you are deploying the Cube using the Wall Mounting
Adaptor (PN 0062330), follow the instructions included
with the adapter.
If you are deploying the Cube using a different method,
use the guidelines on the back of the Cube enclosure
for appropriate mounting hardware dimensions.
Always screw mounting hardware into the pre-drilled
holes on the back of the enclosure. Never drill directly
into the enclosure. This will void the warranty.
Improving Signal Quality
Cellular signal depends on several factors, including
coverage area, antenna type, and objects in the area
that may cause interference.
If your Cube is receiving poor signal or frequently
misses transmissions, you can check the following to
help determine the cause.
∙ Check the cellular provider's coverage area map.
Your deployment area may be in a non-coverage area.
∙ Check the area surrounding your equipment. Objects
like trees, electrical wires, and cement walls can affect
cell reception. Consider moving the Cube to a different
area to test reception.
∙ If your system cannot be moved, consider using a
different type of antenna that can be mounted away
from potential interference.
