Insinkerator SS-50-1 Parts List

PARTS LIST FOR COMMERCIAL DISPOSERS

MODEL SS-50 IN-SINK-ERATOR® 1/2 H.P.

(Includes Models SS-50-1. SS-50-2, SS-50-3)

ORDER By PART NUMBER, NOT CODE NUMBER

(ALL PARTS F.O.B. FACTORY/DEPOT) .(INCLUDE SERIAL AND MOCEL NUMBER OF DISPOSER WHEN ORDERING)

(Minimum Parts Order $3.00)

PARTS LIST FOR COMMERCIAL DISPOSERS MODEL SS-

No.

Reqd.

only)

208

Volt,

60

Cycle, Three Phase

PRINTED IN U.S.A.

50 IN-S1NK-ERATOR® 1/2 H.P.

(Includes Models SS-50-1, SS-50-2, SS-50-3)

Code

Part No. No.

No.

1 11004 1 Mounting Flange
2 11016 1 Gasket, Mounting
3 11020-A 1 Body, Container
4 1491 6 Bolt, Mounting
5 11227 1 Pipe Plug
6 11006 1 Seal, Body-Shredder
7 12442 1 Body and Cover Assembly
8 11252-A 1 Stationary Shredder

9 11260 1 Nut, Shredder
10 12445 1 Washer
11 12142 1 Washer, Fibre
12 12316 1 Rotor Shredder
13 12327 1 Upper End Bell - Includes

14 12321 1 Face Seal
15 12318 1 Spacer Sleeve
16 12319 1 Centrifugal Moisture Shield
17 12610 1 Bearing Assembly • Upper
18 12326 1 Oil and Water Retainer
19 11322 2 Woodruff Key
20 12611

21 11444 3 Washer
22 1491 3 Bolt
23 1470 1 Washer, Tail Pipe
24 5487 1 Tail Pipe
25 1461 1 Flange - Tail Pipe
26 1468 2 Bolt - Tail Pipe
27 12330 1 Rotor & Shaft Assembly (Includes

28 12331 1 Rotor & Shaft Assembly

29 1537 2 Spring • Centrifugal Switch
30 12348 1 Centrifugal Switch
31 7422 2 Screw
32 12393 1 Start Switch
33 5765 2 Screw
34 12370 1 Shell • Trim

Reqd.

Codes 14-16-17.18

Bearing • Seal Kit Includes
Codes 9-10-11-14-15-16-17.18-19

Codes 29 & 30)
208 Volt, 60 Cycle, Single Phase &
115/230 Volt, 60 Cycle, Single Phase

208 Volt, 60 Cycle, Three Phase &
230/460 Volt, 60 Cycle, Three Phase

Description

EFFECTIVE March, 1972

Code

Part No. No.

35 12351-0 1 Stotor Assembly

36 12351 1 Stator Assembly

37 12549 1 Stator Assembly

38 12352 1 Stator Assembly

39 12433-D 1 Terminal Box Mounting Bracket •

40 12433-E 1 Terminal Box Mounting Bracket •

41 11448 4 Screw
42 12384 1 Bushing
43 11865 1 Capacitor • Single Phase Only

44 12561 1 Overload Protector 208 Volt, 60 Cycle,

45 12385 1 Overload Protector 115/230 Volt, 60 Cycle,

46 12604 1 Overload Protector (Use above serial 043105

46 12386 1 Overload Protector (Use below serial #43105

47 12386 1 Overload Protector 230/460 Volt, 60 Cycle,

48 12378 1 Clamp, Overload
49 5765 2 Screw
50 12372 1 Terminal Box
51 12383 1 Grommet
52 12381 1 Screw
53 12415 1 Bearing - Lower
54 12399 1 Spring, Pre-load
55 12684 1 End Frame, Lower
56 12395 1 Fan
57 13635 1 Retaining Ring
58 12490 3 Tube, Spacer
59 11940 3 Bolt, Thru
60 12396 1 Cover, Bottom
61 12586 2 Plug
62 11757-B 2 Leg (Optional)
63 12564 1 Ground Screw

208 Volt, 60 Cycle, Single Phase

Single Phase

Three Phase

Single Phase

Single Phase

only) 208-Volt, 60 Cycle, Three Phase.

Three Phase

Description

115/230 Volt, 60 Cycle, Single Phase

208 Volt, 60 Cycle, Three Phase

230/460 Volt, 60 Cycle, Three Phase

(ALL PARTS F.O.B. FACTORY/DEPOT) (INCLUDE SERIAL AND MODEL NUMBER OF DISPOSER WHEN ORDERING

Form No. C-122-72C

ORDER BY PAKT NUMBER. NOT CODE NUMBER

(Minimum Parts Order $3.00)

)

1N-SINK-ERATOB DIVISION
EMERSON ELECTRIC CO.

4700-21 ST STREET
RACINE, WISCONSIN 53406

PHONE: [phone]

1-1

MODEL SS-50-8

ISE

IN SINK

Stainless Steel Disposer

½ H.P. (Includes Model SS-50-9)

ORDER BY PART NUMBER, NOT CODE NUMBER

(All Parts F.O.B. Service Agency/Depot) (Include Serial and Mode! Number of Disposer when ordering)

Code

IN SINK ERATOR®

No.

Part

No.

1 11004 1 Mounting Flange
2 11016 1 Gasket, Mounting
3 1I020-A 1 Body, Container
4 1491 6 Bolt, Mounting
5 11227 1 Pipe Plug
6 11006 1 Seal, Body-Shredder
7 12442 1 Body and Cover Assembly
8 112S2-A 1 Stationary Shredder

9 11260 1 Nut, Shredder
10 12445 1 Washer
11 12142 1 Washer- Fibre
12 12316 1 Rotor Shredder
13 12327 1 Upper End Bell - Includes

14 12321 1 Face Seal
15 12311 1 Spacer Sleeve
16 12319 1 Centrifugal Moisture Shield
17 12610 1 Bearing Assembly - Upper
18 12326 1 Oil and Water Retainer
19 11322 2 Woodruff Key
20 12611

21 11444 3 Washer
22 1491 3 Bolt
23 1470 1 Washer- Toil Pipe
24 5417 1 Tail Pipe
25 1461 1 Flange - Toil Pipe
26 1461 2 Bolt - Tail Pipe
27 12947.A 1 Rotor & Shaft Assembly

28 129S4

No.

Reqd

Codes 14-16-17-18

Bearing - Seal Kit Includes
Codes 9-10-11-14-15-16-17-18-19

(Includes Code 28)
115/230 Volt, 60 Cycle, Single Phase
208 Volt, 60 Cycle, Single Phase

1 Centrifugal Switch

Description

MODEL SS-50-8

1/2 H.P. (Includes Model SS-50-9)

Parts List

Code

No.

Part

No.

Reqd

29 7422 2 Screw
30 12393 1 Start Switch
31 5765 2 Screw
32 12370 1 Shell - Trim
33 13075 1 Stator Assembly

34 13075-A 1

35 12433-0 1 Terminal Box Mounting Brocket
36 11441 4 Screw
37 12384 1 Bushing
38 11868 1 Capacitor
39 12387 1 Overload Protector

40 12920 1 Overload Protector

115/230 Volt, 60 Cycle, Single Phase
41 12378 1 Clamp, Overload
42 576S 2 Screw
43 12372 1 Terminal Box
44 12383 1 Grommet
45 12381 1 Screw

46 12413 1 Bearing - lower
47 12399 1 Spring, Pre-load
48 12684 1 End Frame, lower
49 12395 1 Fan

50 12639 1 Retaining Ring
51 12490 3 Tube, Spacer
52 11940 3 Bolt, Thru
53 12396 1 Cover, Bottom
54 12586 2 Plug
55 11757-81 2 Leg (Optional)

56 12564 1 Ground Screw

EFFECTIVE November 1975

No.

208 Volt, 60 Cycle, Single Phase Stator
Assembly

115/230 Volt, 60 Cycle, Single Phase

208 Volt, 60 Cycle, Single Phase

Description

ORDER BY PART NUMBER, NOT CODE NUMBER

(All Parts FOB Service Agency/Depot) (Include Serial and Model Number of Disposer when ordering)

4700-21ST STREET

FORM NO. C160-76E PRINTED IN U.S.A.

ISE

IN-UNK-ERATOR DIVISION
EMERSON ELECTRIC CO.

RACINE. WISCONSIN 53406
PHONE: [phone]

ISE

IN-SINK

-

ERATOR

September.

1979

COMMERCIAL DISPOSER

MODEL
SS-50-10 115/230/60/1 SS-50-14
SS-50-11 208/60/1 SS-50-15
SS-50-12 230/460/60/3 SS-50-16

Start with Serial #70,

SS-50-13 208/60/3 SS-50-17

CANADIAN

MODEL

1/2 H.P.

(All Parts FOB. Agency/Depot) (Include Serial and Model Number of Disposer when ordering)

ORDER BY PART NUMBER. NOT CODE NUMBER

50 5763 2 Screw

56 12684

1

End Frame, Lower

57 1239S 1 Fan

IN SINK ERATOR®

SS-50-11 208/60/1

SS-50-15

11249

4173

MODEL
SS-50-10 115/230/60/1 SS-50-14
SS-50-12 230/460/60/3 SS-50-16

SS-50-13 208/60/3 SS-50-17

Code

Part No.

No.

1 11004 1 Mounting Flange
2 11016 I Gasket, Mounting
3 11020-A 1 Body, Container
4 1491 6 Bolt. Mounting
5 11327 1 Pipe Plug
6 11006 1 Seal, Body-Shredder
7 12442 1 Body and Cover Assembly
8 11252-A 1 Stationary Shredder

9 11260 1 Nut, Shredder
10 12445 1 Washer
11 12142 1 Washer, Fibre
12 12944 1 Rotor Shredder
13 13011 1 End Bell Upper, Includes Codes 14 thru 21
14 12936 1 Shield
15 12937 6 Screw
16 12934.A 1 Seal Assembly
17 12935 1 Sleeve, Spacer
18 12860 1 O'Ring
19 12319 1 Centrifugal Moisture Shield
20 12610 1 Bearing Assembly - Upper
21 12326 1 Oil and Water Retainer
22 11322 3 Woodruff Key
23 13080 1 Bearing Seal Kit, Includes Codes 9, 10,

24 11444 3 Washer
25 1491 3 Bolt
26 1470 1 Washer, Toil Pipe
27 5487 1 Tail Pipe
28 1461 1 Flange - Tail Pipe
29 1468 2 Bolt - Tail Pipe

30 12947-A 1 Rotor & Shaft Assembly, Includes Code#

31 12954 1 Centrifugal Switch Assembly
32 12948 1 Rotor & Shaft Assembly 208 Volt, 60 Hz,

33 7422 2 Screw
34 12393 1 Start Switch
35 12370 1 Shell - Trim
36 13075.A 1 Stator Assembly 115/230 Volt, 60 Hz,

37 1307S 1 Stator Assembly 208 Volt, 60 Hx, Single

38 13077 1 Stator Assembly 230/460 Volt, 60 Hz,

No.

Req.

11, 14, 15, 16, 17, 18, 19. 20, 21, 22

31 208 Volt, 60 Hz, Single Phase &
115/230 Volt, 60 Hz, Single Phase

Three Phase 230/460 Volt, 60 Hz, Three
Phase

Single Phase

Phase

Three Phase

Description

CANADIAN

MODEL

Code

Part No.

No.

39 13076 1 Stator Assembly 208 Volt, 60 Hz, Three

40 12433 1 Terminal Box Mounting Bracket Single

41 124334 1 Terminal Box Mounting Bracket Three
42 11448 4 Screw

43 12384 1 Bushing
44 11868 1 Capacitor (Single Phase Only)

45 12920 1 Overload Protector 115/230 Volt, 60 Hz,

46 12387 1 Overload Protector 208 Volt, 60 Hz, Single

47 12386 1 Overload Protector 230/460 Volt, 60 Hz,

48 12604 1 Overload Protector 208 Volt, 60 Hz, Three

49 12378 1 Clamp, Overload
51 12372 1 Terminal Box

52 12383 1 Grommet
53 12381 1 Screw

54 1241S 1 Bearing, Lower
55 12399 1 Spring, Pre-load

58 12635 1 Retaining Ring
59 12490 3 Tube, Spacer
60 11940 3 Bolt, Thru
61 12396 1 Cover, Bottom
62 12564 1 Ground Screw
63 11737-B 2 Leg (Optional)

64 13077-A 1 Stator Assembly 230/460 Volt, 60 Hz,

65 13076-A 1 Stator Assembly 208 Volt, 60 Hz. Three

66 12948.A 1 Rotor & Shaft Assembly 230/460 Volt, 60

67 12561 1 Overload Protector 115/230 Volt, 60 Hz.

68 12616 1 Overload Protector 230/4o0 Volt, 60 Hz,

No.

Req.

Phase

Phase

Phase

Single Phase

Phase

Three Phase

Phase

CANADIAN ONLY

Three Phase

Phase

Hz Three Phase 4 208 Volt, 60 Hz, Three
Phase

Single Phase

Three Phase & 208 Volt, 60 Hz. Three
Phase

Description

4700-21ST STREET

(All Parts F.O.B. Agency/Depot) (Indude Serial and Model Number of Disposer when ordering)

ISE

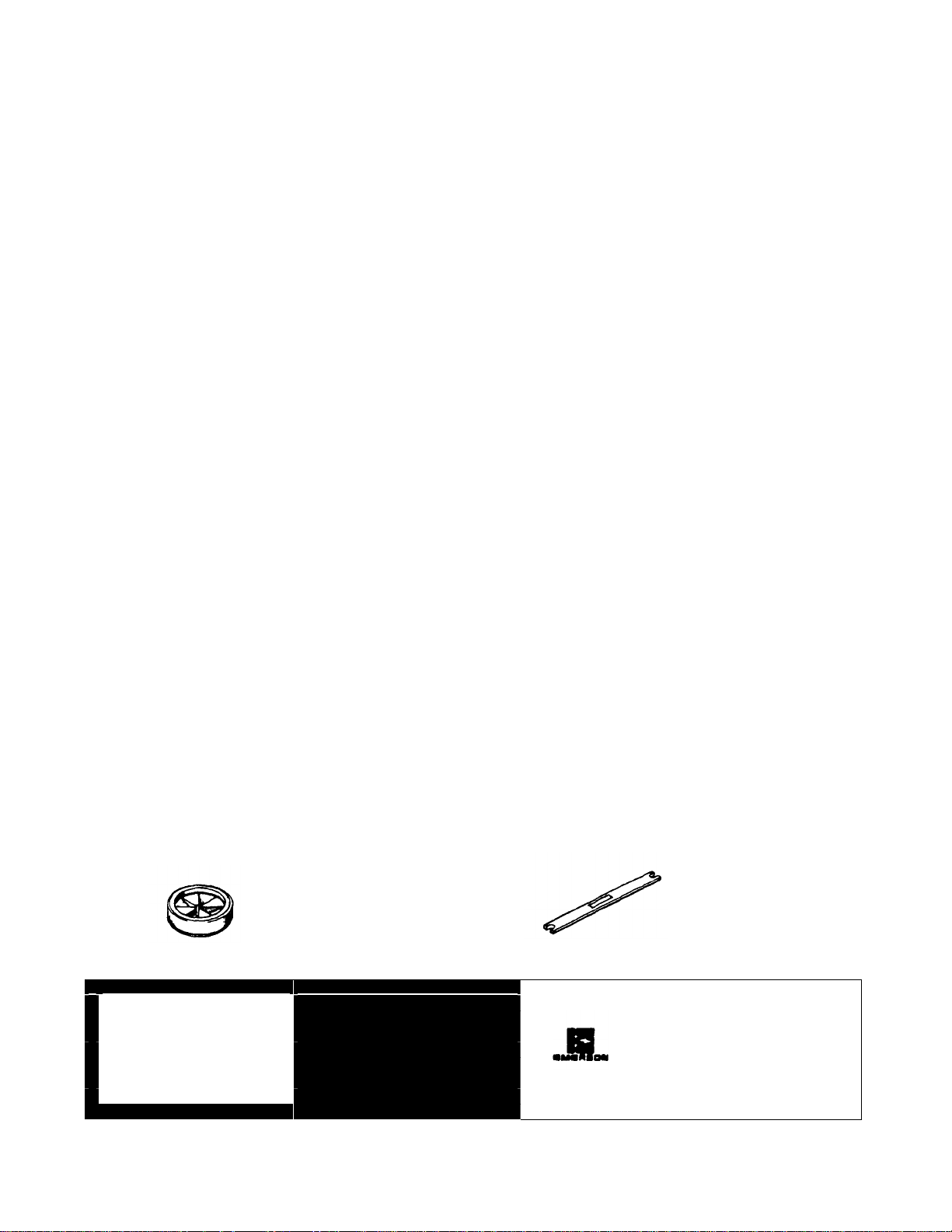

11005 SPLASH
BAFFLE

ORDER BY PART NUMBER. NOT CODE NUMBER

SLEEVE GUARD

IN-SINK-ERATOR DIVISION

JAM RELEASE BAR

EMERSON ELECTRIC CO.

RACINE. WISCONSIN 53406

PHONE: [phone]

PRINTED IN U S A

ISE

.

COMMERCIAL DISPOSER

MODEL

SS-50-18 115/208/230/60/1

IN-SINK-ERATOR SS-50-19 208/230/460/60/3

May, 1985

(All Parts F.O.B. Agency/Depot) (Include Serial and Model Number of Disposer when ordering)

ORDER BY PART NUMBER, NOT CODE NUMBER

1/2 H.P

COMMERCIAL DISPOSER

SS

-50-

19

208/230/460/60/3

IN SINK ERATOR®

32 12948A

1

Rotor

8,

Shaft Assembly, (Three

(Includes Code

52) 33 8221 2 Screw

35 12370

1

Trim Shell

36

1836A

2

Screw

38 13077A

1

Stator (Three Phase)

39

12357

1

Insulation Tubing (Three Phase Only)

40

12433

1

Bracket Mounting Terminal Box

(Single Phase)

41

12433E

1

Bracket Mounting T

erminal Box

(Three Phase)

42

11448

4

Screw

43

12384

1

Bushing

44

11868

1

Capacitor (Single Phase Only)

45

12387

1

Overload Protector (Single Phase)

46

12388

1

Overload Protector (Three Phase)

47

12378

1

Clamp Overload

48

5765 2 Screw

49

12372 1

Terminal Box

50

12381

1

Screw

51

12383

1

Grommet

52

12415

1

Bearing Lower

53

12399

1

Spring Preload

54

12684

1

Lower End Frame

55

12395

1

Fan 56 12635

1

Ring Retainer

57

12490

3

Tube Spacer

58

11940A

3

Bolt Thru

59

12396

1

Cover Bottom

60 2466A 1 Screw Ground

MODEL
SS-50-18 115/208/230/60/1

Code

Part No.

No.

1 11004 1 Mounting Flange
2 11016 1 Mounting Gasket
3 11020A 1 Body Container
4 1491 6 Screw Mounting
5 11227 1 Pipe Plug
6 11006 1 Gasket
7 12442 1 Body & Cover Assembly
8 I1252A 1 Shredder Stationary

9 11260 1 Nut
10 12445 1 Washer
11 12142 1 Washer Fiber
12 12944 1 Rotor Shredder
13 13081 1 Upper End Bell

14 12936 1 Shield
15 1269 6 Screw
16 12934A 1 Seal Assembly
17 12935 1 Sleeve Spacer
18 12860 1 "O" Ring
19 12319 1 Slinger
20 12610 1 Bearing Assembly Upper
21 12326 1 Oil & Water Seal
22 11322 3 Key Woodruff
23 13080 1 Bearing Seal Kit

24 11444 3 Washer
25 3135 3 Screw
26 1470 1 Gasket Tailpipe
27 5487 1 Tailpipe
28 1461 1 Flange Tailpipe
29 1468 2 Screw Tailpipe
30 12947A 1 Rotor & Shaft Assembly, (Single Phase)

31 12954 1 Centrifugal Switch (Single Phase Only)

No.

Reg.

(Includes Codes 14 thru 22)

(Includes Codes 9, 10, 11 & 14 thru 22)

(Includes Codes 31 & 52)

Description

Code

Part

No.

No.

No.

Reg.

34 12393 1 Switch Start (Single Phase Only)

37 13075C 1 Stator (Single Phase)

61 11757B 2 Leg Assembly (Optional)

Description

ISE

11005

SPLASH BAFFLE

(All Parts F.O.B. Agency/Depot) (Include Serial and Model Number of Disposer when ordering)

ORDER BY PART NUMBER, NOT CODE NUMBER

41738

JAM RELEASE BAR

IN-UNK-ERATOR DIVISION

EMERSON ELECTRIC CO.

4700-21ST STREET

RACINE. WISCONSIN 53406

PHONE: [phone]

PRINTED IN U.S.A.

U.S.A.

Engineer Number:

NO.

2 1

1016 1 Gasket, Mounting

3

11020

-A 1

Body Assy, Upper

4

1491 6 Screw, Mounting

5

11227

1

Pipe Plug

6 11006

1

Gasket, Shredder

7 12442

1

Body & Cover Auy

8

11252

-A 1

Shredder, Stationary

9

11260

1

Nut 10 12445

1

Washer

11

12142

1

Washer, Fiber

13 13081

1

End Bell Assy, Upper

(Incl Codes

14

thru

22)

14 12936

1

Shield

15 1269 6 Screw, Tapping

16

12934

-A 1

Seal Assy

17

12935

1

Sleeve, Spacer

18

12860

1 O-

Ring

19 12319

1

Slinger

20 12610

1

Bearing Assy, Upp

er 21 12326

1

Seal, Water

&

Oil 22 11322

3

Key, Woodruff

(IncI Codes

9-11

& 14

thru

22)

24 11444

3

Washer, lock

25 3135 3 Screw

27 5487 1 Tailpipe

28

1461 1 Flange, Tailpipe

29 1468 2 Screw, Tailpipe

30

12947

-A 1

Rotor & Shah Assy

(Single Phase)

(Single Phase Only)

32

8221 2 Screw

33

12393

1

Switch, Sta

rt

34 12370

1

Trim, Band

35

1836-A 2 Screw

(Single Phase)

37

12433

1

Bracket Assy

(Mounting) (Single Phase)

38 11448

4

Screw

40 11868

1

Capacitor

(Single P

hase Only)

41 13422

-AK 1

Overload, Protector

(Single Phase)

42

12378

1

Clamp, Overload

43

5765 2 Screw, Tapping

44 12372

1

Box, Terminal

45 12381

1

Screw

46

12383

1

Grommet, Overload

47

12415

1

Bearing, Lower

48

12399

1

Washer, Spring

49 12684 1 End Frame, Lower

50 12395

1

Fan

52 12490

3

Tube, Spacer

53

11940

-A 3

Bolt, Thru

54

12396

1

Cover, Bottom

55

2466-A 1 Screw, Ground

56

11757

-B 2

Tube Assy, Foot

IN-SINK-ERATOR®

COMMERCIAL DISPOSER

MODEL NO. SS50-21

Start Date:

7/87

(115/208-230/60/ld)

13383C

1/2 H.P.

ORDER BY PART NUMBER, NOT CODE NUMBER

CODE

1 11004 1 Flange, Mounting

12 12944 1 Shredder Assy, Rotor

23 13080 1 Bearing Seal Kit

26 1470 1 Gasket, Tailpipe

PART NO. NO. REQ.

DESCRIPTION

CODE

NO.

31 12954 1 Centrifugal Actuator

36 13075-A 1 Stator Assy

39 12384 1 Bushing

51 12635 1 Ring, Retaining

PART NO. NO. REQ.

DESCRIPTION

(Single Phase Only)

(Incl Codes 31 & 47)

(Optional)

COMMERCIAL DISPOSER Start Date:

MODEL NO. SS50

-22

1 11004

1

Flange, Mounting

29

1468 2 Screw, Ta

ilpipe

7/87

U.S.A. Engineer Number: IN-SINK-ERATOR

(208-230/460/60/3Ø) 13383D

CODE NO. PART NO. NO. REQ. DESCRIPTION CODE NO. PART NO. NO. REQ. DESCRIPTION

2 11016 1 Gasket, Mounting 30 12948 1 Rotor & Shaft Assy

3 11020-A 1 Body Assy, Upper

4 1491 6 Screw, Mounting

5 11227 1 Pipe Plug 31 12370 1 Trim, Band

6 11006 1 Gasket, Shredder 32 1836-A 2 Screw

7 12442 1 Body & Cover Assy 33 13077 1 Stator Assy

8 11252-A 1 Shredder, Stationary

9 11260 1 Nut 34 12433-E 1 Bracket, Terminal Box
10 12445 1 Washer
11 12142 1 Washer, Fiber 35 11448 4 Screw
12 12944 1 Shredder Assy, Rotor 36 12384 1 Bushing
13 13081 1 End Bell Assy, Upper 37 13422-H 1 Overload, Protector

(IncI Codes 14 thru 22)
14 12936 1 Shield 38 12378 1 Clamp, Overload
15 1269 6 Screw, Tapping 39 5765 2 Screw, Topping
16 12934-A 1 Seal Assy 40 12372
17 12935 1 Sleeve, Spacer 41 12381
18 12860 1 0-Ring 42 12383
19 12319 1 Slinger 43 12415
20 12610 1 Bearing Assy, Upper 44 12399
21 12326 1 Seal, Water & Oil 45 12684
22 11322 3 Key, Woodruff 46 12395
23 13080 1 Bearing Seal Kit 47 12635

(IncI Codes 9-11 48 12490 Tube,Spacer

& 14 thru 22) 49 11940-A 3 Bolt, Thru
24 11444 3 Washer, lock 50 12396
25 3135 3 Screw 51 2466-A
26 1470 1 Gasket, Tailpipe 52 11757-B 2 Tube Assy, Foot
27 5487 1 Tailpipe
28 1461 1 Flange, Tailpipe

(Three Phase)
(IncI Code 43)

(Three Phase)

(Three Phase)

(Three Phase)

Box, Terminal
Screw
Grommet, Overload
Bearing, Lower
Washer, Spring
End Frame, Lower
Fan
Ring, Retaining

Cover, Bottom
Screw, Ground

(Optional)

COMMERCIAL DISPOSER

MODEL NO. SS50

-24

1 11004

1

Flange, M

ounting

31 12954

1

Centrifugal Actuator

CODE

NO.

IN-SINK-ERATOR

PART NO. NO. REQ.

CANADIAN Engineer Number

(115/208-230/60/1Ø)

ORDER BY PART NUMBER, NOT CODE NUMBER

DESCRIPTION

CODE

NO.

PART NO. NO. REQ.

Start Date:

7/87

13383Q

DESCRIPTION

2 11016 1 Gasket, Mounting
3 11020-A 1 Body Assy, Upper
4 1491 6 Screw, Mounting
5 11227 1 Pipe Plug
6 11006 1 Gasket, Shredder
7 12442 1 Body & Cover Assy
8 11252-A 1 Shredder, Stationary

9 11260 1 Nut
10 12445 1 Washer
11 12142 1 Washer, Fiber
12 12944 1 Shredder Assy, Rotor
13 13081 1 End Bell Assy, Upper

14 12936 1 Shield
15 1269 6 Screw, Tapping
16 12934-A 1 Seal Assy
17 12935 1 Sleeve, Spacer
18 12860 1 O-Ring
19 12319 1 Slinger
20 12610 1 Bearing Assy, Upper
21 12326 1 Seal, Water & Oil
22 11322 3 Key, Woodruff
23 13080 1 Bearing Seal Kit

24 11444 3 Washer, Lock
25 3135 3 Screw
26 1470 I Gasket, Tailpipe
27 5487 1 Tailpipe
28 1461 1 Flange, Tailpipe
29 1468 2 Screw, Tailpipe
30 12947-A 1

(Incl Codes 14 thru 22)

(Incl Codes 9-11 & 14 thru 22)

Rotor & Shaft Assy
(Single Phase)
(Incl Codes 31 & 47)

32 8221 2 Screw

(Single Phase Only)

33 12393 1 Switch, Start

(Single Phase Only)
34 12370 1 Trim, Band
35 1836-A 2 Screw
36 13075-A 1 Stator Assy

(Single Phase)
37 12433 1 Bracket Assy

(Mounting) (Single Phase)
38 11448 4 Screw
39 12384 1 Bushing
40 11868 1 Capacitor

(Single Phase Only)
41 13422-AK 1 Overload, Protector

(Single Phase)
42 12378 1 Clamp, Overload
43 5765 2 Screw, Tapping
44 12372 1 Box, Terminal
45 12381 1 Screw
46 12383 1 Grommet, Overload
47 12415 1 Bearing, Lower
48 12399 1 Washer, Spring
49 12684 1 End Frame, Lower
50 12395 1 Fan
51 12635 1 Ring, Retaining
52 12490 3 Tube, Spacer
53 11940-A 3 Bolt, Thru
54 12396 1 Cover, Bottom
55 2466-A 1 Screw, Ground
56 11757-B 2 Tube Assy, Foot

(Optional)

MODEL NO. SS50

-25

IN-SINK-ERATOR

1 11004 1

Flange, Mounting

29

1468 2 Screw, Tailpipe

1

1

1

1

1

1

COMMERCIAL DISPOSER Start Date:

CANADIAN

Engineer Number:

(208-230/460/60/3Ø) 13383H

7/87

ORDER BY PART NUMBER. NOT CODE NUMBER

CODE

NO.

2 11016 1 Gasket, Mounting 30 12948 1 Rotor & Shaft Assy
3 11020-A 1 Body Assy, Upper
4 1491 6 Screw, Mounting
5 11227 1 Pipe Plug 31 12370 1 Trim, Band
6 11006 1 Gasket, Shredder 32 1836-A 2 Screw
7 12442 1 Body & Cover Assy 33 13077 1 Stator Assy
8 11252-A 1 Shredder, Stationary
9 11260 1 Nut 34 12433-6 1 Bracket, Terminal Box

10 12445 1 Washer

n 12142 1 Washer, Fiber 35 11448 4 Screw
12 12944 1 Shredder Assy, Rotor 36 12384 1 Bushing
13 13081 1 End Bell Assy, Upper 37 13422-H 1 Overload, Protector

14 12936 1 Shield 38 12378 1 Clamp, Overload
15 1269 6 Screw, Tapping 39 5765 2 Screw, Tapping
16 12934-A 1 Seal Assy 40 12372 1 Box, Terminal
17 12935 1 Sleeve, Spacer 41 12381 1 Screw
18 12860 1 0-Ring 42 12383
19 12319 1 Slinger 43 12415
20 12610 1 Bearing Assy, Upper 44 12399
21 12326 1 Seal, Water & Oil 45 12684
22 11322 3 Key, Woodruff 46 12395
23 13080 1 Bearing Seal Kit 47 12635

24 11444 3 Washer, Lock 50 12396 1 Cover, Bottom
25 3135 3 Screw 51 2466-A 1 Screw, Ground
26 1470 1 Gasket, Tailpipe 52 11757-B 2 Tube Assy, Foot
27 5487 1 Tailpipe
28 1461 1 Flange, Tailpipe

PART NO. NO. REQ. DESCRIPTION

(Inc! Codes 14 thru 22)

(Inc! Codes 9-11 48 12490 3 Tube, Spacer
& 14 thru 22) 49 11940-A 3 Bolt, Thru

CODE

NO.

PART NO. NO. REQ. DESCRIPTION

(Three Phase)
(Inc! Code 43)

(Three Phase)

(Three Phase)

(Three Phase)

Grommet, Overload
Bearing, Lower
Washer, Spring
End Frame, Lower
Fan
Ring, Retaining

(Optional)

COMMERCIAL DISPOSER

ISE

CODE

PART

NO.

CODE

PART

NO.

NO. NO. REQ. DESCRIPTION

NO. NO. R

EQ. DESCRIPTION

1 11004

1

Flange, Mounting

29

1468 2 Screw

(1/4-20x1/2)

1

1

1

1

1

1

1

MODEL NO. SS50-26

IN-SINK-ERATOR (115/208-230Volt / 50/60HZ / 1 Phase)

Start Date:

9-1-92

Engineer Number:

13658

ORDER BY PART NUMBER, NOT CODE NUMBER

2 11016 1 Gasket, Mounting 30 13674 1 Rotor & Shaft Assy/
3 11020-A 1 Body, Assy, Upper
4 1491 6 Screw (1/4-20x3/4) 31 13708 1 Centrifugal Actuator
5 11227
6 11006
7 12442
8 11252-A

9 11260
10 12445
11 12142
12 12944 1 Shredder Assy, Rotor 38 11448 4 Screw (8-18x1/4)
13 13722 1 End Bell Assy, Upper 39 12384 1 Bushing

14 12936 1 Shield 41 13422-AK 1 Overload, Protector
15 1269 6 Screw (8-18x1/2) 42 12378 1 Clamp, Overload
16 12934-A 1 Seal Assy 43 8221 2 Screw, Tapping
17 12935 1 Sleeve, Spacer 44 13396 1 Box, Terminal
18 12860 1 O-Ring
19 12319 1 Slinger 45 12381 1 Screw (8-32x1-1/4)
20 12610 1 Bearing Assy, Upper 46 12383 1 Grommet, Overload
21 12326 1 Seal, Water & Oil 47 13709 1 Bearing, Lower
22 11322 3 Key, Woodruff 48 13678 1 Spring, Pre-load
23 13080 1 Bearing Seal Kit (Ind. 49 13710 1 End Frame, Lower

24 11444 3 Washer, Lock 51 13677 1 Ring, Retaining
25 3135 3 Screw (8-18x1/4) 52 12490 3 Tube,Spacer
26 1470 1 Gasket, Tailpipe 53 11940-A 3 Bolt, Thru
27 5487 1 Tailpipe 54 12396 1 Cover, Bottom
28 1461 1 Flange, Tailpipe 55 2466-A 1 Screw, Ground

(Optional)

Pipe, Plug 32 8221 2 Screw (8-32x1/2)
Gasket, Shredder 33 13707 1 Switch, Start
Body & Cover Assy 34 12370 1 Trim, Band
Shredder, Stationary 35 1836-A 2 Screw (8-32x1/2)
Nut 36 13713 1 Stator As sy
Washer 37 12433 1 Brocket Assy
Washer, Fiber

(Inc). Codes 14 thru 22) 40 11868 1 Capacitor

codes 9-10-11& 14 thru 22) 50 13676 1 Fan

56 11757-B 2 Tube Assy, Foot

(Ind. Codes 31 & 47)

(Mounting)

(Ind. Code 46)

COMMERCIAL DISPOSER

Start Date:

9-1-92

ISE

MODEL NO. SS50-27

CODE

PART

NO.

CODE

PART

NO.

l 11004

1

Flange, Mounting

28

1461 1 Flange, Tailpipe

2 11016

1 Gasket, Mounting

29 1468 2 Screw

(1/4-20x1/2)

3 1

1020-A 1 Body, Assy, Upper

30 13674

-

E 1 Rotor &

Shaft

Assy

4 1491 6 Screw

(1/4-20x3/4)

(Incl. Code

43) 5 11227

1 Pipe, P

lug 31 12370

1 Trim, Band

6 11006

.1 Gasket, Shredder

32 1836-A 2 Screw

(8-32x1/2)

7 12442

1 Body & Cover Assy

33 13714

1 Stator Assy

8 11252

-

A 1 Shredder, Stationary

34 12433

-

E 1 Bracket Assy

9 11260

1 Nut

(Mounting)

10 12445

1 Washer

35 11448

4 Screw

(8-18x1/4)

11 12142

1 Washer, Fiber

36 12384

1 Bushing

12 12944

1 ShredderAssy, Rotor

37 13422

-

H 1 Overload, Protector

13 13722

1 End Bell Assy, Upper

38 12378

1 Clamp, Overload

(Incl. Codes

14

thru

22) 39 8221 2 Screw

(8-32x1/2)

14 1293

6 1 Shield

40 13396

1 Box, Terminal

15 1269 6 Screw

(8-18x1/2)

(Incl. code

42) 16 12934

-

A 1 Seal Assy

41 12381

1 Screw

(8-32x1-1/4) 17 12935

1 Sleeve, Spacer

42 12383

1 Grommet, Overload

18 12860

1 0-Ring 43 13709

1 Bearing, Lower

19 12319

1 Sli

nger 44 13678

1 Spring, Pre

-

load 20 12610

1 Bearing Assy, Upper

45 13747

1 End Frame, Lower

21 12326

1 Seal, Water& Oil

46 13676

1 Fan 22 11322

3 Key, Woodruff

47 13677

1 Ring, Retaining

23 13080

1 Bearing Seal Kit (Incl.

48 12490

3 Tube, Spacer

codes

9-10-11 & 14

thru

22) 49 1

1940-A 3 Bolt, Thru

24 11444

3 Washer, Lock

50 12396

1 Cover, Bottom

25 3135 3 Screw

(1/4-20x1) 51 2466-A 1 Screw, Ground

26 1470 1 Gasket, Tailpipe

52 11757

-

B 2 Tube Assy, Foot

27 5487 1 Tailpipe

(Optional)

Engineer Number:

IN-SINK-ERATOR (208/230/460Volt / 60Hz / 3 Phase) 13658-A

ORDER BY PART NUMBER, NOT CODE NUMBER

NO. NO. REQ. DESCRIPTION NO. NO. REQ. DESCRIPTION

COMMERCIAL DISPOSER

Start Date:

2-26-93

ISE

MODEL NO. SS50-28 (C.S.A)

Engineer Number:

IN-SINK

-

ERATOR

(11

5/208

-

230Volt

/

60Hz

/ 1

Phase)

13658

-

B

CODE

PART

NO.

CODE

PART

NO.

NO. NO. REQ. DESCRIPTION

NO. NO. REQ. DESCRIPTION

1 11004

1

Flange, Mounting

29

1468 2 Screw

(1/4-20x1/2)

2 11016

1

Gasket, Mounting

30

13674

1

Rotor & Shaft Assy/

3

11020

-A 1

Body, Assy, Upper

(Incl. Codes

31 & 47)

4

1491 6 Screw

(1/4-20x3/4)

31

13708

1

Centrifugal Actuato

r 5 11227

1

Pipe, Plug

32

8221 2 Screw

(8-32x1/2)

6

11006

1

Gasket, Shradder

33

13707

1

Switch, Start

7

12442

1

Body & Cover Assy

34

12370

1

Trim, Band

8 11252-A 1 Shredder, Stationary

35

1836-A 2 Screw

(8-32X1/2)

9

11260

1

Nut 36 13713

1

StatorAssy

10

12445

1

Washer

37

12433

1

Bracket Assy

11

12142

1

Washer. Fiber

(Mounting)

12

12944

1

Shredder Assy, Rotor

38

11448

4

Screw

(8-18x1/4)

13

13722

1

End Bell Assy, Upper

39

12384

1

Bushing

(Incl. Codes

14

thru

22) 40 11868

1

Capacitor

14 12936 1 Shield

41

13422

-AK 1

Overload, Protector

15

1269 6 Screw

(8-18x1/2)

42

12378

1

Clamp, Overload

16

12934

-A 1

Seal Assy

43

8221 2 Screw, Tapping

17

12935

1

Sleeve, Spacer

44

13396

1

Box, Terminal

18

12860

1 0-

Ring

(Incl. Code

46) 19 12319

1

Slinger

45

12381

1

Screw

(8-32x1-1/4) 20 12610

1

Bearing Assy, Upper

46

12383

1

Grommet, Overload

21

12326

1

Seal, Water& Oil

47

13709

1

Bearing, Lower

22

11322

3

Key, Woodruff

48

13678

1

Spring, Pre

-

load 23 13080

1

Bearing Seal Kit (Incl.

49

13710

1

End Frame, Lower

codes

9-10-11 & 14

thru

22) 50 13676

1

Fan 24 11444

3

Washer, Lock

51

13677

1

Ring, Retaining

25

3135 3 Screw

(8-18x1/4)

52

12490

3

Tube, Spacer

26

1470 1 Gasket, Tailpipe

53 11940-A 3 Bolt, Thru

27

5487 1 Tailpipe

54

12396

1 Cover, Bottom

28

1461 1 Flange, Tailpipe

55

2466-A 1 Screw, Ground

56

11757

-B 2

Tube Assy, Foot

(Optional)

ORDER BY PART NUMBER, NOT CODE NUMBER

COMMERCIAL DISPOSER

Start Date:

ISE

IN-SINK-ERATOR

CODE

PART

NO.

CODE

PART

NO.

NO. NO. REQ. DESCRIPTION

NO. NO. REQ. DESCRIPTION

MODEL NO. SS50-29 (C.S.A.)

Engineer Number:

(208/230/460Volt / 60Hz / 3 Phase) 13658-C

02/26/93

ORDER BY PART NUMBER, NOT CODE NUMBER

1 11004 1 Flange, Mounting 28 1461 1 Flange, Tailpipe
2 11016 1 Gasket, Mounting 29 1468 2 Screw (1/4-20x1/2)
3 11020-A 1 Body, Assy, Upper 30 13674-E 1 Rotor & Shaft Assy
4 1491 6 Screw (1/4-20x3/4)
5 11227 1 Pipe, Plug 31 12370 1 Trim, Band
6 11006 1 Gasket, Shredder 32 1836-A 2 Screw (8-32x1/2)
7 12442 1 Body & Cover Assy 33 13714 1 Stator Assy
8 11252-A 1 Shredder, Stationary 34 12433-E 1 Bracket Assy

9 11260 1 Nut
10 12445 1 Washer 35 11448 4 Screw (8-18x1/4)
11 12142 1 Washer, Fiber 36 12384 1 Bushing
12 12944 1 ShredderAssy, Rotor 37 13422-H 1 Overload, Protector
13 13722 1 End Bell Assy. Upper 38 12378 1 Clamp, Overload

(Incl. Codes 14 thru 22) 39 8221 2 Screw (8-32x1/2)
14 12936 1 Shield 40 13396 1 Box, Terminal
15 1269 6 Screw (8-18x1/2)
16 12934-A 1 Seal Assy 41 12381 1 Screw (8-32x1-1/4)
17 12935 1 Sleeve, Spacer 42 12383 1 Grommet, Overload
18 12860 1 0-Ring 43 13709 1 Bearing, Lower
19 12319 1 Slinger 44 13678 1 Spring, Pre-load
20 12610 1 Bearing Assy, Upper 45 13747 1 End Frame, Lower
21 12326 1 Seal, Water & Oil 46 13676 1 Fan
22 11322 3 Key, Woodruff 47 13677 1 Ring, Retaining
23 13080 1 Bearing Seal Kit (Incl. 48 12490 3 Tube, Spacer

codes 9-10-11 & 14 thru 22) 49 11940-A 3 Bolt, Thru
24 11444 3 Washer, Lock 50 12396 1 Cover, Bottom
25 3135 3 Screw (1/4-20x1) 51 2466-A 1 Screw, Ground
26 1470 1 Gasket, Tailpipe 52 11757-B 2 Tube Assy, Foot
27 5487 1 Tailpipe (Optional)

(Incl. Code 43)

(Mounting)

(Incl. code 42)
