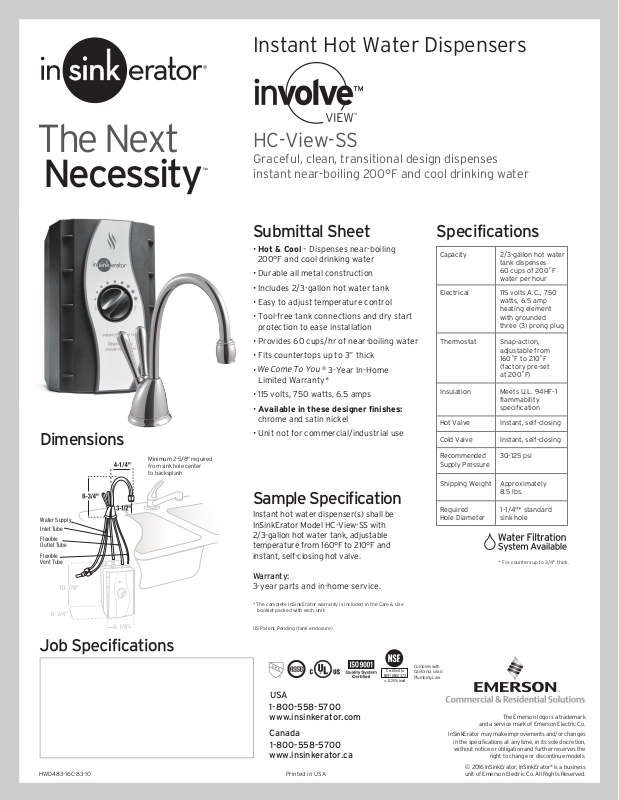

InSinkErator INK1083 Specifications

Instant Hot Water Dispensers

The Next

Necessity

Dimensions

Minimum 2-5/8" required
from sink hole center
to backsplash

Water Supply
Inl et Tube

Flexible
Outlet Tube

Flexible
Ven t Tube

10-7/8"

6-3/4"

6-1/8"

HC-View-SS

™

Graceful, clean, transitional design dispenses
instant near-boiling 200°F and cool drinking water

Submittal Sheet Specifications

• Hot & Cool – Dispenses near-boiling
200°F and cool drinking water

• Durable all metal construction

• Includes 2/3-gallon hot water tank

• Easy to adjust temperature control

• Tool-free tank connections and dry start
protection to ease installation

• Provides 60 cups/hr of near-boiling water

• Fits countertops up to 3” thick

We Come To You

•

®

3-Year In-Home

Limited Warranty*

• 115 volts, 750 watts, 6.5 amps

• Available in these designer finishes:
chrome and satin nickel

• Unit not for commercial/industrial use

Capacity 2/3-gallon hot water

Electrical

Thermostat

Insulation

Hot Valve Instant, self-closing

Cold Valve Instant, self-closing

Recommended
Supply Pressure

Shipping Weight Approximately

tank dispenses
60 cups of 200˚F
water per hour

115 volts A.C., 750
watts, 6.5 amp
heating element
with grounded
three (3) prong plug

Snap-action,
adjustable from
160˚F to 210˚F
(factory pre-set
at 200˚F)

Meets U.L. 94HF-1
flammability
specification

30-125 psi

8.5 lbs.

Sample Specification

Instant hot water dispenser(s) shall be
InSinkErator Model HC-View-SS with
2/3-gallon hot water tank, adjustable
temperature from 160°F to 210°F and
instant, self-closing hot valve.

Warranty:

3-year parts and in-home service.

* The complete InSinkErator warranty is included in the Care & Use
booklet packed with each unit.

US Patent Pending (tank enclosure)

Required
Hole Diameter

1 -1/4"* standard
sink hole

* For counters up to 3/4" thick.

HWD483-16C-83-10

USA
1-800-558-5700

www.insinkerator.com

Canada

1-800-558-5700

www.insinkerator.ca

Printed in USA

Certified to

NSF/ANSI 372
≤ 0.25% lead

Complies with
California Lead
Plumbing Law

The Emerson logo is a trademark

and a service mark of Emerson Electric Co.

InSinkErator may make improvements and/or changes

in the specifications at any time, in its sole discretion,

without notice or obligation and further reserves the

right to change or discontinue models.

© 2016 InSinkErator, InSinkErator
unit of Emerson Electric Co. All Rights Reserved.

®

is a business
