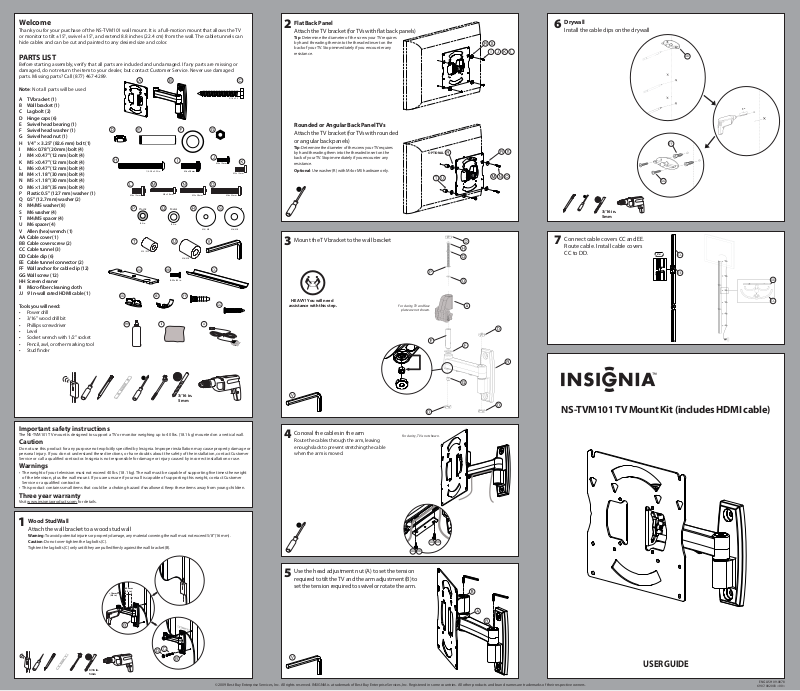

Insignia NS-TVM101, 09-0878 User Manual

Welcome

Thank you for your purchase of the NS-TVM101 wall mount. It is a full-motion mount that allows the TV or monitor to tilt ±15°, swivel ±15°, and extend 8.8 inches (22.4 cm) from the wall. The cable tunnels can

hide cables and can be cut and painted to any desired size and color.

PARTS LIST

Before starting assembly, verify that all parts are included and undamaged. If any parts are missing or

damaged, do not return the item to your dealer, but contact Customer Service. Never use damaged parts. Missing parts? Call (877) 467-4289.

Note: Not all parts will be used

Flat Back Panel

Attach the TV bracket (for TVs with at back panels)

Tip: Determine the diameter of the screw your TV requires

by hand threading them into the threaded insert on the

back of your TV. Stop immediately if you encounter any

resistance.

Drywall

Install the cable clips on the drywall

[26]

A TV bracket (1) B Wall bracket (1) C Lag bolt (2) D Hinge caps (6) E Swivel head bearing (1) F Swivel head washer (1) G Swivel head nut (1) H 1/4" × 3.25" (82.6 mm) bolt (1) I M6× 0.78" (20 mm) bolt (4) J M4 × 0.47" (12 mm) bolt (4) K M5 × 0.47" (12 mm) bolt (4) L M6 × 0.47" (12 mm) bolt (4) M M4 × 1.18" (30 mm) bolt (4) N M5 × 1.18" (30 mm) bolt (4) O M6 × 1.38" (35 mm) bolt (4) P Plastic 0.5" (12.7 mm) washer (1) Q 0.5" (12.7 mm) washer (2) R M4/M5 washer (8) S M6 washer (4) T M4/M5 spacer (4) U M6 spacer (4) V Allen (hex) wrench (1) AA Cable cover (1) BB Cable cover screw (2) CC Cable tunnel (3) DD Cable clip (6) EE Cable tunnel connector (2) FF Wall anchor for cable clip (12) GG Wall screw (12) HH Screen cleaner II Micro-ber cleaning cloth JJ 9' In-wall rated HDMI cable (1)

Tools you will need:

• Power drill

• 3/16" wood drill bit

• Phillips screwdriver

• Level

• Socket wrench with 1/2" socket

• Pencil, awl, or other marking tool

• Stud nder

1/4-20 x 3.25 in.

M6 x 12mm

Plastic

0.5 in.

M4 / M5

DD EE FF

M4 x 30mm

Metal

0.5 in.

M6 / M8

8-32 x 0.5 in.

M6 x 20mm

M5 x 30mm

M4 / M5

M4 x 12mm

5/16 x 2.5

M5 x 12mm

M6 x 35mm

M6 / M8

Rounded or Angular Back Panel TVs

Attach the TV bracket (for TVs with rounded

or angular back panels)

Tip: Determine the diameter of the screw your TV requires

by hand threading them into the threaded insert on the

back of your TV. Stop immediately if you encounter any

resistance.

Optional: Use washer (R) with M4 or M5 hardware only.

Mount the TV bracket to the wall bracket

HEAVY! You will need

assistance with this step.

For clarity, TV and face

plate are not shown.

OPTIONAL

[10]

[06]

[09]

[11]

[05]

[07]

[01]

[05]

3/16 in. 5mm

Connect cable covers CC and EE.

Route cable. Install cable covers CC to DD.

1”

[29]

[28]

[27]

[29]

[28]

[27]

3/16 in. 5 mm

Important safety instructions

The NS-TVM101 TV mount is designed to support a TV or monitor weighing up to 40 lbs. (18.1 kg) mounted on a vertical wall.

Caution

Do not use this product for any purpose not explicitly specied by Insignia. Improper installation may cause property damage or personal injury. If you do not understand these directions, or have doubts about the safety of the installation, contact Customer

Service or call a qualied contractor. Insignia is not responsible for damage or injury caused by incorrect installation or use.

Warnings

• The weight of your television must not exceed 40 lbs. (18.1 kg). The wall must be capable of supporting ve times the weight

of the television, plus the wall mount. If you are unsure if your wall is capable of supporting this weight, contact Customer

Service or a qualied contractor.

• This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children.

Conceal the cables in the arm

Route the cables through the arm, leaving enough slack to prevent stretching the cable when the arm is moved.

[05]

For clarity, TV is not shown.

[02]

[08]

[05]

NS-TVM101 TV Mount Kit (includes HDMI cable)

Three year warranty

Visit www.insigniaproducts.com for details.

Wood Stud Wall

Attach the wall bracket to a wood stud wall

Warning: To avoid potential injuries or property damage, any material covering the wall must not exceed 5/8" (16 mm). Caution: Do not over-tighten the lag bolts (C).

Tighten the lag bolts (C) only until they are pulled rmly against the wall bracket (B).

63.5 mm

< 16 mm

(5/8 in.)

(2.5 in.)

[02]

Use the head adjustment nut (A) to set the tension

required to tilt the TV and the arm adjustment (B) to set the tension required to swivel or rotate the arm.

[B]

[A]

[B]

3/16 in. 5mm

[05]

[12]

[02]

© 2009 Best Buy Enterprise Services, Inc. All rights reserved. INSIGNIA is a trademark of Best Buy Enterprise Services, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.

USER GUIDE

ENGLISH 09-0878

6907-002003 <00>
