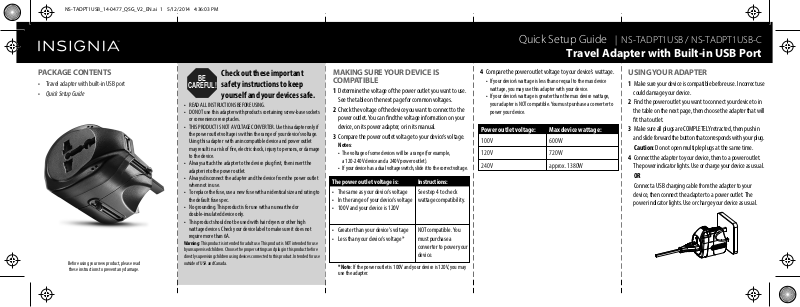

Insignia NS-TADPT1USB, NS-TADPT1USB-C Quick Setup Manual
Quick Setup Guide | NS-TADPT1USB / NS-TADPT1USB-C
Travel Adapter with Built-in USB Port
PACKAGE CONTENTS
• Travel adapter with built-in USB port
• Quick Setup Guide
Before using your new product, please read
these instructions to prevent any damage.
Check out these important
BE
CAREFUL!
safety instructions to keep
yourself and your devices safe.
• READ ALL INSTRUCTIONS BEFORE USING.
• DO NOT use this adapter with products containing screw-base sockets
or convenience receptacles.
• THIS PRODUCT IS NOT A VOLTAGE CONVERTER. Use this adapter only if
the power outlet voltage is within the range of your device’s voltage.
Using this adapter with an incompatible device and power outlet
may result in a risk of re, electric shock, injury to persons, or damage
to the device.
• Always attach the adapter to the device plug rst, then insert the
adapter into the power outlet.
• Always disconnect the adapter and the device from the power outlet
when not in use.
• To replace the fuse, use a new fuse with an identical size and rating to
the default fuse spec.
• No grounding. This product is for use with an unearthed or
double-insulated device only.
• This product should not be used with hair dryers or other high
wattage devices. Check your device label to make sure it does not
require more than 6A.
Warning: This product is intended for adult use. This product is NOT intended for use
by unsupervised children. Choose the proper settings and plug in this product before
directly supervising children using devices connected to this product. Intended for use
outside of USA and Canada.
MAKING SURE YOUR DEVICE IS
COMPATIBLE
1 Determine the voltage of the power outlet you want to use.
See the table on the next page for common voltages.
2 Check the voltage of the device you want to connect to the
power outlet. You can nd the voltage information on your
device, on its power adapter, or in its manual.
3 Compare the power outlet voltage to your device’s voltage.
Notes:
• The voltage of some devices will be a range (for example,
a 120-240V device and a 240V power outlet).
• If your device has a dual voltage switch, slide it to the correct voltage.
The power outlet voltage is:
• The same as your device’s voltage
• In the range of your device’s voltage
• 100V and your device is 120V
• Greater than your device’s voltage
• Less than your device’s voltage*
*Note: If the power outlet is 100V and your device is 120V, you may
use the adapter.
Instructions:
See step 4 to check
wattage compatibility.
NOT compatible. You
must purchase a
converter to power your
device.
4 Compare the power outlet voltage to your device’s wattage.
• If your device’s wattage is less than or equal to the max device
wattage, you may use this adapter with your device.
• If your device’s wattage is greater than the max device wattage,
your adapter is NOT compatible. You must purchase a converter to
power your device.
Power outlet voltage:
100V
120V
240V
Max device wattage:
600W
720W
approx. 1380W
USING YOUR ADAPTER
1 Make sure your device is compatible before use. Incorrect use
could damage your device.
2 Find the power outlet you want to connect your device to in
the table on the next page, then choose the adapter that will
t that outlet.
3 Make sure all plugs are COMPLETELY retracted, then push in
and slide forward the button that corresponds with your plug.
Caution: Do not open multiple plugs at the same time.
4 Connect the adapter to your device, then to a power outlet.
The power indicator lights. Use or charge your device as usual.
OR
Connect a USB charging cable from the adapter to your
device, then connect the adapter to a power outlet. The
power indicator lights. Use or charge your device as usual.
Plug types Location
Outlet types
Japan
Parts of North America and
blades
Caribbean
Parts of South America,
Flat parallel
Caribbean, and China
Parts of Middle East, Africa,
Asia, South America
Round pins
Europe, parts of Middle East,
Africa, Asia, South America
Northern Europe
Flat angled
Australia, New Zealand, and
Fiji
blades
Great Britain, Ireland, parts of
blades
Africa, Hong Kong, and
Singapore
All USB charging devices
3-prong
USB charging
port
Voltage
100V
120V
240V
120V
240V
240V
240V
240V
5V DC / 1.0A
REPLACING THE FUSE
Note: Replace only with a UL certied 6.3A/250V AC fuse.
1 Unscrew the fuse cover.
2 Remove the broken fuse.
3 Install the new fuse, then replace fuse cover.
SPECIFICATIONS
• AC Power Rating: 6A max. 100-240V AC (660W max. at
110V, 1380W max. at 230V)
• USB Power Rating: 1000mA +5V DC
• Built-In 6.3A replaceable fuse
LEGAL NOTICES
FCC Statement
Caution: Changes or modications not expressly approved
by the part responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Canadian Notice
CAN ICES-3 B/NMB-3 B
ONEYEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 1-877-467-4289 (U.S. and Canada)
or 01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2014 Best Buy. All rights reserved.
Made in China
V2 ENGLISH 14-0477
