Insignia NS-TADPCON-C, NS-TADPCON User Manual

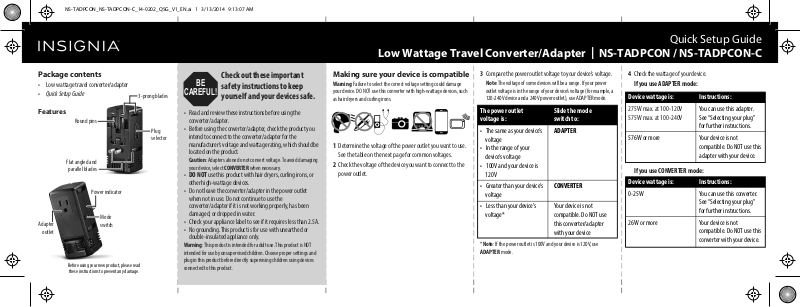

Quick Setup Guide
Low Wattage Travel Converter/Adapter | NS-TADPCON / NS-TADPCON-C
Package contents
• Low wattage travel converter/adapter
Quick Setup Guide
Features
Adapter
outlet
Round pins
Flat angled and
parallel blades
Power indicator
Mode switch
Before using your new product, please read
these instructions to prevent any damage.
3-prong blades
Plug selector
Check out these important
BE
CAREFUL!
• Read and review these instructions before using the converter/adapter.
• Before using the converter/adapter, check the product you intend to connect to the converter/adapter for the manufacturer’s voltage and wattage rating, which should be located on the product.
Caution: Adapters alone do not convert voltage. To avoid damaging
your device, select CONVERTER when necessary.
DO NOT use this product with hair dryers, curling irons, or other high-wattage devices.
• Do not leave the converter/adapter in the power outlet when not in use. Do not continue to use the converter/adapter if it is not working properly, has been damaged, or dropped in water.
• Check your appliance label to see if it requires less than 2.5A.
• No grounding. This product is for use with unearthed or double-insulated appliance only.
Warning: This product is intended for adult use. This product is NOT intended for use by unsupervised children. Choose proper settings and plug in this product before directly supervising children using devices connected to this product.
safety instructions to keep yourself and your devices safe.
Making sure your device is compatible
Warning: Failure to select the correct voltage setting could damage your device. DO NOT use this converter with high-wattage devices, such as hair dryers and curling irons.
1 Determine the voltage of the power outlet you want to use.
See the table on the next page for common voltages.
2 Check the voltage of the device you want to connect to the
power outlet.
3 Compare the power outlet voltage to your device’s voltage.
Note: The voltage of some devices will be a range. If your power
outlet voltage is in the range of your device’s voltage (for example, a 120-240V device and a 240V power outlet), use ADAPTER mode.
The power outlet voltage is:
• The same as your device’s
Slide the mode switch to:
ADAPTER
voltage
• In the range of your device’s voltage
• 100V and your device is 120V
• Greater than your device’s
CONVERTER
voltage
• Less than your device’s voltage*
Your device is not compatible. Do NOT use this converter/adapter with your device
*Note: If the power outlet is 100V and your device is 120V, use
ADAPTER mode.
4 Check the wattage of your device. If you use ADAPTER mode:
Device wattage is:
275W max. at 100-120V 575W max. at 100-240V
Instructions:
You can use this adapter. See “Selecting your plug” for further instructions.
576W or more
Your device is not compatible. Do NOT use this adapter with your device.
If you use CONVERTER mode:
Device wattage is:
0-25W
Instructions:
You can use this converter. See “Selecting your plug” for further instructions.
26W or more
Your device is not compatible. Do NOT use this converter with your device.
Selecting your plug
Find the power outlet you want to connect your device to in the following table, then follow the corresponding instructions to open the plug. Make sure that you only open one plug at a time.
North America/South America/Japan:
1 Slide the plug selector to
USA/AUST/NZ.
2 Slide both side buttons forward
to push out the prongs.
Europe:
1 Slide the plug selector to Europe. 2 Use your nger to pull out and
bring down the plug.
Australia/New Zealand:
1 Slide the plug selector to USA/AUST/NZ. 2 Slide both side buttons forward
to push out the prongs, then gently turn each prong inward until they stop.
UK/Hong Kong:
1 Slide the plug selector to UK. 2 Push in and slide both side
buttons forward to push out the top prongs, then use your nger to pull down the middle prong.
Plug types Location
Outlet types
Japan
Flat parallel
Parts of North America and Caribbean
Parts of South America, Caribbean, and China
Parts of Middle East, Africa, Asia, South America
Round thin pin
Europe, parts of Middle East, Africa, Asia, South America
Northern Europe
Australia, New Zealand, and Fiji
Flat angled blades
Great Britain, Ireland, parts of Africa, Hong Kong, and Singapore
3-prong blades
Using your adapter
1 Make sure your device is compatible and that you have
selected the correct settings before use. Incorrect use could damage your device.
2 Connect your device to the adapter outlet, then plug the
converter/adapter into a power outlet.
Note: When in converter mode, only use this product for short periods of time (approximately 10-15 minutes).
Voltage
100V
120V
240V
120V
240V
240V
240V
240V
Troubleshooting
My converter/adapter or device is humming
• It is normal to hear a humming sound from your converter/adapter or device.
My device stopped working
• If your device has a built-in thermostat, it may have shut o prematurely.
• Make sure that you have selected the correct settings.
• Wait for your device to cool down, then resume normal operation.
My device is working slowly
• Some devices may operate slower in foreign countries that use 50 Hz of current (the U.S. operates on 60 Hz).
I don’t know my device’s voltage or wattage
• Check on your device, its power adapter, or in its manual.
• To calculate wattage, multiple voltage by amps (for example, 100V ×
2.5 amps = 250 watts).
• Contact the device’s manufacturer.
Specications
AC power rated for adapter and converter
Converter mode:
Input: 220 - 240V AC, 50Hz Output: 110 - 120V AC, 25W
Adapter mode:
Input: 100 - 240V AC Output: 2.5A max. 275W max. at 100-120V 575W max. at 220-240V
One-year limited warranty
Visit www.insigniaproducts.com for details.
Contact Insignia:
For customer service, call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC, 7601 Penn Ave South, Richeld, MN 55423 U.S.A. ©2014 Best Buy. All rights reserved. Made in China
V1 ENGLISH 14-0202
