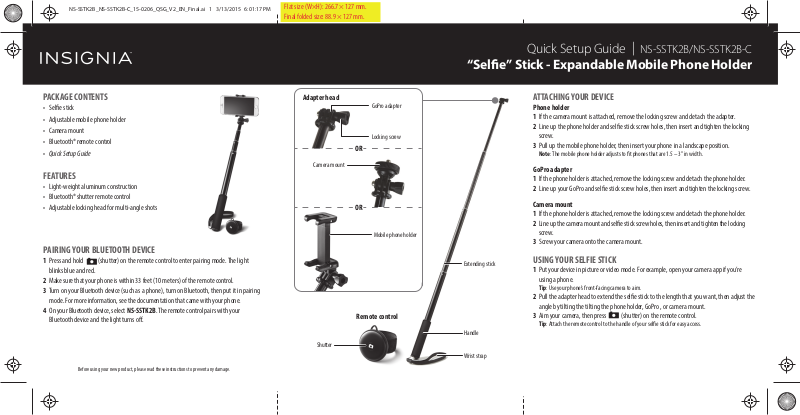

Insignia NS-SSTK2B, NS-SSTK2B-C Quick Setup Manual
Quick Setup Guide | NS-SSTK2B/NS-SSTK2B-C
“Sele” Stick - Expandable Mobile Phone Holder
PACKAGE CONTENTS
• Sele stick
• Adjustable mobile phone holder
• Camera mount
• Bluetooth® remote control
• Quick Setup Guide
FEATURES
• Light-weight aluminum construction
• Bluetooth® shutter remote control
• Adjustable locking head for multi-angle shots
PAIRING YOUR BLUETOOTH DEVICE
1 Press and hold (shutter) on the remote control to enter pairing mode. The light
blinks blue and red.
2 Make sure that your phone is within 33 feet (10 meters) of the remote control.
3 Turn on your Bluetooth device (such as a phone), turn on Bluetooth, then put it in pairing
mode. For more information, see the documentation that came with your phone.
4 On your Bluetooth device, select NS-SSTK2B. The remote control pairs with your
Bluetooth device and the light turns o.
Before using your new product, please read these instructions to prevent any damage.
Adapter head
Camera mount
Shutter
GoPro adapter
Locking screw
OR
OR
Mobile phone holder
Remote control
Extending stick
Handle
Wrist strap
ATTACHING YOUR DEVICE
Phone holder
1 If the camera mount is attached, remove the locking screw and detach the adapter.
2 Line up the phone holder and sele stick screw holes, then insert and tighten the locking
screw.
3 Pull up the mobile phone holder, then insert your phone in a landscape position.
Note: The mobile phone holder adjusts to t phones that are 1.5 – 3" in width.
GoPro adapter
1 If the phone holder is attached, remove the locking screw and detach the phone holder.
2 Line up your GoPro and sele stick screw holes, then insert and tighten the locking screw.
Camera mount
1 If the phone holder is attached, remove the locking screw and detach the phone holder.
2 Line up the camera mount and sele stick screw holes, then insert and tighten the locking
screw.
3 Screw your camera onto the camera mount.
USING YOUR SELFIE STICK
1 Put your device in picture or video mode. For example, open your camera app if you’re
using a phone.
Tip: Use your phone’s front-facing camera to aim.
2 Pull the adapter head to extend the sele stick to the length that you want, then adjust the
angle by tilting the tilting the phone holder, GoPro , or camera mount.
3 Aim your camera, then press (shutter) on the remote control.
Tip: Attach the remote control to the handle of your sele stick for easy access.
REPLACING THE REMOTE CONTROL BATTERIES
1 Remove the rubber back from the remote control.
2 Slide o the battery cover.
3 Insert a CR2032L battery. The positive side should face up.
4 Replace the battery cover and rubber back.
STORING YOUR SELFIE STICK
• Make sure the mobile phone holder is attached at the top. Fold the mobile phone holder
down, then screw the camera mount to the bottom of the sele stick. Use the Velcro strap to
attach the remote control to the sele stick’s handle.
TROUBLESHOOTING
Remote control will not pair with my phone
• Move your phone and remote control closer together.
• Make sure that your phone and remote control are not paired to another Bluetooth device.
• Make sure that you selected NS-SSTK2B on your phone.
• Turn your phone o, then on. Re-pair your remote control and phone.
• The remote control battery may be depleted. Replace the battery.
“NS-SSTK2B” does not appear on my phone
• Move your phone and remote control closer together.
• Put your remote control in pairing mode, then refresh your list of Bluetooth devices. For
more information, see the documentation that came with your phone.
IMPORTANT SAFETY INSTRUCTIONS
• Make sure that your smartphone is completely secured to your sele stick.
• Always be fully aware of your surroundings when using your sele stick. Never put yourself
or others in a dangerous situation.
SPECIFICATIONS
Length (collapsed): 11.1 in. (28.3 cm) Length (fully extended): 39.0 in. (99.0 cm)
Weight (with remote): 6.35 oz. (180 g)
LEGAL STATEMENTS
FCC statement:
"This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation."
FCC Caution:
"Changes or modications not expressly approved by the part responsible for compliance
could void the user's authority to operate the equipment."
RSS-Gen & RSS-210 statement:
"This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement."
RSS-102 Statement:
"This equipment complies with Industry Canada radiation exposure limits set forth for an
uncontrolled environment. "
"Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites
établies pour un environnement non contrôlé. "
ONEYEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies. Registered in some countries.
Distributed by Best Buy Purchasing, LLC, 7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2015 Best Buy. All rights reserved. Made in China
V2 ENGLISH 15-0206
