Insignia NS-HD2114 User Manual
User Guide | Guide de l’utilisateur | Guía del Usuario
DVD Shelf System with HD Radio and iPod Docking
Lecteur DVD de salon avec HD Radio et station d'accueil iPod
Sistema de audio con DVD, HD Radio y acoplamiento para iPod
NS-HD2114
Contents
Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Setting up your shelf system. . . . . . . . . . . . . . . . . . . . . . . . . .11
Using your shelf system . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Maintaining your shelf system. . . . . . . . . . . . . . . . . . . . . . . . . 26
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
90-Day Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Welcome
Congratulations on your purchase of a high-quality Ins ig nia produ ct .
Your NS-HD2114 represents the state of the art in DVD shelf systems
and is designed for reliable and trouble-free performance.
Insignia NS-HD2114
DVD Shelf System
Safety information
To prevent fire or shock hazard, do not plug the power cord into an
extension cord, receptacle, or other outlet unless the blades can be
fully inserted to prevent blade exposure. To prevent fire or shock
hazard, do not expose this appliance to rain or moisture.
CAUTION: To reduce the risk of electric
shock, do not remo ve co v er (or back ). No
user-serviceable parts inside. Refer
servicing to qualified serv ice personnel.
www.insignia-products.com
1
Insignia NS-HD2114 DVD Shelf S
The lightning flash with arrowhead symbol within a
triangle is intended to alert you to the presence of
uninsulated dangerous voltage within your shelf
system’s enclosure that may be of sufficient magnitude
to constitute risk of electric shock to persons.
The exclamation point within a triangle is intended to
alert you to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying your shelf system.
Warning
Your shelf system uses a laser system. Follow all operating
instructions in this guide, and save this guide for future
reference. If your shelf system requires servicing, contact
the seller or our service center.
To prevent direct exposure to the laser radiation, do not
open the case. Invisible laser radiation is present when the
case is opened or the interlocks are defeated. Do not stare
into the laser beams.
Use of any controls, adjustments, or procedures other than
those specified herein may result in hazardous radiation
exposure.
Caution
Any change or modification to your shelf system not
expressly approved by Insignia or its authorized parties
could void your authority to operate your shelf system.
ystem
Caution
Your shelf system should not be exposed to water (dripping
or splashing) and no objects filled with liquids, such as
vases, should be placed on it.
Important safeguards
• Read instructions—Read all the safety and operating
instructions before operating your shelf system.
• Retain instructions—Retain the safety and operating
instructions for future reference.
• Follow warnings—Follow all warnings on your shelf system
and in the operating instructions.
• Follow instructions—Follow all operating and use
instructions.
• Cleaning—Unplug your shelf system from the power outlet
before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
2
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
ystem
• Attachments—Do not use attachments not recommended by
Insignia because they may cause hazards.
• Water and moisture—Do not use your shelf system near
water. For example, near a bath tub, in a wet basement, or
near a swimming pool.
• Ventilation—To ensure reliable operation of your shelf system
and to protect it from overheating, ventilation slots and
openings are provided in the cabinet back or bottom. Do not
block these openings. Do not place your shelf system on a bed,
sofa, rug, or other similar surface. Your shelf system should
never be placed near or over a radiator or heat register. Do not
place your shelf system in a built-in installation such as a
bookcase or rack unless correct ventilation is provided or the
manufacturer’s instructions have been adhered to.
• Power sources—Use only the type of power source ind icate d
on the marking label. If you are not sure of the type of power
supply to your home, consult Insignia Tech Support or local
power company. For shelf systems intended to operate from
battery power or other sources, refer to the operating
instructions.
• Grounding or polarization—Your shelf system is equipped
with a polarized alternating-current line plug (a plug having one
blade wider than the other). This plug will fit into the power
outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the
polarized plug.
• Power cord protection—Route power supply cords so that
they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where they exit
from your shelf system.
• Lightning—For added protection for your shelf system during
a lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the power outlet and
disconnect the antenna or cable system. This will prevent
damage to your shelf system due to lightning and power line
surges.
• Overloading—Do not overload power outlets and extension
cords because this can result in a r is k of fire or ele ctr i c shock.
• Object and liquid entry—Never push objects of any kind into
your shelf system through openings, because they may touch
dangerous voltage points or short out parts that could result in
a fire or electric shock. Never spill liquid of any kind on your
shelf system.
www.insignia-products.com
3
Insignia NS-HD2114 DVD Shelf S
ystem
• Servicing—Do not attempt to service your shelf system
yourself, because opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
• Damage requiring service—Unplug your shelf system from
the power outlet and refer servicing to qualified service
personnel under the following conditions:
• When the power supply cord or plug is damaged or frayed.
• If liquid has been spilled, or objects have fallen into your
shelf system.
• If your shelf system has been exposed to rain or water.
• If your shelf system does not operate normally by following
the operating instructions. Adjust only those controls that
are covered by the operating instructions, because incorrect
adjustment of other controls may result in damage and
often requires extensive work by a qualified technician to
restore your shelf system to its normal operation.
• If your shelf system has been dropped or damaged in any
way.
• When your shelf system exhibits a distinct change in
performance.
• Replacement parts—When replacement parts are required,
make sure that the service technician uses replacement parts
specified by the manufacturer that have the same
characteristics as the or ig in al part. Unauthorized subs tituti ons
may result in fire, electric shock, injury to persons, or other
hazards.
• Safety check—Upon completion of any service or repairs to
your shelf system, ask the service technician to perform
routine safety checks to determine that your shelf system is in
correct operating condition.
• Heat—Place your shelf system away from heat sources such
as radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
Caution
To prevent electric shock, match the wide blade of plug to
the wide slot in the power outlet and fully insert the plug.
This symbol means that this unit is double insulated. No ground
connection is required.
The AC power plug is used as the disconnect device and should
remain readily accessible.
4
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
Features
Package contents:
• Main player unit
• Remote control (with batteries)
• Audio (L/R)/Video cable
•User Guide
Front panel
ystem
8
9
1
10
2
3
4
11
5
6
7
# Description Function
1 POWER button Press to turn the system on. Press again to
2 STANDBY LED Lights when the player is in Standby mode.
3 FUNCTION button Press to select RADIO, AUDIO, or IPOD.
4
5 PLAY/ENTER button Press to play a d isc, navigate a menu, or
6
7 Disc door Opens to accept CDs or DVDs.
8 iPOD interface (on top) Insert your iPOD into this docking slot to play
9 Display screen Shows various information, including time,
10 Remote control sensor Receives IR signals from the remote control.
STOP button Press to stop disc playback.
EJECT button Press to open the disc tray. Press again to
switch the system to Standby mode.
confirm a selection.
close the disc tray.
music.
track, chapter, band, and frequency.
12
www.insignia-products.com
5
Insignia NS-HD2114 DVD Shelf S
# Description Function
11 VOLUME knob Turn clockwise to raise the volume or
12 USB port Plug USB devices into this port.
counterclockwise to lower the volume.
Back panel
1
2
3
7
8
ystem
4
5
6
9
10
11
# Description Function
1 Y, Pb/Cb, Pr/Cr component
output jacks
2 Left/Right front audio output Connect cables from these output jacks to the
3 Coaxial audio output jack Connect a cable from this output jack to the
4 S-Video output jack Connect an S-Video cable from this jack to the
5 Fiber optic audio output jack Connect a fiber optic c able from thi s output jac k
6 Left/Right audio input jacks Connect cables from these input jacks to the
7 Video output jack Connect a cable from this output jack to the
8 Power supply input The AC power cord enters the shelf system
9 FM antenna interface Connect the FM antenna here.
Connect cables from these output jacks to the
component input jacks on your TV.
L/R sound input jacks on your TV or stereo.
coaxial input jacks on your stereo.
S-Video input jack on your TV.
to the fiber optic input jack on your stereo.
L/R sound output jacks on your external sound
source.
video input jack on your TV.
here.
6
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
ystem
# Description Function
10 Left/Right speaker output Connect cables from these output jacks to the
11 AM antenna interface Connect the AM antenna here.
L/R speakers.
Remote control
1
19
2
3
4
5
6
7
20
21
22
23
24
8
25
9
10
11
12
13
14
15
16
17
26
27
28
29
30
31
32
33
34
18
# Description Function
1POWER button Press to turn the pla yer on. Press a gain to s witch
2 DVD button Press to switch the player to DVD mode.
3 FM/AM button Press to switch the radio from FM to AM mode.
4 iPOD button Press to switch the sound source to iPOD mode.
5 AUDIO button Press to switch to a different sound source.
play er to Standb y mode . No te: In Stan dby mode,
the STANDBY LED on the front panel lights.
www.insignia-products.com
7
Insignia NS-HD2114 DVD Shelf S
ystem
# Description Function
6 SAVE/MENU button In radio mode, press to save radio station
7 D/A TITLE button In radio mode, press to toggle between HD and
8 SEARCH/SUB button In DVD mode, press to select one of the subtitle
9 PLAY/ENTER button In DVD mode, press to play the disc. In Setup
10 SETUP button Press to open the Setup menu.
11 PLAY/PAUSE button In playback mode, press to pause, press again
12 F.FWD /F.RWD
TU+ and TU– buttons
13 A-B REP button Press to set the beginning and ending points to
14 REPEAT button While in play mode, press REPEAT to set the
15 DSP button Press to select different sound fields, including
16 CLOCK button Press to set the clock, to set the time standby,
17 RESET button Press to return to the original default setup
18 SHORTCUT button During DVD playback, press to skip the title,
19 OPEN/CLOSE button Press to open the disc tray. Press again to close
20 Number buttons Press to select CD tracks or DVD chapters
and
presets.
In video mode, press to open the on-screen
menu.
analog radio.
In DVD mode, press to display the title of the
DVD playing.
languages available on the disc. Options may
include English, Spanish, French, Chines e,
Japanese, Korean, Thai, and Russian.
In radio mode, press to search stations
automatically.
mode, press to navigate the menus and enable
the selected options.
to resume playback.
In radio mode, press TU+ or TU– to tune up or
down by steps in the selected band.
In playbac k mo de, pr ess F.FWD to fast forward a
disc. Press F.RWD to fast reverse a disc.
repeat. The player will automatically begin
repeating the selected portion of the disc. Press
again to cancel repeat mode.
repeat mode.
Flat, Rock, Jazz, Classic, Pop, and User.
and to set the turn-on time.
settings.
menu, or warnings and go right to the program.
the disc tray.
directly.
8
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
ystem
# Description Function
21 DISPLAY button In DVD or VCD mode, press to display
22 T/F button In radio mode, press to directly acce ss a spec ific
23 MO/ST/LANG(L/R) button Press to toggle between Mono L, Mono R,
24 HD CHAN/ANGLE button In HD radio mode, press to go to a different
25
, , , or and SEEK
UP/SEEK DOWN buttons
26 MUTE button Press to mute the speakers. Press again to
27 USB button Press to select the USB sound source.
28 STOP button In playback mode, press to stop playback of a
29 NEXT /PREV and
CH+/CH- buttons
30 PROGRAM button Press to program disc playback.
31 CLEAR button Press to cancel the data or selections you have
32 TONE button Press to access the bass and trebel adjusting
33 VOL+/VOL– buttons Press to increase or decrease the volume.
34 ZOOM button Press to zoom in on a DVD picture (not av ailab l e
information about the disc currently playing.
In HD Radio mode, press to disp lay information
about the current station, including channel
name, artist, title, program type, and service
data.
radio frequency.
During DVD/VCD playback, press to play from a
specific time.
Mono-mix, and Stereo modes.
During DVD playback, press to select one of the
languages available on the disc.
channel.
In playback mode, press to select a different
angle view of the picture (if available).
Press to navigate the on-screen menus.
In radio mode, press SEEK UP or SEEK DOWN
to tune to the next active frequency up or down.
restore normal sound.
disc.
In radio mode, press CH+ or CH– to go to the
next or previous preset station.
In playback mode, press to select the next or
previous tra ck or chapter.
entered. For e x ample, programmed songs.
modes, then press VOL+ or VOL- to make the
adjustments.
on all DVDs).
www.insignia-products.com
9
Insignia NS-HD2114 DVD Shelf S
Using the remote control
To use the remote control:
1 Insert the batteries into the remote control, noting the orientation
of the + and - sides of the battery.
2 Point the remote control at the main player unit and press the
button you want.
Maximum range for the remote control is within 23 feet (7 m)
Notes
Do not expose the remote control to shock or liquids.
Do not use the remote control in an area with high humidity.
Do not place the remote control in direct sunlight.
Do not place objects, such as furniture, between the remote
control and the remote sensor.
The remote control may not work if direct sunlight or bright
light shines on the remote sensor. Either move your TV or
change the angle at which you use the remote control.
ystem
10
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
ystem

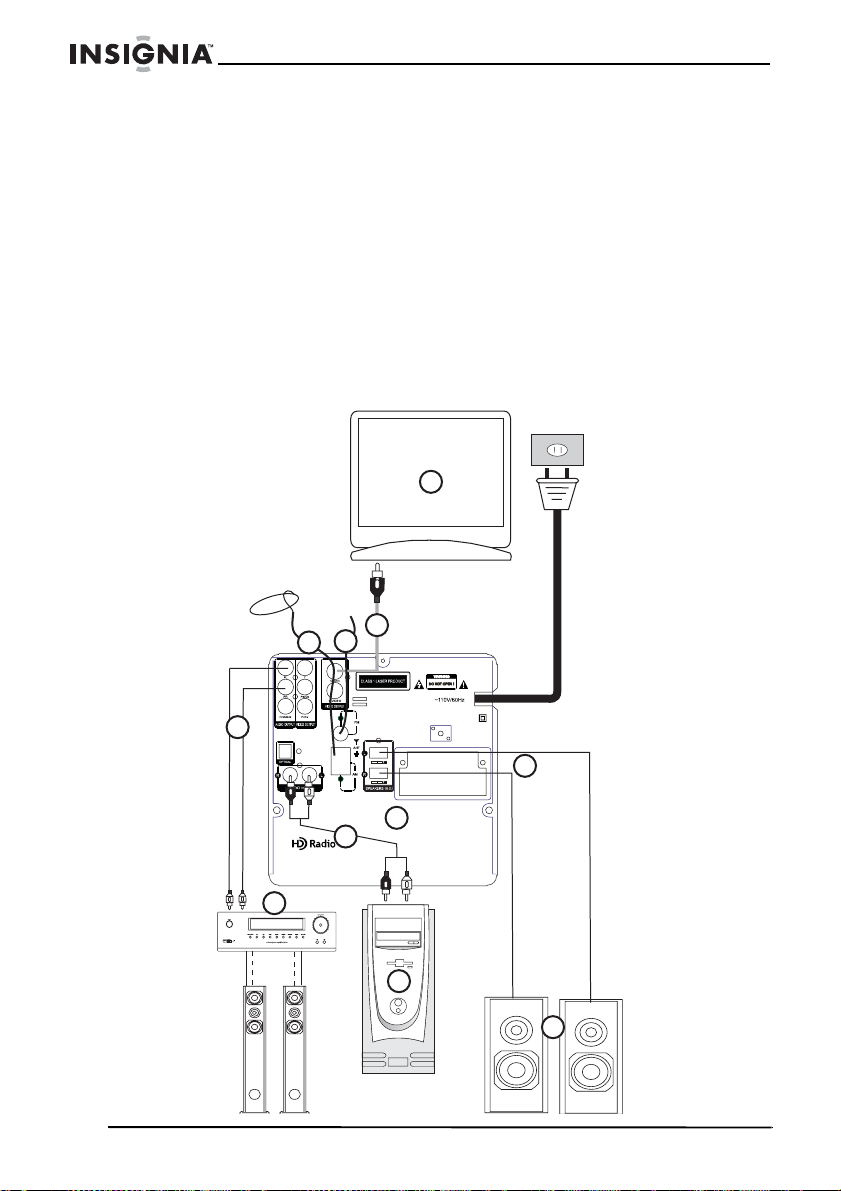

Setting up your shelf system
Connecting your shelf system - general
Make sure that the following connections are made correctly:
• Shelf system (1) to TV (2) with a video connector (3)
• Shelf system (1) to FM (4) and AM (5) antennas
• Shelf system (1) to amplifier (7) with audio connectors (6)
• Shelf system (1) to computer (9) with audio connectors (8)
• Shelf system (1) to speakers (10) with speaker wire (11)
2
U
3
4
5
6
7
11
1
8
9
www.insignia-products.com
10
11
Insignia NS-HD2114 DVD Shelf S
Connecting to a TV
Notes
Before connecting the shelf system to a TV, turn off and
unplug the both units.
When a disc is playing, adjust the output of the shelf system
to make it compatible with the TV.
You can connect the player to a TV in several ways. Use
only one of them, because multiple connections can
degrade picture quality.
Do not press the power button repeatedly. Wait a minimum
of three seconds between button presses.
Do not use digital optical or coaxial and analog outputs at
the same time.
To connect the shelf system to a TV:
• If your TV has AV inputs, connect Video (1) and Audio L/R
(2 and 3) cables from the Video and Audio L/R outputs on the
shelf system to the Video and Audio L/R inputs on your TV.
ystem
Y
Pb/Cb
Pr/Cr
- OR -
12
1
2
4
3
5
www.insignia-products.com
6
7
Insignia NS-HD2114 DVD Shelf S
ystem
If your TV has an S-Video input, connect an S-Video cable (7)
from the S-Video output on the shelf system to the S-Video input
on your TV.
- OR -
If your TV has component inputs, connect component cables
(4, 5, and 6) from the Y, Pb/Cb, Pr/Cr outputs on t h e shel f sys t em
to the Y, Pb/Cb, Pr/Cr inputs on your TV.
Connecting to an amplifier
To connect your shelf system to an amplifier:
1 Connect the speakers (1 and 2) to the amplifier (3).
2 If your amplifier has digital coaxial (6) or optical (7) audio
connectors, connect the digital coaxial (or optical) output of your
shelf system (8) to the digital coaxial (or optical) inputs of your
amplifier (3). Do not use both digital coaxial and optical
connections.
If you use digital coaxial or optical cables, open the DVD menu
and set the digital output to SPDIF/RAW or SPDIF/PCM on the
audio setup page, then press PLAY/ENTER to save your settings.
1
- OR -
Connect audio L/R cables (4 and 5) from your shelf system (8) to
the Audio L/R inputs of your amplifier (3).
8
7
5
4
6
3
www.insignia-products.com
2
13
Insignia NS-HD2114 DVD Shelf S
Connecting the power cord
To prepare your shelf system for use:
1 Make sure that your local AC power source matches the voltage
shown on the plate located inside the battery compartment. If it
does not, consult your dealer or service center.
2 Plug the power cord into an AC power outlet.
3 Press the POWER button to turn on your shelf system. Press the
POWER button again to turn off your shelf system.
To completely turn off the shelf system, unplug the power cord
from the AC power outlet.
Caution
To protect your shelf system, unplug the power cord from
the AC power outlet during heavy thunderstorms.
Using your shelf system
Playing the radio
To play the radio:
1 Press the POWER button to turn on the shelf system.
2 Press the FUNCTION button on the front panel, or the FM/AM
button on the remote control, to select the radio.
3 Press the FUNCTION button or the FM/AM button again to select
the band you want to listen to. Press MO/ST to select mono or
stereo mode.
4 To toggle between Analog radio and HD radio, press the A/D
button. While in HD radio mode, press HD CHAN to switch to
different channels. Also while in HD radio mode, press DISPLA Y
to display information about the current station, including channel
name, artist, title, program type, and service data.
5 Press TU+ or TU– to tune the radio up or down by steps.
6 To save the current frequency, press the SAVE button. To save
other frequencies, press the number buttons to go to a specific
preset number, then press the T/F button to input the frequency .
For example, to save 99.3 MHz to the 18th preset, press 1, then 8
to select the preset, then press the T/F button to input 993 and
press the SAVE button to save it.
7 To tune to a preset station, press the number buttons to go to a
specific preset, or press CH+ or CH– to go to the next or previous
preset station.
ystem
14
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
ystem
8 To tune directly to a specific frequency, press T/F, then input the
frequency with the number buttons.
9 Press SEARCH to automatically search for stations in the
selected band, from the lowest frequency to the highest. The radio
saves up to 60 of the stations found. Press SEARCH again to stop
searching.
10 Press SEEK UP or SEEK DOWN to tune to the next higher
or lower active frequency.
11 Adjust the antenna.
• For FM listening, pull out the antenna and adjust it for the best
signal.
• For AM listening, rotate the player for the best signal (it has a
built-in antenna).
Note
The Stereo indicator will appear when a stereo station is
tuned in and the signal is strong enough. (For AM, stereo is
only available in HD radio mode.
12 Adjust the sound level with the VOLUME control.
13 To turn the radio off, press the POWER button.
When the shelf system is turned off, it automatically remembers
the last st ation.
Playing a CD
The player can play audio discs, including CDs and CD-Rs.
Note
CD-Rs must be finalized to play in this CD player.
To play a CD:
1 Press the POWER button to turn on the shelf system.
2 Press the OPEN/CLOSE button on the remote control, or the
EJECT button on the player, to open the disc tray.
3 Place a disc, with the label side up, on the tray, then press the
OPEN/CLOSE button on the remote control, or the EJECT
button on the player to close the disc tray . The disc begins playing
automatically.
4 Press the PLAY/PAUSE button to start pause playback. To
resume playback, press the PLAY/PAUSE button again.
5 Adjust the sound level with the VOLUME control knob (on the
player) or with the VOL+/VOL- buttons on the remote control.
6 Press the STOP button to stop the CD playback.
www.insignia-products.com
15
Insignia NS-HD2114 DVD Shelf S
Selecting a different track
To select a different track on a CD:
1 Press the NEXT button once for the next track, or press
repeatedly until the track you want appears on the display.
2 Press the PREV button once to return to the beginning of the
current track, or press repeatedly to go to a previous track until the
track you want appears on the display.
3 If you selected a track while the CD is stopped or paused, press
PLAY/P AUSE to begin playback.
Locating a specific passage
To locate a specific passage within a track:
1 Press the F.FWD button or the F.RWD button.
2 When you reach the passage you want, press PLAY/ENTER.
Normal pla yback resumes.
Repeating portions of a CD
To use Repeat mode:
• To repeat the current track, press the REPEAT button once.
• To repeat the entire CD, press the REPEAT button twice.
• To cancel repeat mode and return to normal playback, press
the REPEAT button three times.
ystem
Playing a DVD or VCD
To play a DVD or VCD:
1 Connect the player to your TV using Audio/Video cables or an
S-Video cable and audio cables (see “Connecting to a TV” on
page 12.
2 Press the POWER button to turn on the shelf system.
3 Press the OPEN/CLOSE button to open the disc tray.
4 Place a disc, with the label side up, on the tray, then press the
OPEN/CLOSE button to close the disc tray. The disc starts
playing automatically.
5 Press the PLAY/PAUSE b utton to pause playback. To resume
playback, press the PLAY/PAUSE button again.
6 Adjust the sound level with the VOLUME control knob on the
player or with the VOL+/VOL- buttons on the remote control.
7 Press the STOP button to stop the DVD or VCD playback.
16
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
ystem
Remote controls for DVD and VCD playback
Button Function
NEXT Press to advance to the next chapter on the DVD.
PREV Press to return to the previous chapter on the DVD.
F.F WD /
F.RWD
PLAY/PAUSE Press to begin DVD playback, press again to pause
MENU In DVD mode, press to open the root menu.
REPEAT Press to repeat portions of the DVD or VCD. Pressing
A-B REP Press to repeat a selected portion of the DVD. Press at
SUB. Press to turn on subtitles. Press repeatedly to cycle
STOP Press to stop playback.
TITLE Press to display the title menu of the DVD (if available).
LANG/(L/R) Press to toggle through the languages available on the
ZOOM Press repeatedly to zoom in on the picture (if available
DISPLAY Press to display information about the DVD.
SHORTCUT Press to skip the initial title, menu, or warnings.
ANGLE Press to switch the view i ng ang le (if a vailable).
Press F.FWD to fast forward a disc. Press F.RWD to fast
reverse a disc.
playback, then press again to resume playback.
In VCD mode, press to show the current PBC state.
repeatedly cycles through repeat options, including
Chapter, Title, and All (DVD), or Track, All (VCD).
the beginning of the portion you want repeated, then
press again at the end of the portion to be repeated . The
portion repeats. Press again to cancel.
through available subtitle languages.
DVD (if available).
on the DV D).
www.insignia-products.com
17
Insignia NS-HD2114 DVD Shelf S
Programming playback
To program DVD or VCD playback:
1 With the player and TV on, and a disc in the player, press the
PROGRAM button on the remote control. The following menu
opens:
ystem
01
02
03
04
06
07
08
09
05
Next
VCD menu
01
02
03
04
05
TT:CH:
TT:CH:
TT:CH:
TT:CH:
TT:CH:
06
07
08
09
TT:CH:
TT:CH:
TT:CH:
TT:CH:
TT:CH:
Next
DVD menu
2 Use the number buttons to enter the numbers of the tracks or
chapters you want in the program.
3 Move the cursor to ST ART (which appears when you have entered
the tracks or chapters to play), then press PLAY/ENTER to begin
playing the program.
4 Press CLEAR to remove the items you have entered.
5 To cancel a program in progress:
• Press PROGRAM. The cursor moves to STOP.
• Press PLAY/ENTER. The cursor moves to EXIT.
• Press PLAY/ENTER again to exit programmed play.
6 To stop programmed play in progress, move the cursor to EXIT,
then press PLAY/ENTER.
18
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
To play a DVD or VCD from a specified time:
1 With the player and TV on, and a disc in the player, press the T/F
button on the remote control. The following appears on the TV:
• For DVDs: Title: --/xx Chapter: --/xx
• For VCDs: Disc Go To: --/--
2 Press the arrow keys to move the cursor to the time position you
want to set, then press the number keys to input the time. The
system begins playback at the specified time.
For example:
For a VCD disc—Disc Go To: --/-- . To set the start time at 55
minutes, 20 seconds, press 5,5,2,0.
For a DVD disc—Title xx/xx Time. To set the start time at 1 hour,
30 minutes, 20 seconds, press 1,3,0,2,0.
Playing an MP3 disc
To play an MP3 disc:
1 Press the POWER button to turn on the shelf system.
2 Press the OPEN/CLOSE button on the remote control, or
press the EJECT button on the player, to open the disc tray.
3 Place the disc, with the label side up, on the tray, then press the
OPEN/CLOSE button on the remote control, or the EJECT
button on the player to close the disc tray. The following menu
opens:
ystem
Title: --/xx Time: -/--/-Chapter: --/xx Time: -/--/--
Track Go To: --/-Select Track: --/x x
128Kbps
1
www.insignia-products.com
19
Insignia NS-HD2114 DVD Shelf S
4 Press the , , , or button to move the cursor to a directory,
then press the PLAY/ENTER button to open the directory.
5 Press the , , , or button to move the cursor to a
subdirectory or file, then select a file with the cursor.
6 Press the PLAY/ENTER button to play the selection.
7 To make other selections during playback, press the or
button, or press the PREV/NEXT buttons.
8 To change directories during playback, press the button to
move the cursor to the directory symbol, then press the or
button to choose another directory, then press the PLAY/ENTER
button.
9 Adjust the sound level with the VOLUME control knob (on the
player), or with the VOL+/VOL- buttons on the remote control.
10 Press the STOP button to stop the disc playback.
Playing an MPEG4 or JPEG disc
To play an MPEG4 or JPEG disc:
1 Press the POWER button to turn on the shelf system.
2 Press the OPEN/CLOSE button on the remote control, or the
EJECT button on the player, to open the disc tray.
3 Place the disc, with the label side up, on the tray, then press the
OPEN/CLOSE button on the remote control or the EJECT
button on the player to close the disc tray. The following menu
opens:
ystem
4 Press the or button to move the cursor to a directory, then
press the PLAY/ENTER button repeatedly to select a picture to
view.
5 To view the picture, enter the picture number using the number
buttons, or press the PREV/NEXT button.
20
1
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
6 To see a picture again, press the REPEAT button. You can also
press the F.FWD, F.REV, and PLAY/PAUSE buttons to control
viewing.
7 To return to the main menu, press the STOP button.
Playing a USB device
To play a USB device:
1 Press the POWER button to turn on the shelf system.
2 Press the USB button on the remote control. A dialog box opens
showing the options available on the device.
3 Press the or button to select USB, then press PLAY/ENTER
to begin playback.
Using the Setup menu
In this menu system there are several wa ys to customize the settings.
Most menus consist of three levels to set up the options, but some
require more levels.
To change settings using the Setup menu:
1 Press SETUP on the remote. The
ystem
Setup
menu opens.
DVD VIDEO AUDIO SYSTEM PASSWORD
-- DVD Setup --
OSD Language
Audio
Subtitle
Menu
Go To DVD Setup Page
2 Press the or button to highlight a menu, then press the
PLAY/ENTER button to go to that menu.
3 When the menu you want appears, press the or button to
highlight a submenu, then press PLAY/ENTER to display the
options or submenu.
4 Press SETUP to close the menu.
Note
Press to go back to the previous level.
ENG
ENG
ENG
ENG
www.insignia-products.com
21
Insignia NS-HD2114 DVD Shelf S
Menu Submenu and available settings
DVD OSD (on-screen display) Language
•English
•French
• Spanish
Audio language
•English
• Spanish
•French
•Chinese
• Japanese
• Korean
•Thai
•Russian
•Others
Subtitle language
•Off
•English
• Spanish
•French
•Chinese
• Japanese
• Korean
•Thai
•Russian
Menu language
•English
• Spanish
•French
•Chinese
• Japanese
• Korean
•Thai
•Russian
•Others
ystem
22
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
ystem
Menu Submenu and available settings
VIDEO Video output
• S-Video
• Component
Scan Mode
• P-Scan (progressive scan)
• Interlaced (only available when output is component)
Aspect Ratio
•4:3PS
•4:3LB
•16:9
TV Output
•PAL
•AUTO
•NTSC
Sharpness
• Low
•Middle
•High
Brightness—adjustable from -20 to +20 (default=0)
Contrast—adjustable from -16 to +16 (default=0)
AUDIO Speaker Setup
• Downmix mode—LT/RT (left and right soundtrack audio output)
and Stereo.
• Dual Mono—L-Mono, R-Mono, Mix-Mono, and Stereo
• Dynamic Range—sets the compression mode
SPDIF Setup
• SPDIF/RAW—digital coaxial or optical output. Amplifier must be
able to decode Dolby, digital, or MPEG
• SPDIF/PCM—2-channel digital stereo
HDCD—Set according to the disc being played.
•Off
•44.1 K
•88.2 K
www.insignia-products.com
23
Insignia NS-HD2114 DVD Shelf S
ystem
Menu Submenu and available settings
SYSTEM Angle Mark—displays a multi-angle mark on the screen (when
PASSWORD Parental Control—select from eight different age ratings. Move the
available)
•On
•Off
Close Caption—to display Closed Captions (when available)
•On
•Off
Screen Saver
•On
•Off
Memory—set to automatically remember disc contents
•On
•Off
S/W Version (software version)
Default—In NO DISC or EJECT mode, choo se thi s opti on to reset the
DVD player’s original settings.
cursor to the rating, then press PLAY/ENTER to select. You are asked
to enter a password to make changes.
Password—select to change your password. The default password is
“138900.”
Using your iPod with the shelf system
To use your iPod with the shelf system:
1 Insert your iPod into the docking station.
2 Connect the Video or S-Video output of your shelf system to the
Video input or S-Video input of your TV.
3 Press POWER to turn on the player, then press the iPOD button.
4 Press PLAY/PAUSE to pause, press again to resume playing.
Using th e clock functions
Setting the clock options
To set the clock display:
1 Press the CLOCK button on the remote control to select T--:--.
2 Press the CLOCK again button to change between AM and PM.
3 Enter the current time by pressing the number buttons. For
example, if the current time is 3:30PM, press the CLOCK button to
change the display to PM, then press 0,3,3,0. The player saves
the setting automatically.
24
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
ystem
To set the sleep timer:
1 Press the CLOCK button on the remote control repeatedly to
select S----.
2 Enter the sleep timer interval by pressing the number buttons. For
example, if you want the player to turn off after 45 minutes, press
0,4,5. The player will turn off automatically after 45 minutes.
To set the player to turn on automatically:
1 Press the CLOCK button on the remote control repeatedly to
select O--:--.
2 Enter the turn-on time by pressing the number buttons. For
example, if you want the player to turn on at 5:00PM, press the
CLOCK button to change the display to PM, then press 0,5,0,0.
The player saves the setting automatically.
Troubleshooting
Caution
Do not try to repair the shelf system yourself. Doing so will
invalidate your warranty.
Problem Possible cause Solution
No power. AC plug not full y inserted in the
The remote
control does not
work.
No picture. Ba d conn ec tio ns. Reconnect the system us ing the
The disc does
not play.
power outlet.
Low batteries. Replace the batteries with new
The remote controller is not
aimed at the shelf system.
Power cord not securely
connected.
TV not set to video mode Set the TV to video mode.
The scan setting of the shelf
system does not match the TV.
The disc was incorrectly
inserted.
The disc is defective. Try another disc.
The disc tray is not closed. Close the disc tray.
There is condensation in the
disc compartment.
Make sure the AC plug is fully
inser ted in the power outlet.
ones.
Aim the remote control at the shelf
system.
illustrations at the beginning of this
User Guide.
Connect the power cord.
Reset the scanning mode.
Reinsert the disc with the label side
up.
Remove the disc and leave the
cover open for about an hour in a
dry environment.
www.insignia-products.com
25
Insignia NS-HD2114 DVD Shelf S
Problem Possible cause Solution
There is no
sound from the
speakers.
The disc skip s
during play.
Invalid display
on the screen.
The audio cables are not
connected.
The volume control is turned
down.
The shelf system is incorrectly
connected to the amplifier.
The disc or lens is dirty. Clean or replace the disc, or clean
Strong shaking or vibrations. Place the shelf system on a flat an d
The disc is scratched or
distorted.
Incorrect operation. Try making settings again. Reset
Reconnect the audio ca b l es.
Increase the volume.
Reconnect the syst em us ing the
illustrations at the beginning of this
User Guide.
the lens.
stable surface without vibration.
Replace the disc with a new one.
the system by unplugging it, then
plugging it in again.
Maintaining your shelf system
Note
The mechanical part of this shelf system contains
self-lubricating bearings and must not be oiled or lubricated.
ystem
Cleaning the case
Wipe with a soft cloth. If the case is very dirty, moisten the cloth with a
weak solution of non-caustic detergent and water.
Cleaning discs
Using a soft cleaning cloth, wipe the disc from the center outwards.
Caution
Do not use solvents such as benzene, thinners, commercial
cleaning fluids, or anti-static sprays designed for vinyl
records.
26
www.insignia-products.com
Insignia NS-HD2114 DVD Shelf S
Specifications
ystem
Compatible disc types D V D, D VCD, VCD, SVCD, CD, CD-R,
Video format MPEG2 for DVDs, and MPEG1 for
Audio fo rmat MPEG1, MPEG2, PCM, or stereo
Signal output Video format: NTSC, PAL, AUTO
Output joint Video output, A udio output, chromatic
Input joint Microphone, USB, iPOD
Power supply ~ 110 V / 60 Hz
Max power 60 W
Frequency 20 Hz ~ 20 KHz ±3 dB
S/N ratio for audio signal >81 dB weight A
Operating conditions Temp: 41°~95°F (5°~35°C)
Legal notices
© 2007 Insignia. Insignia and the Insignia logo are trademarks of Best Buy Enterprise
Services, Inc. Other brands and product names are trademarks or registered
trademarks of their respective holders. Specifications and features are subject to
change without notice or obligation.
For service and support call (877) 467-4289.
MP3, MPEG4
VCDs
Video output: 1.0 V p-p
Audio output: 2 V (RMS) stereo
aberration output, S-Video output,
optical fiber output, coaxial output
www.insignia-products.com
27
Insignia NS-HD2114 DVD Shelf S
ystem
28
www.insignia-products.com
Loading...
