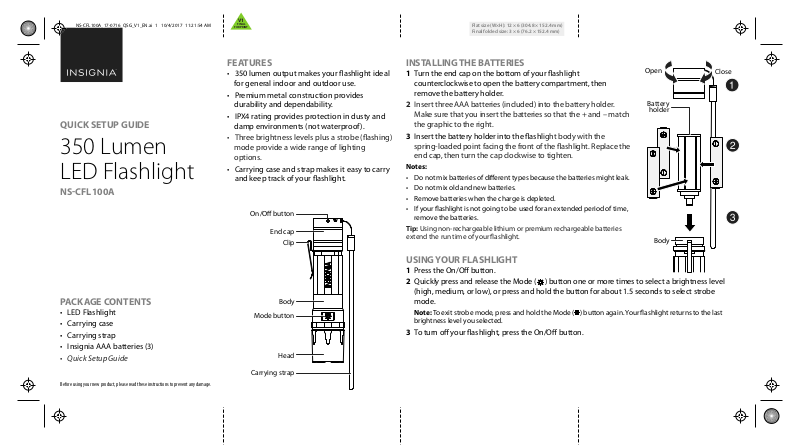

QUICK SETUP GUIDE

350 Lumen

LED Flashlight

NS-CFL100A

PACKAGE CONTENTS

LED Flashlight

Carrying case

Carrying strap

Insignia AAA batteries (3)

Quick Setup Guide

Before using your new product, please read these instructions to prevent any damage.

FEATURES

350 lumen output makes your flashlight ideal for general indoor and outdoor use.

Premium metal construction provides durability and dependability.

IPX4 rating provides protection in dusty and damp environments (not waterproof).

Three brightness levels plus a strobe (flashing) mode provide a wide range of lighting options.

Carrying case and strap makes it easy to carry and keep track of your flashlight.

On/Off button

End cap

Clip

Body

Mode button

Head

Carrying strap

INSTALLING THE BATTERIES

Open

Close

1

Turn the end cap on the bottom of your flashlight



counterclockwise to open the battery compartment, then







remove the battery holder.





2

Insert three AAA batteries (included) into the battery holder.

Battery





Make sure that you insert the batteries so that the + and – match

holder











the graphic to the right.





3

Insert the battery holder into the flashlight body with the







spring-loaded point facing the front of the flashlight. Replace the







end cap, then turn the cap clockwise to tighten.





Notes:





Do not mix batteries of different types because the batteries might leak.





Do not mix old and new batteries.





Remove batteries when the charge is depleted.





If your flashlight is not going to be used for an extended period of time,







remove the batteries.





Tip: Using non-rechargeable lithium or premium rechargeable batteries





extend the run time of your flashlight.

Body









USING YOUR FLASHLIGHT

1 Press the On/Off button.

2Quickly press and release the Mode () button one or more times to select a brightness level (high, medium, or low), or press and hold the button for about 1.5 seconds to select strobe mode.

Note: To exit strobe mode, press and hold the Mode () button again. Your flashlight returns to the last brightness level you selected.

3 To turn off your flashlight, press the On/Off button.

NS-CFL100A_17-0716_QSG_V1_EN.ai 2 10/4/2017 11:21:55 AM

TROUBLESHOOTING

My flashlight does not turn on or I cannot select a brightness level.

Make sure that you installed the batteries correctly.

Make sure that your flashlight is turned on.

Replace the batteries.

The flashlight body is overheating.

If you set the brightness level to high, the LED generates a moderate amount of heat. This is normal. If your flashlight is too hot to hold, turn it off and wait 10 minutes for it to cool.

SPECIFICATIONS

Dimensions (H x W): 5.5 x 1.3 in. (13.8 x 3.2 cm)

Weight (with batteries): 5.2 oz.

Battery: AAA size (3)

IP rating: IPX4 (rain and splash resistant)

Impact resistance: 3 ft. (1 m)

Beam selection

Output

Max. beam

Runtime

modes



distance

(on fresh batteries)









Low

35LM

170 ft. (52 m)

25 hrs.

Medium

120LM

328 ft. (100 m)

8 hrs.

High

350LM

541 ft. (165 m)

4 hrs.









SAFETY INFORMATION

Battery cautions:

Do not mix batteries of different types or mix old and new batteries because the batteries might leak.

Remove batteries when the charge is depleted.

If your flashlight is not going to be used for an extended period of time remove the batteries.

Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.

Make sure that batteries are disposed of correctly. Do not burn or incinerate.

Flashlight cautions:

Do not shine the flashlight into a person's eyes. This might damage the person's eyesight.

When your flashlight is on, do not touch the flashlight head. The head may be hot enough to burn your skin.

Keep your flashlight away from children under 18 years of age.

ONE-YEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details.

CONTACT INSIGNIA:

For customer service, call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its affiliated companies Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2017 Best Buy. All rights reserved.

Made in China
