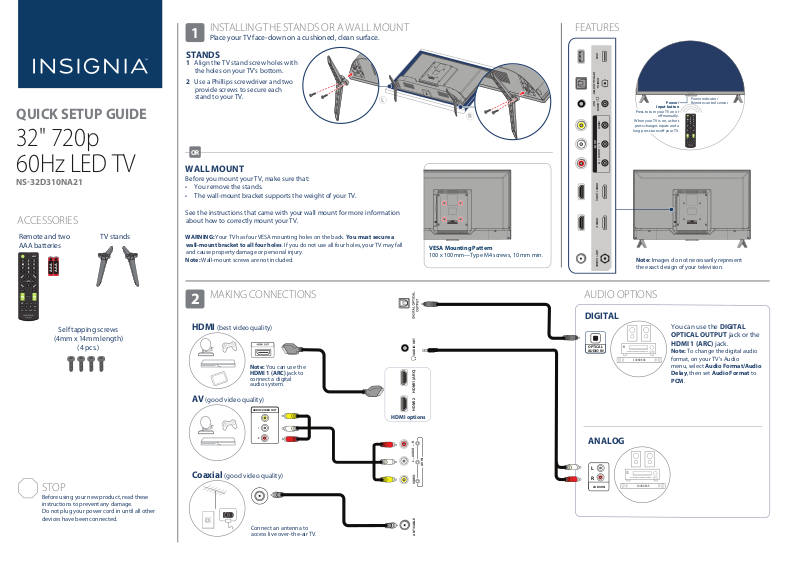

Insignia NS-32D310NA21 Quick Setup Guide

QUICK SETUP GUIDE

32"

720p

INSTALLING THE STANDS OR A WALL MOUNT

STANDS

1 Align the TV stand screw holes with

the holes on your TV's bottom.

2 Use a Phillips screwdriver and two

provide screws to secure each stand to your TV.

Place your TV face-down on a cushioned, clean surface.

FEATURES

OPTICAL OUTPUT

DIGITAL

/ AUDIO

OUT

VIDEO

AV IN

AUDIOLR

Power/

Input button

Press to turn your TV on or

o manually. When your TV is on, a short press changes inputs and a

long press turns o your TV.

Power indicator/ Remote control sensor

60Hz LED TV

NS32D310NA21

ACCESSORIES

Remote and two AAA batteries

TV stands

WALL MOUNT

Before you mount your TV, make sure that:

• You remove the stands.

• The wall-mount bracket supports the weight of your TV.

See the instructions that came with your wall mount for more information

about how to correctly mount your TV.

WARNING: Your TV has four VESA mounting holes on the back. You must secure a wall-mount bracket to all four holes. If you do not use all four holes, your TV may fall

and cause property damage or personal injury. Note: Wall-mount screws are not included.

MAKING CONNECTIONS

VESA Mounting Pattern

100 x 100 mm—Type M4 screws, 10 mm min.

ANT / CABLEUSB HDMI 1 (ARC) HDMI 2

Note: Images do not necessarily represent the exact design of your television.

AUDIO OPTIONS

Self tapping screws

(4mm x 14mm length)

(4 pcs.)

HDMI (best video quality)

Note: You can use the HDMI 1 (ARC) jack to

connect a digital audio system.

AV (good video quality)

AUDIO/VIDEO OUT

/AUDIO OUT

HDMI 2 HDMI1 (ARC)

HDMI options

DIGITAL

OPTICAL

AUDIO IN

ANALOG

SOUNDBAR

You can use the DIGITAL OPTICAL OUTPUT jack or the HDMI 1 (ARC) jack.

Note: To change the digital audio

format, on your TV's Audio menu, select Audio Format/Audio

Delay, then set Audio Format to PCM.

STOP

Before using your new product, read these instructions to prevent any damage. Do not plug your power cord in until all other devices have been connected.

Coaxial (good video quality)

HDHD

Connect an antenna to access live over-the-air TV.

L AUDIO R

AV IN

VIDEO

ANT/CABLE

AUDIO IN

SOUNDBAR

TURNING ON YOUR TV

INPUT SOURCE

HDMI1

HDMI2

USB(Photos)

1 Plug the power cord into a power outlet.

REMOTE

Turns your TV on or o.

Enter channel numbers

or the parental controls

Power

Numbers

password.

INPUT

Opens the INPUT SOURCE list.

Recall

Returns to the previous channel.

ONEYEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details.

2 Remove the remote control cover and

install the batteries.

3 Press on your remote.

4 Follow the on-screen instructions.

Easy Setup • Choose your Menu Language

English

Français

Español

AAA

Enters a digital

sub-channel number

(for example 4.1).

Opens the TV menu.

ENTER

Conrms selections

or changes.

EXIT

Closes the TV menu.

ACC

Opens the Accessibility menu.

FAVORITE

Opens the List.

Favorite Channel

Arrows

Navigate in on-screen menus.

INFO*

Opens a TV status banner.

Turns closed captioning on or o.

NEED ADDITIONAL HELP?

Check out our Support Community at http://community.insigniaproducts.com/ for helpful information from other Insignia TV owners.

WE’RE HERE FOR YOU

www.insigniaproducts.com For customer service, call:

1-877-467-4289 (U.S./Canada )

MUTE

Volume

Changes the volume.

Mutes the sound.

Channel

ASPECT

Changes how the picture is displayed on the screen.

SLEEP

Sets the sleep timer.

Changes the TV channels.

GAME

Adjusts the picture for the ultimate gaming

experience.


Selects the video mode.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and TruSurround are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

Media controls

INlink: Control HDMI-CEC

devices

connected to your TV.

AUDIO

Selects the audio mode.

U.S. and Canada:

INSIGNIA is a trademark of Best Buy and its aliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richeld, MN 55423 U.S.A.

FIND YOUR USER GUIDE ONLINE

1 Go to www.insigniaproducts.com. 2 Use the search bar to nd NS-32D310NA21. 3 Select Support & Downloads. 4 Next to User Guide, select the language you want.

I already have a universal remote control. How do I make it control this TV?

If you already have a universal remote control that you would like to program to work with your TV and don’t want to use the included Insignia remote control, see the table below for common codes.

UNIVERSAL REMOTE CONTROL CODES

AT&T Uverse

Cablevision

Charter

Comcast

Cox

DirecTV

Dish Network

1034, 1035, 1040, 1398, 1465, 1596, 1437, 1507, 12049, 11641, 11564, 11326, 11423, 11892, 11517, 10171, 10463, 11385, 11660, 11963, 12184, 13227

068, 069, 078, 096, 100, 164, 168, 229, 026

2002, 1204, 1423, 1517, 0171, 1963, 0463, 1463, 0842, 1326, 167, 415, 424, 450, 456, 461, 507, 523, 567, 577, 586

10463, 10171, 11204, 11326, 11463, 11517, 11641, 11780, 11785, 11892, 11963, 12002, 01877, 00276, 01982, 01376, 00810, 01187, 01106, 00877, 00476

1326, 1463

10463, 10171, 11204, 11326, 11517, 11564, 11641, 11963, 12002, 11463, 12049

834, 720, 222, 898, 365, 777, 754

RCA

Rogers

Time Warner

Verizon

135, 12049, 11423, 11564, 10171, 10463, 11810, 11892, 11963, 12184, 12417

0463, 1326, 2049, 1785, 1780, 1423, 1963

400, 450, 461, 456, 10463, 1463, 0463

0198, 0490

For an up-to-date list of codes for other cable providers and universal remote brands, visit www.insigniaproducts.com/remotecodes.

V3 ENGLISH 20-0141
