Insignia NS-19LCD User Manual

19” LCD TV| Téléviseur ACL de 19 po | Televisor con Pantalla LCD de 19"

NS-19LCD

Insignia NS-19LCD

19” LCD TV

Contents

Safety information . . . . . . . . . . . . . . . . . . . . . . . . .3

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Setting up your TV . . . . . . . . . . . . . . . . . . . . . . . . .7

Using your TV . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Maintaining. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .19

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Français. . . . . . . . . . . . . . . . . . . . . . . . 23

Español . . . . . . . . . . . . . . . . . . . . . . . . 47

Safety information

Caution

To prevent electric shock, match the wide blade on the power cord plug to the wide slot on an electric outlet. If the plug does not fit, consult a licensed electrician to replace the obsolete outlet. Do not modify the power cord plug, or you will defeat this safety feature.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.

Warning

Your TV contains tin-lead solder and a fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated for environmental reasons. For disposal or recycling information, contact your local authorities or the Electronic Industries Alliance at www.eia.org.

Read instructions

Read all of the safety and operating instructions before you use your TV.

Retain instructions

Retain safety and operating instructions for future reference.

Follow warnings and instructions

Follow all warnings on your TV and in the operating instructions. Follow all operating and use instructions.

Water and moisture

Do not use your TV near water. For example, do not use it near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

Cleaning

Unplug your TV before cleaning. Do not use liquid or aerosol cleaners. Use only a damp cloth to clean the exterior of your TV.

Ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, reliable operation, and protection from overheating. These openings must not be blocked or covered. Do not block the openings by placing your TV on a bed, sofa, rug, or other similar surface. Do not place your TV near or over a radiator or heat register. Do not place your TV in a built-in installation, such as a bookcase or rack, unless you provide correct ventilation or follow the manufacturer’s instructions.

Heat

Make sure that your TV is located away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Grounding or polarization

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a grounding prong. The wide blade or grounding prong are provided for your safety. If the plug does not fit, contact an electrician to replace the obsolete outlet.

Power cord protection

Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from your TV.

Attachments

Do not use attachments not recommended by Insignia because they may cause hazards.

Stand

Do not place your TV on an unstable cart, stand, tripod, bracket, or table. Your TV may fall, causing serious personal injury and serious damage to your TV. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with your TV. If you mount your TV to the wall, follow the manufacturer’s instructions and use a mounting accessory recommended by the manufacturer. Your TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause your TV and cart combination to overturn.

Lightning

For added protection for your TV’s receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect the antenna or cable system. This helps prevent damage to your TV from lightning and power line surges.

Servicing

Do not attempt to service your TV yourself because opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

Replacement parts

When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

Overloading

Do not overload power outlets and extension cords because this can result in a risk of fire or electric shock.

Object and liquid entry

Never push objects of any kind into your TV through openings because objects may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on your TV.

Damage requiring service

Unplug this TV from the power outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged or frayed.

• If liquid has been spilled or objects have fallen into your TV.

• If your TV has been exposed to rain or water.

• If your TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore your TV to its normal operation.

• If your TV has been dropped or damaged in any way.

• When your TV exhibits a distinct change in performance.

Replacement parts

Safety check

After completing any service or repair to this TV, ask the service technician to perform routine safety checks to determine that your TV is in correct operating condition.

Power source

Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type power supplied to your home, consult your TV dealer or local power company.

Lightning

Screen protection

Your TV’s screen is made of glass. Do not drop your TV or hit the glass screen. If the screen breaks, be careful of broken glass.

Pixel defect

Your TV’s screen is designed to display finely detailed pictures. Occasionally, a few non-active pixels may appear on the screen as fixed points of blue, green, or red. This is not a defect and does not affect your TV’s performance.

Outdoor antenna grounding

If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

1 Electric service equipment

2 Power service grounding electrode

system

3 Ground clamps

4 Grounding conductors

5 Antenna discharge unit

6 Grounding clamp

7 Antenna lead-in wire

Note to CATV system installer

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for correct grounding and in particular, specifies that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

Features

Front

Control Description

1 CH– and CH+ buttons Press to change the TV

2 VOL– and VOL+

buttons

3 Remote sensor Receives signals from the

4 MENU button Press to open or close the

5 INPUT button Press to select the signal

Power button

7 Power indicator Lights when your TV is turned

Back

You must remove the jack cover to see the jacks.

To remove the jack cover:

• Push the jack cover down, then slide the cover to the right and remove it.

channel. Press to decrease or increase

the volume.

remote control. Do not block.

on-screen display (OSD).

source. Press to turn your TV on or

off. When your TV is on, the power indicator is blue. When your TV is in standby mode, the power indicator is red.

on (blue) or in standby mode (red).

Cover tabs

Back jacks

Jack Description

1 Component right

audio

2 Component left audio If you are using a component

3 AV OUT right audio Plug the right audio connector

4 AV OUT left audio Plug the left audio connector

5 AV OUT video Plug the video connector on a

6 RF Plug the antenna or cable TV

7 Component video

Pr/Cr

8 Component video

Pb/Cb

9 Component video Y If you are using a component

10 AV IN right audio Plug the right audio connector

If you are using a component video connection, plug the right audio cable into this jack

video connection, plug the left audio cable into this jack

on a standard audio/video cable into this jack.

standard audio/video cable into this jack. You can connect an external device, such as a VCR for recording, another TV, or a monitor.

into this jack. If you are using a component

video connection, plug the Pr/Cr connector on a component video cable into this jack.

If you are using a component video connection, plug the Pb/Cb connector on a component video cable into this jack.

video connection, plug the Y connector on a component video cable into this jack.

on a standard audio/video cable into this jack to connect an external device, such as a VCR.

10 11

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

Jack Description

11 AV IN left audio Plug the left audio connector

12 AV IN video Plug the video connector on a

13 S-VIDEO Plug an S-Video device into

14 LINE IN Plug a computer audio cable

15 D-Sub Plug a computer video cable

on a standard audio/video cable into this jack, such as a VCR.

standard audio/video cable into this jack, such as a VCR.

this jack. An S-Video cable does not carry sound. You need to plug the right and left audio connectors on a standard audio/video cable into the AV IN right and left jacks to provide sound.

into this jack.

Remote control

Button Description

6 MUTE Press to mute the sound.

7 PICTURE Press to select the picture

8 MTS/SAP Press to select the stereo

9 INPUT Press to select the signal

11 VOL+ and VOL– Press to increase or decrease

12 ENTER Press to confirm selections. 13 SLEEP Press to set the sleep timer. 14 ZOOM Press to select the aspect

Return

Press again to restore the sound.

mode.

source. Press to go to the previously

viewed channel.

the volume. When the OSD is open, press

to adjust an option.

ratio.

Using the remote control

To use the remote control:

• Point the remote control towards the remote sensor on the front of your TV.

Note

The location of the remote sensor may vary.

ZOOM

Button Description

1 Display Press to display information,

3 Numbers Press to change channels. In

4 MENU Press to open and close the

5 CH+ and CH– Press to change channels.

Power

such as channel number, audio mode, or signal source.

Press to turn your TV on or off.

the on-screen display (OSD), press to enter your password.

OSD.

When the OSD is open, press to select menu options.

The following illustration shows the remote control range.

16.4 ft. (5 M)

Notes

• Do not expose the remote control to shock or liquids.

• Do not use the remote control in an area with high humidity.

• Do not place the remote control in direct sunlight.

• Do not place objects, such as furniture, between the remote control and the remote sensor.

• The remote control may not work if direct sunlight or bright light shines on the remote sensor. Either move your TV or change the angle at which you use the remote control.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

Setting up your TV

Notes

• Check all cables and connectors before making any connections.

• Loose connectors can cause image and color problems, so make sure that all connectors are connected securely.

• Always turn off your TV and any connected devices before you connect or disconnect a device.

• The illustrations in the following tasks may vary from your model.

Installing remote control batteries

To install the remote control batteries: 1 Remove the battery cover.

3 Replace the cover.

Notes

• Do not mix batteries of different types.

• Do not mix old and new batteries.

• Remove batteries when the charge is depleted.

• Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.

• The batteries that came with your TV may have a shorter life than new batteries.

• If the remote control is not going to be used for an extended period of time, remove the batteries.

2 Insert two AAA batteries into the battery

compartment. Make sure that you match the + and – symbols on the batteries with the + and – symbols in the battery compartment.

Connecting your TV to an electrical outlet

To connect your TV to an electrical outlet:

• Plug the power cord into an electrical outlet.

Notes

• Make sure that you use the correct type of power. See the label on your TV.

• If you do not intend to use your TV for an extended period of time, unplug the power cord from the electrical outlet.

Connecting an outside antenna

Antenna cables come in two types: 75 ohm and 300 ohm.

75 ohm cable

300-ohm cable

If your antenna cable has a 75 ohm connector, connect the cable to the RF jack on the back of your TV.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

If your antenna cable has a 300 ohm connector, connect the cable to a 300-75 ohm adapter (not included), connect the adapter to a 75 ohm cable, then connect the other end of the 75 ohm connector to the RF jack on the back of your TV.

Warning

Make sure that you turn off and unplug your TV before installing devices.

Use the following illustration to connect an outside antenna.

Combination antenna

Antenna cable

VHF/UHF antenna

300-ohm cable with adapter

OUT

Combiner

VHF/UHF antenna

75-ohm cable

Separate antennas

UHF antenna

VHF antenna

To connect cable TV with a converter/descrambler box:

• Use the following illustration to connect a

converter/descrambler box. (The RF switch and the signal splitter are not provided.)

Set the RF switch to the A position to watch unscrambled channels using your TV remote control. Set the RF switch to the B position to watch scrambled channels using the converter/descrambler controls.

RF switch

Out

Cable converter/descrambler box

Two-set signal splitter

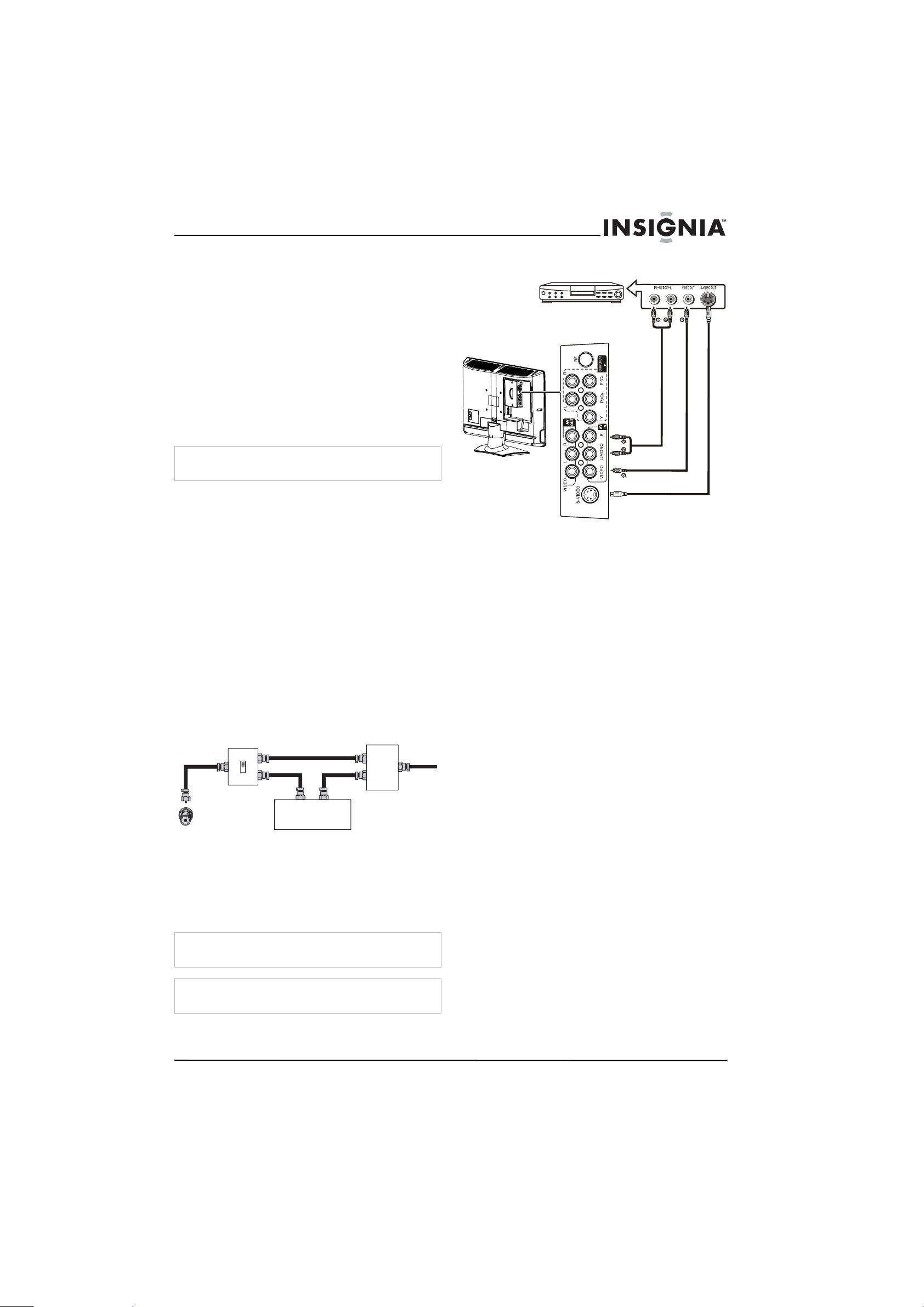

Connecting a VCR

You can connect a VCR with a standard audio/video cable or with a S-Video cable. The S-Video cable does not carry sound. If you use an S-Video cable, you need to use an audio cable to connect sound.

Note

For better video, use the S-Video jack if your VCR has an S-Video connection.

Cable TV

Connecting cable TV

Your TV has a 75 ohm jack for connecting cable TV.

Some cable TV providers scramble the signals for “premium” (pay) channels. To view these channels you need a converter/descrambler box.

If you do not have a converter/descrambler box, you can connect your cable TV directly to your TV. If you have a converter/descrambler box, you can connect your cable TV using an RF switch (not supplied). For more information about connecting a converter/descramble box, contact your cable TV provider.

Warning

Make sure that you turn off and unplug your TV before installing devices.

To connect cable TV without a converter/descrambler box:

1 Connect one end of a 75 ohm cable to the RF

jack on the back of your TV.

2 Connect the other end of the cable to the

cable TV wall outlet.

Warning

Make sure that you turn off and unplug your TV before installing devices.

Use the following illustration to connect a VCR to your TV.

Y=yellow (video) W=white (audio left) R=red (audio right)

Audio

Video

S-Video

To play the VCR: 1 Turn on your TV.

2 Press the INPUT button one or more times to

select Video (or S-Video if you connected the VCR to the S-Video jack).

3 Turn on your VCR. 4 Insert a videotape, then press the PLAY

button.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

Connecting a VCR for recording

Warning

Make sure that you turn off and unplug your TV before installing devices.

Use the following illustration to connect a VCR for recording TV programs.

Y=yellow (video) W=white (audio left) R=red (audio right)

Audio

Video

Connecting a camcorder

Warning

Make sure that you turn off and unplug your TV before installing devices.

Use the following illustration to connect a camcorder to your TV.

To connect a camcorder: 1 Plug the audio/video cable into the AUDIO L,

AUDIO R IN, and VIDEO IN jacks on the back of your TV.

2 Plug the other end of the audio/video cable

into the audio and video out jacks on the camcorder.

Y=yellow (video) W=white (audio left) R=red (audio right)

To record a TV program: 1 Turn on your TV.

2 Select a program you want to record. 3 Turn on the VCR. 4 Insert a videotape, then press the record

button on the VCR.

Audio

Video

To playback from the camcorder: 1 Turn on your TV.

2 Press the INPUT button one or more times to

select VIDEO.

3 Turn on the camcorder, then set it to output

mode. See your camcorder documentation for more information.

4 Insert a tape into the camcorder, then press

the Play button.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

Connecting a DVD player using component video

Warning

Make sure that you turn off and unplug your TV before installing devices.

To connect a DVD player using component video:

1 Plug the Y, Pb, and Pr connectors on a

component video cable into the Y, Pb, and Pr IN jacks on the back of your TV.

Y=yellow (video) W=white (audio left) R=red (audio right)

2 Plug the other ends of the cable into the Y,

Pb, and Pr OUT jacks on the DVD player. The jacks on the DVD player may be labeled Y, Cb, and Cr.

3 Plug the right (red) and left (white)

connectors on a standard audio/video cable into the right (red) and left (white) COMPONENT IN audio jacks on the back of your TV.

4 Plug the audio connectors on the other end

of the audio/video cable into the audio OUT jacks on the DVD player.

To play a DVD: 1 Turn on your TV.

2 Press the INPUT button one or more times to

select YPbPr. 3 Turn on the DVD player. 4 Insert a DVD disc, then press the Play

button.

Connecting a PC

To connect a PC: 1 Plug a D-Sub cable into the D-Sub IN jack on

the back of your TV.

Audio

D-Sub

2 Plug the other end of the D-Sub cable into

the D-Sub OUT jack on the computer.

3 Plug an audio cable into the D-Sub LINE IN

jack on the back of your TV.

4 Plug the other end of the audio cable into the

audio out jack on the computer.

To view the computer screen on your TV: 1 Turn on your TV.

2 Press the INPUT button one or more times to

select D-Sub.

3 Turn on your computer, and check your

computer system requirements. See your computer documentation for more information.

4 Adjust the screen resolution and other

settings on your computer, if necessary.

Using your TV

Turning your TV on and off

To turn your TV on and off: 1 Make sure that the power cord is connected

to your TV and an electrical outlet.

2 Press the button to turn on your TV. 3 Press the button again to turn off your TV.

Selecting the TV source

To select the TV source: 1 Press the MENU button to open the

on-screen display (OSD).

2 Press the CH+ or CH– button one or more

times to select Channel.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

3 Press the ENTER, VOL+, or VOL– button to

open the Channel menu.

4 Press the CH+ or CH– button to select Input.

5 Press the ENTER, VOL+, or VOL– button to

select Antenna or Cable.

Setting up the channel list

To set up the channel list: 1 Press the MENU button to open the

on-screen display (OSD). 2 Press the CH+ or CH– button one or more

times to select Channel.

3 Press the ENTER, VOL+, or VOL– button to

open the Channel menu. The Auto

Searching option is highlighted.

5 Press the CH+ or CH– one or more times to

select Channel Skip.

6 Press the ENTER, VOL+, or VOL– button to

select On or Off. If you select On, the channel is erased from

the list. If you select Off, the channel is added to the

list. When you erase a channel, you cannot tune

to the channel with the CH+ or CH– buttons. You can tune to the channel by pressing the numbers buttons for the channel.

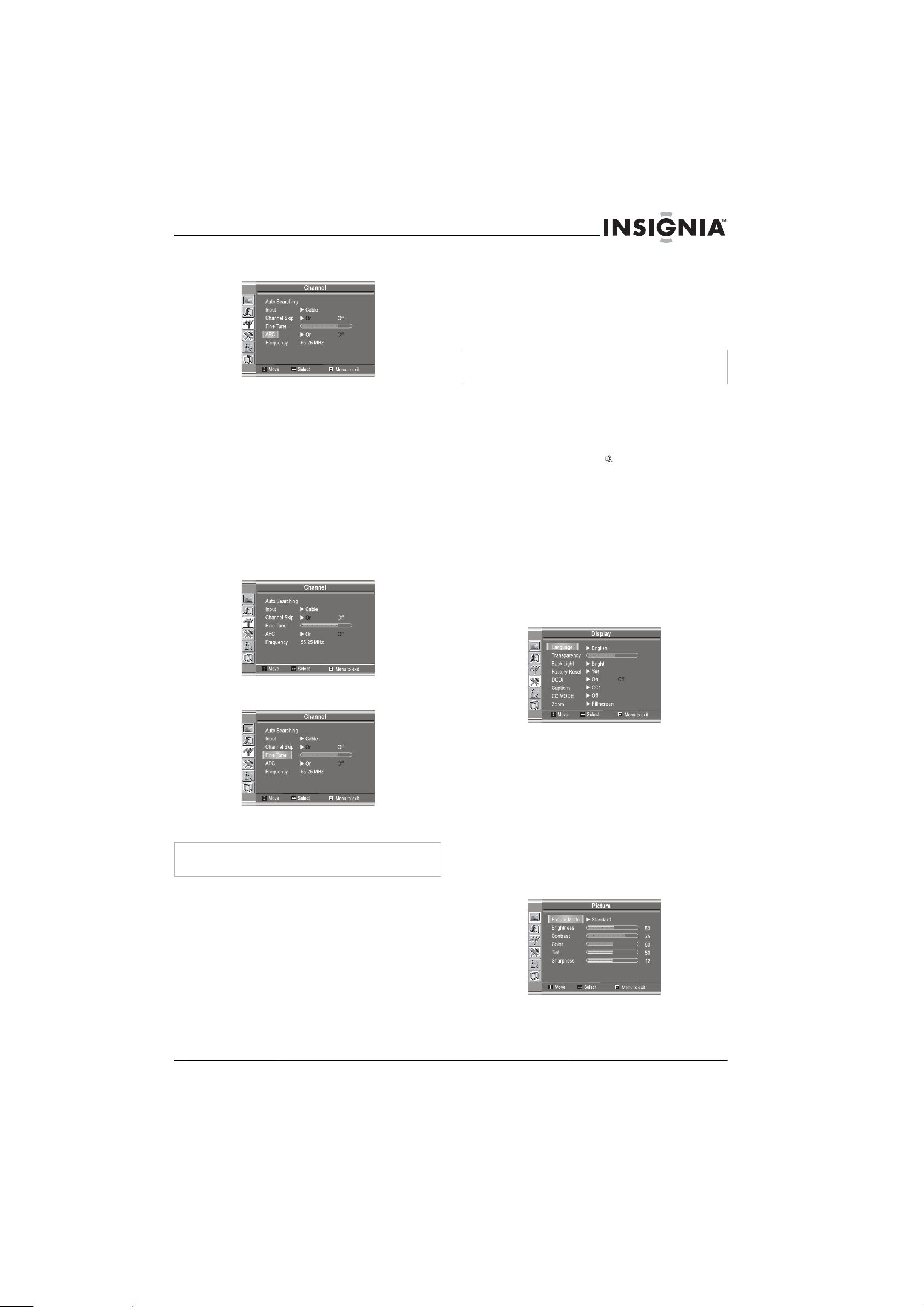

Fine tuning the TV signal

Automatically fine-tuning

To automatically fine-tune the TV signal: 1 Press the MENU button to open the

on-screen display (OSD).

2 Press the CH+ or CH– button to select

Channel.

3 Press the ENTER, VOL+, or VOL– button to

open the Channel menu.

4 Press the ENTER, VOL+, or VOL– button to

start searching for channels. If you want to

stop the search, press the MENU button.

Adding and erasing channels

To add and erase channels: 1 Press the number buttons for the channel

you want to add or erase. 2 Press the MENU button to open the

on-screen display (OSD). 3 Press the CH+ or CH– button one or more

times to select Channel. 4 Press the ENTER, VOL+, or VOL– button to

open the Channel menu.

4 Press the CH+ or CH– button one or more

times to select AFC.

5 Press the ENTER, VOL+, or VOL– button to

turn the AFC option on or off. When the AFC option is turned on, your TV automatically fine-tunes for the best picture and sound.

Manually fine-tuning

To manually fine-tune the TV signal: 1 Press the MENU button to open the

on-screen display (OSD).

2 Press the CH+ or CH– button to select

Channel.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

3 Press the ENTER, VOL+, or VOL– button to

open the Channel menu.

4 Press the CH+ or CH– button one or more

times to select Fine Tune.

5 Press the VOL+ or VOL– button one or more

times to adjust the picture and sound.

Note

If you manually fine-tune a program, the AFC option turns off.

3 Press the ENTER, VOL+, or VOL– button to

open the Display menu. Language is highlighted.

4 Press the ENTER, VOL+, or VOL– button

one or more times to select English, French, or Spanish.

Using preset picture mode

To use the preset picture mode: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Picture.

3 Press the ENTER, VOL+, or VOL– button to

open the Picture menu. Picture Mode is highlighted.

Changing channels

To change the channels:

• Press the CH+ or CH– button one or more

times to select the channel you want.

• To select a one-digit channel number, press the number button for the channel, then press the ENTER button or wait a few seconds.

• To select a two-digit channel number, press the two number buttons in sequence, then press the ENTER button or wait a few seconds.

• To select a three-digit channel number, press the three number buttons in sequence.

Note

To watch a channel that has been erased from the channel list, you must use the number buttons to tune the channel.

Adjusting the volume

To adjust the volume:

• Press the VOL+ or VOL– button to increase or decrease the volume.

• Press the MUTE button to mute sound. Press the button again to restore sound.

4 Press the ENTER, VOL+, or VOL– button to

select the picture mode you want. You can select:

• Bright–Select for a bright picture.

• Soft–Select for a finely detailed picture.

• Standard–Select for a normal picture.

• User–Select to use picture settings you

have customized. For more information about the settings you can customize, see “Customizing the picture” on page 12.

You can also press the PICTURE button to select a picture mode.

Customizing the picture

To customize the picture: 1 Press the MENU button to open the OSD.

Picture is highlighted.

2 Press the ENTER, VOL+, or VOL– button to

open the Picture menu.

Selecting a menu language

To select a menu language: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Display.

3 Press the CH+ or CH– button one or more

times to select the option you want to adjust.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

4 Press the VOL+ or VOL– button one or more

time to adjust the option. If you are in TV or Video mode, you can

adjust the following options:

• Brightness–Adjusts the screen brightness.

• Contrast–Adjusts the screen contrast.

• Color–Adjusts the color saturation.

• Tint–Adjusts the image tint.

• Sharpness–Adjusts the sharpness.

If you are in D-Sub mode, you can adjust the following options:

• Brightness–Adjusts the screen brightness.

• Contrast–Adjusts the screen contrast.

• Color–Adjusts the color saturation.

For information about other options you can change in D-Sub mode, see “Adjusting the image in D-Sub mode” on page 13.

5 Press the MENU button.

Adjusting the image in D-Sub mode

If you are using the D-Sub mode, you can adjust the:

• Picture (automatically)

• Clock and phase

• Image position

Adjusting the picture automatically

To adjust the clock and phase: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Image.

3 Press the ENTER, VOL+, or VOL– button to

open the Image menu.

4 Press the CH+ or CH– button one or more

times to select Clock or Phase.

5 Press the VOL+ or VOL– button to adjust the

option.

Adjusting the image position

To adjust the image position (alignment): 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Image.

3 Press the ENTER, VOL+, or VOL– button to

open the Image menu.

To adjust the picture automatically: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Image.

3 Press the ENTER, VOL+, or VOL– button to

open the Image menu. The Auto Adjustment option is highlighted.

4 Press the ENTER, VOL+, or VOL– button to

open the Auto Adjustment menu. The Auto Adjustment/Yes option is highlighted.

5 Press the ENTER, VOL+, or VOL– button to

start the auto adjustment.

Adjusting the clock and phase

Adjust the clock frequency if the display image shimmers or has rainbow-like noise.

Adjust the phase setting if the display image is blurry.

4 Press the CH+ or CH– button one or more

times to select Image Position.

5 Press the ENTER, VOL+, or VOL– button to

open the Image Position menu.

6 Press the CH+, CH–, VOL+, or VOL– button

to adjust the image position.

Adjusting the sound

Setting the stereo mode

To set the stereo mode: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Sound.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

3 Press the ENTER, VOL+, or VOL– button to

open the Sound menu.

4 Press the CH+ or CH– button one or more

times to select MTS.

5 Press the ENTER, VOL+, or VOL– button

one or more times to select the stereo mode you want. You can select:

• Mono–Select to output the same sound to both speakers.

• Stereo–Select to output the sound in stereo. The program must be broadcast in stereo for this option to work. If you have problems listening to a stereo broadcast, select Force Mono to listen to the program in mono.

• SAP–Select to listen to a secondary audio program. The program must have an secondary audio program for this option to work.

You can also press the MTS/SAP button to select the sound mode.

3 Press the ENTER, VOL+, or VOL– button to

open the Display menu.

4 Press the CH+ or CH– to select the

Transparency option.

5 Press the VOL+ or VOL– button to adjust the

option.

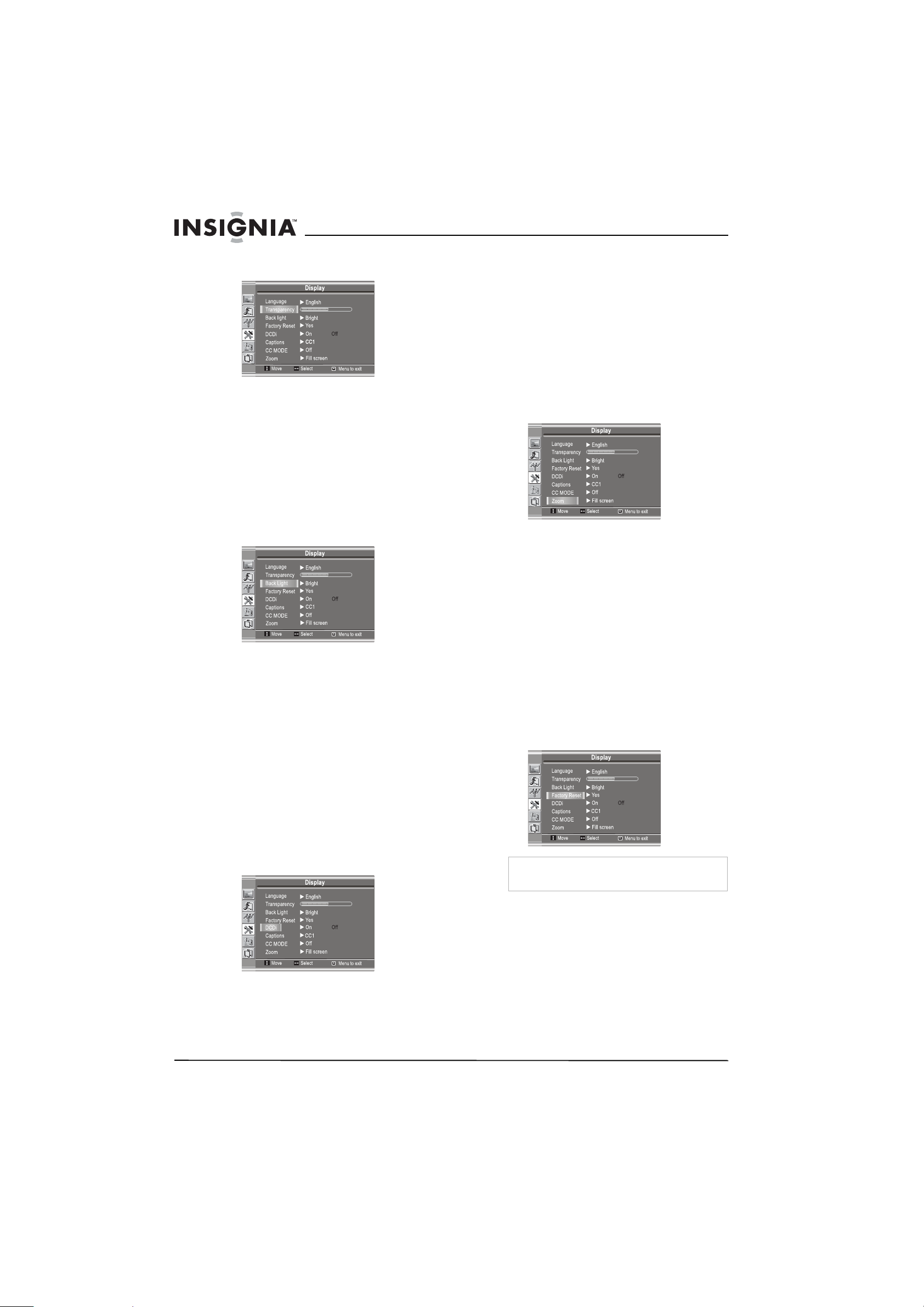

Adjusting the back light

To adjust the back light: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button to select

Display.

3 Press the ENTER, VOL+, or VOL– button to

open the Display menu.

Customizing sound

To customize the sound settings: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Sound.

3 Press the ENTER, VOL+, or VOL– button to

open the Sound menu.

4 Press the CH+ or CH– button to select Bass,

Treble, or Balance.

• Bass–Adjusts low sounds.

• Treble–Adjusts high sounds.

• Balance–Adjusts the left and right volumes.

5 Press the VOL+ or VOL– button to adjust the

option.

Adjusting the menu transparency

4 Press the CH+ or CH– button one or more

times to select the Back Light option.

5 Press the ENTER, VOL+, or VOL– button to

adjust the back light.

Setting the DCDi feature

The DCDi feature enhances picture quality by eliminating jagged edges from the display image.

To set the DCDi feature: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button to select

Display.

3 Press the ENTER, VOL+, or VOL– button to

open the Display menu.

4 Press the CH+ or CH– button one or more

times to select DCDi.

To adjust the menu transparency: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button to select

Display.

5 Press the ENTER, VOL+, or VOL– button to

select On or Off.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

Setting the zoom (screen) mode

The Zoom option lets you set the screen mode so the image is displayed full-screen or in 4:3 aspect ratio.

To set the zoom mode: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button to select

Display.

3 Press the ENTER, VOL+, or VOL– button to

open the Display menu.

4 Press the CH+ or CH– button one or more

times to select Zoom.

5 Press the ENTER, VOL+, or VOL– button to

select Fill screen or Standard. You can also press the Zoom button to

select an aspect ratio.

Viewing closed captions

Your TV can display the closed captions that are broadcast with certain TV programs. These captions are usually subtitles. All VCRs record closed captions if the recorded program has closed captions. Your TV can display the closed captions on videotapes.

Note

The closed caption feature does not work with YPbPr or D-Sub video connections.

To view closed captions: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Display.

3 Press the ENTER, VOL+, or VOL– button to

open the Display menu.

4 Press the CH+ or CH– button one or more

times to select Captions.

Restoring default TV settings

To restore the default TV settings: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button to select

Display.

3 Press the ENTER, VOL+, or VOL– button to

open the Display menu.

4 Press the CH+ or CH– button one or more

times to select Factory Reset.

Caution

Selecting Yes will reset all your TV settings to the factory defaults.

5 Press the ENTER, VOL+, or VOL– button to

select Yes and reset the settings.

Setting the sleep timer

5 Press the ENTER, VOL+, or VOL– button to

select the closed caption setting you want. You can select:

• CC1, CC2, CC3, or CC4–Select to view

subscripts of dialogs or commentaries of TV dramas or news programs. Your TV shows the captions and a clear view of the program.

• T1, T2, T3, or T4–Select to view various

types of information, such as a TV program guide or weather forecast. Your TV displays the caption over the TV image.

Setting the closed caption mode

To set the closed caption mode: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button to select

Display.

3 Press the ENTER, VOL+, or VOL– button to

open the Display menu.

4 Press the CH+ or CH– button one or more

times to select CC MODE.

To set the sleep timer:

• Press the SLEEP button one or more times to select the amount of time you want your TV to wait before it turns off.

• To cancel the sleep timer, press the SLEEP button one or more times until Off appears.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

5 Press the ENTER, VOL+, or VOL– button to

select On, Only Mute, or Off. If you select Only Mute, your TV displays

closed captions when you mute the sound.

Note

If you experience problems with the CCD, open the Display menu, select CC MODE, press the button, then select On and Only Mute. On changes to On+ and Only Mute changes to Only

Mute+.

Setting up parental controls

You can use the parental controls feature to control the types of programs your children watch. You can set parental controls for movies (MPAA rating) and TV programs.

The movie ratings are based on age. The TV ratings are based on age and content.

MPAA ratings

Rating Description

G General audiences. Rated for all ages. PG Parental guidance suggested. Some

PG-13 Parental guidance strongly suggested.

R Restricted. No suitable for children

NC-17 Not suitable for children under 17

X Adults only. This rating is an older

When you block a rating, that rating and all other ratings above that rating are locked. For example, if you block PG-13, the R, NC-17, and X ratings are automatically blocked.

To set up movie parental controls: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Parental Controls.

3 Press the ENTER, VOL+, or VOL– button to

open the Password Controls menu.

content may not be suitable for children.

Some content may not be suitable for children under 13 years of age.

under 17 years of age without parental supervision.

years of age.

version of the NC-17 rating.

5 Press the ENTER, VOL+, or VOL– button to

open the Parental Controls menu.

6 Press the CH+ or CH– button one or more

times to select Movie Rating.

7 Press the ENTER, VOL+, or VOL– button to

open the Movie Rating menu.

8 Press the CH+ or CH– button to select the

movie rating you want to block.

9 Press the ENTER, VOL+, or VOL– button to

confirm, then press the MENU button.

TV ratings (U.S.)

TV ratings are age and content based. Some of the age ratings let you also specify types of content within these ratings that you want to block.

Age rating

TV-Y All children. TV-Y7 Children seven years of age or older. TV-G General audience. TV-PG Parental guidance suggested. TV-14 Parental guidance strongly suggested.

TV-MA Mature audiences only.

Description

Not suitable for children under 14 years of age.

4 Use the number buttons to enter your

password. The default password is 1111.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

Age rating

TV-YXXXXX TV-Y7XXXXO TV-GXXXX TV-PGOOOO TV-14OOOO TV-MA OOO

Note

In the content rating table X=A content rating you can set, but which is not normally

broadcast by TV stations. O=A content rating you can set that is broadcast by TV

stations. D=Suggestive dialog L=Strong or vulgar language S=Sexual content V=Violence FV=Fantasy violence

DLSVFV

To set up TV parental controls: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Parental Controls.

3 Press the ENTER, VOL+, or VOL– button to

open the password menu.

9 Press the ENTER, VOL+, or VOL– button to

confirm the setting. If the age rating has related content ratings, a content screen opens.

10 Press the CH+ or CH– button to select the

content rating you want to block.

11 Press the ENTER, VOL+, or VOL– button to

confirm the setting.

Canadian English ratings

Rating Description

E Exempt. News, sports, documentaries,

talk shows, music videos, and variety programs are exempt.

C Suitable for children under eight years

of age. No offensive language, nudity, or sexual content.

C8+ Suitable for children eight years of age

and older. No profanity, nudity, or

sexual content. G General. Suitable for all audiences. PG Parental guidance suggested. Some

material may not be suitable for

children. 14+ Parental guidance strongly suggested.

Programming contains themes or

content which may not be suitable for

children under 14 years of age. 18+ Suitable for viewers 18 years of age

and older and may contain depictions

of violence.

4 Use the number buttons to enter your

password. The default password is 1111.

5 Press the ENTER, VOL+, or VOL– button to

open the Parental Controls menu.

6 Press the CH+ or CH– button one or more

times to select TV Rating.

7 Press the ENTER, VOL+, or VOL– button

open the TV Rating menu.

To set parental controls for Canadian English:

1 Press the MENU button to open the OSD. 2 Press the CH+ or CH– button one or more

times to select Parental Controls.

3 Press the ENTER, VOL+, or VOL– button to

open the Password Controls menu.

4 Use the number buttons to enter your

password. The default password is 1111.

5 Press the ENTER, VOL+, or VOL– button to

open the Parental Controls menu.

8 Press the CH+ or CH– button to select the

age rating you want to block.

www.insignia-products.com

6 Press the CH+ or CH– button one or more

times to select CA-EN-Rating.

Insignia NS-19LCD 19” LCD TV

7 Press the ENTER, VOL+, or VOL– button to

open the CanEngRating menu.

8 Press the CH+ or CH– button one or more

times to select the rating you want to block.

9 Press the ENTER, VOL+, or VOL– button to

confirm the rating, then press the MENU button.

Canadian French ratings

Rating Description

E Exempt. Exempt programming. G General. Suitable for all ages. Contains

no violence, or the violent content is minimal or is depicted appropriately.

8 ANS+ No suitable for young children. May

contain light or occasional violence. Adult supervision is recommended.

13 ANS+ Not suitable for children under 13

years of age. May contain a few violent scenes or one or more violent scenes that may affect the viewer. Adult supervision strongly recommended.

16 ANS+ Not suitable for children under 16

years of age. May contain frequent scenes of violence or scenes with intense violence.

18 ANS+ Adults only. May contain frequent

violent scenes and extreme violence.

To set parental controls for Canadian French:

1 Press the MENU button to open the OSD. 2 Press the CH+ or CH– button one or more

times to select Parental Controls.

3 Press the ENTER, VOL+, or VOL– button to

open the Password Controls menu.

5 Press the ENTER, VOL+, or VOL– button to

open the Parental Controls menu.

6 Press the CH+ or CH– button one or more

times to select CA-FR-Rating.

7 Press the ENTER button to open the CanFR

Rating menu.

8 Press the CH+ or CH– button to select the

rating you want to block.

9 Press the ENTER, VOL+, or VOL– button to

confirm the rating, then press the MENU button.

Changing the parental controls password

To change the parental controls password: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Parental Controls.

3 Press the ENTER, VOL+, or VOL– button to

open the Password Controls menu.

4 Use the number buttons to enter your

password. The default password is 1111.

4 Use the number buttons to enter your old

password. The default password is 1111.

5 Press the ENTER, VOL+, or VOL– button to

open the Parental Controls menu.

6 Press the CH+ or CH– button one or more

times to select Change Password.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

7 Press the ENTER, VOL+, or VOL– button to

confirm.

8 Enter a new password, then press the

ENTER, VOL+, or VOL– button to confirm.

9 Re-enter the new password, then press the

ENTER, VOL+, or VOL– button to confirm.

Tip

You should write down your password and keep it in a safe place.

If you forget your password, enter 4321.We recommend that you keep this master password away from children.

Turning the parental lock on and off

To turn the parental lock on and off: 1 Press the MENU button to open the OSD.

2 Press the CH+ or CH– button one or more

times to select Parental Controls.

3 Press the ENTER, VOL+, or VOL– button to

open the Password Controls menu.

4 Use the number buttons to enter your

password. The default password is 1111.

5 Press the ENTER, VOL+, or VOL– button to

open the Parental Controls menu.

Clearing parental control settings

To clear parental control settings: 1 From the Parental Controls menu, press the

CH+ or CH– button one or more times to select Clear All.

2 Press the ENTER, VOL+, or VOL– button to

select Yes.

Caution

If you select Yes, all your settings are cleared.

Maintaining

Caution

Do not let a fixed image, such as a game, computer image, or captions stay on your TV’s screen for an extended period of time. The image may “burn-in” and leave a “ghost” image on your screen.

Image burn-in is not covered by your warranty. To limit image burn-in, do the following:

• Reduce the brightness and contrast settings to the lowest level you can tolerate.

• Do not display a fixed image for an extended period of time.

• Turn off your TV when you are not using it.

Cleaning your TV

Clean the screen and cabinet with a soft, lint-free cloth. If the screen or cabinet is especially dirty, moisten a soft, lint-free cloth in a weak detergent solution, squeeze the excess moisture from the cloth, then wipe the screen or cabinet with the cloth. Use a clean cloth to dry the screen or cabinet.

6 Press the CH+ or CH– button one or more

times to select Parental Lock.

7 Press the VOL+ or VOL– button to select On

or Off.

Note

If you want to use parental controls, this option must be set to On

www.insignia-products.com

Caution

Avoid volatile substances, such as insect sprays, solvents, and thinners.

Do not leave your TV in contact with items made from rubber or PVC for long periods. They may damage your TV.

Caution

Do not let liquids drip into the cabinet.

Troubleshooting

General guidelines

• If you use your TV in a location with a low temperature, the picture may leave trails or appear slightly delayed. After your TV warms up, it will operate normally.

• Do not leave your TV in a hot or cold location.

• Do not expose your TV to direct sunlight.

• Do not place your TV near a heat source because the cabinet may be damaged and the screen may not work correctly.

Insignia NS-19LCD 19” LCD TV

Symptom Possible solution

“Ghost” or double images

No power • Make sure that the power cord

No picture • Make sure that the antenna is

Good picture but no sound

Good sound but poor color

Poor picture • Make sure that the room is not

Horizontal dotted line • Your TV may be too close to

Remote control does not work

Snowy picture or noise • Make sure that the A/V cables

D-Sub picture is not stable or synchronized

No output from one of the speakers

Control buttons do not work

• Your antenna may be experiencing interference from high buildings or hills. A high. directional antenna may improve the picture.

is connected to your TV and an electrical outlet.

• Unplug the power cord, wait 60 seconds, then plug the cord back in and turn on your TV.

connected securely and correctly to the RF jack on the back of your TV.

• Possible broadcast station trouble. Try another channel.

• Adjust the contrast and brightness settings.

• Check the Closed Captions control. Some text modes could block the screen.

• Select a correct video input.

• Increase the volume.

• Make sure that the sound is not muted.

• Adjust the contrast, color, and brightness settings.

too bright. Light reflecting off the screen can make the picture difficult to see.

• If an S-VHS camera or a camcorder is connected while another connected device is turned on, the picture may be poor. Turn off one or more devices.

another electrical device, such as a hair dryer or neon light. Turn off the device or move your TV.

• Replace the batteries. Make sure that the + and – symbols on the batteries align with the + and – symbols in the battery compartment.

• Clean the remote sensor on the front of your TV.

• Bright or fluorescent lighting may interfere with the remote control signal. Turn off the light or move your TV.

are connected correctly and securely.

• Make sure that you have selected the correct D-Sub mode on your computer.

• Adjust the balance in the Sound menu.

• Unplug the power cord, wait few seconds, then plug the cord back in and turn on your TV.

Warning

Do not try to repair your TV. See an authorized TV technician for repairs.

Specifications

• Design and specifications are subject to change without notice.

• Weight and dimensions listed are approximate.

Power supply AC 100-240 V 50/60 Hz Power

consumption Screen 19-inch Operating

temperature Storage

temperature Channel coverage VHF: 2-13

Weight 17.6 lbs. (8 kg) Dimensions

W×H×D TV system NTSC Speaker 8 W,8Ω ×2 Accessories User guide

70 W (Max.)

41°F to 104°F (5°C to 40°C)

32°F to 122°F (0°C to 50°C)

UHF: 14-69 CATV: 1-125

21.4 × 17.8 × 6.9 inches (54.3 × 45.3 × 17.5 cm)

Remote control

Legal notices

© 2006 Insignia. Insignia and the Insignia logo are trademarks of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. Specifications and features are subject to change without notice or obligation.

Note

If the preceding information does not help you solve your problem, turn off your TV, wait a few minutes, then turn it on again.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

1 Year Limited Warranty

Insignia Products (“Insignia”) warrants to you, the original purchaser of this new NS-19LCD (“Product”), that the Product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the date of your purchase of the Product (“Warranty Period”). This Product must be purchased from an authorized dealer of Insignia brand products and packaged with this warranty statement. This warranty does not cover refurbished Product. If you notify Insignia during the Warranty Period of a defect covered by this warranty that requires service, terms of this warranty apply.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. The purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a retail store location, take your original receipt and the Product to the store you purchased it from. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from an online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the product in the United States and Canada.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction

• Installation

• Set up adjustments

• Cosmetic damage

• Damage due to acts of God, such as lightning

strikes

• Accident

• Misuse

• Abuse

• Negligence

• Commercial use

• Modification of any part of the Product, including

This warranty also does not cover:

the antenna

• Damage due to incorrect operation or maintenance

• Connection to an incorrect voltage supply

• Attempted repair by anyone other than a facility

authorized by Insignia to service the Product

• Products sold as is or with all faults

• Consumables, such as fuses or batteries

• Products where the factory applied serial number

has been altered or removed

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Insignia: For customer service please call 1-877-467-4289

www.insignia-products.com INSIGNIA™ is a trademark of Best Buy Enterprise Services, Inc. Distributed by Best Buy Purchasing, LLC. Insignia, 7601 Penn Avenue South, Richfield, Minnesota, U.S.A.

www.insignia-products.com

Insignia NS-19LCD 19” LCD TV

www.insignia-products.com

+ 50 hidden pages
